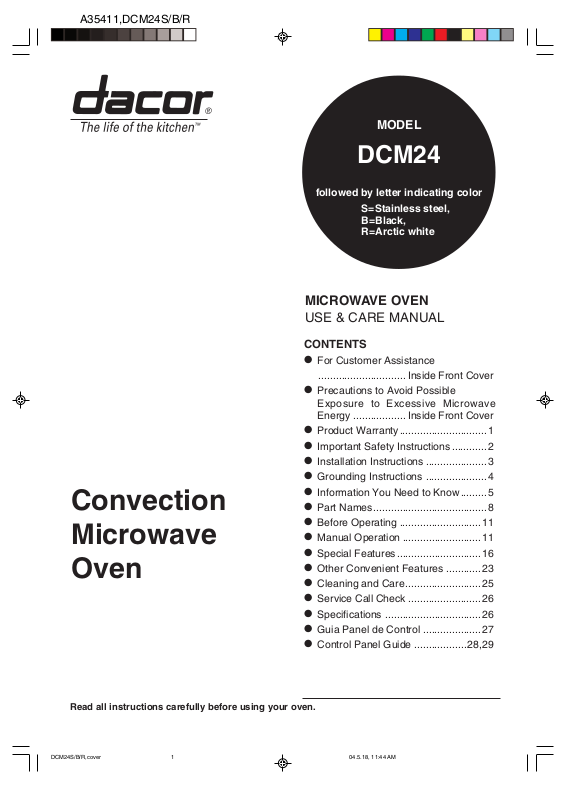

Dacor DCM24 User Manual

Convection
Microwave
Oven

MODEL

DCM24

followed by letter indicating color

S=Stainless steel,
B=Black,
R=Arctic white

MICROWAVE OVEN

USE & CARE MANUAL

CONTENTS

For Customer Assistance

•

.............................. Inside Front Cover

Precautions to Avoid Possible

•

Exposure to Excessive Microwave

Energy .................. Inside Front Cover

Product Warranty..............................1

•

Important Safety Instructions ............ 2

•

Installation Instructions .....................3

•

Grounding Instructions ..................... 4

•

Information You Need to Know.........5

•

Part Names.......................................8

•

Before Operating ............................11

•

Manual Operation ...........................11

•

Special Features.............................16

•

Other Convenient Features ............23

•

Cleaning and Care..........................25

•

Service Call Check .........................26

•

Specifications ................................. 26

•

Guia Panel de Control ....................27

•

Control Panel Guide ..................28,29

•

Read all instructions carefully before using your oven.

FOR CUSTOMER ASSISTANCE

To aid in reporting this microwave oven in case of loss or theft, please record below the model number
and serial number located on the unit. We also suggest you record all the information listed and retain for
future reference.

MODEL NUMBER ___________ SERIAL NUMBER __________

DATE OF PURCHASE ____________________________________

Dealer _____________________ Telephone ____________________

Servicer _____________________ Telephone _________________

TO PHONE: [phone]

TO WRITE: DACOR

1440 Bridge Gate Drive
Diamond Bar, CA 91765

Please provide the following information when you write or call: model number, serial number, date of
purchase, your complete mailing address (including zip code), your daytime telephone number (including
area code) and description of the problem.

TO ACCESS INTERNET: www.dacor.com

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result

in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close

properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

PRODUCT WARRANTY

WHAT IS COVERED

CERTIFICATE OF WARRANTIES

DACOR MICROWAVE OVEN

WITHIN THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA * :

FULL ONE YEAR WARRANTY
If your DACOR product fails to function within one year of the original date of purchase, due to a defect in material
or workmanship, DACOR will remedy the defect without charge to you or subsequent users. The owner must
provide proof of purchase upon request and have the appliance accessible for service.

* Warranty is null and void if non-CSA approved product is transported from the U.S.

OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA:

LIMITED FIRST YEAR WARRANTY
If your DACOR product fails to function within one year of the original date of purchase, due to a defect in material
or workmanship, DACOR will furnish a new part, F.O.B. factory, to replace the defective part. All delivery,
installation and labor costs are the responsibility of the purchaser. The owner must provide proof of purchase
upon request and have the appliance accessible for service.

WHAT IS NOT COVERED

• Failure of the product caused by faulty installation, improper usage, or neglect of required maintenance.

• Service calls to educate the customer in the proper use and care of the product.

• Failure of the product when used for commercial, business, rental or any application other than for residential
consumer use.

• Replacement of house fuses or fuse boxes, or resetting of circuit breakers.

• Damage to the product caused by accident, fire, flood or other acts of God.

• Breakage, discoloration or damage to glass, metal surfaces, plastic components, trim, paint, porcelain or
other cosmetic finish, caused by improper usage or care, abuse, or neglect.

THE REMEDIES PROVIDED FOR IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND
EXCLUSIVE REMEDIES THEREFORE NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE
THE FIFTY STATES OF THE UNITED STATES AND THE DISTRICT OF COLUMBIA, ALL IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO , ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE
OR CONSEQUENTIAL DAMAGES NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER
FOR RESALE.

Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

1

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to

excessive microwave energy:

1. Read all instructions before using the

appliance.

2.

Read and follow the specific “PRECAUTIONS

TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY”

on inside front cover.

3.

This appliance must be grounded. Connect only to

properly grounded outlet. See“GROUNDING

INSTRUCTIONS” on page 4.

4. Install or locate this appliance only in ac­cordance with the provided installation
instructions.

5. Some products such as whole eggs and
sealed containers -- for example, closed
glass jars -- are able to explode and should
not be heated in this oven.

6. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.

7. As with any appliance, close supervision is
necessary when used by children.

8.

Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.

9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Dacor Authorized Servicer for examination,
repair or adjustment.

10. Do not cover or block any openings on the
appliance.

11. Do not store or use this appliance outdoors.
Do not use this product near water--for
example, near a kitchen sink, in a wet
basement, near a swimming pool or similar
locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or
counter.

15. See door surface cleaning instructions on
page 25.

16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend

appliance when paper, plastic or other
combustible materials are placed inside
the oven to facilitate cooking.

b. Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

c.

If materials inside the oven ignite, keep oven
door closed, turn oven off and disconnect
the power cord or shut off power at the fuse
or circuit breaker panel.

d.

Do not use the cavity for storage purposes.
Do not leave paper products, cooking utensils
or food in the cavity when not in use.

17.

Liquids, such as water, coffee or tea are able to be
overheated beyond the boiling point without appearing
to be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is not
always present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER WHEN
A SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury to persons:

a. Do not overheat the liquid.
b. Stir the liquid both before and halfway

through heating it.

c. Do not use straight-sided containers

with narrow necks. Use a wide-mouthed
container.

d.

After heating, allow the container to stand
in the microwave oven at least for 20
seconds before removing the container.

e. Use extreme care when inserting a

spoon or other utensil into the container.

18. If the oven light fails, consult a DACOR

AUTHORIZED SERVICER.

19. Do not operate any heating or cooking

appliance beneath this appliance.

20. Do not mount unit over or near any portion

of a heating or cooking appliance.

21. Do not mount over a sink.

22.

Do not store anything directly on top of the appliance
surface when the appliance is in operation.

23.

DCM24 is suitable for built-in installation over
only Dacor’s wall oven and warming oven
models. See page 3 for applicable models.

SAVE THESE INSTRUCTIONS

2

INSTALLATION INSTRUCTIONS

Unpacking and Examining Your Oven

Remove all packing materials from inside the oven
cavity; however, DO NOT REMOVE THE
WAVEGUIDE COVER, which is located on the ceil-

ing. Read enclosures
and SAVE the Opera­tion Manual. Check the
oven for any damage,
such as misaligned or
bent door, damaged
door seals and sealing
surfaces, broken or
loose door hinges and

latches and dents in­side the cavity or on the door. If there is any damage,
do not operate the oven and contact your dealer or
DACOR AUTHORIZED SERVICER.

Choosing a Location for Your Oven on the counter

You will use the oven frequently so plan its location
for ease of use. It’s wise, if possible, to have counter
space on at least one side of the oven. The oven
must be placed on a counter top which is a minimum
of 36 inches from the floor. Allow at least 2 inches on
the sides, top and at the rear of the oven for air
circulation. Be sure to position oven so that the rear
cannot be touched inadvertently.

Choosing a Location for Your Oven if built-in

Your oven can be built into a
cabinet or wall by itself or above
any DACOR wall oven listed
below using DACOR’s Built-in
Kits, either the ACTK27 or the
ACTK30. The ACTK27 is for a
27" wall oven, while the ACTK30
accommodates installation
above 30" wall ovens.

ABOVE WARMING OVEN INSTALLATION

RECOMMENDED

HEIGHT

(914MM)

36"

MICROWAVE

CUTOUT

1

1

/4"

(32MM)

WARMING
OVEN CUTOUT
(ALL MODELS)

Carefully follow both the wall oven installation instruc­tions and Built-in Kit instructions.
The opening in the wall or cabinet must be the
following dimensions:

1

A HEIGHT : 19
B WIDTH : 25

/8 "

1

/4 " (ACTK27)

28 1/4 " (ACTK30)

C DEPTH : 24 "

The electrical outlet should NOT be in the shaded
area as indicated.
The floor of the opening should be constructed of
plywood strong enough to support the weight of the
oven and floor load (about 100 pounds). The floor
should be level for proper operation of the oven. Be
sure to check the local building code as it may require
that the opening be enclosed with sides, ceiling and
rear partition. The proper functioning of the oven does
not require the enclosure.

The applicable wall ovens and warming ovens
are as follows:

OVENS - ECS127, ECS130, MCS127, MCS130,

PCS127, PCS130
WARMING OVENS - EWO24, EWO27, EWO30,
MWO27, MWO30, PWO24, PWO27, PWO30,
IWO24, IWO27

Do not built-in above any other gas or electric wall oven.

ABOVE OVEN INSTALLATION

41"

(1041MM)

MICROWAVE

CUTOUT

TOP OF

MICROWAVE

SHELF

1

1

/2"

(38MM)

EPICURE, PREFERENCE

AND MILLENNIA

SINGLE WALL
OVEN CUTOUT

Call toll-free: [phone] for a dealer nearest you.
The kit includes ducts, finish trim strips and easy-to­follow instructions for installation as well as the location
of the power supply.

3

D

A

B

D: 5 "
E : 10" (ACTK27)

: 11 1/2" (ACTK30)

E

C

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the
National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING – Improper use of the grounding plug can result

in a risk of electric shock.

Electrical Requirements

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp.
or more protected electrical supply. It is recommended that a
separate circuit serving only the microwave oven be provided.

The oven is equipped with a 3-prong grounding plug. It must be
plugged into a wall receptacle that is properly installed and grounded.
Should you only have a 2-prong outlet, have a qualified electrician
install a correct wall receptacle.

A 3-prong adapter may be purchased and used temporarily if local
codes allow. Follow package directions.

A short power-supply cord is provided to reduce risk of becoming
entangled in or tripping over a longer cord.

Extension Cord

If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the microwave oven. The
marked rating of the extension cord should be AC 115-120 volt, 15
amp. or more.

Be careful not to drape the cord over the countertop or table where
it can be pulled on by children or tripped over accidentally.

Notes:

1. If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or service person.

2. Neither Dacor nor the dealer can accept any liability for damage
to the oven or personal injury resulting from failure to observe
the correct electrical connection procedures.

Radio or TV Interference

Should there be any interference caused by the microwave oven
to your radio or TV, check that the microwave oven is on a different
electrical circuit, relocate the radio or TV as far away from the oven
as feasible or check position and signal of receiving antenna.

3-Prong Plug

Grounding Pin

3-Prong Receptacle

Grounded
Receptacle Box

Permanent and Correct Installation

Grounding
Adaptor

Screw

Tab for
Grounding Screw

Grounded
Receplacle Box

Temporary Use

4

INFORMATION YOU NEED TO KNOW

About Your Oven

This Use & Care Manual is valuable: read it carefully
and always save it for reference.

The Dacor Convection Microwave Cookbook is a
valuable asset. Check it frequently for cooking

principles, techniques, hints and recipes.
NEVER use the oven without the turntable and

support nor turn the turntable over so that a large
dish could be placed in the oven. The turntable will
turn both clockwise and counterclockwise.

ALWAYS have food in the oven when it is on to
absorb the microwave energy.

When using the oven at power levels below 100%,
you may hear the magnetron cycling on and off. It is
normal for the exterior of the oven to be warm to the
touch when cooking or reheating.

Condensation is a normal part of microwave cooking.
Room humidity and the moisture in food will influence
the amount of moisture that condenses in the oven.

About Food

DO

Eggs, sausages,

nuts, seeds, fruits
& vegetables

Popcorn

Baby food

General

* Puncture egg yolks before cooking to

prevent “explosion”.

* Pierce skins of potatoes, apples,

squash, hot dogs and sausages so that
steam escapes.

* Use specially bagged popcorn for the

microwave oven.

* Listen while popping corn for the

popping to slow to 1 or 2 seconds or use
POPCORN pad for "no-guess" popping.

* Use an overturned 9 or 10 inch oven

proof glass pie plate on top of the
turntable when popping bagged
microwave popcorn.

* Transfer baby food to small dish and

heat carefully, stirring often. Check
temperature before serving.

* Put nipples on bottles after heating and

shake thoroughly. “Wrist” test before
feeding.

* Cut baked goods with filling after

heating to release steam and avoid
burns.

* Stir liquid briskly before and after

heating to avoid “eruption”.

* Use deep bowl when cooking liquid or

cereal to prevent boilovers.

Generally, covered foods will not cause as much
condensation as uncovered ones. Vents on the oven
back must not be blocked.

After using convection, automatic mix or broil,
you will hear the sound of the cooling fan. The fan
may continue to operate as long as 5 minutes,
depending on the oven temperature.

Be aware that, unlike microwave-only ovens,
convection microwave ovens have a tendency to
become hot during convection, automatic mix and
broil cooking.

The oven is for food preparation only. It should not be
used to dry clothes or newspapers.

Your oven is rated 900 watts using the IEC Test
Procedure. In using recipes or package directions,
check food at the minimum time and add time
accordingly.

DON’T

* Cook eggs in shells.
* Reheat whole eggs.
* Dry nuts or seeds in shells.

* Pop popcorn in regular brown

bags or glass bowls.

* Exceed maximum time on

popcorn package.

* Heat baby food in original jars.
* Heat disposable bottles.
* Heat bottles with nipples on.

* Heat or cook in closed glass jars

or air tight containers.

* Can in the microwave as

harmful bacteria may not be

destroyed.
* Deep fat fry.
* Dry wood, gourds, herbs or wet

papers.

5

About Utensils and Coverings

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in
your new convection microwave oven. The chart below will help you decide what utensils and coverings should
be used in each mode.

Utensils and

Coverings

Aluminum foil

Aluminum containers

Browning dish

Glass ceramic
(Pyroceram.®)

Glass, heat-resistant

Glass, non-heat-resistant
Lids, glass

Lids, metal

Metal cookware

Metal, misc: dishes
with metallic trim,
screws, bands,
handles. Metal twist
ties
Oven cooking bags

Paper plates

Paper towels

Paper, ovenable

Microwave Only

Yes

Small flat pieces of aluminum foil placed
smoothly on food can be used to shield areas
from cooking or defrosting too quickly. Keep foil
at least 1 inch from walls of oven.

Yes

Can be used if 3/4 filled with food. Keep 1
inch away from walls and do not cover with foil.

Yes

Do not exceed recommended preheating
time. Follow manufacturer's directions.

Yes

Excellent

Yes

Excellent. Overturned pie plate necessary
for popping popcorn.

No

Yes

No

No

No

Good for large meats or foods that need

Yes

tenderizing. DO NOT use metal twist ties.

For reheating

Yes
Yes

To cover for reheating and cooking. Do
not use recycled paper towels which may contain
metal filings.

Yes

Convection

Broil, Slow Cook

Yes

For shielding

Yes

Broil-No

cover

Yes

Yes

filled with food. Keep 1
inch away from walls and
do not cover with foil.

No

Excellent

Yes Yes

Yes

Yes

Excellent

No

Broil-No

Yes

cover

Yes

Broil-No

cover

Yes

Yes

covering.

No

Broil-No

Yes

Yes

twist ties.

No
No

For

Yes

temperatures up

Yes

to 400°F.
to 400°F. Do not
use for broiling.

High Mix/Roast

Low Mix/Bake

For shielding

Can be used if 3/4

No

Excellent

Excellent

No

Yes

No

Do not use metal

No

DO NOT use metal

No
No

For temperatures up

6

Utensils and

Coverings

Microwave-safe
plastic containers

Plastic, Thermoset

Plastic wrap

Pottery, porcelain
stoneware

Styrofoam

Microwave Only

Yes

Use for reheating and defrosting. Some
microwave-safe plastics are not suitable for
cooking foods with high fat and sugar content.
Follow manufacturer's directions.

®

Yes

Use brands specially marked for
microwave use. DO NOT allow plastic wrap to
touch food. Vent so steam can escape.

Yes

Check manufacturer's recommendation for
being microwave safe.

Yes

For reheating

Yes

Convection

Broil, Slow Cook

No No

Yes

Are heat
resistant up to
425°F. Do not
use for broiling.

No

Yes

No

High Mix/Roast

Low Mix/Bake

Yes

No

Yes

Must be microwave

safe and ovenable.

No

Wax paper

Wicker, wood, straw

Yes

Good covering for cooking and reheating

Yes

May be used for short periods of time. Do
not use with high fat or high sugar content
foods. Could char.

No

No

No

No

DISH CHECK. If you wish to check if a dish is safe for microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. If the dish becomes very hot, do NOT use it for microwaving.

ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining
correct doneness and assure you that foods have been cooked to safe temperatures when using microwave­only cooking. Dacor is not responsible for any damage to the oven when accessories are used.

About Microwave Cooking

* Arrange food carefully. Place thickest areas

toward outside of dish.

* Watch cooking time. Cook for the shortest

amount of time indicated and add more as
needed. Foods severely overcooked can smoke
or ignite.

* Cover foods while cooking. Check recipe or

cookbook for suggestions: paper towels, wax
paper, microwave plastic wrap or a lid. Covers
prevent spattering and help foods to cook evenly.

* Shield with small flat pieces of aluminum foil any

thin areas of meat or poultry to prevent
overcooking before dense, thick areas are
cooked thoroughly.

* Stir foods from outside to center of dish once or

twice during cooking, if possible.

* Turn foods over once during microwaving to

speed cooking of such foods as chicken and
hamburgers. Large items like roasts or turkey
breasts must be turned over at least once.

* Rearrange foods like meatballs halfway through

cooking both from top to bottom and from the
center of the dish to the outside.

* Add standing time. Remove food from oven and

stir, if possible. Cover for standing time which
allows the food to finish cooking without
overcooking.

* Check for doneness. Look for signs indicating

that cooking temperatures have been reached.

Doneness signs include:

– Food steams throughout, not just at edge.

– Center bottom of dish is very hot to the

touch.

– Poultry thigh joints move easily.
– Meat and poultry show no pinkness.
– Fish is opaque and flakes easily with a fork.

7

About Children and the Microwave

Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising
person should be in the same room.

The child must be able to reach the oven comfortably;
if not, he/she should stand on a sturdy stool.

At no time should anyone be allowed to lean or swing
on the oven door.

Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they
may be extra hot.

Don’t assume that because a child has mastered
one cooking skill he/she can cook everything.

Children need to learn that the microwave oven is not
a toy. See page 24 for Safety Lock feature.

About Safety

* Check foods to see that they are cooked to the

United States Department of Agriculture’s
recommended temperatures:

– 160°F. for fresh pork, boneless white

poultry, fish, seafood, egg dishes and
frozen prepared food.

– 165° F. for leftover, ready-to-heat

refrigerated, and deli and carry-out “fresh”
food.

– 170°F. white meat of poultry.
– 180°F. dark meat of poultry.

To test for doneness, insert a meat thermometer in
a thick or dense area away from fat or bone. NEVER
leave the thermometer in food during cooking, unless
using a microwave thermometer when cooking with
only microwave power.

* Always use potholders to prevent burns when

handling utensils that are in contact with hot
food.

Enough heat from the food can transfer through
utensils to cause skin burns.

* Avoid steam burns by directing steam away

from the face and hands. Slowly lift the farthest
edge of a dish’s covering and carefully open
popcorn and oven cooking bags away from the
face.

* Stay near the oven while it’s in use and check

cooking progress frequently so that there is no
chance of overcooking food.

* NEVER use the cavity for storing cookbooks or

other items.

* Select, store and handle food carefully to

preserve its high quality and minimize the spread
of foodborne bacteria.

* Keep wave guide cover clean. Food residue

can cause arcing and/or fires.

* Keep aluminum foil used for shielding at least 1

inch away from walls, ceiling and door.

* Use potholders and be careful when using

convection, mix or broil cooking as cabinet,
interior and door may be too hot to touch.

* Use care when removing items from the oven

so that the utensil, your clothes or accessories
do not touch the safety door latches.

PART NAMES

1

Ventilation openings. (Rear side)

2

Oven door with see-through window.

3

Oven light.

It will light when the door is opened
or when oven is in operation.

4

Turntable support. (See page 9)

5

Removable turntable. (See page 9)

The turntable will rotate clockwise
or counterclockwise.

1

2

11 14

6

3

7

10

9

8

6

To set the turntable support and turntable, see the
Special Note for the Turntable Support and Turntable
on page 9.

6

Safety door latches.

The oven will not operate unless the
door is securely closed.

7

Waveguide cover.

8

Door open button.

9

Auto-Touch control panel.

10

Lighted digital display.

11

Convection air openings.

12

Removable low rack. (Broiling trivet)

13

Removable high rack. (Baking rack)

14

Turntable motor shaft.

Top

4

13

12

5

8

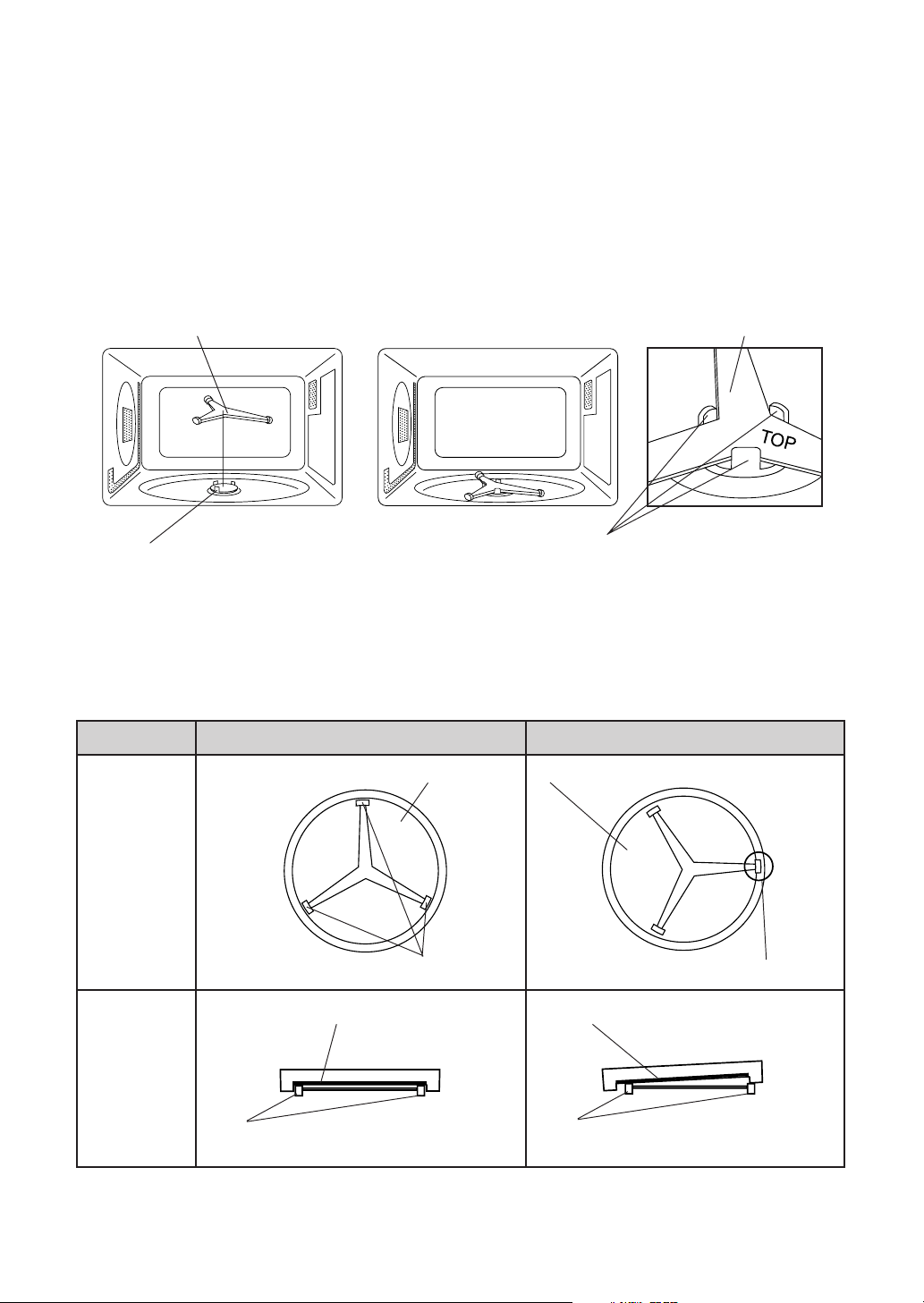

Special Note for the Turntable Support and Turntable

Read carefully before setting the turntable and turntable support, to turn them smoothly.
Improper setting may cause arcing.

1. Place the turntable support to the turntable motor shaft, "Top"side up (Top is engraved
on one side). See Fig.1-1 and Fig.1-2. And make sure the center of turntable support is set
between three nails of the turntable motor shaft as shown in Fig.2.

Fig.1-1

2.

Place the turntable on the turntable support. The turntable should be set as all three rollers of
turntable support contact to the flat surface of the turntable. Check the position of the turntable
and turntable support, referring to the chart below, and make sure the turntable rotates smoothly.

Turntable support

Turntable motor shaft

Fig.1-2

Fig. 2

The nails of the turntable motor shaft

Turntable support

CORRECT WRONG

Flat surface of the turntable

Flat surface of the turntable

Back view

Side view

Out of flat surfaceRoller of the turntable support

Flat surface of the turntable Flat surface of the turntable

Roller of the turntable support Roller of the turntable support

9

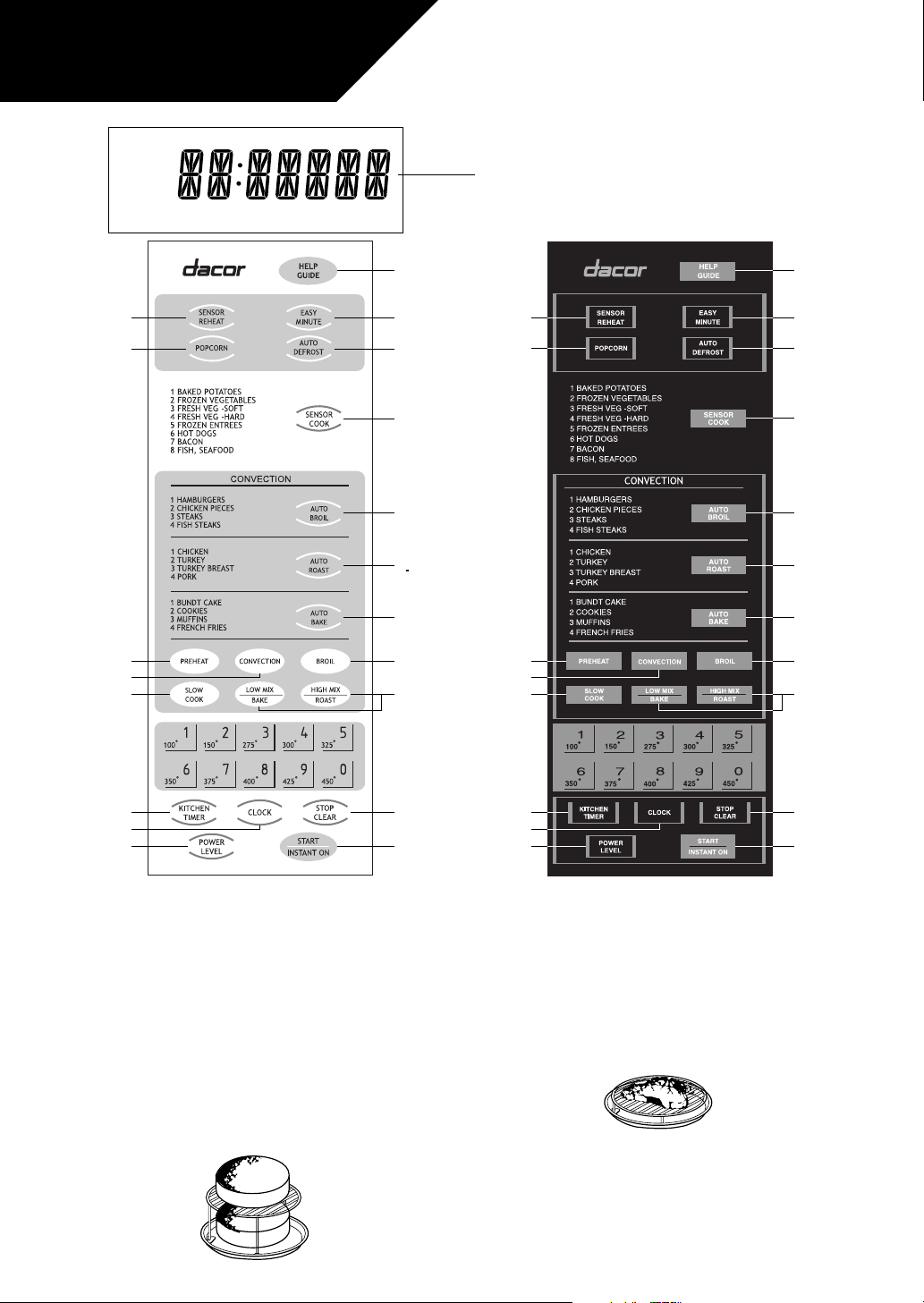

PART NAMES

MIX CONV
DEFROST
SENSOR
TURNTABLE

OFFON

COOK

LBS

OZ

KG

HELP

Interactive display

Words will light in the display to indicate
features and cooking instructions.

17

17

12,11

11
14

25

24

15

18

21

22

23

14

12,13

17

17

12,11

11
14

25

24

15

18

21

22

23

14

12,13

24
25,10
24,10

10

10,24

DCM24R

Numbers indicate pages on which there are a feature description and usage information.

ACCESSORIES

The following accessories are designed especially
for use in this oven only for convection, mix or broil
cooking. DO NOT USE FOR MICROWAVE ONLY
COOKING. Do not substitute similar types of racks
for these specially designed ones.

High rack (Baking rack)–for convection and low mix.
–This rack is placed on the turntable for two-level
cooking, such as layer cakes, muffins, etc.

24
25,10
24,10

DCM24S, DCM24B

Low rack (Broiling trivet)–for convection, broiling or
high mix.
–Place on the turntable and use for roasting or
broiling to allow juices to drain away from food.

10

10

10,24

BEFORE OPERATING

POWER

LEVEL

* Before operating your new microwave oven make

sure you read and understand this Use & Care
manual completely.

* Before the oven can be used, follow these

procedures:

1) Plug in the oven. Close the door. The display will

say WELCOME PRESS CLEAR AND PRESS

CLOCK.

2) Touch the STOP/CLEAR pad.
will appear.

3) Touch CLOCK pad.

4) Heat the oven without food. (See page 12,

SPECIAL NOTE)

TO SET THE CLOCK

* Suppose you want to enter the correct time of day

12:30 (A.M. or P.M.):

Procedure

1.

2.

3.

This is a 12 hour clock. If you attempt to enter an
incorrect clock time, ERROR will appear in the
display. Touch the STOP/CLEAR pad and re-enter
the time.

* If the electrical power supply to your microwave

oven should be interrupted, the display will
intermittently show WELCOME PRESS CLEAR

AND PRESS CLOCK after the power is reinstated.
If this occurs during cooking, the program will be

erased. The time of day will also be erased. Simply
touch STOP/CLEAR pad and reset the clock for the
correct time of day.

CLOCKCLOCK

CLOCK

STOP/CLEAR

Touch the STOP/CLEAR pad to:

1. Erase if you make a mistake during programming.

2. Cancel kitchen timer.

3. Stop the oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, touch twice.

Touch CLOCK
pad.

Enter the correct
time of day by
touching the
numbers in
sequence.

Touch CLOCK
pad again.

MANUAL OPERATION

MICROWAVE COOKING

Time Cooking

Your oven can be programmed for 99 minutes 99
seconds (99.99). Always enter the seconds after the
minutes, even if they are both zeros.

* Suppose you want to cook for 5 minutes at 100%:

Procedure

1.

2.

There are eleven preset power levels.
Using lower power levels increases the cooking time
which is recommended for foods such as cheese, milk
and long slow cooking of meats. Consult cookbook or
recipes for specific recommendations.

Touch POWER
LEVEL Pad
Once,
then Touch

POWER

LEVEL

* Suppose you want to defrost for 5 minutes at 30%:

1.

2.

3.

You can program up to 4 automatic cooking
sequences. Follow directions on page 23. Note that
POWER LEVEL must be entered first when
programming multiple sequences.

START

INSTANT ON

Approximate

Percentage

of Power

100%
9
8
7
6
5
4
3
2
1
0

Procedure

START

INSTANT ON

Enter cooking
time.

Touch START
pad.

Power Levels

90%
80%
70%
60%
50%
40%
30%
20%
10%

0%

Medium High

Med. Low/Defrost

Enter defrosting
time.

Enter power
level.

Touch START pad.

Common

Words

for

High

Medium

Low

11

CONVECTION AND AUTOMATIC

START

INSTANT ON

PREHEATPREHEAT

MIX COOKING

This section of the Use & Care Manual gives you
specific cooking instructions and procedures. Please
consult your Convection Microwave Cookbook for
helpful hints for convection and combination cook­ing.
Page numbers followed by the letter c indicate the
convection/mix section of the book.

The oven should not be used without the turntable in
place, and it should never be restricted so that it can­not rotate. You may remove the turntable when pre­heating the oven and when preparing food to be
cooked directly on the turntable.
Caution: The oven cabinet, cavity, door, turntable,

turntable support, racks and dishes will be­come hot. To PREVENT BURNS, use thick
oven gloves when removing the food or turn­table from the oven.

Convection Cooking

During convection heating, hot air is circulated
throughout the oven cavity to brown and crisp foods
quickly and evenly. This oven can be programmed
for ten different convection cooking temperatures for
up to 99 minutes, 99 seconds.

To Cook with Convection

* Suppose you want to cook at 350°F. for 20 minutes:

Procedure

1.

2.

3.

4.

NOTE: If you wish to know the programmed oven

SPECIAL NOTE: You may detect smoke or a burning smell when using the convection heater for the first time,

CONVECTION

350˚

START

INSTANT ON

temperature, simply touch the CONVECTION
pad. As long as your finger is touching the
CONVECTION pad, the programmed oven
temperature will be displayed.

this is normal and not a sign that the oven is out of order.
To avoid this problem, when first using the oven, operate the oven at 450°F without food
for 20 minutes.

Touch
CONVECTION pad.

Touch temperature
pad.

Enter cooking time.

Touch START pad.

vection

Your oven can be programmed to combine preheat­ing and convection cooking operations. You can pre­heat to the same temperature as the convection tem­perature or change to a higher or lower temperature.

* Suppose you want to preheat to 350° F, and then

cook 25 minutes at 375° F. convection:

Procedure

1.

2.

350˚

3.

4.

5.

6.

When the oven reaches the programmed
temperature, a signal will sound 4 times*. The
oven will stop, and directions will be displayed.
Follow the indicated message.

7.

* If the oven door is not opened, the oven will

automatically hold at the preheat temperature for
30 minutes. After this time has elapsed, an audible
signal will sound, and the oven will turn off.

NOTE: 1. To program only preheat, touch the

CONVECTION

375˚

START

INSTANT ON

Open the door. Place food in the oven.
Close the door.

START

INSTANT ON

START pad after step 2. Preheating will
start. When the oven reaches the
programmed temperature, follow the
indicated message.

2. To preheat and cook with the same
temperature, enter same temperature in
steps 2 and 4.

Touch PREHEAT
pad.

Select preheat
temperature.

Touch
CONVECTION pad.

Select cooking
temperature.

Enter cooking time.

Touch START pad.

Touch START pad.

To Preheat and Cook with Con-

12

Automatic Mix Cooking

START

INSTANT ON

PREHEATPREHEAT

LOW MIX

BAKE

LOW MIX

BAKE

This oven has two pre-programmed settings that
make it easy to cook with both convection heat and
microwave automatically

Microwave

power

30%
10%

HIGH MIX/ROAST
LOW MIX/BAKE

Oven

temperature

300°F
350°F

To Preheat and Cook with Automatic Mix

Your oven can be programmed to combine preheat­ing and automatic mix cooking operations. You can
preheat at the same temperature as the preset com­bination temperature or change it to a different tem­perature.

* Suppose you want to preheat to 350°F. and then

cook 25 minutes on 325°F. low mix/bake:

With the exception of those foods that cook best by
convection heating alone, most foods are well suited
to mix cooking using either LOW MIX/BAKE or HIGH
MIX/ROAST.

The marriage of these two cooking methods produces
juicy meats, moist and tender cakes and fine textured
breads, all with just the right amount of browning and
crispness.

The temperatures can be changed; however, the
microwave power cannot.

The oven temperature can be changed from 100°F.
to 450°F. To change the temperature, first touch HIGH
MIX or LOW MIX, then touch the same pad again.
When the display says SELECT TEMP, touch desired
temperature pad. Ex:HIGH MIX, HIGH MIX pad, 7.
The mix temperature will change to 375°F automati­cally.

To Cook with Automatic Mix

* Suppose you want to bake a cake for 25 minutes

on low mix/bake:

Procedure

1.

LOW MIX

BAKE

2.

3.

START

INSTANT ON

Touch LOW MIX/
BAKE pad.

Enter cooking time.

Touch START pad.

Procedure

1.

Touch PREHEAT
pad.

2.

350˚

3.

4.

Select preheat
temperature.

Touch LOW MIX pad.

Touch LOW MIX pad
once more to change
the cooking tempera­ture.

5.

325˚

6.

7.

START

INSTANT ON

Select cooking
temperature.

Enter cooking time.

Touch START pad.

When the oven reaches the programmed
temperature, signal will sound 4 times*. The oven
will stop and directions will be displayed. Follow
the indicated message.

Open the door. Place food in the oven.

8.
Close the door.

START

INSTANT ON

Touch START pad.

* If the oven door is not opened, the oven will

automatically hold at the preheat temperature for
30 minutes. After this time has elapsed, an audible
signal will sound and the oven will turn off.

NOTE: To program only preheat, touch the START

pad after step 2. Preheating will start. When
the oven reaches the programmed
temperature, follow the indicated message.

13

Helpful Hints for Convection and Automatic
Mix Cooking

Your Dacor Convection Microwave Oven can
cook any food perfectly because of the number of
ways it can cook: microwave only, automatic mix,
convection only or broil. The cookbook that comes
with your oven has excellent instructions,
guidelines, hints, charts and recipes to help you
get the best use of your oven. Consult it often until
you are familiar with it. This Use & Care Manual
tells you how to program the oven.

The oven cannot be used without the turntable in
place. Never restrict the movement of the
turntable.

Convection Cooking:

1. When preheating, the turntable can be left in
or removed. When using the high rack for 2
shelf baking in a preheated oven, it is easier to
remove the turntable for preheat.
Place high rack on turntable along with foods.
When preheat is over, open oven door and
quickly place turntable, high rack and foods to
be baked inside.

2. Do not cover turntable, low rack or high rack
with aluminum foil. It interferes with air flow
that cooks food.

3. Round pizza pans are excellent cooking
utensils for many convection-only items.
Choose pans that do not have extended
handles.

4. Using a preheated low rack can give a grilled
appearance to steaks, hot dogs etc.

Automatic Mix Cooking:

1. Meats are best when roasted directly on the
low rack. A dish can be placed below the meat
if gravy is to be made from the drippings.

2. Less tender cuts of meat can be roasted and
tenderized using oven cooking bags.

3. When baking, check for doneness after time
has elapsed. If not completely done, let stand
in oven a few minutes to complete cooking.

NOTE:
During mix baking some metal baking utensils
may cause arcing when they come in contact with
the turntable, oven walls or accessory racks.
Arcing is a discharge of electricity that occurs
when microwaves come in contact with metal.

If arcing occurs, place a heat resistant dish (Pyrex
pie plate, glass pizza dish or dinner plate) between
the pan and the turntable or rack. If arcing occurs
with other metal baking utensils, discontinue their
use for mix cooking.

®

14

BROIL COOKING

BROIL

START

INSTANT ON

START

INSTANT ON

SLOW COOK

Preheating is automatic when the BROIL setting is
used. Only actual cooking time is entered; the oven
signals when it is preheated to 450°F. Oven
temperature cannot be changed. Use BROIL setting
for steaks, chops, chicken pieces and many other
foods. See Convection Broiling Chart in cookbook.

* Suppose you want to broil a steak for 15 mintues:

Procedure

1.

BROIL

2.

3.

START

INSTANT ON

Touch BROIL pad.

Enter cooking time.

Touch START pad.
No food in oven.

When the oven reaches the programmed
temperature, a signal will sound 4 times*.

Open the door. Place food in oven.

4.
Close the door.

START

INSTANT ON

Touch START pad.

Slow Cook is preset at 300°F for 4 hours. The
temperature can be changed to below 300°F. The
cooking time cannot be changed. This feature can be
used for foods such as baked beans or marinated
chuck steak.

* Suppose you want to change oven temperature

from 300°F to 275°F:

Procedure

1.

2.

SLOW
COOK

SLOW
COOK

Touch SLOW COOK
pad.

Touch SLOW COOK
pad once more if you
want to change the
temperature from 300°F.

3.

275˚

4.

START

INSTANT ON

Select the
temperature.

Touch START pad.

NOTE: If you do not change the temperature,

omit steps 2 and 3.

* If the oven door is not opened, the oven

NOTE: 1. Preheating for broil may take from 7 to 10

Caution: The oven cabinet, cavity, door, turntable,

will automatically hold at the preheat
temperature for 30 minutes. After this
time has elapsed, an audible signal will
sound and the oven will turn off.

minutes depending on temperature of
room and available power.

2. Although time is usually set for the
maximum broiling time, always check
food at the minimum time recommended
in the chart of cookbook. This will
eliminate the need to completely
reprogram the oven if additional cooking
time is needed. Simply close the oven
door and touch START to continue.

3. Should you need more broiling time,
reprogram within 1 minute of the end to
eliminate preheating.

turntable support, racks and dishes will be­come hot. To PREVENT BURNS, use thick
oven gloves when removing the food or turn­table from the oven.

15

SPECIAL FEATURES

START

INSTANT ON

AUTO DEFROST

Auto Defrost automatically defrosts foods shown in
the chart below.

* Suppose you want to defrost a 2.0 pound steak:

After the 1st stage, open the door.

5.
Turn steak over and shield any warm
portions. Close the door.

START

INSTANT ON

Touch START pad.

Procedure

1.

2.

3.

4.

The oven will stop and directions will be
displayed.
Follow the indicated message.

AUTO

DEFROST

AUTO

DEFROST

START

INSTANT ON

Touch AUTO
DEFROST pad once.

Select desired food by
touching AUTO
DEFROST pad until

x2

the display shows the
food name. (Ex. touch
twice for steak)

Enter weight by
touching the number
pads. (ex. 2.0 lbs.)

Touch START pad.

AUTO DEFROST CHART

Food

1. Ground
meat

Amount

0.5–3.0 lbs.
(0.3–1.3 kg.)

Remove any thawed pieces after each stage.
Let stand, covered, 5–10 minutes.

After the 2nd stage, open the door. Shield

6.
any warm portions. Close the door.

START

INSTANT ON

After defrost cycle ends, cover and let

7.

stand as indicated in chart below.

NOTE:

1. If you attempt to enter more or less than the allowed
amount as indicated in chart below, an error
message will appear in the display.

2. Auto Defrost can be programmed with More or Less
Time Adjustment. Touch the POWER LEVEL pad
once or twice after selecting the amount. See page

23.

3.To defrost other foods or foods above or below the
weights allowed on AUTO DEFROST CHART, use
time and 30% power. See Manual Defrost on page

17.

Procedure

Touch START pad.

2. Steaks
(Chops)
(Fish)

3. Chicken
pieces

NOTE: Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue

thawing. Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small
smooth strips of aluminum foil to cover edges and thinner sections of the food.

0.5–4.0 lbs.
(0.3–1.8 kg.)

0.5–3.0 lbs.
(0.3–1.3 kg.)

After each stage of defrost cycle, rearrange and if there are warm or
thawed portions, shield with small flat pieces of aluminum foil. Remove
any meat or fish that is nearly defrosted.
Let stand, covered, 10–20 minutes.

After each stage of defrost cycle, if there are warm or thawed portions,
rearrange or remove.
Let stand, covered, 10–20 minutes.

16

MANUAL DEFROST

If the food that you wish to defrost is not listed on the
AUTO DEFROST CHART or is above or below the
limits in the “Amount” column on the AUTO DEFROST
CHART, you need to defrost manually.

You can defrost any frozen food, either raw or previously
cooked, by using Power Level 3. Follow the exact 3­step procedure found under Time Cooking on page 11.
Estimate defrosting time and press 3 for 30% when you
select the power level.

For either raw or previously cooked frozen food the rule
of thumb is approximately 5 minutes per pound. For
example, defrost 5 minutes for 1 pound of frozen
spaghetti sauce.

Always stop the oven periodically to remove or separate
the portions that are defrosted. If food is not defrosted
at the end of the estimated defrosting time, program the
oven in 1 minute increments on Power Level 3 until
totally defrosted.

When using plastic containers from the freezer, defrost
only long enough to remove from the plastic in order to
place in a microwave-safe dish.

SENSOR COOKING

Dacor's Sensor is a semi-conductor device that
detects the vapor (moisture and humidity) emitted
from food as it heats. The sensor adjusts the cooking
times and power level for various foods and quantities.

Using Sensor Settings:

1. After oven is plugged in, wait 2 minutes before
using sensor settings.

2. Be sure the exterior of the cooking container and
the interior of the oven are dry. Wipe off any
moisture with a dry cloth or paper towel.

3. Sensor Reheat and Popcorn can only be entered
within 1 minute after cooking, opening and closing
the door or touching the STOP/CLEAR pad.

4. During the first part of sensor cooking, the food
name will appear on the display. Do not open the
oven door or touch STOP/CLEAR during this part
of the cooking cycle. The measurement of vapor
will be interrupted. If this occurs, an error message
will appear. To continue cooking, touch the
STOP/CLEAR pad and select cooking time and
variable power.
When the sensor detects the vapor emitted from
the food, remainder of cooking time will appear.
Door may be opened when remaining cooking
time appears on the display. At this time, you may
stir or season food, as desired.

5. Check food for temperature after cooking. If
additional time is needed, continue to cook with
variable power and time.

6. If the sensor does not detect vapor properly when
popping popcorn, the oven will turn off, and the
correct time of day will be displayed. If the sensor
does not detect vapor properly when using sensor
reheat,ERROR will be displayed, and the oven
will turn off.

7. Any Sensor Cooking mode can be programmed
with More or Less Time Adjustment. See page 23.

8. Each food has a cooking hint. Touch HELP GUIDE
pad when the HELP indicator is lighted in the
display.

Selecting Foods:

1. The sensor works with foods at normal storage
temperature. For example, food for dinner plate
reheat would be at refrigerator temperature and
popcorn at room temperature.

2. Foods weighing less than 3 ounces should be
reheated by time and variable power.

Covering Foods:

Some foods work best when covered. Use the cover
recommended in the chart for these foods.

1. Casserole lid

2. Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately 1/2 inch to remain uncovered to
allow steam to escape. Plastic wrap should not
touch food.

3. Wax paper: Cover dish completely; fold excess
wrap under dish to secure. If dish is wider than
paper, overlap two pieces at least one inch to
cover.

Be careful when removing any covering to allow
steam to escape away from you.

17

Instant Sensors

Your oven has Instant Sensor Popcorn and Instant
Sensor Reheat. To use either, simply touch the
chosen pad. The oven will start automatically.

-Sensor Reheat

You can reheat many foods by touching just one pad.
You don't need to calculate reheating time or power
level.
* Suppose you want to heat prepared chili:

Procedure

1.

When sensor detects the vapor emitted from
the food, remainder of reheating time will
appear.

SENSOR

REHEAT

Touch SENSOR
REHEAT pad.

INSTANT SENSOR CHART

Food

Sensor Reheat

Leftovers such as rice,
potatoes, vegetables,
casserole
Soups

Canned entrees and
vegetables

Amount

4-36 oz.

(0.12 - 1.0 kg)

1-4 cups

4-36 oz.

Place in dish or casserole slightly larger than amount to reheated.
Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use
covers such as plastic wrap or lids with larger quantities of more
dense foods such as stews.
After reheating, stir well, if possible. Foods should be very hot. If not,
continue to heat with variable power and time. After stirring, recover
and allow to stand 2 to 3 minutes.
Use Less Time Adijustment by touching POWER LEVEL pad twice
for small quantities of canned vegetables.

-Sensor Popcorn

*Suppose you want to pop a 3.5 oz. bag of popcorn:

Procedure

1. Place bag on overturned 9” glass pie plate.

2.

POPCORN

This sensor setting works well with most brands of
microwave popcorn. You may wish to try several and
choose your favorite. Pop only one bag at a time.
Unfold the bag and place in oven according to
directions.
Use an overturned 9 or 10 inch oven proof glass pie
plate on top of the turntable when popping bagged
microwave popcorn.

Procedure

Touch POPCORN
pad once.

Popcorn

Only 1 package

at a time

3.0-3.5 oz. bag
(Regular size)

1.5-1.75 oz. bag
(Snack size)

Use only popcorn packaged for microwave oven use. Try several
brands to decide which you like best. Do not try to pop unpopped
kernels. More/Less Time Adjustment can be used to provide
adjustment needed for older popcorn or individual tastes.

Touch POPCORN pad once.
This setting works well with most 3.0-3.5 oz bags of microwave
popcorn.
Touch POPCORN pad twice within 2 seconds for snack size bags.
Do not try to pop unpopped kerneis.

18

SENSOR COOK

SENSOR

COOK

*Suppose you want to cook a baked potato:

Procedure

1.

2.

SENSOR

COOK

Touch SENSOR
COOK pad.

Select desired sen­sor setting. Touch
to cook baked pota­toes.

SENSOR COOK CHART

Food Amount Procedure

1. BAKED POTATOES

2. FROZEN VEGETABLES

3.FRESH VEGETABLES,
SOFT
Broccoli
Brussels sprouts
Cabbage
Cauliflower (flowerets)
Cauliflower (whole)
Spinach
Zucchini
Baked apples

1 - 8 medium

1 - 8 cups

1/4 - 2 lbs.
1/4 - 2 lbs.
1/4 - 2 lbs.
1/4 - 2 lbs.
1 medium
1/4 - 1 lbs.
1/4 - 2 lbs.
2 - 4 medium
(0.2 - 0.9kg)

3.

1

Pierce. Place on paper-towel-lined turntable. After cooking, remove
from oven, wrap in aluminum foil and let stand 5 to 10 minutes.

Cover with lid or plastic wrap. After cooking, stir and let stand 3
minutes, covered.

Wash and place in casserole. Add no water if vegetables have just
been washed. Cover with lid for tender vegetables. Use plastic
wrap for tender-crisp vegetables. Stir before standing if possible.
After cooking, let stand, covered, 2-5 minutes.

START

INSTANT ON

Touch START pad.
When sensor detects
the vapor emitted
from the food, the re­mainder of cooking
time will appear.

4. FRESH
VEGETABLES,HARD
Carrots, sliced
Corn on cob
Green beans
Winter squash, diced
halves

5. FROZEN ENTREES

6. HOT DOGS

7. BACON

8. FISH, SEAFOOD

1/4 - 1 1/2 lbs.
2 - 4 pcs.
1/4 - 1 1/2 lbs.
1/4 - 1 1/2 lbs.
1 - 2
(0.2 - 0.6kg)

6 - 17 oz.
(0.17 - 0.48kg)

1 - 4 servings

2 - 6 slices

0.25 - 2.0 lbs.
(0.2 - 0.9kg)

Place in casserole. Add 1-4 tbsp. water. Cover with lid for tender
vegetables. Use plastic wrap cover for tender-crisp vegetables.
Stir before standing, if possible. After cooking, let stand, covered,
2-5 minutes.

Use for frozen convenience foods. It will give satisfactory results
for most brands. You may wish to try several and choose your
favorite. Remove package from outer wrapping and follow package
directions for covering. After cooking, let stand, covered, for 1 to
3 minutes.

Place hot dog in bun and wrap in paper towel or paper napkin.

Place bacon on paper plate, lined with paper towel. Bacon should
not extend over the rim of plate. Cover with paper towel.
Put another paper plate upside down on turntable. Place plate of
bacon on top of overturned plate.

Arrange in ring around shallow glass dish (roll fillet with edges
underneath). Cover with plastic wrap. After cooking, let stand,
covered, 3 minutes.

19

AUTO BROIL/ROAST/BAKE

This section of the operation manual offers instruc­tions for preparing 12 popular foods using Auto Broil,
Auto Roast and Auto Bake.

After selecting the desired feature, follow the direc­tions indicated in the display.

AUTO BROIL

Auto Broil automatically broils hamburgers, chicken
pieces, steaks and fish steaks.

*Suppose you want to broil 2 hamburgers:

Procedure

1.

2.

3.

For well done or rare burgers, touch POWER LEVEL
pad to select More for well done or Less for rare.
See More/Less Time Adjustment on page 23.

AUTO

BROIL

Touch AUTO BROIL
pad.

Select desired setting.
(Ex: for hamburgers,

1

touch

Touch number pad to
enter quantity. (Ex: 2 .)
Follow information in
display for cooking
information.

.)

For helpful hints, simply touch HELP GUIDE anytime
HELP is lighted in the display.

Caution: The oven cabinet, cavity, door, turntable, turn-

table support, racks and dishes will become
hot. To PREVENT BURNS, use thick oven
gloves when removing the food or turntable
from the oven.

4.

After broil preheat cycle ends, the oven will stop
and directions will be displayed. Follow the indi­cated message. Open the door and place ham­burgers into oven. Close the door.

5.

NOTE:

1. Auto Broil can be programmed with More/Less
Time Adjustment. See page 23.

2 If you attempt to enter more or less than the

allowed amount as indicated in chart below, an
error message will appear in the display.

3. To broil other foods or foods above or below the
weight or number allowed on AUTO BROIL
CHART follow instructions in the Dacor Con­vection Microwave Cookbook. See Convection
Broiling Chart.

START

INSTANT ON

START

INSTANT ON

Touch START pad.

Touch START pad.

AUTO BROIL CHART

Setting Food Amount Rack Procedure

1. HAMBURGERS 1 - 8 pieces Low
1/4 lb. each

2. CHICKEN PIECES 0.5 - 3.5 lbs. Low
(0.3-1.5kg)

3. STEAKS 0.5 - 2.0 lbs. Low
(0.3-0.9kg)

4. FISH STEAKS 0.5 - 2.0 lbs. Low
(0.3-0.9kg)

Use this setting to broil hamburger patties. Place on
low rack.

Arrange pieces on low rack. After cooking, let stand,
3-5 minutes.
Dark meat should be 180°F., and white meat should
be 170°F.

Use this setting to broil steaks from 3/4" to 1" thick.
Individual boneless steaks broil evenly. Place steak
on low rack. For well done, touch POWER LEVEL
once; for rare, touch POWER LEVEL twice.

Use this setting to broil fish steak which is 3/4" to 1"
thick. Place on low rack.

20

AUTO ROAST

AUTO

ROAST

START

INSTANT ON

Auto Roast automatically roasts chicken, turkey,
turkey breast or pork.

*Suppose you want to roast a 2.5 pound chicken:

Procedure

1.

2.

3.

4.

After AUTO ROAST cycle ends, a long tone will
sound. Follow the indicated message.

AUTO

ROAST

START

INSTANT ON

Touch AUTO ROAST
pad.

Select desired
setting. (Ex: for
chicken, touch 1.)

Touch number pads
to enter weight. (Ex:

2.5 lbs.)

Touch START/
INSTANT ON pad.

NOTE:

1. Auto Roast can be programmed with More/Less
Time Adjustment. See page 23.

2 If you attempt to enter more or less than the al-

lowed weight as indicated in chart below, an error
message will appear in the display.

3. To roast other food or foods above or below the
weights allowed on AUTO ROAST CHART, check
the Dacor Convection Microwave Cookbook Com­bination Roasting Chart.

AUTO ROAST CHART

Setting Food Amount Rack Procedure

1. CHICKEN 2.5 - 7.5 lbs. Low
(1.2 - 3.4 kg.)

2. TURKEY 6.5 - 16.0 lbs. Low
(3.0 - 7.2 kg.)

3. TURKEY BREAST 3.0 - 6.0 lbs. Low
(1.4 - 2.7 kg.)

4. PORK 2.0 - 3.5 lbs. Low

(0.9 -1.5kg.)

After the cycle ends, cover with foil and let stand for 5

- 10 minutes.

Season, as desired. Place on low rack. After the cycle
ends, cover with foil and let stand 10 minutes.Internal
temperature of white meat should be 170°F. and of dark
meat, 180°F.

Season, as desired. Place on low rack. After the cycle
ends, cover with foil and let stand 10 minutes.Internal
temperature of white meat should be 170°F.

Boneless pork loin is recommended because it cooks
evenly. Place on a low rack. After cooking, remove
from oven, cover with foil and allow to stand 5 - 10 min­utes. Internal temperature should be 160°F.

21

AUTO BAKE

AUTO
BAKE

START

INSTANT ON

Auto Bake automatically bakes cakes, brownies, muf­fins and French fries.

* Suppose you want to bake a bundt cake:

Procedure

1.

2.

AUTO
BAKE

Touch AUTO BAKE
pad.

Select desired setting.
(Ex: for bundt cake,

1

touch

.)

NOTE:

1. Auto Bake can be programmed with More/Less
Time Adjustment. See page 23.

2. To bake other foods, see the Dacor Convection
Microwave Cookbook's baking section.

3.

START

INSTANT ON

Touch START pad.

AUTO BAKE CHART

Setting Food Pan/Qty Rack Procedure

1. BUNDT CAKE 1 cake No rack

2. COOKIES 1 or 2 1 pizza pan
pizza pans No rack

2 pizza pans

High

3. MUFFINS 6-12 cups 1 pan

1 or 2 No rack

muffin pans 2 pans

High

4. FRENCH 3 to 24 oz. 1 pizza pan

FRIES (0.09-0.68kg) No rack

1 or 2 2 pizza pans

pizza pans High

For more
than 12 oz.
use 2 pans

Ideal for packaged cake mix or your own recipe. Pre­pare according to package or recipe directions and place
in a greased and floured bundt pan. Place pan in oven.
Cool before frosting and serving.

Ideal for refrigerated cookie dough. Prepare according
to package or recipe directions and place on a greased
and floured 12” pizza pan. Cookies should be approxi­mately 1/3 inch thick and 2 inches in diameter for best
results. After the preheat is over, place pan in oven. Cool
before serving.

Ideal for packaged muffin mix or your own recipe for 6­12 medium size muffins. Prepare according to package
or recipe directions and place in muffin pan. After the
preheat is over, place pan in oven.

Use frozen prepared French fries.
No preheat is required for the French fries baking proce­dure. Place French fries on pizza pan.

For shoestring potatoes, touch POWER LEVEL pad twice
to enter less time before touching START pad.

22

OTHER CONVENIENT FEATURES

POWER

LEVEL

POWER

LEVEL

START

INSTANT ON

KITCHENKITCHEN

TIMERTIMER

MULTIPLE SEQUENCE COOKING

The oven can be programmed for up to 4 automatic
cooking sequences for the microwave mode and 2
automatic cooking sequences with preheat for
convection/mix mode, switching from one power level
setting to another automatically.

Sometimes cooking directions tell you to start on one
power level and then change to a different power level.
Your oven can do this automatically.

* Suppose you want to cook roast beef for 5 minutes

at 100% and then continue to cook for 30 minutes
at 50%:

Procedure

1.

2.

3.

POWER

LEVEL

POWER

LEVEL

START

INSTANT ON

First touch POWER
LEVEL pad twice
for 100% power.

x 2

Then enter cooking
time.

Touch POWER
LEVEL pad. Touch
number pad 5 for
50% power.
Then enter second
cooking time.

Touch START pad.

Procedure

1.

2.

3.

START

INSTANT ON

Touch KITCHEN
TIMER pad.

Enter time.

Touch START pad.

EASY MINUTE

Easy Minute allows you to cook for a minute at 100% by
simply touching the EASY MINUTE pad. You can also
extend cooking time in multiples of 1 minute by
repeatedly touching the EASY MINUTE pad during
manual cooking.

* Suppose you want to heat a cup of soup for one

minute:

Procedure

1.

NOTE: 1. To use Easy Minute, touch pad within 1

EASY

MINUTE

minute after cooking, closing the door,
touching the STOP/CLEAR pad or during
cooking.

2. Easy Minute cannot be used with SPECIAL
FEATURES.

Touch EASY
MINUTE pad.

NOTE: 1. If POWER LEVEL pad is touched twice,

HIGH will be displayed.

2. If you wish to know power level, simply
touch the POWER LEVEL pad. As long as
your finger is touching the POWER LEVEL
pad, the power level will be displayed.

MORE OR LESS TIME ADJUSTMENT

More
Should you discover that you like any of the INSTANT
SENSOR, SENSOR COOK, AUTO DEFROST, AUTO
BROIL, AUTO ROAST or AUTO BAKE settings slightly
more done, touch the POWER LEVEL pad once after
touching your choice of pads.

Less
Should you discover that you like any of the INSTANT
SENSOR, SENSOR COOK, AUTO DEFROST, AUTO
BROIL, AUTO ROAST or AUTO BAKE settings slightly
less done, touch the POWER LEVEL pad twice after
touching your choice of pads.

KITCHEN TIMER

* Suppose you want to time a 3 minute long distance

phone call.

INSTANT ON

Instant On allows you to cook at 100% power by
touching the START/INSTANT ON continuously. Instant
On is ideal for melting cheese, bringing milk to just
below boiling etc.
The maximum cooking time is 3 minutes.

* Suppose you want to melt cheese on a piece of toast:

Procedure

1.

2.

NOTE: 1. Note time it takes for frequently used foods

START

INSTANT ON

When the cheese is melted to desired
degree, remove finger from START/
INSTANT ON pad. Oven stops immediately.

and program that time in the future.

2. To use Instant On, touch pad within 1 minute
after cooking, opening and closing the door
or touching the STOP/CLEAR pad.

3. Instant On can only be used 3 times in a
row. If more times are needed, open and
close door or touch STOP/CLEAR.

23

Continuously touch
the START/
INSTANT ON pad.
The cooking time will
begin counting up.

DEMONSTRATION MODE

HELP

GUIDE

CLOCK

POWER

LEVEL

4.

Touch CLOCK pad.

To demonstrate, touch CLOCK, 0 and then touch
START and hold for 3 seconds. DEMO ON will appear
in the display. Cooking operations and specific special
features can now be demonstrated with no power in
the oven. For example, touch EASY MINUTE and
the display will show
quickly to END.

To cancel, touch CLOCK, then

and count down

0

and STOP/CLEAR.

HELP GUIDE

HELP GUIDE provides 6 features which make using
your oven easy because specific instructions are
provided in the Interactive Display.

- Safety Lock

The Safety Lock prevents unwanted oven operation
such as by small children.
The oven can be set so that the control panel is
deactivated or locked. To set, touch HELP GUIDE, the
number
LOCK will appear in the display.

To cancel, touch HELP GUIDE, the number
STOP/CLEAR.

- Audible Signal Elimination

If you wish to have the oven operate with no audible
signals, touch HELP GUIDE, the number
STOP/CLEAR.

To cancel and restore the audible signal, touch HELP
GUIDE, the number 2 and START.

- Auto Start

If you wish to program your oven to begin cooking
automatically at a designated time of day, follow this
procedure:

* Suppose you want to start cooking a stew for 20

minutes on 50% at 4:30. Before setting, check to
make sure the clock is showing the correct time of
day.

1.

2.

3.

and START. Should a pad be touched,

1

2

Procedure

HELP

GUIDE

Touch HELP GUIDE.

Touch the number
to select the Auto Start.

Enter the start time.

1

and

and

3

5.

6.

NOTE: 1. Auto Start can be used for manual cooking

START

INSTANT ON

Auto Broil/Roast/Bake, if clock is set.

2. If the oven door is opened after programming
Auto Start, it is necessary to touch the
START pad for Auto Start time to appear in
the readout so that the oven will automatically
begin programmed cooking at the chosen
Auto Start time.

3. Be sure to choose foods that can be left in
the oven safely until the Auto Start time.
Acorn or butternut squash are often a good
choice.

4. If you wish to know the time of day, simply
touch the CLOCK pad. As long as your
finger is touching the CLOCK pad, the time
of day will be displayed.

Enter cooking
program.

Touch START pad.
The chosen Auto
Start time will appear
in the display.

- Language Selection

The oven comes set for English Ianguage. To change,
touch HELP GUIDE and the number
touch the number
from the table below. Then, touch START/INSTANT
ON pad.

Number .

4

Once
Twice
3 Times

4

until your choice is selected

English
Espanol
French

. Continue to

4

DisplayLanguage

- Weight/Temp Selection

The oven comes set for U.S. Customary Unit-pounds.
To change, touch HELP GUIDE and the number
Continue to touch the number
selected from the table below. Then, touch START/
INSTANT ON pad.

5

Number .

Once
Twice

Standard of Weight

and Temperature

5

until your choice is

LB. °F
KG °C

Display

5

- Help

Each setting of Auto Defrost, Auto Broil, Auto Roast,
Auto Bake, Sensor Cook and Instant Sensor has a
cooking hint. If you wish to check, touch HELP GUIDE
whenever HELP is lighted in the interactive display.

.

24

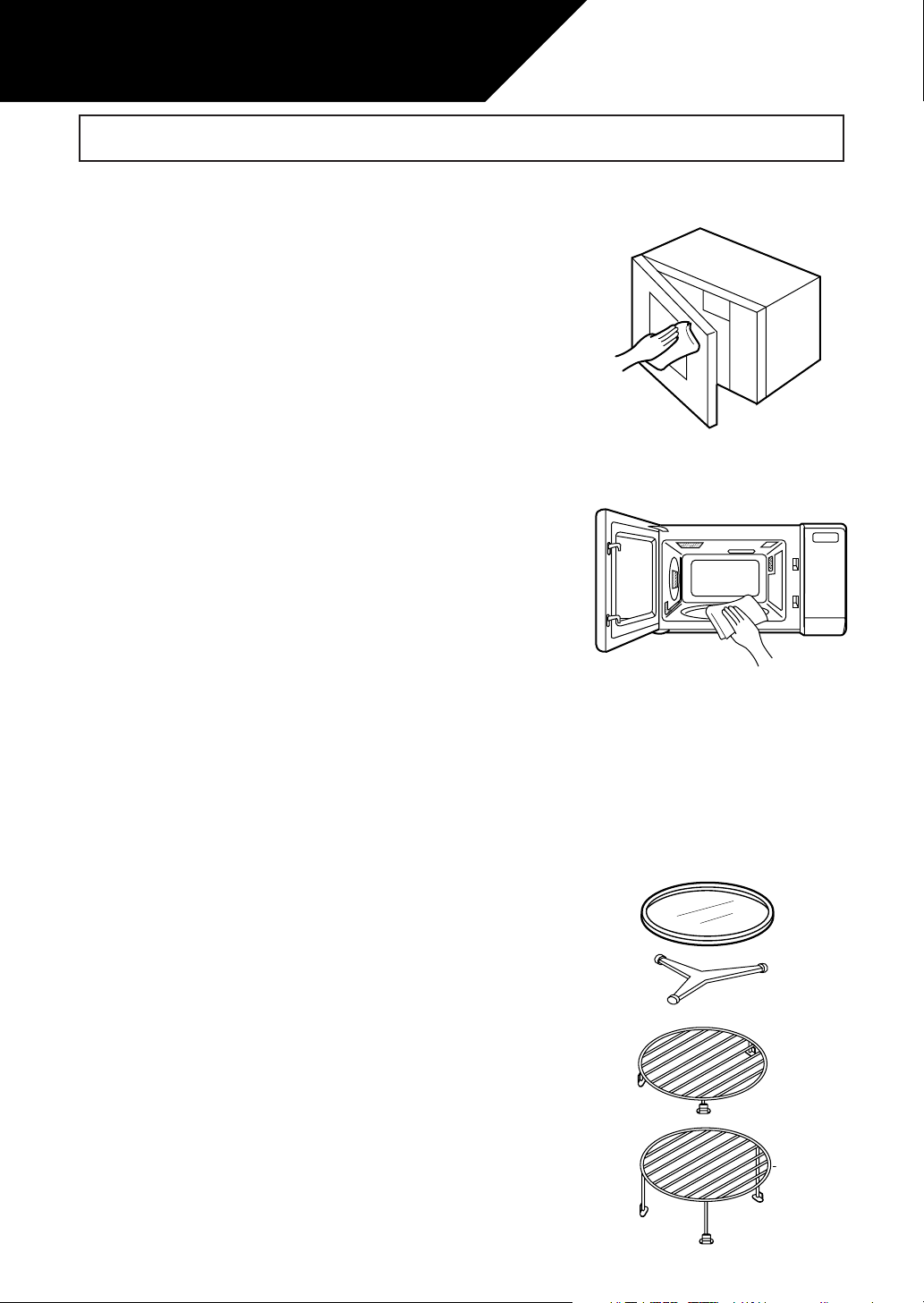

CLEANING AND CARE

Disconnect the power cord before cleaning. If possible, leave the door open to inactivate the oven during
cleaning.

Exterior

The outside surface is precoated metal and plastic. Clean the outside with mild soap and water; rinse and dry
with a soft cloth. Do not use any type of household or abrasive cleaner.

Door

Wipe the window on both sides with a damp cloth to remove any spills
or spatters. Metal parts will be easier to maintain if wiped frequently with
a damp cloth. Avoid the use of harsh abrasives.

Touch Control Panel

Wipe the panel with a cloth dampened slightly with water only. Dry with
a soft cloth. Do not scrub or use any sort of chemical cleaners. Close
door and touch STOP/CLEAR.

Interior - after microwave cooking.
Cleaning is easy because no heat is generated to the interior surfaces;
therefore, there is no baking and setting of spills or spattering. To clean
the interior surfaces, wipe with a soft cloth and warm water. DO NOT
USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For
heavier soil, use mild soap; rinse thoroughly with hot water.

Interior - after convection, mix or broil cooking.
Spatters may occur because of moisture and grease. Wash immediately
after use with hot, soapy water. Rinse and polish dry. Harder to remove
spatters may occur if oven is not thoroughly cleaned or if there is long
time/high temperature cooking. If so, you may wish to purchase an
oven cleaner pad with liquid cleaner within it--not a soap filled steel pad-

-for use on stainless or porcelain surfaces.
Follow manufacturer's directions carefully and be especially cautious
not to get any of the liquid cleaner in the perforations on the wall or
ceiling or any door surfaces.
Rinse thoroughly and polish dry.
After cleaning the interior thoroughly, residual grease may be removed
from the interior ducts and heater by simply operating the oven on
450°F. for 20 minutes without food. Ventilate the room if necessary.

Waveguide Cover

Carefully wash any food particles from the waveguide cover located on
the ceiling in the oven cavity.

Odor Removal

Occasionally, a cooking odor may remain in the oven. To remove,
combine 1 cup water, grated peel and juice of 1 lemon, and several
whole cloves in a 2 cup glass measuring cup. Boil for several minutes
using 100% power. Allow to set in oven until cool. Wipe interior with a
soft cloth.

Turntable/Turntable Support/Racks

The turntable, turntable support and racks can be removed for easy
cleaning. Wash them in mild, sudsy water; for stubborn stains use a
mild cleanser and a non-abrasive scouring sponge. They are also
dishwasher-proof. Use top rack of dishwasher for turntable support.
Foods with high acidity, such as tomatoes or lemons, will cause the
porcelain enamel turntable to discolor. Do not cook highly acidic foods
directly on the turntable; if spills occur, wipe up immediately.
The turntable motor shaft is not sealed, so excess water or spills should
not be allowed to stand in this area.

25

SERVICE CALL CHECK

Please check the following before calling for service:

1. Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for two minutes at HIGH 100%.

A. Does the oven light come on? YES _______ NO _______
B. Does the cooling fan work? YES _______ NO _______

(Put your hand over the rear ventilating openings.)

C. Does the turntable rotate? YES _______ NO _______

It is normal for the turntable to turn in either direction.

D. Is the water in the oven hot? YES _______ NO _______

2. Remove water from the oven and operate the oven for 5 minutes at CONV 450°F.

A. Do CONV and COOK indicators light? YES _______ NO _______
B. After the oven shuts off, is inside of the oven hot? YES _______ NO _______

If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker.
If both are functioning properly, CONTACT YOUR NEAREST AUTHORIZED DACOR SERVICER. A
microwave oven should never be serviced by a “do-it-yourself” repair person.

NOTE: If time appearing in the display is counting down very rapidly, check Demonstration Mode on page 24

and cancel.

SPECIFICATIONS

AC Line Voltage: Single phase 120V, 60Hz, AC only
AC Power Required: 1.55 kW 13.0A (Microwave)

Output Power:

Microwave 900W

Convection Heater 1450W
Frequency: 2450 MHz
Outside Dimensions: 24
Cavity Dimensions: 16
Oven Capacity: 1.5 cft
Cooking Uniformity: Turntable system
Weight: Approx. 60 lbs.

the International Electrotechnical Commission’s standardized method for measuring output wattage. This

*

test method is widely recognized.

In compliance with standards set by:
FCC – Federal Communications Commission Authorized.
DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,

Subchapter J.

– This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.

1.55 kW 13.0A (Convection)

(IEC Test Procedure)

*

5

/8”(W) x 14 7/8”(H) x 19”(D)

1

/8”(W) x 9 5/8”(H) x 16 1/8”(D)

26

CLOCK

CLOCK

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

POWER

LEVEL

START

INSTANT ON

AUTO

BROIL

START

INSTANT ON

START

INSTANT ON

CONVECTION

START

INSTANT ON

LOW MIX

BAKE

BROIL

START

INSTANT ON

GUIA PANEL DE CONTROL

Para mayor información y precauciones de seguridad, consulte el Manual de Operaciones.

FIJACION DEL RELOJ

Si en la pantalla aparece
WELCOME PRESS CLEAR AND
PRESS CLOCK, toque primero
STOP/CLEAR

.

1.Toque el botón CLOCK.

2.Ponga la hora correcta
tocando los números en orden.
(Ej. 12:30)

3.Toque nuevamente el botón
CLOCK.

SELECCIÓN DEL IDIOMA
ESPAÑOL

1.Toque HELP GUIDE.

2.Presione 4 para seleccionar
el idioma.

3.Presione 4 para seleccionar
Español.

4.Toque START.

SENSOR INSTANTANEO

1.Toque el botón SENSOR
REHEAT o POPCORN. (Una
vez-regular, 2 veces-snack)

AUTO DEFROST

1.Toque el botón AUTO
DEFROST.

2.Seleccione la programación
deseada para AUTO
DEFROST.
(Ej. Toque el botón AUTO
DEFROST para filetes.)

3. Toque los botones número

2

y 0. (Ej. filete de 2,0 libras)

4.Toque START.
Durante el descongelamiento,
el horno se detendra para que
usted pueda revisar el
alimento.
Toque el botón START.

SENSOR COOK

1.Toque el botón SENSOR
COOK.

2.Seleccione la programación
deseada para SENSOR
COOK.
(Ej. Toque el botón

1

para

papas al horno.

3. Toque el botón START.

EASY MINUTE

Toque el botón de adición de un
minuto (EASY MINUTE) para un
minuto al 100% de energia, o
para añadir un minuto cuando
cocine en el modo manual.

CLOCK

CLOCK

HELP

GUIDE

START

INSTANT ON

SENSOR
REHEAT

AUTO

DEFROST

AUTO

DEFROST

START

INSTANT ON

SENSOR

COOK

START

INSTANT ON

EASY

MINUTE

x 2

INSTANT ON

Toque el botón START/INSTANT ON
y maténgalo presionado para
cocinar a un 100% del nivel de
energia Al retirar el dedo del botón, el
horno se detendrá instantáneamente.

OPERACION MANUAL

Cocinando con energía alta

1. Programe el tiempo para
cocinar tocando los botones
de números.
(Ej. 1 min. 30 seg.)

2. Toque START.

Cocinando con energía
variable

1. Después del paso 1 anterior,
toque el botón POWER
LEVEL.

2. Escoja el nivel de energía.
(Ej. 50%)

3. Toque START.

AUTO BROIL/AUTO
ROAST/AUTO BAKE

1. Toque el botón AUTO
BROIL.

2. Seleccione el ajuste AUTO
BROIL deseado.
(Ej: Toque

1

para

hamburguesas.)

3. Toque el botón
número

2

para 2

hamburgesas.

4. Toque START.

PRECALENTAMIENTO Y
COCCÓN CON CONVECCIÓN

1. Toque el botón PREHEAT.

2. Seleccione la temperatura de
precalentamiento deseada.
(Ej: 325°F)

3.

Toque el botón CONVECTION.

4. Seleccione la temperatura de
cocción. (Ej: 350°F)

5. Introduzca el tiempo de
cocción tocando los botones
de números. (Ej: 20 min.)

6. Toque START.

MEZCLA AUTOMÁTICA

1.Toque LOW MIX/BAKE o
HIGH MIX/ROAST.

2. Introduzca el tiempo de
cocción tocando los botones
de números. (Ej: 25 min.)

3. Toque START.

ASADO

1. Toque BROIL. Sin haber
comide en el horno.

2. Introduzca el tiempo deseado
tocando los botones de
números. (Ej: 14 min.)

3. Toque START. Cuando avise
el horno, ponga la comida en
su interior.

27

START

INSTANT ON

START

INSTANT ON

POWER
LEVEL

START

INSTANT ON

AUTO
BROIL

START

INSTANT ON

PREHEAT

325˚

CONVECTION

350˚

START

INSTANT ON

LOW MIX

BAKE

START

INSTANT ON

BROIL

START

INSTANT ON

CONTROL PANEL GUIDE

CLOCK

CLOCK

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

POWER
LEVEL

For more complete information and safety precautions, refer to your Operation Manual.

SET CLOCK

If WELCOME PRESS
CLEAR AND PRESS
CLOCK is in display, first
touch STOP/CLEAR.

1.Touch CLOCK pad.

CLOCK

2.Enter correct time of day by
touching numbers in sequence.
(Ex: 12:30)

3.Touch CLOCK pad again.

INSTANT SENSOR

1. Touch SENSOR REHEAT

CLOCK

SENSOR

REHEAT

INSTANT SENSOR CHART

Food Amount

Popcorn one touch for 1 package

3.0-3.5 oz. bags
two touches for

1.5-1.75 oz. bags

Reheat Leftovers 4-36 oz.

Canned entrees 4-36 oz.
and vegetables

AUTO DEFROST

1.Touch AUTO DEFROST pad.

AUTO

DEFROST

2.Select desired AUTO
DEFROST setting. (Ex: Touch
AUTO DEFROST twice to

AUTO

DEFROST

defrost steak.)

2

3.Touch number pads

0

. (Ex: 2.0 lbs. steak)

4.Touch START.
During defrosting, oven will

and

START

INSTANT ON

stop, check food. Touch
START to continue defrosting.

AUTO DEFROST CHART

Setting Food Amount

1 Ground meat 0.5-3.0 lbs.

2 Steaks, (chops), (fish) 0.5-4.0 lbs.

3 Chicken pieces 0.5-3.0 lbs.

MANUAL OPERATION

High Power Cooking

1.Enter cooking time by touching
number pads.

(Ex: 1 min. 30 sec.)

2.Touch START pad.

START

INSTANT ON

Variable Power Cooking

1.Enter cooking time by touching
number pads. (Ex: 5 min)

2.Touch POWER LEVEL pad.

3.Select power level.
(Ex: 50%)

4.Touch START pad.

SENSOR COOK

1.Touch SENSOR COOK pad.

2.Select desired SENSOR
COOK setting.

1

(Ex: Touch

to cook baked

potatoes.)

3.Touch START.

SENSOR COOK CHART

Setting Food Amount

1 BAKED POTATOES 1-8 medium

x 2

2

FROZEN VEGETABLES

3

FRESH VEGETABLES, SOFT

4

FRESH VEGETABLES, HARD

5 FROZEN ENTREE 6-17 oz.

6 HOT DOGS 1-4

7 BACON 2-6 slices

8 FISH, SEAFOOD 0.25-2.0 lbs.

EASY MINUTE

Touch Easy Minute for one
minute at 100% power or to add
a minute during manual cooking.

INSTANT ON

Continuously touch START/
INSTANT ON for 100% power
cooking.
Remove finger and oven will stop
instantly.

POWER

LEVEL

START

INSTANT ON

SENSOR

COOK

START

INSTANT ON

1-8 cups

0.25-2.0 lbs.

0.25-1.5 lbs.

EASY

MINUTE

START

INSTANT ON

28

AUTO BROIL

AUTO
BROIL

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

PREHEAT

CONVECTION

START

INSTANT ON

LOW MIX

BAKE

START

INSTANT ON

START

INSTANT ON

START

INSTANT ON

1. Touch AUTO BROIL pad.

2. Select desired AUTO BROIL
setting.

(Ex: Touch

for

1

hamburgers.)

2

3. Touch number

pad for 2

hamburgers.

4. Touch START.

INSTANT ON

AUTO BROIL CHART

Setting Food Amount

1 HAMBURGERS 1-8 pieces

2 CHICKEN PIECES 0.5-3.5 lbs.

3 STEAKS 0.5-2.0 lbs.

4 FISH STEAKS 0.5-2.0 lbs.

AUTO ROAST

1.Touch AUTO ROAST pad.

2.Select desired AUTO ROAST
setting.

1

(Ex: Touch

3. Touch number pad

for chicken.)

2

and 5.

(Ex: 2.5 lbs. chicken)

4. Touch START.

INSTANT ON

AUTO ROAST CHART

Setting Food Amount

1 CHICKEN 2.5 - 7.5 lbs.

2 TURKEY 6.5 - 16.0 lbs.

3 TURKEY BREAST 3.0 - 6.0 lbs.

4 PORK 2.0 - 3.5 lbs.

AUTO BAKE

1.Touch AUTO BAKE pad.

2. Select desired AUTO BAKE
setting.

1

(Ex: Touch

3. Touch START.

for bundt cake.)

INSTANT ON

AUTO

BROIL

START

AUTO

ROAST

START

AUTO
BAKE

START

PREHEAT AND COOK WITH
CONVECTION

1.Touch PREHEAT pad.

2.Select desired preheat
temperature.
(Ex: 325°F)

3. Touch CONVECTION pad.

4. Select cooking temperature.
(Ex: 350°F)

5. Enter cooking time by touching
number pads.
(Ex: 20 min.)

6. Touch START.

AUTOMATIC MIX COOKING

1.Touch LOW MIX/BAKE or
HIGH MIX/ROAST. (Ex: Low
Mix/Bake)

2. Enter cooking time by touching
number pads.
(Ex: 25 min.)

3.Touch START.

NOTE:If you want to change

temperature, touch the
selected AUTOMATIC
MIX pad again after step
1 and touch desired
temperature pad.

BROILING

1. Touch BROIL. No food in oven.

2. Enter desired time by touching
number pads. (Ex. 14 min.)

3.Touch START. When oven
signals, put food in oven.

SLOW COOK

1. Touch SLOW COOK pad.

PREHEAT

325˚

CONVECTION

350˚

START

INSTANT ON

LOW MIX

BAKE

START

INSTANT ON

BROIL

START

INSTANT ON

SLOW
COOK

AUTO BAKE CHART

Setting Food Amount

1 BUNDT CAKE 1 cake

2 COOKIES 1-2 pizza pans

3 MUFFINS 6-12 cups

4 FRENCH FRIES 3-24 oz.

2. Touch START.

NOTE: If you want to change the

temperature (below
300°F), touch SLOW
COOK pad again after
step 1 and touch desired
temperature pad.

29

START

INSTANT ON

Distinctive Appliance Corporation
1440 Bridge Gate Drive
Diamond Bar, CA 91765
For Dealer/Service: [phone]
Corporate Headquarters: [phone]
Fax: [phone]
Planning Guide fax-back: [phone] ext. 3806
http://www.dacor.com

30

TINSEB063WRRZ-DA41 Printed in Thailand
