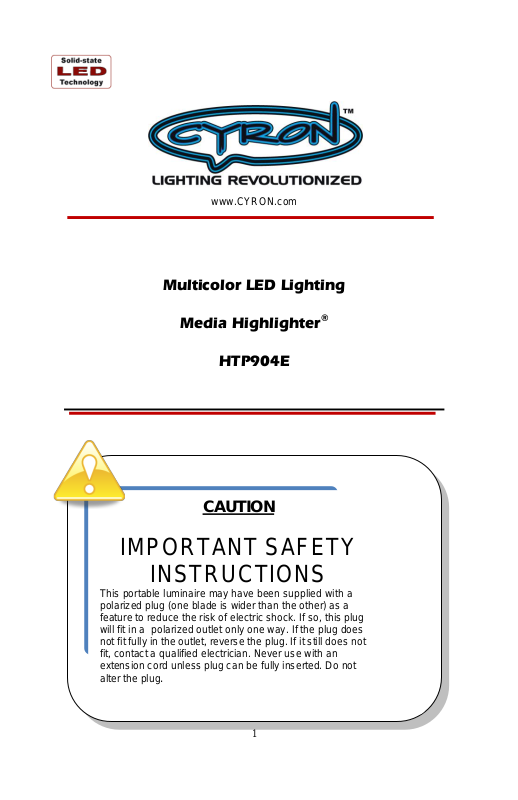

Cyron HTP904E User Manual [en, es]

CAUTION

IMPORTANT SAFETY

INSTRUCTIONS

This portable luminaire may have been supplied with a
polarized plug (one blade is wider than the other) as a
feature to reduce the risk of electric shock. If so, this plug
will fit in a polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician. Never use with an
extension cord unless plug can be fully inserted. Do not
alter the plug.

www.CYRON.com

Multicolor LED Lighting

Media Highlighter®

HTP904E

1

Español
page 6

www.CYRON.com

Multicolor LED Lighting

Media Highlighter®

HTP904E

Thank you for purchasing CYRON HTP904E Multicolor LED Lighting
System. This system will bring the latest lighting technology to your home
theatre, home décor, cabinets, and many other areas you choose. Installation of
the system is simple and it can be done by anyone with little or no electrical
experience. Nonetheless, some custom installations may require professional
help. Please contact CYRON Technical Support for advice.

General Cautions

 To reduce the risk of fire, electric shock, or injury:
 Route and secure cords so that they will not be pinched or damaged
 To further secure the wires, use only insulated staples or plastic ties
 Not intended for recessed installations
 Not intended for surface installation inside built-in furnishings
 Do not install the entire system in closed compartments smaller than 4

cubic feet (26”x30”x10”)

 To comply with National Electrical Code (NEC) and to prevent fire

danger, run the cords where they are accessible for examination. Cords
should be visually examined periodically and immediately replaced when
any damage is noted.

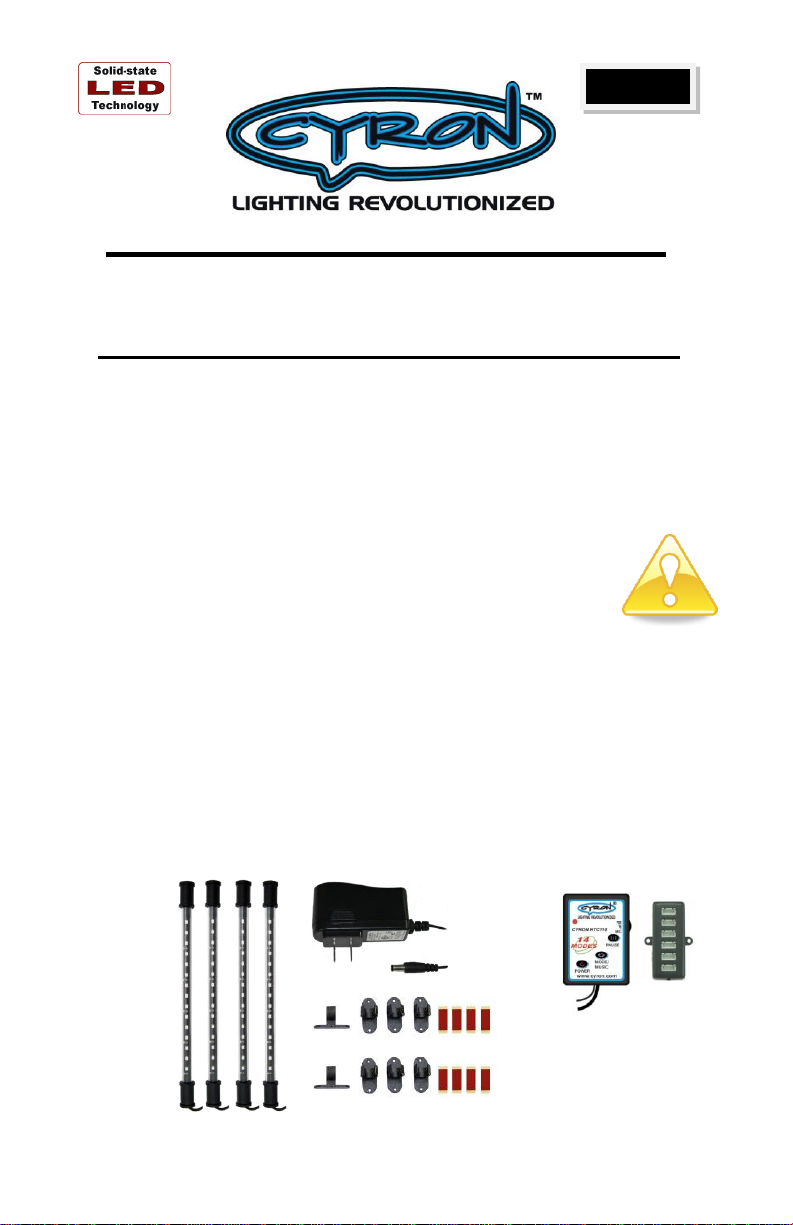

Contents

Please locate all system components. If any of the
components are missing or damaged contact CYRON
before proceeding with installation.

1 x Controller/Hub, HTC110A
4 x Lightbars 9"
1 x Power supply 12W
8 x Mounting brackets
Tapes, Hardware, Wipes

2

Installations

1. LIGHTBAR LOCATIONS NOTE:
Depending on the application, as few as one or
as many as six lightbars may be used. There are
many intended uses and methods of light
placement. In most of the cases, the objective is
to place the lightbar so it is not directly visible,
and its projected light is only seen. This is
particularly important if combined colors such
as white are being produced. Feel free to
experiment with light placement and direction
of light projection. There may be more than one
good location.

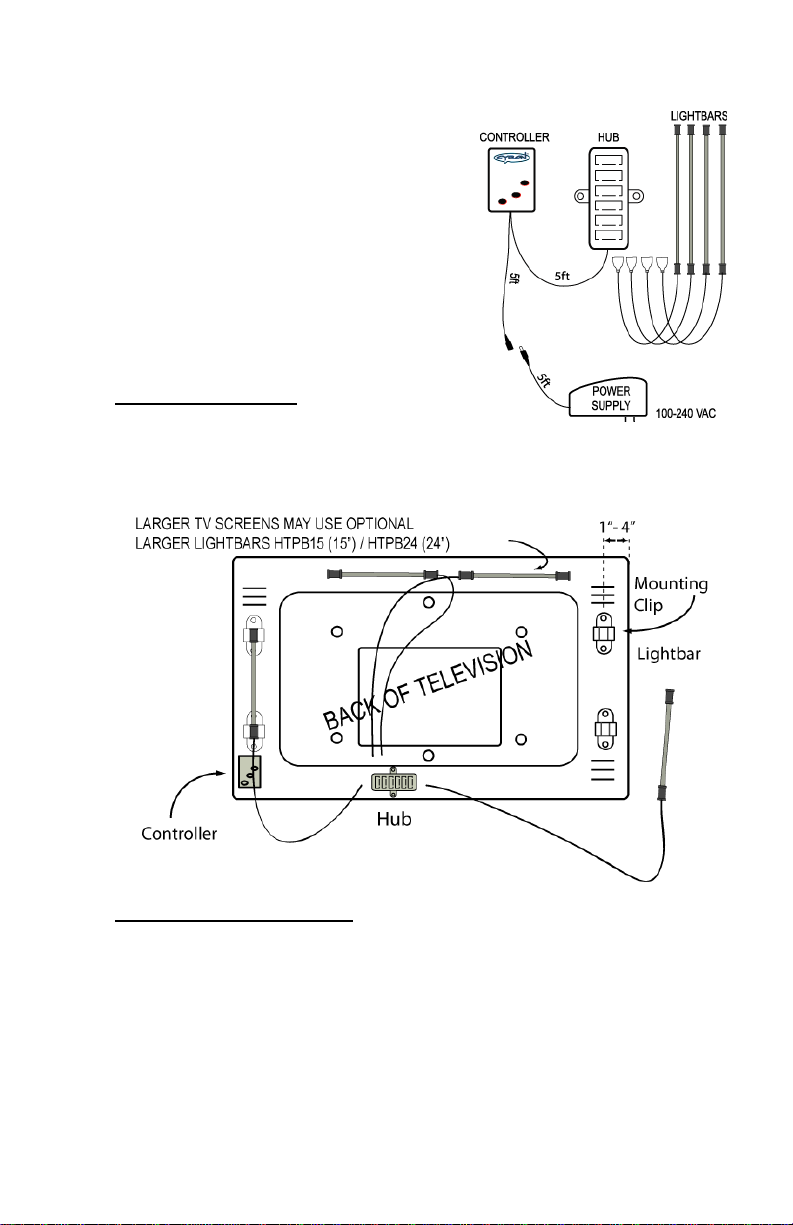

Television Backlighting: The best location for television installations is
normally behind the TV, about 1 to 4 inches from the outer edges (left and right
in most cases). Also, vertically center the bars. See TV backlighting diagram.
The exact location may vary depending on the make and model of the TV.
Cabinets, Shelving, Furniture: Typical locations are: Top or bottom of the
cabinets, behind furniture trimmings, on the shelves, and behind glass covers.
Same general locations work well for most objects. There are many ways to
backlight and accent light. Try various positions to achieve the desired results.

3

2. CLEANING a Using the wipes provided test a small area to make sure

it does not affect the mounting surfaces. Clean the installation surfaces free of
dust/grease to assure the two-sided tape adheres well.

3. MOUNTING CLIPS Mounting clips can be secured using the two-sided
tape or screws. DO NOT USE SCREWS FOR FASTENING TO
ELECTRONIC DEVICES AND SENSITIVE SURFACES.
CAUTION: Tapes may cause discoloration to some surfaces over time.
Remove one side of the tape liner and apply to the bottom of the clips. Apply
pressure for 5 seconds to assure adhesion. Place clips on the lightbars.

4. LIGHTBAR PLACEMENT Remove the second side of tape liner. Keep the
tape surface clean. Place the bars in the proper location by pressing on the clips
for 5 seconds. CAUTION: Never press on the clear lens of bars. Lightbars will
get damaged! Note the direction of the wires being routed to the hub.

5. HUB Mount the hub using screws or tapes. Plug the lightbar connectors into
hub outlets. The plugs are polarized and can only be plugged in one direction.

6. CONTROLLER Use tape to mount the controller in an accessible location.
Some painted surfaces may get damaged upon future removal of the
tape/controller.

7. POWER UP Plug the power supply into an AC outlet. The plug is polarized
(one blade is wider than the other) as a feature to reduce the risk of electric
shock. This plug will fit in a polarized outlet only one way. If the plug does not
fit fully in the outlet, reverse the plug. If it still does not fit, contact the factory
or a qualified electrician. Never use with an extension cord unless the plug can
be fully inserted. Do not alter the plug.

8. DC JACK Connect the DC power jack into the controller DC cord.

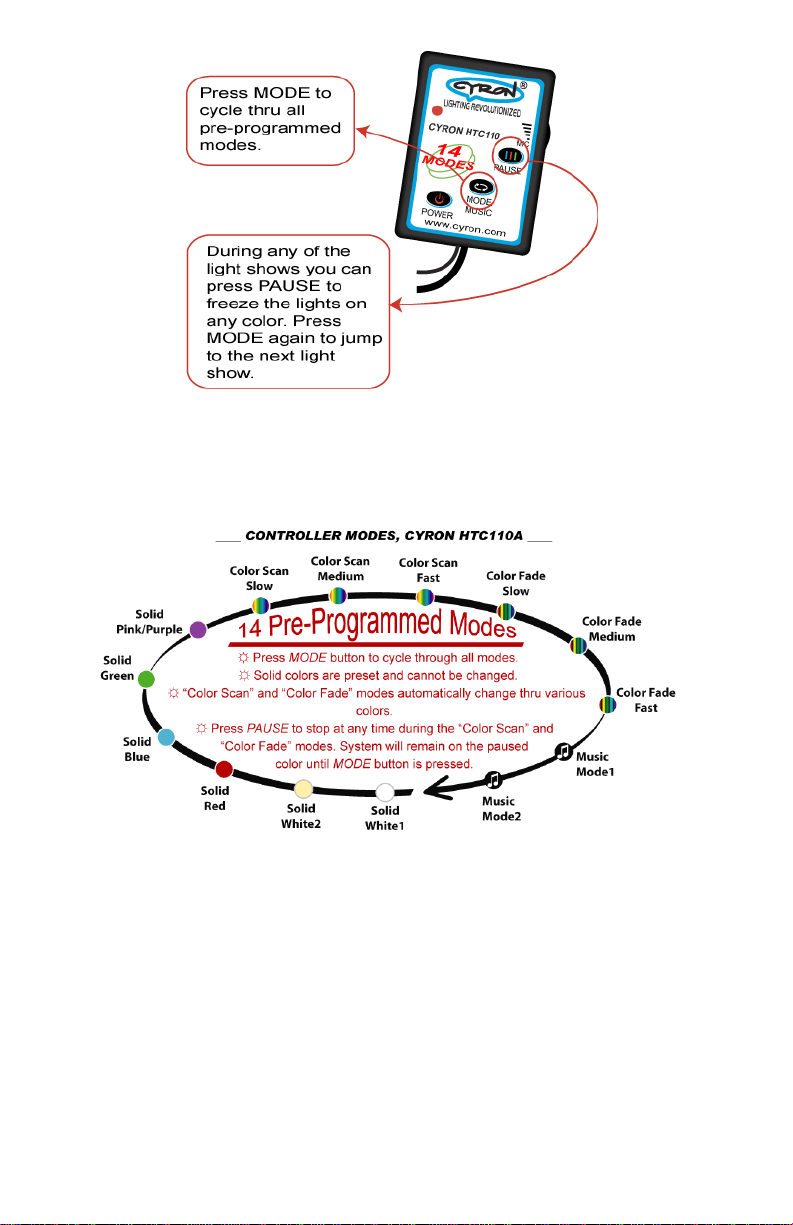

Operations

Turn the unit on and adjust the light angle by twisting the lightbars within the
brackets. Try several angles to achieve the desired results.

4
