Cypress Semiconductor CY7C68053 Specification Sheet

Download

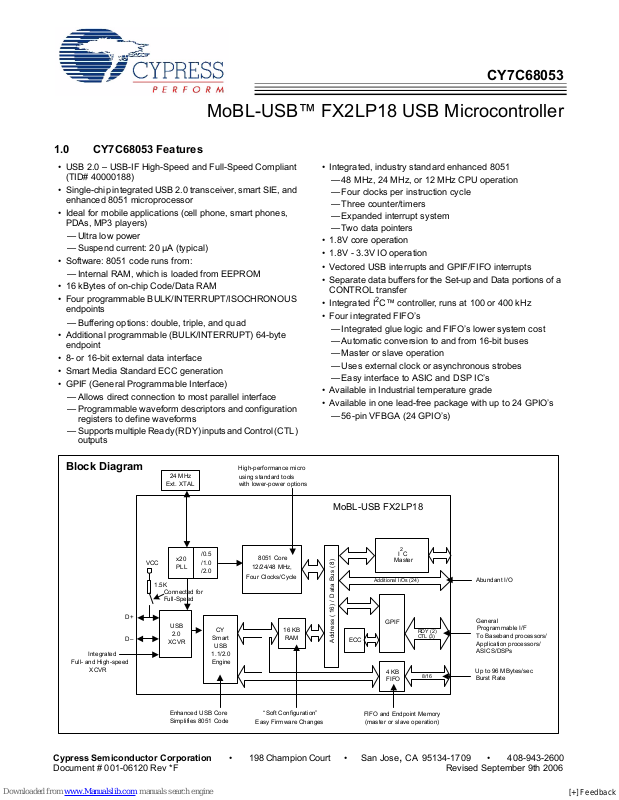

MoBL-USB™ FX2LP18 USB Microcontroller

1.0 CY7C68053 Features

• USB 2.0 – USB-IF High-Speed and Full-Speed Compliant (TID# 40000188)

• Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor

• Ideal for mobile applications (cell phone, smart phones, PDAs, MP3 players)

— Ultra low power — Suspend current: 20 µA (typical)

• Software: 8051 code runs from:

— Internal RAM, which is loaded from EEPROM

• 16 kBytes of on-chip Code/Data RAM

• Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints

— Buffering options: double, triple, and quad

• Additional programmable (BULK/INTERRUPT) 64-byte endpoint

• 8- or 16-bit external data interface

• Smart Media Standard ECC generation

• GPIF (General Programmable Interface)

— Allows direct connection to most parallel interface — Programmable waveform descriptors and configuration

registers to define waveforms

— Supports multiple Ready (RDY) inputs and Control (CTL)

outputs

CY7C68053

• Integrated, industry standard enhanced 8051 — 48 MHz, 24 MHz, or 12 MHz CPU operation — Four clocks per instruction cycle — Three counter/timers — Expanded interrupt system — Two data pointers

• 1.8V core operation

• 1.8V - 3.3V IO operation

• Vectored USB interrupts and GPIF/FIFO interrupts

• Separate data buffers for the Set-up and Data portions of a

CONTROL transfer

• Integrated I

• Four integrated FIFO’s — Integrated glue logic and FIFO’s lower system cost — Automatic conversion to and from 16-bit buses — Master or slave operation — Uses external clock or asynchronous strobes — Easy interface to ASIC and DSP IC’s

• Available in Industrial temperature grade

• Available in one lead-free package with up to 24 GPIO’s — 56-pin VFBGA (24 GPIO’s)

C™ controller, runs at 100 or 400 kHz

Block Diagram

24 MHz

Ext. XTAL

High-performance micro using standard tools with lower-power options

MoBL-USB FX2LP18

Master

Additional I/Os (24)

GPIF

4 KB FIFO

RDY (2) CTL (3)

8/16

Abundant I/O

General Programmable I/F To Baseband processors/ Application processors/ ASICS/DSPs

Up to 96 MBytes/sec Burst Rate

Integrated

Full- and High-speed

XCVR

D+

D–

VCC

1.5K Connected for Full-Speed

USB

XCVR

Enhanced USB Core Simplifies 8051 Code

2.0

x20 PLL

/0.5 /1.0 /2.0

Smart

USB

1.1/2.0 Engine

8051 Core

12/24/48 MHz,

Four Clocks/Cycle

16 KB

RAM

“Soft Configuration”

Easy Firmware Changes

ECC

Address (16)/ Data Bus(8)

FIFO and Endpoint Memory

(master or slave operation)

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Document # 001-06120 Rev *F Revised September 9th 2006

[+] Feedback

CY7C68053

Cypress Semiconductor Corporation’s MoBL-USB FX2LP18 (CY7C68053) is a low-voltage (1.8 volt) version of the EZ-

USB

FX2LP (CY7C68013A), which is a highly integrated, low-power USB 2.0 microcontroller. By integrating the USB 2.0 transceiver, serial interface engine (SIE), enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages with low power to enable bus powered applications.

The ingenious architecture of MoBL-USB FX2LP18 results in data transfer rates of over 53 Mbytes per second, the maximum allowable USB 2.0 bandwidth, while still using a lowcost 8051 microcontroller in a package as small as a 56 VFBGA (5 mm x 5 mm). Because it incorporates the USB 2.0 transceiver, the MoBL-USB FX2LP18 is more economical, providing a smaller footprint solution than USB 2.0 SIE or external transceiver implementations. With MoBL-USB FX2LP18, the Cypress Smart SIE handles most of the USB 1.1 and 2.0 protocol in hardware, freeing the embedded microcontroller for application-specific functions and decreasing development time to ensure USB compatibility.

The General Programmable Interface (GPIF) and Master/Slave Endpoint FIFO (8- or 16-bit data bus) provide an easy and glueless interface to popular interfaces such as UTOPIA, EPP, PCMCIA, and most DSP/processors.

The 56VFBGA package is defined for the family.

The MoBL-USB FX2LP18 is also referred to as FX2LP18 in this document.

ATA,

2.0 Applications

There are a wide variety of applications for the MoBL-USB FX2LP18. It is used in cell phone, smart phones, PDAs, and MP3 players, to name a few.

The ‘Reference Designs’ section of the Cypress web site provides additional tools for typical USB 2.0 applications. Each reference design comes complete with firmware source and object code, schematics, and documentation. For more information, visit http://www.cypress.com.

3.0 Functional Overview

The functionality of this chip is described in the sections below.

3.1 USB Signaling Speed

FX2LP18 operates at two of the three rates defined in the USB Specification Revision 2.0, dated April 27, 2000.

• Full-speed, with a signaling bit rate of 12 Mbps

• High-speed, with a signaling bit rate of 480 Mbps.

FX2LP18 does not support the low-speed signaling mode of

1.5 Mbps.

3.2 8051 Microprocessor

The 8051 microprocessor embedded in the FX2LP18 family has 256 bytes of register RAM, an expanded interrupt system, and three timer/counters.

3.2.1 8051 Clock Frequency

FX2LP18 has an on-chip oscillator circuit that uses an external 24 MHz (±100-ppm) crystal with the following characteristics:

• Parallel resonant

• Fundamental mode

• 500 µW drive level

• 12 pF (5% tolerance) load capacitors

An on-chip PLL multiplies the 24 MHz oscillator up to 480 MHz, as required by the transceiver/PHY; internal counters divide it down for use as the 8051 clock. The default 8051 clock frequency is 12 MHz. The clock frequency of the 8051 can be changed by the 8051 through the CPUCS register, dynamically.

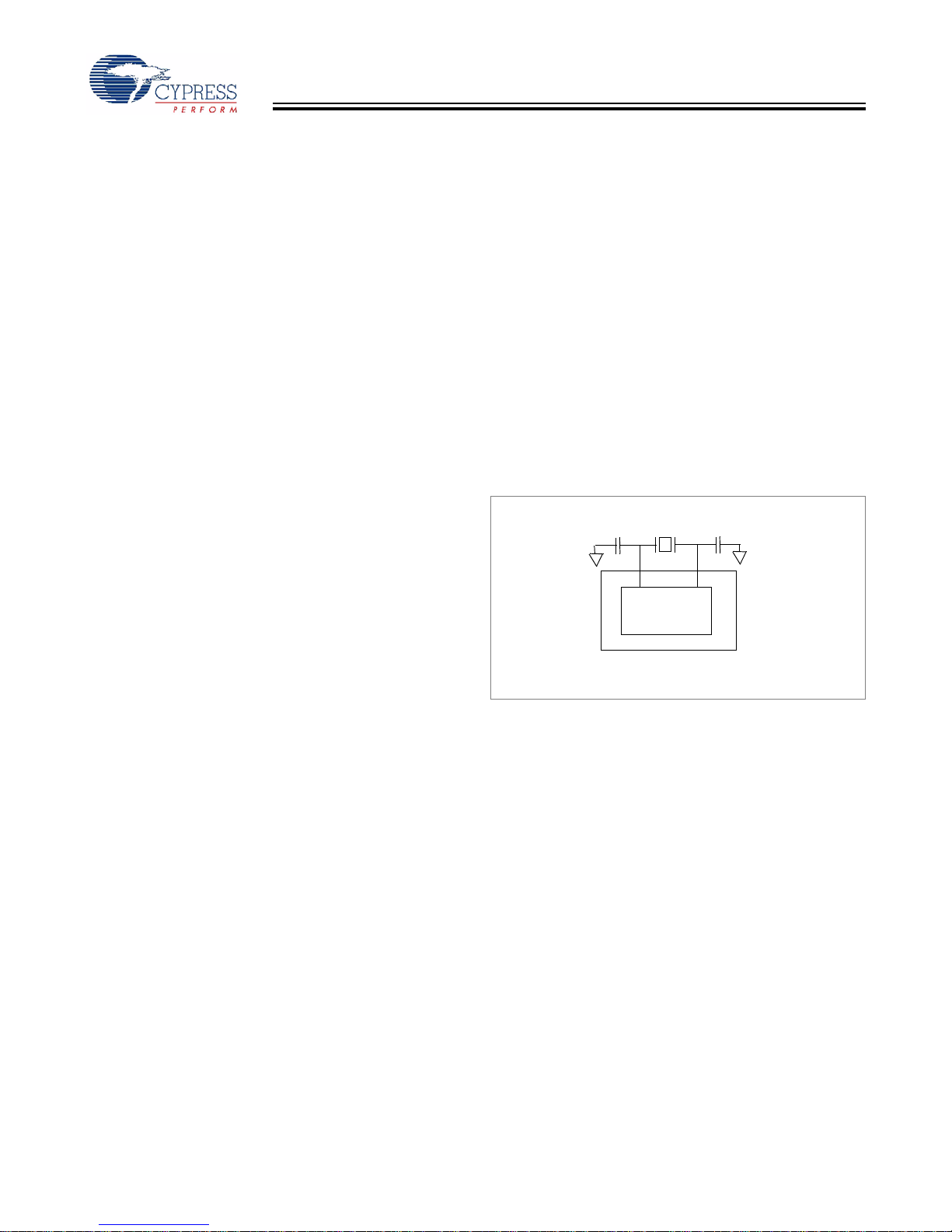

Figure 3-1. Crystal Configuration

24 MHz

12 pf

20 × PLL

12 pF capacitor values assumes a trace capacitance

of 3 pF per side on a four-layer FR4 PCA

The CLKOUT pin, which can be tri-stated and inverted using internal control bits, outputs the 50% duty cycle 8051 clock, at the selected 8051 clock frequency — 48, 24, or 12 MHz.

3.2.2 Special Function Registers

Certain 8051 Special Function Register (SFR) addresses are populated to provide fast access to critical FX2LP18 functions. These SFR additions are shown in Ta bl e 3- 1. Bold type indicates non-standard, enhanced 8051 registers. The two SFR rows that end with ‘0’ and ‘8’ contain bit-addressable registers. The four IO ports A – D use the SFR addresses used in the standard 8051 for ports 0 – 3, which are not implemented in FX2LP18. Because of the faster and more efficient SFR addressing, the FX2LP18 IO ports are not addressable in external RAM space (using the MOVX instruction).

12 pf

Document # 001-06120 Rev *F Page 2 of 39

[+] Feedback

CY7C68053

Table 3-1. Special Function Registers

x 8x 9x Ax Bx Cx Dx Ex Fx

1SP EXIF

2DPL0 MPAGE OEA

3DPH0

4 DPL1

5 DPH1 OED

6 DPS

7PCON

8 TCON SCON0 IE IP T2CON EICON EIE EIP

9TMOD SBUF0

ATL0AUTOPTRH1 EP2468STAT EP01STAT RCAP2L

BTL1AUTOPTRL1 EP24FIFOFLGS GPIFTRIG RCAP2H

CTH0Reserved EP68FIFOFLGS TL2

DTH1AUTOPTRH2 GPIFSGLDATH TH2

E CKCON AUTOPTRL2 GPIFSGLDATLX

F Reserved AUTOPTRSET-UP GPIFSGLDATLNOX

IOA IOB IOC IOD SCON1 PSW ACC B

INT2CLR IOE SBUF1

OEB

OEC

OEE

3.3 I2C™ Bus

FX2LP18 supports the I2C bus as a master only at 100-/400KHz. SCL and SDA pins have open-drain outputs and hysteresis inputs. These signals must be pulled up to either V

to V

or V

CC_IO

, even if no I2C device is connected.(Connecting

CC_IO

may be more convenient.)

3.4 Buses

This 56-pin package has an 8- or 16-bit ‘FIFO’ bidirectional data bus, multiplexed on IO ports B and D.

3.5 USB Boot Methods

During the power-up sequence, internal logic checks the I2C port for the connection of an EEPROM whose first byte is 0xC2. If found, it boot-loads the EEPROM contents into internal RAM (0xC2 load). If no EEPROM is present, an external processor must emulate an I

C slave. The FX2LP18 does not enumerate using internally stored descriptors (for example, Cypress’ VID/PID/DID is not used for enumer-

[1]

ation).

3.6 ReNumeration™

Because the FX2LP18’s configuration is soft, one chip can take on the identities of multiple distinct USB devices.

When first plugged into USB, the FX2LP18 enumerates automatically and downloads firmware and USB descriptor tables over the USB cable. Next, the FX2LP18 enumerates again, this time as a device defined by the downloaded information. This patented two-step process, called ReNumeration, happens instantly when the device is

Note

1. The I

C bus SCL and SDA pins must be pulled up, even if an EEPROM is not connected. Otherwise this detection method does not work properly.

plugged in, with no hint that the initial download step has occurred.

Two control bits in the USBCS (USB Control and Status) register control the ReNumeration process: DISCON and RENUM. To simulate a USB disconnect, the firmware sets DISCON to 1. To reconnect, the firmware clears DISCON to 0.

Before reconnecting, the firmware sets or clears the RENUM bit to indicate whether the firmware or the Default USB Device handles device requests over endpoint zero: if RENUM = 0, the Default USB Device handles device requests; if RENUM = 1, the firmware does.

3.7 Bus-powered Applications

The FX2LP18 fully supports bus-powered designs by enumerating with less than 100 mA as required by the USB 2.0 specification.

3.8 Interrupt System

The FX2LP18 interrupts are described in this section.

3.8.1 INT2 Interrupt Request and Enable Registers

FX2LP18 implements an autovector feature for INT2. There are 27 INT2 (USB) vectors. See the MoBL-USB™ Technical

Reference Manual (TRM) for more details.

3.8.2 USB Interrupt Autovectors

The main USB interrupt is shared by 27 interrupt sources. To save the code and processing time that is normally required to identify the individual USB interrupt source, the FX2LP18 provides a second level of interrupt vectoring, called ‘Autovectoring.’ When a USB interrupt is asserted, the FX2LP18

Document # 001-06120 Rev *F Page 3 of 39

[+] Feedback

CY7C68053

pushes the program counter onto its stack then jumps to address 0x0043, where it expects to find a ‘jump’ instruction to the USB interrupt service routine.

The FX2LP18 jump instruction is encoded as shown in Tab le 3- 2.

Table 3-2. INT2 USB Interrupts

USB INTERRUPT TABLE FOR INT2

Priority INT2VEC Value Source Notes

1 00 SUDAV Set-up Data Available

2 04 SOF Start of Frame (or microframe)

3 08 SUTOK Set-up Token Received

4 0C SUSPEND USB Suspend request

5 10 USB RESET Bus reset

6 14 HISPEED Entered high-speed operation

7 18 EP0ACK FX2LP18 ACK’d the CONTROL Handshake

8 1C Reserved

9 20 EP0-IN EP0-IN ready to be loaded with data

10 24 EP0-OUT EP0-OUT has USB data

11 28 EP1-IN EP1-IN ready to be loaded with data

12 2C EP1-OUT EP1-OUT has USB data

13 30 EP2 IN: buffer available. OUT: buffer has data

14 34 EP4 IN: buffer available. OUT: buffer has data

15 38 EP6 IN: buffer available. OUT: buffer has data

16 3C EP8 IN: buffer available. OUT: buffer has data

17 40 IBN IN-Bulk-NAK (any IN endpoint)

18 44 Reserved

19 48 EP0PING EP0 OUT was Pinged and it NAK’d

20 4C EP1PING EP1 OUT was Pinged and it NAK’d

21 50 EP2PING EP2 OUT was Pinged and it NAK’d

22 54 EP4PING EP4 OUT was Pinged and it NAK’d

23 58 EP6PING EP6 OUT was Pinged and it NAK’d

24 5C EP8PING EP8 OUT was Pinged and it NAK’d

25 60 ERRLIMIT Bus errors exceeded the programmed limit

26 64

27 68 Reserved

28 6C Reserved

29 70 EP2ISOERR ISO EP2 OUT PID sequence error

30 74 EP4ISOERR ISO EP4 OUT PID sequence error

31 78 EP6ISOERR ISO EP6 OUT PID sequence error

32 7C EP8ISOERR ISO EP8 OUT PID sequence error

If Autovectoring is enabled (AV2EN = 1 in the INTSET-UP register), the FX2LP18 substitutes its INT2VEC byte. Therefore, if the high byte (‘page’) of a jump-table address is preloaded at location 0x0044, the automatically-inserted INT2VEC byte at 0x0045 directs the jump to the correct address out of the 27 addresses within the page.

Document # 001-06120 Rev *F Page 4 of 39

[+] Feedback

Figure 3-2. Reset Timing Plots

CY7C68053

RESET#

1.8V

1.62V

RESET

Power on Reset

3.9 Reset and Wakeup

The reset and wakeup pins are described in detail in this section.

3.9.1 Reset Pin

The input pin, RESET#, resets the FX2LP18 when asserted. This pin has hysteresis and is active LOW. When a crystal is used with the CY7C68053, the reset period must allow for the stabilization of the crystal and the PLL. This reset period must be approximately 5 ms after VCC has reached 3.0V. If the crystal input pin is driven by a clock signal the internal PLL stabilizes in 200 µs after VCC has reached 3.0V shows a power on reset condition and a reset applied during operation. A power on reset is defined as the time reset is asserted while power is being applied to the circuit. A powered reset is defined to be when the FX2LP18 has previously been powered on and operating and the RESET# pin is asserted.

Cypress provides an application note which describes and recommends power on reset implementation and can be found on the Cypress web site. For more information on reset implementation for the MoBL-USB™ family of products, visit the Cypress web site at http://www.cypress.com.

Table 3-3. Reset Timing Values

Condition T

Power on Reset with crystal 5 ms

Power on Reset with external

200 µs + Clock stability time

clock

Powered Reset 200 µs

3.9.2 Wakeup Pins

The 8051 puts itself and the rest of the chip into a power-down mode by setting PCON.0 = 1. This stops the oscillator and PLL. When WAKEUP is asserted by external logic, the oscillator restarts, after the PLL stabilizes, and then the 8051 receives a wakeup interrupt. This applies whether or not FX2LP18 is connected to the USB.

[2]

RESET

. Figure 3-2

RESET#

1.8V

RESET

Powered Reset

The FX2LP18 exits the power-down (USB suspend) state using one of the following methods:

• USB bus activity (if D+/D– lines are left floating, noise on these lines may indicate activity to the FX2LP18 and initiate a wakeup)

• External logic asserts the WAKEUP pin

• External logic asserts the PA3/WU2 pin

The second wakeup pin, WU2, can also be configured as a general purpose IO pin. This allows a simple external R-C network to be used as a periodic wakeup source. Note that WAKEUP is by default active LOW.

3.9.3 Lowering Suspend Current

Good design practices for CMOS circuits dictate that any unused input pins must not be floating between V Floating input pins will not damage the chip, but can substan-

and VIH.

tially increase suspend current. To achieve the lowest suspend current, any unused port pins must be configured as outputs. Any unused input pins must be tied to ground. Some examples of pins that need attention during suspend are:

• Port pins. For Port A, B, D pins, extra care must be taken in shared bus situations.

— Completely unused pins must be pulled to V

GND.

CC_IO

— In a single-master system, the firmware must output en-

able all the port pins and drive them high or low, before FX2LP18 enters the suspend state.

— In a multi-master system (FX2LP18 and another proces-

sor sharing a common data bus), when FX2LP18 is suspended, the external master must drive the pins high or low. The external master may not let the pins float.

• CLKOUT. If CLKOUT is not used, it must be tri-stated during normal operation, but driven during suspend.

• IFCLK, RDY0, RDY1. These pins must be pulled to V or GND or driven by another chip.

CC_IO

• CTL0-2. If tri-stated via GPIFIDLECTL, these pins must be pulled to V

• RESET#, WAKEUP#. These pins must be pulled to V or GND or driven by another chip during suspend.

or GND or driven by another chip.

CC_IO

Note

2. If the external clock is powered at the same time as the CY7C680xx and has a stabilization wait period, it must be added to the 200 µs.

Document # 001-06120 Rev *F Page 5 of 39

[+] Feedback

CY7C68053

Figure 3-3. FX2LP18 Internal Code Memory

FFFF

7.5 kBytes USB regs and

4K FIFO buffers

E200 E1FF

0.5 kBytes RAM

Data

E000

3FFF

16 kBytes RAM Code and Data

0000

3.10 Program/Data RAM

This section describes the FX2LP18 RAM.

3.10.1 Size

The FX2LP18 has 16 kBytes of internal program/data RAM. No USB control registers appear in this space.

Memory maps are shown in Figure 3-3 and Figure 3-4.

3.10.2 Internal Code Memory

This mode implements the internal 16-kByte block of RAM (starting at 0) as combined code and data memory. Only the internal 16 kBytes and scratch pad 0.5 kBytes RAM spaces have the following access:

• USB download

• USB upload

• Set-up data pointer

•I

C interface boot load

3.11 Register Addresses

Figure 3-4. Register Address Memory

FFFF

F000 EFFF

E800 E7FF E7C0

E7BF E780 E77F E740

E73F

E700 E6FF

E500 E4FF

E480 E47F

E400 E3FF

E200 E1FF

E000

4 kBytes EP2-EP8

buffers

(8 x 512)

2 kBytes RESERVED

64 Bytes EP1IN

64 Bytes EP1OUT

64 Bytes EP0 IN/OUT

64 Bytes RESERVED

8051 Addressable Registers

(512)

Reserved (128)

128 Bytes GPIF Waveforms

Reserved (512)

512 Bytes

8051 xdata RAM

3.12 Endpoint RAM

This section describes the FX2LP18 Endpoint RAM.

3.12.1 Size

• 3 × 64 bytes (Endpoints 0, 1)

• 8 × 512 bytes (Endpoints 2, 4, 6, 8)

3.12.2 Organization

• EP0

• Bidirectional endpoint zero, 64-byte buffer

• EP1IN, EP1OUT

• 64-byte buffers: bulk or interrupt

• EP2, 4, 6, 8

• Eight 512-byte buffers: bulk, interrupt, or isochronous. EP4 and EP8 can be double buffered, while EP2 and 6 can be double, triple, or quad buffered. For high-speed endpoint configuration options, see Figure 3-5.

Document # 001-06120 Rev *F Page 6 of 39

3.12.3 Set-up Data Buffer

A separate 8-byte buffer at 0xE6B8-0xE6BF holds the set-up data from a CONTROL transfer.

3.12.4 Endpoint Configurations (High-speed Mode)

Endpoints 0 and 1 are the same for every configuration. Endpoint 0 is the only CONTROL endpoint, and endpoint 1 can be either BULK or INTERRUPT. The endpoint buffers can be configured in any one of the 12 configurations shown in the

[+] Feedback

CY7C68053

vertical columns of Figure 3-5. When operating in full-speed BULK mode only the first 64 bytes of each buffer are used. For example, in high-speed the maximum packet size is 512 bytes, but in full-speed it is 64 bytes. Even though a buffer is configured to be a 512 byte buffer, in full-speed only the first

Figure 3-5. Endpoint Configuration

EP0 IN&OUT

EP1 IN

EP1 OUT

EP2

512

EP4

512

EP6

512

EP8

512

EP2

512

EP4

512

EP6

512

EP2

512

EP4

512

EP6

1024

EP2

512

EP6

512

EP8

512

EP2

512

EP6

512

64 bytes are used. The unused endpoint buffer space is not available for other operations. An example endpoint configuration is:

EP2–1024 double buffered; EP6–512 quad buffered (column 8).

EP2

512

EP6

1024

EP2

1024

EP6

512

EP8

512

EP2

1024

EP6

512

EP2

1024

EP6

1024

EP2

512

EP6

512

EP8

512

EP2

1024

1024 1024

EP8

512

EP2

1024

3.12.5 Default Full-Speed Alternate Settings

Table 3-4. Default Full-Speed Alternate Settings

[3, 4]

Alternate Setting 0 1 2 3

ep0 64 64 64 64

ep1out 0 64 bulk 64 int 64 int

ep1in 0 64 bulk 64 int 64 int

ep2 0 64 bulk out (2×) 64 int out (2×) 64 iso out (2×)

ep4 0 64 bulk out (2×) 64 bulk out (2×) 64 bulk out (2×)

ep6 0 64 bulk in (2×) 64 int in (2×) 64 iso in (2×)

ep8 0 64 bulk in (2×) 64 bulk in (2×) 64 bulk in (2×)

Notes

3. ‘0’ means ‘not implemented.’

4. ‘2×’ means ‘double buffered.’

Document # 001-06120 Rev *F Page 7 of 39

[+] Feedback

3.12.6 Default High-Speed Alternate Settings

CY7C68053

Table 3-5. Default High-Speed Alternate Settings

[3, 4]

Alternate Setting 0 1 2 3

ep0 64 64 64 64

ep1out 0 512 bulk

ep1in 0 512 bulk

[5]

64 int 64 int

ep2 0 512 bulk out (2×) 512 int out (2×) 512 iso out (2×)

ep4 0 512 bulk out (2×) 512 bulk out (2×) 512 bulk out (2×)

ep6 0 512 bulk in (2×) 512 int in (2×) 512 iso in (2×)

ep8 0 512 bulk in (2×) 512 bulk in (2×) 512 bulk in (2×)

3.13 External FIFO Interface

The architecture, control signals, and clock rates are presented in this section.

3.13.1 Architecture

The FX2LP18 slave FIFO architecture has eight 512-byte blocks in the endpoint RAM that directly serve as FIFO memories and are controlled by FIFO control signals (such as IFCLK, SLCS#, SLRD, SLWR, SLOE, PKTEND, and flags).

In operation, some of the eight RAM blocks fill or empty from the SIE while the others are connected to the IO transfer logic. The transfer logic takes two forms: the GPIF for internally generated control signals or the slave FIFO interface for externally controlled transfers.

In Slave (S) mode, the FX2LP18 accepts either an internally derived clock or externally supplied clock (IFCLK, maximum frequency 48 MHz) and SLCS#, SLRD, SLWR, SLOE, PKTEND signals from external logic. When using an external IFCLK, the external clock must be present before switching to the external clock with the IFCLKSRC bit. Each endpoint can individually be selected for byte or word operation by an internal configuration bit, and a Slave FIFO Output Enable signal (SLOE) enables data of the selected width. External logic must insure that the output enable signal is inactive when writing data to a slave FIFO. The slave interface can also operate asynchronously, where the SLRD and SLWR signals act directly as strobes, rather than a clock qualifier as in synchronous mode. The signals SLRD, SLWR, SLOE and PKTEND are gated by the signal SLCS#.

3.13.2 Master/Slave Control Signals

The FX2LP18 endpoint FIFO’s are implemented as eight physically distinct 256x16 RAM blocks. The 8051/SIE can switch any of the RAM blocks between two domains, the USB (SIE) domain and the 8051-IO Unit domain. This switching is instantaneous, giving zero transfer time between ‘USB FIFO’s’ and ‘Slave FIFO’s.’ Since they are physically the same memory, no bytes are actually transferred between buffers.

At any given time, some RAM blocks are filling and emptying with USB data under SIE control, while other RAM blocks are available to the 8051 and/or the IO control unit. The RAM blocks operate as single port in the USB domain, and dual port in the 8051-IO domain. The blocks can be configured as single, double, triple, or quad buffered as previously shown.

The IO control unit implements either an internal master (M for master) or external master (S for Slave) interface.

In Master (M) mode, the GPIF internally controls FIFOADR[1:0] to select a FIFO. The two RDY pins can be used as flag inputs from an external FIFO or other logic. The GPIF can be run from either an internally derived clock or externally supplied clock (IFCLK), at a rate that transfers data up to 96 Megabytes/s (48 MHz IFCLK with 16-bit interface).

3.13.3 GPIF and FIFO Clock Rates

An 8051 register bit selects one of two frequencies for the internally supplied interface clock: 30 MHz and 48 MHz. Alternatively, an externally supplied clock of 5 MHz – 48 MHz feeding the IFCLK pin can be used as the interface clock. IFCLK can be configured to function as an output clock when the GPIF and FIFO’s are internally clocked. An output enable bit in the IFCONFIG register turns this clock output off. Another bit within the IFCONFIG register will invert the IFCLK signal whether internally or externally sourced.

3.14 GPIF

The GPIF is a flexible 8- or 16-bit parallel interface driven by a user programmable finite state machine. It allows the CY7C68053 to perform local bus mastering, and can implement a wide variety of protocols such as ATA interface, parallel printer port, and Utopia.

The GPIF has three programmable control outputs (CTL), and two general purpose ready inputs (RDY). The data bus width can be 8 or 16 bits. Each GPIF vector defines the state of the control outputs, and determines what state a ready input (or multiple inputs) must be before proceeding. The GPIF vector can be programmed to advance a FIFO to the next data value, advance an address, and so on. A sequence of the GPIF vectors make up a single waveform that is executed to perform the desired data move between the FX2LP18 and the external device.

Notes

5. Even though these buffers are 64 bytes, they are reported as 512 for USB 2.0 compliance. The user must never transfer packets larger than 64 bytes to EP1.

Document # 001-06120 Rev *F Page 8 of 39

[+] Feedback

CY7C68053

3.14.1 Three Control OUT Signals

The 56-pin package brings out three of these signals, CTL0–CTL2. The 8051 programs the GPIF unit to define the CTL waveforms. CTLx waveform edges can be programmed to make transitions as fast as once per clock cycle (20.8 ns using a 48 MHz clock).

3.14.2 Two Ready IN Signals

The FX2LP18 package brings out all two Ready inputs (RDY0–RDY1). The 8051 programs the GPIF unit to test the RDY pins for GPIF branching.

3.14.3 Long Transfer Mode

In master mode, the 8051 appropriately sets GPIF transaction count registers (GPIFTCB3, GPIFTCB2, GPIFTCB1, or GPIFTCB0) for unattended transfers of up to 2

transactions. The GPIF automatically throttles data flow to prevent under or overflow until the full number of requested transactions complete. The GPIF decrements the value in these registers to represent the current status of the transaction.

3.15 ECC Generation

[6]

The MoBL-USB can calculate Error Correcting Codes (ECC’s) on data that passes across its GPIF or Slave FIFO interfaces. There are two ECC configurations: two ECC’s, each calculated over 256 bytes (SmartMedia Standard) and one ECC calculated over 512 bytes.

The ECC can correct any 1-bit error or detect any 2-bit error.

3.15.1 ECC Implementation

The two ECC configurations are selected by the ECCM bit.

3.15.1.1 ECCM = 0

Two 3-byte ECC’s are each calculated over a 256-byte block of data. This configuration conforms to the SmartMedia Standard.

This configuration writes any value to ECCRESET, then passes data across the GPIF or Slave FIFO interface. The ECC for the first 256 bytes of data is calculated and stored in ECC1. The ECC for the next 256 bytes is stored in ECC2. After the second ECC is calculated, the values in the ECCx registers do not change until ECCRESET is written again, even if more data is subsequently passed across the interface.

3.15.1.2 ECCM = 1

One 3-byte ECC is calculated over a 512-byte block of data.

This configuration writes any value to ECCRESET then passes data across the GPIF or Slave FIFO interface. The ECC for the first 512 bytes of data is calculated and stored in ECC1; ECC2 is unused. After the ECC is calculated, the value in ECC1 does not change until ECCRESET is written again, even if more data is subsequently passed across the interface.

3.16 USB Uploads and Downloads

The core has the ability to directly edit the data contents of the internal 16-kByte RAM and of the internal 512-byte scratch pad RAM via a vendor-specific command. This capability is normally used when ‘soft’ downloading user code and is available only to and from internal RAM, only when the 8051 is held in reset. The available RAM spaces are 16 kBytes from 0x0000–0x3FFF (code/data) and 512 bytes from 0xE000–0xE1FF (scratch pad data RAM).

[7]

3.17 Autopointer Access

FX2LP18 provides two identical autopointers. They are similar to the internal 8051 data pointers, but with an additional feature: they can optionally increment after every memory access.The autopointers are available in external FX2LP18 registers, under control of a mode bit (AUTOPTRSET-UP.0). Using the external FX2LP18 autopointer access (at 0xE67B – 0xE67C) allows the autopointer to access all RAM. Also, the autopointers can point to any FX2LP18 register or endpoint buffer space.

3.18 I2C Controller

FX2LP18 has one I2C port that is driven by two internal controllers. One automatically operates at boot time to load the VID/PID/DID, configuration byte, and firmware and a second controller that the 8051, once running, uses to control external

C devices. The I2C port operates in master mode only.

3.18.1 I

The I up resistors even if no EEPROM is connected to the FX2LP18. The value of the pull up resistors required may vary, depending on the combination of V EEPROM. The pull up resistors used must be such that when the EEPROM pulls SDA low, the voltage level meets the V specification of the FX2LP18. For example, if the EEPROM runs off a 3.3V supply and V recommended are 10K ohm. This requirement may also vary depending on the devices being run on the I2C pins. Refer to the I

External EEPROM device address pins must be configured properly. See Tab le 3- 6 for configuring the device address pins.

If no EEPROM is connected to the I emulation is required by an external processor.This is because the FX2LP18 comes out of reset with the DISCON bit set, so the device will not enumerate without an EEPROM (C2 load) or EEPROM emulation.

C Port Pins

C pins SCL and SDA must have external 2.2K ohm pull

and the supply used for the

CC_IO

is 1.8V, the pull up resistors

CC_IO

C specifications for details.

C port, EEPROM

Notes

6. To use the ECC logic, the GPIF or Slave FIFO interface must be configured for byte-wide operation.

7. After the data has been downloaded from the host, a ‘loader’ can execute from internal RAM in order to transfer downloaded data to external memory.

Document # 001-06120 Rev *F Page 9 of 39

[+] Feedback

CY7C68053

Table 3-6. Strap Boot EEPROM Address Lines to These Val ues

Bytes Example EEPROM A2 A1 A0

16 24AA00

[8]

N/A N/A N/A

12824AA01 000

25624AA02 000

4K 24AA32 0 0 1

8K 24AA64 0 0 1

16K 24AA128 0 0 1

3.18.2 I2C Interface Boot Load Access

At power on reset the I2C interface boot loader loads the VID/PID/DID and configuration bytes and up to 16 kBytes of program/data. The available RAM spaces are 16 kBytes from

Figure 4-1. Signals

Port GPIF Master Slave FIFO

PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0 PB7 PB6

XTALIN XTALOUT RESET# WAKEUP#

SCL SDA

IFCLK CLKOUT

DPLUS DMINUS

PB5 PB4 PB3 PB2 PB1 PB0

INT0#/PA0 INT1#/PA1

PA2

WU2/PA3

PA4 PA5 PA6 PA7

0x0000–0x3FFF and 512 bytes from 0xE000–0xE1FF. The 8051 is reset. I

C interface boot loads only occur after power

on reset.

3.18.3 I

The 8051 can control peripherals connected to the I2C bus using the I2CTL and I2DAT registers. FX2LP18 provides I master control only, it is never an I

C Interface General Purpose Access

C slave.

4.0 Pin Assignments

Figure 4-1 identifies all signals for the package. It is followed by the pin diagram.Three modes are available: Port, GPIF master, and Slave FIFO. These modes define the signals on the right edge of the diagram. The 8051 selects the interface mode using the IFCONFIG[1:0] register bits. Port mode is the power on default configuration.

FD[15] FD[14] FD[13] FD[12] FD[11] FD[10] FD[9] FD[8] FD[7] FD[6] FD[5] FD[4] FD[3] FD[2] FD[1] FD[0]

RDY0 RDY1

CTL0 CTL1 CTL2

INT0#/PA0 INT1#/PA1 PA2 WU2/PA3 PA4 PA5 PA6 PA7

FD[15] FD[14] FD[13] FD[12] FD[11] FD[10] FD[9] FD[8] FD[7] FD[6] FD[5] FD[4] FD[3] FD[2] FD[1] FD[0]

SLRD SLWR

FLAGA FLAGB FLAGC

INT0#/PA0 INT1#/PA1 SLOE WU2/PA3 FIFOADR0 FIFOADR1 PKTEND PA7/FLAGD/SLCS#

Note

8. This EEPROM does not have address pins.

Document # 001-06120 Rev *F Page 10 of 39

[+] Feedback

Figure 4-2. CY7C68053 56-pin VFBGA Pin Assignment - Top view

12345678

CY7C68053

1A 2A 3A 4A 5A 6A 7A 8A

1B 2B 3B 4B 5B 6B 7B 8B

1C 2C 3C 4C 5C 6C 7C 8C

1D 2D 7D 8D

1E 2E 7E 8E

1F 2F 3F 4F 5F 6F 7F 8F

1G 2G 3G 4G 5G 6G 7G 8G

1H 2H 3H 4H 5H 6H 7H 8H

Document # 001-06120 Rev *F Page 11 of 39

[+] Feedback

CY7C68053

4.1 CY7C68053 Pin Descriptions

Table 4-1. FX2LP18 Pin Descriptions

56 VFBGA Name Type Default Description

2D AV

1D AV

Power N/A Analog VCC. Connect this pin to 3.3V power source. This signal provides

2F AGND Ground N/A Analog Ground. Connect this pin to ground with as short a path as

1F AGND Ground N/A Analog Ground. Connect to this pin ground with as short a path as

1E DMINUS I/O/Z Z USB D– Signal. Connect this pin to the USB D– signal.

2E DPLUS I/O/Z Z USB D+ Signal. Connect this pin to the USB D+ signal.

8B RESET# Input N/A Active LOW Reset. This pin resets the entire chip. See Section 3.9 ”Reset

1C XTALIN Input N/A Crystal Input. Connect this signal to a 24 MHz parallel resonant, funda-

2C XTALOUT Output N/A Crystal Output. Connect this signal to a 24 MHz parallel resonant, funda-

2B CLKOUT O/Z 12 MHz CLKOUT. 12-, 24- or 48-MHz clock, phase locked to the 24 MHz input

Port A

8G PA0 or

I/O/Z I

INT0#

6G PA1 or

I/O/Z I

INT1#

8F PA2 or

I/O/Z I

SLOE

7F PA3 or

I/O/Z I

WU2

[9]

power to the analog section of the chip.

Appropriate bulk/bypass capacitance should be provided for this supply rail.

power to the analog section of the chip.

possible.

and Wakeup” on page 5 for more details.

mental mode crystal and load capacitor to GND. It is also correct to drive XTALIN with an external 24-MHz square wave derived from another clock source.

mental mode crystal and load capacitor to GND. If an external clock is used to drive XTALIN, leave this pin open.

clock. The 8051 defaults to 12 MHz operation. The 8051 may tri-state this output by setting CPUCS.1 = 1.

(PA0)

(PA1)

(PA2)

(PA3)

Multiplexed pin whose function is selected by PORTACFG.0

PA0 is a bidirectional IO port pin. INT0# is the active LOW 8051 INT0 interrupt input signal, which is either

edge triggered (IT0 = 1) or level triggered (IT0 = 0).

Multiplexed pin whose function is selected by: PORTACFG.1

PA1 is a bidirectional IO port pin. INT1# is the active LOW 8051 INT1 interrupt input signal, which is either

edge triggered (IT1 = 1) or level triggered (IT1 = 0).

Multiplexed pin whose function is selected by two bits: IFCONFIG[1:0].

PA2 is a bidirectional IO port pin. SLOE is an input-only output enable with programmable polarity

(FIFOPINPOLAR.4) for the slave FIFO’s connected to FD[7:0] or FD[15:0].

Multiplexed pin whose function is selected by: WAKEUP.7 and OEA.3

PA3 is a bidirectional IO port pin. WU2 is an alternate source for USB Wakeup, enabled by WU2EN bit

(WAKEUP.1) and polarity set by WU2POL (WAKEUP.4). If the 8051 is in suspend and WU2EN = 1, a transition on this pin starts up the oscillator and interrupts the 8051 to allow it to exit the suspend mode. Asserting this pin inhibits the chip from suspending, if WU2EN = 1.

Note

9. Unused inputs must not be left floating. Tie either HIGH or LOW as appropriate. Outputs should only be pulled up or down to ensure signals at power up and in standby. Note also that no pins should be driven while the device is powered down

Document # 001-06120 Rev *F Page 12 of 39

[+] Feedback

CY7C68053

(PA4)

(PA5)

(PA6)

(PA7)

(PB0)

(PB1)

(PB2)

(PB3)

(PB4)

(PB5)

(PB6)

(PB7)

[9]

Multiplexed pin whose function is selected by: IFCONFIG[1:0].

PA4 is a bidirectional IO port pin. FIFOADR0 is an input-only address select for the slave FIFO’s connected

to FD[7:0] or FD[15:0].

Multiplexed pin whose function is selected by: IFCONFIG[1:0].

PA5 is a bidirectional IO port pin. FIFOADR1 is an input-only address select for the slave FIFO’s connected

to FD[7:0] or FD[15:0].

Multiplexed pin whose function is selected by the IFCONFIG[1:0] bits.

PA6 is a bidirectional IO port pin. PKTEND is an input used to commit the FIFO packet data to the endpoint

and whose polarity is programmable using FIFOPINPOLAR.5.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and PORTACFG.7 bits.

PA7 is a bidirectional IO port pin. FLAGD is a programmable slave FIFO output status flag signal. SLCS# gates all other slave FIFO enable/strobes

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB0 is a bidirectional IO port pin. FD[0] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB1 is a bidirectional IO port pin. FD[1] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB2 is a bidirectional IO port pin. FD[2] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB3 is a bidirectional IO port pin. FD[3] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB4 is a bidirectional IO port pin. FD[4] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB5 is a bidirectional IO port pin. FD[5] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB6 is a bidirectional IO port pin. FD[6] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the following bits: IFCONFIG[1:0].

PB7 is a bidirectional IO port pin. FD[7] is the bidirectional FIFO/GPIF data bus.

Table 4-1. FX2LP18 Pin Descriptions (continued)

56 VFBGA Name Type Default Description

6F PA4 or

FIFOADR0

8C PA5 or

FIFOADR1

7C PA6 or

PKTEND

6C PA7 or

FLAGD or SLCS#

Port B

3H PB0 or

FD[0]

4F PB1 or

FD[1]

4H PB2 or

FD[2]

4G PB3 or

FD[3]

5H PB4 or

FD[4]

5G PB5 or

FD[5]

5F PB6 or

FD[6]

6H PB7 or

FD[7]

I/O/Z I

Document # 001-06120 Rev *F Page 13 of 39

[+] Feedback

CY7C68053

(PD0)

(PD1)

(PD2)

(PD3)

(PD4)

(PD5)

(PD6)

(PD7)

[9]

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[8] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[9] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[10] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[11] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[12] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[13] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits. FD[14] is the bidirectional FIFO/GPIF data bus.

Multiplexed pin whose function is selected by the IFCONFIG[1:0] and EPxFIFOCFG.0 (wordwide) bits.

FD[15] is the bidirectional FIFO/GPIF data bus.

Table 4-1. FX2LP18 Pin Descriptions (continued)

56 VFBGA Name Type Default Description

PORT D

8A PD0 or

FD[8]

7A PD1 or

FD[9]

6B PD2 or

FD[10]

6A PD3 or

FD[11]

3B PD4 or

FD[12]

3A PD5 or

FD[13]

3C PD6 or

FD[14]

2A PD7 or

FD[15]

I/O/Z I

1A RDY0 or

SLRD

1B RDY1 or

SLWR

7H CTL0 or

FLAGA

7G CTL1 or

FLAGB

8H CTL2 or

FLAGC

Input N/A Multiplexed pin whose function is selected by the following bits:

IFCONFIG[1:0].

RDY0 is a GPIF input signal. SLRD is the input only read strobe with programmable polarity (FIFOPIN-

POLAR.3) for the slave FIFO’s connected to FD[7:0] or FD[15:0].

Input N/A Multiplexed pin whose function is selected by the following bits:

IFCONFIG[1:0].

RDY1 is a GPIF input signal. SLWR is the input only write strobe with programmable polarity (FIFOPIN-

POLAR.2) for the slave FIFO’s connected to FD[7:0] or FD[15:0].

O/Z H Multiplexed pin whose function is selected by the following bits:

IFCONFIG[1:0].

CTL0 is a GPIF control output. FLAGA is a programmable slave FIFO output status flag signal.

Defaults to programmable for the FIFO selected by the FIFOADR[1:0] pins.

O/Z H Multiplexed pin whose function is selected by the following bits:

IFCONFIG[1:0].

CTL1 is a GPIF control output. FLAGB is a programmable slave FIFO output status flag signal.

Defaults to FULL for the FIFO selected by the FIFOADR[1:0] pins.

O/Z H Multiplexed pin whose function is selected by the following bits:

IFCONFIG[1:0].

CTL2 is a GPIF control output. FLAGC is a programmable slave FIFO output status flag signal.

Defaults to EMPTY for the FIFO selected by the FIFOADR[1:0] pins.

Document # 001-06120 Rev *F Page 14 of 39

[+] Feedback

CY7C68053

Table 4-1. FX2LP18 Pin Descriptions (continued)

[9]

56 VFBGA Name Type Default Description

2G IFCLK I/O/Z Z Interface Clock, used for synchronously clocking data into or out of the

slave FIFO’s. IFCLK also serves as a timing reference for all slave FIFO control signals and GPIF. When internal clocking is used (IFCONFIG.7 = 1) the IFCLK pin can be configured to output 30/48 MHz by bits IFCONFIG.5 and IFCONFIG.6. IFCLK may be inverted, whether internally or externally sourced, by setting the bit IFCONFIG.4 =1.

7B WAKEUP Input N/A USB Wakeup. If the 8051 is in suspend, asserting this pin starts up the

oscillator and interrupts the 8051 to allow it to exit the suspend mode. Holding WAKEUP asserted inhibits the MoBL-USB



chip from

suspending. This pin has programmable polarity (WAKEUP.4).

3F SCL OD Z Clock for the I

pull up resistor. (An I

3G SDA OD Z Data for the I

up resistor. (An I

5A V

CC_IO

Power N/A VCC. Connect this pin to 1.8V to 3.3V power source.

C interface. Connect to V

C peripheral is required).

C interface. Connect to V

C peripheral is required).

or VCC with a 2.2K - 10K

CC_IO

or VCC with a 2.2K - 10K pull

CC_IO

Appropriate bulk/bypass capacitance should be provided for this supply rail.

5B V

7E V

8E V

5C V

CC_IO

CC_D

Power N/A VCC. Connect this pin to 1.8V to 3.3V power source

Power N/A VCC. Connect this pin to 1.8V to 3.3V power source.

Power N/A VCC. Connect this pin to 1.8V power source.(Supplies power to internal

digital 1.8V circuits)

Appropriate bulk/bypass capacitance should be provided for this supply rail.

1G V

CC_A

Power N/A VCC. Connect this pin to 1.8V power source.(Supplies power to internal

analog 1.8V circuits)

1H GND Ground N/A Ground.

2H GND Ground N/A Ground.

4A GND Ground N/A Ground.

4B GND Ground N/A Ground.

4C GND Ground N/A Ground.

7D GND Ground N/A Ground.

8D GND Ground N/A Ground.

Document # 001-06120 Rev *F Page 15 of 39

[+] Feedback

CY7C68053

5.0 Register Summary

FX2LP18 register bit definitions are described in the MoBL-USB TRM in greater detail.

Table 5-1. FX2LP18 Register Summary

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

E400 128 WAVEDATA GPIF Waveform

E480 128 Reserved

E50D GPCR2 General Purpose Configu-

E600 1 CPUCS CPU Control & Status 0 0 PORTCSTB CLKSPD1 CLKSPD0 CLKINV CLKOE 8051RES 00000010 rrbbbbbr

E601 1 IFCONFIG Interface Configuration

E602 1 PINFLAGSAB

E603 1 PINFLAGSCD

E604 1 FIFORESET

E605 1 BREAKPT Breakpoint Control 0 0 0 0 BREAK BPPULSE BPEN 0 00000000 rrrrbbbr

E606 1 BPADDRH Breakpoint Address H A15 A14 A13 A12 A11 A10 A9 A8 xxxxxxxx RW

E607 1 BPADDRL Breakpoint Address L A7 A6 A5 A4 A3 A2 A1 A0 xxxxxxxx RW

E608 1 Re served Reserved 0 0 0 0 0 0 0 0 00000000 rrrrrrbb

E609 1 FIFOPINPOLAR

E60A 1 REVID Chip Revision rv7 rv6 rv5 rv4 rv3 rv2 rv1 rv0 RevA

E60B 1 REVCTL

E60C 1 GPIFHOLDAMOUNT MSTB Hold Time

E610 1 EP1OUTCFG Endpoint 1-OUT

E611 1 EP1INCFG Endpoint 1-IN

E612 1 EP2CFG Endpoint 2 Configuration VA LID DIR TYPE1 TYPE0 SIZE 0 BUF1 BUF0 10100010 bbbbbrbb

E613 1 EP4CFG Endpoint 4 Configuration VA LID DIR TYPE1 TYPE0 0 0 0 0 10100000 bbbbrrrr

E614 1 EP6CFG Endpoint 6 Configuration VA LID DIR TYPE1 TYPE0 SIZE 0 BUF1 BUF0 11100010 bbbbbrbb

E615 1 EP8CFG Endpoint 8 Configuration VA LID DIR TYPE1 TYPE0 0 0 0 0 11100000 bbbbrrrr

E618 1 EP2FIFOCFG

E619 1 EP4FIFOCFG

E61A 1 EP6FIFOCFG

E61B 1 EP8FIFOCFG

E61C 4 Reserved

E620 1 EP2AUTOINLENH

E621 1 EP2AUTOINLENL

E622 1 EP4AUTOINLENH

E623 1 EP4AUTOINLENL

E624 1 EP6AUTOINLENH

E625 1 EP6AUTOINLENL

E626 1 EP8AUTOINLENH

E627 1 EP8AUTOINLENL

E628 1 ECCCFG ECC Configuration 0 0 0 0 0 0 0 ECCM 00000000 rrrrrrrb

E629 1 ECCRESET ECC Reset x x x x x x x x 00000000 W

E62A 1 ECC1B0 ECC1 Byte 0 Address LINE15 LINE14 LINE13 LINE12 LINE11 LINE10 LINE9 LINE8 00000000 R

E62B 1 ECC1B1 ECC1 Byte 1 Address LINE7 LINE6 LINE5 LINE4 LINE3 LINE2 LINE1 LINE0 00000000 R

Note

10. Read and writes to these registers may require synchronization delay, see Technical Reference Manual for ‘Synchronization Delay.’

GPIF Waveform Memories

GENERAL CONFIGURATION

UDMA

3 Reserved

ENDPOINT CONFIGURATION

2 Reserved

]

[10]

Slave FIFO FLAGC and

[10]

[10

[10]

[10

[10]

[10

[10]

[10

[10]

Descriptor 0, 1, 2, 3 data

ration Register 2

(Ports, GPIF, slave FIFO’s)

Slave FIFO FLAGA and FLAGB Pin Configuration

FLAGD Pin Configuration

Restore FIFO’s to default state

Slave FIFO Interface pins polarity

Chip Revision Control 0 0 0 0 0 0 dyn_out enh_pkt 00000000 rrrrrrbb

(for UDMA)

Configuration

Endpoint 2/slave FIFO configuration

Endpoint 4/slave FIFO configuration

Endpoint 6/slave FIFO configuration

Endpoint 8/slave FIFO configuration

Endpoint 2 AUTOIN

Packet Length H

Endpoint 2 AUTOIN Packet Length L

Endpoint 4 AUTOIN Packet Length H

Endpoint 4 AUTOIN Packet Length L

Endpoint 6 AUTOIN Packet Length H

Endpoint 6 AUTOIN Packet Length L

Endpoint 8 AUTOIN Packet Length H

Endpoint 8 AUTOIN Packet Length L

D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

Reserved Reserved Reserved FULL_SPEE

IFCLKSRC 3048MHZ IFCLKOE IFCLKPOL ASYNC GSTATE IFCFG1 IFCFG0 10000000 RW

FLAGB3 FLAGB2 FLAGB1 FLAGB0 FLAGA3 FLAGA2 FLAGA1 FLAGA0 00000000 RW

FLAGD3 FLAGD2 FLAGD1 FLAGD0 FLAGC3 FLAGC2 FLAGC1 FLAGC0 00000000 RW

NAKALL 0 0 0 EP3 EP2 EP1 EP0 xxxxxxxx W

0 0 PKTEND SLOE SLRD SLWR EF FF 00000000 rrbbbbbb

0 0 0 0 0 0 HOLDTIME1 HOLDTIME0 00000000 rrrrrrbb

VAL ID 0 TYPE1 TYPE0 0 0 0 0 10100000 brbbrrrr

0 INFM1 OEP1 AUTOOUT AUTOIN ZEROLENIN 0 WORDWIDE 00000101 rbbbbbrb

0 0 0 0 0 PL10 PL9 PL8 00000010 rrrrrbbb

PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0 00000000 RW

0 0 0 0 0 0 PL9 PL8 00000010 rrrrrrbb

PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0 00000000 RW

0 0 0 0 0 PL10 PL9 PL8 00000010 rrrrrbbb

PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0 00000000 RW

0 0 0 0 0 0 PL9 PL8 00000010 rrrrrrbb

PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0 00000000 RW

D_ONLY

Reserved Reserved Reserved Reserved 00000000 R

00000001

Document # 001-06120 Rev *F Page 16 of 39

[+] Feedback

CY7C68053

Table 5-1. FX2LP18 Register Summary (continued)

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

E62C 1 ECC1B2 ECC1 Byte 2 Address COL5 COL4 COL3 COL2 COL1 COL0 LINE17 LINE16 00000000 R

E62D 1 ECC2B0 ECC2 Byte 0 Address LINE15 LINE14 LINE13 LINE12 LINE11 LINE10 LINE9 LINE8 00000000 R

E62E 1 ECC2B1 ECC2 Byte 1 Address LINE7 LINE6 LINE5 LINE4 LINE3 LINE2 LINE1 LINE0 00000000 R

E62F 1 ECC2B2 ECC2 Byte 2 Address COL5 COL4 COL3 COL2 COL1 COL0 0 0 00000000 R

E630

1 EP2FIFOPFH

H.S.

E630 F. S.

E631 H.S.

E631 F. S

E632 H.S.

E632 F. S

E633 H.S.

E633 F. S

E634 H.S.

E634 F. S

E635 H.S.

E635 F. S

E636 H.S.

E636 F. S

E637 H.S.

E637 F. S

1 EP2FIFOPFH

1 EP2FIFOPFL

1 EP4FIFOPFH

1 EP4FIFOPFL

1 EP6FIFOPFH

1 EP6FIFOPFL

1 EP8FIFOPFH

1 EP8FIFOPFL

8 Reserved

E640 1 EP2ISOINPKTS EP2 (if ISO) IN Packets

E641 1 EP4ISOINPKTS EP4 (if ISO) IN Packets

E642 1 EP6ISOINPKTS EP6 (if ISO) IN Packets

E643 1 EP8ISOINPKTS EP8 (if ISO) IN Packets

E644 4 Re served

E648 1 INPKTEND

E649 7 OUTPKTEND

INTERRUPTS

E650 1 EP2FIFOIE

E651 1 EP2FIFOIRQ

E652 1 EP4FIFOIE

E653 1 EP4FIFOIRQ

E654 1 EP6FIFOIE

E655 1 EP6FIFOIRQ

E656 1 EP8FIFOIE

E657 1 EP8FIFOIRQ

E658 1 IBNIE IN-BULK-NAK Interrupt

E659 1 IBNIRQ

E65A 1 NAKIE Endpoint Ping-NAK/IBN

E65B 1 NAKIRQ

E65C 1 USBIE USB Int Enables 0 EP0ACK HSGRANT URES SUSP SUTOK SOF SUDAV 00000000 RW

E65D 1 USBIRQ

[10]

Endpoint 2/slave FIFO Programmable Flag H

[10]

Endpoint 2/slave FIFO Programmable Flag H

[10]

Endpoint 2/slave FIFO Programmable Flag L

[10]

Endpoint 2/slave FIFO Programmable Flag L

[10]

Endpoint 4/slave FIFO Programmable Flag H

[10]

Endpoint 4/slave FIFO Programmable Flag H

[10]

Endpoint 4/slave FIFO Programmable Flag L

[10]

Endpoint 4/slave FIFO Programmable Flag L

[10]

Endpoint 6/slave FIFO Programmable Flag H

[10]

Endpoint 6/slave FIFO Programmable Flag H

[10]

Endpoint 6/slave FIFO Programmable Flag L

[10]

Endpoint 6/slave FIFO Programmable Flag L

[10]

Endpoint 8/slave FIFO Programmable Flag H

[10]

Endpoint 8/slave FIFO Programmable Flag H

[10]

Endpoint 8/slave FIFO Programmable Flag L

[10]

Endpoint 8/slave FIFO Programmable Flag L

per frame (1-3)

[10]

Force IN Packet End Skip 0 0 0 EP3 EP2 EP1 EP0 xxxxxxxx W

[10]

Force OUT Packet End Skip 0 0 0 EP3 EP2 EP1 EP0 xxxxxxxx W

[10]

Endpoint 2 slave FIFO Flag Interrupt Enable

[10,11]

Endpoint 2 slave FIFO Flag Interrupt Request

[10]

Endpoint 4 slave FIFO Flag Interrupt Enable

[10,11]

Endpoint 4 slave FIFO Flag Interrupt Request

[10]

Endpoint 6 slave FIFO Flag Interrupt Enable

[10,11]

Endpoint 6 slave FIFO Flag Interrupt Request

[10]

Endpoint 8 slave FIFO Flag Interrupt Enable

[10,11]

Endpoint 8 slave FIFO Flag Interrupt Request

[11]

Enable

IN-BULK-NAK interrupt Request

Interrupt Enable

Endpoint Ping-NAK/IBN Interrupt Request

USB Interrupt Requests 0 EP0ACK HSGRANT URES SUSP SUTOK SOF SUDAV 0xxxxxxx rbbbbbbb

DECIS PKTSTAT IN:PKTS[2]

OUT:PFC12

DECIS PKTSTAT OUT:PFC12 OUT:PFC11 OUT:PFC10 0 PFC9 IN:PKTS[2]

IN:PKTS[1]

OUT:PFC11

IN:PKTS[0] OUT:PFC10

0 PFC9 PFC8 10001000 bbbbbrbb

OUT:PFC8

PFC7 PFC6 PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

IN:PKTS[1] OUT:PFC7

DECIS PKTSTAT 0 IN: PKTS[1]

IN:PKTS[0]

OUT:PFC6

PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

OUT:PFC10

IN: PKTS[0]

OUT:PFC9

0 0 PFC8 10001000 bbrbbrrb

DECIS PKTSTAT 0 OUT:PFC10 OUT:PFC9 0 0 PFC8 10001000 bbrbbrrb

PFC7 PFC6 PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

IN: PKTS[1]

OUT:PFC7

DECIS PKTSTAT IN:PKTS[2]

DECIS PKTSTAT OUT:PFC12 OUT:PFC11 OUT:PFC10 0 PFC9 IN:PKTS[2]

IN: PKTS[0]

OUT:PFC6

PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

OUT:PFC12

IN:PKTS[1]

OUT:PFC11

IN:PKTS[0] OUT:PFC10

0 PFC9 PFC8 00001000 bbbbbrbb

OUT:PFC8

PFC7 PFC6 PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

IN:PKTS[1] OUT:PFC7

DECIS PKTSTAT 0 IN: PKTS[1]

IN:PKTS[0]

OUT:PFC6

PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

OUT:PFC10

IN: PKTS[0]

OUT:PFC9

0 0 PFC8 00001000 bbrbbrrb

DECIS PKTSTAT 0 OUT:PFC10 OUT:PFC9 0 0 PFC8 00001000 bbrbbrrb

PFC7 PFC6 PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

IN: PKTS[1]

OUT:PFC7

IN: PKTS[0]

OUT:PFC6

PFC5 PFC4 PFC3 PFC2 PFC1 PFC0 00000000 RW

AADJ 0 0 0 0 0 INPPF1 INPPF0 00000001 brrrrrbb

AADJ 0 0 0 0 0 INPPF1 INPPF0 00000001 brrrrrrr

AADJ 0 0 0 0 0 INPPF1 INPPF0 00000001 brrrrrbb

AADJ 0 0 0 0 0 INPPF1 INPPF0 00000001 brrrrrrr

0 0 0 0 EDGEPF PF EF FF 00000000 RW

0 0 0 0 0 PF EF FF 00000000 rrrrrbbb

0 0 0 0 EDGEPF PF EF FF 00000000 RW

0 0 0 0 0 PF EF FF 00000000 rrrrrbbb

0 0 0 0 EDGEPF PF EF FF 00000000 RW

0 0 0 0 0 PF EF FF 00000000 rrrrrbbb

0 0 0 0 EDGEPF PF EF FF 00000000 RW

0 0 0 0 0 PF EF FF 00000000 rrrrrbbb

0 0 EP8 EP6 EP4 EP2 EP1 EP0 00000000 RW

0 0 EP8 EP6 EP4 EP2 EP1 EP0 00xxxxxx rrbbbbbb

EP8 EP6 EP4 EP2 EP1 EP0 0 IBN 00000000 RW

EP8 EP6 EP4 EP2 EP1 EP0 0 IBN xxxxxx0x bbbbbbrb

10001000 bbbbbrbb

00001000 bbbbbrbb

Note

11. The register can only be reset, it cannot be set.

Document # 001-06120 Rev *F Page 17 of 39

[+] Feedback

CY7C68053

Table 5-1. FX2LP18 Register Summary (continued)

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

E65E 1 EPIE Endpoint Interrupt

E65F 1 EPIRQ

E660 1 GPIFIE

E661 1 GPIFIRQ

[11]

[10]

GPIF Interrupt Enable 0 0 0 0 0 0 GPIFWF GPIFDONE 00000000 RW

[10]

E662 1 USBERRIE USB Error Interrupt

E663 1 USBERRIRQ

E664 1 ERRCNTLIM USB Error counter and

Enables

Endpoint Interrupt Requests

GPIF Interrupt Request 0 0 0 0 0 0 GPIFWF GPIFDONE 000000xx RW

Enables

[11]

USB Error Interrupt Requests

limit

E665 1 CLRERRCNT Clear Error Counter EC3:0 x x x x x x x x xxxxxxxx W

E666 1 INT2IVEC Interrupt 2 (USB)

Autovector

E667 1 Re served 1 0 0 0 0 0 0 0 10000000 R

E668 1 INTSET-UP Interrupt 2&4 set-up 0 0 0 0 AV 2EN 0 Reserved AV 4E N 00000000 RW

E669 7 Re served

INPUT/OUTPUT

E670 1 PORTACFG I/O PORTA Alternate

E671 1 PORTCCFG I/O PORTC Alternate

E672 1 PORTECFG I/O PORTE Alternate

Configuration

E673 4 Re served

E677 1 Re served

E678 1 I2CS I²C Bus

E679 1 I2DAT I²C Bus

E67A 1 I2CTL I²C Bus

E67B 1 XAUTODAT1 Autoptr1 MOVX access,

E67C 1 XAUTODAT2 Autoptr2 MOVX access,

UDMA CRC

E67D 1 UDMACRCH

E67E 1 UDMACRCL

E67F 1 UDMACRC-

QUALIFIER

Control & Status

Data

Control

when APTREN=1

[10]

UDMA CRC MSB CRC15 CRC14 CRC13 CRC12 CRC11 CRC10 CRC 9 CRC8 01001010 RW

[10]

UDMA CRC LSB CRC7 CRC6 CRC5 CRC4 CRC3 CRC2 CRC1 CRC0 10111010 RW

UDMA CRC Qualifier QENABLE 0 0 0 QSTATE QSIGNAL2 QSIGNAL1 QSIGNAL0 00000000 brrrbbbb

USB CONTROL

E680 1 US BCS USB Control & Status HSM 0 0 0 DISCON NOSYNSOF RENUM SIGRSUME x0000000 rrrrbbbb

E681 1 SUSPEND Put chip into suspend x x x x x x x x xxxxxxxx W

E682 1 WAKEUPCS Wakeup Control & Status WU2 WU WU2POL WUPOL 0 DPEN WU2EN WUEN xx000101 bbbbrbbb

E683 1 TOGCTL Toggle Control Q S R IO EP3 EP2 EP1 EP0 x0000000 rrrbbbbb

E684 1 US BFRAMEH USB Frame count H 0 0 0 0 0 FC10 FC9 FC8 00000xxx R

E685 1 US BFRAMEL USB Frame count L FC7 FC6 FC5 FC4 FC3 FC2 FC1 FC0 xxxxxxxx R

E686 1 MICROFRAME Microframe count, 0-7 0 0 0 0 0 MF2 MF1 MF0 00000xxx R

E687 1 FNADDR USB Function address 0 FA6 FA 5 FA4 FA3 FA 2 FA 1 FA0 0xxxxxxx R

E688 2 Re served

ENDPOINTS

E68A 1 EP0BCH

E68B 1 EP0BCL

[10]

Endpoint 0 Byte Count H (BC15) (BC14) (BC13) (BC12) (BC11) (BC10) (BC9) (BC8) xxxxxxxx RW

Endpoint 0 Byte Count L (BC7) BC6 BC5 BC4 BC3 BC2 BC1 BC0 xxxxxxxx RW

E68C 1 Reserved

E68D 1 EP1OUTBC Endpoint 1 OUT Byte

Count

E68E 1 Reserved

E68F 1 EP1INBC Endpoint 1 IN Byte Count 0 BC6 BC5 BC4 BC 3 BC2 BC1 BC0 0xxxxxxx RW

E690 1 EP2BCH

E691 1 EP2BCL

E692 2 Re served

E694 1 EP4BCH

E695 1 EP4BCL

E696 2 Re served

E698 1 EP6BCH

E699 1 EP6BCL

E69A 2 Reserved

E69C 1 EP8BCH

E69D 1 EP8BCL

[10]

Endpoint 2 Byte Count H 0 0 0 0 0 BC10 BC9 BC8 00000xxx RW

Endpoint 2 Byte Count L BC7/SKIP BC6 BC5 BC4 BC3 BC2 BC1 BC0 xxxxxxxx RW

Endpoint 4 Byte Count H 0 0 0 0 0 0 BC9 BC8 000000xx RW

Endpoint 4 Byte Count L BC7/SKIP BC6 BC5 BC4 BC3 BC2 BC1 BC0 xxxxxxxx RW

Endpoint 6 Byte Count H 0 0 0 0 0 BC10 BC9 BC8 00000xxx RW

Endpoint 6 Byte Count L BC7/SKIP BC6 BC5 BC4 BC3 BC2 BC1 BC0 xxxxxxxx RW

Endpoint 8 Byte Count H 0 0 0 0 0 0 BC9 BC8 000000xx RW

Endpoint 8 Byte Count L BC7/SKIP BC6 BC5 BC4 BC3 BC2 BC1 BC0 xxxxxxxx RW

E69E 2 Reserved

E6A0 1 EP0CS Endpoint 0 Control and

Stat us

EP8 EP6 EP4 EP2 EP1OUT EP1IN EP0OUT EP0IN 00000000 RW

EP8 EP6 EP4 EP2 EP1OUT EP1IN EP0OUT EP0IN 0 RW

ISOEP8 ISOEP6 ISOEP4 ISOEP2 0 0 0 ERRLIMIT 00000000 RW

ISOEP8 ISOEP6 ISOEP4 ISOEP2 0 0 0 ERRLIMIT 0000000x bbbbrrrb

EC3 EC2 EC1 EC0 LIMIT3 LIMIT2 LIMIT1 LIMIT0 xxxx0100 rrrrbbbb

0 I2V4 I2V3 I2V2 I2V1 I2V0 0 0 00000000 R

FLAGD SLCS 0 0 0 0 INT1 INT0 00000000 RW

GPIFA7 GPIFA6 GPIFA5 GPIFA4 GPIFA3 GPIFA2 GPIFA1 GPIFA0 00000000 RW

GPIFA8 T2EX INT6 RXD1OUT RXD0OUT T2OUT T1OUT T0OUT 00000000 RW

START STOP LASTRD ID1 ID0 BERR ACK DONE 000xx000 bbbrrrrr

d7 d6 d5 d4 d3 d2 d1 d0 xxxxxxxx RW

0 0 0 0 0 0 STOPIE 400KHZ 00000000 RW

D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

0 BC6 BC5 BC4 BC3 BC2 BC1 BC0 0xxxxxxx RW

HSNAK 0 0 0 0 0 BUSY STALL 10000000 bbbbbbrb

Document # 001-06120 Rev *F Page 18 of 39

[+] Feedback

CY7C68053

Table 5-1. FX2LP18 Register Summary (continued)

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

E6A1 1 EP1OUTCS Endpoint 1 OUT Control

E6A2 1 EP1INCS Endpoint 1 IN Control and

E6A3 1 EP2CS Endpoint 2 Control and

E6A4 1 EP4CS Endpoint 4 Control and

E6A5 1 EP6CS Endpoint 6 Control and

E6A6 1 EP8CS Endpoint 8 Control and

E6A7 1 EP2FIFOFLGS Endpoint 2 slave FIFO

E6A8 1 EP4FIFOFLGS Endpoint 4 slave FIFO

E6A9 1 EP6FIFOFLGS Endpoint 6 slave FIFO

E6AA 1 EP8FIFOFLGS Endpoint 8 slave FIFO

E6AB 1 EP2FIFOBCH Endpoint 2 slave FIFO

E6AC 1 EP2FIFOBCL Endpoint 2 slave FIFO

E6AD 1 EP4FIFOBCH Endpoint 4 slave FIFO

E6AE 1 EP4FIFOBCL Endpoint 4 slave FIFO

E6AF 1 EP6FIFOBCH Endpoint 6 slave FIFO

E6B0 1 EP6FIFOBCL Endpoint 6 slave FIFO

E6B1 1 EP8FIFOBCH Endpoint 8 slave FIFO

E6B2 1 EP8FIFOBCL Endpoint 8 slave FIFO

E6B3 1 SUDPTRH Set-up Data Pointer high

E6B4 1 SUDPTRL Set-up Data Pointer low

E6B5 1 SUDPTRCTL Set-up Data Pointer Auto

2 Reserved

E6B8 8 SET-UPDAT 8 bytes of set-up data D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx R

GPIF

E6C0 1 GPIFWFSELECT Waveform Selector SINGLEWR1 SINGLEWR0 SINGLERD1 SINGLERD0 FIFOWR1 FIFOWR0 FIFORD1 FIFORD0 11100100 RW

E6C1 1 GPIFIDLECS GPIF Done, GPIF IDLE

E6C2 1 GPIFIDLECTL Inactive Bus, CTL states 0 0 0 0 0 CTL2 CTL1 CTL0 1111 1111 RW

E6C3 1 GPIFCTLCFG CTL Drive Type TRICTL 0 0 0 0 CTL2 CTL1 CTL0 00000000 RW

E6C4 1 Reserved 00000000

E6C5 1 Reserved 00000000

FLOWSTATE

E6C6 1 FLOWSTATE Flowstate Enable and

E6C7 1 FLOWLOGIC Flowstate Logic LFUNC1 LFUNC0 TERMA2 TERMA1 TERMA0 TERMB2 TERMB1 TERMB0 00000000 RW

E6C8 1 FLOWEQ0CTL CTL-Pin States in

E6C9 1 FLOWEQ1CTL CTL-Pin States in Flow-

E6CA 1 FLOWHOLDOFF Holdoff Configuration HOPERIOD3 HOPERIOD2 HOPERIOD1 HOPERIOD0HOSTATE HOCTL2 HOCTL1 HOCTL0 00010010 RW

E6CB 1 FLOWSTB Flowstate Strobe

E6CC 1 FLOWSTBEDGE Flowstate Rising/Falling

E6CD 1 FLOWSTBPERIOD Master-Strobe Half-Period D7 D6 D5 D4 D3 D2 D1 D0 00000010 RW

E6CE 1 GPIFTCB3

and Status

Stat us

Flags

total byte count H

total byte count L

total byte count H

total byte count L

total byte count H

total byte count L

total byte count H

total byte count L

address byte

Mode

SET-UPDAT[0] = bmRequestType

SET-UPDAT[1] = bmRequest

SET-UPDAT[2:3] = wValue

SET-UPDAT[4:5] = wIndex

SET-UPDAT[6:7] = wLength

drive mode

Selector

Flowstate (when Logic = 0)

state (when Logic = 1)

Configuration

Edge Configuration

[10]

GPIF Transaction Count Byte 3

0 0 0 0 0 0 BUSY STALL 00000000 bbbbbbrb

0 NPAK2 NPAK1 NPAK0 FULL EMPTY 0 STALL 00101000 rrrrrrrb

0 0 NPAK1 NPAK0 FULL EMPTY 0 STALL 00101000 rrrrrrrb

0 NPAK2 NPAK1 NPAK0 FULL EMPTY 0 STALL 00000100 rrrrrrrb

0 0 NPAK1 NPAK0 FULL EMPTY 0 STALL 00000100 rrrrrrrb

0 0 0 0 0 PF EF FF 00000010 R

0 0 0 0 0 PF EF FF 00000110 R

0 0 0 BC12 BC11 BC10 BC9 BC8 00000000 R

BC7 BC6 BC5 BC4 BC3 BC2 BC1 BC0 00000000 R

0 0 0 0 0 BC 10 BC9 BC8 00000000 R

BC7 BC6 BC5 BC4 BC3 BC2 BC1 BC0 00000000 R

0 0 0 0 BC11 BC10 BC9 BC8 00000000 R

BC7 BC6 BC5 BC4 BC3 BC2 BC1 BC0 00000000 R

0 0 0 0 0 BC 10 BC9 BC8 00000000 R

BC7 BC6 BC5 BC4 BC3 BC2 BC1 BC0 00000000 R

A15 A14 A13 A12 A11 A10 A9 A8 xxxxxxxx RW

A7 A6 A5 A4 A3 A2 A1 0 xxxxxxx0 bbbbbbbr

0 0 0 0 0 0 0 SDPAUTO 00000001 RW

DONE 0 0 0 0 0 0 IDLEDRV 10000000 RW

FSE 0 0 0 0 FS2 FS1 FS0 00000000 brrrrbbb

CTL0E3 CTL0E2 CTL0E1 CTL0E0 0 CTL2 CTL1 CTL0 00000000 RW

SLAVE RDYASYNC CTLTOGL SUSTAIN 0 MSTB2 MSTB1 MSTB0 00100000 RW

0 0 0 0 0 0 FA LLI NG RISING 00000001 rrrrrrbb

TC31 TC30 TC29 TC28 TC27 TC26 TC25 TC24 00000000 RW

Document # 001-06120 Rev *F Page 19 of 39

[+] Feedback

CY7C68053

Table 5-1. FX2LP18 Register Summary (continued)

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

E6CF 1 GPIFTCB2

E6D0 1 GPIFTCB1

E6D1 1 GPIFTCB0

2 Reserved 00000000 RW

E6D2 1 EP2GPIFFLGSEL

E6D3 1 EP2GPIFPFSTOP Endpoint 2 GPIF stop

E6D4 1 EP2GPIFTRIG

3 Reserved

E6DA 1 EP4GPIFFLGSEL

E6DB 1 EP4GPIFPFSTOP Endpoint 4 GPIF stop

E6DC 1 EP4GPIFTRIG

3 Reserved

E6E2 1 EP6GPIFFLGSEL

E6E3 1 EP6GPIFPFSTOP Endpoint 6 GPIF stop

E6E4 1 EP6GPIFTRIG

3 Reserved

E6EA 1 EP8GPIFFLGSEL

E6EB 1 EP8GPIFPFSTOP Endpoint 8 GPIF stop

E6EC 1 EP8GPIFTRIG

3 Reserved

E6F0 1 XGPIFSGLDATH GPIF Data H

E6F1 1 XGPIFSGLDATLX Read/Write GPIF Data L &

E6F2 1 XGPIFSGLDATL-

E6F3 1 GPIFREADYCFG Internal RDY, Sync/Async,

Reserved

NOX

[10]

GPIF Transaction Count Byte 2

[10]

GPIF Transaction Count Byte 1

[10]

GPIF Transaction Count Byte 0

[10]

Endpoint 2 GPIF Flag select

transaction on prog. flag

[10]

Endpoint 2 GPIF Trigger x x x x x x x x xxxxxxxx W

[10]

Endpoint 4 GPIF Flag select

transaction on GPIF Flag

[10]

Endpoint 4 GPIF Trigger x x x x x x x x xxxxxxxx W

[10]

Endpoint 6 GPIF Flag select

transaction on prog. flag

[10]

Endpoint 6 GPIF Trigger x x x x x x x x xxxxxxxx W

[10]

Endpoint 8 GPIF Flag select

transaction on prog. flag

[10]

Endpoint 8 GPIF Trigger x x x x x x x x xxxxxxxx W

(16-bit mode only)

trigger transaction

Read GPIF Data L, no transaction trigger

RDY pin states

TC23 TC22 TC21 TC20 TC19 TC18 TC17 TC16 00000000 RW

TC15 TC14 TC13 TC12 TC11 TC10 TC9 TC8 00000000 RW

TC7 TC6 TC5 TC4 TC3 TC2 TC1 TC0 00000001 RW

0 0 0 0 0 0 FS1 FS0 00000000 RW

0 0 0 0 0 0 0 FIFO2FLAG 00000000 RW

0 0 0 0 0 0 FS1 FS0 00000000 RW

0 0 0 0 0 0 0 FIFO4FLAG 00000000 RW

0 0 0 0 0 0 FS1 FS0 00000000 RW

0 0 0 0 0 0 0 FIFO6FLAG 00000000 RW

0 0 0 0 0 0 FS1 FS0 00000000 RW

0 0 0 0 0 0 0 FIFO8FLAG 00000000 RW

D15 D14 D13 D12 D11 D10 D9 D8 xxxxxxxx RW

D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx R

INTRDY SAS TCXRDY5 0 0 0 0 0 00000000 bbbrrrrr

E6F4 1 GPIFREADYSTAT GPIF Ready Status 0 0 0 0 0 0 RDY1 RDY0 00xxxxxx R

E6F5 1 GPIFABORT Abort GPIF Waveforms x x x x x x x x xxxxxxxx W

E6F6 2 Reserved

E740 64 EP0BUF EP0-IN/-OUT buffer D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

E780 64 EP10UTBUF EP1-OUT buffer D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

E7C0 64 EP1INBUF EP1-IN buffer D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

E800 2048 Reserved RW

F000 1024 EP2FIFOBUF 512/1024-byte EP 2/slave

F400 512 EP4FIFOBUF 512 byte EP 4/slave FIFO

F600 512 Reserved

F800 1024 EP6FIFOBUF 512/1024-byte EP 6/slave

FC00 512 EP8FIFOBUF 512 byte EP 8/slave FIFO

FE00 512 Reserved

xxxx I²C Configuration Byte 0 DISCON 0 0 0 0 0 400KHZ xxxxxxxx

80 1 IOA

ENDPOINT BUFFERS

FIFO buffer (IN or OUT)

buffer (IN or OUT)

FIFO buffer (IN or OUT)

buffer (IN or OUT)

Special Function Registers (SFRs)

[12]

Port A (bit addressable) D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

Notes

12. SFRs not part of the standard 8051 architecture.

13. If no EEPROM is detected by the SIE then the default is 00000000.

Document # 001-06120 Rev *F Page 20 of 39

D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

n/a

[13]

[+] Feedback

CY7C68053

Table 5-1. FX2LP18 Register Summary (continued)

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

81 1 SP Stack Pointer D7 D6 D5 D4 D3 D2 D1 D0 00000111 RW

82 1 DPL0 Data Pointer 0 L A7 A6 A5 A4 A3 A2 A1 A0 00000000 RW

83 1 DPH0 Data Pointer 0 H A15 A14 A13 A12 A11 A10 A9 A8 00000000 RW

84 1 DPL1

85 1 DPH1

86 1 DPS

87 1 PCON Power Control SMOD 0 x 1 1 x x x IDLE 00110000 RW

88 1 TCON Timer/Counter Control

89 1 TMOD Timer/Counter Mode

8A 1 TL0 Timer 0 reload L D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

8B 1 TL1 Timer 1 reload L D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

8C 1 TH0 Timer 0 reload H D15 D14 D13 D12 D11 D10 D9 D8 00000000 RW

8D 1 TH1 Timer 1 reload H D15 D14 D13 D12 D11 D10 D9 D8 00000000 RW

8E 1 CKCON

8F 1 Reserved

90 1 IOB

91 1 EXIF

92 1 MPAGE

93 5 Reserved

98 1 SCON0 Serial Port 0 Control

99 1 SBUF0 Serial Port 0 Data Buffer D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

9A 1 AUTOPTRH1

9B 1 AUTOPTRL1

9C 1 Reserved

9D 1 AUTOPTRH2

9E 1 AUTOPTRL2

9F 1 Reserved

A0 1 IOC

A1 1 INT2CLR

A2 1 Reserved x x x x x x x x xxxxxxxx W

A3 5 Reserved

A8 1 IE Interrupt Enable

A9 1 Reserved

AA 1 EP2468STAT

AB 1 EP24FIFOFLGS

AC 1 EP68FIFOFLGS

AD 2 Reserved

AF 1 AUTOPTRSETUP

B0 1 IOD

B1 1 IOE

B2 1 OEA

B3 1 OEB

B4 1 OEC

B5 1 OED

B6 1 OEE

B7 1 Reserved

B8 1 IP Interrupt Priority (bit ad-

B9 1 Reserved

BA 1 EP01STAT

BB 1 GPIFTRIG

BC 1 Reserved

BD 1 GPIFSGLDATH

BE 1 GPIFSGLDATLX

BF 1 GPIFSGLDATL-

C0 1 SCON1

C1 1 SBUF1

C2 6 Reserved

C8 1 T2CON Timer/Counter 2 Control

[12]

NOX

[12]

[12, 10]

[12]

Data Pointer 1 L A7 A6 A5 A4 A3 A2 A1 A0 00000000 RW

Data Pointer 1 H A15 A14 A13 A12 A11 A10 A9 A8 00000000 RW

Data Pointer 0/1 select 0 0 0 0 0 0 0 SEL 00000000 RW

(bit addressable)

Control

TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00000000 RW

GATE CT M1 M0 GATE CT M1 M0 00000000 RW

Clock Control x x T2M T1M T0M MD2 MD1 MD0 00000001 RW

Port B (bit addressable) D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

External Interrupt Flag(s) IE5 IE4 I²CINT USBNT 1 0 0 0 00001000 RW

Upper Addr Byte of MOVX using @R0/@R1

(bit addressable)

[12]

Autopointer 1 Address H A15 A14 A13 A12 A11 A10 A9 A8 00000000 RW

[12]

Autopointer 1 Address L A7 A6 A5 A4 A3 A2 A1 A0 00000000 RW

[12]

Autopointer 2 Address H A15 A14 A13 A12 A11 A10 A9 A8 00000000 RW

[12]

Autopointer 2 Address L A7 A6 A5 A4 A3 A2 A1 A0 00000000 RW

A15 A14 A13 A12 A11 A10 A9 A8 00000000 RW

SM0_0 SM1_0 SM2_0 REN_0 TB8_0 RB8_0 TI_0 RI_0 00000000 RW

Port C (bit addressable) D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

Interrupt 2 clear x x x x x x x x xxxxxxxx W

(bit addressable)

[12]

Endpoint 2,4,6,8 status flags

Endpoint 2,4 slave FIFO status flags

Endpoint 6,8 slave FIFO status flags

[12]

Autopointer 1&2 set-up 0 0 0 0 0 APTR2INC APTR1INC APTREN 00000110 RW

EA ES1 ET2 ES0 ET1 EX1 ET0 EX0 00000000 RW

EP8F EP8E EP6F EP6E EP4F EP4E EP2F EP2E 01011010 R

0 EP4PF EP4EF EP4FF 0 EP2PF EP2EF EP2FF 00100010 R

0 EP8PF EP8EF EP8FF 0 EP6PF EP6EF EP6FF 01100110 R

Port D (bit addressable) D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

Port E (NOT bit addressable)

D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

Port A Output Enable D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

Port B Output Enable D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

Port C Output Enable D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

Port D Output Enable D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

Port E Output Enable D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

dressable)

[12]

Endpoint 0&1 Status 0 0 0 0 0 EP1INBSY

Endpoint 2,4,6,8 GPIF slave FIFO Trigger

[12]

GPIF Data H (16-bit mode only)

[12]

GPIF Data L w/Trigger D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx RW

1 PS1 PT2 PS0 PT1 PX1 PT0 PX0 10000000 RW

EP1OUTBSY

EP0BSY 00000000 R

DONE 0 0 0 0 RW EP1 EP0 10000xxx brrrrbbb

D15 D14 D13 D12 D11 D10 D9 D8 xxxxxxxx RW

GPIF Data L w/No Trigger D7 D6 D5 D4 D3 D2 D1 D0 xxxxxxxx R

Serial Port 1 Control (bit addressable)

SM0_1 SM1_1 SM2_1 REN_1 TB8_1 RB8_1 TI_1 RI_1 00000000 RW

Serial Port 1 Data Buffer D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

(bit addressable)

TF2 EXF2 RCLK TCLK EXEN2 TR2 CT2 CPRL2 00000000 RW

Document # 001-06120 Rev *F Page 21 of 39

[+] Feedback

CY7C68053

Table 5-1. FX2LP18 Register Summary (continued)

Hex Size Name Description b7 b6 b5 b4 b3 b2 b1 b0 Default Access

C9 1 Reserved

CA 1 RCAP2L Capture for Timer 2, auto-

CB 1 RCAP2H Capture for Timer 2, auto-

CC 1 TL2 Timer 2 reload L D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

CD 1 TH2 Timer 2 reload H D15 D14 D13 D12 D11 D10 D9 D8 00000000 RW

CE 2 Reserved

D0 1 PSW Program Status Word (bit

D1 7 Reserved

D8 1 EICON

D9 7 Reserved

E0 1 ACC Accumulator (bit address-

E1 7 Reserved

E8 1 EIE

E9 7 Reserved

F0 1 B B (bit addressable) D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

F1 7 Reserved

F8 1 EIP

F9 7 Reserved

[12]

reload, up-counter

addressable)

External Interrupt Control SMOD1 1 ERESI RESI INT6 0 0 0 01000000 RW

able)

External Interrupt Enable(s)

External Interrupt Priority Control

Ledgend R = all bits read-only W = all bits write-only r = read-only bit w = write-only bit b = both read/write bit

D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

CY AC F0 RS1 RS0 OV F1 P 00000000 RW

D7 D6 D5 D4 D3 D2 D1 D0 00000000 RW

1 1 1 EX6 EX5 EX4 EI²C EUSB 11100000 RW

1 1 1 PX6 PX5 PX4 PI²C PUSB 11100000 RW

Document # 001-06120 Rev *F Page 22 of 39

[+] Feedback

CY7C68053

6.0 Absolute Maximum Ratings

Storage Temperature ...........................................................................................................................................– 65°C to +150°C

Ambient Temperature with Power Supplied

Industrial ................................................................................................................................................................– 40°C to +85°C

Supply Voltage to Ground Potential

For 3.3V Power domain ..........................................................................................................................................– 0.5V to +4.0V

For 1.8V Power domain ..........................................................................................................................................– 0.5V to +2.0V

DC Input Voltage to Any Input Pin

For pins under 3.3V Power Domain.................................................................................................................................... 3.6V

For pins under 1.8V - 3.3V Power Domain (GPIO’s) ............................................................................................1.89V to 3.6V

(The GPIO’s are not over voltage tolerant, except the SCL and SDA pins, which are 3.3V tolerant)

DC Voltage Applied to Outputs in High Z State............................................................................................ – 0.5V to VCC + 0.5V

Maximum Power Dissipation

From AVcc Supply ............................................................................................................................................................... 90 mW

From IO Supply....................................................................................................................................................................36 mW

From Core Supply................................................................................................................................................................ 95 mW

Static Discharge Voltage .................................................................................................................................................... > 2000V

(I2C SCL and SDA pins only ... >1500V)

Maximum Output Current, per I/O port .................................................................................................................................10 mA

[14]

7.0 Operating Conditions

TA (Ambient Temperature Under Bias)

Industrial ............................................................................................................................................................... – 40°C to +85°C

Supply Voltage

3.3V Power Supply ......................................................................................................................................................3.0V to 3.6V

1.8V Power Supply ...................................................................................................................................................1.71V to1.89V

Ground Voltage ........................................................................................................................................................................... 0V

(Oscillator or Crystal Frequency) ............................................................................................................. 24 MHz ± 100 ppm

OSC

............................................................................................................................................................................ Parallel Resonant

...........................................................................................................................................................................500 µW drive level

Load capacitors 12 pF

Note

14. It is recommended to not power I/O when chip power is off.

Document # 001-06120 Rev *F Page 23 of 39

[+] Feedback

CY7C68053

8.0 DC Characteristics

Table 8-1. DC Characteristics

Parameter Description Conditions Min. Typ . Max. Unit

CC_IO

CC_A

CC_D

IH_X

IL_X

SUSP

CC_AVcc

CC_IO

CC_CORE

RESET

3.3 V supply (to Osc. and PHY)

1.8V to 3.3V supply (to I/O) 1.71 1.8 3.60 V

1.8 V supply to Analog Core 1.71 1.8 1.89 V

1.8 V supply to Digital Core 1.71 1.8 1.89 V

Input HIGH Voltage 0.6*V

Input LOW Voltage 0 0.3*V

Crystal Input HIGH Voltage 2.0 3.60 V

Crystal Input LOW Voltage –0.5 0.8 V

Hysteresis 50 mV

Input Leakage Current 0< VIN < V

Output Voltage HIGH I

Output LOW Voltage I

Output Current HIGH 4mA

Output Current LOW 4mA

Input Pin Capacitance Except D+/D– 10 pF

Suspend Current Connected 220 380

Supply Current (AVCC) 8051 running, connected to USB HS 15 25 mA

Supply Current (V

) 8051 running, connected to USB HS 3 10 mA

CC_IO

CC_CORE

Reset Time after Valid Power VCC min = 3.0V 5.0 ms

Pin Reset after powered on 200 µs

[15]

CC_IO

= 4 mA V

OUT

= –4 mA 0.4 V

OUT

3.00 3.3 3.60 V

+10%

CC_IO

±10 µA

– 0.4 V

CC_IO

D+/D– 15 pF

[16]

Disconnected 20 150

[16]

8051 running, connected to USB FS 10 20 mA

8051 running, connected to USB FS 1 5 mA

) 8051 running, connected to USB HS 32 50 mA

8051 running, connected to USB FS 24 40 mA

µA

Notes

15. The pins for this supply can be floated in low-power mode.

16. Measured at Maximum V

, 25°C.

Document # 001-06120 Rev *F Page 24 of 39

[+] Feedback

9.0 AC Electrical Characteristics

9.1 USB Transceiver

USB 2.0-compliant in full- and high-speed modes.

9.2 GPIF Synchronous Signals

CY7C68053

[17,18]

[17]

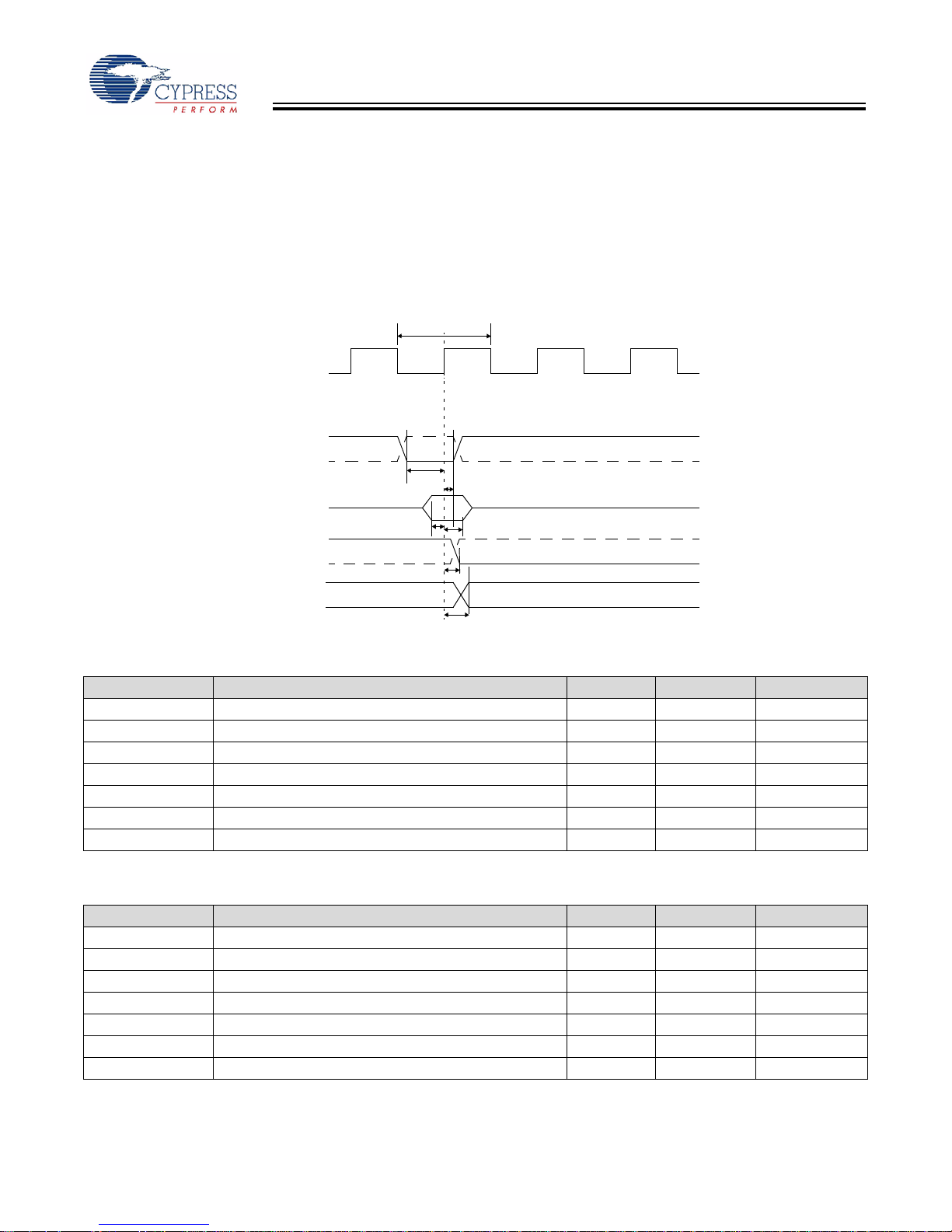

Figure 9-1. GPIF Synchronous Signals Timing Diagram

IFCLK

SGA

GPIFADR[8:0]

RDY

SRY

XGD

valid

RYH

DAH

N+1

DATA(input)

CTL

DATA(output)

SGD

XCTL

Table 9-1. GPIF Synchronous Signals Parameters with Internally Sourced IFCLK

Parameter Description Min. Max. Unit

IFCLK

SRY

RYH

SGD

DAH

XGD

XCTL

Table 9-2. GPIF Synchronous Signals Parameters with Externally Sourced IFCLK

IFCLK Period 20.83 ns

RDYX to Clock Set-up Time 8.9 ns

Clock to RDYX 0ns

GPIF Data to Clock Set-up Time 9.2 ns

GPIF Data Hold Time 0 ns

Clock to GPIF Data Output Propagation Delay 11 ns

Clock to CTLX Output Propagation Delay 6.7 ns

[18]

Parameter Description Min. Max. Unit

IFCLK

SRY

RYH

SGD

DAH

XGD

XCTL

Notes

17. Dashed lines denote signals with programmable polarity.

18. GPIF asynchronous RDY

19. IFCLK must not exceed 48 MHz.

IFCLK Period

RDYX to Clock Set-up Time 2.9 ns

Clock to RDYX 3.7 ns

GPIF Data to Clock Set-up Time 3.2 ns

GPIF Data Hold Time 4.5 ns

Clock to GPIF Data Output Propagation Delay 15 ns

Clock to CTLX Output Propagation Delay 13.06 ns

signals have a minimum set-up time of 50 ns when using internal 48 MHz IFCLK.

[19]

20.83 200 ns

Document # 001-06120 Rev *F Page 25 of 39

[+] Feedback

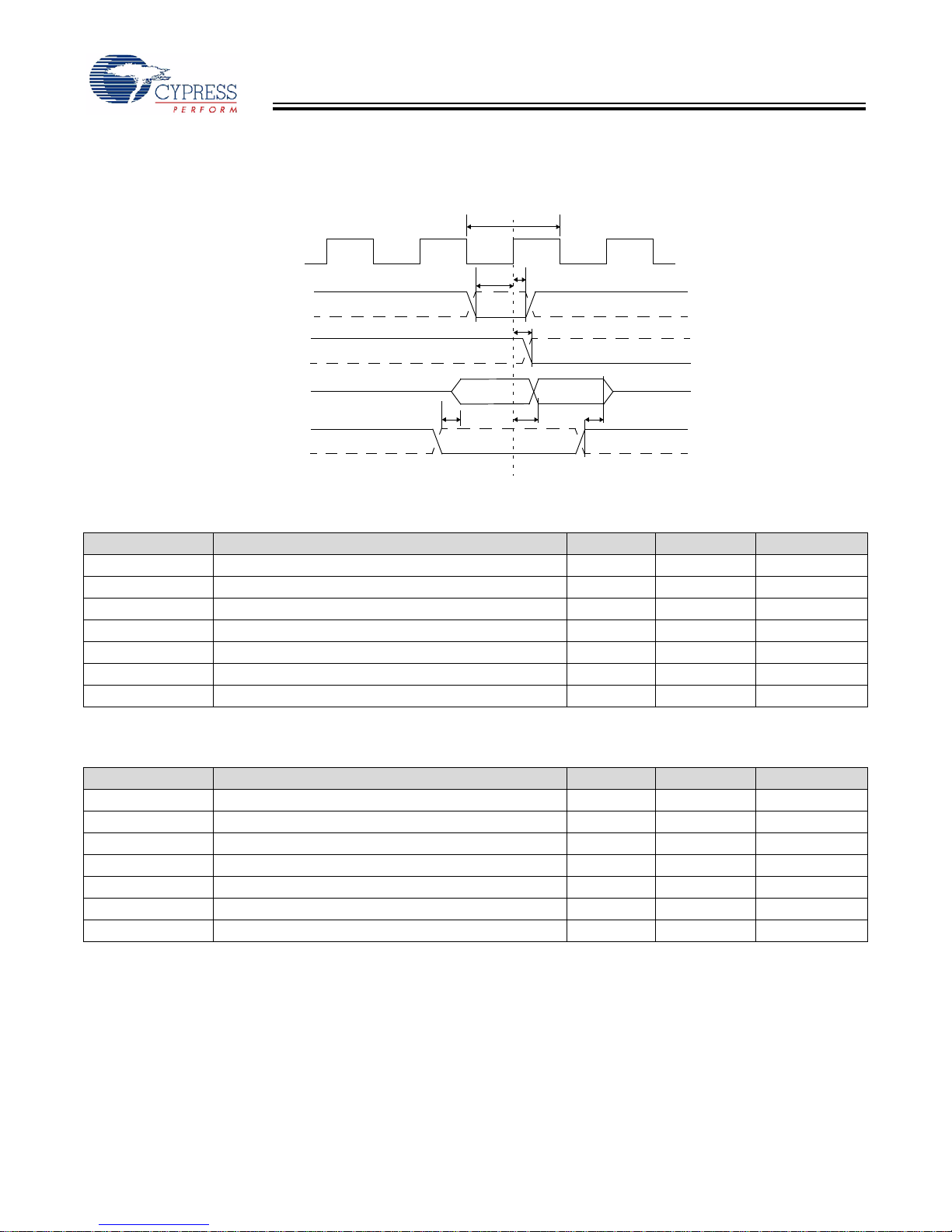

9.3 Slave FIFO Synchronous Read

CY7C68053

Figure 9-2. Slave FIFO Synchronous Read Timing Diagram

IFCLK

SLRD

FLAGS

DATA

SLOE

OEon

SRD

RDH

XFLG

XFD

N+1

OEoff

Table 9-3. Slave FIFO Synchronous Read Parameters with Internally Sourced IFCLK

[17]

[18]

Parameter Description Min. Max. Unit

IFCLK

SRD

RDH

OEon

OEoff

XFLG

XFD

IFCLK Period 20.83 ns

SLRD to Clock Set-up Time 18.7 ns

Clock to SLRD Hold Time 0 ns

SLOE Turn-on to FIFO Data Valid 10.5 ns

SLOE Turn-off to FIFO Data Hold 2.15 10.5 ns

Clock to FLAGS Output Propagation Delay 9.5 ns

Clock to FIFO Data Output Propagation Delay 11 ns

Table 9-4. Slave FIFO Synchronous Read Parameters with Externally Sourced IFCLK

[18]

Parameter Description Min. Max. Unit

IFCLK

SRD

RDH

OEon

OEoff

XFLG

XFD

IFCLK Period 20.83 200 ns

SLRD to Clock Set-up Time 12.7 ns

Clock to SLRD Hold Time 3.7 ns

SLOE Turn-on to FIFO Data Valid 10.5 ns

SLOE Turn-off to FIFO Data Hold 2.15 10.5 ns

Clock to FLAGS Output Propagation Delay 13.5 ns

Clock to FIFO Data Output Propagation Delay 17.31 ns

Document # 001-06120 Rev *F Page 26 of 39

[+] Feedback

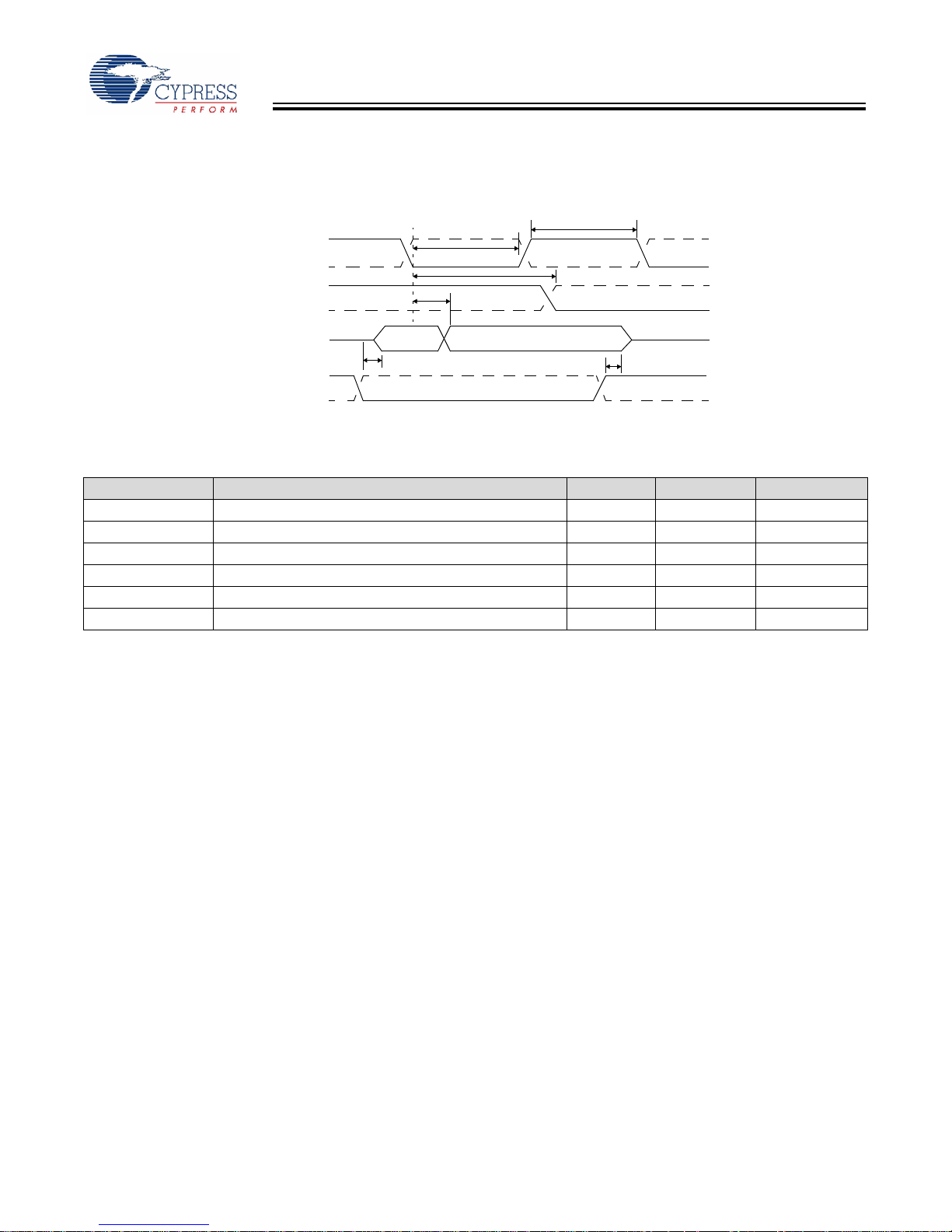

9.4 Slave FIFO Asynchronous Read

CY7C68053

Figure 9-3. Slave FIFO Asynchronous Read Timing Diagram

SLRD

FLAGS

DATA

SLOE

OEon

Table 9-5. Slave FIFO Asynchronous Read Parameters

RDpwl

[20]

XFD

RDpwh

XFLG

N+1

OEoff

[17]

Parameter Description Min. Max. Unit

RDpwl

RDpwh

XFLG

XFD

OEon

OEoff

SLRD Pulse Width LOW 50 ns

SLRD Pulse Width HIGH 50 ns

SLRD to FLAGS Output Propagation Delay 70 ns

SLRD to FIFO Data Output Propagation Delay 15 ns

SLOE Turn-on to FIFO Data Valid 10.5 ns

SLOE Turn-off to FIFO Data Hold 2.15 10.5 ns

Note

20. Slave FIFO asynchronous parameter values use internal IFCLK setting at 48 MHz.

Document # 001-06120 Rev *F Page 27 of 39

[+] Feedback

9.5 Slave FIFO Synchronous Write

CY7C68053

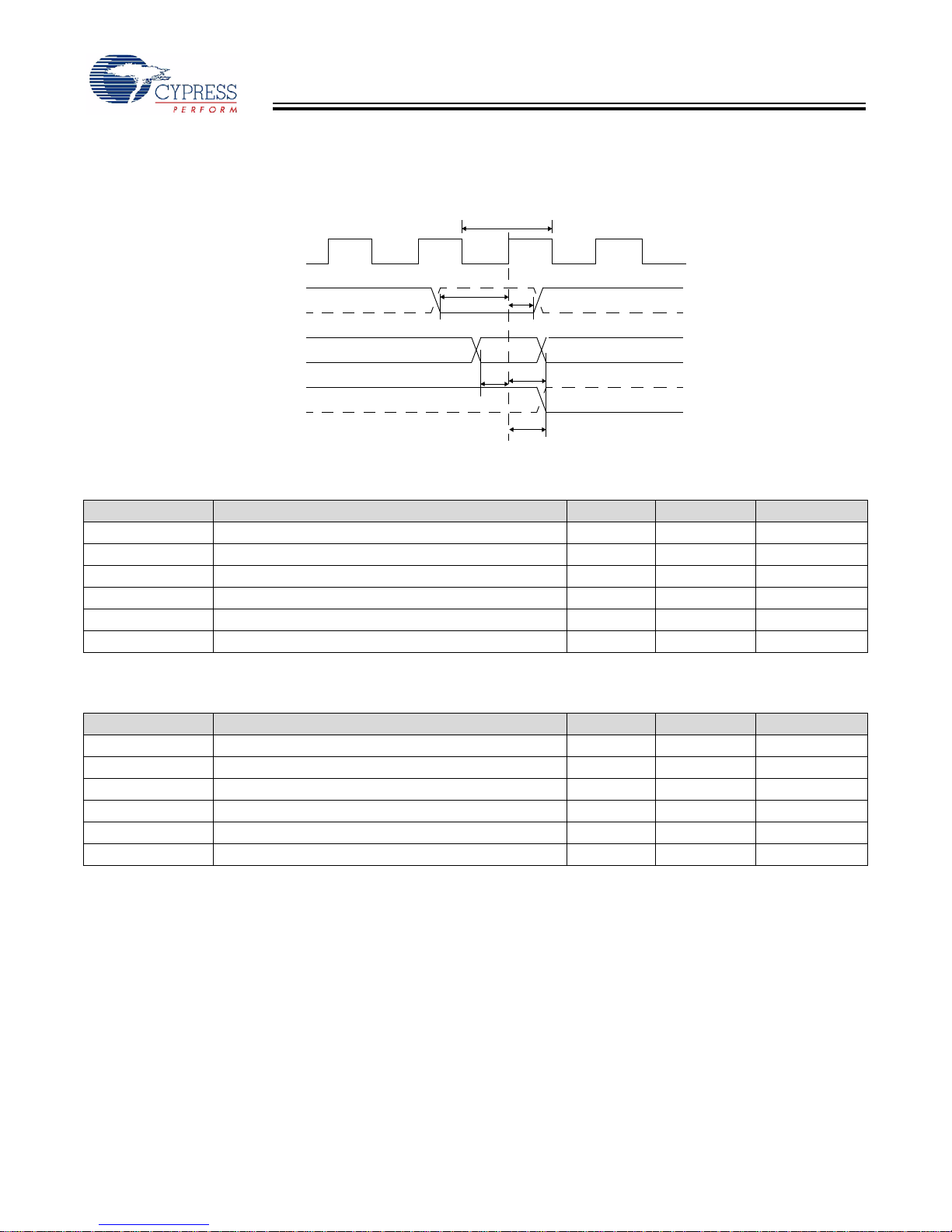

Figure 9-4. Slave FIFO Synchronous Write Timing Diagram

IFCLK

SLWR

DATA

FLAGS

SWR

WRH

SFDtFDH

XFLG

Table 9-6. Slave FIFO Synchronous Write Parameters with Internally Sourced IFCLK

[17]

[18]

Parameter Description Min. Max. Unit

IFCLK

SWR

WRH

SFD

FDH

XFLG

IFCLK Period 20.83 ns

SLWR to Clock Set-up Time 18.1 ns

Clock to SLWR Hold Time 0 ns

FIFO Data to Clock Set-up Time 10.64 ns

Clock to FIFO Data Hold Time 0 ns

Clock to FLAGS Output Propagation Time 9.5 ns

Table 9-7. Slave FIFO Synchronous Write Parameters with Externally Sourced IFCLK

[10]

Parameter Description Min. Max. Unit

IFCLK

SWR

WRH

SFD

FDH

XFLG

IFCLK Period 20.83 200 ns

SLWR to Clock Set-up Time 12.1 ns

Clock to SLWR Hold Time 3.6 ns

FIFO Data to Clock Set-up Time 3.2 ns

Clock to FIFO Data Hold Time 4.5 ns

Clock to FLAGS Output Propagation Time 13.5 ns

Document # 001-06120 Rev *F Page 28 of 39

[+] Feedback

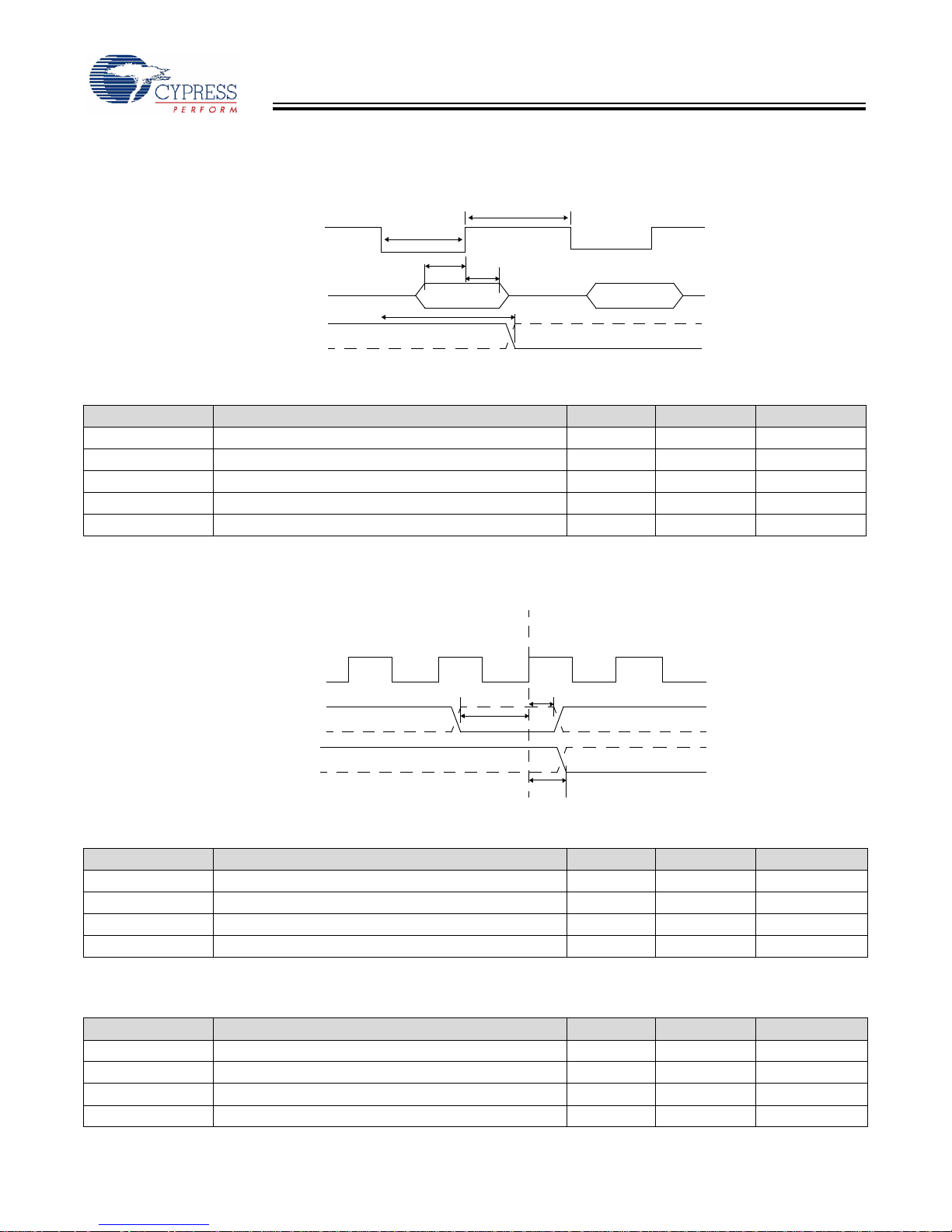

9.6 Slave FIFO Asynchronous Write

CY7C68053

[20]

[17]

Figure 9-5. Slave FIFO Asynchronous Write Timing Diagram

WRpwh

SLWR/SLCS#

DATA

FLAGS

WRpwl

SFD

XFD

FDH

Table 9-8. Slave FIFO Asynchronous Write Parameters with Internally Sourced IFCLK

Parameter Description Min. Max. Unit

WRpwl

WRpwh

SFD

FDH

XFD

SLWR Pulse LOW 50 ns

SLWR Pulse HIGH 70 ns

SLWR to FIFO DATA Set-up Time 10 ns

FIFO DATA to SLWR Hold Time 10 ns

SLWR to FLAGS Output Propagation Delay 70 ns

9.7 Slave FIFO Synchronous Packet End Strobe

Figure 9-6. Slave FIFO Synchronous Packet End Strobe Timing Diagram

[17]

IFCLK

PEH

PKTEND

FLAGS

Table 9-9. Slave FIFO Synchronous Packet End Strobe Parameters with Internally Sourced IFCLK

SPE

XFLG

[10]

Parameter Description Min. Max. Unit

IFCLK

SPE

PEH

XFLG

Table 9-10. Slave FIFO Synchronous Packet End Strobe Parameters with Externally Sourced IFCLK

IFCLK Period 20.83 ns

PKTEND to Clock Set-up Time 14.6 ns

Clock to PKTEND Hold Time 0 ns

Clock to FLAGS Output Propagation Delay 9.5 ns

[10]

Parameter Description Min. Max. Unit

IFCLK

SPE

PEH

XFLG

IFCLK Period 20.83 200 ns

PKTEND to Clock Set-up Time 8.6 ns

Clock to PKTEND Hold Time 3.04 ns

Clock to FLAGS Output Propagation Delay 13.5 ns

Document # 001-06120 Rev *F Page 29 of 39

[+] Feedback

CY7C68053

There is no specific timing requirement that needs to be met for asserting the PKTEND pin with regards to asserting SLWR. PKTEND can be asserted with the last data value clocked into the FIFO’s or thereafter. The only consideration is that the setup time t

and the hold time t

SPE

must be met.

PEH

Although there are no specific timing requirements for the PKTEND assertion, there is a specific corner case condition that needs attention while using the PKTEND to commit a one byte/word packet. There is an additional timing requirement that needs to be met when the FIFO is configured to operate in auto mode and you want to send two packets back to back: a full packet (full defined as the number of bytes in the FIFO meeting the level set in AUTOINLEN register) committed automatically followed by a short one byte/word packet committed manually using the PKTEND pin. In this particular scenario, the user must make sure to assert PKTEND at least

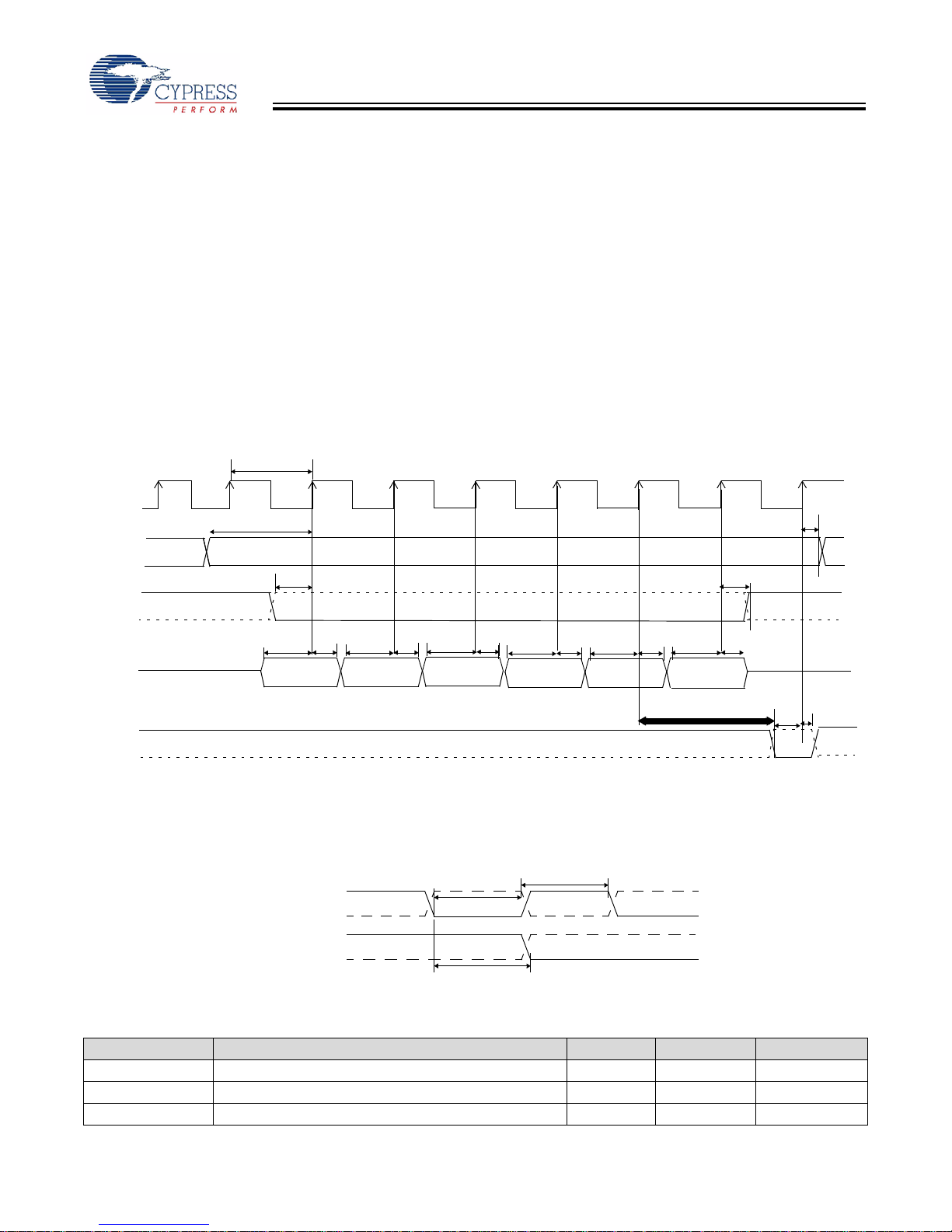

Figure 9-7. Slave FIFO Synchronous Write Sequence and Timing Diagram

IFCLK

SFA

FIFOADR

>= t

SWR

SLWR

one clock cycle after the rising edge that caused the last byte/word to be clocked into the previous auto committed packet. Figure 9-7 shows this scenario. X is the value the AUTOINLEN register is set to when the IN endpoint is configured to be in auto mode.

Figure 9-7 shows a scenario where two packets are being committed. The first packet gets committed automatically when the number of bytes in the FIFO reaches X (value set in AUTOINLEN register) and the second one byte/word short packet is committed manually using PKTEND. Note that there is at least one IFCLK cycle timing between the assertion of PKTEND and clocking of the last byte of the previous packet (causing the packet to be committed automatically). Failing to adhere to this timing, results in the FX2LP18 failing to send the one byte/word short packet.

[17]

FAH

>= t

WRH

FDH

SFD

X-2

SFD

X-1

FDH

SFD

FDH

At least one IFCLK cycle

FDH

SFD

DATA

PKTEND

SFD

X-4

FDH

SFD

X-3

FDH

9.8 Slave FIFO Asynchronous Packet End Strobe

Figure 9-8. Slave FIFO Asynchronous Packet End Strobe Timing Diagram

PEpwh

PKTEND

FLAGS

Table 9-11. Slave FIFO Asynchronous Packet End Strobe Parameters

PEpwl

XFLG

[20]

Parameter Description Min. Max. Unit

PEpwl

PWpwh

XFLG

PKTEND Pulse Width LOW 50 ns

PKTEND Pulse Width HIGH 50 ns

PKTEND to FLAGS Output Propagation Delay 115 ns

[17]

SPE

PEH

Document # 001-06120 Rev *F Page 30 of 39

[+] Feedback

9.9 Slave FIFO Output Enable

CY7C68053

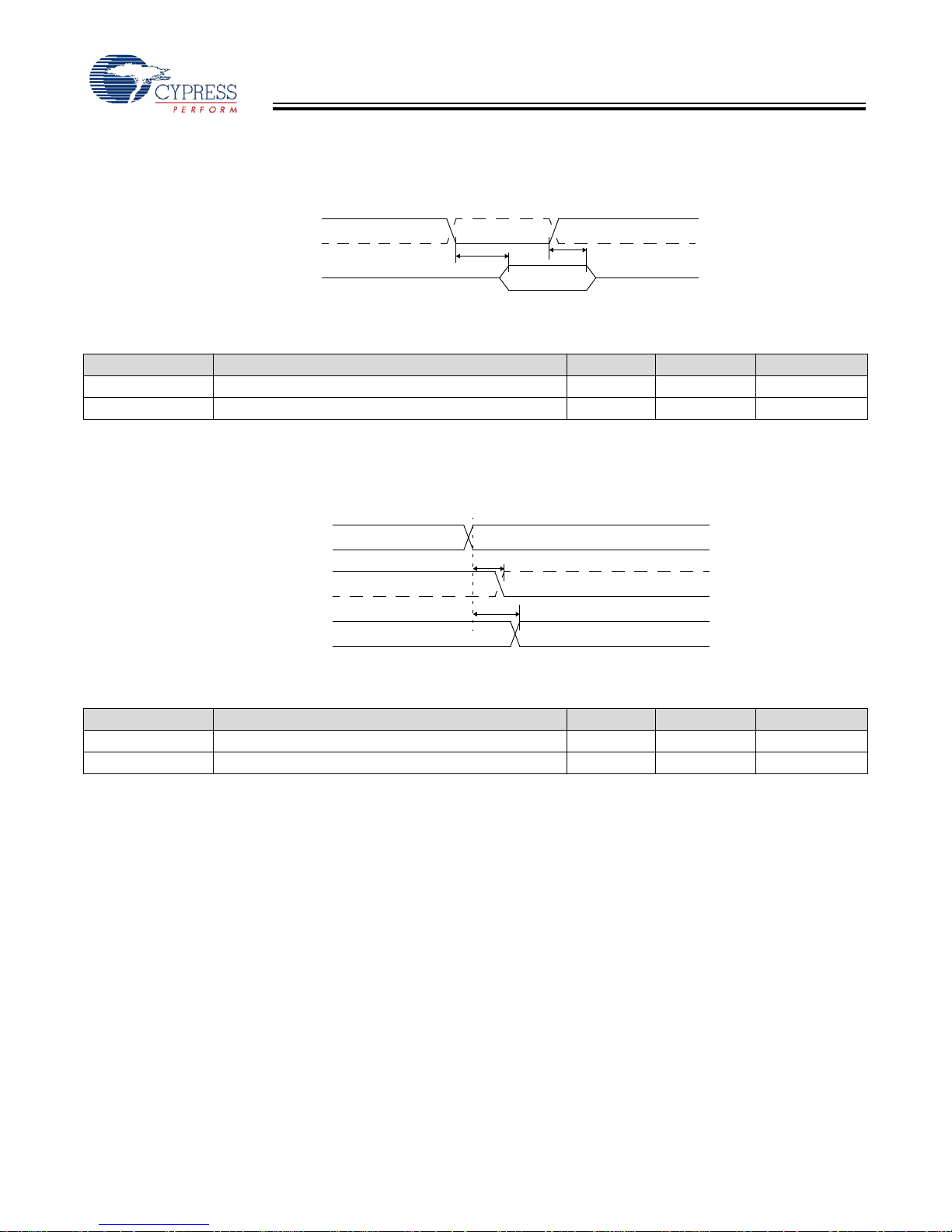

Figure 9-9. Slave FIFO Output Enable Timing Diagram

SLOE

DATA

OEon

OEoff

[17]

Table 9-12. Slave FIFO Output Enable Parameters

Parameter Description Min. Max. Unit

OEon

OEoff

SLOE Assert to FIFO DATA Output 10.5 ns

SLOE Deassert to FIFO DATA Hold 2.15 10.5 ns

9.10 Slave FIFO Address to Flags/Data

Figure 9-10. Slave FIFO Address to Flags/Data Timing Diagram

FIFOADR [1.0]

XFLG

FLAGS

XFD

DATA

NN+1

[17]

Table 9-13. Slave FIFO Address to Flags/Data Parameters

Parameter Description Min. Max. Unit

XFLG

XFD

FIFOADR[1:0] to FLAGS Output Propagation Delay 10.7 ns

FIFOADR[1:0] to FIFODATA Output Propagation Delay 14.3 ns

Document # 001-06120 Rev *F Page 31 of 39

[+] Feedback

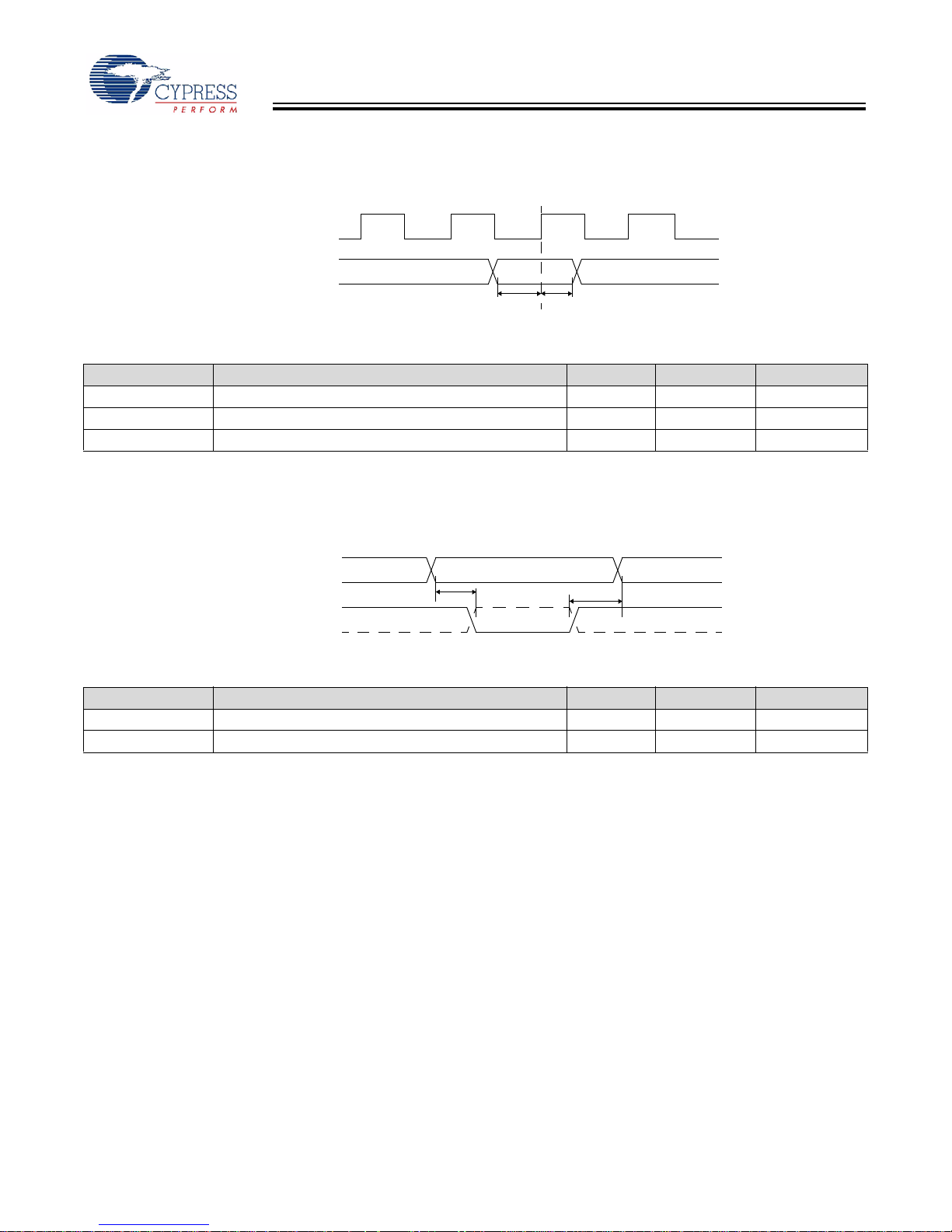

9.11 Slave FIFO Synchronous Address

Figure 9-11. Slave FIFO Synchronous Address Timing Diagram

IFCLK

SLCS/FIFOADR [1:0]

SFAtFAH

CY7C68053

[17]

Table 9-14. Slave FIFO Synchronous Address Parameters

[10]

Parameter Description Min. Max. Unit

IFCLK

SFA

FAH

Interface Clock Period 20.83 200 ns

FIFOADR[1:0] to Clock Set-up Time 25 ns

Clock to FIFOADR[1:0] Hold Time 10 ns

9.12 Slave FIFO Asynchronous Address

Figure 9-12. Slave FIFO Asynchronous Address Timing Diagram

SLCS/FIFOADR [1:0]

FAH

SLRD/SLWR/PKTEND

Slave FIFO Asynchronous Address Parameters

[20]

SFA

Parameter Description Min. Max. Unit

SFA

FAH

FIFOADR[1:0] to SLRD/SLWR/PKTEND Set-up Time 10 ns

RD/WR/PKTEND to FIFOADR[1:0] Hold Time 10 ns

[17]

Document # 001-06120 Rev *F Page 32 of 39

[+] Feedback

9.13 Sequence Diagram

Various sequence diagrams and examples are presented in this section.

9.13.1 Single and Burst Synchronous Read Example

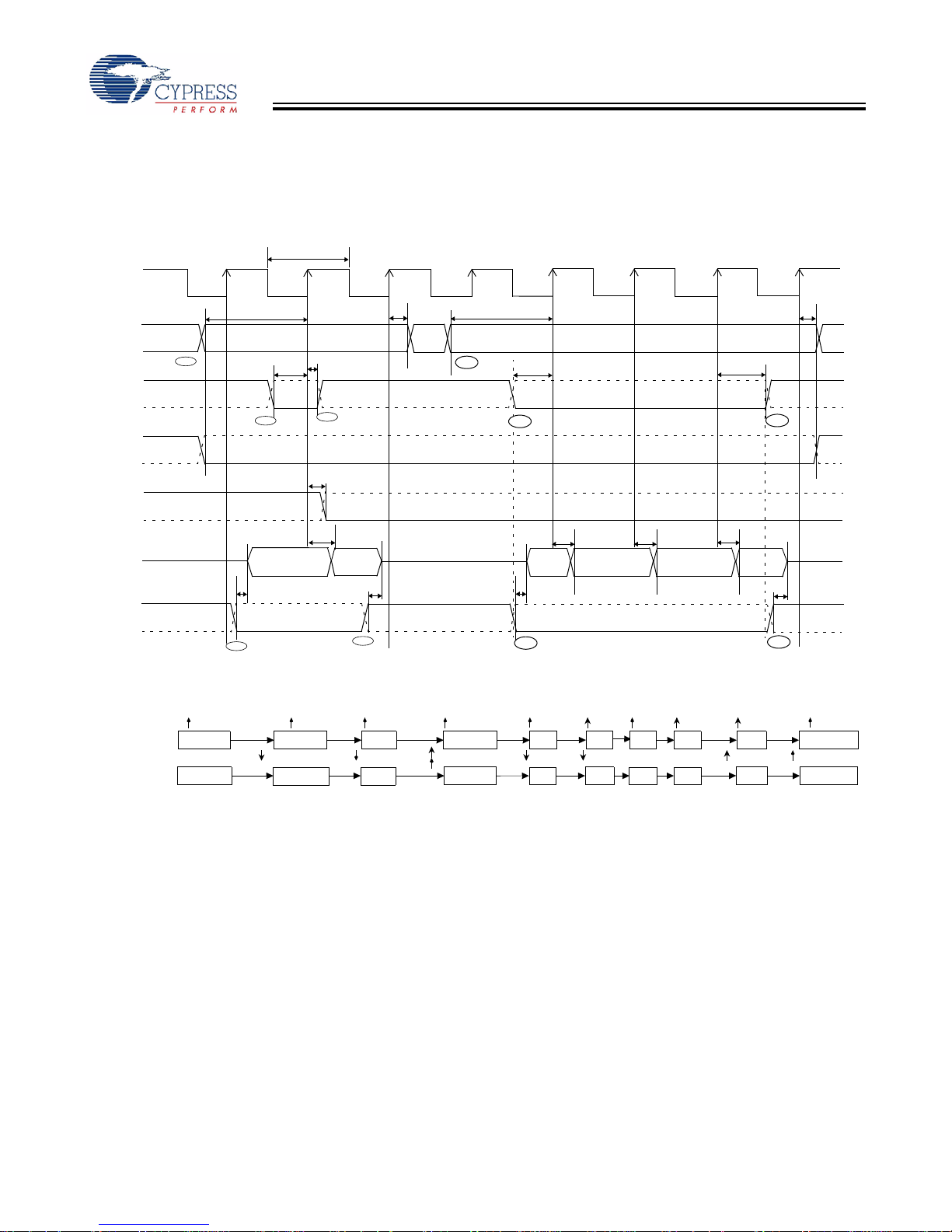

Figure 9-13. Slave FIFO Synchronous Read Sequence and Timing Diagram

IFCLK

T=0

SFA

T=2

FIFOADR

SLRD

SLCS

FLAGS

SFA

t=0

SRD

t=2

FAH

RDH

t=3

XFLG

>= t

SRD

CY7C68053

[17]

FAH

>= t

RDH

T=3

XFD

DATA

SLOE

OEon

t=1

Data Driven: N

OEoff

N+1

t=4

Figure 9-14. Slave FIFO Synchronous Sequence of Events Diagram

FIFO POINTER

FIFO DATA BUS

IFCLK

SLOE SLRD

Not Driven Driven: N

IFCLK IFCLK

IFCLK

N+1 N+2

SLOE

SLRD

N+1 N+2

IFCLK

Not Driven

Figure 9-13 shows the timing relationship of the SLAVE FIFO signals during a synchronous FIFO read using IFCLK as the synchronizing clock. The diagram illustrates a single read followed by a burst read.

• At t = 0 the FIFO address is stable and the signal SLCS is

asserted (SLCS may be tied low in some applications). Note t IFCLK is running at 48 MHz, the FIFO address set-up time

has a minimum of 25 ns. This means that when

SFA

is more than one IFCLK cycle.

• At t = 1, SLOE is asserted. SLOE is an output enable only

whose sole function is to drive the data bus. The data that is driven on the bus is the data that the internal FIFO pointer is currently pointing to. In this example it is the first data value in the FIFO. Note The data is pre-fetched and is driven on the bus when SLOE is asserted.

• At t = 2, SLRD is asserted. SLRD must meet the set-up

time of t rising edge of the IFCLK) and maintain a minimum hold time of t

RDH

SLRD signal). If the SLCS signal is used, it must be asserted

(time from asserting the SLRD signal to the

SRD

(time from the IFCLK edge to the deassertion of the

N+1

OEon

SLOE

T=1

N+1

XFD

SLRD

XFD

N+2

IFCLK IFCLK

N+3

IFCLK

N+4

N+3

SLRD

XFD

N+4

OEoff

T=4

IFCLK IFCLK

N+4

SLOE

N+4

with SLRD, or before SLRD is asserted (for example, the SLCS and SLRD signals must both be asserted to start a valid read condition).

• The FIFO pointer is updated on the rising edge of the IFCLK while SLRD is asserted. This starts the propagation of data from the newly addressed location to the data bus. After a propagation delay of t of IFCLK) the new data value is present. N is the first data

(measured from the rising edge

XFD

value read from the FIFO. In order to have data on the FIFO data bus, SLOE MUST also be asserted.

The same sequence of events is shown for a burst read and is marked with the time indicators of T = 0 through 5. Note For the burst mode, the SLRD and SLOE are left asserted during the entire duration of the read. In the burst read mode, when SLOE is asserted, data indexed by the FIFO pointer is on the data bus. During the first read cycle on the rising edge of the clock, the FIFO pointer is updated and increments to point to address N+1. For each subsequent rising edge of IFCLK while the SLRD is asserted, the FIFO pointer is incremented and the next data value is placed on the data bus.

N+4

Not Driven

Document # 001-06120 Rev *F Page 33 of 39

[+] Feedback

9.13.2 Single and Burst Synchronous Write

CY7C68053

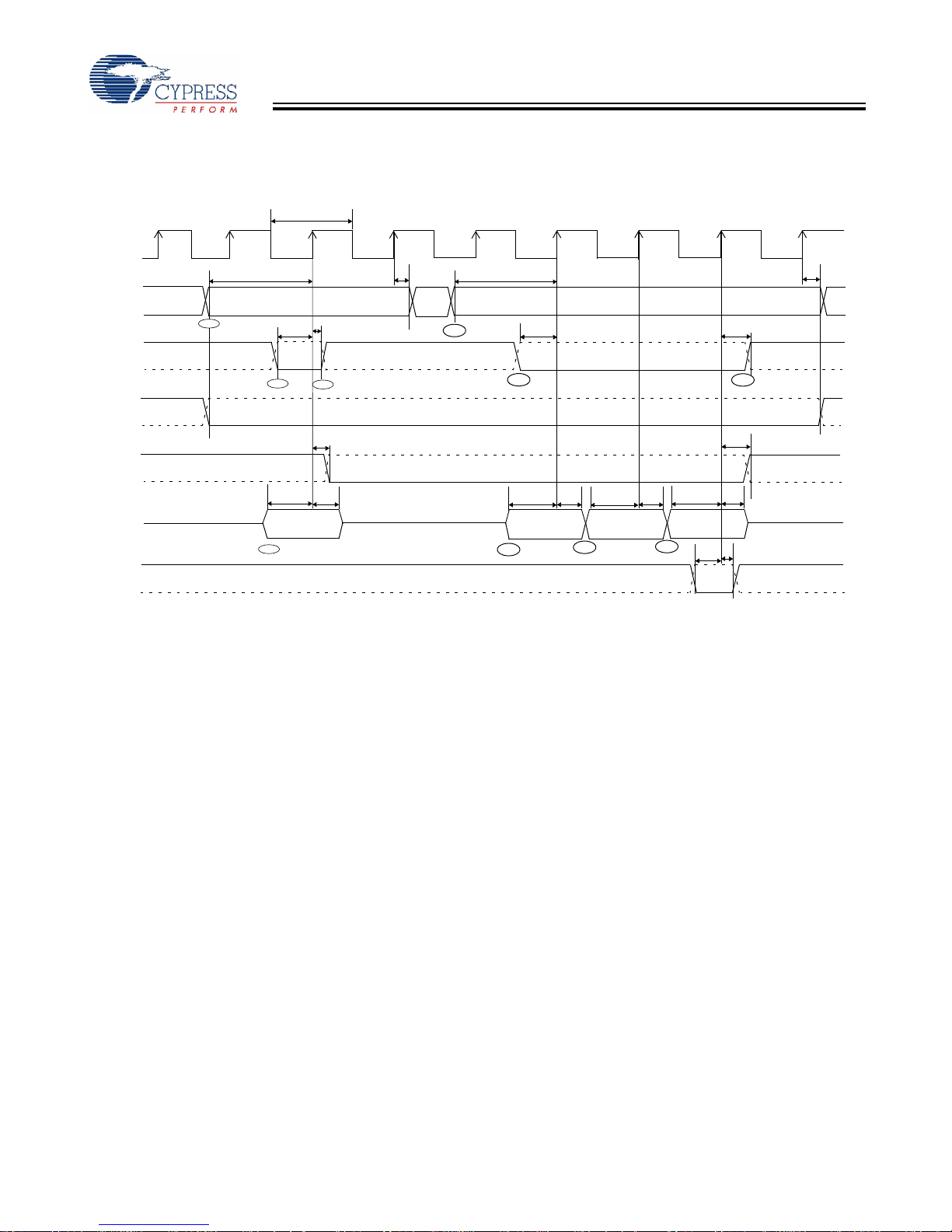

Figure 9-15. Slave FIFO Synchronous Write Sequence and Timing Diagram

IFCLK

FIFOADR

SLWR

SLCS

FLAGS

DATA

PKTEND

SFA

t=0

SWR

t=2

t=3

FDH

SFD

t=1

WRH

XFLG

FAH

T=0

Figure 9-15 shows the timing relationship of the SLAVE FIFO signals during a synchronous write using IFCLK as the synchronizing clock. The diagram illustrates a single write followed by burst write of 3 bytes and committing all 4 bytes as a short packet using the PKTEND pin.

• At t = 0 the FIFO address is stable and the signal SLCS is asserted. (SLCS may be tied low in some applications) Note t IFCLK is running at 48 MHz, the FIFO address set-up time

has a minimum of 25 ns. This means that when

SFA

is more than one IFCLK cycle.

• At t = 1, the external master/peripheral must output the data value onto the data bus with a minimum set-up time of t before the rising edge of IFCLK.

SFD

• At t = 2, SLWR is asserted. The SLWR must meet the setup time of t rising edge of IFCLK) and maintain a minimum hold time of t

(time from the IFCLK edge to the deassertion of the

WRH

SLWR signal). If the SLCS signal is used, it must be asserted

(time from asserting the SLWR signal to the

SWR

with SLWR or before SLWR is asserted. (for example, the SLCS and SLWR signals must both be asserted to start a valid write condition).

• While the SLWR is asserted, data is written to the FIFO and on the rising edge of the IFCLK, the FIFO pointer is incremented. The FIFO flag is also updated after a delay of t from the rising edge of the clock.

XFLG

The same sequence of events is also shown for a burst write and is marked with the time indicators of T = 0 through 5. Note For the burst mode, SLWR and SLCS are left asserted for the entire duration of writing all the required data values. In this burst write mode, once the SLWR is asserted, the data on the FIFO data bus is written to the FIFO on every rising edge

[17]

SFA

>= t

XFLG

FDH

SFD

N+3

SPE

T=1

T=2

>= t

SFD

SWR

N+1

FDH

T=3

SFD

FDH

N+2

T=4

T=5

WRH

PEH

FAH

of IFCLK. The FIFO pointer is updated on each rising edge of IFCLK. In Figure 9-15, once the four bytes are written to the FIFO, SLWR is deasserted. The short 4-byte packet can be committed to the host by asserting the PKTEND signal.

There is no specific timing requirement that needs to be met for asserting the PKTEND signal with regards to asserting the SLWR signal. PKTEND can be asserted with the last data value or thereafter. The only requirement is that the set-up time t

and the hold time t

SPE

Figure 9-15, the number of data values committed includes the

must be met. In the scenario of

PEH

last value written to the FIFO. In this example, both the data value and the PKTEND signal are clocked on the same rising edge of IFCLK. PKTEND can also be asserted in subsequent clock cycles. The FIFOADDR lines must be held constant during the PKTEND assertion.

Although there are no specific timing requirements for the PKTEND assertion, there is a specific corner case condition that needs attention while using the PKTEND to commit a one byte/word packet. Additional timing requirements exist when the FIFO is configured to operate in auto mode and you want to send two packets: a full packet (full defined as the number of bytes in the FIFO meeting the level set in AUTOINLEN register) committed automatically followed by a short one byte/word packet committed manually using the PKTEND pin. In this case, the external master must make sure to assert the PKTEND pin at least one clock cycle after the rising edge that caused the last byte/word to be clocked into the previous auto committed packet (the packet with the number of bytes equal to what is set in the AUTOINLEN register). Refer to Figure 9-7 for further details on this timing.

Document # 001-06120 Rev *F Page 34 of 39

[+] Feedback

9.13.3 Sequence Diagram of a Single and Burst Asynchronous Read

CY7C68053

FIFOADR

SLRD

SLCS

FLAGS

DATA

SLOE

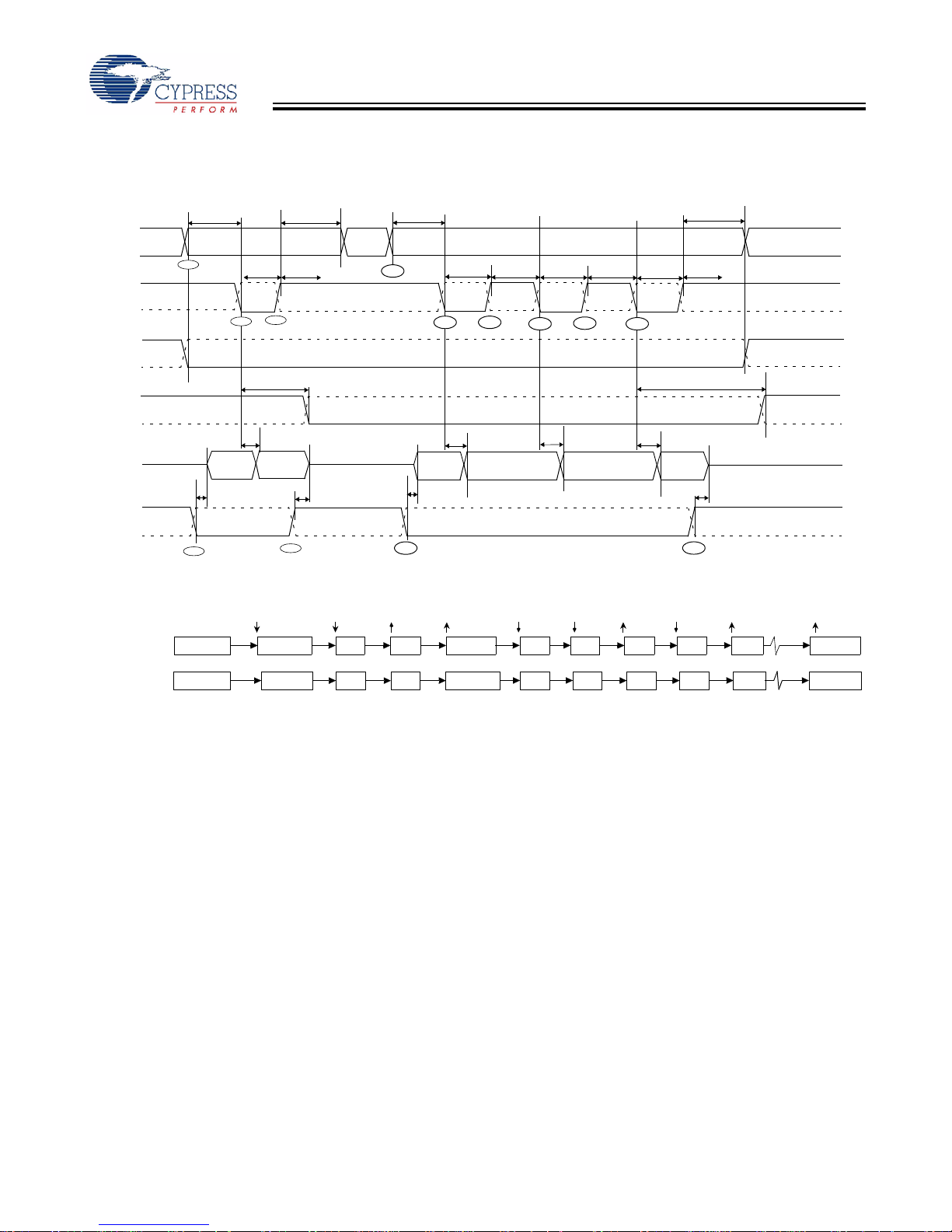

Figure 9-16. Slave FIFO Asynchronous Read Sequence and Timing Diagram

T=0

T=1

SFA

OEon

RDpwl

RDpwh

T=3

T=2

XFD

N+1

T=4

RDpwl

RDpwh

T=5

XFD

T=6

N+2

SFA

t=0

t=1

t=2

Data (X) Driven

OEon

RDpwl

FAH

RDpwh

t=3

XFLG

XFD

OEoff

t=4

Figure 9-17. Slave FIFO Asynchronous Read Sequence of Events Diagram

RDpwl

[17]

FAH

RDpwh

XFLG

XFD

N+3

OEoff

T=7

SLOE SLRD

FIFO POINTER

FIFO DATA BUS Not Driven Driven: X

SLRD

N Not Driven

N+1

SLOE

Not Driven

Figure 9-16 illustrates the timing relationship of the SLAVE FIFO signals during an asynchronous FIFO read. It shows a single read followed by a burst read.

• At t = 0, the FIFO address is stable and the SLCS signal is asserted.

• At t = 1, SLOE is asserted. This results in the data bus being driven. The data that is driven on to the bus is previous data; it is data that was in the FIFO from a prior read cycle.

• At t = 2, SLRD is asserted. The SLRD must meet the minimum active pulse of t width of t serted with SLRD or before SLRD is asserted (for example,

. If SLCS is used then, SLCS must be as-

RDpwh

and minimum de-active pulse

RDpwl

the SLCS and SLRD signals must both be asserted to start a valid read condition).

SLOE

N+2

N+1

SLOE

N+1

SLRD

N+1

SLRD

N+2

N+1

SLRD

N+2

SLRD

N+3

• The data that is driven, after asserting SLRD, is the updated data from the FIFO. This data is valid after a propagation delay of t 16, data N is the first valid data read from the FIFO. For data

from the activating edge of SLRD. In Figure 9-

XFD

to appear on the data bus during the read cycle (for example, SLRD is asserted), SLOE MUST be in an asserted state. SLRD and SLOE can also be tied together.

The same sequence of events is also shown for a burst read marked with T = 0 through 5. Note In burst read mode, during SLOE assertion, the data bus is in a driven state and outputs the previous data. Once SLRD is asserted, the data from the FIFO is driven on the data bus (SLOE must also be asserted) and then the FIFO pointer is incremented.

N+3

Document # 001-06120 Rev *F Page 35 of 39

[+] Feedback

9.13.4 Sequence Diagram of a Single and Burst Asynchronous Write

CY7C68053

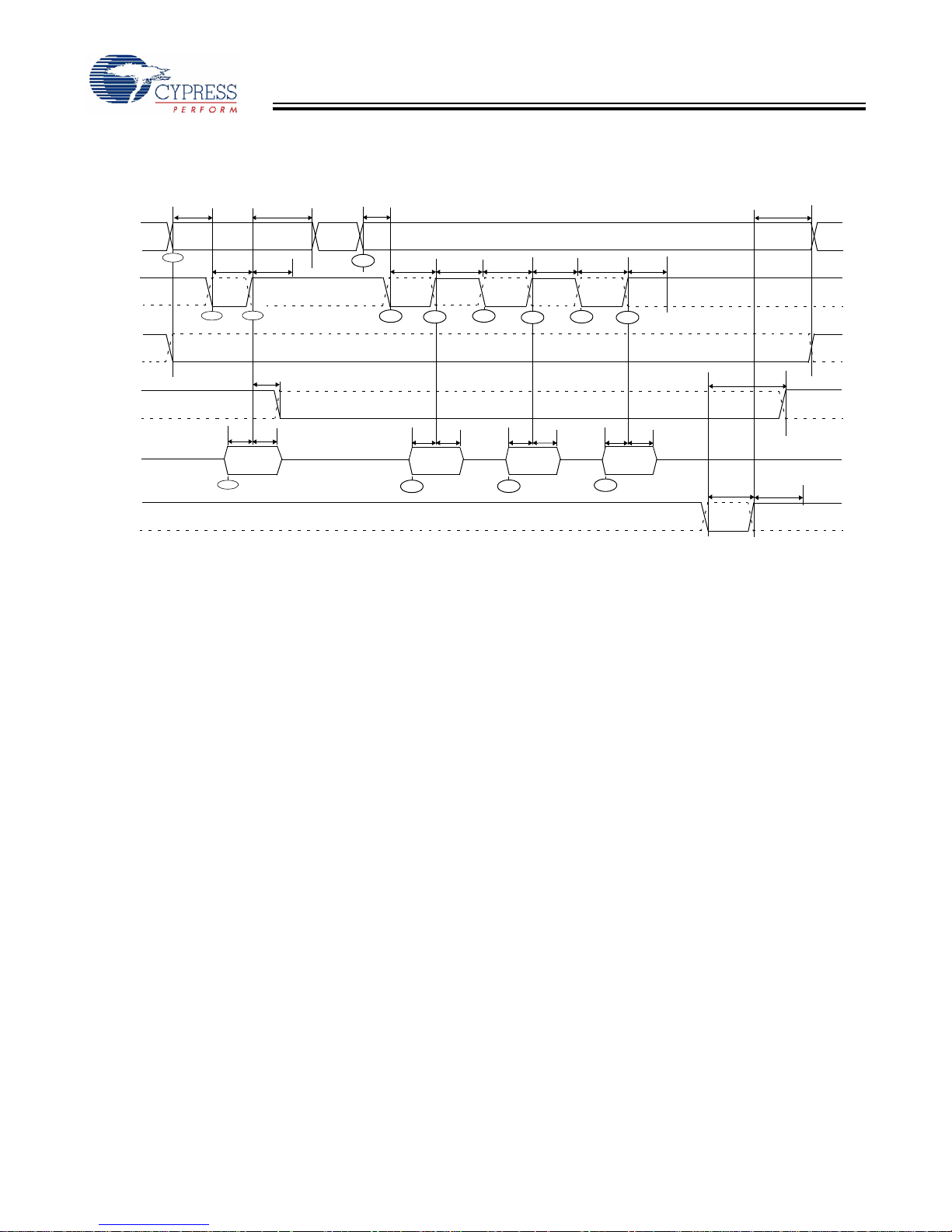

Figure 9-18. Slave FIFO Asynchronous Write Sequence and Timing Diagram

T=0

SFA

WRpwl

WRpwh

T=1

T=3

SFD

FDH

N+1

T=2

FIFOADR

SLWR

SLCS

FLAGS

DATA

PKTEND

SFA

t=0

t =1

WRpwl

t=2

SFD

t=3

WRpwh

FDH

FAH

XFLG

Figure 9-18 illustrates the timing relationship of the SLAVE FIFO write in an asynchronous mode. The diagram shows a single write followed by a burst write of 3 bytes and committing the 4-byte-short packet using PKTEND.

• At t = 0 the FIFO address is applied, ensuring that it meets the set-up time of t asserted (SLCS may be tied low in some applications).

. If SLCS is used, it must also be

SFA

• At t = 1 SLWR is asserted. SLWR must meet the minimum active pulse of t of t SLWR or before SLWR is asserted.

. If the SLCS is used, it must be asserted with

WRpwh

• At t = 2, data must be present on the bus t deasserting edge of SLWR.

and minimum de-active pulse width

WRpwl

SFD

before the

• At t = 3, deasserting SLWR causes the data to be written from the data bus to the FIFO and then the FIFO pointer is

[17]

FAH

WRpwl

WRpwh

T=4

T=5

T=6

SFD

FDH

N+2

T=7

incremented. The FIFO flag is also updated after t the deasserting edge of SLWR.

WRpwl

T=8

WRpwh

T=9

XFLG

SFD

FDH

N+3

PEpwl

PEpwh

XFLG

The same sequence of events is shown for a burst write and is indicated by the timing marks of T = 0 through 5. Note In the burst write mode, once SLWR is deasserted, the data is written to the FIFO and then the FIFO pointer is incremented to the next byte in the FIFO. The FIFO pointer is post incremented.

In Figure 9-18 once the four bytes are written to the FIFO and SLWR is deasserted, the short 4-byte packet can be committed to the host using the PKTEND. The external device must be designed to not assert SLWR and the PKTEND signal at the same time. It must be designed to assert the PKTEND after SLWR is deasserted and meet the minimum deasserted pulse width. The FIFOADDR lines are to be held constant during the PKTEND assertion.

from

Document # 001-06120 Rev *F Page 36 of 39

[+] Feedback

CY7C68053

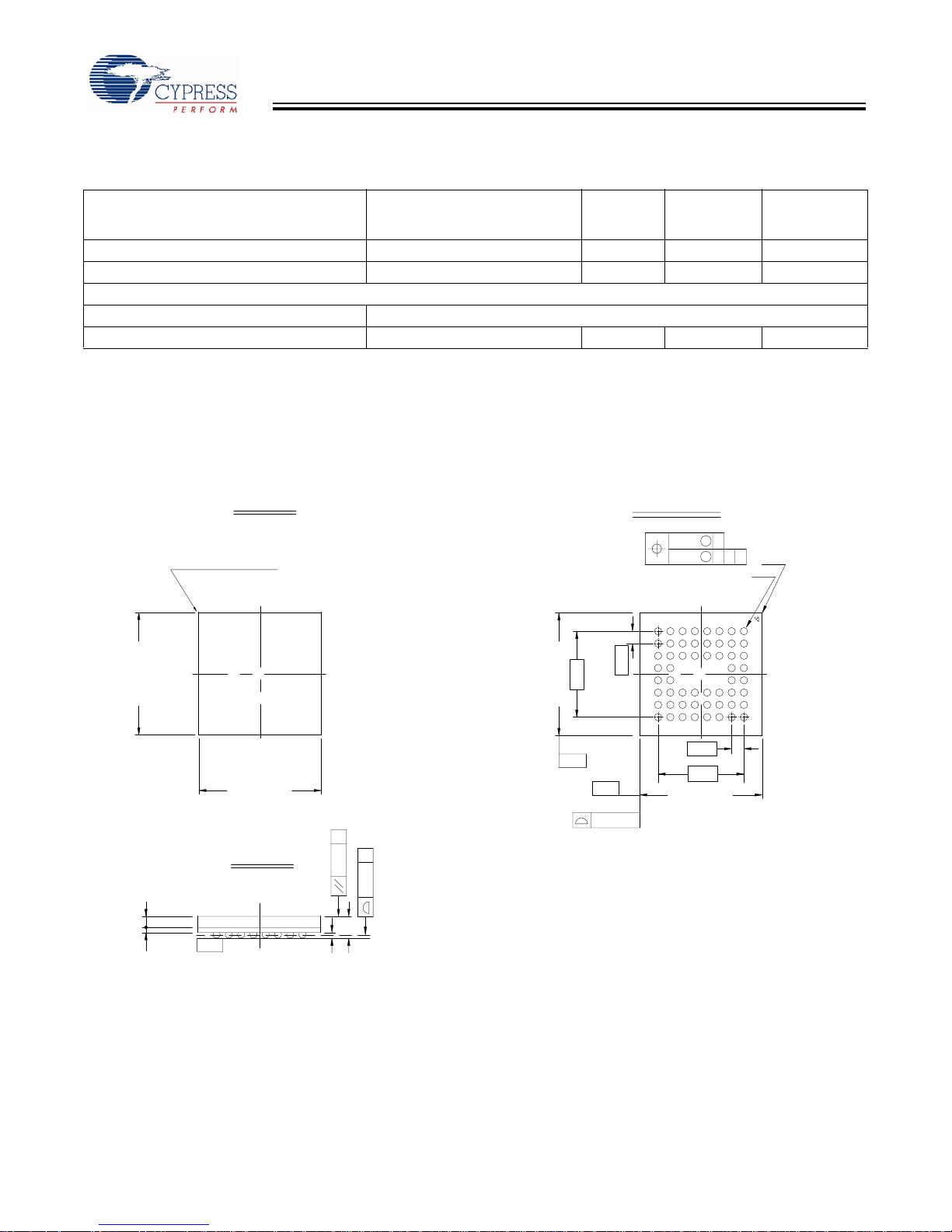

10.0 Ordering Information

Table 10-1. Ordering Information

8051

Ordering Code Package Type RAM Size # Prog I/Os

CY7C68053-56BAXI 56 VFBGA– Lead-Free 16K 24 –

Development Tool Kit

CY3687 MoBL-USB FX2LP18 Development Kit

11.0 Package Diagram

The FX2LP18 is available in a 56-pin VFBGA package.

Figure 11-1. 56 VFBGA (5 x 5 x 1.0 mm) 0.50 Pitch, 0.30 Ball BZ56

Address/Data

Busses

5.00±0.10

0.45

PIN A1 CORNER

13265486

A B C D

E F G H

SEATING PLANE

-C-

TOP VIEW

5.00±0.10

SIDE VIEW

BOTTOM VIEW

Ø0.05 M C

Ø0.15 M C A B

Ø0.30±0.05(56X)

7856 2341

0.50

3.50

5.00±0.10

-B-

-A-

0.10(4X)

0.10 C

0.080 C

REFERENCE JEDEC: MO-195C

PACKAGE WEIGHT: 0.02 grams

0.50

3.50

5.00±0.10

A1 CORNER

A B C D E F G H

0.21

Document # 001-06120 Rev *F Page 37 of 39

0.160 ~0.260

1.0 max

001-03901-*B

[+] Feedback

CY7C68053

12.0 PCB Layout Recommendations

The following recommendations must be followed to ensure reliable high-performance operation.

• At least a four-layer impedance controlled board is required to maintain signal quality.

• Specify impedance targets (ask your board vendor what they can achieve).

• To control impedance, maintain trace widths and trace spacing to within specifications.

• Minimize stubs to minimize reflected signals.

• Connections between the USB connector shell and signal

• Bypass/flyback caps on VBus, near connector, are recommended.

• DPLUS and DMINUS trace lengths must be kept to within 2 mm of each other in length, with preferred length of 20–30 mm.

• Maintain a solid ground plane under the DPLUS and DMINUS traces. Do not allow the plane to be split under these traces.

• It is preferable to have no vias placed on the DPLUS or DMINUS trace routing.

• Isolate the DPLUS and DMINUS traces from all other signal traces by no less than 10 mm.

ground must be done near the USB connector.

Purchase of I

C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard Specification

C components from Cypress, or one of its sublicensed Associated Companies, conveys a license under the Philips

as defined by Philips. MoBL-USB FX2LP18, EZ-USB FX2LP and ReNumeration are trademarks, and MoBL-USB is a registered trademark, of Cypress Semiconductor Corporation. All product and company names mentioned in this document are the trademarks of their respective holders.

Document # 001-06120 Rev *F Page 38 of 39

© Cypress Semiconductor Corporation, 2006. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

[+] Feedback

CY7C68053

Document History Page

Document Title: CY7C68053 MoBL-USB FX2LP18 USB Microcontroller Document Number: 001-06120

REV. ECN NO. Issue Date

** 430449 03/03/06 OSG New data sheet

*A 434754 03/24/06 OSG In Section 3.3, stated that SCL and SDA pins can be connected to V

*B 465471 See ECN OSG Changed the recommendation for the pull up resistors on I2C

*C 484726 See ECN ARI Removed all references the part number CY7C68055. Corrected the bullet in

*D 492009 See ECN OSG Added Icc data in DC Characteristics and Maximum Power dissipation

*E 500408 See ECN OSG Changed ESD spec to 1500V

*F 502115 See ECN OSG Changed ESD spec to 2000V and 1500V only for SCL and SDA pins.

Orig. of Change Description of Change

CC_IO

Changed sections 3.5, 3.18.1 and pin descriptions of SCL, SDA to indicate that since DISCON=1 after reset, an EEPROM or EEPROM emulation is required on the I2C interface In pin description table, renamed pin 2H (Reserved) to Ground In Section 6, added statement “The GPIO’s are not over voltage tolerant, except the SCL and SDA pins, which are 3.3V tolerant“ In Section 8,added a footnote to the DC char table stating that AVcc can be floated in low power mode In Section 8, changed V

max in DC char table from 3.6V to V

Split Icc into 4 different values, corresponding to the different voltage supplies Changed Isus typical to 20uA and 220uA Added section 3.9.3 on suspend current considerations

Features to state that 24 GPIO’s are available. Added the Test ID (TID#) to the Features on the front page. Made changes to the block diagram on the first page (this is now a Visio drawing instead of a Framemaker drawing). Corrected the Ambient Temperature with Power Supplied. Moved figure titles to meet the new template. Checked grammar. Took out 9-bit address bus from the block diagram on the first page. Corrected Figure 4.1

Added min spec for t Changed Icc and power dissipation numbers

OEoff

CC_IO

+ 10%

Document # 001-06120 Rev *F Page 39 of 39

[+] Feedback

Cypress Semiconductor CY7C68053 Specification Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
