Cybex MG-525

Owner’s and Service Manual

Strength Systems

Part Number 15CBX109072 B

www.cybexintl.com

Cybex MG-525

Owner’s and Service Manual

Strength Systems

Part Number 15CBX109072 B

Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.

DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183

www.cybexinternational.com • techhelp@cybexintl.com • 15CBX109072 B

Table of Contents

1 Safety

Safety. . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Safety Guidlines and Practices.. . . . . . 1-2

Warning/Caution Decals . . . . . . . . . . . 1-3

Regular Maintenance Activities . . . . . . 1-8

2 Exercise

Intended Use . . . . . . . . . . . . . . . . . . . . 2-1

Instructions. . . . . . . . . . . . . . . . . . . . . . 2-1

3 Customer Service

Contacting Service. . . . . . . . . . . . . . . . 3-1

Ordering parts . . . . . . . . . . . . . . . . . . . 3-1

Return Material Authorization (RMA). . 3-1

Damaged Parts . . . . . . . . . . . . . . . . . . 3-2

4 Assembly

Assembly . . . . . . . . . . . . . . . . . . . . . . . 4-1

5 Maintenance

Daily Procedures . . . . . . . . . . . . . . . . . 5-1

Weekly Procedures . . . . . . . . . . . . . . . 5-4

6 Service

Parts Lists . . . . . . . . . . . . . . . . . . . . . . 6-4

Exploded-View Diagram . . . . . . . . . . . 6-6

Page i

Cybex MG-525 Owner’s Manual

1 - Safety

Safety

Read the Owner’s Manual carefully before assembling, servicing or using the equipment. It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper

operation of the equipment and review all labels.

WARNING: Serious injury could occur if these safety precautions are not observed:

User Safety Precautions

Obtain a medical exam before beginning any exercise program.• Stop exercising if feeling faith, dizzy or experiencing pain and consult your physician.• Obtain instructions before using.• Read and understand the owner’s manual and all warnings posted on the machine before using.• Keep all children (12 and under) away. Teenagers (13 and over) and disabled must be supervised.• Keep body and clothing free from and clear of all moving parts.• Use the machine only for the intended use. • DO NOT modify the machine. Inspect machine prior to use. DO NOT use if it appears damaged or inoperable.• Inspect all cables and belts and connections prior to use. DO NOT use if any components are worn, •

frayed or damaged.

DO NOT • attempt to ﬁ x a broken or jammed machine. Notify ﬂ oor staff. DO NOT• use if guards are missing or damaged.

Be sure that the weight pin is completely inserted. Use only the pin provided by the manufacturer. • If unsure seek assistance.

Never pin the weights in an elevated position. • DO NOT use this machine if found in this condition. See assistance from ﬂ oor staff.

DO NOT • use dumbbells or other incremental weights, except those provided by the manufacturer. Report any malfunctions, damage or repairs to the facility. • Replace any warning labels if damaged, worn or illegible. •

Facility Safety Precautions

Read the Owner’s Manual carefully before assembling, servicing or using the equipment. • Securely anchor each machine to the ﬂ oor using the anchor holes provided in each machine.•

NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional

contractor. NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better). NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any

leg or frame not in contact with surface using ﬂ at washers.

Service

Page 1-1

Cybex MG-525 Owner’s Manual

Make sure that each machine is set up and operated on a solid level surface. • Do not install equipment on an uneven surface.

Make sure that all users are properly trained on how to use the equipment.• Make sure there is enough room for safe access and operation of the equipment. • Perform regular maintenance checks on the equipment. Also pay close attention to all areas most susceptible to •

wear, including (but not limited to) cables, pulleys, belts and grips. Immediately replace worn or damaged components. If unable to immediately replace worn or damaged compo-•

nents then remove from service until the repair is made. Use only Cybex supplied components to maintain/repair the equipment.• Keep a repair log of all maintenance activities.• Inspect all cables and belts and connections prior to use. • DO NOT use if any components are worn, frayed or

damaged.

NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is

performed.

Safety Guidelines And Practices

Cybex recommends that all ﬁ tness equipment be used in a supervised area. It is recommended that the equipment be located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of the owner.

It is the responsibility of the purchaser/user of Cybex products to read and understand the owner’s manual, and warning labels; as well as instruct all individuals, whether end users or supervising personnel, on proper usage of the equipment.

PROPER USAGE:

Use machine only as described in the manual. Failing to follow proper instructions may result in injury. Do Not Lean Against or Pull On the framework, weight stack, or any component, whether machine is at rest or in

use. Inappropriate or improper use may result in injury to users or third parties (bystanders). Do not use machine if it is not located on a solid level surface or is improperly installed. Provide an adequate safety perimeter between the machine, walls and other equipment to ensure that the facility has

the proper clearance for usage and training.

SECURING EQUIPMENT:

The machine has holes in the feet, which allow for ease in anchoring to the ﬂ oor. Cybex strongly recommends that, to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface.

1. The solid, level surface should not deviate more than 1/8” over a 10’ distance or as deﬁ ned and required by local building and architectural codes.

2. Anchoring of equipment must be completed by a qualiﬁ ed licensed contractor.

Service Page 1-2

Cybex MG-525 Owner’s Manual

3. Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the equipment to the ﬂ oor.

4. Due to the wide variation of ﬂ ooring on which machines may be anchored or installed, verify anchoring method and anchoring fasteners with a qualiﬁ ed and licensed contractor.

5. A minimum pull out force of 220 lbs/100 kgs is required for each anchor position..

6. Do not use machine until it is properly anchored. MAINTENANCE:

Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the maintenance requirements as speciﬁ ed in the manual.

STANDARD COMPLIANCE:

Cybex products meet or exceed applicable ASTM and EN Standards.

Warning/Caution Decals

Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate

injury. The warning and caution decals are shown on the following page. The diagrams following the decals show where

each decal is located.

Service

Page 1-3

Cybex MG-525 Owner’s Manual

WARNING

SERIOUS INJURY COULD OCCUR IF THESE PRECAUTIONS ARE NOT OBSERVED

1. Obtain a medical exam before beginning any exercise program.

2. Stop exercising if feeling faint, dizzy or experiencing pain and consult your physician.

3. Obtain instructions before using.

4. Read and understand the owner’s

manual and all warnings posted on the machine before using.

5. Keep all children (12 and under) away. Teenagers (13 and over) and disabled must be supervised.

6. Keep body and clothing free and clear of all moving parts.

7. Use machine only for the intended use. DO NOT modify the machine.

8. Inspect machine prior to use. DO NOT use if it appears damaged or inoperable.

9. Inspect all cables and belts and connections prior to use. DO NOT use if any components are worn, frayed or damaged

10. DO NOT attempt to fix a broken or jammed machine.

11. DO NOT use if guards are missing or damage.

12. Be sure that the weight pin is completely inserted. Use only the pin provided by the manufacturer. If unsure seek assistance.

13. Never pin weights in an elevated position. DO NOT use this machine if found in this condition. Seek assistance from floor staff.

14. DO NOT use dumbbells or other incremental weights, except those provided by the manufacturer.

15. Report any malfunctions, damage or repairs to the facility.

16. DO NOT REMOVE THIS LABEL. REPLACE IF DAMAGED.

0904212

CAUTION

Keep away from moving parts. Failure to do so could result in personal injury.

0904222

CAUTION

Failure to correctly adjust could result in personal injury.

Always fully engage the detent pin before use to avoid injury.

0904221

Service Page 1-4

Cybex MG-525 Owner’s Manual

Chest Press/Incline Press/Overhead Press Station

(decal placement diagram)

DESCRIPTION PART NO.

Warning DecalA. .................0904212

Caution DecalB. ..................0904222

Caution DecalC. ..................0904221

Service

Page 1-5

Cybex MG-525 Owner’s Manual

Low Row/Lat Pull Station

(decal placement diagram)

Service Page 1-6

DESCRIPTION PART NO.

Warning DecalA. .................0904212

Caution DecalB. ..................0904222

Cybex MG-525 Owner’s Manual

Prone Leg Curl/Leg Extension Station

(decal placement diagram)

DESCRIPTION PART NO.

Warning DecalA. .................0904212

Caution DecalB. ..................0904222

Caution DecalC. ..................0904221

Service

Page 1-7

Cybex MG-525 Owner’s Manual

Regular Maintenance Activities

Preventative maintenance activities must be performed to maintain normal operation of your equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. The preventative maintenance actions are described in detail in Chapter 5. Brieﬂ y, they include:

Daily

1. Clean upholstery. Weekly

1. Inspect all nuts and bolts for looseness. Tighten as required.

2. Inspect all cables and belts for damage or wear (see Chapter 5). If a cable or belt is worn

or damaged, immediately discontinue use until cable or belt has been replaced.

3. Check for worn handles, worn snap links, and worn warning labeling. Replace all worn parts

immediately.

4. Inspect for loose or worn grips. Replace all loose or worn grips immediately. 5 Inspect weight stacks for proper alignment and operation. Correct all improper alignment

and operation issues immediately.

6. Lubricate guide rods using automotive engine oil only. Yearly

1. Replace all cables and belts at least annually.

Using Proper Form

Before working out, read and understand the exercises located on the placard and in Chapter 2.

Service Page 8

Cybex MG-525 Owner’s Manual

2 - Exercises

Intended Use

The intended use of this equipment is to aid or improve general physical ﬁ tness and exercise. For Commercial use.

Instructions

Read and understand all instructions and warnings prior to using this machine. See Chapter 1, Safety, in the Owner’s Manual or consult with ﬂ oor staff.

Exercises

Page 2-1

Cybex MG-525 Owner’s Manual

Chest Press

START FINISH

NOTE: Motion Developed: Shoulder Flexion, Elbow Extension

Set Up

1. Adjust handles and backrest to the chest press position.

2. Adjust seat bottom and back so that handles are at mid-

chest.

3. Select hand position that allows hands to ﬁ nish in front of the shoulders.

Movement

1. Push handles forward until arms are fully straightened.

MUSCLES USED

Pectoralis Major, Anterior Deltoid, Triceps

Exercises Page 2-2

Cybex MG-525 Owner’s Manual

Incline Press

START FINISH

NOTE: Motion Developed: Shoulder Flexion, Elbow Extension

Set Up

1. Adjust handles and backrest to the Incline Press position.

2. Adjust seat bottom and back so that handles are at mid-

chest.

3. Select hand position that allows hands to ﬁ nish in front of the shoulders.

Movement

1. Push handles forward until arms are fully straightened.

MUSCLES USED

Pectoralis Major, Anterior Deltoid, Triceps

Exercises

Page 2-3

Cybex MG-525 Owner’s Manual

Overhead Press

START

NOTE: Motions Developed: Shoulder Abduction, Elbow Extension

Set Up

1. Adjust handles and backrest to the shoulder press

position.

2. Adjust seat bottom so that hands are slightly above shoulder.

3. Select hand position that allows hands to ﬁ nish above the shoulders.

FINISH

Movement

1. Push the handles directly upward until arms are fully

straightened.

Exercises Page 2-4

Anterior Deltoid, Middle Deltoid

and Triceps

Cybex MG-525 Owner’s Manual

Low Row

START FINISH

NOTE: Motion Developed: Shoulder Extension, Elbow Flexion

Set Up

1. Adjust bench so that it is in the Low Row position.

2. Adjust the (Lat Pull) thigh pad so that it is facing upward.

3. Sit with feet ﬁ rmly on footrest.

4. Grasp handle with hands in front of and level with the

shoulders.

Movement

1. Pull handle towards you until your elbows are at

your sides.

MUSCLES USED

Lattisimus Dorsi, Teres Major, Biceps,

Middle Trapezius, Rear Deltoid,

Rhomboideltoid

Exercises

Page 2-5

Cybex MG-525 Owner’s Manual

Lat Pull

START FINISH

NOTE: Motions Developed: Shoulder Adduction, Elbow Flexion

Set Up

1. Adjust bench so that it is in the Lat Pull position.

2. Adjust thigh pad for stabilization during exercise.

3. Grasp bar and sit with thighs under pads. Movement

1. Pull bar down until elbows are by your sides and

hands are approximately level with shoulders.

MUSCLES USED

Latissimus Dorsi, Teres Major, Biceps,

Lower Trapezius, Rhomboid

Exercises Page 2-6

START

Cybex MG-525 Owner’s Manual

Prone Leg Curl

FINISH

NOTE: Motions Developed: Knee Flexion

Set Up

1. Adjust bench so that it is in the Prone Leg Curl position.

2. Align leg pad for a comfortable placement behind ankles.

3. Align knees with the axis of rotation.

4. Lean forward against thigh pad, rest forearms on pads and

grasp handles.

Movement

1. Pull up against leg pad.

MUSCLES USED

Hamstrings

Exercises

Page 2-7

Cybex MG-525 Owner’s Manual

Leg Extension

START

NOTE: Motion Developed: Knee Extension

Set Up

1. Adjust bench so that it is in the Leg Extension position.

FINISH

MUSCLES USED

2. Adjust back pad so that when seated, your knees align

with the machine’s axis of rotation.

3. Comfortably position shin pad and apply light pressure.

4. Grasp handles and stabilize body. Movement

1. Push forward and up against leg pad until your legs are

straight.

Exercises Page 2-8

Quadriceps

Cybex MG-525 Owner’s Manual

3 - Customer Service

Contacting Service

Hours of phone service are Monday through Friday from 8:30 to 6:00 p.m. Eastern Standard Time. For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239. For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300

or fax 508-533-5183.

Find information on the web at www.cybexintl.com or by e-mail at techhelp@cybexintl.com.

Ordering Parts

Fax order to 508-533-5183. To speak with a customer service representative, call 888-462-9239 (for customers living within the USA) or 508-533-4300 (for customers outside the USA). You may also contact us through e-mail at techhelp@cybexintl.com

Having the following information ready when calling will assist our Cybex representatives in serving you.

Unit Serial Number• Product Name•

The unit serial number and product name can be found on the serial number decal. See Chapter 6 for exact location of serial number decal.

Part Description• Part Number•

Part descriptions and part numbers are located in Chapter 6 of this manual.

Shipping Address• Contact Name•

Return Material Authorization (RMA)

In addition to your shipping address and contact name, your account number is helpful but not required. The Return Material Authorization (RMA) system outlines the procedures to follow when returning

material for placement, repair or credit. The system assures that returned materials are properly handled and analyzed. Follow the following procedures carefully.

Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.

Customer

Service

Page 3-1

Cybex MG-525 Owner’s Manual

1. Call the Customer Service Hot Line listed above for the return of any item that is defective.

2. Provide the technician with a detailed description of the problem you are having or the defect in the item you wish to return.

3. Provide the model and serial number of your Cybex equipment.

4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for

evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. Include the description of the problem, the serial number of the equipment and the name and address of the owner in the package along with the part(s).

5. Forward the package through UPS to Cybex.

Attn: Customer Service Department Cybex International, Inc. 1975 24th Ave SW

Owatonna, MN 55060

NOTE: Merchandise returned without an RMA number on the outside of the package or shipments sent

COD will not be accepted by the Cybex receiving department.

Damaged Parts

Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)

Apparent Damage - Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers refusal to honor your damage claim. The carrier will provide you with the required forms for ﬁ ling such claims.

Concealed Damage - Damage not seen with a visual check upon receipt of a shipment but notices later must be reported to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to perform an inspection of the materials must be made within ten days of the delivery date. Keep all shipping containers and packing materials as they will be needed in the inspection process. The carrier will provide you with an inspection report and the necessary forms for ﬁ ling a concealed damage claim. Concealed damage claim is the carrier’s responsibility.

Customer Service Page 3-2

Cybex MG-525 Owner’s Manual

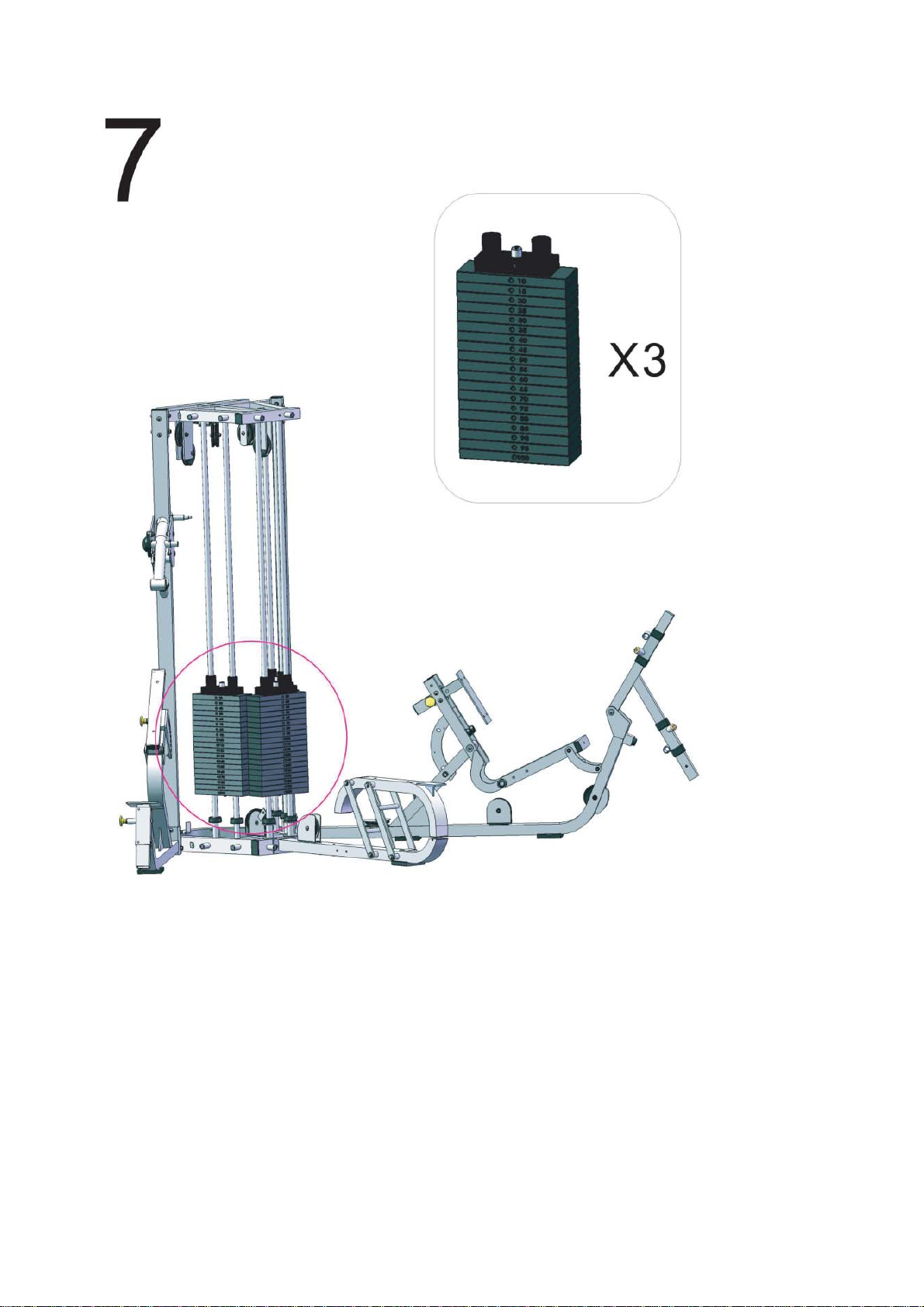

4 - Assembly

PRE-ASSEMBLY (English)

NOTE: Two people will be required for this procedure. NOTE: It is the responsibility of the facility owner/owner of the equipment to ensure that there

is appropriate clearance around each machine to allow for safe use and passage.

1. Read and understand all instructions thoroughly before starting any of the procedures listed on this instruction sheet.

2. Verify you have received the appropriate conﬁ guration.

Verify you received the appropriate owner’s manual. A. Verify you received the warranty sheet.B.

3. Move to desired location.

Assembly

Page 4-1

Cybex MG-525 Owner’s Manual

Assembly Page 4-2

Cybex MG-525 Owner’s Manual

Assembly

Page 4-3

Cybex MG-525 Owner’s Manual

Assembly Page 4-4

Cybex MG-525 Owner’s Manual

Assembly

Page 4-5

Cybex MG-525 Owner’s Manual

Assembly Page 4-6

Cybex MG-525 Owner’s Manual

Assembly

Page 4-7

Cybex MG-525 Owner’s Manual

Assembly Page 4-8

Cybex MG-525 Owner’s Manual

Assembly

Page 4-9

Cybex MG-525 Owner’s Manual

Assembly Page 4-10

Cybex MG-525 Owner’s Manual

Assembly Page 4-11

Cybex MG-525 Owner’s Manual

Assembly Page 4-12

Cybex MG-525 Owner’s Manual

Assembly Page 4-13

Cybex MG-525 Owner’s Manual

Assembly Page 4-14

Cybex MG-525 Owner’s Manual

Assembly Page 4-15

Cybex MG-525 Owner’s Manual

Assembly Page 4-16

Cybex MG-525 Owner’s Manual

Assembly Page 4-17

Cybex MG-525 Owner’s Manual

Assembly Page 4-18

Cybex MG-525 Owner’s Manual

Assembly Page 4-19

Cybex MG-525 Owner’s Manual

Assembly Page 4-20

Cybex MG-525 Owner’s Manual

Assembly Page 4-21

Cybex MG-525 Owner’s Manual

Assembly Page 4-22

Cybex MG-525 Owner’s Manual

Assembly Page 4-23

Cybex MG-525 Owner’s Manual

Assembly Page 4-24

Cybex MG-525 Owner’s Manual

Assembly Page 4-25

Cybex MG-525 Owner’s Manual

Assembly Page 4-26

Cybex MG-525 Owner’s Manual

Chapter 5 - Maintenance

All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment.

NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting/recording. Cybex phone representatives are available to answer any questions or concerns that you may have.

NOTE: All inspections and repairs must be performed by trained service personnel only.

Cybex will void warranty if non-Cybex replacement parts are used.

Daily Procedures

1. Upholstery - Wipe down all upholstery as per the recommendations listed below for light

soiling and more difficult stains. Light Soiling

• A solution of 10% household liquid dish soap with warm water applied with a soft damp cloth.

• If necessary, a solution of liquid cleanser and water applied with a soft bristle brush. Wipe away the residue with a water dampened cloth.

Maintenance

Page 5-1

Cybex MG-525 Owner’s Manual

More Difficult Stains

• Dampen a soft white cloth with a solution of 10% household bleach (sodium hypochlorite), 90% water. Rub gently. Rinse with a water dampened cloth to remove bleach concentration.

• The same procedure can be used with full strength household bleach, if necessary.

• Allow bleach to puddle on the affected area or apply with a soaked cloth for approximately 30 minutes. Rinse with a water dampened cloth to remove any remaining bleach concentration.

Alternative Method for Difficult Stains

• Dampen a soft white cloth with rubbing alcohol and rub gently. Rinse with a water dampened cloth to remove any remaining rubbing alcohol concentration.

NOTE: To restore luster, a light coat of spray furniture wax can be used. Apply for 30 seconds and follow with a light buffing using a clean white cloth.

Please Review Carefully When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to first test in an

inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to formula changes by the product manufacturer without notice. Should you desire to use other cleaning agents, carefully try them in an inconspicuous area to determine potential damage to the material. Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained or soiled areas, a soft white cloth is recommended. Avoid use of paper towels.

Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye protection. Do not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in a well ventilated area. Follow all product manufacturer’s warnings. CYBEX and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.

2. Frames - Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.

3. Chrome - Clean chrome tubes, first using chrome polish and then using a car wax seal. Neutral cleaners with a pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.

Maintenance Page 5-2

Cybex MG-525 Owner’s Manual

4. Guidelines for cleaning front panel:

• Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing.

• Follow up the application with warm water rinse.

• Don’t use abrasives or high alkaline cleaners.

• Don’t leave cleaners on for long periods, wash immediately.

• Don’t apply cleaners in direct sunlight or at elevated temperatures.

• Don’t use scrapers, squeegees or razors.

• Don’t clean with gasoline.

Compatible Cleaners and Detergents:

• Formula 409

• Top Job

• Joy

• Palmolive

• Windex with Ammonia D

To Minimize Fine or Hairline Scratches:

Mild automotive polish applied and removed with a soft, clean cloth will help fill scratches.

Suggested Polishes:

• Johnson Paste Wax

• Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.)

• Novus Plastics Polish #1, #2 (by Novus Inc.)

Maintenance

Page 5-3

Cybex MG-525 Owner’s Manual

Weekly Procedures

1. Check all nuts and bolts for looseness. Tighten as required.

2. Inspect all belts (entire length) for any non-uniformity and wear.

Immediately replace belt if any of the following conditions are present:

Maintenance Page 5-4

Cybex MG-525 Owner’s Manual

3. Some machines use cables in addition to belts. Inspect all cables for wear or damage and proper tension. When inspecting cables, run your fingers on the cable, paying particular attention to bends

in the cable and attachment points.

Replace all worn cables immediately. The following conditions may indicate a worn

cable:

• A tear or crack in the cable sheath that exposes the cable. See Figure 1.

Figure 1

• A kink in the cable. See Figure 2.

Figure 2

• A curled sheath. See Figure 3.

Figure 3

• “Necking”, a stretched cable sheath. See Figure 4.

Figure 4

Maintenance

Page 5-5

Cybex MG-525 Owner’s Manual

4. Inspect bars and handles for wear, paying particular attention to tab area connecting points.

Replace all worn handles immediately.

5. Inspect snap links for proper latching (indicates wear).

Replace all worn snap links immediately.

6. Inspect for loose or worn grips.

Replace all loose or worn grips immediately.

Inspect all labeling for readability. This includes instructional placards, warning and caution decals.

Replace all worn labeling immediately.

8. Inspect all weight stacks for proper alignment and operation.

Correct all improper alignment and operation issues immediately.

9. Wipe Weight Stack Guide Rods clean over entire length. Lubricate with a light coat of medium

weight automotive engine oil.

Yearly Procedures

1. Replace all belts and cables at least annually.

Maintenance Page 5-6

Cybex MG-525 Owner’s Manual

Environment

Static Electricity - Depending upon where you live, you may experience dry air, causing a common experience of static electricity. This may be especially true in the winter time. You may notice a static build-up just by walking across a carpet and then touching a metal object. The same can hold true while working out on your unit. You may experience a shock due to the build-up of static electricity on your body and the discharge path of the unit. If you experience this type of situation, you may want to increase the humidity to a comfortable level through the use of a humidifier.

Humidity - The unit is designed to function normally in an environment with a relative humidity range of 30% to 75%.

NOTE: Do not install or use the unit in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as well as other parts of the machine.

Temperature - The unit is designed to function normally in an environment with an ambient temperature range of 50o F (10o C) to 104o F (40o C) degrees.

Storage

Humidity - The unit can be shipped and stored in an environment with a relative humidity range of 10% to 90%.

NOTE: Do not store the unit in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as well as other parts of the machine.

Temperature - The unit can be shipped and stored in an environment with an ambient temperature range of 32o F (0 C) and 140o F (60o C) degrees.

Maintenance

Page 5-7

Cybex MG-525 Owner’s Manual

This page intentionally left blank

Maintenance Page 5-8

Cybex MG-525 Owner’s Manual

CHEST PRESS/INCLINE PRESS/OVERHEAD PRESS

PRODUCT NO. MG-525

NOTE: See exploded-view diagram for location of A (Placard), E (cable),

I (serial number decal).

DESCRIPTION PART NO.

A. Placard Decal .................... 0904051

B. Caution Decal .................... 0904222

C. Caution Decal .................... 0904221

D. Warning Label ................... 0904212

E. Cable........................... 15CBX109065

DESCRIPTION PART NO.

F. Back Pad .................... 15CBX109021

G. Seat Pad......................15CBX109013

H. Grips............................15CBX109018

I. Serial Number Decal

J. Weight Selector Pin...........0201028205

Service

Page 6-1

Cybex MG-525 Owner’s Manual

LOW ROW/LAT PULL

PRODUCT NO. MG-525

NOTE: See exploded-view diagram for location of A (Placard), D (cable),

H (serial number decal).

Service Page 6-2

DESCRIPTION PART NO.

A. Placard Decal .................... 0904052

B. Caution Decal .................... 0904222

C. Warning Label ................... 0904212

D. Cable........................... 15CBX109067

E. Seat Pad. ....................15CBX109038

DESCRIPTION PART NO.

F. Foam...... .................... ........15CBX109032

G. Grips....................................0401252

H. Serial Number Decal

I. Weight Selector Pin.............0201028205

Cybex MG-525 Owner’s Manual

PRONE LEG CURL/LEG EXTENSION

PRODUCT NO. MG-525

NOTE: See exploded-view diagram for location of A (Placard), E (cable),

I (serial number decal).)

DESCRIPTION PART NO.

A. Placard Decal .................... 0904053

B. Caution Decal .................... 0904222

C. Caution Decal .................... 0904221

D. Warning Label ................... 0904212

E. Cable........................... 15CBX109068

DESCRIPTION PART NO.

F. Back Pad. ..........................15CBX109042

G. Seat Pad.................... .........15CBX109051

H. Foam...... .................... ........15CBX109032

I. Serial Number Decal

J. Weight Selector Pin.............0201028205

Service

Page 6-3

Cybex MG-525 Owner’s Manual

ITEM PART NO QTY DESCRIPTION

1 1 5CBX109001 1 base frame 2 15CBX109002 1 top frame 3 15CBX109003 1 guide rod assembly bracket (top) 4 15CBX109004 1 main upright (chest press) 5 15CBX109005 6 guide rod (should be stainless) 6 0201028102 3 weight stack 7 15CBX109006 1 swivel bracket 8 15CBX109007 1 floating pulley 9 0304009 21 pulley 10 15CBX109008 2 weight stack support 11 0201022101 1 U joint bearing 12 0201025102 2 bushing 13 0408003 14 rubber stud 14 0301013 6 plastic end cap 15 0201023102 2 bearing saddle 16 0402006 6 rubber donut cushion 17 0703SPD101 6 guide rod secure collar 18 0201025110 4 bushing 19 0202002016 4 mushroom head hex socket bolt 20 0202002013 6 mushroom head hex socket bolt 21 0202002015 15 mushroom head hex socket bolt 22 0202002014 3 mushroom head hex socket bolt 23 0202002011 10 mushroom head hex socket bolt 24 0202001129 2 hex bolt 25 0202002018 10 mushroom head hex socket bolt 26 0202002008 6 mushroom head hex socket bolt 27 0202002105 4 mushroom head hex socket bolt 28 0201010201 15 set screw 29 0202014003 53 lock nut 30 0202008003 116 flat washer 31 0202009003 1 flange nut 32 0202009002 4 flange nut 33 0202008004 18 flat washer 34 15CBX109010 1 press arm pivoting bracket 35 15CBX109011 1 press arm 36 15CBX109012 1 main base frame (chest press) 37 15CBX109013 1 seat pad 38 15CBX109014 1 seat pad adjustment tube 39 15CBX109015 2 swivel axle 40 15CBX109016 1 swivel axle 41 15CBX109017 1 guarding fender 42 0302006 2 end cap 43 0402012 1 rubber cushion 44 0307001 1 pull pin 45 0201020217 6 bearing 46 0307003 2 pull pin 47 15CBX109018 2 PVC handle grip 48 0701076051 8 end cap 49 0302004 3 plastic end cap

0403003 4 rubber foot plate cover

50 51 0301008 1 plastic end cap 52 0311005 8 anti-skid insert 53 0904028 12 poly sticker 54 15CBX109070 1 handle grip 55 15CBX109019 1 rubber sleeve 56 0402005 4 donut cushion 57 0201025003 4 alloy bushing 58 0202002002 20 mushroom head hex socket bolt 59 Obsolete 60 0202002004 6 mushroom head hex socket bolt 61 0202017003 23 spring washer 62 0202008101 8 flat washer 63 15CBX109020 1 back pad support 64 15CBX109021 1 back pad 65 15CBX109022 1 guarding fender 66 0301004 2 plastic end cap 67 0202002007 3 mushroom head hex socket bolt

Service Page 6-4

ITEM PART NO QTY DESCRIPTION

68 0202004304 5 round head hex socket bolt

69 020200200 2 mushroom head hex socket bolt 70 15CBX109023 1 main upright ( lat pull down) 71 15CBX109024 1 top beam 72 15CBX109025 1 handle (long) 73 15CBX109026 1 foot rest 74 15CBX109027 1 handle (short bar) 75 15CBX109028 4 handle grip (pvc) 76 15CBX109029 1 double pulley bracket 77 15CBX109069 2 rubber cushion 78 0401121 4 handle grip 79 0401252 2 PVC handle grip 80 15CBX109030 1 knee holder assembly 81 15CBX109031 1 foam tube 82 15CBX109032 6 foam 83 15CBX109033 1 base beam 84 0409009 6 end cap 85 0307002 2 pull pin 86 15CBX109034 2 rubber sleeve 87 15CBX109035 2 PVC handle grip 88 Obsolete 89 15CBX109036 1 handle assembly(leg curl/ext) 90 0202002001 3 mushroom head hex socket bolt 91 0202034001 3 arc washer 92 0318102 6 foam roller cover 93 0701076052 2 handle end cap 94 0202001026 1 hex bolt 95 0202014004 7 lock nut 96 0201034005 2 hook 97 15CBX109037 1 guarding fender 98 0201025002 14 alloy bushing 99 15CBX109038 1 seat pad 100 15CBX109039 1 seat pad support 101 15CBX109040 2 parallel seat adjustment assembly 102 0202001025 4 hex bolt 103 15CBX109041 1 main upright ( leg curl/ext.) 104 15CBX109042 1 back pad 105 15CBX109043 1 main frame (leg cul/ext.) 106 15CBX109044 1 back pad support 107 15CBX109045 1 back pad adjustment receptacle 108 15CBX109046 1 back pad support assembly (left) 109 15CBX109047 1 back pad support assembly (right) 110 15CBX109048 1 swivel axle 111 0402004 4 rubber donut cushion 112 0312001 5 sleeve 113 0301003 10 plastic end cap 114 15CBX109049 1 guarding fender 115 0201006001 4 flat head cross bolt (big) 116 15CBX109050 1 seat pad support 117 15CBX109051 1 seat pad 118 15CBX109052 1 pivot arm assembly bracket 119 0202001017 2 hex bolt

15CBX109053 1 foam tubing assembly

120 121 15CBX109054 1 foam adjustment tube 122 15CBX109055 1 foam adjustment tube 123 15CBX109056 4 flat washer (large) 124 0301017 2 plastic end cap 125 15CBX109057 2 turn knob 126 15CBX109058 2 pressing block (aluminum) 127 0202004501 1 round head hex socket bolt 128 15CBX109059 1 handle weld 129 15CBX109060 1 rear shroud (big) 130 15CBX109061 1 shroud (center right) 131 15CBX109062 2 shroud (front) 132 15CBX109063 1 shroud (center left) 133 0202031005 8 flange hex bolt 134 0201006301 12 self tapping hex screw 135 0202008107 20 flat washer (big) 136 0417002 6 o ring 137 0330001 5 heated shrinkable tube

Cybex MG-525 Owner’s Manual

ITEM PART NO QTY DESCRIPTION

138 0202002017 5 mushroom head hex socket bolt 139 15CBX109064 2 foam tube 140 0201040551 3 cable terminal 141 0202009004 3 flange nut 142 0201040503 5 stainless cable guard 143 0201040504 5 aluminum ring 144 0319002 2 cable terminal guard (big) 145 Obsolete 146 0201008006 2 flat washer 147 15CBX109065 1 cable (chest press) 148 15CBX109066 1 cable (lat pull down) 149 15CBX109067 1 cable (low row) 150 15CBX109068 1 cable (leg curl/ext.) 151 0904222 3 caution label (small) 8500-026 152 0904259 1 maintenance label 153 0904212 3 warning label 154 0904042 1 LOGO sticker (small) 155 0904221 6 adjustment/caution label (8500-025) 156 0904051 1 placard for chest press 157 0904052 1 placard for lat pull down/low row 158 0904053 1 placard for leg curl/ext. 159 0904041 2 LOGO sticker (large) 160 15CBX109071 1 pull pin 161 0326002 1 knob 162 0201019017 1 spring 163 0202004302 5 round head hex socket bolt 164 0201003602 4 countersunk head cross bolt 165 0201040151 5 spacer 166 0202034004 2 arc washer 167 0202002006 1 mushroom head hex socket bolt 168 0703SPD123 10 pulley spacer 169 54001 1 safety facility sign 170 15CBX109072 1 owner’s manual

Service

Page 6-5
