Cybex Owner’s Manual
FCC Compliance Information
Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
3
Cybex Owner’s Manual
Safety
Read all instructions and warnings before using.
Important Voltage Information
Before plugging the power cord into an electrical outlet, verify that the voltage requirements for the
site match the voltage of the treadmill that has been received. The power requirements for the Cybex
770T Treadmill include a grounded, dedicated circuit, rated for one of the following:
• 100 VAC, 50/60 Hz, 20A
• 115 VAC, 50/60 Hz, 20A
• 208 VAC, 60 Hz, 15A
• 220 VAC, 60 Hz, 15A
• 230 VAC, 50 Hz, 13A, UK
See the front warning decal for the voltage requirements of the treadmill.
Grounding Instructions
This treadmill must be grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
WARNING: Shock and electrocution hazard.
• Connect unit to a grounded outlet.
• Do not use voltage adapter or extension cord.
This treadmill is for use on a grounded, dedicated circuit. Make sure that the treadmill is connected to
an outlet having the same conguration as the plug. Do not use a ground plug adapter to adapt the
power cord to a non-grounded outlet.
115 VACEuro Plug220 VACUKDanishAustralia
NEMA 5-20CEE 7/7NEMA 6-15230 VAC107-2-D1AS/NZS 3112
4
Cybex Owner’s Manual
Important Safety Instructions
(Save These Instructions)
WARNING: Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
User Safety Precautions
Prior to use:
• Obtain a medical exam before beginning any exercise program.
• Obtain instruction before using.
• Read and understand warning labels.
• Read and understand emergency stop procedures.
• Maximum user weight is 400 lbs. (180 kg).
• Inspect unit. If damaged, notify oor staff. DO NOT USE.
• Place your feet on the two top steps when starting or stopping the treadmill.
• Clip E-STOP lanyard to clothing.
• Do not remove this label. Replace if damaged or illegible.
During use:
• Do not use for stretching and do not attach straps or other devices.
• Do not allow children 12 or younger to be on or near machine.
• Stop exercise if feeling faint, dizzy, or have pain.
• Use the handrails for support and to maintain balance.
• Keep all body parts, clothing, and accessories, clear of moving parts.
• Wait until running belt comes to a complete stop before getting off.
Facility Safety Precautions
It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is
performed.
• Enforce all user and safety precautions.
• Read and understand the Owner’s Manual completely before assembling, servicing or using unit.
• Verify all users are properly trained on using the equipment.
• Do not use unit outdoors.
• Verify that each unit is setup, leveled and operated on a solid level surface. Do not install
equipment on an uneven surface. Do not operate in recessed areas or on plush carpet.
• Verify there is enough room for safe access and operation of unit.
• Instruct all users on how to clip the e-stop clip onto their clothing and carefully test it prior to using
the treadmill.
• Instruct all users to use caution when mounting and dismounting the treadmill.
• Use a dedicated line when operating the treadmill. A dedicated line requires one circuit breaker per
unit.
• Connect the treadmill to a properly grounded outlet only.
• DO NOT operate electrically powered treadmills in damp or wet locations.
5
Cybex Owner’s Manual
• Keep the running belt clean and dry at all times.
• DO NOT leave the treadmill unattended when plugged in and running. NOTE: Before leaving the
treadmill unattended, always wait until the treadmill comes to a complete stop and is level. Then,
turn all controls to the STOP or OFF position and remove the plug from the outlet. Remove the
e-stop key from the treadmill.
• Immobilize the treadmill (when not in use) by removing the e-stop key.
• Inspect the treadmill for worn or loose components before each use. Do not use until worn or
damaged parts are replaced.
• Stop and place the treadmill at 0 degrees incline (level) after each use.
• Maintain and replace worn parts regularly. Refer to “Preventive Maintenance” section of Owner’s
Manual.
• DO NOT operate the treadmill if: (1) the cord is damaged; (2) the treadmill is not working properly
or (3) if the treadmill has been dropped or damaged. Seek service from a qualied technician.
• DO NOT place the cord near heated surfaces or sharp edges.
• DO NOT use the treadmill outdoors.
• DO NOT operate the treadmill around or where aerosol (spray) or where oxygen products are
being used.
• Ensure all users wear proper footwear on or around all Cybex equipment.
• Disconnect power before servicing.
• DO NOT attempt repairs, electrical or mechanical. Seek qualied repair personnel when servicing.
If you live in the USA, contact Cybex Customer Service at 888-462-9239. If you live outside the
USA, contact Cybex Customer Service at 508-533-4300.
• Use Cybex factory parts when replacing parts on the treadmill.
• DO NOT modify the treadmill in any way.
• DO NOT use attachments unless recommended for the treadmill by Cybex.
6
Cybex Owner’s Manual
REVISIONS
DESCRIPTION
See sheet 1
ECO
REV
DATEAPPROVAL
BY
.
.
.
8.82”W X 2.41”H
DIELINE “CutContour” DO NOT PRINT
REVISIONS
DESCRIPTION
ECOREV
DATEAPPROVALBY
See sheet 1.
.
.
.
...
.
.
.. .
.
.
.. .
.
REVISIONS
DESCRIPTION
ECOREV
DATEAPPROVALBY
See sheet 1.
.
.
.
...
.
.
.. .
.
.
.. .
.
ECOREV
See sheet 1.
.
.
.
.
.
.
.
.
Warning Decals
To replace any worn or damaged decals do one of the following: Visit www.cybexintl.com to shop
for parts online, fax orders to 508-533-5183 or contact Cybex Customer Service at 888-462-9239. If
you are located outside of the USA, call 508-533-4300. For location or part number of labels, see the
parts list and exploded-view diagram on the Cybex web site at www.cybexintl.com.
Warning decals indicate a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Carefully read and understand the following caution and warning labels before using the unit.
Caution decals indicate a potentially hazardous situation, which if not avoided, may result in minor
or moderate injury. There are no caution decals used on this unit. However, there are caution
statements listed in this manual.
7
Cybex Owner’s Manual
REVISIONS
DESCRIPTION
See sheet 1
ECO
REV
DATEAPPROVAL
BY
.
.
.
2”W X 3.25”H X 0.19”R
BLACK
RED - CMYK (19, 97, 97, 9)
WHITE
ORANGE PMS 152C
REVISIONS
DESCRIPTION
See sheet 1
ECO
REV
DATEAPPROVAL
BY
.
.
.
2”W X 3.25”H X 0.19”R
BLACK
WHITE
ORANGE PMS 152C
See sheet 1
ECO
REV
.
Cord
Wrap
Area
8
Label Placement
Cybex Owner’s Manual
1
2
3
4
5
7
1DE-22764-4Decal, Warning upper, console
2DE-23296Decal, Warning lower, console
3DE-23080-4Decal, Warning, Upper Display, Canada
4DE-22910Decal, Motor Cover, 115 VAC
4DE-23079Decal, Motor Cover, 230 VAC
5DE-23212-4Label, Warning, Do not tilt
6DE-23098Decal, Power Cord
7DE-25047-4Decal, lever, service wheel
6
9
Cybex Owner’s Manual
Emergency Stop Key (e-stop)
The e-stop key functions as an emergency stop. In an emergency situation, the e-stop key
disengages from the console and the treadmill will come to a stop. Before using the treadmill, clip the
e-stop key as described below.
1. Compress the spring and clip the e-stop clamp to your clothing. Ensure the clip engages
enough clothing so it does not fall off in an emergency situation. Be sure the string is free of
knots and has enough slack for you to workout comfortably with the e-stop key in place.
1
1Clothing
2Clip
2
2. Without falling off the treadmill, carefully step backward until the e-stop pulls out of the
console. If the e-stop clip falls off your clothing then the test has failed. Reclip the e-stop clip to
your clothing and repeat this step.
3. Replace the e-stop key.
4. The treadmill is now ready to be used. Ensure the e-stop clip is secured to your clothing at all
times during use.
10
Cybex Owner’s Manual
5. After use, remove the e-stop key from the treadmill.
The e-stop key can be removed to help prevent unauthorized use. Refer to the Stopping the Treadmill
section in the Operation chapter for more information about the e-stop key.
When not in use store the e-stop clip on the storage tab located on the lower cover.
1Lower cover
2Storage tab
3E-Stop clip
4E-Stop
4
1
2
3
11
Specifications
Cybex Owner’s Manual
Assembly
Assembled
Length
Assembled
Width
Height:62.5”(159 cm)
Weight of
Product
Shipping
Weight
Incline Range0 to 15% grade.
Speed Range0.5 to 12.4 mph (0.8 to 20.0 kph) in 0.1 mph or 0.1 kph increments.
Workouts
Console
Features
Heart Rate
Features
Maximum User
Weight
Power Rating115 VAC 50/60 Hz. or 208/320 VAC 50/60 Hz.
OptionsE3 View Monitor, Wireless audio receiver, iPod/iPhone compatibility
84” (213 cm).
35.6” (90.5 cm)
410 lbs. (186 kg)
440 lbs. (200 kg)
Quick Start and nine workouts with user orientated goal (Time, Distance or
Calories). Advanced programming includes, Gerkin protocol and all Military
Protocols.
Upper console: LED or E3 View Monitor.
Displays - BPM, Calories, Cal/Hr, Distance, MET, Pace, Time, Watts, and Weight.
Lower console: Two numeric displays for incline and speed. Accessory trays and
water bottle holder.
Built-in wireless heart rate receiver (transmitter not included) and contact heart rate
monitoring.
400 lbs. (181 kg).
1
2
135.6” (90.5 cm)
284” (213 cm)
12
Cybex Owner’s Manual
Choosing and Preparing a Site
Before assembling the unit, verify the chosen site meets the following criteria:
• Area is well lit and well ventilated.
• Surface is structurally sound and properly leveled.
• Free area for access to unit and emergency dismount. Minimum clearance is 19.7 inches (0.5
meters) on the sides of the unit and 78.7 inches (2.0 meters) behind the unit.
• Adjacent units may share the free area.
It is the responsibility of the facility owner/
owner of the equipment to ensure that there is
appropriate clearance around each machine to
allow for safe use and passage.
In compliance with the ADA (American
Disabilities Act) there must be clear oor space
of at least 30 by 48 inches and be served by an
accessible route for at least one of each type
of exercise equipment. If the clear space is
enclosed on three sides (e.g., by walls or the
equipment itself), the clear space must be 36 by
48 inches.
All other machines must have a clear oor space
of 23” for all access point on the machine.
The dimensions stated in the assembly
instructions of this manual include the maximum
foot print (in use) dimensions.
• Area is not in the vicinity of high humidity,
such as in the vicinity of a steam room, sauna,
indoor pool or outdoors. This unit is designed
to function normally in an environment with a
relative humidity range of 30% to 75%.
770T
11
2
Exposure to extensive water vapor, chlorine and/
or bromine could adversely affect the electronics
as well as other parts of the unit.
• Area maintains an ambient temperature range
of 50° F (10° C) to 104° F (40° C) degrees.
Free area
119.7”, 0.5m
278.7”, 2.0m
13
Cybex Owner’s Manual
Electrical Power Requirements
The power requirements for this treadmill are a grounded, dedicated circuit rated for one of the
following:
• 100 VAC, 50/60 Hz, 20A
• 115 VAC, 50/60 Hz, 20A
• 208 VAC, 60 Hz, 15A
• 220 VAC, 60 Hz, 15A
• 230 VAC, 50 Hz, 13A, UK
Contact a qualied electrician to ensure the power supply complies with local building codes.
WARNING: Shock and electrocution hazard.
• Connect unit to a grounded outlet.
• Do not use voltage adapter or extension cord.
770T Assembly
The words “left” and “right” denote the treadmill user’s orientation.
Read and understand all instructions thoroughly before assembling the treadmill.
Verify you have received the correct package
1. Read box label to verify the model number and voltage (optional) match what was ordered.
2. Lift and remove cardboard sleeve surrounding unit.
3. Verify paint color matches what was ordered.
Tools Required
• Phillips screwdriver
• Long 3/8” drive socket extension
• 3/4” Open end wrench
• 7/32” Allen wrench (included)
• 9/16” Open end wrench
• 14 mm Open end wrench
Two people will be required for this procedure. It is the responsibility of the facility owner/owner of the
equipment to ensure that there is appropriate clearance around each machine to allow for safe use
and passage.
Unpack and verify the contents of the boxes
See content listing and diagram below for carton contents. See Customer Service for contact
information if any parts are missing.
ItemQuantityPart NumberDescription
1 1VariesBase assembly
21VariesConsole assembly
31FM-22900Upright, Left
14
Cybex Owner’s Manual
ItemQuantityPart NumberDescription
41FM-22901Upright, Right
51VariesPower Cord
61CN-22747CSAFE Coupler (optional)
71VariesPower Supply
82FS-23044Clamp
91HS-21672Screw, #8-32 x 1/2”
1516HS-22651Bolt, 3/8-16 .75”, BHCS, ZN
164HS-16929Bolt, Whiz Lock, 3/8-16 x .625”, HXHD
172FM-22778Standoff, M-F, 3/8-16” Thread, Short
182FM-22779Standoff, M-F, 3/8-16” Thread, Long
191HX-00440Allen wrench, 7/32”
201FS-23071Bracket, Power Cord
214HX-21519Connector, Plastic
91516
2
15
1
17
18
19
20
21
4
3
15
21
16
9
20
18
16
15
17
Cybex Owner’s Manual
WARNING: Heavy equipment.
• At least two people must lift, move or assemble unit.
• Use safe lifting methods.
Lift and move the treadmill
Take note of doorway widths in facility before assembly. The base is 32.5” (83 cm) wide. With uprights
installed the width is 35.6” (90.5 cm).
At least two people should lift and move the treadmill to a level location where you intend to leave it.
Use proper lifting methods.
Remove shield
1. Loosen but do not remove the two front cover screws securing the motor cover using a Phillips
screwdriver.
ItemDescription
1Motor cover
1
2Front cover
3Screws (2)
2
3
2. Remove motor cover by lifting vertically.
3. Loosen but do not remove the seven screws securing the sheild to the base using a Phillips
screwdriver.
ItemDescription
1
3
1Base
2Screws (7)
3Shield
2
4. Remove shield by sliding sideways and then vertically off of base.
17
Cybex Owner’s Manual
Install power cord
Decide whether you will plug the power cord into a power outlet near the front of the treadmill or the
back of the treadmill. Follow the corresponding routing procedure below. Do not plug the power cord
into a power outlet at this time.
WARNING: Shock and electrocution hazard.
• Route power cord so it does not become damaged.
• Do not allow cord to be pinched or interfere with movement of treadmill.
Front routing: Skip to page 25, section “Install the uprights”
Back routing:
1. Remove the four screws securing the front cover to the base using a Philips screwdriver.
1
ItemDescription
1Front cover
2Screws (4)
2
2. Remove front cover.
3. Remove the two screws securing the right end cap using a Philips screwdriver.
ItemDescription
1Screws (2)
2Right end cap
2
1
18
Cybex Owner’s Manual
4. Remove the right top step by inserting a long 3/8” drive socket extension into the right top step
and prying backwards.
1
ItemDescription
13/8” Drive Socket Extension
2
2Right Top Step
5. Remove the right top step.
6. Route the power cord through the hole in the upright support and behind the lower cover.
3
ItemDescription
1Hole in Upright Support
2Power Cord Inlet
3Lower Cover
4Power Cord
1
2
4
7. Adjust the power cord length entering the frame to allow for the power cord to be plugged into
the power cord inlet. Do not plug the power cord in at this time.
19
Cybex Owner’s Manual
8. Adjust the power cord length exiting the rear of the frame. Store extra power cord behind lower
cover.
9. Install the right top step by placing in position and inserting a long 3/8” drive socket extension
into the right top step.
1
ItemDescription
13/8” Drive Socket Extension
2
2Right Top Step
10. Pry the long 3/8” drive socket extension forwards to secure the right top step.
11. Using a Phillips screwdriver, install the two screws securing the right end cap.
Install the uprights
1. Install the short and long standoffs to the right side of the base using a 3/4” open end wrench.
ItemDescription
117Standoff, short
218Standoff, long
3Base
1
4Front of unit
2
3
4
2. Thread two bolts into the base by hand. Do not fully thread bolts into the base.
4. Thread the nut removed in step 2 onto the A/V cable by hand.
5. Install the A/V cable to the mounting plate on the front of the unit using a 14 mm open end
wrench.
6. Plug the CSAFE cable into the CSAFE coupler on the front of the unit.
24
Cybex Owner’s Manual
Install shield
Tighten the seven screws securing the shield to the base using a Philips screwdriver.
ItemDescription
1
3
1Base
2Screws (7)
3Shield
2
Install the front cover
Perform this step if you removed the front cover. If not, skip to next step.
Install, but do not fully tighten the four screws securing the front cover to the base using a Philips
screwdriver.
ItemDescription
1Front cover
2Screws (4)
1
2
Install motor cover
1. Place motor cover on carpeting or other soft surface. Do not scratch top of hood cover.
2. Insert the four plastic connectors into the motor cover.
1
ItemDescription
121Plastic connectors (4)
2Motor cover
2
25
Cybex Owner’s Manual
3. Place the motor cover into position vertically by aligning the two tabs and four plastic
connectors. Two plastic connectors are mounted in the front cover and two in the motor cover.
1
2
ItemDescription
1Motor cover
2Tabs (2)
321Plastic connectors
3
If motor cover top does not t properly, loosen the side screws on the front cover as needed.
4. Using a Phillips screwdriver, nish tightening the four front cover screws. Be sure the screws
are securing the motor cover’s tabs.
Install power cord
WARNING: Shock and electrocution hazard.
• Route power cord so it does not become damaged.
• Do not allow cord to be pinched or interfere with movement of treadmill.
1. Plug the power cord into the base of the unit.
1
ItemDescription
15Power cord
220Bracket
39Screw
3
2
2. Secure the power cord with the mounting bracket and mounting screw using a Phillips
screwdriver.
Level the treadmill
Conrm that the treadmill is on a level surface.
26
Cybex Owner’s Manual
Install coax cable (E3 View Monitor option)
Install 6’ coax cable to the coax cable connector in base of unit. Do not install if facility provides coax
cable to base of unit.
ItemDescription
1146’ Coax Cable
2Coax Cable Connector
1
2
Attach emergency stop key
Conrm that the emergency stop key is in place in the bottom of the console handrail. The treadmill will
not run without the key in place.
1
2
ItemDescription
1Emergency Stop Key
2Console Handrail
When not in use store the e-stop clip on the storage tab located under the console handrail.
Visually inspect the treadmill
Examine the treadmill to ensure that the assembly is correct and complete.
27
Cybex Owner’s Manual
Power cord management
Power cord retaining brackets are located under the front end of the unit. This allows any extra length
of the power cord to be stored under the front end of the unit.
Tools Required
Wire tie (2)
Elevate treadmill
1. Connect the main power cord into the power outlet.
2. Press Quick Start and raise the elevation to maximum incline.
3. Toggle the on/off (I/O) power switch to the off (O) position.The on/off (I/O) power switch is
located under the front end of the unit, or on the front right side panel.
Description
1Front right side panel
1
2
location
2Under the front end
location
4. Unplug the main power cord from the power outlet.
WARNING: Shock and electrocution hazard.
• Route power cord so it does not become damaged.
• Do not allow cord to be pinched or interfere with movement of treadmill.
5. Wrap the power cord around the outer power cord retaining brackets to desired length.
2
1
Description
1Power cord
2Power cord retaining
bracket, Inner
3Power cord retaining
3
brackets, Outer
The power cord can be routed with full or half wraps around power cord retaining brackets. The power
cord can then exit to the left or right of the treadmill.
Description
1Power cord
2Half wrap
3Full wrap
4Exit left or right
28
Cybex Owner’s Manual
6. Plug the main power cord into the power outlet.
7. Toggle the on/off (I/O) power switch to the on (I) position.
8. Press Quick Start and operate the elevation through full incline. If power cord is too short or
interferes with the movement of the treadmill, change the wrap of the power cord.
9. Secure the power cord with two wire ties.
2
1
Description
1Power cord
2Wire ties (2)
Setup
Use the following instructions to setup the unit.
WARNING: Falling hazard.
When starting unit
• Stand on two top steps.
• Do not stand on belt.
Cybex recommends that the treadmill be unplugged or the on/off (I/O) power switch turned off (O)
when it is not in use.
1. Without anyone on the treadmill, plug the power cord into a power outlet from a grounded,
dedicated circuit as described under Electrical Requirements in this chapter.
Ensure the power cord is not being pinched under the front of the treadmill.
2. Toggle the on/off (I/O) power switch to the on (I) position.The on/off (I/O) power switch is
located under the front end of the unit, or on the front right side panel.
3. The control panel will light up.
29
Cybex Owner’s Manual
Initial setup
Initial setup only occurs during the installation of the unit. Once complete, refer to Setup Options
below.
ENGLISH
CYBEX
LOGO
LANGUAGE
ICON

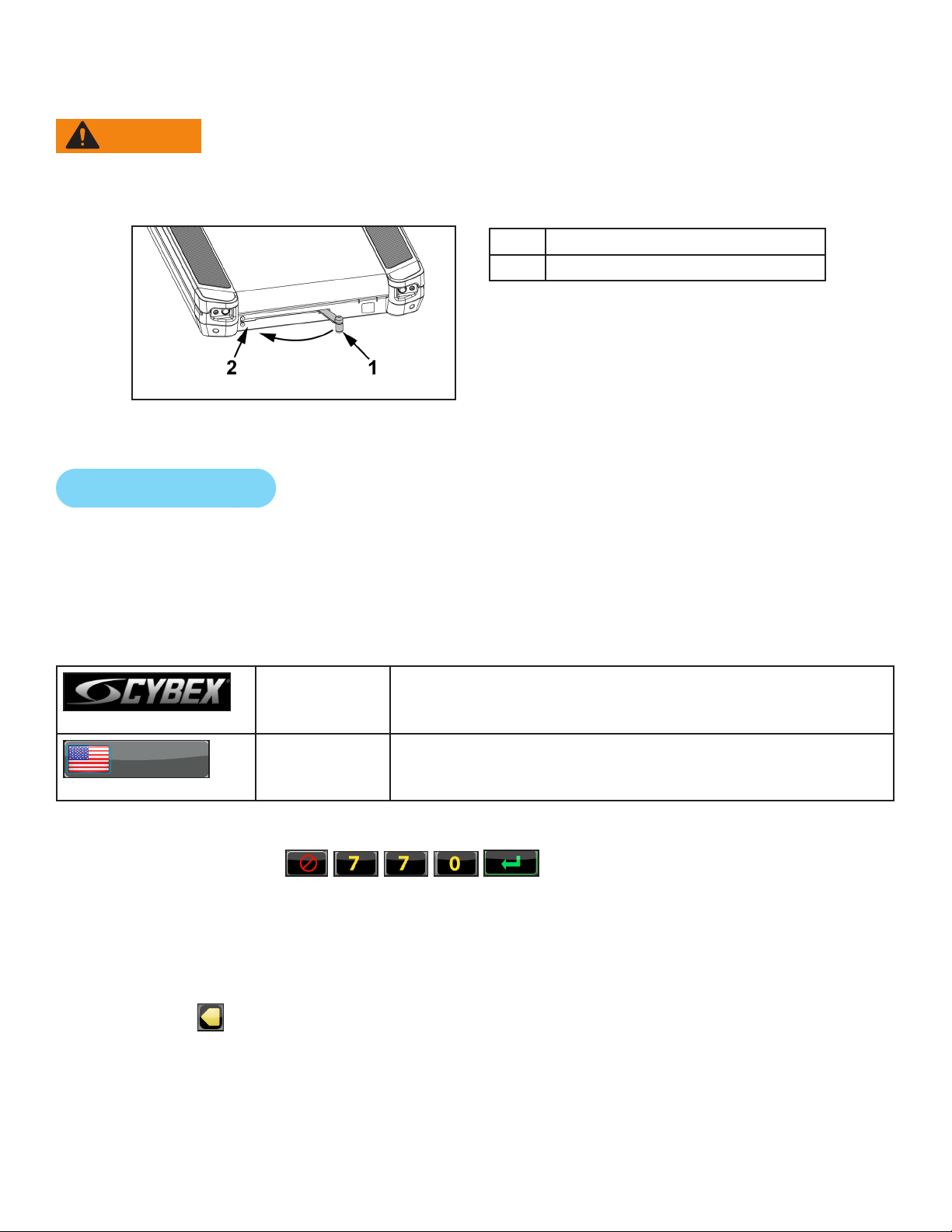

Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
1. Press the Access Toolbox icon to display the Access to Toolbox login screen.
2. Enter the sequence: .
3. Press the Setup icon to display the setupmenu.
4. Tap the Time icon to advance to the Set the Time screen.
5. Adjust the time if needed, then tap the ENTER icon .
6. Tap the Date icon to advance to the Set the Date screen.
7. Adjust the date if needed, then tap the ENTER icon .
8. Tap the Units & Power icon to select the Set units preference screen.
9. Select the unit preferences from the following options:
Record your actual line voltage here. Line frequency is usually specic to your country or location.
Distance UnitsWeight UnitsLine Frequency Line Voltage
MilesLbs.50 Hz110v
KmKg60 Hz115v
Stone208v
220v
230v
Exit Set Up Mode by tapping the Toolbox icon , then tap the Home icon . The screen will
refresh.
30
Setup options
Enter setup options.
Cybex Owner’s Manual
ENGLISH
CYBEX
LOGO
LANGUAGE
ICON
Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
1. Press the Access Toolbox icon to display the Access to Toolbox login screen.
2. Enter the sequence: .
3. Press the Setup icon to display the setupmenu.
The Setup options are:
TimeSelect Time Display option to On or Off.
Add or subtract an hour.
Select time display as AM, PM, or 24 Hour display.
Enter time using keypad, press Enter icon to save.
DateSelect date style [MM] [DD] [YYYY], [DD] [MM] [YYYY], or [YYYY]
[MM] [DD]. Y - Year, M - Month and D - Day. Enter date using
keypad, press Enter icon to save.
Units and PowerSelect distance units. MI - Miles or KM - Kilometers.
Select weight units. LBS - Pounds, KG - Kilograms or Stone Stones.
A/V Device (not shown for
Select No TV or Wireless TV.
E3 View Monitor)
A/VCong (not shown for
E3 View Monitor)
FM Radio Presets (not
shown for E3 View Monitor)
Active when A/V Device is set to Wireless TV. See A/V Cong and
FM Radio Presets below.
Active when A/V Device is set to Wireless TV. See A/V Cong and
FM Radio Presets below.
PEM SetupActive when A/V Device is set to Embedded TV. See
E3 View Monitor Controls and E3 View Monitor Setup below.
Workout timesSet Default and Max workout times. Default choices are 20, 30, or
60 minutes. Max choices are 20, 30, 60, or OFF.
LimitsSet Min Speed, Max Speed, and Max Incline.
PauseSet Pause time. Choices are OFF, 1:00, 5:00, or 10:00 minutes.
SoundSelect console beeper settings. Console Beeper - On or Off.
Headphone Beeper - Off, Some, or All. Default Volume - 1 to 31,
default is 10.
31
Cybex Owner’s Manual
LanguageSelect default language to display on CardioTouch screen. Toolbox
is only available in English.
Include Optional Languages. Select optional languages to display on
CardioTouch screen. Choices are Include or Off.
Restore Factory DefaultsRestores all setup variables back to factory defaults. Does not affect
Time or Date.
Exit Set Up Mode
Exit Set Up Mode by tapping the Toolbox icon , then tap the Home icon . The screen will
refresh.
Your treadmill is now ready for use. Proceed to Testing the Treadmill Operation. Follow the
instructions in the Operation chapter to learn how to operate the treadmill. You should begin with
walking speeds rst, to be sure everything is functioning properly.
32
Cybex Owner’s Manual
A/V Configuration and FM Radio Presets
Perform this procedure if the unit includes the optional Wireless Audio Receiver Module.
Setting up the Cybex Wireless Audio Receiver Module requires four steps:
• Determine the type of transmitter used (MYE 900MHz, Broadcast Vision 863MHz, etc. or TV FM).
• Set A/V Device to “Wireless TV”.
• Assign a TV channel number to each transmitter on the 770T console.
• Add FM radio station presets (optional).
Tools Required:
• Headphones (not included)
Determine transmitter type
There are two types of transmitters UHF or TV FM. UHF transmitters will have TV’s identied by
number, example TV1. TV FM transmitters will have TV’s identied with FM frequencies,
example 93.1.
UHF Transmitters
TV1TV2TV3
Follow procedure:
Setup UHF Transmitters
93.197.5102.7
Follow procedure:
Setup TV FM Transmitters
TV FM Transmitters
For TV FM transmitters, record FM frequencies for all TV’s:
12345678910
A/V setup mode
WARNING: Falling hazard.
When starting unit
• Stand on two top steps.
• Do not stand on belt.
1. Plug the power cord into a power outlet from a grounded, dedicated circuit as described under
Electrical Requirements in this chapter. Do not stand on treadmill during this procedure.
2. Ensure the power cord is not being pinched under the front of the treadmill.
3. Toggle the power switch on (|). Power switch is located under the front end of the treadmill.
The control panel will light up and be in the Dormant Mode.
33
Cybex Owner’s Manual
ENGLISH
CYBEX
LOGO
LANGUAGE
ICON
Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
4. Tap Access Toolbox to access the Toolbox login screen.
5. Enter the sequence: .
6. Tap Setup at the main Toolbox screen.
7. Tap Scroll Right to navigate to the A/V Device icon.
8. Tap A/V Device.
9. Tap Device Installed to select “Wireless TV”.
10. Tap Toolbox to return to the Toolbox screen.
11. Plug in headphones to listen for channels during setup.
Setup UHF Transmitters
For transmitter types 900 MHz, 863 MHz or 806 MHz. Use this procedure to associate channel
numbers to your TV transmitters.
Pick transmitter type
1. Tap Setup at the main Toolbox screen.
2. Tap Scroll Right to navigate to the A/VCong icon.
3. Tap A/VCong to enter “TV Conguration”.
4. Tap Select Xmtr to select your transmitter type from the available choices. The display will
only show choices available under your transmitter type (900 MHz, 863 MHz or 806 MHz).
5. Press Scan to scan for available channels. The scan can take up to 10 seconds and then
display “TV-1 of #”. The “#” symbol is total number of strong UHF channels found. Some of
these channels may not be signals from the TV transmitters and need to be deleted.
Review channels
1. Tap Up or Down to listen to available channels with the headphones.
2. Delete unwanted channels by pressing Delete to delete channel. Repeat process for additional
unwanted channels.
3. Adjust the Near/Far setting for channels that are available but not showing. Press Far to
change the setting from “FAR” to “NEAR”. Press Scan to re-scan for available channels.
4. Tap Up or Down to scroll through and verify all TV channels. If all TV transmitters
are stored, and they all correlate the TV number to the correct TV heard, setup is complete.
If not you may need to re-scan or adjust the transmitter codes (see documentation for your
transmitters to perform a code change.)
5. Tap Toolbox then Home to exit setup.Transmitter setup complete.
6. Proceed to Add FM Radio Stations (optional).
Setup TV FM Transmitters
If your TV’s use FM transmitters, follow these instructions to assign a TV channel to each frequency.
1. Tap Setup at the main Toolbox screen.
2. Tap Scroll Right to navigate to the A/VCong icon.
3. Tap A/VCong to enter TVConguration.
4. Tap Select Xmtr to select your transmitter type as “TV FM”.
35
Cybex Owner’s Manual
Enter TV channels using one of the following procedures
• Tap Seek to seek the next TV FM frequency or Up or Down to tune manually. Press
Add to store channel.
• Tap the keypad numbers to enter known channel, Press Enter and Add to store channel.
5. Repeat procedure to add all TV FM channels.
6. Press Toolbox then Home to exit setup when all the TV’s FM transmitter
frequencies have a TV number. Transmitter setup complete.
7. Proceed to Add FM Radio Stations (optional).
Add FM Radio Stations (optional)
If strong local FM Radio Stations are available in the area, you can set those as presets.
ENGLISH
CYBEX
LOGO
LANGUAGE
ICON
Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
1. Tap Access Toolbox to access the Toolbox login screen.
2. Enter the sequence: .
3. Tap Setup at the main Toolbox screen.
4. Tap Scroll Right to navigate to the FM Radio Presets icon.
5. Tap FM Radio Presets to display FM Radio Presets on the console.
36
Cybex Owner’s Manual
Enter FM radio channels using one of the following procedures
• Tap Seek to seek the next FM radio frequency or Up or Down to tune manually. Tap
Add to store channel.
• Tap the keypad numbers to enter known channel, Press Enter and Add to store channel.
6. Repeat procedure to save up to 32 FM radio stations.
7. Tap Up or Down to scroll through and verify all FM radio stations.
8. Tap Toolbox then Home to exit setup when all FM radio stations are stored.
Adjust sound volumes
After completing setup, the sound volume should be adjusted between the TV transmitters and the
FM radio stations. If FM radio stations are not set, adjust volume between all TV’s.
1. Tap Up or Down to select an FM radio station. This volume is not adjustable and is
the base volume.
2. Tap Up or Down to select a TV station.
3. Adjust the volume of each TV to match an FM Radio Station or each other using the TV’s
remote control. The goal is for a volume setting of 10 on the treadmill to be the same for all TV
and FM channels.
4. Repeat procedure for all TV’s.
Using the Cybex Wireless Audio Receiver
1. Plug headphones into headphone jack.
2. Tap the TV icon to listen to TV channels. Press the FM icon to listen to FM radio channels.
3. Tap Up or Down to change TV or FM channels.
4. Tap volume Up or Down to adjust volume.
37
Cybex Owner’s Manual
E3 View Monitor Controls
The CardioTouch screen is used to perform all setup operations for the E3 View Monitor.
CardioTouch screen functions
Wrench IconReturn to Toolbox home
UpGo to Setup home screen
NextMoves forward in Setup menu to next screen
Default Display
Select TV + Data, TV Only or Data Only
Mode
On/OffTurn the E3 View Monitor on or off
Reset DefaultsReset the setup values and clear all programmed channels.
CH ListList all available channels
SetupToggles the setup menu
Navigate upNavigate up through the on-screen menu
Navigate downNavigate down through the on-screen menu
Navigate leftDecrease value
Navigate rightIncrease value
38
E3 View Monitor Setup
Access Setup Screen
Cybex Owner’s Manual
ENGLISH
CYBEX
LOGO
LANGUAGE
ICON
Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
1. Tap the Access Toolbox icon to display the Access to Toolbox login screen.
2. Enter the sequence: .
3. Tap the Setup icon to display the setupmenu.
4. Tap the Shift Right icon to navigate to the EPEM Setup icon.
5. Tap the EPEM Setup icon.
6. Tap the Setup icon to advance to the SETUP MODE screen on the E3 View Monitor.
Follow procedure to setup the E3 View Monitor.
SETUP MODE
■ Picture►
■ Channels►
■ Features►
■ OSD LanguageEnglish
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
39
1. Tap ▲ or ▼ to select Picture.
2. Tap ► to select access Picture menu.
■ Brightness65
■ Contrast70
■ Color75
■ Tint0
■ Color Temperature►
■ Sharpness60
■ Noise ReductionEnabled
■ HDMI Picture►
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
3. Tap ▲ or ▼ to select settings.
Cybex Owner’s Manual
4. Tap ◄ or ► to adjust settings.
Picture settings
BrightnessAdjust range from 1 to 100. Default is 65.
ContrastAdjust range from 1 to 100. Default is 70.
ColorAdjust range from 1 to 100. Default is 75.
TintAdjust range from 1 to 100. Range is R50 to G50. Default is 0.
Color TemperatureAdjust color balance of Red, Green and Blue temperatures.
SharpnessAdjust range from 1 to 100. Default is 60.
Noise ReductionSelect Enabled (Default) or Disabled.
HDMI PictureSet to Auto or Adjust settings as needed. Available only when HDMI
signal is present.
5. Tap the Setup icon to return to SETUP MODE menu.
40
Channels
1. Tap ▲ or ▼ to select Channels.
2. Tap ► to select access Channels menu.
Cybex Owner’s Manual
ATSC Monitor
Channels
■ SignalCable STD
■ Auto Program►
■ Add/Delete Channels►
■ Parental Control►
■ Default ChannelLast
■ Channel LockDisabled
■ Channel Memory OverrideEnabled
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
■ Auto Program►
■ Manual Program►
■ Add/Delete Channels►
■ Parental Control►
■ Default ChannelLast
■ Channel LockDisabled
■ Channel Memory OverrideEnabled
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
DVB-T Monitor
Channels
3. Tap ▲ or ▼ to select settings.
4. Tap ◄ or ► to adjust settings.
Channel settings
Signal (ATSC only)Select Air, Cable STD, Cable IRC, or Cable HRC.
Auto ProgramSee Below
Manual Program
See Below
(DVB-T only)
Add/Delete ChannelsSee Below
Parental ControlBlock channels based on TV ratings.
Default ChannelSelect channel to display on power up. Select from available channels or
last.
Channel LockSelect Enabled or Disabled. If enabled only one channel is shown, user
cannot change channels.
Channel Memory
Override
Select Enabled or Disabled. If enabled allows user to select any available
channel.
41
Auto Program (ATSC Monitor)
1. Tap ▼ to select Auto Program.
2. Tap ► to enter the menu.
3. Tap ▲ or ▼ to select Mode.
Cybex Owner’s Manual
ATSC Monitor
Auto Program
■ ModeAnalog Only
■ Channel SequenceInterleave A + D
■ Additional Digital SignalNone
■ Channel MapProgrammed ►
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
4. Tap ◄ or ► to set the scope of channel scanning.
• Analog Only (Default): TV searches for analog channels only.
• Digital Only: TV searches for digital channels only.
• Analog and Digital: TV searches for both analog and digital channels.
5. Tap ▼ to select Channel Sequence.
6. Tap ◄ or ► to set the Channel Sequence in which the channels are displayed after searching.
• Interleave A+D: In the order of channel number regardless of the system.
• All A then D: Digital channels are displayed after all analog channels.
7. Tap ▲ or ▼ to select Additional Digital Signal. Not available when Mode is set to Analog
Only.
8. Tap ◄ or ► to choose the Additional Digital Signal source. Choices are: None, Air, Cable
STD, Cable IRC, or Cable HRC.
9. Tap ▼ to select Channel Map.
10. Tap ► to start auto programming. A conrmation menu will appear before proceeding.
11. Tap ▲(Yes) to start auto programming. Tap ▼(No) button to cancel the operation. The TV
will now search all available channels with an on-screen progress percentage displayed.
Any tuning Mode that includes Digital channels will require several minutes to complete auto
programming.
This may take 20 or more minutes. If screen shuts off, tap the icon to turn monitor on.
12. Tap the Setup icon to return to normal TV viewing once auto programming is complete.
42
Cybex Owner’s Manual
13. Tap the icon to list programmed channels.
14. Tap the Setup icon to return to SETUP MODE menu.
5. Tap ◄ or ► to set the scope of channel scanning.
• Analog Only (Default): TV searches for analog channels only.
• Digital Only: TV searches for digital channels only.
• Analog and Digital: TV searches for both analog and digital channels.
6. Tap ▼ to select Channel Map.
7. Tap ► to start auto programming. A conrmation menu will appear before proceeding.
8. Tap ▲(Yes) to start auto programming. Tap ▼(No) button to cancel the operation. The TV
will now search all available channels with an on-screen progress percentage displayed.
Any tuning Mode that includes Digital channels will require several minutes to complete auto
programming.
This may take 20 or more minutes. If screen shuts off, tap the icon to turn monitor on.
43
Cybex Owner’s Manual
9. Tap the Setup icon to return to normal TV viewing once auto programming is complete.
10. Tap the icon to list programmed channels.
11. Tap the Setup icon to return to SETUP MODE menu.
Manual Program (ATSC and DVB-T)
1. Tap ▼ to select Manual Program.
2. Tap ► to enter the menu.
3. Tap ▲ or ▼ to select Mode.
Manual Program
■ ModeATV
■ Conrmation►
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
4. Tap ◄ or ► to select ATV or DTV.
ATV Manual Program
■ Storage1
■ SystemBG
■ BandV/UHF
■ Channel1
■ NameC 01
■ Search◄ ►
■ Save►
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
■ UHF CH. ►
■ Save21
Signal Strength
Signal Quality
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
DTV Manual Program
Bad Nor. Good
ATV ModeAdjust settings for Storage, System, Band, Channel, Name, or Search. Select
Save to save settings.
DTV ModeSelect UHF channel. Select Save to save settings.
44
Cybex Owner’s Manual
Add/Delete Channels (ATSC and DVB-T)
1. Tap ▼ to select Add/Delete Channels.
2. Tap ► to enter the Add/Delete Channels menu.
Add/Delete Channels
■ Analog Channel2
■ Add/Delete Analog ChannelAdded
■ Enable/Disable Digital Channel►
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
To add or delete an analog channel perform the following procedure. To enable or disable digital
channels, go to step 7.
3. Tap ◄ or ► to select the desired analog channel.
4. Tap ▲ or ▼ to highlight Add/Delete Analog Channel.
5. Tap ◄ or ► to select Added or Deleted.
6. Tap the Setup icon to return to the previous menu. To exit, Tap the Setup icon
until the programming menus disappear. If there are more analog channels to be added or
deleted, repeat steps 3 through 5.
7. Tap ▲ or ▼ to highlight Enable/Disable Digital Channel.
8. Tap ► to select Enable/Disable Digital Channel. If there are not any channels programmed
in the Service Level, “No Channels Present” will appear in the menu.
9. Tap ▲ or ▼ to highlight the digital channel that needs to be enabled or disabled.
10. Tap ◄ or ► to select Enable or Disable.
11. Tap the Setup icon to return to the previous menu.
45
Features
1. Tap ▲ or ▼ to select Features.
2. Tap ► to select access Features menu.
Cybex Owner’s Manual
ATSC Monitor
Features
■ Power on Captions ModeLast
■ Digital Mode Time Setup►
■ Diagnostics►
■ Caption Text ModesDisabled
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
■ Power on Subtitles ModeLast
■ Digital Mode Time Setup►
■ Diagnostics►
Position: ▲ ▼
Exit: SETUPNext: ◄ ►
DVB-T Monitor
Features
3. Tap ▲ or ▼ to select settings.
4. Tap ◄ or ► to adjust settings.
Feature settings
Power on Captions Mode
Select Off or Last. Last will set caption mode to last used setting.
(ATSC only)
Power on Subtitles Mode
Select Off or Last. Last will set subtitle mode to last used setting.
(DVB-T only)
Digital Mode Time SetupSet current time automatically from digital signal. Select time zone
and daylight savings time to Auto, On, or Off.
DiagnosticsProvides diagnostic information only. Settings cannot be changed.
Caption Text Modes (ATSC
Select Enabled or Disabled.
only)
5. Tap the Setup icon to return to SETUP MODE menu.
OSD Language
1. Tap ▲ or ▼ to select OSD Language.
2. Tap ◄ or ► to select language.
ATSC choicesEnglish, Français or Español.
DVB-T choicesEnglish, Français, Español, Dutch, Danish, Russian, German, and Swedish.
3. Tap the Setup icon to return to SETUP MODE menu.
46
Cybex Owner’s Manual
Exit Set Up Mode by tapping the Toolbox icon , then tap the Home icon . The screen will
refresh.
Setup Complete
Testing Operation
Use the following instructions to test the full speed and incline range of the treadmill and to check the
belt for proper operation.
WARNING: Falling hazard.
When starting unit
• Stand on two top steps.
• Do not stand on belt.
1. Plug the power cord into a power outlet from a grounded, dedicated circuit as described under
Electrical Requirements in this chapter without anyone on the treadmill.
Ensure the power cord is not being pinched under the front of the treadmill.
2. Toggle the on/off (I/O) power switch to the on (I) position.The on/off (I/O) power switch is
located under the front end of the unit, or on the front right side panel.
3. Press the Quick Start key. The treadmill begins a countdown “3...2...1” and sounds a tone
for each count. After it reaches one (1), the treadmill gives a longer tone and then begins
accelerating the belt to reach 0.5 mph (0.8 kph). The lower left display will show the incline and
the lower right display will show the actual speed.
4. Press and hold down the Speed+ key until the treadmill reaches a speed of approximately 4
mph (6.4 kph), as indicated on the display.
Observe the belt to see that it is running properly; it should stay centered in the middle of the deck. If
you have problems with the running belt operation, see Running Belt Adjustments in the Maintenance
chapter.
5. Run the treadmill through its full speed range. First press the Speed + key until the treadmill
reaches its highest speed. Then press the Speed - key until the treadmill is back to 0.5 mph
(0.8 kph).
Pressing the Incline ▲▼ or Speed + - keys will show the set incline or speed on the displays.
When the treadmill reaches the set incline and speed, the displays will remain steadily illuminated to
indicate that the desired settings have been reached.
6. Run the treadmill through its full % grade range. Press the Incline ▲ key until the treadmill
reaches its highest grade (15%). Then press the Incline ▼ key until the treadmill reaches 0%
grade.
7. Press the Stop key once to stop the running belt and enter Review Mode. Press the Stop key
again to exit Review Mode and return the display to the opening screen.
47
Cybex Owner’s Manual
Operation
Terms Used
This section lists some of the common terms and symbols used in this chapter. Other terms and
symbols are listed in this chapter as appropriate. For setup options see Setup in the Assembly and
Setup chapter.
Active Mode — Active Mode is when the running belt is moving. Before Active Mode begins, a three second countdown and “3...2...1” is displayed. Active Mode continues until the preset time limit is
reached, the e-stop key is pulled out or the STOP key is pressed.
CardioTouch Screen — The CardioTouch Screen is the touch screen located in the handset area.
Cool Down — A reduction of work load for a short duration allows user to gently reduce heart rate.
Cool Down occurs two minutes prior to completion of the workout-controlled workout sessions.
Dormant Mode —Occurs when unit is plugged in and not in use.
Manual Mode — In this active mode the user sets a goal for Time. The user controls speed and
incline. Manual Mode continues until the goal is reached. Manual Mode is only available during Active
Mode.
Pause Mode — Occurs only if the Pause feature is enabled and user selects the STOP key from
Active Mode.
Quick Start — This begins by tapping the Quick Start icon. Quick Start enters Active Mode at
minimum speed and 0% elevation with time counting up from 0:00.
Workout Review — Review of the accumulated workout data will happen at the end of each workout
session.
48
Cybex Owner’s Manual
User Control Symbols Used
ControlControl NameDescription
INCLINE UPAdjust Incline up.
INCLINE DOWNAdjust Incline down.
SPEED UP Adjust Speed up.
SPEED DOWNAdjust Speed down.
VOLUME UPAdjust Volume up.
VOLUME DOWNAdjust Volume down.
CHANNEL/TRACK
CONTROL
CHANNEL/TRACK
CONTROL
iPod/iPhone - NEXT track
A/V - Channel UP
iPod/iPhone - PREVIOUS track
A/V - Channel DOWN
STOPPress STOP once to end the workout session
and start the Workout Review. Press STOP
again to exit to Dormant Mode.
FANDefault speed is OFF during active mode.
Press the FAN key to control fan speed.
Choices are OFF, LOW and HI.
49
Cybex Owner’s Manual

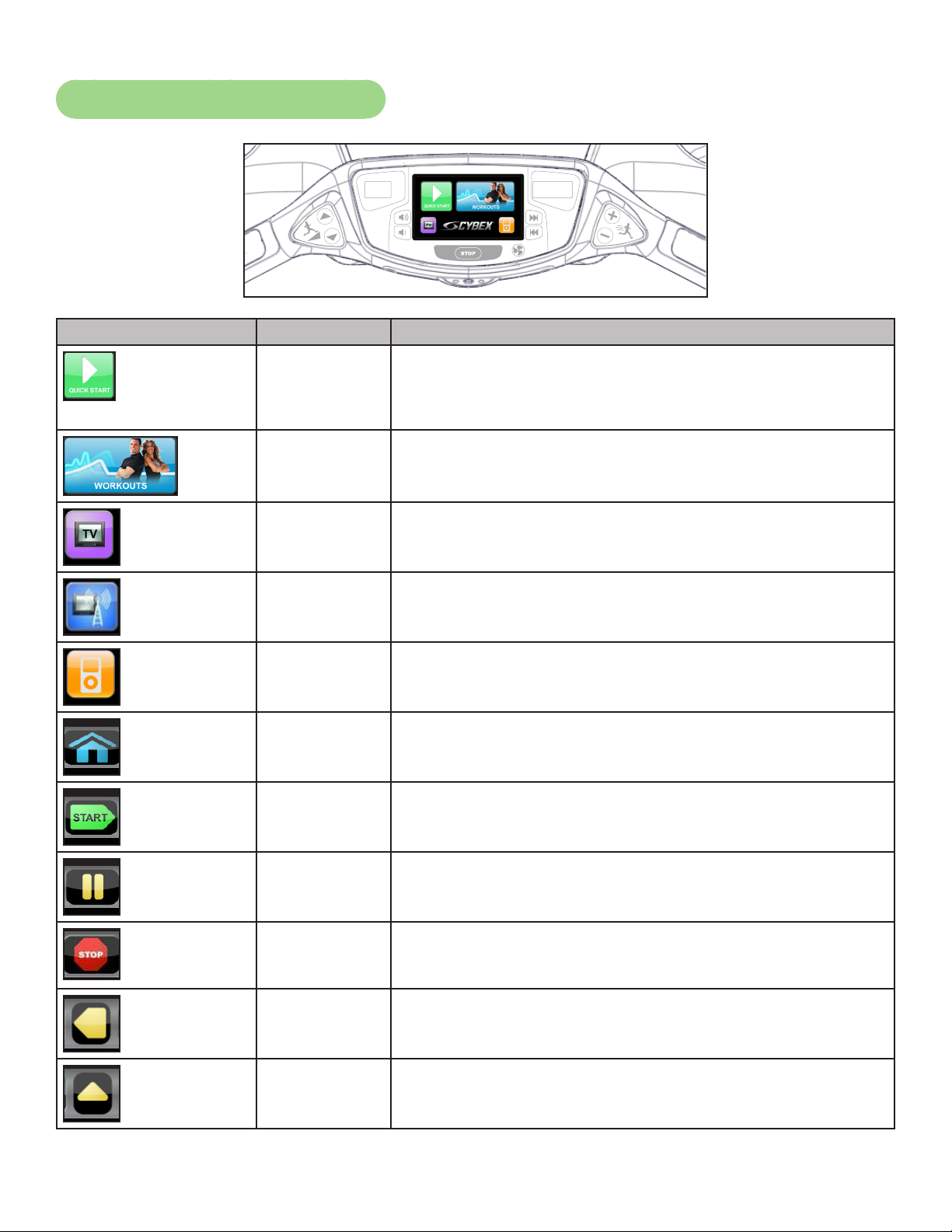

CardioTouch Symbols Used
IconIcon NameDescription
QUICK
START
WORKOUTS Tap Workouts icon to enter workout group selection.
Quick Start enters Active Mode at the default resistance
with time counting up from 0:00.
TVTap TV icon to enter TV control menu. If TV is not
connected, icon will not be shown.
TV + FMTap TV + FM icon to enter TV + FM control menu. If TV +
FM is not connected, icon will not be shown.
iPod/iPhoneTap iPod/iPhone icon to enter iPod/iPhone control menu. If
iPod/iPhone is not connected, icon will be grayed out.
HOMEReturn to opening screen.
START
PAUSE
Enter Active Mode.
If pause feature is enabled, pause icon is shown. Press
pause icon once to enter pause mode.
STOP
If pause feature is disabled, stop icon is shown. Press stop
icon or STOP button once to enter “Workout review”.
BACK
UP LEVEL
Return to previous or opening screen.
Go up one level or return to iPod/iPhone/iPad screen.
50
Cybex Owner’s Manual
IconIcon NameDescription
SHIFT LEFTShift the screen left to view more options.
SHIFT RIGHTShift the screen right to view more options.
KEYPADNumeric keypad for entering data.
ENTERAccepts the value shown.
CLEARClear any values selected.
ENGLISH
INFOSelect to provide more information and details.
SCALEDisplays current value in the minimum and maximum
range.
SCANThis icon defaults to SCAN, which displays the workout
info on the upper display, changing every 5 seconds. Tap
the SCAN icon to display different data sets. Tap again to
change the data set, or multiple times to get back to SCAN.
CYBEX
LOGO
LANGUAGE
ICON
Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Tap language icon to select available languages. Set
languages available in Setup Options section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
CardioTouch Screen — Tap the icons to make selections.
53
Cybex Owner’s Manual
Quick Operation Guide
Maximum user weight is 400 lbs. (181 kg).
The following is a quick overview of the operation of the treadmill. For more information read Detailed
Operation Guide in this chapter.
WARNING: Falling hazard.
When starting unit
• Stand on two top steps.
• Do not stand on belt.
1. Place your feet on the two top steps located on each side of the running belt.
2. Clip the e-stop clip onto your clothing and test it as described under Emergency Stop in the
Safety chapter.
3. Tap QUICK START on the CardioTouch screen.
The treadmill begins a countdown, “3...2...1,” after which it accelerates the belt to 0.5 mph (0.8 kph)
and enters Active Mode.
4. Hold the handrails while you step onto the running belt and begin walking.
5. Press the Speed + – keys to change the belt speed at any time. The right display will show
speed.
6. Press the Incline ▲▼ keys to change the incline at any time. The left display will show incline.
7. Press the Stop key at any time to stop the running belt. “Workout Review” is displayed and the
incline returns to 0%.
54
Cybex Owner’s Manual
Detailed Operation Guide
Maximum user weight is 400 lbs. (181 kg).
WARNING: Falling hazard.
When starting unit
• Stand on two top steps.
• Do not stand on belt.
1. Place your feet on the two top steps located on each side of the running belt.
2. Clip the e-stop clip onto your clothing and carefully test the e-stop key to ensure it will activate
in case of an emergency. See Emergency Stop Key (e-stop) in the Safety Chapter for properly
testing the e-stop key. Also, see Stopping the Treadmill in this chapter for further information
about the e-stop key. Be sure the string is free of knots and has enough slack for you to run
comfortably with the e-stop key in place.
3. Select QUICK START or WORKOUTS.
To select a workout category, tap one of the workout category icons from the workout options screen.
To select a workout, tap one of the workout icons from the workouts screen.
Upon entering a workout the display will guide you through the appropriate settings. This is referred to
as Workout Setup Mode. If the Start key is pressed now, all defaults for that workout will be accepted.
After 10 seconds, if no key has been pressed, the rst default will be accepted. After another 10
seconds the second default will be accepted and so on until the last default.
For the most accurate resistance and calorie count, you must set your correct weight before
beginning your workout (including clothing).
When selecting a workout you must tap the Enter icon after each adjustment of Time, Level or
Weight.
55
Cybex Owner’s Manual
4. Press the Start key.
The treadmill begins a countdown, “3...2...1” and sounds a tone for each count. When it reaches one
(1) the treadmill gives a longer tone and then starts accelerating the belt. In Manual Mode the belt will
begin accelerating to 0.5 mph (0.8 kph) and the incline will remain at zero percent. In a workout the
belt will begin accelerating and the incline will change to the corresponding speed and incline of the
workout and level you selected.
5. Hold the handrails while you step onto the running belt and begin walking.
6. Observe the control panel. The top center Bar Graph display shows a graphical representation
of the relative incline changes, and if in a program, will show the relative intensity changes that
are coming up. The Text Area will start showing the workout data such as Distance, Calories,
Heart rate (if available), MET and Pace (Minutes per Mile or Minutes per Km). The data
displays will start by automatically shifting every 5 seconds.
Heart rate will be displayed in lieu of MET if a valid heart rate is available from a wireless chest strap
(not included) or by holding the contact heart rate grips.
When you adjust incline in a workout, the change will affect only the current segment. The program
control will resume starting with the next segment. To increase or decrease overall intensity, adjust
the speed and/or the program level.
7. Press the Speed + – keys to change the belt speed at any time. The right display will show the
set speed.
8. Press the Incline ▲▼ keys to change the incline at any time. The left display will show the set
incline.
9. Press the Stop key at any time to stop the workout. “Workout Review” is displayed and the
incline returns to 0%.
If the e-stop key is removed during a workout, the drive motor power shuts off immediately, causing
the belt to stop. “Emergency Stop!” is displayed. Replacement of the e-stop key causes Workout
Review to begin.
When a program is complete the treadmill begins a countdown, “3...2...1” and sounds a tone for each
count. The belt slows to a stop, the incline returns to 0% and Workout Review is displayed for the
preset time or until you press the Home key.
The treadmill returns to Dormant Mode.
56
Stopping the Treadmill
312
WEIGHT
CLEARALT
LEVEL
7
4
ENTER
9
0
8
56
TIMESAVE
FAN OFF
FAN LO
FAN HI
Cybex Owner’s Manual
Press Stop once to end the workout session and start the Workout Review. The treadmill will perform
a controlled belt stop and bring the incline to 0%. The accumulated data or the results of the Fitness
Test will be displayed for the duration congured in Setup for Review Time. Press Stop again to exit
to Dormant.
The function of the immobilization method: The purpose of immobilizing the treadmill is to prevent
unauthorized use. This can be accomplished by removing the e-stop key from the treadmill, un-
clipping it from the cord and putting it in a non-accessible place.
The emergency dismount: Follow the steps listed below if you experience pain, feel faint or need to
stop your treadmill in an emergency situation:
1. Grip handrails for support.
2. Step onto the top steps.
3. Pull the e-stop key off the console.
The function of the emergency stop: The e-stop key functions as the emergency stop. In an
emergency situation, remove the e-stop key from the treadmill and the running belt will come to a
stop.
Safety Sentry
WARNING: Falling hazard
• Place your feet on the two top steps when starting or stopping the treadmill.
• Wear the e-stop clip at all times.
The treadmill uses sensors to determine if you are on the running belt. When using the treadmill,
exercise in the center of the running belt, and between the end of the handrails and the console. If
you step off of the treadmill during a workout, the treadmill is designed to detect your absence and if
a user is not detected, the console will beep twice and display “Are you there? Touch the screen to
continue”. If there is no response in 20 seconds, the treadmill will exit Active Mode and the running
belt will stop.
57
Cybex Owner’s Manual
An unattended, running treadmill can create an unsafe environment for a user. The Safety Sentry
feature is intended to allow the treadmill to stop the running belt when the treadmill is unattended. To
avoid the treadmill running unattended, follow these steps:
• At the end of your workout, verify that the running belt is stopped by visually checking the Cybex
logo on the running belt, it should not be moving.
• If the belt is moving, place feet on both sides of the top step and press “Stop” or remove the e-stop
key from the treadmill.
Workout Selection
Quick Start
Press Quick Start. Control speed and incline.
Workout Choices:
NameLevelsSettingsResults
Weight Loss
Speed Bump10Choose goal - Time, distance, or calorie.
Rollers10Choose goal - Time, distance, or calorie.
Hills10Choose goal - Time, distance, or calorie.
Peaks10Choose goal - Time, distance, or calorie.
Cardio
Hill Interval 1:110Choose goal - Time, distance, or calorie.
Hill Interval 1:2 10Choose goal - Time, distance, or calorie.
Hill Interval 1:310Choose goal - Time, distance, or calorie.
Interval Plus10Choose goal - Time, distance, or calorie.
Heart Rate ControlN/A Choose goal - Time, distance, or calorie.
Tests
Gerkin ProtocolWalk/runWeight, age, and gender.VO2 max
Army PFT 2 mile/3.2 k runWeight, age, gender, and starting speed. Points
Air Force PFT1.5 mile/2.4 k run Weight, age, gender, and starting speed. Points
Navy <5K PRT1.5 mile/2.4 k run
Weight, age, gender, and starting speed. Points
under 5000 feet
Navy >5K PRT1.5 mile/2.4 k run
Weight, age, gender, and starting speed. Points
over 5000 feet
Marines PRT 3 mile/4.8 k run sea
Weight, age, gender, and starting speed. Points
level
Marines 4500 PRT3 mile/4.8 k run
Weight, age, gender, and starting speed. Points
4500 feet
One Mile Test1 mile/1.6 k walk Weight, age, gender, and starting speed.VO2 max
PFT means Physical Fitness Test, PRT means Physical Readiness Test.
See Appendix for workout details
58
Cybex Owner’s Manual
Control During Operation
Control keys are usable during operation and may be pressed at any time to make adjustments in
speed, elevation or data readouts. The Speed and Incline keys are located near the hand grips,
allowing for thumb adjustments without removing your hands from the hand grips.
Changing Speed — Press the Speed + – keys to change the speed in increments of 0.1 mph or 0.1
kph. Minimum to maximum speed is from 0.5 - 12.4 mph (0.8 - 20 kph).
Changing Incline — Press the Incline keys to change the elevation in increments of ½%
increments up to 10%, then 1% up to 15%. Press multiple times to change incline setting or hold the
key to auto-repeat. Elevation is dened as the ratio of rise or fall over run of the treadmill deck.
Changing between active mode or workouts — You can make changes during your workout.
Press WORKOUTS to select another workout, Manual to select Manual Mode, or Goal to change
your Time, Distance, or Calorie Goal. Follow screen prompts to begin the new workout.
Data Readouts
As you exercise, the treadmill keeps track of the following data:
BPM (Beats Per Minute) — Your current heart rate. Heart rate will appear when a signal is
introduced. Use the hand grips for Contact Heart rate or wear a Polar® compatible heart rate chest
strap.
Calories — The total accumulated calories burned during your workout. Your weight must be
correctly set before beginning your workout for this measurement to be most accurate.
Calories Per Hour — Calculation of present workload’s energy exertion in Calories per Hour.
Distance — The total accumulated distance, in miles or kilometers, during your workout.Depending
on the defaults you’ve chosen this measurement will show in English or Metric.
Metabolic Equivalent (MET) — Relates to the user’s energy expenditure. A MET is a basic unit of
measurement that is used to compare relative work between individuals and activities. ‘One MET’ is
the amount of oxygen consumed at rest. For example, two MET would be twice that amount. If an
individual were working at four MET he/she would be consuming oxygen at a rate equal to four times
their resting consumption. MET can be used to compare walking on a grade with running or even to
cycling and other activities.
Pace — At your current speed, how long it would take to cover a mile (or kilometer), displayed in
minutes:seconds.
Time — The total time you’ve been working out or time remaining. Display time as hours:minutes.
Watts — Present workload energy exertion.
59
Cybex Owner’s Manual
Heart Rate Indicator
Contact Heart Rate — Lightly hold hand grips on the handlebar ensuring that hands are clean and
contact both the front and back sensors of each grip. A heart rate will display in typically 30 seconds
or less.
Factors that interfere with heart rate signal:
• hand lotions
• oils or body powder
• excessive dirt
• excessive movement
• body composition
• hydration
• too loose grip
• too tight grip
• resting or leaning on grips
Wireless Heart Rate— To use this feature, a Polar® compatible heart rate transmitter belt (not
included) must be worn.
Once the actual heart rate is determined, the LED is blinking to the displayed BPM and the Heart LED lights
up. The color of the light represents a scale of low to high target heart rate.
Blue0 – 69 BPM
Green70 – 93 BPM
Yellow94 – 119 BPM
Blood Orange120 – 169
Magenta170 and higher
Meaning of % Grade
A 1% grade is not the same as a 1 degree incline. The % grade is the relationship of the
measurement of rise over the measurement of run (also called slope). For example, a 1 foot (meter)
rise in height over a length of 100 feet (meters) is a 1% grade. Expressed as a mathematical formula,
the grade is calculated as follows: 1 ft. (m) / 100 ft. (m) = 0.01 = 1%
With respect to treadmills, the percent grade is roughly equal to the increase in height (rise) of the
treadmill divided by the length (run) of the treadmill.
The degree of incline can be related to % grade by taking the Arctangent of the grade. For instance,
15% grade is equal to 8.53 Degrees (ArcTan(.15)=8.53º). The opposite is true to determine % Grade
from Degree of incline (Tan (8.53º)=.15).
60
Cybex Owner’s Manual
Fan Control
The fan defaults to the “OFF” setting. The user can change to “Fan Low”, “Fan High”, or “Fan Off”
setting by pressing the appropriate control key.
E3 View Monitor Screen Options
During operation four E3 View Monitor screen options are available. Press E3 View Monitor icon to
change screens.
Display
TV + DataDisplay video with data at bottom of screen
TV OnlyDisplay video only
Data OnlyDisplay data only
BlankScreen is blank, video and data are not displayed
61
Cybex Owner’s Manual
iPod/iPhone Functions
Connecting iPod/iPhone — Connecting an iPod/iPhone allows some control through the keypad.
The iPod/iPhone will not be charged while connected.
1. Connect iPod/iPhone (not supplied) into the 30 pin connector.
2. Place iPod/iPhone onto the accessory tray.
iPod/iPhone Playlist — Select the iPod/iPhone icon to display the iPod/iPhone navigation screen.
• If iPod/iPhone is already playing use the standard iPod/iPhone controls.
• If iPod/iPhone is Dormant make a selection from the iPod/iPhone Menu.
• Once a selection is made from the iPod/iPhone menu, make further selections until the desired
media is found.
62
Cybex Owner’s Manual
CSAFE Port
The CSAFE standard denes a communication protocol and low-voltage DC power source specic
to the Fitness Equipment Industry. These RJ-45 phone jacks are provided for use ONLY within the
CSAFE protocol. For more information on CSAFE standard, visit www.tlinxx.com/csafe.
Console CSAFE port location (Inside console)
Description
CSAFE port (Red)
1
1
Optional CSAFE location (Front of unit)
Description
CSAFE port
1
1
Log in
When unit is connected to a CSAFE network, the user is prompted to login at startup “Enter your club
ID#”.
Enter your club ID# using the keypad located on the CardioTouch screen.
63
Cybex Owner’s Manual
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine
preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength
Systems equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your
machines. Instruct all personnel in equipment inspection and maintenance actions and also in
accident reporting/recording. Cybex representatives are available to answer any questions that you
may have.
Warnings
Read all warnings in this chapter.
WARNING: For maintenance, service and repair:
• Must be performed by trained service personnel only
• Use only Cybex replacement parts
• Unplug unit before working on it
• Keep water and liquids away from electrical parts.
Observe the following warnings:
DANGER: Electrocution hazard.
To avoid death or serious injury unplug unit when not in use or when performing
maintenance.
WARNING: Equipment hazard.
To avoid serious injury or death replace worn or damaged components immediately
and keep the equipment out of use until repair is completed.
Cybex Owner’s Manual
Preventive Maintenance Activities
Perform regular preventive maintenance to ensure normal operation of unit. Keep a log of all
maintenance actions to assist in staying current with all preventive maintenance activities.
Cybex is not responsible for performing regular inspection and maintenance actions for your unit.
Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting/
recording. Contact Cybex Customer Service at 888-462-9239 or 508-533-4300 for any preventive
maintenance or service concerns.
Read and understand warnings listed in this chapter and in the Safety Section. Read and
understand all instructions in this section.
During maintenance, disconnect the power cord.
For some maintenance activities it will be necessary to remove and replace the motor cover.
Tool Required
Phillips screwdriver
Cleaning Your Treadmill
When cleaning your treadmill spray a mild cleaning agent, such as a water and dishsoap solution,
on a clean cloth rst and then wipe the treadmill with the damp cloth. Do not spray cleaning solution
directly on the treadmill. Direct spraying could cause damage to the electronics and may void the
warranty.
WARNING: Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
After Each Use — Wipe up any liquid spills immediately. After each workout, use a cloth to wipe up
any remaining perspiration from the handrails and painted surfaces.
Be careful not to spill or get excessive moisture between the edge of the display panel and the
console, as this might create an electrical hazard or cause failure of the electronics.
As Needed — Vacuum any dust or dirt that might accumulate under or around the treadmill. Motors
are especially susceptible to dust and dirt, and restricted airow can prevent adequate cooling that
could shorten motor life. Cleaning this area should be done as often as indicated in the Service
Schedule.
To clean the motor components, you must loosen the two Phillips head screws that hold the motor
cover in place. Lift the cover straight up; the screws will stay in place. Use a vacuum attachment
or hand vacuum to clean the exposed elevation assembly, drive motor, lower electronics and the
surrounding areas.
65
Cybex Owner’s Manual
Fan and Heat Sink — Vacuum the fan and heat sink area of the motor controller.
Motor
Controller
Fan and
Heatsink
Also use a dry cloth for the areas that you can not reach with the vacuum cleaner. If the machine has
not been used for some time or is excessively dirty, use a dry cloth to wipe all exposed areas.
Carefully raise the rear of the treadmill and roll it back from its present position to vacuum the oor
area underneath the unit. When nished, return the treadmill to its normal position.
Contact Heart Rate Grips — Contaminants, such as hand lotions, oils or body powder, may come
off on the contact heart rate grips. These can reduce sensitivity and interfere with the heart rate
signal. It is recommended that the user have clean hands when using the contact heart rate. Clean
the grips using a cloth dampened with a cleaning solution containing rubbing alcohol.
CardioTouch Screen — While in Dormant Mode press the Cybex logo icon to access the Lock
and Toolbox options. Press the Lock screen for cleaning icon to lock the screen for 10 seconds.
The CardioTouch screen will stay locked for 10 seconds to prevent any key presses from being
processed. Clean the CardioTouch screen using a soft cloth dampened with a cleaning solution
containing rubbing alcohol.
Cybex Owner’s Manual
Running Belt Maintenance
Center and tension the running belt
1. Plug the power cord into the power outlet.
2. Turn the main power switch to the on (I) position.
3. Press the Quick Start icon.
4. Press the Speed + to bring the speed up to 5 mph (8 kph). Allow the treadmill to run for a
minute.
The lateral position of the running belt is correctly centered when the Cybex logo is centered between
the inside edges of the two belt tracking slots. If the Cybex logo is not centered between the belt
tracking slots, center the running belt with the following procedure.
5. Observe the Cybex logo position relative to the belt tracking slots with the treadmill running at
5 mph (8 kph).
1
1Cybex logo
2Running belt
3Belt tracking slots
2
3
While centering the running belt choose one bolt to adjust. Do not adjust both bolts.
6. Tighten the rear roller bolt on the side of the treadmill toward which the running belt is
moving using a 3/4” socket wrench. For example: If the running belt moves to the right of the
belt tracking slots, tighten the bolt on the right side of the frame, tighten about 1/2 of a turn
(clockwise) and wait 30 seconds. If the running belt does not move back to the center of the
belt tracking slots, make another adjustment to the same bolt. Once the running belt has been
adjusted closer to the center of the belt tracking slots, use about 1/4 of a turn until the running
belt has been stabilized.
Description
1Rear roller bolts
1
67
Cybex Owner’s Manual
7. Check the belt tension after the running belt has been centered. Make sure the running belt
tension is tight enough so that the running belt does not slip or hesitate when stepped on.
Walk on the treadmill at 3.5 - 4 mph (5.6 - 6.4 kph) and every 4th to 5th step throw your weight
into your step to feel if the running belt is slipping. If slipping is felt, conrm it is the running
belt slipping and not the drive belt. With the hood cover removed, observe movement at the
drive belt and front roller.
Do not over tighten the running belt. Over tightening the running belt can cause the belt to stretch
and require replacement. Continue procedure until running belt stops slipping.
8. Check running belt for centering position. If running belt is not centered, perform steps 5 and
6.
Checking the Running Belt and Deck Surfaces — The running belt and deck should be checked
periodically for any excessive wear. In an effort to make sure that the running belt operates properly,
visually inspect the belt often to make sure that there are no tears or fraying in the belt material. The
running belt should be replaced every 15,000 miles (24,140 km). The running deck should be ipped
every 15,000 miles (24,140 km) and replaced every 30,000 miles (48,280 km). A service prompt will
appear at this interval and the parts will need to be replaced.
Inspect the edges of the belt as described below.
Tools Required
• Phillips screwdriver
Disconnect the external power source
1. Toggle the on/off (I/O) power switch to the off (O) position.The on/off (I/O) power switch is
located under the front end of the unit, or on the front right side panel.
2. Unplug the treadmill from the power outlet.
Check the running belt condition
1. Remove the two screws securing the right end cap using a Phillips screwdriver.
1Screws (2)
2Right end cap
2
1
2. Repeat step 1 for the left end cap.
3. Inspect the top surface, seam, and edges of the running belt while you roll it by hand. If the
Cybex Owner’s Manual
belt has any rips or looks excessively worn the belt needs to be replaced.
If the running belt and deck need replacement refer to a qualied service technician.
4. Install the screws securing the end caps removed in steps 1 and 2 using a Phillips screwdriver.
Other Preventive Maintenance
Other preventive maintenance activities must be completed by a qualied service technician at the
recommended intervals listed in the Service Schedule at the end of this chapter. These activities
include:
• Flipping or replacing the running deck
• Replacing the running belt
Elevation Motor Lubrication— In time the elevation motor pivot points or tube nut may develop a
squeak. Lubricate the upper and lower bolts and the spacers with a small amount of lithium grease.
You can buy lithium grease at an auto parts store.
Static Electricity — Depending upon where you live, you may experience dry air, causing a
common experience of static electricity. This may be especially true in the winter time. You may
notice a static build-up just by walking across a carpet and then touching a metal object. The same
can hold true while working out on your treadmill. You may experience a shock due to the buildup of static electricity on your body and the discharge path of the treadmill. If you experience this
type of situation, you may want to increase the humidity to a comfortable level through the use of a
humidier.
E3 View Monitor
Cleaning
1. Clean with a dust free cloth. For further cleaning, use a soft cloth or paper towel dampened
with water. To avoid damage to the surface of the monitor, do not use abrasive or chemical
cleaning agents.
2. Disinfecting: to avoid damage to the surface, test a small portion of the monitor’s cabinet with
any disinfectant to verify that the disinfectant will not discolor or soften the enclosure.
Storage or Long Non-Use Periods
When not using product for an extended period of time the product should be disconnected from the
Power Supply, TV/Cable Signal Feed, and any Peripheral Devices.
Pixels
Very small red, blue, white or green spots may be visible or may appear on the screen. This is a
characteristic of liquid crystal display panels and is not considered a defect for replacement. The
liquid crystal panel is built with very high precision technology giving ne picture details. Occasionally,
a few non-active pixels may appear on the screen as a xed point. This does not affect the
performance of monitor or merit a warranty claim.
69
Cybex Owner’s Manual
Maintenance
• It is very important to have the unit regularly examined by a qualied technician to ensure the prod-
uct is t for use.
• If the unit malfunctions, please refer to a qualied technician for repair or replacement of defective
parts immediately. Do not attempt to use the monitor until it has been inspected and repaired by a
qualied technician.
• For inspection, installation and servicing, please consult qualied technician.
• Failure to use a manufacturer approved repair technician may void any warranty claims.
Service Wheel (optional)
A service wheel lever is located at the rear end of the unit. This lever will engage a wheel and elevate
the rear end of the unit. The treadmill can then be easliy moved for cleaning or servicing.
WARNING: Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Engage service wheel
1. Unplug power cord from power outlet.
2. Grasp the service wheel lever and slide to the right and down to lock in place.
1Service wheel lever
2Frame
The service wheel will lower and raise the rear foot off the oor.
1Service wheel
2Rear foot
3Floor
4Service wheel lever
3. Move treadmill as needed.
Cybex Owner’s Manual
Disengage service wheel
WARNING: Trip and fall hazard.
To avoid injury, make sure service wheel lever is not engaged proir to use.
1. Grasp the service wheel lever and slide to the right, lift up, and slide to the left.
1Service wheel lever
2Frame
2. Plug the power cord into the power outlet.
Service Schedule
All maintenance activities shall be performed by qualied personnel. Failure to do so could result in
serious injury.
This is the minimum recommended service.
Determine distance
ENGLISH
CYBEX
LOGO
LANGUAGE
ICON
Press and hold Cybex logo for 6 seconds to access Screen
Lock and Toolbox. See Preventive Maintenance section.
Press and hold language logo for 6 seconds to access
Screen Lock and Toolbox.
1. Press the Access Toolbox icon to access the Toolbox login screen.
2. Enter the sequence: .
3. Press the Statistics icon to access the Recorded Statistics screen.
4. Locate and tap the icon tor Treadmill Totals.
5. Record Distance.
6. Press the arrow to return to the Recorded Statistics screen.
7. Locate and tap the icon for Belt or Deck.
8. Record Distance.
9. If replacing the running belt, tap the Belt icon, then tap the New Belt Reset icon to reset
odometer.
71
Cybex Owner’s Manual
10. If replacing the running deck, tap the Deck icon, then tap the New Deck Reset icon to reset
odometer.
11. Exit Set Up Mode by tapping the Toolbox icon , then tap the Home icon . The screen
will refresh.
First 500 miles (800 km).
• Check running belt tension and tracking.
Every 5,000 miles (8,000 km).
• Check running belt tension and tracking.
• Vacuum the fan and heat sink area of the motor controller.
• Move treadmill and vacuum underneath.
• Raise elevation to 15%, carefully roll the treadmill backwards to clean underneath with a dry cloth
and vacuum. Return to normal position when done.
Every 15,000 miles (24,140 km).
• Replace running belt and ip deck.
• Check elevation assembly and replace worn parts.
• Lubricate elevation pivot points.
Every 30,000 miles (48,280 km).
• Replace running belt and deck.
Cybex Owner’s Manual
Customer Service
Product Registration
To register product do the following:
1. Visit www.cybexintl.com.
2. Locate Product Registration in the Support section.
3. Fill out form completely.
4. Click the Submit button to register product.
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard
Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or
fax 508-533-5183. Email address internationaltechhelp@cybexintl.com
Find information on the web at www.cybexintl.com.
To contact us online go to www.cybexintl.com.
Ordering Parts
To order parts online go to www.cybexintl.com.
To speak with a customer service representative, call 888-462-9239 (for customers living within the
USA) or 508-533-4300 (for customers outside the USA).
The following information located on the serial number decal will assist our Cybex representatives in
serving you.
•Unit Serial Number, Product Name and Model Number
• Part Description and Part Number if you have it. All parts can be found on the web at
www.cybexintl.com
•Shipping Address
•Contact Name
•Include a description of the problem.
In addition to your shipping address and contact name, your account number is helpful but not
required. You may also fax orders to 508-533-5183.
65
Cybex Owner’s Manual
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system is used when returning material for placement,
repair or credit. The system assures that returned materials are properly handled and analyzed.
Follow the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will
request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment
be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
Please contact Cybex Customer Service for the return of any item that is defective.
Provide the technician with a detailed description of the problem you are having or the defect in the
item you wish to return. Provide the model and serial number of your Cybex equipment.
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for
evaluation and repair or replacement. The technician will assign you a RMA number and will send
you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of
the package that contains the item(s) to be returned. Include the description of the problem, the serial
number of the equipment and the name and address of the owner in the package along with the
part(s).
Merchandise returned without an RMA number on the outside of the package or shipments sent COD
will not be accepted by the Cybex receiving department.
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the
responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)
Apparent Damage
Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must
be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers
refusal to honor your damage claim. The carrier will provide you with the required forms for ling such
claims.
Concealed Damage
Damage not seen with a visual check upon receipt of a shipment but notices later must be reported
to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to
the carrier asking them to perform an inspection of the materials must be made within ten days of
the delivery date. Keep all shipping containers and packing materials as they will be needed in the
inspection process. The carrier will provide you with an inspection report and the necessary forms for
ling a concealed damage claim. Concealed damage claim is the carrier’s responsibility.
66PB
Cybex Owner’s Manual
Appendix - Workout Overviews
Speed Bump
This workout uses a series of relatively minor changes in its ve-minute core to add an incremental
demand. The ve-minute core utilizes a baseline incline for two minutes and then increases the
incline for added demand and then provides a slightly lower Incline for two-minutes for recovery.
This workout uses an eight minute core intended to mimic variety in terrain that might be found on a
hilly outdoor run. The eight minute core is composed of four segments. The baseline segment is two
minutes in length and is followed by two two-minute segments of increase Incline before returning to
the intermediate incline for two minutes.
This workout uses a nine minute core where the incline increases every minute for the rst ve
minutes. After the fth minute of the core workout, the incline is reduced each minute. This workout
uses continuous and gradual changes to give the user time to acclimate to demand and recover
without large perceived changes in the effort required.
This workout is designed for to increase capability by alternating two minute work segments with two
minutes of relative rest. The intensity of rest periods is greater here than in Hill Interval 1:2 as is the
duration of the work interval making this workout more demanding than Hill Interval 1:2.
This workout is designed for to through a one minute work interval at a high incline followed by a two
minute rest interval at a substantially lower incline. Given the lower incline and longer rest intervals
this workout is less intense than Hill Interval 1:1.
This workout is designed to maintain a high total demand using two four-minute segments of
alternating incline. This allows prolonged intervals that take advantage of long-term energy systems
and total aerobic capability when associated with speeds that require a high sustained cardiovascular
demand.
Note: This workout requires the user to wear a Polar or compatible Heart Rate transmitter belt. The
Heart Rate Control Workout (HRCP) cannot be selected on the control console unless the treadmill
detects a Heart Rate signal. The HRCP will not work with the cardio touch contact Heart Rate system.
After selecting the HRCP, the treadmill will prompt you for workout time, weight, age, and target Heart
Rate. Your age is required to estimate the proper range of Heart Rates. The target Heart Rate is
calculated by the formula 220 minus your age times 75%. You will then have the option of adjusting
the suggested target Heart Rate selected either up or down. Select a target Heart Rate which will
allow you to exercise comfortably and safely while at the same time allowing you to reach your
training goals. If you are unsure of what to select as your target, consult your physician or a physical
training professional, After starting the HRCP, the treadmill will attempt raise your Heart Rate to your
target within 3 to 5 minutes. The treadmill will emphasize using elevation of the treadmill deck rst to
achieve higher workloads and thus higher Heart Rates; this is done to maximize the use of a walking
gait, which is safer and more comfortable for many users. As a result, many users will spend nearly
the entire workout at elevation up to 12% grade. After reaching your target, the treadmill will attempt
to keep you there within 5 beats per min. As you tire, the treadmill will compensate by reducing
elevation, speed or both. A two-minute cool-down is built in at the end of the workout.
Method of HRCP:
User selects Heart Rate target in the initial start of workout or accepts the suggested target of 75%
of 220 minus age. This target Heart Rate is extremely important for more reasons than just the
establishment of the target itself. It also makes an assumption of the general tness level and controls
several aspects of how quickly the elevation and speed will be adjusted. As an example, the starting
speed for a selected target of 120 bpm (beats per minute) will be 2 mph. The starting speed for a
selected target of 140 bpm will be 3.5 mph. In between those selected targets the starting speed will
be proportional to the difference between 2 to 3.5. The integral gain constants will also be modied
depending on what the selected target is at the start of the workout. This means someone with a
higher selected target will get faster changes in speed and grade than someone with a lower target.
This has the effect of getting the more t user to their selected target faster without overshooting the
target for someone with a lower tness level. After the starting speed is attained by the treadmill, it will
then increase the elevation every 15 seconds up to 12% grade or until the computer senses that the
user is getting close to approaching their target Heart Rate. Since the control is somewhat predictive
in nature, it will leave ample room for the user’s Heart Rate to catch up to the increasing load. If the
target Heart Rate is not attained at the load level of the start speed at 12% grade, then the treadmill
will start increasing speed every 15 seconds up to 4 mph or until the computer senses that the user
is getting close to approaching their target Heart Rate. If the user is still not at the target, the treadmill
will increase speed to 5 mph and drop the elevation down to 8% grade. This is done because the
speeds between 4 and 5 are difcult for the user because it is too slow to jog and too fast for many
to walk. The drop in elevation compensates somewhat for the larger increase in speed. The system
will then increase the speed of the belt every 15 seconds up to the maximum speed of the treadmill or
until the computer senses that the user is getting close to approaching their target Heart Rate. At any
time if the users Heart Rate exceeds the target, the load will be decreased in the same order it was
increased to ensure that the rate is stabilized at or below the target. When the time period is reached
that is two minutes before the selected total time of the workout, the system will go into the cool
down mode. This cool down will be similar to the cool down protocols in all the other workouts on the
treadmill.
83
Cybex Owner’s Manual
During the control period, the user has limited control over speed and elevation. Within the initial
elevation climb segment up to 12 % grade, the users may vary elevation but not speed. Within the
other segments the user can vary speed but not elevation. The user’s selections are not persistent,
however. At the next 15-second mark, the controller as described above will generally choose a new
speed or elevation. The user is in fact advancing or retarding the action of the servo.
If at any time the Heart Rate signal is lost, the system will make no changes in load until such time
as the HR signal is regained. If the Heart Rate signal continues to be lost (no stable HR) for a time
period exceeding one minute, then start the cool down prole regardless of what the time period is.
84
Cybex Owner’s Manual
Gerkin Protocol
Workout Overview
This workout was designed to predict the VO2 max using the Gerkin protocol. This test is used by the
International Association of Fireghters to evaluate tness level.
The speed range of the workout includes walking speeds at 3 MPH then increases to 4.5 MPH or
more during the middle stages. It returns to 3 MPH during the cool down session.
Elevation is used during the second stage of the test. It starts at a 2% grade and can increase from
2. Stage 1 – 1 minute, 0% grade, 4.5 mph. Walk or run. Heart rate is recorded during the last 15
seconds of each stage.
3. Stage 2 – 1 minute, 2% grade, 4.5 mph.
• Speed and grade increases now alternate. At odd numbered stages, speed increases by 0.5
mph. At even numbered stages, grade increases 2%.
• If heart rate is 85% or above, the stage is recorded, but the test continues for another 15
seconds with no increase in grade or speed.
• If heart rate remains above 85%, the test is terminated, and the last stage number is entered.
• If heart rate falls to or below 85%, speed or gradient is increased on the next minute
boundary.
• Once the 85% threshold is exceeded or makes it to the 11th minute, the evaluation is ended
and the nal stage is entered
4. 3 minute Cool-down – 0% grade, 3 mph.
5. Take heart rate and record one minute after the end of the test. (Taken as a nal reading and
to monitor HR stabilizing).
85
Cybex Owner’s Manual
Army
Workout Overview
This workout was designed by the Army to test, evaluate, and measure tness levels. The goal is
to complete the set distance of 2.0 miles (3.2 km) in the least amount of time. The user controls the
speed as needed to reach the goal. A point value will be given at the completion of the test.
This workout was designed by the Air Force to test, evaluate, and measure tness levels. The goal is
to complete the set distance of 1.5 miles (2.4 km) in the least amount of time. The user controls the
speed as needed to reach the goal. A point value will be given at the completion of the test.
Input information:
Age
Weight
Gender
Starting Speed
Male
Males <25 and Males 25-29Males 30-34 and Males 35-39Males 40-44 and Males 45-49
This workout was designed by the Navy to test, evaluate, and measure tness levels. The goal is
to complete the set distance of 1.5 miles (2.4 km) in the least amount of time. The user controls the
speed as needed to reach the goal. A point value will be given at the completion of the test.
Use this workout when performing the test at altitudes below 5,000 feet (1,524 meters).
Input information:
Age
Weight
Gender
Starting Speed
Male
17-1920-2425-2930-34
CategoryLevelComponent
Points
OutstandingHigh1008:158:308:559:20
OutstandingMedium958:459:009:239:45
OutstandingLow909:009:159:3810:00
ExcellentHigh859:159:4510:1510:30
ExcellentMedium809:3010:0010:3011:00
ExcellentLow759:4510:3010:5211:15
GoodHigh7010:0010:4511:2312:00
GoodMedium6510:3011:3012:1513:00
GoodLow6011:0012:0012:5313:45
SatisfactoryHigh5512:0012:4513:2314:00
SatisfactoryMedium5012:1513:1513:4514:15
Probationary4512:3013:3014:0014:30
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
35-3940-4445-4950-5455-5960-6465+
1.5 Mile Run
Time (min.)
9:259:309:339:3510:4211:2111:41
9:5310:0010:0810:1511:0911:4812:13
10:0810:1510:3010:4511:2512:0412:43
10:3810:4511:0811:3011:5712:4013:20
11:0811:1511:3812:0012:2913:1613:57
11:2311:4512:0812:3013:1213:5314:34
12:2312:4513:0013:1514:1315:0015:47
13:2313:4514:0814:3015:1416:0717:00
14:0814:3014:5315:1516:1517:1418:13
14:2314:4515:1515:4516:3317:4719:00
14:4515:1515:4516:1516:5118:2019:47
15:0015:3016:0816:4517:0918:5220:35
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
90
1.5 Mile Run
Time (min.)
Cybex Owner’s Manual
Female
17-1920-2425-2930-34
CategoryLevelComponent
Points
OutstandingHigh1009:299:4710:1710:46
OutstandingMedium9511:1511:1511:3011:45
OutstandingLow9011:3011:3011:4512:00
ExcellentHigh8511:4512:1512:3012:45
ExcellentMedium8012:0012:4513:0013:15
ExcellentLow7512:3013:1513:2313:30
GoodHigh7012:4513:3014:0014:30
GoodMedium6513:0013:4514:3015:15
GoodLow6013:3014:1514:5315:30
SatisfactoryHigh5514:1515:0015:2315:45
SatisfactoryMedium5014:4515:1515:4516:15
Probationary4515:0015:3016:0816:45
35-3940-4445-4950-5455-5960-6465+
1.5 Mile Run
Time (min.)
10:5110:5610:5811:0012:2313:3414:45
11:5312:0012:0812:1513:3914:5016:01
12:0812:1512:3012:4513:5715:0816:19
12:5313:0013:1513:3014:2515:3416:43
13:2313:3013:4514:0014:5316:0017:07
13:4514:0014:0814:1515:2016:2517:30
14:3814:4515:0015:1516:0917:1718:18
15:3015:4515:5316:0016:5818:0619:06
15:5316:1516:3016:4517:4818:5119:54
16:1516:4516:5317:0018:0319:0820:13
16:3817:0017:0817:1518:1819:2520:31
17:0017:1517:2317:3018:3419:4320:52
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
91
Cybex Owner’s Manual
Navy > 5K
Workout Overview
This workout was designed by the Navy to test, evaluate, and measure tness levels. The goal is
to complete the set distance of 1.5 miles (2.4 km) in the least amount of time. The user controls the
speed as needed to reach the goal. A point value will be given at the completion of the test.
Use this workout when performing the test at altitudes above 5,000 feet (1,524 meters).
Input information:
Age
Weight
Gender
Starting Speed
Male
17-1920-2425-2930-34
CategoryLevelComponent
Points
OutstandingHigh1009:009:159:4310:10
OutstandingMedium959:309:5010:1510:40
OutstandingLow909:5010:0510:3010:55
ExcellentHigh8510:0510:4011:1311:45
ExcellentMedium8010:2010:5511:2812:00
ExcellentLow7510:4011:2511:5012:15
GoodHigh7010:5511:4512:2513:05
GoodMedium6511:2512:3013:2014:10
GoodLow6012:0013:0514:0315:00
SatisfactoryHigh5513:0513:5514:3515:15
SatisfactoryMedium5013:2014:2514:5815:30
Probationary4513:4014:4515:1815:50
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
35-3940-4445-4950-5455-5960-6465+
1.5 Mile Run
Time (min.)
10:1510:2010:2310:2511:4612:2912:51
10:4810:5511:0311:1012:1612:5913:26
11:0311:1011:2811:4512:3413:1613:59
11:4511:4512:0812:3013:0913:5614:40
12:0812:1512:4013:0513:4414:3615:21
12:3312:5013:1513:4014:3115:1616:01
13:3013:5514:1014:2515:3816:3017:22
14:3515:0015:2515:5016:4517:4418:42
15:2515:5016:1516:4017:5318:5720:02
15:4016:0516:3817:1018:1219:3420:54
16:0516:4017:1317:4518:3220:1021:46
16:2316:5517:3518:1518:5220:4522:39
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
92
1.5 Mile Run
Time (min.)
Cybex Owner’s Manual
Female
17-1920-2425-2930-34
CategoryLevelComponent
Points
OutstandingHigh10010:2010:4011:1311:45
OutstandingMedium9512:1512:1512:3312:50
OutstandingLow9012:3012:3012:4813:05
ExcellentHigh8512:5013:2013:3813:55
ExcellentMedium8013:0513:5514:1014:25
ExcellentLow7513:4014:2514:3514:45
GoodHigh7013:5514:4515:1815:50
GoodMedium6514:1015:0015:5016:40
GoodLow6014:4515:3016:1316:55
SatisfactoryHigh5515:3016:2016:4517:10
SatisfactoryMedium5016:0516:4017:1317:45
Probationary4516:2016:5517:3518:15
35-3940-4445-4950-5455-5960-6465+
1.5 Mile Run
Time (min.)
11:5011:5511:5812:0013:3714:5516:14
12:5813:0513:1313:2015:0116:1917:37
13:1313:2013:3813:5515:2116:3917:57
14:0314:1014:2814:4515:5217:0718:23
14:3514:4515:0015:1516:2217:3618:50
15:0015:1515:2315:3016:5218:0419:15
15:58 16:0516:2316:4017:4619:0120:08
16:55 17:1017:1817:2518:4019:5521:01
17:20 17:4518:0018:1519:3520:4421:53
17:43 18:1518:2318:3019:5121:0322:14
18:08 18:3018:4018:5020:0821:2222:34
18:33 18:5018:5819:0520:2521:4122:57
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
1.5 Mile Run
Time (min.)
93
Cybex Owner’s Manual
Marines Sea Level
Workout Overview
This workout was designed by the Marines to test, evaluate, and measure tness levels. The goal is
to complete the set distance of 3.0 miles (4.8 km) in the least amount of time. The user controls the
speed as needed to reach the goal. A point value will be given at the completion of the test.
Use this workout when performing the test at altitudes below 4,500 feet (1,372 meters).
Input information:
Age
Weight
Gender
Starting Speed
PointsMaleFemale
3 mile run no altitude3 mile run no altitude
10018:0021:00
9019:4022:40
8021:2024:20
7023:0026:00
6024:4027:40
5026:2029:20
4028:0031:00
3029:4032:40
2031:2034:20
1033:0036:00
Required minimum score
AgeUnsatisfactory3rd Class2nd Class1st Class
17-260-134135175225
27-390-109110150200
40-450-8788125175
46+0-6465100150
94
Cybex Owner’s Manual
Marines > 4.5K
Workout Overview
This workout was designed by the Marines to test, evaluate, and measure tness levels. The goal is
to complete the set distance of 3.0 miles (4.8 km) in the least amount of time. The user controls the
speed as needed to reach the goal. A point value will be given at the completion of the test.
Use this workout when performing the test at altitudes above 4,500 feet (1,372 meters).
Input information:
Age
Weight
Gender
Starting Speed
PointsMaleFemale
3 mile run 4,500 feet
above sea level
10019:3022:30
9021:1024:10
8022:5025:50
7024:3027:30
6026:1029:10
5027:5030:50
4029:3032:30
3031:1034:10
2032:5035:50
1034:3037:30
136:0039:00
3 mile run 4,500 feet
above sea level
Required minimum score
AgeUnsatisfactory3rd Class2nd Class1st Class
17-260-134135175225
27-390-109110150200
40-450-8788125175
46+0-6465100150
95
Cybex Owner’s Manual
One Mile Test
Workout Overview
The objective of this test is to monitor the development of the athlete’s VO2 max.
Input information:
Age
Weight
Gender
Starting Speed
Heart rate
Heart Rate Requirements:
Wireless heart rate transmitter
Test procedure:
1. Record your weight
2. Walk one mile (1,609 metres) as fast as possible
3. Record the time to complete the one mile walk
4. Immediately on nishing the walk record your heart rate (beats per minute)
