Cybex 750C User Manual

Cybex 750C/750R Cycle
Owner’s Manual
Cardiovascular Systems
Part Number LT-21613-4 H
www.cybexintl.com
Cybex 750C/750R Cycle
Owner’s Manual
Cardiovascular Systems
Part Number LT-21613-4 H
Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc. Safety Sentry™ is a registered trademark of Cybex International, Inc. Polar® is a registered trademark of Polar Electro Inc. iPOD® is a registered trademark of Apple Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
© 2011, Cybex International, Inc. All rights reserved. Printed in United States of America.
10 Trotter Drive Medway, MA 02053 • 888-462-9239 • 508-533-4300 • FAX 508-533-5183
www.cybexintl.comtechhelp@cybexintl.com • LT-21613-4 H
Cybex 750C/750R Cycle Owner’s Manual

Table of Contents

FCC Compliance Information .......... 7
Safety
Grounding and Voltage Information .....9
Important Safety Instructions ......... 10
Warning and Caution Decals ......... 12
Warning and Caution Decals - 750C ... 12 Warning and Caution Decals - 750R ... 15
CSAFE Ports ..................... 18
Assembly and Setup
Warnings and Cautions..............19
Choosing and Preparing a Site........ 19
Electrical Power Requirements........ 20
Unit Assemby ..................... 20
750C Assembly.................... 21
750R Assembly.................... 27
Testing the Operation ............... 33
Setup ........................... 34
Preventive Maintenance
Warnings......................... 49
Cleaning Unit ..................... 49
Statistics ......................... 50
Error Codes ...................... 50
Rechargeable Battery............... 51
Environment ...................... 51
Customer Service
Contacting Service ................. 53
Serial Number .................... 53
Servicing of Double-Insulated Products . 54 Return Material Authorization (RMA) ... 54
Damaged Parts.................... 55
Ordering Parts .................... 55
Appendix A -
Technical Specications
Specications ..................... 57
Operation
Intended Use ..................... 37
Terms Used....................... 37
Mount and Dismount................ 38
Emergency Dismount ............... 38

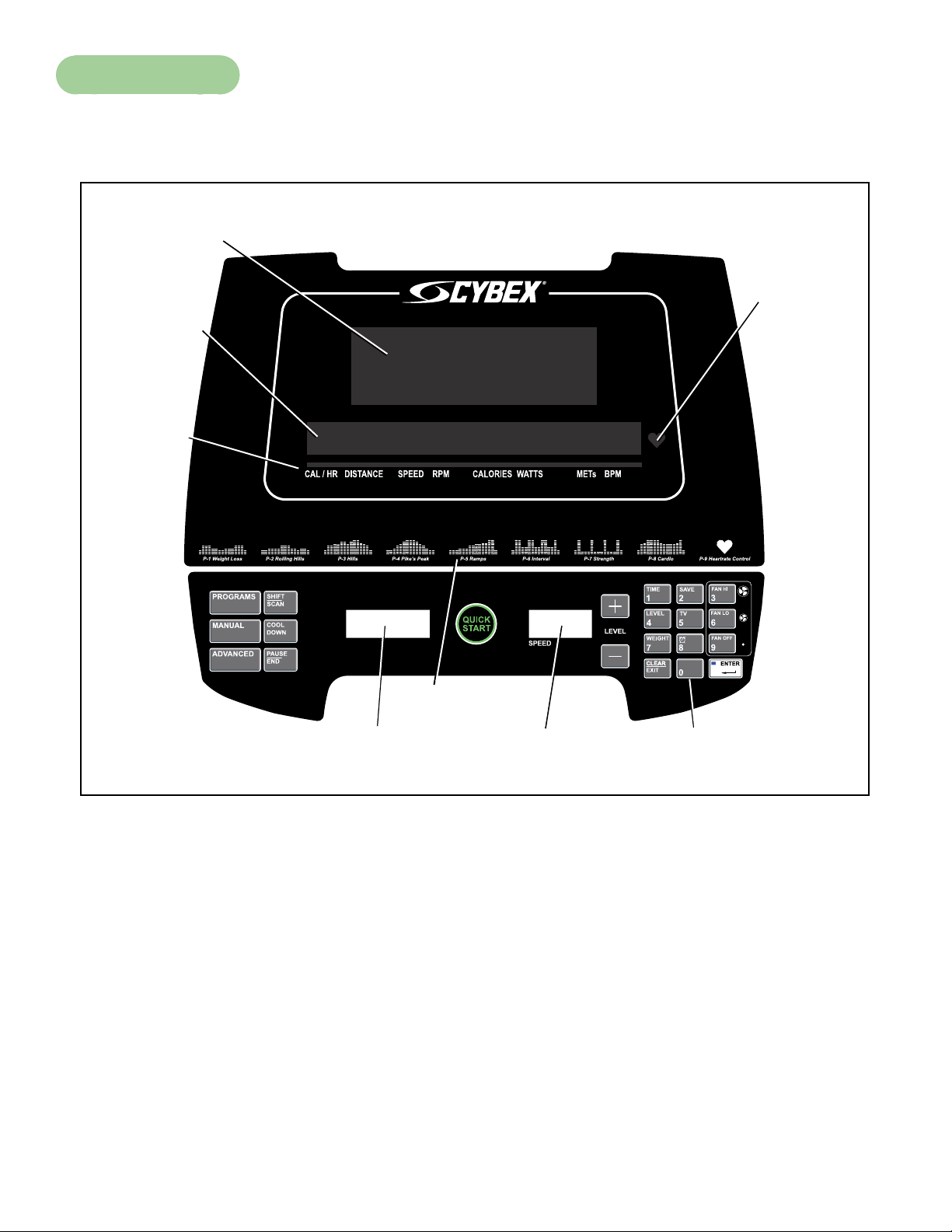

Console Keys ..................... 39
Audio Visual (AV) Key Pad – Optional .. 41
Program Selection ................. 42
Programs P1 – P9 Setup ............ 42
Manual and Quick Start Programs
Setup .......................... 43
Advanced Programs A1 – A3 Setup .... 43
Custom Programs.................. 46
Data Readouts .................... 47
Heart Rate Indicator ................ 47
Fan Control ....................... 48
Alarm Set ........................ 48
Battery Sentry..................... 48
5
Cybex 750C/750R Cycle Owner’s Manual
6
Cybex 750C/750R Cycle Owner’s Manual

FCC Compliance Information

WARNING: Serious injury or death can occur. To avoid injury or death the following
procedure must be followed. Changes or modications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Modications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC rules.
7
Cybex 750C/750R Cycle Owner’s Manual
8
Cybex 750C/750R Cycle Owner’s Manual

Safety

IMPORTANT: Read all instructions and warnings before using.

Grounding and Voltage Information

DANGER: Death or serious injury can occur. To avoid death or injury the following
procedure must be followed. Improper connection of equipment grounding
conductor can result in a risk of electric shock. Check with a qualied
electrician or service provider if in doubt as to whether the unit is properly grounded.
For Optional Power Supply
Unit must be grounded. This unit is equipped with an optional equipment-grounding conductor cord
and a grounding plug.
Do not use a ground plug adapter to adapt the power cord to a non-grounded outlet.
Plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If unit malfunctions, grounding provides path of least resistance for electric current to reduce risk of
electric shock.
Cybex is not responsible for injuries or damages as a result of cord or plug modication.
Verify voltage requirements of unit match local voltage requirements.
Verify unit outlet is the same conguration as the plug.
Power Adapter
24 VDC
Connector
Varies by
Country
Power Cord
Use Cybex supplied power adapter and power cords only.
Cybex 750C/750R Cycle Owner’s Manual

Important Safety Instructions

(Save These Instructions)
DANGER: Death or serious injury can occur. To avoid death or injury the following
procedure must be followed. To reduce the risk of electrical shock, always unplug unit from electrical outlet immediately after use and before cleaning.
WARNING: Serious injury or death can occur. To avoid injury or death the following
procedure must be followed. Follow precautions to reduce the risk of burns,
res, electric shock or injury.
User Safety Precautions
Obtain medical exam before beginning any exercise program.
WARNING: Serious injury or death can occur. To avoid injury or death the following
procedure must be followed.Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.
Stop exercising if you feel faint, dizzy or experience pain and consult your physician.
Obtain instruction before using. Lisez les instructions avant l’utilisation.
Read and understand the Owner’s Manual and all warnings posted on the unit before using.
Keep children away. Teenagers and disabled must be supervised. Tenez les enfants éloignés. Les
adolescents et les handicapés doevent être surveilles.
Use caution when mounting and dismounting.
Keep clear of moving parts. DO NOT wear loose or dangling clothing while using.
DO NOT use the unit if you exceed 400 lbs (180 kg). This is the rated maximum user weight.
Report any malfunctions, damage or repairs to the facility.
Replace any warning labels if damaged, worn or illegible.
Facility Safety Precautions
It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is performed.
Enforce all user and safety precautions.
Read and understand the Owner’s Manual completely before assembling, servicing or using unit.
Verify all users are properly trained on using the equipment.
Do not use unit outdoors.
Verify that each unit is setup, leveled and operated on a solid, level surface. Do not install
equipment on an uneven surface.
10
Cybex 750C/750R Cycle Owner’s Manual
Verify there is enough room for safe access and operation of unit.
Use Cybex AC power adapters only.
Do not use the optional power adapter in damp or wet locations.
Do not use the unit if: (1) the unit is plugged into an optional power adapter that has a
damaged cord; (2) the unit is not working properly or (3) if the unit has been dropped or
damaged. Seek service from a qualied technician.
EQUIPMENT is not suitable for use in the presence of aerosol (spray), FLAMMABLE
ANAESTHETIC MIXTURE WITH AIR or WITH OXYGEN or NITROUS OXIDE.
Perform regular maintenance checks on unit. Performance level can be maintained only
if examined regularly. Pay close attention to all areas most susceptible to wear, including (but not limited to) cables, pulleys, belts and grips.
Replace any warning labels if damaged, worn or illegible.
Immediately replace worn or damaged components. If unable to immediately replace
worn or damaged components, then remove unit from service until repair is made.
Do not attempt repairs; electrical or mechanical. Seek qualied repair technician when
servicing. Failure to do so could result in serious injury. See Customer Service for contact
information.
Use only Cybex supplied components to maintain/repair unit.
Keep a repair log of all maintenance activities.
Disconnect the optional power adapter before servicing unit.
Do not use attachments unless recommended for the unit by Cybex.
The unit may generate electromagnetic or other forms of interference, or it may
be affected by interference from other equipment nearby. If this is suspected, take precautions by separating the equipment or otherwise shielding it to avoid such interference.
Unit with A/V Options
Devices connected to Cybex equipment must comply with appropriate safety standards.
This includes but not limited to: UL 1647 and EN 60335-1.
There must be adequate mechanical mounting of the device in all combinations
(congurations).
The device must be stable on the unit in all congurations.
Cybex 750C/750R Cycle Owner’s Manual
DESCRIPTION
SEE SHEET 1
ECOREV

Warning and Caution Decals

Warning decals indicate a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Carefully read and understand the following caution and warning labels before using the unit.

Warning and Caution Decals - 750C

Warning Decal
Part Number
DE-21577-4
12
Cybex 750C/750R Cycle Owner’s Manual
WARNUNG
DE-18363-1
DE-18363-2
AVERTISSEMENT
ADVERTENCIA
DE-18363-3
WARNING
Hot Flywheel! Wait until it cools before servicing
Internal View
DE-18363-4
CAUTION
Moving parts.
Keep hands away
when in use.
DE-17219-4 B
Warning Decal Part Number
DE-18363-4
These decals are located inside the cycle, applied to the brake/generator.
Warning Decal Part Number
DE-18362-4
Cybex 750C/750R Cycle Owner’s Manual
REVISIONS
DESCRIPTION
SEE SHEET 1
ECO REV
REVISIONS
DESCRIPTION
SEE SHEET 1
ECOREV
DATE APPROVALBY
WARNING
All maintenance activities shall be performed by qualified
personnel. Failure to do so could result in serious injury.
Warning Decal
Part Number
DE-21735-4
Decal located inside cover.
Warning Decal
Part Number
DE-21749-4 (When Applicable)
14
Cybex 750C/750R Cycle Owner’s Manual
REVISIONS
DESCRIPTION
SEE SHEET 1
ECOREV

Warning and Caution Decals - 750R

Warning Decal
Part Number
DE-21590-4
Cybex 750C/750R Cycle Owner’s Manual
WARNUNG
DE-18363-1
DE-18363-2
AVERTISSEMENT
ADVERTENCIA
DE-18363-3
CAUTION
Moving parts.
Keep hands away
when in use.
DE-17219-4 B
Internal
View
WARNING
Hot Flywheel! Wait until it cools before servicing
DE-18363-4
Warning Decal
Part Number DE-18362-4
This decal is located inside the cycle, applied to the brake/generator.
16
Warning Decal
Part Number DE-18363-4
Cybex 750C/750R Cycle Owner’s Manual
REVISIONS
DESCRIPTION
SEE SHEET 1
ECO REV
REVISIONS
DESCRIPTION
SEE SHEET 1
ECOREV
DATE APPROVALBY
WARNING
All maintenance activities shall be performed by qualified
personnel. Failure to do so could result in serious injury.
Warning Decal
Part Number
DE-21735-4
Decal located inside cover.
Warning Decal
Part Number
DE-21749-4 (When Applicable)
Cybex 750C/750R Cycle Owner’s Manual
J7
J5
J9

CSAFE Ports

The CSAFE standard denes a communication protocol and low-voltage DC power source specic to the Fitness Equipment Industry. These RJ-45 phone jacks are provided for use ONLY within the CSAFE protocol. For more information on CSAFE standard, visit www.tlinxx.com/csafe.
The CSAFE port inside the console, accessible through the back cover, is the only port that carries BOTH the CSAFE communication lines and the 8.0v DC CSAFE power supply. If attaching a CSAFE
compliant device that requires power, this connection must be used. Power is present only when the unit is in use or when a power supply is attached.
Back of
Console
CSAFE Port (J9) Communication
8V DC/100 MA Power Supply
J7 J9
J5
J10
J8
18
Cybex 750C/750R Cycle Owner’s Manual

Assembly and Setup

Warnings and Cautions

Read and understand all warnings and cautions listed in the Safety chapter before assembling unit.
Use extreme caution when assembling the unit. Failure to do so could result in injury or death.
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage
the following procedure must be followed. Always use proper lifting methods when moving heavy items.
Be sure all electrical requirements are met as indicated in the specications in the Safety chapter and
as listed in this chapter.

Choosing and Preparing a Site

Before assembling the unit, verify the chosen site meets the following criteria:
Area is well lit and well ventilated.
Surface is structurally sound and properly leveled. Place a 3/4” (1.9 cm) thick wood base under unit
to protect carpeting.)
Area allows for ample access and passage clearance around unit or for emergency dismount.
Minimum clearance is 19.7 inches (.5 meters) on at least one side of unit and also in front of or
behind unit.
The access and passage clearance dimensions stated are the recommended minimum dimensions as set forth by the manufacturer. The actual area for access and passage is the responsibility of the facility and should take into account any required local codes or regulations.
Area is not in the vicinity of high humidity, such as in the vicinity of a steam room, sauna, indoor
pool or outdoors. This unit is designed to function normally in an environment with a relative humidity range of 30% to 75%.
Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as well as other parts of the unit.
Area maintains an ambient temperature range of 50o F (10o C) to 104o F (40o C) degrees.
19
Cybex 750C/750R Cycle Owner’s Manual

Electrical Power Requirements

The AC power kit is optional.
Verify the unit is connected to an outlet having the same conguration as the plug.
Verify connection is a grounded circuit. Do not use a ground-plug adapter to adapt the 3-prong power cord to a non-grounded electrical outlet.
Use Cybex supplied AC power kit only. Consult an electrician with any questions. Verify power supply is compliant with local building codes.

Unit Assemby

CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage
the following procedure must be followed. Use extreme caution when assembling the unit. Failure to do so could result in injury.
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage
the following procedure must be followed. Always use proper lifting methods when moving heavy items.
Tools Required
3/16” Allen wrench (supplied with 750R only)
Phillips screwdriver
1/2” Socket wrench
9/16” Open end wrench
The words “left” and “right” denote the user’s orientation. Read and understand all instructions thoroughly before assembling the unit.
Verify correct package.
1. Read box label to verify the model number and voltage match what was ordered.
2. Lift and remove cardboard sleeve surrounding unit.
3. Verify paint color matches what was ordered.
4. Verify correct voltage by reading voltage sticker near power outlet. AC power kit is optional.
20
Cybex 750C/750R Cycle Owner’s Manual

750C Assembly

Unpack and verify contents of boxes.
Verify the following items are present. See Figure 1a and 1b. Check off each item as found. See
Customer Service chapter for contact information if any parts are missing.
Item Qty Part Number Description
1 1 Varies Base with covers attached 2 1 Varies Console assembly 3 1 PL-21584 Back Cap 4 1 PL-21581 Front Left Cover 5 1 PL-21582 Front Right Cover 6 1 PL-21583 Top Cap 7 1 AX-21698 Hardware pack
8 1 LT-21613-4 Owner’s Manual 9 1 LT-21615 Assembly poster
10 1 LT-21621 Warranty sheet, Consumer 10 1 LT-21622 Warranty sheet, Commercial
#1
#7
#3
#8
#9 #10
#6
#4
#5
#2
Figure 1a
21
Cybex 750C/750R Cycle Owner’s Manual
Item Qty Part Number Description
11 4 HS-19108 Screw, 5/16-18 x .75”,HXHD,WHIZ-LOCK,GR5 12 6 HS-15706 Screw, 8-16 x .50”, PNHD
Hardware
#11#7
#12
#2
#12
#6
#11
#12
#4
#3
#12
#5
#1
#12
Figure 1b
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage
the following procedure must be followed. Always use proper lifting methods when moving heavy items.
Lift and move the unit
1. Firmly grasp the rear foot.
2. Using proper lifting methods, lift the rear foot so the front transport wheels are able to roll on
oor.
3. Move or roll unit to intended location.
4. Carefully lower the rear foot so unit is in intended location.
22
Cybex 750C/750R Cycle Owner’s Manual
Attach the console assembly to base assembly.
If installing the A/V option, refer to the 750C A/V bracket installation instructions (supplied with the A/V bracket).
1. Locate the console assembly (#2) and four mounting screws 5/16-18 x .75” (#11). See
Figure 2.
#2
Optional
A/V
#11
Cable
Display
Cable
#1
Figure 2
2. Hand thread two mounting screws 5/16-18 x .75” (#11) into the base assembly. See Figure 3.
#1
#2
#11
Figure 3
The console assembly (#2) will need to be supported during steps 3 through 6.
3. Carefully feed the display cable and optional A/V cable through the frame as shown in
Figure 2. Do not pinch or damage the cables during assembly.
4. Place the console assembly (#2) in the correct position on the base assembly (#1) by sliding
into position onto the two mounting screws 5/16-18 x .75” (#11). See Figure 3.
23
Cybex 750C/750R Cycle Owner’s Manual
5. Hand thread the other two screws 5/16-18 x .75” (#11). See Figure 2.
6. Securely fasten the four screws 5/16-18 x 75” (#11) with a 1/2” socket wrench.
7. Plug the display cable into the display cable connector on the lower control board. See
Figure 4. Ensure the cable connector is securely fastened.
Display
Cable
Display
Cable
Connector
Figure 4
Install the front covers.
1. Locate and place the front left cover (#4) on the front of the unit as shown in Figure 5.
2. Using a Phillips screwdriver, secure with one screw 8-16 x .50” (#12).
In addition to the mounting screws, there are four plastic connectors that secure the front covers together. Ensure that all four plastic connectors are inserted properly in each front cover. See
Figure 5.
Plastic
Connectors
#12
#4
#12
#5
Figure 5
3. Locate and place the front right cover (#5) on the front of the unit as shown in Figure 5.
4. Using a Phillips screwdriver, secure with one screw 8-16 x .50” (#12). See Figure 5.
24
Cybex 750C/750R Cycle Owner’s Manual
Install the top cap.
1. Locate and place the top cap (#6) on the top of the unit as shown in Figure 6.
#6
#12
Figure 6
2. Using a Phillips screwdriver, secure the front with two screws 8-16 x .50” (#12). See Figure 6.
Install the back cap.
1. Locate and place the back cap (#3) into the top cap as shown in Figure 7. Ensure the back cap
is fully inserted into the top cap.
#12
#3
Figure 7
25
Cybex 750C/750R Cycle Owner’s Manual
2. Using a Phillips screwdriver, secure with two screws 8-16 x .50 (#12). See Figure 7.
Level the unit.
Conrm that the unit is on a level surface. If not, use a 9/16” open-end wrench to adjust the leveling feet up or down. See Figure 8.
Leveling Feet
Figure 8
Visually inspect the unit.
1. Carefully examine the unit to ensure that the assembly is correct and complete.
2. Proceed to Testing the Operation section.
26
Cybex 750C/750R Cycle Owner’s Manual

750R Assembly

Unpack and verify contents of the unit.
Verify the following items are present. See Figure 1a and 1b. Check off each item as found. See
Customer Service chapter for contact information if any parts are missing.
Item Qty Part Number Description
1 1 Varies Base with covers attached 2 1 Varies Console Assembly 3 1 PL-21517 Front Left Cover
4 1 PL-21518 Front Right Cover
5 1 AX-21670 Seat Back Assembly
6 1 AX-21738 Accessory Tray
7 1 AX-21699 Hardware pack 8 1 LT-21613-4 Owner’s Manual 9 1 LT-21616 Assembly poster 10 1 LT-21621 Warranty sheet, Consumer 10 1 LT-21622 Warranty sheet, Commercial
#1
#8 #9 #10#7
#3
#2
#6
#5
#4
Figure 1a
27
Cybex 750C/750R Cycle Owner’s Manual
Item Qty Part Number Description
11 4 HS-19108 Screw, 5/16-18 x .75”,HXHD,WHIZ-LOCK,GR5
12 4 HW-53018 Washer, 5/16” Split
13 6 HS-15706 Screw, 8-16 x .50”, PNHD, BLK 14 4 HS-41107 Screw, 5/16-18 X 1.50”
15 1 HX-00438 3/16” Allen wrench
#1
#5
#11 #12 #13#7
#14 #15
#2
#13
#3
#6
#12
NA
#11
#4
#14
Figure 1b
#13
28
Cybex 750C/750R Cycle Owner’s Manual
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage
the following procedure must be followed. Always use proper lifting methods when moving heavy items.
Lift and move the unit
1. Firmly grasp the rear foot.
2. Using proper lifting methods, lift the rear foot so the front transport wheels are able to roll on
oor.
3. Move or roll unit to intended location.
Install the seat back assembly.
1. Locate the seat back assembly (#5) four screws 5/16-18 x 1.50” (#14) and four washers 5-16”
(#12).See Figure 2.
#5
#12
#14
Figure 2
2. Place the seat back assembly (#5) in the correct position and hand thread each of the screws
5/16-18 x 1.50” (#14) and four washers 5/16” (#12). See Figure 2.
3. Securely fasten the screws 5/16-18 x 1.50” (#14) with the 3/16” Allen wrench (#15) provided.
29
Cybex 750C/750R Cycle Owner’s Manual

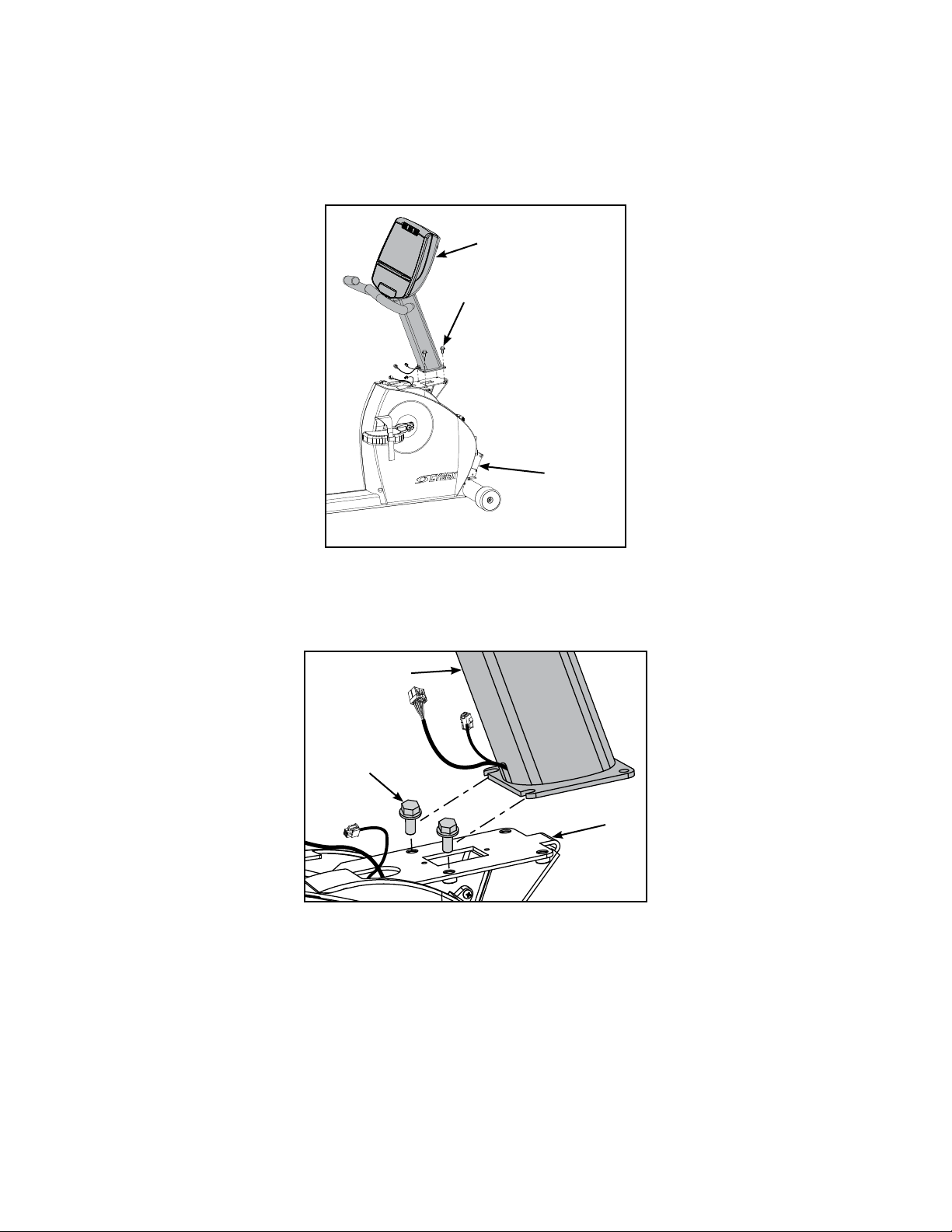

Attach the console assembly to base assembly.
If attaching the A/V option, refer to the 750R A/V bracket installation instructions (supplied with the A/V bracket).
1. Locate the console assembly (#2) and four mounting screws 5/16-18 x .75” (#11). See
Figure 3.
#2
#11
#1
Figure 3
2. Hand thread two mounting screws 5/16-18 x .75” (#11) into the base assembly. See Figure 4.
#2
#11
#1
Figure 4
The console assembly (#2) will need to be supported during steps 3 through 5.
3. Place the console assembly (#2) in the correct position on the base assembly (#1) by sliding
into position onto the two mounting screws 5/16-18 x .75” (#11). See Figure 4.
4. Hand thread the other two screws 5/16-18 x .75” (#11). See Figure 3.
5. Securely fasten the four screws 5/16-18 x .75” (#11) with a 1/2” socket wrench.
30
Cybex 750C/750R Cycle Owner’s Manual
6. Locate the upper display cable connector and plug it into the lower display cable connector.
See Figure 5. Ensure cable connectors click together and are securely fastened.
Upper Display
Connector
Upper
Heart Rate
Lower
Display
Connector
Connector
Lower Heart Rate Connector
Top Hole In Frame
Figure 5
7. Locate the upper heart rate connector and plug it into the lower heart rate connector. See
Figure 5.
8. Tuck each of the cable connectors into the top hole in the frame. See Figure 5. Do not pinch or
damage the cables during assembly.
Install the front covers.
1. Locate and place the front right cover (#4) on the front of the unit as shown in Figure 6.
#13
#4
Figure 6
2. Using a Phillips screwdriver, secure with three screws 8-16 x .50” (#13). See Figure 6.
31
Cybex 750C/750R Cycle Owner’s Manual

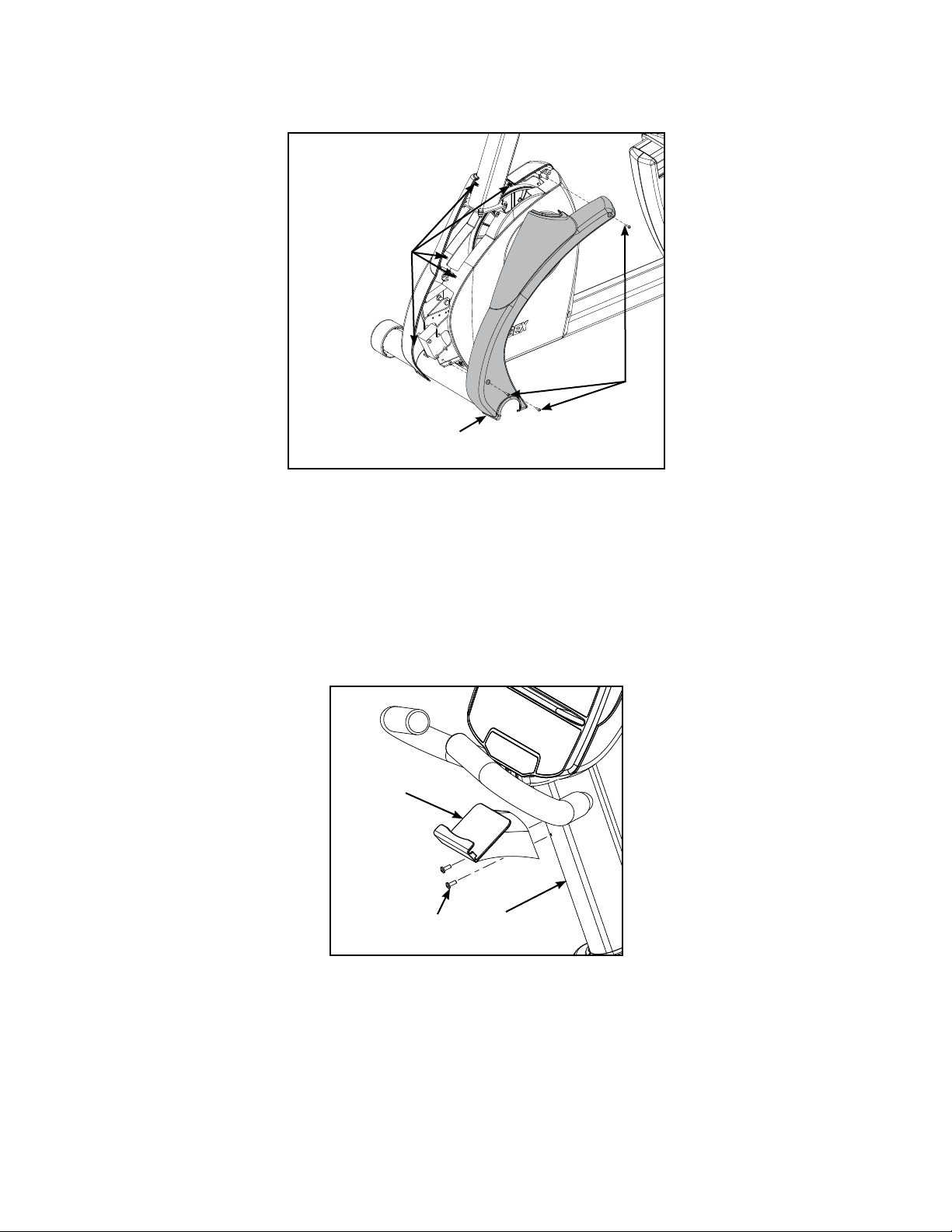

In addition to two mounting screws per front cover, there are ve plastic connectors that secure the
front covers together. Ensure that all four plastic connectors are inserted properly in each front cover.
See Figure 7.
Plastic
Connectors
#13
#3
Figure 7
3. Locate and place the front left cover (#3) on the front of the unit as shown in Figure 7.
4. Using a Phillips screwdriver, secure with three screws 8-16 x .50” (#13). See Figure 7.
Install the accessory tray.
1. Locate the accessory tray (#6). See Figure 8.
#6
Screws (2)
#2
Figure 8
2. Using a Phillips screwdriver, remove the two screws in the console assembly (#2).
3. Using a Phillips screwdriver, secure the accessory tray (#6) to the console assembly (#2) with
the two screws removed in step 6B.
32
Cybex 750C/750R Cycle Owner’s Manual
Level the unit.
Conrm that the unit is on a level surface. If not, use a 9/16” open-end wrench to adjust the leveling feet up or down. See Figure 9.
Leveling
Feet
Figure 9
Visually inspect the unit.
1. Carefully examine the unit to ensure that the assembly is correct and complete.
2. Proceed to Testing the Operation section.
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage the
following procedure must be followed. Be sure that all electrical requirements
are met as indicated in the specications at the front of the manual and at the
beginning of this chapter prior to proceeding.

Testing the Operation

Use the following instructions to test the full resistance of the unit.
1. Plug the optional power cord into a power outlet from a grounded circuit as described under Electrical Requirements in this chapter. Coil up the remainder of the power cord and place it out of the way.
Cybex recommends that the unit be unplugged when not in use.
2. Observe that the control panel will illuminate and be in the Dormant Mode when using the optional power adapter.
If not using the optional power adapter, the display will not illuminate until step 4.
3. Hold the handrails to steady self while stepping into the pedals.
4. Begin pedaling.
5. Press the Quick Start key. The unit begins with a long tone.
33
Cybex 750C/750R Cycle Owner’s Manual
6. Run the unit through its full resistance range. First press the Level + key until the unit reaches
its highest load (the display will show “21”). Then press the Level - key until the unit reaches its lowest load; the display will show “1”.
7. Press Pause/End to end the workout review and return the display to Dormant Mode.
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage
the following procedure must be followed. Wait until all moving parts come to a complete stop before dismounting.
8. Wait until pedals come to a complete stop before dismounting the unit. Hold the handrails to steady self while stepping off the unit.

Setup

Setup is a separate control screen that allows the user to dene multiple aspects of the unit’s
functions.
Set up can be accessed from Dormant mode, Count Down, Lock and the CSAFE ID Entry screens.
1. To access setup screen, enter key sequence “Clear-7-5-0” and press ENTER.
2. Press ENTER to enter setup feature, allow changes and return to main menu.
3. Pause/End can also be used to reset (TV off, Load to 0, unlatch battery) and exit to Dormant
mode.
4. Press the LEVEL Control keys to scroll forward or backward in the setup menu.
5. Press CLEAR to reset back to default or previously stored value.
All setup items which have a default factory setting can be reset back to their default settings by holding the PAUSE/END key for 3 seconds.
MENU SET UP Options 1-Language GERMAN FRENCH
SPANISH ENGLISH JAPANESE SWEDISH RUSSIAN DANISH
2-Units ENGLISH (LB/MPH)
METRIC (KG/KPH)
3-Clock Style 12 HR US DATE 24 HR EURO DATE
12 HR EURO DATE 24 HR US DATE
4-Current Time 12 HR US DATE ‘HH:MM X MM/DD/YYYY’
24 HR EURO DATE ‘HH:MM DD-MM-YYYY’ 12 HR EURO DATE ‘HH:MM X DD-MM-YYYY’ 24 HR US DATE ‘HH:MM MM/DD/YYYY’
(Use keypad to enter values or toggle the Load Control key)
34
Cybex 750C/750R Cycle Owner’s Manual
5-Default Time Initial displayed choice
for programs requiring a time setting.
DEFLT TIME 10 DEFLT TIME 20 DEFLT TIME 30 (factory default) DEFLT TIME 60 DEFLT TIME 90
Choices are limited to range of MAX time.
6- Review Time Summary of workout
session totals. Can be seen as 1, 2 or 3
SHORT – 1 LONG – 1 SHORT – 2 LONG – 2 SHORT – 3 LONG – 3
cycles.
7-Max Time Limit user’s workout
time
MAX TIME = OFF MAX TIME = 60 (default) MAX TIME = 20 MAX TIME = 90 MAX TIME = 30 MAX TIME = 120 MAX TIME = 40 MAX TIME = ZONED*
MAX TIME = 50
8-Pause Time Length of time unit
paused during a workout and still re­start where user left off.
PAUSE = OFF (factory setting) PAUSE = 01:00 PAUSE = 05:00
PAUSE = 10:00
9-Default Level Mode Levels DEFAULT LVL 1 – 21 (LVL 1 is default) 10-Target RPM For Advanced
TARGET RPM 10 - 100 (RPM 60 is default.)
Programs
11-Sound TONE = ON (default)
TONE = OFF
12-Dormant Style Denes what is
displayed in Dormant Mode
0 – DEFAULT (factory default) 1 – TEXT MSG 2 – OUT OF ORDER
3 – CLOCK
4 – PROFILES
13-Dormant Text ENTER allows editing
and viewing.
DORMANT MSG 1 DORMANT MSG 2 DORMANT MSG BOTH
14- Active Mode
Text on/off
15-Lock Combination
ENTER allows editing and viewing.
Requires correct entry of combination. Allows lock combination to be enabled and edited.
WORKOUT MSG ON (or OFF)
ENTER OLD CODE (Key in 4-digit code) CODE _ _ _ _ ON (or OFF) ENTER will allow code to be seen. LOAD Control key toggles the lock on or off. Use keypad to enter a new code. ENTER accepts
Master factory code is
4300. Enter on rst
set up.
new code. Temporarily lock unit by pressing LOCK key (#5 LOCK) and enter 4-digit code. Unit will stay locked until UNLOCKED is selected.
16-Custom Programs SAVE
Gives user capability to create and store
SAVE PROG ON (or OFF). (factory default is OFF)
custom programs by enabling of disabling SAVE button during Review Mode.
35
Cybex 750C/750R Cycle Owner’s Manual
*MAX TIME ZONED: If choice is ZONED, choose the actual time for each zone to start and maximum
time setting. Current Time must be set for zones to work correctly.
HH:MM X is the actual time the zone starts, and YYY is the maximum time allowed during time zone.
Example:
Format Factory Default ZONE1 HH:MM X YYY ZONE1 05:01A 60 ZONE2 HH:MM X YYY ZONE2 09:01A OFF ZONE3 HH:MM X YYY ZONE3 04:01P 60 ZONE4 HH:MM X YYY ZONE4 09:00A OFF
36
Cybex 750C/750R Cycle Owner’s Manual

Operation

Intended Use

The intended use of this exercise equipment is to aid or improve general physical tness and
exercise.

Terms Used

Active Mode – Any time unit is controlling resistance and accumulating workout data. Active Mode begins after hitting QUICK START during the initial count-down screen, after completing the setup for a program or by default if the initial count-down screen times out and enters Quick Start Manual mode.
Auto-Scan – Display automatically cycles through workout data. Cool Down – A reduction of work load for a short duration allows user to gently reduce heart rate.
Cool Down occurs two minutes prior to completion of the program-controlled workout sessions. Dormant Mode – Occurs only when a unit is plugged in using the optional AC adapter and is not in
use. Isokinetic Exercise – Accommodating resistance, where unit provides a corresponding amount
of resistance on the user to keep them at a xed pedal speed. Such exercise is used to test and improve muscular strength and endurance, especially after injury.
Manual Mode – The unit defaults to this mode if not in a program. Manual Mode allows user to
adjust the gear (1-21) and pedal at any speed, simulating a road bike. Time will count up in Quick
Start, Manual or Count Down to the chosen session time if user enters a TIME or selects the MANUAL button and completes setup.
Pause Mode – Occurs only if the Pause feature is enabled and user selects the PAUSE/END key
from Active Mode. Program Setup Mode – Begins after pressing PROGRAM, ADVANCED or MANUAL key. Upon
entering a program, user is prompted to adjust the appropriate settings.
Quick Start – By default, the unit will end up in Quick Start Manual Mode if the user begins pedalling and allows the 5 second count-down to end. Also choose the QUICK START button to enter into Quick Start Manual Mode, where the user controls the gear selection and time is counting up.
Workout Review – Review of the accumulated workout data and/or the results of the Fitness Test will
happen at the end of each workout session.
37
Cybex 750C/750R Cycle Owner’s Manual
Read and understand all warnings and cautions in the Safety chapter and all operation instructions in this chapter before operating unit.

Mount and Dismount

CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage the
following procedure must be followed. Wait until all moving parts come to a complete stop before mounting or dismounting.
To mount unit safely:
1. Verify unit is in Dormant Mode and pedals are completely stopped.
2. Grasp handrail and step carefully onto pedals.
To dismount unit safely:
1. Wait until pedals come to a complete stop.
2. Grasp handrails for support and carefully step off unit.

Emergency Dismount

If experiencing pain, feeling faint or needing to stop unit in an emergency situation:
1. Grasp handrails for support.
2. Stop pedalling.
3. Continue holding the handrails while carefully stepping off the unit.
38
Cybex 750C/750R Cycle Owner’s Manual
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
. .
.
. ..
.
.
. . .
.
.
. . .
.
Please see Page 1 for revision history

Console Keys

Control keys on the display are usable during operation and may be pressed at any time to make
adjustments in level, data readouts and fan speed. See Figure 1.
Bar Graph
Heart Rate
Indicator
T ext Area
Data
Readouts
Figure 1
Time
Programs
Speed, Gear or
Level
Key Pad
39
Cybex 750C/750R Cycle Owner’s Manual
Console Keys Description PROGRAMS Program Setup Mode Choose from nine programs or nine custom
programs
MANUAL Manual Mode Go directly to Manual Mode set up ADVANCED Advanced Programs Access advanced program options
SHIFT/SCAN Auto-scan Press to disable auto-scan and hold whatever is
being displayed. If auto-scan is on, press to toggle the data display. If auto-scan is off, hold for three seconds to reactivate auto-scan
COOL DOWN Cool Down Mode Initiates the two minute cool-down sequence. PAUSE/END Stop Exit Active Mode and go to Pause Mode if enabled.
If Pause Mode is not enabled, work out ends and Review Mode is entered
QUICK START Quick Start Manual
Mode
LEVEL + - Adjust level Toggle (+ - ) for adjustment. Increase or decrease
Keypad (Program Setup) TIME Workout time Adjust workout time. LEVEL Workout level Adjust workout level (1-21) or power WEIGHT User’s Weight When pressed, number keypad is active to allow
CLEAR Multiple uses Reset an entry, back out of a menu, exit the TV’s
SAVE Save program Save recorded custom workout TV TV Channel Allows keying in TV channels CLOCK Shows real time Activate or deactivate workout alarm clock FAN HI High setting Set fan to high setting FAN LO Low setting Set fan to low setting FAN OFF Turn fan off Default ENTER Accept any setting Moves setup process forward
Go directly to Quick Start Manual Mode
gears (1-21) or watts (20-500)
keying in body weight
EPG mode or reset workout data if in Active Mode
If any key is pressed while unit is in Dormant Mode, “START Pedalling’” displays in text area for ve
seconds before resetting to Dormant Mode.
40
Cybex 750C/750R Cycle Owner’s Manual
ECOREV
. .
.
.
.
.
.
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
. .
.
. ..
.
.
. . .
.
.
. . .
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
. .
.
. ..
.
.
. . .
.
.
. . .
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
. .
.
. ..
.
.
. . .
.
.
. . .
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
. .
.
. ..
.
.
. . .
.
.
. . .
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
. .
.
.
.
.
.
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
. .
.
.
.
.
.
.
Please see Page 1 for revision history
REVISIONS
DESCRIPTION
ECOREV
DATE APPROVALBY
. .
.
. ..
.
.
. . .
.
.
. . .
.
Please see Page 1 for revision history

Audio Visual (AV) Key Pad – Optional

Figure 2
Console Key Description EPG
If an Electronic Program Guide (EPG) is available, this will be displayed on the TV. Use the CHANNEL Λ V and VOLUME
< > keys to navigate in the EPG, ENTER to accept any
CHANNEL
VOLUME
VIDEO SOURCE
VIDEO PORT
selections, and CLEAR/EXIT to exit the EPG mode. Toggle down or up to change channel (beeping will occur).
Press appropriate keys to increase or decrease volume. There is no display interaction.
Press to toggle between video source A for cable channels and video source B for external inputs, such as iPod® video.
Video capable port allows personal entertainment device or other composite video input.
USB PORT
HEAD PHONE PORT
1 – Video 3 – Left 2 – Ground 4 – Right
Universal Serial Bus (USB) allows different devices to be connected using a single standardized interface port for charging only.
Head phone port allows personal headphones.
41
Cybex 750C/750R Cycle Owner’s Manual

Program Selection

There are nine different pre-programmed options from which to choose.
Program Levels Settings P1 Weight Loss 21 Select time, level and weight. P2 Rolling Hills 21 Select time, level and weight. P3 Hills 21 Select time, level and weight. P4 Pike’s Peak 21 Select time, level and weight.
P5 Ramps 21 Select time, level and weight. P6 Interval 21 Select time, level and weight. P7 Strength 21 Select time, level and weight. P8 Cardio 21 Select time, level and weight. P9 Heart rate Control (HRC) NA Select time, age, target heart rate and weight.
Navigation
The keypad is active during the program setup time to key in time, level and weight values. The
LEVEL + - keys are also active to adjust the displayed program value (up or down). Hold down key to
accelerate rate of increments.
Press the ENTER key after each step to accept values entered and to move forward in the setup process.
The QUICK START key may be pressed any time during this process to accept all program defaults. If no activity is performed after a program is selected, the unit will default to the settings of the current program selected.
Press the CLEAR key at anytime to go back to the start of the program list.

Programs P1 – P9 Setup

1. Press PROGRAMS key to cycle through program choices. Each press of the key will choose
the next program in the list. The number keypad is active to accept a single-digit (1-9) for direct
program access.
2. Select desired workout time when Text Area prompts “SET PROGRAM TIME”.
3. Select desired workout level when Text Area prompts “SELECT LEVEL 1-21”
4. For P9 - HRC Program only:
Using the number keypad, key in user’s accurate age when Text Area prompts ‘ENTER YOUR AGE
TO CALCULATE TARGET HEART RATE”. Valid age range values are 13 - 113.
Adjust target heart rate when Text Area scrolls “75% = XXX BPM” and “TARGET BPM AT 75% = XXX
BPM”.
Target Heart rate is calculated at 75% of Max, where Max Heart rate is calculated at 220 minus the
user’s age. Adjust the Target HR up or down from the default 75% value presented or accept as is.
42
Cybex 750C/750R Cycle Owner’s Manual
5. Using the number keypad, key in user’s accurate weight when Text Area prompts “ENTER
YOUR WEIGHT”. Valid weight range is 50 - 400 lbs (23-181 kgs).

Manual and Quick Start Programs Setup

The Manual and Quick Start programs have no associated prole or level. Program and Level
selection are not available. Select MANUAL key and enter desired workout time and user’s accurate weight. Select QUICK START key to directly enter Active Mode. The Quick Start version of Manual bypasses
the time entry, allowing the workout time to accumulate up to the Max Time allowed.

Advanced Programs A1 – A3 Setup

Press ADVANCED key to cycle through program choices. Each press of the key will choose the next program in the list.
Program Settings A1 Constant Power Select time, power and weight. A2 Isokinetic Select time, target RPM, level for scale and
weight.
A3 Fitness Test Select age, weight and gender.
A1 – Constant Power Setup
1. Press ADVANCED programs key.
2. Scroll to (or key in) #1.
3. Enter desired workout time.
4. Select power level when Text Area scrolls “SELECT POWER 20 - 500 WATTS”. Valid range of
Watts is 20 - 500 in increments of ve.
5. Enter user’s accurate weight.
A2 – Isokinetic Program Setup
1. Press ADVANCED programs key.
2. Scroll to (or key in) #2.
3. Select time.
4. Use LEVEL control keys + - to adjust Revolutions per Minute (RPM). Choices are 15 - 150 in
increments of ve.
5. Adjust level for scale when “LEVEL XX” and “DISPLAY SCALE YY - ZZZ” appear in the Text
Area.
6. Enter user’s accurate weight.
43
Cybex 750C/750R Cycle Owner’s Manual
A3 – Fitness Test Setup
1. Press ADVANCED programs key.
2. Scroll to (or key in) #3.
3. Using the number keypad, key in user’s accurate age when Text Area prompts “ENTER YOUR
AGE TO CALCULATE TARGET HEART RATE”. Valid age range is 13 – 113.
4. Enter user’s accurate weight.
5. When the Text Area prompts “CHOOSE MALE/FEMALE”, use the LEVEL + - keys to choose
male or female. Default is set to male.
Before the Fitness Test can run, conrmation and display of a valid heart rate is required.
If no valid heart rate signal is present, the Text Area will scroll “ACQUIRING VALID HEART RATE SIGNAL”. If no valid heart rate is acquired, a beep will sound and the unit will reset to Count Down.
If a valid heart rate is present, the unit will move forward to start the Fitness Test. If user’s heart rate is above 100 BPM, the unit will display the message “THE FITNESS TEST IS ONLY VALID IF STARTING FROM A STATE OF REST”.
44
Cybex 750C/750R Cycle Owner’s Manual
Fitness Test Review
Once the Fitness Test completes, it calculates and displays a tness review outcome based on performance during the tness testing period.
The bar graph displays “TEST” while the text area scrolls “FITNESS TEST PREDICTED VO2 MAX = XXX”. See Figure 3.
Alternating with the above message is the standard review for Distance, Calories and acquired BPM.
Ratings for Men
Age 20-29 30-39 40-49 50-59 60-69
Elite 55+ 52+ 50+ 48+ 45+ Excellent 50-54 47-51 45-49 43-47 40-44 Good 45-49 42-46 40-44 38-42 35-39 Above Average 40-44 37-41 35-39 33-37 30-34 Average 36-39 33-36 31-34 29-32 26-29 Below Average 31-35 28-32 26-30 24-28 24-25 Poor 26-30 23-27 20-25 18-23 16-20 Very Poor <26 <23 <20 <18 <16
Ratings for Women
Age 20-29 30-39 40-49 50-59 60-69
Elite 49+ 46+ 44+ 42+ 40+ Excellent 44-48 41-45 39-43 37-41 35-39 Good 39-43 36-40 34-38 32-36 30-34 Above Average 34-38 31-35 29-33 27-31 25-29 Average 30-33 27-30 25-28 23-26 21-24 Below Average 25-29 22-26 20-24 18-22 16-20 Poor 20-24 17-21 15-19 13-17 11-15 Very Poor <20 <17 <15 <13 <11
Figure 3
45
Cybex 750C/750R Cycle Owner’s Manual

Custom Programs

A maximum of nine custom programs can be created from any workout session. The unit automatically records resistance and time segment changes.
Custom programs can only be created, stored and played back as Constant Power (like the Factory
Programs or Advanced Program A1). In creating a custom program from Manual Mode (which simulates a bike in using gears 1-21) the actual power used during the transition of each minute of the
workout session is saved. For best results, use Advanced Program A1 to create completely custom
programs or modify a factory program during the workout and save the result during Review Mode.
To save custom program
1. During Review Mode, press the SAVE key within the rst ve seconds. The text area will
display “SAVE AS PROG 0X”. X represents the next available slot (01-09).
2. Using the keypad, enter a number (01 to 09). The +/- keys are available to scroll through the
nine custom program slots.
3. Press ENTER key to accept and store program.
If nine custom programs already exist, no slots are available; the test area will display “REPLACE PROG 0X name.” The 0X represents the rst custom program in the list. Use the keypad or LEVEL keys as described above to select program number.
To play back custom program
Press the Programs key and use the key pad to key in 01 – 09, then press ENTER key. Note that these programs do not prompt the entry of level or time, as these are aspects that were saved
as part of the program itself.
To delete a custom program
Custom programs require a minimum of one minute, anything less than one minute effectively erases the program location.
1. Start a workout session (such as Quick Start) and end before one minute has elapsed.
2. During Review Mode, press SAVE and choose the program slot to be deleted.
3. Press ENTER.
46
Cybex 750C/750R Cycle Owner’s Manual

Data Readouts

As the user exercises, the unit keeps track of and displays the following data:
Calories Per Hour – Calculation of present workloads energy exertion in Calories per Hour. Distance – The total accumulated distance, in miles or kilometers, during workout. Depending on the
defaults chosen this measurement will show in English or Metric.
Rotation Per Minute (RPM) – User’s crank rotations per minute. Calories – The total accumulated calories burned during workout. WATTS – Present workload energy exertion. Metabolic Equivalent (METs) – Displayed only if no BPM signal is present. A MET is the metabolic
equivalent to the energy expended by the human body at rest. Anything over one MET is considered exertion. METs are calculated by the display and updated every 1 – 1.2 seconds.
METs = Cal/Hr X 2.2 / User Weight
Beats per Minute (BPM) – User’s current heart rate. Heart rate will appear when a signal is
introduced. Use either the hand grips for Contact Heart Rate or a Polar® compatible heart rate transmitter.

Heart Rate Indicator

Contact Heart Rate – Lightly hold the hand grips on the handlebar ensuring that hands are clean and contact both the front and back sensors of each grip. A heart rate will display in typically 30 seconds or less.
Factors that interfere with heart rate signal:
hand lotions
oils or body powder
excessive dirt
excessive movement
body composition
hydration
too loose grip
too tight grip
resting or leaning on the grips
47
Cybex 750C/750R Cycle Owner’s Manual
Wireless Heart Rate Display – To use this feature, a Polar® compatible heart rate transmitter belt
(not included) must be worn. Once the actual heart rate is determined, the LED to the right of the Text Area is blinking to the
displayed BPM and the Heart LED lights up. The color of the light represents a scale of low to high target heart rate.
White Valid BPM not yet available Blue 0 – 69 BPM Green 70 – 93 BPM
Yellow 94 – 119 BPM (Fat Burn Zone)
Blood Orange 120 – 169 (Cardio Zone) Magenta 170 and higher

Fan Control

The fan defaults at the “OFF” setting. The user can change to “LO” or “HI” setting by pressing the
appropriate control key. User must be pedalling for fan to operate.

Alarm Set

To set up an alarm to sound during workout:
1. Press key #8 on the keypad, also labeled with an alarm clock icon. Text Area will display
“ALARM AT HH:MM Y”. Initially, this display reects actual time.
2. Use keypad to enter a direct time. Press the ENTER key after each entry to accept and move forward.
HH (Hour) MM (Minutes) Y=A (AM) or P (PM)
The LEVEL key is also active to adjust the display value (up or down). Hold down key to accelerate rate of increment.
Once alarm time occurs, the display will show “ALARM” and start beeping. Press the CLEAR, ENTER or ALARM key to reset.

Battery Sentry

Battery Sentry uses display feedback (speed signal, key presses and heart rate) to determine user presence. If a user is not detected within 20 seconds, the display beeps and inquires
“ARE YOU THERE?”.
Resume pedalling, grab the contact heart rate grips or press any key within a pre-selected time to resume workout.
48
Cybex 750C/750R Cycle Owner’s Manual

Preventive Maintenance

Warnings

Read all warnings in this chapter and in the Safety chapter. Observe the following warnings and cautions:
All maintenance activities shall be performed by qualied personnel. Failure to do so could result in
serious injury.
To prevent electrical shock, verify unit is unplugged from the electrical outlet before performing any
cleaning or maintenance procedures. A charge can remain after unplugging the power cord.
Performance level of equipment can be maintained only if it is examined regularly for damage and
wear. Pay special attention to components most susceptible to wear.
Replace worn or damaged components immediately and/or keep the equipment out of use until
repair is completed.
Cybex is not responsible for performing regular inspection and maintenance actions of this unit. Instruct all personnel in equipment and inspection and maintenance. Require personnel to report and record all accidents.

Cleaning Unit

1. Spray a clean cloth with a mild cleaning agent, such as a water and dish soap solution.
2. Wipe unit.
Do not spray cleaning solution directly on unit. Direct spraying could cause damage to electronics and may void warranty.
After Each Use:
Wipe up any liquid spills immediately.
Wipe up any remaining perspiration from handles and painted surfaces.
Be careful not to spill or get excessive moisture on the console and display overlays, as this might
create an electrical hazard or cause failure of the electronics.
Clean heart rate grips using a cloth dampened with a cleaning solution containing
alcohol.
The heart rate grips are the only part of the unit where a cleaning solution containing alcohol should be used.
As Needed:
Vacuum any dust or dirt that might accumulate under or around unit.
Cybex 750C/750R Cycle Owner’s Manual

Statistics

The Statistics screen allows tracking of equipment usage.
Open Statistics screen from Count Down, Lock, CSAFE ID Entry or Dormant Modes.
1. Press Clear
2. Key 9-9-9
3. Press ENTER
Data features can also be accessed from the CSAFE port.
Use the ENTER key to advance to next screen. Use the Load Control Keys to scroll forward or backward in the menu.
Statistics Menu Display
ST1 – REVOLUTIONS
ST2 – HOURS HOURS 0 – 99999 = total user session time in hours ST3 – STARTS STARTS XXXXXX 0 – 999999 = number of user workout sessions
ST4 – BATTERY BATTERY
ST5 – ERRORS [Log #] [ERR #]
ST6 – PROGRAM
USAGE
REVS YYYYYYY 0.0 – 999,999.9 = total revolutions (one revolution is
1,000 ywheel revolutions or 1K)
0 – 999,999 = number of whole minutes the battery has
XXXXXX
Tracks error codes in a rolling log of 20 entries, each
HH:MM M-DD-YY
PR Y XXXXXX Y= program number
stamped with time and date
XXXXX = number of times program was chosen, set
been used
completed and unit entered active mode
Clear data by holding Pause/End key for three seconds, listen for double beep, and press CLEAR.

Error Codes

When an error has occurred, “ERROR #” will appear on the text display alternating with the message
“OUT OF ORDER.”
Log number will show in the Incline Display as L-01 through L-20.
1. Press CLEAR button and hold to clear all errors in log. The display reads “NO ERRORS” when log is empty.
2. Press enter to exit out.
See contact information in the Customer Service chapter for all maintenance and service activities.
50
Cybex 750C/750R Cycle Owner’s Manual
ERROR NUMBER 27 — LOW BATTERY Cause: Battery voltage is reported to be below the limit of 10.7v DC and the controller has issued the
low battery warning.
Reset/Remedy: Further use will re-charge battery and the error condition will be cleared
automatically.

Rechargeable Battery

The unit is designed with a 12 volt Lead-Acid rechargeable battery. The battery will recharge during regular operation of unit or when the optional power adapter is plugged in.
The display will indicate dashes in the incline display if the battery fails to provide enough energy. The unit will still function normally other than the disabling of the incline feature.
If the battery is completely discharged, the workout review will also be truncated if the user isn’t
pedaling during the time period. See Customer Service Chapter for contact information to replace the battery or purchase the optional AC adapter kit.
CAUTION: Serious injury or damage to machine can occur. To avoid injury or damage the
following procedure must be followed. Battery replacement shall be performed
by a qualied service technician.
Remove battery and dispose of safely before disposing of unit.

Environment

Humidity and Static Electricity
The unit is designed to function normally in an environment with a relative humidity range of 30% to
75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%.
Climatic dry air may cause static electricity. During workout, user may experience a shock due to build up of static electricity on the body and the discharge path of the unit. If static electricity is
experienced, increase humidity to a comfortable level through the use of a humidier.
Do not install, use or store the unit in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as well as other parts of the unit.
Temperature
The unit is designed to function normally in an environment with an ambient temperature range of
50° F (10° C) to 104° F (40° C). The unit can be shipped and stored in an environment with an ambient temperature range of 32° F (0° C) to 140° F (60° C).
Cybex 750C/750R Cycle Owner’s Manual
This page intentionally left blank
52
Cybex 750C/750R Cycle Owner’s Manual

Customer Service

Contacting Service

Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard
Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax 508-533-5183.

Serial Number

The serial number is located on the unit as shown in Figure 1.
Record serial number below for reference when calling Cybex Customer Service. Serial Number _____________________
Serial Number location
Figure 1
Cybex 750C/750R Cycle Owner’s Manual

Servicing of Double-Insulated Products

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product.
Servicing a double-insulated product requires extreme care and knowledge of the system, and should
be done only by qualied service personnel. Replacement parts for a double-insulated product must
be identical to the parts they replace. A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED.” The symbol (square within a square) may also be marked on the product.
Symbol Description
Double-Insulated symbol

Return Material Authorization (RMA)

The Return Material Authorization (RMA) system outlines the procedures to follow when returning material for replacement, repair, or credit. The system assures that returned materials are properly handled and analyzed. Perform the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will
request an RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
1. Call Customer Service for the return of any item that is defective.
2. Provide the technician with a detailed description of the problem you are having or the defect
in the item you wish to return.
3. Provide the model and serial numbers of your unit. See Serial Numbers and Voltage.
4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex
for evaluation and repair or replacement. The technician will assign you an RMA number and will send you an ARS label. The ARS label and RMA number must be clearly displayed on the outside of the package that contains the item(s) to be returned. Include a description of the problem, the serial number of the unit and the name and address of the owner in the package along with the part(s).
5. Forward the package through UPS to Cybex. Attn: Repair Department RMA # _______________ Cybex International, Inc. 10 Trotter Drive Medway, MA 02053 USA
Merchandise returned without an RMA number on the outside of the package or shipments sent C.O.D. will not be accepted by the Cybex receiving department.
54
Cybex 750C/750R Cycle Owner’s Manual

Damaged Parts

Materials damaged in shipment should not be returned for credit. Shipping damages are the
responsibility of the carrier (UPS, Federal Express, trucking companies, etc.).
Apparent Damage — Upon receipt of your shipment, check all boxes carefully. Any damage seen
with a visual check must be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carrier’s refusal to honor your damage claim. The carrier will provide you with the required forms for ling such claims.
Concealed Damage — Damage not seen with a visual check upon receipt of a shipment but noticed later must be reported to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to perform an inspection of the materials must be made within ten days of the date of delivery. Keep all shipping containers and packing materials, they will be needed as part of the inspection process. The carrier will provide you with an inspection report
and the necessary forms for ling a concealed damage claim. Concealed damage is the carrier’s
responsibility.

Ordering Parts

Online www.cybexintl.com Fax 508-533-5183 Email parts@cybexintl.com Phone 888-462-9239 (for customers living within the USA)
508-533-4300 (for customers outside the USA)
CAUTION
Use only Cybex replacement parts when servicing. Failure to do so could result in personal injury.
All inspections and repairs must be performed by trained service personnel only. Cybex will void warranty if non-Cybex replacement parts are used.
Cybex 750C/750R Cycle Owner’s Manual
This page intentionally left blank
56
Cybex 750C/750R Treadmill Owner’s Manual
Appendix A - Technical Specications

Specifications

Length: 750C Cycle, 48” (123 cm). 750R Cycle, 65” (165 cm). Width: 750C Cycle, 23” (58 cm). 750R Cycle, 24” (62 cm). Height: 750C Cycle, 60” (154 cm). 750R Cycle, 49” (125 cm).
Weight of Product: 750C Cycle, 143 lbs. (65 kg). 750R Cycle, 166 lbs. (75 kg).
Shipping Weight: 750C Cycle, 173 lbs. (78 kg). 750R Cycle, 196 lbs. (89 kg).
Resistance Levels: 21 (User selected in Manual or Bike Mode).
Programs: Quick Start, Manual, three Fitness (Constant Power) programs, three Bike
(Bike Mode) programs, three Speed Controlled (Isokinetic) programs, Heart
Rate Control and Fitness Test. Download custom programs using PDA or CSAFE ports.
Console Features: Upper console: Dot Matrix of program, large 1” LED display of distance,
calories, calories per hour, METS, Watts, rotations per minute and heart rate. Lower Console: LED display of time, speed and level.
Heart Rate Features: Built-in wireless heart rate receiver (transmitter not included) and contact
heart rate monitoring.
Frame Colors: Standard: White texture, black texture, metaltone gold, black chrome,
platinum sparkle. Custom: Unlimited colors available.
Resistance Range: Minimum - 15 Watts; Maximum - 900 Watts. Maximum User Weight: 400 lbs. (181 kg).
Power: Self-powered or optional AC adapter for full time display.
Connectivity: CSAFE, Cybex Programming Advantage with “One Shot” custom
programming
Power Supply: 100-240 V, 50/60 Hz, 1.0 A, AC (9V DC, 1.7A). NEMA 5-15 plug
(TR-18231) or IEC-320 inlet (TR-18230).
Other: Water bottle holder and utility tray. Options: Channel and Volume controls on lower switch membrane for embedded A/V
receiver. A/V bracket and power inlet for A/V option.
23”
(58 cm)
750C Cycle
48” (123 cm)
750R Cycle
24”
(62 cm)
65” (165 cm)
57
Cybex 750C/750R Treadmill Owner’s Manual
This page intentionally left blank
58
Loading...
