Introduction

Congratulations! You've chosen the efficient GFC 1716Acwhich will save you MONEY, TIME,
SPACE, EQUIPMENT and POWER.

You can now control multiple PCs from one keyboard, mouse and monitor. GFC 1716A is has
features such as 19” Rack Mount Size, 1 U Rack Mount Height, On Screen Display Menu,
Password security, P C server name search, Hot key Control, Front Panel Push Button and
Auto Scan Control. It has complete keyboard and mouse emulation for simultaneous PCs
boot-up process.

Features

z 16 ports--GFC 1716A fits in 19” racks

z Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or the

other fully compatible MS mouse.

z Provide Console PS/2 to PC serial mouse conversion

z Support DOS, Win3.X, Win95/98/98SE/2000/ME/XP, WinNT, Netware, SCO Unix, HP Unix,

Linux

z Hot Plug - Add PCs or Remove Connected PCs for Maintenance without Powering Down

the GFC 1716A or PCs.

z Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz

z No Software Required - easy PC selection via On Screen Display Manual, Push Buttons,

Hot Keys

z Support eight-character password protection and search PC server name

z Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds

z Keyboard status restored when switching PCs

z LED Display for easy status monitoring

z Buzzer sound for switching port confirmation.

z Standard Keyboard, VGA and Mouse cable.

z No DIP switch setting needed/auto-detect

CyberResearch, Inc. 1

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Specifications

Case/Mounting Frame

Keyboard Filter with Display Combo Yes
Mounting Configuration Rack-mount (EIA 19")
Height, Rack Units 1U (1.75")
Mounting Flanges Removable rack-mounting flanges included
Chassis Material Heavy-duty steel chassis
Front Panel Material Steel
Primary Case Color Black
Front Panel Color Black

Display

Display Type LCD flat panel
Video Input Types Standard analog VGA (15-pin)
Screen Size (viewable area, diagonal) 17.0"
Display Filter Screen Size 15" to 18"
Display Brightness 250 nits (High-Bright)
Display Filter Brightness High-bright (250 to 340 nits)
Resolution, max. 1280 x 1024 pixels
Maximum Number of Colors 16 million colors
Contrast Ratio 350:1
Scanning

Frequency

Scanning Frequency, Vertical

Keyboard

Keyboard Form Factor Compact keyboard

Case/Mounting
Frame

Keys

Construction - Chassis Material Steel
Protection Rating NEMA 1

Built-In Keyboard Wrist Rest

Total Number of Keys 105 keys
Number of Data Entry Keys 93 keys
Number of Function Keys 12 keys
Keycap Color Grey
Key Feedback Short-travel (touch-typing compatible)
Construction - Keycap Material Plastic

Pointing Device

Pointing Device Type Touchpad
Interface Signals Supported PS/2 mouse
Tracking Technology Touchpad (touch surface to move pointer)
Pointing Device Buttons 2 buttons
Button Material Plastic

Pointing Device OS Support

56Hz....75Hz

Front of keyboard provides a wrist rest on either
side of the touchpad.

Windows XP
Windows NT
Windows 2000
Windows Me
Windows 98
Windows 95
Windows 3.x
MS-DOS
Linux
Windows CE
Windows 98SE

2 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

KVM Switches

KVM User x System Configuration 1 x 16
Number of PCs per KVM Switch 16 PCs

Hot pluggable KVM switch allows you to add or
remove PC connections without powering down
the KVM switch

Additional Features

Keyboard 'Hot Key' Commands for switching
channels, banks, and OSD commands

Front handle folds down for lower rack­protrusion profile

Cables & Connectors

Number of Connectors 16
Connector Type HD-15 (VGA standard)
Connector Gender Female (socket)

Video/KVM
Connectors

Power Chassis Power Input Connector NEMA standard male PC cord socket

Connector Details

Cabling Details

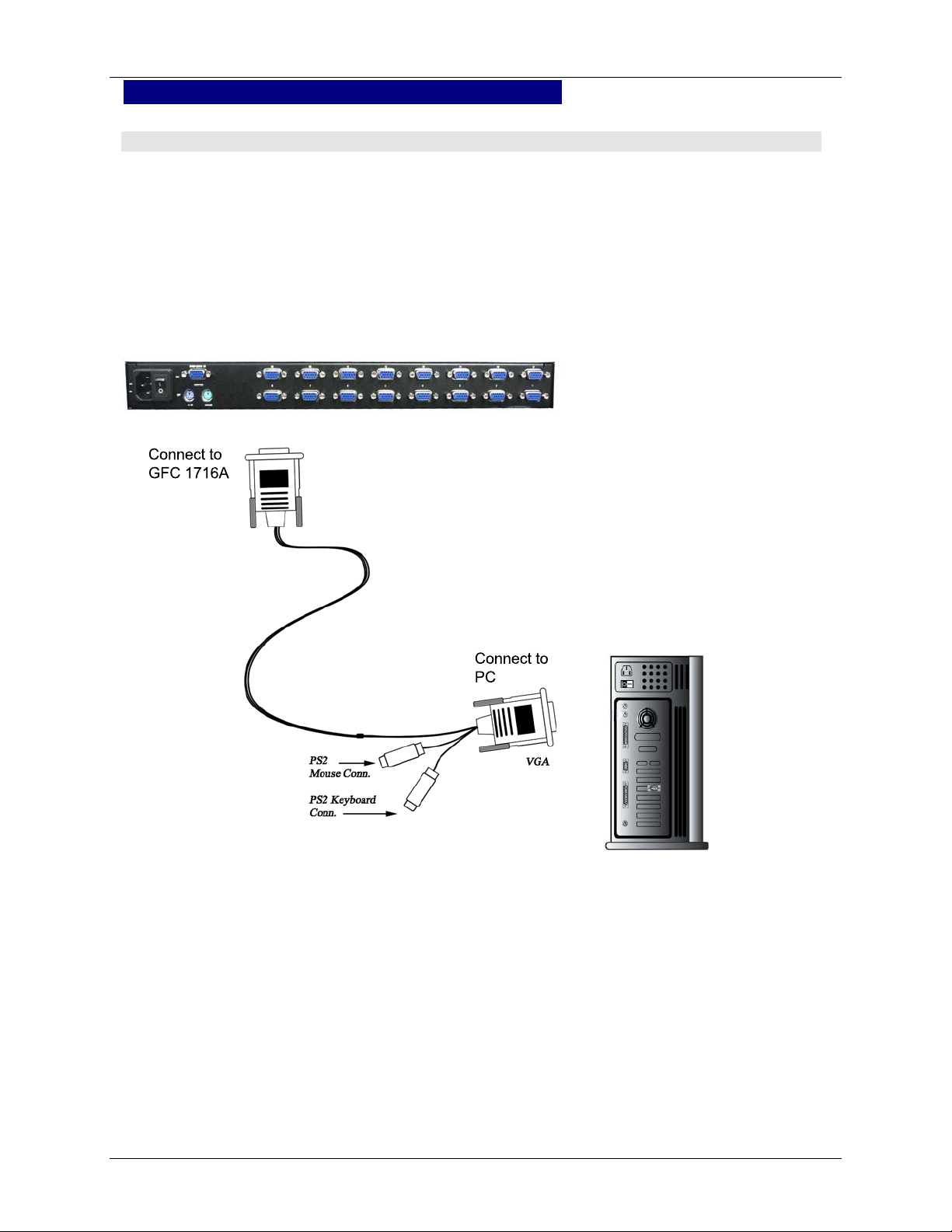

KVM set connector on KVM side is special 15-pin
connector that incorporates the keyboard and
mouse signals. There is only 1 connector per
channel on the KVM side.

Using a GFA 16CBLxx cable, on the PC side
there is a regular complement of VGA, mouse,
and keyboard male connectors.

Indicators, Switches, & Controls

Brightness
Contrast
RGB color adjustments
Horizontal position
Vertical position
Horizontal size
Vertical size
Color balance

On Screen Display (OSD) Control Functions

LCD Display On/Off Switch Yes

Front Panel
Controls

Rear Panel
Controls

Indicators

OSD Controls OSD controls for menu navigation (3 buttons)
Brightness Via OSD controls
Contrast Via OSD controls

Power On/Off Switch

Power On/Off LED indicates power on
System in Sleep Mode Shown by change in LED color
Channel Number Active channel shown by 16 LEDs
Buzzer for Alarms Yes

Color temperature adjustment
Video source selection
Select language for OSD controls
Position of OSD controls
Reset to factory defaults
Geometry (convex/concave sides)
Geometry (parallelogram)
Phase adjustment
Auto adjustment
Recall (last OSD setting)

1 on/off switch

CyberResearch, Inc. 3

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Operating System

Windows XP
Windows NT
Windows 2000
Windows Me

Operating System Supported

Cooling

Cooling Summary Convection (runs in silence)

Environmental Specifications

Operating Temperature 32°F....104°F (0°C....40°C)

Storage Temperature -4°F....140°F (-20°C....60°C)

Relative Humidity, noncondensing 0%....90%

Safety & Standards Compliance

Safety/Approvals

Dimensions

Rack Width EIA standard 19 inches at flanges
Width (without removable flanges) 17.43" (442.77mm)
Height 1.75" (44.5mm)
Height, Rack Units 1U (1.75")
Depth (including handles) 2.13ft (647.7mm)
Depth Behind Panel (rack depth) 2.07ft (631.8mm)
Protrusion from Rack When Closed (including handles) 1.43" (36.3mm)
Max. Extension from Rack When Open (including

handles)

Rack Depth Range (rear mounting bracket) 1.92ft ....3.17ft (584.2mm....965.2mm)

Shipping Height 9.5" (241.3mm)
Shipping Width 2.04ft (622.3mm)
Shipping Depth 2.63ft (800.1mm)

Weight

Weight 38.22lbs (17.34kg )

Windows 98
Windows 95
Windows 3.x
MS-DOS
Linux
Windows 98SE

Meets CE standards
Meets FCC Part 15 - Class B EMI specs

18.75" (476.25mm)

4 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Accessories:

Model

GFC 1716A

Extension Bracket:

Power cord:

D-Sub 15 VGA-PS/2 Cable
ΰ3 in 1α:

Screw Package:

User’s Manual:

 2

 1

 16

 1

 1

CyberResearch, Inc. 5

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Rackmount Installation

1. Find the proper position and screw the rack-mount flanges to the GFC 1716A
as shown in figure below .

2. With the GFC 1716A inside the rack, align flange holes with mounting holes

at the rear of the rack and install mounting screws.

3. Mount the front flanges on the main body of the unit to the front of the rack.

6 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Product Detail

Self-locking Device

Press the button to unlock

Maximum Extension Length

431.8mm

view of open & close

Up To 110ш

CyberResearch, Inc. 7

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

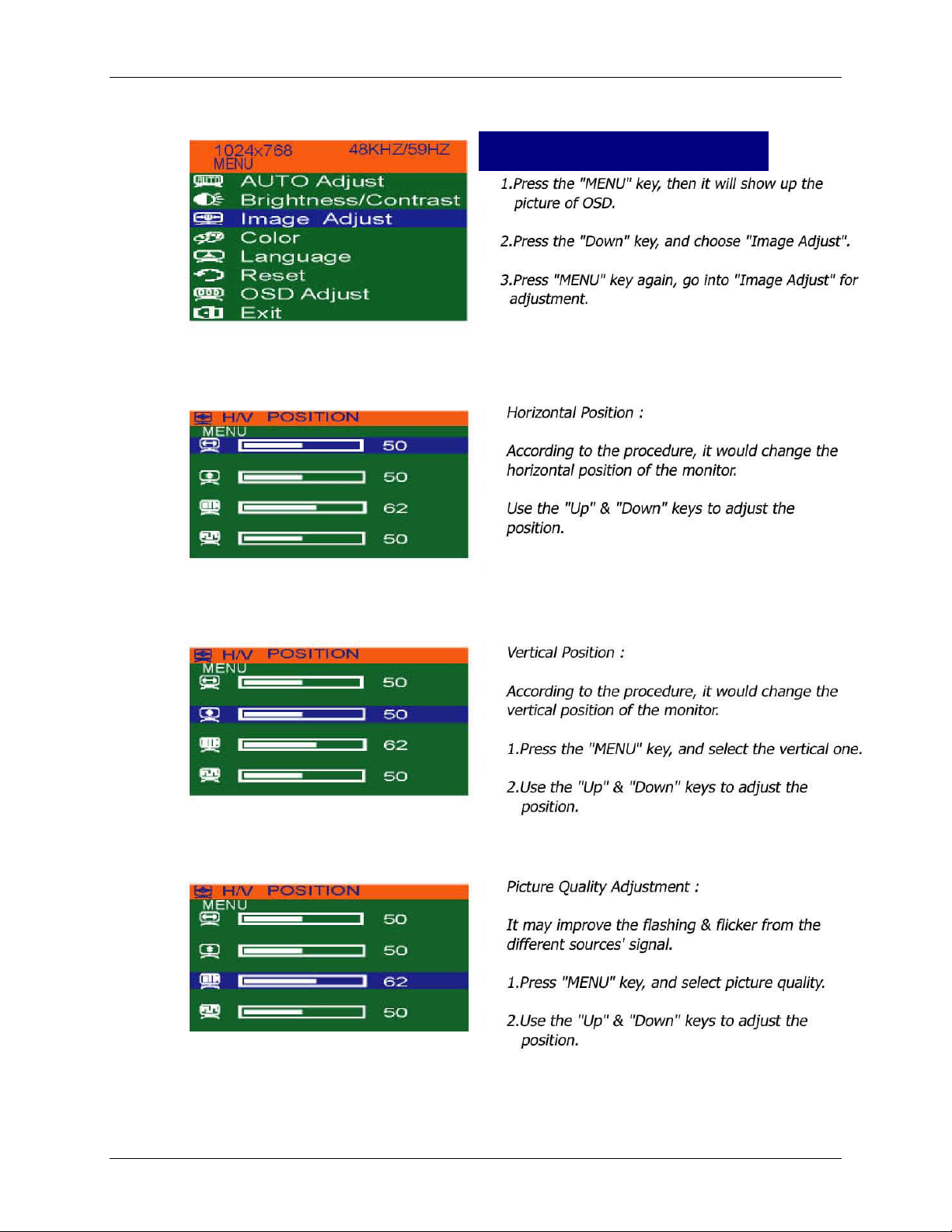

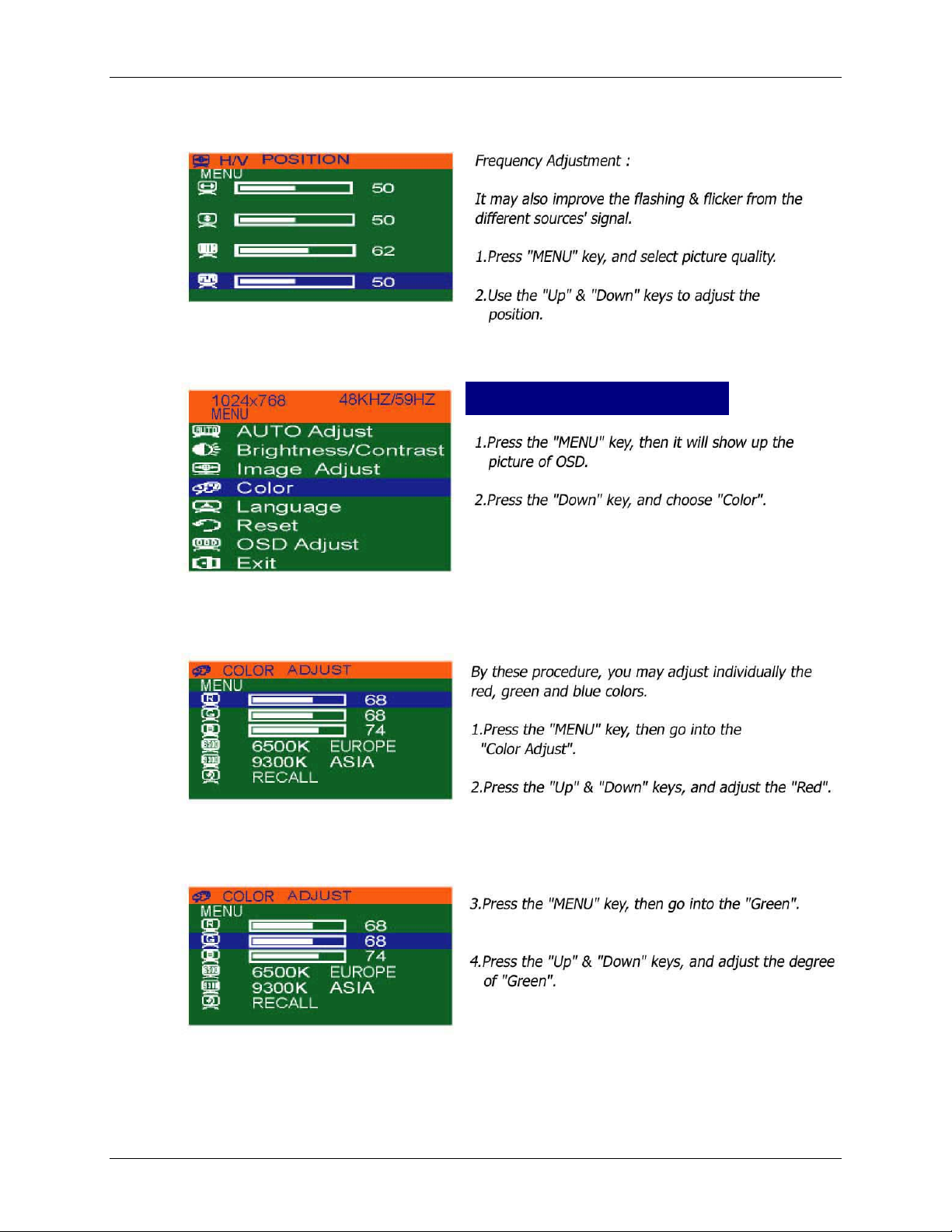

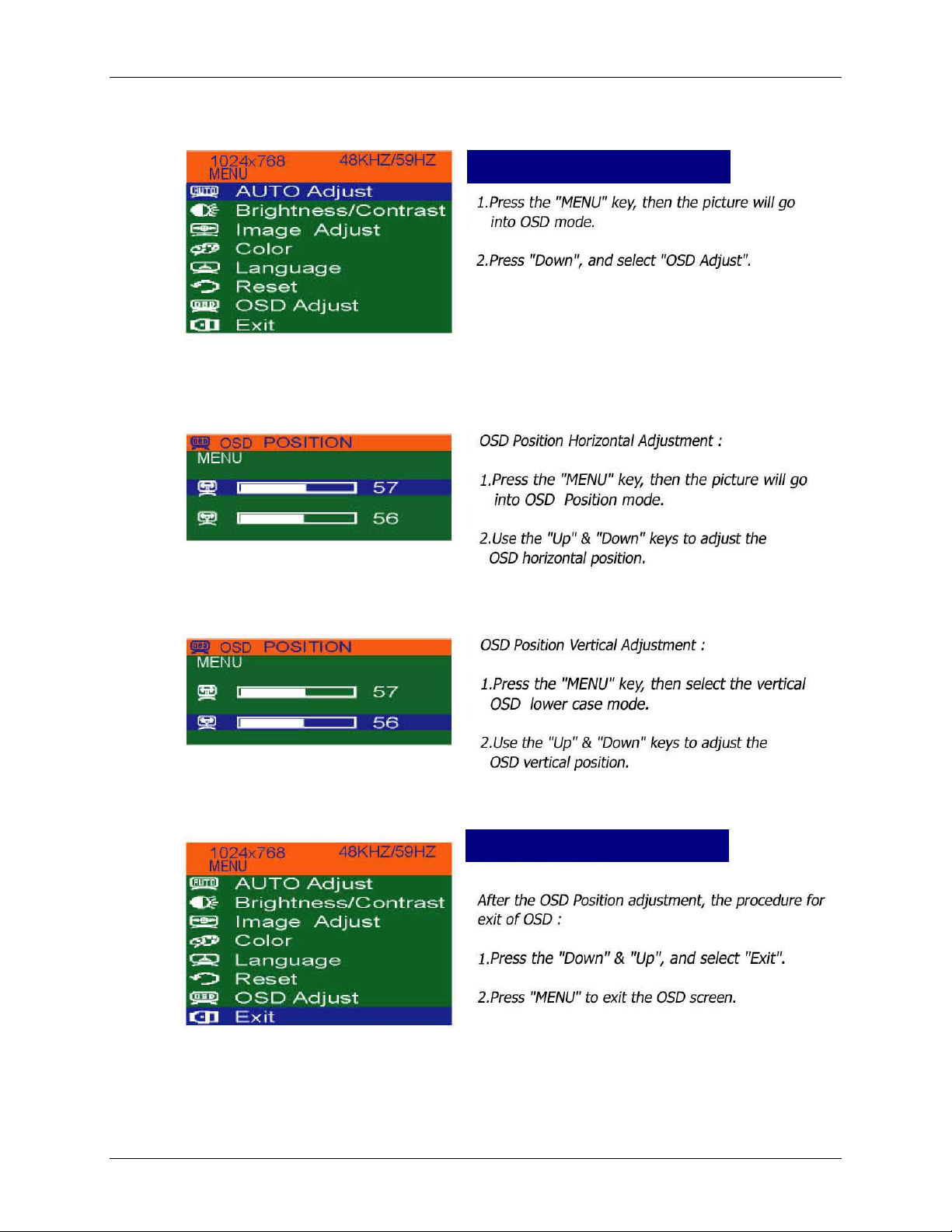

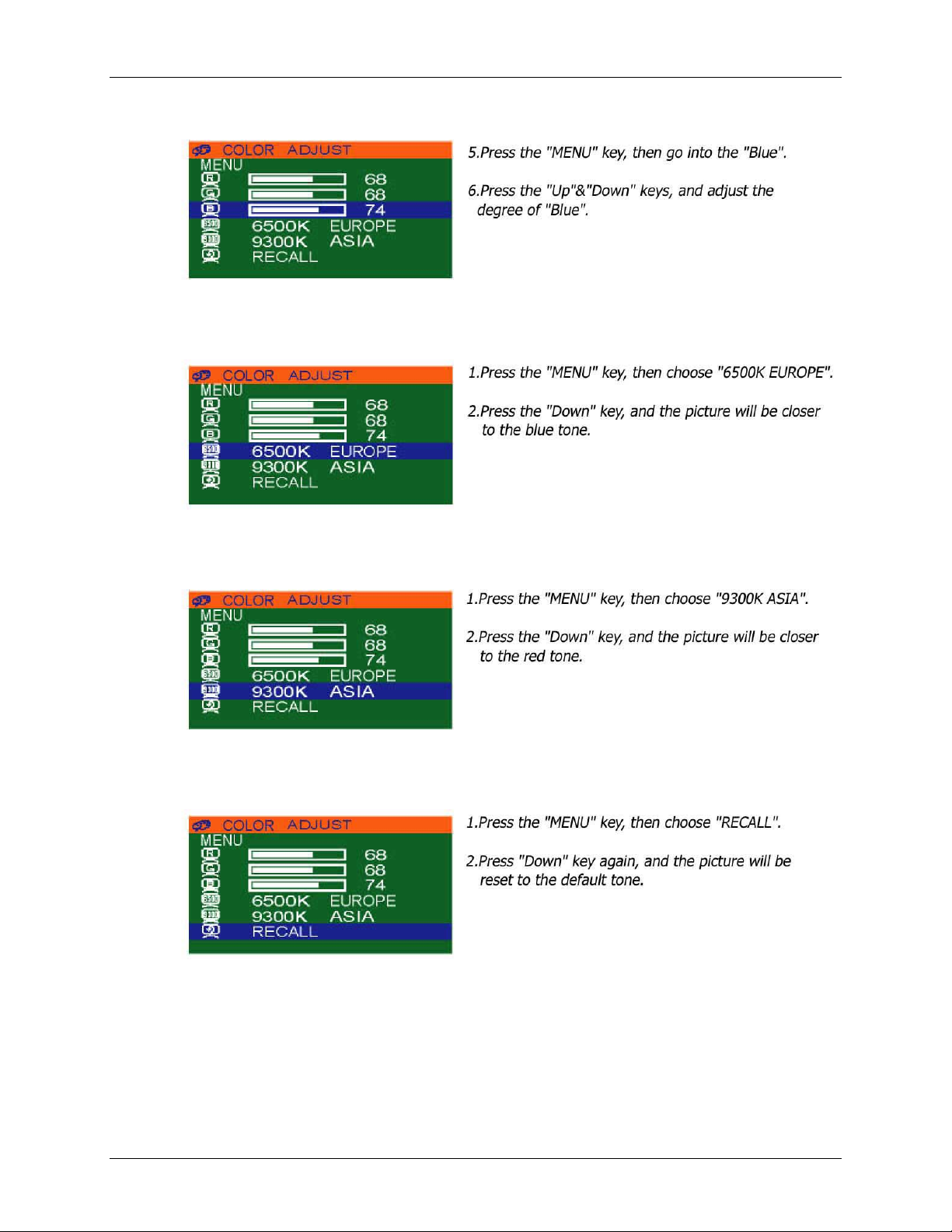

On Screen Display

8 ©Copyright 2004 CyberResearch, Inc.

g

CyberResearch® PC Accessories GFC 1716A

Auto Adjustment

Bri

ht & Contrast

CyberResearch, Inc. 9

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Image Adjustment

10 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Color Adjustment

CyberResearch, Inc. 11

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

12 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Language Selection

Reset

CyberResearch, Inc. 13

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

OSD Adjustment

Exit

14 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

On Screen Display for KVM Operation

When you press the OSD menu button or you use the hot key, the following window appears
on your monitor.

a. The 1

BANK : 1

SYSTEM 02 (02SYSTEM 0101

SYSTEM 0303

SYSTEM 0505

SYSTEM 0404

SYSTEM 0606

SYSTEM 0808SYSTEM 0707

To use up arrow key “ y “ or down arrow key “ z “ to select port for destination PC name. After

you have selected the PC port already, you can press the ENTER Key to switch the PC port

you want immediately

b. The 2nd block is your PC
system name list. You will find the
system number list from 01 to 08.
You can define your PC name in a
maximum of 8 characters. The
factory default names for all ports
is “SYSTEM 01”, to “SYSTEM
08“. Also, the sun symbol “ Ɓ
“ near the PC name represents
the PC system is powered on.

ST

line bar is Bank no.

©/ª: SELECT PORT

To use “ PgUp “ key or “ PgDn” key for selecting previous or next Bank no. (or Box No.)

PgDn/PgUp: BANK SELECT

To press “ INS” key for editing PC name. After finishing the edit, please press “ Enter “ key for

saving information.

ESC : QUIT ENTER :COMPLETE

TAB : NEXT INSERT :EDIT

CyberResearch, Inc. 15

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

To use “ Tab “ key to select items like Bank, OSD, SCAN, CHANGE PASSWORD, CONSOLE
ON/OFF, etc…

OSD : 1 0 SEC. CHANGE PASSWORD

SCAN: 1 0 SEC. CONSOLE ON/OFF

a. The “ OSD: 10 SEC” means

15

SYSTEM 15 16 SYSTEM 16

OSD : 1 0 SEC. ( CHANGE PASSWORD

SCAN: 1 0 SEC. CONSOLE ON/OFF

that the OSD windows display
or PC system name displays for
10 sec. on your monitor. You can
modify it from 05 sec to 99 sec.
The factory default value is 10
sec..

ESC : QUIT ENTER :COMPLETE

TAB : NEXT INSERT :EDIT

b. “ SCAN TIME” means that scan interval from one PC port to next PC port. The default

SCAN time is 10 sec and the maximum scan time is 99 sec.

c. “ CHANGE PASSWORD” is for security.

The default password is 8 digits “ 00000000 “.

ENTER PASSWORD : Ű

ESC : QUIT ENTER : COMPLETE

There is an enter password window displayed when you select this item and then press

Enter. The maximum password is eight digits. After you key in the password and

press the Enter key, there is another window for confirming your typed password.

ENTER NEW PASSWORD : Ű

ESC : QUIT ENTER : COMPLETE

RETYPE NEW PASSWORD : Ű

ESC : QUIT ENTER : COMPLETE

You need to retype the password again for verification.

16 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

NEW PASSWORD COMPLETE

ESC : QUIT ENTER : COMPLETE

d. The “ CONSOLE ON/OFF “ function is used to manage users. If you select “ CONSOLE

ON “, it means that any user can use the console. If you select “ CONSOLE OFF “(factory
default OFF state), it means that any user will not be allowed to use the console unless
you enter the password. When you enter the password already and authenticate with the
GFC 1716A, the CONSOLE will be set to ON. After you finish using GFC 1716A,
please don’t forget to set CONSOLE ON state to OFF state. Additionally, if current CONSOLE
state is set to ON, and you reset GFC 1716A, the CONSOLE will be set to the OFF
state.

e.

When you finish the setting up of PC name and exiting the OSD setting mode, you will find

the PC name appears at the up-left corner of monitor. You can use the “ESC” key to
clear the PC name if it's no longer required.

SYSTEM 02102

f. To return the OSD to its factory default value, you can execute “SCROLL

LOCK”, “SCROLL LOCK”, “R” keys in this order. The Seven segment LEDs on the front
panel will be flashed during the refresh process.

ROM REFLASH

When the OSD has been returned to its default setting, the seven segment LEDs on the

front panel will stop flashing

CyberResearch, Inc. 17

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A

CyberResearch® PC Accessories

Intentionally Blank

18 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

System Requirements

Specifications:

Console side One VGA Monitor

One PS/2 Keyboard
One PS/2 Mouse

Computer side 16 HDB 15 pin male to male VGA cables

16 PS/2 cables male to male for Keyboard
16 PS/2 cables male to male for Mouse

CyberResearch, Inc. 19

GFC 1716A CyberResearch® PC Accessories

Cable Diagrams

PS/2 Cable:

Mini Din 6 pin Male to Male

VGA Cable:

HDB15 pin Male to Male

AT to PS/2 keyboard adapter: (Optional)

Din 5 pin Male to Mini Din 6 pin Female

PS2 to DB9 adapter (Optional)

Mini Din 6 pin Female to DB 9 pin Female

Switching Indication

20 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Hardware Installation

Step 1

Connect each PC to the GFC 1716A as illustrated below.

CyberResearch, Inc. 21

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Step 2

Double-check all of the connections. You can check the color of keyboard and mouse
connector to make sure the keyboard and mouse cables go to the correct ports.

Step 3

Attach the power supply to the KVM unit and plug the other end into an electrical receptacle.
The LED for Port 1 will illumiate,followed by a beep. Turn on the monitor.

N

OTICE

Remember to plug in the power adapter.

:

22 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Usage

The power on state of GFC 1716A:
When you power on GFC 1716A it will prompt for a password, the default password value is
eight zeros – “ 00000000 “. Please key in eight zeros and enter the same value in retype field.

Note: You may want to consider keeping the default password (00000000) until you are

completly familiar with the unit.

Please write down your password and keep it in a safe place.

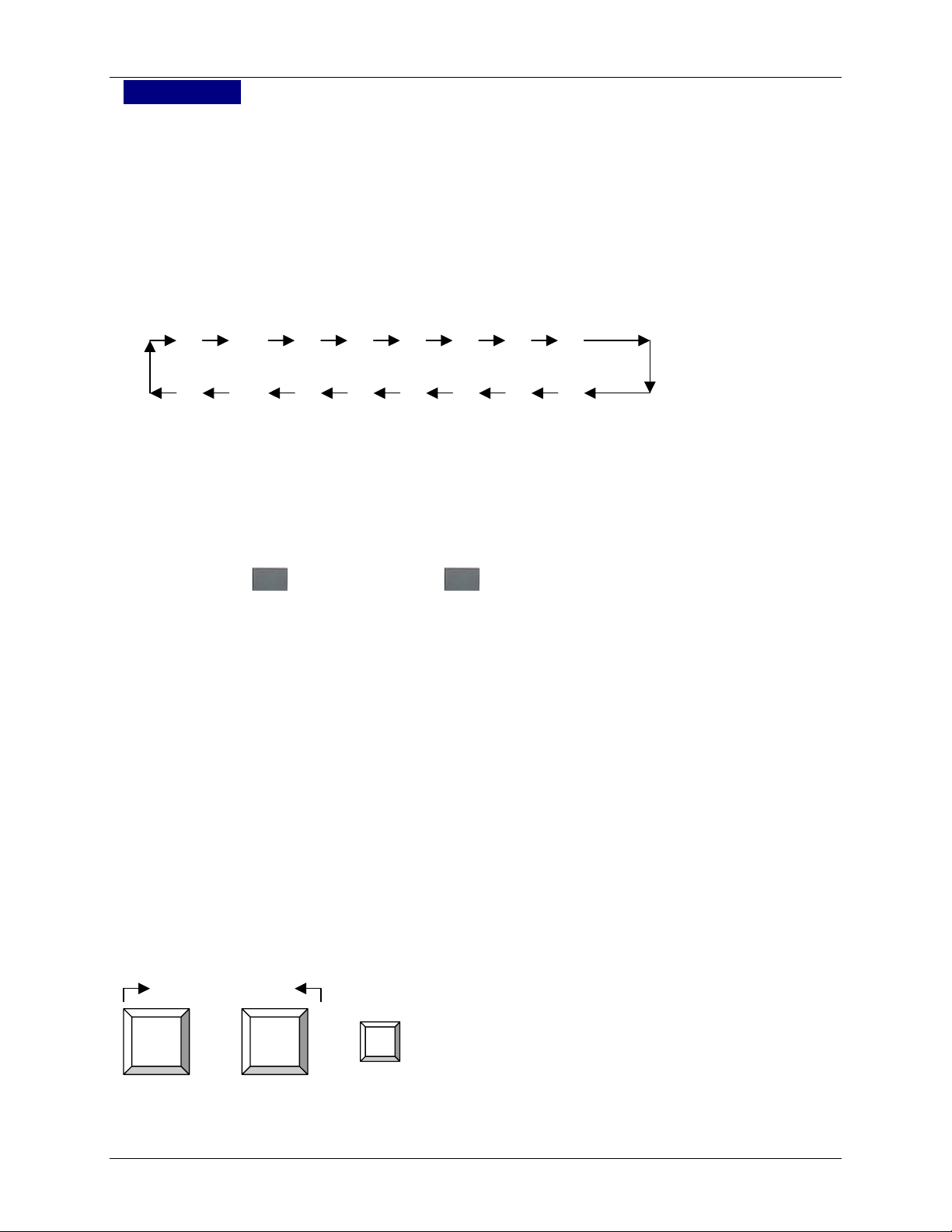

1 2 3 4 5 6 7 8

16 15 14 13 12 11 10 9

7-Segment LED Indication:

When you select one of sixteen PC ports and this PC is powered on, the selected port's LED lights.
When you select one of sixteen PC ports and its corresponding PC is shut down or disconnected,
the selected port's LED will flash.

Reset Button (

(Bank Select) and (Port Select) ):

Pressing both “select” button and “bank” button on the master bank simultaneously will
reset GFC 1716A. This reset will return GFC 1716A to its default condition. Check the

password and all of slave banks connected to the GFC 1716A.

If you add a new GFC 1716A as a slave bank, please use reset button of master GFC 1716A to
automatically assign a new ID to it. You can view this new slave bank through the OSD menu.
The PC ports of GFC 1716A are not reset by the Reset command.

Keyboard Hot Key Commands:

You can also command the GFC 1716A by switching ports through a hot key
sequence. To send commands to the GFC 1716A the “SCROLL LOCK” key must be pressed
twice within 2 seconds. When you hear a confirmation beep, the keyboard is in hot key
mode. If you have not pressed any key in hot key mode within 2 seconds the keyboard will
revert to Operation System control state.

Below are the different hot key commands:

within 2 seconds

Scroll

+ + = Previous Channel

Lock

Scroll
Lock

Ĺ

CyberResearch, Inc. 23

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Scroll

+ +

Lock

(Note:Youalsocouldpress“uparrowkey”or“down

Scroll
Lock

= Next Channel

Ļ

arrow key” longer time to speed up selecting the

destination port)

Scroll

+ + = PreviousBank

Lock

Scroll
Lock

Scroll
Lock

Scroll

+ + = NextBank

Lock

Page

Up

Page

Down

To select PC port:

Scroll

+ +

Lock

Scroll
Lock

(Note: The default Beeper function is ON and beeper

Scroll
Lock

Scroll

+ + =

Lock

Bank
No

B

Port
No

Beeper

Port No.
1~4 (4 port)
1~8 (8 port)
1~16 (16 port)

control is only for available for Scan Mode )

Scroll
Lock

Scroll

+ + =

Lock

S

Auto Scan

To get out of Auto Scan Mode, Press any key or SPACE bar.

Scroll
Lock

(Note: Not including password)

+ + = OSD default value

Scroll
Lock

R

ROM REFLASH

Scroll
Lock

+ +

Scroll

F

Lock

= Search the same PC name

(Note: Search PC name starting from 1

st

PC port)

F I N D : Ű

Scroll
Lock

+ + Space bar = On Screen Display Menu

24 ©Copyright 2004 CyberResearch, Inc.

Scroll
Lock

CyberResearch® PC Accessories GFC 1716A

Example

a. To access a computer attached to Port 6 of the fifth Bank. You can press through hot key as

Κ

below:

Scroll lock + Scroll lock + “5” + “0” “ 6”

b. To access a computer attached from Bank 3 to Bank 4, You can press through hot key as

below:

Scroll lock + Scroll lock + Page Down

Notice:

Bank no. and Port no. selection must be made using the numeric keys on the
keyboard. Numeric keys on the keypad are not available as a hot key command.

CyberResearch, Inc. 25

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Hot Plug

The GFC 1716A supports “Hot Plug“ function for easy addition or removal of PCs. The user can
arrange or maintain PCs as follows:

c. A PC can be disconnected and reconnected to the same or different port of the KVM unit

without having to power it off as long as it is not the Daisy-chain port or pass through port.

d. The pass through port PC (i.e. The pass through port means the console port is connected

to PC directly) is powered on. Before you go hot plug function, please switch to this pass
through port to next port and then switch back to the pass through port.

e. You may unplug the mouse or the keyboard from the console port and plug it back in at any

time.

N

OTICE

Some O.S. (Operation Systems) like SCO Unix are unable to support “ Hot Plug ”
function. If you apply “Hot Plug” to this kind of O.S., it will cause unpredictable
behavior or shut down the PC. Before attempting to use “ Hot Plug ” , please make
sure your O.S. and software driver supports the “Hot Plug” function.

:

26 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Troubleshooting

1. Ensure that all cables are well seated. Label all of cables with the number for each
respective computer to avoid confusion.

2. The recommended VGA cable distance is 5 meters maximum without ghosting and

degradation. Normally, the cable length is based on driver capacity of your VGA card. If you
need longer VGA cable, please use VGA extender (Model No. VGA-100, MAX. 100 feet ) to
accomplish your applications.

3. The recommended PS2 cable distance is 5 meters maximum. Normally, the cable length is

based on driver capacity of your motherboard PS2 port. If you need longer PS2 cable,
please use PS2 extender ( Model No. PS2-100, MAX. 100 feet ) to accomplish your
applications.

4. The Power Jack polarity is center positive and the power adapter need be DC12V, 1A or

DC9V, 1A.

5. Don’t press any keys on the keyboard while the selected computer is booting up. Otherwise,

it might cause the keyboard error or keyboard is not detected at PC side.

6. The computer boot up fine, but keyboard doesn’t work

z Make sure the keyboard works when directly plugged into the computer.
z Try a different keyboard, but use only 101, 102 or 104-key keyboard.

7. The Mouse is not detected during PC boot up.

z Make sure the mouse works when directly plugged into the computer.
z Make sure the mouse is a true PS/2 mouse. A combo mouse will work just as long as it is

set for PS/2 mode with the correct adapter. Try a different mouse.

z Avoiding moving the mouse or pressing the mouse buttons when switching ports.
z Avoiding switching ports during shutting down the PC process.
z When you switch one PC port to another PC port, the best scan time setting need to be set

to 5 sec. or more. Normally, the VGA monitor change one resolution mode to another will
take one or two seconds. So, the scan time is not recommended to below 5 seconds.

8. The power switch is off, but the switch still works fine or power adapter is unplugged from the

switch, but the switch still works fine.
GFC 1716A unit draws the power source from power adapter and all PC’s PS2 port. Some
PC’s PS2 port can support enough power for the switch, but some PC’s PS2 port ( like
laptop, notebook computer…etc.) is unable to supply enough power for the switch. In order
to make sure the system can work steadily, please do not set power switch to off state or
remove the power adapter from the switch.

9. If you forget the “ password ” you typed, please contact CyberResearch, Inc.

CyberResearch, Inc. 27

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

CERTIFICATES

FCC

This equipment has been tested and found to comply with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received. Including interference that may cause

undesired operation.

CE – Certificate

This equipment is in compliance with the requirements of the following regulations: EN 55 022:

CLASS A

28 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Product Service

Diagnosis and Debug

CyberResearch, Inc. maintains technical support lines staffed by experienced
Applications Engineers and Technicians. There is no charge to call and we will
return your call promptly if it is received while our lines are busy. Most problems
encountered with data acquisition products can be solved over the phone. Signal
connections and programming are the two most common sources of difficulty.
CyberResearch support personnel can help you solve these problems, especially
if you are prepared for the call.

To ensure your call’s overall success and expediency:

1) Have the phone close to the PC so you can conveniently and quickly take
action that the Applications Engineer might suggest.

2) Be prepared to open your PC, remove boards, report back-switch or
jumper settings, and possibly change settings before reinstalling the
modules.

3) Have a volt meter handy to take measurements of the signals you are
trying to measure as well as the signals on the board, module, or power
supply.

4) Isolate problem areas that are not working as you expected.

5) Have the source code to the program you are having trouble with available
so that preceding and prerequisite modes can be referenced and
discussed.

6) Have the manual at hand. Also have the product’s utility disks and any
other relevant disks nearby so programs and version numbers can be
checked.

Preparation will facilitate the diagnosis procedure, save you time, and avoid
repeated calls. Here are a few preliminary actions you can take before you call
which may solve some of the more common problems:

1) Check the PC-bus power and any power supply signals.

2) Check the voltage level of the signal between SIGNAL HIGH and SIGNAL
LOW, or SIGNAL+ and SIGNAL– . It CANNOT exceed the full scale range
of the board.

3) Check the other boards in your PC or modules on the network for address
and interrupt conflicts.

4) Refer to the example programs as a baseline for comparing code.

CyberResearch, Inc. 29

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Intentionally Blank

30 ©Copyright 2004 CyberResearch, Inc.

CyberResearch® PC Accessories GFC 1716A

Warranty Notice

CyberResearch, Inc. warrants that this equipment as furnished will be free from
defects in material and workmanship for a period of one year from the confirmed
date of purchase by the original buyer and that upon written notice of any such
defect, CyberResearch, Inc. will, at its option, repair or replace the defective item
under the terms of this warranty, subject to the provisions and specific exclusions
listed herein.

This warranty shall not apply to equipment that has been previously repaired or
altered outside our plant in any way which may, in the judgment of the manufacturer,
affect its reliability. Nor will it apply if the equipment has been used in a manner
exceeding or inconsistent with its specifications or if the serial number has been
removed.

CyberResearch, Inc. does not assume any liability for consequential damages as a
result from our products uses, and in any event our liability shall not exceed the
original selling price of the equipment.

The equipment warranty shall constitute the sole and exclusive remedy of any Buyer
of Seller equipment and the sole and exclusive liability of the Seller, its successors
or assigns, in connection with equipment purchased and in lieu of all other
warranties expressed implied or statutory, including, but not limited to, any implied
warranty of merchant ability or fitness and all other obligations or liabilities of seller,
its successors or assigns.

The equipment must be returned postage prepaid. Package it securely and insure it.
You will be charged for parts and labor if the warranty period has expired.

Returns and RMAs

If a CyberResearch product has been diagnosed as being non-functional, is visibly
damaged, or must be returned for any other reason, please call for an assigned
RMA number. The RMA number is a key piece of information that lets us track and
process returned merchandise with the fastest possible turnaround time.

PLEASE CALL FOR AN RMA NUMBER!

Packages returned without an RMA number will be refused!

In most cases, a returned package will be refused at the receiving dock if its
contents are not known. The RMA number allows us to reference the history of
returned products and determine if they are meeting your application’s requirements.
When you call customer service for your RMA number, you will be asked to provide
information about the product you are returning, your address, and a contact person
at your organization.

Please make sure that the RMA number is prominently

displayed on the outside of the box.

• Thank You •

CyberResearch, Inc. 31

25 Business Park Drive P: [phone]; F: [phone]
Branford, CT USA www.cyberresearch.com

GFC 1716A CyberResearch® PC Accessories

Intentionally Blank

32 ©Copyright 2004 CyberResearch, Inc.

CyberResearch, Inc.

25 Business Park Drive

Branford, CT 06405 USA

P: [phone]; F: [phone]

www.cyberresearch.com
