CyberResearch CPMB Series User Manual

Download

CPU Cards

CPMB Series

PICMG 1.0 Single-Board Computers with VGA, DVI, LAN, SATA RAID, USB, Audio,

and Mini PCI Socket

USER’S MANUAL

VER. 2.0C AUG 2008

No part of this manual may be reproduced without permission

CyberResearch®, Inc.

www.cyberresearch.com

25 Business Park Dr., Branford, CT 06405 USA

203-483-8815 (9am to 5pm EST) FAX: 203-483-9024

CyberResearch

CPU Cards CPMB Series

August 13

2008

The information in this document is subject to change without prior notice in order to improve reliability, design, and function and does not represent a commitment on the part of CyberResearch, Inc.

In no event will CyberResearch, Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of CyberResearch, Inc.

Trademarks

“CyberResearch,” and “CPMB Series,” are trademarks of CyberResearch, Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.

• NOTICE •

CyberResearch, Inc. does not authorize any CyberResearch product for use in life support systems, medical equipment, and/or medical devices without the written approval of the President of CyberResearch, Inc. Life support devices and systems are devices or systems which are intended for surgical implantation into the body, or to support or sustain life and whose failure to perform can be reasonably expected to result in injury. Other medical equipment includes devices used for monitoring, data acquisition, modification, or notification purposes in relation to life support, life sustaining, or vital statistic recording. CyberResearch products are not designed with the components required, are not subject to the testing required, and are not submitted to the certification required to ensure a level of reliability appropriate for the treatment and diagnosis of humans.

CyberResearch, Inc. 1

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

CPMB Series

Revision # Description Date of Issue

1.0 Initial Release April 17th 2007

2.0C Revision August 13th 2008

2 ©Cop

yright 2008 CyberResearch, Inc.

CyberResearch

CPU Cards CPMB Series

Packing List

Please check package components before you use our products.

Hardware:

CPMB Full-Size cpu card x 1

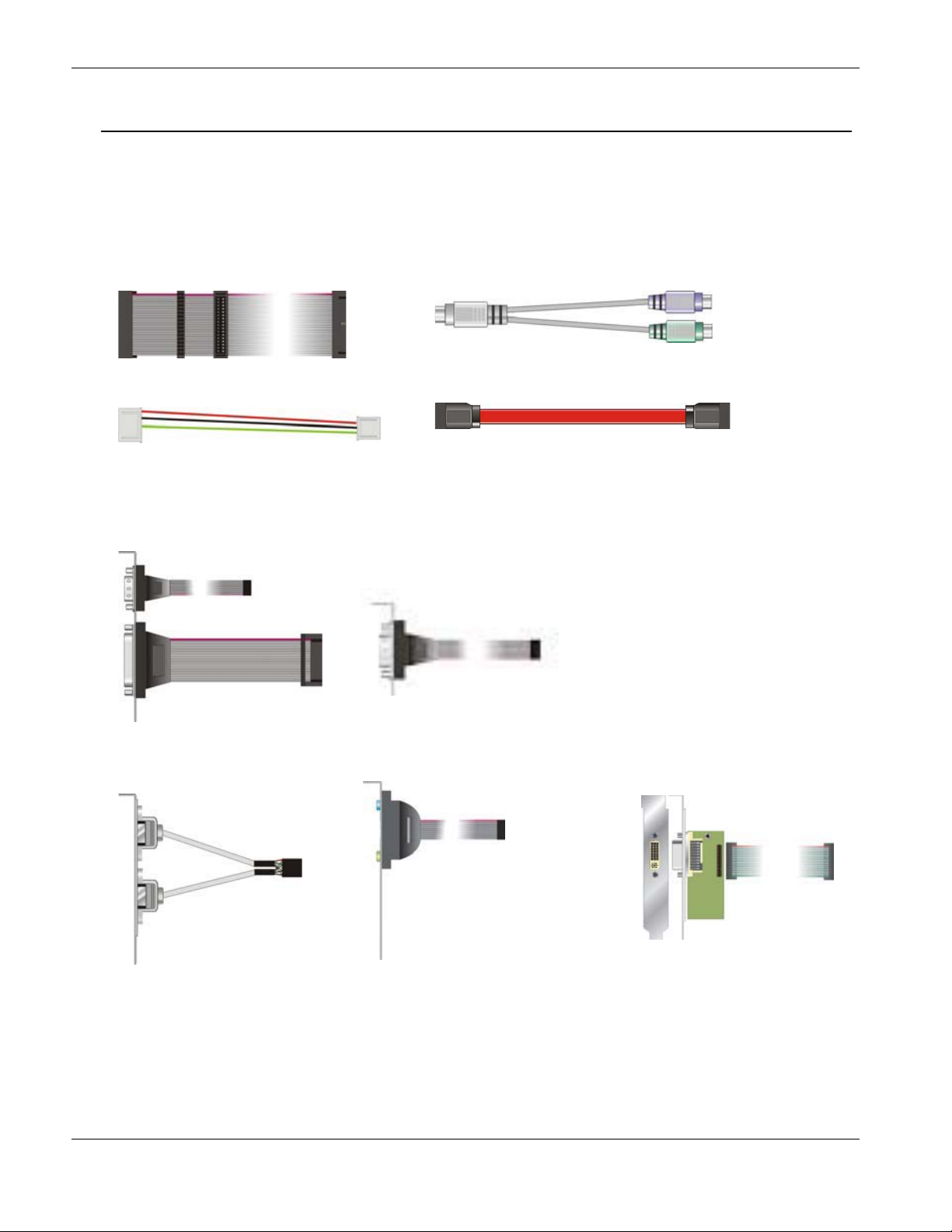

Cable Kit:

Floppy flat cable x 1

4-pin to 3-pin ATX cable x 1

DB25 & DB9 cable x 1

PS/2 Keyboard & Mouse Cable x 1

SATA Cable x 6

COM Port Cable x 1

USB cable x 2

Audio Port Cable x 1

DVI module with bracket x 1

Other Accessories:

Driver CD (including User’s Manual) x 1

RAID drivers Disc for Windows 2000, Windows XP and Windows Server 2003

CyberResearch, Inc. 3

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Index

Chapter1 <Introduction>

1.1 <Product Overview> .............................................................................................7

1.2 <Product Specification> ........................................................................................8

1.3 <Block Diagram> ................................................................................................11

1.4 <Mechanical Drawing > ......................................................................................12

............................................................7

Chapter 2 <Hardware Setup>................................................. 13

2.1 <Connector Location>.........................................................................................13

2.2 <Jumper Reference>…………………………………………………………………..13

2.3 <Connector Reference>......................................................................................15

2.3.1 <Internal Connectors> ..............................................................15

2.3.2 <External Connectors> .............................................................15

2.4 <CPU and Memory Setup>.................................................................................16

2.4.1 <CPU installation>...................................................................16

2.4.2 <Memory installation>..............................................................17

2.5 <CMOS Setup>...................................................................................................18

2.6 <Serial ATA installation>......................................................................................19

2.7 <LAN Interface>..................................................................................................20

2.8 <Onboard Display Interface> ..............................................................................21

2.8.1 <Analog Display>....................................................................21

2.8.2 <LVDS Display> .....................................................................22

2.8.3 <DVI Display > .......................................................................26

2.9 <Audio Installation> ............................................................................................27

2.11 <GPIO interface> ..............................................................................................29

2.12 <USB2.0 Interface> ..........................................................................................30

2.13 <Power and Fan Installation> ...........................................................................31

2.14 <Serial Port> .....................................................................................................34

2.15 <Switch and Indicator> .....................................................................................36

CyberResearch

CPU Cards CPMB Series

Chapter 3 <System Configuration>.......................................38

3.1 <SATA configuration>..........................................................................................38

3.2 <SATA RAID Configuration> ...............................................................................39

3.3 <Audio Configuration> ........................................................................................43

3.4 <Video Memory Setup> ......................................................................................44

3.5 <Display Properties Setting>...............................................................................46

Chapter 4 <BIOS Setup>......................................................... 48

Appendix A <I/O Port Pin Assignment>................................ 50

A.1 <Serial ATA Port>................................................................................................50

A.2 <IrDA Port>.........................................................................................................50

A.3 <VGA Port> ........................................................................................................51

A.4 <LAN Port>.........................................................................................................51

Appedix B <System Resources> ...........................................52

Appedix C <Flash BIOS>.........................................................56

C.1 BIOS Auto Flash Tool..............................................................................56

C.2 Flash Method ...........................................................................................56

Appendix D <Programming GPIO’s>.................................... 57

Appendix E <Watch Dog timer Setting >..............................58

Product Service.......................................................................... 59

Warranty..............

............................................

................ 61

CyberResearch, Inc. 5

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

CyberResearch

CPU Cards CPMB Series

Chapter1 <Introduction>

1.1 <Product Overview>

CPMB is a full-size single board computer with the latest Intel desktop technology in

PICMG form factor. Based on Intel Q965 and ICH8DO, the board integrates a new Core 2

Duo /Quad processor 775-pin socket, DDR2 memory socket, Intel Graphic Media

Accelerator 3000 technology, and SATA II RAID functionality, making the perfect core for a

powerful desktop system.

Intel

 LGA775 processor

The Intel Core 2 Duo /Quad processor now comes in a new form factor, with a 775-pin

PLGA package, for 533/800/1066MHz front-side-bus, 4MB L2 cache, and for 65nm

manufacturing technology. The PLGA processor without a pin header on solder side makes

installing the processor on the socket much easier.

Intel

 Q965 and ICH8DO chipset

The Intel Q965 integrates DDR2 533/667/800MHz for memory, and Graphic Media

Accelerator (GMA) 3000 technology for new graphic engine. It can provide up to 256MB of

frame buffer when you install over 1GB of system memory. The ICH8DO integrates with up

to 6 USB2.0 interfaces , and serial ATA II interface with RAID function.

Flexible Extension Interface

The board provides one mini-PCI socket.

CyberResearch, Inc. 7

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

1.2 <Product Specification>

General Specification

Form Factor Full-size PICMG CPU card CPU Intel® Core 2 Duo /Quad/ Pentium 4 / Pentium D / Celeron D

processor with LGA775 socket Package type: PLGA 775 Front side bus: 533/800/1066MT/s (133/200/266MHz x 4) Intel® Hyper-Threading Technology and Dual/Quad core supported

Memory 2 x 240-pin DDR2 533/667/800MHz SDRAM up to 3GB

Unbufferred, none-ECC memory supported only Chipset Intel® Q965 (Northbridge) and ICH8DO (Southbridge) BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value Real Time Clock Intel® ICH8DO built-in RTC with lithium battery Serial ATAII Intel® ICH8DO integrates 6 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel® 82801HDO( ICH8DO) with Winbond® W83627DHG

controller Serial Port One RS-232 and one RS232/422/485 serial ports USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode Floppy Port One internal Floppy port IrDA Port One IrDA compliant Infrared interface supports SIR K/B & Mouse External PS/2 keyboard and mouse port on bracket GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface Smart Fan One CPU fan connector for fan speed controllable

VGA Display Interface

Chipset Intel® Q965 GMA3000 (Graphic Memory Controller Hub) Frame Buffer Up to 256MB shared with system memory Display Type CRT, LCD monitor with analog display

Onboard DVI Interface XG2

Connector External DB15 female connector on bracket

Only)

CyberResearch

CPU Cards CPMB Series

Onboard 26-pin DVI Connector

CyberResearch, Inc. 9

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Ethernet Interface

Controller One or two Intel 82573L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T

Auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connectors with LED on bracket

Audio Interface

Chipset Intel® ICH8DO with Realtek ALC260 HD Audio

Intel High Definition Audio compliance Interface 2 channels sound output Connector Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for CD-IN

Expansive Interface

Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)

Power supply: +3.3V, +5V, 3VSB

Power and Environment

Power

+5V, +12 DC input & 5VSBRequirement Requirement Dimension 338 (L) x 122 (H) mm Temperature Operating within 0 ~ 60к (32 ~ 140л)

Storage within -20 ~ 85к (-4 ~ 185л)

TU T

CyberResearch

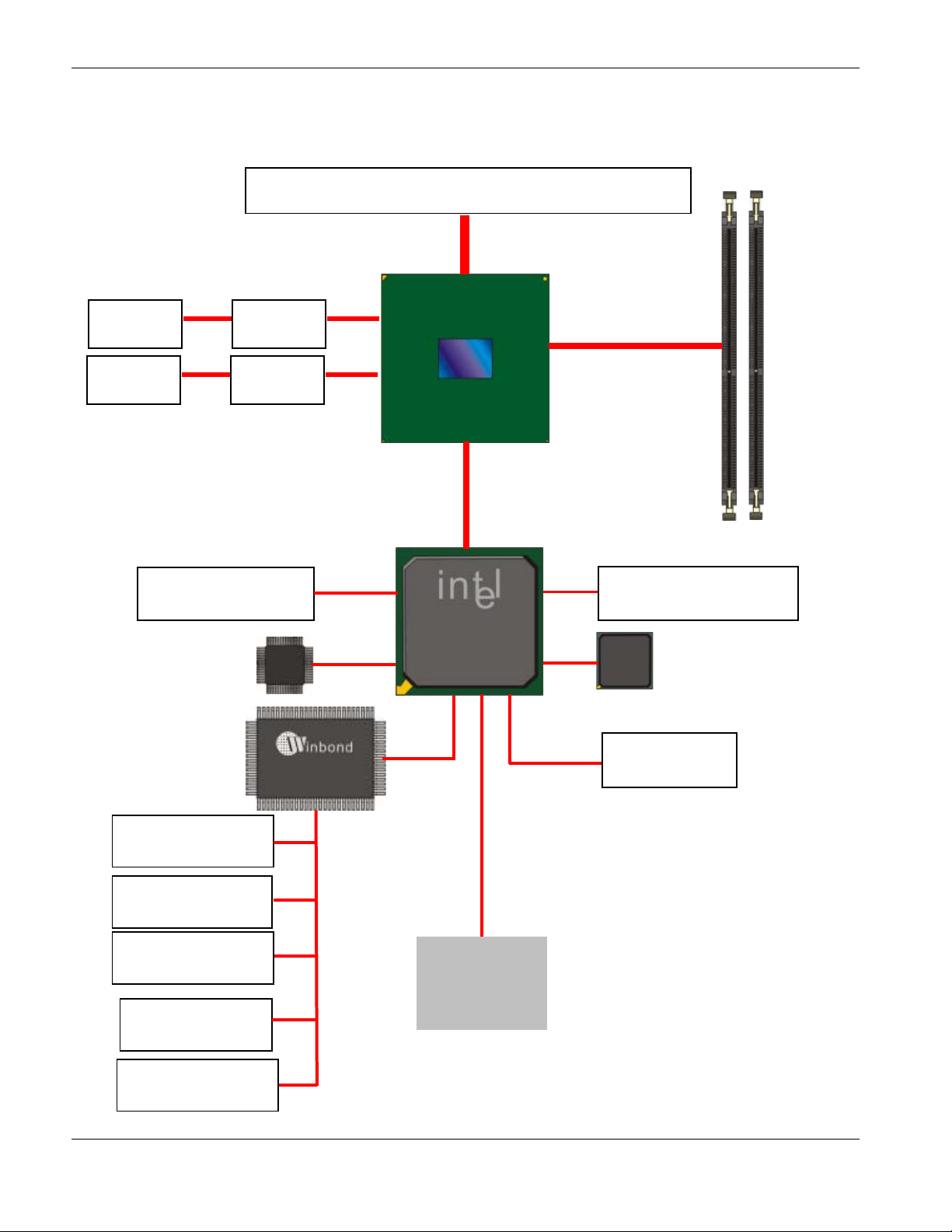

1.3 <Block Diagram>

CPU Cards CPMB Series

Intel Core 2 Quad with 775 pin PLGA processor

DVI

6 x USB2.0 ports

HD Audio

CH7307

CH7308

W83627THG

Intel Q965

ICH8DO

2 x 240-pin DDR2

533/667/800MHz

up to 3GB

6 x Serial ATAII ports

Intel 82573L

2 x GLAN

Mini-PCI slot

2 x Serial ports

SPI

1 x Parallel port

1 x Floppy port

BIOS

8-bit GPIO

1 x IrDA

CyberResearch, Inc. 11

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

1.4 <Mechanical Drawing >

CyberResearch

CPU Cards CPMB Series

Chapter 2 <Hardware Setup>

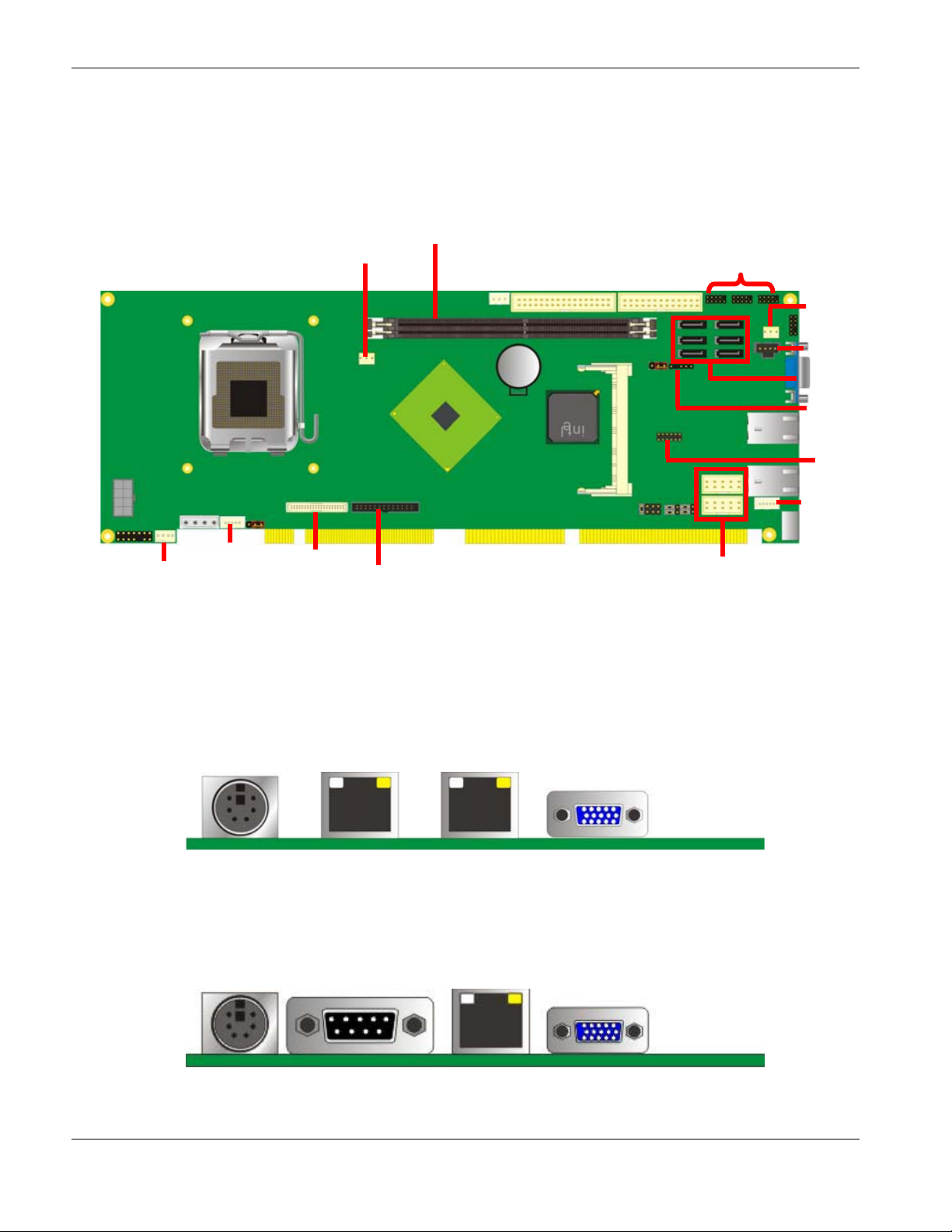

2.1 <Connector Location>

DDRII_A/B

CN_12V

JFRNT

DC_IN

CN_INV

NBFAN

CN_LVDS

CN_DVI

CN_PS

FDD

CN_USB1~3

CN_LPT

SYSFAN

CN_AUDIO

CDIN

S_ATA1~6

CN_IR

MINIPCI

CN_DIO

CN_ATKB

CN_COM1/2CPUFAN

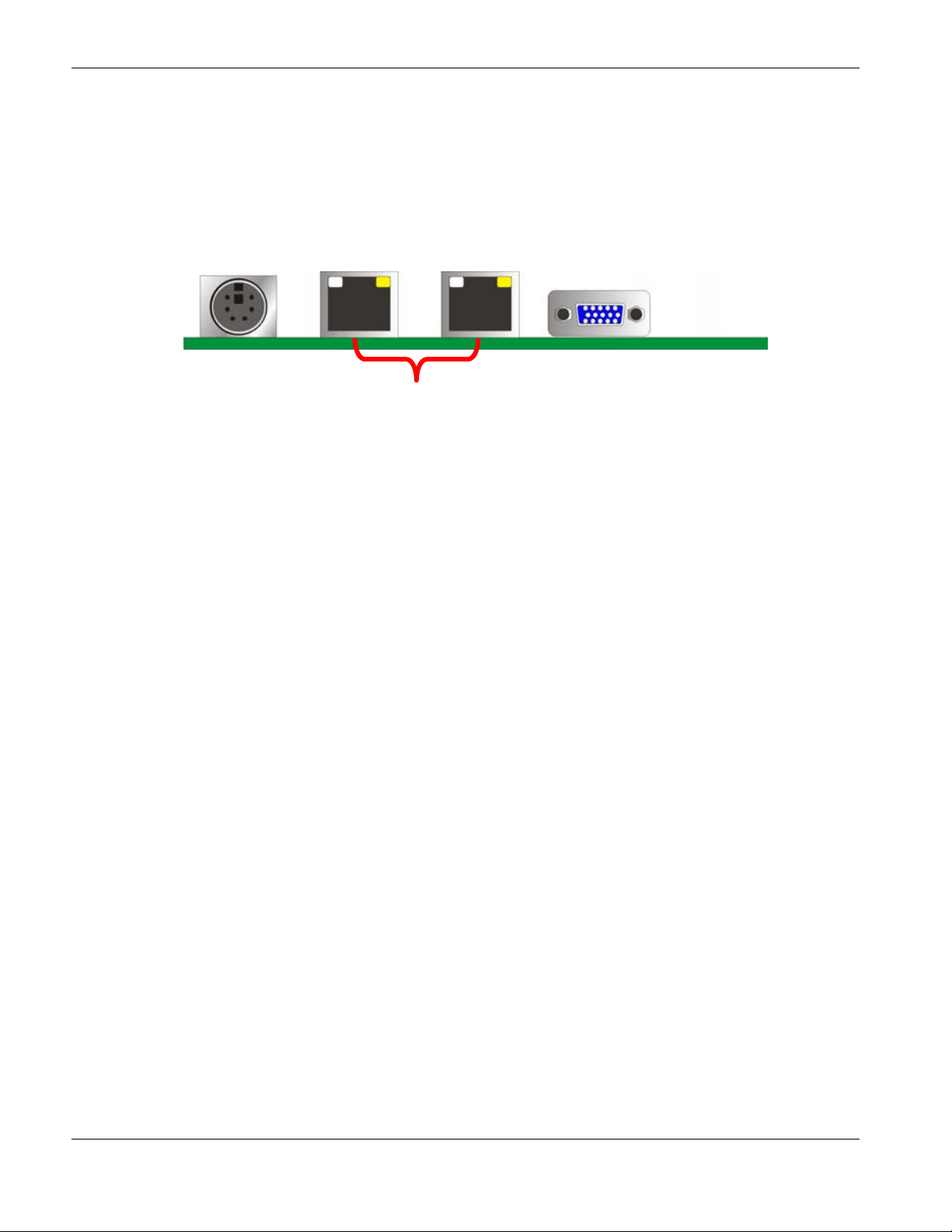

PS2 RJ45_2 RJ45_1 CRT

PS2 COM1 RJ45_1 CRT

CyberResearch, Inc. 13

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

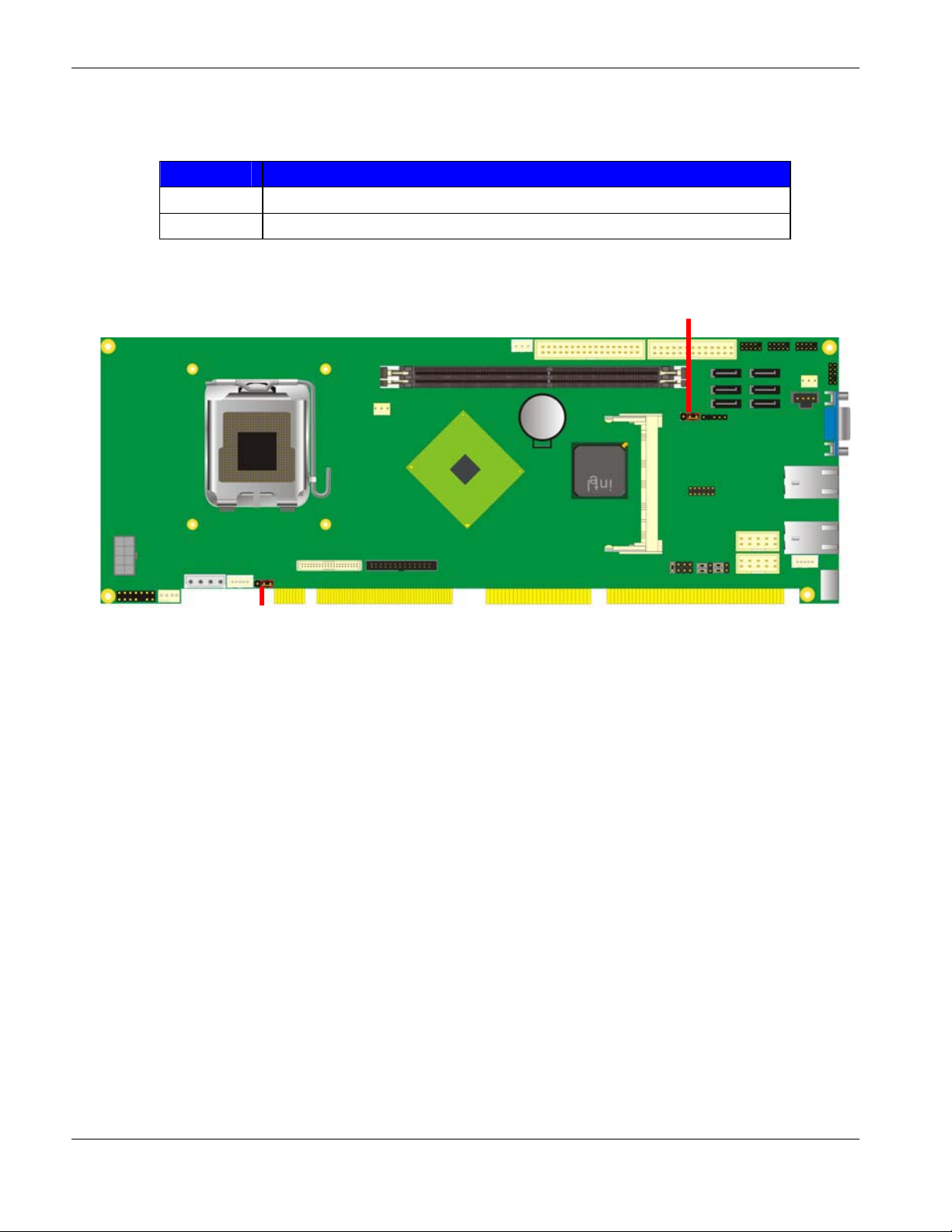

2.2 <Jumper Reference>

Jumper Function

JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting (not presently available on this model)

JRTC

JVLCD

CyberResearch

CPU Cards CPMB Series

2.3 <Connector Reference>

2.3.1 <Internal Connectors>

Connector Function Remark

CPU LGA775 CPU socket DDRIIA/B 240 -pin DDR2 SDRAM DIMM socket FDD 34-pin floppy connector CN_LPT 13 x 2-pin LPT connector S_ATAII1/2/3/4/5/6 7-pin Serial ATA II connector CN_12V 8-pin +12V additional power supply connector CN_AUDIO 5 x 2-pin audio connector CDIN 4-pin CD-ROM audio input connector CN_PS 3-pin ATX function connector DC_IN 4-pin power supply connector CN_DIO 6 x 2-pin digital I/O connector CN_USB1/2/3 10-pin USB connector CPUFAN 4-pin CPU cooler fan connector SYSFAN 3-pin system cooler fan connector NBFAN 3-pin Northbridge cooler fan connector CN_IR 5-pin IrDA connector CN_ATKB 5-pin AT keyboard connector CN_INV 5-pin LCD inverter connector (unavailable) CN_LVDS 20 x 2-pin LVDS connector (unavailable) JFRNT 14-pin front panel switch/indicator connector Mini-PCI 1 x 124-pin Mini-PCI socket CN_DVI 26-Pin connector CN_COM1/2 5 x 2-pin com connector

2.3.2 <External Connectors>

Connector Function Remark

CRT DB15 VGA connector RJ45_1/2 One RJ45 LAN connector PS2 PS/2 keyboard and mouse connector

CyberResearch, Inc. 15

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

2.4 <CPU and Memory Setup>

2.4.1 <CPU installation>

CPMB has a LGA775 CPU socket onboard; please check following steps to install the

processor properly.

Attention If the CPMB needs an RMA, keep CPU socket cover on the CPU Socket. Warning If the internal CPU Socket Pins are damaged warranty may be void.

Intel Core 2 Duo /Quad processor

Package type: 775 pin PLGA

L2 Cache: 4 MB

FSB: 533/800/1066MHz (266MHz x 4)

Manufacturing: 65nm, 90nm

Intel Hyper Threading Technology

1. Lift this bar

and Core 2 Duo /Quad supported

Check point

3. Place the CPU on the top of

2. Uncover this plate

4. Lock this bar

Notice: Please place the CPU on the pins carefuly to avoid bending the pins

the pins

3. Cover this plate

CyberResearch

CPU Cards CPMB Series

2.4.2 <Memory installation>

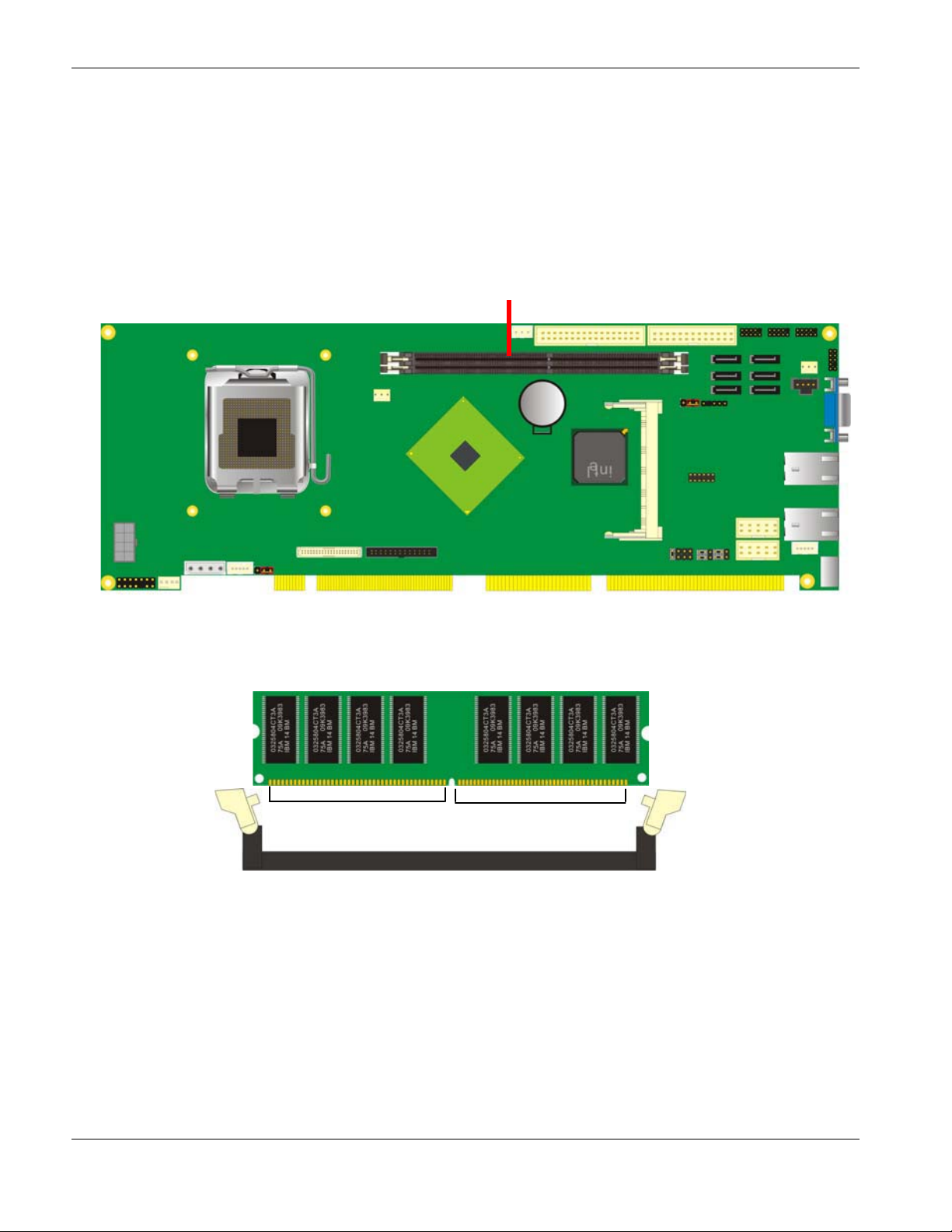

CPMB has two 240-pin DDR2 DIMM support up to 3GB of memory capacity. The memory

frequency supports 533/667/800MHz . Only Non-ECC memory is supported.

DDRIIA/B

112-pin128-pin

Please check the pin number to match the socket side well

before installing memory module.

CyberResearch, Inc. 17

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

2.5 <CMOS Setup>

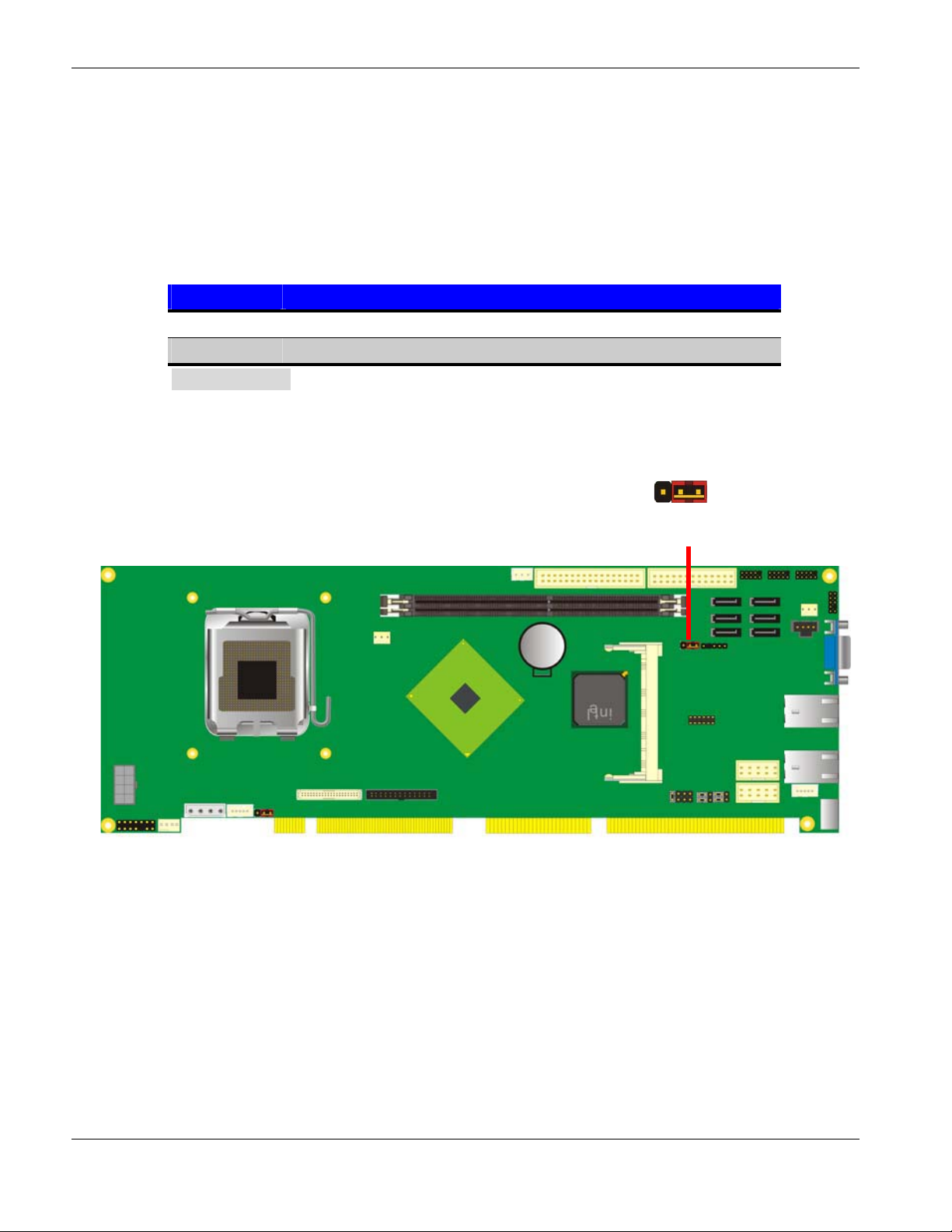

The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

Jumper: JRTC

Type: Onboard 3-pin jumper

JRTC Mode

1-2 Clear CMOS 2-3 Normal Operation

Default setting

1 3

JRTC

CyberResearch

CPU Cards CPMB Series

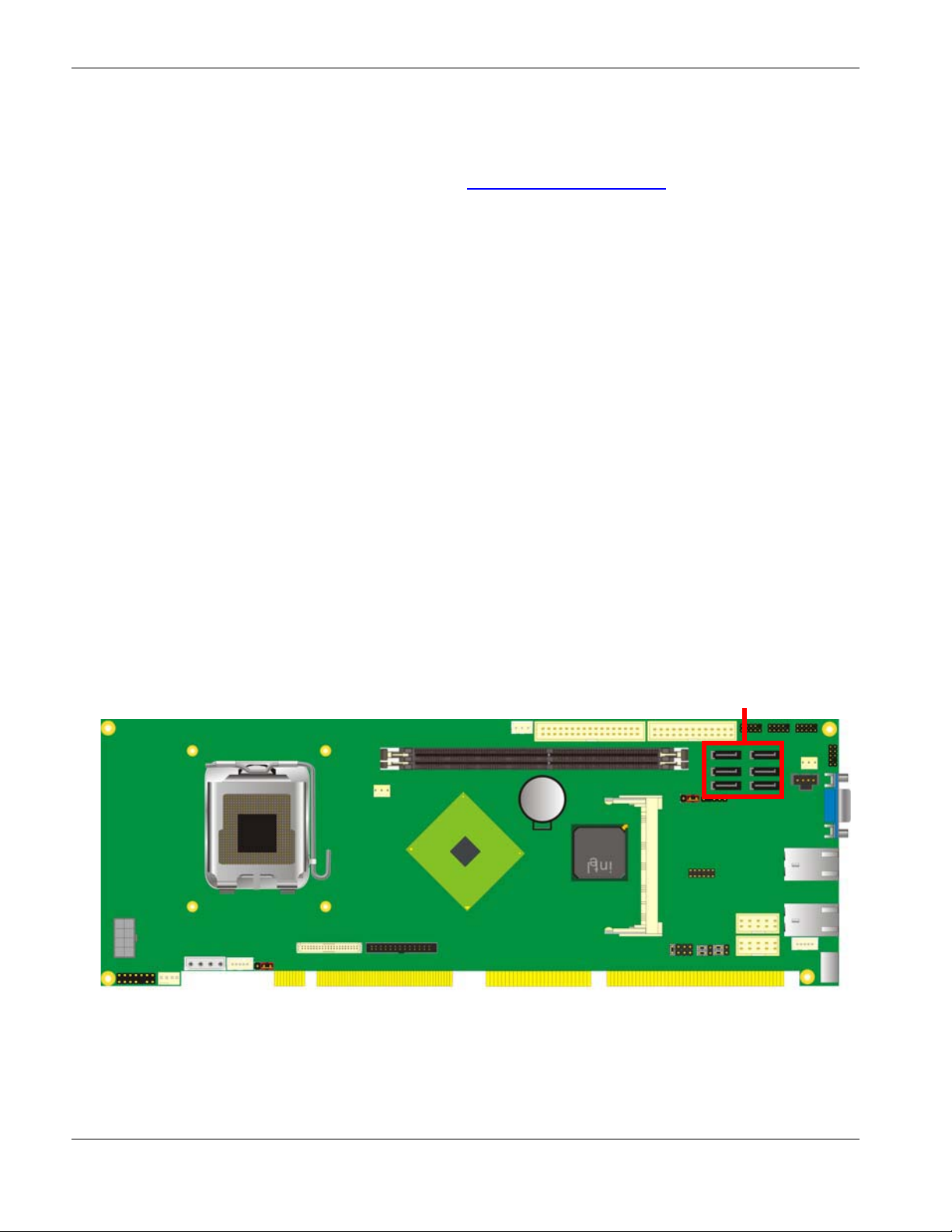

2.6 <Serial ATA installation>

CPMB has six Serial ATA II interfaces with RAID function, the transfer rate of the Serial

ATA II can be up to 300MB/s. Please go to http://www.serialata.org/

for more about Serial

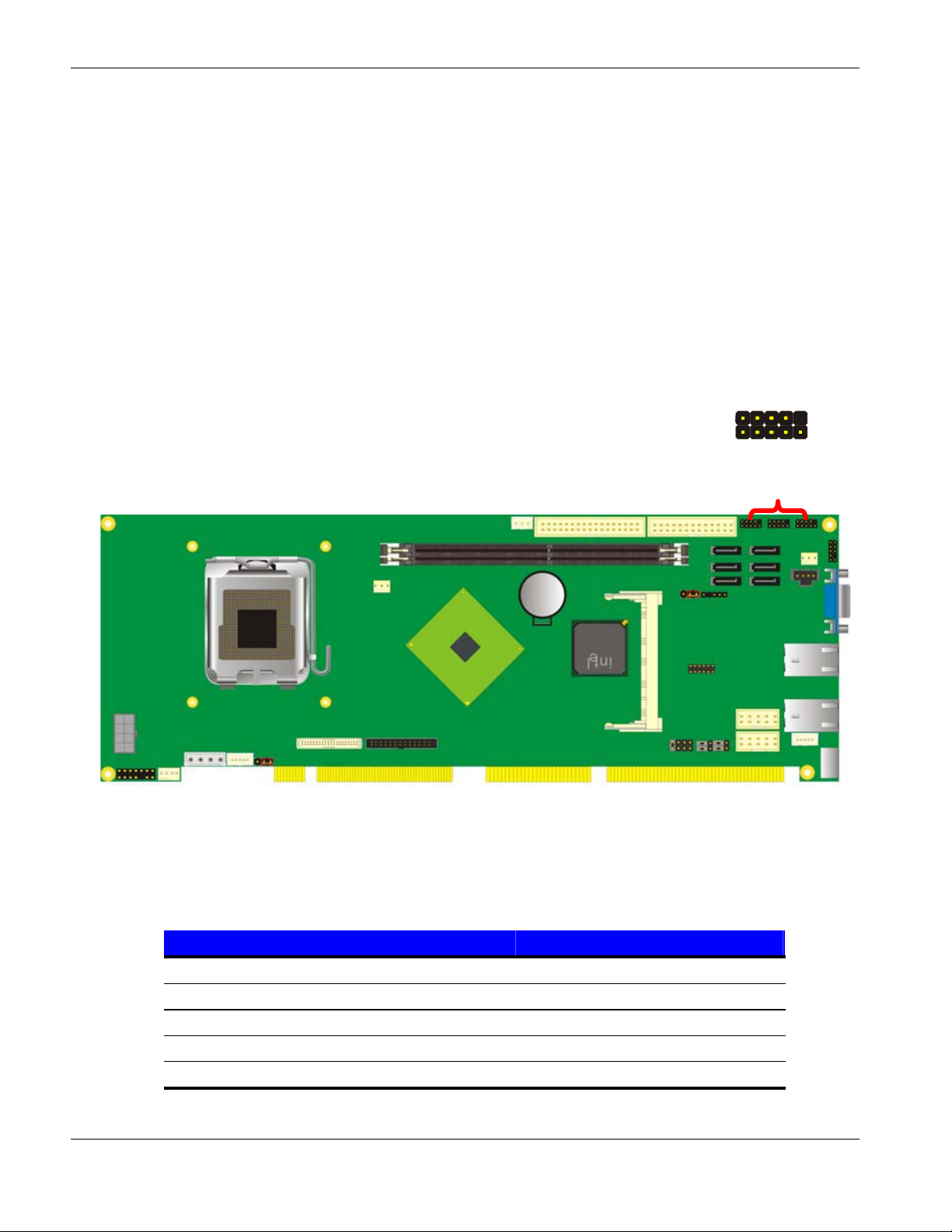

ATA technology information. Based on Intel ICH8DO, it supports Intel Matrix Storage

Technology with combination of RAID 0,1,5 and 10. The main features of RAID on

ICH8DO are listed below:

1. Supports for up to RAID volumes on a single, two-hard drive RAID array.

2. Supports for two, two-hard drive RAID arrays on any of six Serial ATA ports.

3. Supports for Serial ATA ATAPI devices.

4. Supports for RAID spares and automatic rebuild.

5. Supports on RAID arrays, including NCQ and native hot plug.

For more information please visit Intel’s official website.

For more about the system setup for Serial ATA, please check the chapter of SATA

configuration.

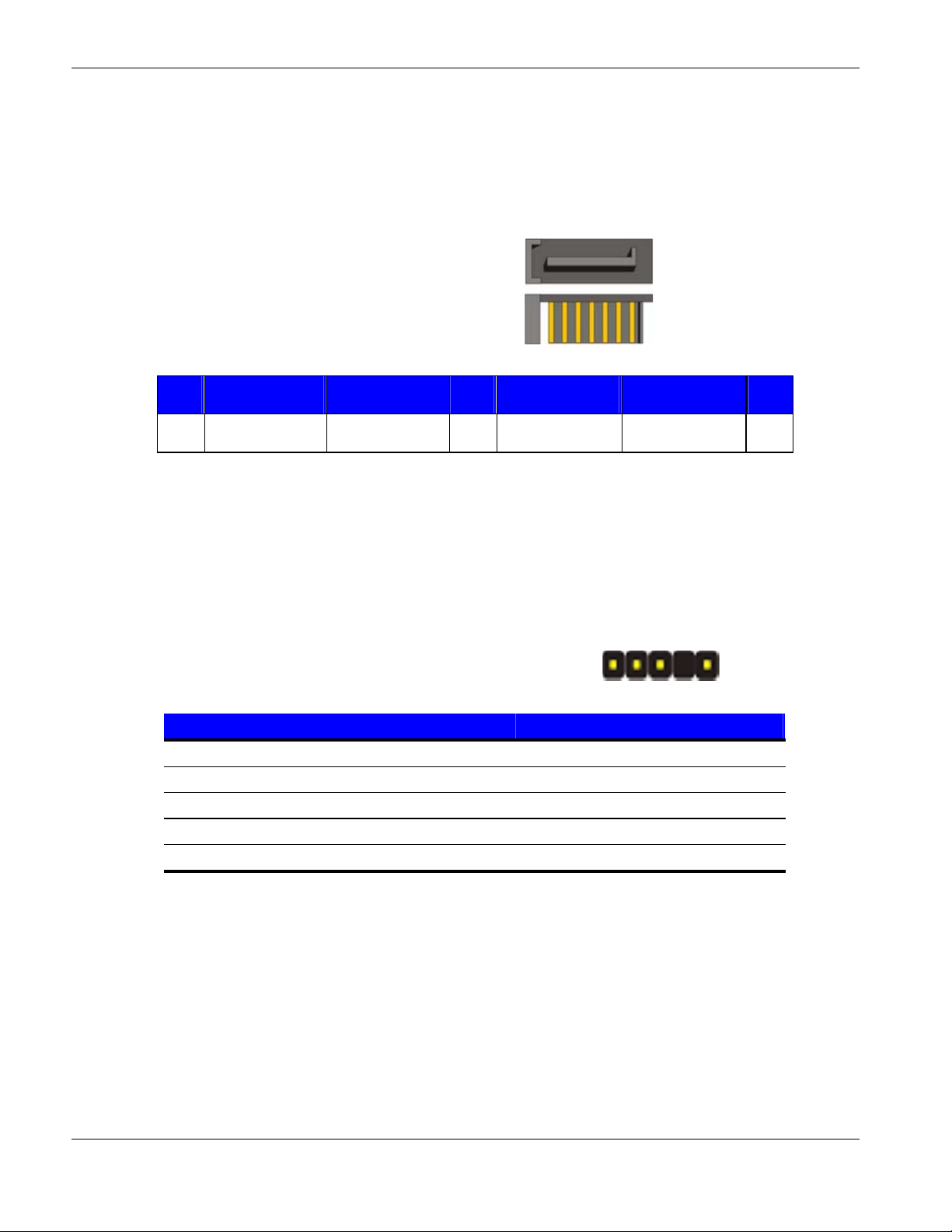

S_ATA1~6

CyberResearch, Inc. 19

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

2.7 <LAN Interface>

The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance

and Wake-On-LAN supported.

LAN

CyberResearch

2.8 <Onboard Display Interface>

Based on Intel Q965 chipset with built-in graphics, the board provides one DB15

connector on real external I/O port and one 26-pin DVI interface.

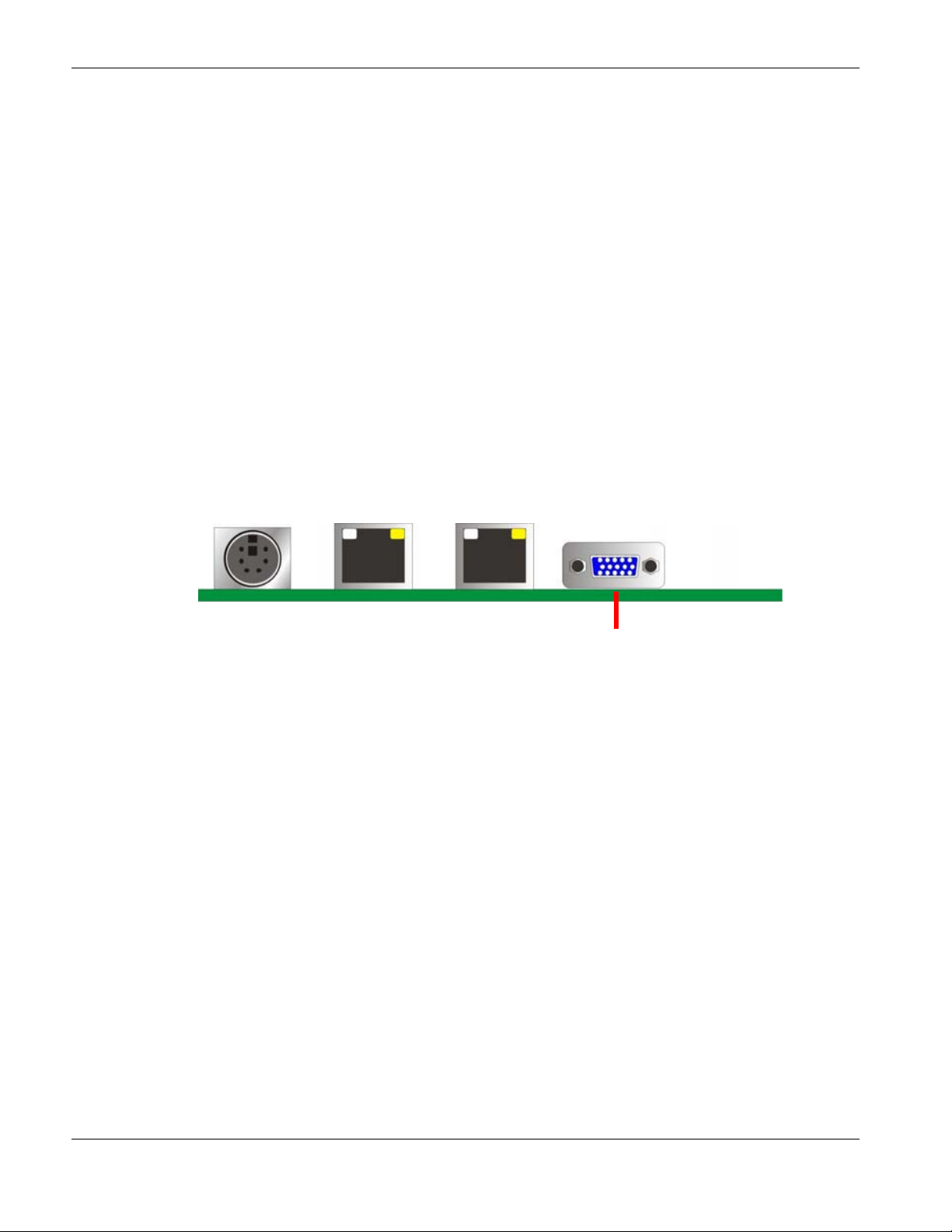

2.8.1 <Analog Display>

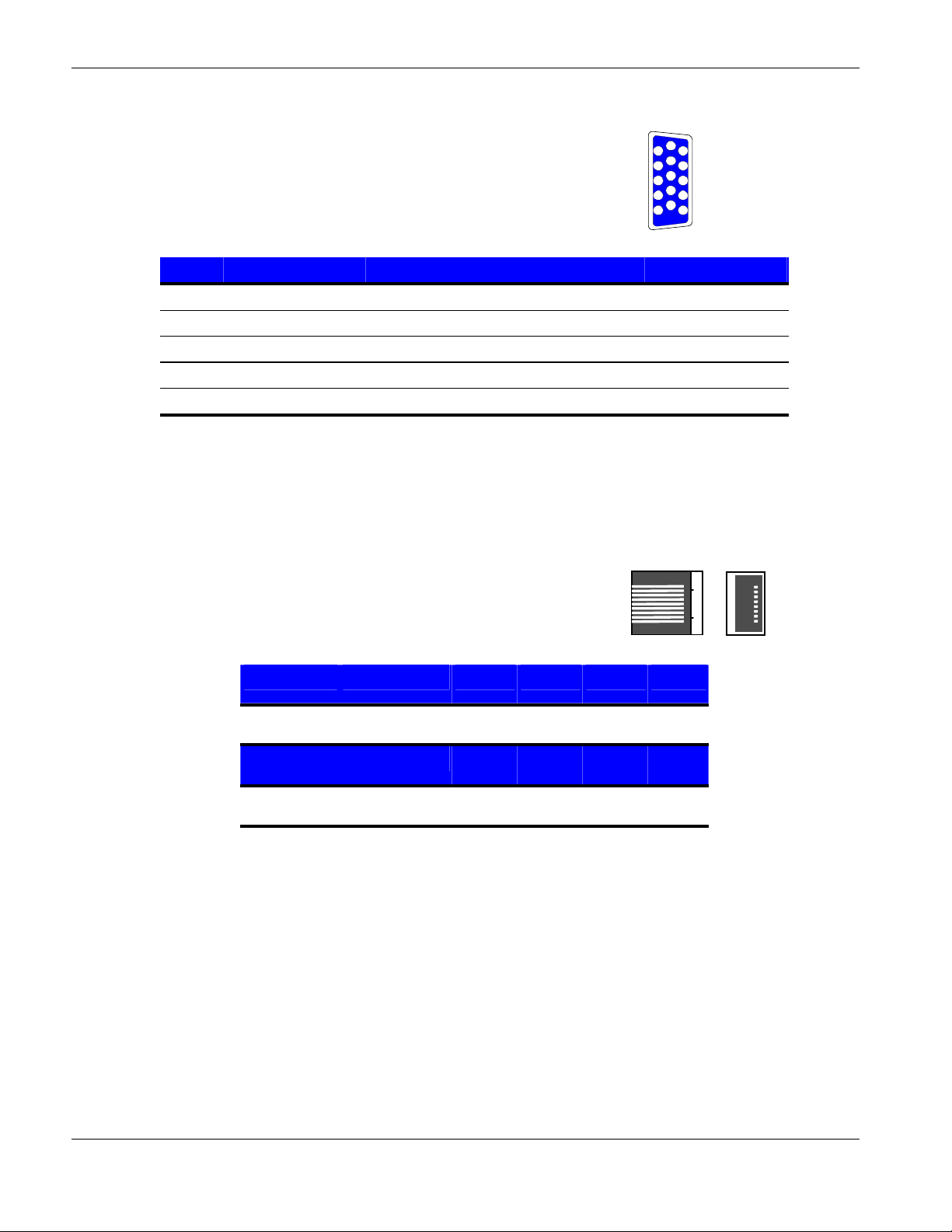

Please connect your CRT or LCD monitor with DB15 male connector to the onboard

DB15 female connector on bracket.

CPU Cards CPMB Series

CRT

CyberResearch, Inc. 21

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

2.8.2 <LVDS Display - This option is not currently available>

The board provides one 40-pin LVDS connector for 18/24-bit dual channel panels,

supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter

connector and one jumper for panel voltage setting. This option is not currently available.

1 3

JVLCD

CN_INV

CN_LVDS

CyberResearch

CPU Cards CPMB Series

Connector: CN_INV Connector: JVLCD

Type: 5-pin LVDS Power Header Type: 3-pin Power select Header

Connector model: JST B5B-XH-A

Pin Description

+12V

GND

ENABKL

Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V

Pin Signal Pin Signal

2 LCDVCC 1 LCDVCC 4 GND 3 GND 6 ATX0- 5 BTX0-

8 ATX0+ 7 BTX0+ 10 GND 9 GND 12 ATX1- 11 BTX114 ATX1+ 13 BTX1+ 16 GND 15 GND 18 ATX2- 17 BTX220 ATX2+ 19 BTX2+ 22 GND 21 GND 24 ACLK- 23 BTX326 ACLK+ 25 BTX3+ 28 GND 27 GND 30 ATX3- 29 BCLK32 ATX3+ 31 BCLK+ 34 GND 33 GND 36 N/C 35 N/C 38 N/C 37 N/C 40 N/C 39 N/C

VCC (5V)

LCDVCC

VCC3 (3.3)

CyberResearch, Inc. 23

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

To setup the LCD, you need the component below:

1. A panel with LVDS interfaces.

2. An inverter for panel’s backlight power.

3. A LCD cable and an inverter cable.

For the cables, please follow the pin assignment of the connector to make a cable, because

every panel has its own pin assignment, so we do not provide a standard cable; please find

a local cable manufacture to make cables.

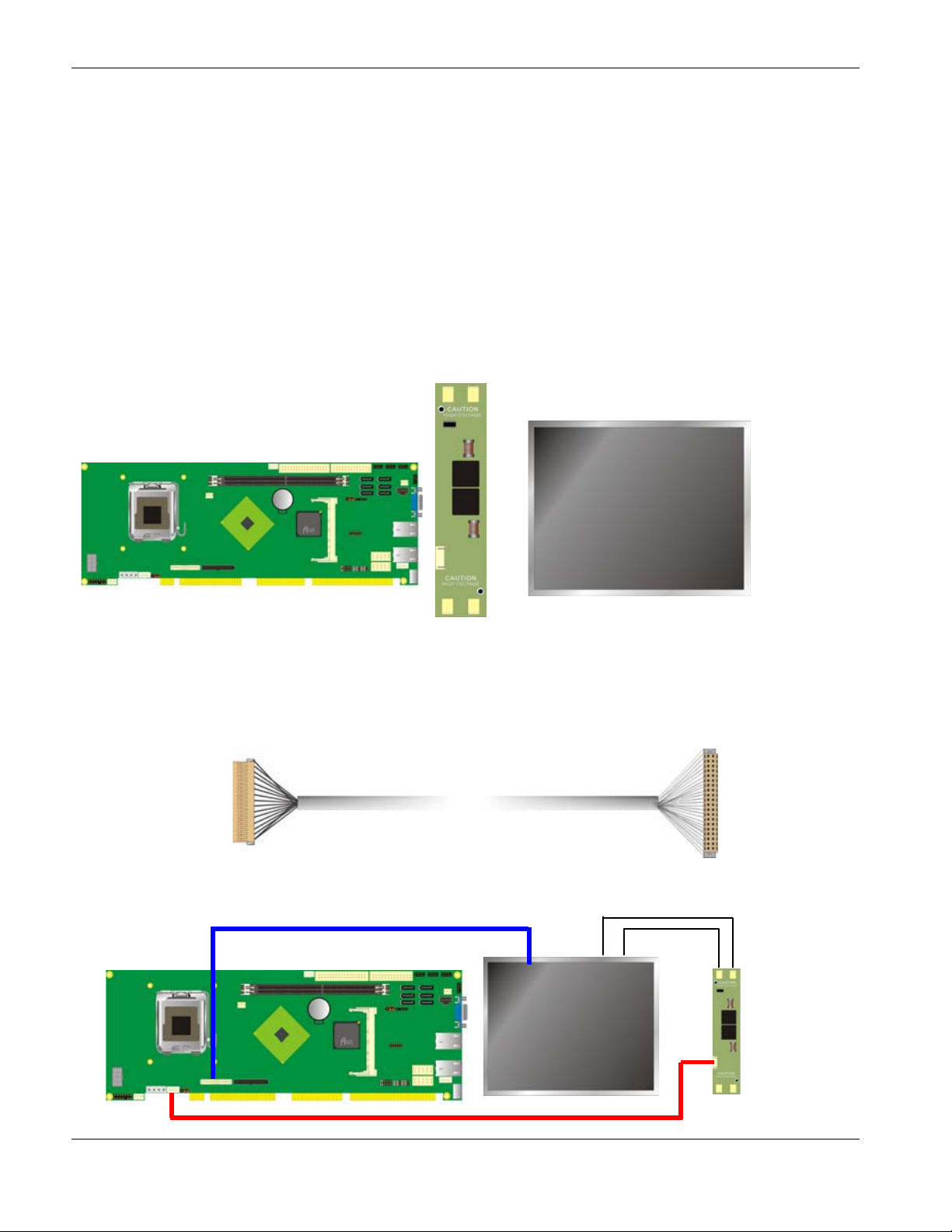

LCD Installation Guide:

1. Preparing the CPMB, LCD panel and the backlight inverter.

2. Please check the datasheet of the panel to see the voltage of the panel, and set the

jumper JVLCD to +5V or +3.3V.

3. You would need a LVDS type cable.

Panel side

For sample illustrator only

Board side

4. To connect all of the devices well.

CyberResearch

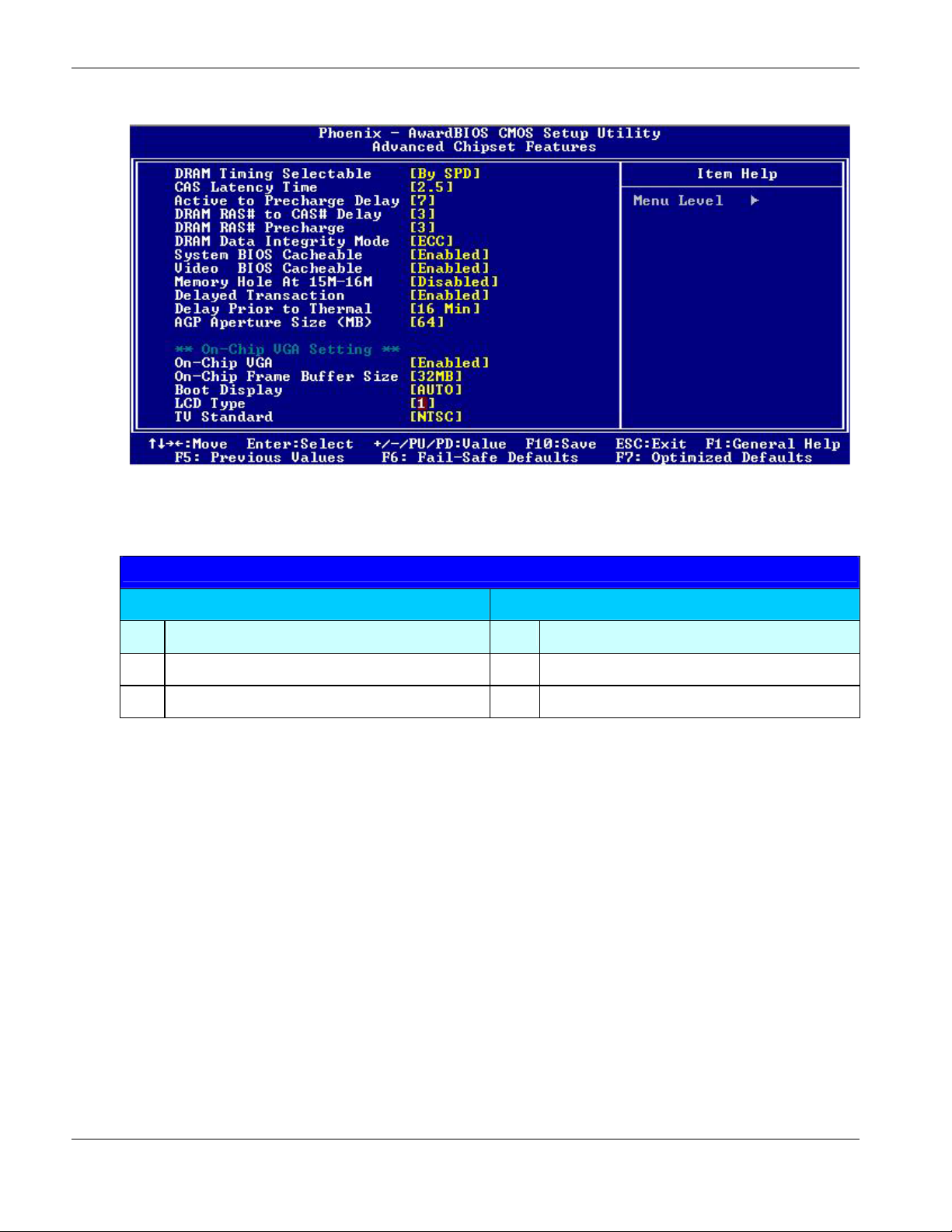

After setup the devices well, you need to select the LCD panel type in the BIOS.

CPU Cards CPMB Series

The LCD type mapping is list below:

BIOS panel type selection form

Single channel Dual channel

NO. Output format NO. Output format

1 800 x 600 (18bit) 3 1280 x 1024 (24bit)

2 1024 x 768 (24bit) 4 1366 x 768 (24bit)

CyberResearch, Inc. 25

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

2.8.3 <DVI Display>

The board provides a DVI-D interface with Intel Q965, compliant with DVI 1.0

standard.

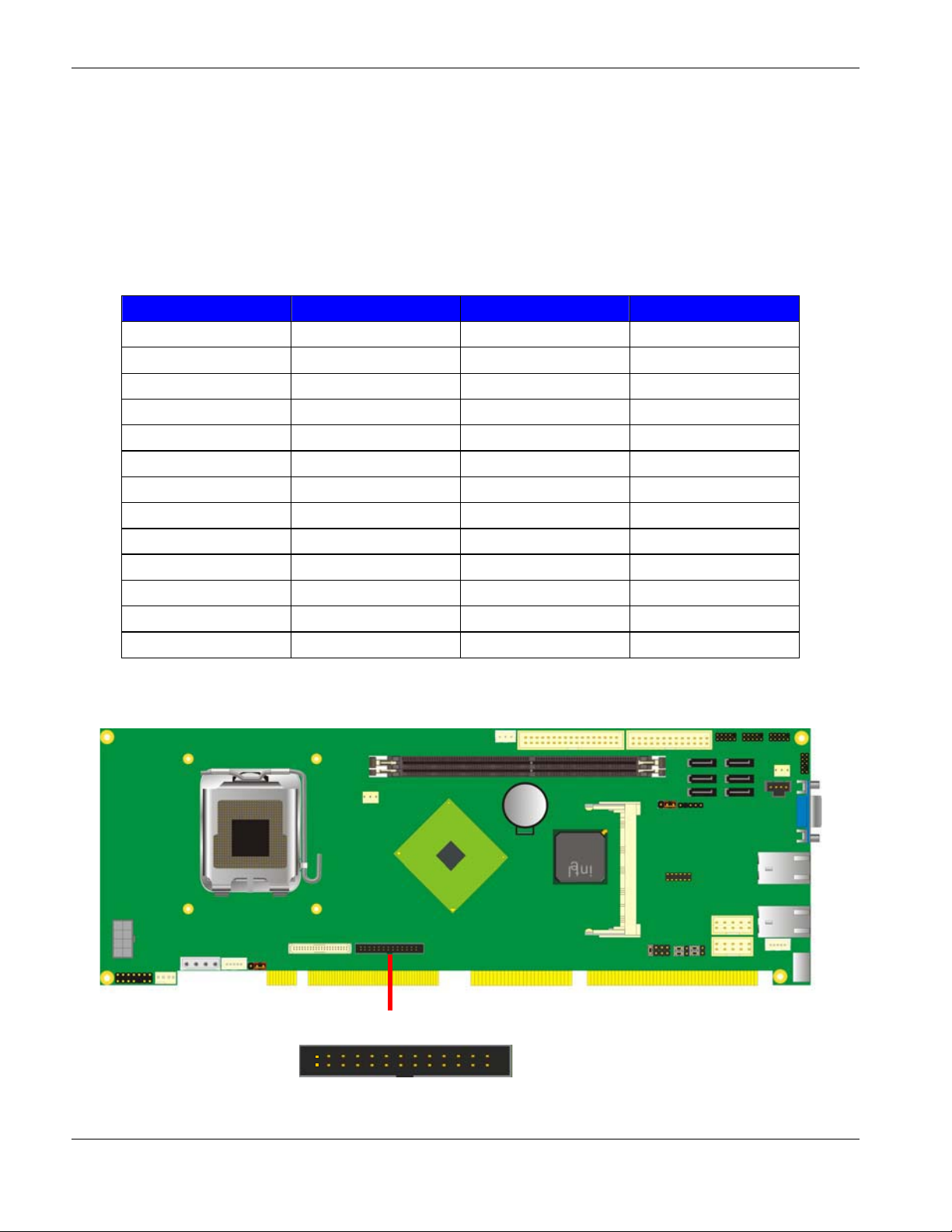

Connector: CN_DVI

Connector type: 26-pin header connector (pitch = 2.0mm)

Pin Number Assignment Pin Number Assignment

1 TX1+ 2 TX13 Ground 4 Ground 5 TXC+ 6 TXC7 Ground 8 PVDD

9 N/C 10 N/C 11 TX2+ 12 TX213 Ground 14 Ground 15 TX0+ 16 TX017 N/C 18 HPDET 19 DDCDATA 20 DDCCLK 21 GND 22 N/C 23 N/C 24 N/C 25 N/C 26 N/C

CN_DVI

CyberResearch

CPU Cards CPMB Series

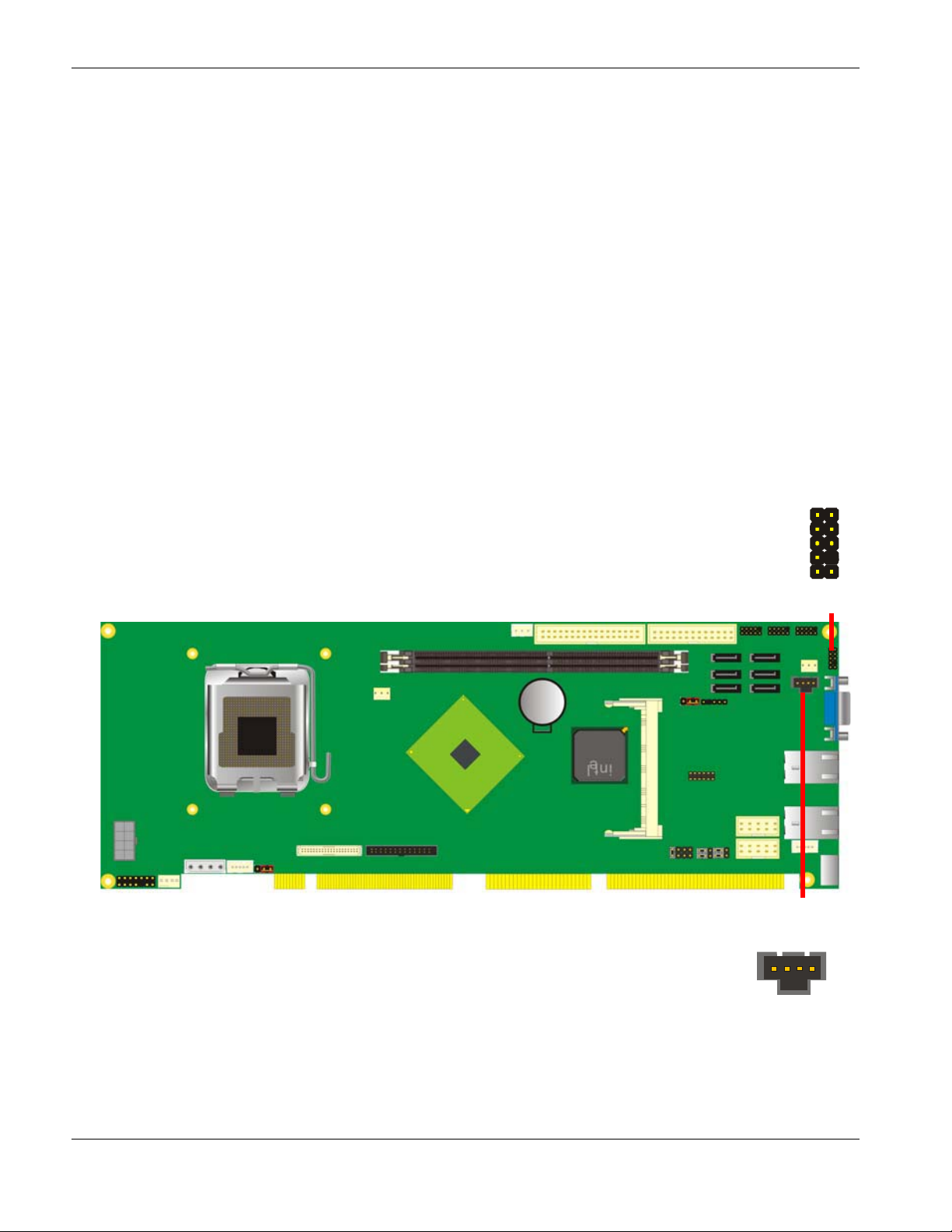

2.9 <Audio Installation>

The board integrates onboard audio interface with REALTEK ALC260 codec, with Intel next

generation of audio standard as High Definition Audio, it offers more vivid sound and other

advantages than former HD audio compliance.

The main specifications of ALC260 are:

z High-performance DACs with 100dB S/N ratio

z Compatible with HD

z Meets Microsoft WHQL/WLP 2.0 audio requirements

The board provides amplified speaker out and Line-in/MIC-in ports for front I/O panel

through audio cable.

CN_AUDIO

CDIN

1 4

CyberResearch, Inc. 27

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Connector: CN_AUDIO

Type: 10-pin (2 x 5) header (pitch = 2.54mm)

Pin Description Pin Description

1 MIC_L 2 Ground 3 MIC_R 4 ACZ_DET 5 Speaker_R 6 MIC Detect 7 SENSE 8 N/C 9 Speaker_L 10 Speaker Detect

Connector: CDIN

Type: 4-pin header (pitch = 2.54mm)

Pin Description

1 CD – Left 2 Ground 3 Ground 4 CD – Right

CyberResearch

CPU Cards CPMB Series

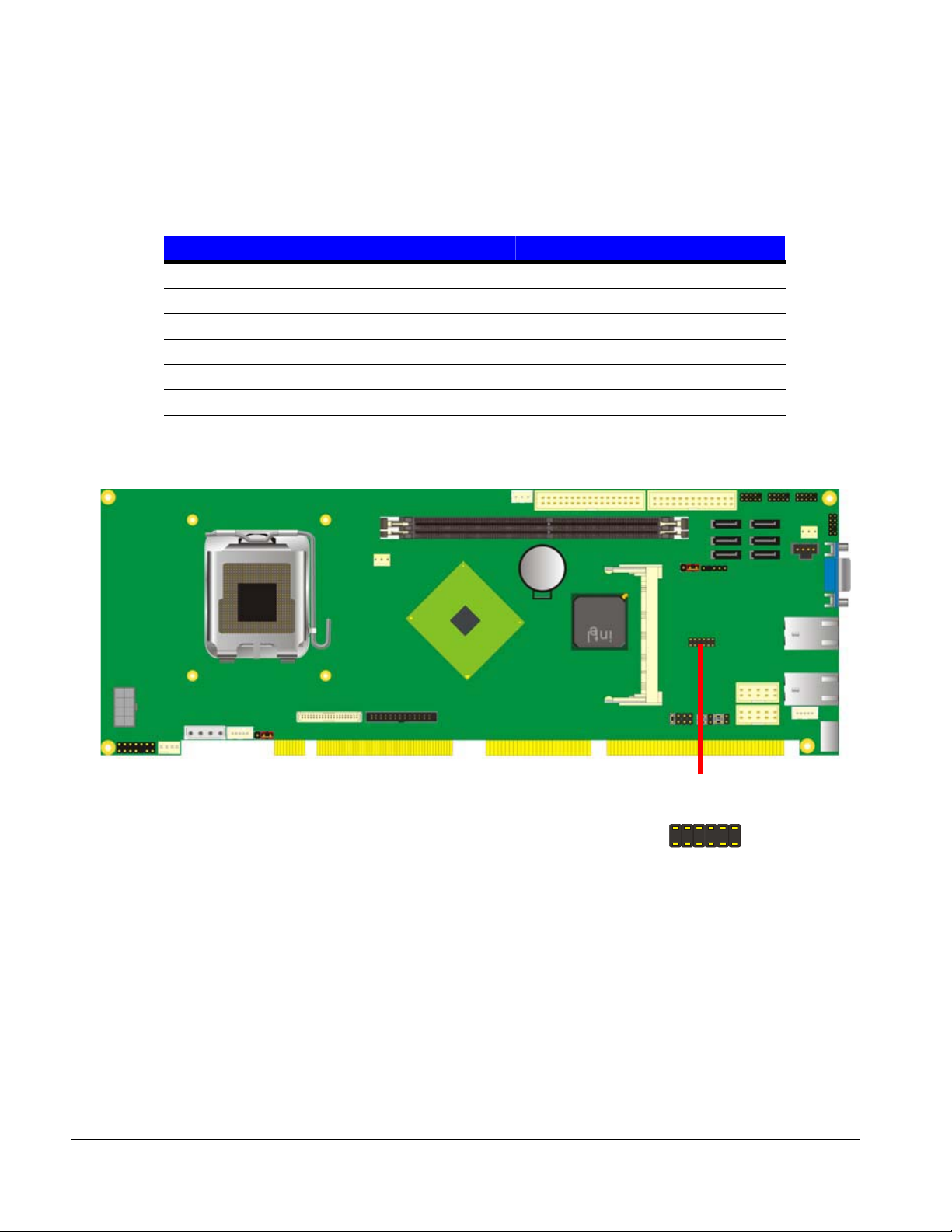

2.11 <GPIO interface>

The board provides a programmable 8-bit digital I/O interface for control panel applications.

Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm

Pin Description Pin Description

1 Ground 2 Ground 3 GP10 4 GP14 5 GP11 6 GP15 7 GP12 8 GP16 9 GP13 10 GP17 11 VCC 12 +12V

CN_DIO

CyberResearch, Inc. 29

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

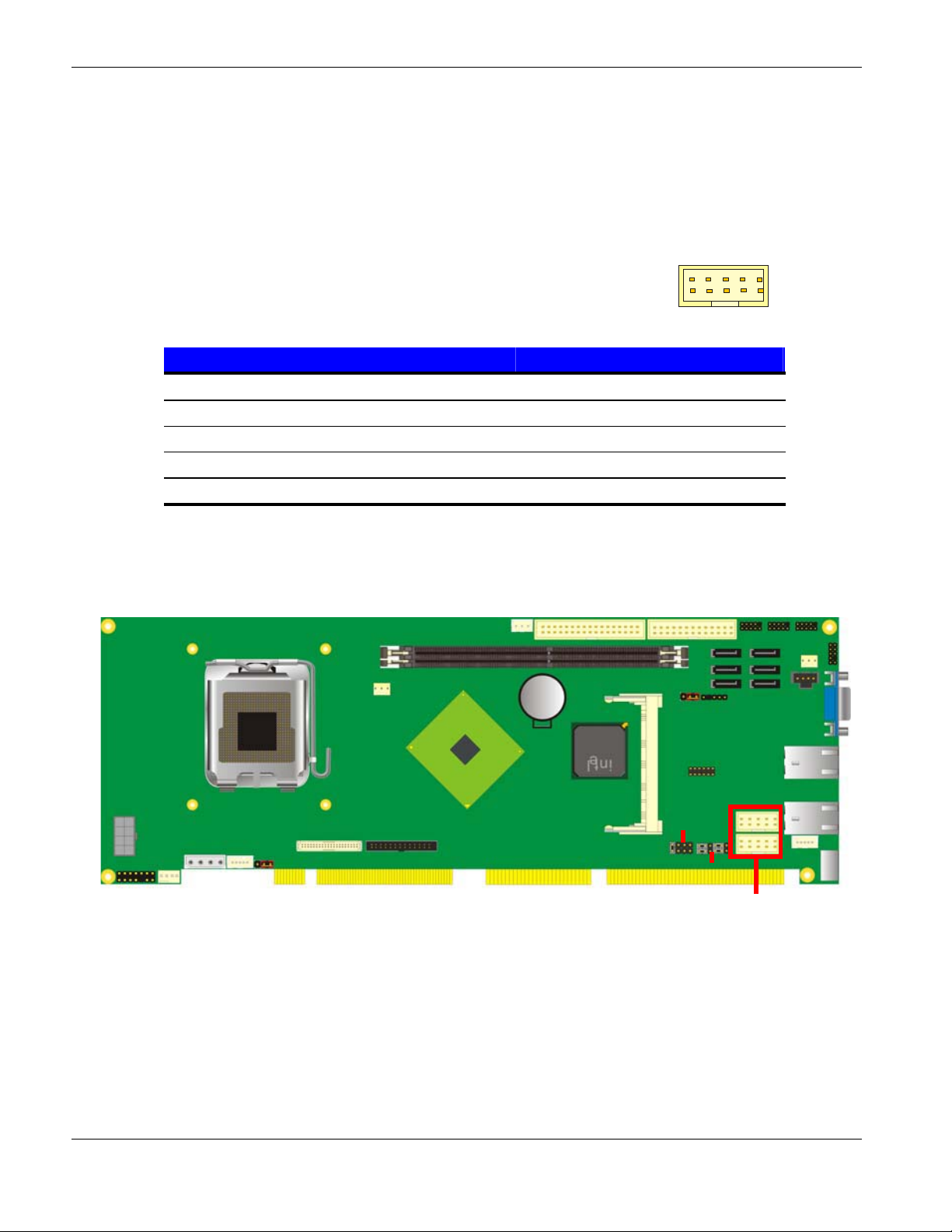

2.12 <USB2.0 Interface>

Based on Intel ICH8HDO , the board provides 6 USB2.0 ports. The USB2.0 interface

provides up to 480Mbps of transferring rate.

The Intel ICH8DO contains two Enhanced Host Controller Interface (EHCI) and five

Universal Host Controller Interfaces (UHCI), it can determine whether your connected

device is for USB1.1 or USB2.0, and change the transfer rate automatically.

2 10

1 9

CN_USB1/2/3

Connector: CN_USB1/2/3 Type: 10-pin (5 x 2) header for USB5/6 Ports

Pin Description Pin Description

1 VCC 2 VCC 3 Data0- 4 Data15 Data0+ 6 Data1+ 7 Ground 8 Ground 9 Ground 10 N/C

CyberResearch

CPU Cards CPMB Series

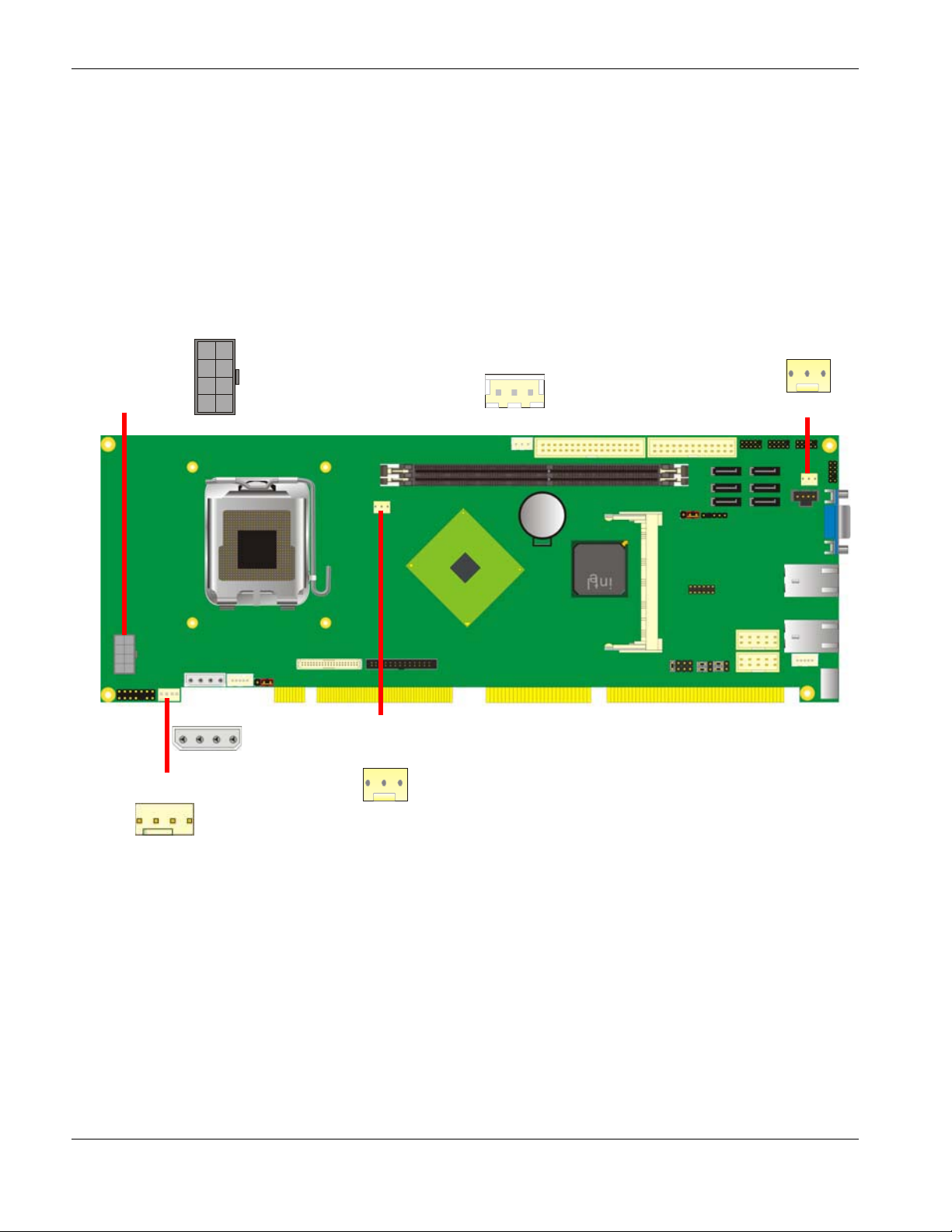

2.13 <Power and Fan Installation>

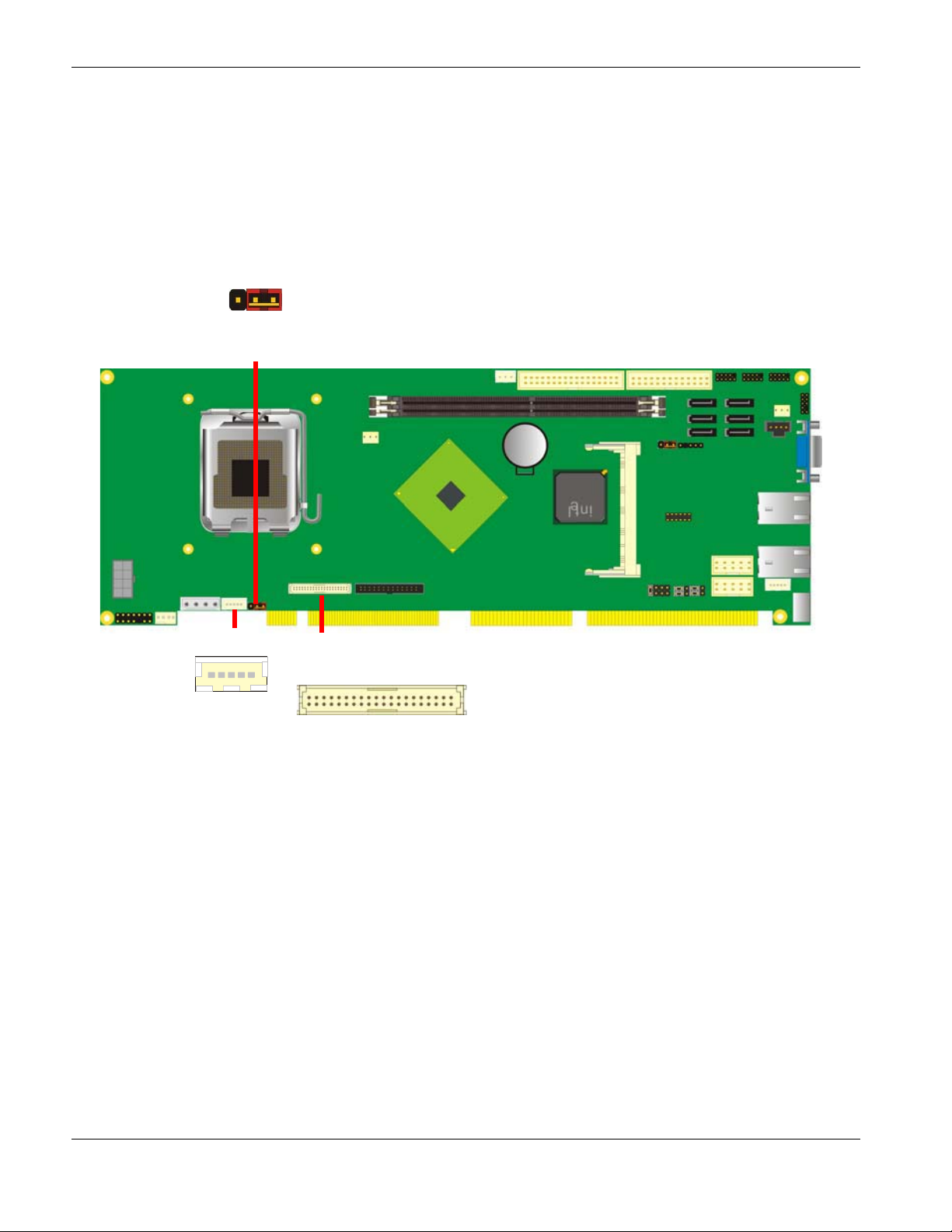

The CPMB provides a standard ATX power supply with 4-pin ATX connector and 8-pin

additional 12V connector, and the board provides one 4-pin fan connector supporting smart

fan for CPU cooler and two 3-pin cooler fan connectors for system and Northbridge chip.

The 8-pin CN_12V additional power connector is necessary for CPU powering; please

connect this well before you finishing the system setup.

CN_12V

CPUFAN

DC_IN

NBFAN

1 3

SYSFAN

CN_PS

1 4

CyberResearch, Inc. 31

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Connector: CN_12V Type: 8-pin ATX power connector

PIN assignment

1 GND 5 +12V 2 GND 6 +12V 3 GND 7 +12V 4 GND 8 +12V

Connector: DC_IN Type: 4-pin P-type connector for +5V/+12V input

Pin Description Pin Description Pin Description Pin Description

1 +12V 2 Ground 3 Ground 4 +5V

Connector: CN_PS Type: 3-pin ATX function connector

Pin Description Pin Description Pin Description

1 5V Standby 2 Ground 3 Power On

Connector: CPUFAN Type: 4-pin fan wafer connector

Pin Description Pin Description

1 Ground 2 +12V 3 Fan Speed Detection 4 Fan Control

Connector: NBFAN, SYSFAN Type: 3-pin fan wafer connector

Pin Description Pin Description Pin Description

1 Ground 2 +12V 3 Sense

CyberResearch

CPU Cards CPMB Series

CyberResearch, Inc. 33

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

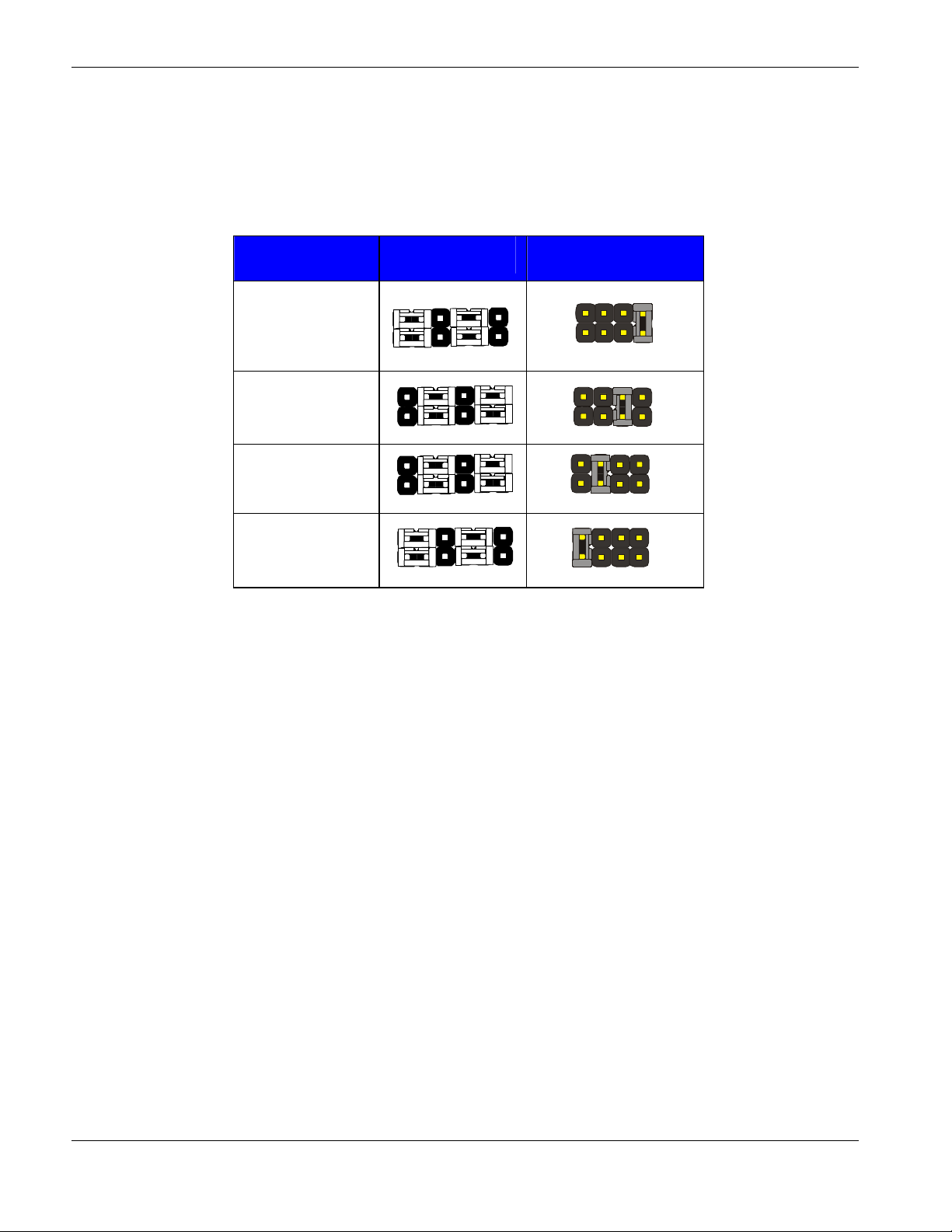

2.14 <Serial Port>

The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial

ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for

COM2.

2 10

Connector: CN_COM1/2 Type: 10-pin (5 x 2) 2.54mm x 2.54mm-pitch header for COM2

1 9

Pin Description Pin Description

1 DCD/422RX-/485- 2 RXD/422RX+/485+ 3 TXD/422TX+ 4 DTR/422TX5 GND 6 DSR 7 RTS 8 CTS 9 RI 10 N/C

JCSEL2

JCSEL1

CN_COM1/2

CyberResearch

CPU Cards CPMB Series

JCSEL1 JCSEL2

SIR

RS-422

RS-485

RS-232

CyberResearch, Inc. 35

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

2.15 <Switch and Indicator>

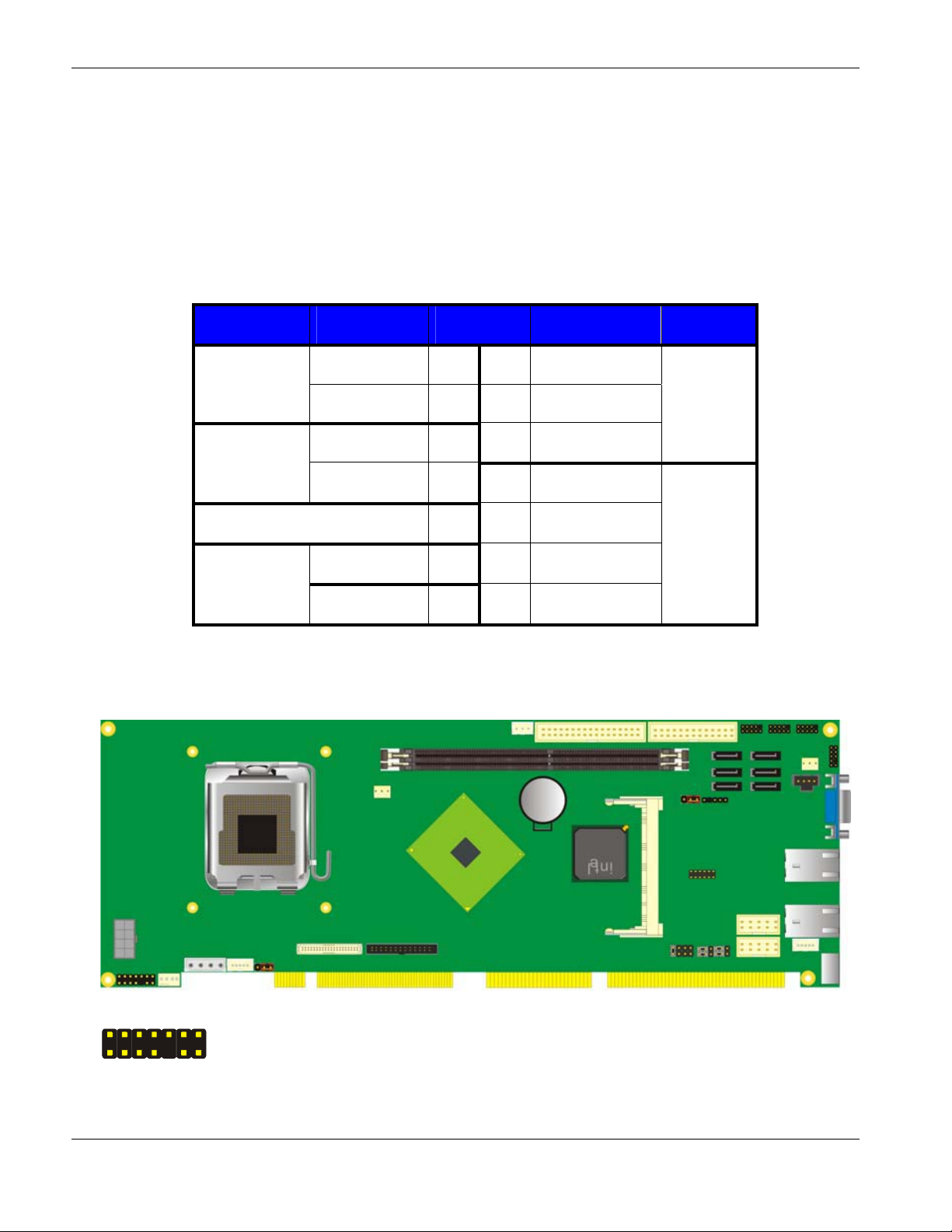

The JFRNT provides front control panel of the board, such as power button, reset and

beeper, etc. Please check well before you connecting the cables on the chassis.

Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header

Function Signal PIN Signal Function

HDLED+ 1 2 PWDLED+

IDE LED

HDLED- 3 4 N/C

Reset+ 5 6 PWDLED-

Reset

Reset- 7 8 SPKIN+

Power

LED

Power

Button

N/C 9 10 N/C

PWRBT+ 11 12 N/C

PWRBT- 13 14 SPKIN-

Speaker

JFRNT

CyberResearch

CPU Cards CPMB Series

Intentionally Blank

CyberResearch, Inc. 37

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Chapter 3 <System Configuration>

3.1 <SATA configuration>

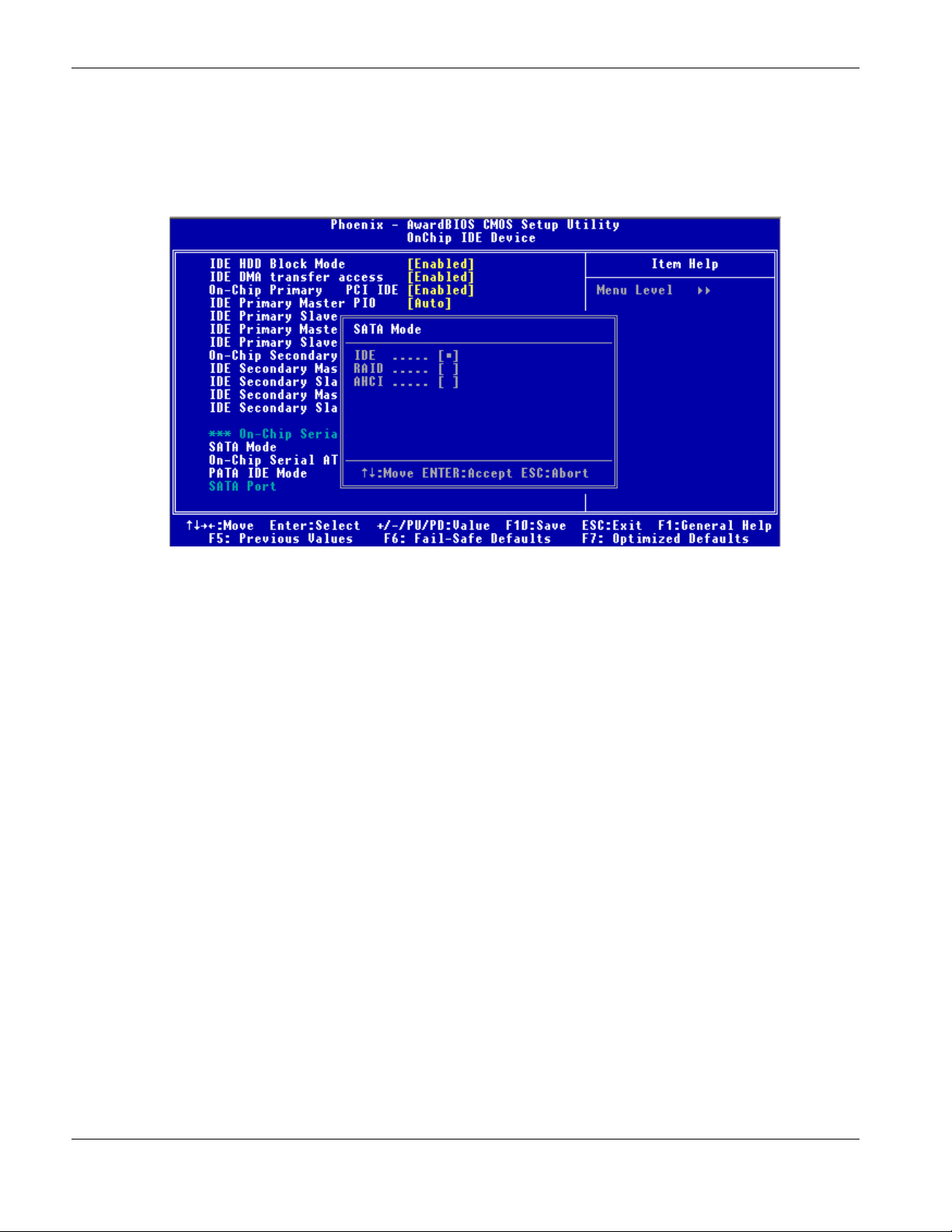

SATA Mode:

This option can let you select whether the Serial ATA hard drives would work under normal

IDE mode or RAID mode. The RAID mode need more than one HDD is applied.

CyberResearch

CPU Cards CPMB Series

3.2 <SATA RAID Configuration>

The board integrates Intel ICH8DO with RAID function for Serial ATA II drives, and

supports the configurations below:

RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W

performance. It needs two unused drives to build this operation.

RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if

one drive fails, the system would access the applications to the workable drive. It needs two

unused drives or one used and one unused drive to build this operation. The second drive

must be the same or lager size than first one.

RAID 5 (striping with parity)

A RAID 5 array contains three or more hard drives where the data is divided into

manageable blocks called strips. Parity is a mathematical method for recreating data that

was lost from a single drive, which increases fault-tolerance. The data and parity are striped

across all the hard drives in the array. The parity is striped in a rotating sequence to reduce

bottlenecks associated with the parity calculations.

RAID 10 (RAID 0+1)

A RAID 10 array uses four hard drives to create a combination of RAID levels 0 and 1. The

data is striped across a two-drive array forming the RAID 0 component. Each of the drives

in the RAID 0 array is then mirrored by a RAID 1 component.

Intel Matrix Storage Technology: This technology would allow you to use RAID 0+1 mode

on only two drives (4 drives needed on traditional RAID 0+1). It will create two partitions on

each hard drive to simulate RAID 0 and RAID 1. It also can let you modify the partition size

without re-formatted.

For more information of Intel Matrix Storage Technology, please visit Intel’s website.

If you need to install an operation system on the RAID set, please use the driver disk

attached in the package when it informs you to obtain the RAID drivers.

CyberResearch, Inc. 39

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

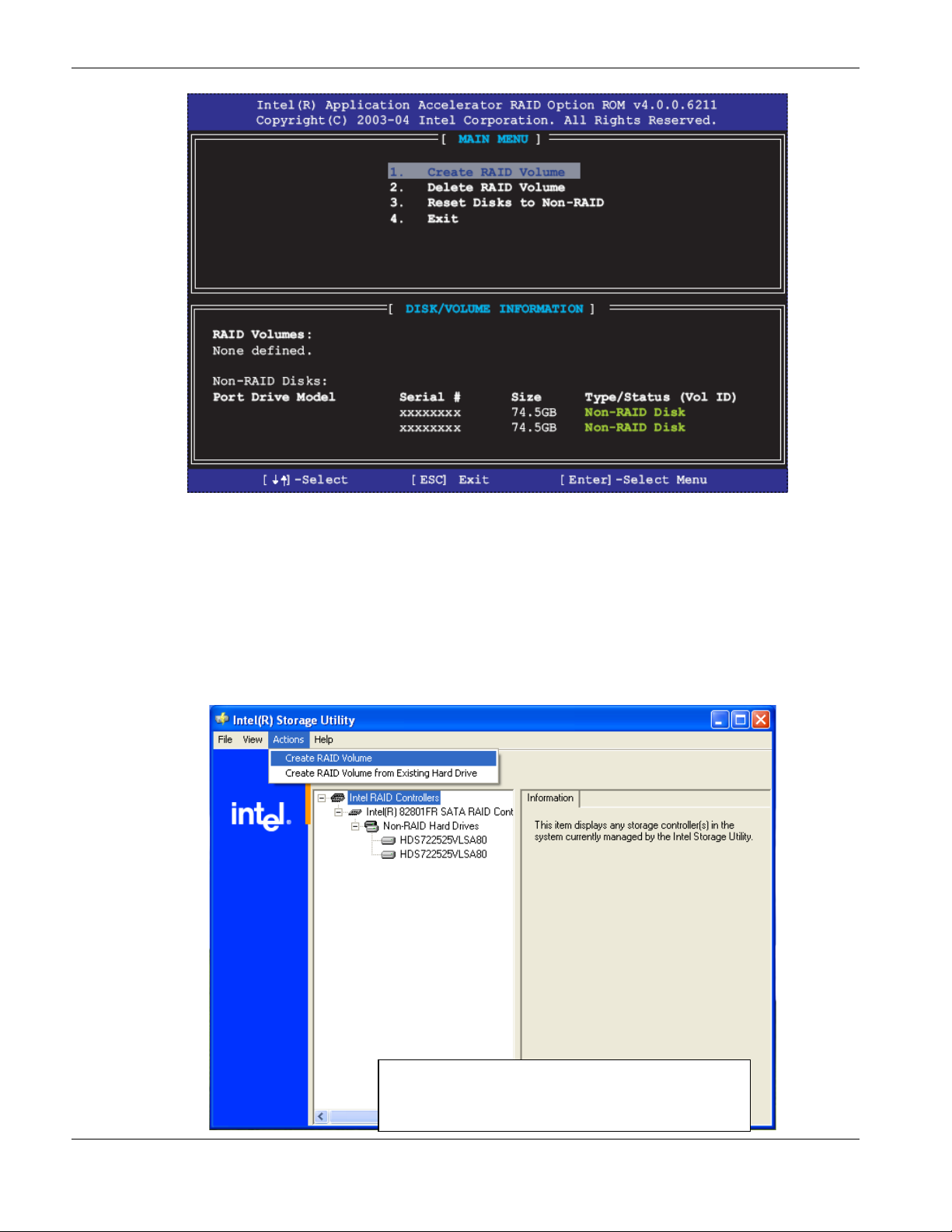

Please press <CTRL+I> to enter the RAID configuration menu.

You can setup the RAID under operation system for Microsoft Windows XP SP1 or

Windows 2000 SP4 version, please install the IntelʳApplication Accelerator Ver.4.5 later to

support RAID configuration with Intel Matrix Storage Technology.

1. After installing Intel Application Accelerator, please execute Intel Storage Utility.

Demo configuration for 2 SATA Drives and

set as Intel Matrix Storage Technology set

CyberResearch

CPU Cards CPMB Series

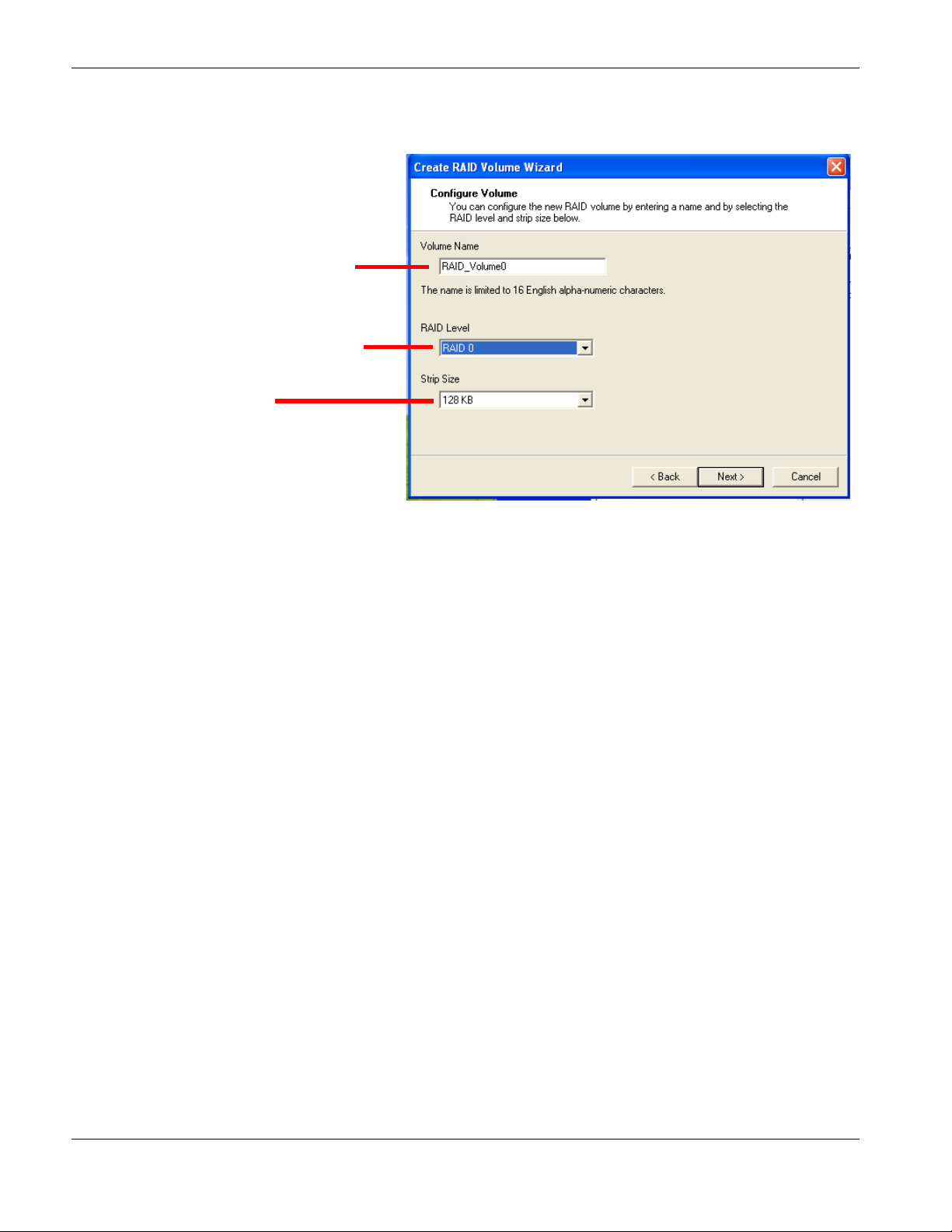

2. Select Actions to Create RAID Volume

Rename the Volume name

Select RAID Level as 0

Left as default

CyberResearch, Inc. 41

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

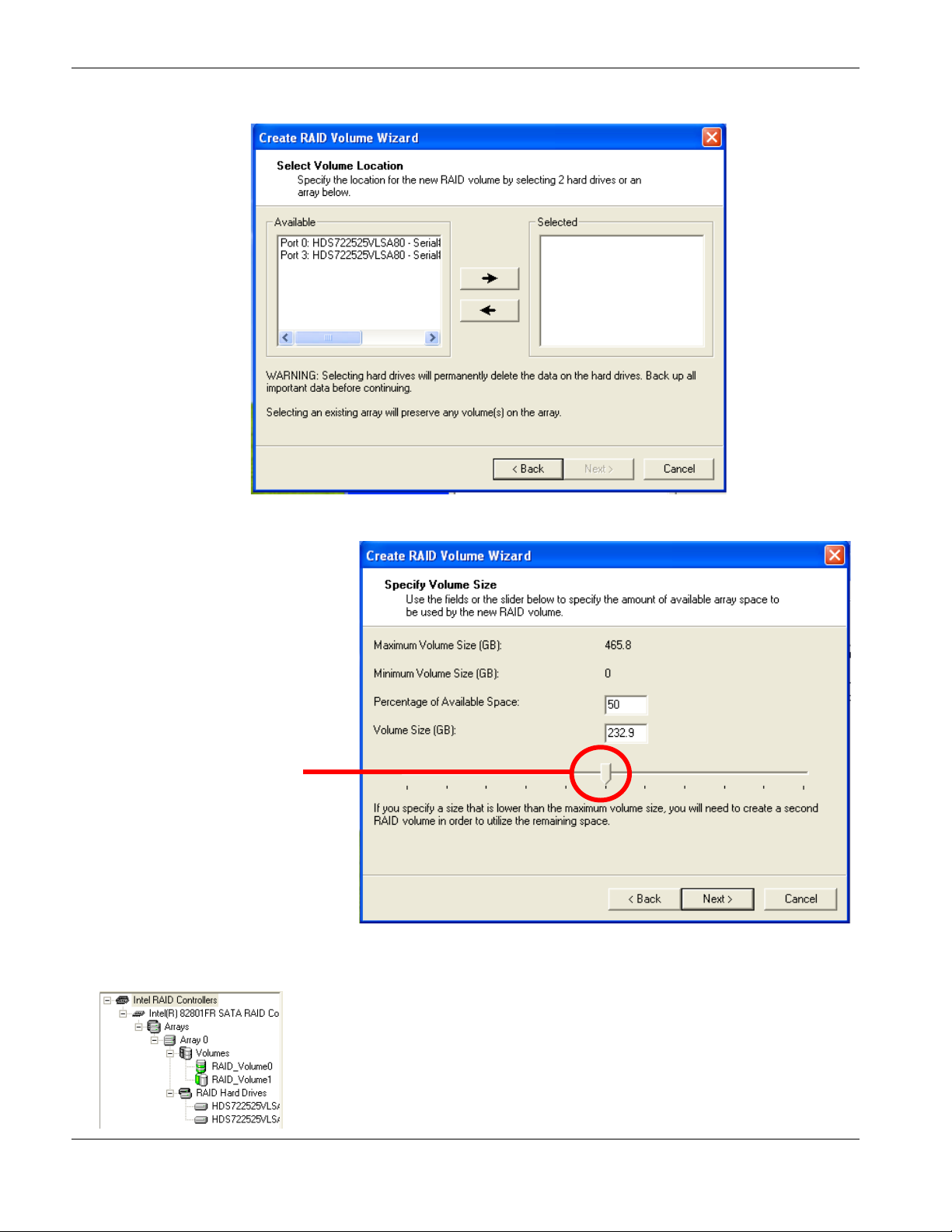

3. Please select two hard drives to prepare to set the RAID volume

4. Specify the Volume size

Tune this bar to specify

the volume size, if you

specify the volume size

lower than maximum,

you can create a second

volume for another

RAID set.

(Make RAID 0+1 on only

two hard drives)

5. Repeat the step 1 to create second volume as RAID Level 1.

For other configuration set please click Help on tool bar.

CyberResearch

CPU Cards CPMB Series

3.3 <Audio Configuration>

The board integrates Intel ICH8DO with REALTEK ALC260 codec. It can support

2-channel sound under system configuration. Please follow the steps below to setup your

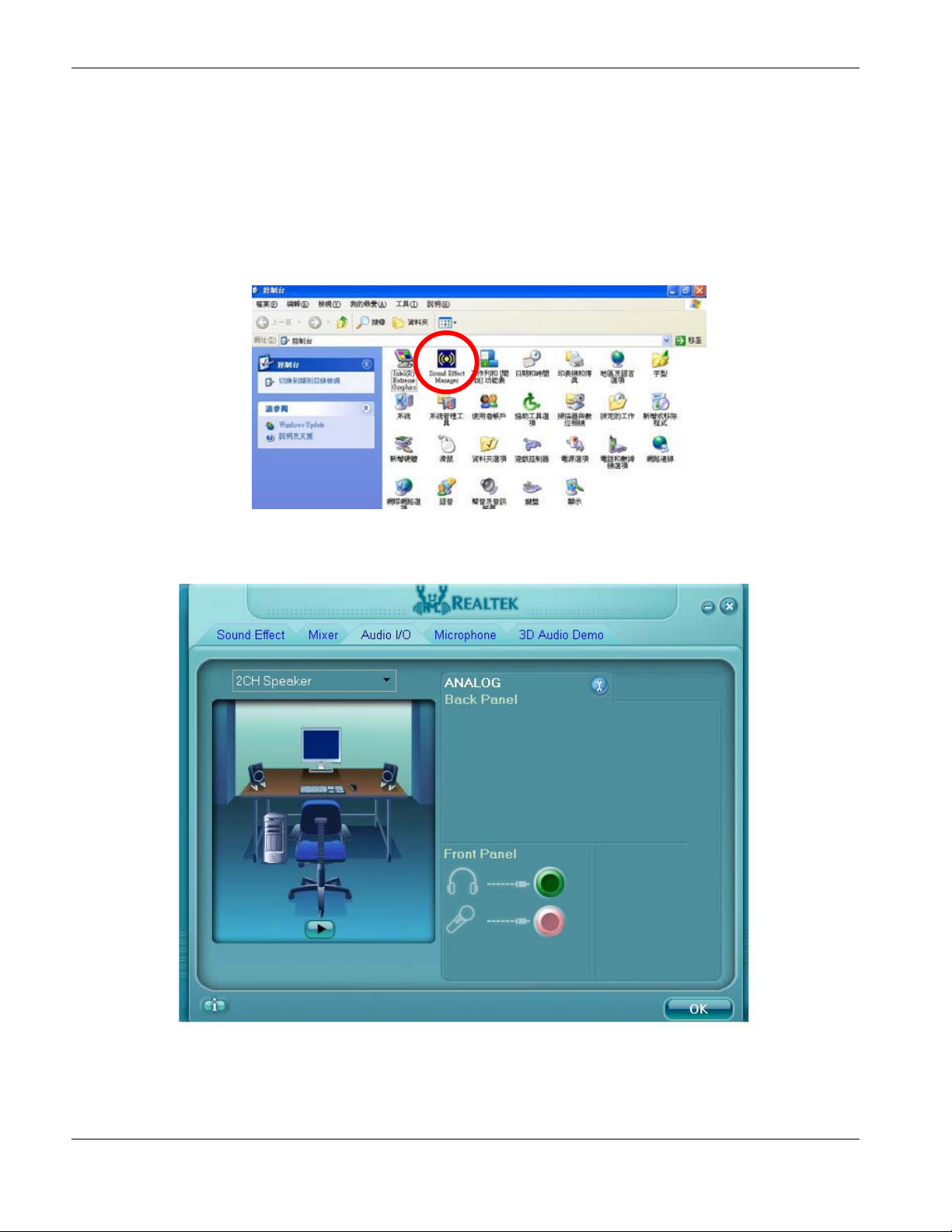

sound system.

1. Install REALTEK HD Audio driver.

2. Lunch the control panel and Sound Effect Manager.

3. Select Speaker Configuration

4. Select the sound mode to meet your speaker system.

CyberResearch, Inc. 43

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

3.4 <Video Memory Setup>

Based on Intel Q965 chipset with GMA (Graphic Media Accelerator) 3000, the board

supports Intelʳ DVMT (Dynamic Video Memory Technology) 3.0, which would allow the

video memory be triggered up to 256MB.

To support DVMT, you need to install the Intel GMA 3000 Driver with supported OS.

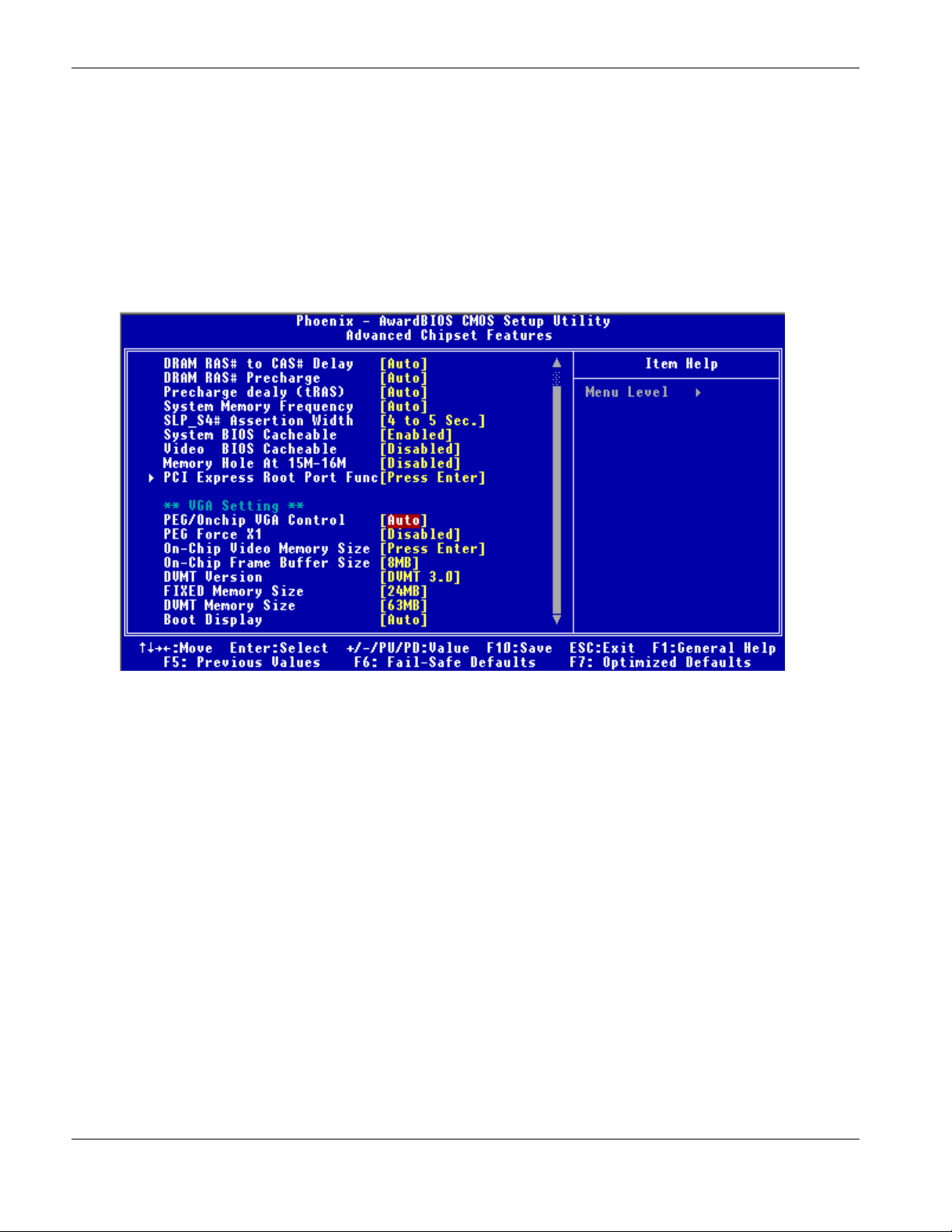

BIOS Setup:

On-Chip Video Memory Size: This option combines three items below for setup.

On-Chip Frame Buffer Size:

This item can let you select video memory which been allocated for legacy VGA and SVGA

graphics support and compatibility. The available option is 1MB and 8MB.

Fixed Memory Size:

This item can let you select a static amount of page-locked graphics memory which will be

allocated during driver initialization. Once you select the memory amount, it will be no

longer available for system memory.

DVMT Memory Size:

This item can let you select a maximum size of dynamic amount usage of video memory,

the system would configure the video memory depends on your application, this item is

strongly recommend to be selected as MAX DVMT.

CyberResearch

CPU Cards CPMB Series

Fixed + DVMT Memory Size:

You can select the fixed amount and the DVMT amount at the same time for a guaranteed

video memory and additional dynamic video memory, please check the table below for

available setting.

System

Memory

On-Chip

Frame

Buffer Size

Fixed

Memory

Size

DVMT

Memory

Size

Graphic Memory

1MB 128MB 0MB 128MB 1MB 0MB 128MB 128MB

256MB ~ 511MB

8MB 128MB 0MB 128MB 8MB 0 128MB 128MB 1MB 128MB 0 128MB 1MB 256MB 0 256MB 1MB 0 128MB 128MB 1MB 0 256MB 256MB

512MB~1023MB

8MB 128MB 0 128MB 8MB 256MB 0 256MB 8MB 0 128MB 128MB 8MB 0 256MB 256MB

Notice:

1. The On-Chip Frame Buffer Size would be included in the Fixed Memory.

Total

2. Please select the memory size according to this table.

CyberResearch, Inc. 45

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

3.5 <Display Properties Setting>

Based on Intel Q965 GMCH with GMA3000 (Graphic Media Accelerator), the board

supports two DACs for display device as different resolution and color bit.

Please install the Intel Graphic Driver before you starting setup display devices.

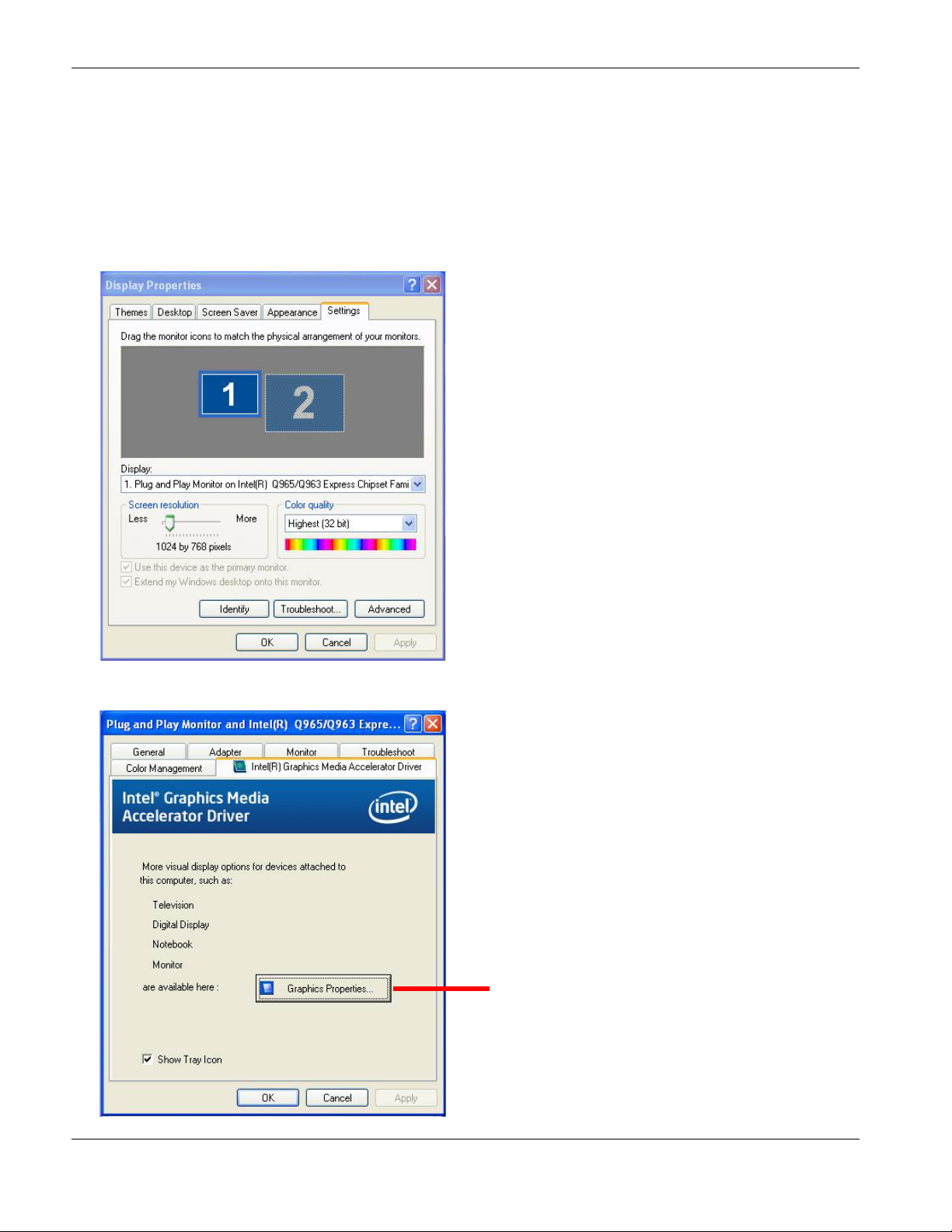

1. Click right button on the desktop to lunch display properties

2. Click Advanced button for additional options

Click Graphics Properties... for

advanced setup

CyberResearch

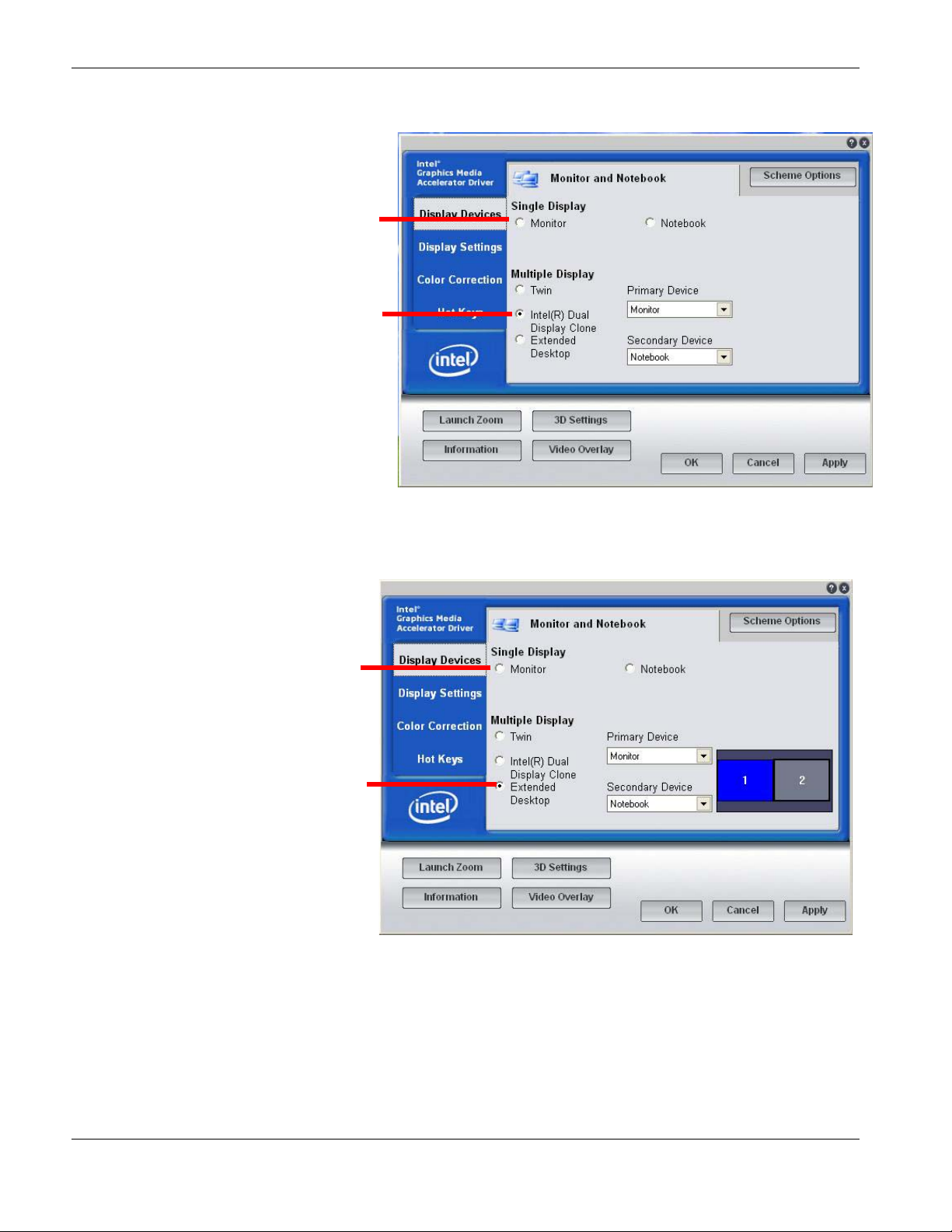

3. This setup options can let you define each device settings.

CPU Cards CPMB Series

Click Monitor to setup the CRT

monitor for Colors, Resolution

and Refresh Rate

Click Intel® Dual Display

Clone to setup the dual

display mode as same screen

Set the main display device here

Click Extended Desktop to

setup the dual display mode

as different screen display

CyberResearch, Inc. 47

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Chapter 4 <BIOS Setup>

The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems.

The BIOS setup program of the single board computer let the customers modify the basic configuration setting. The settings are stored in a dedicated battery-backed memory, NVRAM, retains the information when the power is turned off. If the battery runs out of the power, then the settings of BIOS will come back to the default setting.

The BIOS section of the manual is subject to change without notice and is provided here for reference purpose only. The settings and configurations of the BIOS are current at the time of print, and therefore they may not be exactly the same as that displayed on your screen.

To activate CMOS Setup program, press ІDELЇ key immediately after you turn on the system. The following message “Press DEL to enter SETUP” should appear in the lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be displayed as Figure 4-1. You can use arrow keys to select your function, press ІEnterЇ key to accept the selection and enter the sub-menu.

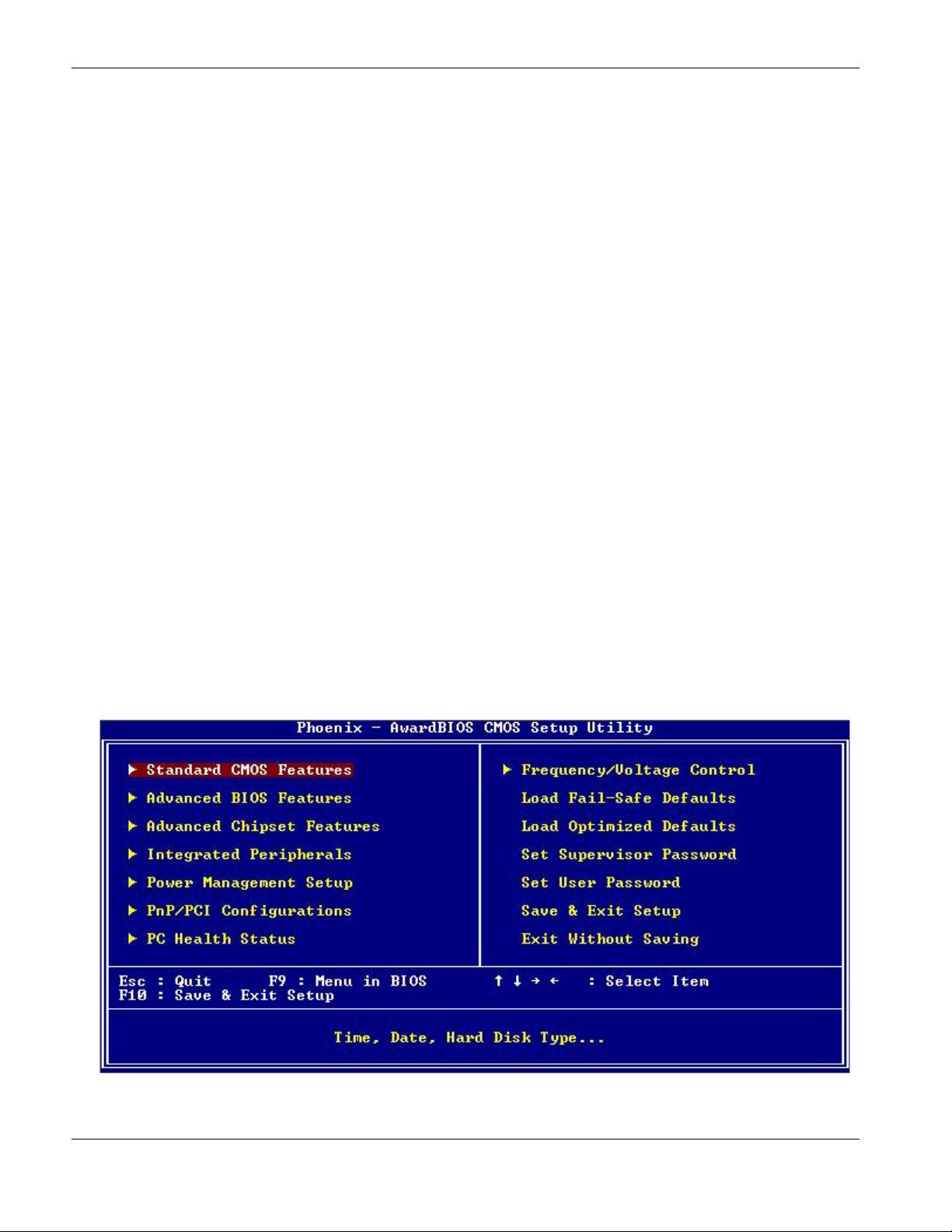

Figure 4-1 CMOS Setup Utility Main Screen

CyberResearch

CPU Cards CPMB Series

Intentionally Blank

CyberResearch, Inc. 49

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Appendix A <I/O Port Pin Assignment>

A.1 <Serial ATA Port>

Connector: S_ATA1/2/3/4/5/6

Type: 7-pin wafer connector

1 2 3 4 5 6 7

GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND

A.2 <IrDA Port>

Connector: CN_IR Type: 5-pin header for SIR Port

Pin Description

1 Vcc 2 N/C 3 IRRX 4 Ground 5 IRTX

CyberResearch

CPU Cards CPMB Series

A.3 <VGA Port>

Connector: CRT Type: 15-pin D-sub female connector on bracket

Pin Description Pin Description Pin Description

1 RED 6 Ground 11 N/C 2 GREEN 7 Ground 12 DDC_DA 3 BLUE 8 Ground 13 HSYNC 4 N/C 9 +5V 14 VSYNC 5 Ground 10 Ground 15 DDC_CLK

1 2 3 4 5

11 12 13 14 15

A.4 <LAN Port>

Connector: RJ451/2 Type: RJ45 connector with LED on bracket

Pin 1 2 3 4 5

Description TRD0+ TRD0- TRD1+ TRD2+ TRD2-

Pin 6 7 8 9 10

Description TRD1- TRD3+ TRD3- NC NC

CyberResearch, Inc. 51

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

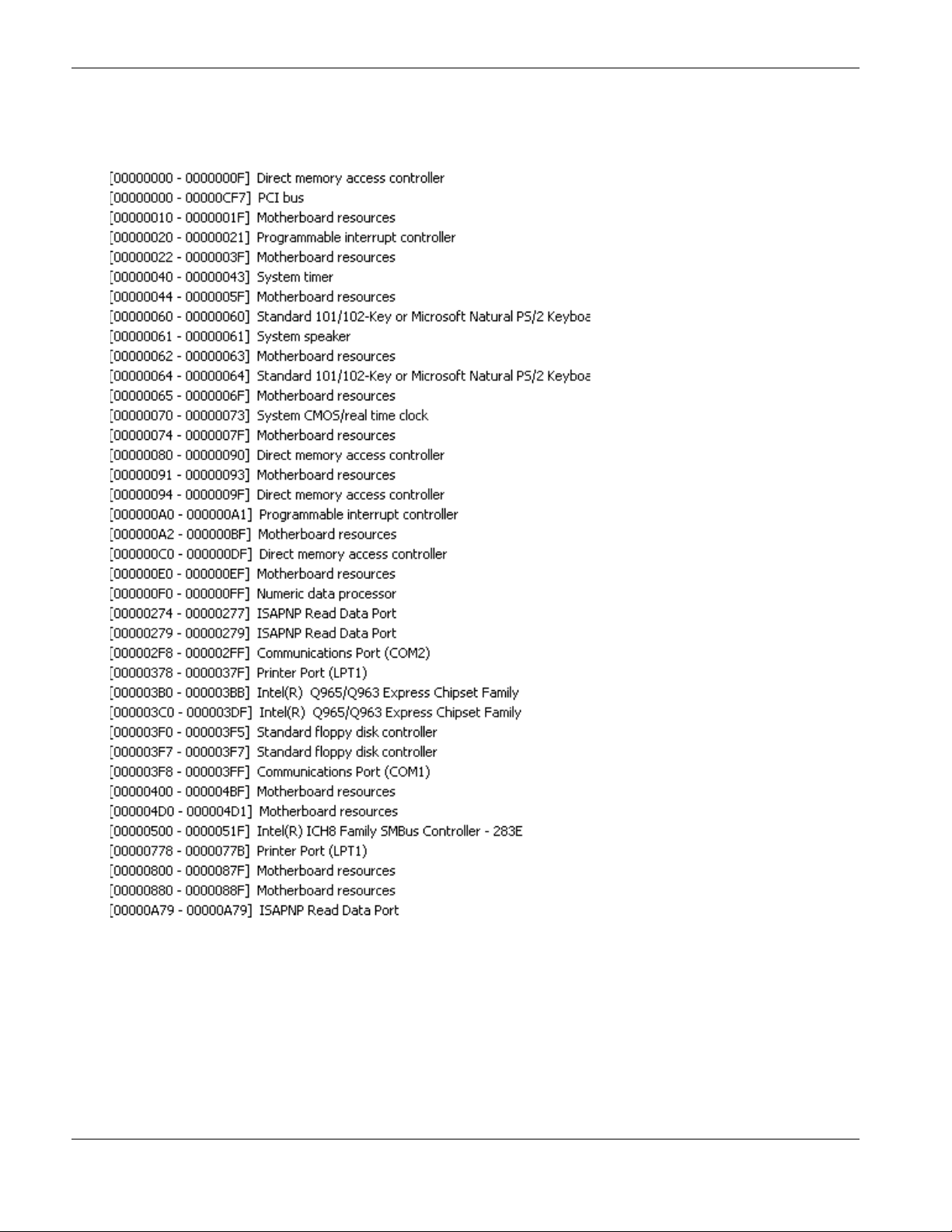

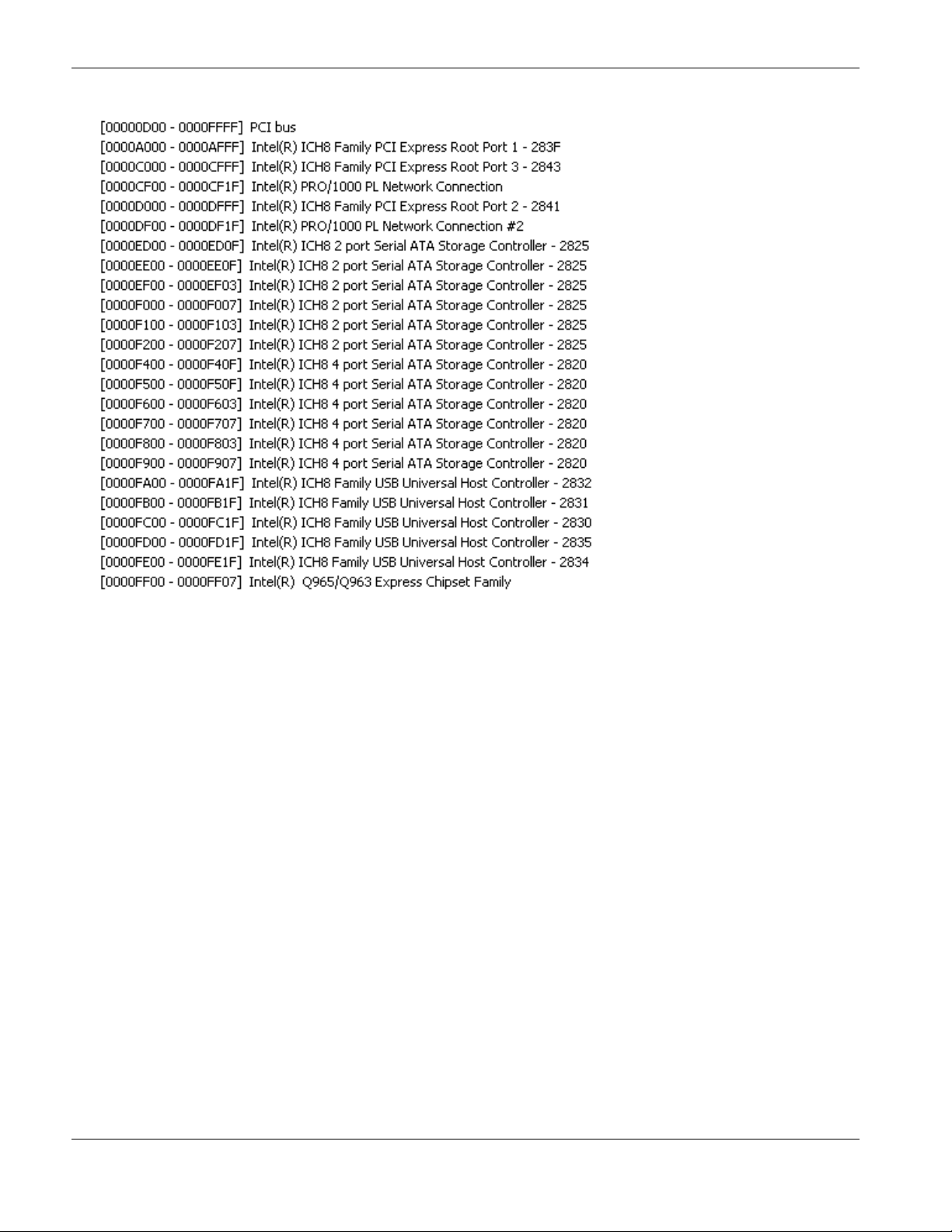

B1.<I/O Port Address Map>

CyberResearch

CPU Cards CPMB Series

CyberResearch, Inc. 53

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

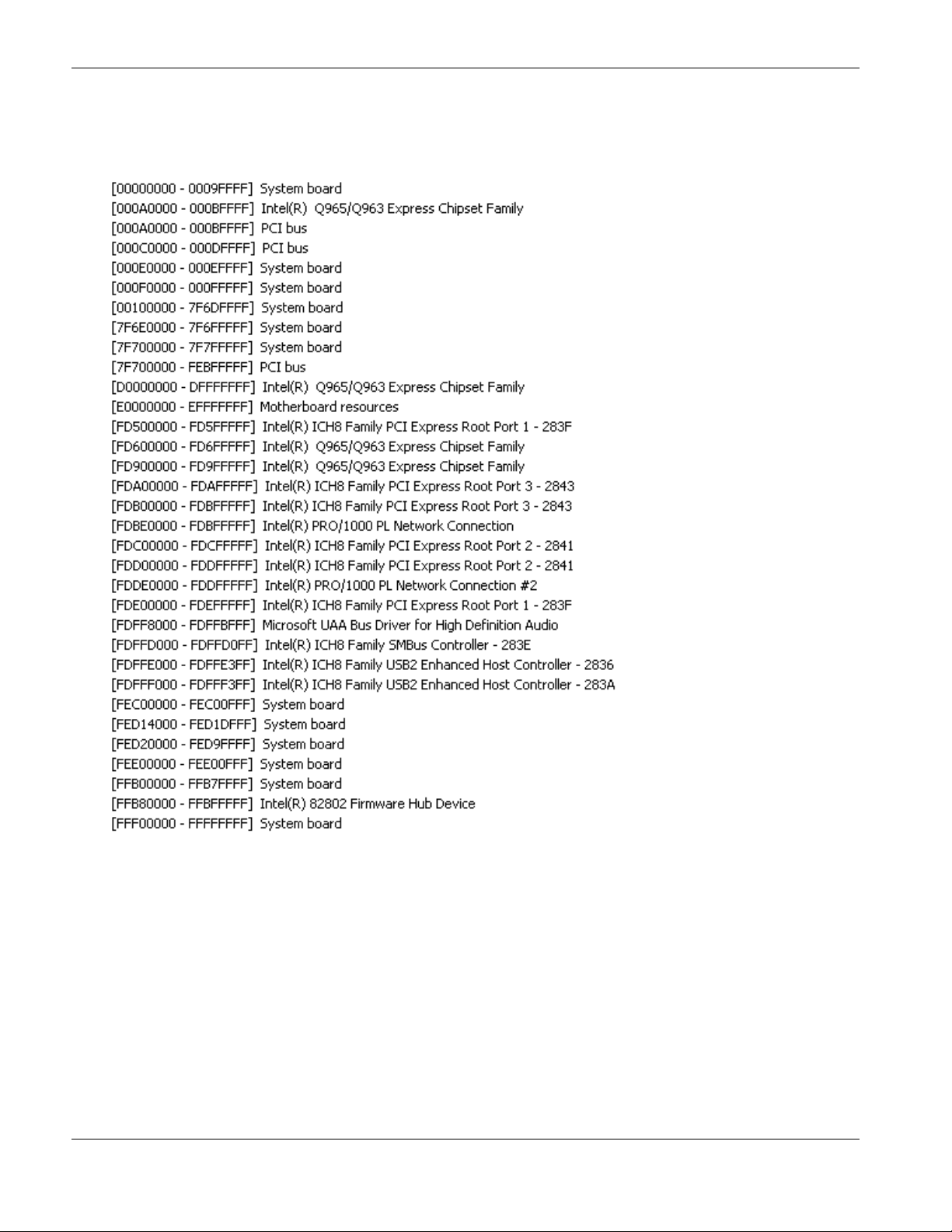

B2.<Memory Address Map>

CyberResearch

CPU Cards CPMB Series

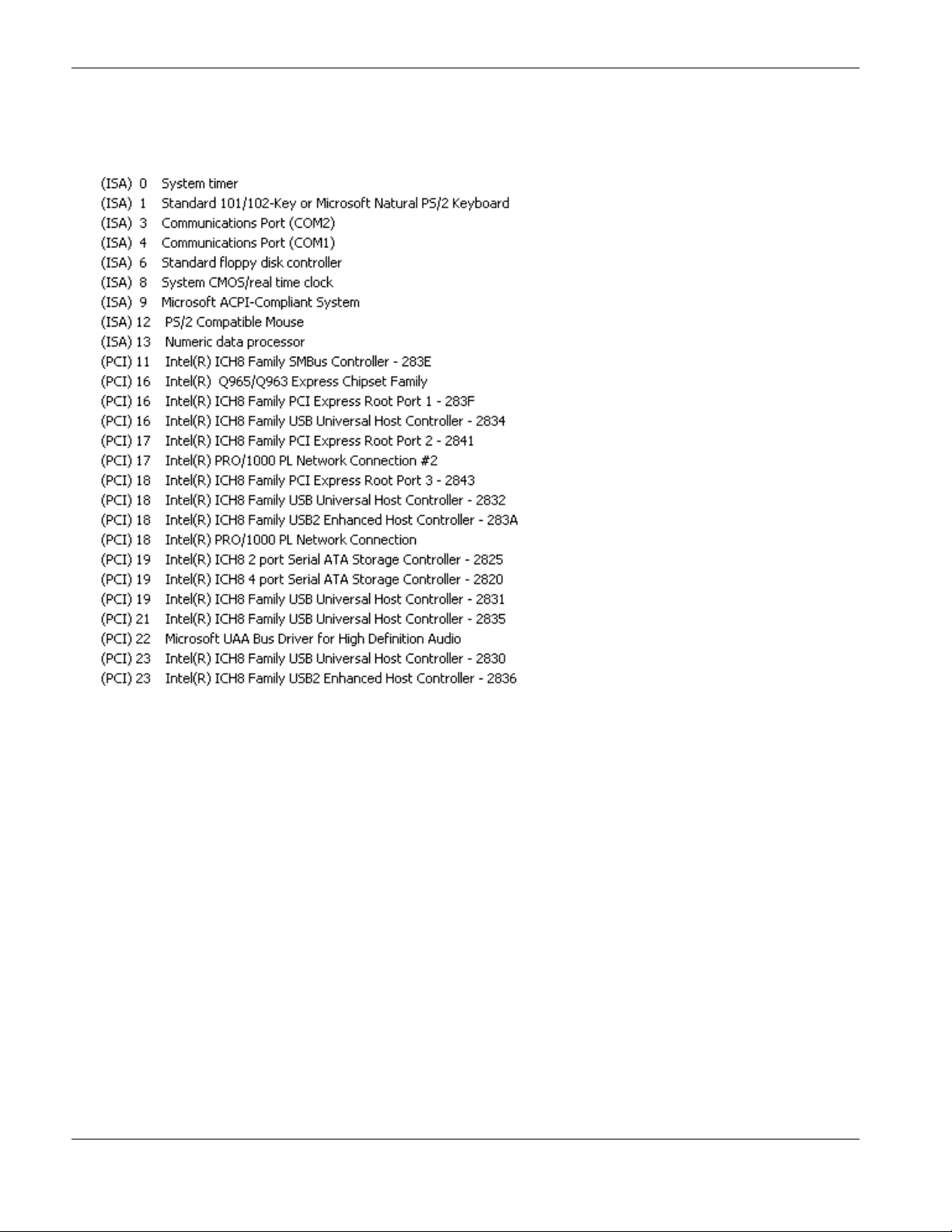

B3.<System IRQ Resources>

CyberResearch, Inc. 55

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Appedix C <Flash BIOS>

C.1 BIOS Auto Flash Tool

The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below:

TUhttp://www.award.comUT

TU UT

File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. If assistance is required, contact CyberResearch, Inc.

C.2 Flash Method

1. Please make a bootable floppy disk.

2. Get the last .bin files you want to update and copy it into the disk.

3. Copy awardflash.exe to the disk.

4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)

5. Re-start the system.

CyberResearch

CPU Cards CPMB Series

Appendix D <Programming GPIO’s>

The GPIO’can be programmed with the MSDOS debug program using simple

IN/OUT commands.The following lines show an example how to do this.

GPIO0…..GPIO7 bit0……bit7

-o 4E 87 ;enter configuration

-o 4E 87

-o 4E 07

-o 4F 09 ;enable GPIO function

-o 4E 30

-o 4F 02 ;enable GPIO configuration

-o 4E F0

-o 4F xx ;set GPIO as input/output; set ‘1’ for input,’0’for

output

-o 4E F1

-o 4F xx ;if set GPIO’s as output,in this register its value can

be set

Optional :

-o 4E F2

-o 4F xx ; Data inversion register ; ‘1’ inverts the current valus

of the bits ,’0’ leaves them as they are

-o 4E 30

-o 4F 02 ; active GPIO’s

For further information ,please refer to Winbond W83627DHG datasheet.

CyberResearch, Inc. 57

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Appendix E <Watch Dog timer Setting >

The watchdog timer makes the system auto-reset while it stops to work for a period. The

integrated watchdog timer can be setup as system reset mode by program.

Timeout Value Range

- 1 to 255

- Second or Minute

Program Sample

Watchdog timer setup as system reset with 5 second of timeout

4E, 87 4E, 87 4E, 07 4F, 08 Logical Device 8 4E, 30 Activate 4F, 01 4E, F5 Set as Second* 4F, 00 4E, F6 Set as 5 4F, 05

* Minute: bit 3 = 0; Second: bit 3 = 1

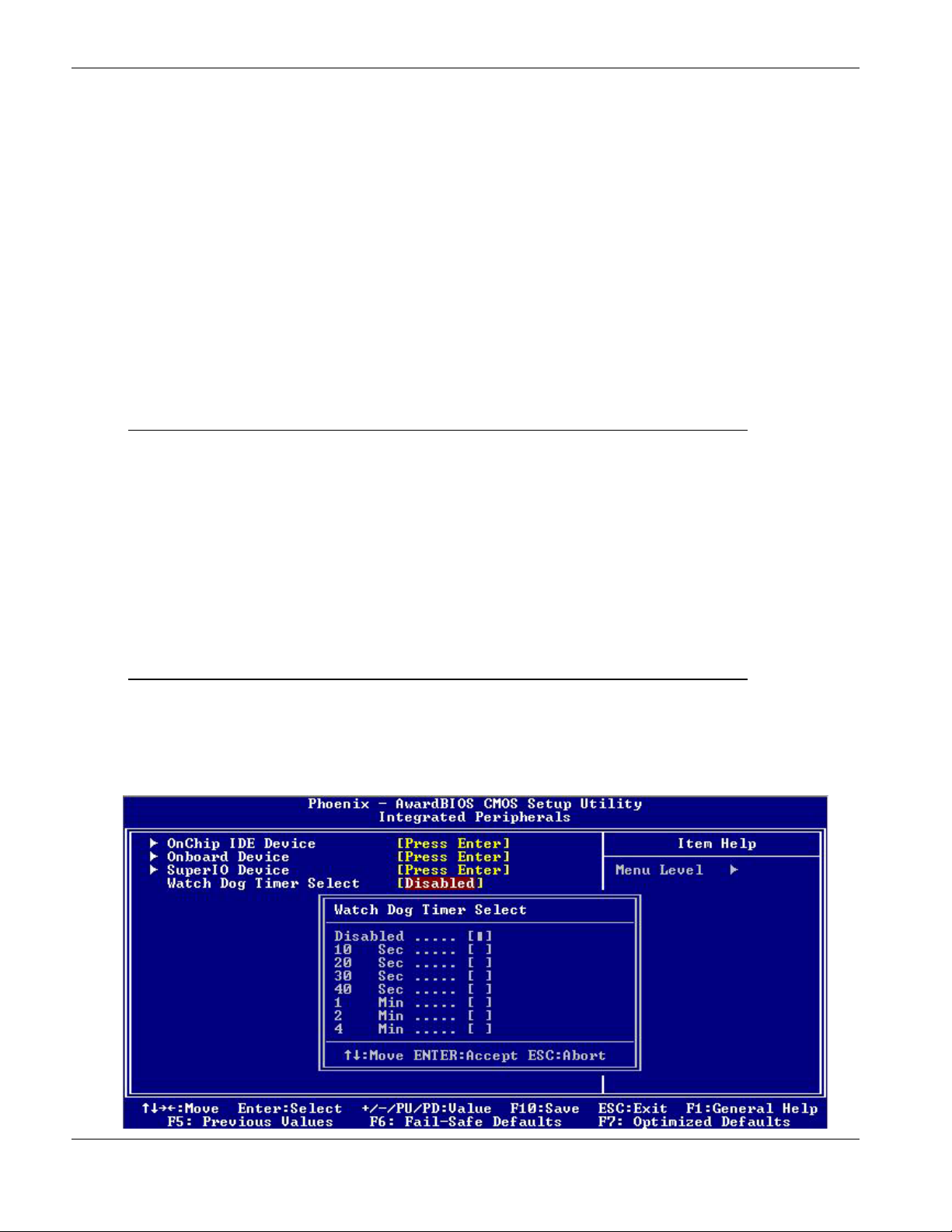

You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection.

CyberResearch

CPU Cards CPMB Series

Product Service

Diagnosis and Debug

CyberResearch, Inc. maintains technical support lines staffed by experienced Applications Engineers and Technicians. There is no charge to call and we will return your call promptly if it is received while our lines are busy. Most problems encountered with data acquisition products can be solved over the phone. Signal connections and programming are the two most common sources of difficulty. CyberResearch support personnel can help you solve these problems, especially if you are prepared for the call.

To ensure your call’s overall success and expediency:

1) Have the phone close to the PC so you can conveniently and quickly take action that the Applications Engineer might suggest.

2) Be prepared to open your PC, remove boards, report back-switch or jumper settings, and possibly change settings before reinstalling the modules.

3) Have a volt meter handy to take measurements of the signals you are trying to measure as well as the signals on the board, module, or power supply.

4) Isolate problem areas that are not working as you expected.

5) Have the source code to the program you are having trouble with available so that preceding and prerequisite modes can be referenced and discussed.

6) Have the manual at hand. Also have the product’s utility disks and any other relevant disks nearby so programs and version numbers can be checked.

Preparation will facilitate the diagnosis procedure, save you time, and avoid repeated calls. Here are a few preliminary actions you can take before you call which may solve some of the more common problems:

1) Check the PC-bus power and any power supply signals.

2) Check the voltage level of the signal between SIGNAL HIGH and SIGNAL LOW, or SIGNAL+ and SIGNAL– . It CANNOT exceed the full scale range of the board.

3) Check the other boards in your PC or modules on the network for address and interrupt conflicts.

4) Refer to the example programs as a baseline for comparing code.

CyberResearch, Inc. 59

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com

CPMB Series CyberResearch® CPU Cards

Intentionally Blank

CyberResearch

CPU Cards CPMB Series

Warranty Notice

CyberResearch, Inc. warrants that this equipment as furnished will be free from defects in material and workmanship for a period of one year from the confirmed date of purchase by the original buyer and that upon written notice of any such defect, CyberResearch, Inc. will, at its option, repair or replace the defective item under the terms of this warranty, subject to the provisions and specific exclusions listed herein.

This warranty shall not apply to equipment that has been previously repaired or altered outside our plant in any way which may, in the judgment of the manufacturer, affect its reliability. Nor will it apply if the equipment has been used in a manner exceeding or inconsistent with its specifications or if the serial number has been removed.

CyberResearch, Inc. does not assume any liability for consequential damages as a result from our products uses, and in any event our liability shall not exceed the original selling price of the equipment.

The equipment warranty shall constitute the sole and exclusive remedy of any Buyer of Seller equipment and the sole and exclusive liability of the Seller, its successors or assigns, in connection with equipment purchased and in lieu of all other warranties expressed implied or statutory, including, but not limited to, any implied warranty of merchant ability or fitness and all other obligations or liabilities of seller, its successors or assigns.

The equipment must be returned postage prepaid. Package it securely and insure it. You will be charged for parts and labor if the warranty period has expired.

Returns and RMAs

If a CyberResearch product has been diagnosed as being non-functional, is visibly damaged, or must be returned for any other reason, please call for an assigned RMA number. The RMA number is a key piece of information that lets us track and process returned merchandise with the fastest possible turnaround time.

PLEASE CALL FOR AN RMA NUMBER!

Packages returned without an RMA number will be refused!

In most cases, a returned package will be refused at the receiving dock if its contents are not known. The RMA number allows us to reference the history of returned products and determine if they are meeting your application’s requirements. When you call customer service for your RMA number, you will be asked to provide information about the product you are returning, your address, and a contact person at your organization.

Please make sure that the RMA number is prominently

displayed on the outside of the box.

• Thank You •

CyberResearch, Inc. 61

25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com
