CyberData RAL 9002, RAL 9003 Operation Manual

The IP Endpoint Company

Singlewire InformaCast
Talk-Back Speaker
Operations Guide

011399*, RAL 9002, Gray White, Standard

011400*, RAL 9003, Signal White, Optional

*Replaces #011182 and 011183



Part Number

Document Part #931260A

for Firmware Version 11.6.3

CyberData Corporation

3 Justin Court

Monterey, CA 93940

[phone]

Singlewire InformaCast Talk-Back Speaker Operations Guide 931260A

Technical Support 


The fastest way to get technical support for your VoIP product is to
submit a VoIP Technical Support form at the following website:

http://support.cyberdata.net/



Phone: [phone], Ext. 333
Email: [email protected]
Fax: [phone]
Company and product information is at www.cyberdata.net.

The IP Endpoint Company

Part #
011399, RAL 9002, Gray White, Standard
011400, RAL 9003, Signal White, Optional

COPYRIGHT NOTICE:
© 2016, CyberData Corporation, ALL RIGHTS RESERVED.

This manual and related materials are the copyrighted property of CyberData Corporation. No part of
this manual or related materials may be reproduced or transmitted, in any form or by any means
(except for internal use by licensed customers), without prior express written permission of
CyberData Corporation. This manual, and the products, software, firmware, and/or hardware
described in this manual are the property of CyberData Corporation, provided under the terms of an
agreement between CyberData Corporation and recipient of this manual, and their use is subject to
that agreement and its terms.

DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by
CyberData Corporation, CyberData Corporation makes no representation or warranty, express or
implied, including any warranty or merchantability or fitness for any purpose, with respect to this
manual or the products, software, firmware, and/or hardware described herein, and CyberData
Corporation assumes no liability for damages or claims resulting from any use of this manual or such
products, software, firmware, and/or hardware. CyberData Corporation reserves the right to make
changes, without notice, to this manual and to any such product, software, firmware, and/or
hardware.

OPEN SOURCE STATEMENT: Certain software components included in CyberData products are
subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL)
“open source” or “free software” licenses. Some of this Open Source Software may be owned by third
parties. Open Source Software is not subject to the terms and conditions of the CyberData
COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open
Source Software is determined by the terms of the GPL, LGPL, or third party, according to who
licenses that software.

Software or firmware developed by CyberData that is unrelated to Open Source Software is
copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied,
modified, reverse-engineered, or otherwise altered without explicit written permission from
CyberData Corporation.

TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are
trademarks of CyberData Corporation. Other product names, trademarks, and service marks may be
the trademarks or registered trademarks of their respective owners.

CyberData Corporation 931260A Operations Guide

Revision History

Revision 931260A, which corresponds to firmware version 11.6.3, was released on July 13, 2016.

Browsers Supported

The following browsers have been tested against firmware version 11.6.3:

• Internet Explorer (version: 10)

• Firefox (also called Mozilla Firefox) (version: 23.0.1)

• Chrome (version: 29.0.154.66 m)

• Safari (version: 5.1.7)

Operations Guide 931260A CyberData Corporation

Important Safety Instructions

GENERAL ALERT

GENERAL ALERT

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

13. Prior to installation, consult local building and electrical code requirements.

Warn in g

Electrical Hazard: This product should be installed by a licensed electrician
according to all local electrical and building codes.

Warn in g

Electrical Hazard: To prevent injury, this apparatus must be securely attached to
the floor/wall in accordance with the installation instructions.

CyberData Corporation 931260A Operations Guide

Pictorial Alert Icons

GENERAL ALERT

Hazard Levels

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This is limited to the most extreme situations.

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.

General Alert

This pictoral alert indicates a potentially hazardous situation. This alert will be
followed by a hazard level heading and more specific information about the
hazard.

Ground

This pictoral alert indicates the Earth grounding connection point.

Caution: Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury. It may also alert users against unsafe practices.

Notice: Indicates a statement of company policy (that is, a safety policy or protection of property).

The safety guidelines for the equipment in this manual do not purport to address all the safety issues
of the equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and
health practices and determine the applicability of regulatory limitations prior to use. Potential safety
hazards are identified in this manual through the use of words Danger, Warning, and Caution, the
specific hazard type, and pictorial alert icons.

CyberData Corporation 931260A Operations Guide

Abbreviations and Terms

Abbreviation or Term Definition

A-law A standard companding algorithm, used in European digital

communications systems to optimize, i.e., modify, the dynamic range of an
analog signal for digitizing.

AVP Audio Video Profile

Cat 5 TIA/EIA-568-B Category 5

DHCP Dynamic Host Configuration Protocol

LAN Local Area Network

LED Light Emitting Diode

Mbps Megabytes per Second.

NTP Network Time Protocol

PBX Private Branch Exchange

PoE Power over Ethernet (as per IEEE 802.3af standard)

RTP Real-time Transport Protocol

RTFM Reset Test Function Management

Talkback Two-way communication enabled

TFTP Trivial File Transfer Protocol

u-law A companding algorithm, primarily used in the digital telecommunication

UC Unified Communications

VoIP Voice over Internet Protocol

CyberData Corporation 931260A Operations Guide

Contents

Chapter 1 Product Overview 1

1.1 How to Identify This Product .....................................................................................................1

1.2 Installation ................................................................................................................................3

1.3 Product Features ......................................................................................................................4

1.4 Supported Protocols .................................................................................................................5

1.5 Product Specifications ..............................................................................................................6

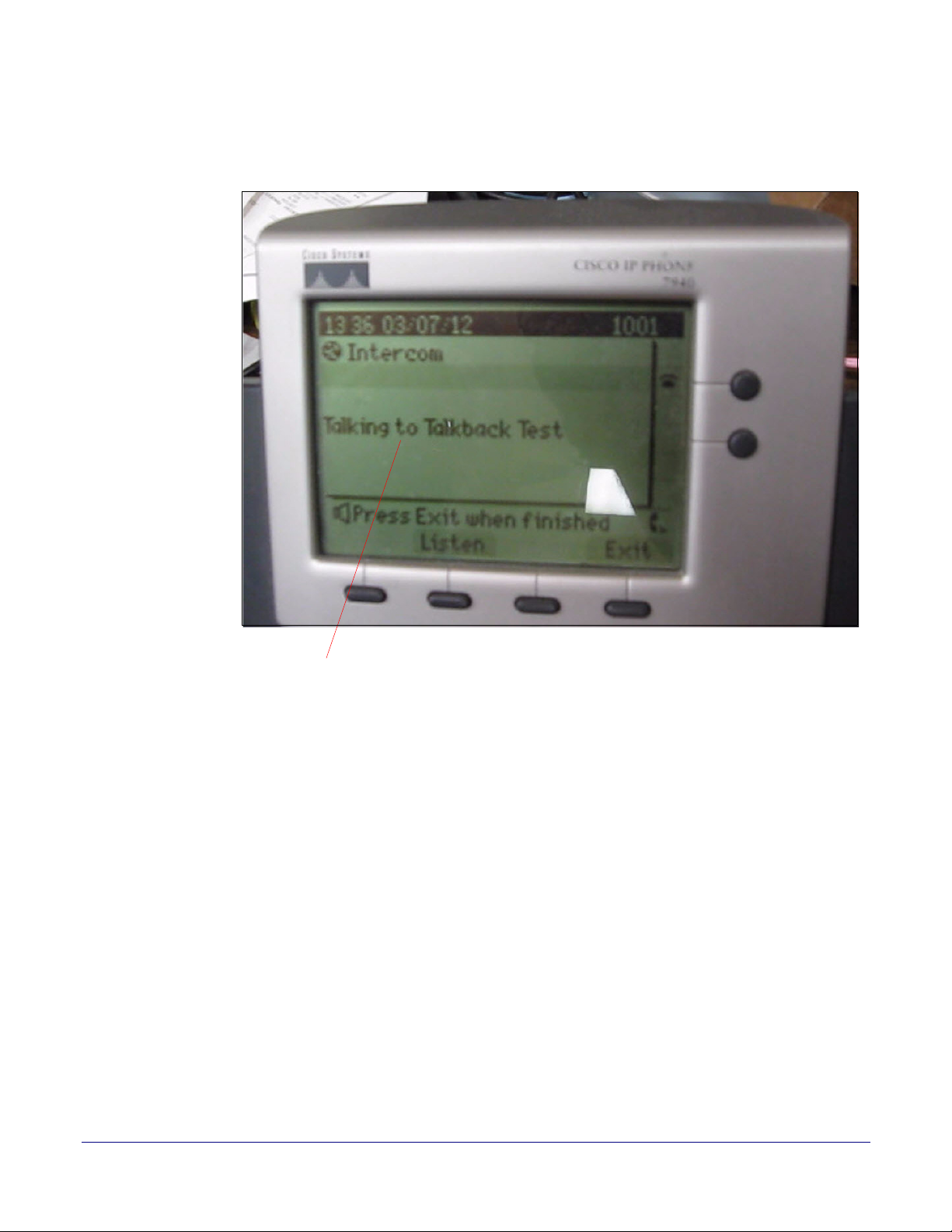

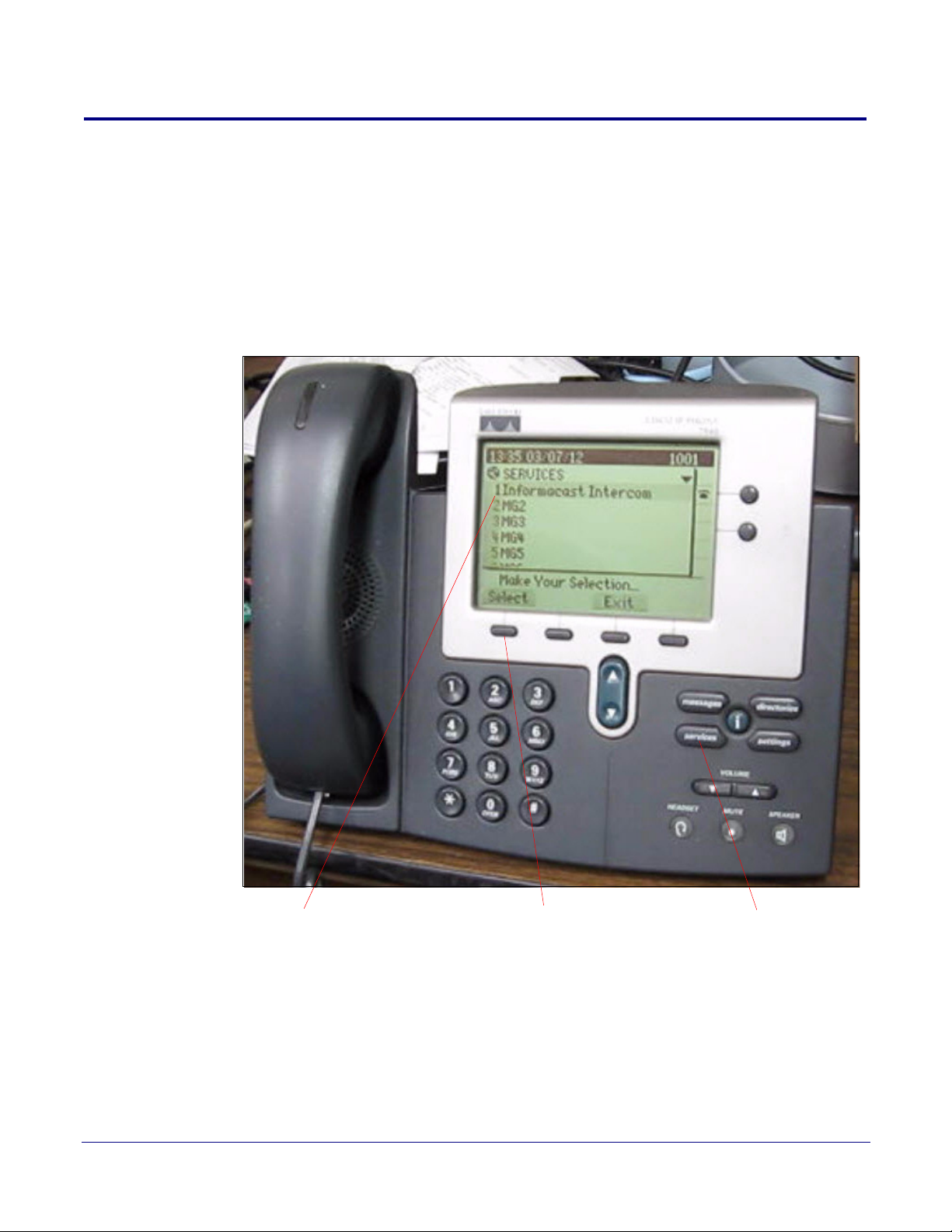

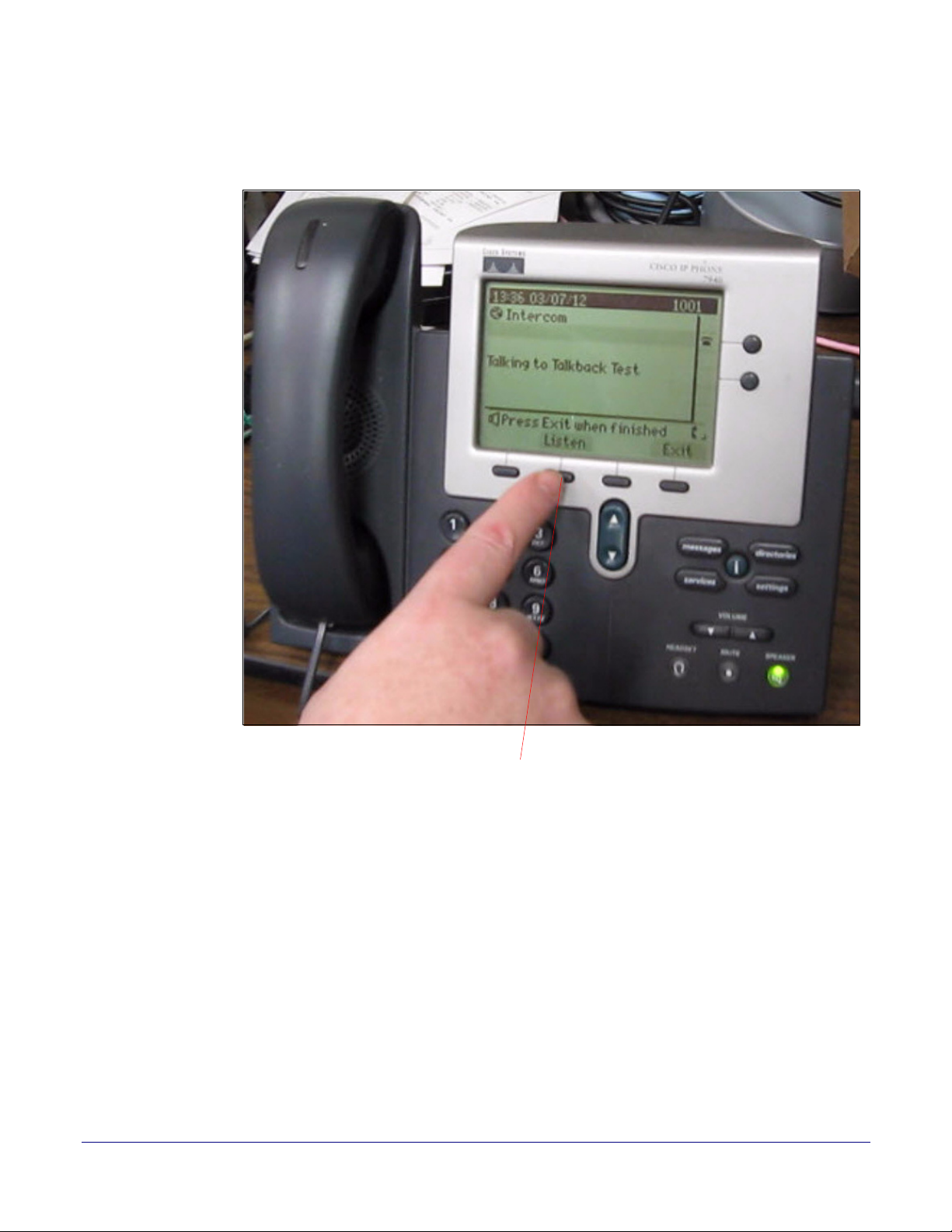

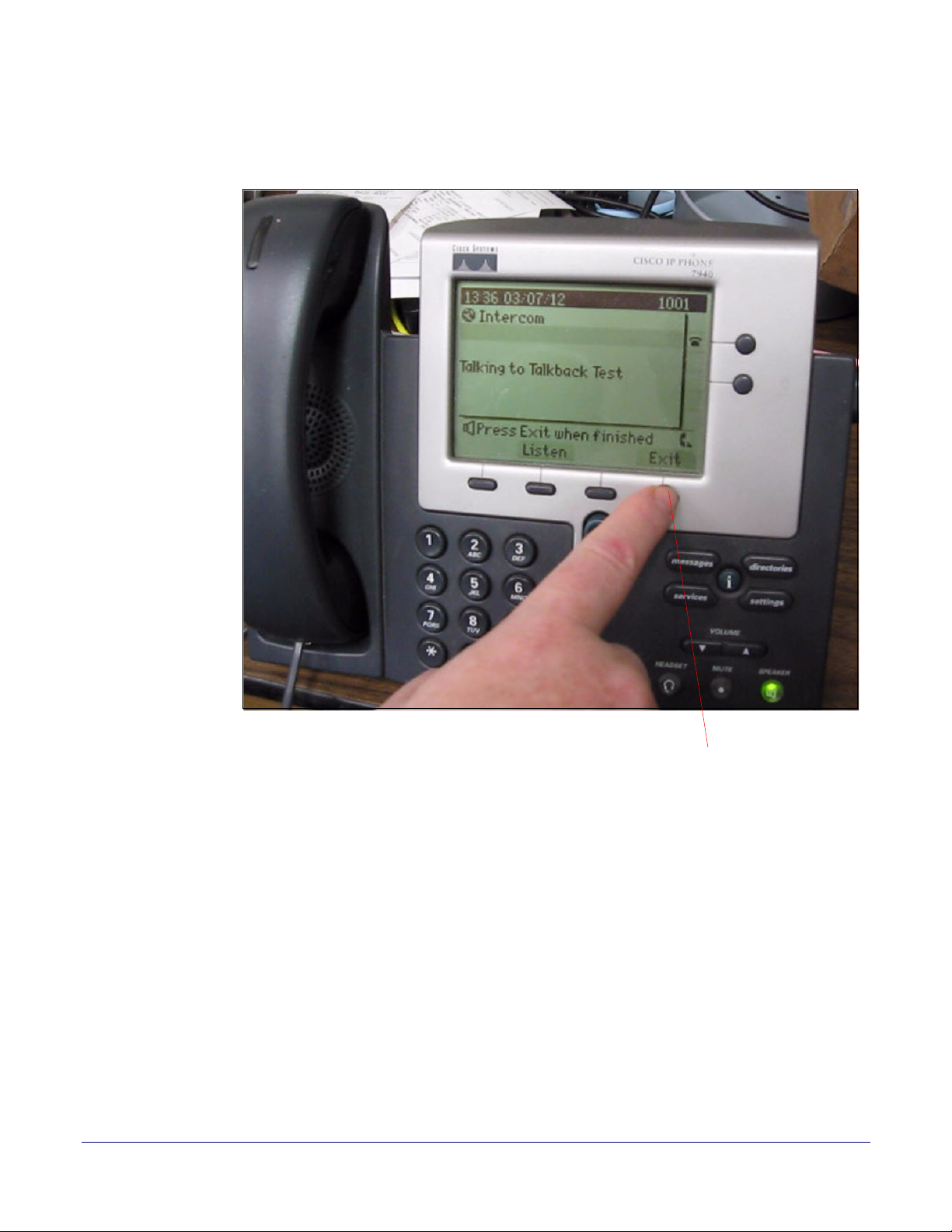

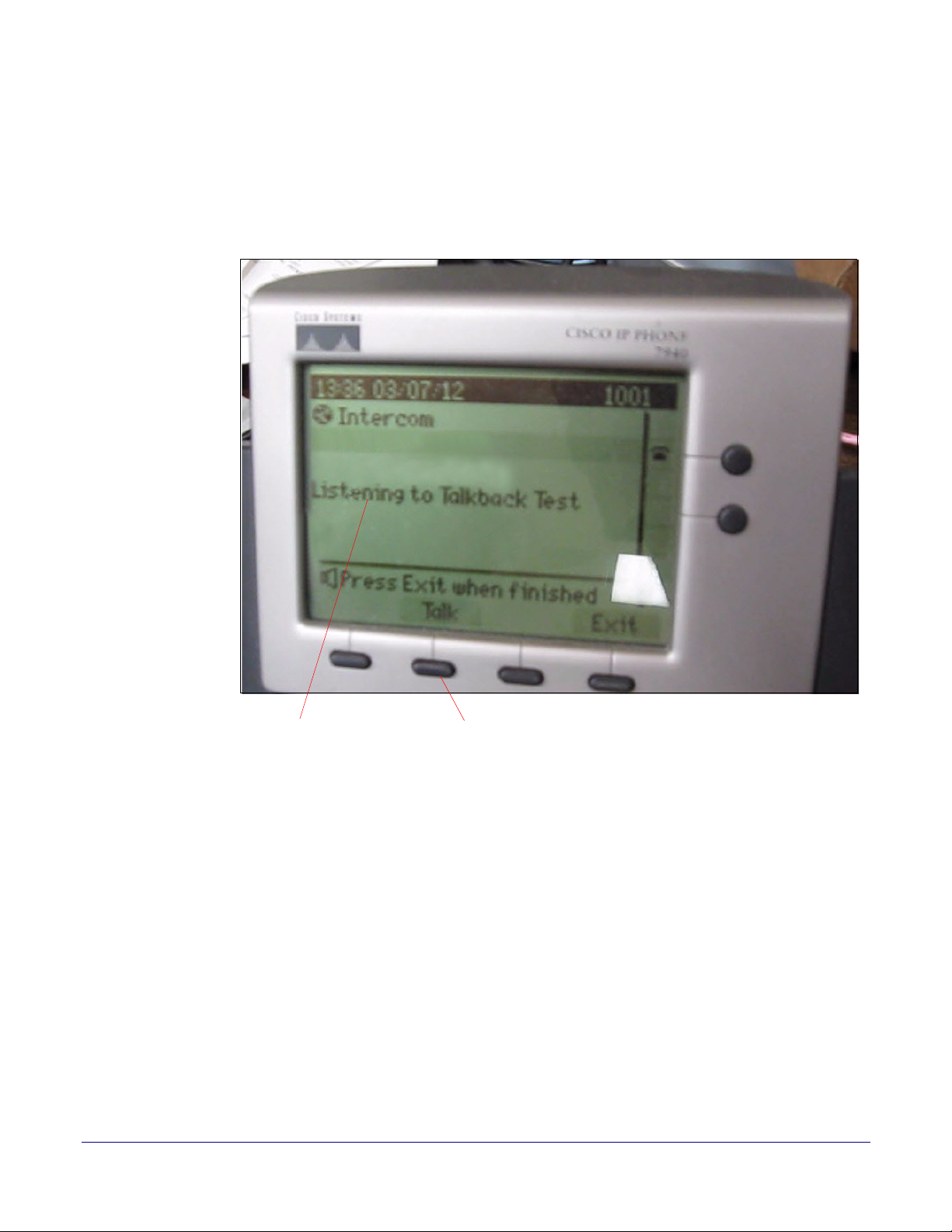

1.6 Starting a Push-to-Talk Session from an IP Phone (Summary) ...............................................7

1.7 Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Summary) 7

1.8 Starting a Push-to-Talk Session from an IP Phone (Detailed) ..................................................8

1.9 Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed) 15

Chapter 8 Installing the Singlewire InformaCast Talk-Back Speaker 21

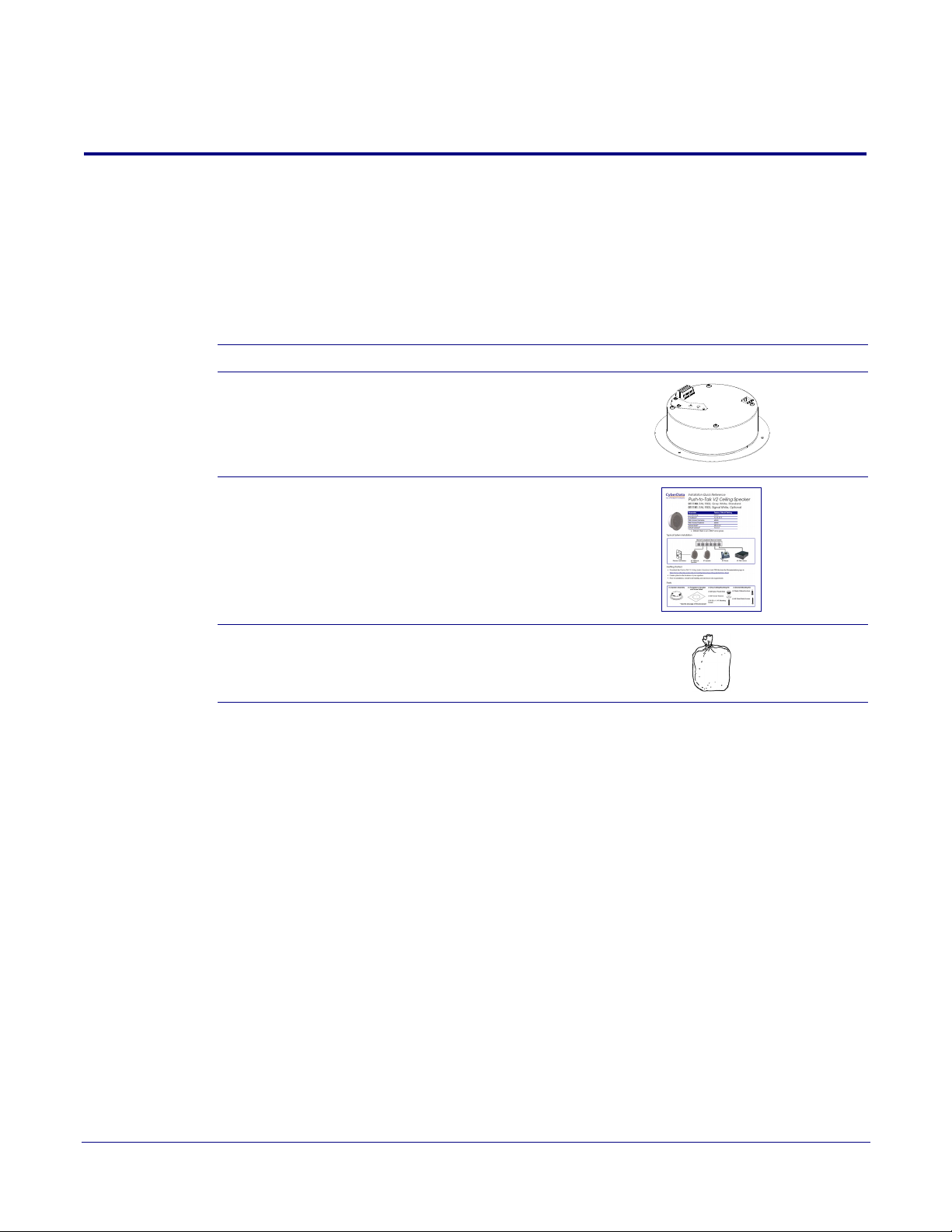

2.1 Parts List ................................................................................................................................21

2.2 Device Configuration ..............................................................................................................22

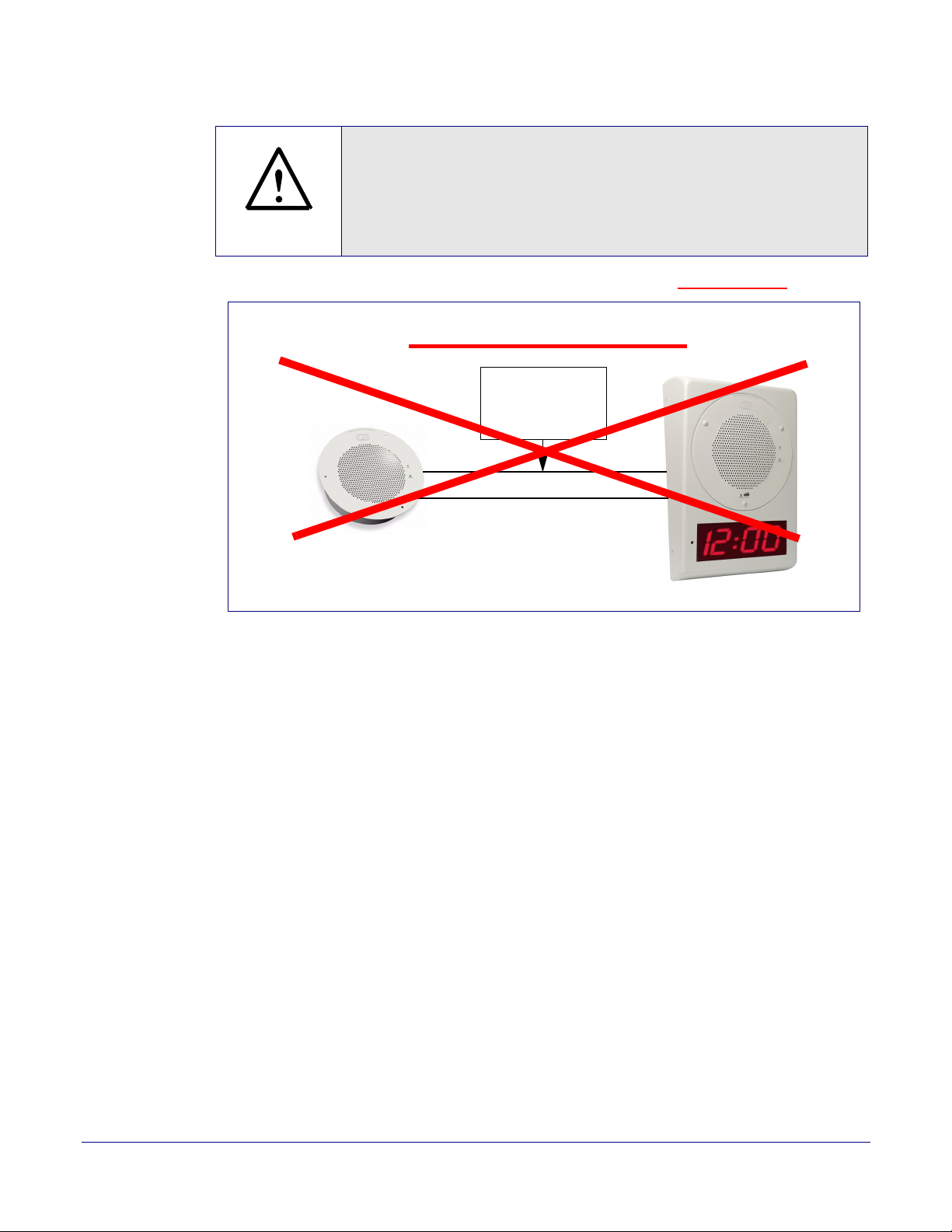

2.6 Identifying and Testing a Ceiling Speaker when Using InformaCast 8.1 or Later .................105

i

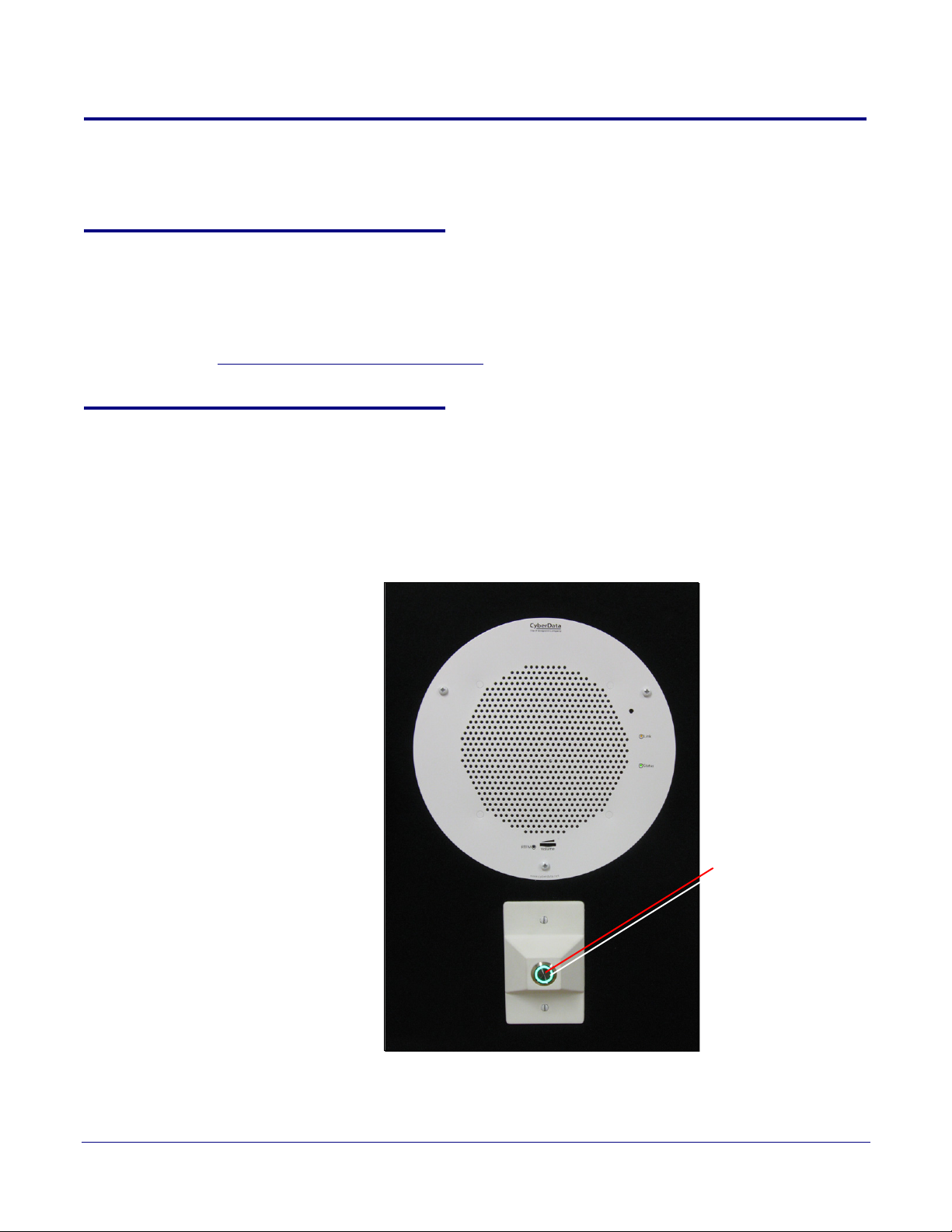

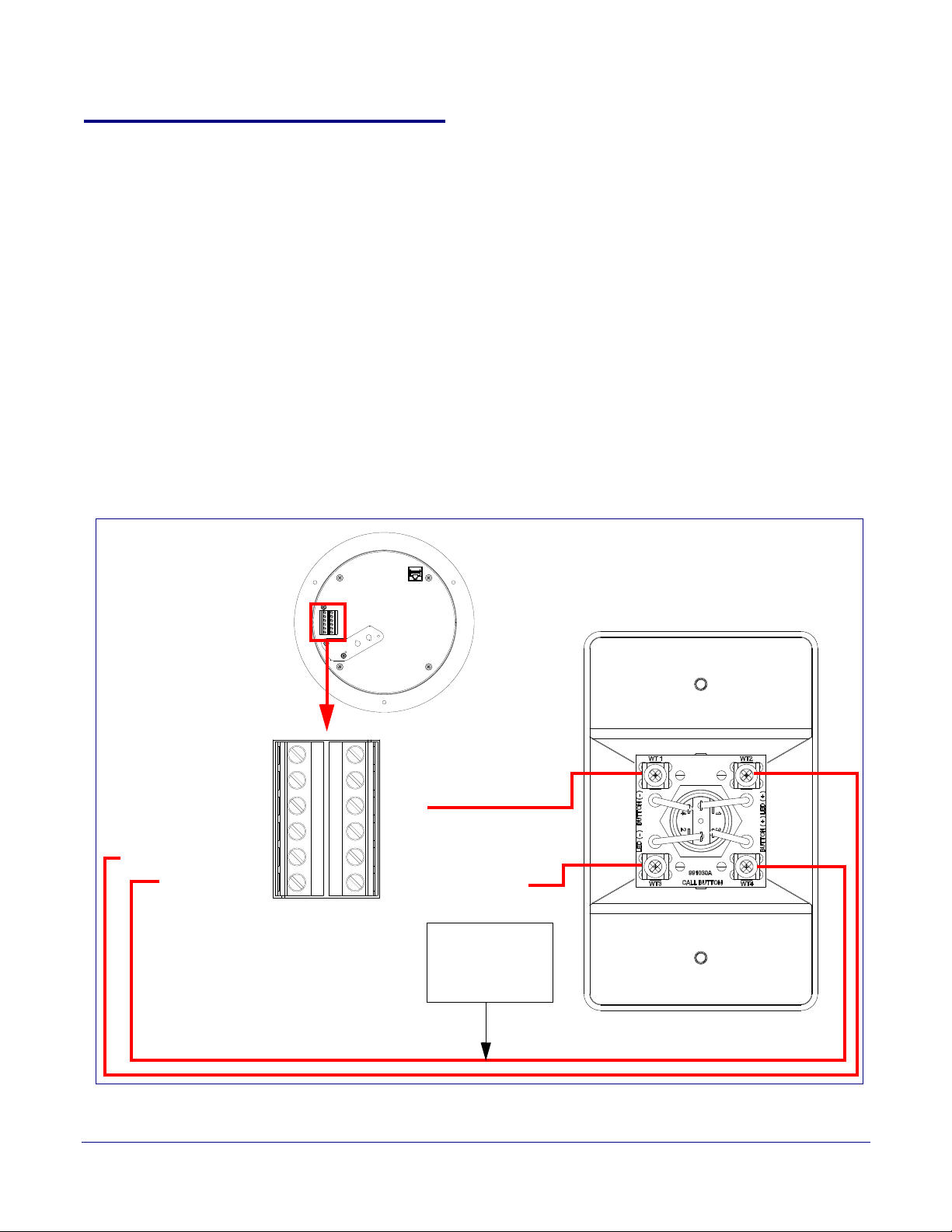

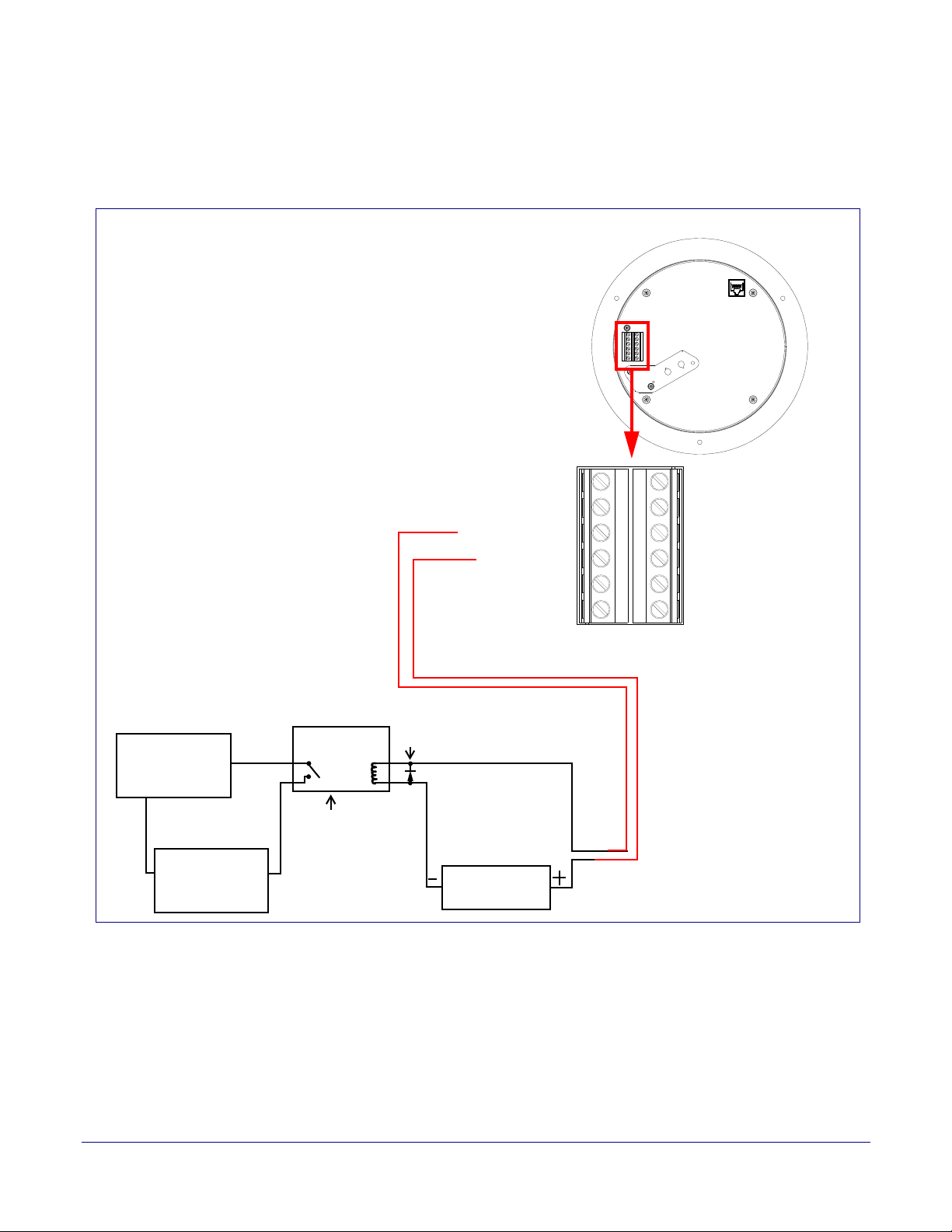

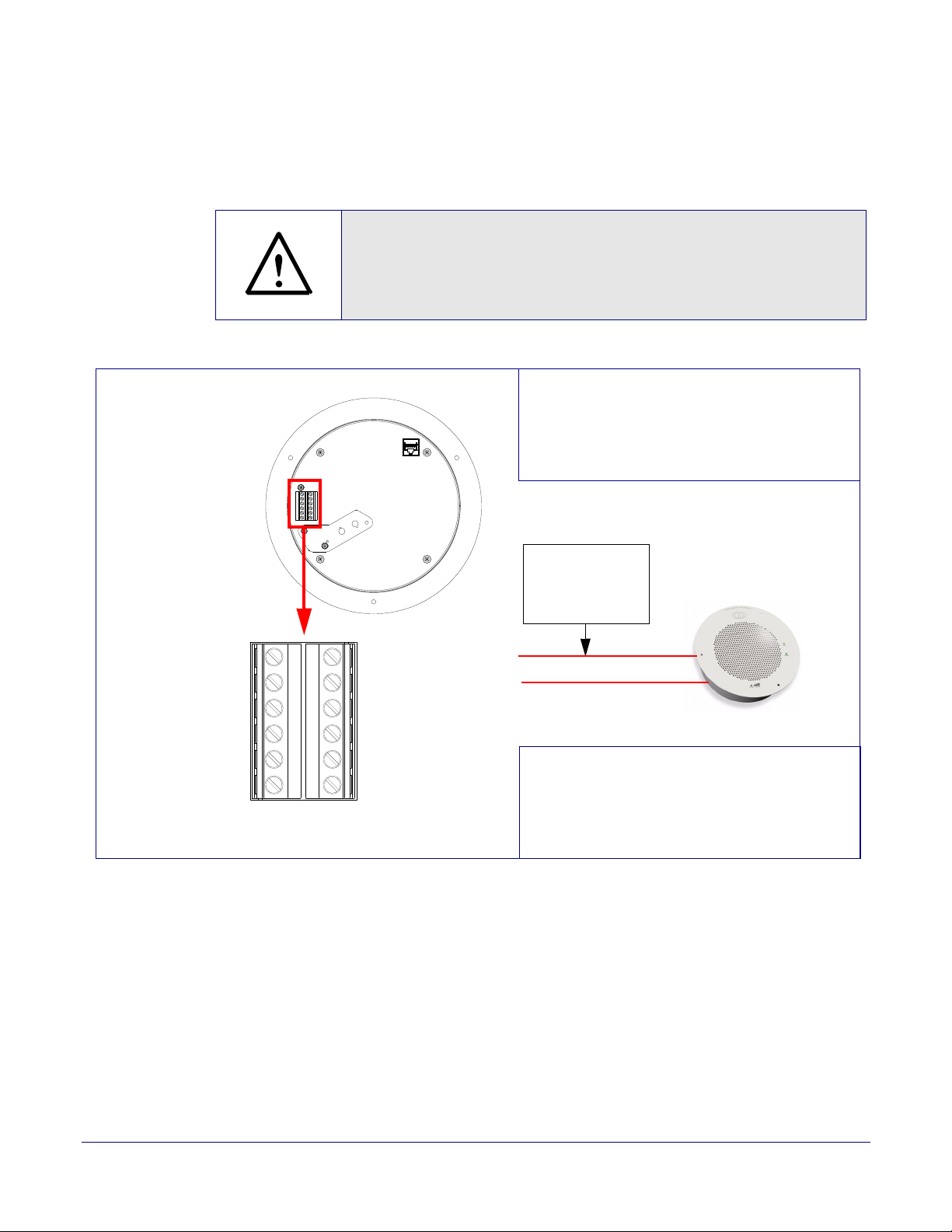

1.9.1 Optional 011185 Remote Call Button (sold separately) ...............................................15

1.9.2 Procedure .....................................................................................................................15

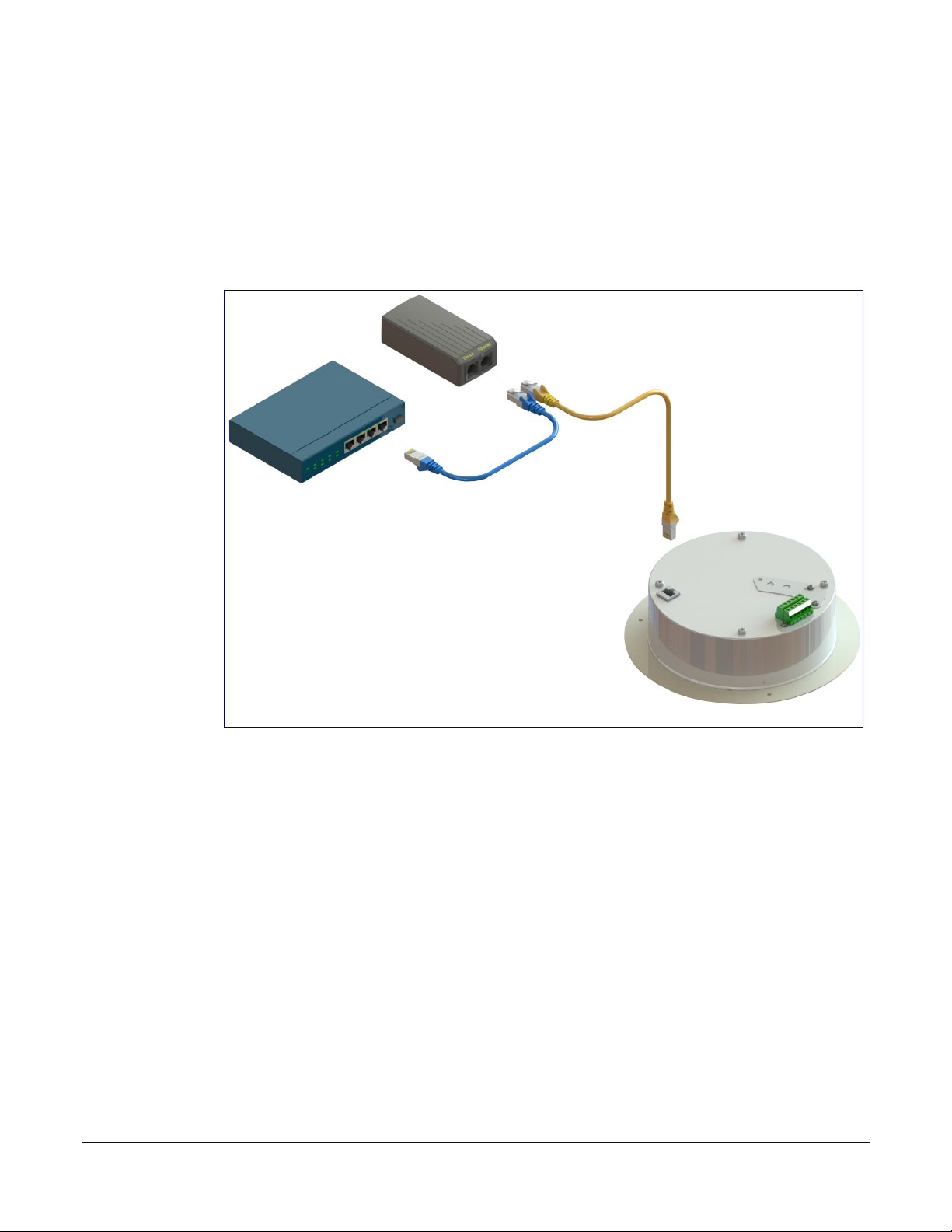

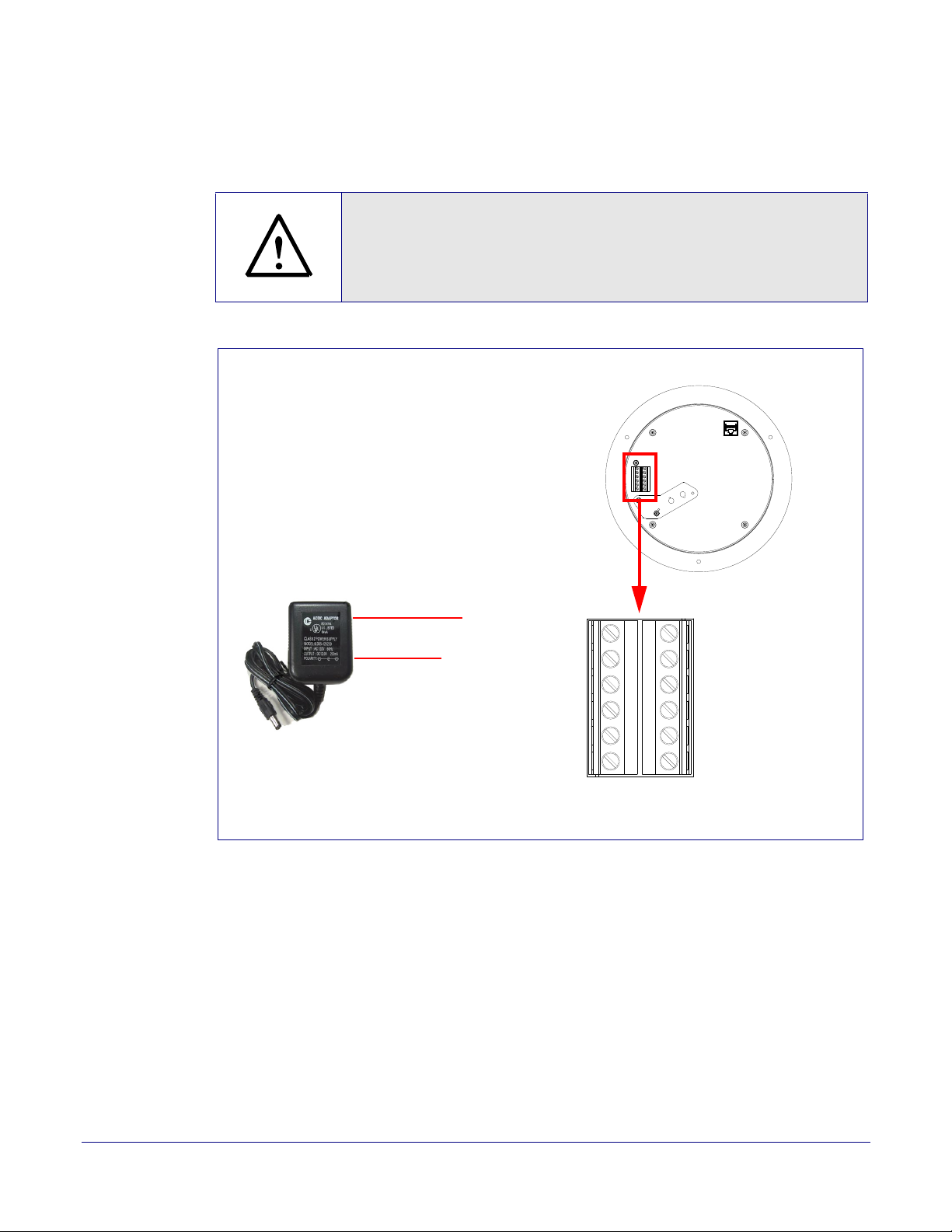

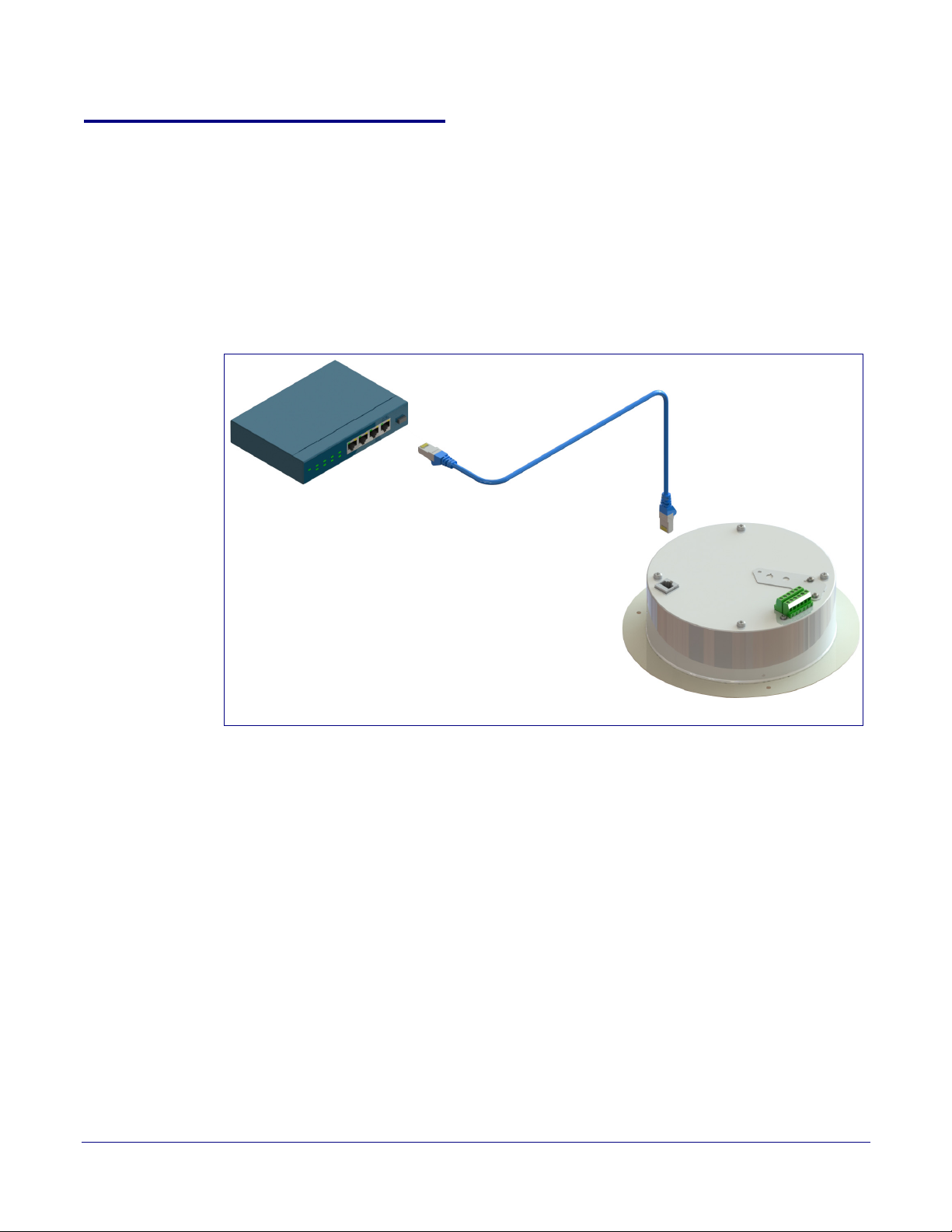

2.2.1 Connect Power to the Speaker ....................................................................................23

2.2.2 Installation Options .......................................................................................................26

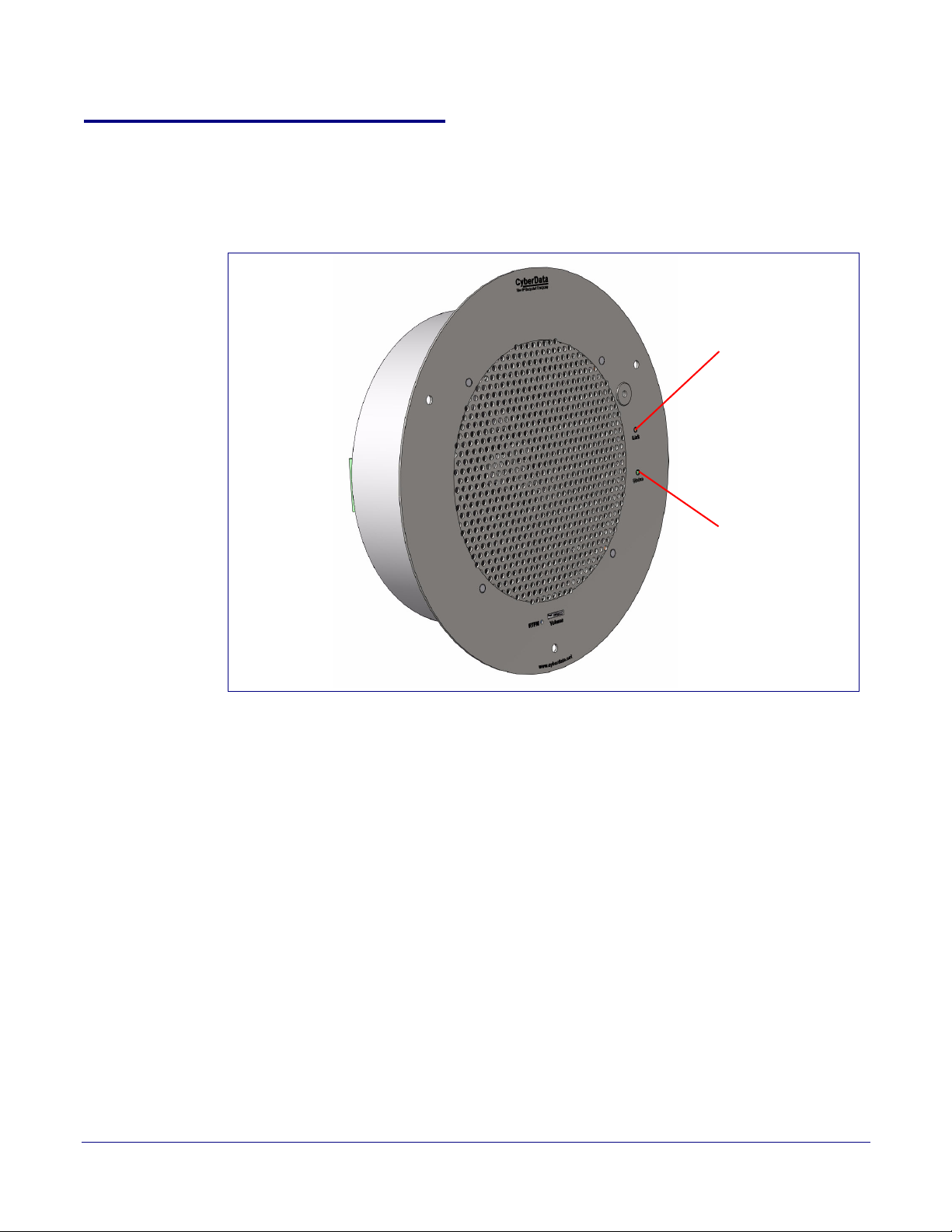

2.2.3 Confirm that the Speaker is Operational and Linked to the Network ..........................31

2.2.4 Confirm the IP Address and Test the Audio .................................................................32

2.2.5 Adjust the Volume ........................................................................................................33

2.2.6 How to Set the Factory Default Settings .......................................................................34

2.3.1 Factory Default Settings ...............................................................................................35

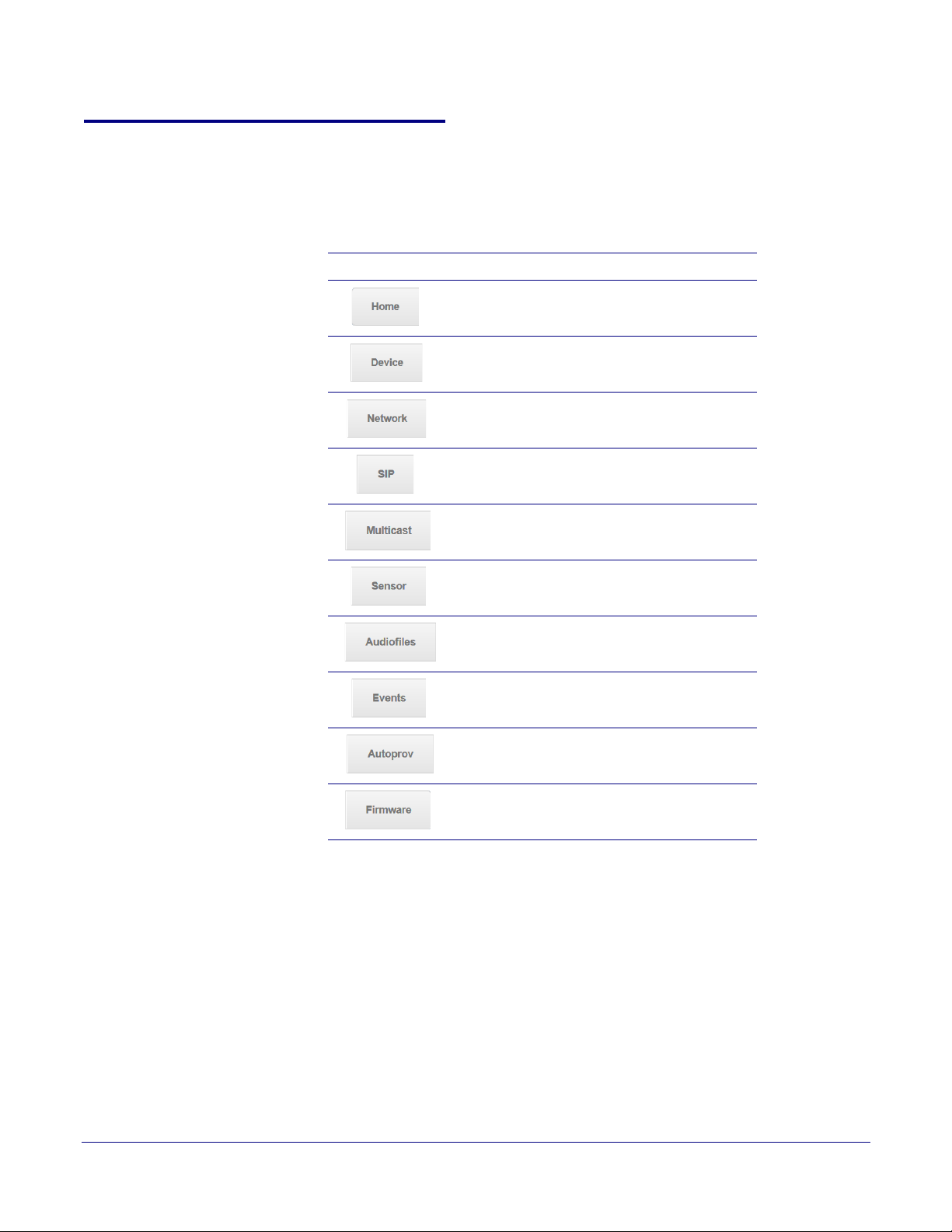

2.3.2 Singlewire InformaCast Talk-Back Speaker Web Page Navigation ..............................36

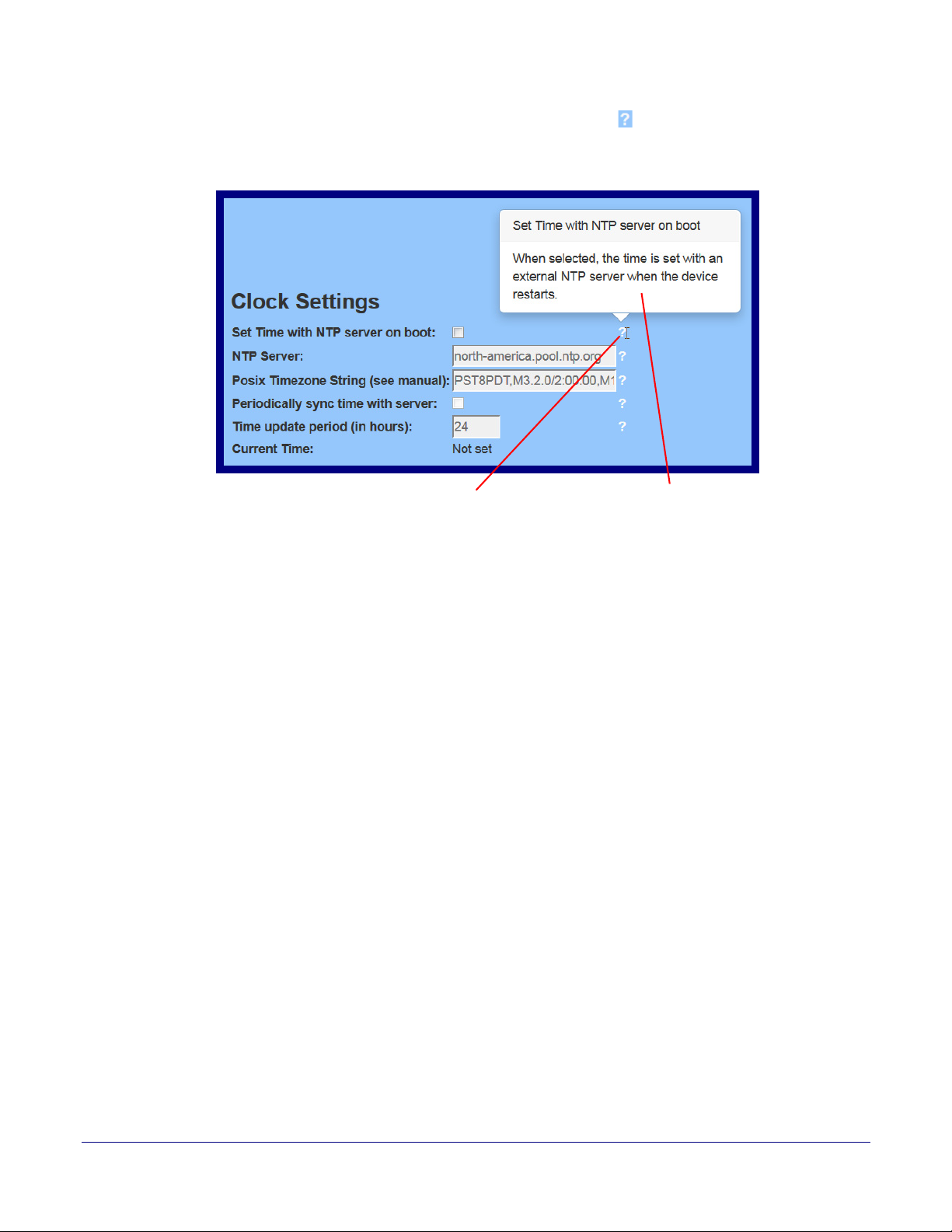

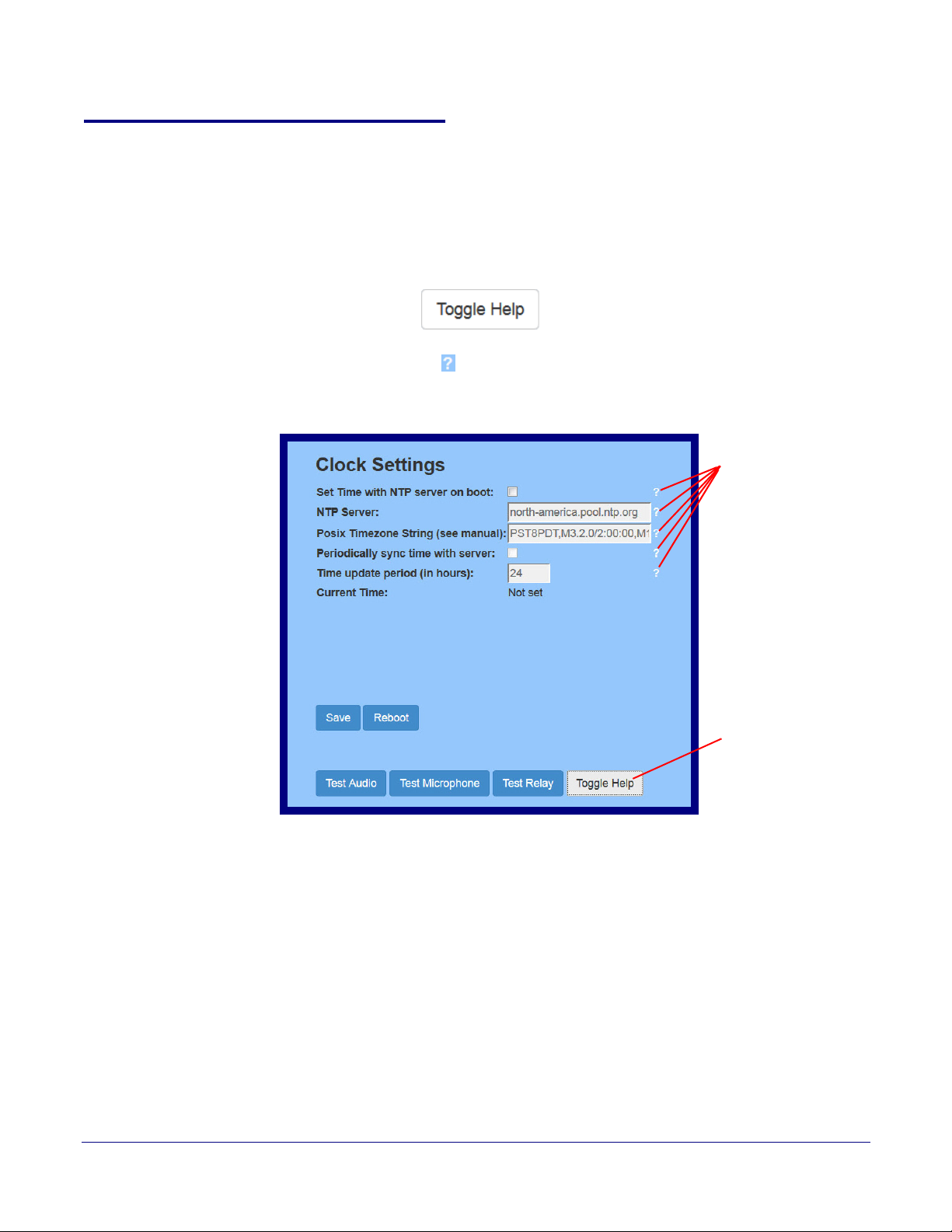

2.3.3 Using the Toggle Help Button .......................................................................................37

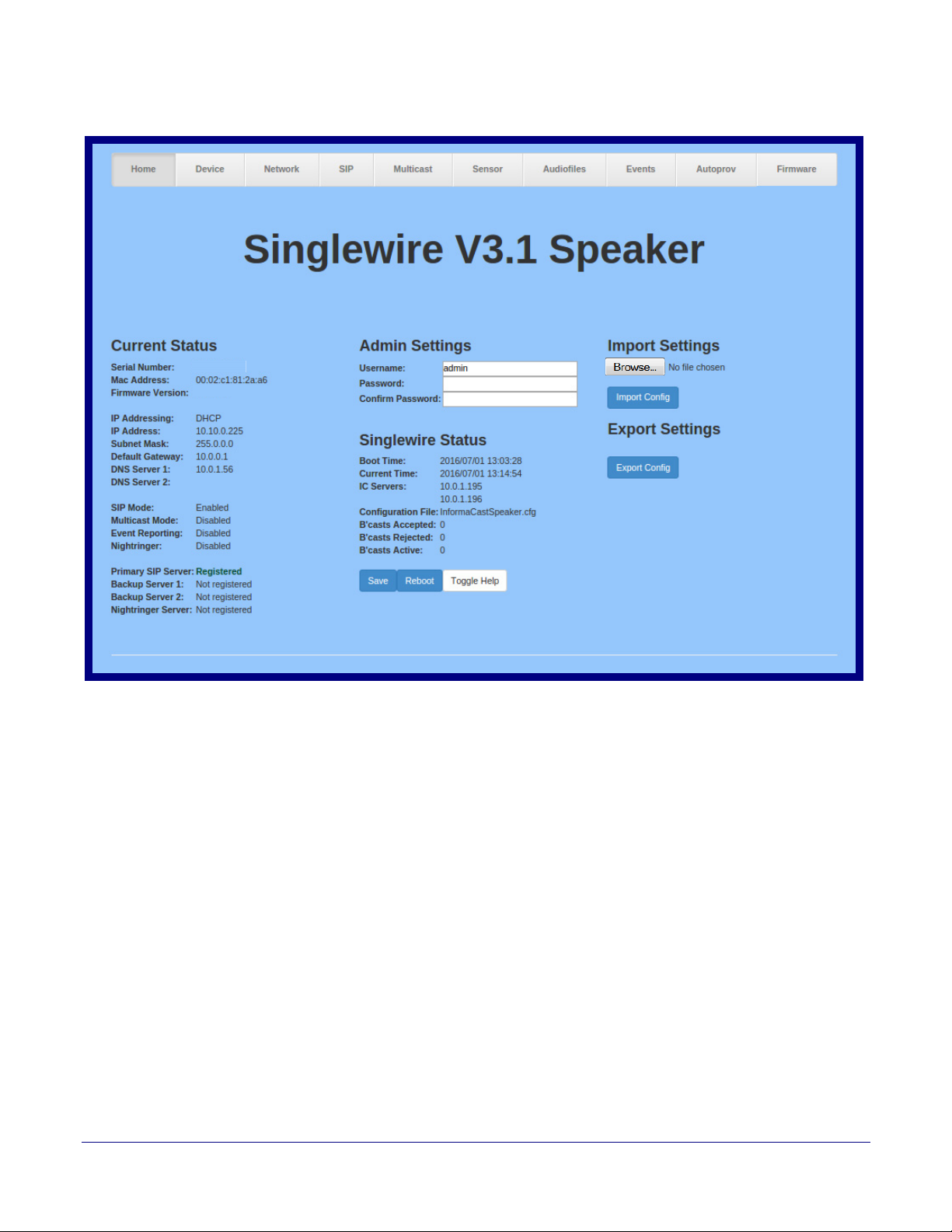

2.3.4 Log in to the Configuration Home Page .......................................................................39

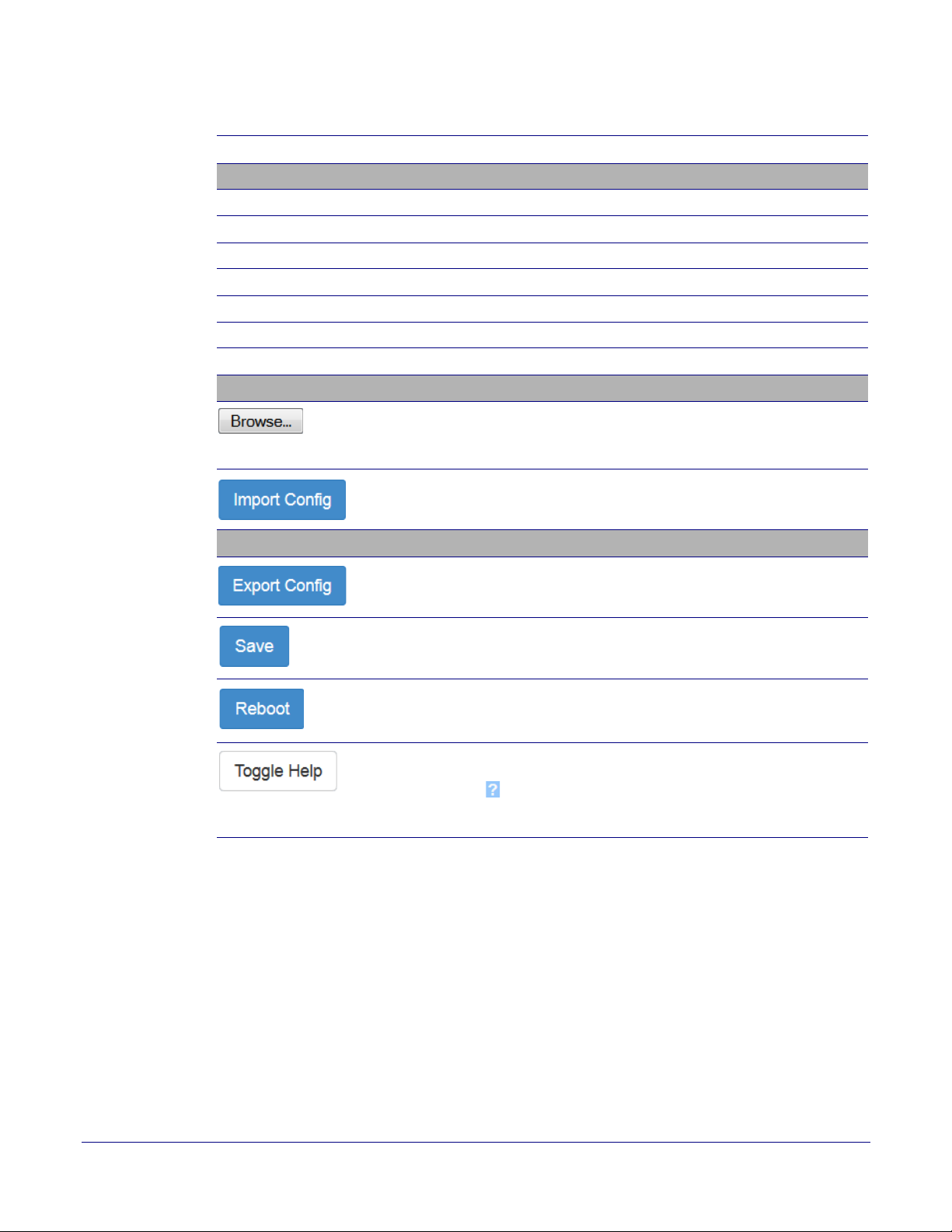

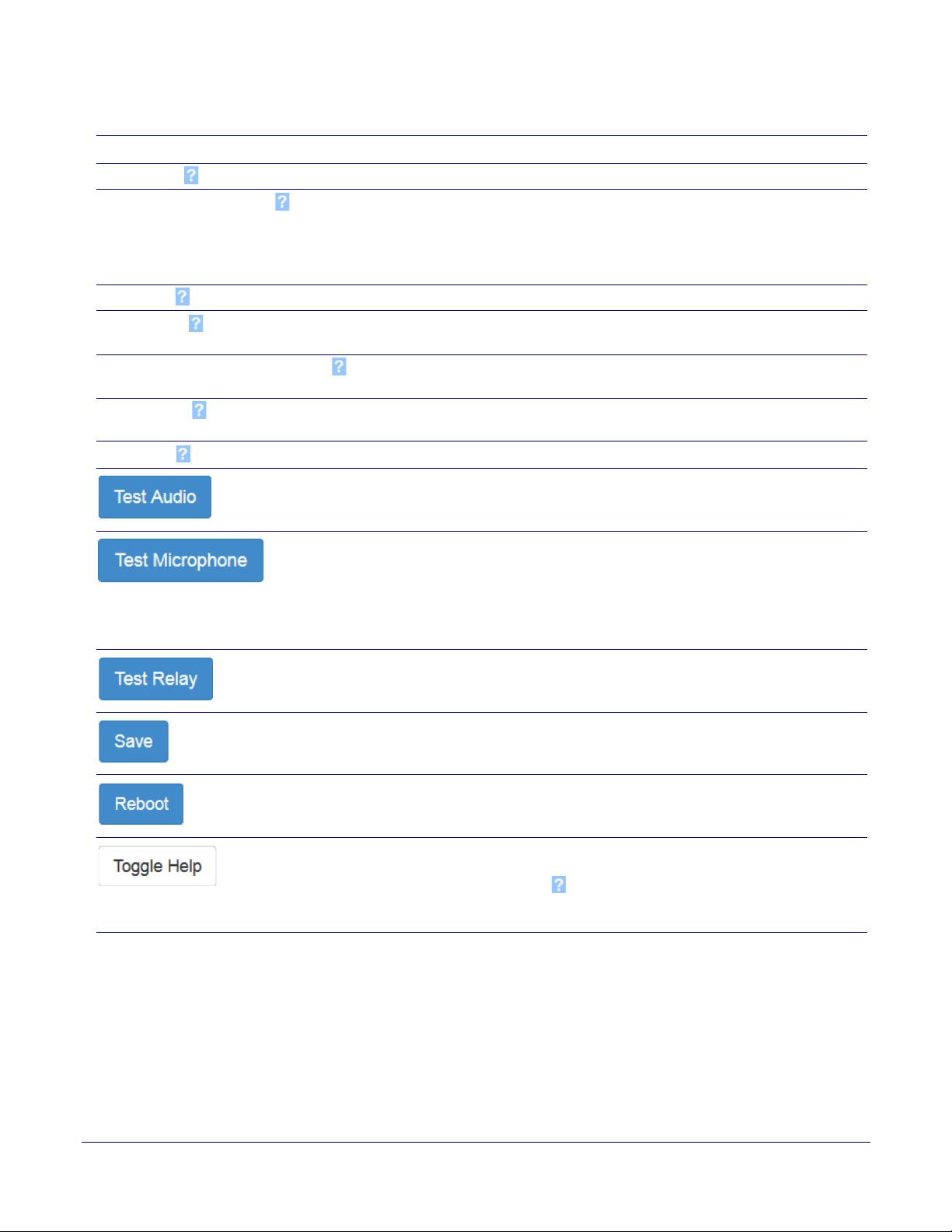

2.3.5 Configure the Device ....................................................................................................43

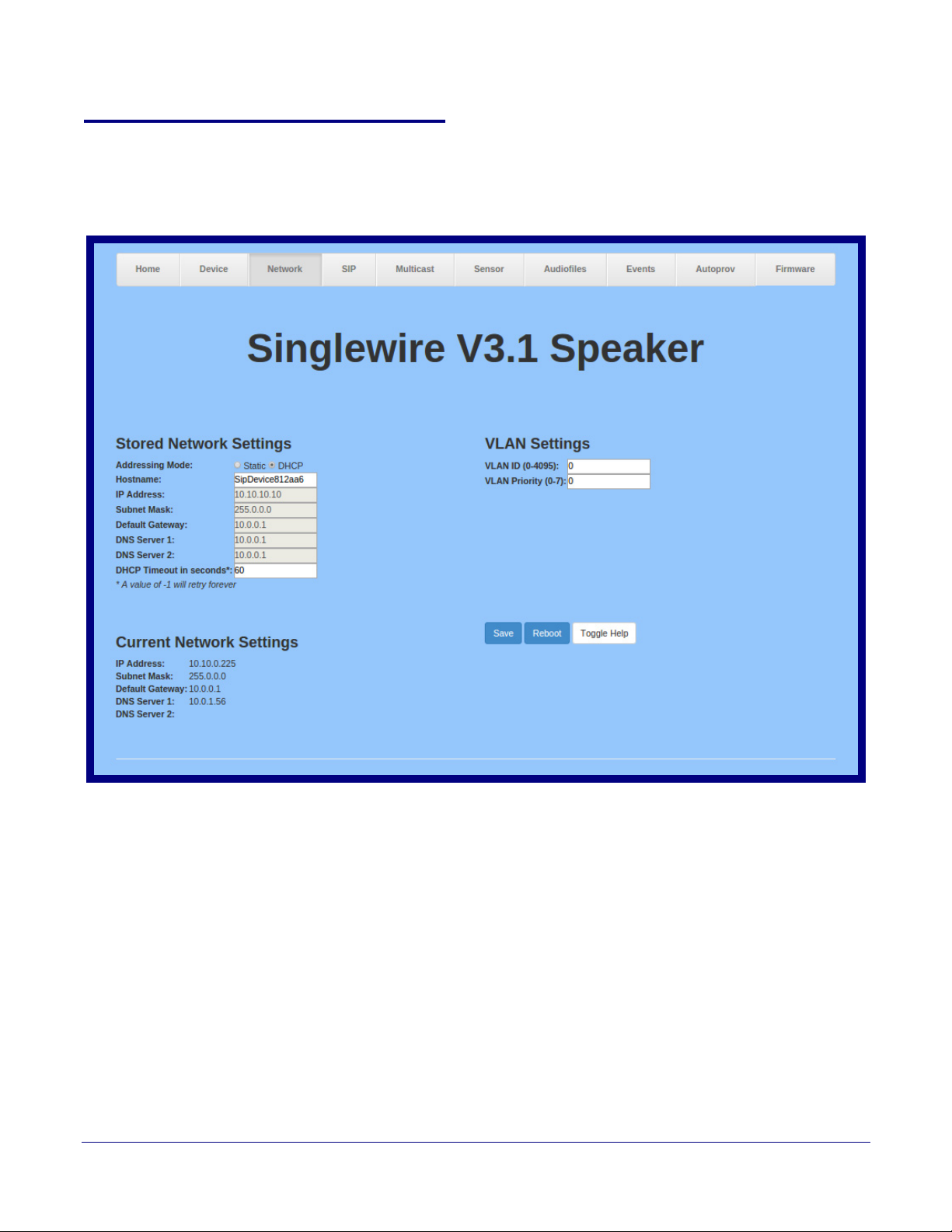

2.3.6 Configure the Network Parameters .............................................................................53

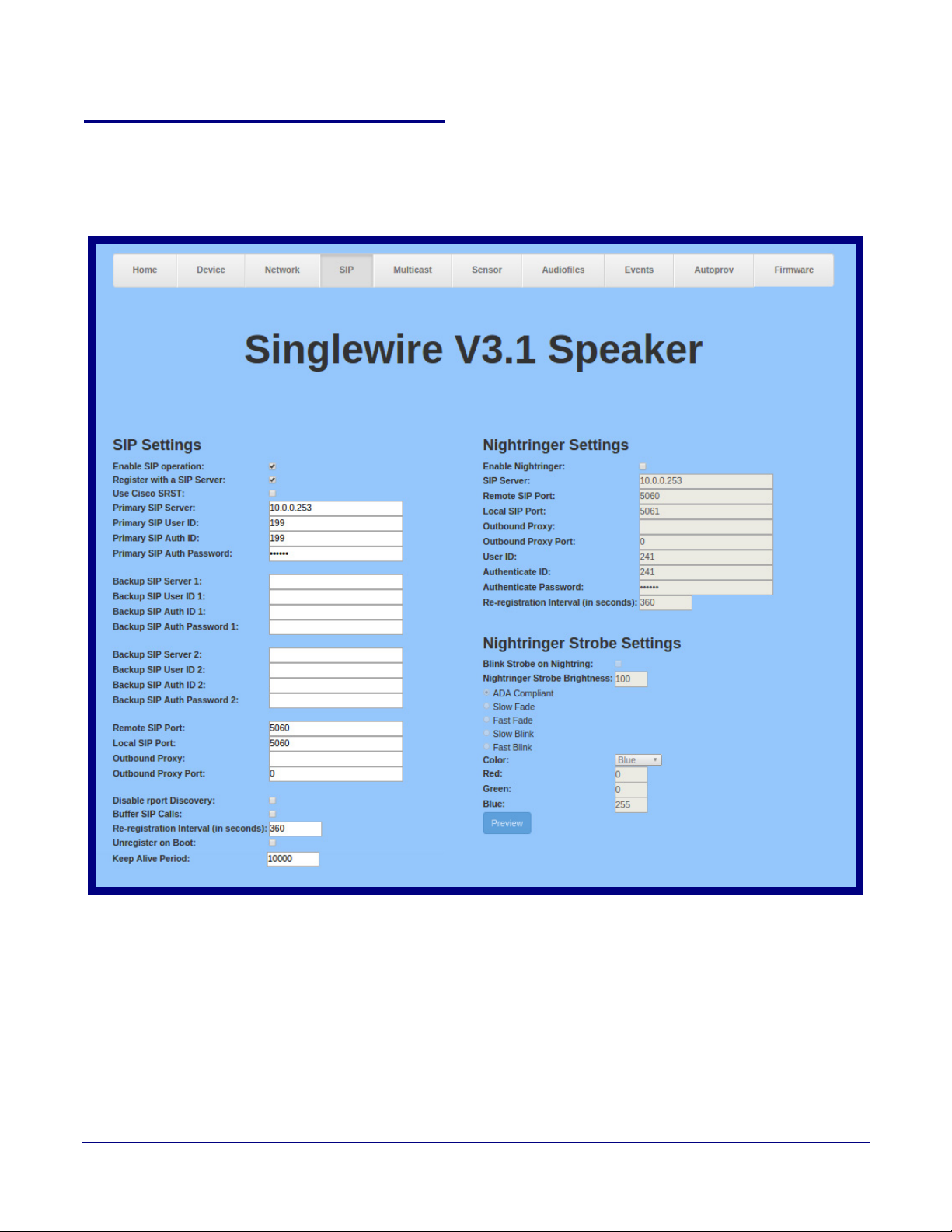

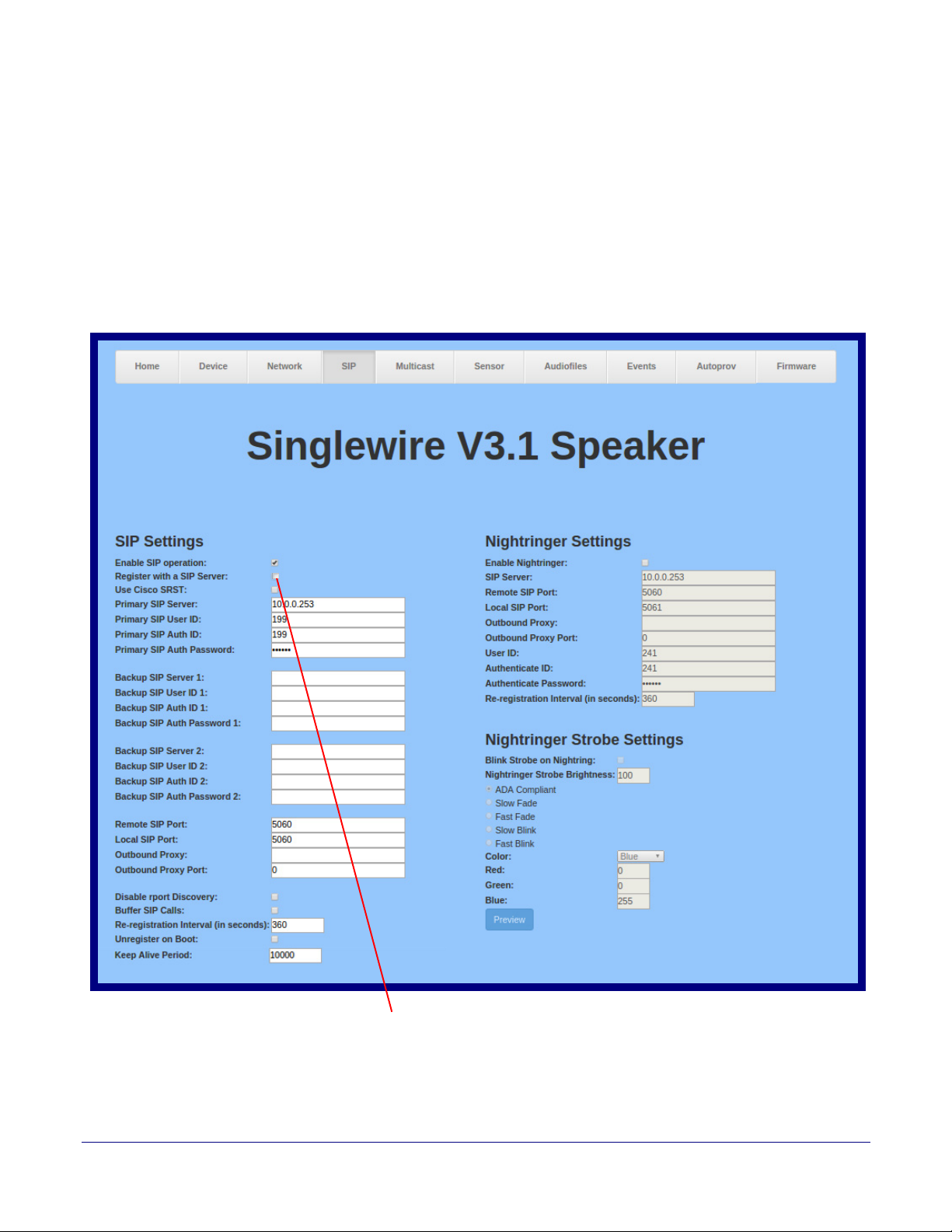

2.3.7 Configure the SIP (Session Initiation Protocol) Parameters .........................................56

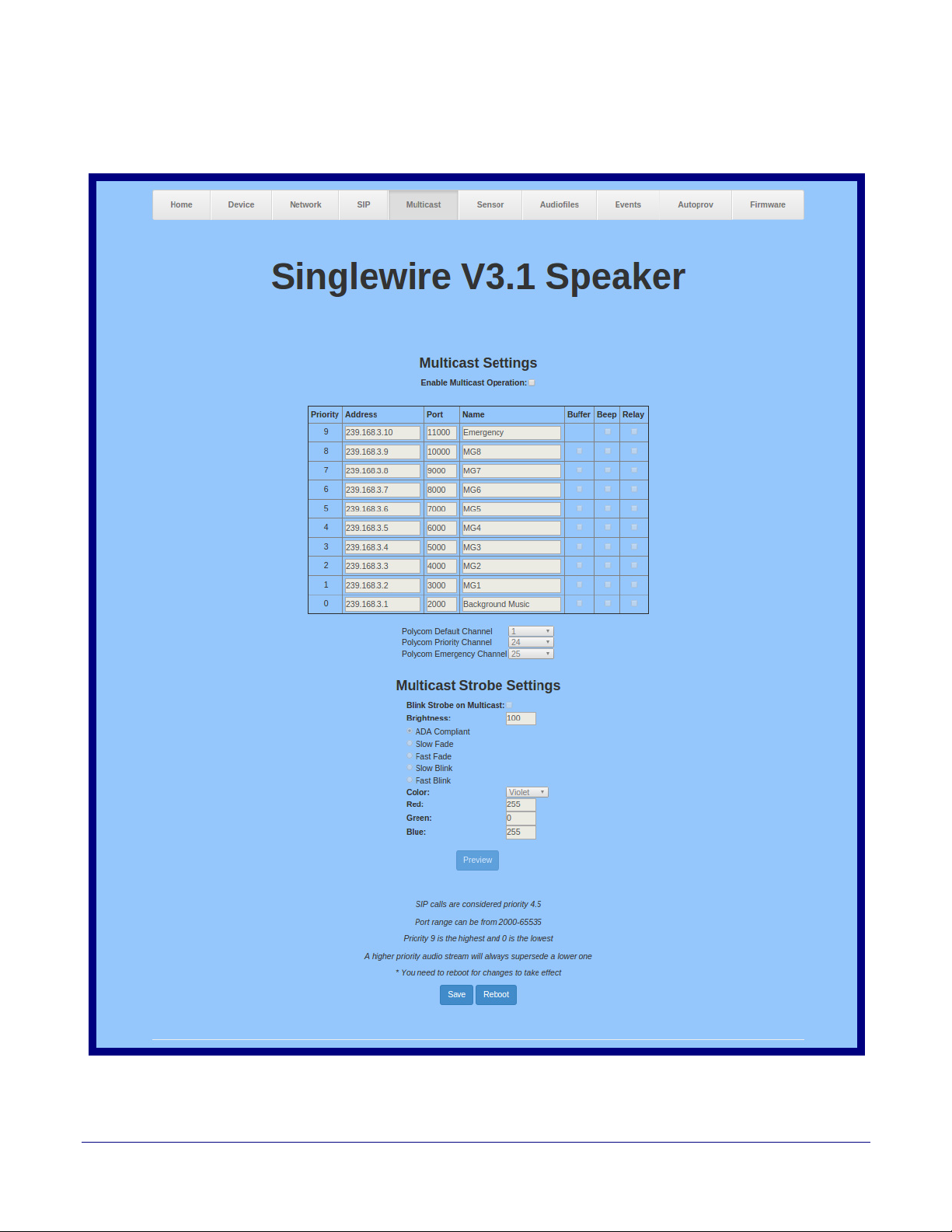

2.3.8 Configure the Multicast Parameters .............................................................................66

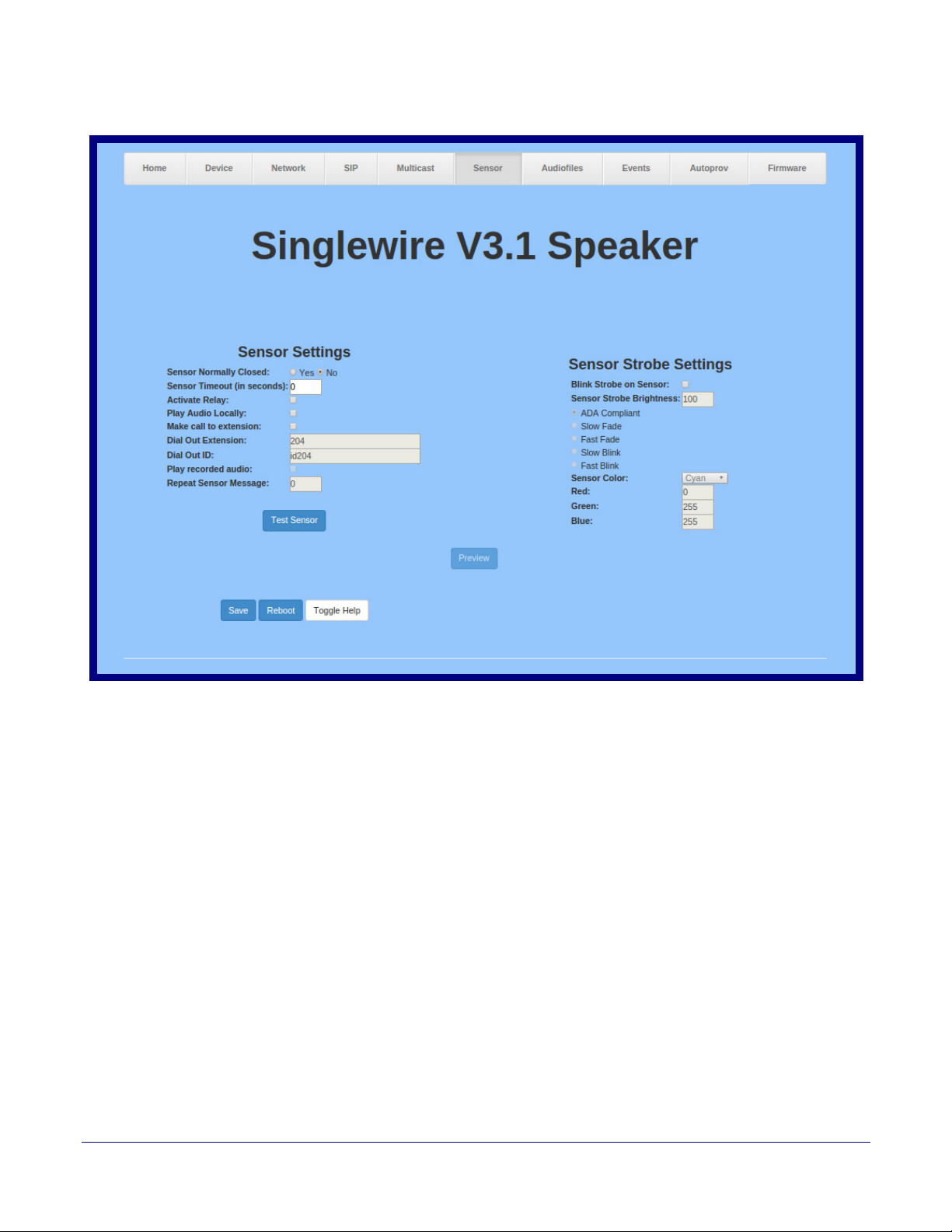

2.3.9 Configure the Sensor Configuration Parameters ..........................................................70

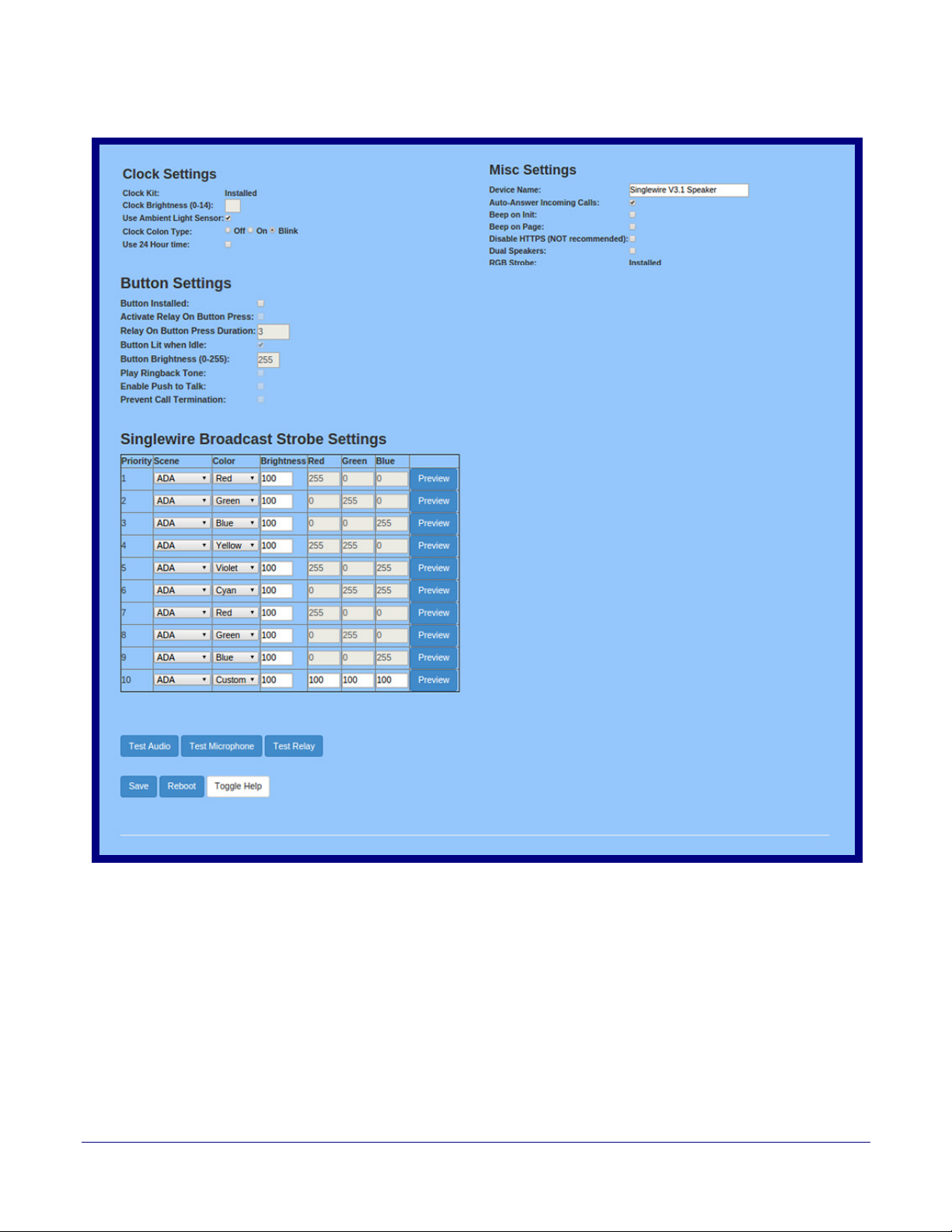

2.3.10 Configure the Audio Configuration Parameters ..........................................................74

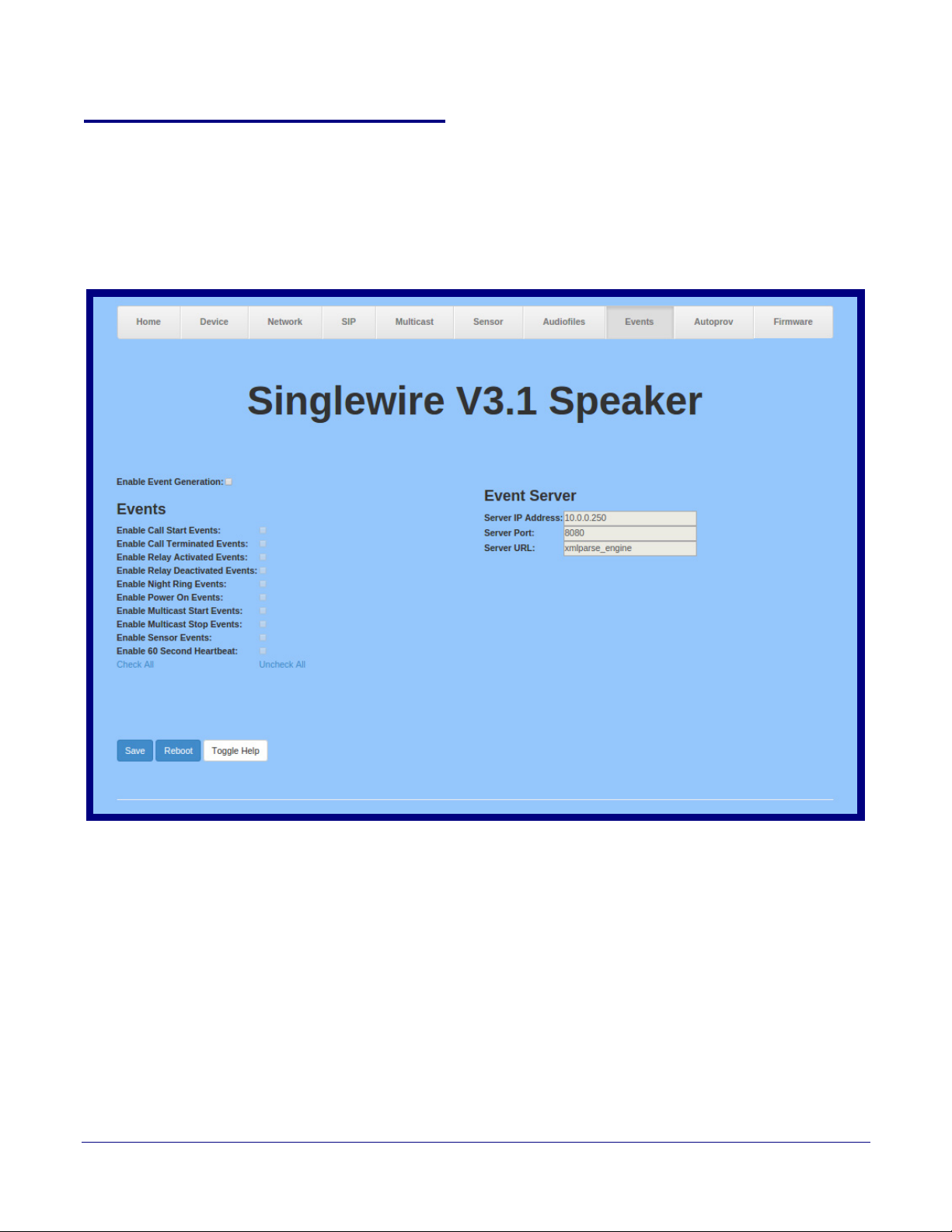

2.3.11 Configure the Events Parameters ..............................................................................79

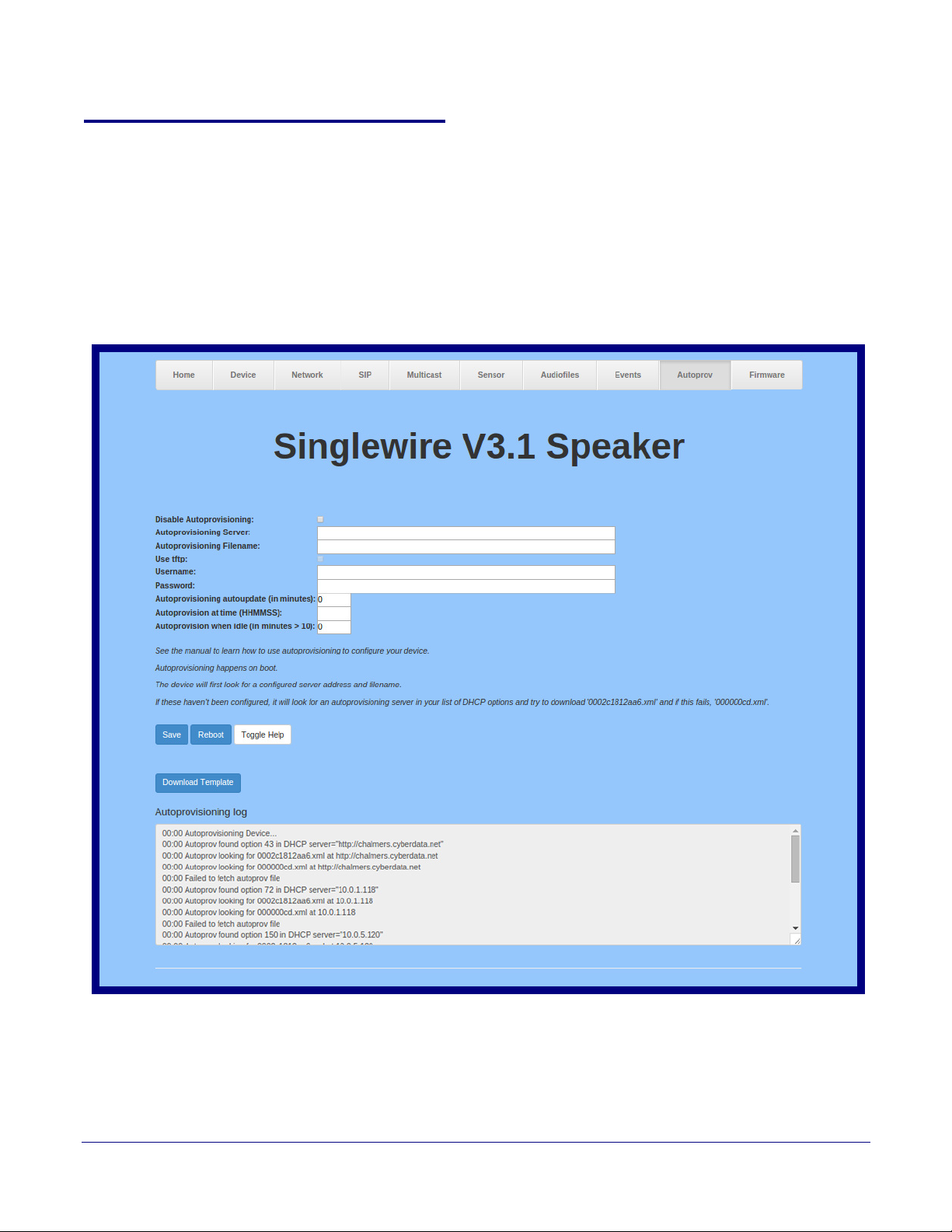

2.3.12 Configure the Autoprovisioning Parameters ...............................................................85

2.4.1 Downloading the Firmware ...........................................................................................97

2.4.2 Reboot the Device ........................................................................................................99

2.5.1 Command Interface Post Commands ........................................................................100

Appendix A Mounting the Speaker 111

A.1 Mount the Speaker ..............................................................................................................111

Appendix B Troubleshooting/Technical Support 114

B.1 Frequently Asked Questions (FAQ) ......................................................................................114

B.2 Documentation .....................................................................................................................114

B.3 Contact Information ..............................................................................................................115

B.4 Warranty and RMA Information ............................................................................................115

Index 116

Operations Guide 931260A CyberData Corporation

1 Product Overview

SINGLEWIRE INFORMACAST TALK-BACK

SPEAKER, RAL9002,RoHS

011399A / 021515F

Model number

WWW.CYBERDATA.NET

399000001

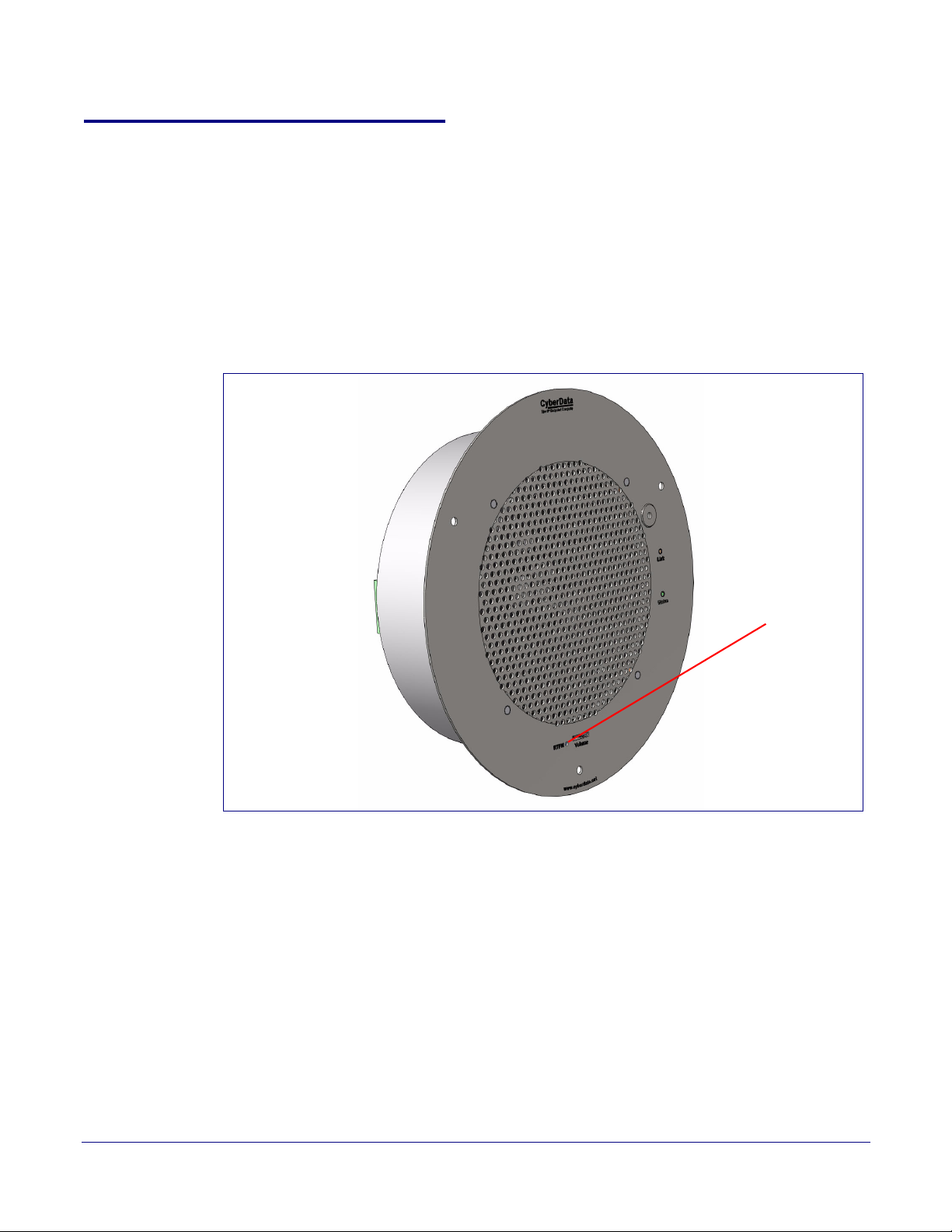

1.1 How to Identify This Product

To identify the Singlewire InformaCast Talk-Back Speaker, look for a model number label similar to
the one shown in

• 011399, RAL 9002, Gray White, Standard Color

• 011400, RAL 9003, Signal White, Optional Color

Figure 1-1. The model number on the label should be one of the following:

Figure 1-1. Model Number Label

1

The CyberData Singlewire-enabled Singlewire InformaCast Talk-Back Speaker enables two-way
conversations using the Singlewire Push-to-Talk application running on the phone. The Singlewire
InformaCast Talk-Back Speaker easily connects into local area networks with a single CAT5/6 cable
from your PoE switch. Its small footprint allows the speaker to be mounted almost anywhere with
multiple mounting options available.

By use of the optional remote call button, calls to a predetermined extension can be initiated from
the room with the speaker. During the active calls, the LED light on the switch can be programmed to
blink to show call activity.

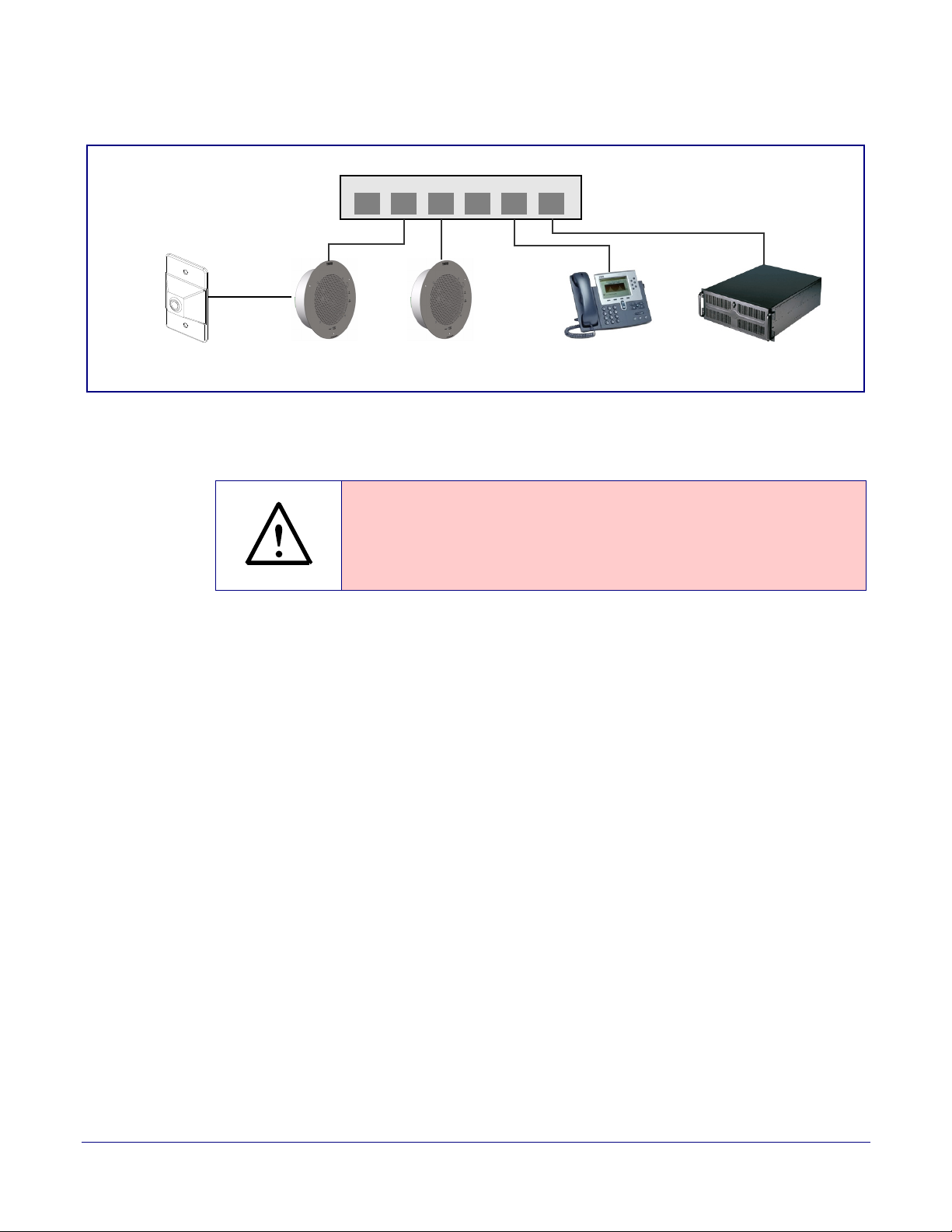

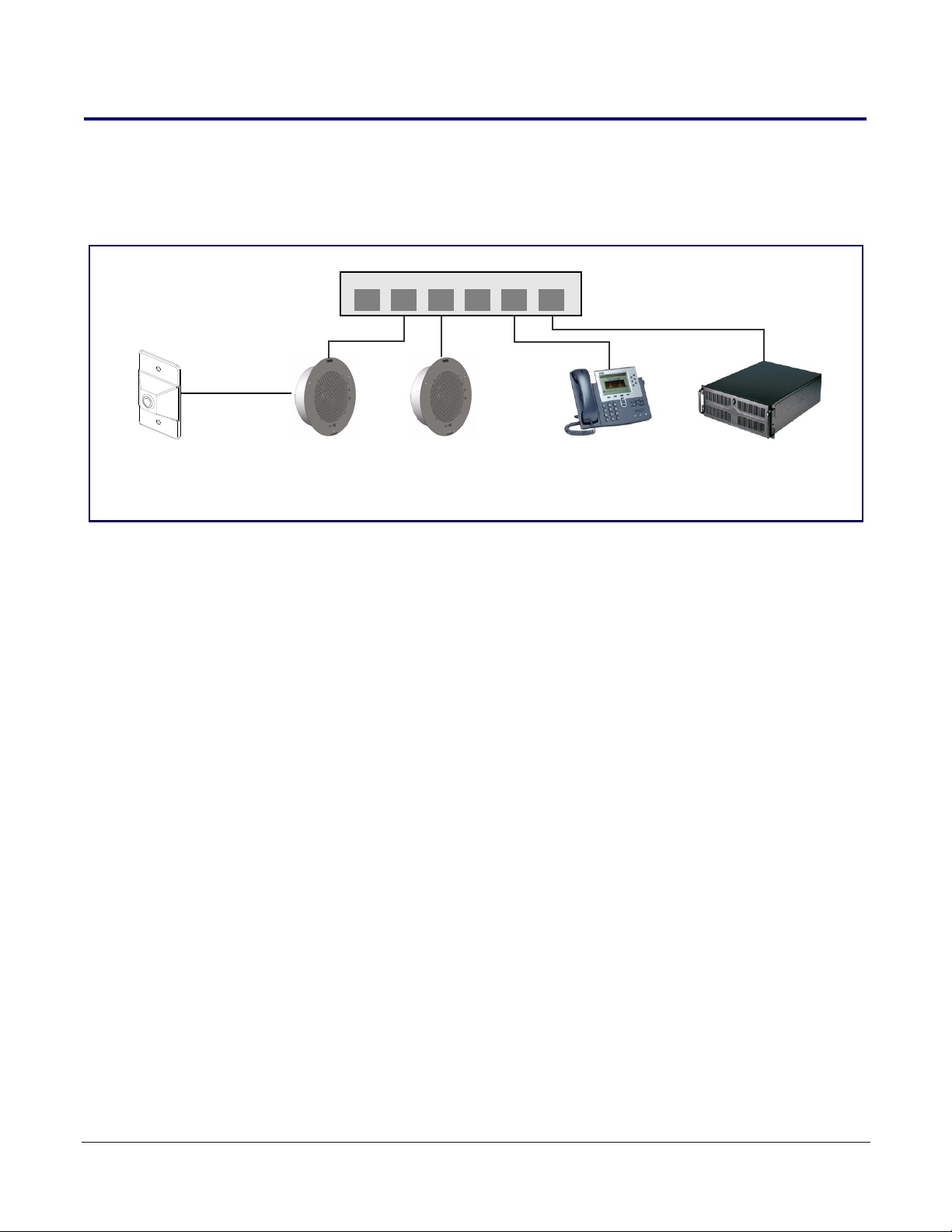

Figure 1-2 illustrates a typical configurations for the Singlewire InformaCast Talk-Back Speaker.

Operations Guide 931260A CyberData Corporation

Figure 1-2. Typical Installation

GENERAL ALERT

802.3af Compliant Ethernet Switch

IP Phone

12 34 56

SIP Talk-Back InformaCast ServerSIP SpeakerRemote Call Button
Speaker

Note The version of InformaCast needs to be 4.0 or higher.

Product Overview

How to Identify This Product

2

Note Prio

r to installation, create a plan for the locations of your speakers.

General Alert

Consult local building and electrical code requirements prior to installation.

Operations Guide 931260A CyberData Corporation

1.2 Installation

802.3af Compliant Ethernet Switch

IP Phone

12 34 56

Singlewire InformCast

IP PBX ServerSIP SpeakerRemote Call Button

Talk-Back Speaker

Figure 1-3 illustrates a typical configurations for the Singlewire InformaCast Talk-Back Speaker.

Figure 1-3. Typical Installation

Product Overview

Installation

3

See the following sections for other installation options:

• Section 2.2.1.3, "Running the Singlewire InformaCast Talk-Back Speaker with Auxiliary Power"

• Section 2.2.2.1, "Running the Singlewire InformaCast Talk-Back Speaker with a Remote Call

Button (sold separately)"

• Section 2.2.2.2, "Singlewire InformaCast Talk-Back Speaker with Auxiliary Speaker Connection"

• Section 2.2.2.3, "Singlewire InformaCast Talk-Back Speaker with Line Out"

Operations Guide 931260A CyberData Corporation

1.3 Product Features

SIP Features

• Singlewire speakers now offer dual registration for both SIP and Singlewire

• Full-duplex (SIP) or half-duplex (push to talk)

• Support for security code to prevent unwanted SIP calls

• Optional red/green/blue/white strobe kit connection available (coming soon)

• Autoprovisioning via HTTP, HTTPS, or TFTP

• HTTPS or HTTP web based configuration. HTTPS is enabled by default.

• 802.11q VLAN tagging

• Configurable sense input for use with fault detection or with optional lighted button kit

• Configurable event generation for device health and status monitoring

• Support for G.711 u-law, G.711 a-law, and G.722 codecs.

• Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)

• Enhanced interoperability for hosted environments

• Night Ringer function

• Plays audio from Multicast

• Web-based configuration

• Paging prioritization and background music

• User upgradeable firmware via web interface or autoprovisioning

• External volume control

• Small footprint

• High efficiency speaker driver

• IGMP l SIP endpoint or Multicast group member

• Network-adjustable speaker volume

• Optional auxiliary speaker available to increase audio coverage - Part #011120/011121

• Optional clock kit available - Part #011153/011154

• Support for 10 multicast paging groups

• Support for multiple SIP servers for redundancy

• Support for Cisco SRST resiliency

• Relay for activating door locks, external amplifiers, etc.

• Line-level audio output for connecting to an external amplifier

Product Overview

Product Features

4

Singlewire InformaCast Features

• Singlewire Informacast compatibility available. Includes support for Informacast resiliency.

• Supports both SIP and Singlewire InformaCast

• InformaCast compliant

• InformaCast CK compliant

Operations Guide 931260A CyberData Corporation

1.4 Supported Protocols

The Singlewire InformaCast Talk-Back Speaker supports:

• Multicast

• DHCP Client

Dynamically assigns IP addresses in addition to the option to use static addressing.

• InformaCast Version 4.0 and greater

• TFTP Client

Facilitates Web-based firmware upgrades of the latest speaker capabilities.

•RTP

• Audio Encodings

PCMU (G.711 mu-law)

PCMA (G.711 A-law)

Packet Time 20 ms

Product Overview

Supported Protocols

5

Operations Guide 931260A CyberData Corporation

Product Overview

Product Specifications

1.5 Product Specifications

Table 1-1. Product Specifications

Category Specification

Audio sensitivity 96dB/1W/1M S.P. Level

Audio output 10 Watts Peak Power

Operating temperature -30 to 55 C (-22 to 131 F)

Ethernet port baud rate 10/100 Mbps

Protocol InformaCast and/or SIP (RFC 3261)

Power Input (J1) PoE 802.3af (as per IEEE 802.3af standard from a UL-listed, LPS-rated limited power source)

802.3at

44-57 VDC (48 VDC nominal) at 350mA

or Auxiliary Power Inputa
(Terminal Block J10)

Total Power ~ 15W

Network Line loss ~ 2W

12 VDC at 1A (from a UL-listed, LPS-rated power supply)

6

Total Pwr @ VoIP
Speaker

Total available audio
power

Idle PWR (losses/CPU) ~ 3W

Payload types G.711 µ-law, G.711 a-law, and G.722

Warranty 2 years limited

Dimensions 9” x 2.4”

Weight 2.8 lbs./shipping weight of 3.8 lbs.

Part number 011399*, RAL 9002, Gray White, Standard Color

~ 13W

~ 10W

(1.3 kg/shipping weight of 1.7 kg)

011400, RAL 9003, Signal White, Optional Color

*Replaces 011182 and 011183.

a.Auxiliary power input for use when PoE power is not available. 12 VDC @ 1A. Do not use auxiliary power input
when speaker J1 is connected to a PoE power source.

Operations Guide 931260A CyberData Corporation

Product Overview

Starting a Push-to-Talk Session from an IP Phone (Summary)

1.6 Starting a Push-to-Talk Session from an IP Phone (Summary)

To start a push-to-talk session from an IP phone:

1. Make sure that the Cisco environment is set it up with the Intercom Service.

2. On the Cisco IP phone, select the Service button.

3. Select the Informacast Intercom Service.

4. On the Cisco IP phone, dial the extension number for the Speaker that you want to call.

5. When the call from the Cisco IP phone to the Speaker is active, you can do one of the following:

• Select the Listen button on the phone to listen to someone talking into the Speaker.

• Select the Talk button on the phone to talk to someone listening to the Speaker.

Note The IP phone always controls the talking and listening feature of the Speaker.

6. Select the Exit button to terminate the call.

7

Note For a more detailed explanation of this procedure with pictures, see Section 1.8, "Starting a

Push-to-Talk Session from an IP Phone (Detailed)".

1.7 Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Summary)

To start a push-to-talk session from a Singlewire InformaCast Talk-Back Speaker:

1. Make sure that the Cisco environment is set it up with the Intercom Service.

2. Press the Remote Call Button to make the Singlewire InformaCast Talk-Back Speaker dial a pre­programmed IP phone extension.

3. When the call from the Singlewire InformaCast Talk-Back Speaker to the Cisco IP phone is
active, you can do one of the following:

• Select the Listen button on the phone to listen to someone talking into the Speaker.

• Select the Talk button on the phone to talk to someone listening to the Speaker.

Note The IP phone always controls the talking and listening feature of the Speaker.

4. Select the Exit button to terminate the call.

Note For a more detailed explanation of this procedure with pictures, see Section 1.9, "Starting a

Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)".

Operations Guide 931260A CyberData Corporation

Product Overview

Services buttonInformacast Intercom service Button under Select in the phone window

Starting a Push-to-Talk Session from an IP Phone (Detailed)

1.8 Starting a Push-to-Talk Session from an IP Phone (Detailed)

To start a Push-to-Talk Session from an IP Phone:

1. Press the Services button. In the Phone window, you will see the words Informacast Intercom
listed under Services.

2. Press the button under the word Select in the phone window.

Figure 2. Select the Informacast Intercom Service

8

Operations Guide 931260A CyberData Corporation

Product Overview

Speaker Selection

Button under Select in the phone window

Starting a Push-to-Talk Session from an IP Phone (Detailed)

3. When the words Speaker Selection and Dial Code appear in the phone window, use the
keypad to enter the dial code for the preconfigured Singlewire InformaCast Talk-Back Speaker
that you want to call.

4. After entering the dial code, press the button under the word Submit in the phone window to call
the speaker.

Figure 3. Enter the Dial Code

9

Operations Guide 931260A CyberData Corporation

Product Overview

Talking to “Speaker Name”

Starting a Push-to-Talk Session from an IP Phone (Detailed)

5. When the words Talking to “Speaker Name” appear in the phone window, the speaker is in
Talking Mode. A person at the speaker can begin talking to the phone.

Figure 4. Talking Mode

10

Operations Guide 931260A CyberData Corporation

Product Overview

Button under Listen in the phone window

Starting a Push-to-Talk Session from an IP Phone (Detailed)

6. If you want to switch the speaker to Listening Mode, the person at the phone must press the
button under the word Listen that is in the phone window.

Figure 5. Press the Listen Button to Switch to Listening Mode

11

Operations Guide 931260A CyberData Corporation

Product Overview

Listening to “Speaker Name” Button under Talk in the phone window

Starting a Push-to-Talk Session from an IP Phone (Detailed)

7. When the words Listening to “Speaker Name” appear in the phone window, the speaker is in
Listening Mode. A person at the speaker can begin listening to someone talking through the
phone.

8. If you want to switch the speaker back to Talking Mode, the person at the phone must press the
button under the word Tal k that is in the phone window.

Figure 6. Listening Mode

12

Operations Guide 931260A CyberData Corporation

Product Overview

Button under Exit in the phone window

Starting a Push-to-Talk Session from an IP Phone (Detailed)

9. To end the call at any time, the person at the phone must press the button under the word Exit in
the phone window.

Figure 7. Press Exit to End to End the Call

13

Operations Guide 931260A CyberData Corporation

Product Overview

Button under Exit in the phone window

Starting a Push-to-Talk Session from an IP Phone (Detailed)

10. The person at the phone must then press the button under the word Exit in the phone window
again to return to the Home screen.

Figure 8. Press Exit Again to Return to the Home Screen

14

Operations Guide 931260A CyberData Corporation

Product Overview

Remote Call Button
Note: See Section

1.9.1, "Optional 011185
Remote Call Button
(sold separately)"

Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

1.9 Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

1.9.1 Optional 011185 Remote Call Button (sold separately)

Section 1.9, "Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker
(Detailed)" shows the optional 011185 Remote Call Button which is sold separately. For more

information about this product, go to the following webpage:

http://www.cyberdata.net/voip/011185/

1.9.2 Procedure

To start a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker:

1. The person at the preconfigured Singlewire InformaCast Talk-Back Speaker must press the
Remote Call Button. The speaker will immediately call a specific IP phone.

15

Figure 9. Press the Remote Call Button

Operations Guide 931260A CyberData Corporation

Product Overview

Talking to Talkback Test

Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

2. When the words Talking to Talkback Test appear in the phone window, the speaker is in
Talking Mode. A person at the speaker can begin talking to the phone.

Figure 10. Talking Mode

16

Operations Guide 931260A CyberData Corporation

Product Overview

Button under Listen in the phone window

Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

3. If you want to switch the speaker to Listening Mode, the person at the phone must press the
button under the word Listen that is in the phone window.

Figure 11. Press the Listen Button to Switch to Listening Mode

17

Operations Guide 931260A CyberData Corporation

Product Overview

Listening to Talkback Test Button under Talk in the phone window

Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

4. When the words Listening to Talkback Test appear in the phone window, the speaker is in
Listening Mode. The person at the speaker can begin listening to someone talking through the
phone.

5. If you want to switch the speaker back to Talking Mode, the person at the phone must press the
button under the word Tal k that is in the phone window.

Figure 12. Listening Mode

18

Operations Guide 931260A CyberData Corporation

Product Overview

Button under Exit in the phone window

Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

6. To end the call at any time, the person at the phone must press the button under the word Exit in
the phone window.

Figure 13. Press Exit to End to End the Call

19

Operations Guide 931260A CyberData Corporation

Product Overview

Button under Exit in the phone window

Starting a Push-to-Talk Session from a Singlewire InformaCast Talk-Back Speaker (Detailed)

7. The person at the phone must then press the button under the word Exit in the phone window
again to return to the Home screen.

Figure 14. Press Exit Again to Return to the Home Screen

20

Operations Guide 931260A CyberData Corporation

8 Installing the Singlewire InformaCast Talk­Back Speaker

2.1 Parts List

Ta bl e 2-2 illustrates the parts for each speaker and includes kits for the drop ceiling and drywall

mounting.

21

Note The installation template for the Singlewire Info

the Installation Quick Reference Guide that is included in the packaging with each speaker.

Table 2-2. Parts

Quantity Part Name Illustration

1 Singlewire InformaCast Talk-Back

Speaker Assembly

1 Installation Quick Reference Guide

1 Speaker Mounting Accessory Kit

rmaCast Talk-Back Speaker is located on

Operations Guide 931260A CyberData Corporation

2.2 Device Configuration

Set up and configure each speaker before you mount it.

CyberData delivers each speaker with the following factory default values:

Table 2-3. Factory Network Default Settings—Default of Network

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

a

a

a

a. Default if there is not a DHCP server present.

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

10.10.10.10

255.0.0.0

10.0.0.1

22

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

802.3af Compliant PoE Switch

Cat 5 Ethernet cable

Singlewire InformaCast Talk-Back Speaker

Device Configuration

2.2.1 Connect Power to the Speaker

Figure 2-1 through Figure 2-3 illustrates how to connect power to the Singlewire InformaCast Talk-

Back Speaker.

2.2.1.1 Singlewire InformaCast Talk-Back Speaker to a 802.3af Compliant PoE Switch

Figure 2-1 illustrates how to connect the Singlewire InformaCast Talk-Back Speaker to a 802.3af

compliant PoE switch via a Cat 5 Ethernet cable.

Figure 2-1. Singlewire InformaCast Talk-Back Speaker to a 802.3af Compliant PoE Switch

23

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

PoE Injector (Part #010867A)

Non PoE Switch

Singlewire InformaCast Talk-Back Speaker

Cat 5 Ethernet cable

Device Configuration

2.2.1.2 Singlewire InformaCast Talk-Back Speaker (with PoE Injector) to a 802.3af Compliant PoE Switch

In Figure 2-2, if a PoE switch is not available, you will need a PoE Injector, part #010867A (ordered
separately). A PoE Injector is a power supply solution for those who have a standard Non PoE
Switch.

Figure 2-2. Singlewire InformaCast Talk-Back Speaker (with PoE Injector) to a Non PoE

Switch

24

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

GENERAL ALERT

AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

J9

CLASS II WIRING

GND

AC adaptor
+12 VDC @ 1 Amps
(UL-listed, LPS-rated)

+12 VDC

Speaker

Device Configuration

2.2.1.3 Running the Singlewire InformaCast Talk-Back Speaker with Auxiliary Power

In Figure 2-3, the power for the Singlewire InformaCast Talk-Back Speaker can either come from an

802.3af Network connection or from an external source.

Caution

Operational Note: Do not connect an auxiliary power supply when the

Singlewire InformaCast Talk-Back Speaker is connected to a PoE power
source through J1. Improper operation or equipment damage may occur.

25

Figure 2-3. Running the Speaker with Auxiliary Pow

er

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Speaker

Back View

AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

J9

CLASS II WIRING

High-purity copper
16 AWG wire and a
maximum length of
20 feet

Remote Call Button
Note: See Section 1.9.1, "Optional 011185

Remote Call Button (sold separately)"

Device Configuration

2.2.2 Installation Options

This section shows various installation options for the Singlewire InformaCast Talk-Back Speaker.

2.2.2.1 Running the Singlewire InformaCast Talk-Back Speaker with a Remote Call Button (sold separately)

Note Figure 2-4 shows the optional 011185 Remote Call Button (sold separately). See Section

1.9.1, "Optional 011185 Remote Call Button (sold separately)"

In Figure 2-4, the optional Remote Call Button (sold separately) enables calls to the Singlewire
InformaCast Talk-Back Speaker that can be initiated or answered from a remotely-mounted switch.
When enabled through the web interface, if the Remote Call Button is pressed, the speaker would
initiate a SIP call to a predetermined extension.

When the Singlewire InformaCast Talk-Back Speaker is called from a remote phone and Auto­Answer is not enabled within the unit’s Web interface, the LED on the Remote Button will blink. The
call will be answered when the button is pressed.

Figure 2-4. Running the Speaker with a Remote Call Button

26

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

J9

CLASS II WIRING

High PIV Ultrafast
Switching Diode

Output Contacts
AC or DC-rated
depending upon
controlled device
requirements

DC Power Supply
(Max. 30 VDC @ 1A)

Solid State or 
Mechanical Relay

AC or DC
Power Source as
required by an
external device

IN

OUT

External device
such as an electric
door strike or LED
strobe light

Speaker

Device Configuration

In Figure 2-5, when the Singlewire InformaCast Talk-Back Speaker is called from a remote phone,
the relay on the speaker can be programmed to drive an external device such as an alert strobe.
This external device may also be addressed from a separate Unified Communication (UC) server.

Figure 2-5. Speaker with an External Device

27

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

GENERAL ALERT

AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

J9

CLASS II WIRING

8 Ohm Auxiliary Speaker

High-purity copper
16-gauge wire and
a maximum length
of 20 feet

Speaker

(Part #011120, RAL 9002)

*When using the second speaker connection, 

the analog volume control needs to be disabled.

*Because of the limitations of PoE power, 

when running the Speaker with a second auxiliary
speaker, the analog or digital volume level setting
must not exceed a setting of 6.

(Part #011121, RAL 9003)

*When using the second speaker connection, 

the analog volume control needs to be disabled.

*Because of the limitations of PoE power, 

when running the Speaker with a second auxiliary
speaker, the analog or digital volume level setting
must not exceed a setting of 6.

Device Configuration

2.2.2.2 Singlewire InformaCast Talk-Back Speaker with Auxiliary Speaker Connection

In Figure 2-6, the Singlewire InformaCast Talk-Back Speaker supports an amplified audio output for
a second analog speaker. While the total speaker wattage is the same, by connecting a low cost
a

nalog speaker, additional coverage can be realized.

Caution

Operational Note: Because of the limitations of PoE power, when running the

Singlewire InformaCast Talk-Back Speaker with a second auxiliary speaker,
the analog or digital volume level setting must not exceed a setting of 6.

Figure 2-6. Speaker with Auxiliary Speaker Connection

28

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

GENERAL ALERT

8 Ohm Analog Speaker

16 gauge wire and
a maximum length
of 20 feet

(CD part number 011120/011121)

NOT ALLOWED

Clock Kit (Wall Mount Version)

Device Configuration

Caution

Operational Note: You must not use the Singlewire InformaCast Talk-Back

Speaker in combination with both a Clock Kit and an auxiliary speaker. The
Singlewire InformaCast Talk-Back Speaker may only be used separately with
an auxiliary speaker or used separately with a Clock Kit. See Figure 2-7,

"Clock Kit with Extra Speaker Connection is NOT ALLOWED."

Figure 2-7. Clock Kit with Extra Speaker Connection is NOT ALLOWED.

29

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

J9

CLASS II WIRING

Office area in Factory

Factory Floor

Amplifier

Line Out:
Output Signal Amplitudes 2.0 VPP maximum
Output Level +2dBm nominal
Total Harmonic Distortion 0.5% maximum
Output Impedance 10k ohm

Speaker

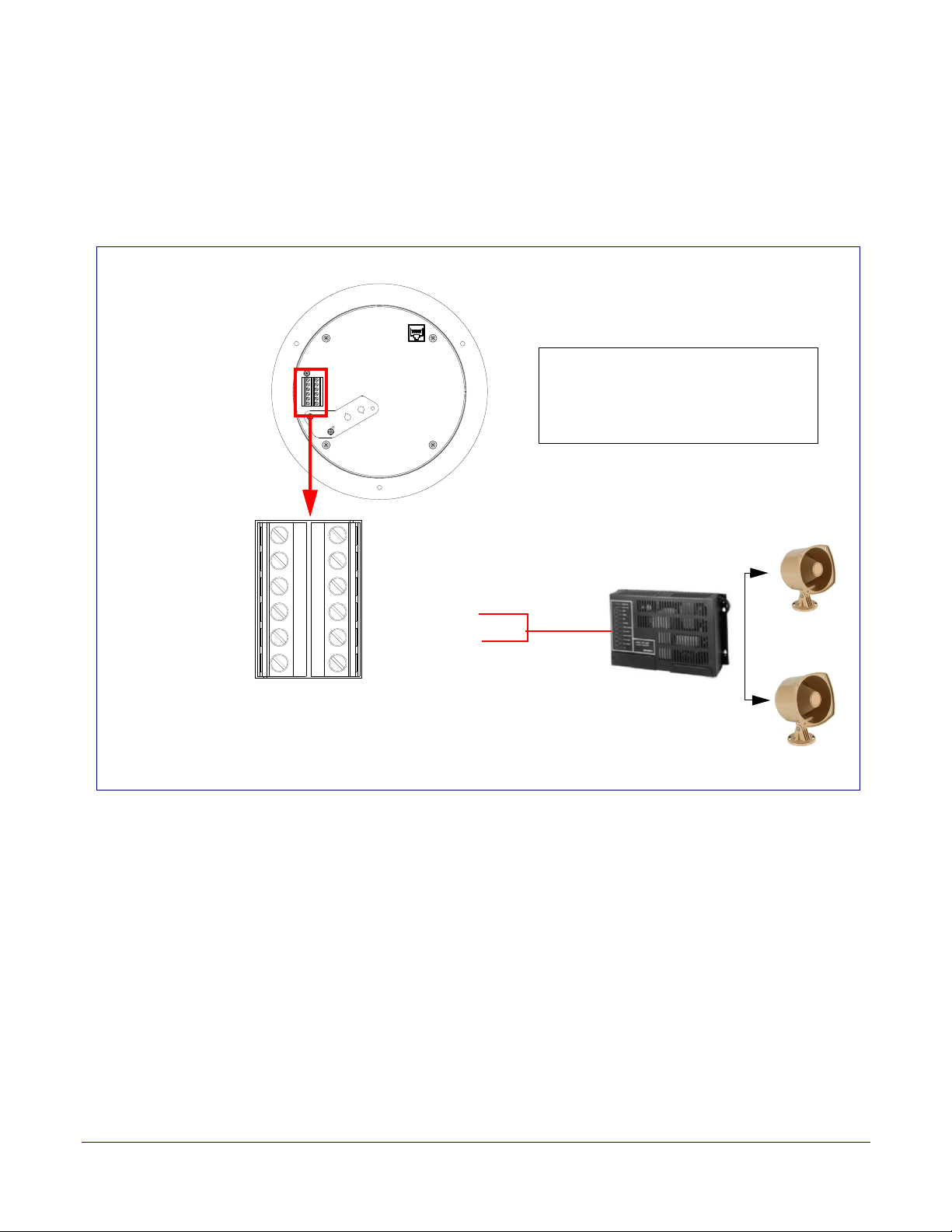

2.2.2.3 Singlewire InformaCast Talk-Back Speaker with Line Out

In Figure 2-8, for areas that require more speaker volume, the Singlewire InformaCast Talk-Back
Speaker can be connected directly to an auxiliary amplifier to drive additional horns or speakers.
This is done through the line-out connection.

Figure 2-8. Singlewire InformaCast Talk-Back Speaker with Line Out

Device Configuration

30

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Speaker
Status
(Green)

Network 
Link/Activity
(Yellow)

Device Configuration

2.2.3 Confirm that the Speaker is Operational and Linked to the Network

After connecting the speaker to the 802.3af compliant Ethernet hub, the LEDs on the speaker face
confirm that the speaker is operational and linked to the network.

Figure 2-9. Status and Activity LEDs

31

2.2.3.1 Status LED

After supplying power to the speaker:

1. The green power/status LED and the yellow network LED comes on immediately.

2. After about 23 seconds with a static IP address (or 27 seconds if the board is set to use DHCP),
the green LED will blink twice to indicate that the board is fully booted. The speaker will beep at
this time if the

2.3.5, "Configure the Device").

Note If the board is set to use DHCP and there is not a DHCP server available on the network, it

will try 12 times with a three second delay between tries and eventually fall back to the
programmed static IP address (by default 10.10.10.10). This process will take approximately
80 seconds.

Note The front power/status LED will remain solid on during operation.

Beep on Init option is enabled on the Device Configuration Page (see Section

2.2.3.2 Link LED

• The Link LED is illuminated when the network link to the speaker is established.

• The Link LED blinks to indicate network traffic.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

RTFM button

2.2.4 Confirm the IP Address and Test the Audio

2.2.4.1 Reset Test Function Management (RTFM) Button

When the speaker is operational and linked to the network, use the Reset Test Function
Management (RTFM) button (
speaker’s IP Address and test that the audio is working.

Note Using the RTFM button will lock the digital volume level to 4 and disable the analog volume

control dial.

Figure 2-10) on the speaker face to announce and confirm the

Figure 2-10. RTFM Button

Device Configuration

32

To announce a speaker’s current IP address, press and release the RTFM button within a five
second window.

Note The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or

default to 10.10.10.10 if a DHCP server is not present).

Note Pressing and holding the RTFM button for longer than five seconds will restore the speaker

to the factory default settings.

Operations Guide 931260A CyberData Corporation

2.2.5 Adjust the Volume

Volume control dial

To adjust the speaker volume, turn the Volume control dial (Figure 2-11) on the speaker face.

Note The Singlewire InformaCast Talk-Back Speaker has two volume controls: Internal (web-

based) and External (volume knob). The external volume control can be disabled from the
web interface by selecting

Page (see Section 2.3.5, "Configure the Device").

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Disable Volume Control Dial on the Device Configuration

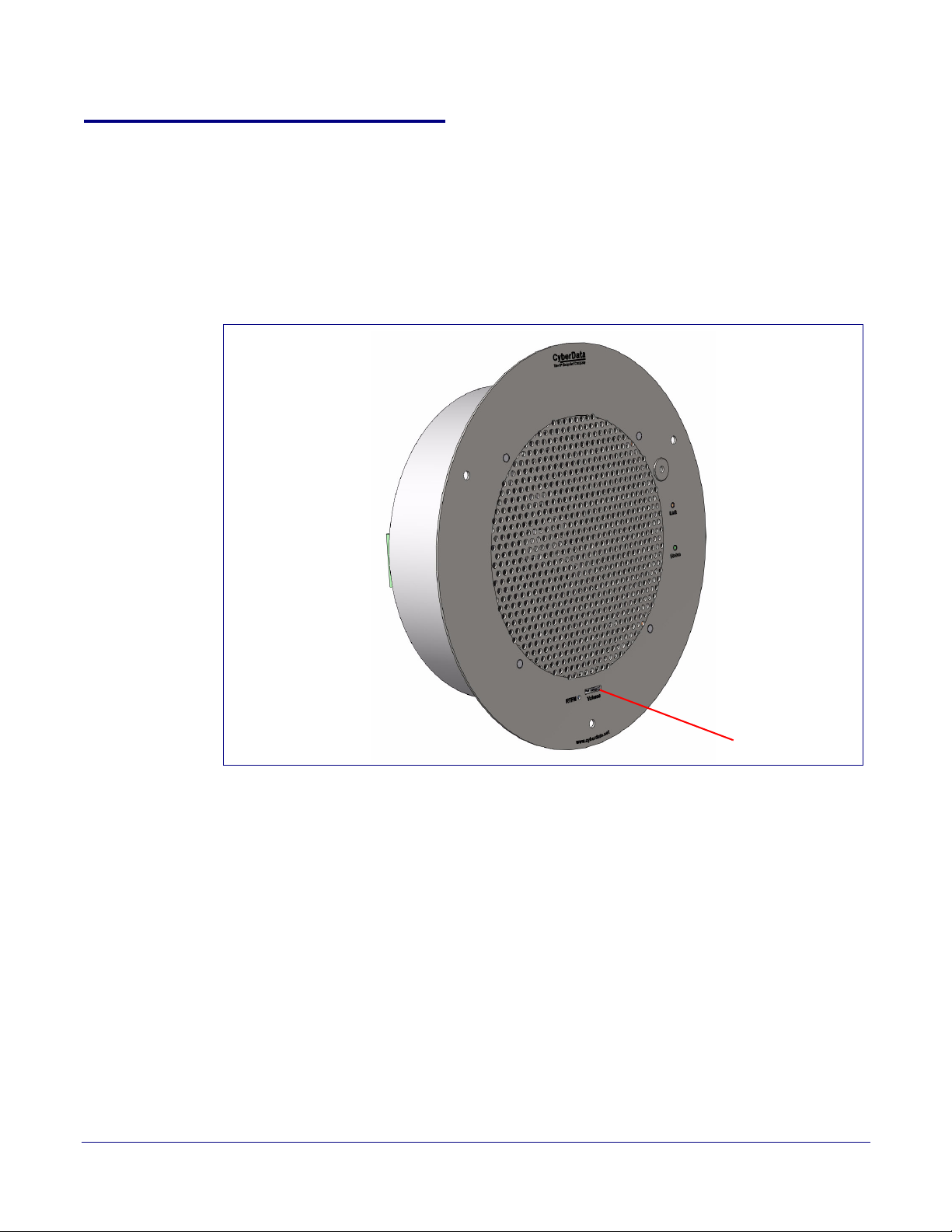

Figure 2-11. Volume Control

33

Operations Guide 931260A CyberData Corporation

2.2.6 How to Set the Factory Default Settings

RTFM button

2.2.6.1 RTFM Button

When the speaker is operational and linked to the network, use the Reset Test Function
Management (RTFM) button (

Figure 2-12) on the speaker face to set the factory default settings.

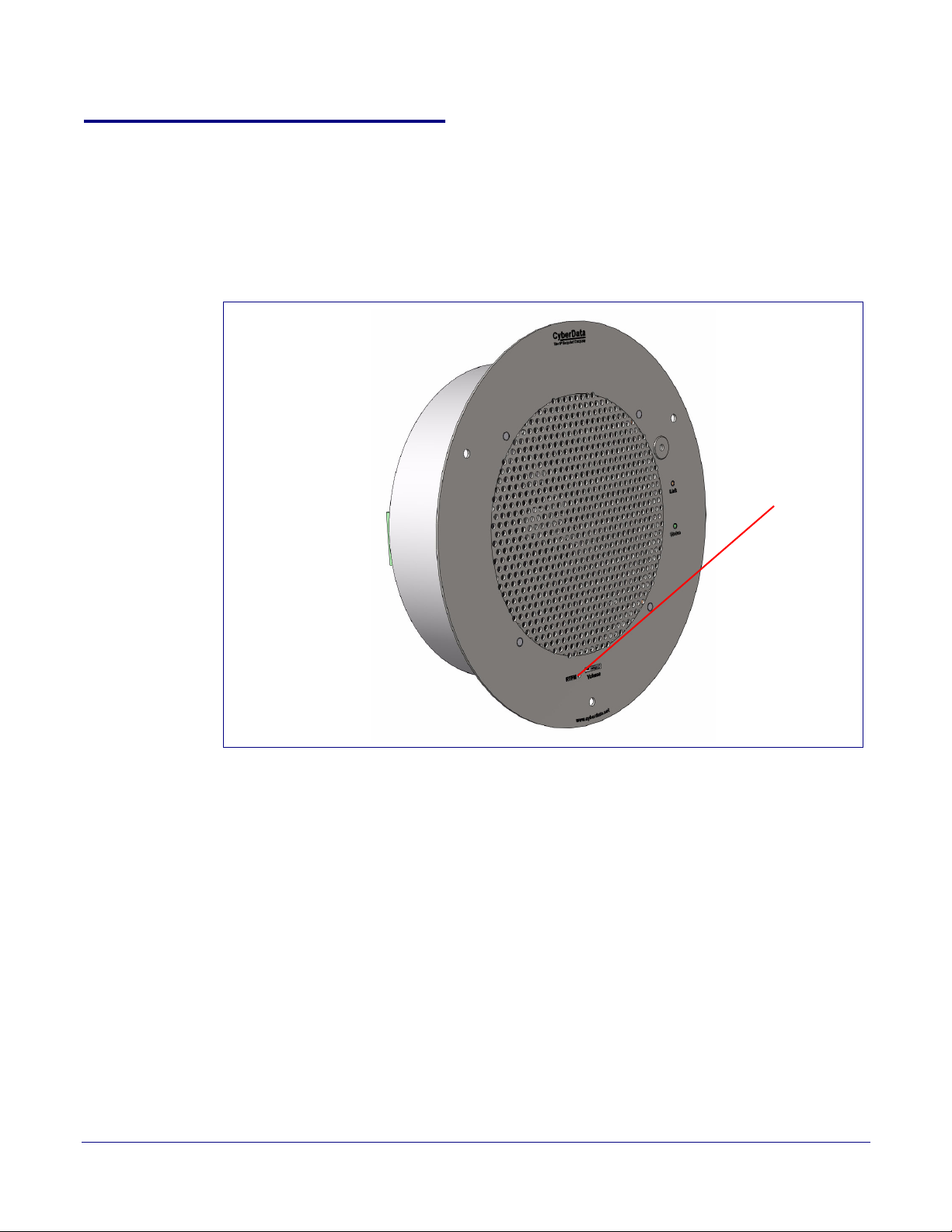

Figure 2-12. RTFM Button

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

34

To set the factory default settings:

1. Press and hold the RTFM button for more than five seconds.

2. The speaker announces that it is restoring the factory default settings.

Note The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or

default to 10.10.10.10 if a DHCP server is not present).

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

2.3 Configure the Singlewire InformaCast Talk-Back
Speaker Parameters

To configure the Singlewire InformaCast Talk-Back Speaker online, use a standard web browser.

35

Configure each Singlewire InformaCast Talk-Back Speaker and verify its operation bef
it. When you are ready to mount an Singlewire InformaCast Talk-Back Speaker, refer to Appendix A,

"Mounting the Intercom" for instructions.

2.3.1 Factory Default Settings

All Singlewire InformaCast Talk-Back Speakers are initially configured with the following default IP
settings:

When configuring more than one Singlewire InformaCast Talk-Back Speaker, attach the Singlewire
I

nformaCast Talk-Back Speakers to the network and configure one at a time to avoid IP address

conflicts.

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

Table 2-4. Factory Default Settings

a

a

a

10.10.10.10

255.0.0.0

10.0.0.1

ore you mount

a. Default if there is not a DHCP server present.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

2.3.2 Singlewire InformaCast Talk-Back Speaker Web Page Navigation

Ta bl e 2-5 shows the navigation buttons that you will see on every Singlewire InformaCast Talk-Back

Speaker web page.

Table 2-5. Web Page Navigation

Web Page Item Description

Link to the Home page.

Link to the Device page.

Link to the Network page.

Link to go to the SIP page.

36

Link to the Multicast page.

Link to the Sensor page.

Link to the Audiofiles page.

Link to the Events page.

Link to the Autoprovisioning page.

Link to the Firmware page.

Operations Guide 931260A CyberData Corporation

2.3.3 Using the Toggle Help Button

Toggle Help button

Question mark 
appears next to the
web page items

The Toggle Help button allows you to see a short description of some of the settings on the
webpage. To use the Toggle Help button, do the following:

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

37

1. Click on the T

oggle Help button that is on the UI webpage. See Figure 2-13 and Figure 2-14.

Figure 2-13. Toggle/Help Button

2. You will see a question mark (

) appear next to each web page item that has been provided

with a short description by the Help feature. See Figure 2-14.

Figure 2-14. Toggle Help Button and Question Marks

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

A short description of the 
web page item will appear

Question mark

Device Configuration

3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web
page item will appear. See Figure 2-15.

Figure 2-15. Short Description Provided by the Help Feature

38

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2.3.4 Log in to the Configuration Home Page

1. Open your browser to the Singlewire InformaCast Talk-Back Speaker IP address.

Note If the network does not have access to a DHCP server, the device will default to an IP

address of 10.10.10.10.

Note Make sure that the PC is on the same IP network as the Singlewire InformaCast Talk-Back

Speaker.

Note You may also download CyberData’s VoIP Discovery Utility program which allows you to

easily find and configure the default web address of the CyberData VoIP products.



CyberData’s VoIP Discovery Utility program is available at the following website address:

http://www.cyberdata.net/assets/common/discovery.zip

Note The device ships in DHCP mode. To get to the Home page, use the discovery utility to scan

for the device on the network and open your browser from there.

2. When prompted, use the following default Web Access Username and Web Access
Password to access the Home Page (

Web Access Username: admin

Web Access Password: admin

Figure 2-16):

Device Configuration

39



Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

v11.6.3

399000001

Figure 2-16. Home Page

Device Configuration

40

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

3. On the Home page, review the setup details and navigation buttons described in Ta bl e 2-6.

41

Note The question mark icon (

after the T

oggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-6. Home Page Overview

Web Page Item

Description

Admin Settings

Username The username to access the web interface. Enter up to 25 characters.

Password

Confirm Password

The password to access the web interface. Enter up to 25 characters.

Confirm the web interface password.

Current Status

Serial Number Shows the device serial number.

Mac Address Shows the device Mac address.

Firmware Version Shows the current firmware version.

IP Addressing Shows the current IP addressing setting (D

HCP or static).

IP Address Shows the current IP address.

Subnet Mask Shows the current subnet mask address.

Default Gateway Shows the current default gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

SIP Mode Shows the current status of the SIP mode.

Multicast Mode Shows the current status of the Multicast mode.

Event Reporting Shows the current status of the Event Reporting mode.

Nightringer Shows the current status of the Nightringer mode.

Primary SIP Server Shows the current status of the Primary SIP Server.

Backup Server 1 Shows the current status of Backup Server 1.

Backup Server 2 Shows the current status of Backup Server 2.

Nightringer Server Shows the current status of Nightringer Server.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Table 2-6. Home Page Overview (continued)

Web Page Item Description

Singlewire Settings

Boot Time Shows the boot time.

Current Time Shows the current time.

IC Servers Shows the InformaCast server IP addresses.

Configuration File Shows the configuration file.

B’casts Accepted Shows the number of B’casts accepted.

Device Configuration

42

B’casts Rejected Shows the number of B’casts

B’casts Active

Shows the number of active B’casts.

Import Settings

Use the Browse button to select a configuration file to import.

Note:

The name of this button may be different and will depend on the web

browser that you are using.

After selecting a configuration file, click Import to import the configuration
from the selected file. Then, click Save and Reboot to store changes.

Export Settings

Click Export to export the current configuration to a file.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of the
web page items. First click on the Toggle Help button, and you will see a
question mark ( ) appear next to some of the web page items. Move the
mouse pointer to hover over a question mark to see a short description of a

ecific web page item.

sp

rejected.

Operations Guide 931260A CyberData Corporation

2.3.5 Configure the Device

1. Click the Device menu button to open the Device page. See Figure 2-17.

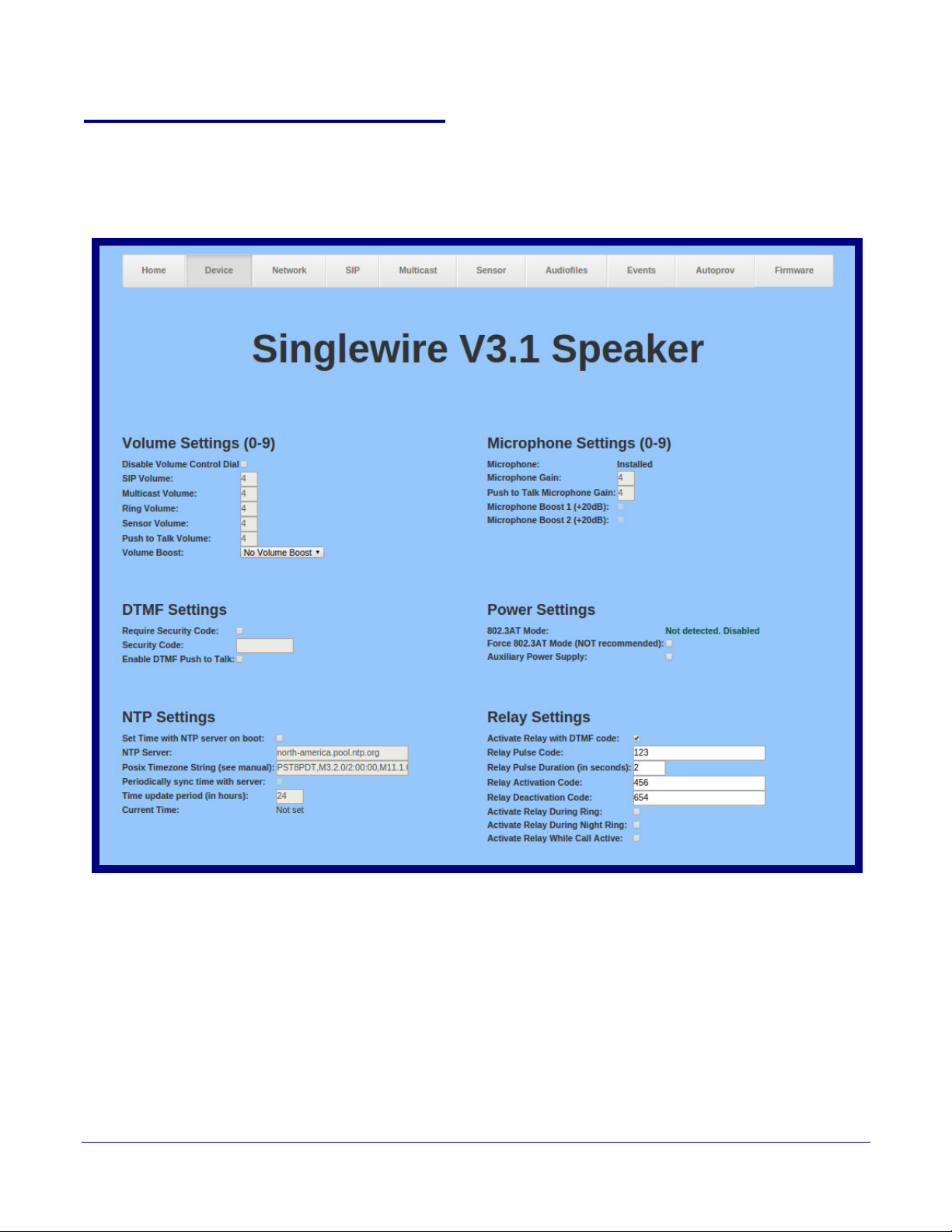

Figure 2-17. Device Configuration Page

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

43

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Figure 2-18. Device Configuration Page

Device Configuration

44

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

2. On the Device page, you may enter values for the parameters indicated in Tab l e 2-7.

45

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-7. Device Configuration Parameters

Web Page Item Description

Volume Settings (0-9)

Disable Volume Control Dial Select this option to disable the volume control dial and enable digital

volume control settings.

SIP Volume

Set the speaker volume for a SIP call. A value of 0 will mute the speaker
during SIP calls.

Multicast Volume

Set the speaker volume for multicast audio streams. A value of 0 will
mute the speaker during multicasts.

Ring Volume

Set the ring volume for incoming calls. A value of 0 will mute the speaker
instead of playing the ring tone when Auto-Answer Incoming Calls is
disabled.

Sensor Volume

Set the speaker volume for playing sensor activated audio. A value of 0
will mute the speaker during sensor activated audio.

Push To Talk Volume

Set the speaker volume for Push to Talk operation. A value of 0 will mute
the speaker in Push to Talk mode.

Volume Boost:

No Volume Boost

Volume Boost 1

Volume Boost 2

Volume Boost 3

Set the Boost level to increase the volume output of the speaker. Using
Volume Boost may introduce audio clips or lessen the effectiveness of
the echo canceler. Boost is only recommended for use with volumes set
to level 9.

Normal operation of the product can be met with volume levels 0

h 9. 0 being mute and 9 being the loudest volume that in a normal

throug
arm's length and average background noise, will enable full duplex
operation and give the best quality of sound output.

The volume boost options increase the output of the speaker by:

3db for Boost level 1

6db for Boost level 2

9db for Boost level 3

If the user would like a higher o

utput from the speaker, the Boost
settings are available. However, operation in Boost Mode may overdrive
or clip the audio if, for example, the phone that is connected has a high
microphone gain or if the person has a loud voice talking too close to the
microphone.

The acoustic echo canceller also has a harder time maintaining full

plex operation when in the Boost Mode. The product may drop from

du
full duplex operation into half/duplex mode while in Boost Mode.

Contact CyberData support for additional information if needed.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-7. Device Configuration Parameters (continued)

Web Page Item Description

DTMF Settings

Require Security Code When selected, the user will be prompted to enter a Security Code

(entered on this page) before being able to execute a page when calling
the device.

Security Code

Type the Security Code in this field. The Security Code must only use
characters '0-9', '*' and '#'. Enter up to 25 characters.

46

Enable DTMF Push to Talk

This option is for noisy environments. When enabled, in an active call
the remote phone can force receive only audio (setting the mic gain to
max and muting the speaker) by pressing the '*' key. Pressing the '#' key
will force send only audio (setting the max speaker volume and muting
the mic). Pressing the '0' key will restore full duplex operation with the
normal microphone and speaker volume.

NTP Settings

Set Time with NTP Server on boot When selected, the time is set with an external NTP server when the

device restarts.

NTP Server

Use this field to set the address (in IPv4 dotted decimal notation or as a
canonical name) for the NTP Server. This field can accept canonical
names of up to 64 characters in length.

Posix Timezone String

See Section 2.3.5.1, "Time Zone Strings" for information about how to
use the Posix Timezone String to specify time zone and daylight savings
time where applicable. Enter up to 63 characters.

Periodically sync time with server

When selected, the time is periodically updated with the NTP server at
the configured interval below.

Time update period (in hours)

The time interval after which the device will contact the NTP server to
update the time. Enter up to 4 digits.

Current Time

Allows you to input the current time. (6 character limit)

Clock Settings

Clock Kit Displays the status of optional Clock Kit.

Clock Brightness (0 - 14)

Use Ambient Light Sensor

This setting allows you to select the clock brightness level (0-14).

This setting enables or disables the ambient light sensor.

Clock Colon Type

Use 24 Hour Time

This setting allows you to select the clock colon type.

When selected, the time will be show in 24 hour format on the optional
clock display.

Button Settings

Button Installed When selected, the speaker is assumed to be wired to a push-to-talk

button. Button settings will be enabled and sensor settings will be
disabled. When not selected, the speaker is assumed to be wired to a
sensor. Sensor settings will be enabled and button settings will be
disabled.

Activate Relay On Button Press When selected, the relay will be activated when the Call button is

pressed.

Relay On Button Press Duration

The length of time (in seconds) during which the relay will be activated
when the Call button is pressed. Enter up to 5 digits. A Relay on Button
Press Duration value of 0 will pulse the relay once when the Call button
is pressed.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-7. Device Configuration Parameters (continued)

Web Page Item Description

Button Lit when Idle When selected, the Call button LED is illuminated while the device is idle

(a call is not in progress).

Button Brightness (0-255)

The desired Call button LED brightness level. Acceptable values are 0­255, where 0 is the dimmest and 255 is the brightest. Enter up to 3
digits.

Play Ringback Tone

When selected, the device will play a ringback tone (corresponds to
Ringback Tone on the Audiofiles page) out of the speaker while placing
an outbound call. The Ringback Tone will play until the call is answered.

Enable Push to Talk

This option is for noisy environments. When enabled, the microphone
will be muted normally. When the Call button is pressed and held, it will
unmute the microphone and allow the operator to send audio back.
Using Push to Talk prevents the operator from terminating a call by
pressing the Call button. The call must be terminated by the phone user.

Prevent Call Termination

When this option is enabled, a call cannot be terminated using the call
button.

Singlewire Broadcast Strobe Settings For up to 10 Singlewire pages, when a priority is specified for the page,

a corresponding strobe scene will be activated. The color may be
selected from the drop down menu, or customized by the user with the
0-255 scale. Brightness is specified with a value between 0 and 100.

Priority

Indicates the priority of the Singlewire broadcast, with 1 the highest
priority and 10 the lowest.

47

Scene

ADA Compliant

Slow Fade

Fast Fade

Slow Blink

Fast Blink

Color

Brightness

Red

Green

Blue

Use this section to select the strobe flashing behavior for the Singlewire
Broadcast.

Strobe will blink ON at the specified brightness for 150ms then OFF for
350ms during the duration of the event.

Strobe will increase in brightness from 0 to the specified brightness and
back to 0 over the course of about 3.5 seconds during the duration of the
event.

Strobe will increase in brightness from 0 to the specified brightness and
back to 0 over the course of about 1.5 seconds during the duration of the
event.

Strobe will blink ON at the specified brightness for one second then OFF
for one second during the duration of the event.

Strobe will blink ON at the specified brightness then OFF five times per
second during the duration of the event.

Select the desired color (only one may be chosen).

How bright the strobe will blink when there is a Singlewire Broadcast.
This is the maximum brightness for “fade” type scenes.

The red LED value for the Singlewire Broadcast.

The green LED value for the Singlewire Broadcast.

The blue LED value for the Singlewire Broadcast.

Use this button to preview the strobe flashing behavior for the

Singlewire Broadcast Strobe Settings.

Microphone Settings

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Table 2-7. Device Configuration Parameters (continued)

Web Page Item Description

Microphone Displays the status of optional microphone.

Device Configuration

48

Microphone Gain

Push to Talk Microphone Gain

Microphone Boost 1 (+20dB)

Set the microphone gain level.

Set the microphone gain level for Push to Talk operation.

Enables one of two +20dB gain boosts on the microphone when
checked.

Microphone Boost 2 (+20dB)

Enables one of two +20dB gain boosts on the microphone when
checked.

Power Settings

802.3AT Mode This device automatically detects if it is plugged into an 802.3AT (also
known as PoE Plus) power source. 802.3AT provides more power than
older 802.3AT power sources and allows this speaker to play audio at
higher volumes. If you are sure this speaker is connected to an 802.3AT
power source, but it is not being detected correctly, you can override the
automatic settings below.

Force 802.3AT Mode (NOT recommended)

Enable this option if you are sure this speaker is connected to an

802.3AT power source, but it is not being detected correctly (not
recommended).

Auxiliary Power Supply

This device can be connected to a +24VDC auxiliary power supply.
Check this box if this is how this speaker is being powered.

Relay Settings

Activate Relay with DTMF Code Activates the relay when the DTMF Activation Code is entered on the

phone during a SIP call with the device. RFC2833 DTMF payload types
are supported.

Relay Pulse Code

DTMF code used to pulse the relay when entered on a phone during a
SIP call with the device. Relay will activate for Relay Pulse Duration
seconds then deactivate. Activate Relay with DTMF Code must be
enabled. Enter up to 25 digits (* and # are supported).

Relay Pulse Duration (in seconds) The length of time (in seconds) during which the relay will be activated

when the DTMF Relay Activation Code is detected. Enter up to 5 digits.

Relay Activation Code

Activation code used to activate the relay when entered on a phone
during a SIP call with the device. Relay will be active indefinitely, or until
the DTMF Relay Deactivation code is entered. Activate Relay with
DTMF Code must be enabled. Enter up to 25 digits (* and # are
supported).

Relay Deactivation Code

Code used to deactivate the relay when entered on a phone during a
SIP call with the device. Activate Relay with DTMF Code must be
enabled. Enter up to 25 digits (* and # are supported).

Activate Relay During Ring

When selected, the relay will be activated for as long as the device is
ringing. When Auto-Answer Incoming Calls is enabled, the device will
not ring and this option does nothing.

Activate Relay During Night Ring

When selected, the relay will be activated as long as the Nightringer
extension is ringing.

Activate Relay While Call Active

When selected, the relay will be activated as long as the SIP call is
active.

Misc Settings

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Table 2-7. Device Configuration Parameters (continued)

Web Page Item Description

Device Name Type the device name. Enter up to 25 characters.

Device Configuration

49

Auto-Answer Incoming Calls

When selected, the device will automatically answer incoming calls.
When Auto-Answer Incoming Calls is disabled, the device will play a ring
tone (corresponds to Ring Tone on the Audiofiles page) out of the
speaker until someone presses the Call button to answer the call or the
caller disconnects before the call can be answered.

Beep on Init Device will play the user-defined “pagetone” audio file when it boots.

Beep on Page

Device will play the user defined “pagetone” audio file before playing a
SIP page.

Disable HTTPS (NOT recommended)

Disables the encrypted connection to the webpage. We do not
recommend disabling HTTPS for security reasons.

Dual Speakers

Select this option if two speakers (main and auxiliary) are connected to
the board.

RGB Strobe

Status of optional RGB Strobe.

Click on the Test Audio button to do an audio test. When the Test
Audio button is pressed, you will hear a voice message for testing the
device audio quality and volume.

Click on the Test Microphone button to do a microphone test. When the
Test Microphone button is pressed, the following occurs:

1. The device will immediately start recording 3 seconds of audio.

2. The device will beep (indicating the end of recording).

3. The device will play back the recorded audio.

Click on the Test Relay button to do a relay test.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of
the web page items. First click on the Toggle Help button, and you will
see a question mark (

) appear next to some of the web page items.

Move the mouse pointer to hover over a question mark to see a short

scription of a specific web page item.

de

Note You can change the SIP Volume, Multicast Volume, Ring Volume, Sensor Volume, and

Push To Talk Volume without rebooting the device. You must save and reboot the device

for other changes to take effect.

Operations Guide 931260A CyberData Corporation

2.3.5.1 Time Zone Strings

The posix time zone string tells the internal date and time utilities how to handle daylight savings
time for different time zones. Ta bl e 2-20 shows some common strings.

Time Zone Time Zone String

US Pacific time PST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00

US Mountain time MST7MDT,M3.2.0/2:00:00,M11.1.0/2:00:00

US Eastern Time EST5EDT,M3.2.0/2:00:00,M11.1.0/2:00:00

Phoenix Arizona

US Central Time CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

a.Phoenix, Arizona does not use daylight savings time.

Ta bl e 2-21 shows a breakdown of the parts that constitute the following time zone string:

● CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

50

Table 2-8. Common Time Zone Strings

a

MST7

Table 2-9. Time Zone String Parts

Time Zone String

Meaning

Part

CST6CDT The time zone offset from GMT and three character identifiers for the time zone.

CST Central Standard Time

6 The (hour) offset from GMT/UTC

CDT

Central Daylight Time

M3.2.0/2:00:00 The date and time when daylight savings begins.

M3 The third month (March)

.2 The 2nd occurrence of the day (next item) in the month

.0 Sunday

/2:00:00

Time of day to change

M11.1.0/2:00:00 The date and time when daylight savings ends.

M11 The eleventh month (November)

.1 The 1st occurrence of the day (ne

xt item) in the month

.0 Sunday

/2:00:00 Time of day to change

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

51

Time Zone String Examples

Time Zone Identifier

Ta bl e 2-22 has some more examples of time zone strings.

Table 2-10. Time Zone String Examples

Time Zone Time Zone String

a

Tokyo

Berlin

b

IST-9

CET-1MET,M3.5.0/1:00,M10.5.0/1:00

a.Tokyo does not use daylight savings time.
b.For Berlin, daylight savings time starts on the last Sunday in March at
01:00 UTC, and ends on the last Sunday in October at 01:00 UTC, and is one
hour ahead of UTC.

A user-definable three or four character time zone identifier (such as PST, EDT, IST, MUT, etc) is
needed at the beginning of the posix time zone string to properly set the time. However, the specific
letters or numbers used for the time zone identifier are not important and can be any three or four
letter or number combination that is chosen by the user. However, the time zone identifier cannot be
blank.

Figure 2-19. Three or Four Character T

ime Zone Identifier

You can also use the following URL when a certain time zone applies daylight savings time:

http://www.timeanddate.com/time/dst/2011.html

World GMT Table

Ta bl e 2-23 has information about the GMT time in various time zones.

Table 2-11. World GMT Table

Time Zone City or Area Zone Crosses

GMT-12 Eniwetok

GMT-11 Samoa

GMT-10 Hawaii

GMT-9 Alaska

GMT-8 PST, Pacific US

GMT-7 MST, Mountain US

GMT-6 CST, Central US

GMT-5 EST, Eastern US

GMT-4 Atlantic, Canada

GMT-3 Brazilia, Buenos Aries

GMT-2 Mid-Atlantic

GMT-1 Cape Verdes

GMT Greenwich Mean Time, Dublin

GMT+1 Berlin, Rome

GMT+2 Israel, Cairo

GMT+3 Moscow, Kuwait

GMT+4 Abu Dhabi, Muscat

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Table 2-11. World GMT Table (continued)

Time Zone City or Area Zone Crosses

GMT+5 Islamabad, Karachi

GMT+6 Almaty, Dhaka

GMT+7 Bangkok, Jakarta

GMT+8 Hong Kong, Beijing

GMT+9 Tokyo, Osaka

GMT+10 Sydney, Melbourne, Guam

GMT+11 Magadan, Soloman Is.

GMT+12 Fiji, Wellington, Auckland

Device Configuration

52

Operations Guide 931260A CyberData Corporation

2.3.6 Configure the Network Parameters

1. Click the Network menu button to open the Network page (Figure 2-20).

Figure 2-20. Network Configuration Page

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

53

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

2. On the Network page, enter values for the parameters indicated in Ta bl e 2-12.

54

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-12. Network Configuration Parameters

Web Page Item Description

Stored Network Settings

Addressing Mode Select either DHCP IP Addressing or Static Addressing by marking

the appropriate radio button. DHCP Addressing mode is enabled on
default and the device will attempt to resolve network addressing with
the local DHCP server upon boot. If DHCP Addressing fails, the
device will revert to the last known IP address or the factory default
address if no prior DHCP lease was established. See Section 2.2.6,

"How to Set the Factory Default Settings" for factory default settings.

Be sure to click Save and Reboot to store changes when configuring
a Static address.

Hostname This is the hostname provided by the DHCP server. See the

DHCP/DNS server documentation for more information. Enter up to
64 characters.

IP Address Enter the Static IPv4 network address in dotted decimal notation.

Subnet Mask Enter the Subnet Mask in dotted decimal notation.

Default Gateway Enter the Default Gateway IPv4 address in dotted decimal notation.

DNS Server 1 Enter the primary DNS Server IPv4 address in dotted decimal

notation.

DNS Server 2 Enter the secondary DNS Server IPv4 address in dotted decimal

notation.

DHCP Timeout in seconds Specify the desired time-out duration (in seconds) that the device will

wait for a response from the DHCP server before reverting back to
the stored static IP address. The stored static IP address may be the
last known IP address or the factory default address if no prior DHCP
lease was established. Enter up to 8 characters. A value of -1 will
retry forever.

Current Network Settings Shows the current network settings.

IP Address Shows the current Static IP address.

Subnet Mask Shows the current Subnet Mask address.

Default Gateway Shows the current Default Gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

VLAN Settings

VLAN ID (0-4095) Specify the IEEE 802.1Q VLAN ID number. Enter up to 4 digits.

Note: The device supports 802.1Q VLAN tagging support. The
switch port connected to the device will need to be in “trunking mode”
for the VLAN tags to propagate.

VLAN Priority (0-7) Specify the IEEE 802.1p VLAN priority level. Enter 1 digit. A value of

0 may cause the VLAN ID tag to be ignored.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-12. Network Configuration Parameters (continued)

Web Page Item Description

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Togg le Hel p button to see a short description of some of
the web page items. First click on the Toggle Help button, and you
will see a question mark ( ) appear next to some of the web page
items. Move the mouse pointer to hover over a question mark to see
a short description of a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

55

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2.3.7 Configure the SIP (Session Initiation Protocol) Parameters

1. Click on the SIP menu button to open the SIP page (Figure 2-21).

Figure 2-21. SIP Configuration Page

Device Configuration

56

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

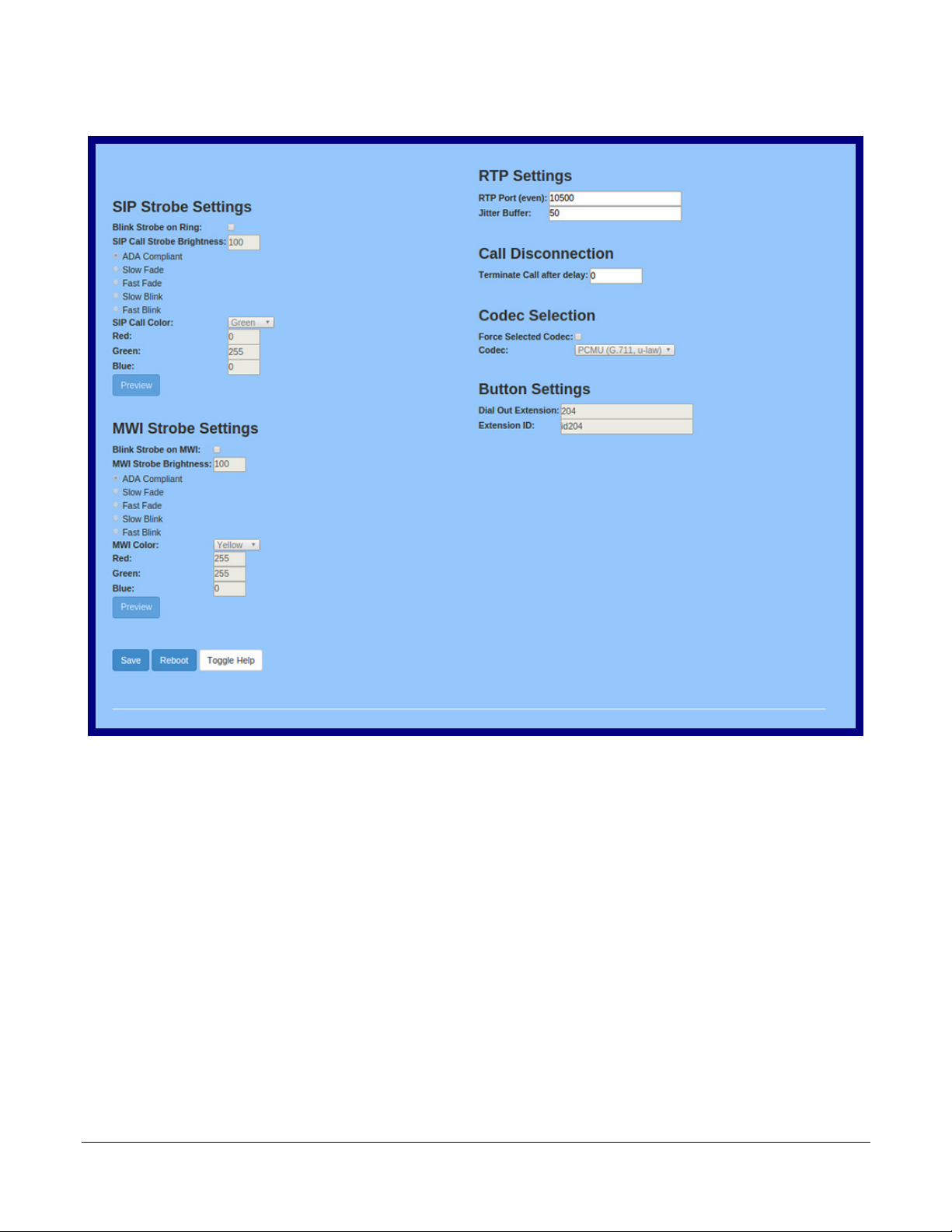

Figure 2-22. SIP Configuration Page

Device Configuration

57

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2. On the SIP page, enter values for the parameters indicated in Ta b le 2-13.

Device Configuration

58

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-13. SIP Configuration Parameters

Web Page Item Description

SIP Settings

Enable SIP Operation When enabled, the device will transmit, receive, and process SIP

messages according to the configured SIP settings below.

Register with a SIP Server When enabled, the device will attempt to register to the configured SIP

Server(s) on this page. To configure the device to send and receive point­to-point SIP calls, enable SIP Operation and disable Register with a SIP
Server (see Section 2.3.7.2, "Point-to-Point Configuration").

Use Cisco SRST When enabled, the backup servers are handled according to Cisco SRST

(Survivable Remote Site Telephony). It is required for use in clustered
Cisco Unified Communications Manager topologies.

Primary SIP Server Enter the SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes
the host portion of the SIP-URI for the device's extension on the primary
SIP server. This field can accept entries of up to 255 characters in length.

Primary SIP User ID Specify the SIP User ID for the Primary SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the
primary SIP server. Enter up to 64 alphanumeric characters.

Primary SIP Auth ID Specify the Authenticate ID for the Primary SIP Server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Primary SIP Auth Password Specify the Authenticate Password for the Primary SIP Server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Backup SIP Server 1 Enter the backup SIP server address as an IPv4 address in dotted

decimal notation or a fully qualified domain name. This parameter also
becomes the host portion of the SIP-URI for the device's extension on the
backup SIP server. This field can accept entries of up to 255 characters in
length.

Backup SIP User ID 1 Specify the SIP User ID for the first backup SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the
first backup SIP server. Enter up to 64 alphanumeric characters.

Backup SIP Auth ID 1 Specify the Authenticate ID for the first backup SIP server. This parameter

is required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Backup SIP Auth Password 1 Specify the Authenticate Password for the first backup SIP server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Backup SIP Server 2 Enter a second backup SIP server address as an IPv4 address in dotted

decimal notation or a fully qualified domain name. This parameter also
becomes the host portion of the SIP-URI for the device's extension on the
second backup SIP server. This field can accept entries of up to 255
characters in length.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-13. SIP Configuration Parameters (continued)

Web Page Item Description

Backup SIP User ID 2 Specify the SIP User ID for the second backup SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the
second backup SIP server. Enter up to 64 alphanumeric characters.

Backup SIP Auth ID 2 Specify the Authenticate ID for the second backup SIP server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Backup SIP Auth Password 2 Specify the Authenticate Password for the second backup SIP server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Remote SIP Port The Remote SIP Port is the port number the device will use as the

destination port when sending SIP messages. The default Remote SIP
Port is 5060. The supported range is 0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP

messages. The default Local SIP Port is 5060. The supported range is 0-

65536. Enter up to 5 digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal

notation or a fully qualified domain name (FQDN). When an IP address is
configured, the device will send all SIP messages to this IP address.
When an FQDN is configured, the device will run DNS NAPTR, SRV, and
A queries on the FQDN to resolve an IP address to which it will send all
SIP messages. This field can accept entries of up to 255 characters in
length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port

when sending SIP messages to the outbound proxy. A value of 0 will
default to 5060. The supported range is 0-65536. Enter up to 5 digits.

Disable rport Discovery Disabling rport Discovery will prevent the device from including the public

WAN IP address and port number in the contact information that is sent to
the remote SIP servers. This will generally only need to be enabled when
using an SBC or SIP ALG in conjunction with a remote SIP server.

Buffer SIP Calls Also referred to as delayed paging. Device will buffer up to 4 minutes of

audio then play back the recording after hang up.

Re-registration Interval (in seconds) The SIP Re-registration interval (in seconds) is the SIP Registration lease

time, also known as the expiry. The supported range is 30-3600 seconds.
Enter up to 4 digits.

Unregister on Boot When enabled, the device will send one registration with an expiry of 0 on

boot.

59

Keep Alive Period The minimum time in milliseconds between keep-alive packets sent for nat

traversal. A value of 0 will disable keep alive packets.

SIP Strobe Settings

Blink Strobe on Ring When selected, the Strobe will blink a scene when ringing.

SIP Call Strobe Brightness How bright the strobe will blink when there is a SIP Call. This is the

maximum brightness for “fade” type scenes.

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then OFF for

350ms during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified brightness and

back to 0 over the course of about 3.5 seconds during the duration of the
event.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-13. SIP Configuration Parameters (continued)

Web Page Item Description

Fast Fade Strobe will increase in brightness from 0 to the specified brightness and

back to 0 over the course of about 1.5 seconds during the duration of the
event.

Slow Blink Strobe will blink ON at the specified brightness for one second then OFF

for one second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five times per

second during the duration of the event.

SIP Call Color Select desired color (only one may be chosen).

Red The red LED value for SIP Call.

Green The green LED value for SIP Call.

Blue The blue LED value for SIP Call.

Use this button to preview the strobe flashing behavior for the MWI Strobe

Settings.

MWI Strobe Settings

Blink Strobe on MWI When selected, the strobe will blink a scene when a voicemail is waiting

for its extension.

MWI Strobe Brightness How bright the strobe will blink when there is a message waiting. This is

the maximum brightness for “fade” type scenes.

60

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then OFF for

350ms during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified brightness and

back to 0 over the course of about 3.5 seconds during the duration of the
event.

Fast Fade Strobe will increase in brightness from 0 to the specified brightness and

back to 0 over the course of about 1.5 seconds during the duration of the
event.

Slow Blink Strobe will blink ON at the specified brightness for one second then OFF

for one second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five times per

second during the duration of the event.

MWI Call Color Select desired color (only one may be chosen).

Red The red LED value for MWI.

Green The green LED value for MWI.

Blue The blue LED value for MWI.

Use this button to preview the strobe flashing behavior for the MWI Strobe

Settings.

Nightringer Settings

Enable Nightringer When Nightringer is enabled, the device will attempt to register a second

extension with the SIP server. Any calls made to this extension will play a
ringtone (corresponds to Night Ring on the Audiofiles page). By design,
it is not possible to answer a call to the Nightringer extension.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-13. SIP Configuration Parameters (continued)

Web Page Item Description

SIP Server Enter the SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes
the host portion of the SIP-URI for the device's Nightringer extension on
the SIP server. This field can accept entries of up to 255 characters in
length.

Remote SIP Port The Remote SIP Port is the port number the device will use as the

destination port when sending SIP messages for the Nightringer
extension. The default Remote SIP Port is 5060. The supported range is
0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP

messages for the Nightringer extension. This value cannot be the same as
the Local SIP Port for the primary extension. The default Local SIP Port is

5061. The supported range is 0-65536. Enter up to 5 digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal

notation or a fully qualified domain name (FQDN). When an IP address is
configured, the device will send all SIP messages to this IP address for the
Nightringer extension. When an FQDN is configured, the device will run
DNS NAPTR, SRV, and A queries on the FQDN to resolve an IP address
to which it will send all SIP messages for the Nightringer extension. This
field can accept entries of up to 255 characters in length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port

when sending SIP messages to the outbound proxy for the Nightringer
extension. A value of 0 will default to 5060. The supported range is 0-

65536. Enter up to 5 digits.

61

User ID Specify the SIP User ID for the SIP server. This parameter becomes the

user portion of the SIP-URI for the device's Nightringer extension. Enter
up to 64 alphanumeric characters.

Authenticate ID Specify the Authenticate ID for the SIP Server. This parameter is required

for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Authenticate Password Specify the Authenticate Password for the SIP Server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Re-registration Interval (in seconds) The SIP Re-registration Interval (in seconds) is the SIP Registration lease

time, also known as the expiry. The supported range is 30-3600 seconds.
Enter up to 4 digits.

Nightringer Strobe Settings

Blink Strobe on Nightring When selected, the Strobe will blink a scene when nightringing.

Nightringer Strobe Brightness How bright the strobe will blink when the Nightringer is ringing. This is the

maximum brightness for “fade” type scenes.

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then OFF for

350ms during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified brightness and

back to 0 over the course of about 3.5 seconds during the duration of the
event.

Fast Fade Strobe will increase in brightness from 0 to the specified brightness and

back to 0 over the course of about 1.5 seconds during the duration of the
event.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-13. SIP Configuration Parameters (continued)

Web Page Item Description

Slow Blink Strobe will blink ON at the specified brightness for one second then OFF

for one second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five times per

second during the duration of the event.

Nightringer Call Color Select desired color (only one may be chosen).

Red The red LED value for Nightringer.

Green The green LED value for Nightringer.

Blue The blue LED value for Nightringer.

Use this button to preview the strobe flashing behavior for the Nightringer

Strobe Settings.

RTP Settings

RTP Port (even) Specify the port number used for the RTP stream after establishing a SIP

call. This port number must be an even number and defaults to 10500.
The supported range is 0-65536. Enter up to 5 digits.

Jitter Buffer Specify the size of the jitter buffer (in milliseconds) used for SIP calls. Valid

values are 50-1000.

Call Disconnection

Terminate Call After Delay Automatically terminate an active call after a given delay in seconds. A

value of 0 will disable this function. Enter up to 8 digits.

Codec Selection

Force Selected Codec When configured, this option will allow you to force the device to negotiate

for the selected codec. Otherwise, the device will perform codec
negotiation using the default list of supported codecs.

Codec Select the desired codec (only one may be chosen).

62

Button Settings

Dial Out Extension Specify the extension the device will call when someone presses the Call

button. Enter up to 64 alphanumeric characters.

Note: For information about dial-out extension strings and DTMF tones,
see Section 2.3.7.1, "Dial Out Extension Strings and DTMF Tones (using

rfc2833)".

Extension ID A Caller identification string added to outbound calls. Enter up to 64

alphanumeric characters.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of the
web page items. First click on the Toggle Help button, and you will see a
question mark ( ) appear next to some of the web page items. Move the
mouse pointer to hover over a question mark to see a short description of
a specific web page item.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

63

Note For s

pecific server configurations, go to the following website address:

http://www.cyberdata.net/connecting-to-ip-pbx-servers/

2.3.7.1 Dial Out Extension Strings and DTMF Tones (using rfc2833)

On the SIP Configuration Page, dial out extensions support the addition of comma delimited
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds aft
seconds. A pause of one second will be sent after each numerical digit.

Extension String Resulting Action

302 Dial out extension 302 and establish a call

302,2 Dial out extension 302 and establish a call, wait 3 seconds then send the

302,25,,,4,,1 Dial out extension 302 and establish a call, wait 3 seconds then send the

Note The ma

er a call is first established with a remote device. Subsequent commas will pause for 2

Table 2-14. Examples of Dial-Out Extension Strings

DTMF tone '2'

DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1

ximum number of total characters in the dial-out field is 64.

Operations Guide 931260A CyberData Corporation

2.3.7.2 Point-to-Point Configuration

Device is set to NOT register with a SiP server

When the device is set to not register with a SIP server (see Figure 2-23), it is possible to set the
device to dial out to a single endpoint.

In this case, the dial-out extension should be the IP address of the remote device. The device can
also receive Point-to-Point calls. The delayed DTMF functionality is available in the Point-to-Point
Mode.

Note Receiving point-to-point SiP calls may not work with all phones.

Figure 2-23. SIP Page Set to Point-to-Point Mode

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

64

Operations Guide 931260A CyberData Corporation

2.3.7.3 Delayed DTMF

On the SIP Configuration page the dial out extension supports the addition of comma delimited
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds after a call is first established with a remote device. Subsequent commas will pause for 2
seconds. A pause of one second will be sent after each numerical digit.

Extension String Resulting Action

302 Dial out extension 302 and establish a call

302,2 Dial out extension 302 and establish a call, wait 3 seconds then send the

302,25,,,4,,1 Dial out extension 302 and establish a call, wait 3 seconds then send the

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-15. Examples of Dial-Out Extension Strings

DTMF tone '2'

DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1

65

Note The ma

ximum number of total characters in the dial-out field is 25.

Operations Guide 931260A CyberData Corporation

2.3.8 Configure the Multicast Parameters

The Multicast Configuration page allows the device to join up to ten paging zones for receiving
ulaw/alaw encoded RTP audio streams.

A paging zone can consist of one or many CyberData multicast group-enabled products. There is no
limit to how many speakers can be in a given paging zone. Each multicast group is defined by a
multicast address and port number.

Each multicast group is assigned a priority, allowing simultaneously arriving pages to be serviced
based on importance. Multicast groups are compatible with IGMP through version 3. The device
supports simultaneous SIP and Multicast.

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

66

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

1. Click on the Multicast menu button to open the Multicast page. See Figure 2-24.

Figure 2-24. Multicast Configuration Page

67

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

2. On the Multicast page, enter values for the parameters indicated in Ta bl e 2-16.

68

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-16. Multicast Configuration Parameters

Web Page Item Description

Enable Multicast Operation Enables or disables multicast operation.

Priority Indicates the priority for the multicast group. Priority 9 is th

highest (emergency streams). 0 is the lowest (background
music). SIP calls are considered priority 4.5. See Section

2.3.8.1, "Assigning Priority" for more details.

Address Enter the multicast IP Address for this multicast group (15

character l

imit).

Por t Enter the port number for this multicast group (5 character

limi

t [range can be from 2000 to 65535]).

Note: The multicast ports have to be even values. The
webpage will enforce this restriction.

Name Assign a descriptive name for this multicast group (25

character l

imit).

Buffer Device will buffer up to four minutes of audio and then play

ck the recording after the multicast stream finishes or after

ba
the buffer is full.

Beep When selected, the device will play a beep before multicast

dio is sent.

au

e

Relay When selected, the device will activate a relay before

m

ulticast audio is sent.

Polycom Default Channel When a default Polycom channel/group number is selected,

vice will subscribe to the default channel for one-way

the de
group pages. Group Numbers 1-25 are supported. Or, select
Disabled to disable this channel.

Polycom Priority Channel When a priority Polycom channel/group number is selected,

the device will subscribe to the priority channel for one-way
group pages. Group Numbers 1-25 are supported. Or, select
Disabled to disable this channel.

Polycom Emergency Channel

When an emergency Polycom channel/group number is
selected, the device will subscribe to the default channel for
one-way group pages. Group Numbers 1-25 are supported.
Or, select Disabled to disable this channel.

Multicast Strobe Settings

Blink Strobe on Multicast When selected, the Strobe will blink a scene when a

multicast is received.

Multicast Strobe Brightness

How bright the strobe will blink on a multicast page. This is
the maximum brightness for “fade” type scenes.

ADA Compliant

Strobe will blink ON at the specified brightness for 150ms
then OFF for 350ms during the duration of the event.

Slow Fade

Strobe will increase in brightness from 0 to the specified
brightness and back to 0 over the course of about 3.5
seconds during the duration of the event.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-16. Multicast Configuration Parameters (continued)

Web Page Item Description

Fast Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 1.5
seconds during the duration of the event.

Slow Blink Strobe will blink ON at the specified brightness for one

second then OFF for one second during the duration of the
event.

69

Fast Blink

Multicast Call Color

Red

Green

Blue

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.3.8.1 Assigning Priority

The device will prioritize simultaneous audio streams according to their priority in the list.

Strobe will blink ON at the specified brightness then OFF
five times per second during the duration of the event.

Select desired color (only one may be chosen).

The red LED value for Multicast.

The green LED value for Multicast.

The blue LED value for Multicast.

Use this button to preview the strobe flashing behavior for
the Multicast Strobe Settings.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will

upt multicast streams with priority 0 through 4 and will be interrupted by multicast streams with

interr
priority 5 through 9.

During priority 9 m

Note SIP calls

ulticast streams, the volume is set to maximum.

, multicast streams, ring tones, ringback tones, and nightring tones are all

prioritized.

Ringtones and Nightringtones

Operations Guide 931260A CyberData Corporation

Ringtones all play at the same priority level. This means that it is possible to have a nightring tone
and a normal ringtone playing at the same time.

Installing the Singlewire InformaCast Talk-Back Speaker

2.3.9 Configure the Sensor Configuration Parameters

The door sensor (pins 5 and 6) on the header can be used to monitor a door's open or closed state.
There is an option on the Sensor page to trigger on an open or short condition on these pins. The
door sensor alarm will be activated when the Door Open Timeout parameter has been met.

The intrusion sensor is an optical sensor installed on the board and will be activated when the board
is removed from the case.

Each sensor can trigger up to five different actions:

• Flash the LED until the sensor is deactivated (roughly 10 times/second)

• Activate the relay until the sensor is deactivated

• Loop an audio file out of the speaker until the sensor is deactivated

• Call an extension and establish two way audio

• Call an extension and play a pre-recorded audio file

Note Calling a preset extension can be set up as a point-to-point call, but currently can't send

delayed DTMF tones.

Device Configuration

70

1. Click Sensor menu button to open the Sensor page (Figure 2-25).

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Figure 2-25. Sensor Configuration Page

Device Configuration

71

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2. On the Sensor page, enter values for the parameters indicated in Ta bl e 2-17.

Device Configuration

72

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-17. Sensor Configuration Parameters

Web Page Item Description

Sensor Settings

Sensor Normally Closed Select the inactive state of the sensor. The sensor is also known

as the Sense Input on the device's terminal block. See the
Operations Guide for more information.

Sensor Timeout (in seconds) The time (in seconds) the device will wait before it performs an

action when the on-board door sensor is activated. The action(s)
performed are based on the configured Sensor Settings below.
Enter up to 5 digits.

Activate Relay When selected, the device's on-board relay will be activated until

the on-board door sensor is deactivated.

Play Audio Locally When selected, the device will loop an audio file out of the

speaker until the door sensor is deactivated.

Make call to extension When selected, the device will call an extension when the on-

board door sensor is activated. Use the Dial Out Extension field
below to specify the extension the device will call.

Dial Out Extension Specify the extension the device will call when the on-board door

sensor is activated. Enter up to 64 alphanumeric characters.

Dial Out ID An additional Caller identification string added to outbound calls.

Enter up to 64 alphanumeric characters.

Play recorded audio When selected, the device will call the Dial Out Extension and

play an audio file to the phone answering the SIP call
(corresponds to Door Ajar on the Audiofiles page).

Repeat Sensor Message The number of times to repeat the audio message through the

local speaker or to the remote endpoint. A value of 0 will repeat
forever. Enter a value from 0-65536.

Click the Test Sensor button to test the sensor.

Sensor Strobe Settings

Blink Strobe on Sensor When selected, the Strobe will blink a scene when the sensor is

triggered.

Sensor Strobe Brightness How bright the strobe will blink when the sensor is triggered. This

is the maximum brightness for “fade” type scenes.

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then

OFF for 350ms during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 3.5 seconds
during the duration of the event.

Fast Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 1.5 seconds
during the duration of the event.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-17. Sensor Configuration Parameters (continued)

Web Page Item Description

Slow Blink Strobe will blink ON at the specified brightness for one second

then OFF for one second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five

times per second during the duration of the event.

Sensor Color Select desired color (only one may be chosen).

Red The red LED value for Sensor.

Green The green LED value for Sensor.

Blue The blue LED value for Sensor.

Use this button to preview the strobe flashing behavior for the
Sensor Strobe Settings.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

73

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the Toggle Help
button, and you will see a question mark ( ) appear next to
some of the web page items. Move the mouse pointer to hover
over a question mark to see a short description of a specific web
page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2.3.10 Configure the Audio Configuration Parameters

The Audiofiles page is used to add custom audio to the board. User uploaded audio will take
precedence over the audio files shipped with the device.

1. Click on the Audiofiles menu button to open the Audiofiles page (Figure 2-26).

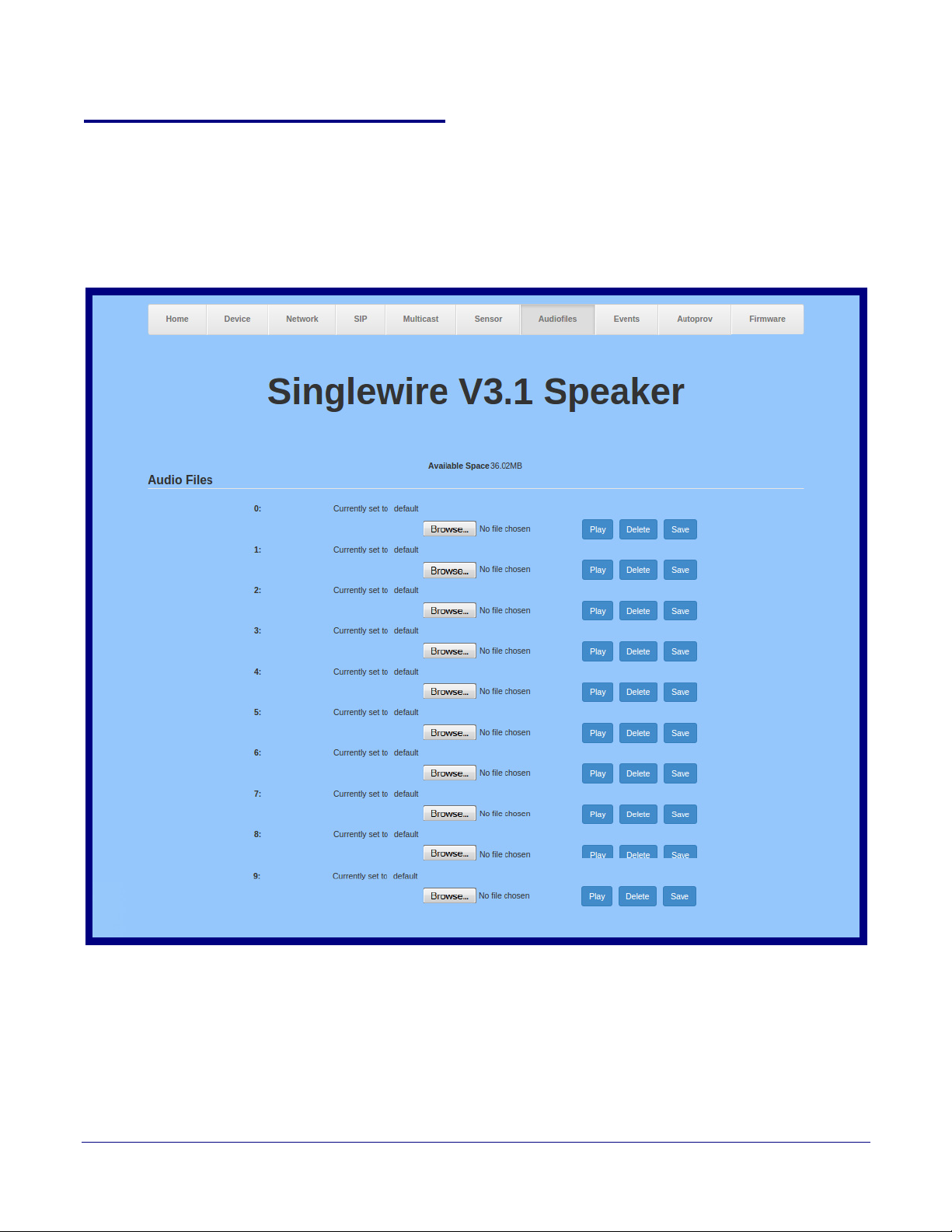

Figure 2-26. Audiofiles Configuration Page

Device Configuration

74

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

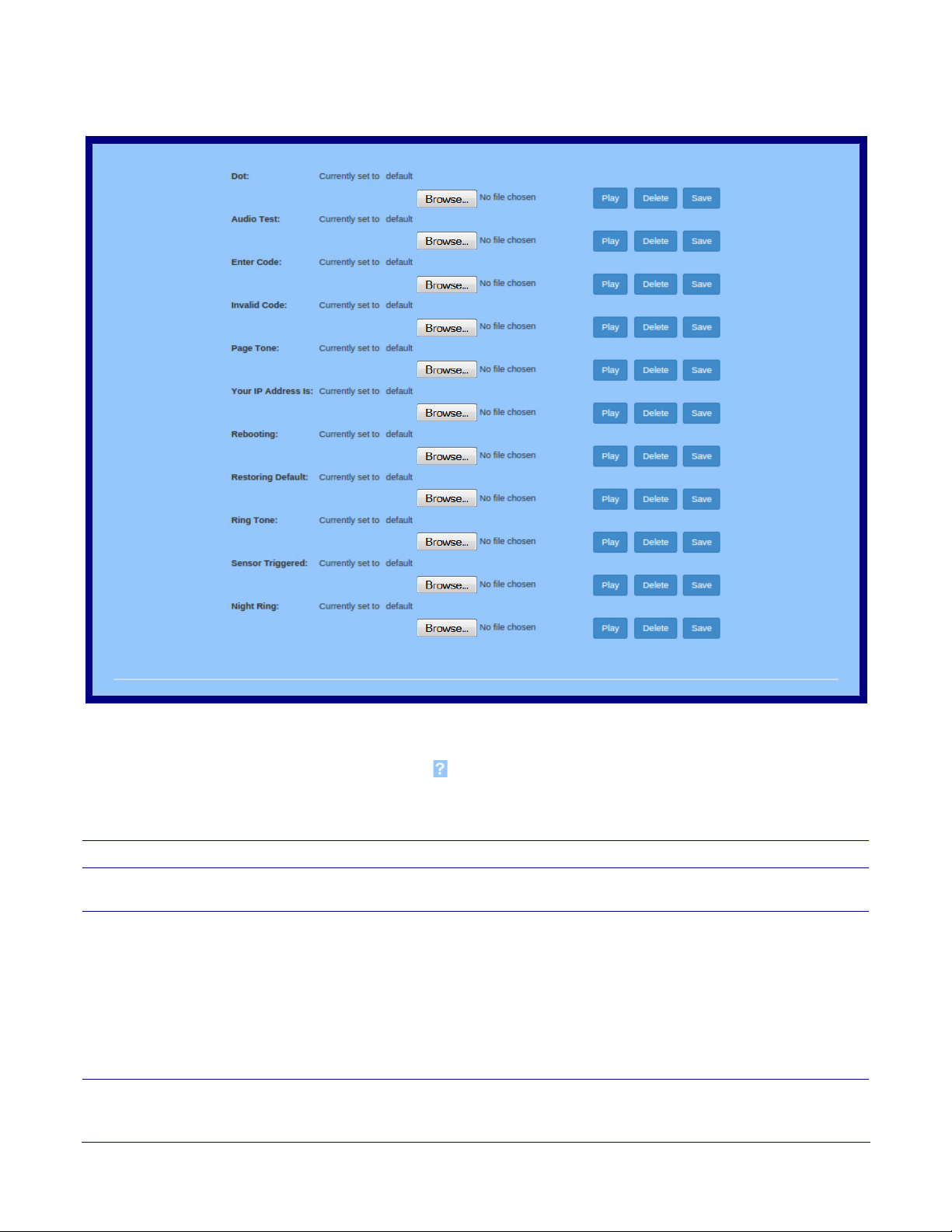

Figure 2-27. Audiofiles Page

Device Configuration

75

2. On the Audiofiles page, enter values for the parameters indicated in Ta bl e 2-18.

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-18. Audiofiles Configuration Parameters

Web Page Item Description

Available Space Shows the space available for the user to save custom audio files if they want to change the

message when the door or sensor is triggered.

0-9 The name of the audio configuration option is the same as th

e spoken audio that plays on

the board (24 character limit).

'0' corresponds to the spoken word “zero.”

'1' corresponds to the spoken word “one.”

'2' corresponds to the spoken word “two.”

'3' corresponds to the spoken word “three.”

'4' corresponds to the spoken word “four.”

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-18. Audiofiles Configuration Parameters (continued)

Web Page Item Description

0-9 '5' corresponds to the spoken word “five.”

'6' corresponds to the spoken word “six.”

'7' corresponds to the spoken word “seven.”

'8' corresponds to the spoken word “eight.”

'9' corresponds to the spoken word “nine.”

Dot Corresponds to the spoken word “dot.” (24 character limit)

Audiotest Corresponds to the message “This is the CyberData IP speaker test message...” (24

character limit)

Enter Code Corresponds to the message “Enter Code” (24 character limit).

Invalid Code Corresponds to the message “Invalid Code” (24 character limit).

Page tone Corresponds to a simple tone used for beep on initialization and beep on page (24 character

limit).

Your IP Address is Corresponds to the message “Your IP address is...” (24 character limit).

Rebooting Corresponds to the spoken word “Rebooting” (24 character limit).

76

Restoring default Corresponds to the message “Restoring default” (24 character limit).

Ringback tone This is the ringback tone that plays when calling a remote extension 

(24 character limit).

Ring tone This is the tone that plays when set to ring when receiving a call 

(24 character limit).

Sensor Triggered Corresponds to the message “Sensor Triggered” (24 character limit).

Night Ring Specifies the ringtone for nightring. By default this parameter uses the same audio file that is

selected for the Ring Tone parameter.

Click on the Browse button to navigate to and select an audio file.

Note: The name of this button may be different and will depend on the web browser that you
are using.

The Play button will play that audio file.

The Delete button will delete any user uploaded audio and restore the stock audio file.

The Save button will download a new user audio file to the board once you've selected the
file by using the Browse button. The Save button will delete any pre-existing user-uploaded
audio files.

Operations Guide 931260A CyberData Corporation

2.3.10.1 User-created Audio Files

User created audio files should be saved in the following format:

RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz

You can use the free utility Audacity to convert audio files into this format. See Figure 2-28 through

Figure 2-30.

Installing the Singlewire InformaCast Talk-Back Speaker

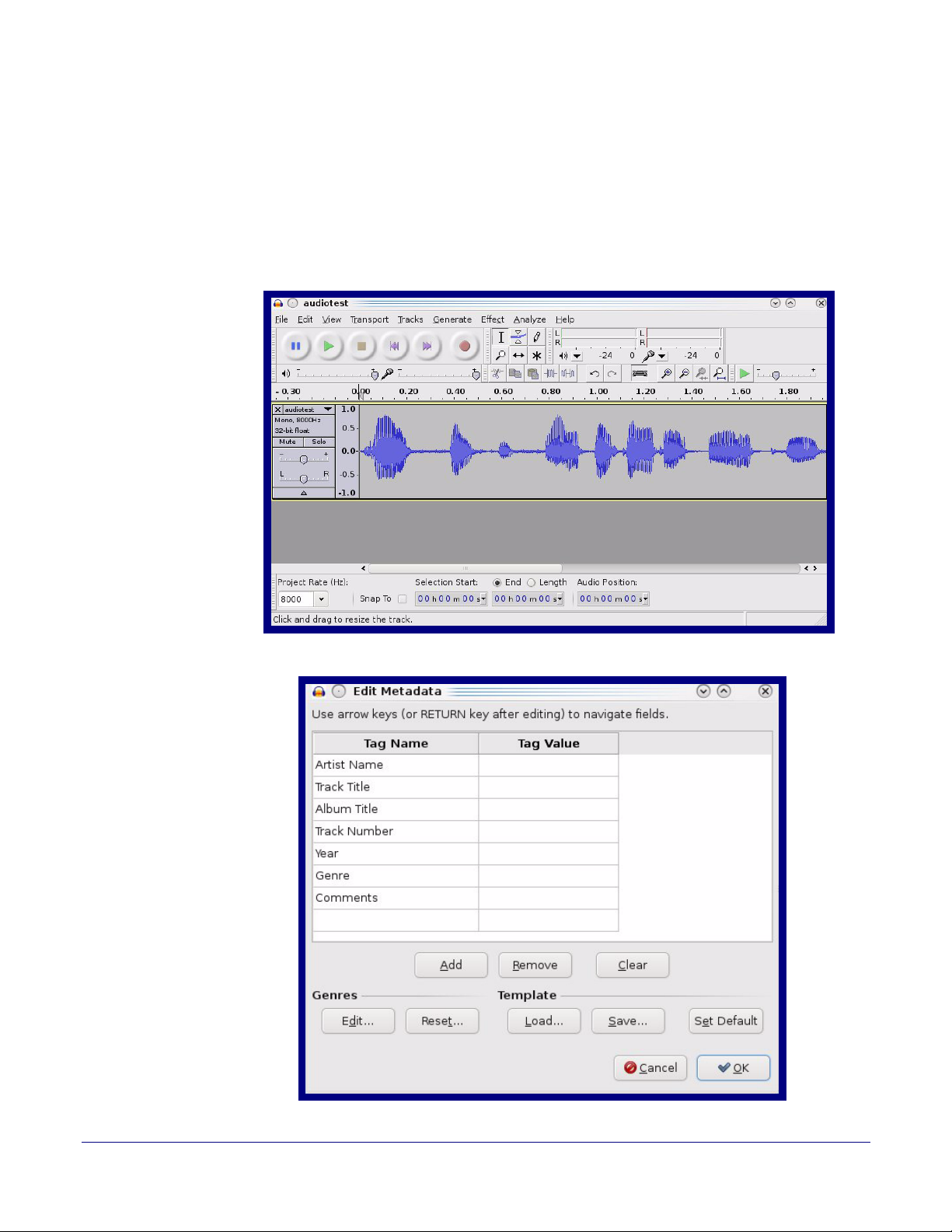

Figure 2-28. Audacity 1

Device Configuration

77

Figure 2-29. Audacity 2

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

WAV (Microsoft) signed 16 bit PCM

When you export an audio file with Audacity, save the output as:

• WAV (Microsoft) signed 16 bit PCM.

Figure 2-30. WAV (Microsoft) signed 16 bit PCM

Device Configuration

78

Operations Guide 931260A CyberData Corporation

2.3.11 Configure the Events Parameters

The Events page specifies a remote server that can be used to receive HTTP POST events when
actions take place on the board.

1. Click on the Events menu button to open the Events page (Figure 2-31).

Figure 2-31. Event Configuration Page

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

79

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2. On the Events page, enter values for the parameters indicated in Ta bl e 2-19.

Device Configuration

80

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-19. Events Configuration Parameters

Web Page Item Description

Enable Event Generation The device will send HTTP POST events to the specified remote

server and port number whenever a certain action takes place.
Select an event type below to generate an HTTP POST event.

Events

Enable Call Start Events When selected, the device will report the start of a SIP call.

Enable Call Terminated Events

Enable Relay Activated Events

Enable Relay Deactivated Events

Enable Night Ring Events

When selected, the device will report the end of a SIP call.

When selected, the device will report relay activation.

When selected, the device will report relay deactivation.

When selected, the device will report when it starts ringing upon an
incoming SIP call to the Nightringer extension. As a reminder, the
Nightringer extension always rings upon an incoming SIP call and it
is not possible to alter this behavior.

Enable Power On Events

Enable Multicast Start Events

When selected, the device will report when it boots.

When selected, the device will report when the device starts playing
a multicast audio stream.

Enable Multicast Stop Events

When selected, the device will report when the device stops playing
a multicast audio stream.

Enable Sensor Events

When selected, the device will report when the on-board sensor is
activated.

Enable 60 Second Heartbeat Events

When enabled, the device will report a Heartbeat event every 60
seconds. SIP registration is not required to generate Heartbeat
events.

Check All Click on Chec

Uncheck All

Click on Uncheck All to de-select all of the events on the page.

k All to select all of the events on the page.

Event Server

Server IP Address The IPv4 address of the event server in dotted decimal notation.

Server Port

Specify the event server port number. The supported range is 0-

65536. Enter up to 5 digits.

Server URL

Generally, the destination URL is the name of the application that
receives the events and the string in the HTTP POST command. It
can be a script used to parse and process the HTTP POST events.
Enter up to 127 characters.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-19. Events Configuration Parameters(continued)

Web Page Item Description

Click on the Toggle Help button to see a short description of some
of the web page items. First click on the Toggle Help button, and
you will see a question mark (

) appear next to some of the web
page items. Move the mouse pointer to hover over a question mark
to see a short description of a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

81

Operations Guide 931260A CyberData Corporation

2.3.11.1 Example Packets for Events

The server and port are used to point to the listening server and the 'Remote Event Server URL' is
the destination URL (typically the script running on the remote server that's used to parse and
process the POST events).

Note The XML is URL-encoded before transmission so the following examples are not completely

accurate.

Here are example packets for every event:

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>POWERON</event>
</cyberdata>

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

82

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 199
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>HEARTBEAT</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 196
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>BUTTON</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 201
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>CALL_ACTIVE</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

User-Agent: CyberData/1.0.0
Content-Length: 205
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>CALL_TERMINATED</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RINGING</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded

Device Configuration

83

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>MULTICAST_START</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 233
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>MULTICAST_STOP</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RELAY_ACTIVATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RELAY_DEACTIVATED</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>NIGHTRINGING</event>
</cyberdata>

Device Configuration

84

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

2.3.12 Configure the Autoprovisioning Parameters

Autoprovisioning can be used to automatically configure your device. The autoprovisioning file is an
xml file with the device configuration. Values found in this file will override values stored in on-board
memory.

Note By default, the device will try to set up its configuration with autoprovisioning.

1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-32.

Figure 2-32. Autoprovisioning Page

Device Configuration

85

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

2. On the Autoprovisioning page, you may enter values for the parameters indicated in Tab l e 2-

20.

86

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-20. Autoprovisioning Configuration Parameters

Web Page Item Description

Disable Autoprovisioning Prevent the device from automatically trying to download a

configuration file. See Section 2.3.12.1, "Autoprovisioning" for
more information.

Autoprovisioning Server

Enter the IPv4 address of the provisioning server in dotted
decimal notation.

Autoprovisioning Filename

The autoprovisioning filename is the configuration filename.
The default autoprovisioning filename is in the format of
<mac address>.xml.

Supported filename extensions are .txt, and .xml. The current
filename is denoted by an asterisk at the bottom of the

Autoprovisioning Page. Enter up to 256 characters.

A file may have any name with an xml extension. If a file
name is entered, the device will look for the specified file
name, and only that file.

Use tftp

The device will use TFTP (instead of http) to download
autoprovisioning files.

Username

The username used to authenticate with an autoprovisioning
server. Leave this field blank to disable authentication.

Password

Autoprovisioning Autoupdate 
(in minutes)

Autoprovision at time (HHMMSS)

Autoprovision when idle
(in minutes > 10)

The password used to authenticate with an autoprovisioning
server. Leave this field blank to disable authentication.

The reoccurring time (in minutes) the device will wait before
checking for new autoprovisioning files. Enter up to 6 digits. A
value of 0 will disable this option.

To use the auto update options, enable the Set Time

Note:

with NTP Server on boot setting on the Device
Configuration Page page (see Tab l e 2-7).

The time of day the device will check for a new
autoprovisioning file. The time must be 6 characters in length
and in HHMMSS format. An empty value will disable this
option.

To use the auto update options, enable the Set Time

Note:

with NTP Server on boot setting on the Device
Configuration Page page (see Tab l e 2-7).

The idle time (in minutes greater than 10) after which the
device will check for a new autoprovisioning file. Enter up to 6
digits. A value of 0 will disable this option.

To use the auto update options, enable the Set Time

Note:

with NTP Server on boot setting on the Device
Configuration Page page (see Tab l e 2-7).

Click the Save button to save your configuration settings.

You need to reboot for changes to take effect.

Note:

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Table 2-20. Autoprovisioning Configuration Parameters (continued)

Web Page Item Description

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the Toggle Help
button, and you will see a question mark (
some of the web page items. Move the mouse pointer to
hover over a question mark to see a short description of a
specific web page item.

Press the Download Template button to create an
autoprovisioning file for the device. See Section 2.3.12.3,

"Download Template Button"

Autoprovisioning log The autoprovisioning log provides information about the latest

toprovisioning attempt (i.e. dhcp options and server

au
accessed and files parsed or not found).

) appear next to

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

87

2.3.12.1 Autoprovisioning

On boot, the device will look for an autoprovisioning server configured on the Autoprovisioning Page
or specified as a DHCP option. When it finds a server, it will try to download the following (in order of
p

reference):

1. The file configured on the autoprovisioning page.

2. A file named according to it's mac address (for example: 0020f7350058.xml).

3. The file 000000cd.xml

The file can be hosted using a standard web server (lik
download over SSL. The file server can be an ipv4 address in dotted decimal notation or a fully
qualified domain name.

By default, the device will get its autoprovisioning server from the DHCP options. See Section

2.3.12.2, "Sample dhcpd.conf" for an example of how to configure dhcpd to offer autoprovisioning

server addresses. If multiple options are set, the device will attempt to download autoprovisioning
f

iles from every server.

The DHCP option determines the protocol used to download the autoprovisioning file. The device
looks f

or DHCP options in the following order:

1. Option 43 - a FQDN or an IP address to an http server

2. Option 72 - an IP address to an http server

e apache, IIS, or nginx), and the device can

3. Option 150 - an IP address to a tftp server

4. Option 66 - an IP address to a tftp server or if the entry starts with 'http', a FQDN to a http server.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

You can download an autoprovisioning template file from the Autoprovisioning Page using the
Download Template button (see Ta bl e 2-20). This file contains every configuration option that can
be set on the board.

Autoprovisioning files can contain the whole configuration or a subset of this file. The first
autoprovisioning file can also contain links to other autoprovisioning files.

The <MiscSettings> section contains some examples of additional autoprovisioning files:

<MiscSettings>
<DeviceName>CyberData VoIP Device</DeviceName>
<!-- <AutoprovFile>common.xml</AutoprovFile>-->
<!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->
<!-- <AutoprovFile>audio[macaddress]</AutoprovFile>-->
<!-- <AutoprovFile>device[macaddress].xml</AutoprovFile>-->
</MiscSettings>

After downloading the first autoprovisioning file, the device will step through up to twenty additional
<AutoprovFile> entries and try to download these files from the same server.

When the device finds a filename with the string [macaddress], it will replace this string with the
mac address.

As an example, the user has configured option 43 on their DHCP server to “http://example.com,” and
on their server, they have a file named 0020f7123456.xml (the same as the mac address of the
device).

88

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

The file 0020f7123456.xml contains:

<?xml version="1.0" encoding="utf-8" ?>
<specific>

<MiscSettings>

<DeviceName>Newname</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>
<AutoprovFile>audio[macaddress]</AutoprovFile>
<AutoprovFile>device.xml</AutoprovFile>

</MiscSettings>

</specific>

1. The device will first set it's name to 'Newname'.

2. It will try to download http://example.com/common.xml.

3. It will try to download http://example.com/sip_reg0020f7123456.xml.

4. It will try to download http://example.com/audio0020f7123456.

5. It will try to download http://example.com/device.xml.

The device is reconfigured every time it downloads a new file so if two files configure the same
option the last one will be the one that is saved.

89

Checking for New Autoprovisioning Files after Boot

It is possible to autoprovision autoprovisioning values (for example, to disable autoprovisioning or to
configure a time to check for new files).

The device will always check for an autoprovisioning files on boot but it can be configured to also
check after a periodic delay, when idle, or at a specified time. When one of these options is set, the
device will download its autoprovisioning files again, and if it finds any differences from the files it
downloaded on boot, it will force a reboot and reconfigure.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

90

The Autoprovisioning Filename

The autoprovisioning filename can contain a file, a file path, or a directory.

Table 2-21. Autoprovisioning File Name

Autoprovisioning
Filename

config.xml

/path/to/config.xml

subdirectory/path/ 10.0.1.3 10.0.1.3/subdirectory/path/0020f7020002.xml

Autoprovisioning

File Downloaded

Server

10.0.1.3 10.0.1.3/config.xml

10.0.1.3 10.0.1.3/path/to/config.xml

TFTP options may not support subdirectories. If a directory is set in the filename field, firmware and

udio files will also be downloaded from this subdirectory.

a

If the filename ends with a forward slash “/,” the device will treat it as a subdirectory.

For example:

The autoprovisioning server is set to “https://www.example.com”

The autoprovisioning filename is set to “cyberdata/”

On boot, the device will try to download:

https://www.example.com/cyberdata/0020f7123456.xml

...and if this fails:

https://www.example.com/cyberdata/000000cd.xml

Audio files and firmware files will also add “cyberdata” to the URL before downloading.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

91

Autoprovisioning Firmware Updates

<FirmwareSettings>

<FirmwareFile>505-uImage-ceilingspeaker</FirmwareFile>
<FirmwareServer>10.0.1.3</FirmwareServer>
<OutdoorIntercom30>firmware_file_v9.3.0</OutdoorIntercom30>
<OutdoorIntercom31>firmware_file_v10.3.0</OutdoorIntercom31>
<CallButton31>firmware_file_v10.3.0</CallButton31>

</FirmwareSettings>

In the <FirmwareSettings> section, the <FirmwareServer> element can be used to specify a
different server for hosting firmware files. When this element is not available, the device will try to
download the file from the autoprovisioning server.

The device will use the filename to determine when to autoprovision firmware updates. The default
configuration is blank, so the first time you set a value in your autoprovisioning file, it may force a
firmware update even if the firmware version has not changed.

The <FirmwareFile> name can contain path elements (i.e. /path/to/firmware/10.3.0-uImage­[device_file_name]).

The device also supports product strings for downloading firmware. If the <FirmwareFile> option is
not set, the device will look for its particular product string for a firmware filename. In this way, a
generic autoprovisioning file can specify unique firmware for a range of products.

The list of valid product strings:

<ProductString>CallButton31</ProductString>

<ProductString>EmergencyIntercom31</ProductString>
<ProductString>EmergencyIntercom31SW</ProductString>
<ProductString>IndoorIntercom31</ProductString>
<ProductString>IndoorIntercom31SW</ProductString>
<ProductString>IndoorKeypad31</ProductString>
<ProductString>IndoorKeypad31SW</ProductString>
<ProductString>OfficeRinger31</ProductString>
<ProductString>OfficeRinger31SW</ProductString>
<ProductString>OutdoorIntercom31</ProductString>
<ProductString>OutdoorIntercom31SW</ProductString>
<ProductString>OutdoorKeypad31</ProductString>
<ProductString>OutdoorKeypad31SW</ProductString>
<ProductString>Strobe31</ProductString>
<ProductString>Strobe31SW</ProductString>

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

92

Autoprovisioning Example 1

Here's a simple example using four autoprovisioning files to configure two devices:

We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2).

The devices are set to use DHCP and that server provides an autoprovisioning server address with
option 43. The address is “https://autoprovtest.server.net.” The files on this server are as follows:

000000cd.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
<AutoprovFile>sip_common.xml</AutoprovFile>
<AutoprovFile>sip_[macaddress].xml</AutoprovFile>
</MiscSettings>

sip_common.xml

<SIPSettings>
<SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

sip_0020f7020001.xml

<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>



sip_0020f7020002.xml

<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>

On boot, Device1 tries to fetch the file 0020f7023614.xml from “https://autoprovtest.server.net”. This
file is not available, so device1 then tries to fetch the file 000000cd.xml. This file exists, and Device1
parses the three elements.

1. Device1 changes its device name to CyberData Autoprovisioned.

2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device
downloads sip_common.xml from “https://autoprovtest.server.net,” and imports this
configuration, setting the sip server to 10.0.0.253 and the remote port to 5060.3.

3. Device1 finds another AutoprovFile element containing the filename sip_[macaddress].xml.
The device replaces the [macaddress] with its own mac address value creating
sip_0020f7020001.xml, downloads this file from “https://autoprovtest.server.net,” and imports
this configuration. This sets the user ID to 198, the password to ext198, and the dialout
extension to 204. Device1 is now finished with autoprovisioning.

Operations Guide 931260A CyberData Corporation

Installing the Singlewire InformaCast Talk-Back Speaker

Device Configuration

Device2 goes through the same steps by setting its device name to CyberData Autoprovisioned,
its SIP server to 10.0.0.253, and its port to 5060. When Device2 “sees” sip_[macaddress].xml,
Device2 replaces it with its own mac address and downloads sip_0020f7020002.xml from
“https://autoprovtest.server.net.” Device2 sets the SIP User ID to 500, the password to ext500, and
the dialout extension to 555.

93

Autoprovisioning Example 2

Here is another example of setting up your autoprovisioning files:

We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2) and boot them on a network with a DHCP server configured with an autoprovisioning
server at 10.0.1.3 on option 150. Our TFTP server has three files:

0020f7020001.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>

0020f7020002.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>



common_settings.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
</MiscSettings>
<SIPSettings> <SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

1. On boot, Device1 downloads 0020f7020001.xml from 10.0.1.3 and imports these values. The SIP
User ID is 198, the password is ext198, and the dialout extension is 204.

2. Device1 then gets the filename common_settings.xml from the AutoprovFile element and
downloads this file from the TFTP server at 10.0.1.3. and imports these settings. The device name is
set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values
instead. The Sip User ID is 500, password is ext500, and dialout extension is 555. Device2 then
downloads the common_settings.xml file and imports those values. The device name is set to
CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Operations Guide 931260A CyberData Corporation
