CyberData 011457 Operations Guide

SIP IP66 Indoor/Outdoor Horn

The IP Endpoint Company



Operations Guide



Part #011457

Document Part #931960A

for Firmware Version 20.5.1

CyberData Corporation

3 Justin Court

Monterey, CA 93940

[phone]

SIP IP66 Indoor/Outdoor Horn Operations Guide 931960A

Technical Support 


The fastest way to get technical support for your VoIP product is to
submit a VoIP Technical Support form at the following website:

https://support.cyberdata.net/



Phone: [phone], Ext. 333
Email: [email protected]
Fax: [phone]
Company and product information is at www.cyberdata.net.

The IP Endpoint Company

Part # 011457

COPYRIGHT NOTICE:
© 2022, CyberData Corporation, ALL RIGHTS RESERVED.

This manual and related materials are the copyrighted property of CyberData Corporation. No part
o

f this manual or related materials may be reproduced or transmitted, in any form or by any means
(except for internal use by licensed customers), without prior express written permission of
CyberData Corporation. This manual, and the products, software, firmware, and/or hardware
described in this manual are the property of CyberData Corporation, provided under the terms of an
agreement between CyberData Corporation and recipient of this manual, and their use is subject to
that agreement and its terms.

DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by
CyberData

Corporation, CyberData Corporation makes no representation or warranty, express or
implied, including any warranty or merchantability or fitness for any purpose, with respect to this
manual or the products, software, firmware, and/or hardware described herein, and CyberData
Corporation assumes no liability for damages or claims resulting from any use of this manual or such
products, software, firmware, and/or hardware. CyberData Corporation reserves the right to make
changes, without notice, to this manual and to any such product, software, firmware, and/or
hardware.

OPEN SOURCE STATEMENT: Certain software componen

ts included in CyberData products are
subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL)
“open source” or “free software” licenses. Some of this Open Source Software may be owned by
third parties. Open Source Software is not subject to the terms and conditions of the CyberData
COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open
Source Software is determined by the terms of the GPL, LGPL, or third party, according to who
licenses that software

Software or firmware developed by CyberData that is unrelated to Open Source Software is
cop

yrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied,
modified, reverse-engineered, or otherwise altered without explicit written permission from
CyberData Corporation.

TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are
t

rademarks of CyberData Corporation. Other product names, trademarks, and service marks may

be the trademarks or registered trademarks of their respective owners.

Operations Guide 931960A CyberData Corporation

Revision Information

Revision 931960A, which corresponds to firmware version 20.5.1, was released on October 25,
2022, and has the following changes:

• Updates Figure 1-1, "Model Number Label"

• Updates Section 1.3, "Product Features"

• Updates Section 1.6, "Specifications"

• Updates Section 1.7, "Typical Coverage"

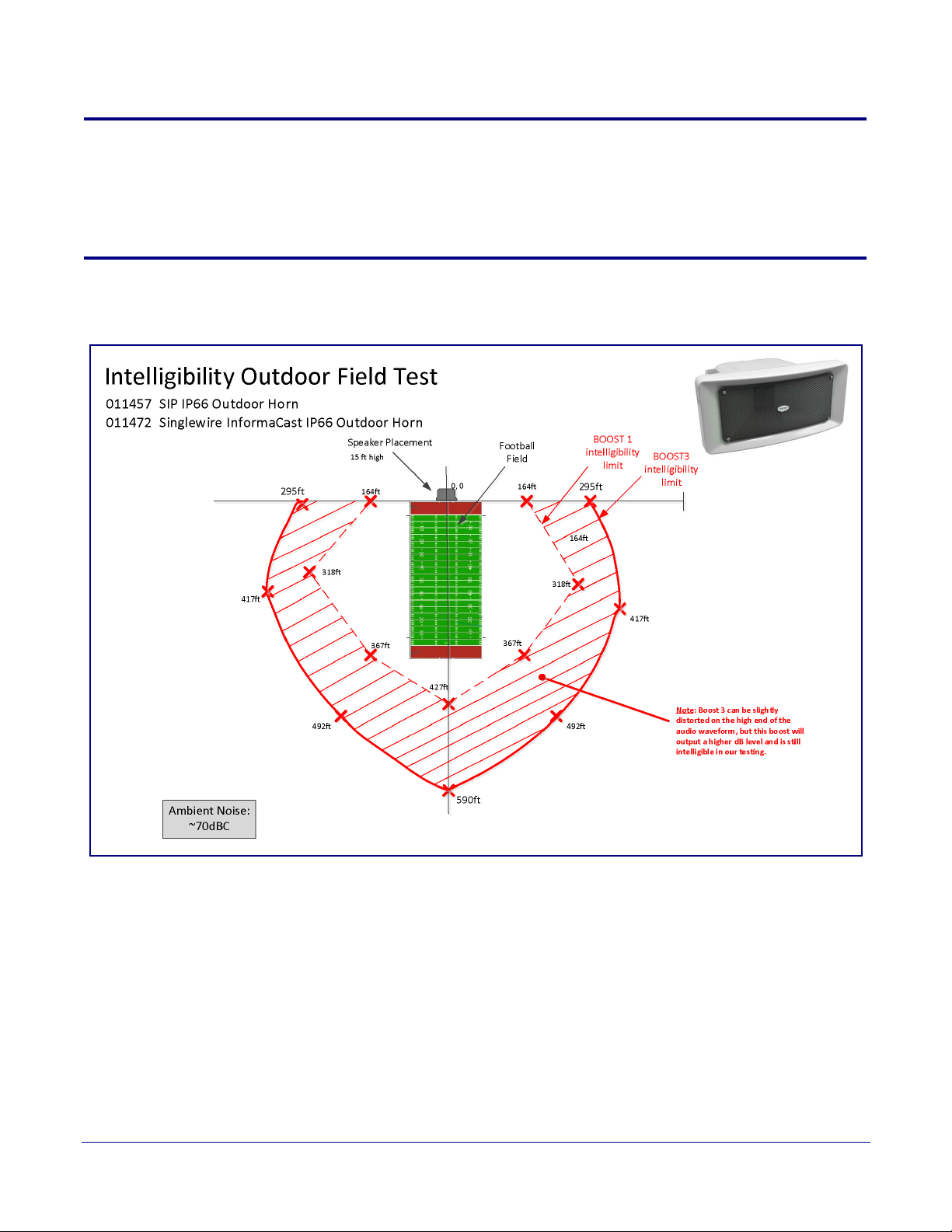

• Adds Section 1.8, "Intelligibility Outdoor Field Test"

• Updates Figure 2-4, "SIP IP66 Indoor/Outdoor Horn Connections"

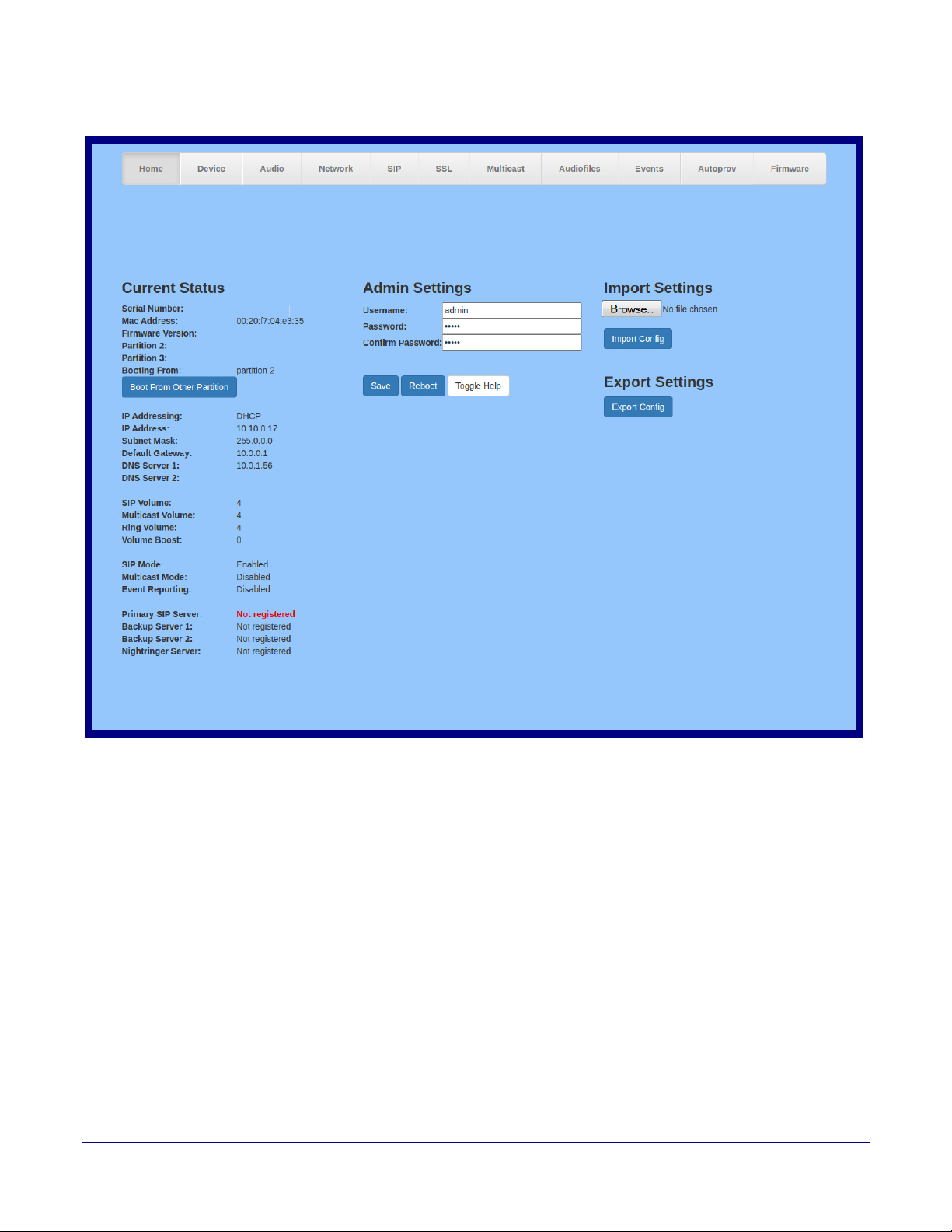

• Updates Figure 2-12, "Home Page"

• Updates Ta bl e 2-6, "Home Page Overview"

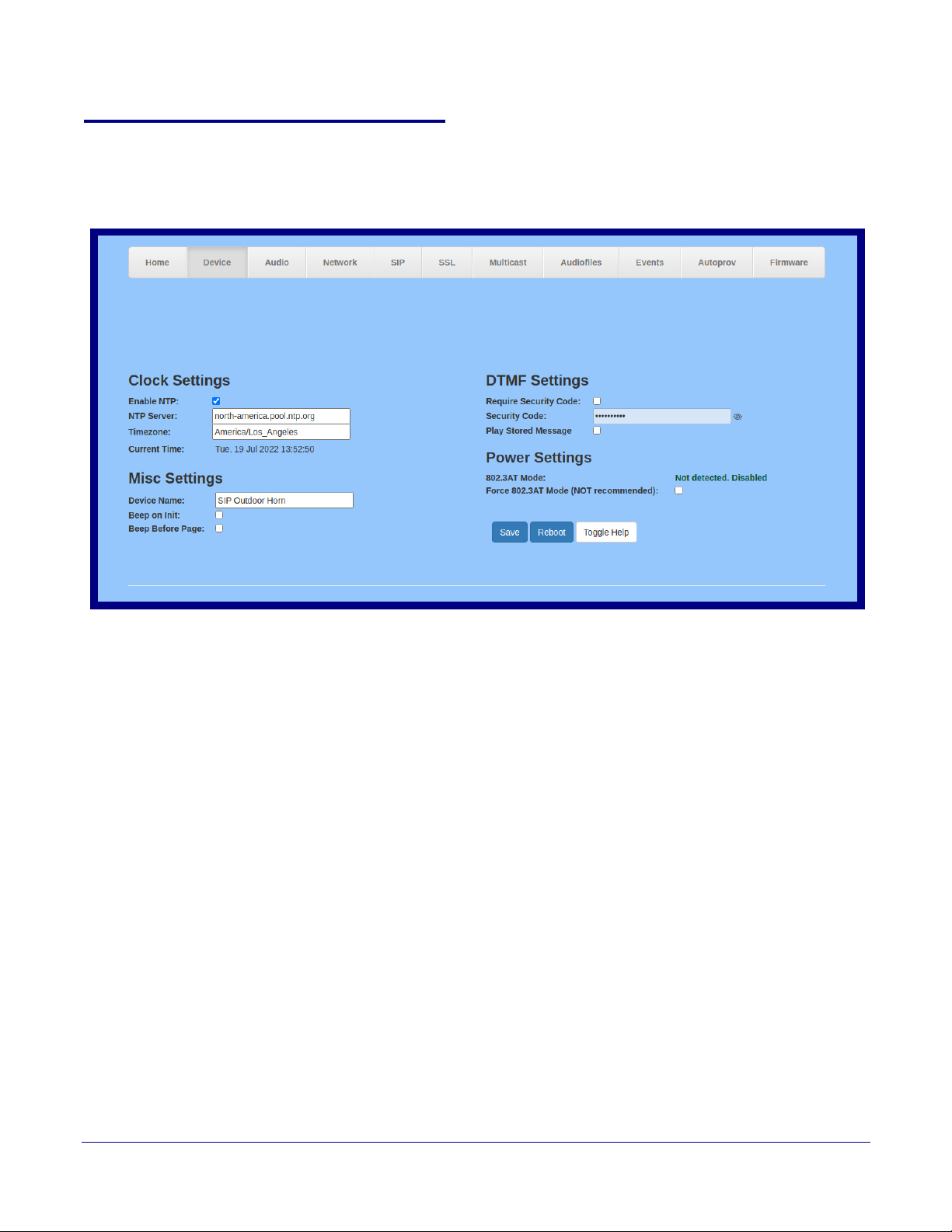

• Updates Figure 2-13, "Device Page"

• Updates Ta bl e 2-7, "Device Page Parameters"

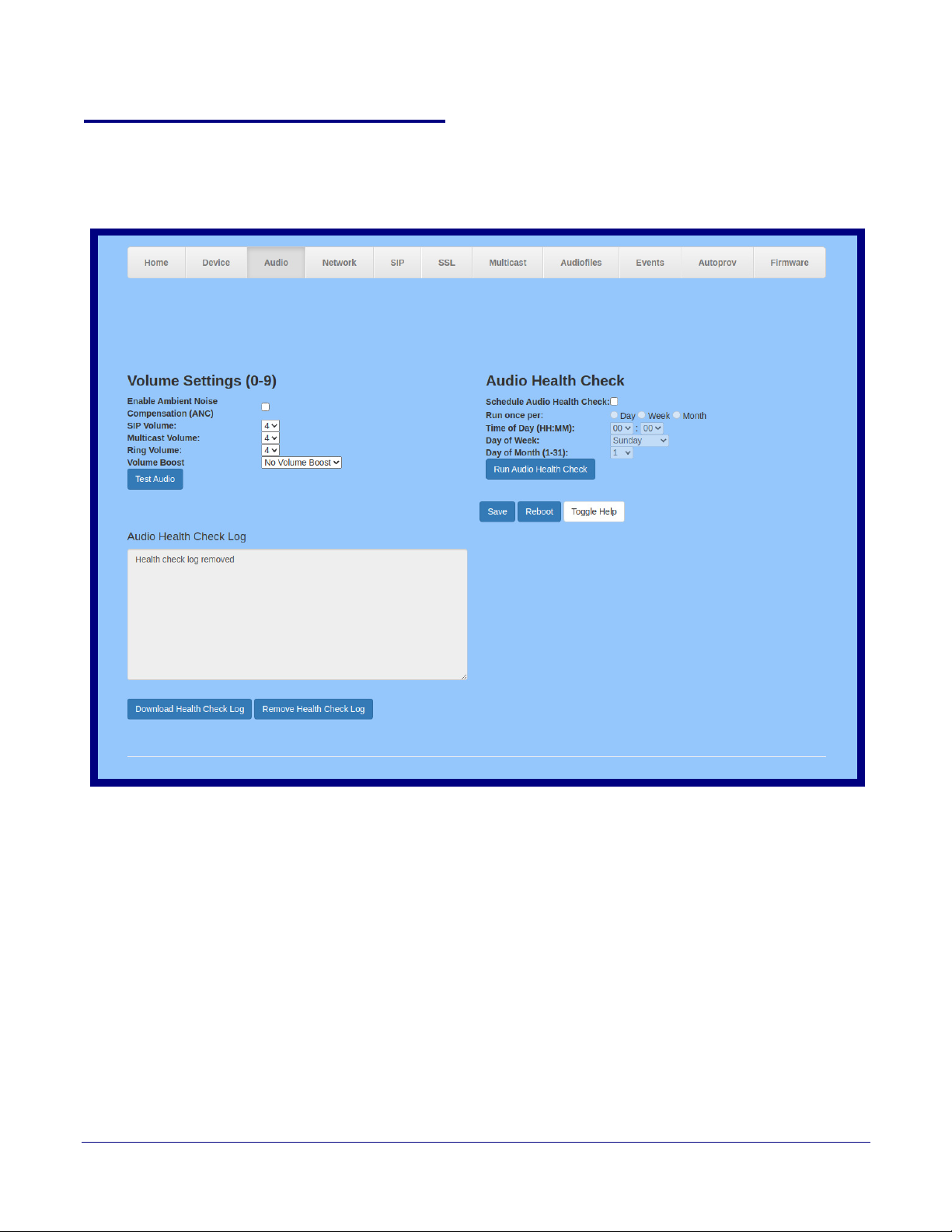

• Adds Section 2.3.6, "Configure the Audio"

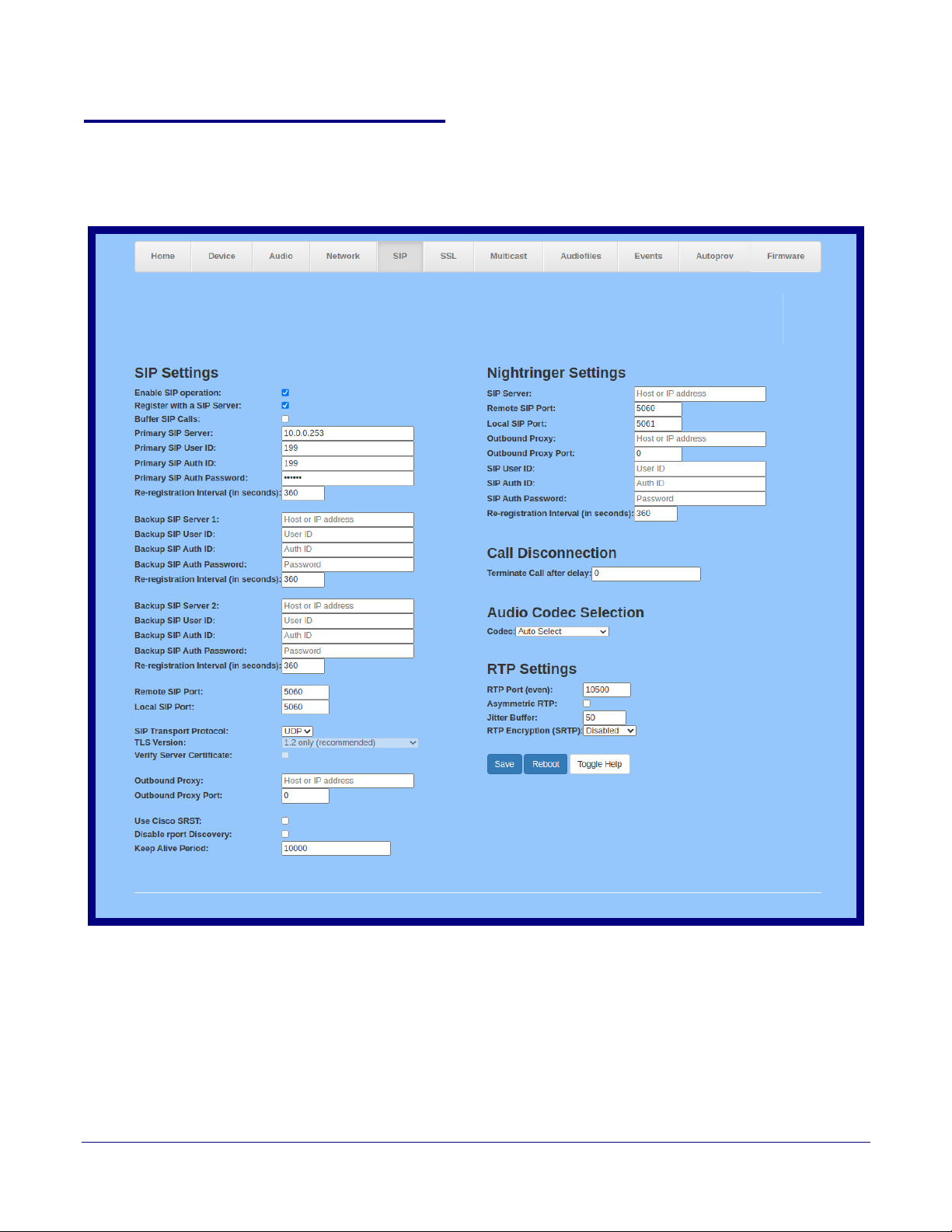

• Updates Figure 2-16, "SIP Page"

• Updates Ta bl e 2-10, "SIP Page Parameters" to add the following settings:

• SIP Transport Protocol

• TLS Version

• Verify Server Certificate

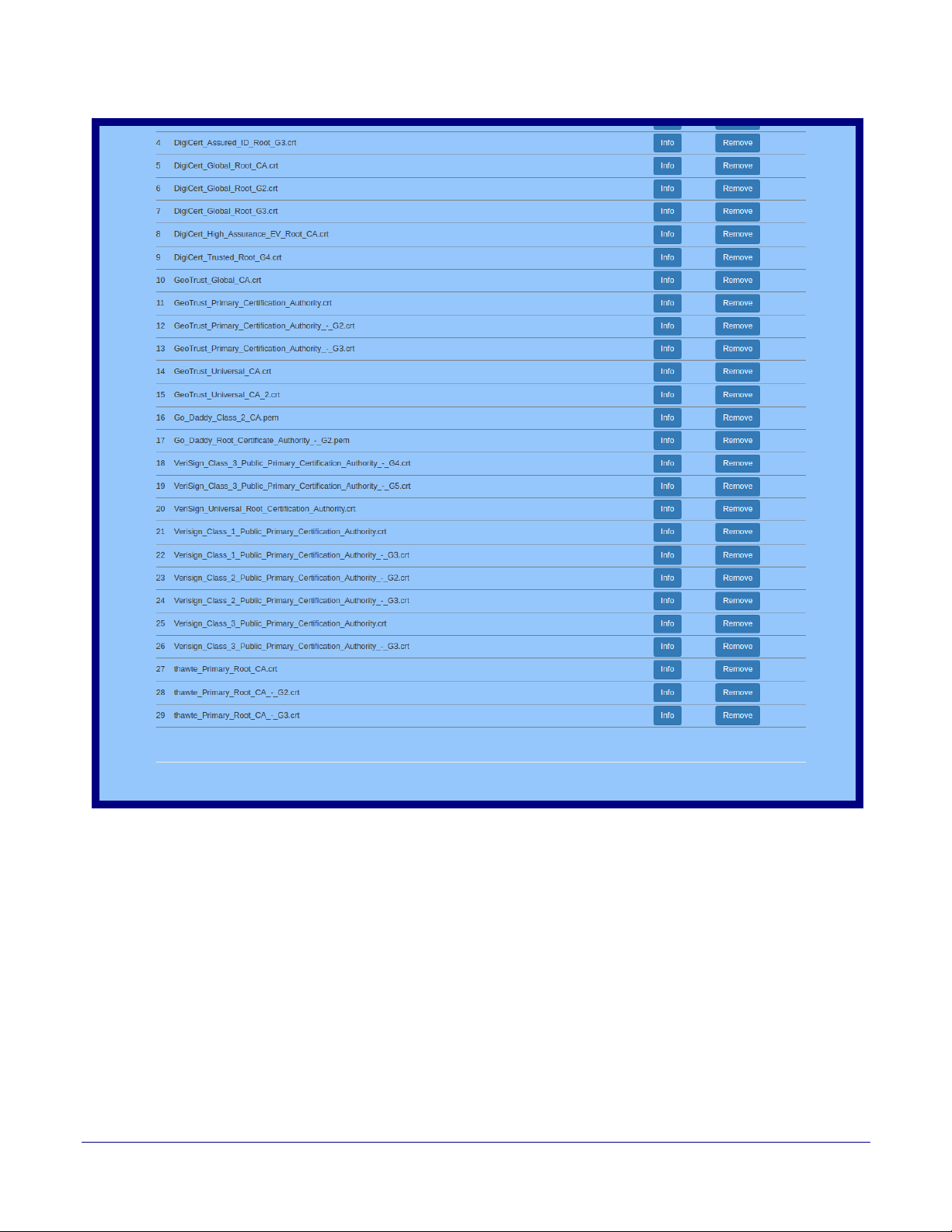

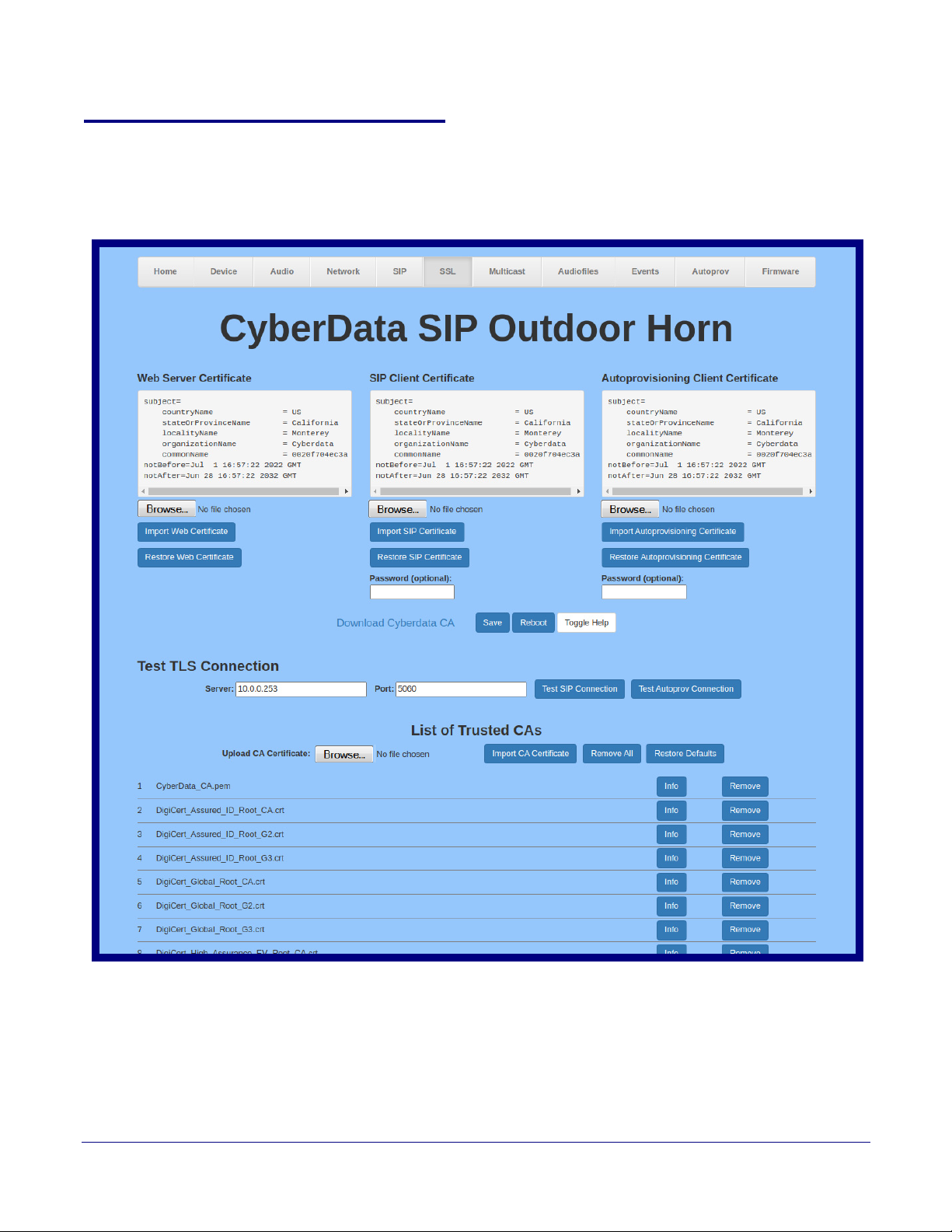

• Updates Figure 2-17, "SSL Configuration Page"

• Updates Figure 2-18, "SSL Configuration Page"

• Updates Ta bl e 2-11, "SSL Configuration Parameters"

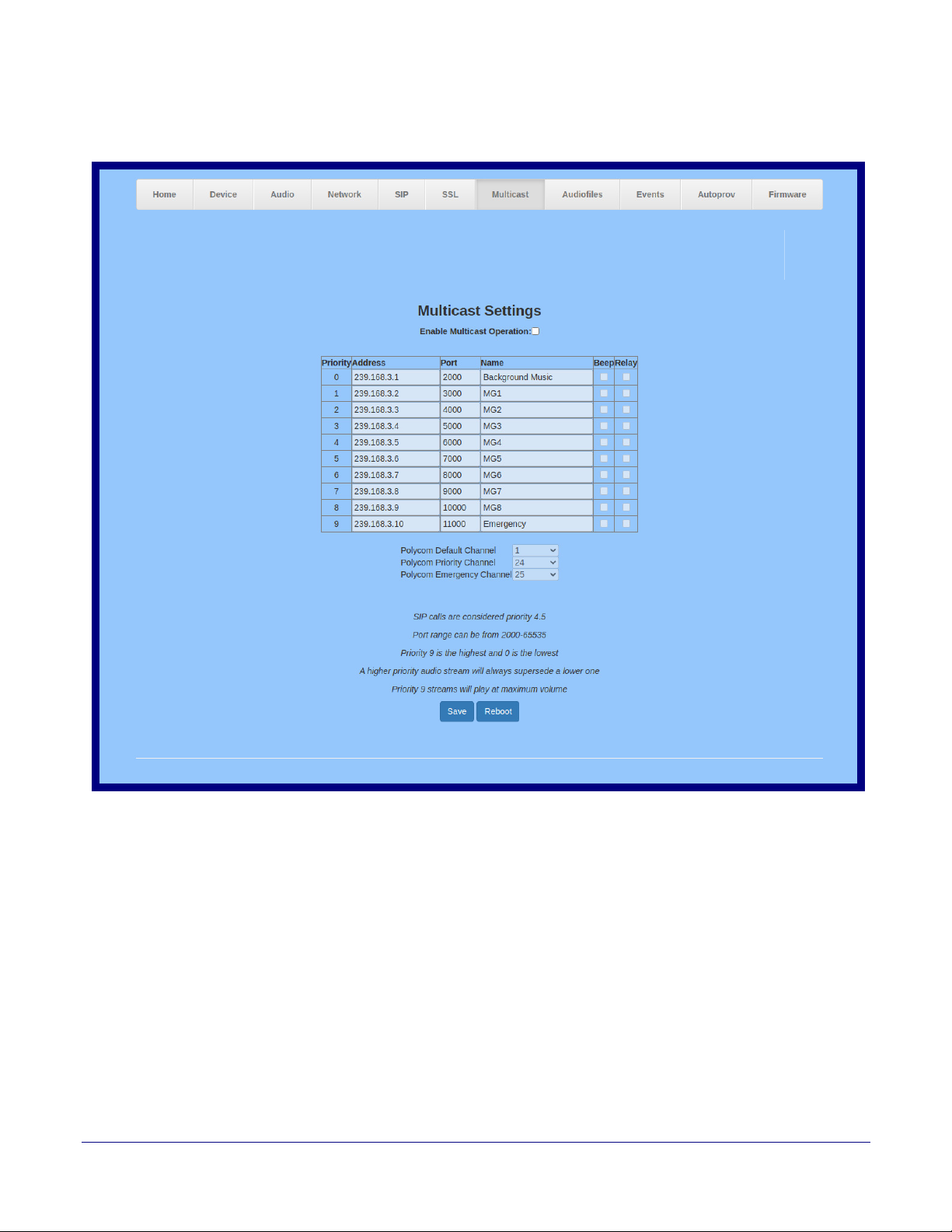

• Updates Figure 2-21, "Multicast Page"

• Updates Ta bl e 2-12, "Multicast Page Parameters"

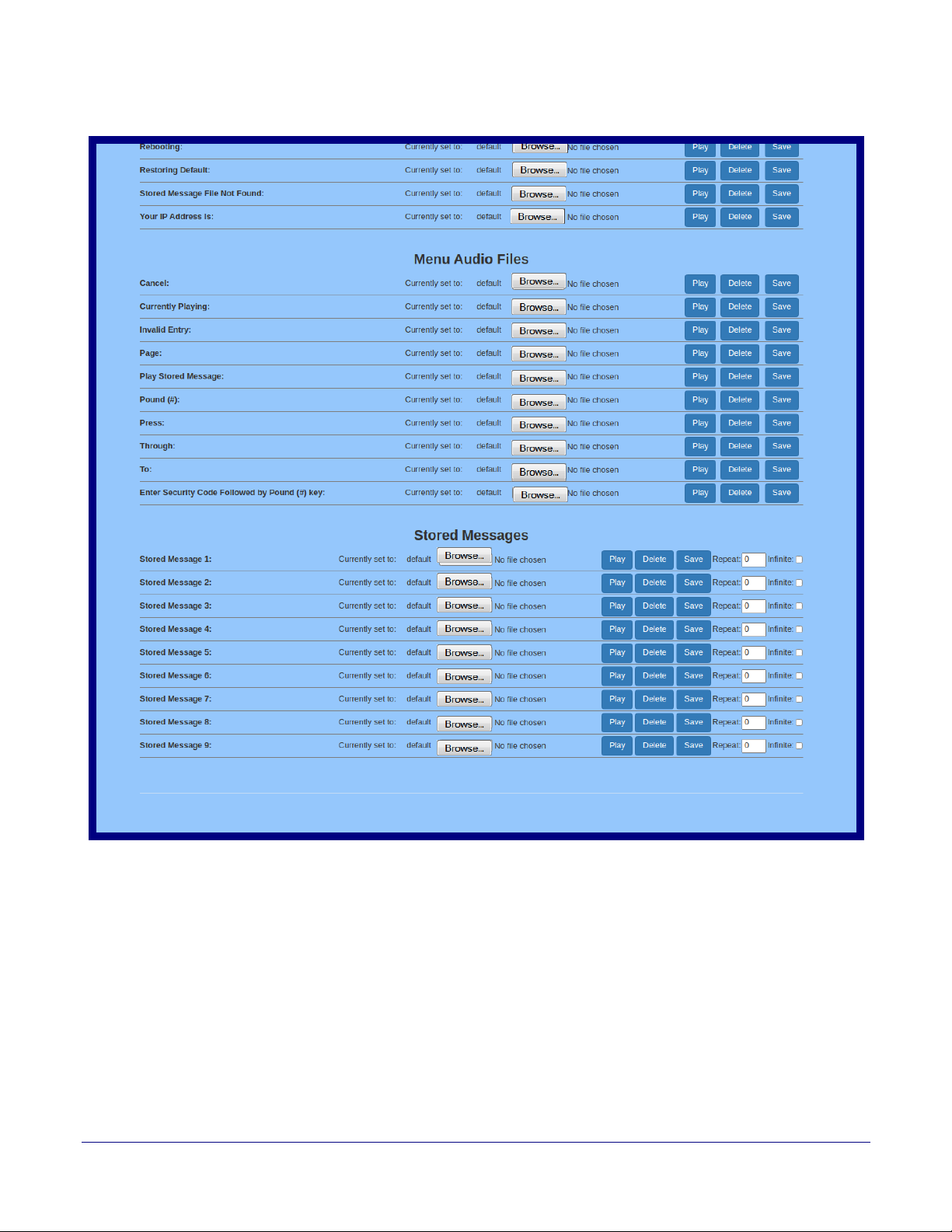

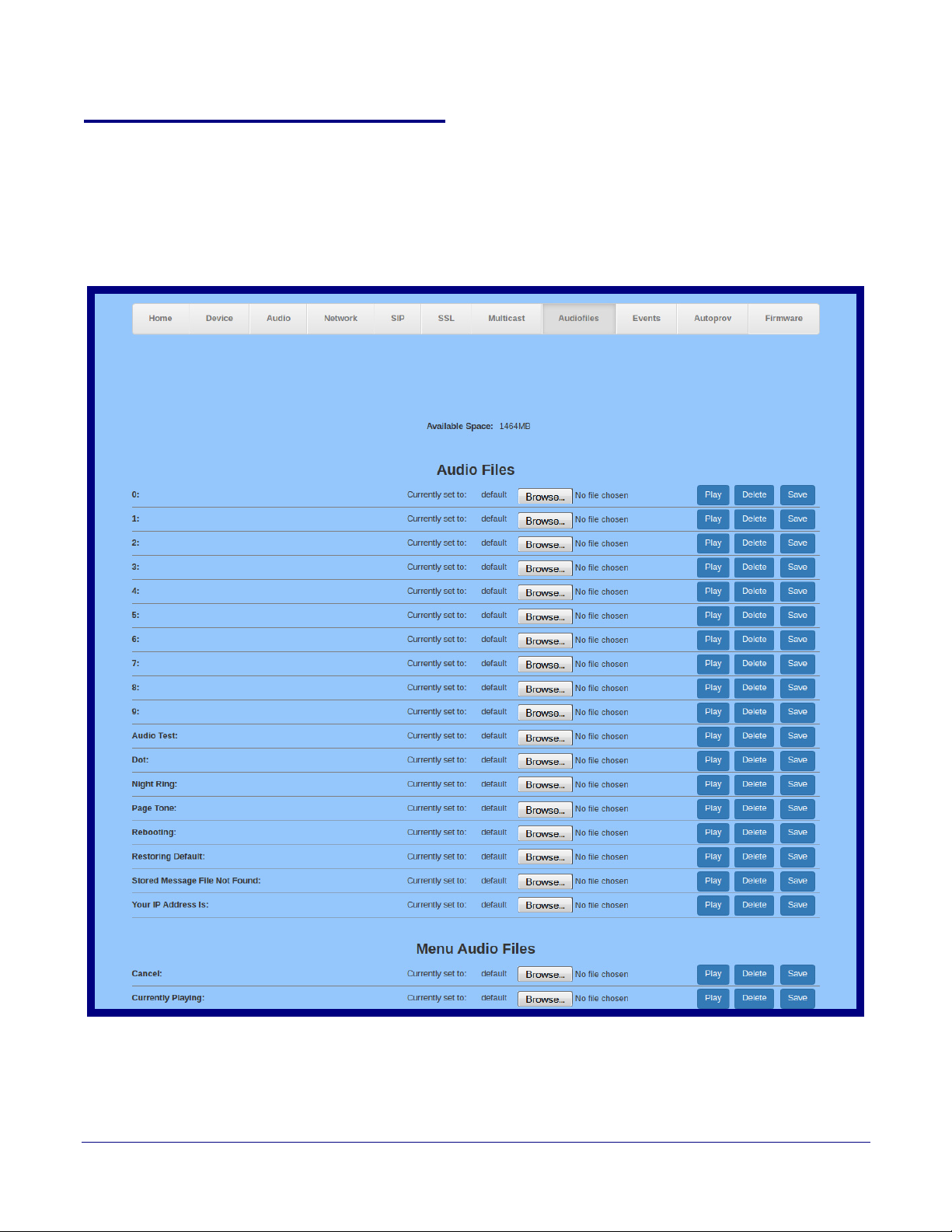

• Updates Figure 2-22, "Audiofiles Page"

• Updates Figure 2-23, "Audiofiles Page"

• Updates Ta bl e 2-13, "Audiofiles Page Parameters"

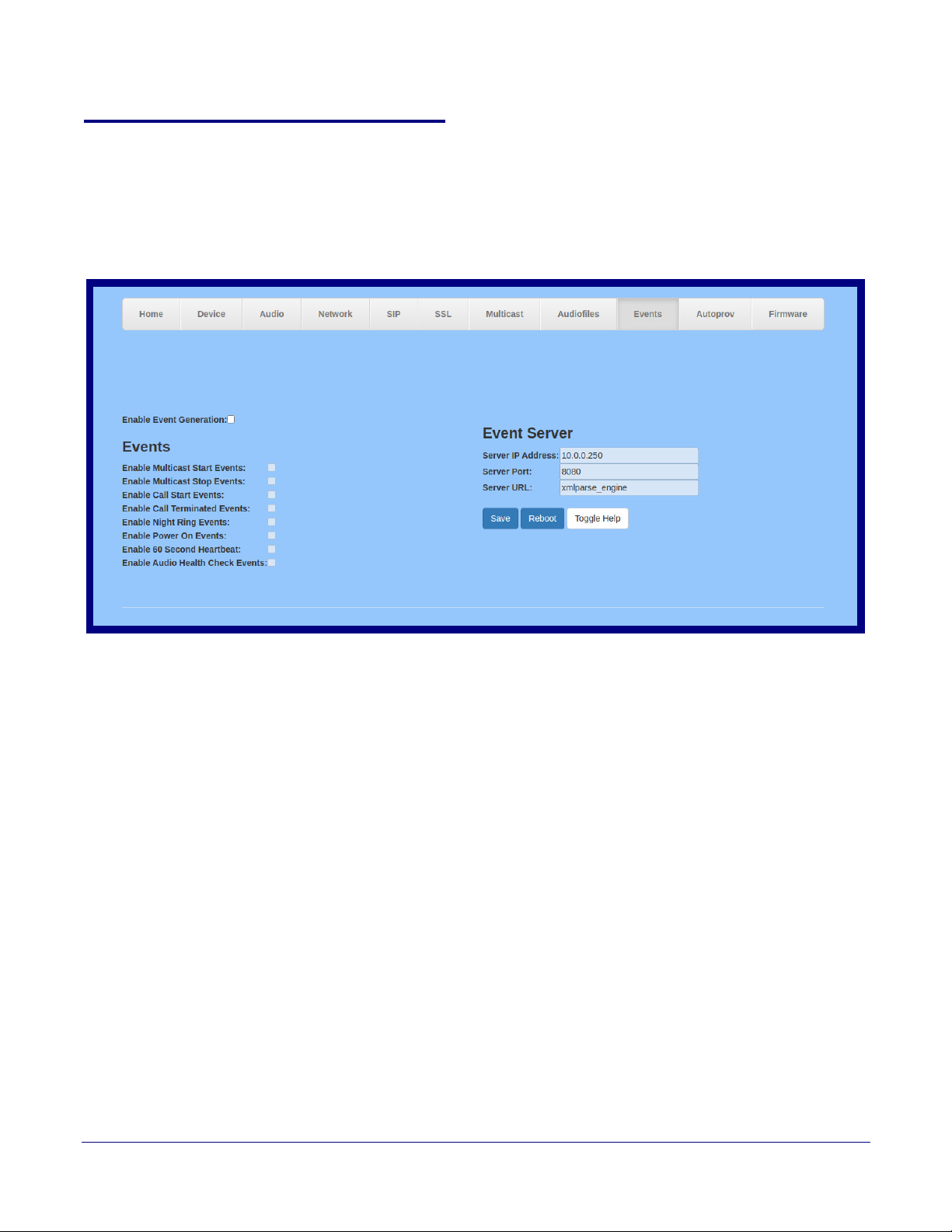

• Updates Figure 2-27, "Events Page"

• Updates Ta bl e 2-14, "Events Page Parameters" to add the Enable Audio Health Check Events
setting

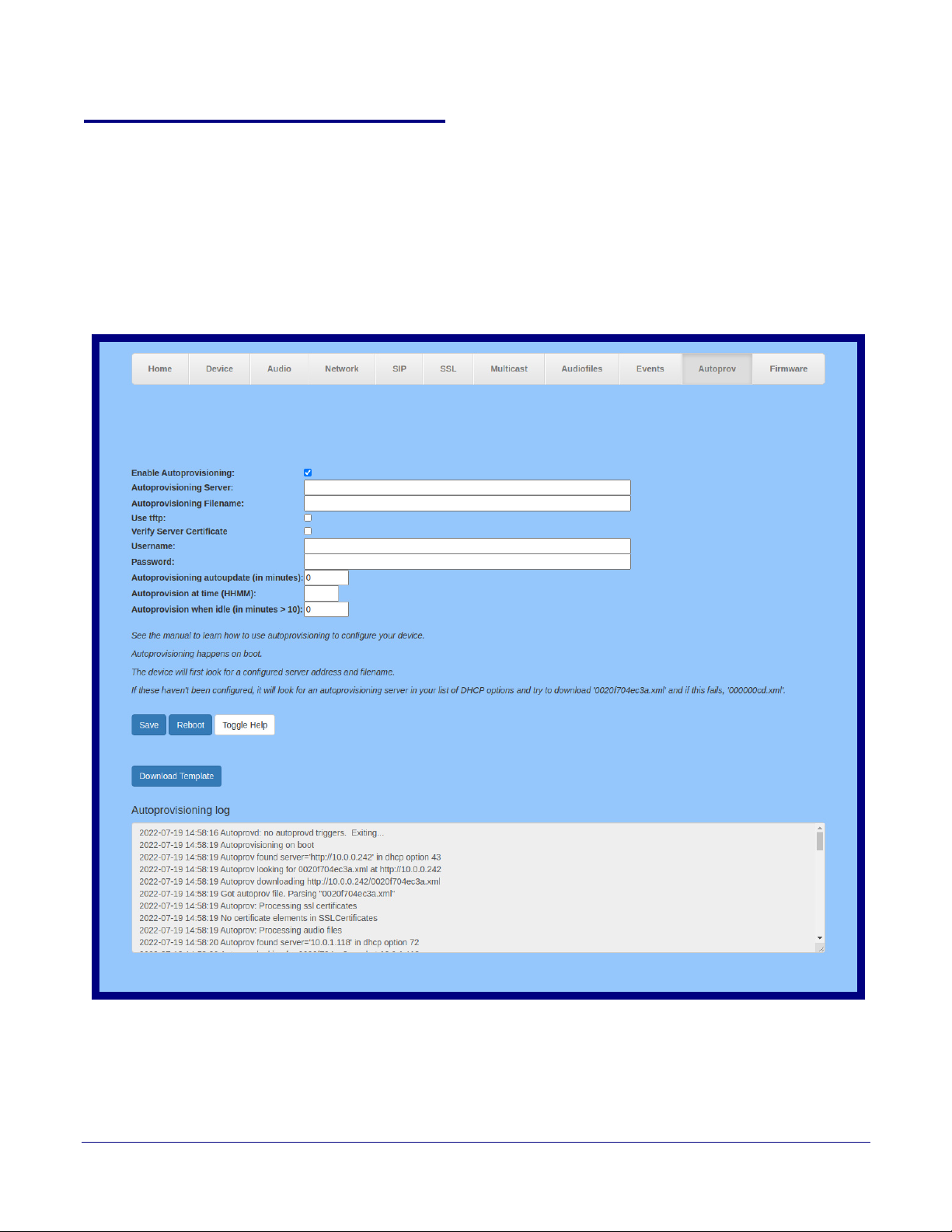

• Updates Figure 2-28, "Autoprovisioning Page"

• Updates Ta bl e 2-15, "Autoprovisioning Page Parameters"

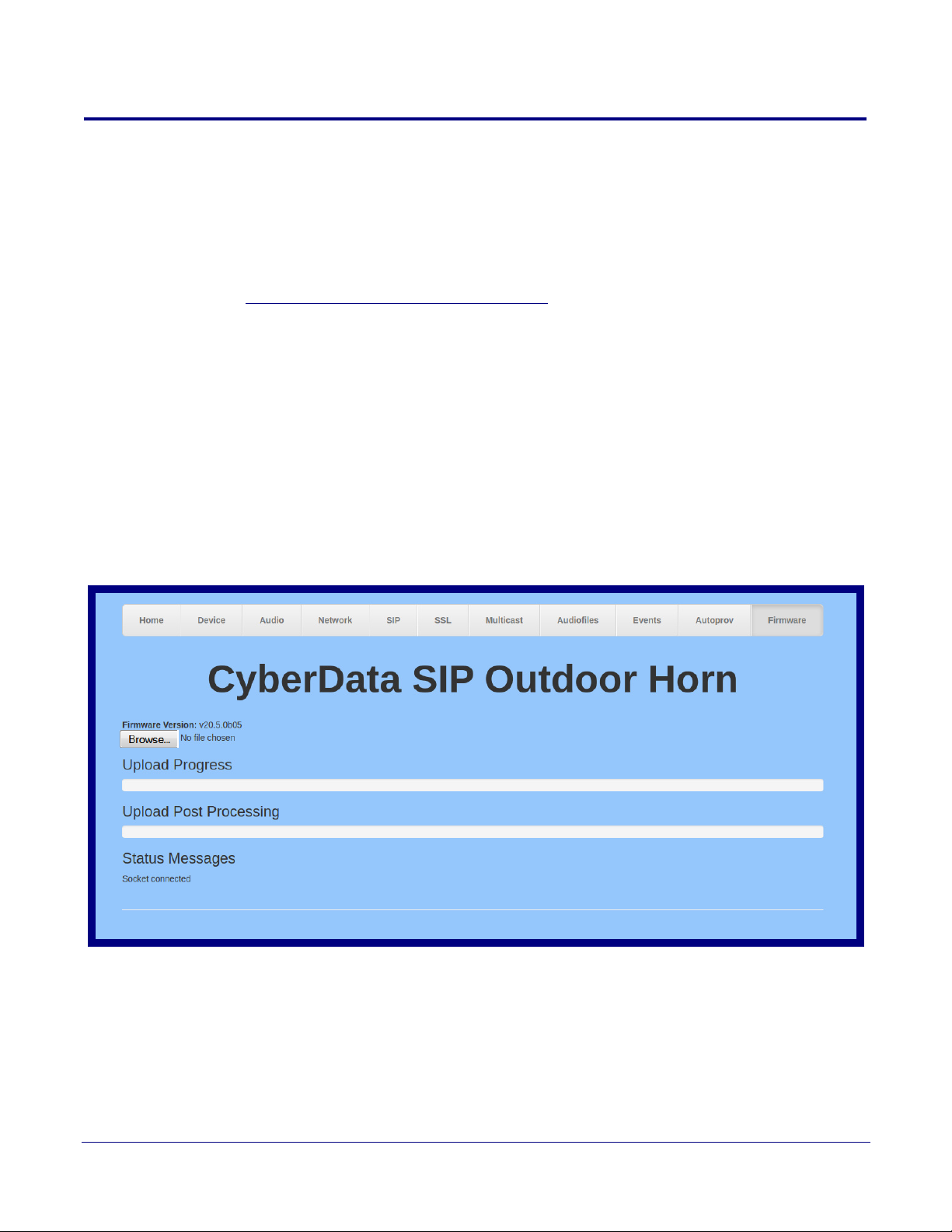

• Updates Figure 2-30, "Firmware Page"

• Updates Ta bl e 2-17, "Firmware Page Parameters"

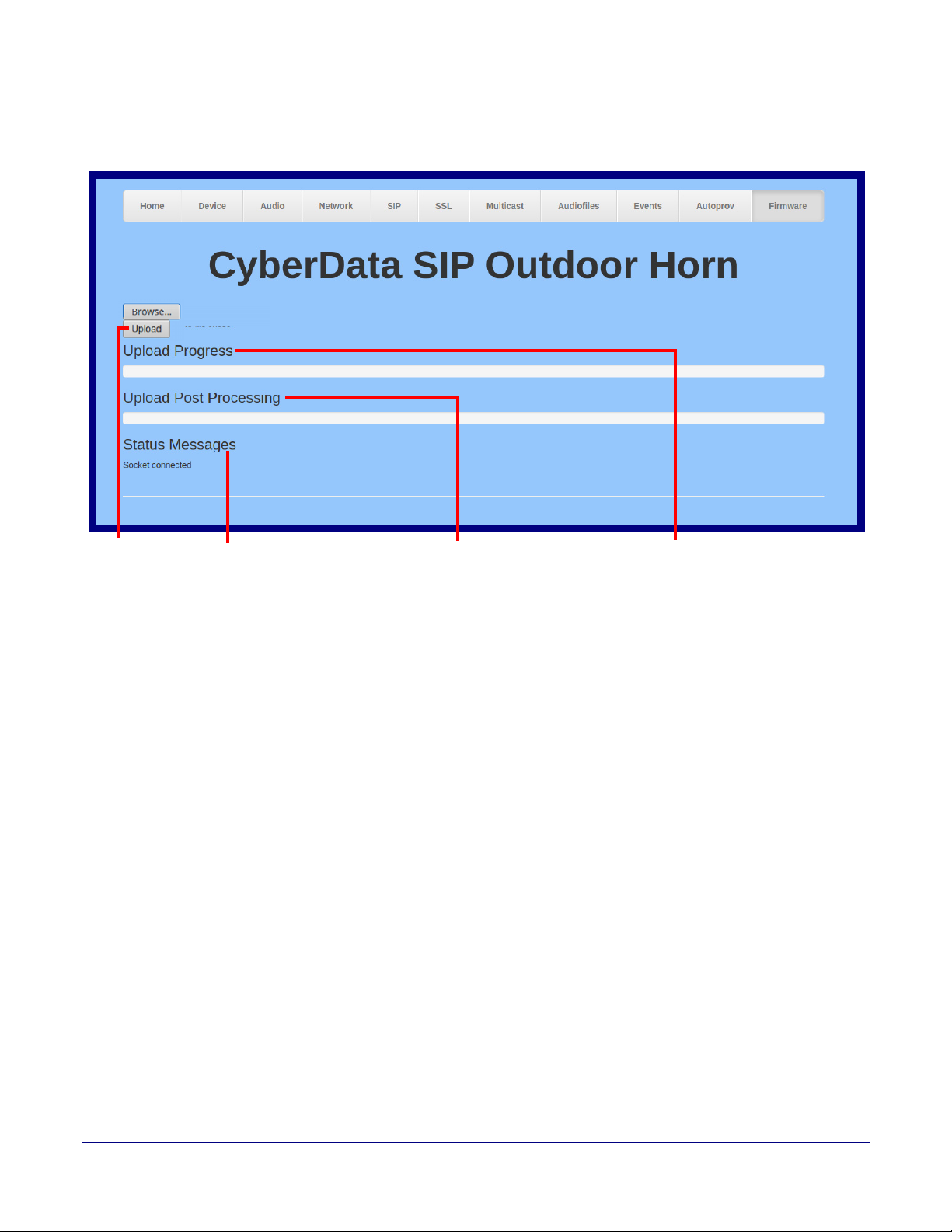

• Updates Figure 2-31, "Upload Button"

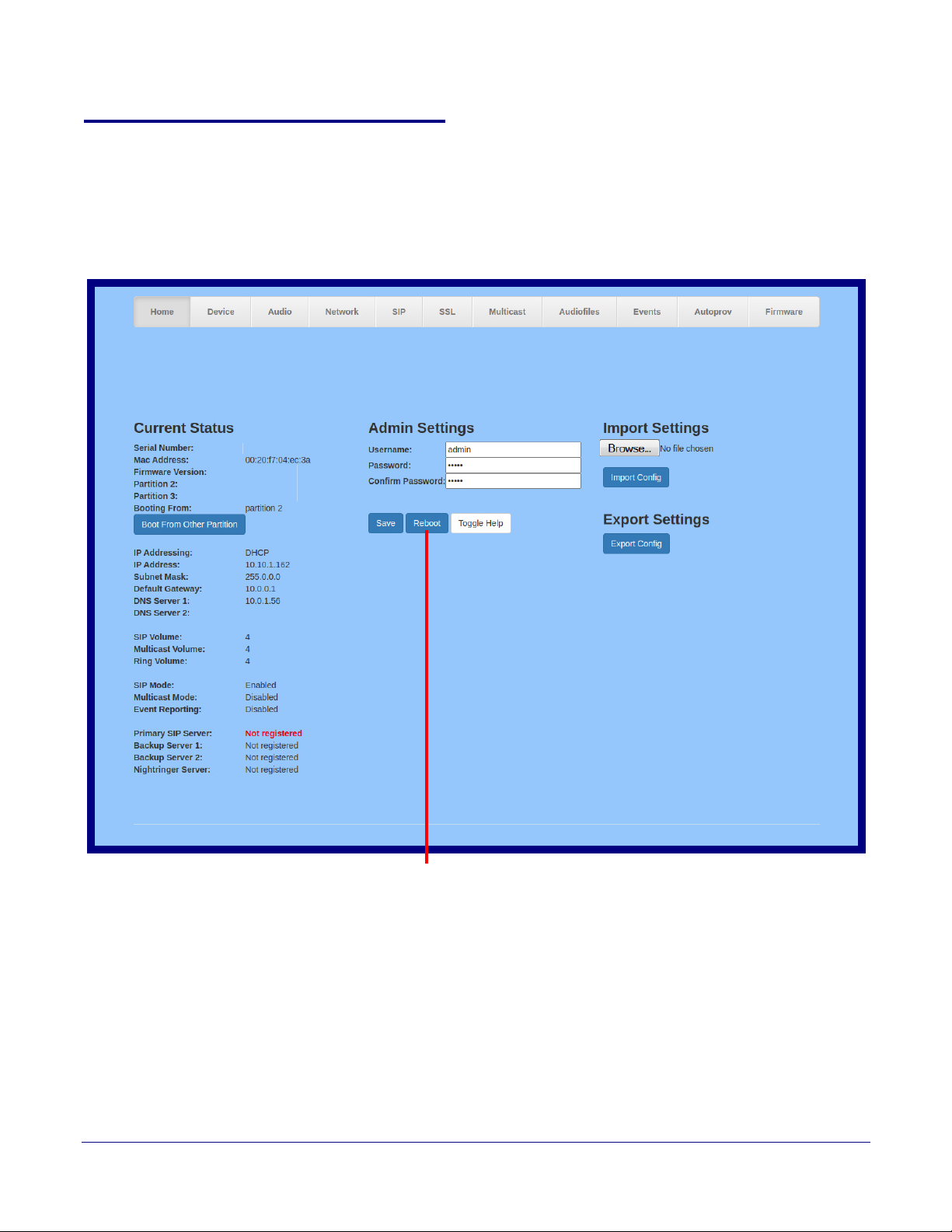

• Updates Figure 2-32, "Home Page"

Operations Guide 931960A CyberData Corporation

Important Safety Instructions

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(includin

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
tw
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles

g amplifiers) that produce heat.

o blades with one wider than the other. A grounding type plug has two blades and a third

, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

een damaged in any way, such as power-supply cord or plug is damaged, liquid has been

b
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

13. Prior to installation, consult local building and electrical code requirements.

Warning

Electrical Hazard: This product should be installed by a licensed electrician
according to all local electrical and building codes.

Warning

Electrical Hazard: To prevent injury, this apparatus must be securely attached to
the floor/wall in accordance with the installation instructions.

Warning

The PoE connector is intended for intra-building connections only and does not
route to the outside plant.

Operations Guide 931960A CyberData Corporation

Pictorial Alert Icons

GENERAL ALERT

Hazard Levels

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This is limited to the most extreme situations.

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
ser

ious injury.

General Alert

This pictoral alert indicates a potentially hazardous situation. This alert will be
followed by a hazar

d level heading and more specific information about the

hazard.

Ground

This pictoral alert indicates the Earth grounding connection point.

Caution: Indicates a potentially hazardous situation which, if not a
moderate injury. It may also alert users against unsafe practices.

Notice: Indicates a statement of company policy (tha

The safety guidelines for the equipment in this manual do not purport to address all the safety issues

he equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and

of t
health practices and determine the applicability of regulatory limitations prior to use. Potential safety
hazards are identified in this manual through the use of words Danger, Warning, and Caution, the
specific hazard type, and pictorial alert icons.

t is, a safety policy or protection of property).

voided, could result in minor or

Operations Guide 931960A CyberData Corporation

Abbreviations and Terms

Abbreviation or Term Definition

A-law A standard companding algorithm, used in European digital

communications systems to optimize, i.e., modify, the dynamic range of an
analog signal for digitizing.

AVP Audio Video Profile

Cat 5 TIA/EIA-568-B Ca

DHCP Dynamic Host Configuration Protocol

LAN Local Area Network

LED Light Emitting Diode

Mbps Megabits per Second.

NTP Network Time Protocol

PBX Private Branch Exchange

PoE Power over Ethernet (as per IEEE 802.3af standard)

RTFM Reset Test Function Management

SIP Session Initiated Protocol

SRTP Secure Real Time Protocol

u-law A companding algorithm, primarily used in the digital telecommunication

UC Unified Communications

VoIP Voice over Internet Protocol

tegory 5

Operations Guide 931960A CyberData Corporation

Contents

Chapter 1 Product Overview 1

1.1 How to Identify This Product .....................................................................................................1

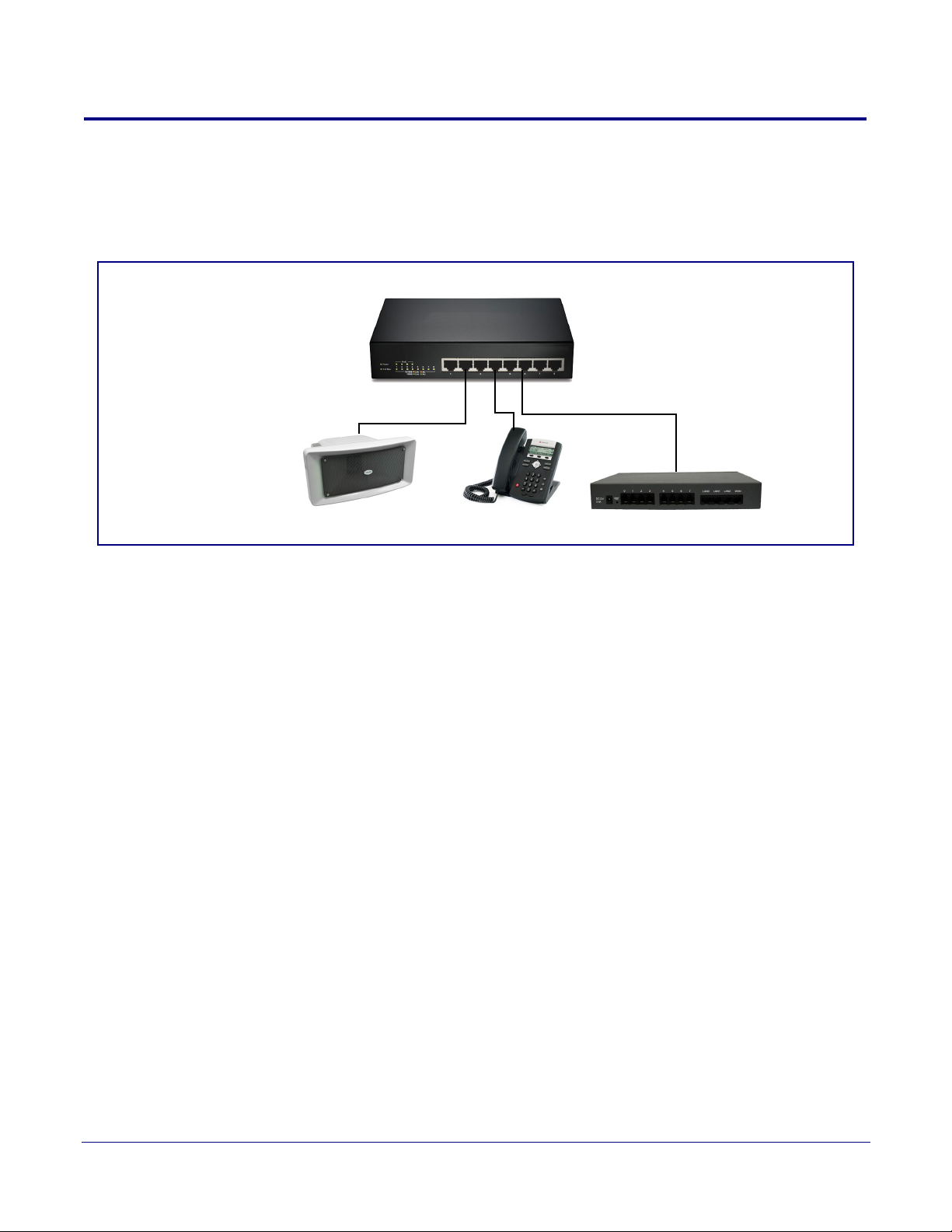

1.2 Typical System Installation .......................................................................................................2

1.3 Product Features ......................................................................................................................3

1.4 Supported Protocols .................................................................................................................4

1.5 Supported SIP Servers .............................................................................................................4

1.6 Specifications ...........................................................................................................................5

1.7 Typical Coverage ......................................................................................................................6

1.8 Intelligibility Outdoor Field Test .................................................................................................6

1.9 Compliance ..............................................................................................................................7

Chapter 2 Installing the SIP IP66 Indoor/Outdoor Horn 8

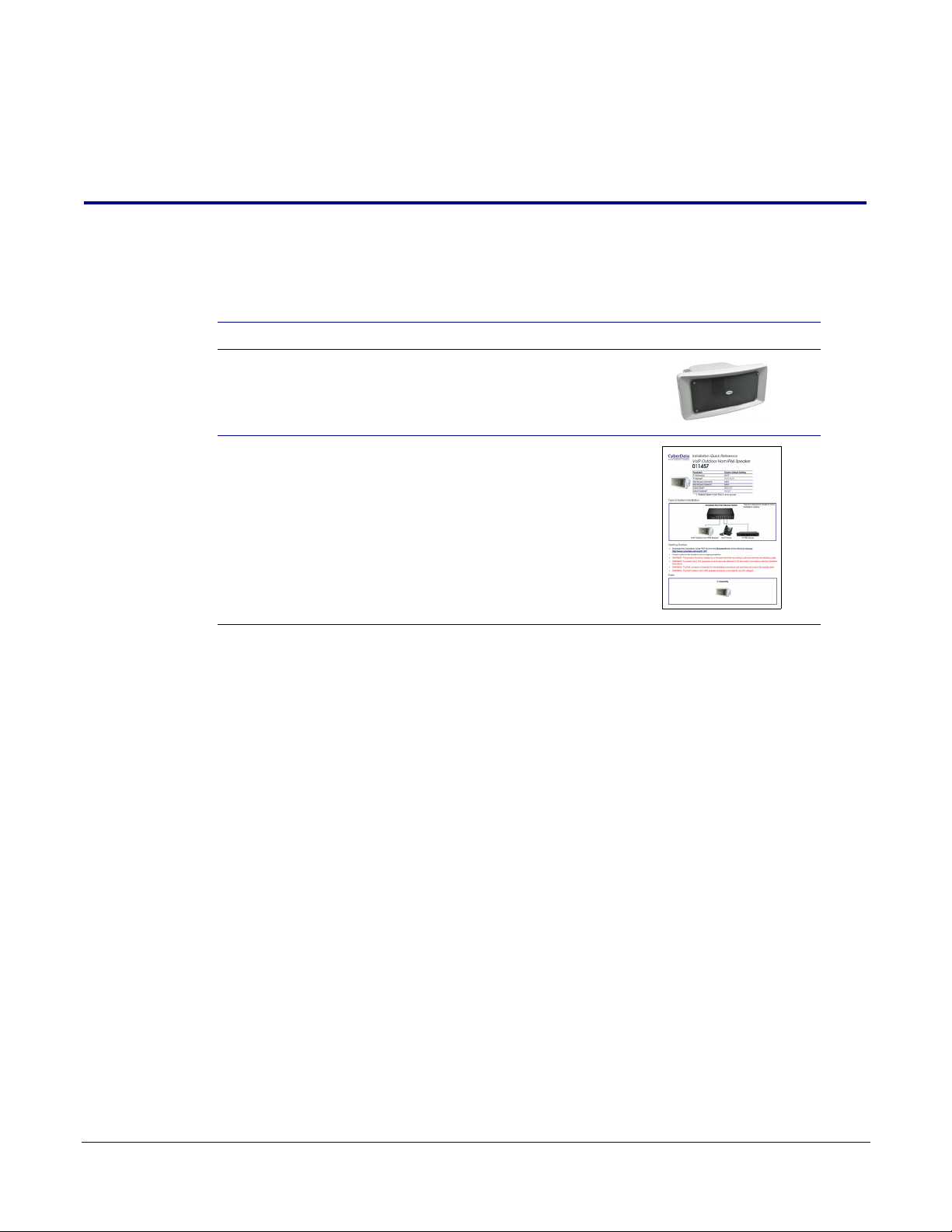

2.1 Parts List ..................................................................................................................................8

2.2 SIP IP66 Indoor/Outdoor Horn Setup .......................................................................................9

2.4 Upgrade the Firmware ............................................................................................................72

i

1.9.1 CE Statement .................................................................................................................7

1.9.2 FCC Statement ..............................................................................................................7

1.9.3 Industry Canada (IC) Compliance Statement ................................................................7

2.2.1 SIP IP66 Indoor/Outdoor Horn System Installation and Connection Options ..............10

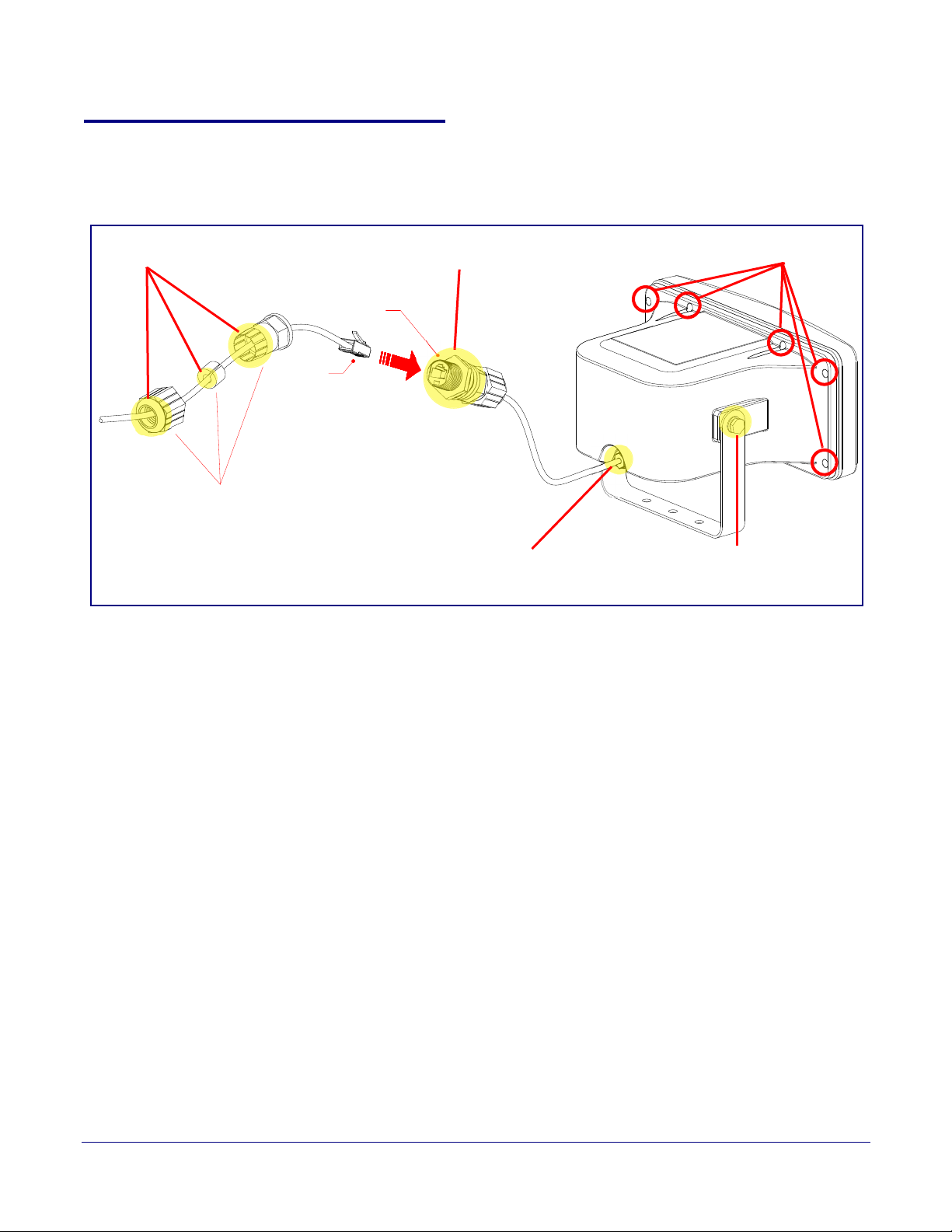

2.2.2 Install the Network Cable Through Weatherproof Cable Gland ...................................11

2.2.3 Power Test and Status LED ..........................................................................................12

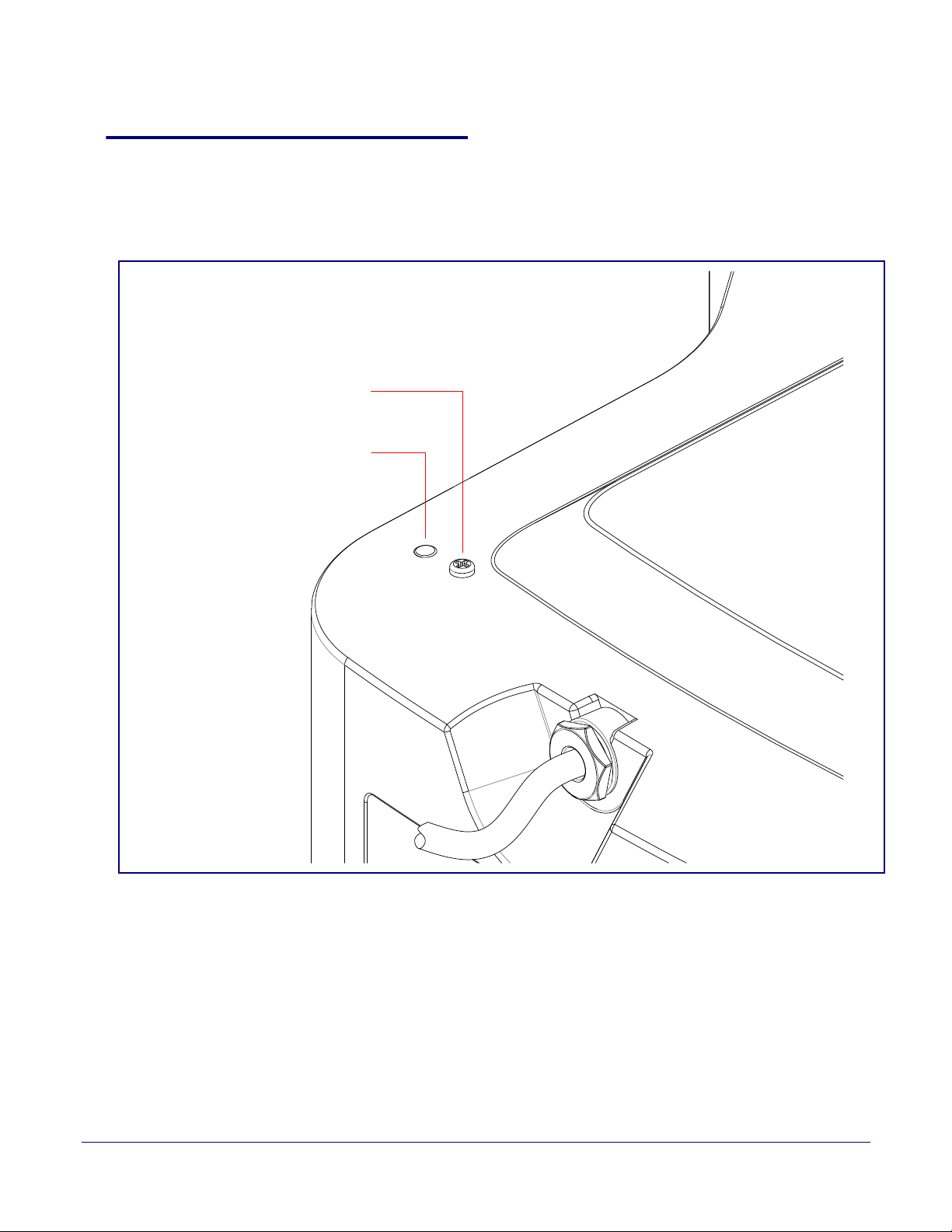

2.2.4 RTFM Switch ................................................................................................................13

2.3.1 Factory Default Settings ...............................................................................................16

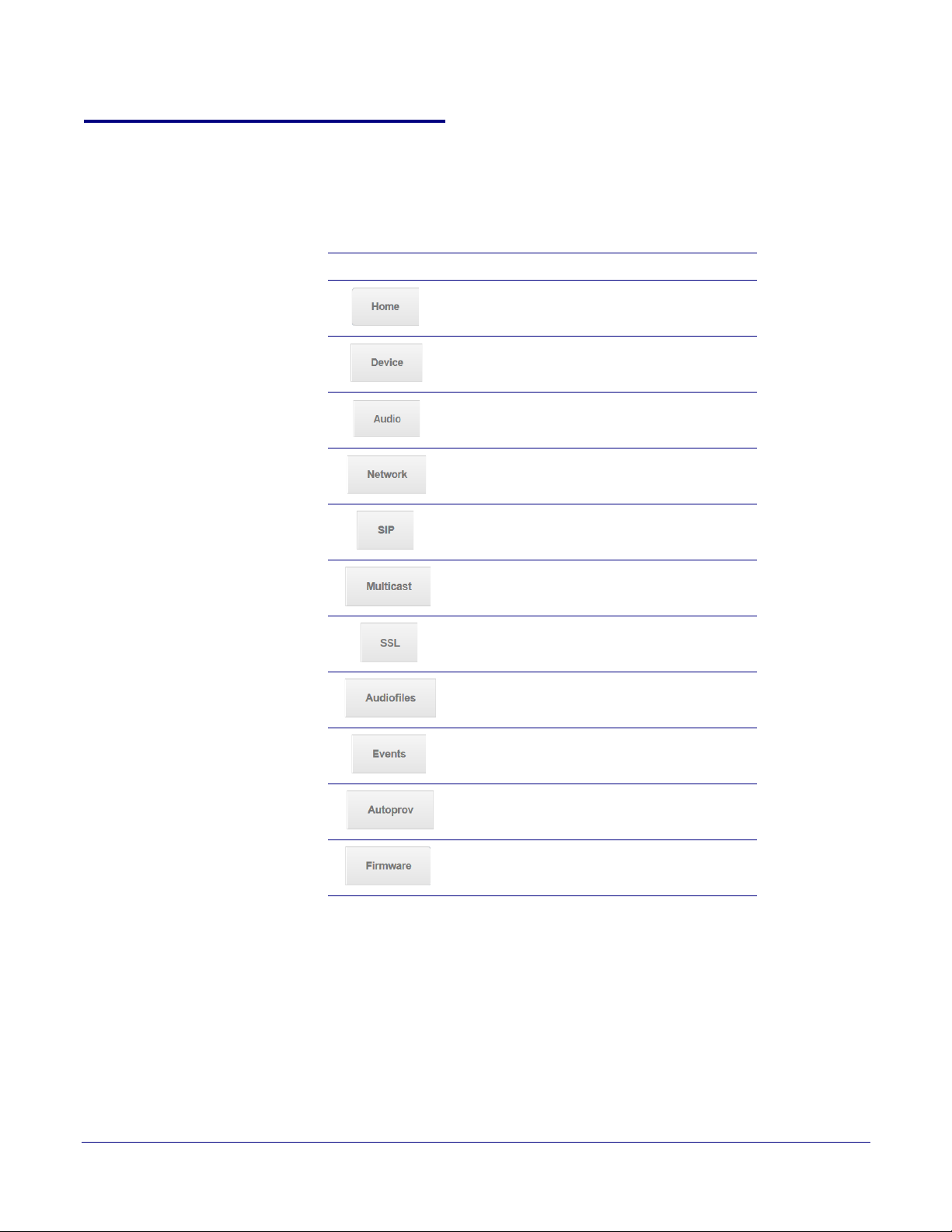

2.3.2 SIP IP66 Indoor/Outdoor Horn Web Page Navigation ..................................................17

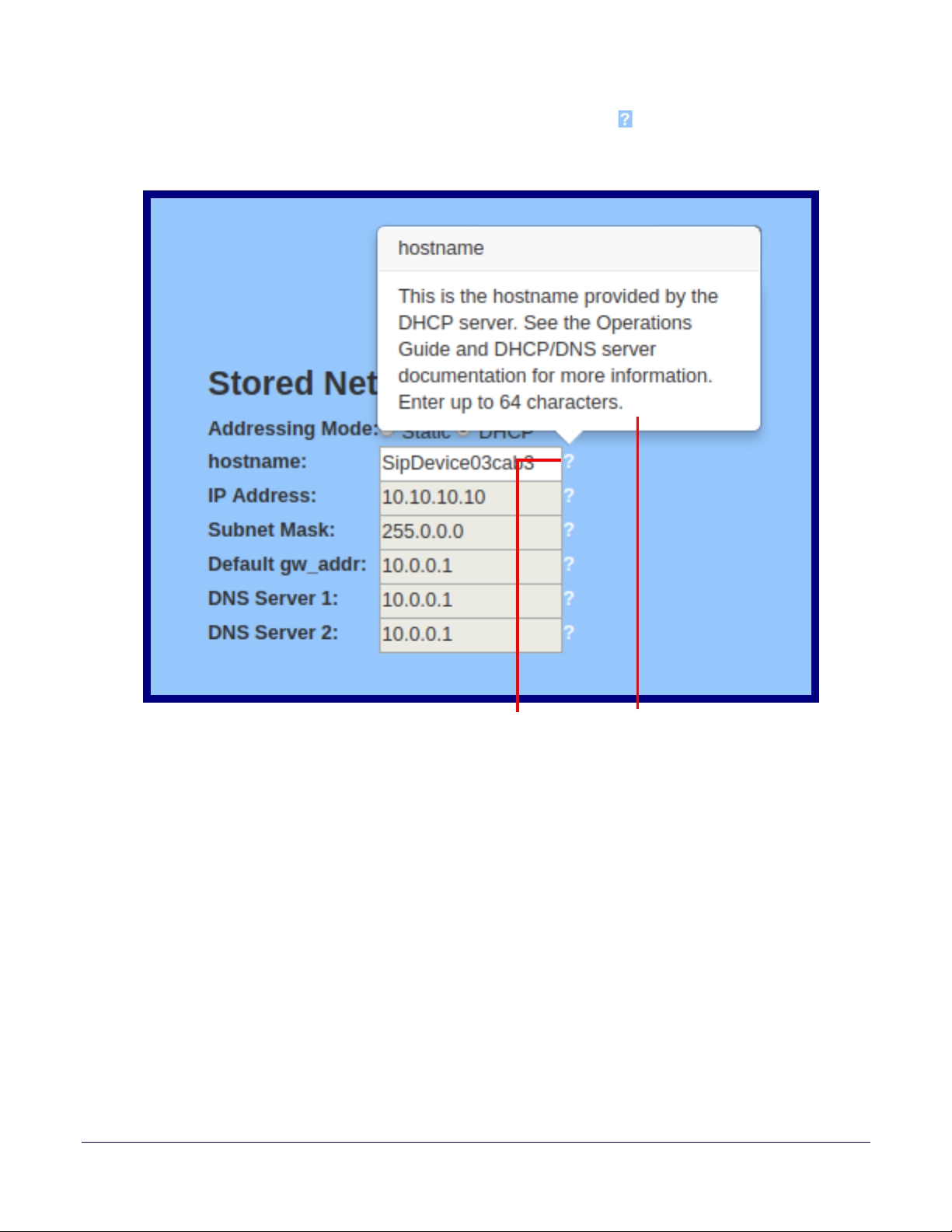

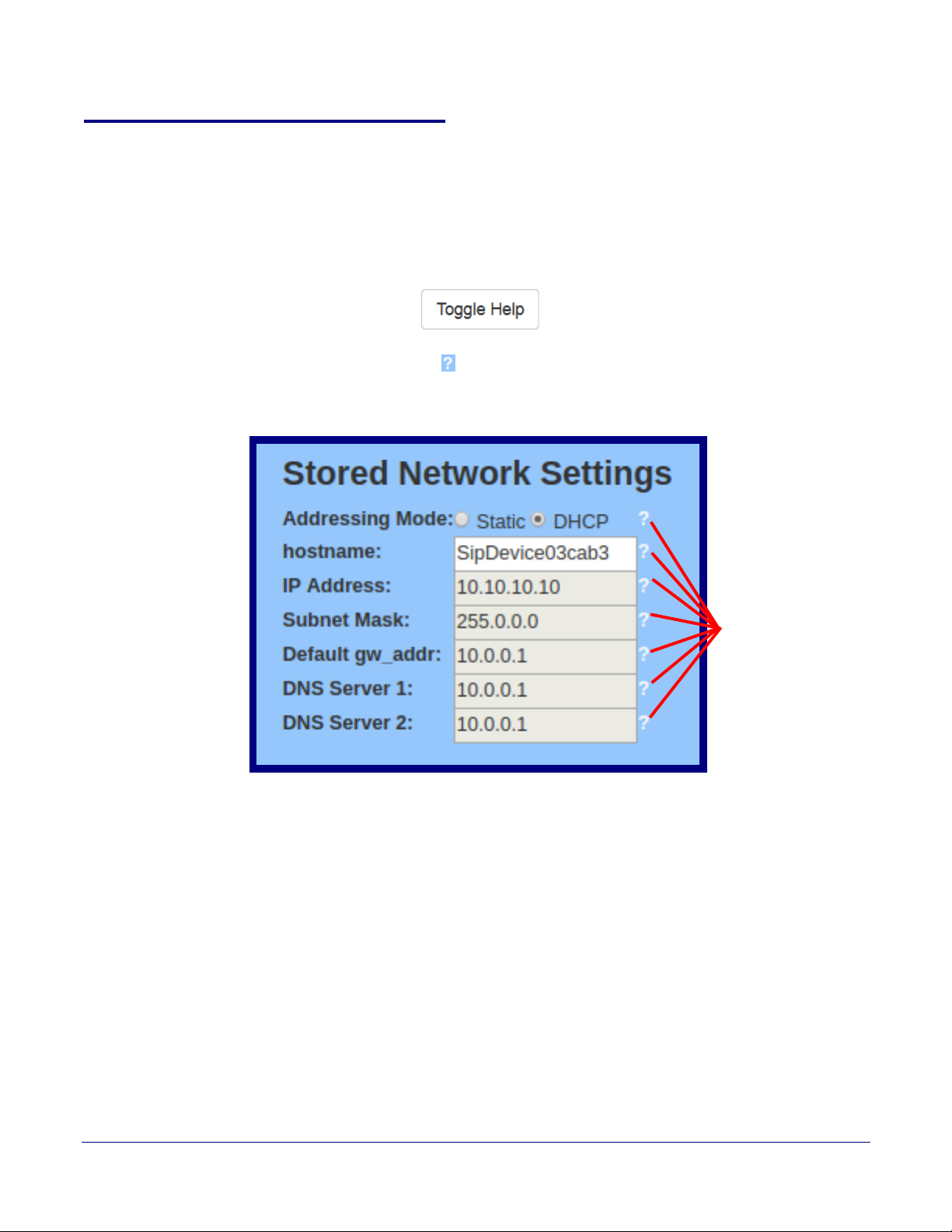

2.3.3 Using the Toggle Help Button .......................................................................................18

2.3.4 Log in to the Home Page ..............................................................................................20

2.3.5 Configure the Device ....................................................................................................24

2.3.6 Configure the Audio ......................................................................................................27

2.3.7 Configure the Network Parameters .............................................................................30

2.3.8 Configure the SIP (Session Initiation Protocol) Parameters .........................................33

2.3.9 Configure the SSL Parameters ....................................................................................39

2.3.10 Configure the Multicast Parameters ...........................................................................45

2.3.11 Configure the Audiofiles Page Parameters .................................................................49

2.3.12 Configure the Events Parameters ..............................................................................55

2.3.13 Configure the Autoprovisioning Parameters ...............................................................60

2.4.1 Reboot the Device ........................................................................................................75

2.5.1 Command Interface Post Commands ..........................................................................76

Appendix A Mounting the SIP IP66 Indoor/Outdoor Horn 77

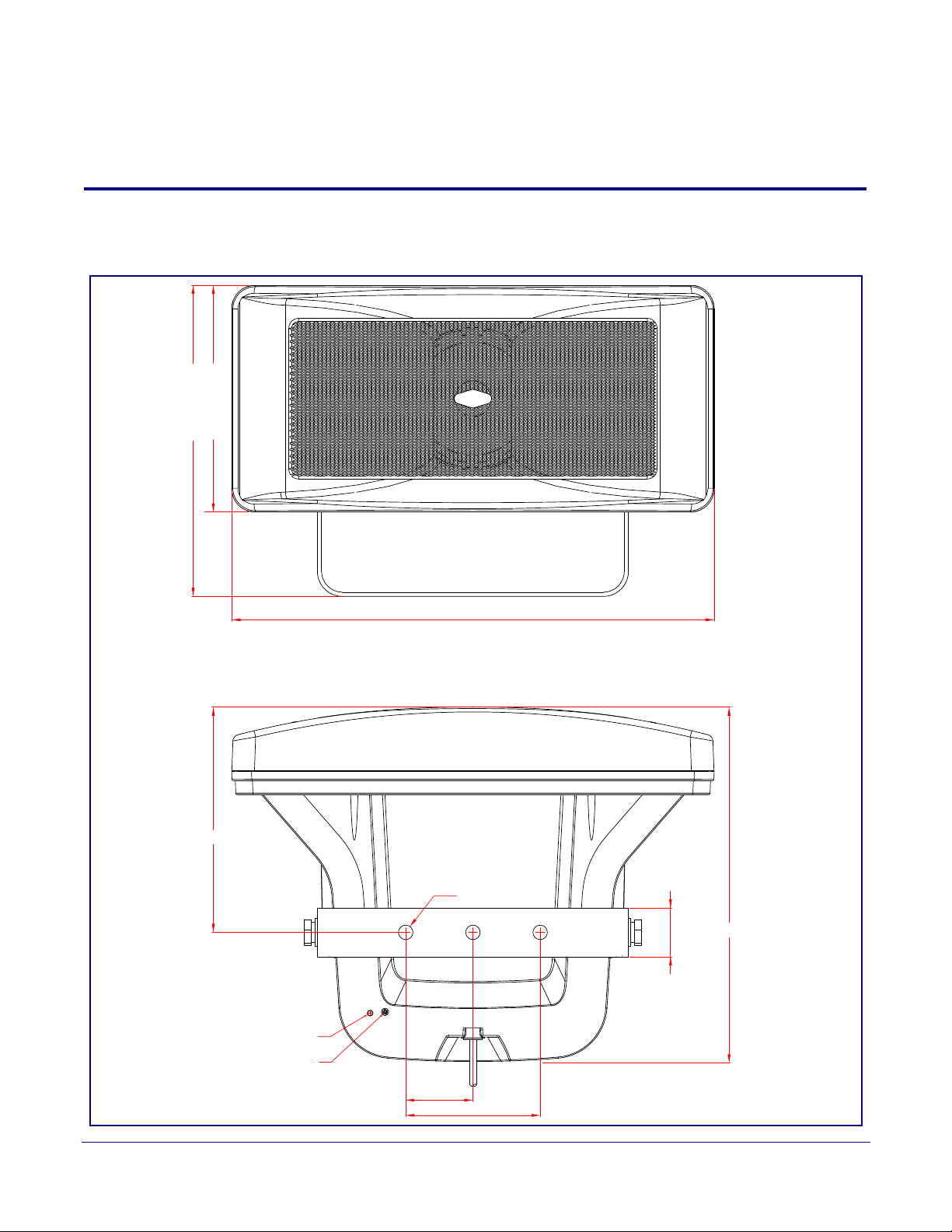

A.1 Dimensions ............................................................................................................................77

Appendix B Troubleshooting/Technical Support 78

B.1 Frequently Asked Questions (FAQ) ........................................................................................78

B.2 Documentation .......................................................................................................................78

B.3 Contact Information ................................................................................................................79

B.4 Warranty and RMA Information ..............................................................................................79

Index 80

Operations Guide 931960A CyberData Corporation

1 Product Overview

SIP IP66 Indoor/Outdoor Horn

011457* / 021547*

www.cyberdata.net

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must 
accept any interference received, including interference that may cause undesired operation.

CAN ICES-3 (A)/NMB-3(A)

V

00:20:F7:03:83:CA

457200001

Serial number begins with 457

20.5.1

Model number

457200001

Part Number:

Serial No:

MAC:

1.1 How to Identify This Product

To identify the SIP IP66 Indoor/Outdoor Horn (PoE), look for a model number label similar to the one
shown in

• The model number on the label should be 011457.

Figure 1-1. Confirm the following:

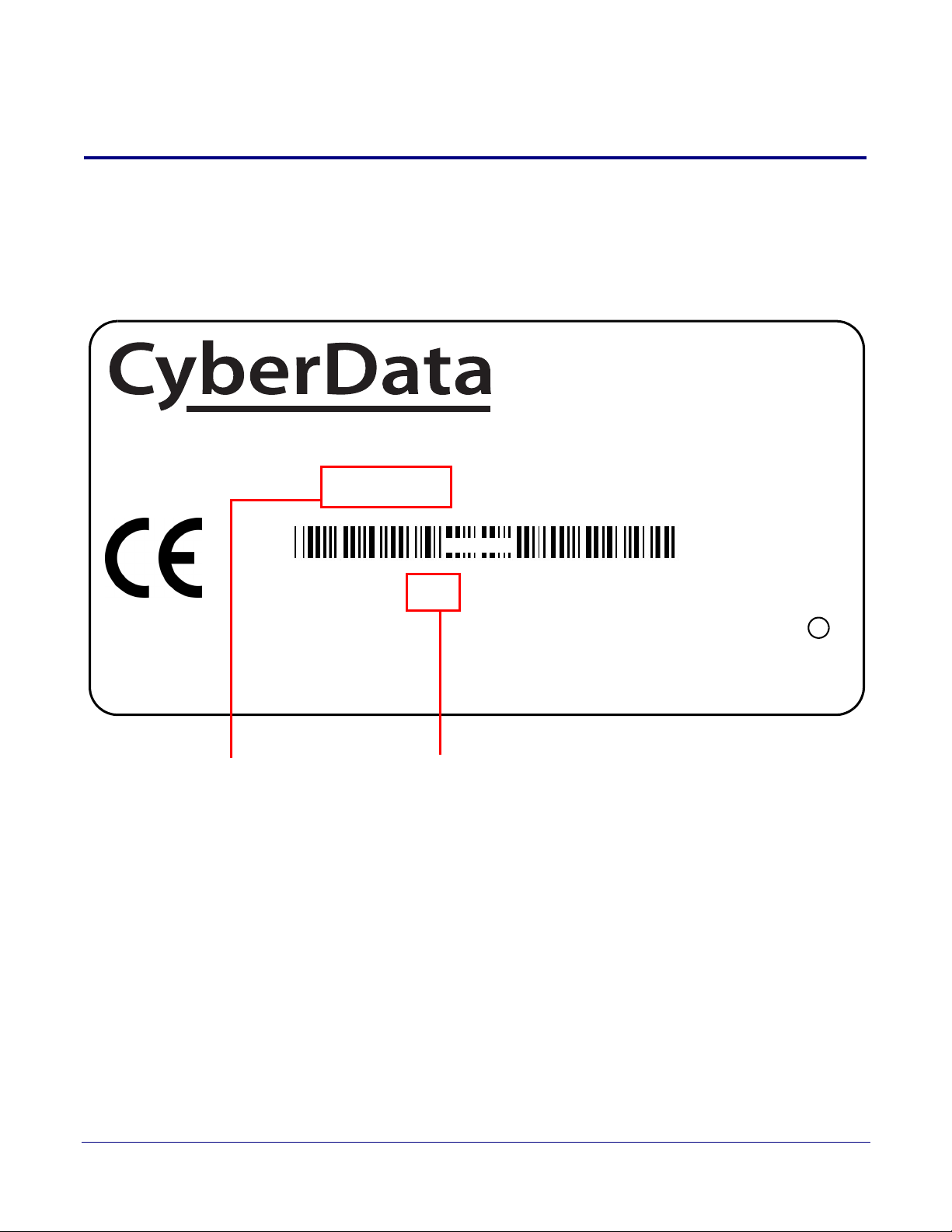

Figure 1-1. Model Number Label

1

Operations Guide 931960A CyberData Corporation

1.2 Typical System Installation

Compliant Non-PoE Ethernet Switch

VoIP Phone IP-PBX ServerSIP IP66 Outdoor Horn

Figure 1-2 illustrates how the SIP IP66 Indoor/Outdoor Horn is normally installed as part of a public

address system.

Figure 1-2. Typical Installation

Product Overview

2

Operations Guide 931960A CyberData Corporation

1.3 Product Features

• Concurrent SIP and multicast

• Paging prioritization

• Support for 10 multicast paging groups

• Supports user-uploadable ring tones and up to ten stored messages

• Ambient Noise Compensation adjusts the volume, at the start of a stream, to adjust to noise in
the environment

• Support for security code to prevent unwanted SIP calls

• Can receive pages directly from Poly phones as well as other devices that can send standard
multicast

• Loud/Night Ringer function - second SIP extension

• Supports delayed pages with call buffering

• Audio health check, to verify operation of hardware, that can be scheduled or launched manually

• Digital volume control

• Sealed network cable gland

• Protective screen keeps out flying pests and reduces maintenance

Product Overview

3

• TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment

• Autoprovisioning via HTTP, HTTPS, or TFTP

• HTTPS or HTTP web-based configuration. HTTPS is enabled by default

• 802.11q VLAN tagging

• Configurable event generation for device health and status monitoring

• Support for Cisco SRST resiliency

• HTTP Command Interface

Operations Guide 931960A CyberData Corporation

1.4 Supported Protocols

The SIP IP66 Indoor/Outdoor Horn supports:

•SIP

• Multicast

• HTTP and HTTPS web-based configuration

Provides an intuitive user interface for easy system configuration and verification of SIP IP66
Indoor/Outdoor Horn operations.

• DHCP Client

Dynamically assigns IP addresses in addition to the option to use static addressing.

• TFTP Client

Facilitates hosting for the configuration file for Autoprovisioning.

•RTP

•SRTP

• TLS 1.2

• SPEEX

• Audio Encodings

PCMU (G.711 mu-law)

PCMA (G.711 A-law)

G.722

G.729

Packet Time 20 ms

Product Overview

4

1.5 Supported SIP Servers

The following link contains information on how to configure the SIP IP66 Indoor/Outdoor Horn for the
supported SIP servers:

https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers

Operations Guide 931960A CyberData Corporation

1.6 Specifications

Specifications

Ethernet I/F 10/100 Mbps

Protocol SIP RFC 3261 Compatible

Power Input PoE 802.3at or 802.3af

Audio Output 802.3at: 107.7 (+/- 0.2) dBC @1M and 1kHz

Payload Types G.711 a-law, G.711 u-law, G.722, and G.729

Network Security TLS 1.2, SRTP, HTTPS

IP Rating IP66

Operating Range Temperature: -40

Storage Temperature

Storage Altitude

Dimensions

a

Table 1-1. Specifications

802.3af: 104.8 (+/- 0.2) dBC @1M and 1kHz

o

C to 55o C (-40o F to 131o F)

Humidity: 5-95%, non-condensing

o

C to 70o C (-40o F to 158o F)

-40

Up to 15,000 ft. (4573 m)

Length: 14.404 in. [366 mm]

Width: 10.630 in. [270 mm]

Height: 6.772 in. [172 mm] (without stand)

Height: 9.291 in. [236 mm] (with stand)

Product Overview

5

Weight

Boxed Weight

Compliance CE: EMC Directive – Class A EN 55032 & EN 55024, LV

Warranty 2 Years Limited

Part Number 011457

6.6 lbs. [3.00 kg]

8.8 lbs. [3.99 kg]

Safety Directive – EN 62368-1; RoHS Compliant; FCC Part
15 Class A; Industry Canada ICES-3 Class A; IEEE 802.3
Compliant; TAA Compliant

a. Dimensions are measured from the perspective of the product being upright with the front of the
product facing you.

Operations Guide 931960A CyberData Corporation

1.7 Typical Coverage

The horn is designed for use with PoE 802.3at power. When the device is allocated this power, it can
cover up to 7,500 square feet depending on ambient noise levels.

1.8 Intelligibility Outdoor Field Test

Figure 1-3. Intelligibility Outdoor Field Test

Product Overview

6

Operations Guide 931960A CyberData Corporation

1.9 Compliance





1.9.1 CE Statement

As of the date of manufacture, the Paging Series has been tested and found to comply with the
specifications for CE marking and standards per EMC and Radio communications Compliance. This
applies to the following products: 011145, 011146, 011233, 011280, 011295, 011314, 011368, and

011372.

EMC Directive - Class A Emissions, Immunity, and LV Safety Directive, RoHS Compliant.
Flammability rating on all components is 94V-0.

1.9.2 FCC Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.

Product Overview

CE Statement

7

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for
compliance could void the user's authority to operate the equipment.

1.9.3 Industry Canada (IC) Compliance Statement

Operation is subject to the following two conditions:

1.This device may not cause interference, and

2.This device must accept any interference, including interference that may cause undesired
operations of the device.

ICES-3 Class A

Operations Guide 931960A CyberData Corporation

2 Installing the SIP IP66 Indoor/Outdoor Horn

2.1 Parts List

Ta bl e 2-1 illustrates the parts for each SIP IP66 Indoor/Outdoor Horn and includes a kit for mounting.

Table 2-1. Parts List

Quantity Part Name Illustration

1 SIP IP66 Indoor/Outdoor Horn Assembly

1 Installation Quick Reference Guide

2

Operations Guide 931960A CyberData Corporation

2.2 SIP IP66 Indoor/Outdoor Horn Setup

Set up and configure each SIP IP66 Indoor/Outdoor Horn before you mount it.

Installing the SIP IP66 Indoor/Outdoor Horn

3

CyberData delivers each SIP IP66 Indoor/Outdoor Horn with the f

Table 2-2

.

Table 2-2. Factory Default Settings

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

a

a

a

192.168.1.23

255.255.255.0

192.168.1.1

a. Default if there is not a DHCP server present.

actory default values indicated in

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Black Wire to Circuit 14

CLASS II WIRING

P

in #1

TB1

Red Wire to Circuit 13

SIP IP66 Indoor/Outdoor Horn System Installation and Connection Options

2.2.1 SIP IP66 Indoor/Outdoor Horn System Installation and Connection Options

The following figures show the connection options for the SIP IP66 Indoor/Outdoor Horn.

Figure 2-1. SIP IP66 Indoor/Outdoor Horn Connections

4

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Network Cable Gland

Weatherproof

Socket

RJ45

Plug

RJ45

Critical areas for the installation to preserve the IP66 rating of the speaker.
Gasket must be preserved and all threaded components must be tightened.

Critical areas for the installation to preserve the IP66 rating of the speaker.
Gasket must be preserved and all threaded components must be tightened.

The rubber gasket must be 
oriented and installed correctly
if these bolts are removed.

These parts also have sealing
washers that must be tight.

Install the Network Cable Through Weatherproof Cable Gland

2.2.2 Install the Network Cable Through Weatherproof Cable Gland

Install the network cable through weatherproof cable gland as shown in Figure 2-2.

Figure 2-2. Install the Network Cable Through Weatherproof Cable Gland

5

Operations Guide 931960A CyberData Corporation

2.2.3 Power Test and Status LED

Status LED

RTFM

Status LED

1. Plug in the CyberData device and monitor the Status LED activity on the bottom side of the horn
during the initialization process. See

Figure 2-3.

Figure 2-3. Status LED

Installing the SIP IP66 Indoor/Outdoor Horn

Power Test and Status LED

6

Operations Guide 931960A CyberData Corporation

2. After about 20 seconds, the GREEN Status LED will blink fast to indicate that the device is
acquiring an IP address and attempting to autoprovision. It will turn off thereafter until the device
has finished booting. When the device has fully booted, the GREEN Status LED will turn on
solid.

If there is no DHCP server available on the network, it will try 12 times for 60 seconds and
eventually fall back to the programmed static IP address (by default 192.168.1.23) or the
previously used DHCP address if a prior lease was established. This process will take
approximately 80 seconds.

3. When the device has completed the initialization process, pressing and holding the RTFM
switch for a couple of seconds will announce the IP address. See

This concludes the power test.

Section 2.2.4, "RTFM Switch"

2.2.4 RTFM Switch

RTFM

Cover Screw

When the SIP IP66 Indoor/Outdoor Horn is operational and linked to the network, use the Reset Test
Function Management (RTFM) switch (
announce and confirm the device’s IP Address and test the audio to verify that it is working.

2.2.4.1 RTFM Access

The RTFM switch access will be on the bottom side of the horn hidden under a screw (Figure 2-4)
that will be used to keep the unit IP66 sealed with the gasket washer. Remove the screw to gain
access to the RTFM switch (

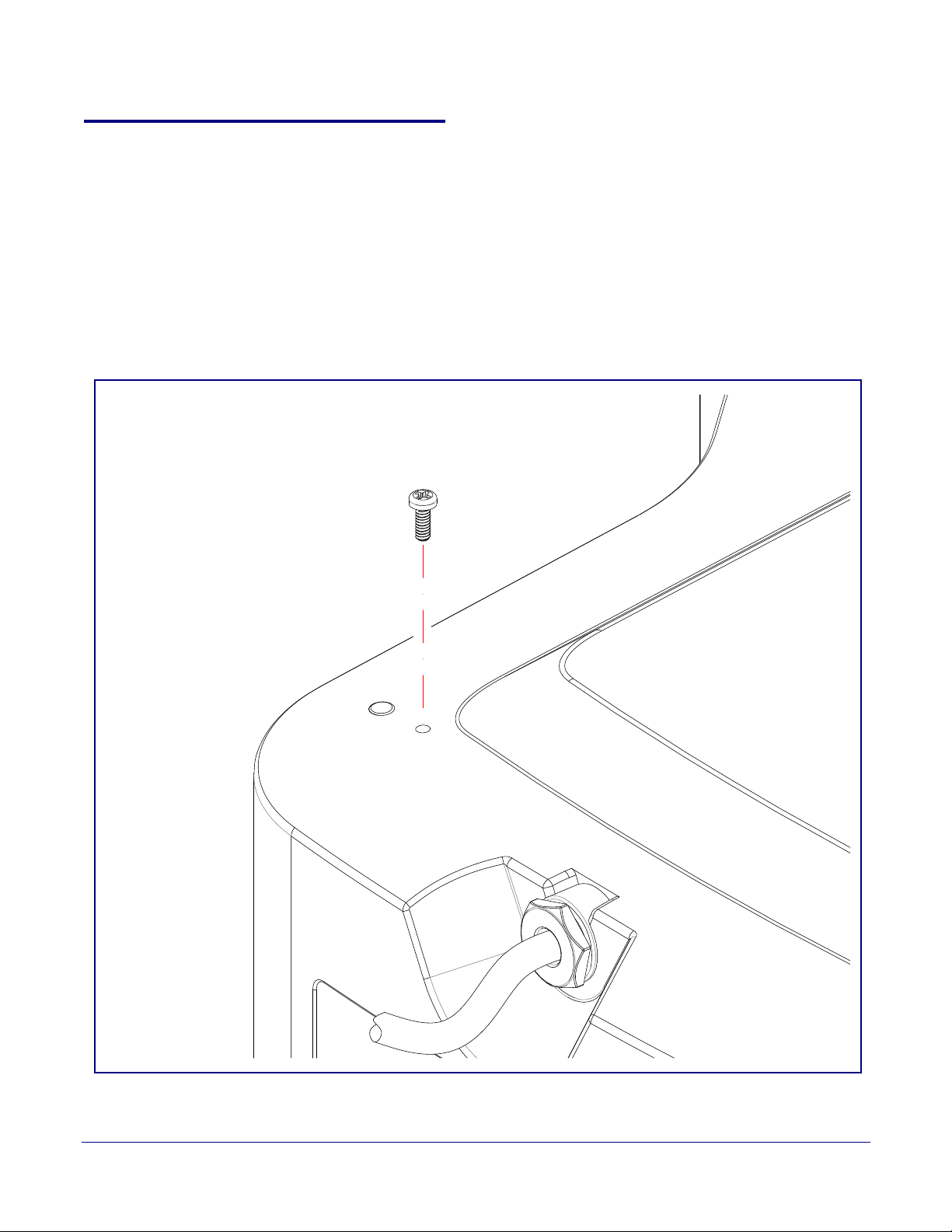

Figure 2-4. Remove the screw to gain access to the RTFM switch

Figure 2-5).

Installing the SIP IP66 Indoor/Outdoor Horn

RTFM Switch

Figure 2-5) (located behind the hole on the device) to

7

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

1.0" [25 mm]

Paper Clip

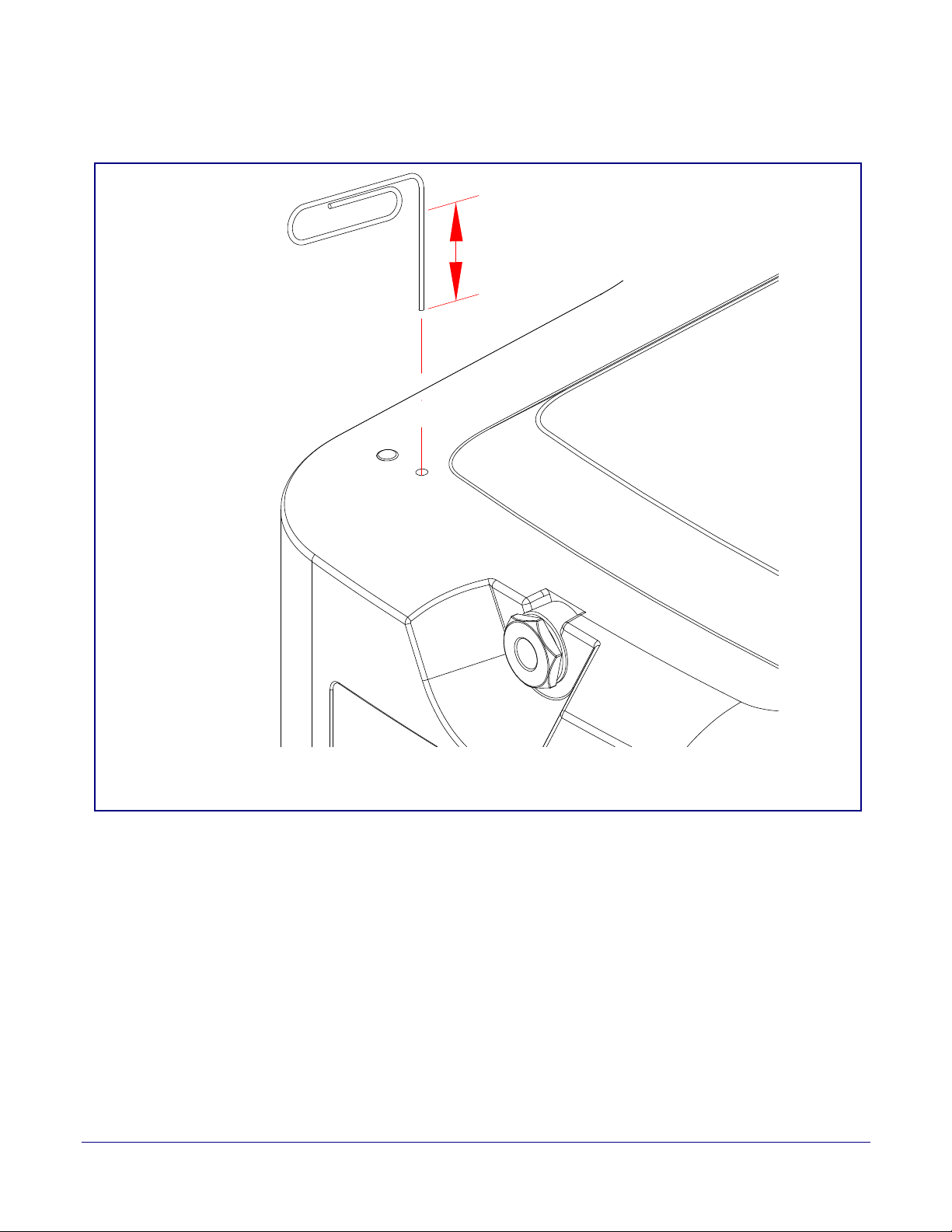

4. Use a paper clip to feed through the hole to press the RTFM switch. See Figure 2-5.

Figure 2-5. RTFM Switch

RTFM Switch

8

Dimensions are in Inch [Millimeters]

Operations Guide 931960A CyberData Corporation

2.2.4.2 Announcing the IP Address

GENERAL ALERT

To announce a device’s current IP address:

• Use a bent paperclip or a similar object to press and hold the RTFM switch for a couple of
seconds and

then release it.

Caution

Equipment Caution: Pressing and holding the RTFM switch for more than five
seconds will restore the device to the factory default settings. See the “Restoring

the Factory Default Settings” section.

2.2.4.3 Restoring the Factory Default Settings

To restore the factory default settings, complete the following steps:

1. Use a bent paperclip or a similar object to press and hold the RTFM switch until you hear the
d

evice announce the words, “restoring defaults” and “rebooting”.

2. Release the RTFM switch. The device will be restored to the factory default settings.

Installing the SIP IP66 Indoor/Outdoor Horn

RTFM Switch

9

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Factory Default Settings

2.3 Configure the SIP IP66 Indoor/Outdoor Horn Parameters

To configure the SIP IP66 Indoor/Outdoor Horn online, use a standard web browser.

10

Configure each SIP IP66 Indoor/Outdoor Horn and verify its operation bef
you are ready to mount an SIP IP66 Indoor/Outdoor Horn, refer to Appendix A, "Mounting the SIP

IP66 Indoor/Outdoor Horn" for instructions.

2.3.1 Factory Default Settings

All SIP IP66 Indoor/Outdoor Horns are initially configured with the following default IP settings:

When configuring more than one SIP IP66 Indoor/Outdoor Horn, attach the SIP IP66 Indoor/Outdoor
Hor

ns to the network and configure one at a time to avoid IP address conflicts

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

Table 2-3. Factory Default Settings

a

a

a

192.168.1.23

255.255.255.0

192.168.1.1

ore you mount it. When

a. Default if there is not a DHCP server present.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

SIP IP66 Indoor/Outdoor Horn Web Page Navigation

2.3.2 SIP IP66 Indoor/Outdoor Horn Web Page Navigation

Ta bl e 2-4 shows the navigation buttons that you will see on every SIP IP66 Indoor/Outdoor Horn web

page.

Table 2-4. Web Page Navigation

Web Page Item Description

Link to the Home page.

Link to the Device page.

Link to the Audio page.

Link to the Network page.

11

Link to go to the SIP page.

Link to the Multicast page.

Link to the SSL page.

Link to the Audiofiles page.

Link to the Events page.

Link to the Autoprovisioning page.

Link to the Firmwar

e page.

Operations Guide 931960A CyberData Corporation

2.3.3 Using the Toggle Help Button

Question mark 
appears next to the web
page items

The Toggle Help button allows you to see a short description of some of the settings on the
webpage. To use the Toggle Help button, do the following:

Installing the SIP IP66 Indoor/Outdoor Horn

Using the Toggle Help Button

12

1. Click on the T

oggle Help button that is on the UI webpage. See Figure 2-6 and Figure 2-7.

Figure 2-6. Toggle/Help Button

2. You will see a question mark (

) appear next to each web page item that has been provided

with a short description by the Help feature. See Figure 2-7.

Figure 2-7. Toggle Help Button and Question Marks

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

A short description of the 
web page item will appear

Question mark

Using the Toggle Help Button

3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web
page item will appear. See Figure 2-8.

Figure 2-8. Short Description Provided by the Help Feature

13

Operations Guide 931960A CyberData Corporation

2.3.4 Log in to the Home Page

1. Open your browser to the device IP address.

Note If the network does not have access to a DHCP server, the device will default to an IP

address of 192.168.1.23.

Note Make sure that the PC is on the same IP network as the SIP IP66 Indoor/Outdoor Horn.

Note You may also download CyberData’s VoIP Discovery Utility program which allows you to

easily find and configure the default web address of the CyberData VoIP products.



CyberData’s VoIP Discovery Utility program is available at the following website address:

https://www.cyberdata.net/pages/discovery

Note The device ships in DHCP mode. To get to the Home page, use the discovery utility to scan

for the device on the network and open your browser from there.

2. When prompted, use the following default Web Access Username and Web Access
Password to access the Home Page (

Web Access Username: admin

Web Access Password: admin

Figure 2-9):

Installing the SIP IP66 Indoor/Outdoor Horn

Log in to the Home Page



14

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

v20.5.0

457000001

CyberData SIP Outdoor Horn

v20.5.0

v20.5.0

Figure 2-9. Home Page

Log in to the Home Page

15

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Log in to the Home Page

3. On the Home page, review the setup details and navigation buttons described in Ta bl e 2-5.

16

Note The question mark icon (

after the T

oggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-5. Home Page Overview

Web Page Item Description

Admin Settings

Username The username to access the web interface. Enter up to 25 characters.

Password

Confirm Password

The password to access the web interface. Enter up to 25 characters.

Confirm the web interface password.

Current Status

Serial Number Shows the device serial number.

Mac Address Shows the device Mac address.

Firmware Version Shows the current firmware version.

Par tition 2 Contains a complete copy of bootable software.

Par tition 3 Contains an alternate, complete copy of bootable software.

Booting From Indicates the partition currently used for boot.

Allows the user to boot from the alternate partition.

IP Addressing Shows the current IP addressing setting (D

HCP or static).

IP Address Shows the current IP address.

Subnet Mask Shows the current subnet mask address.

Default Gateway Shows the current default gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

SIP Volume Shows the current SIP volume level.

Multicast Volume Shows the current Multicast volume level.

Ring Volume Shows the current Ring volume level.

Volume Boost Shows the current Volume Boost level.

SIP Mode Shows the current status of the SIP mode.

Multicast Mode Shows the current status of the Multicast mode.

Event Reporting Shows the current status of the Event Reporting mode.

Nightringer Shows the current status of the Nightringer mode.

Primary SIP Server Shows the current status of the Primary SIP Server.

Backup Server 1 Shows the current status of Backup Server 1.

Backup Server 2 Shows the current status of Backup Server 2.

Nightringer Server

Shows the current status of Nightringer Server.

Import Settings

Operations Guide 931960A CyberData Corporation

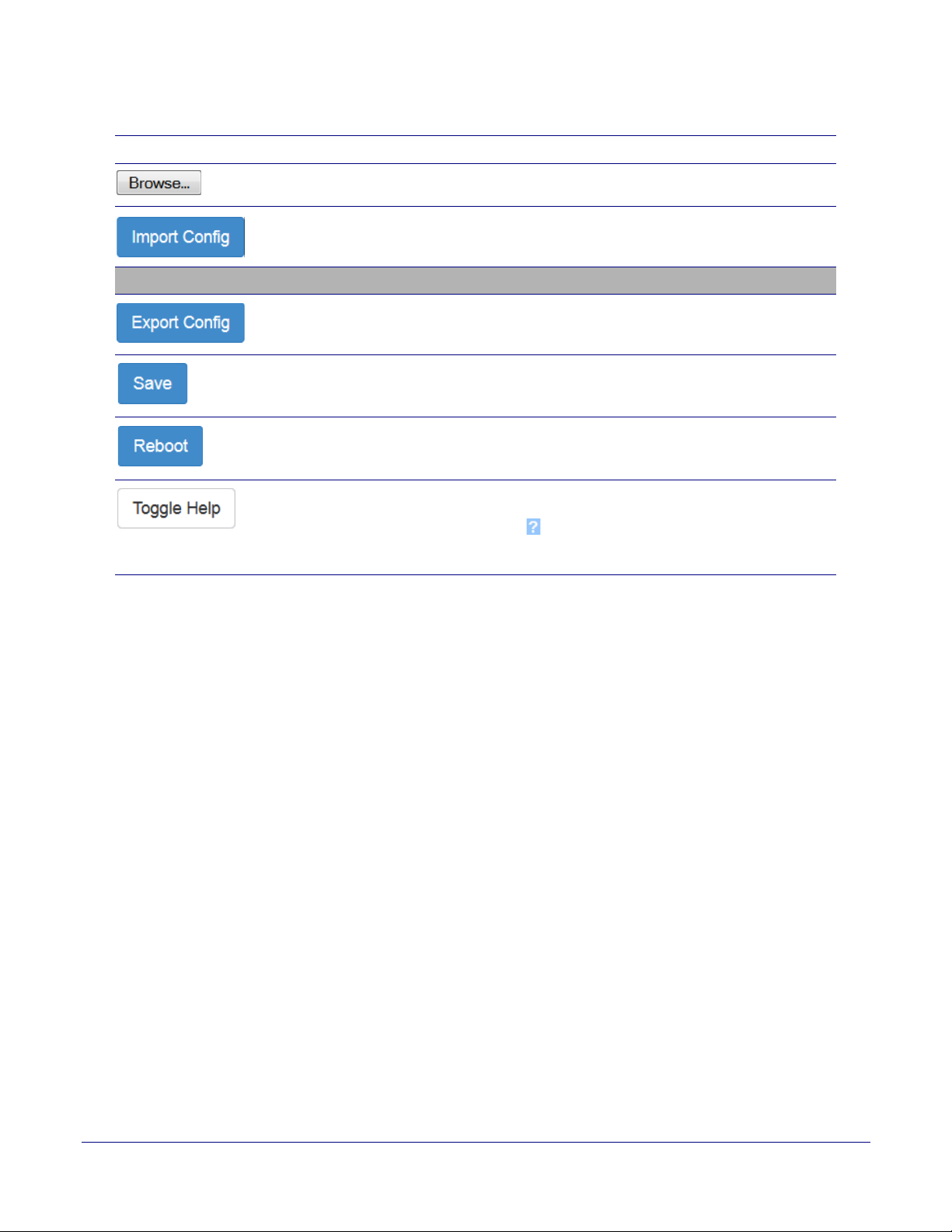

Table 2-5. Home Page Overview (continued)

Web Page Item Description

Use this button to select a configuration file to import.

After selecting a configuration file, click Import to import the
configuration from the selected file. Then, click Save to store changes.

Export Settings

Click Export to export the current configuration to a file.

Click the Save button to save your configuration settings.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of
the web page items. First click on the Toggle H elp button, and you will
see a question mark (
Move the mouse pointer to hover over a question mark to see a short
description of a specific web page item.

Installing the SIP IP66 Indoor/Outdoor Horn

Log in to the Home Page

) appear next to some of the web page items.

17

Operations Guide 931960A CyberData Corporation

2.3.5 Configure the Device

CyberData SIP Outdoor Horn

1. Click the Device menu button to open the Device page. See Figure 2-10.

Figure 2-10. Device Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Device

18

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Device

2. On the Device page, you may enter values for the parameters indicated in Ta bl e 2-6.

19

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-6. Device Page Parameters

Web Page Item Description

Clock Settings

Enable NTP Sync device's local time with the specified NTP Server.

NTP Server

Use this field to set the address (in IPv4 dotted decimal notation or as a
canonical name) for the NTP Server. This field can accept canonical
names of up to 64 characters in length.

Timezone Enter the tz database string of your timezone.

Examples:

America/Los_Angeles

America/New_York

Europe/London

America/Toronto

See https://en.wikipedia.org/wiki/List_of_tz_database_time_zones
for a full list of valid strings.

Current Time

Displays the current time.

Misc Settings

Device Name Type the device name. Enter up to 25 characters.

Beep on Init

Beep Before Page

Device will play the user-defined “pagetone” audio file when it boots.

Device will play the user defined “pagetone” audio file before playing a
SIP page.

DTMF Settings

Require Security Code When selected, the user will be prompted to enter a Security Code

(entered on this page) before being able to execute a page when calling
the device.

Security Code

Type the Security Code in this field. The Security Code must only use
characters '0-9', '*' and '#'. Enter up to 25 characters.

Play Stored Message

When selected, the caller will be prompted to select one of nine stored
messages to play through the speaker. Stored messages may be
customized on the Audiofiles page.

Power Settings

802.3AT Mode This device automatically detects if it is plugged into an 802.3AT (also
known as PoE Plus) power source. 802.3AT provides more power than
older 802.3AT power sources and allows this speaker to play audio at
higher volumes. If you are sure this speaker is connected to an 802.3AT
power source, but it is not being detected correctly, you can override the
automatic settings below.

Force 802.3AT Mode (NOT recommended)

Enable this option if you are sure this speaker is connected to an 802.3AT
power source, but it is not being detected correctly (not recommended).

Operations Guide 931960A CyberData Corporation

Table 2-6. Device Page Parameters (continued)

Web Page Item Description

Click on the Test Audio button to do an audio test. When the Test Audio
button is pressed, you will hear a voice message for testing the device
audio quality and volume.

Click the Save button to save your configuration settings.

Click on the Reboot button to reboot the system.

Click on the Tog gle H elp button to see a short description of some of the
web page items. First click on the Toggle Help button, and you will see a
question mark (
mouse pointer to hover over a question mark to see a short description of

fic web page item.

a speci

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Device

) appear next to some of the web page items. Move the

20

Operations Guide 931960A CyberData Corporation

2.3.6 Configure the Audio

CyberData SIP Outdoor Horn

1. Click the Audio menu button to open the Audio page. See Figure 2-11.

Figure 2-11. Audio Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audio

21

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audio

2. On the Audio page, you may enter values for the parameters indicated in Ta bl e 2-7.

22

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-7. Audio Page Parameters

Web Page Item Description

Volume Settings (0-9)

Enable Ambient Noise Compensation (ANC) When selected, the device will measure the ambient sound level in the

area and adjust the volume of the speaker accordingly.

SIP Volume

Set the speaker volume for a SIP call. A value of 0 will mute the speaker
during SIP calls.

Multicast Volume

Set the speaker volume for multicast audio streams. A value of 0 will mute
the speaker during multicasts.

Ring Volume

Set the ring volume for the Nightringer. A value of 0 will mute the speaker
for the Nightringer.

Volume Boost:

No Volume Boost

Volume Boost 1

Volume Boost 2

NOT RECOMMENDED! Set the Boost level to increase the volume
output of the speaker. Using Volume Boost may introduce audio clipping,
reduce intelligibility of the speaker audio, or cause instability. Boost will
raise the volume above level '9', regardless of the digital volumesettings.
If Boost is going to be used, it should be usedwith low gain audio sources
and at a low volume output level.

Volume Boost 3

Click on the Test Audio button to do an audio test. When the Test Audio
button is pressed, you will hear a voice message for testing the device
audio quality and volume.

Audio Health Check

Schedule Audio Health Check Select this option to schedule an audio health check.

Run once per

Time of Day

Day of Week

Day of Month

Select how often to run the audio health check.

Enter the time of day to run the audio health check.

Select the day of the week to run the audio health check.

Enter the day of the month to run the audio health check.

The audio health check will run once this button is clicked. Once the test
has completed, the results can be viewed in the audio health check log
displayed on the web page.

Audio Health Check Log

Downloads the health check log.

Removes the health check log.

Click the Save button to save your configuration settings.

Operations Guide 931960A CyberData Corporation

Table 2-7. Audio Page Parameters (continued)

Web Page Item Description

Click on the Reboot button to reboot the system.

Click on the Tog gle H elp button to see a short description of some of the
web page items. First click on the Toggle Help button, and you will see a
question mark (
mouse pointer to hover over a question mark to see a short description of
a specific web page item.

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audio

) appear next to some of the web page items. Move the

23

Operations Guide 931960A CyberData Corporation

2.3.7 Configure the Network Parameters

CyberData SIP Outdoor Horn

1. Click the Network menu button to open the Network page (Figure 2-12).

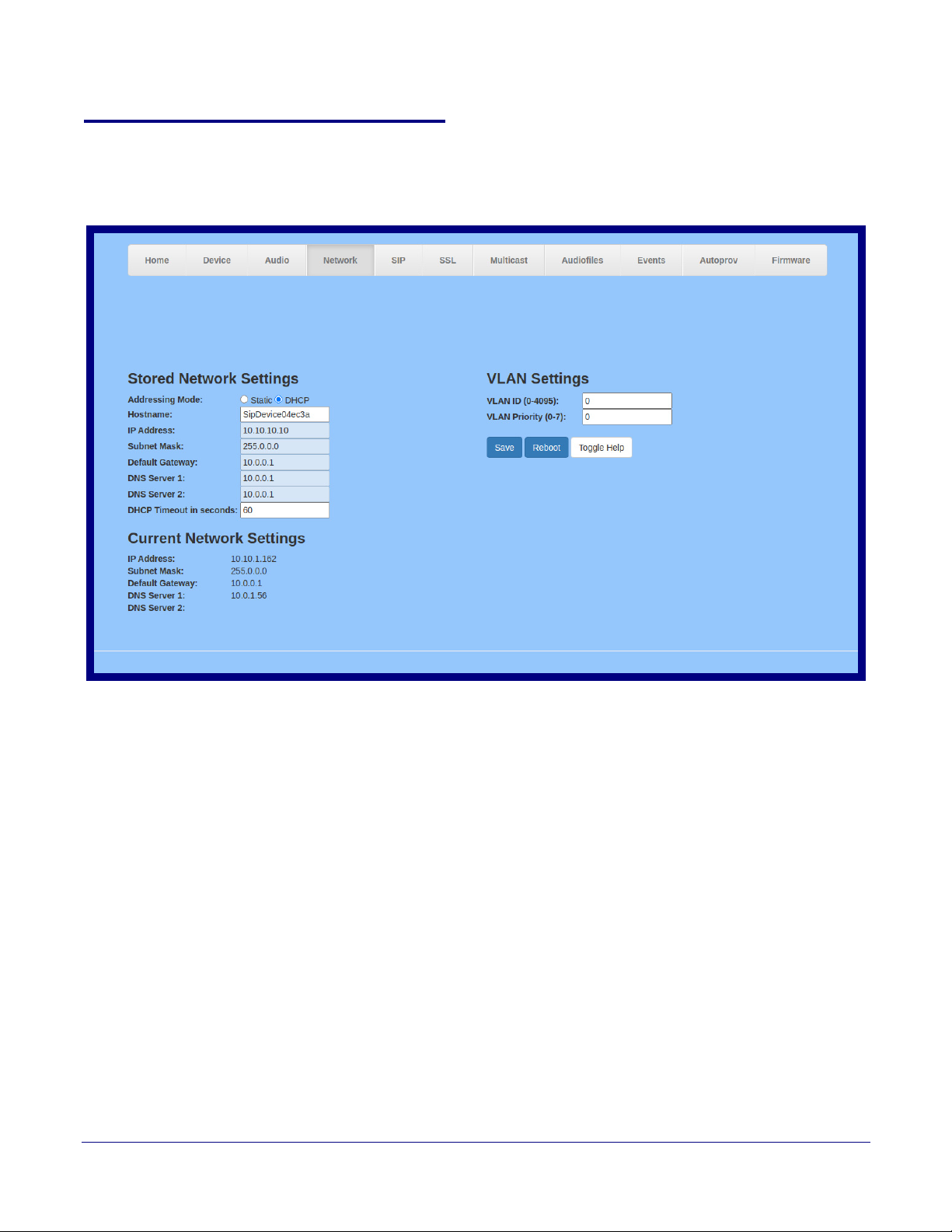

Figure 2-12. Network Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Network Parameters

24

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Network Parameters

2. On the Network page, enter values for the parameters indicated in Ta bl e 2-8.

25

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-8. Network Page Parameters

Web Page Item Description

Stored Network Settings

Addressing Mode Select either DHCP IP Addressing or Static Addressing by marking

the appropriate radio button. DHCP Addressing mode is enabled on
default and the device will attempt to resolve network addressing with
the local DHCP server upon boot. If DHCP Addressing fails, the
device will revert to the last known IP address or the factory default
address if no prior DHCP lease was established. See Section 2.3.1,

"Factory Default Settings" for factory default settings. Be sure to click

Save and Reboot to store changes when configuring a Static
address.

Hostname This is the hostname provided by the DHCP server. See the

DHCP/DNS server documentation for more information. Enter up to
64 characters.

IP Address Enter the Static IPv4 network address in dotted decimal notation.

Subnet Mask Enter the Subnet Mask in dotted decimal notation.

Default Gateway Enter the Default Gateway IPv4 address in dotted decimal notation.

DNS Server 1 Enter the primary DNS Server IPv4 address in dotted decimal

notation.

DNS Server 2 Enter the secondary DNS Server IPv4 address in dotted decimal

notation.

DHCP Timeout in seconds Specify the desired time-out duration (in seconds) that the device will

wait for a response from the DHCP server before reverting back to
the stored static IP address. The stored static IP address may be the
last known IP address or the factory default address if no prior DHCP
lease was established. Enter up to 8 characters. A value of -1 will
retry forever.

Current Network Settings Shows the current network settings.

IP Address Shows the current Static IP address.

Subnet Mask Shows the current Subnet Mask address.

Default Gateway Shows the current Default Gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

VLAN Settings

VLAN ID (0-4095) Specify the IEEE 802.1Q VLAN ID number. Enter up to 4 digits.

Note: The device supports 802.1Q VLAN tagging support. The
switch port connected to the device will need to be in “trunking mode”
for the VLAN tags to propagate.

VLAN Priority (0-7) Specify the IEEE 802.1p VLAN priority level. Enter 1 digit. A value of

0 may cause the VLAN ID tag to be ignored.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Network Parameters

Table 2-8. Network Page Parameters (continued)

Web Page Item Description

Click the Save button to save your configuration settings.

Click on the Reboot button to reboot the system.

Click on the Togg le He lp button to see a short description of some of
the web page items. First click on the Toggle Help button, and you
will see a question mark ( ) appear next to some of the web page
items. Move the mouse pointer to hover over a question mark to see
a short description of a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

26

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

CyberData SIP Outdoor Horn

Configure the SIP (Session Initiation Protocol) Parameters

2.3.8 Configure the SIP (Session Initiation Protocol) Parameters

1. Click on the SIP menu button to open the SIP page (Figure 2-13).

Figure 2-13. SIP Page

27

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SIP (Session Initiation Protocol) Parameters

2. On the SIP page, enter values for the parameters indicated in Ta b le 2-9.

28

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-9. SIP Page Parameters

Web Page Item Description

SIP Settings

Enable SIP Operation When enabled, the device will transmit, receive, and process SIP messages

according to the configured SIP settings below.

Register with a SIP Server When enabled, the device will attempt to register to the configured SIP Server(s) on

this page.

Buffer SIP Calls Device will buffer audio and play it back after hang up. Length of the buffer varies with

codec.

Primary SIP Server Enter the SIP server address as an IPv4 address in dotted decimal notation or a fully

qualified domain name. This parameter also becomes the host portion of the SIP-URI
for the device's extension on the primary SIP server. This field can accept entries of
up to 255 characters in length.

Primary SIP User ID Specify the SIP User ID for the Primary SIP Server. This parameter becomes the user

portion of the SIP-URI for the device's extension on the primary SIP server. Enter up
to 64 alphanumeric characters.

Primary SIP Auth ID Specify the Authenticate ID for the Primary SIP Server. This parameter is required for

SIP registration authentication. Enter up to 64 alphanumeric characters.

Primary SIP Auth Password Specify the Authenticate Password for the Primary SIP Server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric characters.

Re-registration Interval (in seconds) The SIP Re-registration interval (in seconds) is the SIP Registration lease time, also

known as the expiry. The supported range is 30-3600 seconds. Enter up to 4 digits.

Backup SIP Server 1 Enter the backup SIP server address as an IPv4 address in dotted decimal notation or

a fully qualified domain name. This parameter also becomes the host portion of the
SIP-URI for the device's extension on the backup SIP server. This field can accept
entries of up to 255 characters in length.

Backup SIP User ID 1 Specify the SIP User ID for the first backup SIP Server. This parameter becomes the

user portion of the SIP-URI for the device's extension on the first backup SIP server.
Enter up to 64 alphanumeric characters.

Backup SIP Auth ID 1 Specify the Authenticate ID for the first backup SIP server. This parameter is required

for SIP registration authentication. Enter up to 64 alphanumeric characters.

Backup SIP Auth Password 1 Specify the Authenticate Password for the first backup SIP server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric characters.

Re-registration Interval (in seconds) The SIP Re-registration interval (in seconds) is the SIP Registration lease time, also

known as the expiry. The supported range is 30-3600 seconds. Enter up to 4 digits.

Backup SIP Server 2 Enter a second backup SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes the host
portion of the SIP-URI for the device's extension on the second backup SIP server.
This field can accept entries of up to 255 characters in length.

Backup SIP User ID 2 Specify the SIP User ID for the second backup SIP Server. This parameter becomes

the user portion of the SIP-URI for the device's extension on the second backup SIP
server. Enter up to 64 alphanumeric characters.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SIP (Session Initiation Protocol) Parameters

Table 2-9. SIP Page Parameters (continued)

Web Page Item Description

Backup SIP Auth ID 2 Specify the Authenticate ID for the second backup SIP server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric characters.

Backup SIP Auth Password 2 Specify the Authenticate Password for the second backup SIP server. This parameter

is required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Re-registration Interval (in seconds) The SIP Re-registration interval (in seconds) is the SIP Registration lease time, also

known as the expiry. The supported range is 30-3600 seconds. Enter up to 4 digits.

Remote SIP Port The Remote SIP Port is the port number the device will use as the destination port

when sending SIP messages. The default Remote SIP Port is 5060. The supported
range is 0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP messages.

The default Local SIP Port is 5060. The supported range is 0-65536. Enter up to 5
digits.

SIP Transport Protocol Choose the transport protocol for SIP signaling. This will affect all extensions,

including the Nightringer. Default is UDP.

TLS Version Choose the TLS version for SIP over TLS. Modern security standards strongly

recommend using TLS 1.2.

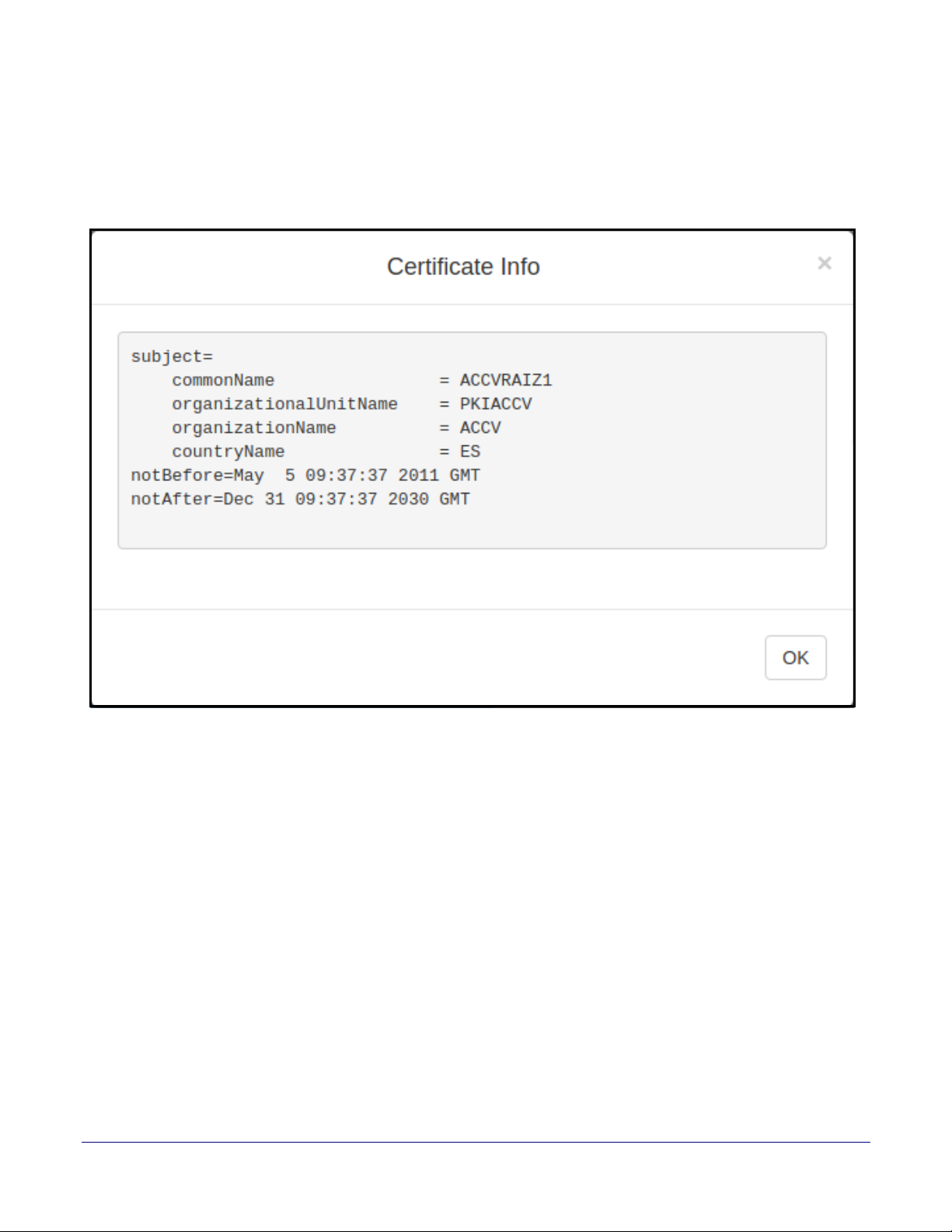

Verify Server Certificate When enabled, the device will verify the authenticity of the server during the TLS

handshake by its certificate and common name. The TLS handshake will be aborted if
the server is deemed to be inauthentic and SIP registration will not proceed.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal notation or a

fully qualified domain name (FQDN). When an IP address is configured, the device
will send all SIP messages to this IP address. When an FQDN is configured, the
device will run DNS NAPTR, SRV, and A queries on the FQDN to resolve an IP
address to which it will send all SIP messages. This field can accept entries of up to
255 characters in length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port when sending

SIP messages to the outbound proxy. A value of 0 will default to 5060. The supported
range is 0-65536. Enter up to 5 digits.

Use Cisco SRST When enabled, the backup servers are handled according to Cisco SRST (Survivable

Remote Site Telephony). It is required for use in clustered Cisco Unified
Communications Manager topologies.

Disable rport Discovery Disabling rport Discovery will prevent the device from including the public WAN IP

address and port number in the contact information that is sent to the remote SIP
servers. This will generally only need to be enabled when using an SBC or SIP ALG in
conjunction with a remote SIP server.

29

Keep Alive Period The minimum time in milliseconds between keep-alive packets sent for nat traversal.

A value of 0 will disable keep alive packets.

Nightringer Settings

Enable Nightringer When Nightringer is enabled, the device will attempt to register a second extension

with the SIP server. Any calls made to this extension will play a ringtone (corresponds
to Night Ring on the Audiofiles page). By design, it is not possible to answer a call to
the Nightringer extension.

SIP Server Enter the SIP server address as an IPv4 address in dotted decimal notation or a fully

qualified domain name. This parameter also becomes the host portion of the SIP-URI
for the device's Nightringer extension on the SIP server. This field can accept entries
of up to 255 characters in length.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SIP (Session Initiation Protocol) Parameters

Table 2-9. SIP Page Parameters (continued)

Web Page Item Description

Remote SIP Port The Remote SIP Port is the port number the device will use as the destination port

when sending SIP messages for the Nightringer extension. The default Remote SIP
Port is 5060. The supported range is 0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP messages for

the Nightringer extension. This value cannot be the same as the Local SIP Port for
the primary extension. The default Local SIP Port is 5061. The supported range is 0-

65536. Enter up to 5 digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal notation or a

fully qualified domain name (FQDN). When an IP address is configured, the device
will send all SIP messages to this IP address for the Nightringer extension. When an
FQDN is configured, the device will run DNS NAPTR, SRV, and A queries on the
FQDN to resolve an IP address to which it will send all SIP messages for the
Nightringer extension. This field can accept entries of up to 255 characters in length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port when sending

SIP messages to the outbound proxy for the Nightringer extension. A value of 0 will
default to 5060. The supported range is 0-65536. Enter up to 5 digits.

SIP User ID Specify the SIP User ID for the SIP server. This parameter becomes the user portion

of the SIP-URI for the device's Nightringer extension. Enter up to 64 alphanumeric
characters.

SIP Auth ID Specify the Authenticate ID for the SIP Server. This parameter is required for SIP

registration authentication. Enter up to 64 alphanumeric characters.

30

SIP Auth Password Specify the Authenticate Password for the SIP Server. This parameter is required for

SIP registration authentication. Enter up to 64 alphanumeric characters.

Re-registration Interval (in seconds) The SIP Re-registration Interval (in seconds) is the SIP Registration lease time, also

known as the expiry. The supported range is 30-3600 seconds. Enter up to 4 digits.

Call Disconnection

Terminate Call After Delay Automatically terminate an active call after a given delay in seconds. A value of 0 will

disable this function. Enter up to 8 digits.

Audio Codec Selection

Codec Select desired codec (only one may be chosen).

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SIP (Session Initiation Protocol) Parameters

Table 2-9. SIP Page Parameters (continued)

Web Page Item Description

RTP Settings

RTP Port (even) Specify the port number used for the RTP stream after establishing a SIP call. This

port number must be an even number and defaults to 10500. The supported range is
0-65536. Enter up to 5 digits.

Asymmetric RTP Specify if the remote endpoint will send and receive RTP packets on different ports. If

set to false, the device will track the address/port that is sending RTP packets during a
SIP call. If the address/port changes mid-stream, the device will disregard the SDP
and send all further RTP packets to this new address.

If set to true, this device will ignore the sending address/port and send RTP as
specified in the SDP. Warning! Enabling asymmetric RTP can cause the RTP stream
to be lost.

Most installations should not enable asymmetric RTP.

Jitter Buffer Specify the size of the jitter buffer (in milliseconds) used for SIP calls. Valid values are

50-1000.

RTP Encryption (SRTP) When enabled, a SIP call's audio streams are encrypted using SRTP.

31

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SIP (Session Initiation Protocol) Parameters

Table 2-9. SIP Page Parameters (continued)

Web Page Item Description

Call Disconnection

Terminate Call After Delay Automatically terminate an active call after a given delay in seconds. A value of 0 will

disable this function. Enter up to 8 digits.

Codec Selection

Force Selected Codec When configured, this option will allow you to force the device to negotiate for the

selected codec. Otherwise, the device will perform codec negotiation using the default
list of supported codecs.

Codec Select the desired codec (only one may be chosen).

Click the Save button to save your configuration settings.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of the web page
items. First click on the Toggle Help button, and you will see a question mark ( )
appear next to some of the web page items. Move the mouse pointer to hover over a
question mark to see a short description of a specific web page item.

32

Note For specific server configurations, go to the following website address:

https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers

Operations Guide 931960A CyberData Corporation

2.3.9 Configure the SSL Parameters

1. Click SSL menu button to open the SSL page (Figure 2-14 and Figure 2-15).

Figure 2-14. SSL Configuration Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SSL Parameters

33

Figure 2-15. SSL Configuration Page

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SSL Parameters

34

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SSL Parameters

2. On the SSL page, enter values for the parameters indicated in Ta bl e 2-10.

35

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-10. SSL Configuration Parameters

Web Page Item Description

Web Server Certificate Certificate used by the web server.

Click Browse to select a certificate to import.

After selecting a certificate, click Import Web Certificate to import it as the
certificate used by this device's web server.

Restore the device's default web server certificate. This will remove the user­uploaded Web Server Certificate.(Server CAs and Trusted CAs are unaffected).

SIP Client Certificate When doing mutual authentication this device will present a client certificate with

these parameters.

Click Browse to select a certificate to import.

After selecting a certificate, click Import SIP Certificate to import it as the
certificate used by the device during SIP transactions.

Restore the device's default sip client certificate. This will remove any user­uploaded sip client certificates (Server CAs and Trusted CAs are unaffected).

Password (optional) Enter the optional password for the SIP certificate's private key.

Note: When using a password, it must be entered and saved before importing
the certificate.

Autoprovisioning Client Certificate When doing mutual authentication this device will present a client certificate with

these parameters.

Click Browse to select a certificate to import.

After selecting a certificate, click Import Autoprovisioning Certificate to import
it as this device's certificate. This certificate will be used when requesting files
during autoprovisioning.

Restore the device's default autoprovisioning certificate. This will remove any
user-uploaded autoprovisioning certificates. (Server CAs and Trusted CAs are
unaffected).

Password (optional) Enter the optional password for the Autoprovisioning certificate's private key.

Note: When using a password, it must be entered and saved before importing
the certificate.

Download Cyberdata CA Right click and Save Link As... to get the Cyberdata CA used to sign this client

certificate.

Click the Save button to save your configuration settings.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SSL Parameters

Table 2-10. SSL Configuration Parameters (continued)

Web Page Item Description

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of the web
page items. First click on the Toggle Help button, and you will see a question
mark ( ) appear next to some of the web page items. Move the mouse pointer
to hover over a question mark to see a short description of a specific web page
item.

Test TLS Connection

Server The ssl test server address as a fully qualified domain name or in IPv4 dotted

decimal notation.

Port The supported range is 0-65536. SIP connections over TLS to port 5060 are

modified to connect to port 5061. This test button will do the same.

Use this button to test a TLS connection to a remote server using the sip client
key and password. This will attempt to make a socket connection to the
configured test server and port and report the success or failure. This can be
used to debug TLS connection issues separate from SIP registration issues.

Use this button to test a TLS connection to a remote server using the
autoprovisioning client key and password. This will attempt to make a socket
connection to the configured test server and port and report the success or
failure. This can be used to debug TLS connection issues with secure
autoprovisioning.

36

List of Trusted CAs

Upload CA Certificate

Use this button to select a configuration file to import.

Click Browse to select a CA certificate to import. After selecting a server
certificate authority (CA), click Import CA Certificate to import it to the list of
trusted CAs. CAs are used to validate the certificate presented by the server
when establishing a TLS connection.

Restore Defaults will restore the default list of registered CAs and Remove All
will remove all registered CAs.

Restore Defaults will restore the default list of registered CAs and Remove All
will remove all registered CAs.

Provides details of the certificate. After clicking on this button, the Certificate
Info Window appears. See Section 2.3.9.1, "Certificate Info Window".

Removes this certificate from the list of trusted certificates. After clicking on this
button, the Remove Server Certificate Window appears. See Section 2.3.9.2,

"Remove Server Certificate Window".

Operations Guide 931960A CyberData Corporation

2.3.9.1 Certificate Info Window

The Certificate Info Window provides details of the certificate. This window appears after clicking
on the Info button. See

Figure 2-16.

Figure 2-16. Certificate Info Window

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SSL Parameters

37

Operations Guide 931960A CyberData Corporation

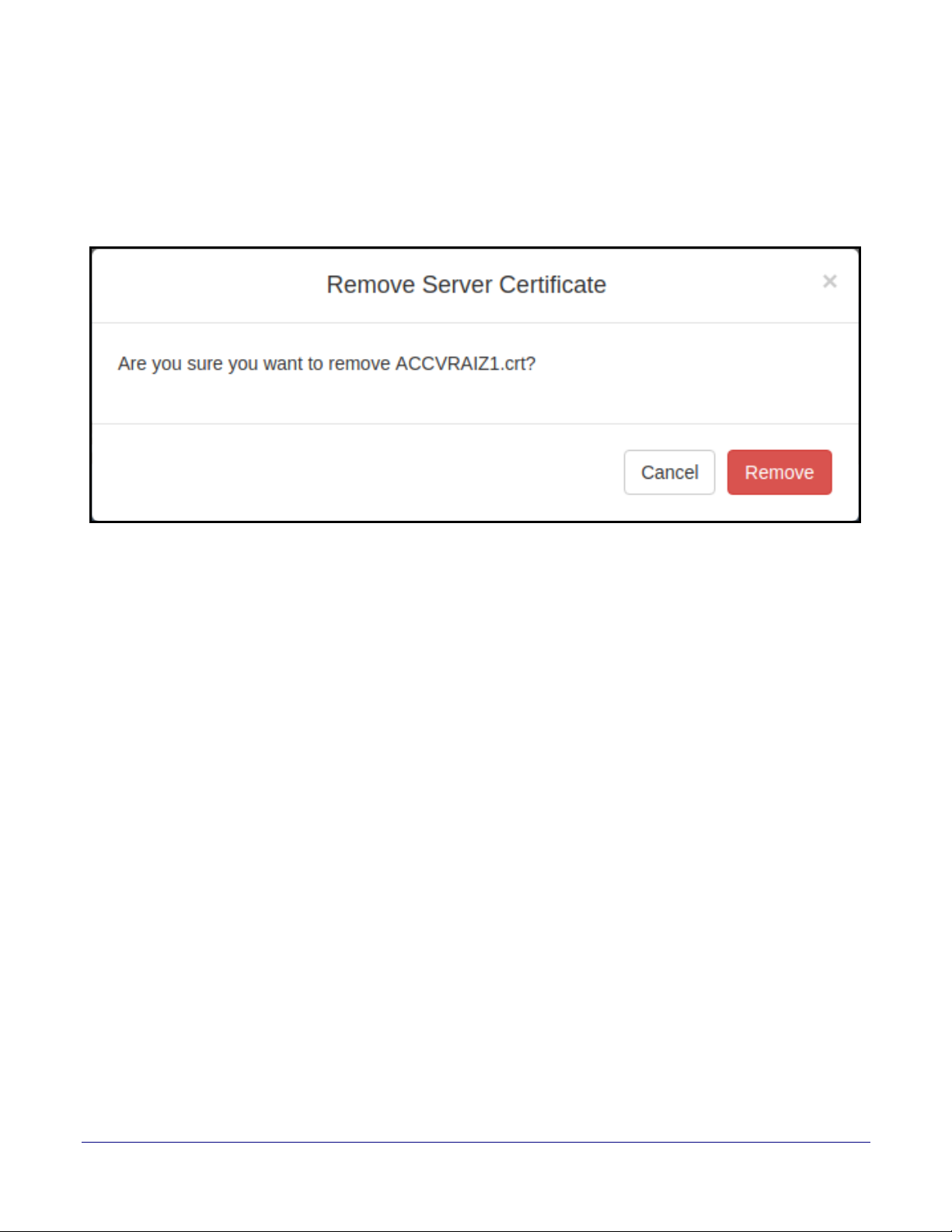

2.3.9.2 Remove Server Certificate Window

The Remove Server Certificate Window will ask if the user wants to remove a certificate from the
list of trusted certificates. This window appears after clicking on the Remove button. See

17.

Figure 2-17. Remove Server Certificate Window

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the SSL Parameters

Figure 2-

38

Operations Guide 931960A CyberData Corporation

2.3.10 Configure the Multicast Parameters

The Multicast page allows the device to join up to ten paging zones for receiving ulaw/alaw encoded
RTP audio streams.

A paging zone can consist of one or many CyberData multicast group-enabled products. There is no
limit to how many speakers can be in a given paging zone. Each multicast group is defined by a
multicast address and port number.

Each multicast group is assigned a priority, allowing simultaneously arriving pages to be serviced
based on importance. Multicast groups are compatible with IGMP through version 3. The device
supports simultaneous SIP and Multicast.

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Multicast Parameters

39

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

CyberData SIP Outdoor Horn

Configure the Multicast Parameters

1. Click on the Multicast menu button to open the Multicast page. See Figure 2-18.

Figure 2-18. Multicast Page

40

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Multicast Parameters

2. On the Multicast page, enter values for the parameters indicated in Ta bl e 2-11.

41

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-11. Multicast Page Parameters

Web Page Item Description

Enable Multicast Operation Enables or disables multicast operation.

Priority Indicates the priority for the multicast group. Priority 9 is th

(emergency streams). 0 is the lowest (background music). SIP calls
are considered priority 4.5. See Section 2.3.10.1, "Assigning Priority"
for more details.

Address Enter the multicast IP Address for th

limit).

Por t Enter the port number for this multicast group (5 character limit [range

can be from

Name Assign a descriptive name for this multicast group (25 character limit).

Beep When selected, the device will play a beep before multicast audio is

sent.

Relay When selected, the device will activate a relay before multicast audio

nt.

is se

Polycom Default Channel When a default Polycom channel/group n

will subscribe to the default channel for one-way group pages. Group
Numbers 1-25 are supported. Or, select Disabled to disable this
channel.

Polycom Priority Channel When a priority Polycom channel/group number is selected, the device

subscribe to the priority channel for one-way group pages. Group

will
Numbers 1-25 are supported. Or, select Disabled to disable this
channel.

2000 to 65535]).

is multicast group (15 character

umber is selected, the device

e highest

Polycom Emergency Channel When an emergency Polycom channel/group number is selected, the

device will subscribe to the default channel for one-way group pages.
Group Numbers 1-25 are supported. Or, select Disabled to disable
this channel.

Click the Sa

Click on the Rebo

Click on the T
the web page items. First click on the Toggle Help button, and you will
see a question mark (
Move the mouse pointer to hover over a question mark to see a short
descr

ve button to save your configuration settings.

ot button to reboot the system.

oggle Help button to see a short description of some of

) appear next to some of the web page items.

iption of a specific web page item.

2.3.10.1 Assigning Priority

The device will prioritize simultaneous audio streams according to their priority in the list.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Multicast Parameters

If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will
interrupt multicast streams with priority 0 through 4 and will be interrupted by multicast streams with
priority 5 through 9.

During priority 9 multicast streams, the volume is set to maximum.

Note SIP calls, multicast streams, ring tones, ringback tones, and nightring tones are all

prioritized.

42

Ringtones and Nightringtones

Ringtones all play at the same priority level. This means that it is possible to have a nightring tone
and a normal ringtone playing at the same time.

Operations Guide 931960A CyberData Corporation

2.3.11 Configure the Audiofiles Page Parameters

CyberData SIP Outdoor Horn

The Audiofiles page is used to add custom audio to the board. User uploaded audio will take
precedence over the audio files shipped with the device.

1. Click on the Audiofiles menu button to open the Audiofiles page (Figure 2-19).

Figure 2-19. Audiofiles Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audiofiles Page Parameters

43

Operations Guide 931960A CyberData Corporation

Figure 2-20. Audiofiles Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audiofiles Page Parameters

44

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audiofiles Page Parameters

2. On the Audiofiles page, enter values for the parameters indicated in Ta bl e 2-12.

45

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-12. Audiofiles Page Parameters

Web Page Item Description

Available Space Shows the space available for the user to save custom audio files.

Audio Files

0-9 The name of the audio configuration option is the same as the spoken audio that plays on

the board (24 character limit).

'0' corresponds to the spoken word “zero.”

'1' corresponds to the spoken word “one.”

'2' corresponds to the spoken word “two.”

'3' corresponds to the spoken word “three.”

'4' corresponds to the spoken word “four.”

'5' corresponds to the spoken word “five.”

'6' corresponds to the spoken word “six.”

'7' corresponds to the spoken word “seven.”

'8' corresponds to the spoken word “eight.”

'9' corresponds to the spoken word “nine.”

Audio Test Corresponds to the message “This is the CyberData IP speaker test message...” (24

ch

aracter limit).

Dot Corresponds to the spoken word “dot.” (24 character limit).

Night Ring Specifies the ringtone for nightring. By default this

parameter uses the same audio file that is

selected for the Ring Tone parameter.

Page Tone Corresponds to a simple tone that is unused by default (24 character limit).

Rebooting Corresponds to the spoken word “Re

booting” (24 character limit).

Restoring Default Corresponds to the message “Restoring default” (24 character limit).

Ring Tone Specifies the Ring Tone.

Stored Message File Not Found Corresponds to the message “Stored Message File Not Found.”

Your IP Address is

Corresponds to the message “Your IP address is...” (24 character limit).

Menu Audio Files Menu Audio Files are user-uploadable messages that create the audio menu played to the

caller.

Cancel Corresponds to the word "Cancel" used in the audio menu played to the caller. (24 character

limit).

Currently Playing Corresponds to the words "Currently Playing" used in the audio menu played to the caller.

4 character limit).

(2

Invalid Entry Corresponds to the words "Invalid Entry" used in the audio menu played to the caller. (24

aracter limit).

ch

Page Corresponds to the word "Page" used in the audio menu played to the caller. (24 character

limit).

Play Stored Message Corresponds to the words "Play Stored Message" used in the audio menu played to the

ller. (24 character limit).

ca

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audiofiles Page Parameters

Table 2-12. Audiofiles Page Parameters (continued)

Web Page Item Description

Pound (#) Corresponds to whatever word or phrase the user wishes to call the pound key in the audio

menu played to the caller (24 character limit).

Press Corresponds to the word "Press" used in the audio menu played to the caller. (24 character

limit).

Stored Message Corresponds to the words "Stored Message" used in the audio menu played to the caller.

(24 character limit).

Through Corresponds to the word "Through" used in the audio menu played to the caller. (24

character limit).

To Corresponds to the word "To" used in the audio menu played to the caller. (24 character

limit).

Enter Security Code Followed by
Pound (#) key

Corresponds to the words "Enter Security Code Followed by Pound (#) key" used in the
audio menu played to the caller. (24 character limit).

Stored Messages

Stored Message 1 through 9 Stored Message 1 corresponds to the message played after pressing 1 on a phone keypad.

Stored Message 2 corresponds to the message played after pressing 2 on a phone keypad.

Stored Message 3 corresponds to the message played after pressing 3 on a phone keypad.

Stored Message 4 corresponds to the message played after pressing 4 on a phone keypad.

Stored Message 5 corresponds to the message played after pressing 5 on a phone keypad.

Stored Message 6 corresponds to the message played after pressing 6 on a phone keypad.

Stored Message 7 corresponds to the message played after pressing 7 on a phone keypad.

Stored Message 8 corresponds to the message played after pressing 8 on a phone keypad.

Stored Message 9 corresponds to the message played after pressing 9 on a phone keypad.

46

Click on the Browse button to navigate to and select an audio file.

The Play button will play that audio file.

The Delete button will delete any user uploaded audio and restore the stock audio file.

The Save button will download a new user audio file to the board once you've selected the
file by using the Browse button. The Save button will delete any pre-existing user-uploaded
audio files.

Operations Guide 931960A CyberData Corporation

2.3.11.1 User-created Audio Files

User created audio files should be saved in the following format:

RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz

You can use the free utility Audacity to convert audio files into this format. See Figure 2-21 through

Figure 2-23.

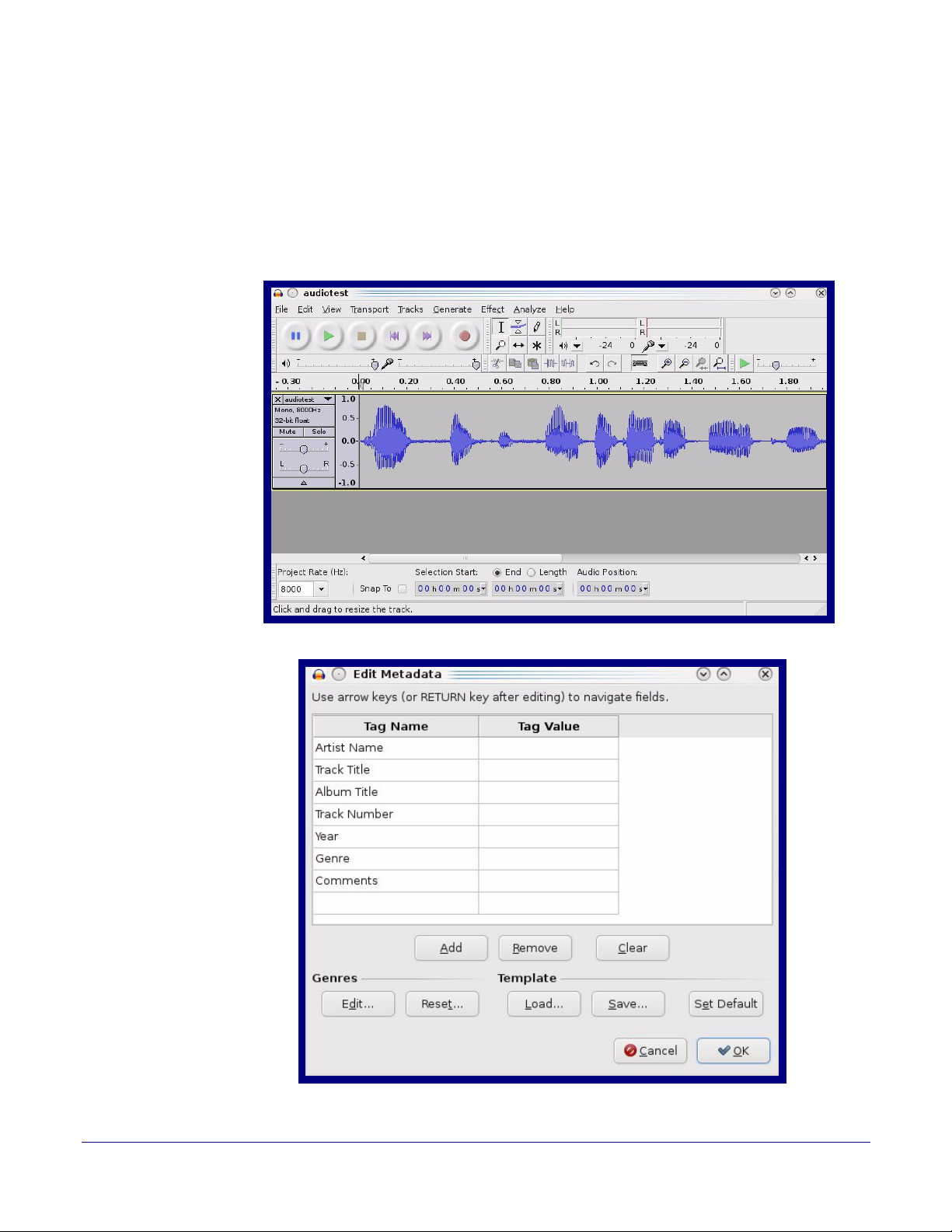

Figure 2-21. Audacity 1

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Audiofiles Page Parameters

47

Figure 2-22. Audacity 2

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

WAV (Microsoft) signed 16 bit PCM

Configure the Audiofiles Page Parameters

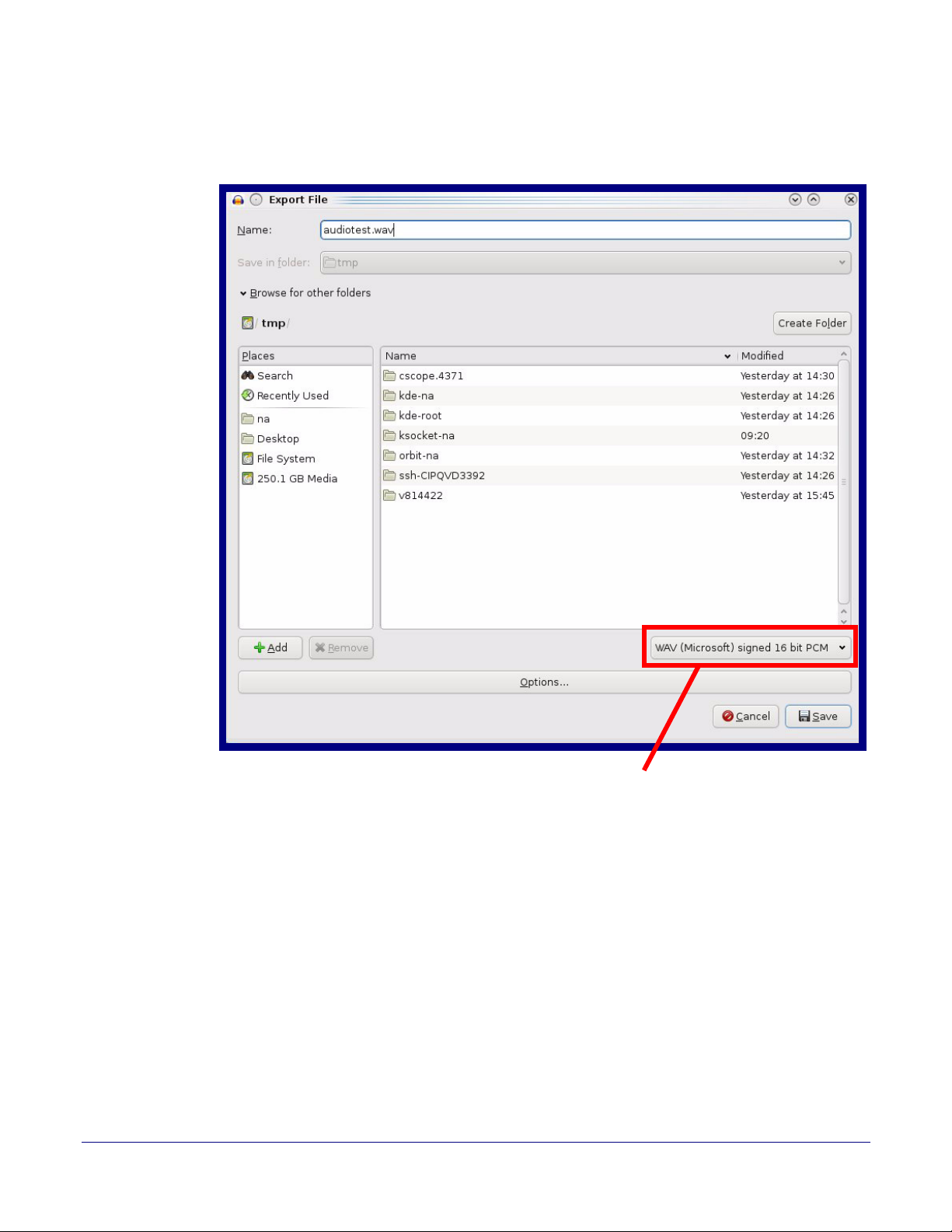

When you export an audio file with Audacity, save the output as:

• WAV (Microsoft) signed 16 bit PCM.

Figure 2-23. WAV (Microsoft) signed 16 bit PCM

48

Operations Guide 931960A CyberData Corporation

2.3.12 Configure the Events Parameters

CyberData SIP Outdoor Horn

The Events page specifies a remote server that can be used to receive HTTP POST events when
actions take place on the board.

1. Click on the Events menu button to open the Events page (Figure 2-24).

Figure 2-24. Events Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Events Parameters

49

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Events Parameters

2. On the Events page, enter values for the parameters indicated in Ta bl e 2-13.

50

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-13. Events Page Parameters

Web Page Item Description

Enable Event Generation The device will send HTTP POST events to the specified remote

server and port number whenever a certain action takes place.
Select an event type below to generate an HTTP POST event.

Events

Enable Multicast Start Events When selected, the device will report when the device starts playing

a multicast audio stream.

Enable Multicast Stop Events

When selected, the device will report when the device stops playing
a multicast audio stream.

Enable Call Start Events

Enable Call Terminated Events

Enable Night Ring Events

When selected, the device will report the start of a SIP call.

When selected, the device will report the end of a SIP call.

When selected, the device will report when it starts ringing upon an
incoming SIP call to the Nightringer extension. As a reminder, the
Nightringer extension always rings upon an incoming SIP call and it
is not possible to alter this behavior.

Enable Power On Events

Enable 60 Second Heartbeat Events

When selected, the device will report when it boots.

When enabled, the device will report a Heartbeat event every 60
seconds. SIP registration is not required to generate Heartbeat
events.

Enable Audio Health Check Events

When selected, the device will report the results of an audio health
check.

Event Server

Server IP Address The IPv4 address of the event server in dotted decimal notation.

Server Port

Specify the event server port number. The supported range is 0-

65536. Enter up to 5 digits.

Server URL

Generally, the destination URL is the name of the application that
receives the events and the string in the HTTP POST command. It
can be a script used to parse and process the HTTP POST events.
Enter up to 127 characters.

Click the Save button to save your configuration settings.

Click on the Reboot button to reboot the system.

Click on the T

oggle Help button to see a short description of some
of the web page items. First click on the Toggle Help button, and
you will see a question mark (

) appear next to some of the web

page items. Move the mouse pointer to hover over a question mark

see a short description of a specific web page item.

to

Operations Guide 931960A CyberData Corporation

2.3.12.1 Example Packets for Events

The server and port are used to point to the listening server and the 'Remote Event Server URL' is
the destination URL (typically the script running on the remote server that's used to parse and
process the POST events).

Note The XML is URL-encoded before transmission so the following examples are not completely

accurate.

Here are example packets for every event:

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>POWERON</event>
</cyberdata>

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Events Parameters

51

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 199
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>HEARTBEAT</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 196
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>BUTTON</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 201
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>CALL_ACTIVE</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Events Parameters

User-Agent: CyberData/1.0.0
Content-Length: 205
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>CALL_TERMINATED</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>RINGING</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded

52

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>MULTICAST_START</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 233
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>MULTICAST_STOP</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>RELAY_ACTIVATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Events Parameters

User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>RELAY_DEACTIVATED</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData Device' MAC='0020f70015b6'>
<event>NIGHTRINGING</event>
</cyberdata>

53

Operations Guide 931960A CyberData Corporation

2.3.13 Configure the Autoprovisioning Parameters

CyberData SIP Outdoor Horn

Autoprovisioning can be used to automatically configure your device. The autoprovisioning file is an
xml file with the device configuration. Values found in this file will override values stored in on-board
memory.

Note By default, the device will try to set up its configuration with autoprovisioning.

1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-25.

Figure 2-25. Autoprovisioning Page

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

54

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

2. On the Autoprovisioning page, you may enter values for the parameters indicated in Tab l e 2-

14.

55

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-14. Autoprovisioning Page Parameters

Web Page Item Description

Enable Autoprovisioning The device will automatically fetch a configuration file, also

known as the 'autoprovisioning file', based on the configured
settings below.

Autoprovisioning Server

Enter the IPv4 address of the provisioning server in dotted
decimal notation.

Autoprovisioning Filename

The autoprovisioning filename is the configuration filename.
The default autoprovisioning filename is in the format of
<mac address>.xml.

Supported filename extensions are .txt, and .xml. The current
filename is denoted by an asterisk at the bottom of the

Autoprovisioning Page. Enter up to 256 characters.

A file may have any name with an xml extension. If a file
name is entered, the device will look for the specified file
name, and only that file.

Use tftp

The device will use TFTP (instead of http) to download
autoprovisioning files.

Verify Server Certificate

When using ssl to download autoprovisioning files, reject
connections where the server address doesn't match the
server certificate's common name.

Username

The username used to authenticate with an autoprovisioning
server. Leave this field blank to disable authentication.

Password

The password used to authenticate with an autoprovisioning
server. Leave this field blank to disable authentication.

Autoprovisioning Autoupdate 
(in minutes)

The reoccurring time (in minutes) the device will wait before
checking for new autoprovisioning files. Enter up to 6 digits. A
value of 0 will disable this option.

o use the auto update options, make sure that the

Note: T

Enable NTP setting on the Device Page page is

selected (see Ta bl e 2-6).

Autoprovision at time (HHMMSS)

The time of day the device will check for a new
autoprovisioning file. The time must be 6 characters in length
and in HHMMSS format. An empty value will disable this
option.

Note: To use the auto update options, make sure that the

Enable NTP setting on the Device Page page is

selected (see Ta bl e 2-6).

Autoprovision when idle
(in minutes > 10)

The idle time (in minutes greater than 10) after which the
device will check for a new autoprovisioning file. Enter up to 6
digits. A value of 0 will disable this option.

Note: T

o use the auto update options, make sure that the

Enable NTP setting on the Device Page page is

selected (see Ta bl e 2-6).

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

Table 2-14. Autoprovisioning Page Parameters (continued)

Web Page Item Description

Click the Save button to save your configuration settings.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the Toggle Help
button, and you will see a question mark (
some of the web page items. Move the mouse pointer to
hover over a question mark to see a short description of a
specific web page item.

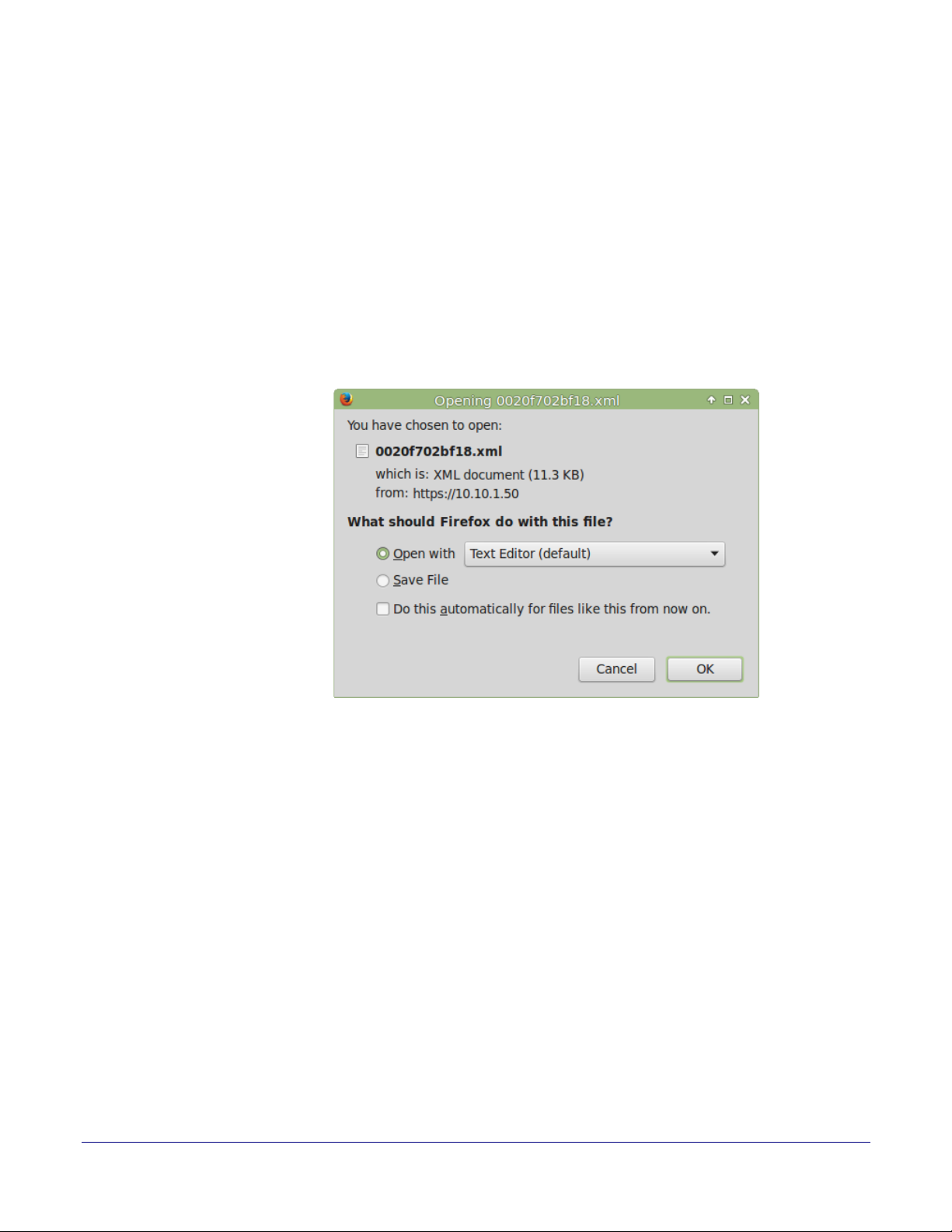

Press the Download Template button to create an
autoprovisioning file for the device. See Section 2.3.13.3,

"Download Template Button"

Autoprovisioning log The autoprovisioning log provides information about the latest

toprovisioning attempt (i.e. dhcp options and server

au
accessed and files parsed or not found).

) appear next to

56

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.3.13.1 Autoprovisioning

On boot, the device will look for an autoprovisioning server configured on the Autoprovisioning Page
or specified as a DHCP option. When it finds a server, it will try to download the following (in order of
p

reference):

1. The file configured on the autoprovisioning page.

2. A file named according to it's mac address (for example: 0020f7350058.xml).

3. The file 000000cd.xml

The file can be hosted using a standard web server (lik
download over SSL. The file server can be an ipv4 address in dotted decimal notation or a fully
qualified domain name.

By default, the device will get its autoprovisioning server from the DHCP options. See Section

2.3.13.2, "Sample dhcpd.conf" for an example of how to configure dhcpd to offer autoprovisioning

server addresses. If multiple options are set, the device will attempt to download autoprovisioning
f

iles from every server.

The DHCP option determines the protocol used to download the autoprovisioning file. The device
looks f

or DHCP options in the following order:

e apache, IIS, or nginx), and the device can

1. Option 43 - a FQDN or an IP address to an http server

2. Option 72 - an IP address to an http server

3. Option 150 - an IP address to a tftp server

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

4. Option 66 - an IP address to a tftp server or if the entry starts with 'http', a FQDN to a http server.

You can download an autoprovisioning template file from the Autoprovisioning Page using the
Download Template button (see Ta bl e 2-14). This file contains every configuration option that can
be set on the board.

Autoprovisioning files can contain the whole configuration or a subset of this file. The first
autoprovisioning file can also contain links to other autoprovisioning files.

The <MiscSettings> section contains some examples of additional autoprovisioning files:

<MiscSettings>
<DeviceName>CyberData Device</DeviceName>
<!-- <AutoprovFile>common.xml</AutoprovFile>-->
<!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->
<!-- <AutoprovFile>audio[macaddress]</AutoprovFile>-->
<!-- <AutoprovFile>device[macaddress].xml</AutoprovFile>-->
</MiscSettings>

After downloading the first autoprovisioning file, the device will step through up to twenty additional
<AutoprovFile> entries and try to download these files from the same server.

When the device finds a filename with the string [macaddress], it will replace this string with the
mac address.

57

As an example, the user has configured option 43 on their DHCP server to “https://example.com,”
and on their server, they have a file named 0020f7123456.xml (the same as the mac address of the
device).

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

The file 0020f7123456.xml contains:

<?xml version="1.0" encoding="utf-8" ?>
<specific>

<MiscSettings>

<DeviceName>Newname</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>
<AutoprovFile>audio[macaddress]</AutoprovFile>
<AutoprovFile>device.xml</AutoprovFile>

</MiscSettings>

</specific>

1. The device will first set it's name to 'Newname'.

2. It will try to download https://example.com/common.xml.

3. It will try to download https://example.com/sip_reg0020f7123456.xml.

4. It will try to download https://example.com/audio0020f7123456.

5. It will try to download https://example.com/device.xml.

The device is reconfigured every time it downloads a new file so if two files configure the same
option the last one will be the one that is saved.

58

Checking for New Autoprovisioning Files after Boot

It is possible to autoprovision autoprovisioning values (for example, to disable autoprovisioning or to
configure a time to check for new files).

The device will always check for an autoprovisioning files on boot but it can be configured to also
check after a periodic delay, when idle, or at a specified time. When one of these options is set, the
device will download its autoprovisioning files again, and if it finds any differences from the files it
downloaded on boot, it will force a reboot and reconfigure.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

59

The Autoprovisioning Filename

The autoprovisioning filename can contain a file, a file path, or a directory.

Table 2-15. Autoprovisioning File Name

Autoprovisioning
Filename

config.xml

/path/to/config.xml

subdirectory/path/ 10.0.1.3 10.0.1.3/subdirectory/path/0020f7020002.xml

Autoprovisioning

File Downloaded

Server

10.0.1.3 10.0.1.3/config.xml

10.0.1.3 10.0.1.3/path/to/config.xml

TFTP options may not support subdirectories. If a directory is set in the filename field, firmware and

udio files will also be downloaded from this subdirectory.

a

If the filename ends with a forward slash “/,” the device will treat it as a subdirectory.

For example:

The autoprovisioning server is set to “https://www.example.com”

The autoprovisioning filename is set to “cyberdata/”

On boot, the device will try to download:

https://www.example.com/cyberdata/0020f7123456.xml

...and if this fails:

https://www.example.com/cyberdata/000000cd.xml

Audio files and firmware files will also add “cyberdata” to the URL before downloading.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

60

Autoprovisioning Firmware Updates

<FirmwareSettings>

<FirmwareFile>505-uImage-ceilingspeaker</FirmwareFile>
<FirmwareServer>10.0.1.3</FirmwareServer>
<OutdoorIntercom30>firmware_file_v9.3.0</OutdoorIntercom30>
<OutdoorIntercom31>firmware_file_v10.3.0</OutdoorIntercom31>
<CallButton31>firmware_file_v10.3.0</CallButton31>

</FirmwareSettings>

In the <FirmwareSettings> section, the <FirmwareServer> element can be used to specify a
different server for hosting firmware files. When this element is not available, the device will try to
download the file from the autoprovisioning server.

The device will use the filename to determine when to autoprovision firmware updates. The default
configuration is blank, so the first time you set a value in your autoprovisioning file, it may force a
firmware update even if the firmware version has not changed.

The <FirmwareFile> name can contain path elements (i.e. /path/to/firmware/10.3.0-uImage­[device_file_name]).

The device also supports product strings for downloading firmware. If the <FirmwareFile> option is
not set, the device will look for its particular product string for a firmware filename. In this way, a
generic autoprovisioning file can specify unique firmware for a range of products.

The list of valid product strings:

<ProductString>CallButton31</ProductString>

<ProductString>EmergencyIntercom31</ProductString>
<ProductString>EmergencyIntercom31SW</ProductString>
<ProductString>IndoorIntercom31</ProductString>
<ProductString>IndoorIntercom31SW</ProductString>
<ProductString>IndoorKeypad31</ProductString>
<ProductString>IndoorKeypad31SW</ProductString>
<ProductString>OfficeRinger31</ProductString>
<ProductString>OfficeRinger31SW</ProductString>
<ProductString>OutdoorIntercom31</ProductString>
<ProductString>OutdoorIntercom31SW</ProductString>
<ProductString>OutdoorKeypad31</ProductString>
<ProductString>OutdoorKeypad31SW</ProductString>
<ProductString>Strobe31</ProductString>
<ProductString>Strobe31SW</ProductString>

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

61

Autoprovisioning Example 1

Here's a simple example using four autoprovisioning files to configure two devices:

We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2).

The devices are set to use DHCP and that server provides an autoprovisioning server address with
option 43. The address is “https://autoprovtest.server.net.” The files on this server are as follows:

000000cd.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
<AutoprovFile>sip_common.xml</AutoprovFile>
<AutoprovFile>sip_[macaddress].xml</AutoprovFile>
</MiscSettings>

sip_common.xml

<SIPSettings>
<SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

sip_0020f7020001.xml

<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>



sip_0020f7020002.xml

<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>

On boot, Device1 tries to fetch the file 0020f7023614.xml from “https://autoprovtest.server.net”. This
file is not available, so device1 then tries to fetch the file 000000cd.xml. This file exists, and Device1
parses the three elements.

1. Device1 changes its device name to CyberData Autoprovisioned.

2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device
downloads sip_common.xml from “https://autoprovtest.server.net,” and imports this
configuration, setting the sip server to 10.0.0.253 and the remote port to 5060.3.

3. Device1 finds another AutoprovFile element containing the filename sip_[macaddress].xml.
The device replaces the [macaddress] with its own mac address value creating
sip_0020f7020001.xml, downloads this file from “https://autoprovtest.server.net,” and imports
this configuration. This sets the user ID to 198, the password to ext198, and the dialout
extension to 204. Device1 is now finished with autoprovisioning.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

Device2 goes through the same steps by setting its device name to CyberData Autoprovisioned,
its SIP server to 10.0.0.253, and its port to 5060. When Device2 “sees” sip_[macaddress].xml,
Device2 replaces it with its own mac address and downloads sip_0020f7020002.xml from
“https://autoprovtest.server.net.” Device2 sets the SIP User ID to 500, the password to ext500, and
the dialout extension to 555.

62

Autoprovisioning Example 2

Here is another example of setting up your autoprovisioning files:

We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2) and boot them on a network with a DHCP server configured with an autoprovisioning
server at 10.0.1.3 on option 150. Our TFTP server has three files:

0020f7020001.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>

0020f7020002.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>



common_settings.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
</MiscSettings>
<SIPSettings> <SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

1. On boot, Device1 downloads 0020f7020001.xml from 10.0.1.3 and imports these values. The SIP
User ID is 198, the password is ext198, and the dialout extension is 204.

2. Device1 then gets the filename common_settings.xml from the AutoprovFile element and
downloads this file from the TFTP server at 10.0.1.3. and imports these settings. The device name is
set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values
instead. The Sip User ID is 500, password is ext500, and dialout extension is 555. Device2 then
downloads the common_settings.xml file and imports those values. The device name is set to
CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

63

XML Files

Autoprovisioned
Audio Files

XML files can contain <AutoprovFile> elements. If multiple DHCP options are specified, the device
will try to download autoprovisioning files from each in turn. The device will only look for
<AutoprovFile> elements in the first file downloaded from each server. You can specify up to 20
<AutoprovFile> elements in the first autoprovisioning file.

There are numerous ways to change an element of the configuration(xml) file. Using sip ext as an
example, the extension can be changed:

Within the device-specific xml, i.e. [macaddress].xml, via the AutoprovFile
element:<SIPSettings>/<SIPExt>

From the device specific xml, a pointer to a sip_common file

From the device specific xml, a pointer to the device specific sip_[macaddress].xml

From the common file, a pointer to sip_common.xml

From the common file, a pointer to the device specific (sip_[macaddress].xml)

Audio files are stored in non-volatile memory and an autoprovisioned audio file will only have to be
downloaded once for each device. Loading many audio files to the device from the web page could
cause it to appear unresponsive. If this happens, wait until the transfer is complete and then refresh
the page.

The device uses the file name to determine when to download a new audio file. This means that if
you used autoprovisioning to upload a file and then changed the contents of this file at the TFTP
server, the device will not recognize that the file has changed (because the file name is the same).

Since audio files are stored in non-volatile memory, if autoprovisioning is disabled after they have
been loaded to the board, the audio file settings will not change. You can force a change to the audio
files on the board by clicking Restore Default on the Audio page or by changing the
autoprovisioning file with “default” set as the file name.

Operations Guide 931960A CyberData Corporation

2.3.13.2 Sample dhcpd.conf

#
# Sample configuration file for ISC dhcpd for Debian
#

ddns-update-style none;

option domain-name "voiplab";
option domain-name-servers 10.0.0.252;
option option-150 code 150 = ip-address;
option ntp-servers north-america.pool.ntp.org;
option space VendorInfo;
option VendorInfo.text code 10 = { text };
authoritative;
log-facility local7;

subnet 10.0.0.0 netmask 255.0.0.0 {
max-lease-time 3600;
default-lease-time 3600;

option routers 10.0.0.1;
option subnet-mask 255.0.0.0;

option domain-name "voiplab";
option domain-name-servers 10.0.0.252;

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

64

option time-offset -8; # Pacific Standard Time

# option www-server 99.99.99.99; # OPTION 72

# option tftp-server-name "10.0.1.52"; # OPTION 66
# option tftp-server-name "https://test.cyberdata.net"; # OPTION 66

# option option-150 10.0.0.252; # OPTION 150

# These two lines are needed for option 43
# vendor-option-space VendorInfo; # OPTION 43
# option VendorInfo.text "https://test.cyberdata.net"; # OPTION 43

range 10.10.0.1 10.10.2.1; }

Operations Guide 931960A CyberData Corporation

2.3.13.3 Download Template Button

The Download Template button allows the user to generate, download, edit, and then store an
autoprovisioning template on the server that serves the autoprovisioning files for devices.

To generate an autoprovisioning template directly from the device, complete the following steps:

1. On the Autoprovisioning page, click on the Download Template button.

2. You will see a window prompting you to save a configuration file (.xml) to a location on your
computer (Figure 2-26). The configuration file is the basis for the default configuration settings
for your unit).

3. Choose a location to save the configuration file and click on OK. See Figure 2-26.

Figure 2-26. Configuration File

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

65

4. At this point, you can open and edit the autoprovisioning template to change the configuration
settings in the template for the unit.

5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be
loaded onto other devices.

Operations Guide 931960A CyberData Corporation

2.4 Upgrade the Firmware

Note CyberData strongly recommends that you do not upgrade the firmware when the device is

likely to be in use.

To upgrade the firmware of your device:

1. Download the latest firmware file from the Downloads tab at the following webpage:

https://www.cyberdata.net/products/011457

2. Unzip the firmware version file. This file may contain the following:

• Firmware file

• Release notes

• Autoprovisioning template

3. Log in to the Home page as instructed in Section 2.3.4, "Log in to the Home Page".

4. Click on the Firmware menu button to open the Firmware page (Figure 2-27).

Note CyberData strongly recommends that you do not upgrade the firmware when the device is

likely to be in use.

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

66

Figure 2-27. Firmware Page

5. Click on the Browse button, and then navigate to the location of the firmware file.

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Upload button Status Messages Upload Progress barUpload Post Processing bar

Configure the Autoprovisioning Parameters

6. Select the firmware file. This reveals the Upload button (Figure 2-28).

Figure 2-28. Upload Button

67

7. Click on the Upload button. After selecting the Upload button, you will see the progress of the
upload in the Upload Progress bar.

8. When the upload is complete, you will see the words Upload finished under Status Messages.

9. At this point, you will see the progress of the upload’s post processing in the Upload Post

Processing bar.

Note Do not reboot the device before the upgrading process is complete.

10. When the process is complete, you will see the words SWUPDATE Successful under Status
Messages.

11. The device will reboot automatically.

12. The Home page will display the version number of the firmware and indicate which boot
partition is active.

Operations Guide 931960A CyberData Corporation

Ta bl e 2-16 shows the web page items on the Firmware page.

Table 2-16. Firmware Page Parameters

Web Page Item Description

Use the Browse button to navigate to the location of the firmware file that you want to
upload.

Installing the SIP IP66 Indoor/Outdoor Horn

Configure the Autoprovisioning Parameters

68

Click on the Upload b

utton to automatically upload the selected firmware and reboot the

system.

Note: This button only appears after the user has selected a firmware file.

Upload progress Status bar indicates the progress in uploading the file.

Upload Post Processing Status bar indicates the progress of the software installation.

Status Messages Messages relevant to the firmware update process appear here.

Operations Guide 931960A CyberData Corporation

2.4.1 Reboot the Device

v20.5.0

457000001

CyberData SIP Outdoor Horn

v20.5.0

v20.5.0

Reboot

To reboot a SIP IP66 Indoor/Outdoor Horn, log in to the web page as instructed in Section 2.3.4,

"Log in to the Home Page".

1. Click on the Reboot button on the Home page (Figure 2-29). A normal restart will occur.

Figure 2-29. Home Page

Installing the SIP IP66 Indoor/Outdoor Horn

Reboot the Device

69

Operations Guide 931960A CyberData Corporation

Installing the SIP IP66 Indoor/Outdoor Horn

Command Interface Post Commands

2.5 Command Interface

Some functions on the device can be activated using simple POST commands to the web interface.
The examples in Table 2-17 use the free unix utility, wg
commands to the device should work.

2.5.1 Command Interface Post Commands

These commands require an authenticated session (a valid username and password to work).

Table 2-17. Command Interface Post Commands

Device Action HTTP Post Command

Reboot wget --user admin --password admin --auth-no-challenge --quiet -O

/dev/null --no-check-certificate "https://10.10.1.247/command" -­post-data "request=reboot"

Place call to extension (example: extension 600) wget --user admin --password admin --auth-no-challenge --quiet -O

/dev/null --no-check-certificate "https://10.10.1.247/command" -­post-data "request=call&extension=600"

Terminate a call wget --user admin --password admin --auth-no-challenge --quiet -O

/dev/null --no-check-certificate "https://10.10.1.247/command" -­post-data "request=terminate"

et, but any program that can send http POST

a

70

Speak IP Address wget --user admin --password admin --auth-no-challenge --quiet -O

/dev/null --no-check-certificate "https://10.10.1.247/command" -­post-data "request=speak_ip_address"

Test Audio wget --user admin --password admin --auth-no-challenge --quiet -O

/dev/null --no-check-certificate "https://10.10.1.247/command" -­post-data "request=test_audio"

Swap Boot partitions wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.10.1.81/command" -­post-data "request=swap_boot_partition"

a.Type and enter all of each http POST command on one line.

Operations Guide 931960A CyberData Corporation

Appendix A: Mounting the SIP IP66

6.772 [172]

14.404 [366]

6.730 [171]

2.008 [51]

4.016 [102]

Ø0.433 [Ø11]

(3 Places)

1.457 [37]

10.630 [270]

9.291 [236]

RTFM

Status LED

Dimensions are in Inches [Millimeters]

Indoor/Outdoor Horn

A.1 Dimensions

Figure A-1. Dimensions

77

Operations Guide 931960A CyberData Corporation

Appendix B: Troubleshooting/Technical Support

B.1 Frequently Asked Questions (FAQ)

To see a list of frequently asked questions for your product, click on the FAQs tab at the following
webpage:

https://www.cyberdata.net/products/011457

B.2 Documentation

The documentation for this product is released in an English language version only.

To download PDF copies of CyberData product documentation, click on the Downloads tab at the
following webpage:

78

https://www.cyberdata.net/products/011457

Operations Guide 931960A CyberData Corporation

B.3 Contact Information

79

Contact

Sales

Technical 
Support

CyberData Corporation
3 Justin Court
Monterey, CA 93940 USA

www.CyberData.net

Phone: 800-CYBERDATA (800-292-3732)
Fax: [phone]

Sales 831-373-2601, Extension 334

The fastest way to get technical support for your VoIP product is to submit a VoIP Technical
Support form at the following website:

https://support.cyberdata.net/

The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most
importantly, the Support Form tells us which PBX system and software version that you are
using, the make and model of the switch, and other important information. This information is
essential for troubleshooting. Please also include as much detail as possible in the Comments
section of the Support Form.

Phone: [phone], Extension 333

B.4 Warranty and RMA Information

The most recent warranty and RMA information is available at the following website address:

https://support.cyberdata.net/

Operations Guide 931960A CyberData Corporation

Index

80

A

address, configuration login 20
announcing an IP address 15
audio configuration 49

night ring tone parameter 51
audio encodings 4
audio files, user-created 53
audio page 49
audio test 13
autoprovision at time (HHMMSS) 61
autoprovision when idle (in minutes > 10) 61
autoprovisioning 62

download template button 62
autoprovisioning autoupdate (in minutes) 61
autoprovisioning configuration 60, 61
autoprovisioning filename 61
autoprovisioning server (IP Address) 61

B

backup SIP server 1 34
backup SIP server 2 34
backup SIP servers, SIP server

backups 34

C

D

default

web login username and password 20
default gateway 31
default IP settings 16
default login address 20
device configuration 24
device configuration page 24, 27
device configuration parameters 25
device configuration password

changing for web configuration access 24
DHCP Client 4
dial out extension strings 45
dimensions 5, 77
discovery utility program 20
DNS server 31
door sensor 51
download autoprovisioning template button 62
DTMF tones (using rfc2833) 45

E

enable night ring events 56
ethernet I/F 5
event configuration

enable night ring events 56
expiration time for SIP server lease 34, 35, 36
export settings 22, 23

changing

the web access password 24
Cisco SRST 35
command interface 76
commands 76
configurable parameters 34
configuration

audio 49

default IP settings 16

door sensor 39

intrusion sensor 39

network 30

SIP 33
configuration home page 20
connection options 10
connections 10
contact information 79
contact information for CyberData 79
current network settings 31
CyberData contact information 79

Operations Guide 931960A CyberData Corporation

F

factory defaults 15
firmware

where to get the latest firmware 72

G

get autoprovisioning template 62

H

hazard levels 5
home page 20

81

http POST command 76
http web-based configuration 4

I

identifying your product 1
import settings 22, 23
import/export settings 22, 23
installation 2
IP address 31
IP address announcement 15
IP address confirmation 13

L

lease, SIP server expiration time 34, 35, 36
lengthy pages 48
local SIP port 35
log in address 20

M

MGROUP

MGROUP Name 47
