CyberData 011376 Operating Guide

The IP Endpoint Company

RGB Strobe



Operations Guide

Part #011376

Document Part #931212B

for Firmware Version 11.6.0

CyberData Corporation

3 Justin Court

Monterey, CA 93940

[phone]

RGB Strobe Operations Guide 931212B

Technical Support 


The fastest way to get technical support for your VoIP product is to
submit a VoIP Technical Support form at the following website:

http://support.cyberdata.net/



Phone: [phone], Ext. 333
Email: [email protected]
Fax: [phone]
Company and product information is at www.cyberdata.net.

The IP Endpoint Company

Part # 011376

COPYRIGHT NOTICE:
© 2016, CyberData Corporation, ALL RIGHTS RESERVED.

This manual and related materials are the copyrighted property of CyberData Corporation. No part of
this manual or related materials may be reproduced or transmitted, in any form or by any means
(except for internal use by licensed customers), without prior express written permission of
CyberData Corporation. This manual, and the products, software, firmware, and/or hardware
described in this manual are the property of CyberData Corporation, provided under the terms of an
agreement between CyberData Corporation and recipient of this manual, and their use is subject to
that agreement and its terms.

DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by
CyberData Corporation, CyberData Corporation makes no representation or warranty, express or
implied, including any warranty or merchantability or fitness for any purpose, with respect to this
manual or the products, software, firmware, and/or hardware described herein, and CyberData
Corporation assumes no liability for damages or claims resulting from any use of this manual or such
products, software, firmware, and/or hardware. CyberData Corporation reserves the right to make
changes, without notice, to this manual and to any such product, software, firmware, and/or
hardware.

OPEN SOURCE STATEMENT: Certain software components included in CyberData products are
subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL)
“open source” or “free software” licenses. Some of this Open Source Software may be owned by third
parties. Open Source Software is not subject to the terms and conditions of the CyberData
COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open
Source Software is determined by the terms of the GPL, LGPL, or third party, according to who
licenses that software.

Operations Guide 931212B CyberData Corporation

Software or firmware developed by CyberData that is unrelated to Open Source Software is
copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied,
modified, reverse-engineered, or otherwise altered without explicit written permission from
CyberData Corporation.

TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are
trademarks of CyberData Corporation. Other product names, trademarks, and service marks may be
the trademarks or registered trademarks of their respective owners.

Revision Information

Revision 931212B, which corresponds to firmware version 11.6.0, was released on October 28,
2016, and has the following changes:

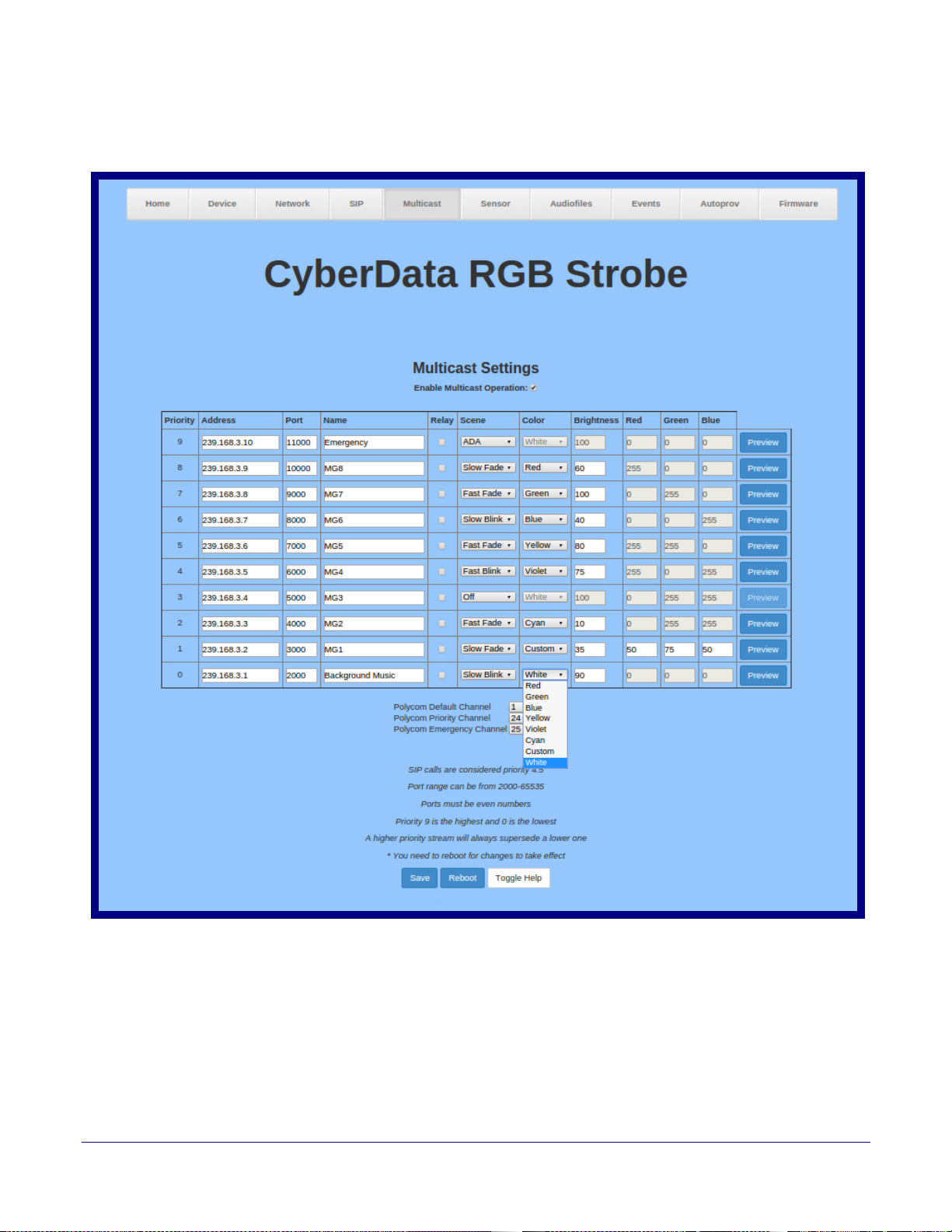

• Updates Figure 2-17, "Multicast Configuration Page"

Operations Guide 931212B CyberData Corporation

Pictorial Alert Icons

GENERAL ALERT

Hazard Levels

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This is limited to the most extreme situations.

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.

General Alert

This pictorial alert indicates a potentially hazardous situation. This alert will be
followed by a hazard level heading and more specific information about the
hazard.

Ground

This pictorial alert indicates the Earth grounding connection point.

Caution: Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury. It may also alert users against unsafe practices.

Notice: Indicates a statement of company policy (that is, a safety policy or protection of property).

The safety guidelines for the equipment in this manual do not purport to address all the safety issues
of the equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and
health practices and determine the applicability of regulatory limitations prior to use. Potential safety
hazards are identified in this manual through the use of words Danger, Warning, and Caution, the
specific hazard type, and pictorial alert icons.

Operations Guide 931212B CyberData Corporation

Important Safety Instructions

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

13. Prior to installation, consult local building and electrical code requirements.

14. WARNING: The RGB Strobe enclosure is not rated for any AC voltages!

Warn in g

Electrical Hazard: This product should be installed by a licensed electrician

according to all local electrical and building codes.

Warn in g

Electrical Hazard: To prevent injury, this apparatus must be securely attached to

the floor/wall in accordance with the installation instructions.

Warn in g

The PoE connector is intended for intra-building connections only and does not
route to the outside plant.

Operations Guide 931212B CyberData Corporation

Abbreviations and Terms

Abbreviation or Term Definition

A-law A standard companding algorithm, used in European digital

communications systems to optimize, i.e., modify, the dynamic range of an
analog signal for digitizing.

AVP Audio Video Profile

Cat 5 TIA/EIA-568-B Category 5

DHCP Dynamic Host Configuration Protocol

LAN Local Area Network

LED Light Emitting Diode

Mbps Megabits per Second.

NTP Network Time Protocol

PBX Private Branch Exchange

PoE Power over Ethernet (as per IEEE 802.3af standard)

RTFM Reset Test Function Management

SIP Session Initiated Protocol

u-law A companding algorithm, primarily used in the digital telecommunication

UC Unified Communications

VoIP Voice over Internet Protocol

Operations Guide 931212B CyberData Corporation

Contents

Chapter 1 Product Overview 1

1.1 How to Identify This Product .....................................................................................................1

1.2 Typical System Installation .......................................................................................................2

1.3 Product Features ......................................................................................................................3

1.4 Supported Protocols .................................................................................................................3

1.5 Supported SIP Servers .............................................................................................................3

1.6 Specifications ...........................................................................................................................4

Chapter 2 Installing the RGB Strobe 5

2.1 Parts List ..................................................................................................................................5

2.2 RGB Strobe Setup ....................................................................................................................6

i

2.2.1 RGB Strobe Connections ...............................................................................................6

2.2.2 Connecting the RGB Strobe to the On-Board Relay ......................................................7

2.2.3 Identifying the RGB Strobe Connectors and Jumpers ...................................................9

2.2.4 Link and Activity LEDs .................................................................................................12

2.2.5 Restore the Factory Default Settings ...........................................................................13

2.3.1 Factory Default Settings ...............................................................................................14

2.3.2 RGB Strobe Web Page Navigation ..............................................................................15

2.3.3 Using the Toggle Help Button .......................................................................................16

2.3.4 Log in to the Configuration Home Page .......................................................................18

2.3.5 Configure the Device ....................................................................................................22

2.3.6 Configure the Network Parameters .............................................................................27

2.3.7 Configure the SIP Parameters .....................................................................................30

2.3.8 Configure the Multicast Parameters .............................................................................39

2.3.9 Configure the Sensor Parameters ................................................................................43

2.3.10 Configure the Audiofiles Parameters ..........................................................................47

2.3.11 Configure the Event Parameters ................................................................................48

2.3.12 Configure the Autoprovisioning Parameters ...............................................................53

2.4.1 Reboot the Device ........................................................................................................67

2.5.1 Command Interface Post Commands ..........................................................................68

Appendix A Mounting the RGB Strobe 69

A.1 Mount the RGB Strobe ..........................................................................................................69

Appendix B Troubleshooting/Technical Support 74

B.1 Frequently Asked Questions (FAQ) ........................................................................................74

B.2 Documentation .......................................................................................................................74

B.3 Contact Information ................................................................................................................75

B.4 Warranty and RMA Information ..............................................................................................75

Index 76

Operations Guide 931212B CyberData Corporation

1 Product Overview

RGB STROBE

SIP ENABLED

RAL 9003 RoHS

011376A / 021106Q / 021059G

WWW.CYBERDATA.NET

376000001

Model number Serial number begins with 3760

1.1 How to Identify This Product

To identify the RGB Strobe, look for a model number label similar to the one shown in Figure 1-1.
Confirm the following:

● The model number on the label should be 011376.

● The serial number on the label should begin with 3760.

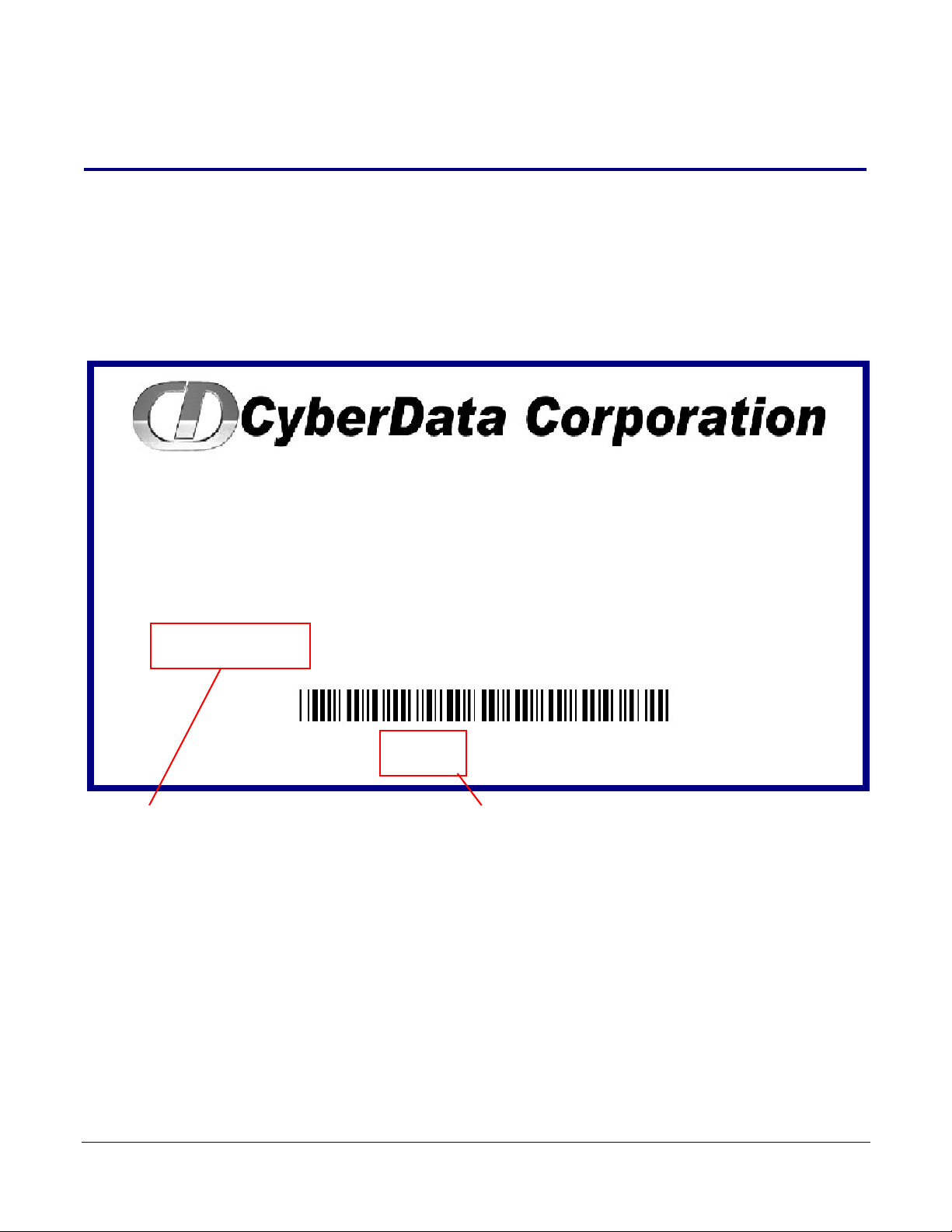

Figure 1-1. Model Number Label

1

Operations Guide 931212B CyberData Corporation

1.2 Typical System Installation

Generic PoE Switch

IP Phone IP PBX Server

RGB StrobeRGB StrobeRGB Strobe

The RGB Strobe is a Session Initiation Protocol (SIP) endpoint designed to provide VoIP phone
connectivity in a tamper proof and secure package.

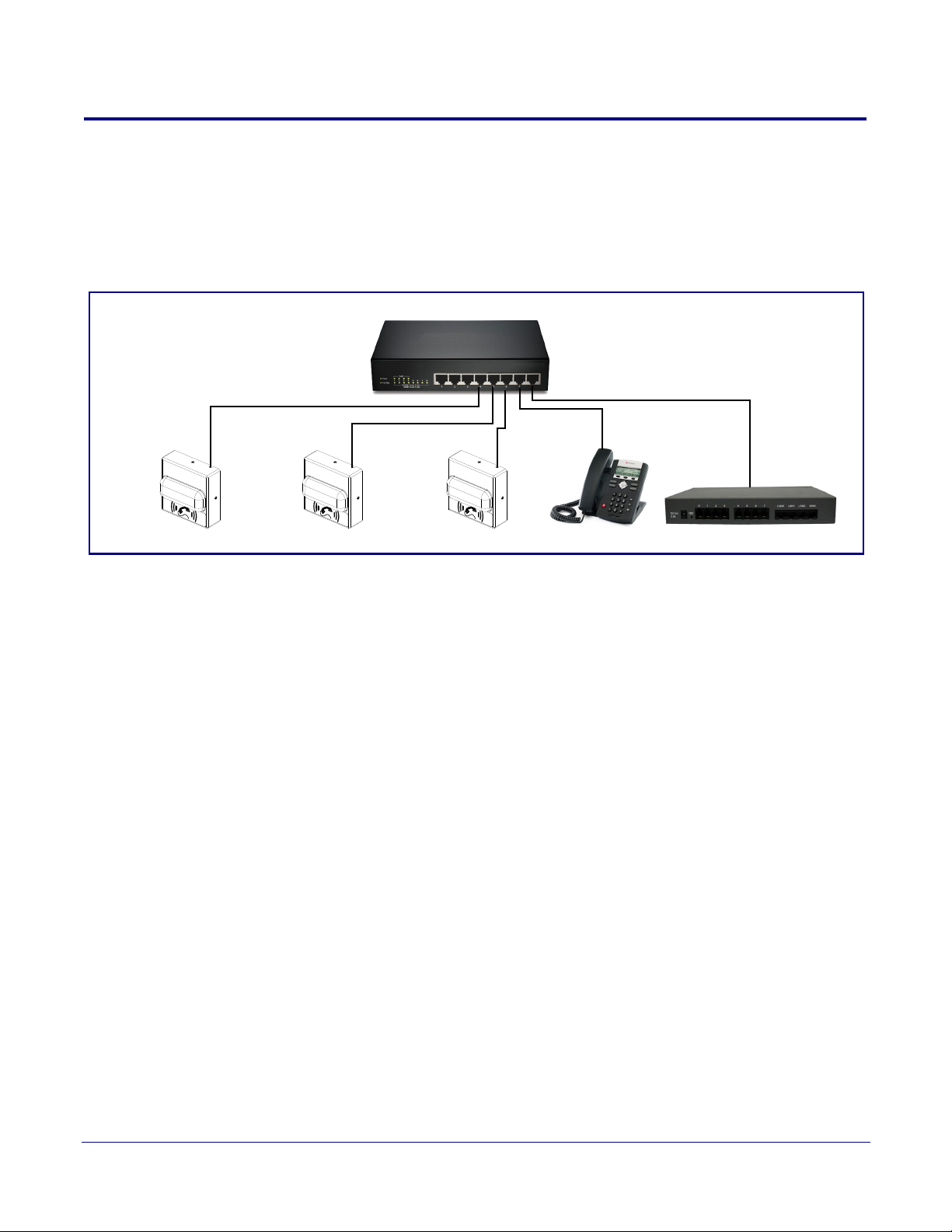

Figure 1-2 illustrate how the RGB Strobes can be installed as part of a VoIP phone system.

Figure 1-2. Typical Installation

Product Overview

Typical System Installation

2

Operations Guide 931212B CyberData Corporation

1.3 Product Features

● Meets ADA requirements for telephony signaling and notification

● Five "scenes" with adjustable brightness for each strobe trigger

● Support for 10 multicast addresses

● SIP activation

● Mailbox message waiting indication

● Multicast activation

● Cisco SRST support

● Event-controlled relay

● Tamper sensor

● Web-based setup

● PoE-powered

Product Overview

Product Features

3

1.4 Supported Protocols

The RGB Strobe supports:

● SIP

● HTTP Web-based configuration

Provides an intuitive user interface for easy system configuration and verification of RGB Strobe
operations.

● DHCP Client

Dynamically assigns IP addresses in addition to the option to use static addressing.

● RTP

1.5 Supported SIP Servers

Go to the following link to find the RGB Strobe product page which will have information on how to
configure the RGB Strobe for various supported SIP servers:

http://www.cyberdata.net/connecting-to-compatible-ip-pbx-servers/

Operations Guide 931212B CyberData Corporation

1.6

Specifications

Table 1-1. Specifications

Specifications

Ethernet I/F 10/100 Mbps

Protocol SIP RFC 3261 Compatible

Power Input PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply

Light power Up to 90 candela (user-selectable)

Flash rate 5 user-defined scenes

LED MTBF 100,000 Hours

On-Board Relay 1A at 30 VDC

Operating Temperature -10° C to 50° C (14° F to 122° F)

Dimensions 4.5 inches [115 mm] Length

2.1 inches [55 mm] Width

4.5 inches [115 mm] Height

Product Overview

Specifications

a

4

Weight

Boxed Weight

Part Number 011376

a. Contacts 1 and 2 on the terminal block are only for powering the device from a non-PoE 12VDC power source
as an alternative to Network PoE power. Use of these contacts for any other purpose will damage the device and
void the product warranty.

1.0 lbs. (0.45 kg)

2.0 lbs. (0.90 kg)

Operations Guide 931212B CyberData Corporation

2 Installing the RGB Strobe

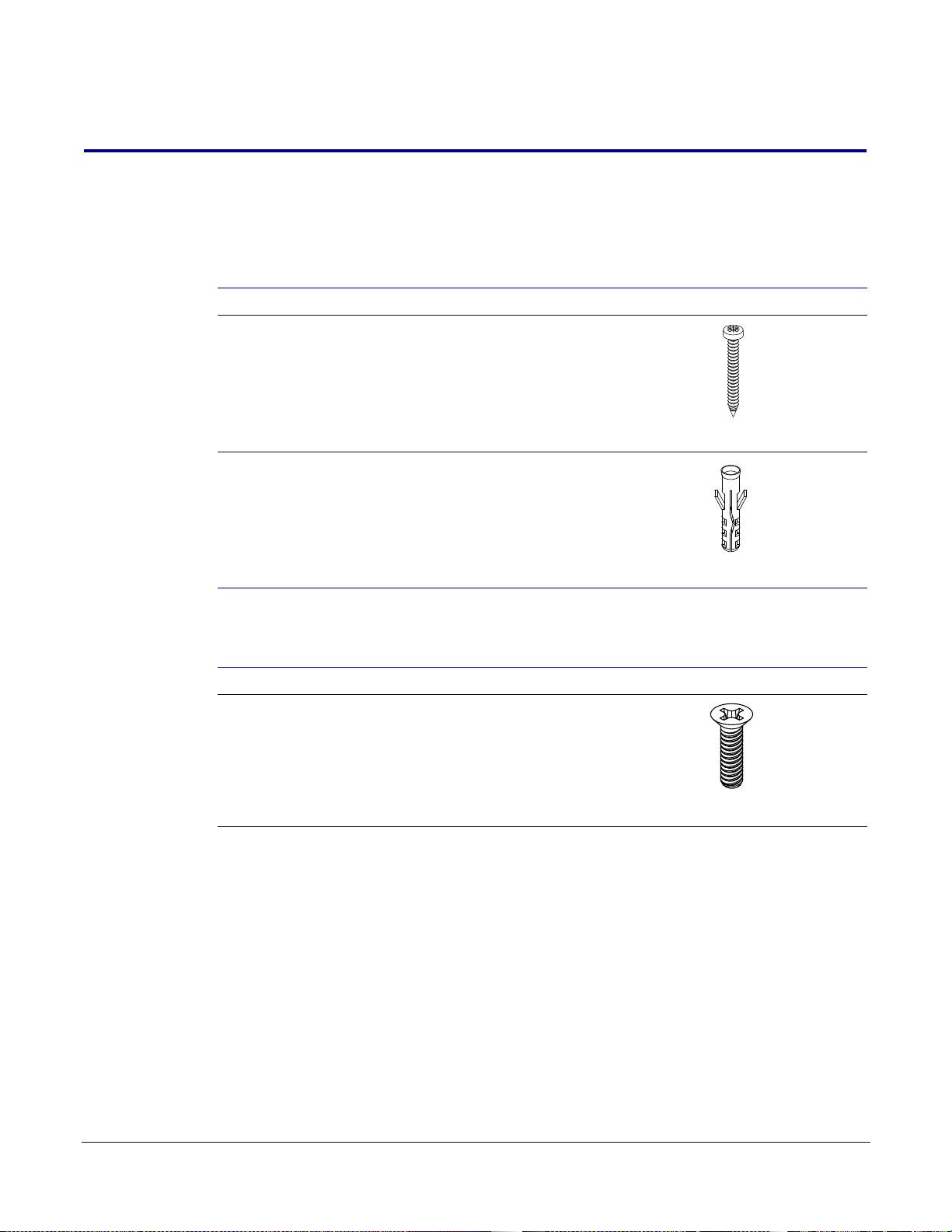

2.1 Parts List

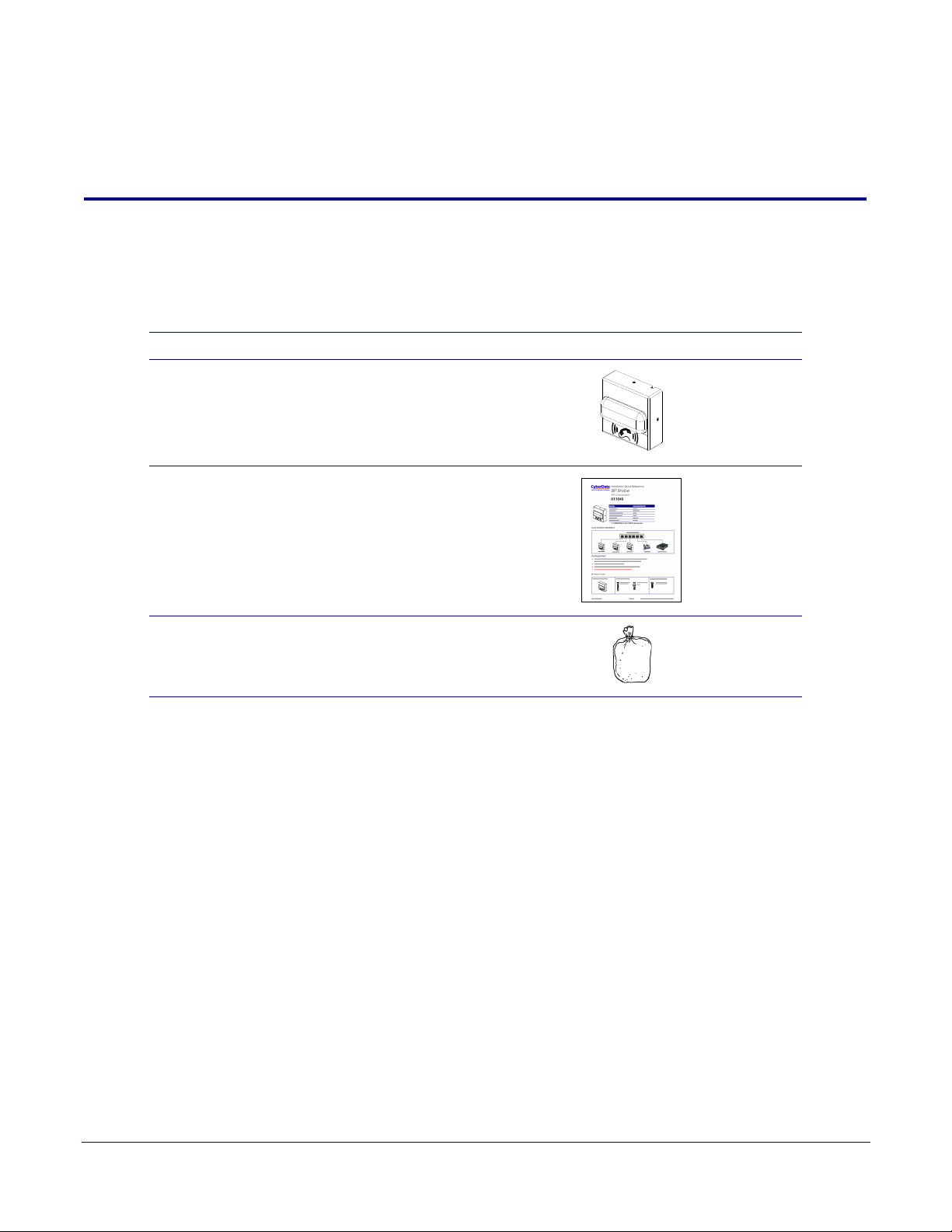

Ta bl e 2-2 illustrates the RGB Strobe parts.

Table 2-2. Parts List

Quantity Part Name Illustration

1 RGB Strobe Assembly

1 Installation Quick Reference Guide

5

1 RGB Strobe Mounting Accessory

Kit

Operations Guide 931212B CyberData Corporation

2.2 RGB Strobe Setup

GENERAL ALERT

0.25"

Terminal Block

Wire (IN)

can accept 16 AWG wire

1

8

Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*

Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Reserved for Future Use
8 = Reserved for Future Use

*Contacts 1 and 2 on the terminal block are only for 
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.

3

4

Use a 3.17 mm (1/8-inch) flat blade

screwdriver for the terminal block screws

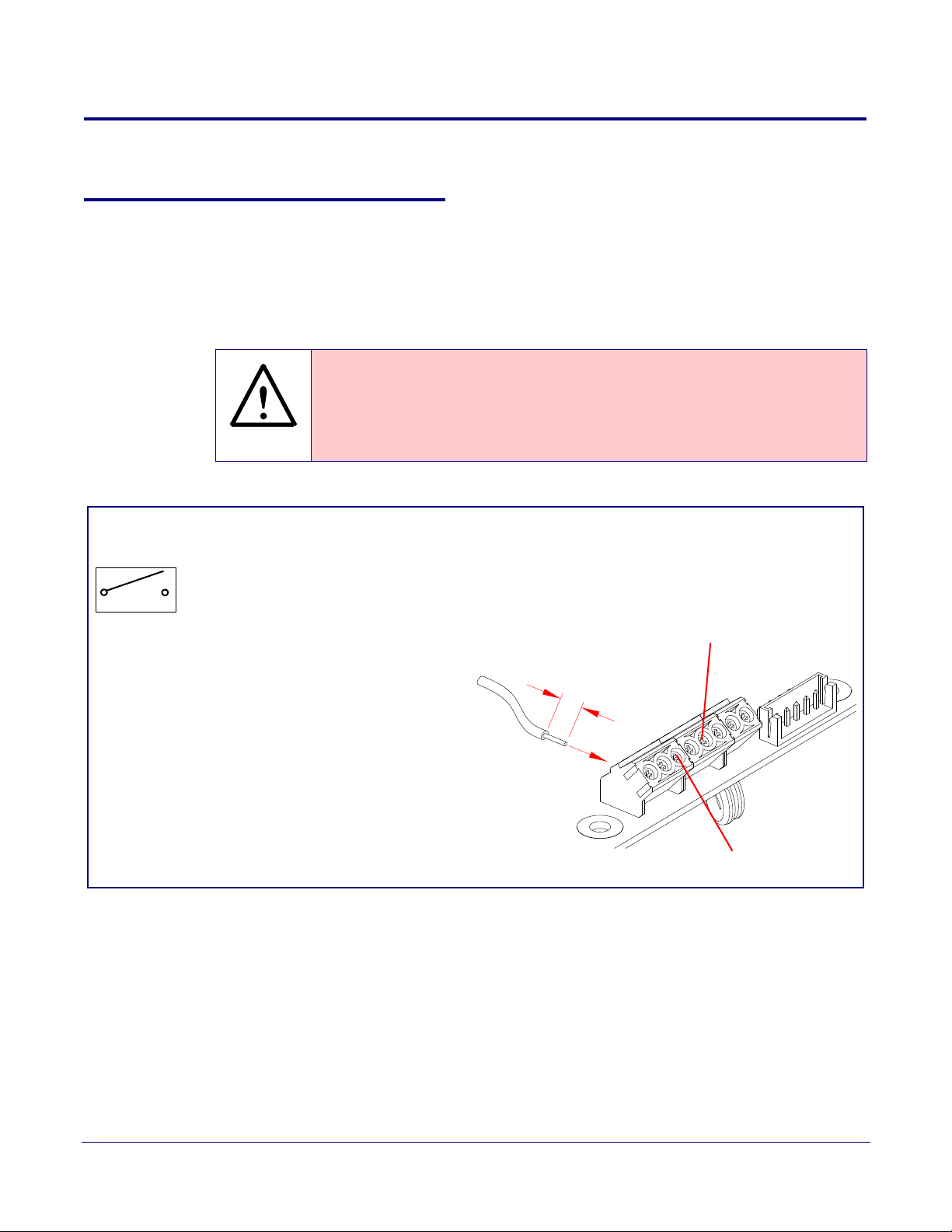

2.2.1 RGB Strobe Connections

Figure 2-1 shows the pin connections on the terminal block. This terminal block can accept 

16 AWG gauge wire.

Installing the RGB Strobe

RGB Strobe Setup

6

Note As an alternative to

Power Supply into the terminal block.

Caution

Equipment Hazard: Contacts 1 and 2 on the terminal block are only for powering

the device from a non-PoE 12 VDC power source as an alternative to Network PoE
power. Use of these contacts for any other purpose will damage the device and void
the product warranty.

using PoE power, you can supply +8 to +12VDC @ 1000mA Regulated

Figure 2-1. Connections

Operations Guide 931212B CyberData Corporation

2.2.2 Connecting the RGB Strobe to the On-Board Relay

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

Warning

Electrical Hazard: The device enclosure is not rated for any AC voltages.

Warning

Electrical Hazard: This product should be installed by a licensed electrician

according to all local electrical and building codes.

Warning

Electrical Hazard: To prevent injury, this apparatus must be securely attached

to the floor/wall in accordance with the installation instructions.

Installing the RGB Strobe

RGB Strobe Setup

7

Warning

Electrical Hazard: The relay contacts are dry and provided for a normally

open and momentarily closed configuration. Neither the alternate power input
nor PoE power can be used to drive a door strike.

Warning

The PoE connector is intended for intra-building connections only and does not
route to the outside plant.

The device incorporates an on-board relay which enables users to control an external relay for
activating an auxiliary device such as an electric door strike (see

Strobe Connectors and Jumpers").

The relay contacts are limited to 1A at 30 VDC. The relay activation time is selectable through the
web interface and is controlled by DTMF tones generated from the phone being called. The DTMF
tones are selectable from the web interface as well.

Figure 2.2.3, "Identifying the RGB

Operations Guide 931212B CyberData Corporation

8

+

-

DC

POWER SUPPLY

30 VDC @ 1A

MAX.

IN

Switching Diode

High PIV UltraFast

Solid State

or

Mechanical

Relay

Controlled Device

Depending Upon

AC or DC rated

Output Contacts

Requirements

Power Source

AC or DC

Controlled Device

Such As

Electric Door Strike

or

Strobe Light

( )

OUT

Example of External Relay (not supplied)

PCB

On-Board Relay Wiring Contacts

2
1

3

4

5

6

7

8

RGB Strobe Setup

Installing the RGB Strobe

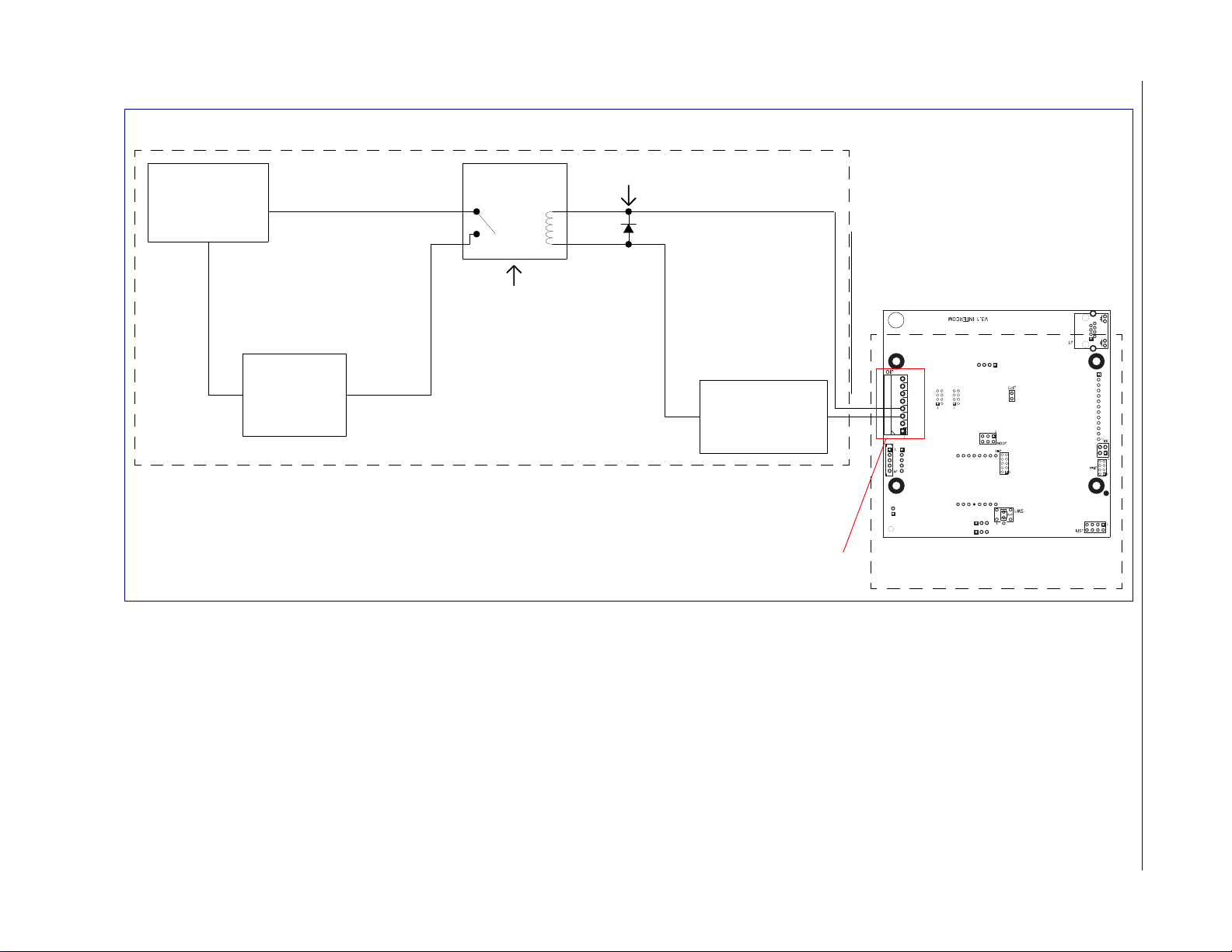

Figure 2-2. Wiring Diagram

Operations Guide 931212B CyberData Corporation

2.2.3 Identifying the RGB Strobe Connectors and Jumpers

See the following figures and tables to identify the RGB Strobe connector locations and functions.

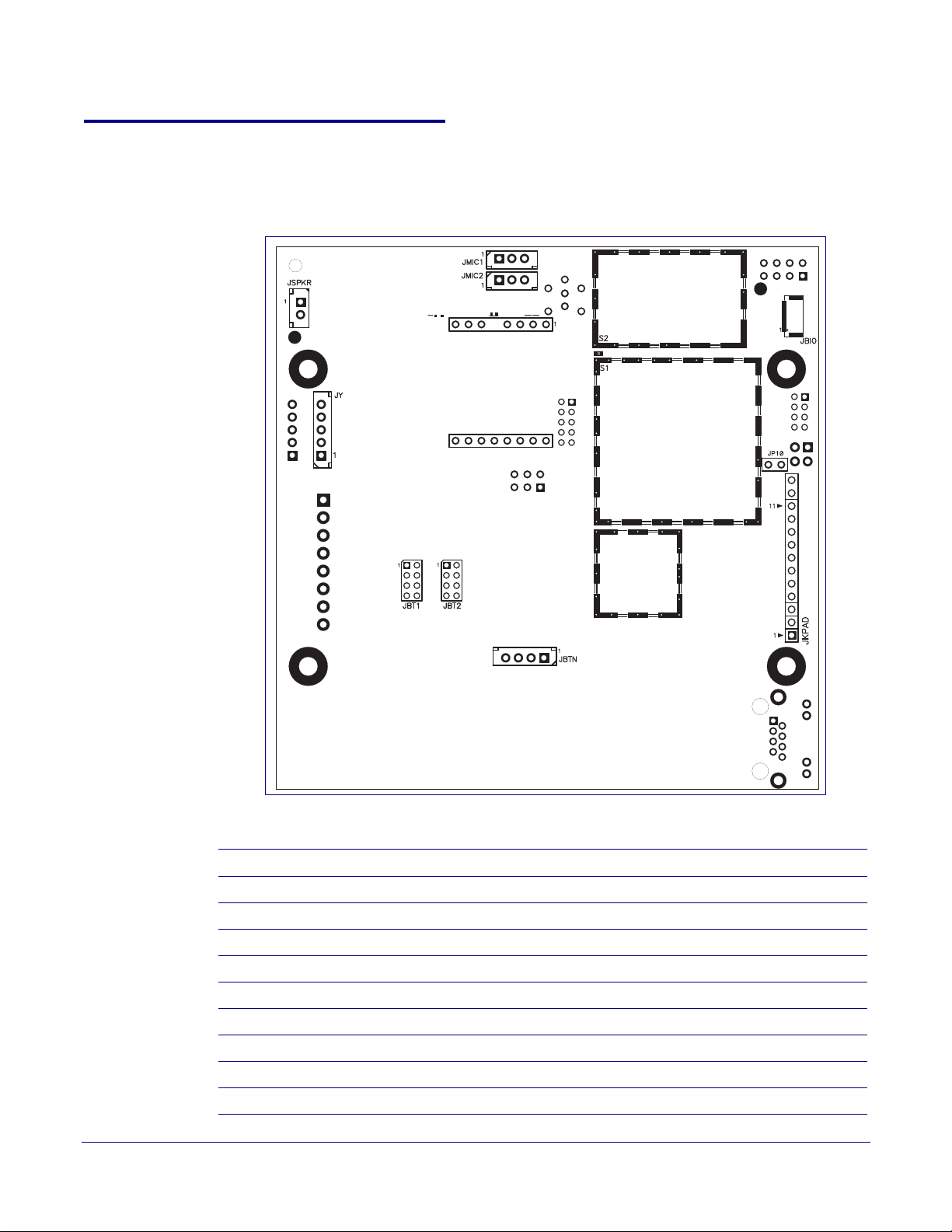

Figure 2-3. Connector Locations

Installing the RGB Strobe

RGB Strobe Setup

9

Table 2-3. Connector Functions

Connector Function

JBTN Call Button LED Interface — Not Used

JMIC1 Microphone Interface — Not Used

JSPKR Speaker Interface — Not Used

JKPAD Keypad Interface — Not Used

JX Auxiliary Strobe Connector — Not Used

JY Proximity Sensor Interface — Not Used

JP10 Disables the intrusion sensor when installed.

JBT1 Touch Button -1 Interface — Not Used

JBT2 Touch Button -2 Interface — Not Used

Operations Guide 931212B CyberData Corporation

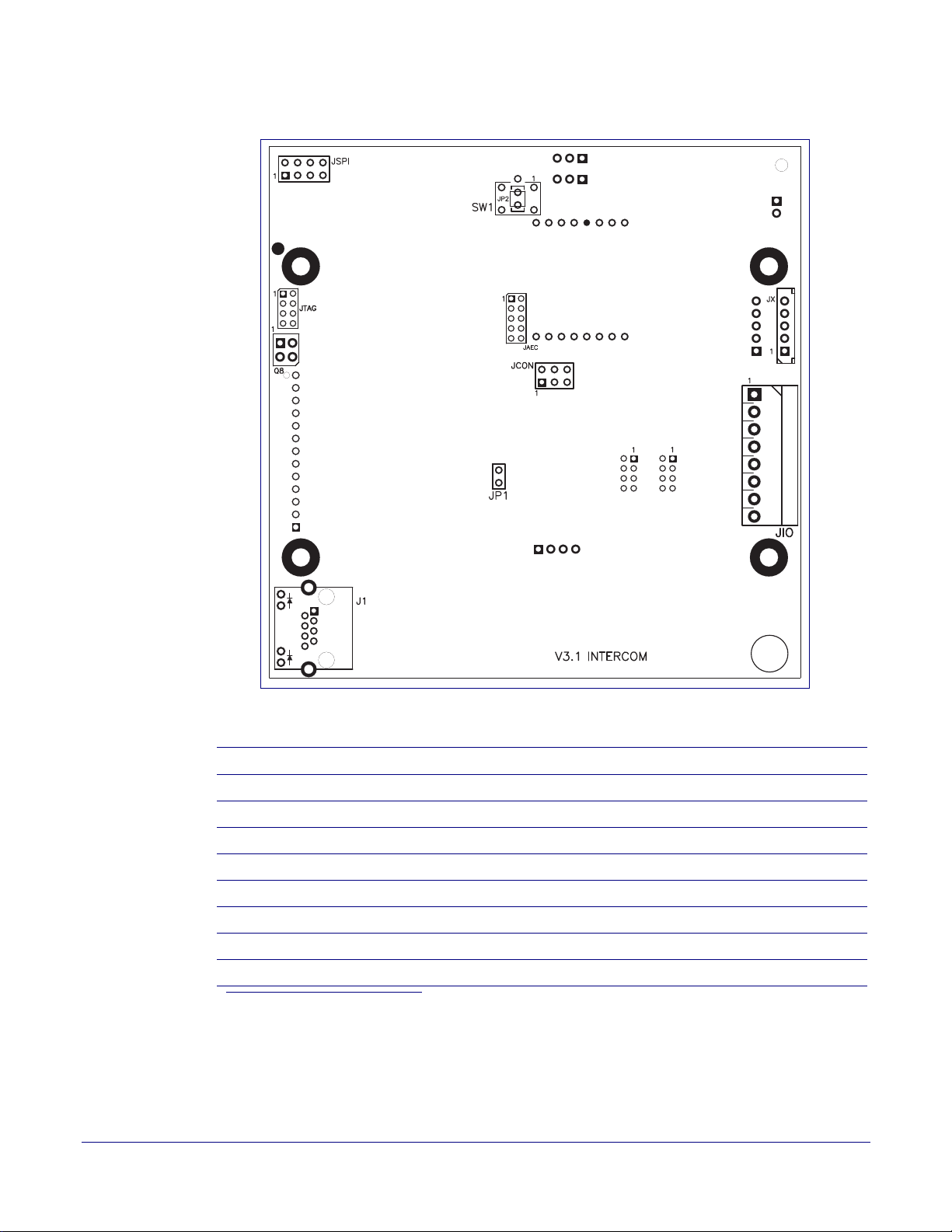

Figure 2-4. Connector Locations

Installing the RGB Strobe

RGB Strobe Setup

10

Table 2-4. Connector Functions

Connector Function

JP1 Reset jumper

a

J1 PoE Network Connection (RJ-45 ethernet)

JAEC AEC Configuration Interface (Factory Use Only)

JIO Terminal Block (see Figure 2-1)

JCON Console Port (Factory Use Only)

JTAG JTAG (Factory Use Only)

JSPI Reserved (Factory Use Only)

SW1 See Section 2.2.5.1, "RTFM Button"

a.Do not install a jumper. Momentary short to reset. Permanent installation of a jumper would
prevent the board from running all together.

Operations Guide 931212B CyberData Corporation

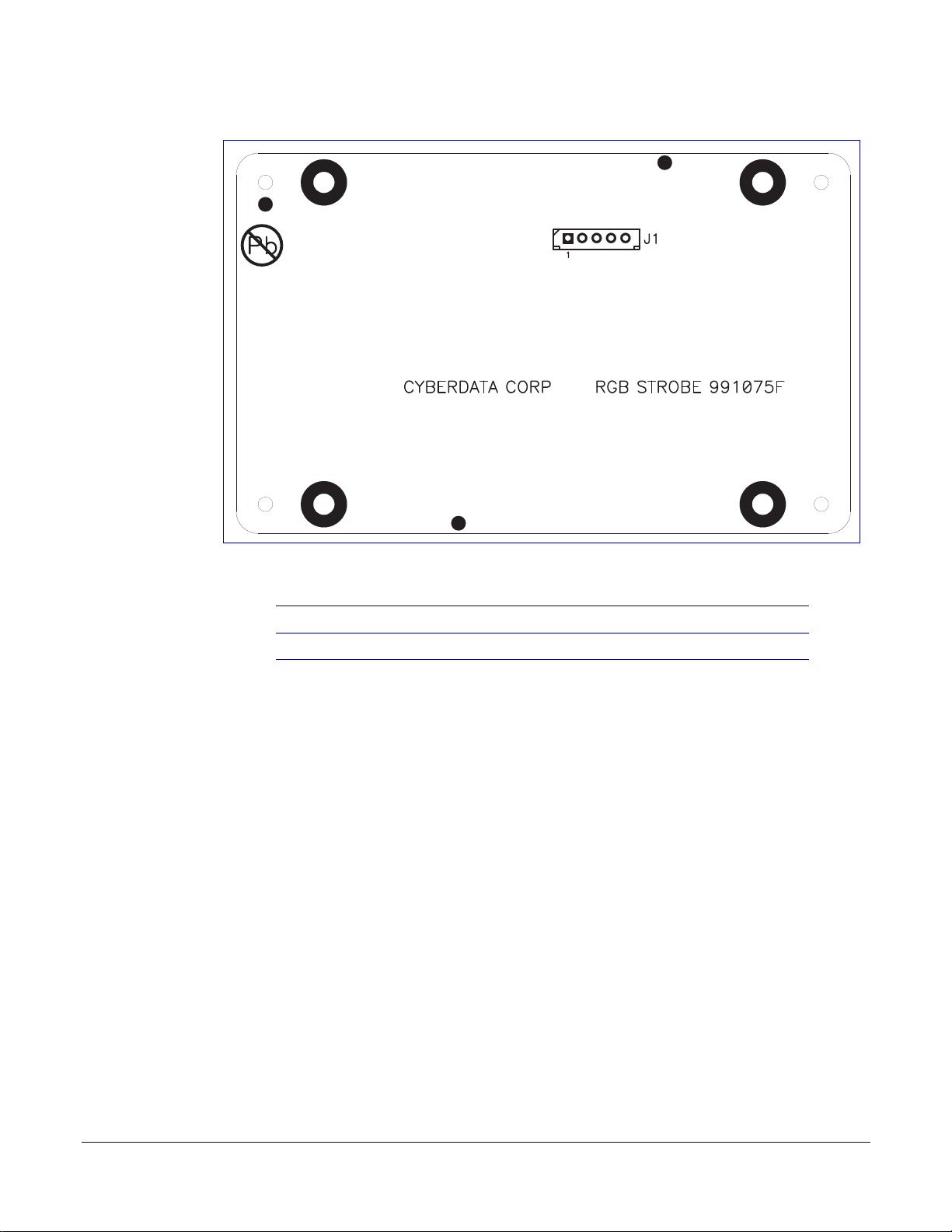

Figure 2-5. Connector Locations for the 021509 Board

Installing the RGB Strobe

RGB Strobe Setup

11

.

Table 2-5. Connector Functions

Connector Function

J1 Ethernet Connector

Operations Guide 931212B CyberData Corporation

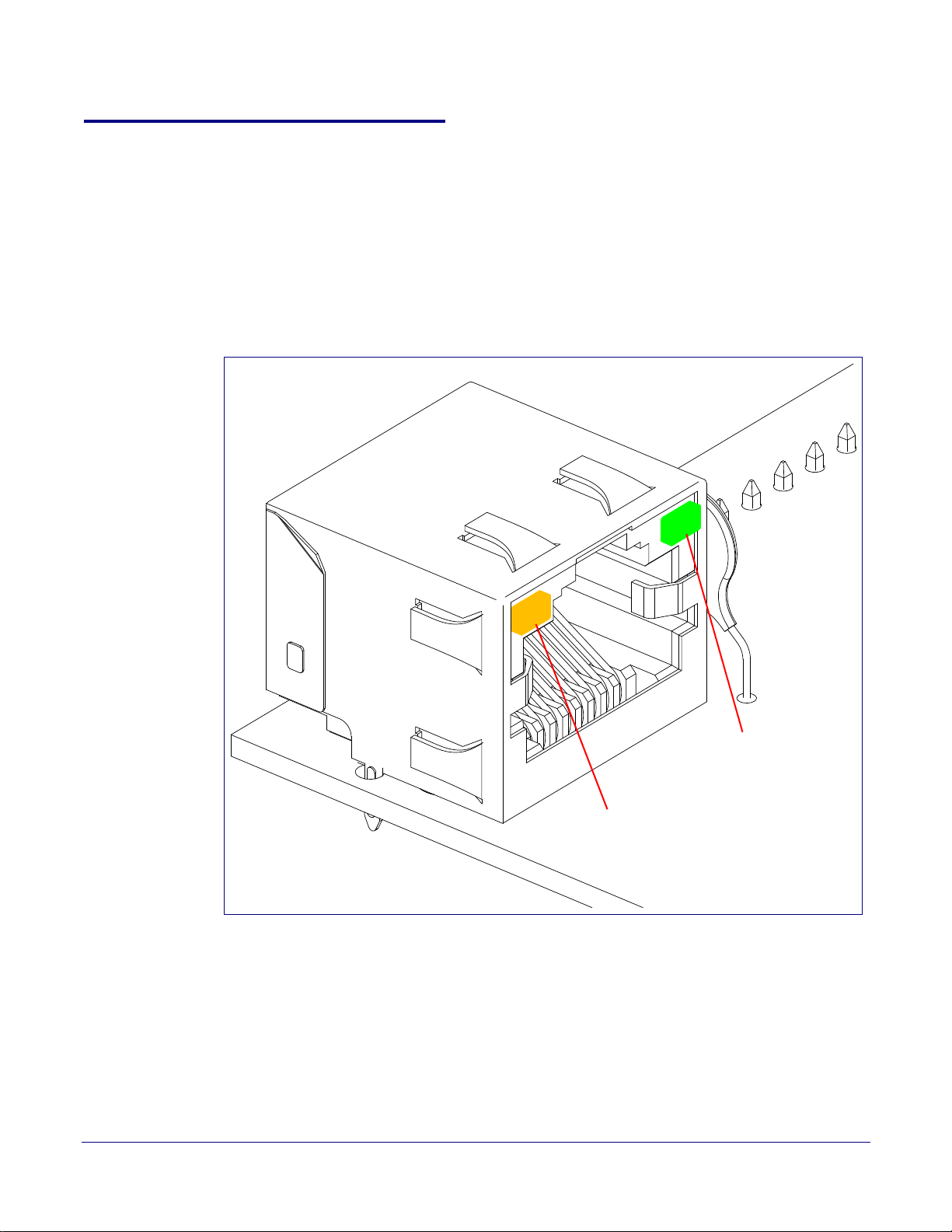

2.2.4 Link and Activity LEDs

Link

Activity

2.2.4.1 Verifying the Network Connectivity and Data Rate

When you plug in the Ethernet cable or power supply to the device, the following occurs:

• The square, GREEN Link LED above the Ethernet port indicates that the network connection
has been established (see

• The square, YELLOW Activity LED blinks when there is network activity (see Figure 2-6).

Figure 2-6).

Figure 2-6. Link and Activity LEDs

Installing the RGB Strobe

RGB Strobe Setup

12

Operations Guide 931212B CyberData Corporation

2.2.5 Restore the Factory Default Settings

RTFM

RTFM button

2.2.5.1 RTFM Button

When the device is operational and linked to the network, use the Reset Test Function Management
(RTFM) button (

Note Each device is delivered with factory set default values.

Note The device will use DHCP to obtain the new IP address (DHCP-assigned address or default

to 10.10.10.10 if a DHCP server is not present).

Figure 2-7) to set the factory default settings.

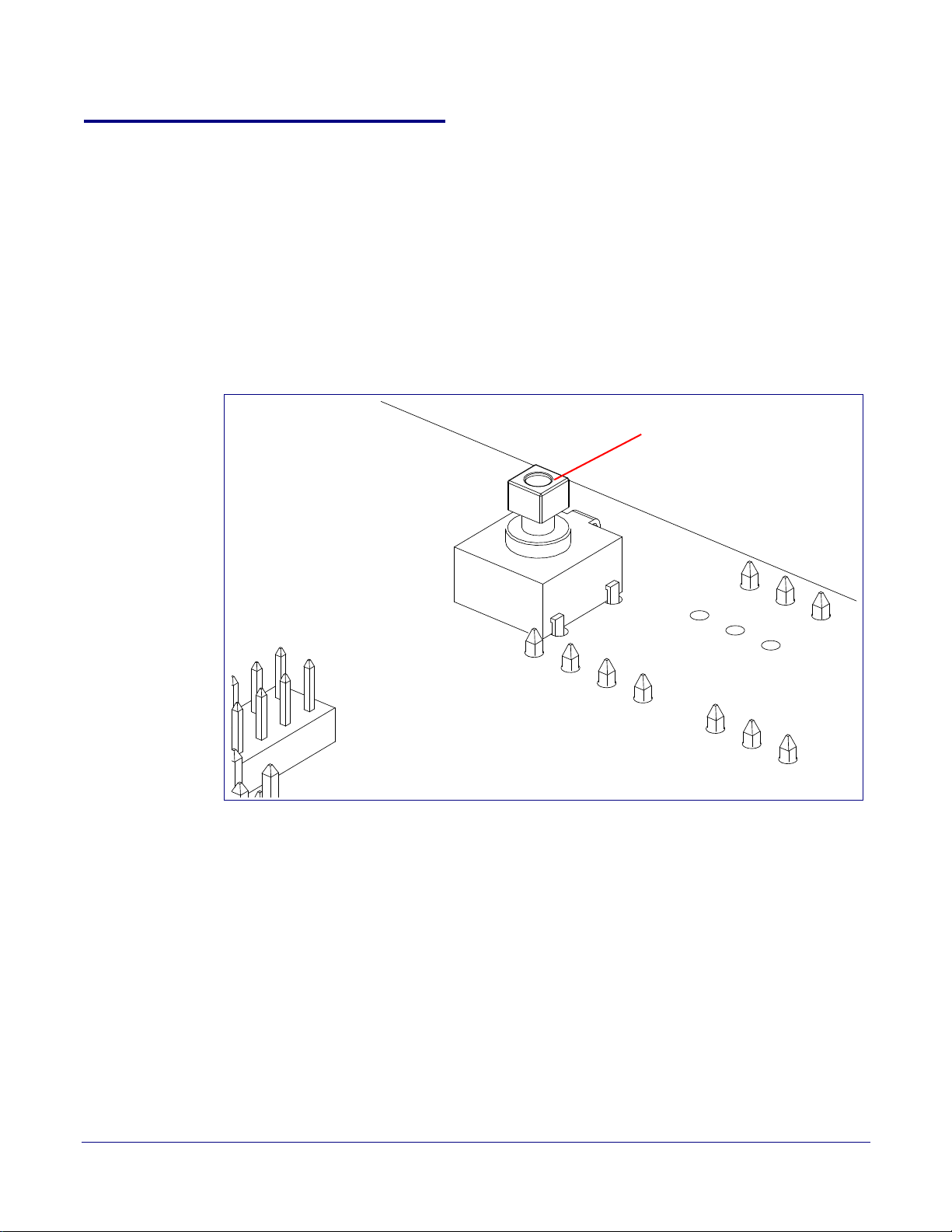

Figure 2-7. RTFM Button

Installing the RGB Strobe

RGB Strobe Setup

13

Operations Guide 931212B CyberData Corporation

To set the factory default settings:

1. Press and hold the RTFM button for seven seconds, and then release the RTFM button.

2.3 Configure the RGB Strobe Parameters

To configure the RGB Strobe online, use a standard web browser.

Installing the RGB Strobe

RGB Strobe Setup

14

Configure each RGB Strobe and verify its operation bef
mount an RGB Strobe, refer to

2.3.1 Factory Default Settings

All RGB Strobes are initially configured with the following default IP settings:

When configuring more than one RGB Strobe, attach the RGB Strobes to the network and configure
o

ne at a time to avoid IP address conflicts.

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

a

a

a

a. Default if there is not a DHCP server present.

ore you mount it. When you are ready to

Appendix A, "Mounting the RGB Strobe" for instructions.

Table 2-6. Factory Default Settings

10.10.10.10

255.0.0.0

10.0.0.1

Operations Guide 931212B CyberData Corporation

2.3.2 RGB Strobe Web Page Navigation

Ta bl e 2-7 shows the navigation buttons that you will see on every RGB Strobe web page.

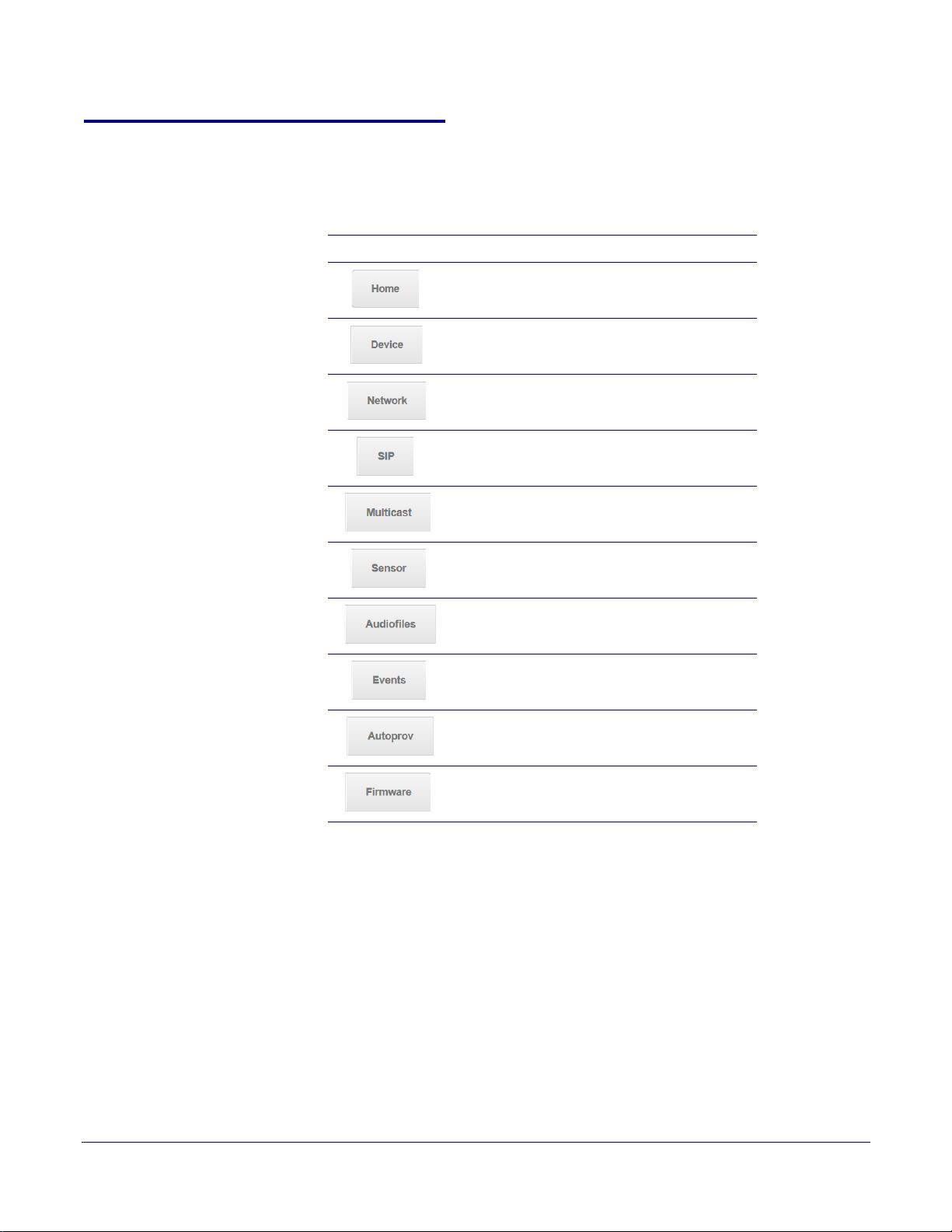

Table 2-7. Web Page Navigation

Web Page Item Description

Link to the Home page.

Link to the Device page.

Installing the RGB Strobe

RGB Strobe Setup

15

Link to the Netw

Link to go to the SIP pag

Link to the Multicast page.

Link to the Sensor page.

Link to the Audiofiles page.

Link to the Events page.

Link to the Autoprovisioning page.

Link to the Firmwar

ork page.

e.

e page.

Operations Guide 931212B CyberData Corporation

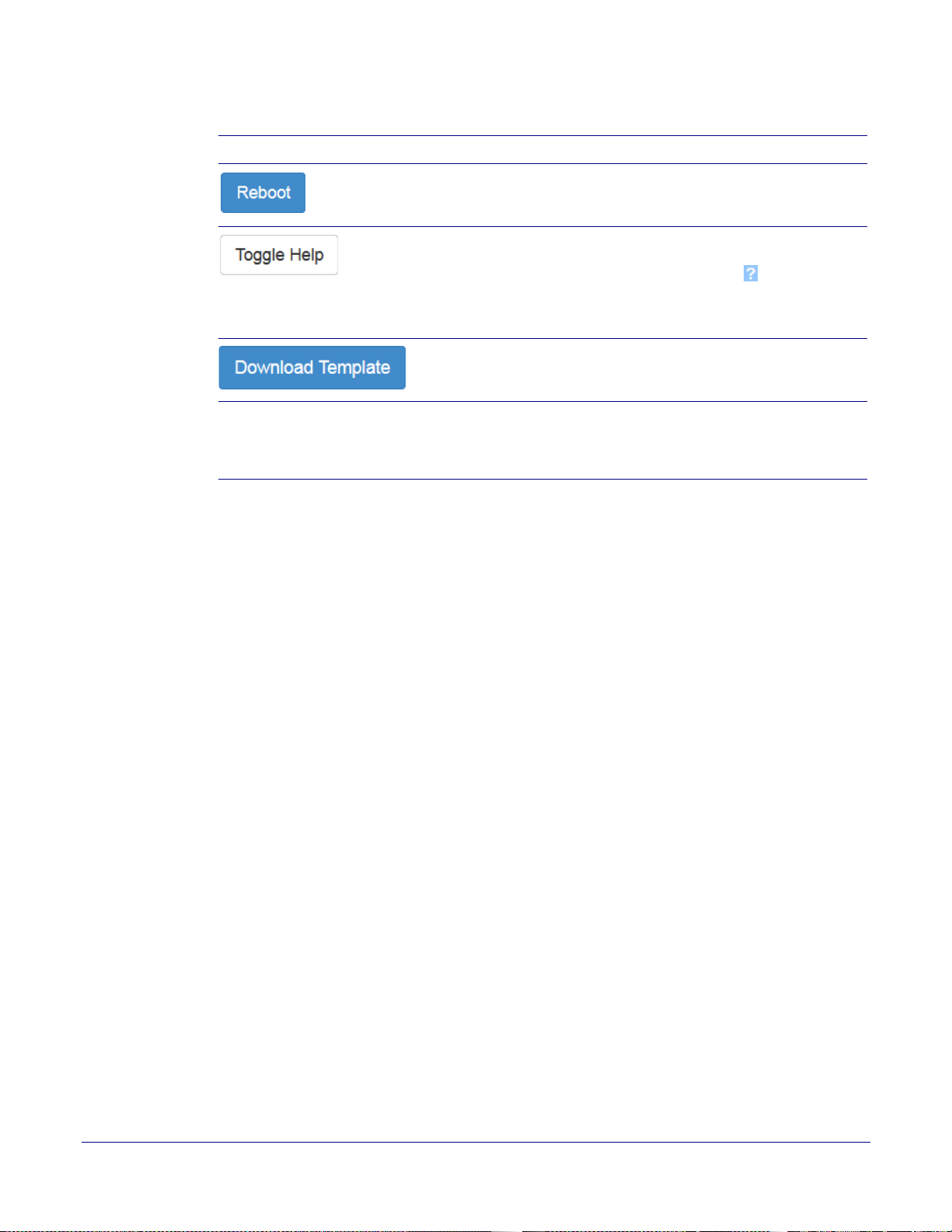

2.3.3 Using the Toggle Help Button

Toggle Help button

Question mark 
appears next to the
web page items

The Toggle Help button allows you to see a short description of some of the settings on the
webpage. To use the Toggle Help button, do the following:

Installing the RGB Strobe

RGB Strobe Setup

16

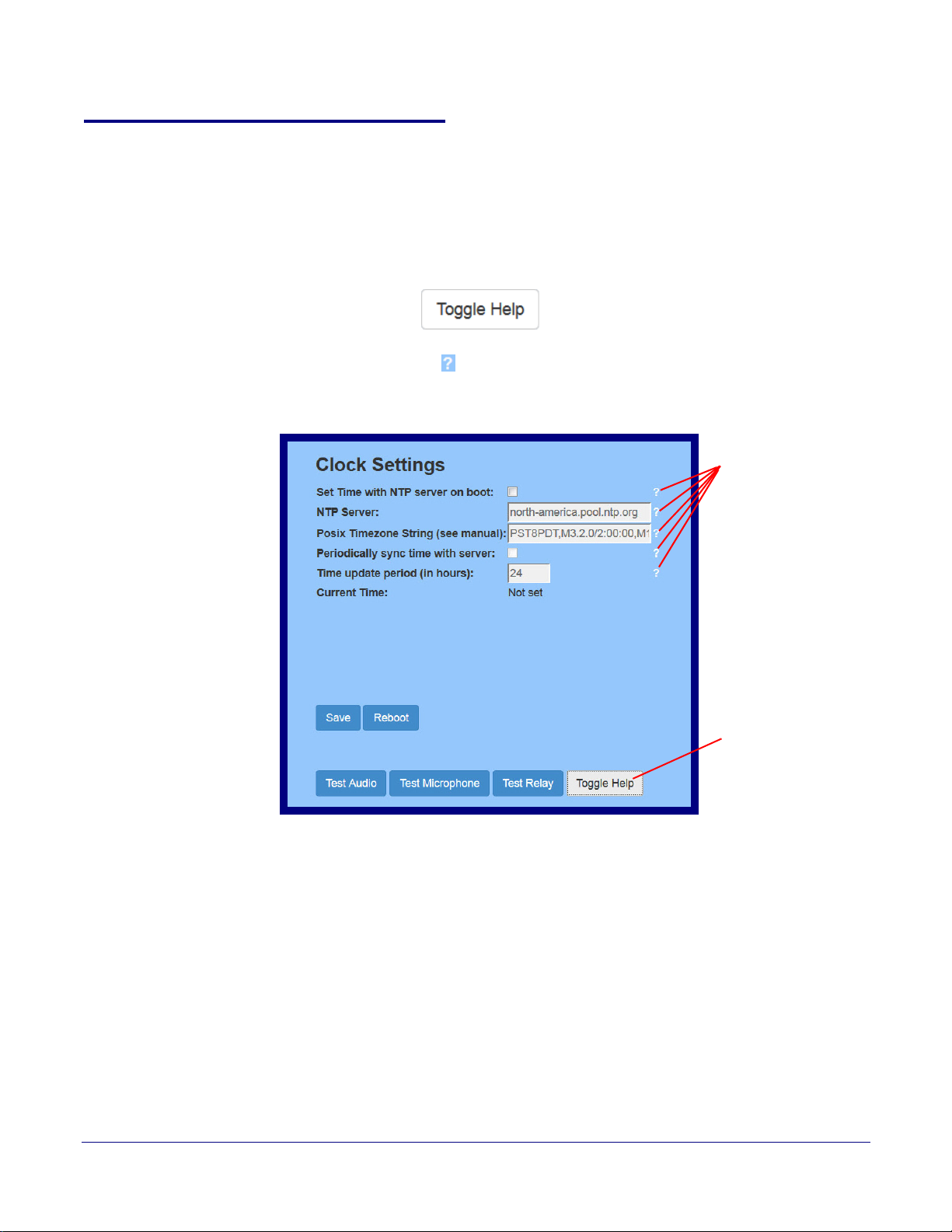

1. Click on the T

oggle Help button that is on the UI webpage. See Figure 2-8 and Figure 2-9.

Figure 2-8. Toggle/Help Button

2. You will see a question mark (

) appear next to each web page item that has been provided

with a short description by the Help feature. See Figure 2-9.

Figure 2-9. Toggle Help Button and Question Marks

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

A short description of the 
web page item will appear

Question mark

RGB Strobe Setup

3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web
page item will appear. See Figure 2-10.

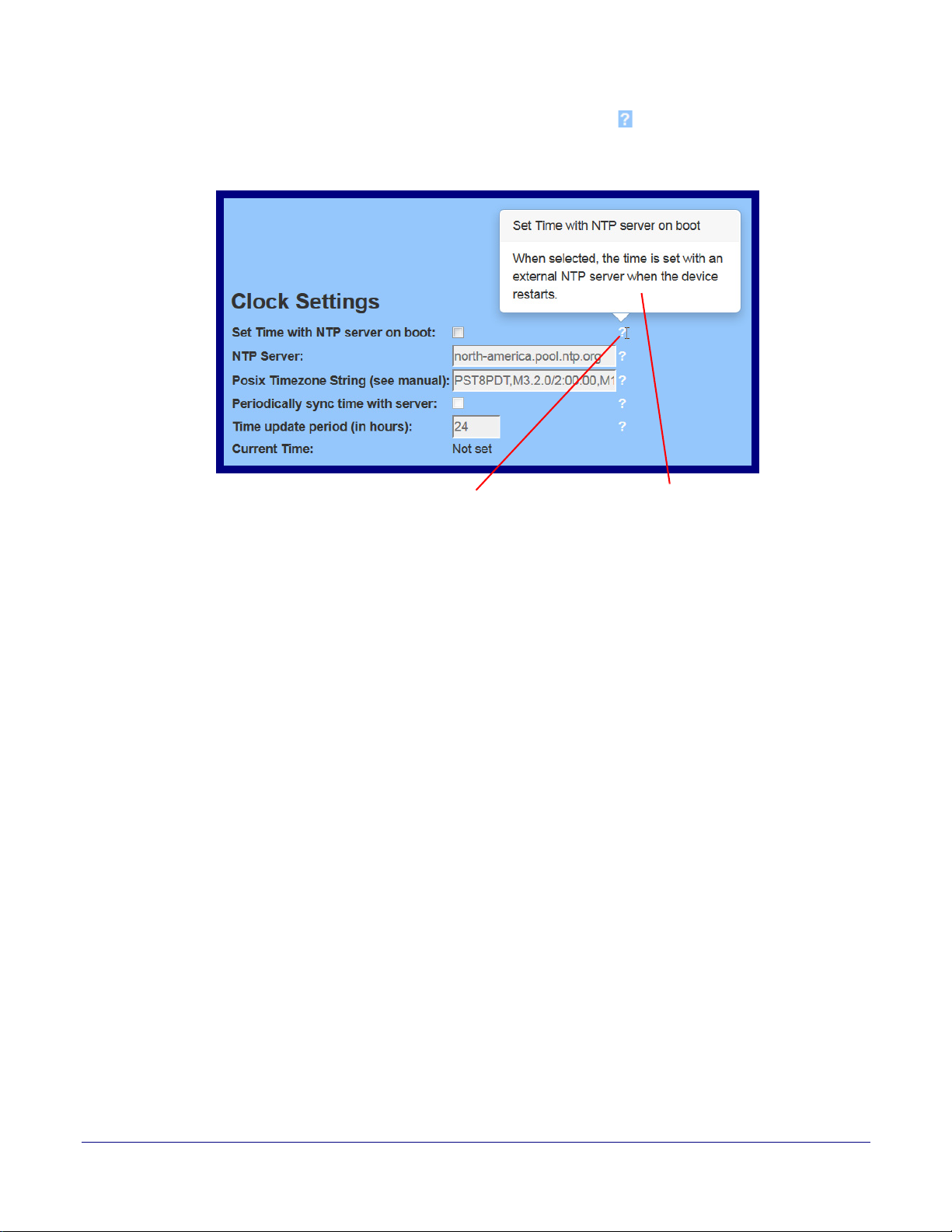

Figure 2-10. Short Description Provided by the Help Feature

17

Operations Guide 931212B CyberData Corporation

2.3.4 Log in to the Configuration Home Page

1. Open your browser to the RGB Strobe IP address.

Note If the network does not have access to a DHCP server, the device will default to an IP

address of 10.10.10.10.

Note Make sure that the PC is on the same IP network as the RGB Strobe.

Note You may also download CyberData’s VoIP Discovery Utility program which allows you to

easily find and configure the default web address of the CyberData VoIP products.



CyberData’s VoIP Discovery Utility program is available at the Downloads tab on the
following webpage:

http://www.cyberdata.net/voip/011376/

Note The RGB Strobe ships in DHCP mode. To get to the Home page, use the discovery utility to

scan for the device on the network and open your browser from there.

Installing the RGB Strobe

RGB Strobe Setup



18

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

v11.6.0

376000001

RGB Strobe Setup

2. When prompted, use the following default Web Access Username and Web Access
Password to access the Home Page (Figure 2-11):

Web Access Username: admin

Web Access Password: admin

19

Note The question mark icon (

after the Toggle Help button is pressed.

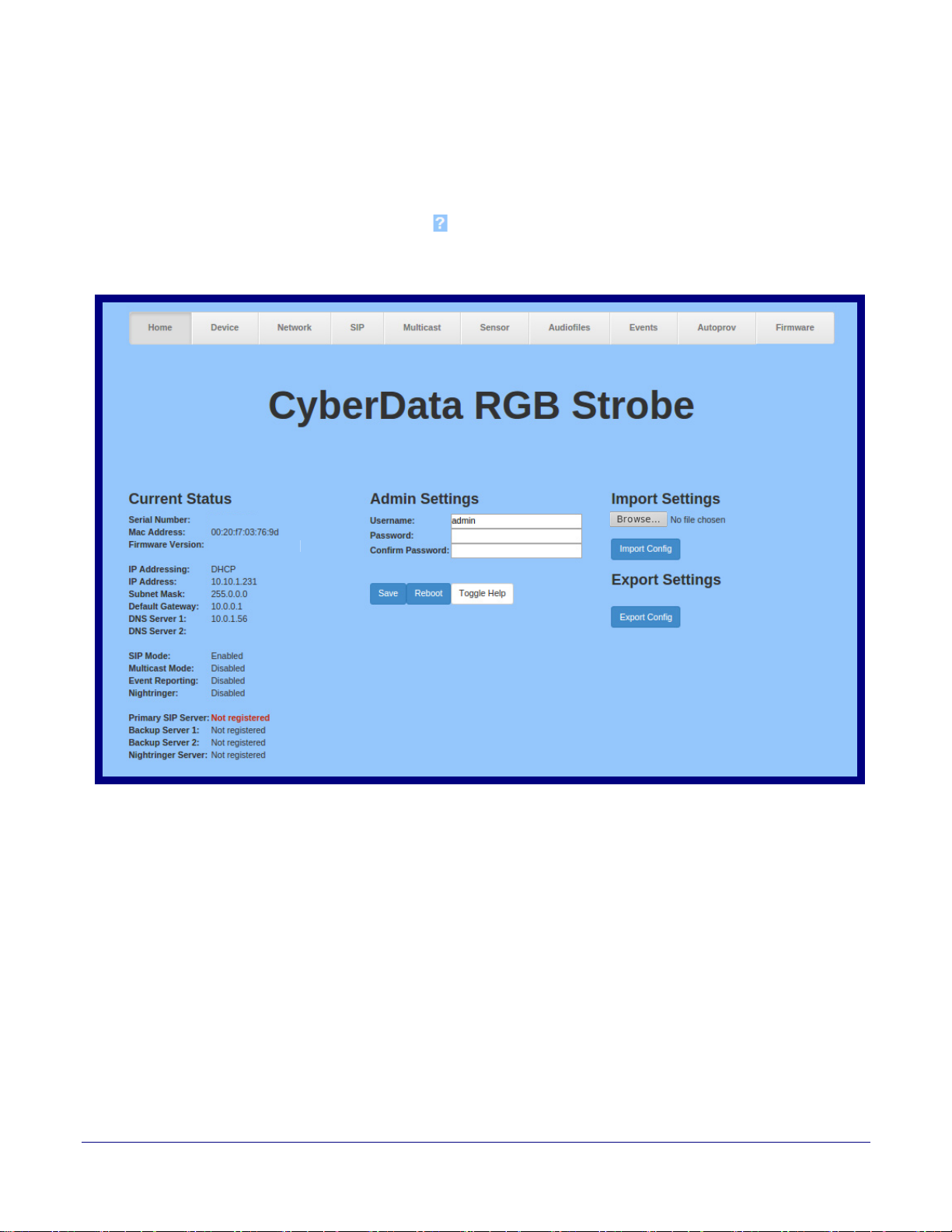

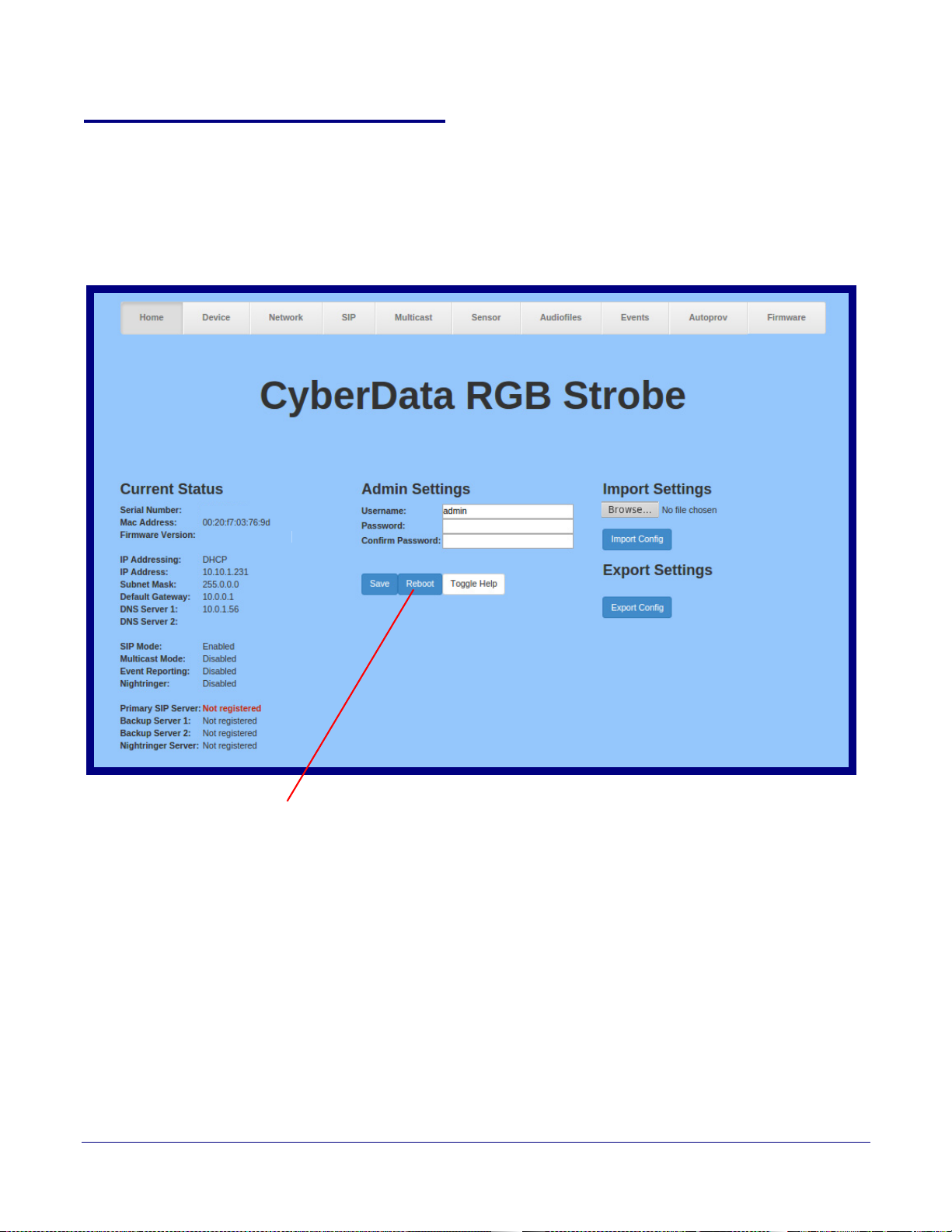

Figure 2-11. Home Page

) in the following table shows which web page items will be defined

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

3. On the Home Page, review the setup details and navigation buttons described in Ta b le 2-8.

Table 2-8. Home Page Overview

20

Web Page Item

Description

Admin Settings

Username The username to access the web interface. Enter up to 25 characters.

Password

Confirm Password

The password to access the web interface. Enter up to 25 characters.

Confirm the web interface password.

Current Status

Serial Number Shows the device serial number.

Mac Address Shows the device Mac address.

Firmware Version Shows the current firmware version.

IP Addressing Shows the current IP addressing setting (DHC

P or static).

IP Address Shows the current IP address.

Subnet Mask Shows the current subnet mask address.

Default Gateway Shows the current default gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

SIP Mode Shows the current status of the SIP mode.

Multicast Mode Shows the current status of the Multicast mode.

Event Reporting Shows the current status of the Event Reporting mode.

Nightringer Shows the current status of the Nightringer mode.

Primary SIP Server Shows the current status of the Primary SIP Server.

Backup Server 1 Shows the current status of Backup Server 1.

Backup Server 2

Shows the current status of Backup Server 2.

Import Settings

Click Browse to select a configuration file to import.

After selecting a configuration file, click Import to import the configuration
from the selected file. Then, click Save and Reboot to store changes.

Export Settings

Click Export to export the current configuration to a file.

Click the Save button to save your configuration settings.

Note: Y

ou need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Operations Guide 931212B CyberData Corporation

Table 2-8. Home Page Overview (continued)

Web Page Item Description

Click on the Toggle Help button to see a short description of some of the
web page items. First click on the Toggle Help button, and you will see a
question mark (
mouse pointer to hover over a question mark to see a short description of
a specific web page item.

Installing the RGB Strobe

RGB Strobe Setup

) appear next to some of the web page items. Move the

21

Operations Guide 931212B CyberData Corporation

2.3.5 Configure the Device

1. Click the Device Configuration button to open the Device Configuration page. See Figure 2-

12.

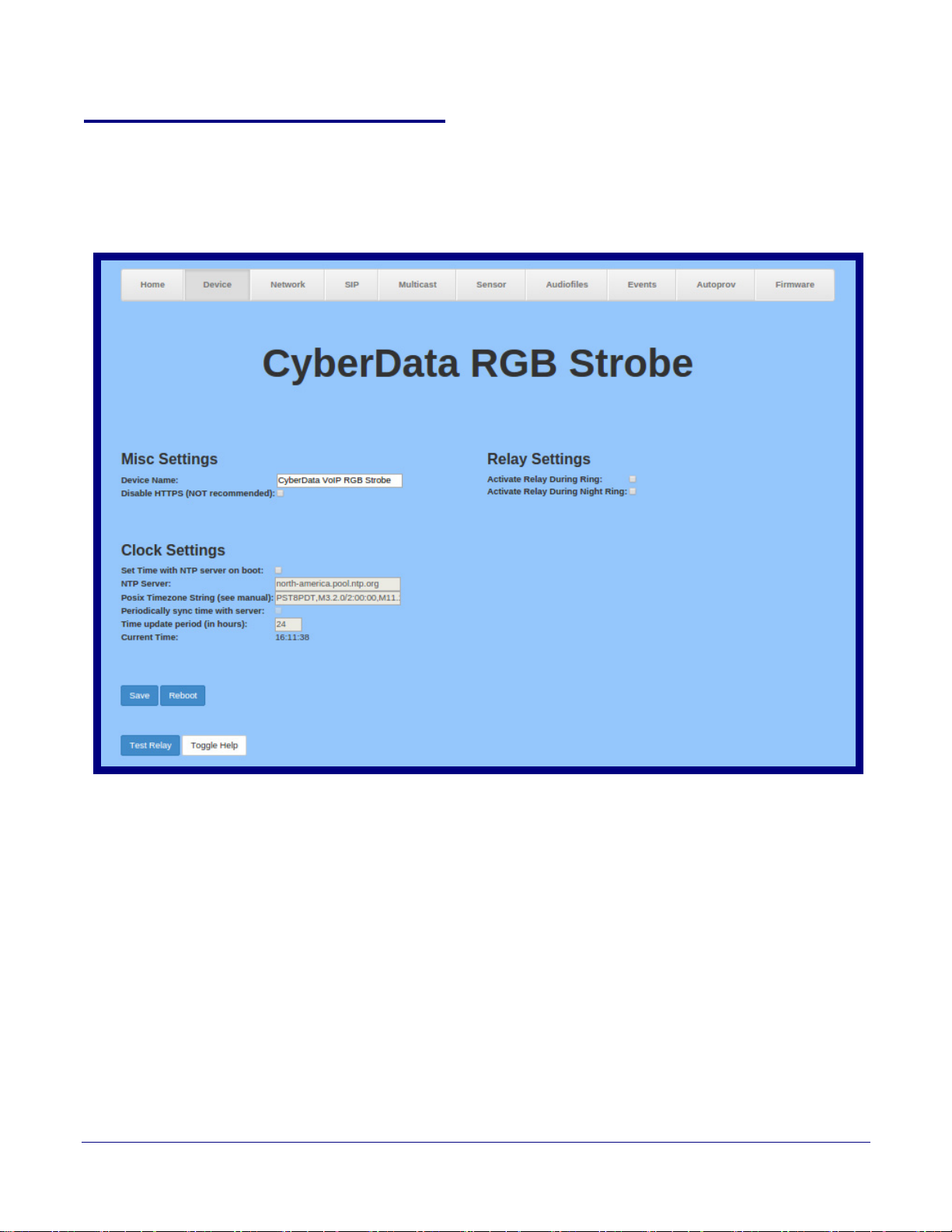

Figure 2-12. Device Configuration Page

Installing the RGB Strobe

RGB Strobe Setup

22

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

2. On the Device Configuration page, you may enter values for the parameters indicated in

Ta bl e 2-9.

23

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-9. Device Configuration Parameters

Web Page Item Description

Misc Settings

Device Name Type the device name. Enter up to 25 characters.

Disable HTTPS (NOT recommended)

Disables the encrypted connection to the webpage. We do not
recommend disabling HTTPS for security reasons.

Clock Settings

Set Time with NTP Server on boot When selected, the time is set with an external NTP server when the

device restarts.

NTP Server

Use this field to set the address (in IPv4 dotted decimal notation or as
a canonical name) for the NTP Server. This field can accept
canonical names of up to 64 characters in length.

Posix Timezone String

See Section 2.3.5.1, "Time Zone Strings" for information about how
to use the Posix Timezone String to specify time zone and daylight

vings time where applicable. Enter up to 63 characters.

sa

Periodically sync time with server

When selected, the time is periodically updated with the NTP server
at the configured interval below.

Time update period (in hours)

The time interval after which the device will contact the NTP server to
update the time. Enter up to 4 digits.

Current Time Allows you to input the current time

. (6 character limit)

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-9. Device Configuration Parameters (continued)

Web Page Item Description

Relay Settings

Activate Relay During Ring When selected, the relay will be activated for as long as the device is

ringing. When Auto-Answer Incoming Calls is enabled, the device will
not ring and this option does nothing.

Activate Relay During Night Ring

When selected, the relay will be activated as long as the Nightringer
extension is ringing.

Click the Save button to save your configuration settings.

Note:

You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Test Relay button to do a relay test.

Click on the Tog gle Hel p button to see a short description of some of
the web page items. First click on the Toggle Help button, and you
will see a question mark ( ) appear next to some of the web page
items. Move the mouse pointer to hover over a question mark to see

short description of a specific web page item.

a

24

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.3.5.1 Time Zone Strings

The posix time zone string tells the internal date and time utilities how to handle daylight savings
time for different time zones. Ta bl e 2-10 shows some common strings.

Time Zone Time Zone String

US Pacific time PST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00

US Mountain time MST7MDT,M3.2.0/2:00:00,M11.1.0/2:00:00

US Eastern Time EST5EDT,M3.2.0/2:00:00,M11.1.0/2:00:00

Phoenix Arizona

US Central Time CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

a.Phoenix, Arizona does not use daylight savings time.

Ta bl e 2-11 shows a breakdown of the parts that constitute the following time zone string:

Table 2-10. Common Time Zone Strings

a

MST7

Operations Guide 931212B CyberData Corporation

● CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

Table 2-11. Time Zone String Parts

Installing the RGB Strobe

RGB Strobe Setup

25

Time Zone String

mples

Exa

Time Zone String

Meaning

Part

CST6CDT The time zone offset from GMT and three character identifiers for the time zone.

CST Central Standard Time

6 The (hour) offset from GMT/UTC

CDT

M3.2.0/2:00:00 The date and time when daylight savings begins.

M3 The third month (March)

.2 The 2nd occurrence of the day (next item) in the month

.0 Sunday

/2:00:00 Time of day to change

M11.1.0/2:00:00 The date and time when daylight savings ends.

M11 The eleventh month (November)

.1 The 1st occurrence of the day (next item) in the month

.0 Sunday

/2:00:00 Time of day to change

Central Daylight Time

Ta bl e 2-12 has some more examples of time zone strings.

Table 2-12. Time Zone String Examples

Time Zone Identifier

Time Zone Time Zone String

a

Tokyo

Berlin

b

IST-9

CET-1MET,M3.5.0/1:00,M10.5.0/1:00

a.Tokyo does not use daylight savings time.
b.For Berlin, daylight savings time starts on the last Sunday in March at
01:00 UTC, and ends on the last Sunday in October at 01:00 UTC, and is one
hour ahead of UTC.

A user-definable three or four character time zone identifier (such as PST, EDT, IST, MUT, etc) is
needed at the beginning of the posix time zone string to properly set the time. However, the specific
letters or numbers used for the time zone identifier are not important and can be any three or four
letter or number combination that is chosen by the user. However, the time zone identifier cannot be
blank.

Figure 2-13. Three or Four Character T

ime Zone Identifier

You can also use the following URL when a certain time zone applies daylight savings time:

http://www.timeanddate.com/time/dst/2011.html

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

26

World GMT Table

Ta bl e 2-13 has information about the GMT time in various time zones.

Table 2-13. World GMT Table

Time Zone City or Area Zone Crosses

GMT-12 Eniwetok

GMT-11 Samoa

GMT-10 Hawaii

GMT-9 Alaska

GMT-8 PST, Pacific US

GMT-7 MST, Mountain US

GMT-6 CST, Central US

GMT-5 EST, Eastern US

GMT-4 Atlantic, Canada

GMT-3 Brazilia, Buenos Aries

GMT-2 Mid-Atlantic

GMT-1 Cape Verdes

GMT Greenwich Mean Time, Dublin

GMT+1 Berlin, Rome

GMT+2 Israel, Cairo

GMT+3 Moscow, Kuwait

GMT+4 Abu Dhabi, Muscat

GMT+5 Islamabad, Karachi

GMT+6 Almaty, Dhaka

GMT+7 Bangkok, Jakarta

GMT+8 Hong Kong, Beijing

GMT+9 Tokyo, Osaka

GMT+10 Sydney, Melbourne, Guam

GMT+11 Magadan, Soloman Is.

GMT+12 Fiji, Wellington, Auckland

Operations Guide 931212B CyberData Corporation

2.3.6 Configure the Network Parameters

1. Click the Networking button to open the Network Configuration page (Figure 2-14).

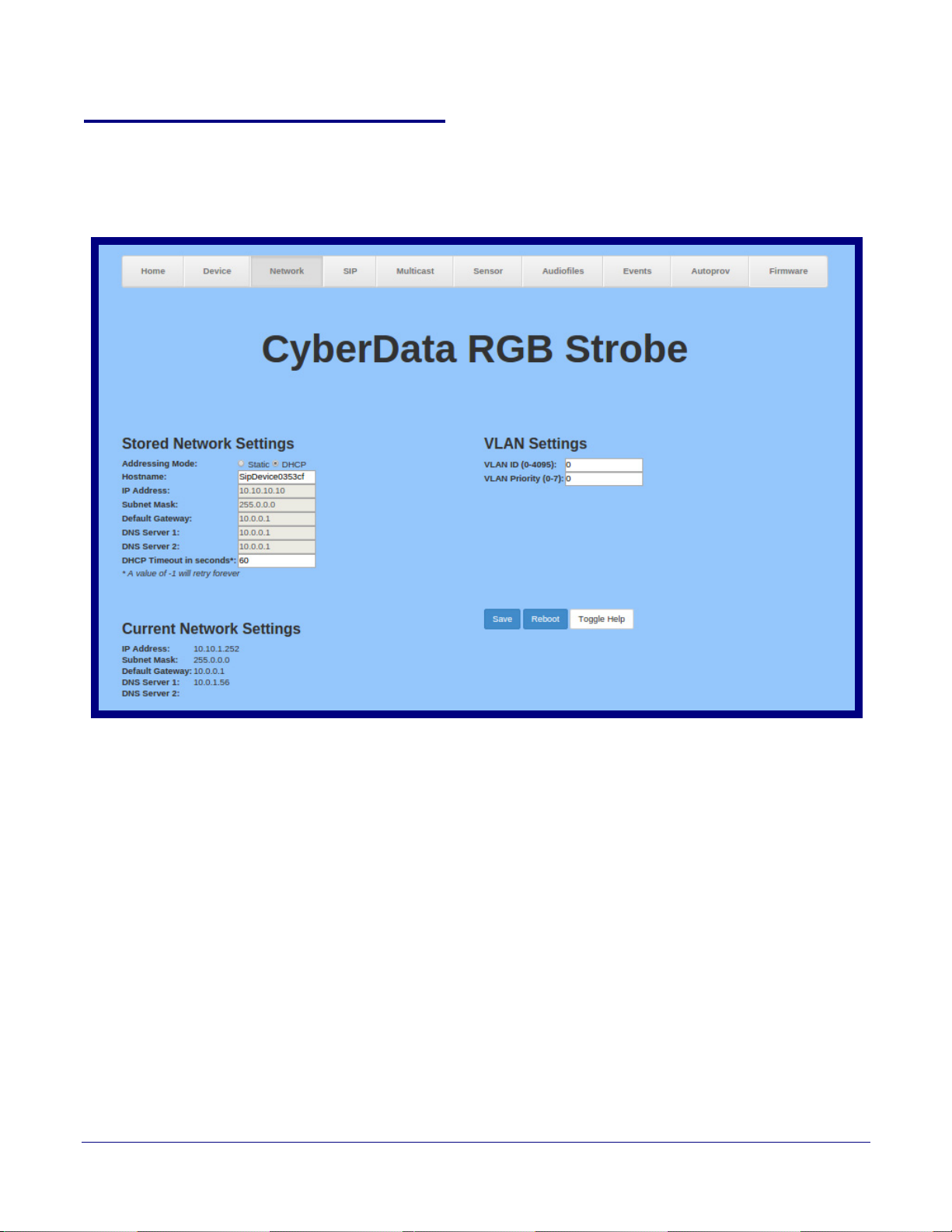

Figure 2-14. Network Configuration Page

Installing the RGB Strobe

RGB Strobe Setup

27

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

2. On the Network Configuration page, enter values for the parameters indicated in Tabl e 2-14.

28

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-14. Network Configuration Parameters

Web Page Item Description

Stored Network Settings

Addressing Mode Select either DHCP IP Addressing or Static Addressing by marking

the appropriate radio button. DHCP Addressing mode is enabled on
default and the device will attempt to resolve network addressing with
the local DHCP server upon boot. If DHCP Addressing fails, the
device will revert to the last known IP address or the factory default
address if no prior DHCP lease was established. See Section 2.3.1,

"Factory Default Settings" for factory default settings. Be sure to click

Save and Reboot to store changes when configuring a Static
address.

Hostname This is the hostname provided by the DHCP server. See the

DHCP/DNS server documentation for more information. Enter up to
64 characters.

IP Address Enter the Static IPv4 network address in dotted decimal notation.

Subnet Mask Enter the Subnet Mask in dotted decimal notation.

Default Gateway Enter the Default Gateway IPv4 address in dotted decimal notation.

DNS Server 1 Enter the primary DNS Server IPv4 address in dotted decimal

notation.

DNS Server 2 Enter the secondary DNS Server IPv4 address in dotted decimal

notation.

DHCP Timeout in seconds Specify the desired time-out duration (in seconds) that the device will

wait for a response from the DHCP server before reverting back to
the stored static IP address. The stored static IP address may be the
last known IP address or the factory default address if no prior DHCP
lease was established. Enter up to 8 characters. A value of -1 will
retry forever.

VLAN Settings

VLAN ID (0-4095) Specify the IEEE 802.1Q VLAN ID number. Enter up to 4 digits.

Note: The device supports 802.1Q VLAN tagging support. The
switch port connected to the device will need to be in “trunking mode”
for the VLAN tags to propagate.

VLAN Priority (0-7) Specify the IEEE 802.1p VLAN priority level. Enter 1 digit. A value of

0 may cause the VLAN ID tag to be ignored.

Current Network Settings Shows the current network settings.

IP Address Shows the current Static IP address.

Subnet Mask Shows the current Subnet Mask address.

Default Gateway Shows the current Default Gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-14. Network Configuration Parameters (continued)

Web Page Item Description

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Togg le Hel p button to see a short description of some of
the web page items. First click on the Toggle Help button, and you
will see a question mark ( ) appear next to some of the web page
items. Move the mouse pointer to hover over a question mark to see
a short description of a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

29

Operations Guide 931212B CyberData Corporation

2.3.7 Configure the SIP Parameters

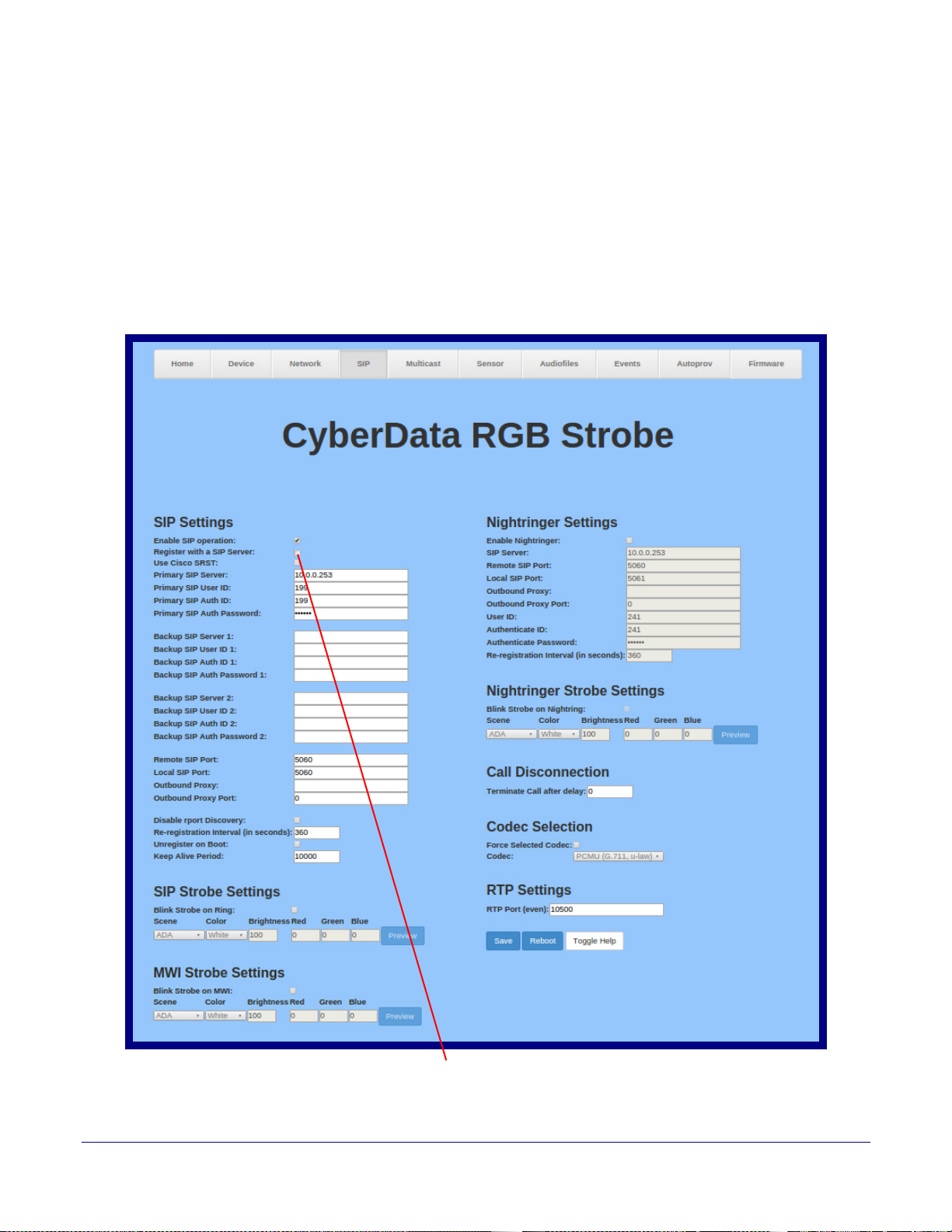

1. Click SIP Config to open the SIP Configuration page (Figure 2-15).

Note For specific server configurations, go to the following website address:

http://www.cyberdata.net/connecting-to-compatible-ip-pbx-servers/

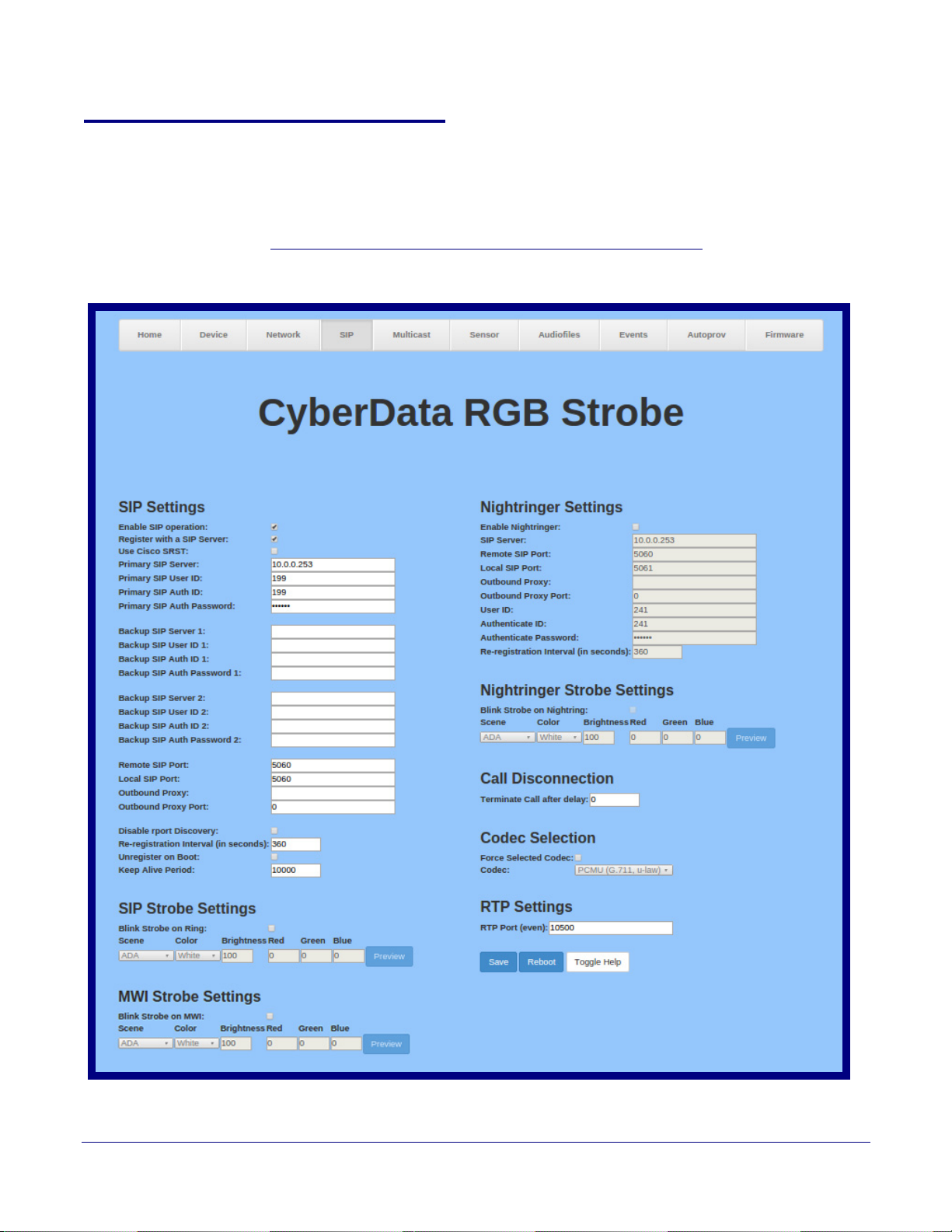

Figure 2-15. SIP Configuration Page

Installing the RGB Strobe

RGB Strobe Setup

30

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

2. On the SIP Configuration page, enter values for the parameters indicated in Ta bl e 2-15.

31

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-15. SIP Configuration Parameters

Web Page Item Description

SIP Settings

Enable SIP Operation When enabled, the device will transmit, receive, and process SIP messages

according to the configured SIP settings below.

Register with a SIP Server When enabled, the device will attempt to register to the configured SIP Server(s)

on this page. To configure the device to send and receive point-to-point SIP calls,
enable SIP Operation and disable Register with a SIP Server (see Section

2.3.7.2, "Point-to-Point Configuration").

Use Cisco SRST When enabled, the backup servers are handled according to Cisco SRST

(Survivable Remote Site Telephony). It is required for use in clustered Cisco
Unified Communications Manager topologies.

Primary SIP Server Enter the SIP server address as an IPv4 address in dotted decimal notation or a

fully qualified domain name. This parameter also becomes the host portion of the
SIP-URI for the device's extension on the primary SIP server. This field can accept
entries of up to 255 characters in length.

Primary SIP User ID Specify the SIP User ID for the Primary SIP Server. This parameter becomes the

user portion of the SIP-URI for the device's extension on the primary SIP server.
Enter up to 64 alphanumeric characters.

Primary SIP Auth ID Specify the Authenticate ID for the Primary SIP Server. This parameter is required

for SIP registration authentication. Enter up to 64 alphanumeric characters.

Primary SIP Auth Password Specify the Authenticate Password for the Primary SIP Server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Backup SIP Server 1 Enter the backup SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes the host
portion of the SIP-URI for the device's extension on the backup SIP server. This
field can accept entries of up to 255 characters in length.

Backup SIP User ID 1 Specify the SIP User ID for the first backup SIP Server. This parameter becomes

the user portion of the SIP-URI for the device's extension on the first backup SIP
server. Enter up to 64 alphanumeric characters.

Backup SIP Auth ID 1 Specify the Authenticate ID for the first backup SIP server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Backup SIP Auth Password 1 Specify the Authenticate Password for the first backup SIP server. This parameter

is required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Backup SIP Server 2 Enter a second backup SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes the host
portion of the SIP-URI for the device's extension on the second backup SIP server.
This field can accept entries of up to 255 characters in length.

Backup SIP User ID 2 Specify the SIP User ID for the second backup SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the second
backup SIP server. Enter up to 64 alphanumeric characters.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-15. SIP Configuration Parameters (continued)

Web Page Item Description

Backup SIP Auth ID 2 Specify the Authenticate ID for the second backup SIP server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Backup SIP Auth Password 2 Specify the Authenticate Password for the second backup SIP server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Remote SIP Port The Remote SIP Port is the port number the device will use as the destination port

when sending SIP messages. The default Remote SIP Port is 5060. The supported
range is 0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP messages.

The default Local SIP Port is 5060. The supported range is 0-65536. Enter up to 5
digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal notation

or a fully qualified domain name (FQDN). When an IP address is configured, the
device will send all SIP messages to this IP address. When an FQDN is
configured, the device will run DNS NAPTR, SRV, and A queries on the FQDN to
resolve an IP address to which it will send all SIP messages. This field can accept
entries of up to 255 characters in length.

32

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port when

sending SIP messages to the outbound proxy. A value of 0 will default to 5060. The
supported range is 0-65536. Enter up to 5 digits.

Disable rport Discovery Disabling rport Discovery will prevent the device from including the public WAN IP

address and port number in the contact information that is sent to the remote SIP
servers. This will generally only need to be enabled when using an SBC or SIP
ALG in conjunction with a remote SIP server.

Re-registration Interval (in seconds) The SIP Re-registration interval (in seconds) is the SIP Registration lease time,

also known as the expiry. The supported range is 30-3600 seconds. Enter up to 4
digits.

Unregister on Boot When enabled, the device will send one registration with an expiry of 0 on boot.

Keep Alive Period The minimum time in milliseconds between keep-alive packets sent for nat

traversal. A value of 0 will disable keep alive packets.

SIP Strobe Settings

Blink Strobe on Ring When selected, the Strobe will blink a scene when ringing.

Scene Use this setting to choose a scene (strobe flashing behavior).

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then OFF for 350ms

during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0

over the course of about 3.5 seconds during the duration of the event.

Fast Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0

over the course of about 1.5 seconds during the duration of the event.

Slow Blink Strobe will blink ON at the specified brightness for one second then OFF for one

second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five times per second

during the duration of the event.

Off The strobe will not blink.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-15. SIP Configuration Parameters (continued)

Web Page Item Description

Color Select desired color for SIP (only one may be chosen).

Brightness How bright the strobe will blink when there is a SIP Call. This is the maximum

brightness for “fade” type scenes.

Red The red LED value for SIP Call.

Green The green LED value for SIP Call.

Blue The blue LED value for SIP Call.

Use this button to preview the strobe flashing behavior for the SIP Strobe

Settings.

MWI Strobe Settings Use this section to select the strobe flashing behavior for the Message Waiting

(MWI) event.

Blink Strobe on MWI When selected, the strobe will blink a scene when a voicemail is waiting for its

extension.

Scene Use this setting to choose a scene (strobe flashing behavior).

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then OFF for 350ms

during the duration of the event.

33

Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0

over the course of about 3.5 seconds during the duration of the event.

Fast Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0

over the course of about 1.5 seconds during the duration of the event.

Slow Blink Strobe will blink ON at the specified brightness for one second then OFF for one

second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five times per second

during the duration of the event.

Off The strobe will not blink.

Color Select desired color (only one may be chosen).

Brightness How bright the strobe will blink when a message is waiting [0 - 100]. This is the

maximum brightness for “fade” type scenes.

Red The red LED value for MWI.

Green The green LED value for MWI.

Blue The blue LED value for MWI.

Click on the Preview button to see the strobe blink the selected scene.

Nightringer Settings

Enable Nightringer When Nightringer is enabled, the device will attempt to register a second extension

with the SIP server. Any calls made to this extension will play a ringtone
(corresponds to Night Ring on the Audiofiles page). By design, it is not possible
to answer a call to the Nightringer extension.

SIP Server Enter the SIP server address as an IPv4 address in dotted decimal notation or a

fully qualified domain name. This parameter also becomes the host portion of the
SIP-URI for the device's Nightringer extension on the SIP server. This field can
accept entries of up to 255 characters in length.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-15. SIP Configuration Parameters (continued)

Web Page Item Description

Remote SIP Port The Remote SIP Port is the port number the device will use as the destination port

when sending SIP messages for the Nightringer extension. The default Remote
SIP Port is 5060. The supported range is 0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP messages

for the Nightringer extension. This value cannot be the same as the Local SIP Port
for the primary extension. The default Local SIP Port is 5061. The supported range
is 0-65536. Enter up to 5 digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal notation

or a fully qualified domain name (FQDN). When an IP address is configured, the
device will send all SIP messages to this IP address for the Nightringer extension.
When an FQDN is configured, the device will run DNS NAPTR, SRV, and A queries
on the FQDN to resolve an IP address to which it will send all SIP messages for the
Nightringer extension. This field can accept entries of up to 255 characters in
length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port when

sending SIP messages to the outbound proxy for the Nightringer extension. A
value of 0 will default to 5060. The supported range is 0-65536. Enter up to 5 digits.

User ID Specify the SIP User ID for the SIP server. This parameter becomes the user

portion of the SIP-URI for the device's Nightringer extension. Enter up to 64
alphanumeric characters.

Authenticate ID Specify the Authenticate ID for the SIP Server. This parameter is required for SIP

registration authentication. Enter up to 64 alphanumeric characters.

Authenticate Password Specify the Authenticate Password for the SIP Server. This parameter is required

for SIP registration authentication. Enter up to 64 alphanumeric characters.

34

Re-registration Interval (in seconds) The SIP Re-registration Interval (in seconds) is the SIP Registration lease time,

also known as the expiry. The supported range is 30-3600 seconds. Enter up to 4
digits.

Nightringer Strobe Settings Use this section to select the strobe flashing behavior for the Nightringer event.

Blink Strobe on Nightring When selected, the Strobe will blink a scene when the Nightringer is ringing.

Scene Use this setting to choose a scene (strobe flashing behavior).

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then OFF for 350ms

during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0

over the course of about 3.5 seconds during the duration of the event.

Fast Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0

over the course of about 1.5 seconds during the duration of the event.

Slow Blink Strobe will blink ON at the specified brightness for one second then OFF for one

second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five times per second

during the duration of the event.

Off The strobe will not blink.

Color Select desired color (only one may be chosen).

Brightness How bright the strobe will blink when the Nightringer is ringing. This is the

maximum brightness for “fade” type scenes.

Red The red LED value for Nightringer.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-15. SIP Configuration Parameters (continued)

Web Page Item Description

Green The green LED value for Nightringer.

Blue The blue LED value for Nightringer.

Use this button to preview the strobe flashing behavior for the Nightringer Strobe

Settings.

Call Disconnection

Terminate Call After Delay Automatically terminate an active call after a given delay in seconds. A value of 0

will disable this function. Enter up to 8 digits.

Codec Selection

Force Selected Codec When configured, this option will allow you to force the device to negotiate for the

selected codec. Otherwise, the device will perform codec negotiation using the
default list of supported codecs.

Codec Select desired codec (only one may be chosen).

RTP Settings

RTP Port (even) Specify the port number used for the RTP stream after establishing a SIP call. This

port number must be an even number and defaults to 10500. The supported range
is 0 - 65536. Enter up to 5 digits.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

35

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of the web
page items. First click on the Toggle Help button, and you will see a question mark
( ) appear next to some of the web page items. Move the mouse pointer to hover
over a question mark to see a short description of a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Note For specific server configurations, go to the following website address:

http://www.cyberdata.net/connecting-to-compatible-ip-pbx-servers/

2.3.7.1 Dial Out Extension Strings and DTMF Tones (using rfc2833)

On the SIP Configuration Page, dial out extensions support the addition of comma delimited
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds after a call is first established with a remote device. Subsequent commas will pause for 2
seconds. A pause of one second will be sent after each numerical digit.

Table 2-16. Examples of Dial-Out Extension Strings

Extension String Resulting Action

302 Dial out extension 302 and establish a call

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-16. Examples of Dial-Out Extension Strings

Extension String Resulting Action

302,2 Dial out extension 302 and establish a call, wait 3 seconds then send the

DTMF tone '2'

302,25,,,4,,1 Dial out extension 302 and establish a call, wait 3 seconds then send the

DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1

Note The maximum number of total characters in the dial-out field is 64.

36

Operations Guide 931212B CyberData Corporation

2.3.7.2 Point-to-Point Configuration

Device is set to NOT register with a SiP server

When the device is set to not register with a SIP server (see Figure 2-16), it is possible to set the
device to dial out to a single endpoint.

In this case, the dial-out extension should be the IP address of the remote device. The device can
also receive Point-to-Point calls. The delayed DTMF functionality is available in the Point-to-Point
Mode.

Note Receiving point-to-point SiP calls may not work with all phones.

Figure 2-16. SIP Page Set to Point-to-Point Mode

Installing the RGB Strobe

RGB Strobe Setup

37

Operations Guide 931212B CyberData Corporation

2.3.7.3 Delayed DTMF

On the SIP Configuration page the dial out extension supports the addition of comma delimited
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds after a call is first established with a remote device. Subsequent commas will pause for 2
seconds. A pause of one second will be sent after each numerical digit.

Extension String Resulting Action

302 Dial out extension 302 and establish a call

302,2 Dial out extension 302 and establish a call, wait 3 seconds then send the

302,25,,,4,,1 Dial out extension 302 and establish a call, wait 3 seconds then send the

Installing the RGB Strobe

Table 2-17. Examples of Dial-Out Extension Strings

DTMF tone '2'

DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1

RGB Strobe Setup

38

Note The ma

ximum number of total characters in the dial-out field is 25.

Operations Guide 931212B CyberData Corporation

2.3.8 Configure the Multicast Parameters

The Multicast Configuration page allows the device to join up to ten paging zones for receiving
ulaw/alaw encoded RTP audio streams.

A paging zone can consist of one or many CyberData multicast group-enabled products. There is no
limit to how many speakers can be in a given paging zone. Each multicast group is defined by a
multicast address and port number.

Each multicast group is assigned a priority, allowing simultaneously arriving pages to be serviced
based on importance. Multicast groups are compatible with IGMP through version 3. The device
supports simultaneous SIP and Multicast.

Note The RGB Strobe does not play audio, but the Strobe LED will light up in whatever pattern is

selected in the

Multicast Strobe Settings on the Multicast Configuration Page.

Installing the RGB Strobe

RGB Strobe Setup

39

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

1. Click on the Multicast menu button to open the Multicast page. See Figure 2-17.

Figure 2-17. Multicast Configuration Page

40

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

2. On the Multicast page, enter values for the parameters indicated in Ta bl e 2-18.

RGB Strobe Setup

41

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-18. Multicast Configuration Parameters

Web Page Item Description

Enable Multicast Operation Enables or disables multicast operation.

Priority Indicates the priority for the multicast group. Priority 9

is the highest (emergency

streams). 0 is the lowest (background music). SIP calls are considered priority

4.5. See Section 2.3.8.1, "Assigning Priority" for more details.

Address Enter the multicast IP Address for this multicast group (15 character limit).

Por t Enter the port number for this multicast group (5 character limit [range can be

from 2000 to 65535]).

Note: The multicast ports have to be even values. The webpage will enforce this
restriction.

Name Assign a descriptive name for this multicast group (25 character limit).

Relay When selected, the device will activate a relay before multicast audio is sent.

Polycom Default Channel When a default Polycom channel/group number is selected, the device will

scribe to the default channel for one-way group pages. Group Numbers 1-25

sub
are supported. Or, select Disabled to disable this channel.

Polycom Priority Channel When a priority Polycom channel/group number is selected, the device will

scribe to the priority channel for one-way group pages. Group Numbers 1-25

sub
are supported. Or, select Disabled to disable this channel.

Polycom Emergency Channel

When an emergency Polycom channel/group number is selected, the device will
subscribe to the default channel for one-way group pages. Group Numbers 1-25
are supported. Or, select Disabled to disable this channel.

Multicast Strobe Settings Use this section to select the strobe flashing behavior for the Multicast event.

Scene

ADA Compliant

Use this setting to choose a scene (strobe flashing behavior).

Strobe will blink ON at the specified brightness for 150ms then OFF for 350ms
during the duration of the event.

Slow Fade

Strobe will increase in brightness from 0 to the specified brightness and back to 0
over the course of about 3.5 seconds during the duration of the event.

Fast Fade

Strobe will increase in brightness from 0 to the specified brightness and back to 0
over the course of about 1.5 seconds during the duration of the event.

Slow Blink

Strobe will blink ON at the specified brightness for one second then OFF for one
second during the duration of the event.

Fast Blink

Strobe will blink ON at the specified brightness then OFF five times per second
during the duration of the event.

Off

Color

Brightness

The strobe will not blink.

Select desired color (only one may be chosen).

How bright the strobe will blink for the multicast event. This is the maximum
brightness for “fade” type scenes.

Red

Green

Blue

Operations Guide 931212B CyberData Corporation

The red LED value for the multicast event.

The green LED value for the multicast event.

The blue LED value for the multicast event.

Table 2-18. Multicast Configuration Parameters (continued)

Web Page Item Description

Click on the Preview button to see the strobe blink the selected scene.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.3.8.1 Assigning Priority

The device will prioritize simultaneous audio streams according to their priority in the list.

Installing the RGB Strobe

RGB Strobe Setup

42

Ringtones and Nightringtones

If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will
interrupt multicast streams with priority 0 through 4 and will be interrupted by multicast streams with
priority 5 through 9.

During priority 9 multicast streams, the volume is set to maximum.

Note SIP calls, multicast streams, ring tones, ringback tones, and nightring tones are all

prioritized.

Ringtones all play at the same priority level. This means that it is possible to have a nightring tone
and a normal ringtone playing at the same time.

Operations Guide 931212B CyberData Corporation

2.3.9 Configure the Sensor Parameters

The door sensor (pins 5 and 6) on the header can be used to monitor a door's open or closed state.
There is an option on the Sensor page to trigger on an open or short condition on these pins. The
door sensor alarm will be activated when the Door Open Timeout parameter has been met.

The intrusion sensor is an optical sensor installed on the RGB Strobe board and will be activated
when the RGB Strobe is removed from the case.

Each sensor can trigger the following actions:

• Flash the LED until the sensor is deactivated (roughly 10 times/second)

• Activate the relay until the sensor is deactivated

Note Calling a preset extension can be set up as a point-to-point call, but currently cannot send

delayed DTMF tones.

1. Click the Sensor menu button to open the Sensor page (Figure 2-18).

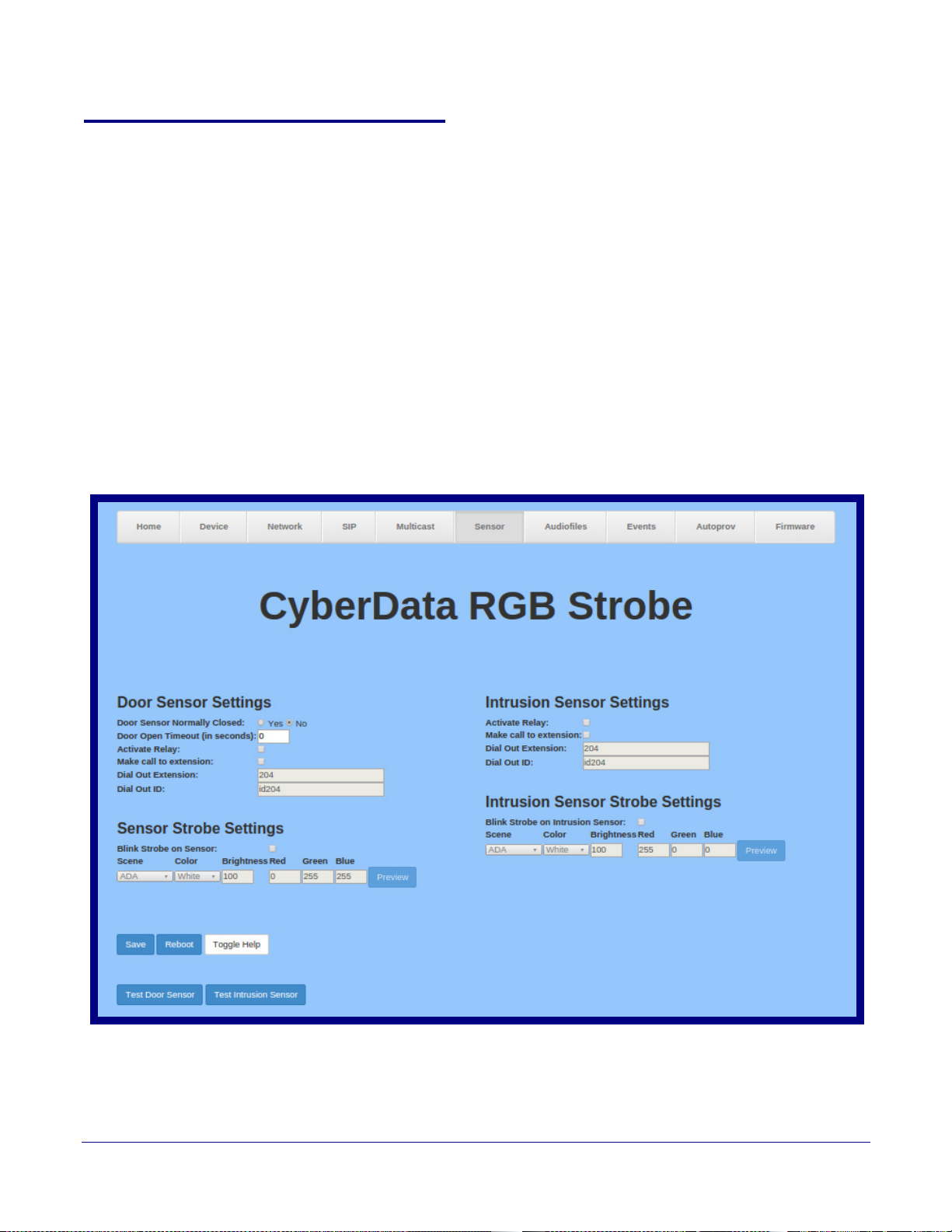

Figure 2-18. Sensor Configuration Page

Installing the RGB Strobe

RGB Strobe Setup

43

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

2. On the Sensor page, enter values for the parameters indicated in Ta bl e 2-19.

RGB Strobe Setup

44

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-19. Sensor Configuration Parameters

Web Page Item Description

Door Sensor Settings

Door Sensor Normally Closed Select the inactive state of the door sensor. The door sensor is

also known as the Sense Input on the device's terminal block.

Door Open Timeout (in seconds) The time (in seconds) the device will wait before it performs an

action when the on-board door sensor is activated. The action(s)
performed are based on the configured Door Sensor Settings
below. Enter up to 5 digits.

Activate Relay When selected, the device's on-board relay will be activated until

the on-board door sensor is deactivated.

Make call to extension When selected, the device will call an extension when the on-

board door sensor is activated. Use the Dial Out Extension field
below to specify the extension the device will call.

Dial Out Extension Specify the extension the device will call when the on-board door

sensor is activated. Enter up to 64 alphanumeric characters.

Dial Out ID An additional Caller identification string added to outbound calls.

Enter up to 64 alphanumeric characters.

Sensor Strobe Settings Use this section to select the strobe flashing behavior for the

Sensor event.

Blink Strobe on Sensor When selected, the Strobe will blink a scene when the sensor is

triggered.

Scene Use this setting to choose a scene (strobe flashing behavior).

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then

OFF for 350ms during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 3.5 seconds
during the duration of the event.

Fast Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 1.5 seconds
during the duration of the event.

Slow Blink Strobe will blink ON at the specified brightness for one second

then OFF for one second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five

times per second during the duration of the event.

Off The strobe will not blink.

Color Select desired color (only one may be chosen).

Brightness How bright the strobe will blink for the sensor event. This is the

maximum brightness for “fade” type scenes.

Red The red LED value for the sensor event.

Green The green LED value for the sensor event.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-19. Sensor Configuration Parameters (continued)

Web Page Item Description

Blue The blue LED value for the sensor event.

Click on the Preview button to see the strobe blink the selected
scene.

Intrusion Sensor Settings

Activate Relay When selected, the device's on-board relay will be activated until

the intrusion sensor is deactivated.

Make call to extension When selected, the device will call an extension when the

intrusion sensor is activated. Use the Dial Out Extension field
below to specify the extension the device will call.

Dial Out Extension Specify the extension the device will call when the intrusion

sensor is activated. Enter up to 64 alphanumeric characters.

Dial Out ID An additional Caller identification string added to outbound calls.

Enter up to 64 alphanumeric characters.

Intrusion Sensor Strobe Settings Use this section to select the strobe flashing behavior for the

Intrusion Sensor event.

45

Blink Strobe on Intrusion Sensor When selected, the Strobe will blink a scene when the intrusion

sensor is triggered.

Scene Use this setting to choose a scene (strobe flashing behavior).

ADA Compliant Strobe will blink ON at the specified brightness for 150ms then

OFF for 350ms during the duration of the event.

Slow Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 3.5 seconds
during the duration of the event.

Fast Fade Strobe will increase in brightness from 0 to the specified

brightness and back to 0 over the course of about 1.5 seconds
during the duration of the event.

Slow Blink Strobe will blink ON at the specified brightness for one second

then OFF for one second during the duration of the event.

Fast Blink Strobe will blink ON at the specified brightness then OFF five

times per second during the duration of the event.

Off The strobe will not blink.

Color Select desired color (only one may be chosen).

Brightness How bright the strobe will blink for the intrusion sensor event.

This is the maximum brightness for “fade” type scenes.

Red The red LED value for the intrusion sensor event.

Green The green LED value for the intrusion sensor event.

Blue The blue LED value for the intrusion sensor event.

Click on the Preview button to see the strobe blink the selected
scene.

Operations Guide 931212B CyberData Corporation

Table 2-19. Sensor Configuration Parameters (continued)

Web Page Item Description

Click the Test Door Sensor button to test the door sensor.

Click the Test Intrusion Sensor button to test the Intrusion
sensor.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the Toggle Help
button, and you will see a question mark ( ) appear next to
some of the web page items. Move the mouse pointer to hover
over a question mark to see a short description of a specific web
page item.

Installing the RGB Strobe

RGB Strobe Setup

46

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Operations Guide 931212B CyberData Corporation

2.3.10 Configure the Audiofiles Parameters

The Audiofiles page is used to add custom audio to the board. User uploaded audio will take
precedence over the audio files shipped with the device.

Installing the RGB Strobe

RGB Strobe Setup

47

1. Click on the A

udiofiles menu button to open the Audiofiles page (Figure 2-19).

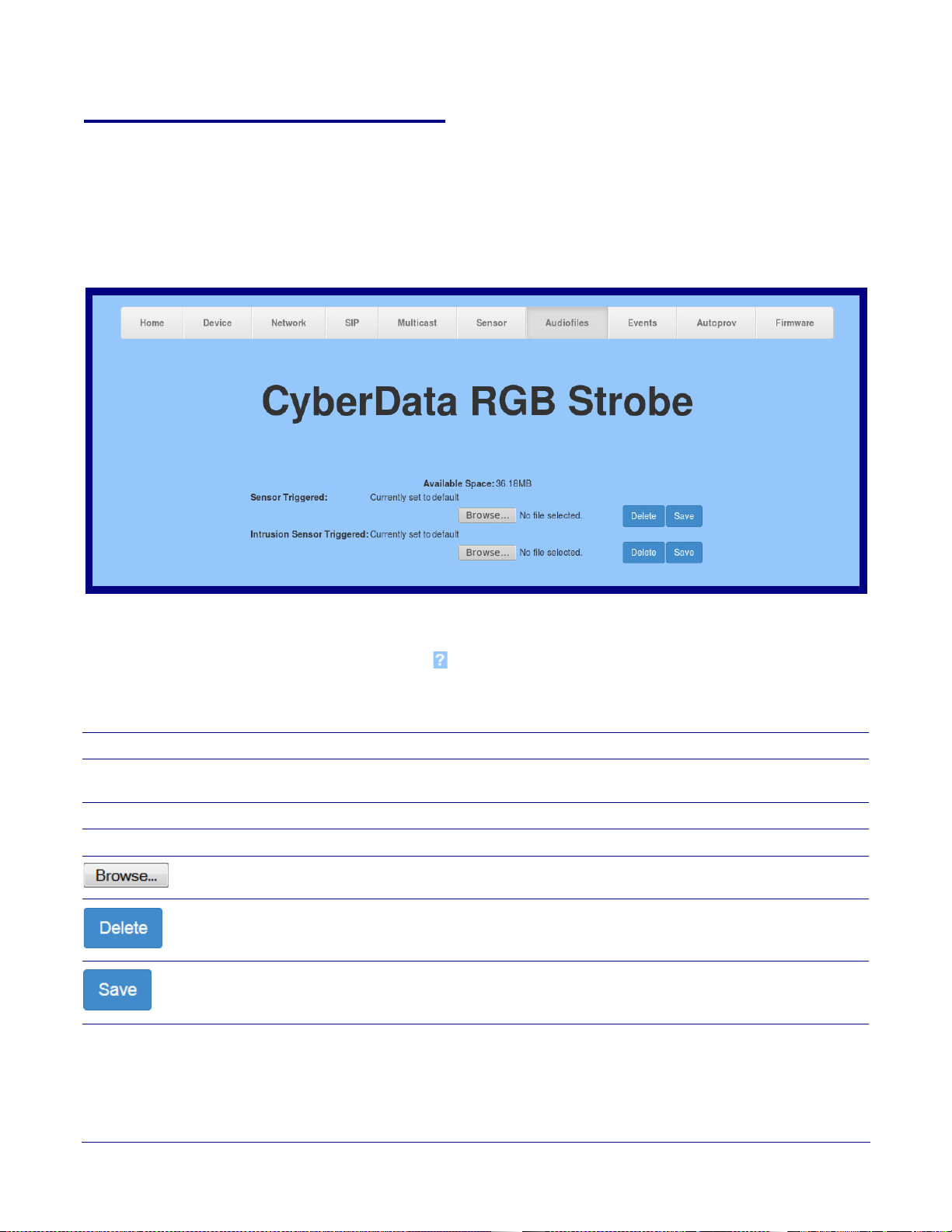

Figure 2-19. Audiofiles Configuration Page

2. On the A

udiofiles page, enter values for the parameters indicated in Ta b le 2-20.

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-20. Audiofiles Configuration Parameters

Web Page Item Description

Available Space Shows the space available for the user to save custom audio files if they want to change the

message when the door or sensor is triggered.

Sensor Triggered Corresponds to the message "Sensor Triggered" (24 character limit).

Intrusion Sensor Triggered Corresponds to the message “Intrusion Sensor Triggered” (24 character limit).

Click on the Br

The De

The Sa
file by using the Browse button. The Save button will delete any pre-existing user-uploaded
audio files.

Operations Guide 931212B CyberData Corporation

owse button to navigate to and select an audio file.

lete button will delete any user uploaded audio and restore the stock audio file.

ve button will download a new user audio file to the board once you've selected the

2.3.11 Configure the Event Parameters

The Events page specifies a remote server that can be used to receive HTTP POST events when
actions take place on the board.

1. Click on the Events menu button to open the Events page (Figure 2-20).

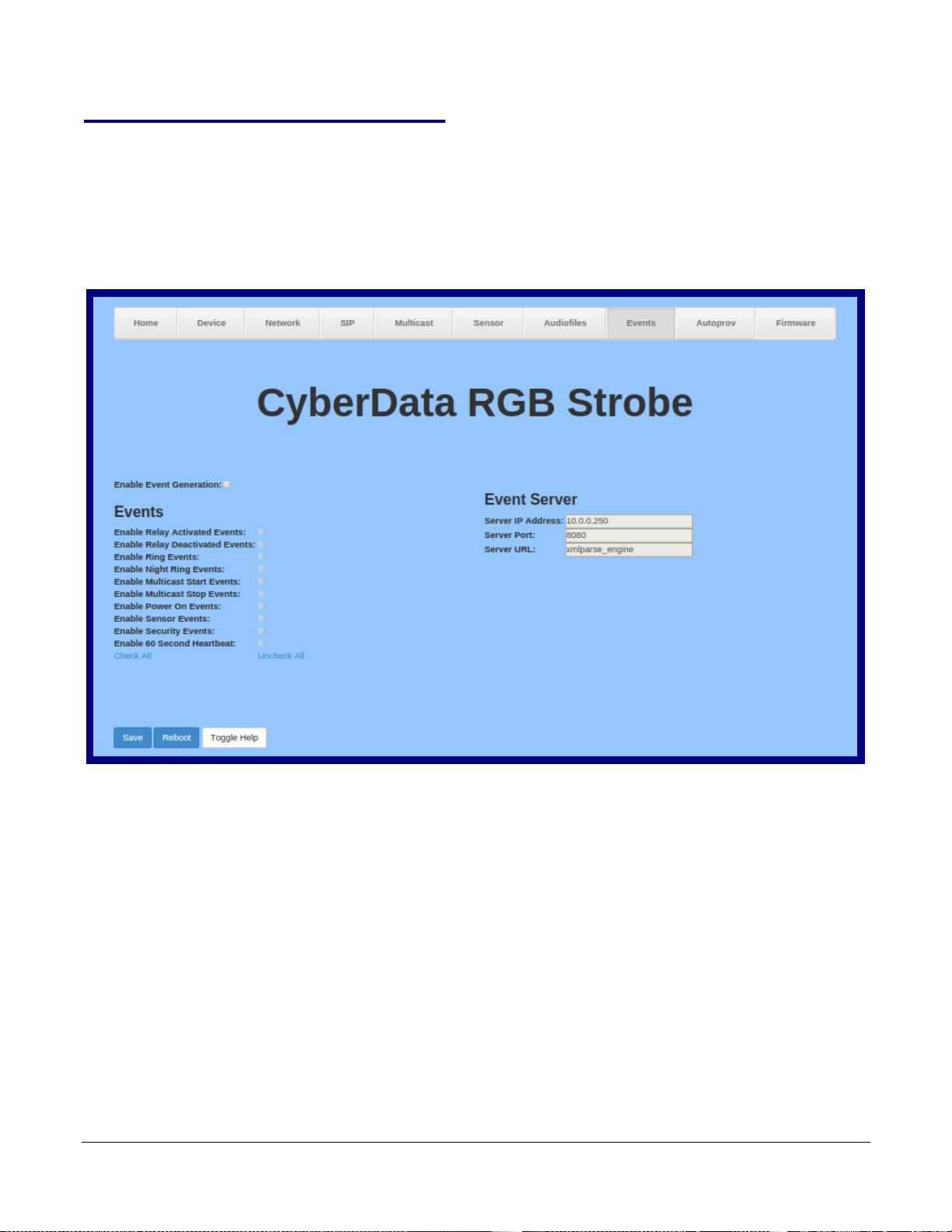

Figure 2-20. Event Configuration Page

Installing the RGB Strobe

RGB Strobe Setup

48

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

2. On the Events page, enter values for the parameters indicated in Ta bl e 2-21.

RGB Strobe Setup

49

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-21. Events Configuration Parameters

Web Page Item Description

Enable Event Generation The device will send HTTP POST events to the specified remote

server and port number whenever a certain action takes place.
Select an event type below to generate an HTTP POST event.

Events

Enable Relay Activated Events When selected, the device will report relay activation.

Enable Relay Deactivated Events

Enable Ring Events

When selected, the device will report relay deactivation.

When selected, the device will report when it starts ringing upon an
incoming SIP call. A Ring Event will not be generated when Auto-
Answer Incoming Calls is enabled on the Device page.

Enable Night Ring Events

When selected, the device will report when it starts ringing upon an
incoming SIP call to the Nightringer extension. As a reminder, the
Nightringer extension always rings upon an incoming SIP call and it
is not possible to alter this behavior.

Enable Multicast Start Events When selected, the device will report when the device starts playing

a multicast audio stream.

Enable Multicast Stop Events

When selected, the device will report when the device stops playing
a multicast audio stream.

Enable Power On Events

Enable Sensor Events

When selected, the device will report when it boots.

When selected, the device will report when the on-board sensor is
activated.

Enable Security Events

When enabled, the device will report when the intrusion sensor is
activated.

Enable 60 Second Heartbeat Events

When enabled, the device will report a Heartbeat event every 60
seconds. SIP registration is not required to generate Heartbeat
events.

Check All Click on Chec

Uncheck All

Click on Uncheck All to de-select all of the events on the page.

k All to select all of the events on the page.

Event Server

Server IP Address The IPv4 address of the event server in dotted decimal notation.

Server Port

Specify the event server port number. The supported range is 0-

65536. Enter up to 5 digits.

Server URL

Generally, the destination URL is the name of the application that
receives the events and the string in the HTTP POST command. It
can be a script used to parse and process the HTTP POST events.
Enter up to 127 characters.

Click the Save button to save your configuration settings.

Note: Y

ou need to reboot for changes to take effect.

Operations Guide 931212B CyberData Corporation

Table 2-21. Events Configuration Parameters (continued)

Web Page Item Description

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.3.11.1 Example Packets for Events

The server and port are used to point to the listening server and the 'Remote Event Server URL' is
the destination URL (typically the script running on the remote server that's used to parse and
process the POST events).

Installing the RGB Strobe

RGB Strobe Setup

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some
of the web page items. First click on the Toggle Help button, and
you will see a question mark (
page items. Move the mouse pointer to hover over a question mark
to see a short description of a specific web page item.

) appear next to some of the web

50

Note The XML is

URL-encoded before transmission so the following examples are not completely

accurate.

Here are example packets for every event:

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>POWERON</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 199
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>HEARTBEAT</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 196
Content-Type: application/x-www-form-urlencoded

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>BUTTON</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 201
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>CALL_ACTIVE</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 205
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>CALL_TERMINATED</event>
</cyberdata>

RGB Strobe Setup

51

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>RINGING</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>MULTICAST_START</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 233
Content-Type: application/x-www-form-urlencoded

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>MULTICAST_STOP</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>RELAY_ACTIVATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>RELAY_DEACTIVATED</event>
</cyberdata>

RGB Strobe Setup

52

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData SIP Device' MAC='0020f70015b6'>
<event>NIGHTRINGING</event>
</cyberdata>

Operations Guide 931212B CyberData Corporation

2.3.12 Configure the Autoprovisioning Parameters

Autoprovisioning can be used to automatically configure your device. The autoprovisioning file is an
xml file with the device configuration. Values found in this file will override values stored in on-board
memory.

Note By default, the device will try to set up its configuration with autoprovisioning.

1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-21.

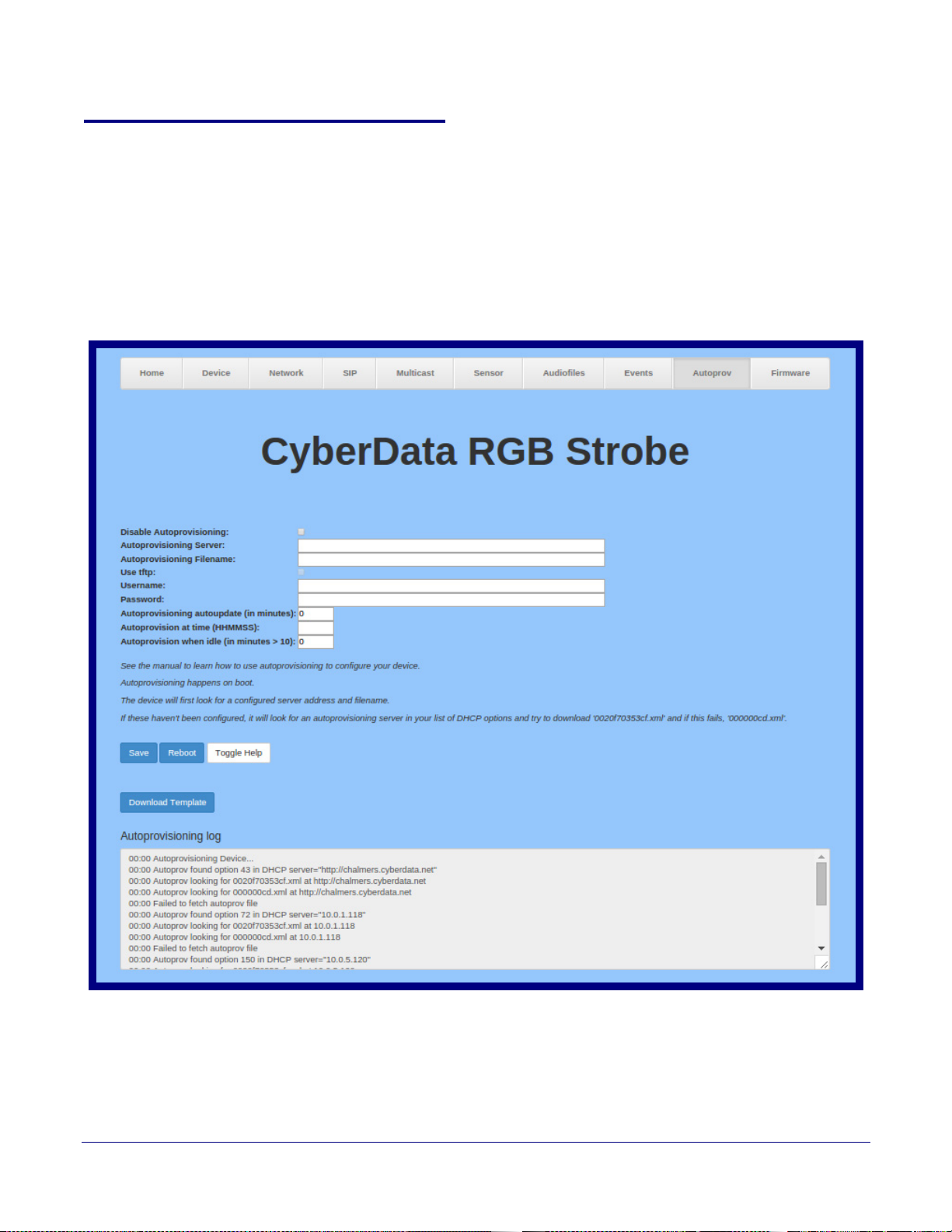

Figure 2-21. Autoprovisioning Page

Installing the RGB Strobe

RGB Strobe Setup

53

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

2. On the Autoprovisioning page, you may enter values for the parameters indicated in Tab l e 2-

22.

54

Note The question mark icon (

after the To

ggle Help button is pressed.

) in the following table shows which web page items will be defined

Table 2-22. Autoprovisioning Configuration Parameters

Web Page Item Description

Disable Autoprovisioning Prevent the device from automatically trying to download a

configuration file. See Section 2.3.12.1, "Autoprovisioning"
for more information.

Autoprovisioning Server

Enter the IPv4 address of the provisioning server in dotted
decimal notation.

Autoprovisioning Filename

The autoprovisioning filename is the configuration filename.
The default autoprovisioning filename is in the format of
<mac address>.xml.

Supported filename extensions are .txt, and .xml. The
current filename is denoted by an asterisk at the bottom of
the Autoprovisioning Page. Enter up to 256 characters.

A file may have any name with an xml extension. If a file
name is entered, the device will look for the specified file
name, and only that file.

Use tftp

The device will use TFTP (instead of http) to download
autoprovisioning files.

Username

The username used to authenticate with an autoprovisioning
server. Leave this field blank to disable authentication.

Password

Autoprovisioning Autoupdate 
(in minutes)

Autoprovision at time (HHMMSS)

Autoprovision when idle
(in minutes > 10)

The password used to authenticate with an autoprovisioning
server. Leave this field blank to disable authentication.

The reoccurring time (in minutes) the device will wait before
checking for new autoprovisioning files. Enter up to 6 digits.
A value of 0 will disable this option.

To use the auto update options, enable the Set Time

Note:

with NTP Server on boot setting on the Device
Configuration Page page (see Tab l e 2-9).

The time of day the device will check for a new
autoprovisioning file. The time must be 6 characters in length
and in HHMMSS format. An empty value will disable this
option.

To use the auto update options, enable the Set Time

Note:

with NTP Server on boot setting on the Device
Configuration Page page (see Tab l e 2-9).

The idle time (in minutes greater than 10) after which the
device will check for a new autoprovisioning file. Enter up to 6
digits. A value of 0 will disable this option.

To use the auto update options, enable the Set Time

Note:

with NTP Server on boot setting on the Device
Configuration Page page (see Tab l e 2-9).

Click the Save button to save your configuration settings.

You need to reboot for changes to take effect.

Note:

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Table 2-22. Autoprovisioning Configuration Parameters (continued)

Web Page Item Description

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the Toggle Help
button, and you will see a question mark (
some of the web page items. Move the mouse pointer to
hover over a question mark to see a short description of a
specific web page item.

Press the Download Template button to create an
autoprovisioning file for the device. See Section 2.3.12.3,

"Download Template Button"

Autoprovisioning Log The autoprovisioning log reflects the steps the device takes

toprovisioning, relaying information about the server,

with au
DHCP options, configuration file names, and success or
failure of finding and parsing the files.

) appear next to

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

55

2.3.12.1 Autoprovisioning

On boot, the device will look for an autoprovisioning server configured on the Autoprovisioning Page
or specified as a DHCP option. When it finds a server, it will try to download the following (in order of
p

reference):

1. The file configured on the autoprovisioning page.

2. A file named according to it's mac address (for example: 0020f7350058.xml).

3. The file 000000cd.xml

The file can be hosted using a standard web server (lik
download over SSL. The file server can be an ipv4 address in dotted decimal notation or a fully
qualified domain name.

By default, the device will get its autoprovisioning server from the DHCP options. See Section

2.3.12.2, "Sample dhcpd.conf" for an example of how to configure dhcpd to offer autoprovisioning

server addresses. If multiple options are set, the device will attempt to download autoprovisioning
f

iles from every server.

The DHCP option determines the protocol used to download the autoprovisioning file. The device
looks f

or DHCP options in the following order:

1. Option 43 - a FQDN or an IP address to an http server

2. Option 72 - an IP address to an http server

e apache, IIS, or nginx), and the device can

3. Option 150 - an IP address to a tftp server

4. Option 66 - an IP address to a tftp server or if the entry starts with 'http', a FQDN to a http server.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

You can download an autoprovisioning template file from the Autoprovisioning Page using the
Download Template button (see Ta bl e 2-22). This file contains every configuration option that can
be set on the board.

Autoprovisioning files can contain the whole configuration or a subset of this file. The first
autoprovisioning file can also contain links to other autoprovisioning files.

The <MiscSettings> section contains some examples of additional autoprovisioning files:

<MiscSettings>
<DeviceName>CyberData VoIP Device</DeviceName>
<!-- <AutoprovFile>common.xml</AutoprovFile>-->
<!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->
<!-- <AutoprovFile>audio[macaddress]</AutoprovFile>-->
<!-- <AutoprovFile>device[macaddress].xml</AutoprovFile>-->
</MiscSettings>

After downloading the first autoprovisioning file, the device will step through up to twenty additional
<AutoprovFile> entries and try to download these files from the same server.

When the device finds a filename with the string [macaddress], it will replace this string with the
mac address.

As an example, the user has configured option 43 on their DHCP server to “http://example.com,” and
on their server, they have a file named 0020f7123456.xml (the same as the mac address of the
device).

56

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

The file 0020f7123456.xml contains:

<?xml version="1.0" encoding="utf-8" ?>
<specific>

<MiscSettings>

<DeviceName>Newname</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>
<AutoprovFile>audio[macaddress]</AutoprovFile>
<AutoprovFile>device.xml</AutoprovFile>

</MiscSettings>

</specific>

1. The device will first set it's name to 'Newname'.

2. It will try to download http://example.com/common.xml.

3. It will try to download http://example.com/sip_reg0020f7123456.xml.

4. It will try to download http://example.com/audio0020f7123456.

5. It will try to download http://example.com/device.xml.

The device is reconfigured every time it downloads a new file so if two files configure the same
option the last one will be the one that is saved.

57

Checking for New Autoprovisioning Files after Boot

It is possible to autoprovision autoprovisioning values (for example, to disable autoprovisioning or to
configure a time to check for new files).

The device will always check for an autoprovisioning files on boot but it can be configured to also
check after a periodic delay, when idle, or at a specified time. When one of these options is set, the
device will download its autoprovisioning files again, and if it finds any differences from the files it
downloaded on boot, it will force a reboot and reconfigure.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

58

The Autoprovisioning Filename

The autoprovisioning filename can contain a file, a file path, or a directory.

Table 2-23. Autoprovisioning File Name

Autoprovisioning
Filename

config.xml

/path/to/config.xml

subdirectory/path/ 10.0.1.3 10.0.1.3/subdirectory/path/0020f7020002.xml

Autoprovisioning

File Downloaded

Server

10.0.1.3 10.0.1.3/config.xml

10.0.1.3 10.0.1.3/path/to/config.xml

TFTP options may not support subdirectories. If a directory is set in the filename field, firmware and

udio files will also be downloaded from this subdirectory.

a

If the filename ends with a forward slash “/,” the device will treat it as a subdirectory.

For example:

The autoprovisioning server is set to “https://www.example.com”

The autoprovisioning filename is set to “cyberdata/”

On boot, the device will try to download:

https://www.example.com/cyberdata/0020f7123456.xml

...and if this fails:

https://www.example.com/cyberdata/000000cd.xml

Audio files and firmware files will also add “cyberdata” to the URL before downloading.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

59

Autoprovisioning Firmware Updates

<FirmwareSettings>

<FirmwareFile>505-uImage-ceilingspeaker</FirmwareFile>
<FirmwareServer>10.0.1.3</FirmwareServer>
<OutdoorIntercom30>firmware_file_v9.3.0</OutdoorIntercom30>
<OutdoorIntercom31>firmware_file_v10.3.0</OutdoorIntercom31>
<CallButton31>firmware_file_v10.3.0</CallButton31>

</FirmwareSettings>

In the <FirmwareSettings> section, the <FirmwareServer> element can be used to specify a
different server for hosting firmware files. When this element is not available, the device will try to
download the file from the autoprovisioning server.

The device will use the filename to determine when to autoprovision firmware updates. The default
configuration is blank, so the first time you set a value in your autoprovisioning file, it may force a
firmware update even if the firmware version has not changed.

The <FirmwareFile> name can contain path elements (i.e. /path/to/firmware/10.3.0-uImage­[device_file_name]).

The device also supports product strings for downloading firmware. If the <FirmwareFile> option is
not set, the device will look for its particular product string for a firmware filename. In this way, a
generic autoprovisioning file can specify unique firmware for a range of products.

The list of valid product strings:

<ProductString>CallButton31</ProductString>

<ProductString>EmergencyIntercom31</ProductString>
<ProductString>EmergencyIntercom31SW</ProductString>
<ProductString>IndoorIntercom31</ProductString>
<ProductString>IndoorIntercom31SW</ProductString>
<ProductString>IndoorKeypad31</ProductString>
<ProductString>IndoorKeypad31SW</ProductString>
<ProductString>OfficeRinger31</ProductString>
<ProductString>OfficeRinger31SW</ProductString>
<ProductString>OutdoorIntercom31</ProductString>
<ProductString>OutdoorIntercom31SW</ProductString>
<ProductString>OutdoorKeypad31</ProductString>
<ProductString>OutdoorKeypad31SW</ProductString>
<ProductString>Strobe31</ProductString>
<ProductString>Strobe31SW</ProductString>

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

60

Autoprovisioning Example 1

Here's a simple example using four autoprovisioning files to configure two devices:

We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2).

The devices are set to use DHCP and that server provides an autoprovisioning server address with
option 43. The address is “https://autoprovtest.server.net.” The files on this server are as follows:

000000cd.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
<AutoprovFile>sip_common.xml</AutoprovFile>
<AutoprovFile>sip_[macaddress].xml</AutoprovFile>
</MiscSettings>

sip_common.xml

<SIPSettings>
<SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

sip_0020f7020001.xml

<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>



sip_0020f7020002.xml

<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>

On boot, Device1 tries to fetch the file 0020f7023614.xml from “https://autoprovtest.server.net”. This
file is not available, so device1 then tries to fetch the file 000000cd.xml. This file exists, and Device1
parses the three elements.

1. Device1 changes its device name to CyberData Autoprovisioned.

2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device
downloads sip_common.xml from “https://autoprovtest.server.net,” and imports this
configuration, setting the sip server to 10.0.0.253 and the remote port to 5060.3.

3. Device1 finds another AutoprovFile element containing the filename sip_[macaddress].xml.
The device replaces the [macaddress] with its own mac address value creating
sip_0020f7020001.xml, downloads this file from “https://autoprovtest.server.net,” and imports
this configuration. This sets the user ID to 198, the password to ext198, and the dialout
extension to 204. Device1 is now finished with autoprovisioning.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

Device2 goes through the same steps by setting its device name to CyberData Autoprovisioned,
its SIP server to 10.0.0.253, and its port to 5060. When Device2 “sees” sip_[macaddress].xml,
Device2 replaces it with its own mac address and downloads sip_0020f7020002.xml from
“https://autoprovtest.server.net.” Device2 sets the SIP User ID to 500, the password to ext500, and
the dialout extension to 555.

61

Autoprovisioning Example 2

Here is another example of setting up your autoprovisioning files:

We boot up two devices with mac addresses 00:20:f7:02:00:01 and 00:20:f7:02:00:02 (Device1
and Device2) and boot them on a network with a DHCP server configured with an autoprovisioning
server at 10.0.1.3 on option 150. Our TFTP server has three files:

0020f7020001.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>

0020f7020002.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>



common_settings.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
</MiscSettings>
<SIPSettings> <SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

1. On boot, Device1 downloads 0020f7020001.xml from 10.0.1.3 and imports these values. The SIP
User ID is 198, the password is ext198, and the dialout extension is 204.

2. Device1 then gets the filename common_settings.xml from the AutoprovFile element and
downloads this file from the TFTP server at 10.0.1.3. and imports these settings. The device name is
set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values
instead. The Sip User ID is 500, password is ext500, and dialout extension is 555. Device2 then
downloads the common_settings.xml file and imports those values. The device name is set to
CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

62

XML Files

Autoprovisioned
Audio Files

XML files can contain <AutoprovFile> elements. If multiple DHCP options are specified, the device
will try to download autoprovisioning files from each in turn. The device will only look for
<AutoprovFile> elements in the first file downloaded from each server. You can specify up to 20
<AutoprovFile> elements in the first autoprovisioning file.

There are numerous ways to change an element of the configuration(xml) file. Using sip ext as an
example, the extension can be changed:

Within the device-specific xml, i.e. [macaddress].xml, via the AutoprovFile
element:<SIPSettings>/<SIPExt>

From the device specific xml, a pointer to a sip_common file

From the device specific xml, a pointer to the device specific sip_[macaddress].xml

From the common file, a pointer to sip_common.xml

From the common file, a pointer to the device specific (sip_[macaddress].xml)

Audio files are stored in non-volatile memory and an autoprovisioned audio file will only have to be
downloaded once for each device. Loading many audio files to the device from the web page could
cause it to appear unresponsive. If this happens, wait until the transfer is complete and then refresh
the page.

The device uses the file name to determine when to download a new audio file. This means that if
you used autoprovisioning to upload a file and then changed the contents of this file at the TFTP
server, the device will not recognize that the file has changed (because the file name is the same).

Since audio files are stored in non-volatile memory, if autoprovisioning is disabled after they have
been loaded to the board, the audio file settings will not change. You can force a change to the audio
files on the board by clicking Restore Default on the Audio Configuration page or by changing the
autoprovisioning file with “default” set as the file name.

Operations Guide 931212B CyberData Corporation

2.3.12.2 Sample dhcpd.conf

#
# Sample configuration file for ISC dhcpd for Debian
#

ddns-update-style none;

option domain-name "voiplab";
option domain-name-servers 10.0.0.252;
option option-150 code 150 = ip-address;
option ntp-servers north-america.pool.ntp.org;
option space VendorInfo;
option VendorInfo.text code 10 = { text };
authoritative;
log-facility local7;

subnet 10.0.0.0 netmask 255.0.0.0 {
max-lease-time 3600;
default-lease-time 3600;

option routers 10.0.0.1;
option subnet-mask 255.0.0.0;

option domain-name "voiplab";
option domain-name-servers 10.0.0.252;

Installing the RGB Strobe

RGB Strobe Setup

63

option time-offset -8; # Pacific Standard Time

# option www-server 99.99.99.99; # OPTION 72

# option tftp-server-name "10.0.1.52"; # OPTION 66
# option tftp-server-name "http://test.cyberdata.net"; # OPTION 66

# option option-150 10.0.0.252; # OPTION 150

# These two lines are needed for option 43
# vendor-option-space VendorInfo; # OPTION 43
# option VendorInfo.text "http://test.cyberdata.net"; # OPTION 43

range 10.10.0.1 10.10.2.1; }

Operations Guide 931212B CyberData Corporation

2.3.12.3 Download Template Button

The Download Template button allows the user to generate, download, edit, and then store an
autoprovisioning template on the server that serves the autoprovisioning files for devices.

To generate an autoprovisioning template directly from the device, complete the following steps:

1. On the Autoprovisioning page, click on the Download Template button.

2. You will see a window prompting you to save a configuration file (.xml) to a location on your
computer (Figure 2-22). The configuration file is the basis for the default configuration settings
for your unit).

3. Choose a location to save the configuration file and click on OK. See Figure 2-22.

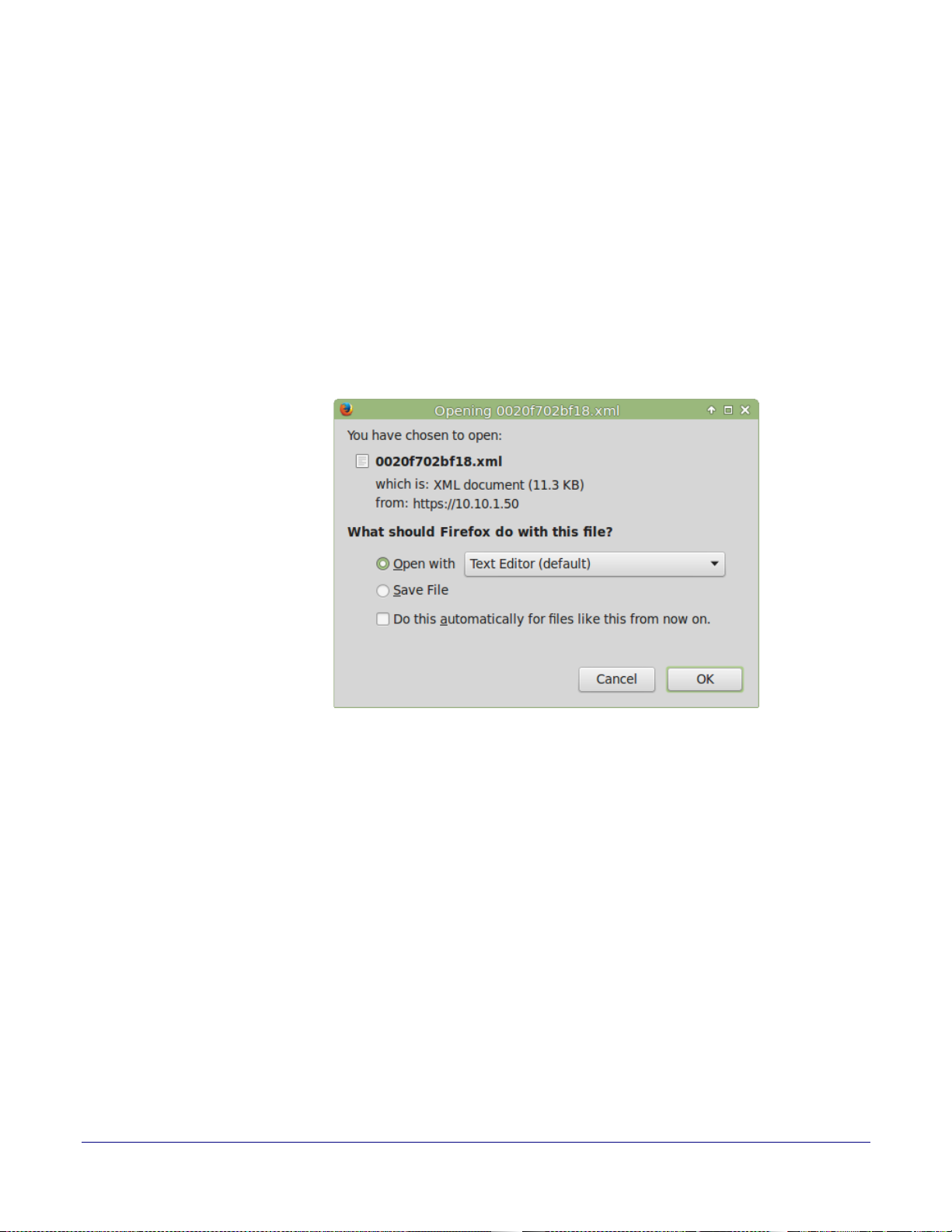

Figure 2-22. Configuration File

Installing the RGB Strobe

RGB Strobe Setup

64

4. At this point, you can open and edit the autoprovisioning template to change the configuration
settings in the template for the unit.

5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be
loaded onto other devices.

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

GENERAL ALERT

GENERAL ALERT

v11.6.0

RGB Strobe Setup

2.4 Upgrade the Firmware and Reboot the RGB Strobe

Caution

Equipment Hazard: Devices with a serial number that begins with 3760xxxxx can
only run firmware versions 10.0.0 or later.

To download the firmware to your computer:

65

1. Download the latest firmware file from the Do

wnloads tab at the following webpage:

http://www.cyberdata.net/voip/011376/

2. Unzip the firmware version file. This file may contain the following:

• Firmware file

• Release notes

3. Log in to the RGB Strobe home page as instructed in Section 2.3.4, "Log in to the Configuration

Home Page".

4. Click on the F

irmware button to open the Firmware page. See Figure 2-23.

Caution

Equipment Hazard: CyberData strongly recommends that you first reboot the
device before attempting to upgrade the firmware of the device. See Section 2.4.1,

"Reboot the Device".

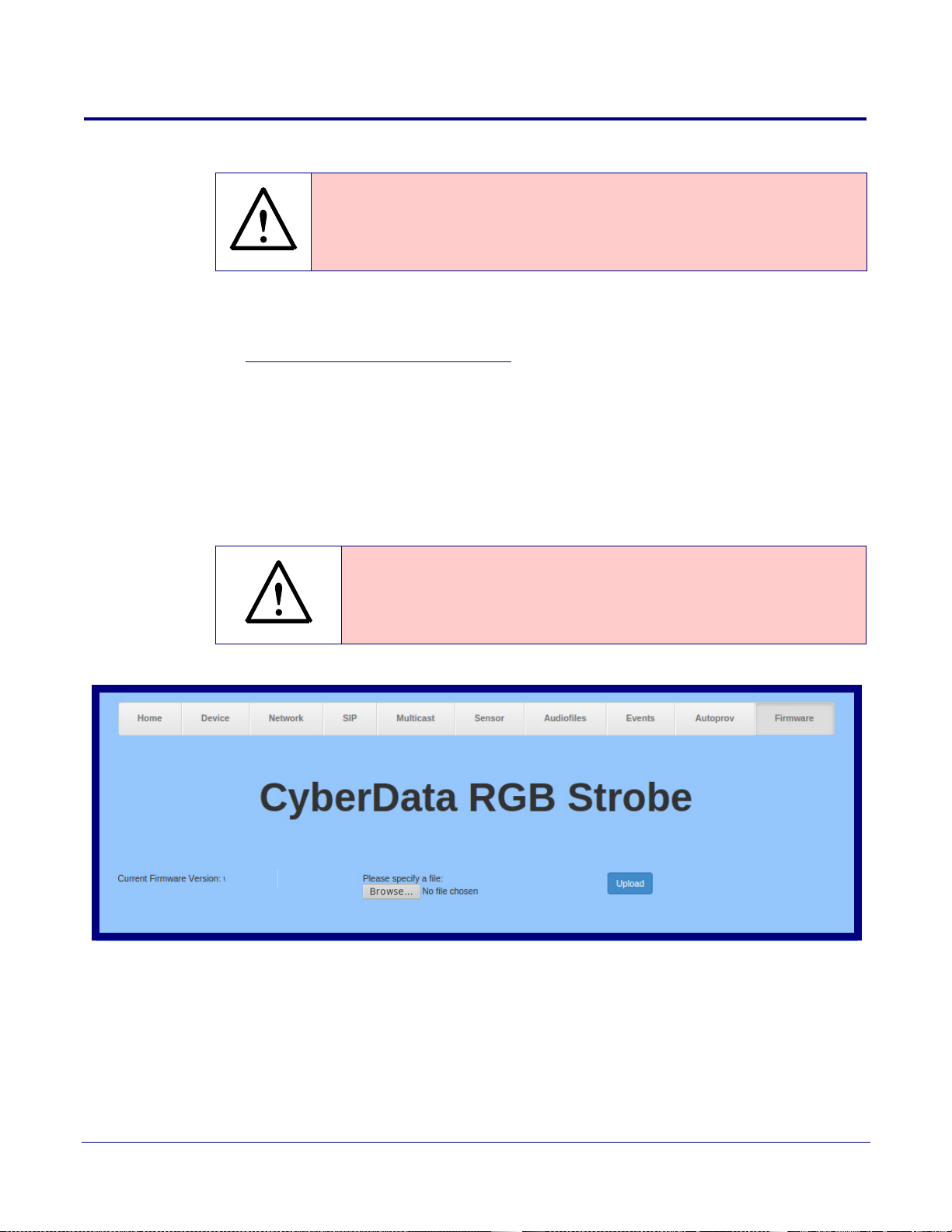

Figure 2-23. Firmware Page

5. Click on the Br

owse button, and then navigate to the location of the firmware file.

6. Select the firmware file.

Operations Guide 931212B CyberData Corporation

7. Click on the Upload button.

Installing the RGB Strobe

RGB Strobe Setup

66

Note Do not reboot the d

Note This starts the upg

evice after clicking on the Upload button.

rade process. Once the RGB Strobe has uploaded the file, the
Uploading Firmware countdown page appears, indicating that the firmware is being written
to flash. The RGB Strobe will automatically reboot when the upload is complete. When the
countdown finishes, the Firmware page will refresh. The uploaded firmware filename
should be displayed in the system configuration (indicating successful upload and reboot).

8. Ta bl e 2-24 shows the web page items on the Fir

mware page.

Table 2-24. Firmware Parameters

Web Page Item Description

Current Firmware Version Shows the current firmware version.

Use the Br
firmware file that you want to upload.

Click on the Upload b
firmware and reboot the system.

owse button to navigate to the location of the

utton to automatically upload the selected

Operations Guide 931212B CyberData Corporation

2.4.1 Reboot the Device

v11.6.0

376000001

Reboot

To reboot a RGB Strobe, log in to the web page as instructed in Section 2.3.4, "Log in to the

Configuration Home Page".

1. Click on the Reboot button on the Home page (Figure 2-24). A normal restart will occur.

Figure 2-24. Home Page

Installing the RGB Strobe

RGB Strobe Setup

67

Operations Guide 931212B CyberData Corporation

Installing the RGB Strobe

RGB Strobe Setup

2.5 Command Interface

Some functions on the device can be activated using simple POST commands to the web interface.
The examples in Tab le 2-25 use the free unix utility, wg
can send HTTP POST commands to the device should work.

2.5.1 Command Interface Post Commands

Note These commands require an authenticated session (a valid username and password to

work).

Table 2-25. Command Interface Post Commands

Device Action HTTP Post Command

Trigger relay (for configured delay) wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi­bin/command.cgi" --post-data "test_relay=yes"

Place call to extension (example: extension 130) wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi­bin/command.cgi" --post-data "call=130"

Terminate active call wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi­bin/command.cgi" --post-data "terminate=yes"

Force reboot wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi­bin/command.cgi" --post-data "reboot=yes"

Trigger the Door Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi­bin/sensor.cgi" --post-data "doortest=yes"

Trigger the Intrusion Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no-

ck-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-

che
bin/sensor.cgi" --post-data "intrusiontest=yes"

et commands. However, any program that

a

68

a.Type and enter all of each http POST command on one line.

Operations Guide 931212B CyberData Corporation

Appendix A: Mounting the RGB Strobe

A.1 Mount the RGB Strobe

Before you mount the RGB Strobe, make sure that you have received all the parts for each RGB
Strobe. Refer to Tab le A-1.

Table A-1. Wall Mounting Components (Part of the Accessory Kit)

Quantity Part Name Illustration

4 #6 x 1.5 inches Sheet Metal Screw

4 #6 Ribbed Plastic Anchor

69

Table A-2. Gang Box Mounting Components

Quantity Part Name Illustration

4 #6-32 x 0.625-inch

Flat-Head Machine Screw.

Operations Guide 931212B CyberData Corporation

Figure A-1 shows the wall mounting option for the RGB Strobe.

Screw Accessory Kit

Self-Tapping Screws & Anchors

Backplate

Pre-Drill Holes

Strobe Cable

Mounting Screw (3x)

Faceplate

Assembly

for Anchors

from Paging Amplier

= Cable Slot Open

= Cable Slot Close

to J1

Slot

Note Be sure to connect the RGB Strobe to the Earth Ground.

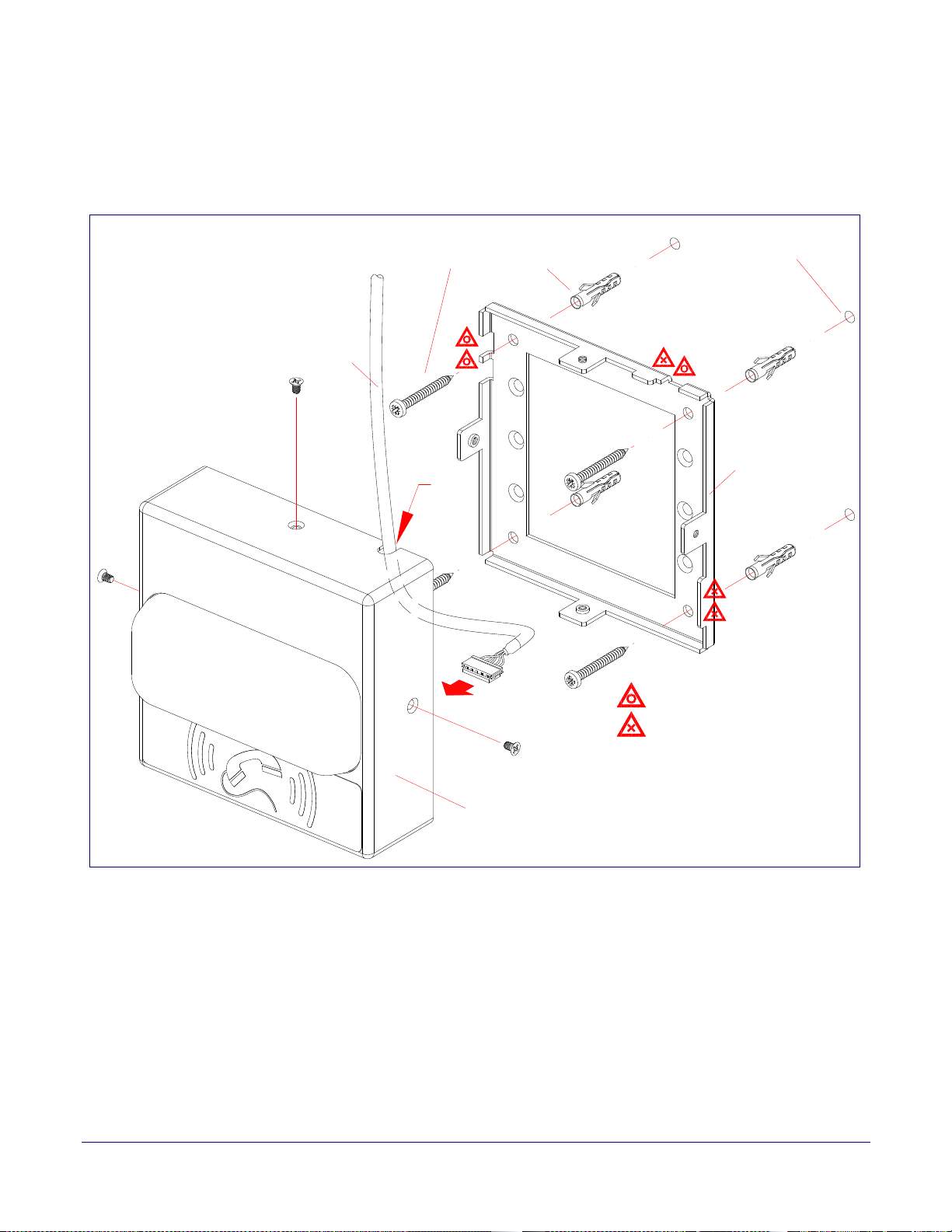

Figure A-1. Wall Mounting Options

Mount the RGB Strobe

70

Operations Guide 931212B CyberData Corporation

Figure A-2 shows the gang box mounting options for the RGB Strobe.

Single Gang Box use two

Wall Cutout

or Two Gang Box

Backplate accept

Single Gang Box

Two Gang Box use Four

Backplate

Wall Cutout

Screw

121002B

Accessory Kit

(Not Provided)

Network Cable & Ground Wire

Available Mounting Hole

Pick One of Two or Four

for Ground Wire Connection

Mounting

Screw (3x)

Slot

Entry

Cable

Closed

Slot

Cable

Note Be sure to connect the RGB Strobe to the Earth Ground.

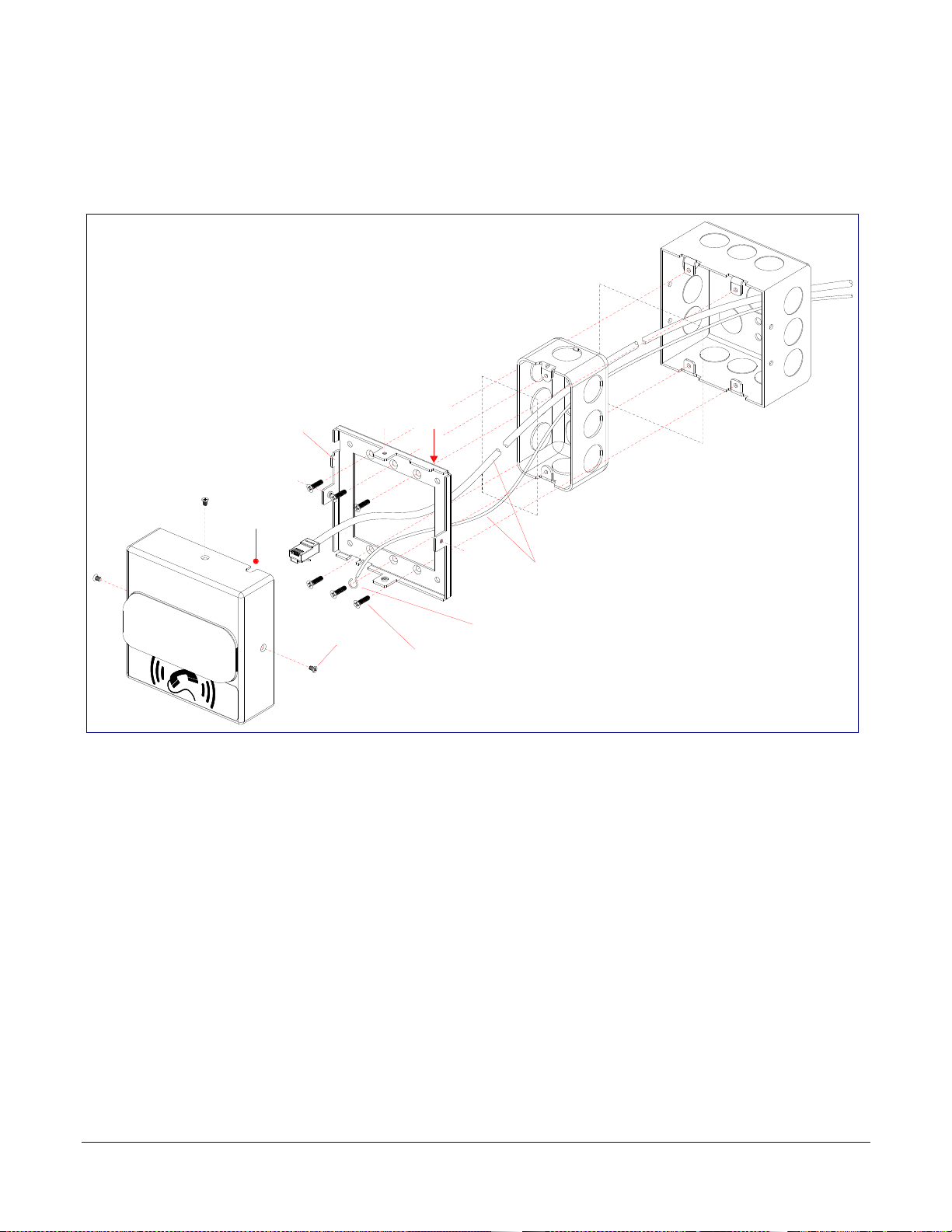

Figure A-2. Gang Box Mounting Options

Mount the RGB Strobe

71

Operations Guide 931212B CyberData Corporation

Figure A-3 shows the wall mounting with either a single or two gang box.

Figure A-3. Wall Mounting with Single or Two Gang Box

Mount the RGB Strobe

72

Operations Guide 931212B CyberData Corporation

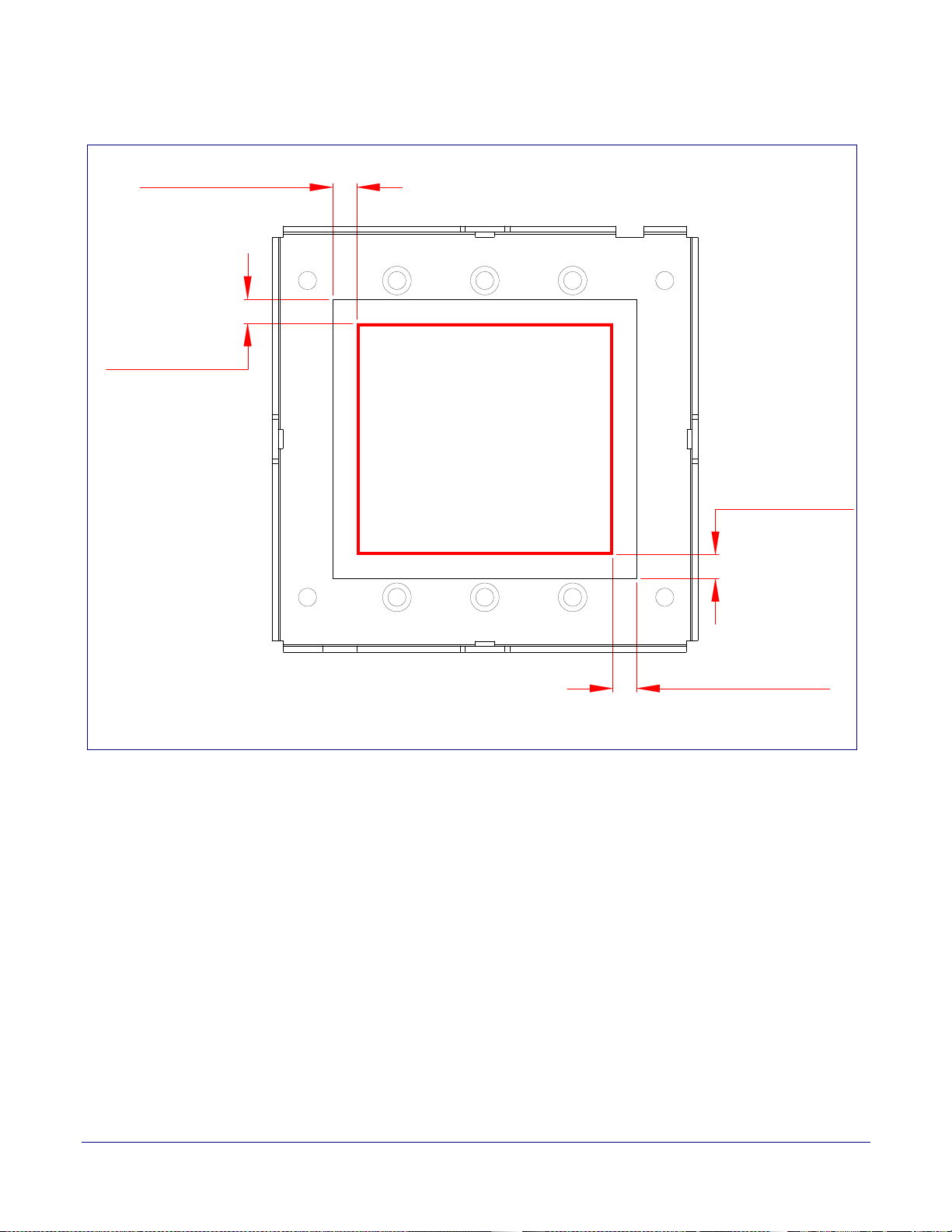

Dimensions are in Inches [Millimeter]

Wall Cutout

0.25 [6.4]

0.25 [6.4]

0.25 [6.4]

0.25 [6.4]

Mount the RGB Strobe

73

Operations Guide 931212B CyberData Corporation

Appendix B: Troubleshooting/Technical Support

B.1 Frequently Asked Questions (FAQ)

To see a list of frequently asked questions for your product, click on the FAQs tab at the following
webpage:

http://www.cyberdata.net/voip/011376/

B.2 Documentation

The documentation for this product is released in an English language version only.

To download PDF copies of CyberData product documentation, click on the Downloads tab at the
following webpage:

74

http://www.cyberdata.net/voip/011376/

Operations Guide 931212B CyberData Corporation

B.3 Contact Information

Contact Information

75

Contact

Sales

Technical 
Support

CyberData Corporation
3 Justin Court
Monterey, CA 93940 USA

www.CyberData.net

Phone: 800-CYBERDATA (800-292-3732)
Fax: [phone]

Sales 831-373-2601, Extension 334

The fastest way to get technical support for your VoIP product is to submit a VoIP Technical
Support form at the following website:

http://support.cyberdata.net/

The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most
importantly, the Support Form tells us which PBX system and software version that you are
using, the make and model of the switch, and other important information. This information is
essential for troubleshooting. Please also include as much detail as possible in the Comments
section of the Support Form.

Phone: [phone], Extension 333

B.4 Warranty and RMA Information

The most recent warranty and RMA information is available at the following website address:

http://support.cyberdata.net/

Operations Guide 931212B CyberData Corporation

Index

76

Numerics

16 AWG gauge wire 6

A

AC voltages, enclosure is not rated 7
activate relay (door sensor) 44
activate relay (intrusion sensor) 45
activity LED 12
address, configuration login 18
alternative power input 4
audio configuration 47
audio configuration page 47
Autoprovision at time (HHMMSS) 54
autoprovision at time (HHMMSS) 54
autoprovision when idle (in minutes > 10) 54
autoprovisioning 55

download template button 55
autoprovisioning autoupdate (in minutes) 54
autoprovisioning configuration 53, 54
autoprovisioning filename 54
autoprovisioning server (IP Address) 54
auxiliary relay wiring diagram 8

B

backup SIP server 1 31
backup SIP server 2 31
backup SIP servers, SIP server

backups 31
baud rate

verifying 12

C

changing

the web access password 22
Cisco SRST 31
command interface 68
commands 68
configurable parameters 20, 23, 28
configuration

audio 47

default IP settings 14

door sensor 43

intrusion sensor 43
network 27
SIP 30
using Web interface 14

configuration home page 19
configuration page

configurable parameters 20, 23, 28
contact information 75
contact information for CyberData 75
Current Network Settings 28
current network settings 28
CyberData contact information 75

D

default

device settings 76

gateway 14

IP address 14

subnet mask 14

username and password 14

web login username and password 19
default device settings 13
default gateway 14, 28
default IP settings 14
default login address 18
device configuration 22

device configuration parameters 54

the device configuration page 53
device configuration page 22
device configuration parameters 23
device configuration password

changing for web configuration access 22
DHCP Client 3
dial out extension (door sensor) 44
dial out extension (intrusion sensor) 45
dial out extension strings 35
dial-out extension strings 38
dimensions 4
discovery utility program 18
DNS server 28
door sensor 43, 44

activate relay 44

dial out extension 44

door open timeout 44

door sensor normally closed 44
download autoprovisioning template button 55
DTMF tones 35, 38
DTMF tones (using rfc2833) 35

Operations Guide 931212B CyberData Corporation

77

E

earth ground 70, 71
enable night ring events 49
ethernet I/F 4
event configuration

enable night ring events 49
expiration time for SIP server lease 32, 34
export settings 20

F

factory default settings 13

how to set 13
firmware

where to get the latest firmware 65

G

gang box mounting 70, 71
get autoprovisioning template 55
GMT table 26
GMT time 26

H

home page 19
http POST command 68
http web-based configuration 3

L

lease, SIP server expiration time 32, 34
LED

green link LED 12

yellow activity LED 12
lengthy pages 42
link LED 12
local SIP port 32
log in address 18

M

MGROUP

MGROUP Name 41
mounting the device 69
Multicast IP Address 41

N

navigation (web page) 15
navigation table 15
network configuration 27
Network Setup 27
nightring tones 42
Nightringer 6, 64, 65
nightringer settings 33
NTP server 23

O

on-board relay 4, 7

I

identifier names (PST, EDT, IST, MUT) 25
identifying your product 1
illustration of device mounting process 69
import settings 20
import/export settings 20
installation, typical device system 2
intrusion sensor 43, 45

activate relay 45
dial out extension 45

IP address 14, 28
IP addressing

default

IP addressing setting 14

Operations Guide 931212B CyberData Corporation

operating temperature 4

P

pages (lengthy) 42
part number 4
parts list 5
password

for SIP server login 31

login 19

restoring the default 14
point-to-point configuration 37
polycom default channel 41
polycom emergency channel 41
polycom priority channel 41
port

78

local SIP 32
remote SIP 32

posix timezone string

timezone string 23
POST command 68
power input 4

alternative 4
priority

assigning 42
product

configuring 14

mounting 69

parts list 5
product features 3
product overview

product features 3

product specifications 4

supported protocols 3

supported SIP servers 3

typical system installation 2
product specifications 4
protocol 4
protocols supported 3

R

reboot 66, 67
remote SIP port 32
Reset Test Function Management (RTFM) switch 13
resetting the IP address to the default 69, 74
restoring factory default settings 13, 76
restoring the factory default settings 13
ringtones 42

lengthy pages 42
RJ-45 10
rport discovery setting, disabling 32
RTFM switch 13
RTP/AVP 3

local SIP port 32

user ID 31
SIP (session initiation protocol) 3
SIP configuration 30

SIP Server 31
SIP configuration parameters

outbound proxy 32, 34

registration and expiration, SIP server lease 32, 34

unregister on reboot 32

user ID, SIP 31
SIP registration 31
SIP remote SIP port 32
SIP server 31

password for login 31

SIP servers supported 3

unregister from 32

user ID for login 31
SRST 31
subnet mask 14, 28
supported protocols 3

T

tech support 75
technical support, contact information 75
terminal block, 16 AWG gauge wire 6
time zone string examples 25

U

user ID

for SIP server login 31
username

changing for web configuration access 22

default for web configuration access 19

restoring the default 14

S

sales 75
sensor setup page 43
sensor setup parameters 43
sensors 44
server address, SIP 31
service 75
set time with external NTP server on boot 23
setting up the device 6
settings, default 13
SIP

enable SIP operation 31

Operations Guide 931212B CyberData Corporation

V

verifying

baud rate 12

network connectivity 12
VLAN ID 28
VLAN Priority 28
VLAN tagging support 28
VLAN tags 28

W

warranty policy at CyberData 75
web access password 14
web access username 14
web configuration log in address 18
web page

navigation 15
web page navigation 15
web-based configuration 14
weight 4
wget, free unix utility 68

79

Operations Guide 931212B CyberData Corporation
