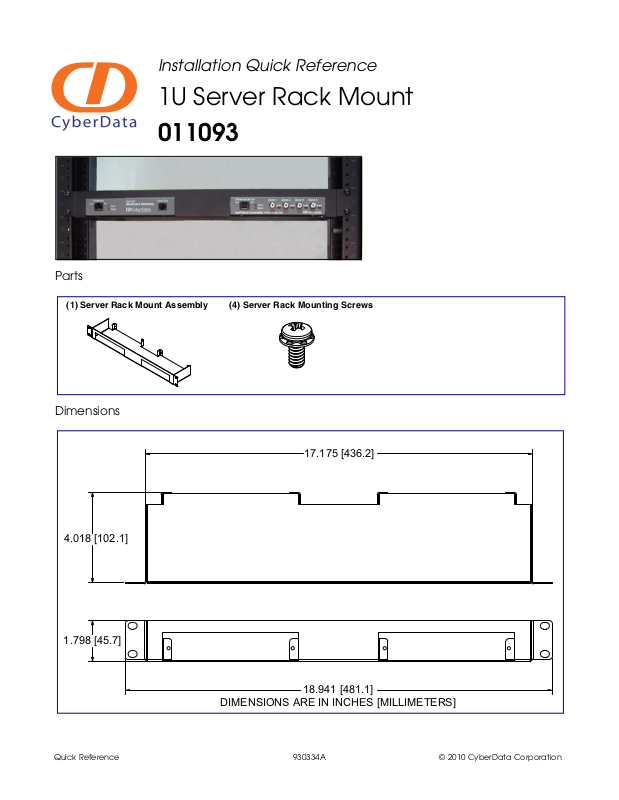

CyberData 011093 Installation Guide

Parts

(1) Server Rack Mount Assembly (4) Server Rack Mounting Screws

18.941 [481.1]

4.018 [102.1]

1.798 [45.7]

17.175 [436.2]

DIMENSIONS ARE IN INCHES [MILLIMETERS]

Installation Quick Reference

1U Server Rack Mount

011093

Dimensions

Quick Reference 930334A © 2010 CyberData Corporation

Mounting

Mounting Screw

(4 Pieces, Provided)

1U Rack Mount

Products

(Not Included)

Remove the screws from the original product before mounting.

Replace the original product screws with the four server

rack mounting screws that are provided.

Install the products into the server rack mount assembly.

Install the rack mount assembly onto the server rack.

1

2

3

4
