Page 1
Jumper-Selectable
Input Current Range
Top Terminals
Variety of Power Supply Options
Including Self-Powered
Split-Core
Models Available
August 2007
EAC Series Current Sensor
CurrentWatch Current Sensors
Contents
Overview . . . . . . . . . . . . . . . . . . . . 1
Model Selection,
Switches . . . . . . . . . . . . . . . . . . . . 2
Model Selection,
Accessories . . . . . . . . . . . . . . . . . 3
Wiring Diagram . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . 5
The CurrentWatch EAC Series from
Eaton’s electrical business combines
a current transformer and signal
conditioner into a single package.
The EAC Series has jumper-selected
current input ranges and industry
standard outputs: 4 – 20 mA, 0 – 5V
DC or 0 – 10V DC. This
sors is designed for application on
“linear” or sinuAvailable in split-core or solid-core
housings.
For typical applications of the CurrentWatch EAC Series, see listing to the
right.
Approvals
UL Listed
■
C-UL Listed
■
EACP models not listed.
Unless otherwise noted, the
products contained in this
document are not designed
or intended for use in human
safety applications.
family of sen-
soidal AC loads.
CurrentWatch™ Current Sensors
EAC Series Current Sensor
CA05311004E
AC Current Sensor with Analog Outputs and Power
Supply Options
Product Features
Highly Accurate — Factory matched and calibrated single-piece sensor is
■
more accurate than traditional two-piece, field-installed solutions
■
Average Responding — “Average Responding” algorithm gives an RMS
output on pure sine waves, perfect for constant speed (linear) loads
■
Jumper Selectable Ranges — The ability to change input ranges reduces
inventory and eliminates zero and span
■
Isolation — Output is magnetically isolated from the input for safety and
elimination of insertion loss (voltage drop)
UL, C-UL and CE Approved — Accepted worldwide
■
Typical Applications
Automation Equipment — Analog current reading for remote monitoring
■
and software alarms
Data Loggers — Self-powered sensor helps conserve data logger batteries
■
Panel Meters — Simple connection displays power consumption
■
1
CA05311004E For more information visit:
For Customer Service in the U.S. call 1-877-ETN CARE (386-2273) ,
in Canada call 1-800-268-3578 .
For Application Assistance in the U.S. and Canada
call 1-800-426-9184 .
www.eaton.com
Page 2
CurrentWatch™ Current Sensors
2
EAC Series Current Sensor
Example Application — CurrentWatch EAC Series
Preventative Maintenance of a Critical Lighting System
Signal to
Lighting
Controller
Current
Sensor
Change
in
Current
August 2007
Current is controlled
to extend lamp life
Model Selection — CurrentWatch EAC Series
Power Supply Aperture Size Output Signal Current Range Catalog Number
Top Terminal Current Sensors
Solid-Core Housings
Split-Core Housings
Split-Core Housings
Not UL listed.
Stocked product, typical order quantities guaranteed in stock.
Self-Powered (No
External Power Needed)
24V DC Loop-Powered 4 – 20 mA 2 or 5A
Self-Powered (No
External Power Needed)
24V DC Loop-Powered 4 – 20 mA 2 or 5A
120V AC 4 – 20 mA 2 or 5A
24V AC/DC 4 – 20 mA 2 or 5A
Lamp Fall
0.74 in. (19 mm) 0 – 5V DC 10, 20 or 50A
0.85 in. (21.6 mm) 0 – 5V DC 10, 20 or 50A
Tim e
100, 150 or 200A
0 – 10V DC 10, 20 or 50A
100, 150 or 200A
10, 20 or 50A
100, 150 or 200A
100, 150 or 200A
0 – 10V DC 10, 20 or 50A
100, 150 or 200A
10, 20 or 50A
100, 150 or 200A
10, 20 or 50A
100, 150 or 200A
10, 20 or 50A
100, 150 or 200A
EAC105SC
EAC205SC
EAC110SC
EAC210SC
EAC0420SC
EAC1420SC
EAC2420SC
EAC105SP
EAC205SP
EAC110SP
EAC210SP
EAC0420SP
EAC1420SP
EAC2420SP
EACP0420120SP
EACP1420120SP
EACP2420120SP
EACP042024USP
EACP142024USP
EACP242024USP
For more information visit: www.eaton.com
CA05311004E
Page 3
August 2007

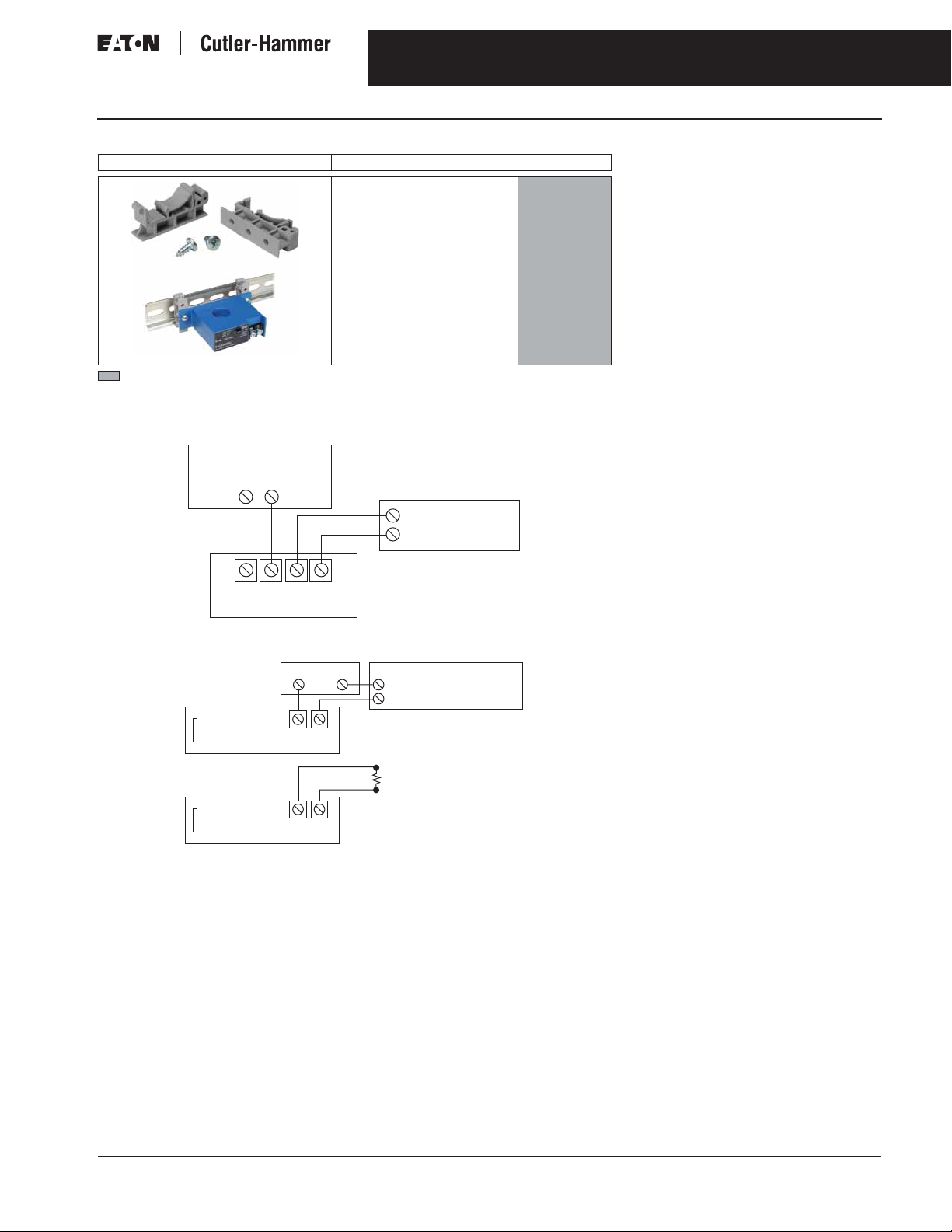

Accessories — CurrentWatch EAC Series
Description Catalog Number
DIN Rail Mounting Kit (Sensor pictured
for reference and not included in kit)
Stocked product, typical order quantities guaranteed in stock.
Wiring Diagram — CurrentWatch EAC Series
EACP Models
Power Supply
(24V AC/DC or 120V AC)
CurrentWatch™ Current Sensors
EAC Series Current Sensor
EDINKIT
3
All Other Models
4 – 20 mA Option
0 – 5/10V DC Option
Notes: Pressure plate screw terminals.
12 – 22 AWG solid or stranded.
Field adjustable setpoint.
1 2 3 (-) 4 (+)
Power
Range Jumper
Range Jumper
Output
24V DC Power
(–) (+)
2(+)1(–)
Output
2(+)1(–)
Output
(-) Load
(+) (Controller, Meter...)
Load (Controller, Meter, etc.)
(+)
(–)
1 m Recommended
Ω
Ω
100 k Acceptable
CA05311004E For more information visit: www.eaton.com
Page 4
CurrentWatch™ Current Sensors
4
EAC Series Current Sensor
Specifications — CurrentWatch EAC Series (Does Not Apply to EACP Series)
Description Models with 0 – 5V DC Output Models with 0 – 10V DC Output Models with 4 – 20 mA Output
Power Supply Self-Powered — No Power Supply Needed 12 – 40V DC Loop-Powered
Output Signal 0 – 5V DC 0 – 10V DC 4 – 20 mA
Output Limit 8.2V DC 15V DC 23 mA
Accuracy 1.0% FS
Response Time 100 mS 300 mS
Frequency Range 50 – 60 Hz 20 – 100 Hz
Loading 1 m
Isolation Voltage UL Listed to 1,270V AC (Tested to 5kV)
Input Ranges Field Selectable Ranges from 0 – 200A, Additional Custom Ranges Available from Factory
Sensing Aperture Solid-Core: 0.74 in. (19 mm) dia.
Housing UL94 V0 Flammability Rated
Environmental Operating Temperature: -4 to 122°F (-20 to 50°C)
Approvals UL 508 Industrial Control Equipment (USA and Canada), CE Certified
Ω Min. Rated Accuracy
100 k Ω Add 1.3% Error
Split-Core: 0.85 in. (21.6 mm) sq.
Humidity: 0 – 95% RH, Non-condensing
See Power Supply Above
August 2007
Specifications — CurrentWatch EACP Series
Description Specification
Power Supply Models Ending -0SP:
Output Signal 4 – 20 mA
Output Limit 22.4 mA
Accuracy 0.25% FS
Response Time 100 mS
Frequency Range 40 – 100 Hz
Loading 50
Isolation Voltage UL Listed to 1,270V AC (Tested to 5kV)
Input Range 0 – 200A Jumper Selectable
Sensing Aperture 0.85 in. (21.6 mm)
Housing UL94 V0 Flammability Rated
Environmental Operating Temperature:
Approvals UL 508 Industrial Control Equipment
120V AC
Models Ending -USP:
24V AC/DC (40V Max.)
k Ω
min.
k Ω
max.
500
-4 to 122°F (-20 to 50°C)
Humidity:
0 – 95% RH, Non-condensing
(USA and Canada), CE Certified
For more information visit: www.eaton.com
CA05311004E
Page 5
CurrentWatch™ Current Sensors
EAC Series Current Sensor
August 2007

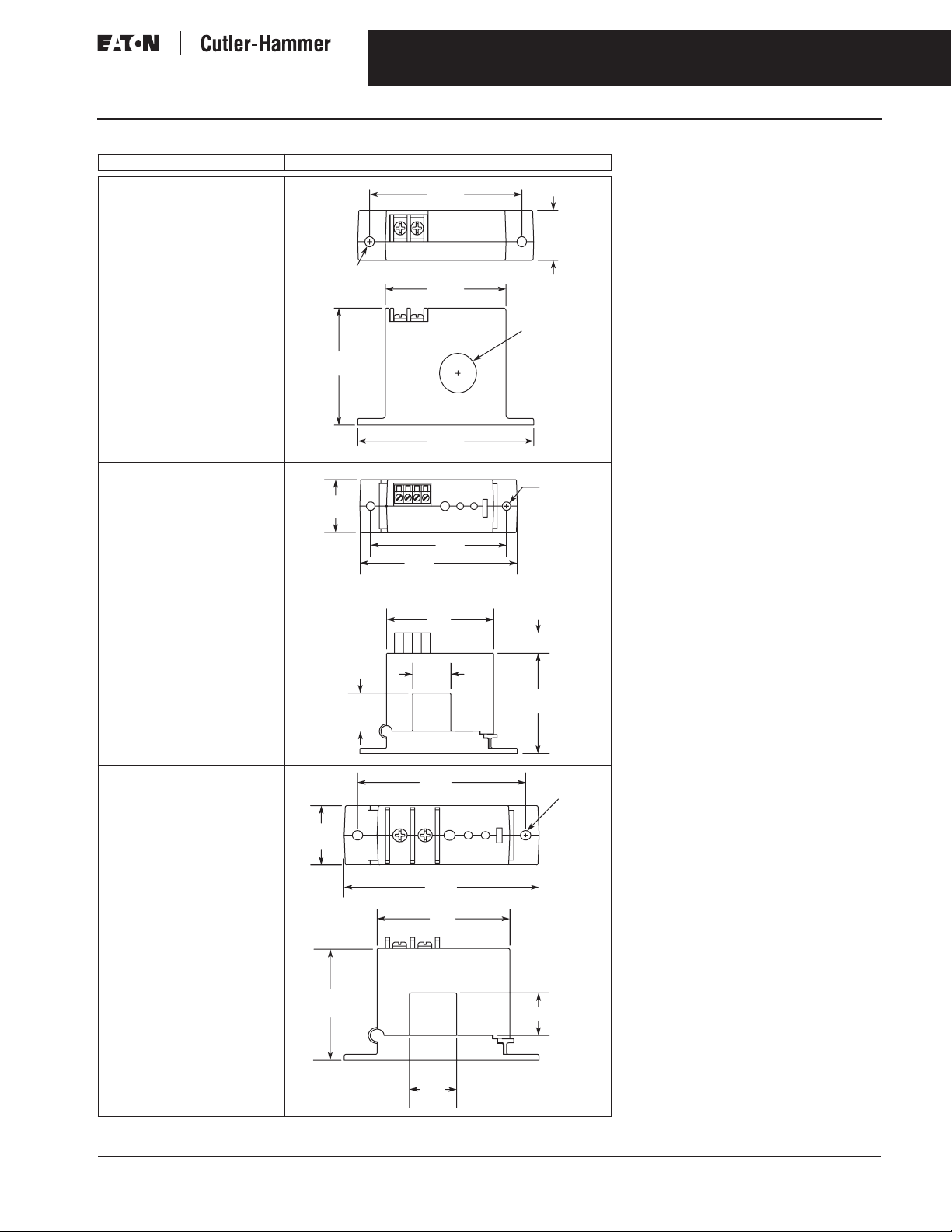

Approximate Dimensions — CurrentWatch EAC Series
Description Approximate Dimensions in Inches (mm)
Solid-Core Housing
0.19 Dia.
(4.8)
2.18
(55.4)
EACP Series
1.18
(30)
5
3.03
(77.0)
0.93
(23.6)
2.40
(61.0)
0.74 Dia.
(19)
3.50
(88.9)
0.19
(4.8)
Dia.
All Other Models
1.19
(30.2)
0.85
(21.6)
3.53
(89.7)
(77.2)
2.40
(61)
3.04
(77.2)
3.53
(89.7)
2.40
(61)
3.04
0.45
(11.4)
0.85
(21.7)
2.25
(57.2)
0.19 Dia.
(4.8)
2.25
(57.2)
0.85
(21.6)
0.85 (21.6)
CA05311004E For more information visit: www.eaton.com
