Cutler Hammer, Div of Eaton Corp E57 Premium+ Series Data Sheet

Inductive Proximity Sensors

1

E57 Premium+ Series

PG.05D.06.T.E

February 2008

E57 Premium+ Series Inductive Proximity Sensors

Contents

Overview . . . . . . . . . . . . . . . . . . . . 1

Model Selection, Sensors . . . . . . . 2

Model Selection, Compatible

Connector Cables . . . . . . . . . . . . . 5

Wiring Diagrams . . . . . . . . . . . . . . 6

Speciﬁcations. . . . . . . . . . . . . . . . . 7

Model Selection, Accessories . . . . 7

Dimensions. . . . . . . . . . . . . . . . . . . 8

The Cutler-Hammer Series Inductive Proximity Sensors by Eaton’s electrical business have improved sensing performance, product durability and selection. This improved line of sensors carries the Premium+ Series name because we have upgraded the design to a rugged stainless steel body, shockresistant front caps and impactabsorbing potting compound. Plus, the Premium+ Series line now includes a choice of AC, AC/DC and DC-only, 12, 18 and 30 mm sensors with unmatched noise immunity of greater than 20V/meter.

®

Premium+

Approvals

C-UL Listed

■

(AC/DC and DC-only models)

Unless otherwise noted, the products contained in this document are not designed or intended for use in human safety applications.

High Performance Inductive Sensors Include Stainless Steel Models, Extended Ranges and Right Angle Sensing

High Quality Stainless Steel Housing

Standard Range

Extended Range

Multiple Wiring Options

Cable

MiniConnector

Right Angle Viewing

MicroConnector

Extended Range Sensors Provide

4 Times the Range

of Standard Sensors

90º Angled

Sensing Face Solves

Tough Sensing Problems

Micro-Connector Mounted on Pigtail Cable

Product Features

New expanded offering of 2-wire, 3-wire, AC, DC, and AC/DC multiple range

■

sensor models Manufactured to take the physical and environmental abuse

■

Designed with stainless steel barrel and new potting compound for robust,

■

high temperature, high pressure washdown, as well as intense shock and vibration applications

Unmatched high noise immunity eliminates problems associated with

■

electrical noise (all models > 20V/meter) 360° output status indicator is visible from any angle and in any light

■

condition Resettable short circuit protection and reverse polarity in select models

■

Right angle sensing models offer unique problem-solving capabilities

■

Wide temperature range -13 to 158°F (-25 to 70°C) on cable, micro-style

■

connections

Recommended Mounting Clearances

For unshielded standard range sensors and extended range sensors, clearance must be provided around the sensor when mounting for reliable performance. (“Sn” is the sensing range of the sensor, “d” is the sensor diameter.)

d

a

b

Type Shielding a b

Standard Range

Extended Range

Shielded 0 0

Unshielded Cap Height 2 x 5n

Semi-shielded d Sn

Non-embeddable Cap Height 2 x Sn

Inductive Proximity Sensors E57 Premium+ Series

February 2008

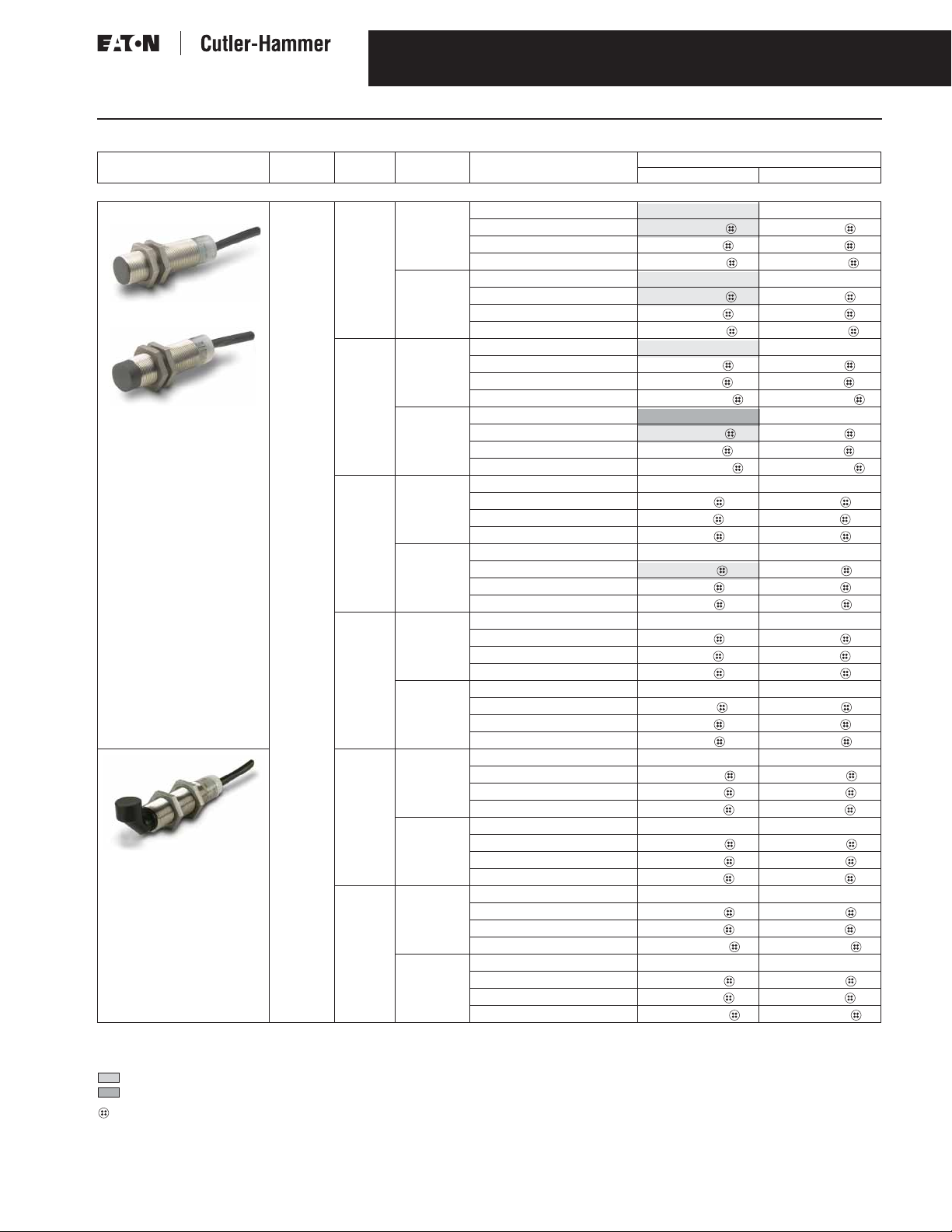

Model Selection — E57 Premium+ Sensors

Operating Voltage Sensing Range (Sn) Shielding Connection Type

2-Wire Sensors

12 mm Diameter End Sensing 20 – 250V AC 2 mm

Standard Range

Extended Range

18 mm Diameter End Sensing 20 – 250V AC 5 mm

Standard

Range

Extended Range

18 mm Diameter Right Angle Sensing



For cable lengths longer than 2 meters, add the number of the desired length in meters to the end of the listed Catalog Number (for Catalog Numbers ending with a number, add an S and then the length). Examples for a 5 meter cable: E57-18LE12-A becomes E57-18LE12-A 5 ; E57LAL12A2 becomes E57LAL12A2 S5 .



Avoid wiring these AC/DC models in series as the sensors may not perform reliably.

20 – 132V AC 6 mm

40 – 250V AC 50/60 Hz

20 – 250V DC

20 – 132V AC 12 mm

40 – 250V AC 50/60 Hz

20 – 250V DC

20 – 250V AC 5 mm Shielded 2-meter Cable

(Standard Range)

4 mm (Standard Range)

(Extended Range)

10 mm (Extended Range)

2 mm



(Standard Range)

4 mm (Standard Range)

(Standard Range)

8 mm (Standard Range)

(Extended Range)

20 mm (Extended Range)

5 mm



(Standard Range)

8 mm (Standard Range)

8 mm Unshielded 2-meter Cable

Shielded 2-meter Cable

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57LAL12A2SP E57LBL12A2SP

Unshielded 2-meter Cable

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57LAL12A2EP E57LBL12A2EP

Semishielded

Nonembeddable

Shielded 2-meter Cable

Unshielded 2-meter Cable

Shielded 2-meter Cable

Unshielded 2-meter Cable

Semishielded

Nonembeddable

Shielded 2-meter Cable

Unshielded 2-meter Cable

2-meter Cable 3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57-12LE06-AP — 2-meter Cable 3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57-12LE10-AP E57-12LE10-A1P

3-pin Micro AC Connector 3-pin Mini-Connector

3-pin Micro AC Connector

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57LAL18A2SP E57LBL18A2SP 3-pin Mini-Connector

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57LAL18A2EP E57LBL18A2EP 3-pin Mini-Connector 2-meter Cable 3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57-18LE12-AP E57-18LE12-A1P 3-pin Mini-Connector 2-meter Cable 3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57-18LE20-AP E57-18LE20-A1P 3-pin Mini-Connector

3-pin Micro AC Connector

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57RAL18A2SP E57RBL18A2SP 3-pin Mini-Connector

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57RAL18A2EP E57RBL18A2EP 3-pin Mini-Connector



Catalog Number

N.O. Output N.C. Output

E57LAL12A2 E57LBL12A2 E57LAL12A2SA E57LBL12A2SA

E57LAL12A2E E57LBL12A2E E57LAL12A2EA E57LBL12A2EA

E57-12LE06-A E57-12LE06-A1 E57-12LE06-AA E57-12LE06-A1A

E57-12LE10-A E57-12LE10-A1 E57-12LE10-AA E57-12LE10-A1A

E57SAL12A2 E57SBL12A2 E57SAL12A2SA E57SBL12A2SA E57MAL12A2B1 — E57SAL12A2E E57SBL12A2E E57SAL12A2EA E57SBL12A2EA

E57LAL18A2 E57LBL18A2 E57LAL18A2SA E57LBL18A2SA

E57MAL18A2B1 E57MBL18A2B1 E57LAL18A2E E57LBL18A2E E57LAL18A2EA E57LBL18A2EA

E57MAL18A2EB1 E57MBL18A2EB1 E57-18LE12-A E57-18LE12-A1 E57-18LE12-AA E57-18LE12-A1A

E57-18LE12-AB E57-18LE12-A1B E57-18LE20-A E57-18LE20-A1 E57-18LE20-AA E57-18LE20-A1A

E57-18LE20-AB E57-18LE20-A1B E57SAL18A2 E57SBL18A2 E57SAL18A2SA E57SBL18A2SA

E57SAL18A2E E57SBL18A2E E57SAL18A2EA E57SBL18A2EA

E57RAL18A2 E57RBL18A2 E57RAL18A2SA E57RBL18A2SA

E57RAL18A2B1 E57RBL18A2B1 E57RAL18A2E E57RBL18A2E E57RAL18A2EA E57RBL18A2EA

E57RAL18A2EB1 E57RBL18A2EB1

2

Fast turn product with typical one business day lead-time to shipment. Stocked product, typical order quantities guaranteed in stock.

See listing of compatible connector cables on

Page 5

.

Inductive Proximity Sensors

3

E57 Premium+ Series

February 2008

Model Selection — E57 Premium+ Sensors (Continued)

Operating Voltage Sensing

2-Wire Sensors (Continued)

30 mm Diameter End Sensing 20 – 250V AC 10 mm

Standard Range

20 – 132V AC 22 mm

Extended Range

3-Wire Sensors

12 mm Diameter End Sensing 6 – 48V DC 2 mm

Standard Range

Extended Range



For cable lengths longer than 2 meters, add the number of the desired length in meters to the end of the listed Catalog Number (for Catalog Numbers ending with a number, add an S and then the length). Examples for a 5 meter cable: E57-18LE12-A becomes E57-18LE12-A5; E57LAL12A2 becomes E57LAL12A2S5.



Avoid wiring these AC/DC models in series as the sensors may not perform reliably.

40 – 250V AC 50/60 Hz

20 – 250V DC

Range (Sn)

(Standard Range)

15 mm (Standard Range)

(Extended Range)

10 mm



(Standard Range)

15 mm (Standard Range)

(Standard Range)

4 mm (Standard Range)

6 mm (Extended Range)

10 mm (Extended Range)

Shielding Connection Type

Shielded 2-meter Cable

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57LAL30A2SP E57LBL30A2SP 3-pin Mini-Connector

Unshielded 2-meter Cable

3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57LAL30A2EP E57LBL30A2EP 3-pin Mini-Connector

Semishielded

Shielded 2-meter Cable

Unshielded 2-meter Cable

Shielded (NPN)

Shielded (PNP)

Unshielded (NPN)

Unshielded (PNP)

Semishielded (NPN)

Semishielded (PNP)

Nonembeddable (NPN)

Nonembeddable (PNP)

2-meter Cable 3-pin Micro AC Connector 3-pin Micro AC Pigtail Connector E57-30LE22-AP E57-30LE22-A1P 3-pin Mini-Connector

3-pin Micro AC Connector

2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL12T110SP E57LBL12T110SP 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL12T111SP E57LBL12T111SP 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL12T110EP E57LBL12T110EP 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL12T111EP E57LBL12T111EP 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57-12LE06-CP E57-12LE06-C1P 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57-12LE06-BP E57-12LE06-B1P 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57-12LE10-CP — 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57-12LE10-BP —



Catalog Number

N.O. Output N.C. Output

E57LAL30A2 E57LBL30A2 E57LAL30A2SA E57LBL30A2SA

E57MAL30A2B1 E57MBL30A2B1 E57LAL30A2E E57LBL30A2E E57LAL30A2EA E57LBL30A2EA

E57MAL30A2EB1 E57MBL30A2EB1 E57-30LE22-A E57-30LE22-A1 E57-30LE22-AA E57-30LE22-A1A

E57-30LE22-AB E57-30LE22-A1B E57SAL30A2 E57SBL30A2 E57SAL30A2SA E57SBL30A2SA

E57SAL30A2E E57SBL30A2E E57SAL30A2EA E57SBL30A2EA

E57LAL12T110 E57LBL12T110 E57LAL12T110SD E57LBL12T110SD

E57LAL12T111 E57LBL12T111 E57LAL12T111SD E57LBL12T111SD

E57LAL12T110E E57LBL12T110E E57LAL12T110ED E57LBL12T110ED

E57LAL12T111E E57LBL12T111E E57LAL12T111ED E57LBL12T111ED

E57-12LE06-C E57-12LE06-C1 E57-12LE06-CD E57-12LE06-C1D

E57-12LE06-B E57-12LE06-B1 E57-12LE06-BD E57-12LE06-B1D

E57-12LE10-C E57-12LE10-C1 E57-12LE10-CD E57-12LE10-C1D

E57-12LE10-B E57-12LE10-B1 E57-12LE10-BD E57-12LE10-B1D

Fast turn product with typical one business day lead-time to shipment.

See listing of compatible connector cables on

Page 5

.

Inductive Proximity Sensors E57 Premium+ Series

February 2008

Model Selection — E57 Premium+ Sensors (Continued)

Operating Voltage

3-Wire Sensors (Continued)

18 mm Diameter End Sensing 6 – 48V DC 5 mm

Standard Range

Extended Range

18 mm Diameter Right Angle Sensing



For cable lengths longer than 2 meters, add the number of the desired length in meters to the end of the listed Catalog Number (for Catalog Numbers ending with a number, add an S and then the length). Examples for a 5 meter cable: E57-18LE12-A becomes E57-18LE12-A5; E57LAL12A2 becomes E57LAL12A2

Fast turn product with typical one business day lead-time to shipment. Stocked product, typical order quantities guaranteed in stock.

See listing of compatible connector cables on

S5.

Sensing Range (Sn)

(Standard Range)

8 mm (Standard Range)

12 mm (Extended Range)

20 mm (Extended Range)

5 mm Shielded

8 mm Unshielded

Page 5

Shielding Connection Type

Shielded (NPN)

Shielded (PNP)

Unshielded (NPN)

Unshielded (PNP)

Semishielded (NPN)

Semishielded (PNP)

Nonembeddable (NPN)

Nonembeddable (PNP)

(NPN)

Shielded (PNP)

(NPN)

Unshielded (PNP)

.

2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL18T110SP E57LBL18T110SP 4-pin Mini-Connector 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL18T111SP E57LBL18T111SP 4-pin Mini-Connector 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL18T110EP E57LBL18T110EP 4-pin Mini-Connector 2-meter Cable 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57LAL18T111EP E57LBL18T111EP 4-pin Mini-Connector 2-meter Cable 4-pin Micro DC Connector E57-18LE12-CD E57-18LE12-C1D 4-pin Micro DC Pigtail Connector E57-18LE12-CP E57-18LE12-C1P 4-pin Mini-Connector E57-18LE12-CB E57-18LE12-C1B 2-meter Cable E57-18LE12-B E57-18LE12-B1 4-pin Micro DC Connector 4-pin Micro DC Pigtail Connector E57-18LE12-BP E57-18LE12-B1P 4-pin Mini-Connector E57-18LE12-BB E57-18LE12-B1B 2-meter Cable E57-18LE20-C E57-18LE20-C1 4-pin Micro DC Connector E57-18LE20-CD E57-18LE20-C1D 4-pin Micro DC Pigtail Connector E57-18LE20-CP E57-18LE20-C1P 4-pin Mini-Connector E57-18LE20-CB E57-18LE20-C1B 2-meter Cable E57-18LE20-B E57-18LE20-B1 4-pin Micro DC Connector E57-18LE20-BD E57-18LE20-B1D 4-pin Micro DC Pigtail Connector E57-18LE20-BP E57-18LE20-B1P 4-pin Mini-Connector E57-18LE20-BB E57-18LE20-B1B 2-meter Cable E57RAL18T110 E57RBL18T110 4-pin Micro DC Connector E57RAL18T110SD E57RBL18T110SD 4-pin Micro DC Pigtail Connector E57RAL18T110SP E57RBL18T110SP 4-pin Mini-Connector E57RAL18T110B1 E57RBL18T110B1 2-meter Cable E57RAL18T111 E57RBL18T111 4-pin Micro DC Connector E57RAL18T111SD E57RBL18T111SD 4-pin Micro DC Pigtail Connector E57RAL18T111SP E57RBL18T111SP 4-pin Mini-Connector E57RAL18T111B1 E57RBL18T111B1 2-meter Cable E57RAL18T110E E57RBL18T110E 4-pin Micro DC Connector E57RAL18T110ED E57RBL18T110ED 4-pin Micro DC Pigtail Connector E57RAL18T110EP E57RBL18T110EP 4-pin Mini-Connector E57RAL18T110EB1 E57RBL18T110EB1 2-meter Cable E57RAL18T111E E57RBL18T111E 4-pin Micro DC Connector E57RAL18T111ED E57RBL18T111ED 4-pin Micro DC Pigtail Connector E57RAL18T111EP E57RBL18T111EP 4-pin Mini-Connector E57RAL18T111EB1 E57RBL18T111EB1



Catalog Number

N.O. Output N.C. Output

E57LAL18T110 E57LBL18T110 E57LAL18T110SD E57LBL18T110SD

E57MAL18T110B1 E57MBL18T110B1 E57LAL18T111 E57LBL18T111 E57LAL18T111SD E57LBL18T111SD

E57MAL18T111B1 E57MBL18T111B1 E57LAL18T110E E57LBL18T110E E57LAL18T110ED E57LBL18T110ED

E57MAL18T110EB1 E57MBL18T110EB1 E57LAL18T111E E57LBL18T111E E57LAL18T111ED E57LBL18T111ED

E57MAL18T111EB1 E57MBL18T111EB1 E57-18LE12-C E57-18LE12-C1

E57-18LE12-BD E57-18LE12-B1D

4

Inductive Proximity Sensors

o

e

ac

n

ack

e

ack

ue

n

e

5

E57 Premium+ Series

Model Selection — E57 Premium+ Sensors (Continued)

Operating Voltage

Sensing Range (Sn) Shielding Connection Type

3-WireSensors (Continued)

30 mm Diameter End Sensing 6 – 48V DC 10 mm

(Standard Range)

Shielded (NPN)

2-meter Cable

4-pin Micro DC Connector E57LAL30T110SD E57LBL30T110SD

4-pin Micro DC Pigtail Connector E57LAL30T110SP E57LBL30T110SP

4-pin Mini-Connector E57MAL30T110B1 E57MBL30T110B1

Standard Range

Shielded (PNP)

2-meter Cable

4-pin Micro DC Connector

4-pin Micro DC Pigtail Connector E57LAL30T111SP E57LBL30T111SP

4-pin Mini-Connector E57MAL30T111B1 E57MBL30T111B1

Extended Range

15 mm (Standard Range)

Unshielded (NPN)

Unshielded (PNP)

2-meter Cable E57LAL30T110E E57LBL30T110E

4-pin Micro DC Connector E57LAL30T110ED E57LBL30T110ED

4-pin Micro DC Pigtail Connector E57LAL30T110EP E57LBL30T110EP

4-pin Mini-Connector E57MAL30T110EB1 E57MBL30T110EB1

2-meter Cable

4-pin Micro DC Connector E57LAL30T111ED E57LBL30T111ED

4-pin Micro DC Pigtail Connector E57LAL30T111EP E57LBL30T111EP

4-pin Mini-Connector E57MAL30T111EB1 E57MBL30T111EB1

22 mm (Extended Range)

Semishielded (NPN)

2-meter Cable E57-30LE22-C E57-30LE22-C1

4-pin Micro DC Connector E57-30LE22-CD E57-30LE22-C1D

4-pin Micro DC Pigtail Connector E57-30LE22-CP E57-30LE22-C1P

4-pin Mini-Connector E57-30LE22-CB E57-30LE22-C1B

Semishielded (PNP)

2-meter Cable E57-30LE22-B E57-30LE22-B1

4-pin Micro DC Connector

4-pin Micro DC Pigtail Connector — E57-30LE22-B1P

4-pin Mini-Connector E57-30LE22-BB E57-30LE22-B1B



For cable lengths longer than 2 meters, add the number of the desired length in meters to the end of the listed Catalog Number (for Catalog Numbers ending with a number, add an S and then the length). Examples for a 5 meter cable: E57-18LE12-A becomes E57-18LE12-A5; E57LAL12A2 becomes E57LAL12A2S5.

Fast turn product with typical one business day lead-time to shipment.

See listing of compatible connector cables below.

Model Selection — Compatible Connector Cables 

Voltage

Number

Style

Standard Cables — Micro Style

Micro Style Straight Female

AC 3-pin

DC 4-pin

Standard Cables — Mini Style

Mini Style Straight Female

Current Rating @ 600V 3-pin: 13A 4-pin: 10A



For a full selection of connector cables, see PG.05.05.T.E.

Stocked product, typical order quantities guaranteed in stock.

Gauge Length Catalog Number Pin Conﬁguration/Wire Colors

of Pins

22 AWG 6.0 feet (2m)

3-wire

22 AWG 6.0 feet (2m)

4-wire

Voltage Style

Number of Pins

PVC Jacket PUR Jacket IRR PUR Jacket

CSAS3F3CY2202 CSAS3F3RY2202 —

CSDS4A4CY2202 CSDS4A4RY2202 CSDS4A4IO2202

Gauge Length Catalog Number Pin Conﬁguration/Wire Colors

— 3-pin 16 AWG 6 feet (2m)

AC/DC 4-pin,

4-wire

16 AWG 6 feet (2m)



CSMS3F3CY1602

CSMS4A4CY1602

Catalog Number

N.O. Output N.C. Output

E57LAL30T110 E57LBL30T110

E57LAL30T111 E57LBL30T111

E57LAL30T111SD E57LBL30T111SD

E57LAL30T111E E57LBL30T111E

E57-30LE22-BD E57-30LE22-B1D

(Face View Female Shown)

1-Gree 2-Bl 3-Whit

1-Bl 2-Bl 3-Brow 4-Whit

February 2008

1-Green 2-Red/Black 3-Red/White

1-Br 2-White 3-Blu 4-Bl

Inductive Proximity Sensors E57 Premium+ Series

February 2008

Wiring Diagrams (Pin numbers are for reference, rely on pin location when wiring)

Operating Voltage

2-Wire Sensors

20 – 250V AC/DC and AC-only

AC Wiring Example

Output Cable Models Connector Models (Face View Male Shown)

Micro Mini

N.O. and N.C.

BN

BU

Load

L1

L2

Load

L1

Load

6

L2

20 – 250V AC/DC

DC Wiring Example

3-Wire Sensors

6 – 48V DC N.O.

N.O. and N.C. (NPN)

N.O. and N.C. (PNP)

(NPN)

N.O. (PNP)

N.C. (NPN)

N.C. (PNP)

BN

BU

BN

BU

BN

BK

BU

BN

BK

BU

BN

BK

BU

BN

BK

BU

Load

L1 or +V

L2 or (-)

L1 or +V

L2 or (-)

+V

(-)

+V

(-)

+V

(-)

+V

(-)

L2 L1

Load

L2 L1

(-)

Load

(-)

Load

(-)

Load

+V

Load

+V

Load

+V

—

+V

Load

(-)

Load

(-)

+V

(-)

+V

Inductive Proximity Sensors

7

E57 Premium+ Series

Speciﬁcations — E57 Premium+ Series

2-Wire AC Sensors 2-Wire Sensors 3-Wire Sensors

AC/DC DC Only Models

Operating Voltage 20 – 250V AC 40 – 240V AC

Maximum Load Current

Switching Frequency 20 Hz 60 Hz 12 mm: 800 Hz

Leakage Current 1.7 mA maximum

Voltage Drop 7V maximum 12V @ <10 mA

Holding Current 5 mA minimum 5 mA minimum —

Burden Current — — ≤10 mA

Protection — Resettable short circuit;

Switching Hysteresis 2 to 20% of rated

Repeat Accuracy <3% sensing

Time Delay Before Availability

Output Indicator LED 360° viewable LED

Operating Temperature

Enclosure Ratings NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)

Shock 30g, 11 mS per IEC 68-2-76

Vibration 10 to 55 Hz, 1 mm amplitude

Housing Material 303 stainless steel

Cable AWM Style 20387 (PVC)

Ryton® is a registered trademark of Phillips Chemical (division of Phillips Petroleum).



Note: 40 – 240V AC @ <-20°C.



Semi-shielded models are nickel-plated brass.

500 mA @ 25°C 250 mA @ 70°C

@ 70°C

sensing range

distance

— <200 mS

20 – 250V DC

250 mA @ 25°C 200 mA @ 70°C

≤2.0 mA ≤100 µA

≤4V @ >25 mA

overload protection

-13° to 158°F (-25° to 70°C)

Mini: -13° to 122°F (-25° to 50°C)



; Polycarbonate end bells; Ryton® front ends



<15% rated sensing distance

Shielded models: <1% sensing distance;

unshielded and extended range: <3%

6 – 48V DC

500 mA @ 6 – 30V DC

18 mm: 500 Hz 30 mm: 300 Hz

≤2.5V

Auto reset

February 2008

Model Selection — Accessories

Description Reference

Mounting Brackets See PG.05.03.T.E

Replacement Mounting Nuts and Other Accessories

Connector Cables See PG.05.05.T.E

See PG.05.04.T.E

Inductive Proximity Sensors E57 Premium+ Series

February 2008

Approximate Dimensions — E57 Premium+ Series, End Sensing Models in Inches (mm)

8

Cable Models Connector Models

Size Shielding Dimensions in Inches (mm)

SENSING

FACE

A

BD

C

STANDARD RANGE

Overall Length A

THREAD

TYPE E

Threaded Length B

SENSING

FACE

C

STANDARD RANGE

C Nut Width

D

A

BD

THREAD

TYPE E

Thread Size E

2-Wire AC Sensors — Cable Models

12 mm Shielded

18 mm Shielded

30 mm Shielded

Semi-shielded Unshielded

2.46 (62.4)

2.87 (72.8)

2.87 (72.7)

2.54 (64.5)

2.60 (66.1)

2.60 (66.0)

2.73 (69.3)

2.67 (67.8)

2.73 (69.3)

1.98 (50.3)

2.28 (57.9)

1.98 (50.3)

2.00 (50.9)

1.90 (48.2)

1.47 (37.2)

1.98 (50.3)

1.90 (48.2)

1.49 (37.8)

—

0.06 (1.62)

0.36 (9.14)

—

0.10 (2.54)

0.56 (14.1)

—

0.13 (3.30)

0.52 (13.26)

0.67 (16.8)

0.94 (23.8)

1.41 (35.9)

M12 x 1 M12 x 1 M12 x 1

M18 x 1 M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5 M30 x 1.5

2-Wire AC Sensors — Micro-Connector Models

12 mm Shielded

18 mm Shielded

30 mm Shielded

Semi-shielded Unshielded

2.69 (68.4)

3.04 (77.2)

3.06 (77.7)

2.72 (69.06)

2.72 (69.1)

2.74 (69.4)

2.91 (73.8)

2.78 (70.6)

2.91 (73.8)

1.98 (50.3)

2.28 (57.9)

1.98 (50.3)

2.00 (50.9)

1.90 (48.2)

1.47 (37.2)

1.98 (50.3)

1.90 (48.2)

1.49 (37.8)

—

0.06 (1.62)

0.36 (9.14)

—

0.10 (2.54)

0.56 (14.1)

—

0.13 (3.30)

0.52 (13.26)

0.67 (16.8)

0.36 (9.14)

0.94 (23.8)

1.41 (35.9)

M12 x 1 M12 x 1 M12 x 1

M18 x 1 M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5 M30 x 1.5

2-Wire AC/DC Sensors — Cable Models

12 mm Shielded

18 mm Shielded

30 mm Shielded

Unshielded

2.45 (62.4)

2.54 (64.5)

2.72 (69.3)

1.98 (50.3)

1.80 (45.8)

2.00 (50.9)

1.75 (44.4)

1.98 (50.3)

1.49 (37.8)

—

0.20 (5)

—

0.28 (7)

—

0.52 (13.26)

0.67 (16.8)

0.94 (23.8)

1.41 (35.9)

M12 x 1 M12 x 1

M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5

2-Wire AC/DC Sensors — Micro-Connector Models

12 mm Shielded

18 mm Shielded

30 mm Shielded

Unshielded

2.69 (68.4)

2.72 (69.06)

2.91 (73.8)

1.98 (50.3)

1.80 (45.8)

2.00 (50.9)

1.75 (44.4)

1.98 (50.3)

1.49 (37.8)

—

0.20 (5)

—

0.28 (7)

—

0.52 (13.26)

0.67 (16.8)

0.94 (23.8)

1.41 (35.9)

M12 x 1 M12 x 1

M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5

2-Wire AC/DC Sensors — Mini-Connector Models

12 mm Shielded 3.36 (85.3) 1.98 (50.3) 0.02 (0.5) 0.67 (16.8) M12 x 1

18 mm Shielded

30 mm Shielded



These dimensions apply to the Premium+ Series models in this section. Not indicated Premium Series models.



For short barrel model dimensions (E57SAL …) refer to PG.05D.12.T.E.

Semi-shielded Unshielded

3.39 (86.1)

3.39 (86.0)

3.39 (86.1)

3.44 (87.4)

3.39 (86.1)

2.00 (50.8)

1.90 (48.2)

1.46 (37.0)

2.1 (53.3)

1.90 (48.2)

1.55 (39.4)

0.02 (0.5)

0.10 (2.54)

0.57 (14.5)

0.03 (0.8)

0.13 (3.30)

0.55 (14.0)

0.94 (23.8)

1.41 (35.9)

M18 x 1 M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5 M30 x 1.5

Inductive Proximity Sensors

9

E57 Premium+ Series

Approximate Dimensions — E57 Premium+ Series, End Sensing Models in Inches (mm) (Continued) 

February 2008

Cable Models Connector Models

Size Shielding Dimensions in Inches (mm)

SENSING

FACE

A

BD

C

STANDARD RANGE

Overall Length A

THREAD

TYPE E

Threaded Length B

SENSING

FACE

STANDARD RANGE

C Nut Width

3-Wire DC Sensors — Mini-Connector Models

18 mm Shielded

30 mm Shielded

Semi-shielded Unshielded

3.39 (86.1)

3.39 (86.0)

3.39 (86.1)

3.44 (87.4)

3.39 (86.1)

2.00 (50.8)

1.90 (48.2)

1.46 (37.0)

2.1 (53.3)

1.90 (48.2)

1.55 (39.4)

0.02 (0.5)

0.10 (2.54)

0.57 (14.5)

0.03 (0.8)

0.13 (3.30)

0.55 (14.0)

3-Wire DC Sensors — Cable Models

12 mm Shielded

18 mm Shielded

30 mm Shielded

Semi-shielded Unshielded

2.46 (62.4)

2.87 (72.8)

2.87 (72.7)

2.54 (64.5)

2.60 (66.1)

2.60 (66.0)

2.73 (69.3)

2.67 (67.8)

2.73 (69.3)

1.98 (50.3)

2.28 (57.9)

1.98 (50.3)

2.00 (50.9)

1.90 (48.2)

1.47 (37.2)

1.98 (50.3)

1.90 (48.2)

1.49 (37.8)

—

0.06 (1.62)

0.36 (9.14)

—

0.10 (2.54)

0.56 (14.1)

—

0.13 (3.30)

0.52 (13.26)

3-Wire DC Sensors — Micro-Connector Models

12 mm Shielded

18 mm Shielded

30 mm Shielded



These dimensions apply to the Premium+ Series models in this section. Not indicated Premium Series models.



For short barrel model dimensions (E57SAL …) refer to PG.05D.12.T.E.

Semi-shielded Unshielded

2.71 (68.7)

3.04 (77.2)

3.06 (77.7)

2.73 (69.3)

2.72 (69.1)

2.74 (69.4)

2.92 (74.1)

2.78 (70.6)

2.92 (74.1)

1.98 (50.3)

2.28 (57.9)

1.98 (50.3)

2.00 (50.9)

1.90 (48.2)

1.47 (37.2)

1.98 (50.3)

1.90 (48.2)

1.49 (37.8)

—

0.06 (1.62)

0.36 (9.14)

—

0.10 (2.54)

0.56 (14.1)

—

0.13 (3.30)

0.52 (13.26)

Approximate Dimensions — E57 Premium+ Series, Right Angle Sensing Models in Inches (mm)

C

D

0.94 (23.8)

1.41 (35.9)

0.67 (16.8)

0.94 (23.8)

1.41 (35.9)

0.67 (16.8)

0.94 (23.8)

1.41 (35.9)

A

BD

THREAD

TYPE E

Thread Size E

M18 x 1 M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5 M30 x 1.5

M12 x 1 M12 x 1 M12 x 1

M18 x 1 M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5 M30 x 1.5

M12 x 1 M12 x 1 M12 x 1

M18 x 1 M18 x 1 M18 x 1

M30 x 1.5 M30 x 1.5 M30 x 1.5

Cable Models

Size Dimensions in Inches (mm)

Overall Length A

Thread B

Connector Models

Cap C

Nut Width D

Thread Size E

Cable Models

18 mm 3.465 (88) 1.97 (50) 0.98 (25) 0.94 (24) M18 x 1

Micro-Connector Models

18 mm 3.65 (93) 1.97 (50) 0.98 (25) 0.94 (24) M18 x 1

Mini-Connector Models

18 mm 4.303 (109) 1.97 (50) 0.98 (25) 0.94 (24) M18 x 1

Cutler Hammer, Div of Eaton Corp E57 Premium+ Series Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
