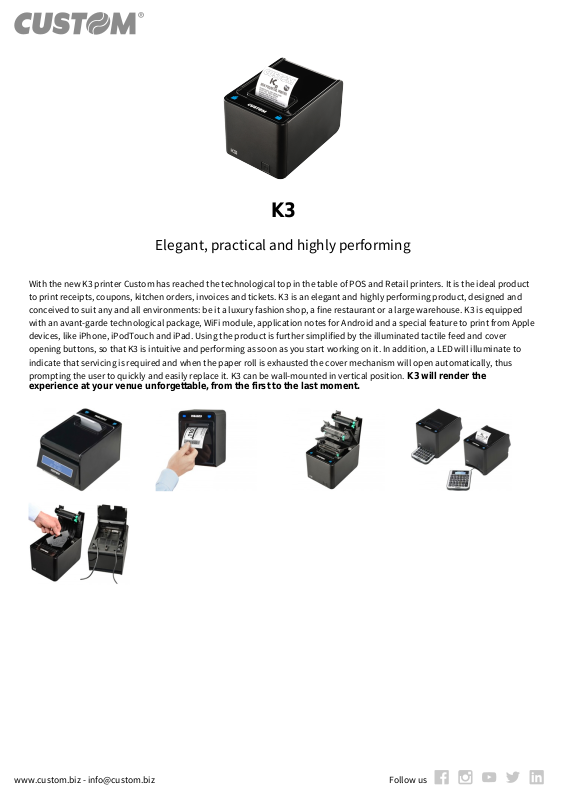

CUSTOM 911HM010300733 Product Data Sheet

K3
Elegant, practical and highly performing
With the new K3 printer Custom has reached the technological top in the table of POS and Retail printers. It is the ideal product to print receipts, coupons, kitchen orders, invoices and tickets. K3 is an elegant and highly performing product, designed and conceived to suit any and all environments: be it a luxury fashion shop, a fine restaurant or a large warehouse. K3 is equipped with an avant-garde technological package, WiFi module, application notes for Android and a special feature to print from Apple devices, like iPhone, iPodTouch and iPad. Using the product is further simplified by the illuminated tactile feed and cover opening buttons, so that K3 is intuitive and performing as soon as you start working on it. In addition, a LED will illuminate to indicate that servicing is required and when the paper roll is exhausted the cover mechanism will open automatically, thus prompting the user to quickly and easily replace it. K3 can be wall-mounted in vertical position.K3 will render the
experience at your venue unforgettable, from the first to the last moment.
www.custom.biz - info@custom.biz
Follow us
TECHNICAL SHEET
Printing Method Number of dots Resolution Printing (mm/sec) Character set Supported Barcode Paper width Paper weight Roll Dimension
Sensors
Emulation Interfaces Flash Memory RAM Memory
Thermal printing
8 dots / mm
203 DPI
280mm/s
Standard font, Chinese 18030, Russian font
1D/2D (QRCODE, DATAMATRIX, PDF417, AZTEC)
58mm / 60mm / 80mm
from 55 to 90 g/m²
max Ø 100 mm
Paper present (on board of the head) Adjustable sensor VeryNotch NOTCH / TOP-NOTCH QFC Cover open
CUSTOM True Font
RS232 / USB / ETHERNET
4MB Flash SPI + 1MB internal to the micro
64 MB
Drivers
Software Tools Power supply Head Life MCBF Operating temperature Dimensions Weight
(Windows WHQL certified): WindowsTM XP, 2K3, Vista, W7, W8 (+64bit support), W10, Linux (32/64 bit), OPOS, JavaPOS, MAC OSX.
CePrinterSet; Virtual COM; Full Status Monitor
24 Vdc ± 10%
200 Km
2 million cuts
0°C + 50°C
206 mm (L) × 148 mm (W) × 140mm (H)
1.98 Kg
MODELS
