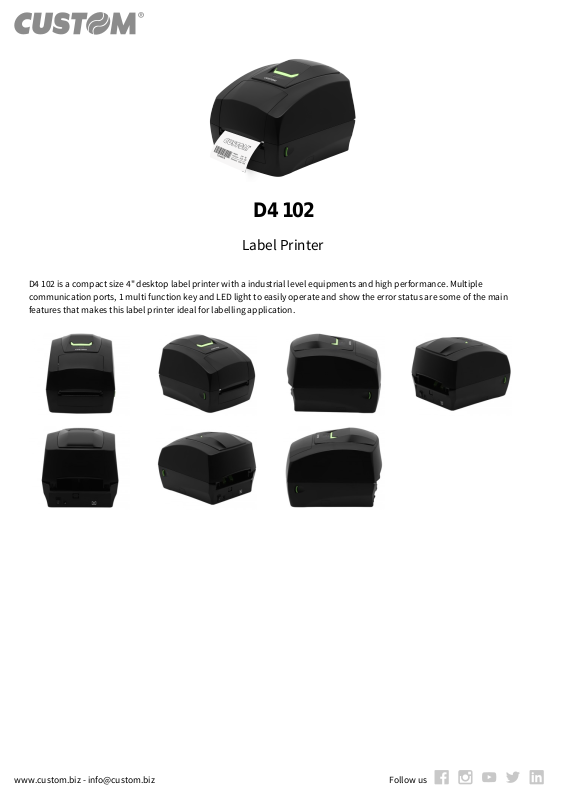

D4 102
Label Printer
D4 102 is a compact size 4" desktop label printer with a industrial level equipments and high performance. Multiple
communication ports, 1 multi function key and LED light to easily operate and show the error status are some of the main
features that makes this label printer ideal for labelling application.
www.custom.biz - [email protected]
Follow us
Page 2
ACCESSORIES
Service programs for you
Discover Custom4Care
www.custom.biz - [email protected]
Follow us
Page 3
Custom Designer Tool, the professional label editor, easy to use and equipped with all the features required by the market.
The software, completely free, is complete with printers configuration tool and printing driver.
Discover Custom Designer Tool
www.custom.biz - [email protected]
Follow us
Page 4
TECHNICAL SHEET
Printing Method
Resolution
Max. Print Lenght
Print Width
Sensors
RAM Memory
Control Panel
Media
Ribbon
Emulation Language
Direct thermal / Thermal transfer
203 dpi
3810 mm
104 mm
Moveable reflective sensor
Cover open sensor
Ribbon sensor
64 MB
1 multi-functional keys
6 status LED lights
Maximum label width: 110 mm
Minimum label width: 15 mm
Maximum roll diameter: 127 mm
Core diameter: 25.4 mm
Media thickness: 0.06mm to 0.2mm
Media type: Continuous, die-cut, tag, fan-f black mark
OD: 39 mm
Max length: 100 m
Width: 25.4 mm to 110 mm
ID:12.7mm
Ribbon type: Wax, wax/resin, resin
PEPL, PDPL, PZPL
Interfaces
Supported 1D/2D Barcodes
Fonts
Options
Power
Environment
USB port
Option: Ethernet port 10/100 Mbps
Code39 standard or extended, Code39 with check digit, Code93, Code128 UCC, Code128 a modes,
Codabar,
EAN8, EAN8/13 2&5 digit add-on, EAN13, lnterleaved 2 of 5, lnterleaved 2 check digit,
lnterleaved 2 of 5 with human readable check digit, UCC/EAN 128, UPC A, UPC add-on, UPC E, UPC E 2&5
digit add-on,
UPC lnterleaved 2 of 5, Code11 Data Matrix, MaxiCode, PDF417, QR code
5 internal expandable bitmap fonts (alpha-numeric)
Downloadable soft font
4 directions: O, 90, 180, 270 degrees
2 internal expandable bitmap fonts (numeric only)
PEPL: PCX, Direct binary graphic
PDPL : PCX, BMP, HEX
Peeler kit
Cutter
Ethernet module
Switching power adapter
Input: 100 to 240 V, 1 .8 A, 50~60 Hz
Output: 24 V, 2.5 A
Operation: 5 ºC to 45ºC
Storage: -20 ºC to 50 ºC
Humidity
Dimensions
Weight
www.custom.biz - [email protected]
Operation: 10% to 90% non condensing
Storage: 5% to 95% non condensing
263 mm (L) × 200 mm (W) × 188 mm (H)
2 kg
Follow us
Page 5
MODELS
911MK010100233
LABEL PRINTER D4 102 USB BLACK
CUSTOM SPA - Via Berettine, 2 - 43010 Fontevivo PR - VAT: IT02498250345 - TEL: +39 0521 680111 - FAX: +39 0521 610701 - UNIQUE CODE:
TI80WI0
The technical data on this website are not binding and may be changed without advanced notice.
Last update: 08 September 2020
