Curtis WB2A10 Dimensions

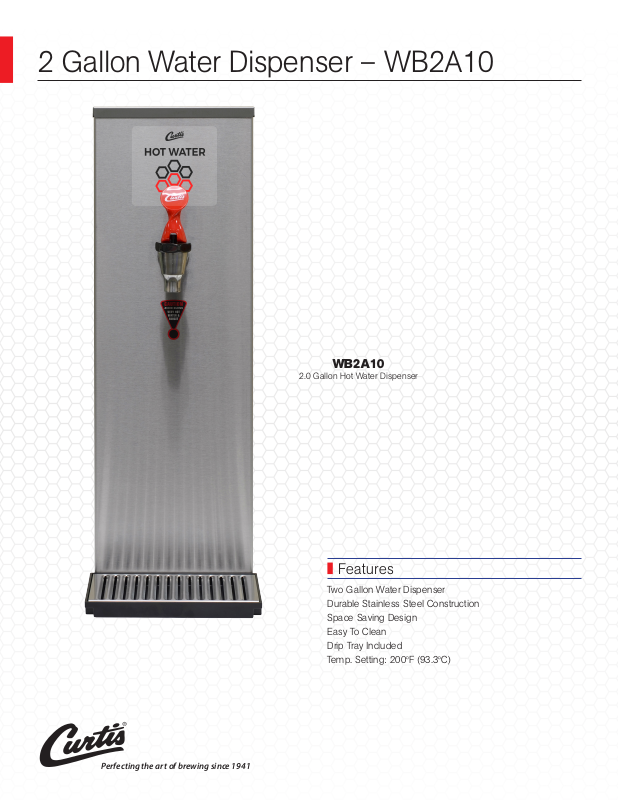

2 Gallon Water Dispenser – WB2A10
WB2A10
2.0 Gallon Hot Water Dispenser
Features
Two Gallon Water Dispenser
Durable Stainless Steel Construction
Space Saving Design
Easy To Clean
Drip Tray Included
Temp. Setting: 200°F (93.3°C)
Perfecting the art of brewing since 1941
14.86"
2.0 Gallon Hot Water Dispenser – WB2A10
7.69in
[19.5 cm]
[37.7 cm]
13.54in
[34.4 cm]
9.27"
[23.6 cm]
WB2A10
2.0 Gallon
Hot Water Dispenser
8.00"
[20.3 cm]
23.85"
[60.6 cm]
20.18"
[51.2 cm]
15.22"
[38.7 cm]
CUP CLEARANCE
14.45"
[36.7 cm]
3.47"
[8.8 cm]
13.35"
[33.9 CM]
14.70"
[37.3 CM]
20.13"
[51.1 cm]
WATER SUPPLY
CONNECTION
Specications
MODEL # DESCRIPTION HEIGHT x WIDTH x DEPTH GAL/HR
WB2A10 2.0 Gallon Hot Water Dispenser 23.85” x 8.00” x 14.86” 5.0 gal.
Utility Requirements
MODEL # PHASE VO LTS AMPS
WB2A10 1 PH 120V 13.3A 15A 1 x 1600W 2W+G 1600W 50/60 Hz 1/4” Flare 20 - 90 psi 1.0 GPM 2.0 gal.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Wilbur Curtis Co., Inc. / 6913 Acco Street / Montebello CA 90640
800.421.6150 / 323.837.2300 / www.wilburcurtis.com
MAY/2017 – F-5006 revNC
Perfecting the art of brewing since 1941
ELECTRICAL WATER
MIN.
CIRCUIT HEAT CONFIG WIRE WAT TS HERTZ
CONNECTOR PRESSURE
MIN.
FLOW RATE TANK VOL.
