Curtis LCD2622A User Manual
,
Model: LCD2622A
USER S MANUAL
Please read this User Manual carefully to ensure the proper use of this product and
keep this manual for future reference
Contents
Safety and warnings...................................................................................... 2-4
Introduction................................................................................... ..............5
Installation.................................................................................................. 6-9

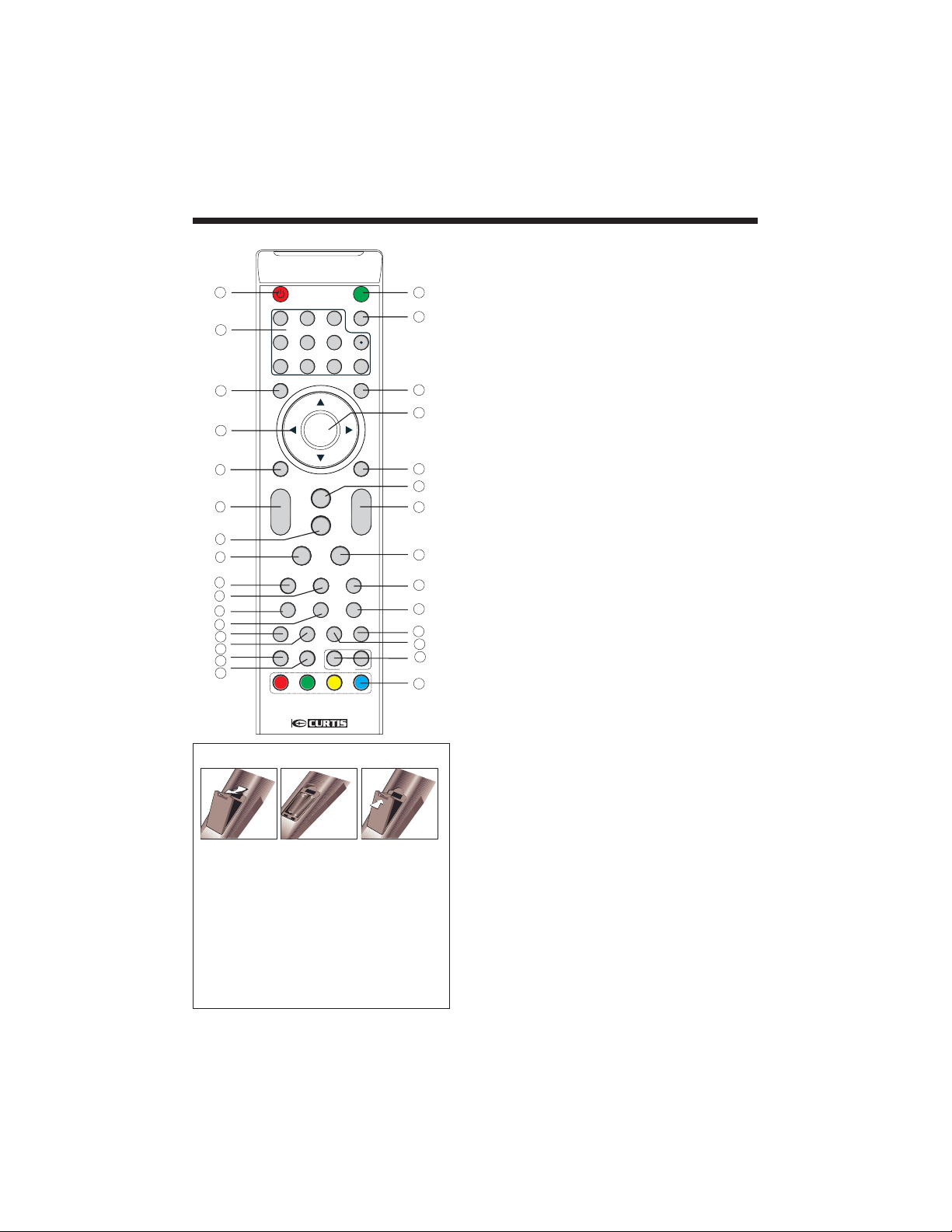

R
emote Control............................................................................ ..............10
Operation.....................................................................................................11-14

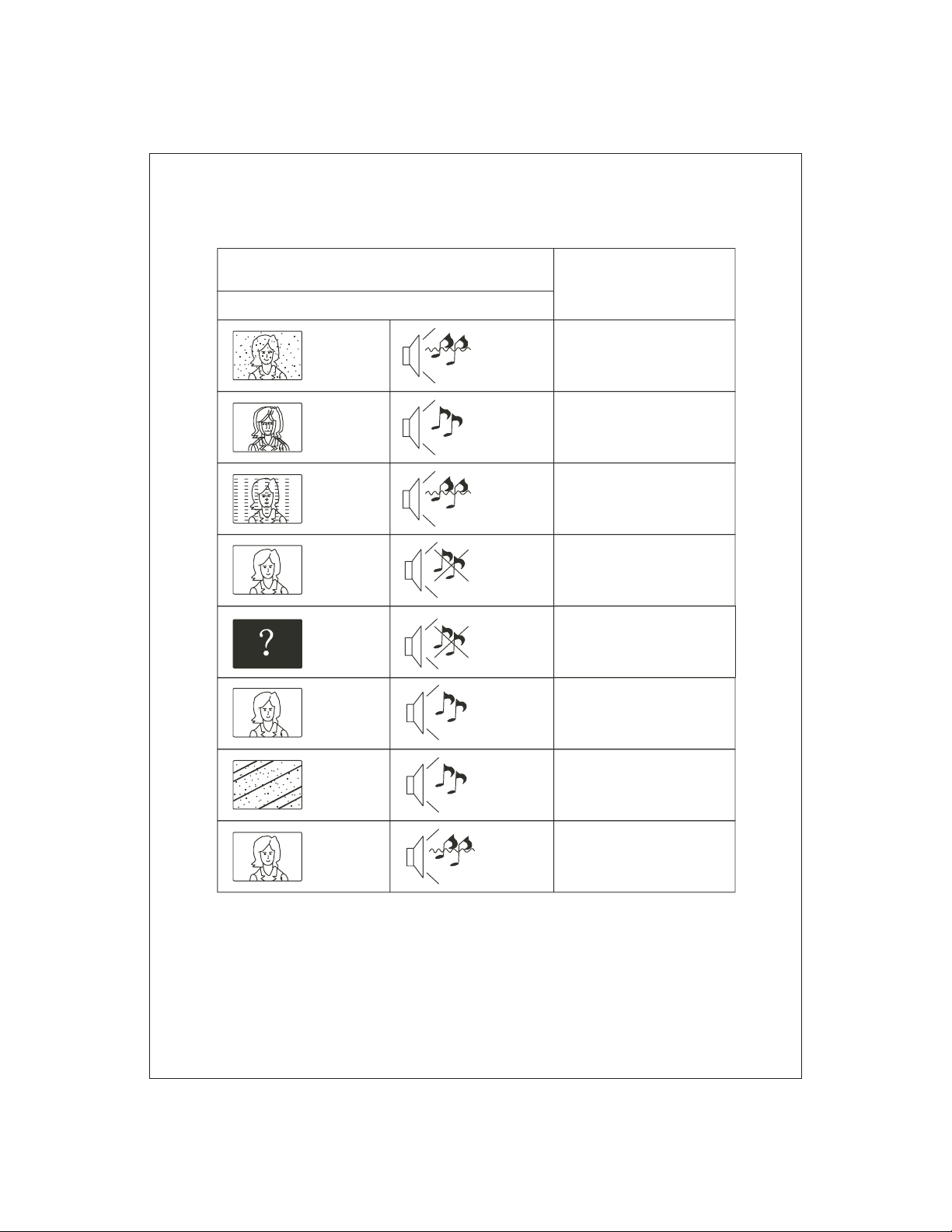

Trouble Shooting.......................................................................................... 15
IMPORTANT SAFETY INSTRUCTION
1.Read these safety instructions.
2.Keep these safety instructions.
3.Heed all warnings.
4.Follow all safety instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in
accordance with the manufacturers instructions.
8.Do not install near any heat sources such as radiators ,
stoves, or other apparatus (including
produce heat.
9.Protect the power cord from being walked on or
pinched particularly at power outlets, and the point
where they exit from the apparatus.
10.Only use attachments/accessories specified by the
manufacturer.
11.Unplug this apparatus during lightning stormsor
when unused for long periods of time.
12.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, suchas thepower-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture , does not operate n
or has been dropped.
13.Apparatus must not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, should
be placed on the apparatus.
amplifiers)that
ormally,
SAFETY AND WARNINGS
CAUTION
RISK OFELECTRIC SHOCK
DO NOT OPEN!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The symbol indicates that dangerous voltages
constituting a risk of electric shock are present
within this unit.
The symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
WARNING:
To prevent fire or shock hazard, do not expose this
appliance to rain or moisture.
CAUTION
-2-
SAFETY AND WARNINGS
High voltages are used in the operation of this television
receiver. Do not remove the cabinet back from your set.
Refer servicing to qualified service personnel.
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure of
electrical components.
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual , and damage
to the television, may result if it falls.
When the television receiver is not used for an
extended period of time, it is advisable to disconnect
the AC power cord fromthe AC outlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
Do not trap the power supply cord under the television
receiver.
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.
-3-
SAFETY AND WARNINGS
Thank you very much for purchasing this TV. To enjoy
your product from the very beginning, read this manual
carefully and keep it handy for easy reference.

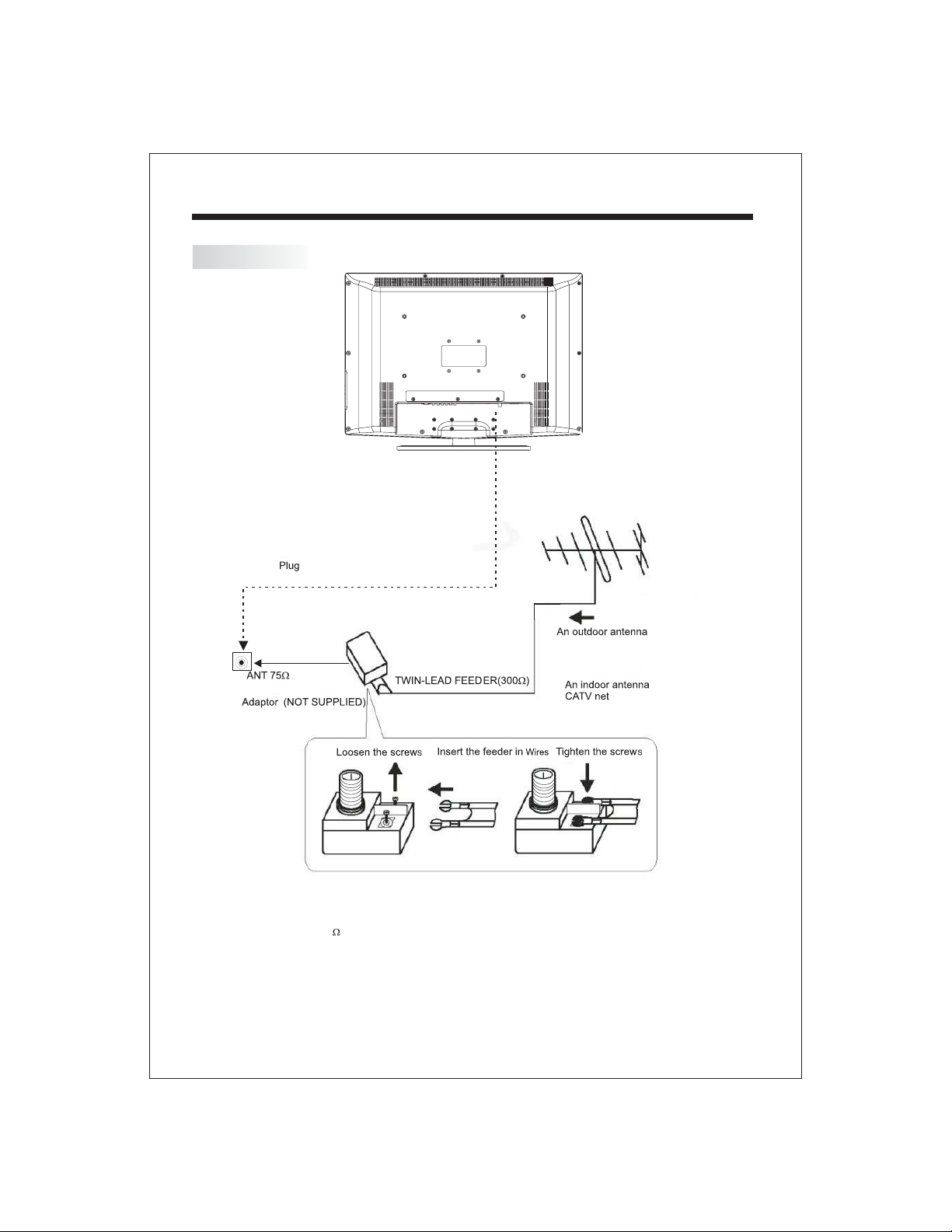

INSTALLATION
Locate the TV in the room where light does not strike
the screen .
directly
Total darkness or a reflection on the picture screen can
cause eyestrain. Soft and indirect lighting is recommended
for comfortable viewing.
Allow enough space between the TV and the wall to
permit ventilation.
Avoid extremely warm locations to prevent possible
damage to the cabinet or premature component failure.
This TV can be connected to AC 100-240 Volts. 50/60 Hz.
Never connect to a DC supply or any other power supply.
Do not cover the ventilation openings when using the TV.
CAUTION
Never tamper with any components inside the TV, or any
other adjustment controls not mentioned in this manual.
All LCD-TVs are high voltage instruments. When you
clean up dust or water drops on the LCD PANEL or
CABINET, the power cord should be pulled out from the
receptacle, then wipe the TV with a dry soft cloth. During
thunder and lighting, unplug the power cord and antenna
cord to prevent damage to your TV. All repairs to this TV
should only be performed by qualified TV service personnel.
Earthing connection--- The apparatus shall be connected
to MAINS socket outlet with a protective earthing connection
MAINS plug or appliance coupler of the apparatus is used
as disconnect device, it should remains readily operable
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected .
-Consult the dealer or an experienced radio TV technician
for help.
Shield cables must be used with this unit to ensure
compliance with the Class B FCC limits.
Warning: Change or modifications to this unit not expressly
by the part responsible for compliance could void the user 's
authority to operate the Equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
-4-
Main features
Used as Television, display terminal,PC display
High luminance,wide viewing angle
3BTSC
ATSC digital signals and NTSC analog signals TV.
4
Main parameter
Viewing Picture Size(diagonal) 26inch
Resolution: 1366x768
Aspect Ratio: 16:9
TV System:
Video Signal System:
Receiving Channel:
Power consumption: 130W
Input Power Voltage:
Audio Output Power(THD 7%): 2x8W
Rear High-Definition Multimedia Interface(HDMI) Input x 2
Side HDMI Input x 1
Rear S-Video Input x 1
YCb(Pb)Cr(Pr) Input x 1
Side S-Video Input x 1
Analog Audio Output x 1Rear
Rear Coaxial SPDIF Output x 1

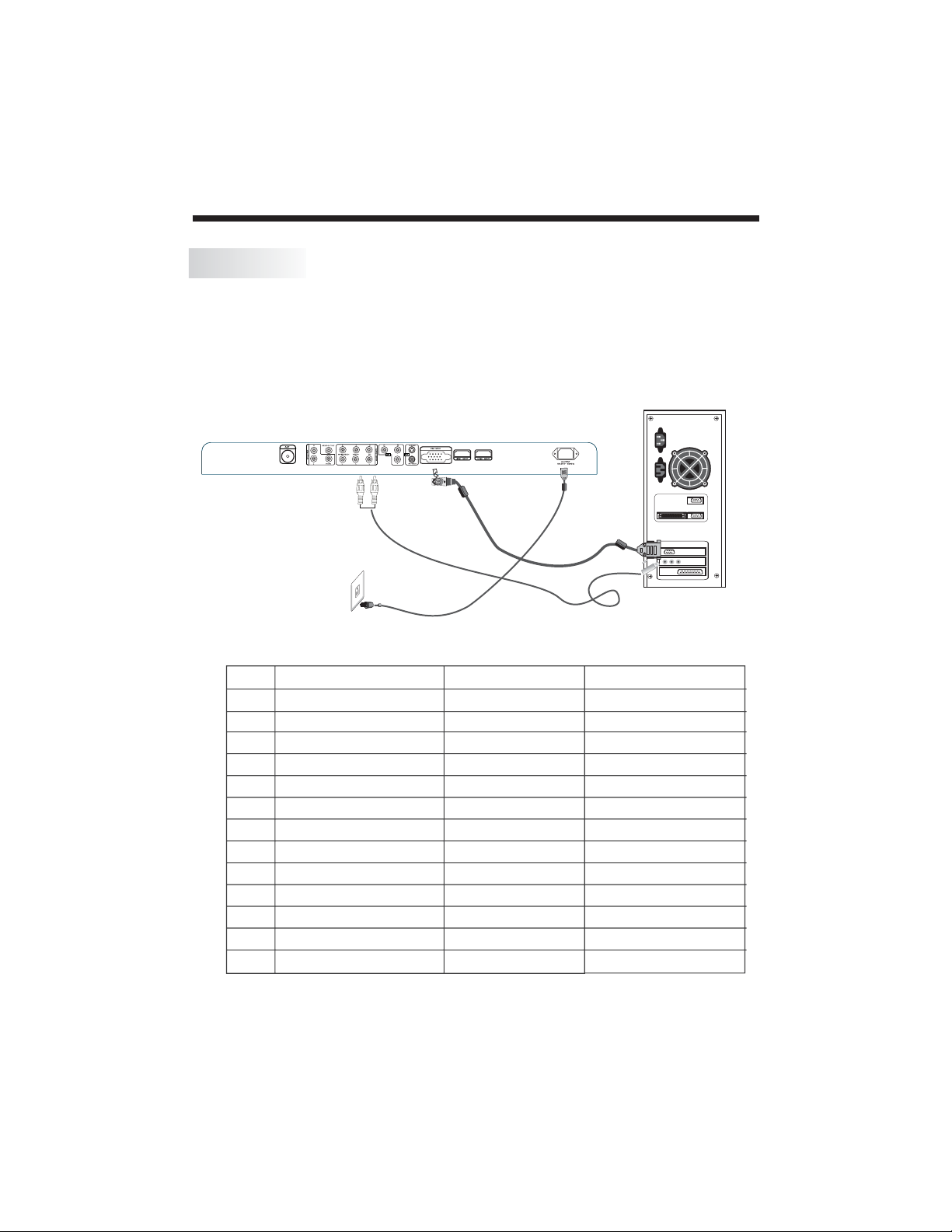

Analog RGB(VGA) Input x 1
Rear Composite Video Input x 1
Rear Audio Input x 3
Side Composite Video Input x 1
Side HEAD PHONE Output x 1
Rear Composite Video Output x 1
Horizontal definition(TV line)
INTRODUCTION
Accessories
Accessories
AC Power Cord.........................
Infrared Remote Control...........
User s Manual ........................
Battery(AAA).......................... 2
HDMI cable is no included.
ATSC Digital system and NTSC Analog system
NTSC/ATSC
Cable :1-135/ Air: 2-69(ATV&DTV)
AC 100V-240V 50/60Hz
Composite Video Input >=350
Video Input >=400
YCb(Pb)Cr(Pr) >=400
1
1
1
-5-
