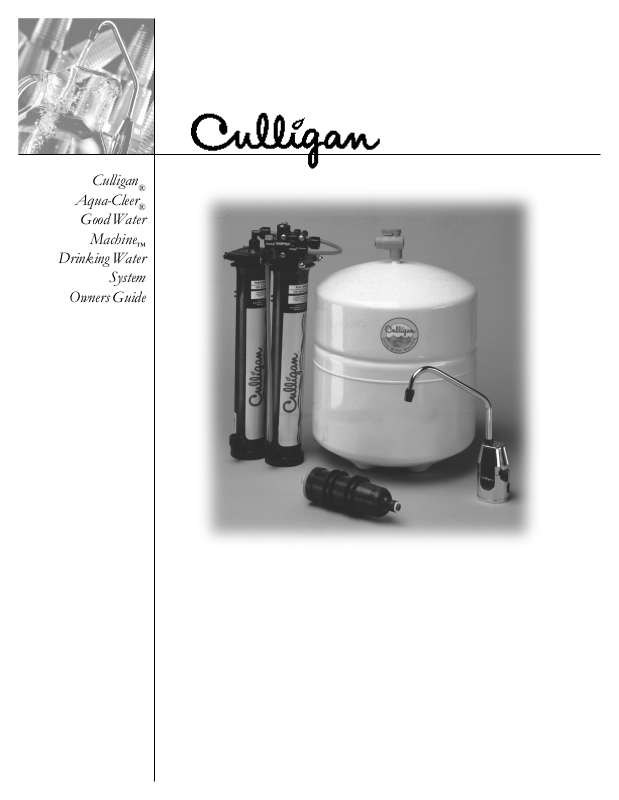

Culligan Aqua-Cleer User Manual

Culligan
Aqua-Cleer
Good Water
®
®
Machine
Drinking Water
System
NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
Check with your public works department for applicable local plumbing and sanitation codes. Follow your local codes if they differ from the standards used in this manual.
Operational, maintenance and replacement requirements are essential for this product to perform properly. The Aqua-Cleer® Good Water Machine™ contains replaceable particulate and activated carbon filters. It also includes a replaceable reverse osmosis membrane filter which is critical for the effective reduction of Total Dissolved Solids. The filtered water should be tested periodically to verify that the system is performing properly.
CULLIGAN INTERNATIONAL COMPANY One Culligan Parkway Northbrook, Illinois USA 60062-6209 847/205-6000 www.culligan.com
i
Table of Contents
Safety/Warnings ............................................................................ii
System Specifications ...................................................................1
Introduction
About Your System ........................................................3
Component Description.................................................3
Certified Performance ....................................................3
How to Use Your System ..............................................5
Performance Check ........................................................5
Installation
Application Guidelines ..................................................6
Servicing Your System
Service Schedule .............................................................8
Filter Replacement..........................................................8
Parts List........................................................................ 13
Service Log ................................................................................. 14
Warranty ...................................................................................... 18
1
System Specifications
System Flow Sequence ........................................Particle Filter, Activated Carbon Filter,
...........................................................Reverse Osmosis Membrane Filter, Storage Tank,
...........................................................Polishing Filter, Dispensing Faucet
Particle Filter .........................................................5 Micron Spun Polypropylene
Activated Carbon Filter....................................... Solid Carbon Block
Reverse Osmosis Membrane Filter ................... Culligan
Aqua-Cleer® Thin Film Composite
®
System Daily Production Rate to
Pressurized Storage Tank .................................... 9.6 gpd (36.3L) (3 gallon)
Product Production Rate without storage tank to atmosphere
Ratio of Product to Flush Flow
Soft Water Applications ................ 2:3
1
- H-30 S-R Models......... 30 gpd (114 L/day)
2
3
Hard Water Applications ..............1:3 - 1:5
Polishing Filter ......................................................Cullar G Activated Carbon
Dispensing Faucet ................................................ Culligan Aqua-Cleer Faucet Rotary Operation,
Stainless Steel and Resin Flow Passages, with Built-in Siphon Break
Colors ..............................................Polished Chrome or White
Storage Capacity Tank .........................................3 gallons
Dimensions - Filter Assembly ............................ 7"W x 4.3"D x 16.3"H
- Storage Tank ................................ 9" Diameter x 14"H
1
Rating at 50 psi, 77°F, 500 mg/L TDS Influent, Without Storage Tank to atmosphere. This is a factory specification for membrane production. Actual production rate and TDS rejection will depend on temperature, water pressure, TDS level, membrane variation and usage pattern.
2
May vary with pressure. See Technical Manual for all hard water applications and applications where TDS exceeds 1000 mg/L (ppm).
3
Except nitrate models.
2
Introduction
Thank you for choosing a Culligan® Aqua-Cleer® Good Water Machine™ drinking water system. Your new system is designed to bring you years of healthful, deliciously crystal­clear Culligan bottled water straight from your kitchen tap.
With three separate filter technologies and its unique space-saving design, the Aqua-Cleer Good Water Machine is the most advanced drinking water system available today from Culligan.
ABOUT YOUR SYSTEM
The reverse osmosis method of water treatment has long been regarded as one of the most efficient and effective ways to reduce impurities. It’s the technology we’ve used to build your new Culligan Aqua-Cleer Good Water Machine. In addition, we’ve incorpo­rated activated carbon and fine particle filtration to bring you one of the most effective systems available today.
AQUA-CLEER GOOD WATER MACHINE SYSTEM COMPONENTS
Refer to Figure 1, page 7
water. With its special faucet installed on your sink, it’s like getting
®
Particle Filter The particle filter screens out dirt, sand, rust, and other microscopic particles 15 times smaller than a grain of sand.
Activated Carbon Filter The activated carbon filter gets rid of bad tastes and odors, including chlorine. If present in your untreated water supply.
Reverse Osmosis Membrane Filter The reverse osmosis (RO) membrane filter squeezes out dissolved substances, including radium, lead and many others. These substances may not be in your water. See Perfor­mance Data Sheet for list of substances and removal percentages.
Manifold Assembly The manifold serves as the functional hub of the system, directing and regulating the flow through each of the system’s components. It makes the Good Water Machine extremely space efficient and simplifies filter changes.
3
Introduction (cont’d)
Polishing Filter The Aqua-Cleer® Good Water Machine™ includes a second activated carbon filter as added assurance that your water will be crystal clear.
Faucet The special drinking water faucet mounts conveniently on your kitchen sink. A simple twist of the handle is all it takes to enjoy refreshing Culligan drinking water.
4
HOW TO USE YOUR SYSTEM
With the Aqua-Cleer
Good Water Machine™, you’ll get a continuous supply of clear,
®
refreshing water for drinking and cooking. But Culligan improves a lot more than just water. Crystal clear Culligan
water is ideal for:
®
• coffee • recipes • pasta
• tea • baby formula • ice cubes
• soup • houseplants • steam irons
• juice • pets • drink mixes
• everything you make with water
PERFORMANCE CHECK
This system contains a replaceable treatment component, critical for the effective reduc­tion of Total Dissolved Solids, and that product water shall be tested periodically to verify that the system is performing properly.
To check the performance of your Aqua-Cleer Good Water Machine, it is necessary to measure the total dissolved solids (TDS) level of the filtered water. This simple test can be done quickly by your dealer.
The Good Water SentryTM Water Quality Monitor is another way to keep track of your system’s performance. This optional accessory checks your drinking water each time you use the special faucet, and signals when the membrane filter may need to be replaced.
If the water quality of your system seems to have declined, drain the storage tank and allow the system to refill. If the problem persists, call your Culligan Man for service.
5
