Installation,
Operating
Instructions
and Parts List

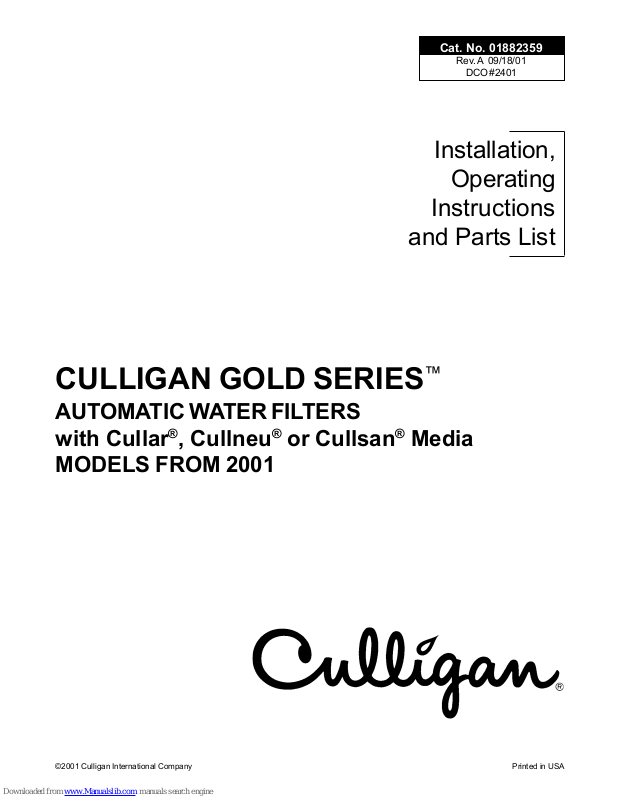

CULLIGAN GOLD SERIES
™
AUTOMATIC WATER FILTERS
with Cullar®, Cullneu® or Cullsan® Media
MODELS FROM 2001
©2001 Culligan International Company
Printed in USA
Attention Culligan Customer:
The installation, service and maintenance of this equipment should be
rendered by a qualified and trained service technician. Your local independently operated Culligan dealer employs trained service and maintenance
personnel who are experienced in the installation, function and repair of
Culligan equipment. This publication is written specifically for these individuals and is intended for their use.
We encourage Culligan users to learn about Culligan products, but we
believe that product knowledge is best obtained by consulting with your
Culligan dealer. Untrained individuals who use this manual assume the
risk of any resulting property damage or personal injury.
WARNING - Prior to servicing equipment, disconnect
power supply to prevent electrical shock.
WARNING - If incorrectly installed, operated or maintained,
this product can cause severe injury. Those who install, operate, or maintain this product should be trained in its proper
use, warned of its dangers, and should read the entire manual
before attempting to install, operate or maintain this product.
THIS SYSTEM IS NOT INTENDED TO BE USED FOR TREATING WATER THAT IS MICROBIOLOGICALLY UNSAFE OR OF UNKNOWN
QUALITY WITHOUT ADEQUATE DISINFECTION BEFORE OR AFTER THE SYSTEM.
Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are protected by
patents issued or pending in the United States and other countries. Culligan reserves the right to change the specifications
referred to in this literature at any time, without prior notice. Culligan, Culligan Gold Series, Cullar, Filtr-Cleer, Cullneu,
Cullsan, Cul-Cleer, Accusoft, Tripl-Hull, Culcite, Culligan Man and www.culligan.com are trademarks of Culligan International Company or its affiliates.
CULLIGAN INTERNATIONAL COMPANY
One Culligan Parkway
Northbrook, Illinois 60062-6209
847.205.6000
Instructions
and Parts List
CULLIGAN GOLD SERIES
AUTOMATIC WATER FILTERS
with Cullar, Cullneu or Cullsan Media
MODELS FROM 2001
Installation,
Operating
Table of Contents
Page
Introduction ............................................................... 2
Specifications............................................................ 3
Preparation ............................................................... 4
Installation ................................................................. 6
Settings ................................................................... 11
Programming ............................................................ 12
Manual Cycling ........................................................14
Service Check .......................................................... 15
Operation ................................................................. 16
Operation, Care and Maintenance ............................17
Parts List .................................................................18
Introduction
The Culligan Gold Series water filters are tested and validated by WQA against WQA S-200.
The Culligan Gold Series Filtr-Cleer® filter has been tested and validated by WQA against S200 for Class IV (≥15µm to <30µm) particulate reduction as verified and substantiated by test
data.
The Culligan Gold Series Cullar
filter has been tested and validated by WQA against WQA S-200 for the
®
effective reduction of chlorine up to 120,000 gallons for the 9” filter and 180,000 gallons for the 12” filter.
The Culligan Gold Series Cullneu® filter has been tested and validated by WQA against S-200 for neutralization
up to 14,500 gallons for the 9” Cullneu filter and 21,750 gallons for the 12” Cullneu filter as verified and substantiated by test data.
For installations in Massachusetts, the Commonwealth of Massachusetts Plumbing Code 248 CMR shall be
adhered to. Consult your licensed plumber for installation of the system. This system and its installation must
comply with state and local regulations.
SAFE PRACTICES
Throughout this manual there are paragraphs set off by special headings.
NOTICE: Notice is used to emphasize installation, operation or maintenance information which is important, but
does not present any hazard.
Example: NOTICE: The nipple must extend no more than 1 inch above the cover plate.
CAUTION: Caution is used when failure to follow directions could result in damage to equipment or
property. Example:
CAUTION: Disassembly while under water pressure can result in flooding.
WARNING: Warning is used to indicate a hazard which could cause injury or death if ignored. Example:
WARNING! ELECTRICAL SHOCK HAZARD! UNPLUG THE UNIT BEFORE
REMOVING THE COVER OR ACCESSING ANY INTERNAL CONTROL PARTS.
SERIAL NUMBERS
The control valve serial number is located on the back of the timer case.
The media tank serial number is located on the top surface of the tank.
NOTICE: Do not remove or destroy the serial number. It must be referenced on request for warranty repair or
replacement.
This publication is based on information available when approved for printing. Continuing design refinement
could cause changes that may not be included in this publication.
2 CULLIGAN GOLD SERIES WATER FILTERS
Specifications
Culligan Gold Series Water Filters with Cullar, Cullneu, or Cullsan Media
9-INCH 12-INCH
GENERAL
Mineral Tank Size 9x45 in. 12x45 in.
Control Hi-Flo Power Valve Hi-Flo Power Valve
Timer Electronic Electronic
Temperature Limits 33-120°F 33-120°F
Water Pressure Limits 20-120 psi 20-120 psi
Water Pressure Limits (Canada) 20-90 psi 20-90 psi
Electrical Requirements 24V/50-60 Hz 24V/50-60 Hz
Electrical Power Consumption, Min./Max. 3 Watts/45 Watts 3 Watts/45 Watts
Overall Height 51 in. 51 in.
FILTR-CLEER
Rated Service Flow @ Pressure Drop 9.0 gpm @ 8 psi 12.0 gpm @ 15 psi
Minimum Practical Filtration Size 15 microns 15 microns
Maximum Particulate Matter 150 NTU 150 NTU
Maximum Suspended Solids 150 mg/L 150 mg/L
Drain Flow, Maximum
pH Limitation 6.0 - 9.5 6.0 - 9.5
Recharge Time
Recharge Water Consumption, Av.
Freeboard
4
1
2
3
4.5 gpm 7.0 gpm
30 min. 30 min.
90 gal. 140 gal.
20 ± 1.5 inches 19 ± 1.5 inches
CULLAR
Rated Service Flow @ Pressure Drop 4.0 gpm @ 2.0 psi 6.0 gpm @ 4.0 psi
Drain Flow, Maximum
1
2 gpm 5.5 gpm
pH Limitation 5.0 - 11.0 5.0 - 11.0
Recharge Time
Recharge Water Consumption, Av.
2
3
30 min. 30 min.
40 gal. 110 gal.
Cullar Media Volume 0.75 cu. ft. 1.5 cu. ft.
Cullsan® Underbedding Media Amount 10 lbs. (.1 ft3) 20 lbs. (.2 ft3)
Freeboard
4
22 ± 1.5 inches 24 ± 1.5 inches
Rated Capacity 120,000 gallons 180,000 gallons
CULLNEU
Rated Service Flow @ Pressure Drop 4.0 gpm @ 1.0 psi 6.0 gpm @ 3.0 psi
Drain Flow, Maximum
pH Limitation
*
Recharge Time
Recharge Water Consumption, Av.
1
3.5 gpm 5.5 gpm
5.2 to ≥ 6.8 5.2 to ≥ 6.8
2
3
30 min. 30 min.
70 gal. 110 gal.
Cullneu Media Volume 1.1 cu. ft. 1.6 cu. ft.
Freeboard
4
13 ± 1.5 inches 18 ± 1.5 inches
Rated Capacity 14,500 gallons 21,750 gallons
1 Backwash at 120 psi (830 kPa).
2 Factory Settings.
3 Factory Settings and 120 psi line pressure.
4 Measured from top of media surface to top surface of tank threads (backwashed and drained).
*NOTE: Under dynamic conditions, it may be necessary to mix five parts Cullneu with one part Cullneu C to effectively raise
the pH.
SPECIFICATIONS 3
Preparation
The success of the installation will depend to a great extent on advanced planning and preparation. Careful
attention to the unit's location, accessibility to electrical and drain facilities, and the availibility of the proper tools
will ensure a professional looking installation. Of utmost importance is the assurance that the filter has been
properly applied and meets all specifications.
APPLICATION
Correct application is directly associated with the performance and life expectancy of any water conditioner. It is
important, therefore, to understand how your Culligan® Water Filter functions, and to know its capabilities and
limitations so that a correct application can be made. By following the guidelines and recommendations set forth in
this manual, you can be certain your conditioner is applied correctly.
FILTR-CLEER
The Filtr-Cleer Automatic Water Filter is capable of removing particulate matter down to 15 microns particle size. It
will not remove color, organics, collodial turbidity or dissolved solids. Some applications follow:
• Removal of suspended matters in any water system.
• Removal of particulate matter, such as clay, mud, etc.
• Prefiltration of oxidized iron ahead of an automatic or manual softener.
• Removal of light sand. NOTICE: If sands cannot be removed from the Filtr-Cleer tank during backwashing,
a sand trap should be installed.
• After the retention tank when a Cul-Cleer® system is used to correct hydrogen sulfide or collodial suspension
problems.
The quality and number of gallons of filtered water between backwashes will depend upon the amount, type, and
size of the particulate matter being filtered. If a water sample is sent to our laboratory, where application of a Filtr-
Cleer unit is contemplated, write "Filtr-Cleer Analysis" on the sample tag. Send an additional sample of water for
a standard water analysis. The laboratory will test for Nephelometric Turbidity Units (NTU) and suspended solids
(mg/L). The sample will also be filtered through 10 micron filter paper and NTU run on a filtered sample. If the NTU
of the raw water exceeds 150, suspended solids exceed 150 mg/L or the filtered water through the 10 micron filter
paper is of an unacceptable quality, a Filtr-Cleer filter may not be applicable. As a guide, the U.S. Public Health
Drinking Water standards states the turbidity should not exceed 1 NTU. The exact number of gallons filtered
between backwashes cannot be given because of many variables.
CULLAR FILTER
Automatic Water Filter with Cullar Media will control chlorine taste and odor, and will also remove most objectional
organic colors. It will not remove hydrogen sulfide. It is important to note that whenever the cause of an objectionable
taste or odor has not been established, Health Authorities should determine if water is safe to drink. If bacterial
contamination is present, a Cul-Cleer system is indicated. Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before or after the system.
CULLNEU FILTER
Automatic Water Filter with Cullneu Media will neutralize slightly acid water (pH of 5.2 to ≥ 6.8) and thus help to
prevent unsightly brown or green stains due to corrosion of household plumbing. If the pH is from 5 to 6, 1 part of
Cullneu C media should be mixed with 5 parts of Cullneu media to provide additional neutralizing capability. If the
water to be treated has a pH less than 5, a high hardness, or a high carbon dioxide level, Cullneu may not be
applicable; a solution feeder should be used. Since Cullneu adds hardness, it should be used prior to a softener.
NOTICE: Under dynamic conditions it may be necessary to mix 5 parts Cullneu with 1 part Cullneu C to effectively
raise the pH.
In order to size and apply the equipment correctly, a complete analysis of the water supply should be obtained.
4 CULLIGAN GOLD SERIES WATER FILTERS
COMPONENT DESCRIPTION
The water conditioner is shipped from the factory in several cartons. Remove all components from their cartons
and inspect them before starting installation.

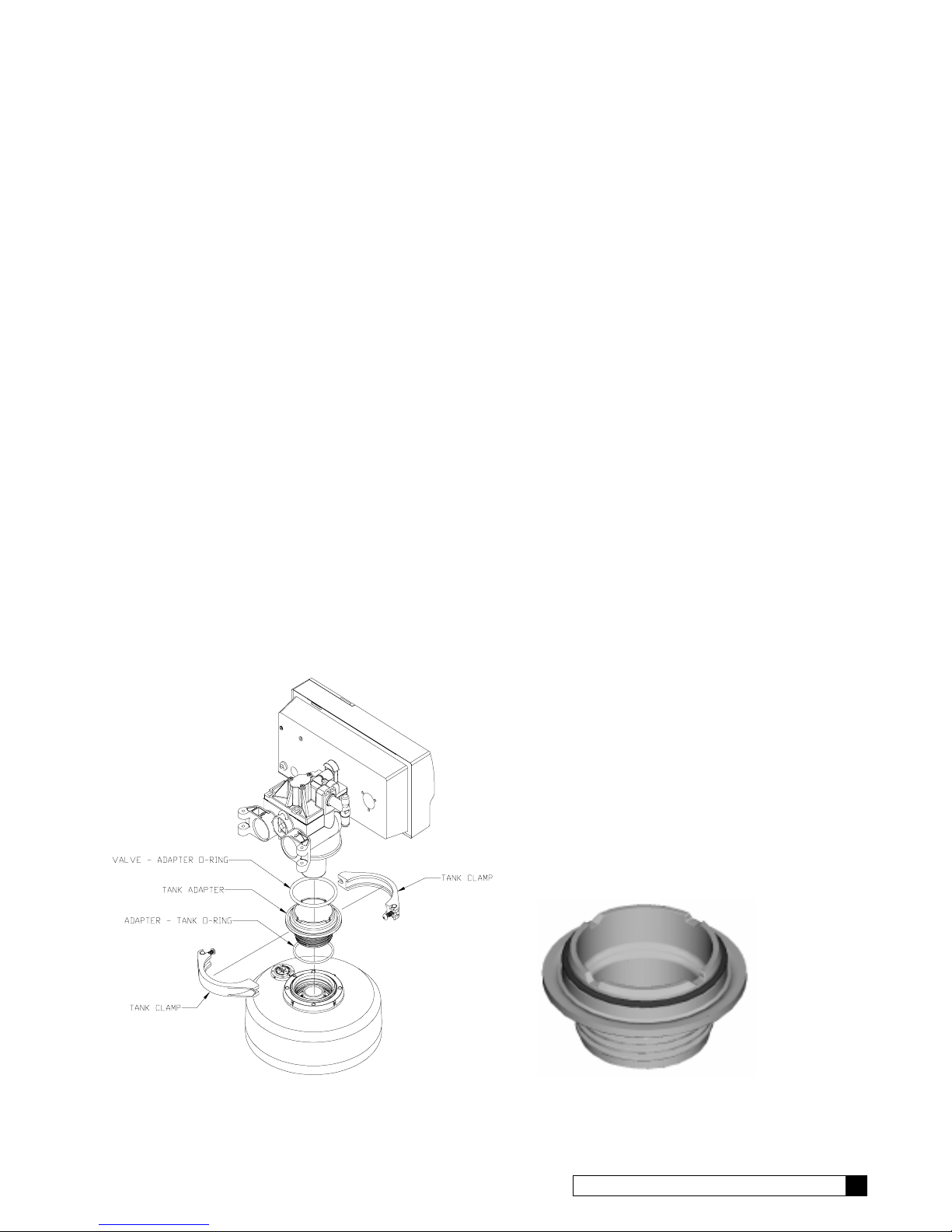

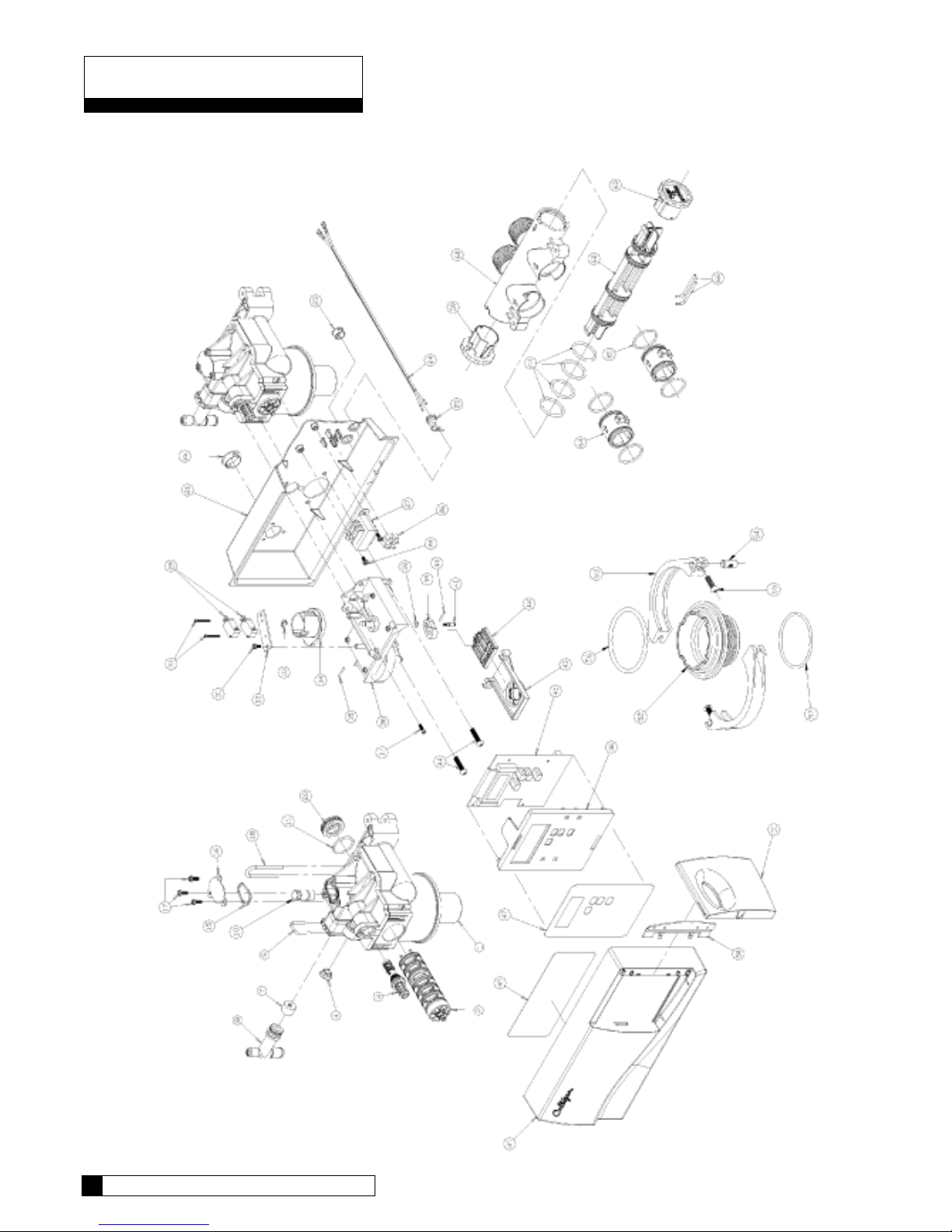

Control Valve Assembly - Includes the 5-cycle regeneration control valve and the Accusoft® Microprocessor. Small
parts packages will contain additional installation hardware, and the conditioner Owner’s Guide.

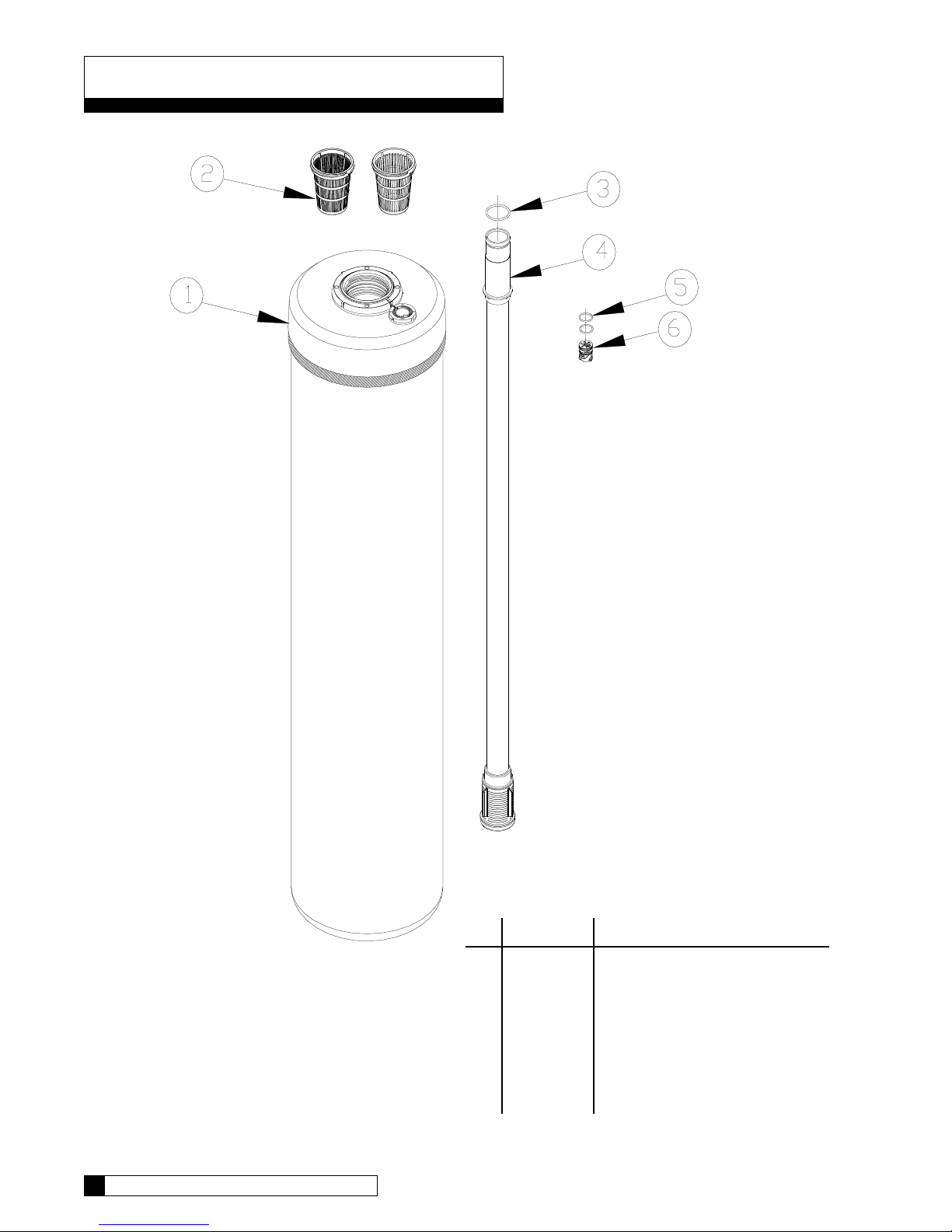

Media Tank - Includes Tripl-Hull™ media tank.
Outlet Manifold - Includes the manifold for use in the Tripl-Hull tank.

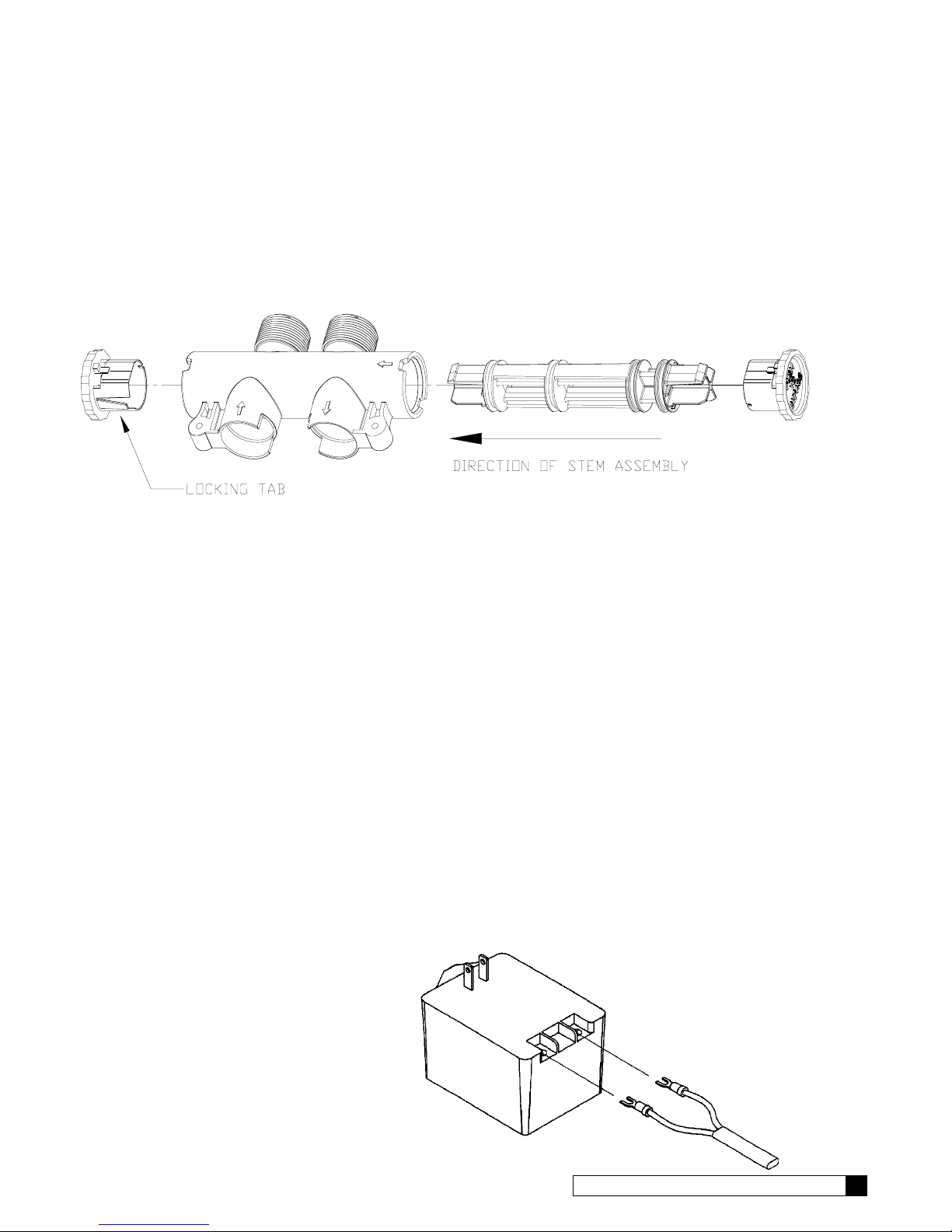

Bypass Valve - Includes the molded bypass valve, the interconnecting couplings, and the assembly pins.
Media Pack - Includes the filter media, see the Filling Procedure located in the Installation section for proper
filling instructions.
TOOLS AND MATERIALS
The following tools and supplies will be needed, depending on installation method. Observe all applicable codes.
All Installations
• Safety glasses
• Phillips screwdrivers, small and medium tip.
• Gauge assembly (PN 00-3044-50 or equivalent)
• Silicone lubricant (PN 00-4715-07 or equivalent) - DO NOT USE PETROLEUM-BASED LUBRICANTS
• A bucket, preferably light-colored
• Towels
Tools & Materials
• Torch, solder and flux for sweat copper connections
• Threading tools, pipe wrenches and thread sealer for threaded connections.
• Saw, solvent and cement for plastic pipe connections.
• Drain line, 1/2” (PN 00-3030-82, gray, semi-flexible; or PN 00-3319-46, black, semi-rigid; or equivalent)
• Thread sealing tape
• Pressure reducing valve (if pressure exceeds 125 psi [860 kPa], PN 00-4909-00 or equivalent)
• Pipe and fittings suited to the type of installation
APPLICATION
Pressure - If pressure exceeds 125 psi (860 kPa), install a pressure reducing valve (see materials checklist). On
private water systems, make sure the minimum pressure (the pressure at which the pump starts) is greater than 20
psi (140 kPa). Adjust the pressure switch if necessary.
CAUTION: The use of a pressure reducing valve may limit the flow of water
in the household.
Temperature - Do not install the unit where it might freeze, or next to a water heater or furnace or in direct
sunlight. Ensure that the system is installed so that it is only supplied with cold water.

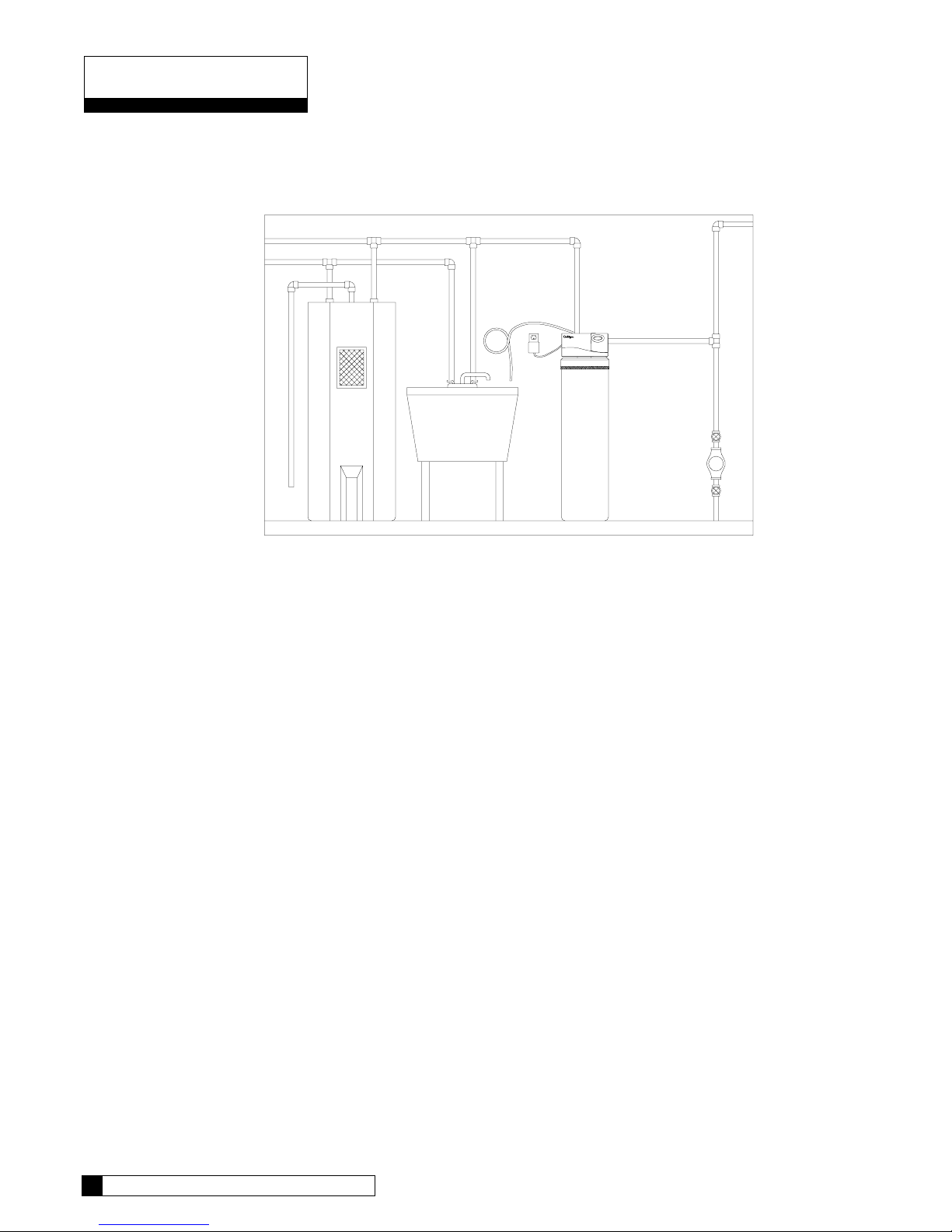

LOCATION
Space requirements - Allow 6-12 inches (15-30 cm) behind the unit for plumbing and drain lines.
Drain facilities - Choose a nearby drain that can handle the rated drain flow (floor drain, sink or stand pipe). Refer
to the Drain Line Chart, Table 1 (page 10), for maximum drain line length.
NOTICE: Most codes require an anti-siphon device or airgap. Observe all local plumbing codes and drain
restrictions. The system and installation must comply with all state and local laws and regulations.
Electrical facilities - A 10-foot cord and wall mount plug-in transformer are provided. The customer should provide
a receptacle, preferably one not controlled by a switch that can be turned off accidentally. Observe local electrical
codes.
PREPARATION 5
Loading...
