Cub Cadet Yanmar Sx3100 Part List Manual

Sx

Form No. 769-05939

(04/10)

Sx3100

Sx Series Sx3100

2

NOTES:

Sx Series Sx3100

FIG. NO.

3

ENGINE SECTION INDEX

GROUP NAME

1 CYLINDER BLOCK 2 GEAR HOUSING 3 MOUNTING FLANGE & OIL SUMP 4 CYLINDER HEAD & BONNET 5 SUCTION MANIFOLD & AIR CLEANER 6 EXHAUST MANIFOLD & MUFFLER 7 CAMSHAFT & DRIVING GEAR 8 CRANKSHAFT & PISTON

9 HYDRAULIC PUMP 10 LUBRICATING OIL SYSTEM 11 COOLING WATER SYSTEM 12 FUEL INJECTION PUMP 13 GOVERNOR 14 FUEL INJECTION VALVE 15 STARTING MOTOR 17 GENERATOR 18 GASKET SET

19 SHORT BLOCK

TRACTOR SECTION STARTS ON PAGE 38

Sx Series Sx3100

4

NOTES:

Sx Series

REF

1 CY-129232-01560 Cylinder Block Cmp 1

5

Sx3100

FIG. 1 CYLINDER BLOCK

NO.

PART NUMBER DESCRIPTION QTY

4 CY-124060-01050 Plug PT1/8 1 5 CY-129001-01250 Plug 50 1 6 CY-124160-01910 Plug PT1/4 2 7 CY-124160-01910 Plug PT1/4 1 8 CY-171051-01921 Plug 1

9 CY-129150-02020 Bolt, Metal Cap 8 12 CY-129795-02412 Bush, CamShaft 1 13 CY-27241-120000 Plug 12 2 14 CY-27243-300000 Plug 30 6 15 CY-129100-01580 Parallel Pin 8X16 2 16 CY-129100-01580 Parallel Pin 8X16 2 17 CY-129795-01950 Pipe, Knock L=18 2 21 CY-129150-02931 Metal, Thrust 2 24 CY-119803-25050 Shaft, Idle Gear 1 25 CY-22351-060012 Spring Pin 6X12 2 26 CY-26106-080402 Bolt M 8X 40 Plated 3 27 CY-129150-01200 Stud, Cylinder Head 14 28 CY-129001-01340 Gasket, (Non-Asb.) 1 29 CY-129001-02931 Main Bearing Set 4 32 CY-129150-02871 Main Metal Us=0.25 4 35 CY-129150-02941 Metal,Thrust.25(4Pie 1

Sx Series

6

Sx3100

FIG. 2. GEAR HOUSING

Sx Series

REF

NO.

REF

NO.

4 CY-129008-01520 Flange, Gear Case 1 16 CY-26106-080162 Bolt M 8X 16 Plated 3

6 CY-129150-01580 Stud 8 X 30 1 18 CY-26106-080552 Bolt M 8X 55 Plated 10

7

Sx3100

FIG. 2. GEAR HOUSING

PART NUMBER DESCRIPTION QTY

1 CY-729008-01500 Gear Case Assy 1 14 CY-24311-000320 O-Ring 1A P-32.0 1 3 CY-119934-01800 Seal, Oil 1 15 CY-26106-080162 Bolt M 8X 16 Plated 4

5 CY-119802-01561 Stud, M8X25 3 17 CY-26106-080302 Bolt M 8X 30 Plated 1

7 CY-124160-01751 Cover,Filler 1 19 CY-26306-080002 Nut 3 8 CY-124240-01871 Cover, Ho-P 1 20 CY-124240-01871 Cover, Ho-P 1

9 CY-119609-32040 O-Ring P16 2 21 CY-124240-01883 Gasket, (Non-Asb.) 1 10 CY-121850-51960 O-Ring, F.I.Pump 1 22 CY-26106-080122 Bolt M 8X 12 Plated 4 11 CY-26106-080852 Bolt M 8X 85 Plated 3 23 CY-129150-91400 Gear Unit,Tachometer 1 12 CY-22190-080002 Seal Washer 8S 4 25 CY-24341-000240 O-Ring 1A S-24.0 1 13 CY-22190-080002 Seal Washer 8S 1 26 CY-26106-060162 Bolt M 6X 16 Plated 2

Sx Series

8

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Sx Series

REF

NO.

2 CY-26206-100202 Bolt M10X20 8

9

Sx3100

FIG. 3. MOUNTING FLANGE & OIL SUMP

PART NUMBER DESCRIPTION QTY

1 CY-129232-01600 Flange, Mounting 1

3 CY-129052-01692 Sump Assy, Lub Oil 1 5 CY-124160-01910 Plug Pt1/4 1 6 CY-129232-01710 Cover, Oil Pan 1 7 CY-129054-01640 Drain Plug 1

9 CY-22190-120002 Seal Washer 12 1 10 CY-129555-01750 Pipe, Knock 1 11 CY-129001-91870 Bolt M 8X100 10 12 CY-129001-91910 Bolt M 8X120 4 13 CY-26106-080122 Bolt M 8X 12 Plated 6 14 CY-26106-080252 Bolt M 8X 25 Plated 6 15 CY-26106-080502 Bolt M 8X 50 Plated 2 16 CY-729402-01650 Case Assy, Oil Seal 1 18 CY-129120-01780 Seal, Oil 1 19 CY-129486-01670 Bolt M8X30,Collar Hd 9

Cub Cadet Yanmar LLC

Sx Series

10

Sx3100

FIG. 4. CYLINDER HEAD & BONNET

Sx Series

REF

NO.

REF

NO.

3 CY-129486-07910 Liftings 1 35 CY-129004-11900 Retainer, Nozzle 3

5 CY-129004-11241 Shaft Assy, Rocker 1 37 CY-26106-080252 Bolt M 8X 25 Plated 2

11

Sx3100

FIG. 4. CYLINDER HEAD & BONNET

PART NUMBER DESCRIPTION QTY

1 CY-129900-07900 Lifter, Engine 1 33 CY-119802-11870 Protector, Nozzle 3 2 CY-26106-080162 Bolt M 8X 16 Plated 2 34 CY-119625-11880 Seat, Nozzle 3

4 CY-26106-080142 Bolt 8X 14 Plated 2 36 CY-120270-54410 Washer 3

6 CY-129004-11251 Shaft, Rocker Arm 1 38 CY-26106-080352 Bolt M 8X 35 Plated 3 8 CY-119802-11260 Support, Rocker Arm 2 39 CY-26106-080502 Bolt M 8X 50 Plated 6

9 CY-119802-11270 Support, Rocker Arm 2 40 CY-129268-11350 Bonnet Assy, Head 1 10 CY-26226-080182 Stud 3 42 CY-129004-03010 Plate, Baffle 1 11 CY-129150-11280 Spring 3 43 CY-129150-03070 Baffle, Breather 1 12 CY-129004-11650 Arm Assy, Rocker 6 44 CY-119802-03110 Plate, Diaphragm 1 13 CY-129150-11230 Screw, Valve 6 45 CY-119802-03121 Cover, Diaphragm 1 15 CY-129150-11750 Nut M8Xp1.0 6 46 CY-119802-03130 Diaphragm 1 16 CY-129150-11370 Cap, Valve 6 47 CY-119802-03141 Spring, Diaphragm 1 17 CY-129008-11700 Head Assy, Cylinder 1 49 CY-129004-11310 Gasket, Bonnet 1 22 CY-27241-400000 Plug 40 2 50 CY-22857-500100 Screw 5X10,Tapping 4 23 CY-129005-11100 Valve, Intake 3 51 CY-22857-500100 Screw 5X10,Tapping 4 24 CY-129100-11112 Valve, Exhaust 3 52 CY-129555-44750 Stud 2 25 CY-129795-11120 Spring, Valve 6 53 CY-49933-000138 Rubber Cap 2 26 CY-129795-11180 Retainer, Spring 6 54 CY-124160-11360 Knob 3 27 CY-121400-11340 Seal, Valve Stem 3 55 CY-24311-000120 O-Ring 1A P 12.0 3 28 CY-124460-11340 Seal, Valve Stem 3 56 CY-119803-77830

Harness,Glow Plug 1 29 CY-27310-080001 Cotter 8 6 57 CY-129008-77800 Plug, Glow 3 31 CY-120130-11860 Guide, Valve 3 58 CY-129008-77820 Connector, Glow Plug 1 32 CY-129150-11810 Guide, Valve 3

Sx Series

12

Sx3100

FIG. 5. SUCTION MANIFOLD & AIR CLEANER

Sx Series

REF

NO.

Pipe, Breather

4 CY-129001-12110

1

6 CY-26106-080802

1

Bolt M 8X 12 Plated

Nut

13

FIG. 5. SUCTION MANIFOLD & AIR CLEANER

PART NUMBER DESCRIPTION QTY

1 CY-129005-03080 2 CY-129410-03990 3 CY-129005-12100

Clamp 22 2 Manifold, Intake 1 Gasket,Int. Manifold

5 CY-26106-080202 Bolt M 8X 20 Plated 4

Bolt M 8X 80 Plated

7 CY-129486-12581 Joint 1

8 CY-129150-77511

9 CY-26106-080202 10 CY-119934-12200 11 CY-119934-12501 12 CY-119934-12510 13 CY-119808-12520 15 CY-129051-12530 16 CY-129418-12530 17 CY-119808-12540 18 CY-119866-12541 19 CY-129612-12650 20 CY-119865-12600 24 CY-129232-12601 25 CY-23000-060000

Gasket, (Non-Asb.) 1 Bolt M 8X 20 Plated 3 Pipe, Intake 1 Cleaner Assy, Air 1 Body, Air Cleaner 1 Element, Outer 1 Element, Inner Mark 2 Valve, Unloader 1 Cover Assy 1 Marking,(W) 1 Stay 1 Support, Cleaner Clamp 60 2

26 CY-26106-080122 27 CY-26106-080502

Bolt M 8X 50 Plated

28 CY-26306-080002

Sx3100

1

1 1 2

Sx Series

REF

NO.

5 CY-119802-13640 Bolt, M8X60 2

7 CY-119131-18320 Bolt M 8X 22 4

14

Sx3100

FIG. 6. EXHAUST MANIFOLD & MUFFLER

PART NUMBER DESCRIPTION QTY

1 CY-129232-13100 Manifold, Exhaust 1 2 CY-129150-13110 Gasket, Exh.Manifold 1 3 CY-123900-13610 Stud Bolt M 8X 80 2 4 CY-123900-13630 Bolt 8X80 1

6 CY-123900-13650 Bolt M8X110 1

8 CY-26306-080002 Nut 2

9 CY-119515-13200 Gasket, Muffler 1 10 CY-129055-13521 Muffler 1 11 CY-26306-080002 Nut 4

Sx Series

REF

NO.

4 CY-129150-02450 Metal,Thrust(Cam 1

7 CY-22512-070140 Key 7X 14 1

15

Sx3100

FIG. 7. CAMSHAFT & DRIVING GEAR

PART NUMBER DESCRIPTION QTY

1 CY-129150-14200 Tappet 6 2 CY-129150-14400 Rod, Push 6 3 CY-129129-14580 Camshaft Assy 1

6 CY-129150-14101 Gear, Camshaft 1

8 CY-26106-080142 Bolt 8X 14 Plated 2

9 CY-119802-25101 Gear Assy, Idle 1 12 CY-119802-25071 Bush, Idle Gear 1 13 CY-129150-25301 Bolt,Fi-P 4 14 CY-119802-25901 Gear, Pump 1 15 CY-158552-51151 Flange 1 16 CY-22217-140000 Spring Washer 14 1 17 CY-26776-140002 Lock Nut M14 Plated 1

Sx Series

16

Sx3100

FIG. 8. CRANKSHAFT & PISTON

Sx Series

REF

NO.

5 CY-22512-070140 Key 7X 14 1

8 CY-129004-21650 V-Pulley, Crankshaft 1

17

Sx3100

FIG. 8. CRANKSHAFT & PISTON

PART NUMBER DESCRIPTION QTY

1 CY-129008-21000 Crankshaft Assy 1

2 CY-129100-01580 Parallel Pin 8X16 1

4 CY-119803-21200 Gear, Crankshaft 1

7 CY-22351-030010 Spring Pin 3X10 1

9 CY-129795-21661 Washer 1 10 CY-121850-21680 Bolt, V-Pulley 1 11 CY-121111-21501 Bolt, Flywheel 6 12 CY-129232-21590 Flywheel Assy 1 14 CY-119865-21600 Gear, Ring 1 15 CY-119626-21700 Bearing #6901 1 16 CY-129005-22080 Piston Assy 3 18 CY-129005-22500 Ring Set, Piston 3 22 CY-129202-22300 Pin, Piston(D26,L70) 3 23 CY-22252-000260 Circlip 26 6 24 CY-729402-23100 Rod Assy, Connecting 3 27 CY-121550-23200 Bolt, Connecting Rod 6 28 CY-129150-23601 Metal, Crankpin 3 30 CY-129100-23910 Bush, Piston Pin 3 31 CY-129150-23611 Metal.Pin Us=0.25 3 33 CY-129005-22900 Piston W/Ring Os=.25 3 35 CY-129005-22950 Ring Set O.S=0.25 3

Sx Series

18

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Sx Series

REF

19

Sx3100

FIG. 9. HYDRAULIC PUMP

NO.

PART NUMBER DESCRIPTION QTY

1 CY-129150-01881 Gasket, (Non Asb.) 1 2 CY-129150-26000 Driving Set, Ho-Pump 1 3 CY-129150-26050 Bracket, Ho-P 1 5 CY-24105-060064 Ball Bearing 2 6 CY-124240-01883 Gasket, (Non-Asb.) 1 7 CY-119626-26690 Spacer 1 8 CY-198220-48140 Flange 1

9 CY-24311-000200 O-Ring 1A P-20.0 1 10 CY-26106-060402 Bolt M 6X 40 Plated 3 11 CY-26106-080952 Bolt M 8X 95 Plated 2 12 CY-26216-080402 Stud M 8X 40 Plated 1 13 CY-26306-080002 Nut 2 14 CY-119923-26010 Pump, Hydraulic 1

Sx Series

20

Sx3100

FIG. 10. LUBRICATION OIL SYSTEM

Sx Series

REF

NO.

16 CY-129232-34800 Dipstick, Lub.Oil 1

18 CY-129232-35090 Pipe Assy, Inlet 1

21

Sx3100

FIG. 10. LUBRICATION OIL SYSTEM

PART NUMBER DESCRIPTION QTY

1 CY-129001-32001 Pump Assy, Lub. Oil 1 14 CY-129150-32020 Gasket, L.O. Pump 1 15 CY-26450-060252 Bolt M 6X 25 4

17 CY-129468-34810 Guide, Dipstick 1

19 CY-24311-000160 O-Ring 1A P-16.0 1 20 CY-26106-060122 Bolt M 6X 12 Plated 1 21 CY-26106-080122 Bolt M 8X 12 Plated 1 22 CY-119802-35100 Bracket Assy, Filter 1 23 CY-119802-35110 Bracket, Filter 1 24 CY-129100-35140 Stud 1 25 CY-129150-35111 Gasket, (Non-Asb.) 1 26 CY-129150-35153 Filter 80X80L 1 27 CY-26106-080202 Bolt M 8X 20 Plated 3 28 CY-114250-39450 Switch,(0.5Kg)L.O. 1 29 CY-124160-39140 Bolt 10, Pipe Joint 1 30 CY-119802-39450 Pipe Assy, Lub. Oil 1 31 CY-129005-59830 Bolt Assy, Joint 1 32 CY-22190-080002 Seal Washer 8S 1 33 CY-23857-030000 Joint Bolt 3 1 34 CY-22190-080002 Seal Washer 8S 1 35 CY-22190-100002 Seal Washer 10S 2 36 CY-26366-060002 Nut M 6 1

Sx Series

22

Sx3100

FIG. 11. COOLING WATER SYSTEM

Sx Series

REF

NO.

9 CY-129555-44750 Stud 2

11 CY-129916-49740 Plug, Drain R03 2

35 CY-171056-49120 Plug, Drain 1

37 CY-121250-44901 Switch, Thermo(110 1

23

Sx3100

FIG. 11. COOLING WATER SYSTEM

PART NUMBER DESCRIPTION QTY

2 CY-129232-42000 Pump Assy, Water 1

3 CY-129100-42051 Gasket, (Non-Asb.) 1

4 CY-129100-42121 Plate 1

10 CY-119802-49113 Joint 2

12 CY-23875-020000 Plug Pt1/4,Steel 1 13 CY-23876-010000 Plug Pt1/8,Screw 1 14 CY-26577-060162 Screw M 6X 16 3 15 CY-129486-42021 Gasket 1 16 CY-129004-42040 Joint 1 17 CY-129486-42140 O-Ring,Cw-P 1 18 CY-124395-49840 Gasket, Thermo. Case 1 19 CY-23414-080000 Gasket 8, Round 1 20 CY-26106-080122 Bolt M 8X 12 Plated 1 21 CY-26106-080162 Bolt M 8X 16 Plated 3 22 CY-26106-080452 Bolt M 8X 45 Plated 1 23 CY-26106-080602 Bolt M 8X 60 Plated 3 24 CY-129120-42350 V-Pulley, F.W.Pump 1 26 CY-25152-003700 V-Belt A37.5 1 27 CY-129655-44740 Fan, Cooling 1 28 CY-121267-44760 Spacer 1 29 CY-26106-060302 Bolt M 6X 30 Plated 4 30 CY-129155-49801 Thermostat,71 1 31 CY-129150-49811 Gasket, (Non-Asb.) 1 32 CY-129350-49530 Cover, Thermostat 1 33 CY-129795-49551 Gasket, (Non-Asb.) 1 34 CY-26306-080002 Nut 2

36 CY-121450-42450 Plug M16 1

38 CY-124465-44950 Gasket 16 1 39 CY-124465-44950 Gasket 16 1 40 CY-129004-49610 Pipe Assy, A Mp2 1 41 CY-129004-49711 Pipe Assy, A Mp2 1 42 CY-119802-49730 Clamp,Cw-T 1 43 CY-124722-59050 Clamp 9 2 44 CY-129004-49620 Pipe Assy, B Mp2 1 45 CY-129004-49721 Pipe, Water B Mp2 1 46 CY-124722-59050 Clamp 9 2

Sx Series

24

Sx3100

FIG. 12. FUEL INJECTION PUMP

Sx Series

REF

NO.

REF

NO.

32 CY-158600-51270 Stopper 1 99 CY-158553-51770 Bolt 4

34 CY-158563-51281 O-Ring 1 101 CY-158552-52400 O-Ring 4E S42 1

95 CY-22190-120002 Seal Washer 12 1

25

Sx3100

FIG. 12. FUEL INJECTION PUMP

PART NUMBER DESCRIPTION QTY

1 CY-729232-51320 Injecton Pump Assy 1 96 CY-22190-180002 Seal Washer 18 1 7 CY-119802-51090 Key,Woodruff 4X16 1 97 CY-23887-120002 Plug M12,Hex. 1

33 CY-158563-51281 O-Ring 1 100 CY-158552-52310 O-Ring 1

34A CY-129008-51390 Setting, Delivery 3 102 CY-22190-120002 Seal Washer 12 2

43 CY-158563-51330 Spring 3 103 CY-22190-180002 Seal Washer 18 2 51 CY-158601-51550 Plug 1 104 CY-22217-140000 Spring Washer 14 1 52 CY-119802-51560 Barrel Plug 1 105 CY-22312-050140 Parallel Pin 5X14 2 53 CY-158552-51570 Pk(Barrel Plug 3 106 CY-22351-050010 Spring Pin 5X10 2 54 CY-158552-51570 Pk(Barrel Plug 1 108 CY-24311-000070 O-Ring 1A P-7.0 1 55 CY-158557-51570 Plug 1 109 CY-24356-010180 O-Ring 1 56 CY-158601-51570 Plug,Water Pump 1 110 CY-24356-010200 Packing, 1020 1 57 CY-158552-51580 Lifter 1 111 CY-26106-060102 Bolt 6X 10 Plated 1 58 CY-119802-51590 Timer Set 1 115 CY-26450-080452 Bolt M 8X 45 4 59 CY-119802-51590 Timer Cmp 1 116 CY-26776-140002 Lock Nut M14 Plated 1 62 CY-158553-51670 O-Ring, 1011 1 119 CY-158553-51551 Joint, Cooling Water 1 63 CY-119802-51680 Backup Ring 1 120 CY-158601-51650 Joint 1 64 CY-119802-51690 O Ring 1 121 CY-158552-51670 Joint 1 65 CY-24356-010200 Packing, 1020 1 123 CY-158552-52100 Pump Assy,Feed 1 66 CY-24372-000150 Ring, Backup T2 P 15 1 124 CY-158552-52500 O-Ring(Feed P Inner 1 67 CY-158552-51600 Packing, Head 1 125 CY-129916-59020

Joint 12, Pipe 1 68 CY-158553-51630 Spring,Timer 1 127 CY-22190-120002 Seal Washer 12 2 70 CY-158553-51640 Element, Thermo 1 128 CY-23857-060000 Joint Bolt 6,Pipe 1 71 CY-158553-51660 O-Ring,P14 1 129 CY-119802-51250 Bracket, Pump 1 72 CY-158553-51680 Packing,Timer 1 130 CY-26106-080162 Bolt M 8X 16 Plated 1 94 CY-158601-51790 Plug 1 131 CY-26106-080202 Bolt M 8X 20 Plated 1

Sx Series

26

Sx3100

FIG. 13. GOVERNOR

Sx Series

REF

NO.

6 CY-129155-51280 O-Ring S6 1

23 CY-119807-61420 Spring 1

27

Sx3100

FIG. 13. GOVERNOR

PART NUMBER DESCRIPTION QTY

2 CY-158553-51090 Key,Woodruff 3X10 1 3 CY-158553-61050 Packing, Case 1 4 CY-158553-61070 Packing 1

22 CY-129255-61410 Nut 1

24 CY-119852-61440 Lever, Regulator 1 25 CY-129155-61460 Bolt, Idle Limit 1 59 CY-119660-61901 Retainer, Shaft 1 63 CY-22190-120000 Seal Washer 12(Bolt) 1 65 CY-23887-120002 Plug M12,Hex. 1 67 CY-26106-060102 Bolt 6X 10 Plated 1 68 CY-26756-060002 Lock Nut 6 1 77 CY-158552-61900 O-Ring 1 83 CY-26106-060142 Bolt M 6X 14 Plated 2 84 CY-26106-060142 Bolt M 6X 14 Plated 4 85 CY-26106-060202 Bolt M 6X 20 Plated 10 86 CY-158552-61061 Cover, Case 1 87 CY-119852-61080 Support,Acc.Wire 1

93 CY-129155-61590 Nut 1 130 CY-119653-77950 Solenoid, Stop 1 131 CY-26106-060142 Bolt M 6X 14 Plated 2

Sx Series

28

Sx3100

FIG. 14. FUEL INJECTION VALVE

Sx Series

REF

NO.

6 CY-119802-53100 Holder Assy, Nozzle 3

11 CY-114250-53130 Seat, Nozzle Spring 3

29

Sx3100

FIG. 14. FUEL INJECTION VALVE

PART NUMBER DESCRIPTION QTY

1 CY-729008-53100 Fuel Injector(Sdl 3 2 CY-129008-53000 Nozzle Assy 3 5 CY-114250-53080 Nut, Nozzle Case 3

10 CY-114250-53120 Spring, Nozzle 3

12 CY-114250-53140 Plate, Stop 3

13 CY-114250-53210 Pin 6

14 CY-119803-53400 Shim Set 3

41 CY-129232-50101 Stay,Feed Pump 1

42 CY-26106-080142 Bolt 8X 14 Plated 3

43 CY-129150-59120 Retainer, Inj. Pipe 2

46 CY-129150-59131 Bolt M4X14,Hex.Sckt. 4

48 CY-129004-59811 Pipe Assy, Injection 1

52 CY-129004-59821 Pipe Assy, Injection 1

56 CY-129004-59831 Pipe Assy, Injection 1

60 CY-129263-59550 Pipe Assy, Return 1

61 CY-129486-59320 Corrugated Tube 1

62 CY-119802-59550 Pipe Assy, Return 1

63 CY-124722-59050 Clamp 9 2

64 CY-119802-59560 Pipe, Fuel Return 1

65 CY-129486-59551 Pipe, Fuel Return 2

66 CY-124722-59050 Clamp 9 4

68 CY-119593-59581 Cap 1

69 CY-23080-010000 Clamp 10 1

Sx Series

30

Sx3100

FIG. 15. STARTING MOTOR

Sx Series

REF

NO.

4 CY-X9491200240 Ball 1

6 CY-129407-77220 Armature Assy 1

29 CY-129129-77340 Spring 1

31 CY-129129-77362 Cover 1

31

Sx3100

FIG. 15. STARTING MOTOR

PART NUMBER DESCRIPTION QTY

1 CY-129407-77010 Starter Assy 1 2 CY-X0283060061 Roller 5 3 CY-X9490561370 Nut 1

5 CY-124795-77210 Yoke 1

7 CY-129129-77230 Bearing 1 8 CY-129129-77240 Bearing 1

9 CY-129407-77250 Starter Kit 1 10 CY-X0280210230 Nut 1 11 CY-X0283270140 Retainer 1 12 CY-129407-77390 Clutch,Starter 1 13 CY-129129-77440 Bearing 1 14 CY-129129-77450 Bearing 1 15 CY-129129-77400 Shaft 1 16 CY-129129-77410 Spring, Coil 1 17 CY-129407-77410 Spring 1 18 CY-129129-77420 Pinion 1 19 CY-129129-77430 Ring 1 20 CY-129129-77260 Retainer 1 21 CY-129129-77270 Pinion 1 22 CY-129407-77280 Housing 1 23 CY-129129-77290 Frame 1 24 CY-129407-77300 Holder Assy 1 25 CY-X9491730461 Spring 4 26 CY-129407-77310 Switch Assy 1 27 CY-129129-77320 Bolt 2 28 CY-129407-77330 Bolt,W/Washer 2

30 CY-129129-77350 O-Ring 2

33 CY-129129-77380 Cap 1 34 CY-129129-77460 Screw 2 35 CY-129155-77060 Bolt, Starter 1 36 CY-26116-120202 Bolt M12X 20 Plated 1

Sx Series

32

Sx3100

FIG. 17. GENERATOR

Sx Series

REF

NO.

4 CY-129052-77380 Rotator Assy 1

6 CY-119620-79250 Cover, Bearing 1

29 CY-129067-77340 Spacer 1

31 CY-26106-080502 Bolt M 8X 50 Plated 1

33

Sx3100

FIG. 17. GENERATOR

PART NUMBER DESCRIPTION QTY

1 CY-129795-01900 Stud 1

2 CY-129052-77220 Generator 1

3 CY-X9490561001 Nut 1

5 CY-123501-79240 Bearing, Ball 1

7 CY-129052-77422 Frame Assy 1

8 CY-119620-79200 Ball Bearing 1

9 CY-119620-79210 Plate 1 10 CY-119620-79220 Screw 4 11 CY-119620-79230 Bolt, Stud 2 12 CY-128401-77440 Frame 1 13 CY-128401-77450 Cover 1 14 CY-119620-77461 Pulley 1 15 CY-119620-77471 Nut 1 16 CY-119620-77490 Collar 1 17 CY-119620-77710 Regulator Assy 1 18 CY-129052-79260 Holder,Sub,Rectifier 1 19 CY-129052-79270 Holder, Brush 1 20 CY-119620-79290 Screw 6 21 CY-119620-79300 Screw 1 22 CY-119620-79310 Bolt 3 23 CY-119620-79320 Screw W/Washer 2 24 CY-119620-79330 Bolt 2 25 CY-119620-79340 Insulation Bush 1 26 CY-119620-79350 Nut 2 27 CY-26306-100002 Nut 1 28 CY-129064-77330 Adjuster,Belt 1

30 CY-129972-77341 Bolt, Adjusting 1

Sx Series

34

Sx3100

FIG. 18. GASKET KIT

Sx Series

REF

NO.

4 CY-121400-11340 Seal, Valve Stem 3

6 CY-119802-11870 Protector, Nozzle 3

29 CY-24311-240100 O-Ring 1A P-10A 1

31 CY-129400-92430 Horn, Flex 1

35

Sx3100

FIG. 18. GASKET SET

PART NUMBER DESCRIPTION QTY

1 CY-729008-92600 Gasket Set 1

2 CY-129001-01340 Gasket, (Non-Asb.) 1

3 CY-129004-11310 Gasket, Bonnet 1

5 CY-124460-11340 Seal, Valve Stem 3

7 CY-119625-11880 Seat, Nozzle 3

8 CY-129001-12110 Gasket,Int. Manifold 1

9 CY-129150-13110 Gasket, Exh.Manifold 1 10 CY-119515-13200 Gasket, Silencer 1 11 CY-129150-32020 Gasket, L.O. Pump 1 12 CY-119609-32040 O-Ring P16 2 13 CY-129150-35042 Gasket, (Non-Asb.) 1 14 CY-129150-35111 Gasket, (Non-Asb.) 1 15 CY-129486-42021 Gasket 1 16 CY-129486-42050 Gasket 1 17 CY-129486-42140 O-Ring,Cw-P 1 18 CY-124465-44950 Gasket 16 2 19 CY-129795-49551 Gasket, (Non-Asb.) 1 20 CY-129150-49811 Gasket, (Non-Asb.) 1 21 CY-124395-49840 Gasket, Thermo. Case 1 22 CY-121850-51960 O-Ring, F.I.Pump 1 23 CY-129150-77511 Gasket, (Non-Asb.) 1 24 CY-22190-080002 Seal Washer 8S 2 25 CY-22190-100002 Seal Washer 10S 2 26 CY-22190-220002 Seal Washer 22S 1 27 CY-24311-000120 O-Ring 1A P 12.0 3 28 CY-24311-000320 O-Ring 1A P-32.0 2

30 CY-24341-000240 O-Ring 1A S-24.0 1

32 CY-977770-1207F Gasket.Liquid 1

Sx Series

REF

NO.

5 CY-129129-14580 Camshaft Assy 1

7 CY-129005-22080 Piston Assy 3

36

Sx3100

FIG. 19. SHORTBLOCK

PART NUMBER DESCRIPTION QTY

1 CY-729232-01000 Short Block Assy 1 2 CY-129232-01560 Cylinder Block Cmp 1 3 CY-729402-01650 Case Assy, Oil Seal 1 4 CY-129150-14200 Tappet 6

6 CY-129008-21000 Crankshaft Assy 1

8 CY-129202-22300 Pin, Piston(D26,L70) 3

9 CY-729402-23100 Rod Assy, Connecting 3 10 CY-119802-25101 Gear Assy, Idle 1 11 CY-22252-000260 Circlip 26 6 12 CY-26106-080142 Bolt 8X 14 Plated 2

Sx Series

37

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Sx Series

46 HST CONTROL 1

1 ENGINE ACCESSORIES 47 HST CONTROL 2

2 ACCELERATOR LEVER 48 HST

3 TANK, FUEL OIL 49 CENTER CASE

4 FUEL PIPE 50 PUMP

51 MOTOR

52 POWER PUMP

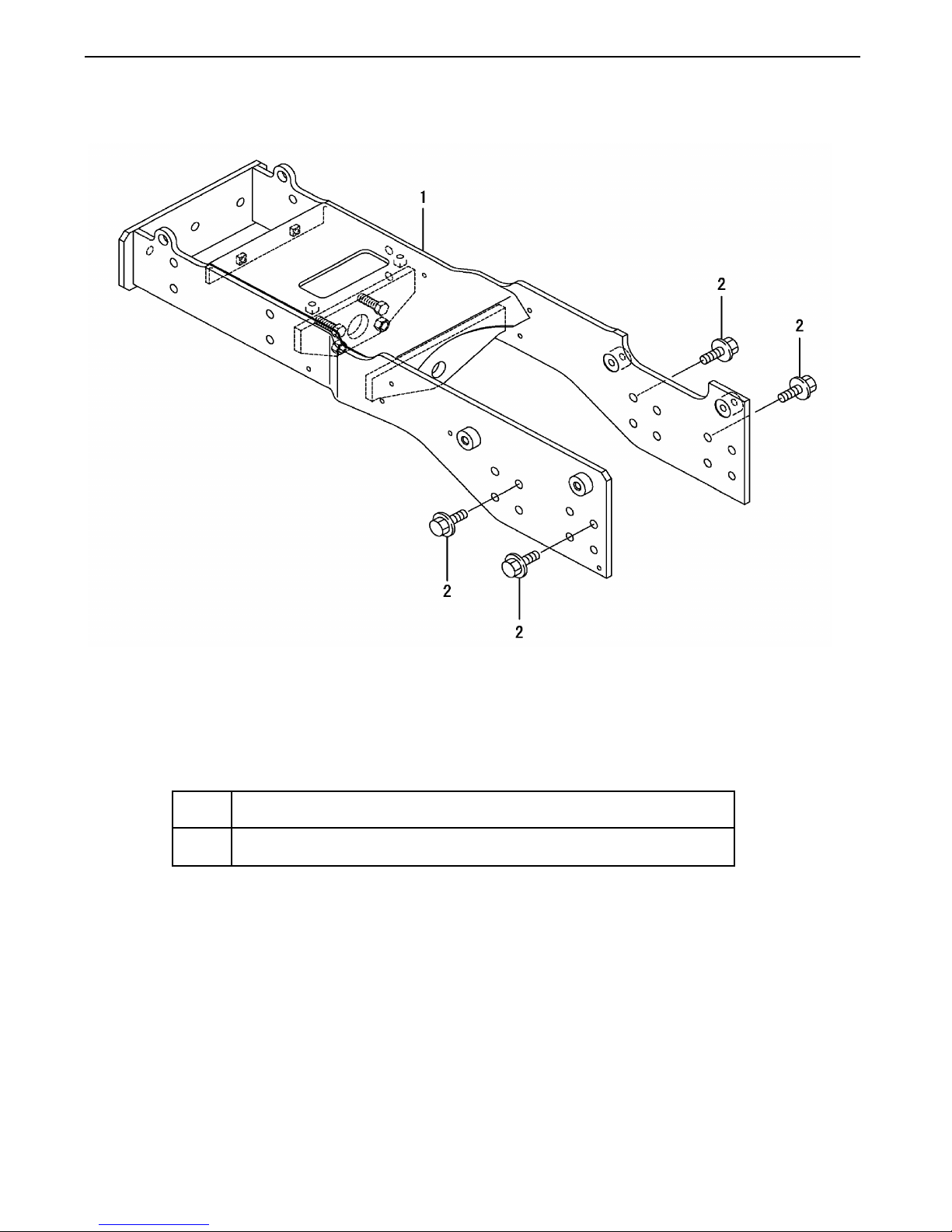

5 FRONT BRACKET 53 MOTOR CASE

6 CENTER PIN

7 TIE ROD

DRIVE PINION 54 RING GEAR

9 DIFFERENTIAL GEAR 55 DIFFERENTIAL GEAR

10 PROPELLER SHAFT 56 DIFFERENTIAL CARRIER

11 FRONT SHAFT 1 57 REAR HOUSING

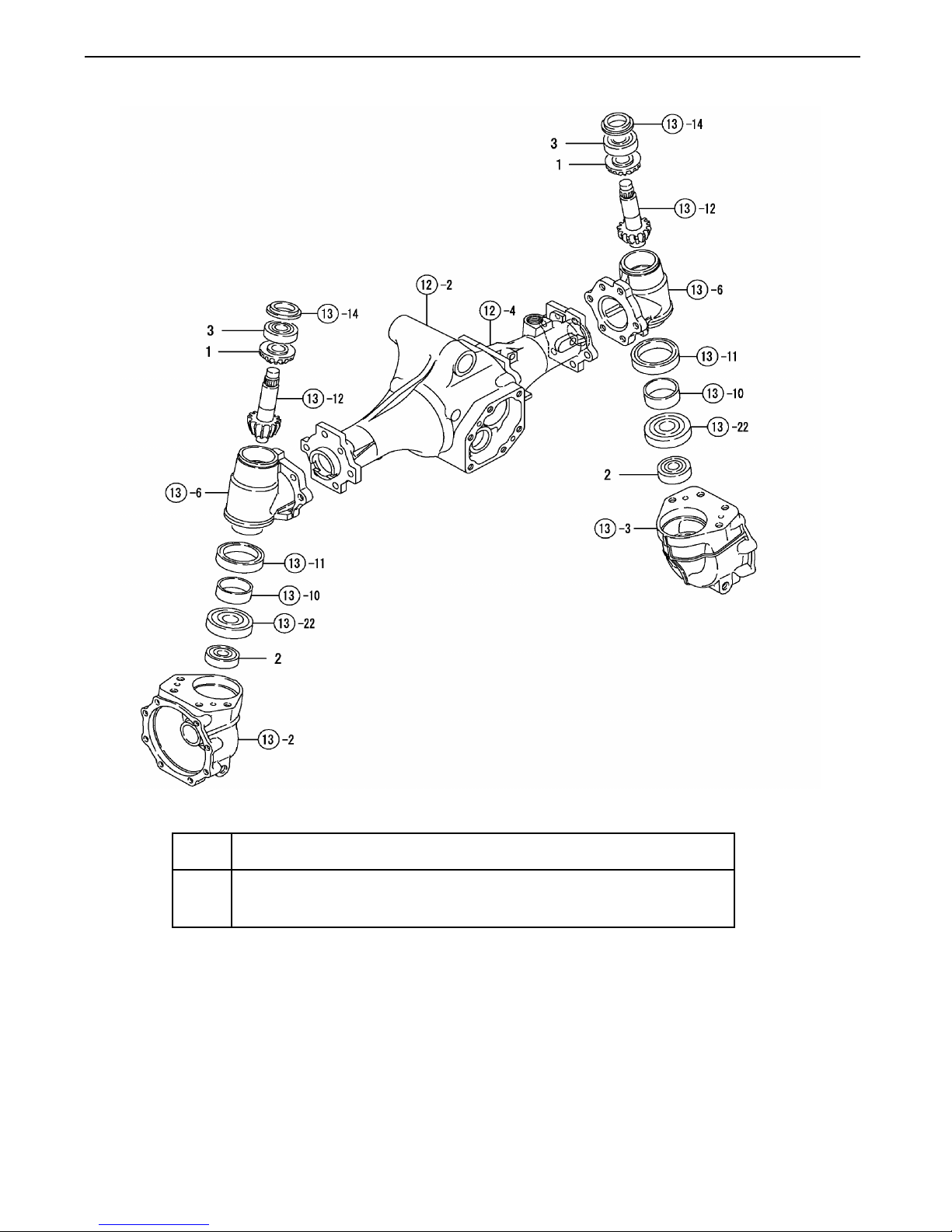

12 FRONT AXLE HOUSING 58 DIFFERENTIAL LOCK

13 FRONT GEAR CASE 59 FINIAL PINION

14 FRONT SHAFT 2 60 FINAL GEAR

15 INPUT SHAFT 1 61 REAR AXLE SHAFT

16 FRONT SPINDLE 62 REAR TIRE R3

17 SHAFT COVER 63 REAR TIRE R4

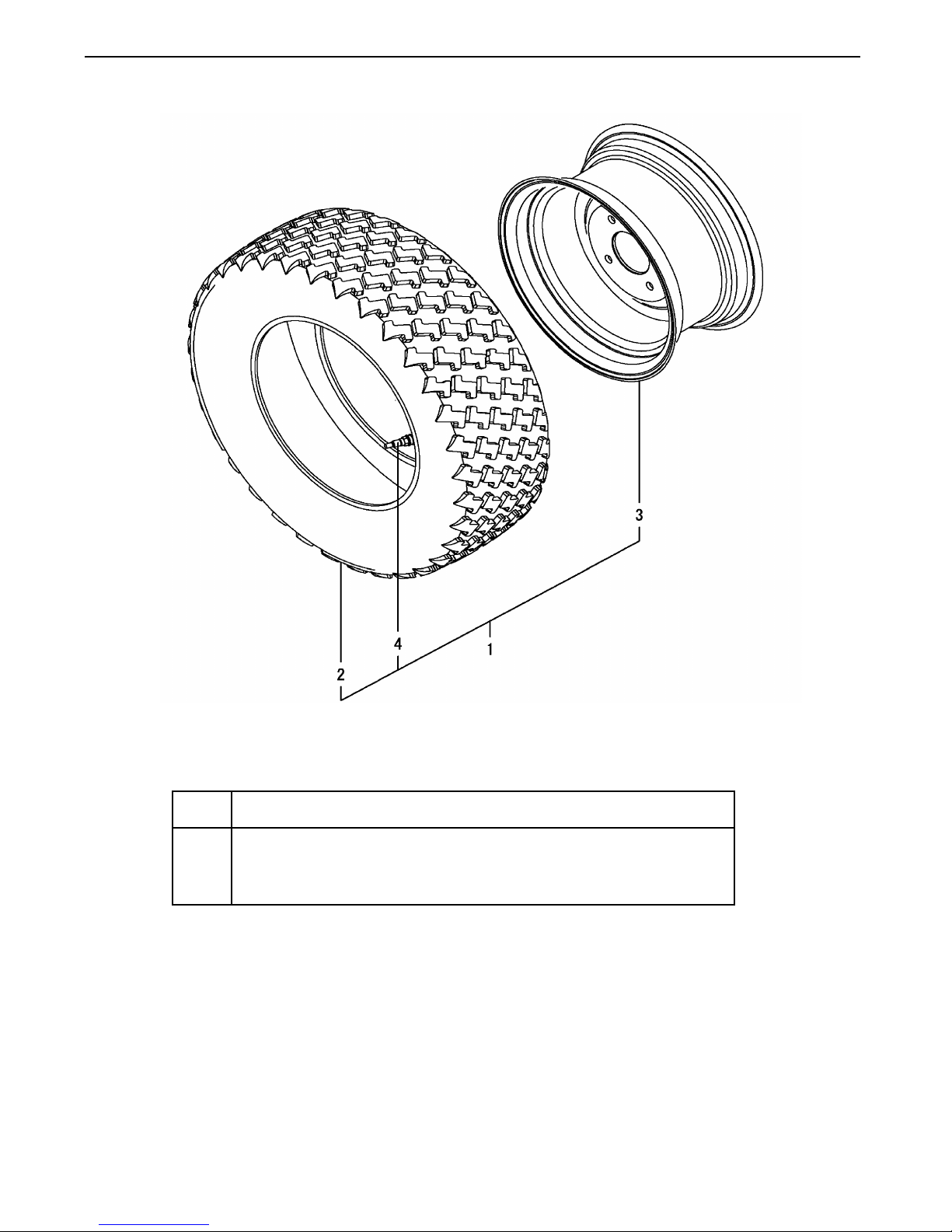

18 FRONT TIRE R3 64 REAR HUB BOLT

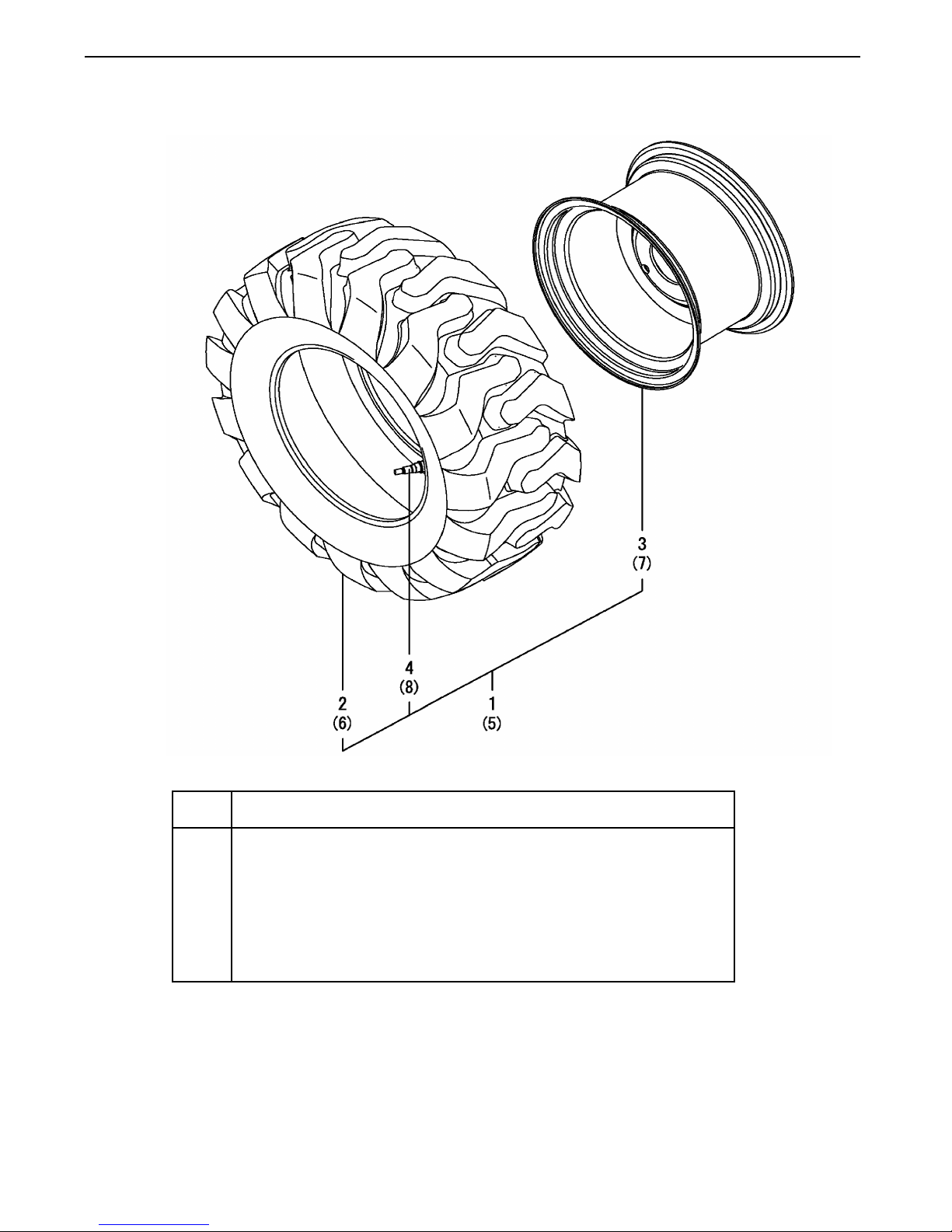

19 FRONT TIRE R4 65 HYDRAULIC PEDAL

20 FRONT HUB BOLT 66 CRUISE CONTROL

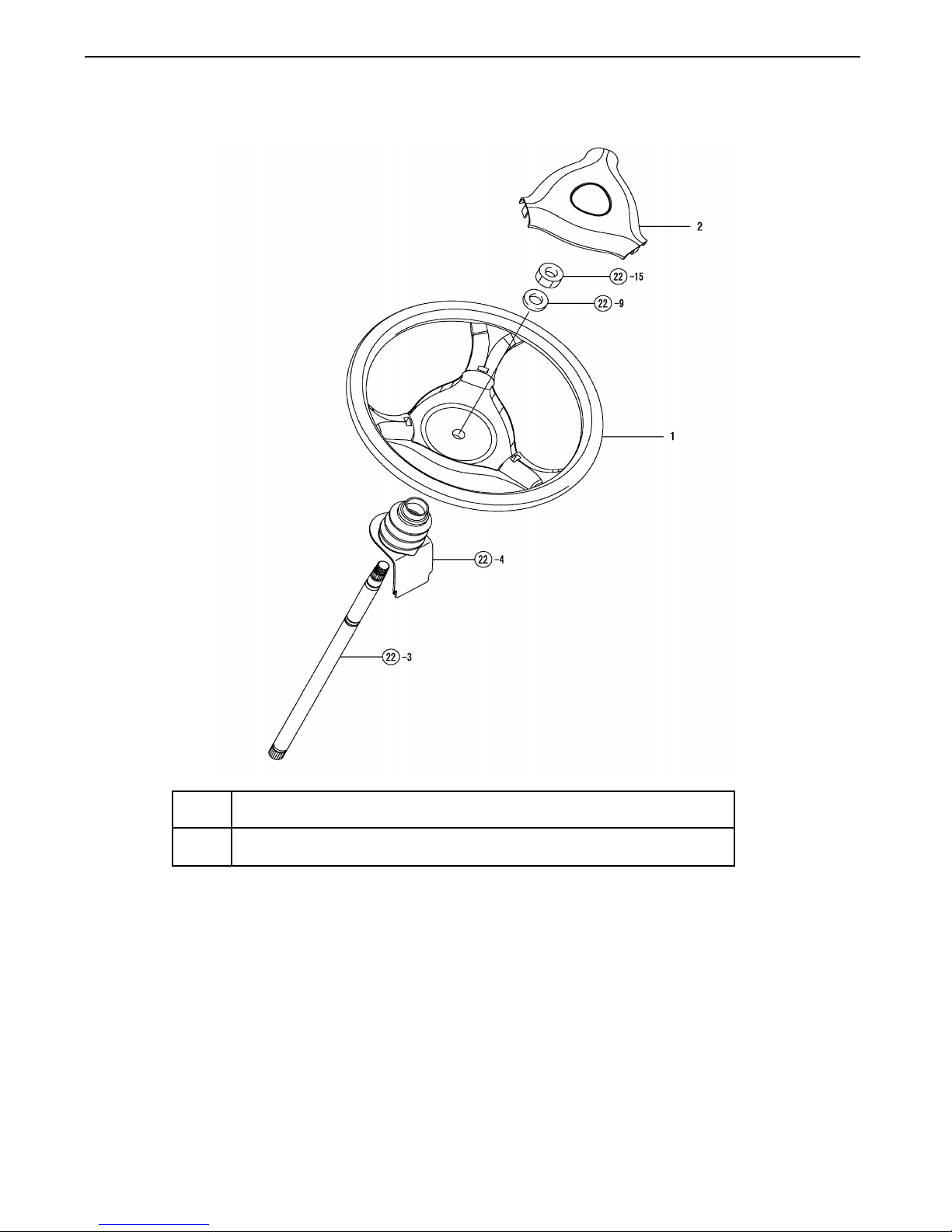

21 STEERING WHEEL 67 DISC BRAKE

22 PST VALVE 68 BRAKE PEDAL

23 PST CYLINDER 69 PARKING BRAKE

24 PST PIPING A

25 PST PIPING B

70 HYDRAULIC LIFT

71 HYDRAULIC CONTROL

26 CLUTCH HOUSING 72 STOP VALVE

27 DOCKING BOLT 73 SUB CONTROL VALVE

28 DAMPER DISC 74 VALVE ACCESSORIES

29 CLUTCH SHAFT 75 HYDRAULIC LINE

30 TRANSMISSION CASE

31 CENTER PLATE

32 OIL CAP 76 WIRE HARNESS

33 OIL STRAINER 77 BATTERY

34 INPUT SHAFT 2 78 SWITCH 1

35 MAIN SHAFT 79 SWITCH 2

36 COUNTER SHAFT 80 LAMPS

37 PTO DRIVE SHAFT 81 METER

38 PTO CLUTCH SHAFT 82 RELAY

39 PTO SHAFT

40 MID PTO SHAFT

41 INERTIA BRAKE

42 RANGE SHIFT

43 PTO CHANGE

44 FRONT DRIVE

45 FRONT SHIFT continued on page 39…..

HYDRAULIC CONTROL SECTION Pg 130-137

ELECTRICAL PARTS SECTION Pg 138-147

38

ENGINE CONTROL SECTION Pg 42-46

FRONT AXLE SECTION Pg 47-70

TRANSMISSION SECTION Pg 71-108

TRACTOR SECTION INDEX

FIG. NO GROUP NAME FIG. NO GROUP NAME

REAR AXLE SECTION Pg 109-129

8

Sx3100

Sx Series

83 HOOD

84 DASHBOARD

85 FENDER

86 STEP

87 SEAT BRACKET

88 DRIVER SEAT

89 LABEL 1

90 LABEL 2

91 LABEL, SAFETY

HITCH SECTION Pg 166-173

92 PTO GUARD

93 PTO SHAFT COVER

94 OIL SEAL COVER

95 THREE POINT HITCH

96

REAR HITCH

97 DRAW BAR HITCH

98 ROPS 1

99 ROPS 2

100 SMV

1 LABEL

2 LABEL SAFETY

SUPPORT FRAME

BRACKET

5 BOOM

6 QUICK LINK

7 CYLINDER

8 HYDRAULIC PIPING

9 PROTECTOR

10 STAND

11 BUCKET 53

12 BUCKET 61

FITTINGS SECTION PG 148-165

SAFETY FRAME SECTION Pg 174-176

LOADER SECTION Pg 178-191

39

TRACTOR SECTI O N INDEX

FIG. NO GROUP NAME

continued from page 38

Sx3100

3 4

Sx Series Sx3100

40

NOTES:

Sx Series Sx3100

41

NOTES:

Sx Series

42

Sx3100

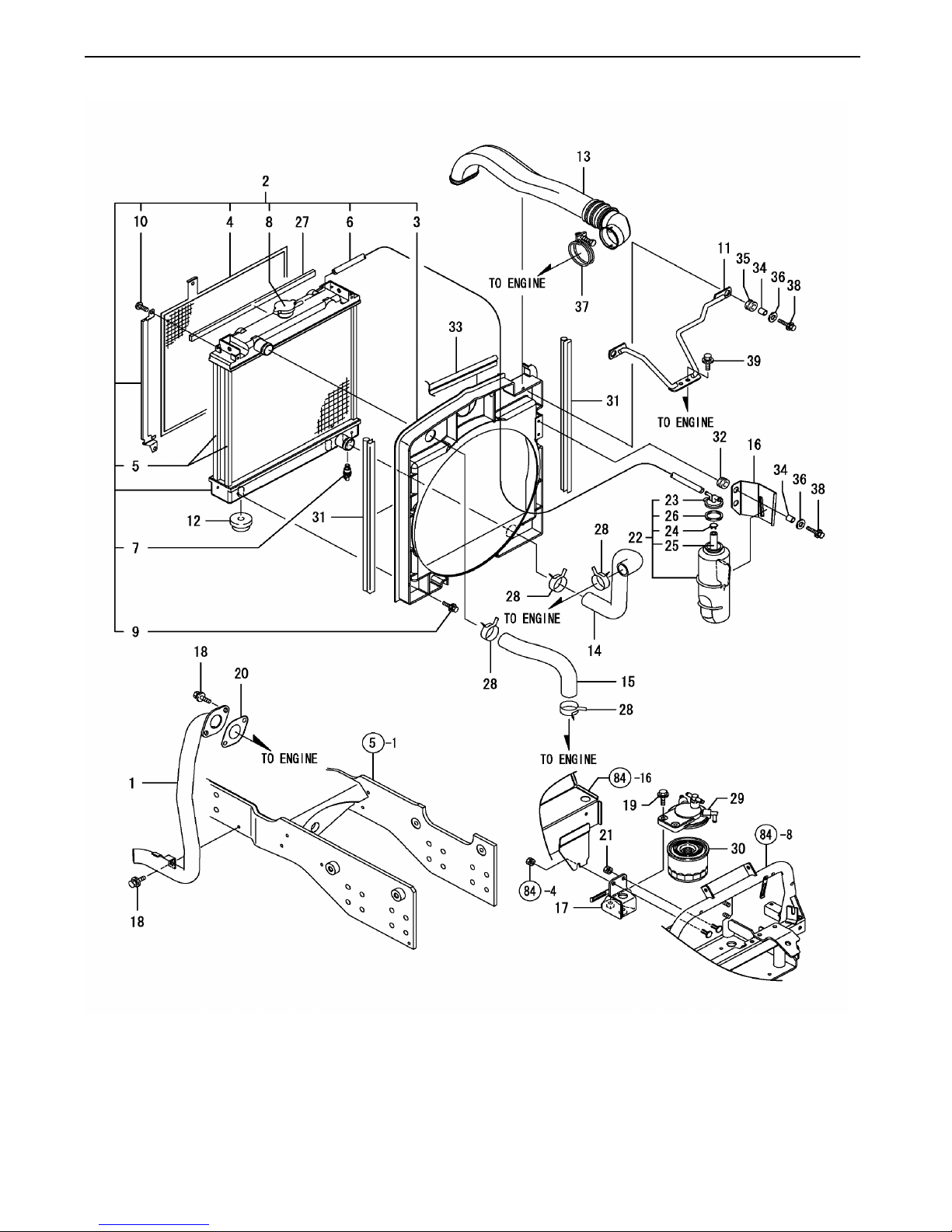

FIG. 1. ENGINE ACCESSORIES

Sx Series

REF

NO.

1 CY-1A7540-00510 Pipe Cmp, Ext 1

3 CY-1A8300-00600 Shroud 1

4 CY-1A7530-00620 Protector 1

6 CY-121250-44570 Pipe, 7X300 1

7 CY-119924-44580 Valve Assy,Drain 1

9 CY-26014-060202 Bolt M 6X 20 4

11 CY-1A7540-00630 Support Rod Cmp 1

12 CY-198162-00640 Support 2

14 CY-1A7540-00720 Cw-T (L 1

15 CY-1A7540-00730 Cw-T (U 1

17 CY-1A7540-04150 Bracket, Filter Cmp 1

18 CY-26018-080252 Bolt M8X 25 3

20 CY-129052-13550 Gasket 1

22 CY-129263-44510 Tank Assy, Sub 1

23 CY-121450-44531 Cap 1

25 CY-23065-070180 Pipe 7X 180 1

26 CY-121470-44581 Gasket 1

28 CY-175022-49730 Crip 31, Hose 4

29 CY-129004-55612 Bracket, Filter 1

31 CY-198448-60780 Weather-Strip, 470 2

32 CY-198220-62440 Grommet 2

34 CY-198129-78710 Spacer, 6-10 4

36 CY-22157-060000 Washer 6 4

37 CY-23010-060000 Clamp 60 1

39 CY-26018-080202 Bolt M 8X 20 2

43

Sx3100

FIG. 1. ENGINE ACCESSORIES

PART NUMBER DESCRIPTION QTY

2 CY-1A7540-00600 Radiator Kit 1

5 CY-1A7530-00690 Packin 4

8 CY-129107-44590 Cap, Radiator D46 1

10 CY-26557-060122 Screw M 6X 12,Pan Hd 4

13 CY-1A8300-00680 Pipe, Intake 1

16 CY-1A7530-00750 Stay,Subtank 1

19 CY-26106-080302 Bolt M 8X 30 Plated 2

21 CY-194990-22050 Nut W/Washer 8 1

24 CY-124450-44560 Clamp 1

27 CY-121454-44590 Pad 1

30 CY-119802-55801 Filter, Fuel 1

33 CY-172164-66620 Rubber, Seal 320 1

35 CY-198129-78720 Grommet, 10-16 2

38 CY-26018-060302 Bolt 6X30 4

Sx Series

REF

NO.

2 CY-198165-01130 Plate, Friction 1

4 CY-198071-01160 Rubber,Wire Retaing 1

5 CY-1A7510-01180 Wire, Accelerator 1

7 CY-1A7510-01240 Cover, Accel 1

8 CY-198421-01250 Bolt 6X40 1

10 CY-1C6281-52310 Pin 6,Come-Off Snap 1

11 CY-22157-060000 Washer 6 1

44

Sx3100

FIG. 2. ACCEL LEVER

PART NUMBER DESCRIPTION QTY

1 CY-1A7510-01100 Lever Assy,Accel 1

3 CY-1A7510-01151 Shaft Assy,Accel. 1

6 CY-198253-01190 Knob, Throttle Lever 1

9 CY-194151-47760 Washer 12 3

12 CY-26716-120002 Nut 12 2

Sc Series

REF

1 CY-1C6860-02300 Pan,Fuel 1

3 CY-1A8160-04130 Cap, Fuel Tank 1

4 CY-1A7530-04310 Stay Assy, Tank F 1

6 CY-1A7530-04340 Stay Cmp, Tank 1

7 CY-1A7531-04410 Stay Cmp,Separater 1

9 CY-119225-52102 Pump Assy, Fuel Feed 1

10 CY-119802-55700 Separator Assy 1

12 CY-119802-55710 Element 1

14 CY-24311-000160 O-Ring 1A P-16.0 1

15 CY-24321-000650 O-Ring 1A G-65.0 1

17 CY-26013-080702 Bolt M 8X 70 1

18 CY-26018-060162 Bolt M6X16 2

20 CY-26018-060252 Bolt, M6X25 4

21 CY-26018-080162 Bolt M 8X 16 2

45

Sc2450

FIG. 3. TANK, FUEL

NO.

PART NUMBER DESCRIPTION QTY

2 CY-1A7530-04110 Tank, Fuel Oil 1

5 CY-1A7530-04330 Stay R Cmp, Tank 1

8 CY-194990-22050 Nut W/Washer 8 4

11 CY-129100-55690 Ring, Retaining 1

13 CY-119802-55730 Cup Assy 1

16 CY-22157-060000 Washer 6 6

19 CY-26018-060202 Bolt M 6X 20 2

22 CY-26019-060162 Bolt M 6X 16 1

Sx Series

REF

NO.

2 CY-1A7540-04410 Hose, Fuel 1

4 CY-1A7510-04430 Hose 1

5 CY-1A7540-04430 Hose, Fuel 1

7 CY-198463-51170 Pipe 13, Corrugat 1

8 CY-194680-51670 Band 2

10 CY-1E6102-83230 Clamp,Battery Cable 1

11 CY-23080-012000 Clamp 12 4

46

Sx3100

FIG. 4. FUEL PIPE

PART NUMBER DESCRIPTION QTY

1 CY-1A7530-04410 Hose, Fuel 2

3 CY-198421-04430 Pipe,Fuel Oil Pan 1

6 CY-1A7540-04440 Hose, Fuel 1

9 CY-114270-59010 Clip, Hose 8

12 CY-26018-080162 Bolt M 8X 16 1

Sx Series

REF

NO.

2 CY-26108-120252 Bolt 12* 25 16

47

Sx3100

FIG. 5. FRONT BRACKET

PART NUMBER DESCRIPTION QTY

1 CY-1A7540-11100 Bracket Assy, Axle 1

Sx Series

REF

NO.

2 CY-198165-11540 Bush, Center Pin 1

4 CY-1A7531-11560 Shim, Center Pin 0.2 2

5 CY-1A7531-11570 Shim, Center Pin 0.5 2

7 CY-198435-16230 Grease Fitting 1

8 CY-26106-120302 Bolt M12X 30 Plated 2

48

Sx3100

FIG. 6. CENTER PIN

PART NUMBER DESCRIPTION QTY

1 CY-1A7531-11510 Pin, Center 1

3 CY-1A7531-11550 Shim Kit, Center Pin 1

6 CY-1A7531-11580 Shim, Center Pin 1.0 2

9 CY-26366-120002 U-Nut M12 2

Sx Series

REF

NO.

2 CY-24764-060000 Nipple Mt6X1, Grease 2

4 CY-22417-250250 Cotter Pin 2.5X25 2

49

Sx3100

FIG. 7. TIE-ROD

PART NUMBER DESCRIPTION QTY

1 CY-198165123101 Rod, Cmp Tie 1

3 CY-194215-12340 Nut M10 2

Sx Series

REF

NO.

2 CY-194447-13860 Ball Bearing 1

4 CY-24101-062024 Ball Bearing 1

50

Sx3100

FIG. 8. DRIVE PINION

PART NUMBER DESCRIPTION QTY

1 CY-1A7540-13120 Gear, Z=16T Front 1

3 CY-22242-000200 Circlip 20 1

Sx Series

REF

NO.

2 CY-198421-13221 Gear,Diff.Side 2

4 CY-198421-13240 Shaft,Diff.Pinion 1

5 CY-24101-060054 Ball Bearing 6005 1

51

Sx3100

FIG. 9. DIFFERENTIAL GEAR 1

PART NUMBER DESCRIPTION QTY

1 CY-198165-13101 Pinion, Drive Kit 1

3 CY-1A7050-13230 Gear,Diff Pinion 2

6 CY-24101-060074 Ball Bearing 1

Sx Series

REF

NO.

2 CY-22242-000360 Circlip 36(S) 1

4 CY-22351-060032 Spring Pin 6X32 1

52

Sx3100

FIG. 10. PROPELLER SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-1A7540-13310 Shaft Assy,Propeller 1

3 CY-22351-035032 Spring Pin 3.5X32 1

Sx Series

REF

NO.

2 CY-198165-13521 Shaft R,Front 1 1

4 CY-24101-062054 Bearing #6205 2

53

Sx3100

FIG. 11. FRONT SHAFT 1

PART NUMBER DESCRIPTION QTY

1 CY-198165-13511 Shaft L,Front 1 1

3 CY-198165-13532 Gear, 1-2 Shaft 2

Sx Series

54

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Sx Series

REF

NO.

2 CY-198165-13600 Case L Comp, F. Axle 1

4 CY-198165136202 Case R,Front Axle 1

5 CY-198165136311 Cover,Front Axle Cas 1

7 CY-198165-24490 Bolt M 12X 12 Plated 1

8 CY-22252-000520 Circlip 52 1

10 CY-24311-000180 O-Ring 1A P-18.0 1

11 CY-24321-000500 O-Ring 1A G-50.0 2

13 CY-24421-173007 Seal Tc17 30 07, Oil 1

14 CY-26013-100252 Bolt M10X 30 6

55

Sx3100

FIG. 12. FRONT AXLE HOUSING

PART NUMBER DESCRIPTION QTY

1 CY-194447-13490 Cap W/Dipstick 1

3 CY-194850-13660 Bush 2

6 CY-198165-24440 Gasket(20*12*2 1

9 CY-22351-080020 Spring Pin 8X20 2

12 CY-24321-001150 O-Ring 1A G-115.0 1

15 CY-26016-100302 Bolt M10X 30 6

Sx Series

56

Sx3100

FIG. 13. FRONT GEAR CASE

Sx Series

REF

NO.

1 CY-1A7531-11350 Bolt, M10X25 10

3 CY-1A7531137401 Case, Final Gear R.H 1

4 CY-194274-13550 Bolt M10X 30 4

6 CY-1A7531137101 Case, Front Gear 2

7 CY-198165-13750 Shim 2

9 CY-1A6780137601 Steering Arm R.H. 1

11 CY-194516-13780 Seal Tc6Y 506812.5 2

12 CY-1A7531-13810 Pinion, Front Final 2

14 CY-1D4110-13870 Washer 2

15 CY-1A6780-13890 Ring 47 2

17 CY-198165-24490 Bolt M 12X 12 Plated 2

18 CY-194320-42150 Bolt M10X 35 4

20 CY-22312-080200 Parallel Pin, M8X20 4

22 CY-24101-060084 Ball Bearing 2

23 CY-24104-062044 Ball Bearing 2

57

Sx3100

FIG. 13. FRONT GEAR CASE

PART NUMBER DESCRIPTION QTY

2 CY-1A7531137301 Case, Final Gear L.H 1

5 CY-194274-13570 Spring Washer 10 8

8 CY-1A7510-13750 Support, King Pin L 1

10 CY-194516-13770 Sleeve Si455016 2

13 CY-198165-14120 Fainal Gear, Front 2

16 CY-198165-24440 Gasket(20*12*2 2

19 CY-1E6190-54080 Sleeve Si25X30X13 2

21 CY-22312-100200 Parallel Pin, M10X20 2

24 CY-24421-304708 Seal Tc30 47 08, Oil 2

Sx Series

REF

NO.

2 CY-1A6780-13910 Bearing 6303 Rsh2 2

3 CY-24104-063034 Ball Bearing 2

58

Sx3100

FIG. 14. FRONT SHAFT 2

PART NUMBER DESCRIPTION QTY

1 CY-198165-13532 Gear, 1-2 Shaft 2

Sx Series

REF

NO.

2 CY-1A7540-13920 Gear, Front Z=18T 1

4 CY-24101-062024 Ball Bearing 1

59

Sx3100

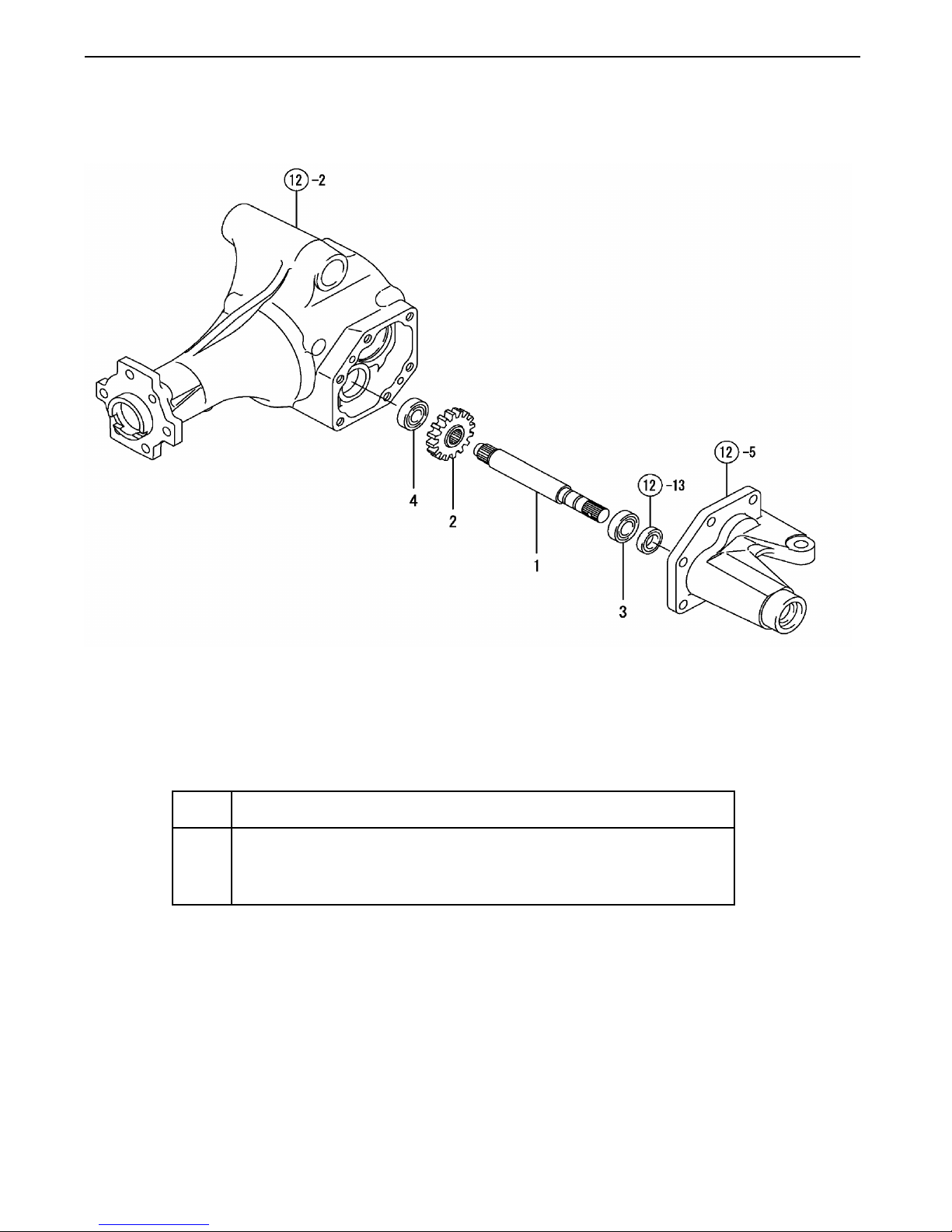

FIG. 15. INPUT SHAFT 1

PART NUMBER DESCRIPTION QTY

1 CY-198165-13910 Shaft,Input Front 1

3 CY-24101-060034 Ball Bearing 1

Sx Series

REF

1 CY-1A6780141102 Shaft,Front Axle 2

2 CY-1A6780141312 Case, Front Bearing 2

4 CY-194151-36670 Plug Pt02 2

5 CY-1E8420-55430 Seal 40X62X14,Oil 2

7 CY-24101-060084 Ball Bearing 2

8 CY-24101-062074 Ball Bearing 2

60

Sx3100

FIG. 16. FRONT SPINDLE

NO.

PART NUMBER DESCRIPTION QTY

3 CY-198165-14140 Packing,Bearing Case 2

6 CY-22242-000350 Circlip 35 2

9 CY-26016-080252 Bolt M 8X 25 16

Sx Series

REF

NO.

2 CY-198421-14630 Collar,Rubber Boot 1

61

Sx3100

FIG. 17. SHAFT COVER

PART NUMBER DESCRIPTION QTY

1 CY-1A7531-14620 Boot, Rubber 1

3 CY-23000-070000 Clamp 70 1

Sx Series

REF

NO.

2 CY-1A8300-14710 Tire, 24X8.50-14 R3 2

4 CY-1A8300-14740 Valve, 2

62

Sx3100

FIG. 18. FRONT TIRE R3

PART NUMBER DESCRIPTION QTY

1 CY-1A8300-14700 Tire Kit, Front R3 2

3 CY-1A8300-14730 Wheel, 2

Sx Series

REF

NO.

2 CY-1A8300-14820 Tire, 23X8.5-12 R4 1

4 CY-1A8300-14840 Valve, 1

5 CY-1A8300-14810 Tire Kit, Front R R4 1

7 CY-1A8300-14830 Wheel, 1

8 CY-1A8300-14840 Valve, 1

63

Sx3100

FIG. 19. FRONT TIRE R4

PART NUMBER DESCRIPTION QTY

1 CY-1A8300-14800 Tire Kit, Front L R4 1

3 CY-1A8300-14830 Wheel, 1

6 CY-1A8300-14820 Tire, 23X8.5-12 R4 1

Sx Series

REF

NO.

64

Sx3100

FIG. 20. HUB BOLT, FRONT

PART NUMBER DESCRIPTION QTY

1 CY-194881-12650 Bolt M14X 24 8

Sx Series

REF

NO.

2 CY-1A7880-15740 Cap,Steering Wheel 1

65

Sx3100

FIG. 21. STEERING WHEEL

PART NUMBER DESCRIPTION QTY

1 CY-1A7880-15700 Wheel,Steering 1

Sx Series

REF

NO.

2 CY-1A7510-17310 Bolt 4

4 CY-1A7510-17470 Boot, Steerring 1

5 CY-1A6770-17510 Plate, St Colum 1

7 CY-1A7530-17571 Rubber,Sts 1

8 CY-1A7500-17910 Plate 1

10 CY-22157-100000 Washer 10 4

11 CY-22217-100000 Spring Washer 10 8

13 CY-26018-100202 Bolt M10X20 2

14 CY-26736-100002 Nut M10 4

66

Sx3100

FIG. 22. PST VALVE

PART NUMBER DESCRIPTION QTY

1 CY-1A7530-17300 Valve Assy, Steering 1

3 CY-1A7530-17410 Column Set 1

6 CY-1A7530-17550 Stay,Steering 1

9 CY-22137-160000 Washer 16,Polished 1

12 CY-26013-080202 Bolt W/Washer M8X20 2

15 CY-26776-160002 Lock Nut M16 Plated 1

Sx Series

REF

NO.

2 CY-1A7531-17541 Cylinder Assy, Steer 1

4 CY-1A7335-17530 Circlip 120 1

5 CY-1A7500-17551 Seal Kit 1

7 CY-1A7500-17570 Piston 1

8 CY-1A7500-17580 Cap, Cylinder 1

10 CY-198165-17781 Elbo, 1/4X1/4 1

11 CY-22417-250250 Cotter Pin 2.5X25 2

67

Sx3100

FIG. 23. PST CYLINDER

PART NUMBER DESCRIPTION QTY

1 CY-194215-12341 Nut 2

3 CY-1A7335-17520 Circlip 120 1

6 CY-1A7500-17560 Rock Nut 1

9 CY-1A7510-17590 Rod Assy 1

Sx Series

68

Sx3100

FIG. 24. PST PIPING A

Sx Series

REF

NO.

1 CY-1A7530-17640 Pipe, High Press. Ps 1

3 CY-1A7540-17710 Pipe, Drain 1

4 CY-1A7530-17821 Hose,Hydraulic 2

6 CY-1A8300-17940 Hose, Oil Cooler 2

7 CY-194990-22050 Nut W/Washer 8 2

9 CY-1E8600-66700 Cooler,Oil 1

11 CY-23414-160021 Gasket 16 4

12 CY-23857-100000 Joint Bolt 10 2

14 CY-26018-080202 Bolt M 8X 20 4

15 CY-26018-080202 Bolt M 8X 20 1

69

Sx3100

FIG. 24. PST PIPING A

PART NUMBER DESCRIPTION QTY

2 CY-1A7540-17670 Pipe, Outlet Ps 1

5 CY-1A7530-17830 Hose, Hydraulic 2

8 CY-1A7130-48110 Clamp, Pipe 1

10 CY-23000-019000 Clamp 19 4

13 CY-24311-000120 O-Ring 1A P-12.0 4

Sx Series

REF

NO.

2 CY-24311-000140 O-Ring 1A P-14.0 1

70

Sx3100

FIG. 25. PST PIPING B

PART NUMBER DESCRIPTION QTY

1 CY-1A6680-48910 Connector 1

Sx Series

REF

NO.

2 CY-1A6680-21120 Stay Cmp, Switch 1

4 CY-1A6680-21250 Stay, F Rest L 2

5 CY-26016-080202 Bolt M 8X 20 8

7 CY-194151-36670 Plug Pt02 1

8 CY-1E6102-83230 Clamp,Battery Cable 1

71

Sx3100

FIG. 26. CLUTCH HOUSING

PART NUMBER DESCRIPTION QTY

1 CY-1A7540-21100 Housing Assy, Clutch 1

3 CY-1A6680-21200 Stop Cmp 1

6 CY-1A6680-21460 Rubber, Cap 25 1

9 CY-26016-080352 Bolt M 8X 35 14

Sx Series

REF

1 CY-1A7530-21150 Stay Cmp, Gear Box 1

3 CY-1A7530-21220 Collar10.6X13.8X12.5 4

4 CY-1A7530-21320 Plate,C/H 1

6 CY-22157-100000 Washer 10 2

7 CY-22217-100000 Spring Washer 10 1

9 CY-22351-080016 Spring Pin 8X16 2

10 CY-24761-040000 Nipple B,Grease 4

12 CY-26013-100352 Bolt M10X 35 1

13 CY-26013-120352 Bolt M12X 35 3

15 CY-26018-080162 Bolt M 8X 16 4

17 CY-26716-100002 Nut 10 1

18 CY-26756-120002 Lock Nut 12 1

72

Sx3100

FIG. 27. DOCKING BOLT

NO.

PART NUMBER DESCRIPTION QTY

2 CY-1A7530-21210 Rubber,St 4

5 CY-22157-080000 Washer 8 2

8 CY-22217-120000 Spring Washer 12 1

11 CY-26013-080252 Bolt M 8X 25 2

14 CY-26013-120452 Bolt M12X 45 5

16 CY-26116-100804 Bolt M10X 80 Plated 1

Sx Series

REF

NO.

2 CY-22351-080016 Spring Pin 8X16 2

73

Sx3100

FIG. 28. DAMPER DISC

PART NUMBER DESCRIPTION QTY

1 CY-198167-21410 Disc ,Danper 1

3 CY-26013-080162 Bolt W/Washer M8X16 6

Sx Series

74

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Sx Series

REF

NO.

2 CY-194300-25100 Coupling 1

75

Sx3100

FIG. 29. CLUTCH SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-1A7530-22110 Shaft,Main Drive 1

3 CY-22252-000150 Circlip 15 1

Sx Series

76

Sx3100

FIG. 30 TRANSMISSION CASE

Sx Series

REF

NO.

1 CY-194201-11230 Cap 11X21 6

3 CY-1A7530-24100 Case Assy, Mission 1

4 CY-198165-24480 Stud 10X130 1

6 CY-198165-25870 Bolt 10* 20 4

7 CY-26228-080602 Stud,Bolt 8X60 1

9 CY-26228-100752 Stud,Bolt 10X75 1

11 CY-198167-24150 Plate, Side 1

12 CY-198165-24160 Packing,Mission Case 1

14 CY-198167-24980 Gauge, Oil Level 1

15 CY-194250-32530 Pin, Cover Hook 2

17 CY-194555-77910 Gasket 1

18 CY-1E6102-83230 Clamp,Battery Cable 1

20 CY-22312-080160 Parallel Pin 8X 16 2

22 CY-24421-284008 Seal Tc28 40 08, Oil 1

23 CY-24550-020100 Bush 1

25 CY-26016-080302 Bolt M 8X 30 2

26 CY-26016-100302 Bolt M10X 30 1

28 CY-26106-080252 Bolt M 8X 25 Plated 6

29 CY-27260-150000 Plug 15,Bore 1

77

Sx3100

FIG. 30 TRANSMISSION CASE

PART NUMBER DESCRIPTION QTY

2 CY-194197-21170 Plug 17,Bore 1

5 CY-198165-25851 Holder,Bearing 1

8 CY-26228-100252 Stud,Bolt 10X25 2

10 CY-26228-100902 Stud,Bolt 10X90 1

13 CY-1A7530245001 Cover Assy,Rear Case 1

16 CY-194312-46750 Plug Pf3/8 1

19 CY-22190-080000 Seal Washer 8(Bolt) 5

21 CY-22312-080160 Parallel Pin 8X 16 2

24 CY-26016-080252 Bolt M 8X 25 7

27 CY-26016-100452 Bolt M10X 45 1

30 CY-27260-260000 Plug 26,Bore 1

Sx Series

78

Sx3100

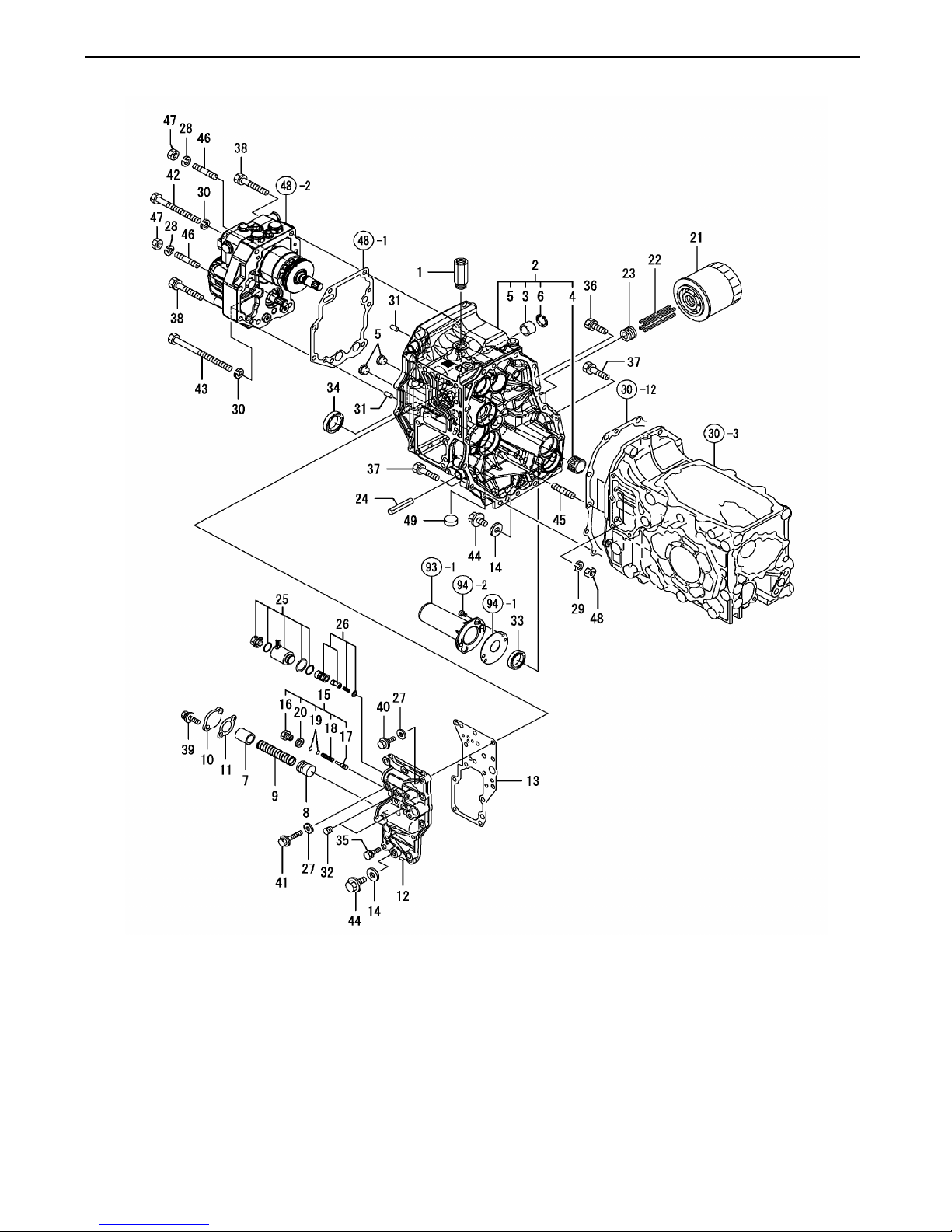

FIG. 31 CENTER PLATE

Sx Series

REF

NO.

1 CY-195450-13141 Pipe L,Lub.Oil 1

3 CY-1A7530-24330 Dry Bearing 35X20 1

4 CY-198167-24390 Needle Bearing,2516 1

6 CY-24165-000402 Circlip 1

7 CY-198167-24340 Collar A, Acc 1

9 CY-198167-24360 Spring, Acc 1

11 CY-198167-24380 Packing, Cover Acc 1

12 CY-198167244001 Cover L, Side 1

14 CY-198165-24440 Gasket(20*12*2 2

15 CY-1A7530-24550 Relief Kit, Pto 1

17 CY-192157-24780 Valve,Relief 1

18 CY-192162-25250 Spring 29.5 1

20 CY-23414-120016 Gasket 12 1

22 CY-198129-24930 Magnet, Filter 4

23 CY-198167-24950 Joint 1

25 CY-1A6770-26600 Solenoid Assy 1

26 CY-192157-26611 Valve Solenoid Cmp 1

28 CY-22287-100000 Washer 10 2

29 CY-22287-100000 Washer 10 2

31 CY-22312-080160 Parallel Pin 8X 16 4

32 CY-23871-010000 Plug Pt1/8,Screw 2

34 CY-24421-304708 Seal Tc30 47 08, Oil 1

36 CY-26016-080302 Bolt M 8X 30 3

37 CY-26016-080402 Bolt M 8X 40 7

39 CY-26018-080202 Bolt M 8X 20 2

40 CY-26106-080302 Bolt M 8X 30 Plated 6

42 CY-26116-101102 Bolt M10X110 Plated 1

43 CY-26116-101352 Bolt M10X135 Plated 2

45 CY-26226-100452 Stud M10X 45 Plated 2

47 CY-26716-100002 Nut 10 2

48 CY-26716-100002 Nut 10 2

79

Sx3100

FIG. 31. CENTER PLATE

PART NUMBER DESCRIPTION QTY

2 CY-1A7530-24300 Housing Assy, Center 1

5 CY-192157-24801 Strainer 2

8 CY-198167-24350 Piston, Acc 1

10 CY-198167-24370 Cover, Acc 1

13 CY-198167-24410 Packing,Side Cover L 1

16 CY-192157-24770 Plug,Pto 1

19 CY-1E6217-56160 Shim 0.5 2

21 CY-198167-24900 Filter 1

24 CY-1A6781-24990 Spring Pin 12X60 1

27 CY-22190-080000 Seal Washer 8(Bolt) 7

30 CY-22287-100000 Washer 10 3

33 CY-24421-304208 Seal Tc30 42 08, Oil 1

35 CY-26016-080302 Bolt M 8X 30 4

38 CY-26016-100602 Bolt 2

41 CY-26106-080552 Bolt M 8X 55 Plated 1

44 CY-26136-120202 Bolt, 12X 20 2

46 CY-26226-100552 Stud M10X 55 Plated 2

49 CY-27260-260000 Plug 26,Bore 1

Sx Series

REF

NO.

2 CY-24311-000180 O-Ring 1A P-18.0 1

80

Sx3100

FIG. 32. OIL CAP

PART NUMBER DESCRIPTION QTY

1 CY-194855-24290 Cap M20, Oil 1

Sx Series

REF

NO.

2 CY-198129-24930 Magnet, Filter 4

4 CY-194322-24980 Plug 1/2-Npt 1

5 CY-1A7870-24980 Packing,Suction 1

81

Sx3100

FIG. 33. OIL STRAINER

PART NUMBER DESCRIPTION QTY

1 CY-198421-24910 Strainer,Oil 1

3 CY-194305-24970 Cover, Oil Strainer 1

6 CY-26013-080252 Bolt M 8X 25 2

Sx Series

REF

NO.

2 CY-194305-25160 Ball Bearing 1

82

Sx3100

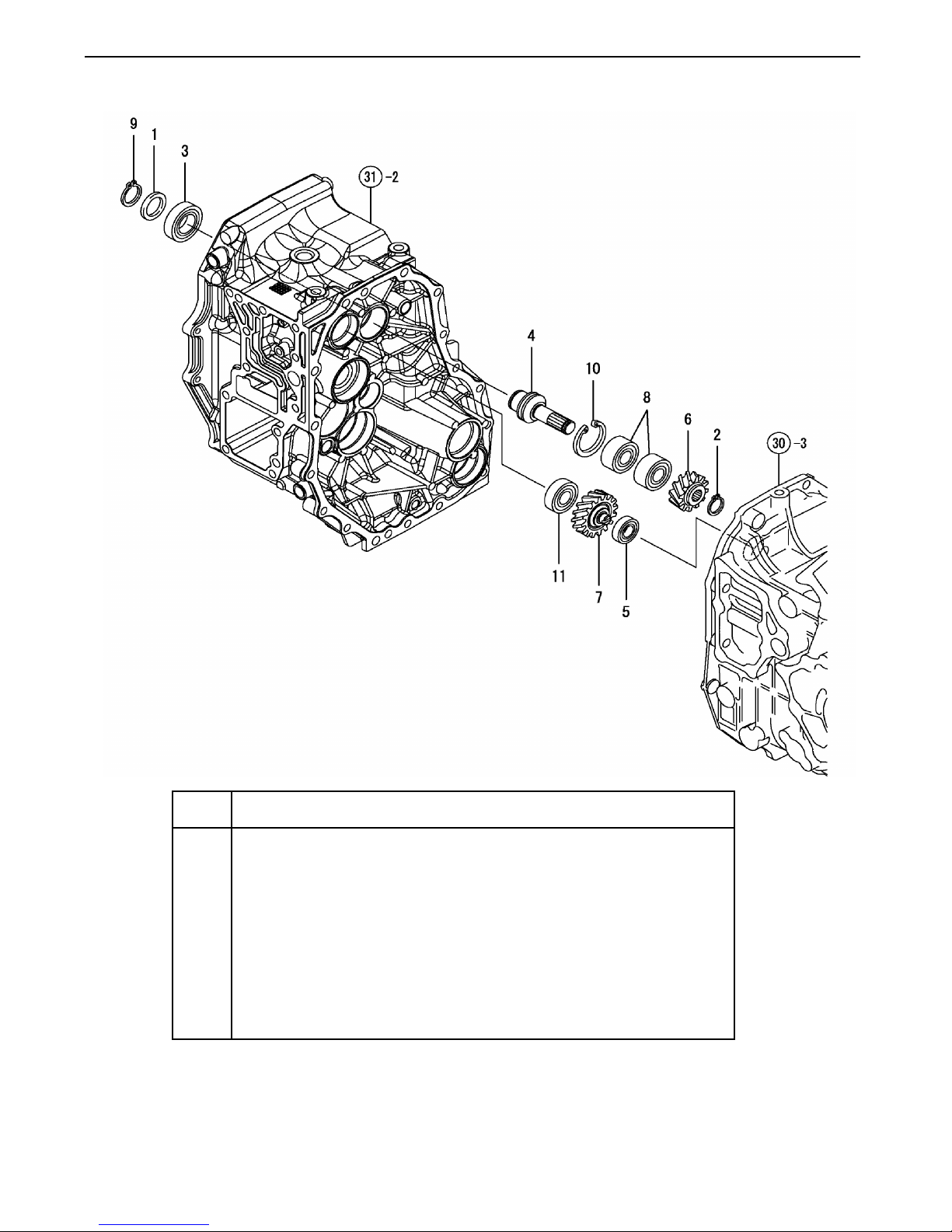

FIG. 34. INPUT SHAFT 2

PART NUMBER DESCRIPTION QTY

1 CY-1A7530-25100 Shaft Assy,Input 1

3 CY-24101-060054 Ball Bearing 6005 1

Sx Series

REF

NO.

2 CY-1A7540-25170 Gear,Driven Z=21 1

4 CY-1E6190-54430 Thrust Washer (C) 1

5 CY-22242-000240 Circlip 24 1

83

Sx3100

FIG. 35. MAIN SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-194305-25160 Ball Bearing 1

3 CY-1A7540-25191 Shaft(Main 1

6 CY-24104-062054 Ball Bearing 2

Sx Series

REF

NO.

2 CY-198167-25750 Spline Collar, H/L 1

4 CY-194856-25330 Washer 22X32X2.5 2

5 CY-1A7540-25710 Shaft, Counter 1

7 CY-1A7540-25740 Gear, Counter Low 1

8 CY-198165-25810 Bearing 6206Rsh2 1

10 CY-1E6190-54430 Thrust Washer (C) 2

11 CY-1E6820-54560 Circlip 22 2

13 CY-22242-000290 Circlip 29 1

14 CY-22292-000240 Circlip S-24 1

84

Sx3100

FIG. 36. COUNTER SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-198167-25080 Collar Set,Spl H/L 1

3 CY-198167-25770 Collar, Shift 1

6 CY-1A7540-25730 Gear(Counter High 1

9 CY-198165-25840 Collar 30*38*4.5 1

12 CY-22242-000250 Circlip 25S 1

Sx Series

REF

NO.

2 CY-192167-25310 Circlip,17 1

4 CY-1A7530-26050 Shaft Assy, Input 1

5 CY-1A6781-26090 Ball Bearing 6201 1

7 CY-1A7530-26130 Gear, Idle Z=18T 1

8 CY-1E8555-54720 Bearing 2

10 CY-22252-000400 Circlip 40(H) 1

11 CY-24101-062034 Ball Bearing 1

85

Sx3100

FIG. 37. PTO DRIVE SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-198220-25130 Spacer 25*33*2 1

3 CY-1A7450-25870 Bearing, Tmb005 1

6 CY-1A7530-26110 Gear, Pto Drive Z=15 1

9 CY-22242-000250 Circlip 25S 1

Sx Series

86

Sx3100

FIG. 38. PTO CLUTCH SHAFT

Sx Series

REF

NO.

1 CY-1C6560-13170 Bearing 16005,Ball 2

3 CY-194505-25600 D-Ring 80 1

4 CY-198167-26080 Collar Set,Spl Pto 1

6 CY-198167-26220 Collar, Shift 1

7 CY-1A7540-26160 Gear(Clutch 33T 1

9 CY-198165-26180 Joint 1

11 CY-1E6191-54330 Screw 7X8 1

12 CY-1A7530-26190 Gear, Pto Z=10T 1

14 CY-1A7540-26210 Cylinder, Clutch 1

15 CY-198165-26240 Collar 15Xt2.5 1

17 CY-1A7540-26240 Key, 5X40 1

18 CY-198167-26250 Shaft,Pto Drive Out 1

20 CY-1A7540-26260 Washer, 36X48X2 1

22 CY-1A7540-26310 Gear(Pto Idle Z=35 1

23 CY-1A7530-26330 Gear, Pto Idle Z=45 1

25 CY-192159-31410 Bearing,6204R Sh2 1

26 CY-1E6190-54430 Thrust Washer (C) 2

28 CY-1E6740-54450 Plate 1.2,Steel 8

29 CY-1E6710-54460 Spring,Clutch Return 1

31 CY-22242-000200 Circlip 20 1

32 CY-22242-000250 Circlip 25S 1

34 CY-22252-000180 Circlip 18 1

36 CY-22252-000520 Circlip 52 1

37 CY-22252-000800 Circlip 80 1

39 CY-24101-060074 Ball Bearing 1

40 CY-24101-062044 Ball Bearing #6204 2

42 CY-24101-063054 Bearing #6305 1

43 CY-24161-202417 Bearing 1

45 CY-26018-080352 Bolt M8X35 1

87

Sx3100

FIG. 38. PTO CLUTCH SHAFT

PART NUMBER DESCRIPTION QTY

2 CY-194640-25390 Ball Bearing 1

5 CY-198165-26150 Spline Collar, Pto 1

8 CY-1A6680-26170 Gear 41T,Pto 1

10 CY-1A7540-26180 Shaft Assy, Clutch 1

13 CY-198165-26210 Brake 1

16 CY-198167-26240 Ring, 21X25X3 Seal 2

19 CY-1A7540-26250 Piston, 80 1

21 CY-198165-26270 Bearing Tmb302 1

24 CY-198167-26340 Shaft, Idle Mid 1

27 CY-1E6740-54440 Plate 80,Friction 8

30 CY-1E6330-54490 Plate 3.2, Steel 1

33 CY-22242-000360 Circlip 36(S) 1

35 CY-22252-000470 Circlip 47(H) 1

38 CY-22551-050300 Key 5X30 1

41 CY-24101-062054 Bearing #6205 1

44 CY-24164-000202 Circlip 20-S 1

Sx Series

REF

NO.

2 CY-198220-25130 Spacer 25*33*2 1

4 CY-1A7530-26230 Gear, Rear Pto Z=21T 1

5 CY-1C6220-32250 Spacer 15.5 X 27 X 1 1

7 CY-24101-063024 Ball Bearing 1

88

Sx3100

FIG. 39. PTO SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-194306-13140 Circlip 24-S 1

3 CY-1A7530-26220 Shaft, Pto 1

6 CY-24101-062054 Bearing #6205 1

Sx Series

REF

NO.

2 CY-1E6190-54080 Sleeve Si25X30X13 1

89

Sx3100

FIG. 40. MID PTO SHAFT

PART NUMBER DESCRIPTION QTY

1 CY-1A7530-26400 Shaft, Mid Pto 1

3 CY-24101-060054 Ball Bearing 6005 2

Sx Series

REF

NO.

2 CY-198167-26510 Case,Seal 1

4 CY-198167-26530 Piston,Inersher 1

5 CY-198167-26540 Brake Case,Inersher 1

7 CY-198167-26580 Spring,Brake 1

8 CY-194850-26710 Plate 40, Friction 5

10 CY-24321-000300 O-Ring G30 1

11 CY-24321-000500 O-Ring 1A G-50.0 1

13 CY-26016-080352 Bolt M 8X 35 3

14 CY-26016-100302 Bolt M10X 30 1

90

Sx3100

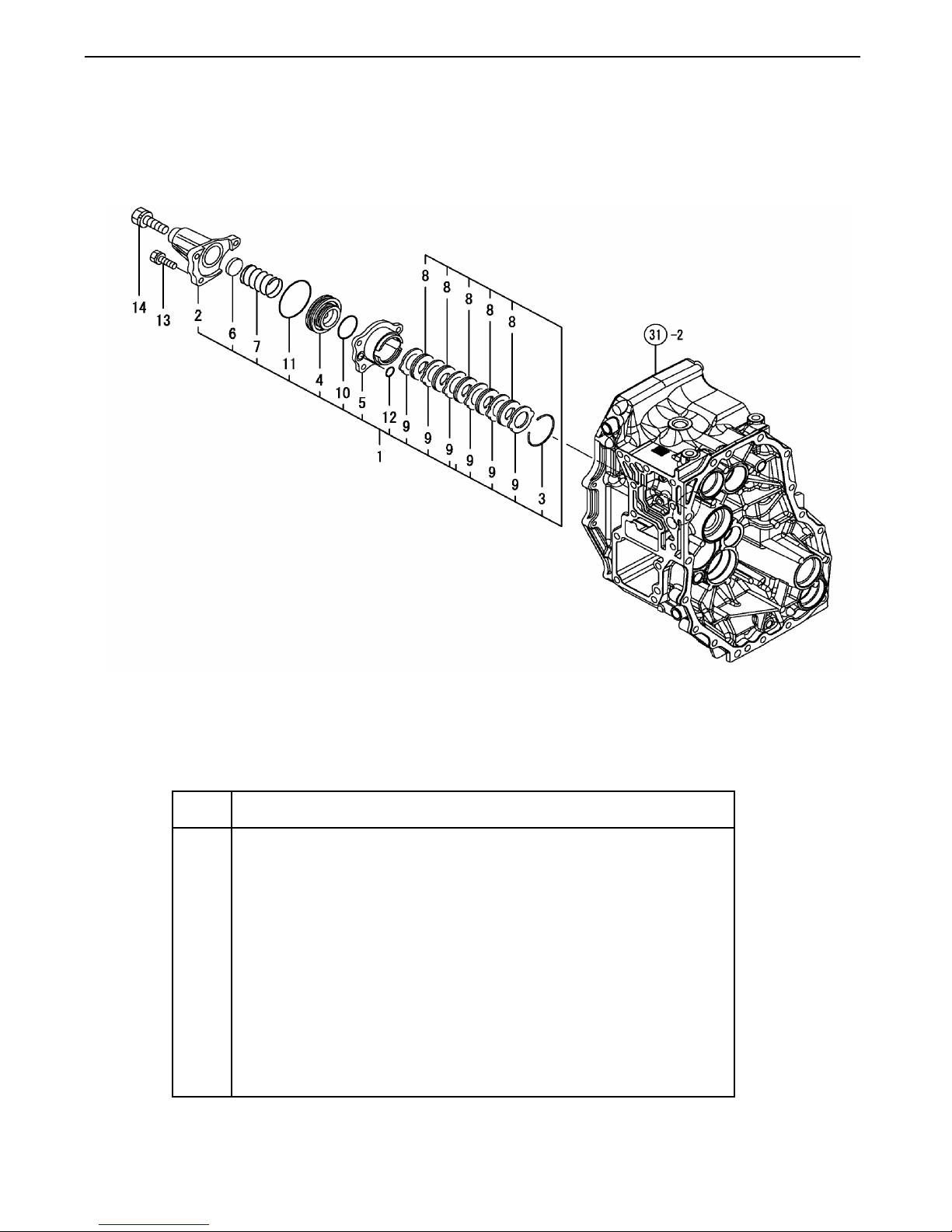

FIG. 41. INERTIA BRAKE

PART NUMBER DESCRIPTION QTY

1 CY-198167-26500 Case,Cmp Seal 1

3 CY-198167-26520 Clip 45 1

6 CY-198167-26550 Plate 1

9 CY-194850-26720 Plate 1.2, Steel 6

12 CY-24341-000120 O-Ring 1A S-12.0 1

Sx Series

REF

1 CY-198421-27110 Spring 38.4 1

2 CY-1A7530-27410 Lever Cmp 1

4 CY-198167-27490 Holder,Switch 1

5 CY-198167-27521 Fork,Shift Renge 1

7 CY-1A7530-27610 Shaft, Range Fork 1

8 CY-194197-27681 Plate, Keep 1

10 CY-22312-080180 Parallel Pin, M8X16 1

12 CY-22351-060025 Spring Pin 6X25 1

13 CY-22351-060032 Spring Pin 6X32 1

15 CY-24311-000125 O-Ring 1A P-12.5 1

16 CY-24311-000140 O-Ring 1A P-14.0 1

18 CY-26106-100252 Bolt M10X 25 Plated 1

91

Sx3100

FIG. 42. RANGE SHIFT

NO.

PART NUMBER DESCRIPTION QTY

3 CY-198167-27480 Pin,Switch Renge 1

6 CY-198167275301 Arm,Cmp Shift 1

9 CY-22190-100000 Seal Washer 10(Bolt) 1

11 CY-22351-035032 Spring Pin 3.5X32 1

14 CY-24190-100003 Ball 5/16, Steel 1

17 CY-26016-080352 Bolt M 8X 35 1

Sx Series

92

Sx3100

FIG. 43. PTO CHANGE

Sx Series

REF

NO.

1 CY-198421-27110 Spring 38.4 1

3 CY-1A7530-27720 Shaft, Pto Fork 1

4 CY-198167-27730 Fork,Pto Shift 1

6 CY-198167-27770 Shaft,Pto Shift 1

7 CY-198167-27780 Arm,Pto Shift 1

9 CY-198165-27820 Pin,Switch Pto 1

11 CY-1A7530-27870 Lever Cmp, Pto 1

12 CY-198167-27930 Bracket,Pto Lever 1

14 CY-22137-180000 Washer 18 2

15 CY-22190-100000 Seal Washer 10(Bolt) 1

17 CY-22272-000150 Circlip E-15 1

18 CY-22351-035032 Spring Pin 3.5X32 1

20 CY-22351-060032 Spring Pin 6X32 1

22 CY-24311-000125 O-Ring 1A P-12.5 1

23 CY-24311-000180 O-Ring 1A P-18.0 1

25 CY-26016-080202 Bolt M 8X 20 1

26 CY-26106-100252 Bolt M10X 25 Plated 1

93

Sx3100

FIG. 4. PTO CHANGE

PART NUMBER DESCRIPTION QTY

2 CY-194197-27681 Plate, Keep 1

5 CY-198165-27750 Holder M20,Switch 1

8 CY-198167-27810 Arm,Cmp Pto Shift 1

10 CY-1A7530-27850 Shift, Pto Shift 1

13 CY-1C6281-52320 Pin 8,Come-Off Snap 2

16 CY-22242-000170 Circlip 17 1

19 CY-22351-060020 Spring Pin 6X20 1

21 CY-24190-100003 Ball 5/16, Steel 1

24 CY-26013-080252 Bolt M 8X 25 2

Sx Series

94

Sx3100

FIG. 44. FRONT DRIVE

Sx Series

REF

NO.

1 CY-1A7530-27650 Stay Cmp, 4Wd Switch 1

3 CY-1A7540-28220 Gear, Idle Mfwd 1

4 CY-194311-28230 Spring 21.2 1

6 CY-198167-28240 Gear,Driven Mfwd 1

7 CY-1A7530-28250 Shaft, Mfwd Drive 1

9 CY-1A7530-28280 Collar, 30X38X30.7 1

11 CY-198167-28310 Arm,Cmp Shift 4Wd 1

12 CY-198165-28330 Brock,Shift 1

14 CY-1E6190-54080 Sleeve Si25X30X13 1

15 CY-22242-000290 Circlip 29 2

17 CY-22252-000550 Circlip 55 1

18 CY-24101-060054 Ball Bearing 6005 1

20 CY-24190-080001 Ball 1/4, Steel 2

22 CY-26016-080202 Bolt M 8X 20 1

95

Sx3100

FIG. 44. FRONT DRIVE

PART NUMBER DESCRIPTION QTY

2 CY-198167-28210 Gear,Drive Mfwd 1

5 CY-198165-28240 Collar,Shift Front 1

8 CY-1A7530-28270 Collar, 25.4X30X14.8 1

10 CY-1A7530-28290 Shaft, Front Drive 1

13 CY-1A7540-28880 Bearing, 283516 1

16 CY-22252-000470 Circlip 47(H) 1

19 CY-24104-060064 Ball Bearing 2

21 CY-24311-000125 O-Ring 1A P-12.5 1

Sx Series

96

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Sx Series

REF

NO.

2 CY-22351-035032 Spring Pin 3.5X32 1

97

Sx3100

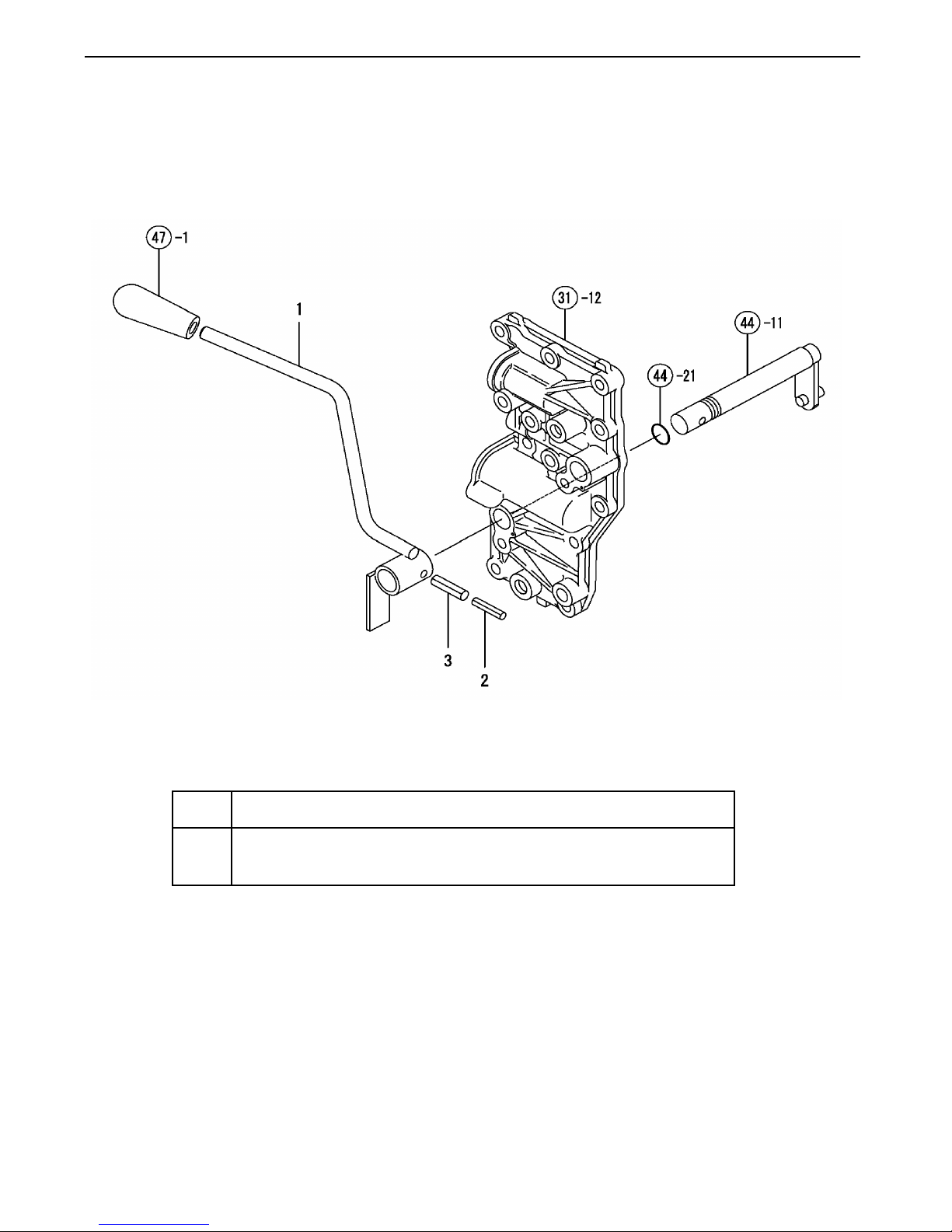

FIG. 45. FRONT SHIFT

PART NUMBER DESCRIPTION QTY

1 CY-1A7530-28351 Lever, 4Wd 1

3 CY-22351-060032 Spring Pin 6X32 1

Sx Series

REF

NO.

98

Sx3100

FIG. 46. HST CONTROL 1

PART NUMBER DESCRIPTION QTY

Sx Series

REF

NO.

1 CY-1A7530-24450 Cover Assy, Side R 1

3 CY-194180-25930 Washer 12X27X4.5 1

4 CY-1A7530-27510 Spring, Return 1

6 CY-1A7530-27550 Stay Cmp, Absorber 1

7 CY-1A7530-27570 Washer, 35X47X2 2

9 CY-1A7530-28800 Plate, Swash 1

11 CY-1E1270-29701 Support 1

12 CY-22137-120000 Washer 12,Polished 1

14 CY-24311-240100 O-Ring 1A P-10A 1

15 CY-24421-355008 Seal Tc35 50 08, Oil 1

17 CY-26016-080202 Bolt M 8X 20 1

18 CY-26016-080402 Bolt M 8X 40 9

20 CY-26018-080252 Bolt M8X 25 1

22 CY-26776-120002 Lock Nut M12 Plated 1

99

Sx3100

FIG. 46. HST CONTROL 1

PART NUMBER DESCRIPTION QTY

2 CY-1A7530-24470 Gasket, Side Cover R 1

5 CY-1A7530-27520 Fulcrum, N Center 1

8 CY-192157-27600 Control Arm Comp. 1

10 CY-1A7530-28850 Plate, Control Arm 1

13 CY-22312-080160 Parallel Pin 8X 16 2

16 CY-26016-080162 Bolt M 8X 16 1

19 CY-26016-120302 Bolt M12X 30 1

21 CY-26716-080002 Nut M 8 1

Sx Series

100

THIS PAGE INTENTIONALLY LEFT BLANK

Sx3100

Cub Cadet Yanmar Sx3100 Part List Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
