Cub cadet V46M User Manual

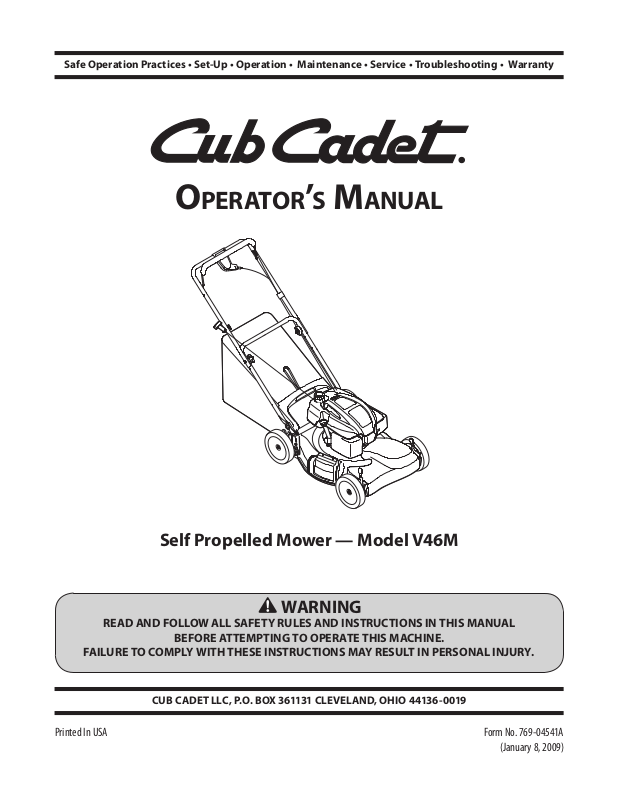

Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

Op e r a t O r ’s Ma n u a l

Self Propelled Mower — Model V46M

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Printed In USA

Form No. 769-04541A

(January 8, 2009)

To The Owner

Thank You

Thank you for purchasing a Lawn Mower manufactured by Cub
Cadet LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.

Please read this entire manual prior to operating the equipment.

It instructs you how to safely and easily set up, operate and

maintain your machine. Please be sure that you, and any other

persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.

All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,

its features and operation. Please be aware that this Operator’s

Table of Contents

Safe Operation Practices ........................................ 3

Assembly & Set-Up .................................................. 9

Controls & Features ................................................12

Operation ................................................................13

Maintenance & Adjustment..................................14

Service .....................................................................16

1

Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. Cub Cadet
LLC reserves the right to change product specifications, designs
and equipment without notice and without incurring obligation.

If you have any problems or questions concerning the machine,
phone your local Cub Cadet dealer or contact us directly. Cub

Cadet’s Customer Support telephone numbers, website address

and mailing address can be found on this page. We want to
ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the
machine are observed from the operating position

Troubleshooting .....................................................18

Engine Operation .................................................. 20

Engine Maintenance ............................................. 22

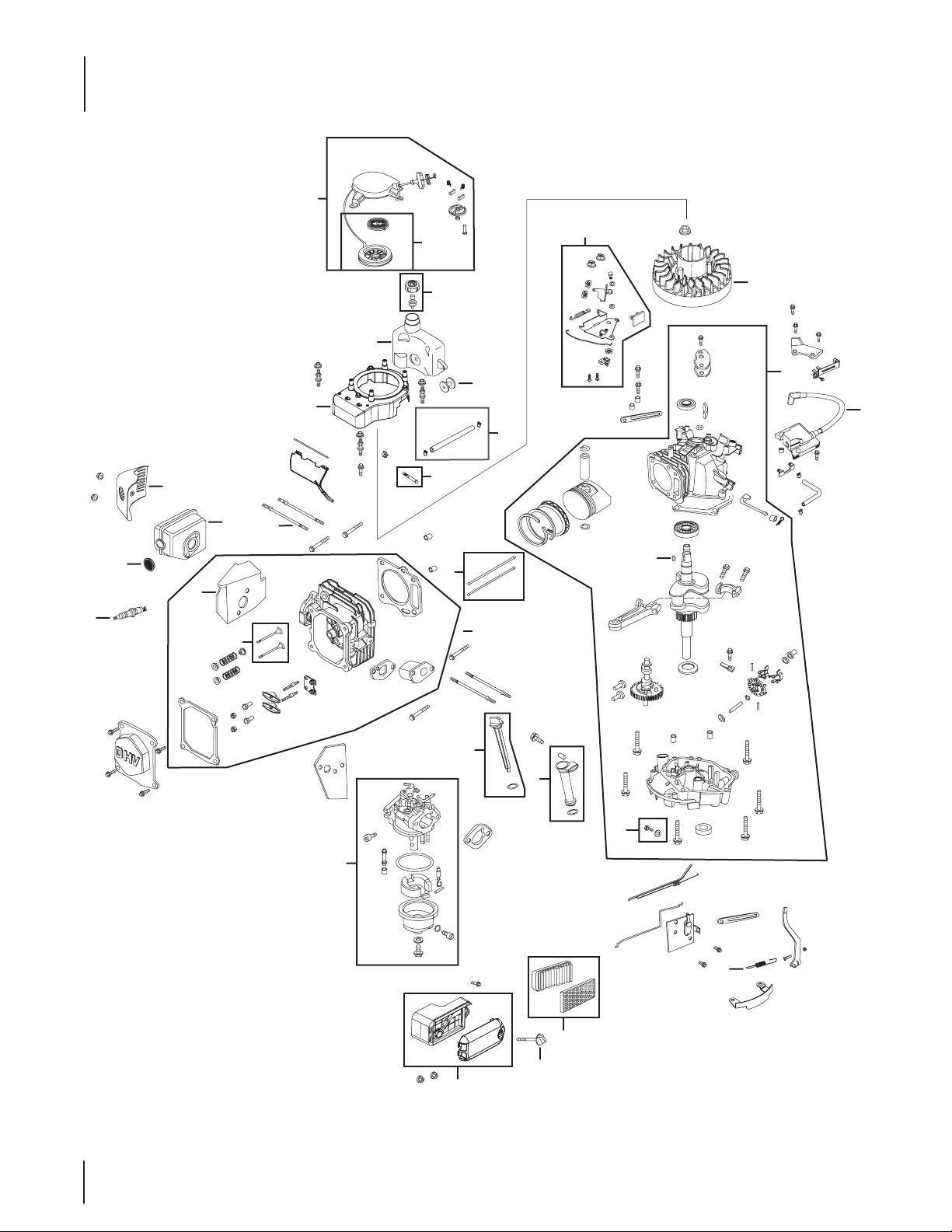

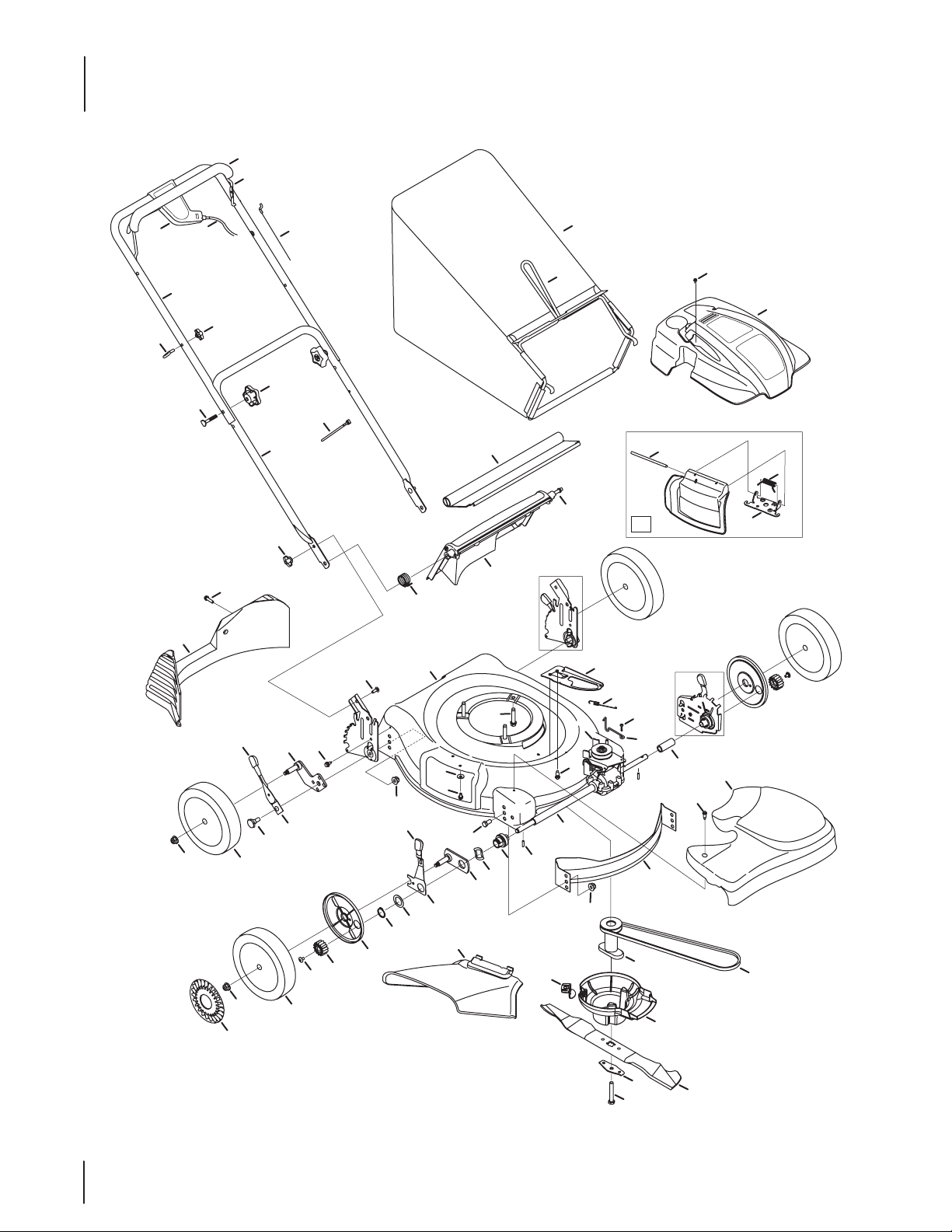

Illustrated Parts List .............................................. 28

Warranty ................................................................ 36

Record Product Information

Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator’s position and looking
down at the rear of the deck. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.

MO d e l nu M b e r

se r i a l nu M b e r

Customer Support

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:

Visit us on the web at www.cubcadet.com◊

Call a Customer Support Representative at (800) 965-4CUB◊

Locate your nearest Cub Cadet Dealer at [phone]◊

Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊

2

Important Safe Operation Practices

WARNING: This symbol points out important safety instructions which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!

CALIFORNIA PROPOSITION 65

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components

contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.

WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling.

DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing objects. Failure to observe the following safety instructions could
result in serious injury or death.

2

General Operation

Read this operator’s manual carefully in its entirety before 1.

attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manuals) before operation. Keep this manual in a safe
place for future and regular reference and for ordering
replacement parts

Be completely familiar with the controls and the proper use 2.
of this machine before operating it.

This machine is a precision piece of power equipment, 3.
not a plaything. Therefore, exercise extreme caution at all
times. This machine has been designed to perform one job:
to mow grass. Do not use it for any other purpose.

Never allow children under 14 years of age to operate this 4.
machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.

Only responsible individuals who are familiar with these 5.
rules of safe operation should be allowed to use this
machine.

Thoroughly inspect the area where the equipment is to be 6.
used. Remove all stones, sticks, wire, bones, toys and other
foreign objects, which could be tripped over or picked up
and thrown by the blade. Thrown objects can cause serious
personal injury.

Plan your mowing pattern to avoid discharge of material 7.
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction,
which may cause discharged material to ricochet back
toward the operator.

To help avoid blade contact or a thrown object injury, 8.
stay in operator zone behind handles and keep children,
bystanders, helpers and pets at least 75 feet from mower
while it is in operation. Stop machine if anyone enters area.

Always wear safety glasses or safety goggles during 9.
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.

Wear sturdy, rough-soled work shoes and close-fitting 10.
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or light­weight (e.g. canvas) shoes.

Do not put hands or feet near rotating parts or under the 11.
cutting deck. Contact with blade can amputate fingers,
hands, toes and feet.

3

A missing or damaged discharge cover can cause blade 12.
contact or thrown object injuries.

Many injuries occur as a result of the mower being pulled 13.
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.

Never pull the mower back toward you while you are 14.
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping
and then follow these steps:

Step back from mower to fully extend your arms.a.

Be sure you are well balanced with sure footing.b.

Pull the mower back slowly, no more than half way c.
toward you.

Repeat these steps as needed.d.

Do not operate the mower while under the influence of 15.
alcohol or drugs.

Do not engage the self-propelled mechanism on machines 16.
so equipped while starting engine.

The blade control handle is a safety device. Never attempt 17.
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating blade. The blade control handle
must operate easily in both directions and automatically
return to the disengaged position when released.

Never operate the mower in wet grass. Always be sure of 18.
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.

Mow only in daylight or good artificial light. Walk, never 19.
run.

Stop the blade when crossing gravel drives, walks or roads.20.

If the equipment should start to vibrate abnormally, stop 21.
the engine and check immediately for the cause. Vibration
is generally a warning of trouble.

Shut the engine off and wait until the blade comes to 22.
a complete stop before removing the grass catcher or
unclogging the chute. The cutting blade continues to
rotate for a few seconds after the blade control is released.
Never place any part of the body in the blade area until you
are sure the blade has stopped rotating.

Never operate mower without proper trail shield, discharge 23.
cover, grass catcher, blade control handle or other safety
protective devices in place and working. Never operate
mower with damaged safety devices. Failure to do so can
result in personal injury.

Muffler and engine become hot and can cause a burn. Do 24.
not touch.

Never attempt to make a wheel or cutting height 25.
adjustment while the engine is running.

Only use parts and accessories made for this machine by 26.
the manufacturer. Failure to do so can result in personal
injury.

When starting engine, pull cord slowly until resistance 27.
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.

If situations occur which are not covered in this manual, 28.
use care and good judgement. Contact Customer Support
for assistance or the name of the nearest service dealer.

Slope Operation

Slopes are a major factor related to slip and fall accidents, which

can result in severe injury. Operation on slopes requires extra

caution. If you feel uneasy on a slope, do not mow it. For your
safety, use the slope gauge included as part of this manual to
measure slopes before operating this machine on a sloped or

hilly area. If the slope is greater than 15 degrees, do not mow it.

Do:

Mow across the face of slopes; never up and down. Exercise 1.
extreme caution when changing direction on slopes.

Watch for holes, ruts, rocks, hidden objects, or bumps 2.
which can cause you to slip or trip. Tall grass can hide
obstacles.

Always be sure of your footing. A slip and fall can cause 3.
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately and

the blade will stop rotating within three (3) seconds.

Do Not:

Do not mow near drop-offs, ditches or embankments, you 1.
could lose your footing or balance.

Do not mow slopes greater than 15 degrees as shown on 2.
the slope gauge.

Do not mow on wet grass. Unstable footing could cause 3.
slipping.

Children

Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the mower
and the mowing activity. They do not understand the dangers.
Never assume that children will remain where you last saw them.

Keep children out of the mowing area and under watchful 1.
care of a responsible adult other than the operator.

Be alert and turn mower off if a child enters the area.2.

Before and while moving backwards, look behind and 3.
down for small children.

Use extreme care when approaching blind corners, 4.
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.

Keep children away from hot or running engines. They can 5.
suffer burns from a hot muffler.

Never allow children under 14 years of age to operate this 6.
machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.

4 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s

Service

Safe Handling Of Gasoline:

To avoid personal injury or property damage use extreme 1.
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes,
which can ignite. Wash your skin and change clothes
immediately.

Use only an approved gasoline container.2.

Never fill containers inside a vehicle or on a truck or trailer 3.
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.

Remove gas-powered equipment from the truck or 4.
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.

Keep the nozzle in contact with the rim of the fuel tank or 5.
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.

Extinguish all cigarettes, cigars, pipes and other sources 6.
of ignition.

Never fuel machine indoors because flammable vapors will 7.
accumulate in the area.

Never remove gas cap or add fuel while engine is hot or 8.
running. Allow engine to cool at least two minutes before
refueling.

Never over fill fuel tank. Fill tank to no more than 1 inch 9.
below bottom of filler neck to provide for fuel expansion.

Replace gasoline cap and tighten securely.10.

If gasoline is spilled, wipe it off the engine and equipment. 11.
Move machine to another area. Wait 5 minutes before
starting engine.

Never store the machine or fuel container near an open 12.
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.

To reduce fire hazard, keep machine free of grass, leaves, 13.
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.

Allow machine to cool at least 5 minutes before storing.14.

General Service:

Never run an engine indoors or in a poorly ventilated area. 1.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.

Before cleaning, repairing, or inspecting, make certain the 2.
blade and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.

Check the blade and engine mounting bolts at frequent 3.
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, worn) Replace blade with

the original equipment manufacture’s (O.E.M.) blade only,

listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”

Mower blades are sharp and can cut. Wrap the blade or 4.
wear gloves, and use extra caution when servicing them.

Keep all nuts, bolts, and screws tight to be sure the 5.
equipment is in safe working condition.

Never tamper with safety devices. Check their proper 6.
operation regularly.

After striking a foreign object, stop the engine, disconnect 7.
the spark plug wire and ground against the engine.
Thoroughly inspect the mower for any damage. Repair the
damage before starting and operating the mower.

Never attempt to make a wheel or cutting height 8.
adjustment while the engine is running.

Grass catcher components, discharge cover, and trail shield 9.
are subject to wear and damage which could expose
moving parts or allow objects to be thrown. For safety
protection, frequently check components and replace

immediately with original equipment manufacturer’s
(O.E.M.) parts only, listed in this manual. “Use of parts

which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”

Do not change the engine’s governor setting or over-speed 10.

the engine. The governor controls the maximum safe
operating speed of the engine.

Check fuel line, tank, cap, and fittings frequently for cracks 11.
or leaks. Replace if necessary.

Do not crank engine with spark plug removed.12.

Maintain or replace safety and instruction labels, as 13.
necessar y.

Observe proper disposal laws and regulations. Improper 14.

disposal of fluids and materials can harm the environment.

According to the Consumer Products Safety Commission 15.
(CPSC) and the U.S. Environmental Protection Agency (EPA),

this product has an Average Useful Life of seven (7) years,

or 140 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized

service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.

Do not modify engine

To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.

5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s

Notice Regarding Emissions

Engines which are certified to comply with California and federal

EPA emission regulations for SORE (Small Off Road Equipment)

are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine

Modification (EM), Oxidizing Catalyst (OC), Secondary Air

Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

Spark Arrestor

WARNING: This machine is equipped with an

internal combustion engine and should not be used
on or near any unimproved forest-covered, brush

covered or grass-covered land unless the engine’s

exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).

If a spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the

above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws

apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service

department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

6 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s

Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.

Symbol Description

READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate

DANGER — ROTATING BLADES
To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover
or grass catcher is in its proper place. If damaged, replace immediately.

DANGER — BYSTANDERS
Do not mow when children or others are around.

DANGER — HAND/ FOOT CUT
Keep hands and feet away from rotating parts.

DANGER — THROWN DEBRIS
Remove objects that can be thrown by the blade in any direction. Wear safety glasses.

DANGER — SLOPES
Use extra caution on slopes. Do not mow slopes greater than 15°.

WARNING—GASOLINE IS FLAMMABLE

Allow the engine to cool at least two minutes before refueling.

WARNING— CARBON MONOXIDE

Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.

WARNING— HOT SURFACE
Engine parts, especially the muffler, become extremely hot during operation. Allow engine
and muffler to cool before touching.

WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand and

follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS!

7se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s

Sight and hold this level with a vertical tree...

or a corner of a building...

or a fence post

Fold along dotted line (represents a 15° slope)

15°

8 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s

WARNING: Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees

(a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. Operate riding

mowers up and down slopes, never across the face of slopes. Operate walk-behind mowers across the face of slopes, never

up and down slopes.

Use this page as a guide to determine slopes where you may not operate safely.

Assembly & Set-Up

A

B

Handle Hardware

Wing Nuts (2)

Carriage Bolts (2)

Contents of Carton

One Lawn Mower• One Lawn Mower Operator’s Manual• One Bottle of Oil•

One Grass Catcher• One Side Discharge Chute•

3

Assembly

NOTE: This unit is shipped without gasoline or oil in the engine.

Fill up gasoline and oil as instructed in the Engine Operation
section BEFORE operating your mower.

Handle

Remove any packing material which may be between 1.
upper and lower handles.

Pull up and back on upper handle as shown in Fig. a.
3-1. Make certain the lower handle is seated securely

into the handle mounting brackets. Do not crimp
cable while lifting the handle up.

Insert a carriage bolt found in the manual bag into the 2.
upper hole on the handle mounting bracket. Secure with
one plastic wing nut, also included in the manual bag.

Repeat on other side with remaining hardware. See Fig. 3-2.

Figure 3-2

Figure 3-1

Tighten star knobs to secure upper handle to lower b.
handle. Make sure that each carriage bolt is seated
properly in the handle.

9

The rope guide is attached to the right side of the upper 3.

A

C

B

D

A

C

B

B

A

handle. See Fig. 3-3. Loosen the wing nut which secures the

rope guide.

Slip plastic channel of grass bag over hooks on the b.

frame. See Fig. 3-4. All the plastic channels except

center top of bag attach from outside of frame.

Figure 3-3

Hold blade control against upper handle.a.

Pull starter rope out of the engine. Release blade b.

control.

Slip starter rope into rope guide.c.

Tighten wing nut.d.

Insert post on cable tie into hole provided on the lower handle. 4.

Pull cable tie tight and trim excess.

Grass Catcher

Follow steps below to assemble the grass catcher. Make 1.
certain bag is turned right side out before assembling
(warning label will be on the outside).

Place bag over frame so that its black plastic side is a.
at the bottom.

Figure 3-4

Attach center top of bag from inside of frame.c.

Follow the steps below to attach the grass catcher:2.

Lift rear discharge door. See Fig. 3-5.a.

10 se c t i O n 3 — as s e M b l y & se t -up

Figure 3-5

Place grass catcher on the pivot rod. Let go of b.
discharge door so that it rests on the grass catcher.

WARNING: Never operate mower unless the hooks

on the grass catcher are firmly seated on the pivot
rod and the rear discharge door rests firmly against
top of the grass catcher.

Side Discharge Chute

1

2

3

1

2

Your mower is shipped as a mulcher. To convert to side discharge,
make sure grass catcher is off of the unit and rear discharge door
is closed.

On the side of the mower, lift the mulching plug. See Figure 1.
3-6.

Adjustments

Cutting Height

Each wheel has a height adjustment lever to change the cutting
height of the mower.

Depress height adjustment lever towards wheel.1.

Slide lever to desired position for a change in cutting 2.

height. See Fig. 3-7.

Figure 3-6

Slide two hooks of side discharge chute under hinge pin on 2.
mulching plug assembly. Lower the mulching plug. Do not
remove side mulching plug at any time, even when you are
not mulching.

Figure 3-7

Release lever towards deck.3.

IMPORTANT: All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
height adjustment lever to a higher position. This will stop
scalping of grass.

Se t-Up

Gas and Oil Fill-Up

Refer to the Engine Operation section in this manual for

additional engine information.

Add oil provided before starting unit for the first time out 1.
of the box.

Service the engine with gasoline as instructed in the 2.

Engine Operation section of this manual.

WARNING: Use extreme care when handling

gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.

11se c t i O n 3 — as s e M b l y & se t -up

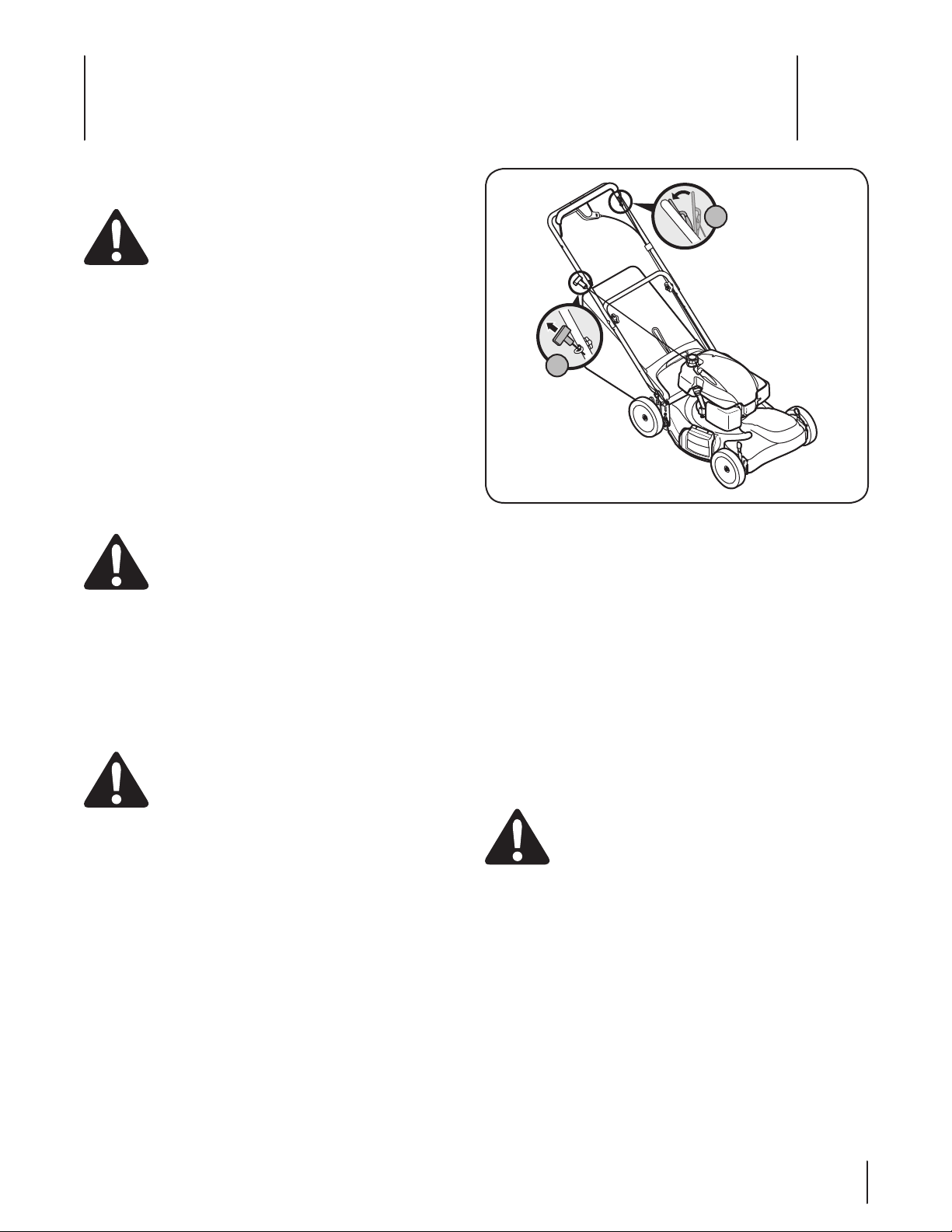

Controls and Features

Recoil Starter

Blade Control

Drive Control

Cutting Height

Adjustment Levers

Mulch Plug

Side Discharge

Chute

4

Figure 4-1

Blade Control

The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the upper handle to operate the
unit. Release it to stop engine and blade.

WARNING: This blade control is a safety device.

Never attempt to bypass its operations.

Drive Control

The drive control is located on top of the upper handle and is
used to engage the drive. Squeeze it against the upper handle
to engage the drive; release it to slow down or stop mower from
propelling.

Cutting Height Adjustment Levers

One adjustment lever is located on each wheel and is used to

adjust the cutting height. All four levers have to be at the same
relative position to ensure a uniform cut.

Mulch Plug

The mulch plug is used for mulching purposes. Instead of
collecting the grass clippings in a grass catcher or using the
side discharge chute, some mower models have the option
of recirculating the clippings back to the lawn. This is called
mulching.

Side Discharge Chute

Your mower is shipped as a mulcher. To discharge the grass
clippings to the side instead, follow the instructions in the
Assembly & Set-Up section to attach the side discharge chute.

WARNING: Keep hands and feet away from the

chute area on cutting deck. Refer to warning label
on the unit.

Recoil Starter

The recoil starter is attached to the right upper handle. Stand
behind the unit and pull the recoil starter rope to start the unit.

12

Operation

2

1

Starting Engine

WARNING: Be sure no one other than the operator

is standing near the lawn mower while starting
engine or operating mower. Never run engine
indoors or in enclosed, poorly ventilated areas.
Engine exhaust contains carbon monoxide, an
odorless and deadly gas. Keep hands, feet, hair and
loose clothing away from any moving parts on
engine and lawn mower.

Standing behind the mower, squeeze and hold the blade 1.
control against upper handle.

Pull the recoil starter lightly until resistance is felt, then pull 2.
rapidly to overcome compression, prevent kickback, and

start the engine. Repeat if necessary. See Fig. 5-1.

NOTE: Do not allow the recoil starter to snap back against
the rope guide.

Stopping Engine

Release blade control to stop the engine and blade.1.

WARNING: Wait for the blade to stop completely

before performing any work on the mower or to
remove the grass catcher.

Using Your Lawn Mower

Be sure lawn is clear of stones, sticks, wire, or other objects
which could damage lawn mower or engine. Such objects could
be accidently thrown by the mower in any direction and cause
serious personal injury to the operator and others.

Once the engine is running, squeeze the drive control 1.

against the upper handle to propel mower.

WARNING: The operation of any lawn mower can

result in foreign objects being thrown into the eyes,
which can damage your eyes severely. Always wear
safety glasses while operating the mower, or while
performing any adjustments or repairs on it.

Using as Mulcher

For mulching grass, remove the grass catcher and side discharge
chute from the mower. For effective mulching, do not cut wet
grass. If the grass has been allowed to grow in excess of four
inches, mulching is not recommended. Use the grass catcher to
bag clippings instead.

5

Figure 5-1

Using Grass Catcher

You can use the grass catcher to collect clippings while you are
operating the mower.

Attach grass catcher following instructions in the 1.
“Assembly & Set-Up” section. Grass clippings will

automatically collect in bag as you run mower. Operate

mower till grass bag is full.

Stop engine completely by releasing the blade control. 2.
Make sure that the unit has come to a complete stop.

Lift discharge door and pull grass bag up and away from 3.
the mower to remove the bag. Dispose of the grass
clippings and reinstall the bag when complete.

WARNING: If you strike a foreign object, stop the

engine. Remove wire from the spark plug,
thoroughly inspect mower for any damage, and
repair damage before restarting and operating.
Extensive vibration of mower during operation is an
indication of damage. The unit should be promptly
inspected and repaired.

13

Maintenance & Adjustments

6

Maintenance

General Recommendations

Always observe safety rules when performing any •
maintenance.

The warranty on this lawn mower does not cover items that •
have been subjected to operator abuse or negligence. To
receive full value from warranty, operator must maintain
the lawn mower as instructed here.

Changing of engine-governed speed will void engine •
warranty.

All adjustments should be checked at least once each •
season.

Periodically check all fasteners and make sure these are •

tight.

WARNING: Always stop engine, disconnect spark

plug, and ground against engine before performing
any type of maintenance on your machine.

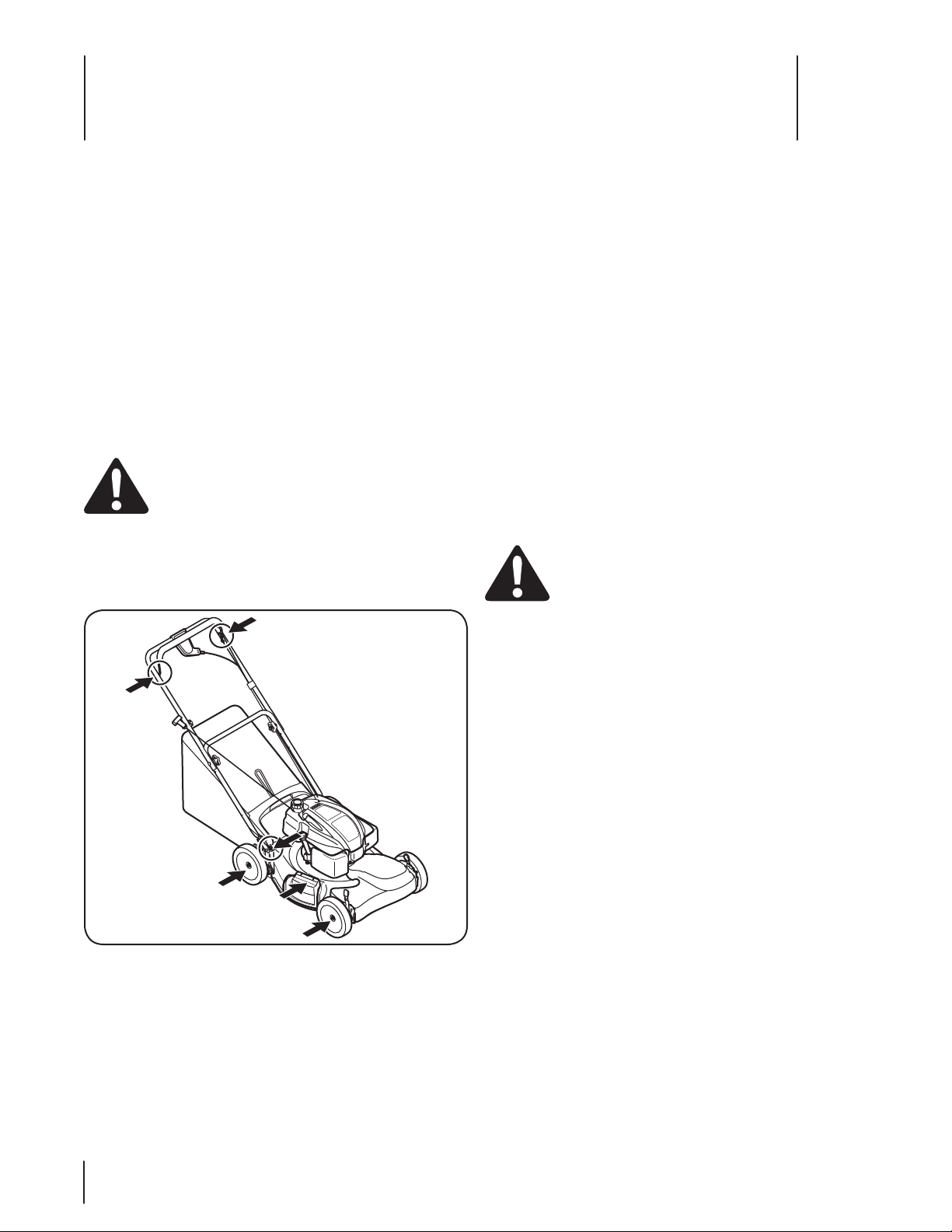

Lubrication

Lubricate pivot points on the blade and drive controls 1.
at least once a season with light oil. These controls must

operate freely in both directions. See Fig. 6-1.

Lubricate the wheels at least once a season with light oil (or 2.
motor oil). If wheels are removed for any reason, lubricate
surface of the pivot arm and inner surface of the wheel

with light oil. See Fig. 6-1.

Lubricate the torsion spring and pivot points on the rear 3.
discharge door and side mulch plug periodically with light

oil to prevent rust. See Fig. 6-1.

The transmission is pre-lubricated and sealed at the factory 4.
and does not require lubrication.

Follow the Engine Maintenance section for lubrication 5.
schedule and instruction for engine lubrication.

Deck Care

Clean underside of the mower deck after each use to prevent
build-up of grass clippings or other debris. Follow steps below
for this job.

Disconnect spark plug wire. Drain gasoline from lawn 1.
mower or place a piece of plastic under the gas cap.

Tip mower so that it rests on the housing. Keep the side 2.

with the air cleaner facing up. Hold mower firmly.

WARNING: Never tip the mower more than 90º in

any direction and do not leave the mower tipped for

any length of time. Oil can drain into the upper part

of the engine causing a starting problem.

3. Scrape and clean the underside of the deck with a suitable

tool. Do not spray with water.

IMPORTANT: Do not use a pressure washer or garden hose
to clean your unit. These may cause damage to bearings,
or the engine. The use of water will result in shortened life
and reduce serviceability.

4. Put the mower back on its wheels on the ground. If you

had put plastic under the gas cap earlier, make sure to
remove it now.

14

Figure 6-1

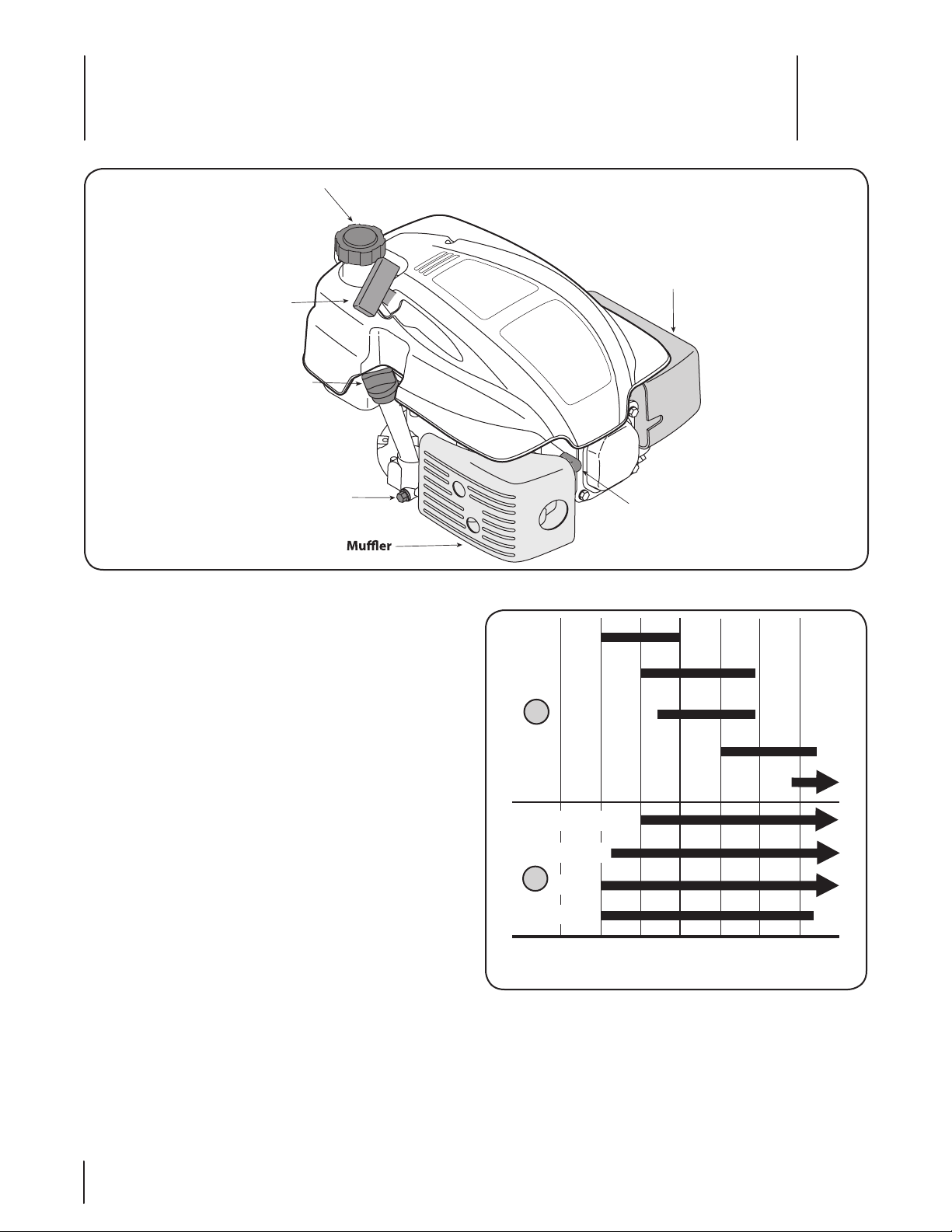

Engine Care

NOTE: Refer to the Engine Operation and Maintenance sections

in this manual for detailed instructions.

Maintain oil level.•

Service air cleaner every 25 hours under normal conditions. •
Clean every few hours under extremely dusty conditions.

Clean spark plug and reset the gap once a season.•

Clean engine regularly with a cloth or brush. Keep the area •
around the top of the engine clean to permit proper air
circulation. Remove all grass, dirt, and combustible debris
from muffler area.

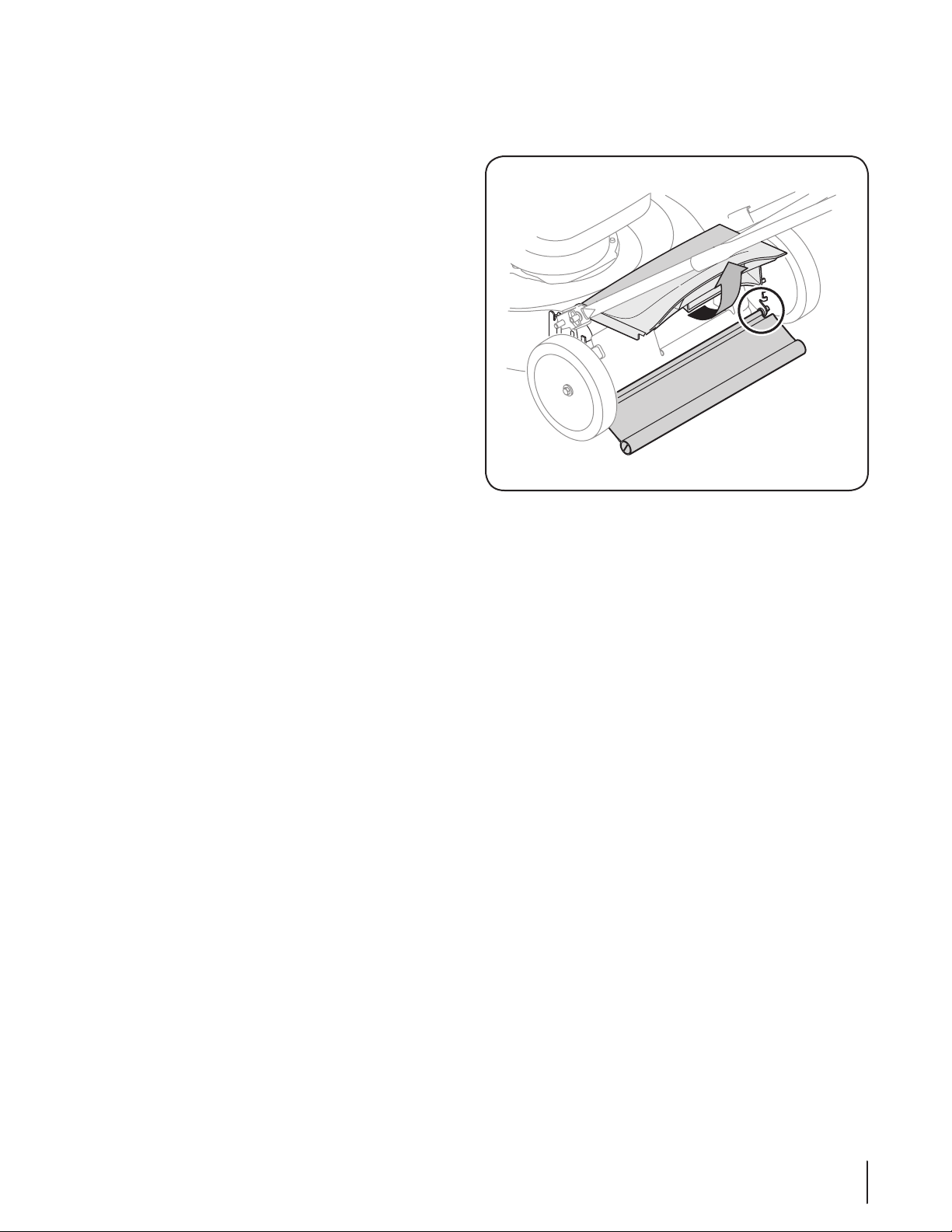

Replacing Rear Flap

To remove rear flap, lift rear door, and press flap in on 1.
either side to remove from hole. See Fig. 6-2.

Figure 6-2

Remove flap from opposite hole and replace with new flap 2.
in the opposite order and manner of removal.

15se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s

Service

A

B

C

Blade

Blade

Adapter

Bolt

Blade Bell

Support

7

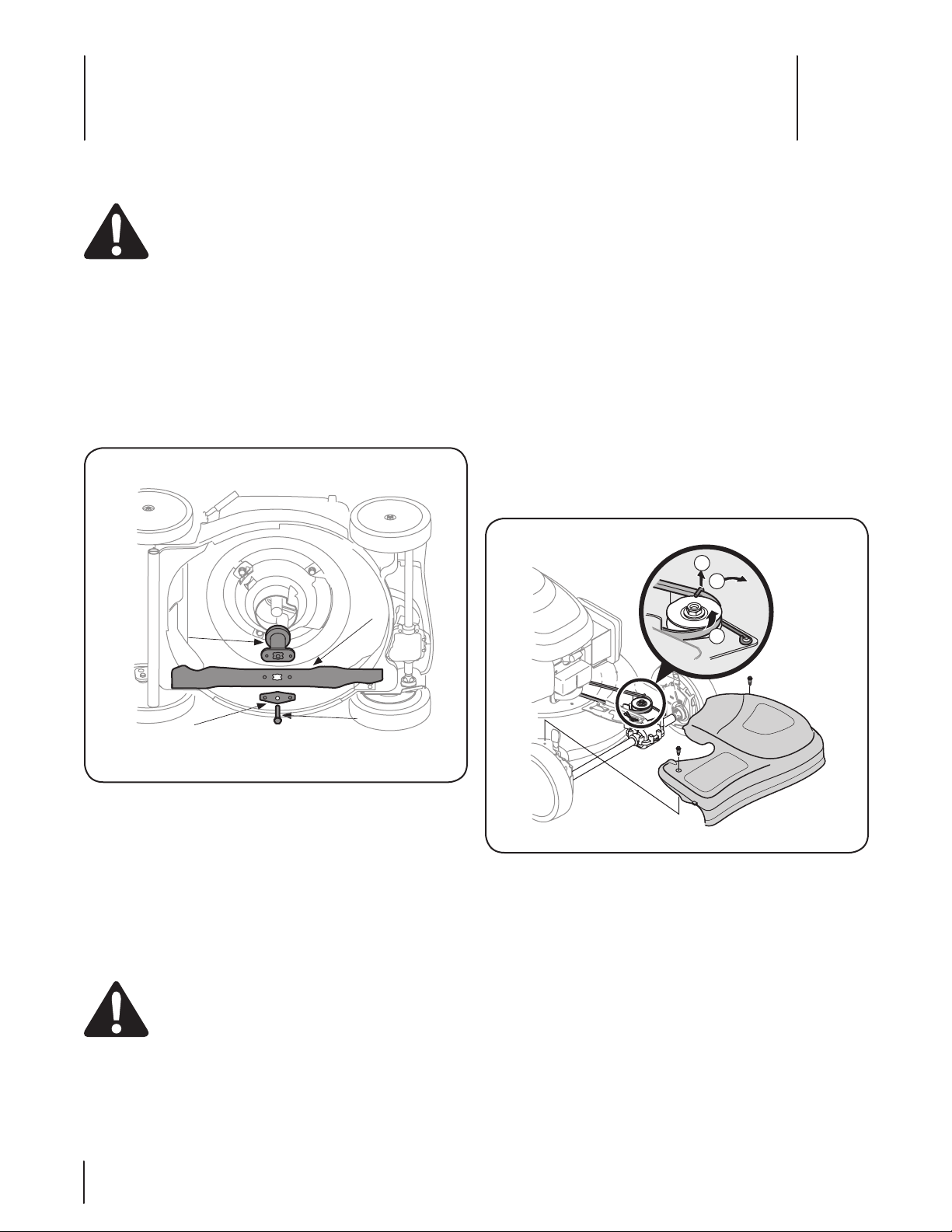

Blade Care

WARNING: When removing the cutting blade for

sharpening or replacement, protect your hands with
a pair of heavy gloves or use a heavy rag to hold the
blade.

Periodically inspect the blade adapter for cracks, especially if you

strike a foreign object. Replace when necessary. Follow the steps
below for blade service.

Disconnect spark plug boot from spark plug. Turn mower 1.
on its side making sure that the air filter and the carburetor
are facing up.

Remove the bolt and the blade bell support which hold the 2.
blade and the blade adapter to the engine crankshaft. See

Fig. 7-1.

5. Lubricate the engine crankshaft and the inner surface of
the blade adapter with light oil. Slide the blade adapter

onto the engine crankshaft. Place the blade on the adapter

such that the side of the blade marked “Bottom” (or with
part number) faces the ground when the mower is in the
operating position. Make sure that the blade is aligned and
seated on the blade adapter flanges.

6. Place blade bell support on the blade. Align notches on the

blade bell support with small holes in blade.

7. Replace hex bolt and tighten hex bolt to torque: 450 in. lbs.
min., 600 in. lbs. max.

To ensure safe operation of your mower, periodically check the
blade bolt for correct torque.

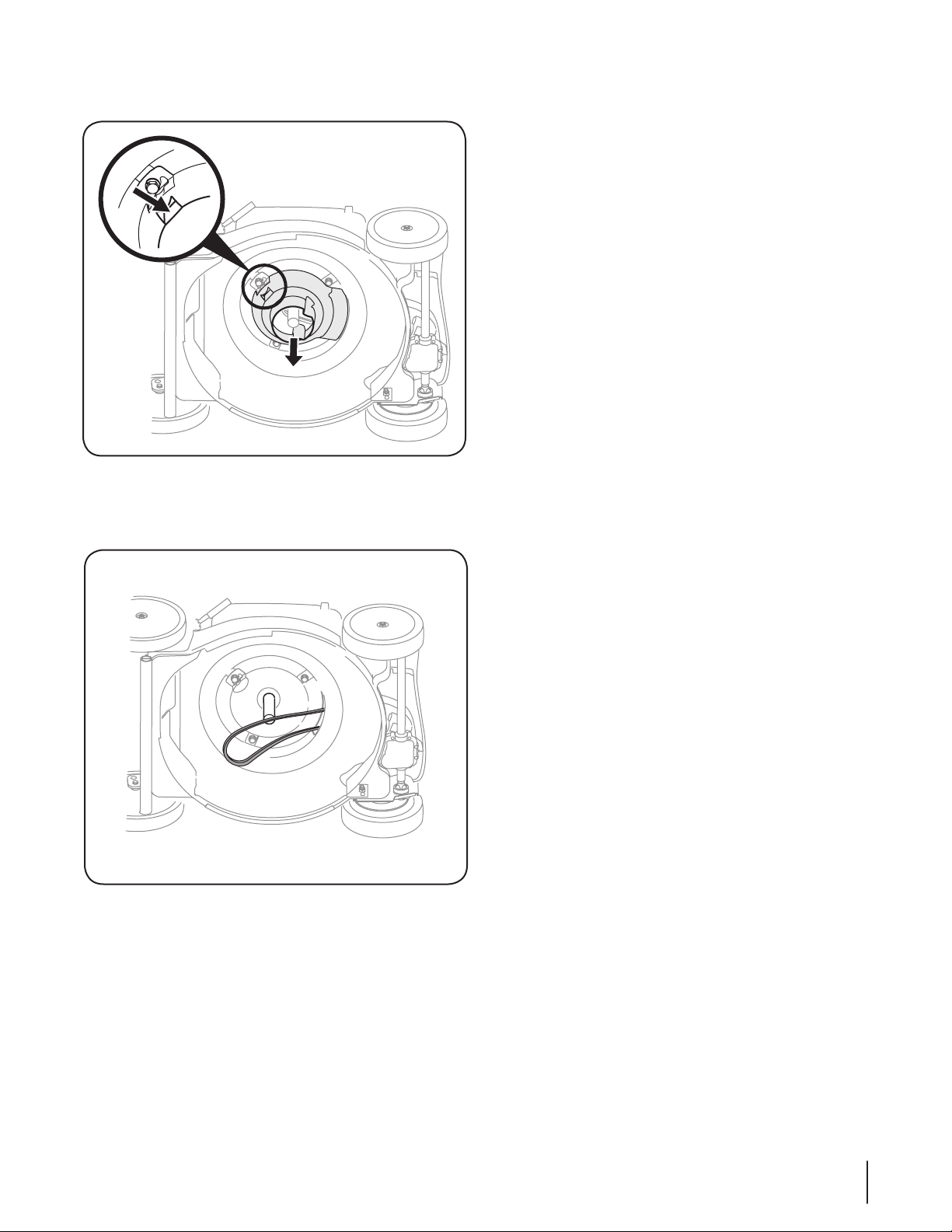

Belt Care

Remove two shoulder screws securing front drive cover to 1.
mower deck. See Figure 7-2. Press inward on sides of front

drive cover and release tabs that secure it to the height
adjuster brackets. Remove drive cover from mower.

16

Figure 7-1

Remove blade and adapter from the crankshaft. See Fig. 3.
7-1.

Remove blade from the adapter for testing balance. 4.
Balance the blade on a round shaft screwdriver to check.
Remove metal from the heavy side until it balances evenly.
When sharpening the blade, follow the original angle of
grind. Grind each cutting edge equally to keep the blade
balanced.

WARNING: An unbalanced blade will cause

excessive vibration when rotating at high speeds. It
may cause damage to mower and could break
causing personal injury.

Figure 7-2

Pull up on the belt keeper wire.a.

Pivot it out away from the drive pulley. See Figure b.

7-2 inset.

Roll the belt off the transmission pulley.c.

Tip mower on its side with the air filter up to access belt 2.
from underside of mower and remove blade as described

in the previous section. Refer to Fig. 7-1.

Press inward on tab on the engine baffle to release it from 3.
the baffle bracket. See Fig. 7-3.

Figure 7-3

Slide belt off of engine pulley and thread through the 4.
opening in the deck. See Figure 7-4.

Replace with new belt, making sure belt is firmly seated on 5.
engine pulley while pulling from the other side and sliding
it around the transmission pulley.

Reattach engine baffle and reassemble blade as described 6.
in the previous section.

Turn mower back over and make sure belt is seated on the 7.

transmission pulley. Pivot the belt keeper wire back into its

operating position and snap into the slot provided.

Reassemble front drive cover.8.

Off-Season Storage

The following steps should be taken to prepare your lawn mower
for storage.

Clean and lubricate mower thoroughly as described in the •
lubrication instructions.

Do not use a pressure washer or garden hose to clean your •
unit.

Coat mower’s cutting blade with chassis grease to prevent •

rusting.

Refer to Engine Maintenance section for correct engine •
storage instructions.

Store mower in a dry, clean area. Do not store next to •
corrosive materials, such as fertilizer.

When storing any type of power equipment in a poorly
ventilated or metal storage shed, care should be taken to
rust-proof the equipment. Using a light oil or silicone, coat the
equipment, especially cables and all moving parts of your lawn
mower before storage.

Figure 7-4

17se c t i O n 7 — se r v i c e

Troubleshooting

Problem Cause Remedy

8

Engine Fails to start Blade control disengaged.1.

Engine runs erratic Spark plug boot loose.1.

Engine overheats Engine oil level low.1.

Spark plug boot disconnected.2.

Fuel tank empty or stale fuel.3.

Engine not primed (if equipped with primer). 4.

Faulty spark plug.5.

Blocked fuel line.6.

Engine flooded. 7.

Fuel valve (if equipped) closed.8.

Engine not choked (if equipped with choke).9.

Burnt fuse. (Electric Start only)10.

Blocked fuel line or stale fuel. 2.

Vent in gas cap plugged.3.

Water or dirt in fuel system.4.

Dirty air cleaner.5.

Unit running with CHOKE (if equipped) 6.
applied.

Air flow restricted.2.

Engage blade control.1.

Connect wire to spark boot.2.

Fill tank with clean, fresh gasoline.3.

Prime engine as instructed in the Operation 4.
section.

Clean, adjust gap, or replace.5.

Clean fuel line.6.

Wait a few minutes to restart, but do not 7.
prime.

Open fuel valve. See engine manual.8.

Choke engine. See engine manual.9.

Replace fuse (see Service Section).10.

Connect and tighten spark plug boot.1.

Clean fuel line; fill tank with clean, fresh 2.
gasoline.

Clear vent.3.

Drain fuel tank. Refill with fresh fuel.4.

Refer to engine manual.5.

Push CHOKE knob in.6.

Fill crankcase with proper oil.1.

Clean area around and on top of engine.2.

Occasional skips

(hesitates) at
high speed

Idles poorly Spark plug fouled, faulty, or gap too wide.1.

Excessive Vibration Cutting blade loose or unbalanced.1.

Mower will not
mulch grass

18

Spark plug gap too close.1. Adjust gap to .030”.1.

Dirty air cleaner.2.

Bent cutting blade.2.

Wet grass. 1.

Excessively high grass. 2.

Dull blade.3.

Reset gap to .030” or replace spark plug.1.

Refer to engine manual.2.

Tighten blade and adapter. Balance blade.1.

See an authorized service dealer.2.

Do not mow when grass is wet; wait until 1.
later to cut.

Mow once at a high cutting height, then 2.
mow again at desired height or make a
narrower cutting path.

Sharpen or replace blade.3.

Continued on next page

Problem Cause Remedy

Uneven cut Wheels not positioned correctly. 1.

Mower will not self propel Belt not installed properly. 1.

Place all four wheels in same height position 1.
(if equipped with individual height adjusters).

Dull blade.2.

Debris clogging drive operation. 2.

Damaged or worn belt.3.

Sharpen or replace blade.2.

Check belt for proper pulley installation and 1.
movement.

Stop engine, disconnect spark plug boot, 2.
and clean out debris.

Inspect and replace belt.3.

19se c t i O n 8 — tr O u b l e s h O O t i n g

Engine Operation

-30º -20º

10w

20w

20

30

40

20w40, 20w50

15w40, 15w50

10w40

10w30

-10º 0º

0º 20º 40º 60º 80º 100º

10º 20º 30º 40º

-20º

(ºC)
(ºF)

1

2

Fuel Cap

Air Cleaner

Spark Plug

Oil Drain

Oil Fill

Cap

Starter

Grip

9

Pre-Operation Check

Oil Recommendations

NOTE: This engine is shipped without gasoline or oil in the
engine. Running the engine with insufficient oil can cause
serious engine damage and void the engine warranty.

Use a 4-stroke, or an equivalent high detergent, premium
quality motor oil certified to meet or exceed U.S. automobile

manufacturer’s requirements for service classification SG/SF.

Motor oils classified SG/SF will show this designation on the
container.

SAE 10W-30 is recommended for general, all temperature use. If

single viscosity oil is used, select the appropriate viscosity for the
average temperature in your area from the chart to the right.

Before starting engine, fill with oil. Do not over-fill. Oil •

capacity is about 20 oz.

Figure 9-1

Ambient Temperature

Single Viscosity1.

Multi Viscosity2.

NOTE: Using non detergent oil or 2-stroke engine oil could

shorten the engine’s service life.

20

2

1

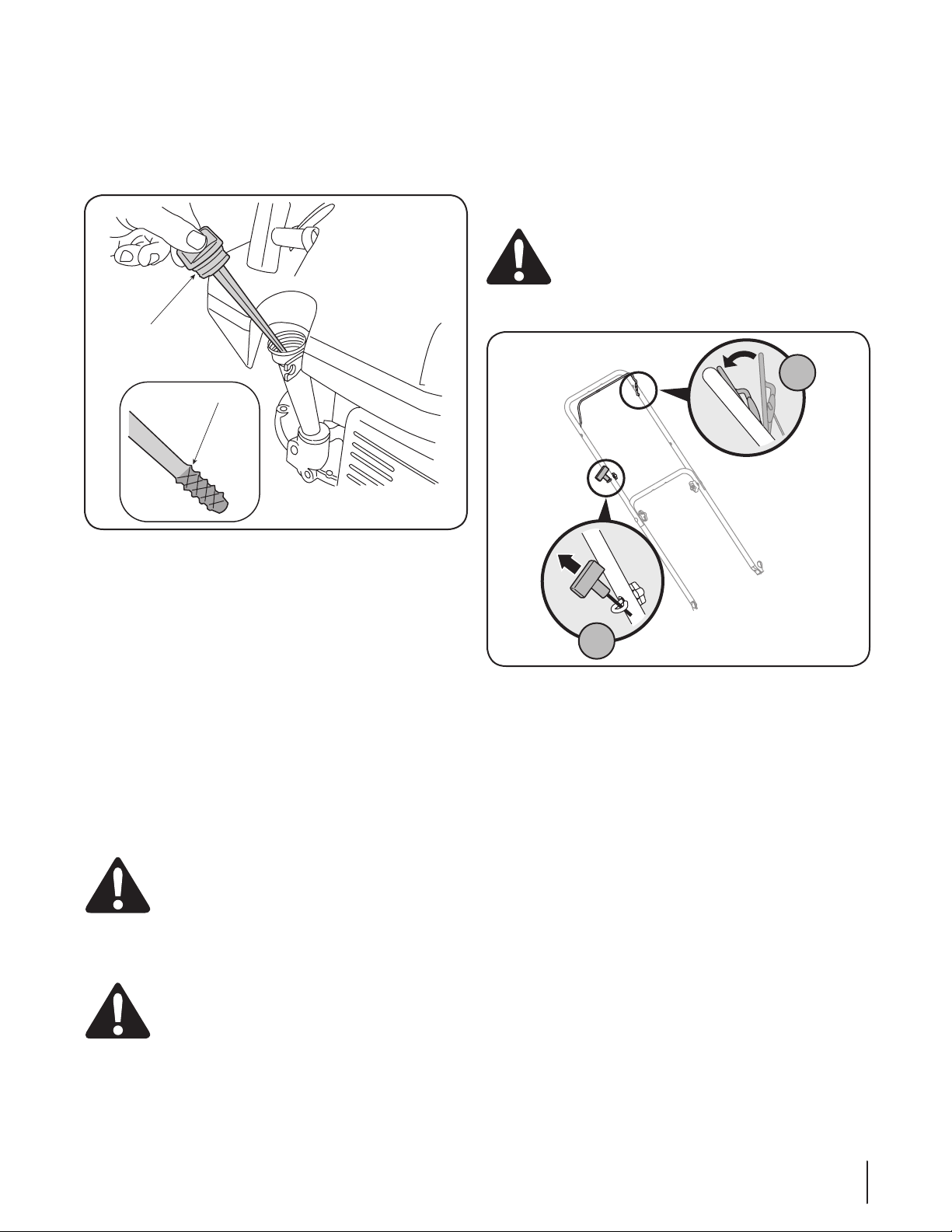

Check Oil Level

Oil Fill Cap/
Dipstick

Upper Level

NOTE: Be sure to check the engine on a level surface with the
engine stopped.

Remove the oil filler cap and wipe the dipstick clean. See 1.
Fig. 9-2.

Check Fuel Level

Clean around fuel fill before removing cap to fuel.1.

Fill tank to approximately 1-inch below lowest portion of 2.

neck to allow for fuel expansion. Be careful not to overfill.

NOTE: Before refueling, allow engine to cool 2 minutes.

Starting The Engine

WARNING: Always keep hands and feet clear of

equipment moving parts. Do not use a pressurized
starting fluid. Vapors are flammable.

Standing behind the mower, depress the blade control 1.

handle and hold it against the upper handle. See Fig. 9-3.

Figure 9-2

Insert the dipstick into the oil filler neck, but do not screw it in.2.

If the level is low, slowly add oil to the upper limit on the 3.
dipstick. See Fig. 9-2 inset.

Tighten dipstick firmly before starting engine.4.

NOTE: Do not overfill. Overfilling with oil may cause

smoking, hard starting, spark plug fouling, or oil saturation
of air cleaner.

Fuel Recommendations

Use automotive gasoline (unleaded or low leaded to minimize
combustion chamber deposits) with a minimum of 87 octane.

Gasoline with up to 10% ethanol or 15% MTBE (Methyl Tertiary

Butyl Ether) can be used. Never use an oil/gasoline mixture, dirty

gasoline, or gasoline over 30 days old. Avoid getting dirt, dust, or

water in the fuel tank. DO NOT USE E85 GASOLINE.

WARNING: Gasoline is extremely flammable and is

explosive under certain conditions. Refuel in a well­ventilated area with the engine stopped. Do not
smoke or allow flames or sparks in the area where
the engine is refueled or where gasoline is stored.
Avoid repeated or prolonged contact with skin or
breathing of vapor.

WARNING: Do not overfill the fuel tank (there

should be no fuel in the filler neck). After refueling,
make sure the tank cap is closed properly and
securely. Be careful not to spill fuel when refueling.
Spilled fuel or fuel vapor may ignite. If any fuel is
spilled, make sure the area is dry before starting the
engine.

Figure 9-3

Pull the starter grip lightly until resistance is felt, then pull 2.
rapidly to overcome compression, prevent kickback, and
start engine. Repeat if necessary.

NOTE: Do not allow the starter grip to snap back against
the rope guide. Return it gently to prevent damage to the
star ter.

Stopping The Engine

Release the blade control.1.

21se c t i O n 9 — Op e r a t i O n

Engine Maintenance

10

WARNING: Shut off the engine before performing

any maintenance. To prevent accidental start-up,
disconnect the spark plug boot.

IMPORTANT: If engine must be tipped to transport equipment
or to inspect or remove grass, keep spark plug side of engine
up. Transporting or tipping engine spark plug down may cause
smoking, hard starting, spark plug fouling, or oil saturation of air
cleaner.

Maintenance Schedule

Each Use or
Every 5 Hrs.

Check Engine Oil Level

Change Engine Oil ††

Check Air Cleaner

Service Air Cleaner †

First 5 Hours

P P

Periodic inspection and adjustment of the engine is essential

if high level performance is to be maintained. Regular
maintenance will also ensure a long service life. The required
service intervals and the kind of maintenance to be performed
are described in the table below. Follow the hourly or calendar
intervals, whichever occur first. More frequent service is required
when operating in adverse conditions.

WARNING: If the engine has been running, the

muffler will be very hot. Be careful not to touch the
muffler.

Every Season

or 25 Hours

Every Season

or 50 Hours

Every Season

or 100 Hours

Service

Dates

P

P

P

Check Spark Plug

Replace Spark Plug

Clean Engine Shroud

Clean around muer

Replace Fuel Filter

† Service more frequently when used in dusty areas.

†† Every season or 25 hours if operating under heavy load or high ambient temperature.

P
P

P

P

P

22

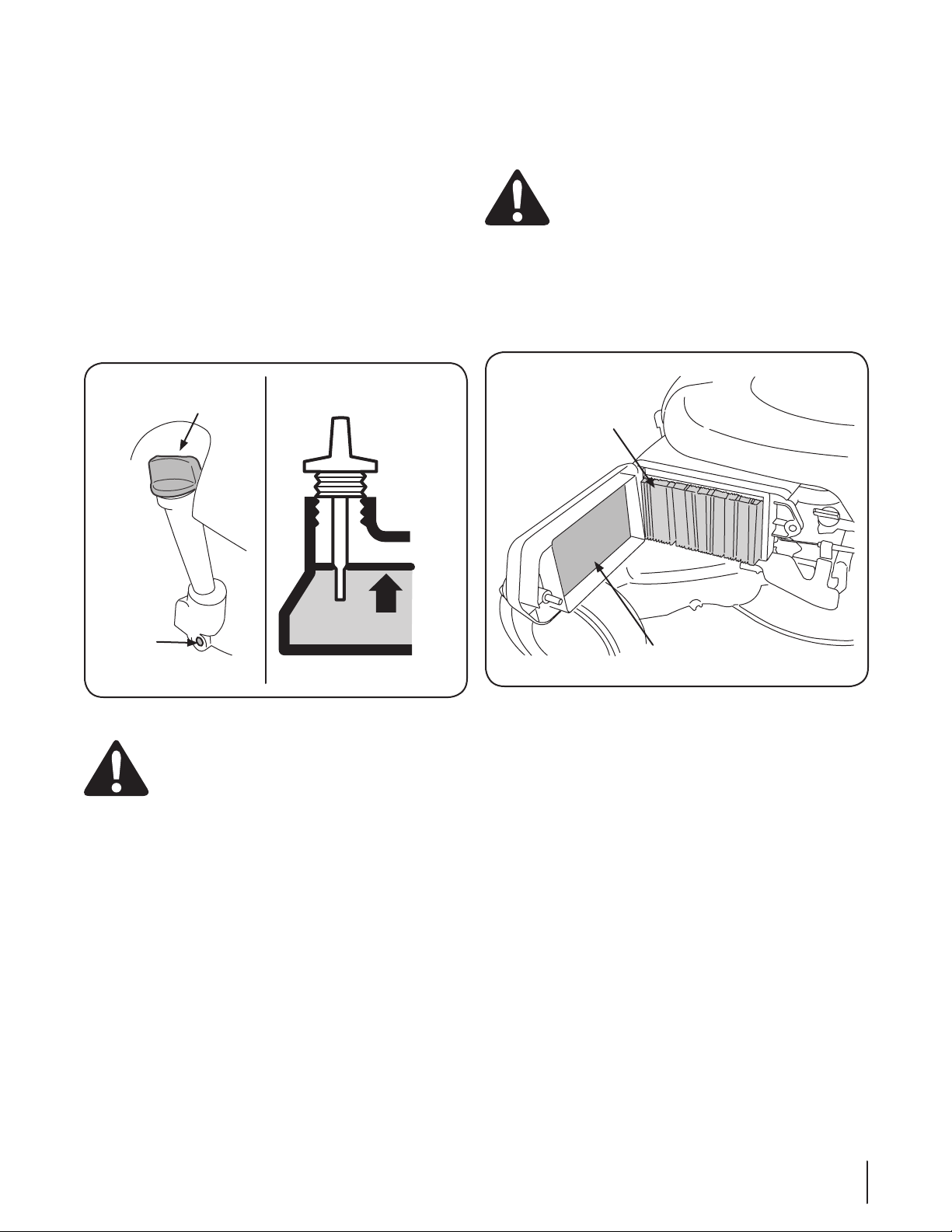

Oil Service

Oil Fill Cap

Drain

Plug

Level

Paper Element

Foam Element

Check oil level regularly.•

Be sure correct oil level is maintained. Check every five •
hours or daily before starting engine. See oil checking

procedure in the Operation section.

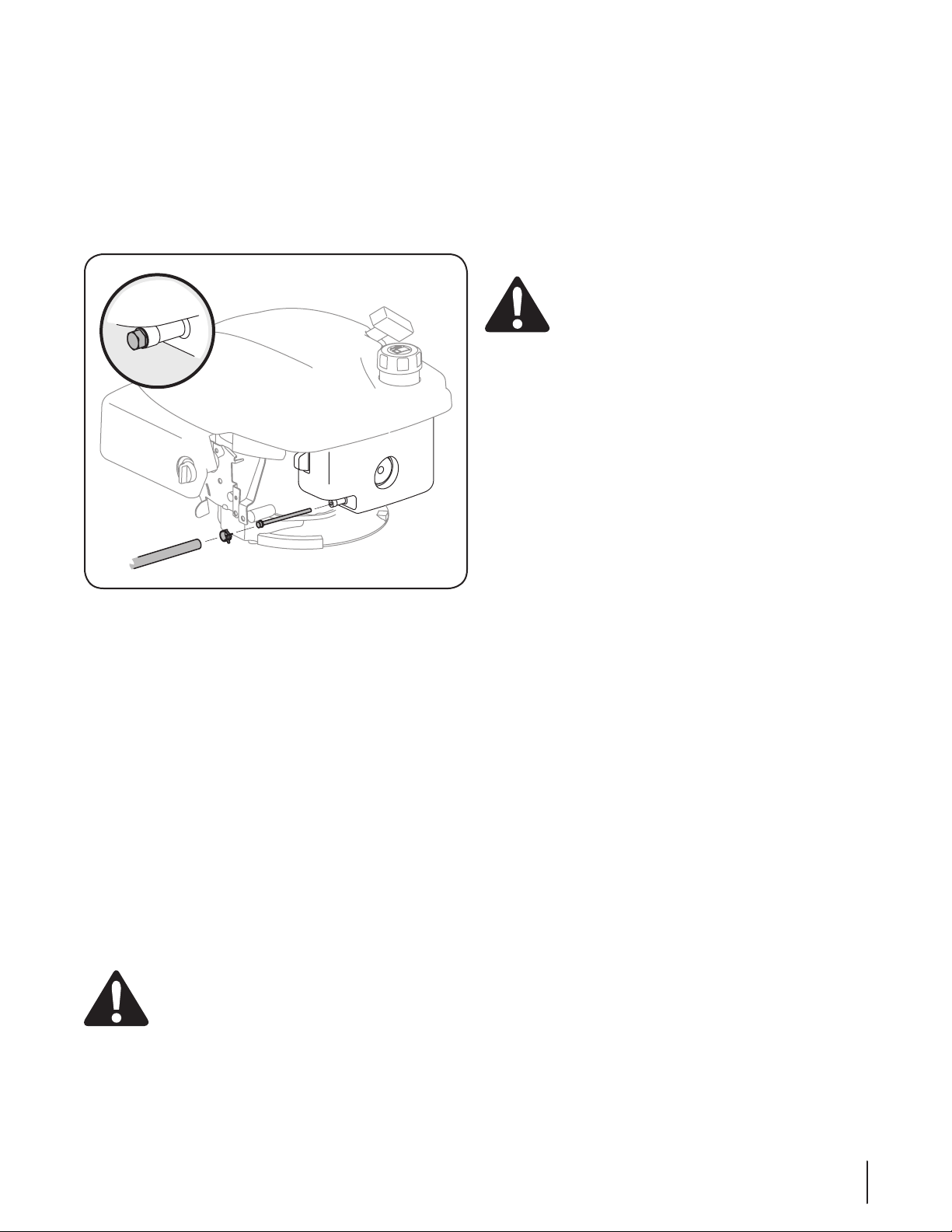

Oil Change

IMPORTANT: Be sure to check engine on a level surface with the
engine stopped. Drain the oil while the engine is still warm to
assure rapid and complete draining.

Remove all fuel from tank by running engine until it stops 1.
from lack of fuel.

Remove drain plug and allow oil to drain into a suitable 2.

container. See Fig. 10-1.

Air Cleaner Service

Paper filters cannot be cleaned and must be replaced once a year
or every 100 operating hours; more often if used in extremely

dusty conditions.

WARNING: Never use gasoline or low flash point

solvents for cleaning the air cleaner element. A fire
or explosion could result.

IMPORTANT: Never run the engine without the air cleaner. Rapid
engine wear will result.

Remove the wing bolt and the air cleaner cover. Remove 1.

the elements and separate them. See Fig. 10-2. Replace

paper element when dirty or damaged. Clean foam
element or replace when damaged.

IMPORTANT: Used motor oil may cause skin cancer if repeatedly
left in contact with the skin for prolonged periods. Although this
is unlikely unless you handle used oil on a daily basis, it is still
advisable to thoroughly wash your hands with soap and water as
soon as possible after handling used oil.

NOTE: Please dispose of used motor oil in a manner that is

compatible with the environment. We suggest you take it in a
sealed container to your local service station for reclamation. Do
not throw it in the trash or pour it on the ground.

Figure 10-1

WARNING: Before tipping engine or equipment to

drain oil, drain fuel from tank by running engine
until fuel tank is empty.

Reinstall the drain plug and tighten it securely.3.

Refill with the recommended oil (see Operation section) 4.
and check the oil level. See Fig. 10-1.

Reinstall the oil fill cap securely.5.

Figure 10-2

To clean foam element, separate it from the paper element 2.
and wash in liquid detergent and water. Allow to dry
thoroughly before using. Do not oil the foam element.

23se c t i O n 10 — en g i n e Ma i n t e n a n c e

Electrode

0.030 in.

Spark Plug Service

Spark Plug

Spark Plug Boot

WARNING: DO NOT check for spark with spark

plug removed. DO NOT crank engine with spark

plug removed.

To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.

Remove the spark plug boot and use a spark plug wrench 1.

to remove the plug. See Fig. 10-3.

Figure 10-3

WARNING: If the engine has been running, the

muffler will be very hot. Be careful not to touch the
muffler.

2. Visually inspect the spark plug. Discard the spark plug
if there is apparent wear, or if the insulator is cracked or
chipped. Clean the spark plug with a wire brush if it is to be
reused.

3. Measure the plug gap with a feeler gauge. Correct as
necessary by bending side electrode. See Fig. 10-4. The gap
should be set to 0.030 in.

Figure 10-4

4. Check that the spark plug washer is in good condition
and thread the spark plug in by hand to prevent cross­threading.

5. After the spark plug is seated, tighten with a spark plug
wrench to compress the washer.

NOTE: When installing a new spark plug, tighten 1/2 turn

after the spark plug seats to compress the washer. When

reinstalling a used spark plug, tighten 1/8-1/4 turn after the

spark plug seats to compress the washer.

IMPORTANT: The spark plug must be securely tightened.
An improperly tightened spark plug can become very hot
and may damage the engine.

24 se c t i O n 10— en g i n e Ma i n t e n a n c e

Fuel Filter Service

The fuel filter cannot be cleaned and must be replaced once a

year or every 100 operating hours; more often if run with old

gasoline.

Remove all fuel from tank by running engine until it stops 1.
from lack of fuel.

Remove c-clamp from fuel line and remove fuel line from 2.

tank outlet. See Fig. 10-5.

Figure 10-5

Pull out old fuel filter from tank outlet. Replace when dirty 3.

or damaged.

Grasp new fuel filter from shouldered end and insert it 4.
completely to the shoulder into the tank outlet. See Fig.

10-5 inset.

Replace fuel line and c-clamp.5.

Clean Engine

If the engine has been running, allow it to cool for at least half

an hour before cleaning. Periodically remove dirt build-up from

engine. Clean finger guard and around muffler. Clean with a
brush or compressed air.

IMPORTANT: Do not spray engine with water to clean because
water could contaminate fuel. Using a garden hose or pressure
washing equipment can also force water into the air cleaner or
muffler opening. Water in the air cleaner will soak the paper
element, and water that passes through the element or muffler
can enter the cylinder, causing damage.

Storage

Engines stored between 30 and 90 days need to be treated with

a gasoline stabilizer and engines stored over 90 days need to be
drained of fuel to prevent deterioration and gum from forming
in fuel system or on essential carburetor parts. If the gasoline in
your engine deteriorates during storage, you may need to have
the carburetor, and other fuel system components, serviced or
replaced.

Remove all fuel from tank by running engine until it stops 1.
from lack of fuel.

WARNING: Never leave engine unattended while

running.

Change oil. See Oil Change section.2.

Remove spark plug and pour about 1/2 an ounce of engine 3.

oil into cylinder. Replace spark plug and crank slowly to
distribute oil.

Clean debris from around engine, under finger guard, and 4.
under, around and behind muffler. Touch up any damaged
paint, and coat other areas that may rust with a light film
of oil.

Store in a clean, dry and well ventilated area away from any 5.
appliance that operates with a flame or pilot light, such
as a furnace, water heater, or clothes dryer. Also avoid any
area with a spark producing electric motor, or where power
tools are operated.

If possible, also avoid storage areas with high humidity, 6.
because that promotes rust and corrosion.

Keep the engine level in storage. Tilting can cause fuel or 7.
oil leakage.

Removing From Storage

Check your engine as described in the Pre-Operation Check 1.

section of this manual.

If the fuel was drained during storage preparation, fill the 2.
tank with fresh gasoline. If you keep a container of gasoline
for refueling, make certain it contains only fresh fuel.
Gasoline oxidizes and deteriorates over time, causing hard
starting.

If the cylinder was coated with oil during storage 3.
preparation, the engine will smoke briefly at startup. This
is normal.

WARNING: Accumulation of debris around muffler

could cause a fire. Inspect and clean before every
use.

25se c t i O n 10 — en g i n e Ma i n t e n a n c e

The SureStart Guarantee™
Provisions of Your Limited Warranty

In addition to the other terms and conditions of the Limited Warranty
applicable to your new mower, Cub Cadet LLC (“Cub Cadet”) hereby
warrants that your mower’s engine will start on the first or second
attempt by an able-bodied adult (subject to the limitations described
below) for the duration of the manufacturer’s limited warranty
applicable to your product. If the engine on your mower fails to
conform to this limited warrant y, Cub Cadet will cover the cost of
parts and labor associated with any adjustments and/or repairs
necessary to return your engine to its warranted condition. In
order to make a claim under these provisions of your warranty, you
must bring the product and proof of purchase to an authorized Cub
Cadet service provider. In many cases, the retailer who sold you
your mower is not equipped to provide warranty service, so please
locate the authorized service dealer nearest you by either calling the
phone number provided in your Operators Manual or looking up an
authorized service dealer on-line at www.cubcadet.com.

Items and Conditions Not Covered

The SureStar t Guarantee™ does not cover and /or apply to the
following:

• Costofregularmaintenanceserviceorparts,suchasfilters,fuel,

lubricants, oil changes, spark plugs, air filter, blade sharpening,
worn blades, cable/linkage adjustments, or brake and clutch
adjustments

• TransportationcoststoandfromanauthorizedCubCadetservice

provider

• Anyengineusedforcommercial,rental,institutional,governmen­tal, or non-residential applications

• Anyproductorpartthathasbeenalteredormisusedorrequired

replacement or repair due to misuse, accidents, or lack of proper
maintenance

• Repairsnecessaryduetoimproperbatterycare,electricalsupply

irregularities, or failure to properly prepare the mower prior to any
period of non-use over three months

• Pickupand /ordeliver ycharges

• Operationalmisuse,neglect,accidents,unauthorizedrepairsor

attempted repairs of the engine or its components by anyone other
than an authorized Cub Cadet service provider.

• Repairsoradjustmentstocorrectstartingdifficultiesduetoany

of the following: failure to follow proper maintenance procedures
— rotary mower blade striking an object — contaminants in the
fuel system — improper fuel or fuel/oil mixture (consult your
Operator’s Manual if in doubt) — failure to drain the fuel system
prior to any period of non-use over three months

• Anystartingproblemwhichresultsfromtheuseofinappropriate

fuels, lubricants, or additives

• Specialconditionsorcircumstancesthatnormallyrequiremore

than two pulls to start, specifically: 1) First start-up following your
initial purchase, 2) first time starts after extended period(s) of
non-use over one month or seasonal storage, 3) cool temperature
starts such as those found in early spring and late autumn, and 4)
difficult starting that results from the operator’s failure to follow
the proper star ting procedures identified in the Operator’s Manual.
If you are having difficulty starting your unit, please check the
Operator’s Manual to ensure that you are using the correct starting
procedures. This can save an unnecessary visit to a Service
Dealer.

Owner Responsibilities

You must maintain your mower (including its engine) by following the
maintenance procedures and starting instructions described in the
Operator’s Manual. Such routine maintenance, whether performed by
a dealer or by you, is at your expense. In addition, please retain your
proof of purchase and service receipts as these may be required to
validate a claim.

General Conditions

AnauthorizedCubCadetserviceproviderusingapproved

replacement parts must per form all repairs covered by the SureStart
Guarantee™. Repair by an Cub Cadet authorized service dealer is
your sole remedy under this warranty. Cub Cadet is not liable for
indirect, incidental, or consequential damages in connection with
the use of the products covered by these warranties, including any
cost or expense of providing substitute equipment or service during
reasonable periods of malfunction or non-use pending completion of
repairs under this warranty.

Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so
certain exclusions and limitations may not apply to you.

GDOC-100165 Rev. B

Notes

11

27

Model V46M

18

7

1

22

8

15

13

17

26

29

60

55

71

16

14

19

2

31

11

3

64

68

69

70

37

63

62

51

46

45

55

60

73

67

72

28

5

21

54

50

43

59

9

23

12

49

25

65

4

40

58

66

55

42

10

39

27

41

57

56

33

38

20

48

47

52

53

32

24

6

28

55

30

61

44

35

36

34

Model V46M

Ref

No.

10 987- 02055 Mulch Plug Complete

11 732-04090A Torsion Spring - RH

12 747-04 080A Grass Bag Frame

13 720- 0279 Handle Knob

14 720- 04072 Handle Knob

15 7 10- 1205 Eye Bolt

16 746-0946 Control Cable

17 7 10 - 1174 Carriage Bolt 5/16-18 x 2.0

18 731- 0556 4 Bail Cover

19 926-0240 Cable Tie

20 931- 04232A Engine Shroud

21 710 -0654 A Self-Tapping Sems Screw

22 746-04206A Drive Cable

23 964-04054 Grassbag

24 710 -1650 Shoulder Screw # 12 -24

25 747- 04587 Pivot Rod

26 710 -1241 Screw, 1/4-15 x 1.00

27 73 2- 0 4317 Extension Spring

28 731- 056 42A Rear Trailing Shield

29 731- 0 4150C Rear Bae

30 731- 098 2A Hub Cap

31 912 -0 39 7 Wing Nut

32 931-05013A Transmission Cover

33 94 8- 0 4015 A One Piece Blade Adapter

34 942 -0 741 21” Mulching Blade

35 736-0524B Blade Bell Support

36 710 -125 7 Hex Screw 3/8-24 x 2.50

37 78 2-7551A Wheel Dust Cap

38 710 -0 474 4 Scr., #12-16 x 1.00

39 787-01258A-0637 Cable Mount Bracket

Part Number Description

1 753-06060 Drive Control Assembly

2 749-0928A-0637 Lower Handle

3 710-0703 Carriage Bolt 1/4-20

4 918 - 04 377A Transmission Assembly

5 731- 06 847 Rear Discharge Door

6 954-04082A V-Belt

7 747-1161A-0637 Blade Control

8 749- 04206A-0637 Upper Handle

9 73 1- 0417 7 Chute Deector

Ref

No.

40 710-0896 Screw, 1/4-14 x .625

41 710 -0 4329 Screw, .159 OD x .610

42 787-01593 Engine Bae Bracket

43 936-04 47 Washer, Wave, 1.5 x 1.0 x .029

44 931- 06029 Engine Bae

45 710- 0599 TT Screw 1/4-20 x 0.5

46 736-0270 Bell Washer.265 x 0.75

47 170 32 A Deector Chute Adapter

48 7 32-1014 Torsion Spring

49 747-0710 Hinge Pin

50 987-023 47 Bearing Assembly

51 787-01278-4021 21” Deck

52 98 7-02194A Height Adjustment Ass’y - RH

53 750-04405 Sleeve Spacer, 1.8” Lg.

54 710- 0216 Hex Screw, 3/8-16 x.75

55 712 -0 40 65 Flange Lock Nut, 3/8-16

56 782-5002B Front Bae

57 732-04294 Belt Keeper Wire

58 750- 04404 Sleeve Spacer, 9.10” Lg.

59 987- 02334 Pivot Plate Assembly

60 720- 0426 Adjustment Knob

61 734- 04223 Front Wheel, 8 x 2.125

62 710 -0 4531 Screw, 1/4-20 x .390

63 717-17 62 Gear 14T RH FWD

64 7 10-16 52 TT Scr. w/Washer 1/4-20 x.625

65 987 -02 271A Handle Bracket Assembly - RH

66 9 15- 0221 Dowel Pin

67 73 6- 0 474 Washer

68 987-02333 Pivot Arm Assembly - RH

69 73 2- 04 175 Rear Spring Lever

70 738-04266 Shoulder Scr., 500 Dia. x. 385

71 734 -04226 Rear Wheel, 8 x 2.125

72 916- 0102 Snap Ring

73 732-0706 Front Lever - RH

Part Number Description

987-02193A Height Adjustment Ass’y - LH

717 -1761 Gear 14T LH FWD

987- 02270A Handle Bracket Assembly - LH

987- 02332 Pivot Arm Assembly - LH

732-0707 Front Lever - LH

29

Engine Model - 5P70MO

21

28

29

29

24

26

25

11

17

9

20

1

3

2

18

19

10

6

8

30

7

13

15

30

5

4

12

14

27

22

23

16

Engine Model - 5P70MO

Ref

No.

1. 951 -1036 8 Fuel Tank

2. 951 -10764 Flywheel Shroud

3. 95 1-1033 5 Rubber Fuel Tank Mounting Washer

4. 951 -1033 4 Oil Filler Tube Assembly

5. 951-10 333 Dipstick Assembly

6. 95 1-104 13 Cylinder Head Assembly

7. 951 -10414 Short Block Assembly

8. 951-103 21 Stop Switch and Brake Assembly

9. 9 51-10319 Recoil Spring and Pulley Assembly

10. 9 51-103 44 Push Rod Kit

11. 951 -1034 5 Valve Kit

12 . 951 -10370 Oil Drain Plug and Washer Assembly

13. 951 -1036 6 Ignition Coil

14. 951-10 765 Carburetor Assembly

15. 951-103 07 Flywheel Key

16. 951- 10412 A Air Cleaner Housing Assembly Complete

17. 951-103 42 Muer Stud Assembly

18. 951-10 364 Fuel Line Kit – Inc. hoses & clamps

19. 951-10358 Fuel Filter

20. 951-10 30 0 Fuel Cap Assembly

21. 9 51-102 99 Recoil Starter Assembly

22. 951-10 298 Air Cleaner Kit

23. 951-10 297 Air Cleaner Thumb Screw

24. 9 51 -1 0 411 Muer Guard

25. 951-10 40 3 Muer

26. 951-1 0402 Muer Gasket /Heat Shield

27. 951-103 87 Governor Return Spring

28. 951-10292 Spark Plug

29. 951-10351 Spark Arrestor

30. 95 1- 110 4 6 Flywheel

– 952Z5P70MO Engine – Complete

– 9 51-1032 6 Carburetor Kit – Major

– 9 51-108 71 Gasket Kit – Complete

– 9 51-108 72 Gasket Kit – External

Part Number Description

NOTE: Illustrated parts without a numeric call-out are not serviceable components.

31

Cub Cadet LLC (Cub Cadet), The United States Environment Protection Agency (U. S. EPA)

Emission Control System Warranty Statement

(Owner’s Defect Warranty Rights and Obligations)

The U. S. EPA and Cub Cadet are pleased to explain the emissions control system warranty on your model year 2005 and later small off-road
engine. New small off-road engines must be designed, built and equipped to meet the stringent anti-smog standards. Cub Cadet must warranty the
emission control system on your engine for the period of time listed below, provided there has been no abuse, neglect or improper maintenance of
your small off-road engine.

Your emission control system may include parts such as the carburetor, air cleaner, ignition system, exhaust system, and other associated emis­sion-related components.

Where a warrantable condition exists, Cub Cadet will repair your small off-road engine at no cost to your including diagnosis, parts and labor.

MANUFACTURER’S WARRANTY COVERAGE:

This emissions control system is warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or
replaced by Cub Cadet.

OWNER’S WARRANTY RESPONSIBILITIES:

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Owner’s Manual. Cub Cadet
recommends that you retain all your receipts covering maintenances on your small off-road engine, but Cub Cadet can not deny warranty solely for
the lack of receipts or for your failure to ensure the performance to all scheduled maintenance.

As the small off-road engine owner, you should however be aware that Cub Cadet may deny your warranty coverage if your small off-road engine or
part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your lawn mower to Cub Cadet LLC’s distribution center or service center as soon as the problem exists. The
warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty cover­age, you should contact your local Cub Cadet dealer. To reach the Cub Cadet Customer Dealer Referral Line, please call [phone].

DEFECTS WARRANTY REqUIREMENTS FOR 1995 AND LATER SMALL OFF-ROAD ENGINES:

This section applies to 1995 and later small off-road engines. The warranty period begins on the date the engine or equipment is delivered to an
ultimate purchaser.

(a) General Emissions Warranty Coverage

Cub Cadet must warrant to the ultimate purchaser and each subsequent purchaser that the engine is:

(1) Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in

Chapters 1 and 2,Part 5, Division 26 of the Health and Safety Code; and

(2) Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects to the part as

described in the engine manufacturer’s application for certification for a period of two years.

(b) The warranty on emissions-related parts will be interpreted as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions required by Subsection (c)

must be warranted for the warranty period defined in Subsection (a)(2). If any such part fails during the period of warranty coverage, it must be
repaired or replaced by Cub Cadet according to Subsection (4) below. Any such part repaired or replaced under the warranty must be warranted
for the remaining warranty period.

(2) Any warranted part that is scheduled only for regular inspection in the written instructions required by Subsection (c) must be warranted for

the warranty period defined in Subsection (a)(2). A statement in such written instructions to the effect of “repair or replace as necessary” will
not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty
period.

(3) Any warranted part that which is scheduled for replacement as required maintenance in the written instructions required by Subsection (c)

must be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part must be repaired or replaced by Cub Cadet according to Subsection (4) below. Any such part repaired or replaced under
warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

(4) Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no charge to the owner at a

warranty station.

(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at all Cub Cadet distribution centers

that are franchised to service the subject engines.

(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that

such diagnostic work is performed at a warranty station.

(7) The engine manufacturer is liable for damages to other engine components proximately caused by a failure under warranty of any warranted

part.

(8) Throughout the engine’s warranty period defined in Subsection (a)(2), Cub Cadet will maintain a supply of warranted parts sufficient to meet

the expected demand for such parts.

(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the

owner. Such use will not reduce the warranty obligations of Cub Cadet.

(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or

modified parts shall be grounds for disallowing a warranty claim made in accordance with this article. The engine manufacturer shall not be
liable under this article to warrant failures of warranted parts caused by the use of non-exempted add-on or modified part.

(c) Cub Cadet will include a copy of the following emission warranty parts list with each new engine, using those portions of the list applicable

to the engine.

(1) Fuel Metering System

 •Coldstartenrichmentsystem(softchoke)

 •Carburetorandinternalparts

 •FuelPump

(2) Air Induction System

 •Aircleaner

 •Intakemanifold

(3) Ignition System

 •Sparkplug(s)

 •MagnetoIgnitionSystem

(4) Exhaust System

(5) Miscellaneous Items Used in Above System

 •Vacuum,temperature,position,timesensitivevalvesandswitches

 •Connectorsandassemblies

GDOC-100169 Rev. A

34 nO t e s

35nO t e s

CUB CADET LLC

MANUFACTURER’S LIMITED WARRANTY FOR

WALK-BEHIND MOWERS

IMPORTANT: To obtain warranty coverage owner must present an

original proof of purchase and applicable maintenance records to the
servicing dealer. Please see the operator’s manual for information on
required maintenance and service intervals.

The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the United
States and/or its territories and possessions, and by MTD Products
Limited with respect to new merchandise purchased or leased and
used in Canada and/or its territories and possessions (either entity
respectively, “Cub Cadet”).

Cub Cadet warrants this product (excluding its Normal Wear Parts
and Batteries, as described below) against defects in material and
workmanship for a period of three (3) years, commencing on the date
of original retail purchase or lease and will, at its option, repair or
replace, free of charge, any part found to be defective in materials or
workmanship.

Normal Wear Parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of original
purchase or lease. Normal wear parts include, but are not limited to
items such as: belts, blades, blade adapters, grass bags, engine oil, air
filters, spark plugs and wheels.

Batteries have a one-year prorated limited warranty against defects in
material and workmanship, with 100% replacement during the first three
months. After three months, the battery replacement credit is based on
the months remaining in the twelve (12) month period dating back to the
original date of original sale or lease. Any replacement battery will be
warranted only for the remainder of the original warranty period.

This limited warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual furnished with
the product, and has not been subject to misuse, abuse, commercial
use, neglect, accident, improper maintenance, alteration, vandalism,
theft, fire, water, or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any part, accessory
or attachment not approved by Cub Cadet for use with the product(s)
covered by this manual will void your warranty as to any resulting
damage. In addition, Cub Cadet may deny warranty coverage if the
hour meter, or any part thereof, is altered, modified, disconnected or
otherwise tampered with.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF
OF PURCHASE AND APPLICABLE MAINTENANCE RECORDS, through
your local authorized service dealer. To locate the dealer in your area:

In the U.S. A. :
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.

In Canada :

Contact MTD Products Limited, Kitchener, ON N2G 4J1, call
1-800-668-1238 or log on to our website at www.mtdcanada.com.

Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:

a. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to
use or exposure.

b. Service completed by someone other than an authorized service

dealer.

c. Cub Cadet does not extend any warranty for products sold or

exported outside of the United States and /or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of expor t distribution.

d. Replacement parts and\ or accessories that are not genuine Cub

Cadet parts.

e. Transportation charges and service calls.

f. Cub Cadet does not warrant this product for commercial use.

There are no implied warranties, including without limitation any
implied warranty of merchantability or fitness for a particular
purpose. No warranties shall apply after the applicable period of
express written warranty above. No other express warranties beyond
those mentioned above, given by any person or entity, including a
dealer or retailer, with respect to any product, shall bind Cub Cadet.
The exclusive remedy is repair or replacement of the product as
set forth above. The terms of this warranty provide the sole and
exclusive remedy arising from the sale and/or lease of the products
covered hereby. Cub Cadet shall not be liable for any incidental or
consequential loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services or for rental
expenses to temporarily replace a warranted product.

Some jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply to
you.

In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safet y features of the
product shall void this warranty. You assume the risk and liability for
loss, damage, or injury to you and your property and /or to others and
their property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.

HOW LOCAL LAWS RELATE TO THIS WARRANT Y: This limited warranty
gives you specific legal rights, and you may also have other rights that
vary in different jurisdictions.

Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: [phone]

GDOC-100088 REV. A

MTD Products Limited, Kitchener, ON N2G 4J1, Phone: [phone]
