Illustrated Parts Manual
Printed In USA
Enduro Series™ Lawn/Garden Tractor
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Form No. 769-10043
August 20, 2014
To The Owner
Thank You
Thank you for purchasing a Cub Cadet Lawn Tractor. It was
carefully engineered to provide excellent performance when
properly operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Table of Contents
Front and Rear Wheels ........................................... 3
Steering .................................................................... 4
Frame ....................................................................... 6
Manual PTO ............................................................. 8
Electric PTO .............................................................. 9
Seat ..........................................................................10
Front Axle ................................................................11
Deck Lift ..................................................................12
Pedals ......................................................................13
Fender (GT) .............................................................14
Fender (LT) ..............................................................16
Hood ........................................................................18
Fuel Tank and Dash ............................................... 20
Electrical ................................................................. 22
Drive System (GT) .................................................. 24
Drive System (LT) ................................................... 26
42-inch Deck .......................................................... 28
46-inch Deck (Stamped) ....................................... 30
46-inch Deck (Fab) ................................................ 32
50-inch Deck (LT) ................................................... 34
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
50-inch Deck (GT) .................................................. 36
54-inch Deck (Stamped) ....................................... 38
54-inch Deck (LT Fab) ............................................ 40
54-inch Deck (GT Fab) ........................................... 42
Engine Accessories (Kohler Single) ...................... 44
Engine Accessories (Kohler Twin) ......................... 45
MTD X90 ................................................................. 46
Hydrostatic Transmission (Tuff-Torq 618-06972) 48
Hydrostatic Transmission (Tuff-Torq 618-06974) 52
LT Labels ................................................................. 56
GT Labels ................................................................ 57
Electrical Schematic (Man. PTO) .......................... 58
Electrical Schematic (Elec. PTO) ........................... 59
Kohler KT745-3001 ................................................ 60
Kohler KT735-3012 .................................................76
Kohler KT725-3013 ................................................ 92
Kohler KT730-3016 .............................................. 108
Kohler KT740-3013 ...............................................124
Kohler SV541-3212 ................................................141
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
2
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
12
Front and Rear Wheels
12
10
9
11
1
3
11
9
10
5
2
4
6
4
7
7
Ref.
Part Number Description
1. 634-0104-0931 Wheel, Complete, 20 x 8 x 8
— 634-05107-0936 Wheel, Complete, 22 x 9.5 x 12 (GT)
2. 634-04369-0499 Rim Ass’y, 8.0 x 7.0 x .750 ID
— 634-04238-0499 Rim Ass’y, 12.0 x 7.0 (GT)
3. 734-1730-0901 Tire, 20 x 8 x 8 Sq Shoulder
— 734-05065-0906 Tire, 22 x 9.5 x 12 Sq Shoulder (GT)
4. 934 -0255 Valve, Tubeless Air
5. 634-05149-0931 Wheel, Complete, 15 x 6 x 6
— 634-05082-0936 Wheel, Complete, 16 x 6.5 x 8 (GT)
8
Ref.
Part Number Description
6. 634-05081-0499 Rim Ass’y, 6.0 x 4.5, Flnge Bearings
— 634-05083-0499 Rim Ass’y, 8.0 x 5.38, (GT)
7. 741-05094 Bearing, Flange, .760 ID
8. 734-1731-0901 Tire, 15 x 6 x 6 Sq Shoulder
— 734-04641 Tire, 16 x 6.5 x 8 Sq Shoulder (GT)
9. 710 -06154A Screw, 5/16-24 x .850
10. 731-2290A Hub Cap
11. 736-0430 Flat Washer, .350 x 1.59 x .062
12. 712-3050 Lug Nut 7/16-14 (GT)
3
Steering
17
4
16
2
1
2
1
15
B
A
1
2
6
14
B
5
10
A
9
6
3
13
1
2
6
3
7
11
8
3
12
7
4
Ref. Part Number Description
1. 712-05093 Jam Nut, 7/16-20
2. 723-05009 Ball Joint, 7/16-20, Lock
3. 710- 06133 Screw, M6-1 x .625
4. 710 -0 615 4 A Screw, 5/16-24 x .850
5. 710 -3005 Hex Cap Screw, 3/8-16 x 1.25
6. 912- 0214 Nut, Hex Lock, 3/8-24, Grb
7. 712- 0 4 065 Nut, Flange Lock, 3/8-16, Grf,
8. 717-05193 A Pinion Gear, 13T
9. 717-05225 Steering Gear
10. 936-0227 Flat Washer, .390 x 1.5 x .134
11. 738-05043 Shaft, Steering, .625 OD x 20
12. 748-05071 Steering Support
13. 783-08386 Steering Mounting Plate
14. 747-06 456 Steering Rod, LH
15. 747- 0 6 457 Steering Rod, RH
16. 631- 05102 Steering Wheel
17. 731- 0 9764A Cap, Steering Wheel
Steering
5
Frame
8
3
10
12
12
3
8
5
7
4
9
2
7
1
11
9
6
6
2
15
13
14
6
Ref. Part Number Description
1. 983-05067 Frame Assembly
2. 710 -0 6133 Screw, M6-1 x .625
3. 710 -3005 Hex Cap Screw, 3/8-16 x 1.25
4. 712 - 04217 Flange Lock Nut, 3/8-16
5. 728-05015 Rivet, 1/4-20 x .750
6. 731-10069A Pivot Bracket
7. 731-10281 Wear Pad
8. 738-04058 Shoulder Spacer, .38 x 1.0 x .70
9. 738-05090 Shoulder Screw, M6-1
10. 747- 06329 Rod, Battery
11. 783-08276 Lower Frame Brace Bracket
12. 783-08567 Battery Bracket
13. 6 83- 05155† Bumper Assenbly
14. 731-05368† Hub Cap
15. 710 -0 6 012A† Hex Flange Screw, 3/8-16
† If Equipped
Frame
7
Manual PTO
8
7
15
6
9
1
5
9
1
2
16
12
4
10
2
11
13
14
3
Ref. Part Number Description
1. 983- 05105 PTO Handle Assembly
2. 710 -0 6133 Screw, M6-1 x .625
3. 710-06266 Hex Cap Screw, 7/16-20 x 3.50
4. 714-05005 Bow-Tie Cotter Pin
5. 731-10 0 6 6 PTO Handle Mount, RH
6. 731-10067 PTO Handle Mount, Top
7. 732- 05119 Extension Spring, .56 OD x 4.52 LG
8. 720-05086 Grip
9. 738-04 425 Shoulder Screw, .342 x .335, 1/4-28
10. 946-05087 PTO Cable
11. 747- 06239 Engine Pulley Keeper Rod
12. 747- 063 0 8 Cable Guide
13. 748-05078 Spacer, Engine Pulley
— 748-05079 Spacer, Engine Pulley (MTD Engine)
14. 956- 04067A Pulley, Engine, 3.56 x 6.12 Dia.
15. 725-04363 Switch, Interlock
16. 73 8 -0 4237A Shoulder Screw, #10-32 x .500
8
Electric PTO
6
4
1
7
3
5
2
Ref. Part Number Description
1. 710 -0 6133 Screw, M6-1 x .625
2. 710-06266 Hex Cap Screw, 7/16-20 x 3.50
3. 917-05209 Clutch, Electric PTO
4. 731-10576 Grommit
5. 736-05107 Flat Washer, .450 x 1.375 x .250
6. 783-08656 Clutch Bracket
7. 756-05061A Engine Pulley
9
Seat
12
6
9
11
7
8
8
5
7
2
4
10
3
1
Ref. Part Number Description
1. 983 -0 5111 Seat Pivot Plate Assembly
2. 710-04482 Hex Flange Screw, 3/8/16, .875, Gr5
3. 710- 06133 Screw, M6-1 x .625
4. 712- 0 4063 Nut, Flange Lock, 5/16-18, Grf
5. 712- 04 0 6 4 Nut, Flange Lock, 1/4-20, Nylon
6. 732-04563 Compression Spring, .68 x 1.065 x .055
7. 938-014 0 Shoulder Screw, .435 x .178, 5/16 x .56
8. 741- 05128 Flange Bearing, .4385 ID
9. 783- 06050 Seat Lever
10. 783- 08451 Pivot Bracket, Short
11. 783- 08550 Bracket, Mounting, Seat
12. 757-05009 Seat, High, Cub
10
Front Axle
3
2
5
8
7
4
6
5
1
6
8
7
Ref. Part Number Description
1. 983-05145 Front Axle Assembly
2. 710- 0182 Hex Cap Screw, 1/2-13 x 3.00
3. 712 -3083 Nut, Hex Lock, 1/2-13
4. 714 - 0162 Pin, Cotter, 5/32, 1.25
5. 726 -0341 Push Cap, 3/4
6. 738-05056 Shoulder Spacer, 1.00 x .515 x .760
7. 731-2290A Hub Cap
8. 736-04228A Washer, Flat, .350 x 1.559 x .062
4
11
Deck Lift
Spring for 50-inch, 46” Fab
and 54-inch decks
15
14
3
Spring for 42-inch
and 46-inch decks
4
2
10
5
1
13
4
2
5
7
12
5
8
10
6
12
5
5
9
Ref. Part Number Description
1. 983-05077 Shaft Assembly, Lift
2. 711 - 06143A Ferrule, .510 x .496
3. 711- 06 3 46 Spring Insert
4. 912-30 48 Nut, Jam, 1/2-13
5. 714-05005 Bow-Tie Cotter Pin
6. 731- 09629A Spacer, .76 ID x .93 LG
7. 732-05086A Torsion Spring
8. 747- 06186A Deck Lift Handle
9. 747-06247A Deck Lift Rod
10. 747- 06392 Lift Adjustment Link
11. 74 8- 0 4 0 69 Pivot Cup
12. 783-08280 Rear Lift Arm
13. 720-05087 Grip
14. 732-05241 Lift Assist Spring, (42”/46”)
15. 732-05242 Lift Assist Spring, (46” Fab/50”/54”)
11
4
4
12
12
Pedals
8
3
4
9
6
7
1
5
10
11
4
2
Ref. Part Number Description
1. 947-05033 Brake Pedal Assembly
2. 949-05026 FWD/REV Pedal Assembly
3. 712- 04217 Flange Lock Nut, 3/8-16
4. 731- 09957A Clip
5. 732- 05155 Torsion Spring, .725 ID
6. 735-05028 Reverse Pedal Pad
7. 735-05030 Forward Pedal Pad
8. 735-05051 Brake Pedal Pad
9. 938-0380 Shoulder Screw, .50 x .27, 3/8-16
10. 741- 05074 Flange Bearing, .63 x .84 x .71
11. 741-05085 Plastic Sleeve Bearing
12. 748- 0 4203 Cruise Latch
13
Fender (GT)
7
3
12
15
6
8
3
4
13
9
4
10
2
5
1
1
14
3
2
3
11
17
5
14
16
5
Ref. Part Number Description
1. 710-04666 Hex ange Screw, 1/4-20 x .75
2. 710 -0 6133 Screw, M6-1 x .625
3. 710 -06147 Screw, 1/4-10 x .75
4. 710-1260A Screw, Self-tapping, 5/16-18, 0.750,
5. 712- 04 0 6 4 Nut, Flange Lock, 1/4-20, Nylon
6. 726-3046 Ratchet Clip, .250 DIA
7. 731- 09767 Upper Cover, RH
8. 731- 09768 Upper Cover, LH
9. 731-10354 Lower Cover, LH
10. 731-1043 4 Cover Handle, LH
11. 731-10523 Lower Cover, RH
12. 731-10524 Cover Handle. RH
13. 732-05182 Compression Spring, 2.50 x 3.951 x .207
14. 783-08279 Fender
15. 783- 08559 Lift Index Bracket
16. 731- 09731 Pad, Foot, LH
17. 7 31- 0 9 812 Pad, Foot, RH
Fender (GT)
15
Fender (LT)
11
7
8
6
4
9
3
4
2
5
1
1
16
2
3
2
13
5
10
12
5
Ref. Part Number Description
1. 710-04666 Hex ange Screw, 1/4-20 x .75
2. 710 -0 6133 Screw, M6-1 x .625
3. 710 -06147 Screw, 1/4-10 x .75
4. 710-1260A Screw, Self-tapping, 5/16-18, 0.750,
5. 712- 04 0 6 4 Nut, Flange Lock, 1/4-20, Nylon
6. 726-3046 Ratchet Clip, .250 DIA
7. 731-1017 2 Cover, LH
8. 631- 05261 Cover, RH, Manual PTO
— 631-05259 Cover, RH, Electric PTO
9. 732-05182 Compression Spring, 2.50 x 3.951 x .207
10. 783- 08279 Fender
11. 783- 08559 Lift Index Bracket
12. 731- 09731 Pad, Foot, LH
13. 7 31- 0 9 812 Pad, Foot, RH
Fender (LT)
17
Hood
4
2
2
6
1
9
3
5
9
7
8
18
10
Ref. Part Number Description
1. 631- 05249 Hood Frame
2. 710 - 06147 Screw, 1/4-10 x .75
3. 931-098 49 Grill
4. 931- 09850 Hood, Top
5. 931-09852 Hood, Side, LH
6. 931- 09853 Hood, Side, RH
7. 931- 09856 Headlight Lens, LH
8. 931- 09857 Headlight Lens, RH
9. 731-10070 Hood Pin
10. 731 -116 29 † Plenum
† If Equipped
Hood
19
Fuel Tank and Dash
16
15
20
21
19
18
17
10
6
5
10
10
7
14
4
1
10
10
11
3
20
2
13
1
9
8
1
12
Ref. Part Number Description
1. 710 -0 6133 Screw, M6-1 x .625
2. 711 - 06378 Hinge Pin, .25 Dia x 4.50 LG
3. 714-04040 Pin, Cotter, Bow-Tie 72
4. 926 -0 4 012 Push Nut, .25 dia.
5. 931- 09815 Upper Dash
6. 931- 09816 Dash Cap
7. 731-10618 Steering Shaft Bearing
8. 731-10636 Dash Lever
9. 732- 0519 9 Torsion Spring, .330 ID
10. 738-05090 Shoulder Screw, .368 x .115, M6-1
11. 747- 06192 Control Rod
12. 783-08391 Lower Dash
13. 783-08453 Dash Plate
14. 783-08538 Steering Bearing Mounting Bracket
15. 951-05101 Tank, Fuel, 3 Gal.
16. 951-14767 Fuel Cap
— 951-12426A Cap, Fuel Carb
17. 735-04081 Grommet, Rubber, 23.0 ID
18. 751 -12118 Valve, Rollover Grommet
19. 751-120 89-34 Hose, Vent (Kohler Courage Single)
— 751-12089 - 45 Hose, Vent (Kohler 7000)
— 751-12089 -28 Hose, Vent (MTD Engine)
— 751-10749 -22 Hose Vent (CARB)
20 751-10750-28 Hose, Fuel, Low Perm, 7/32 Yellow (CARB)
21 951-12372 Carbon Canister (CARB)
Fuel Tank and Dash
21
Electrical
8
11
4
1
1
17
2
9
3/4
2
6
14
22
15
13
12
16
5
10
7
Ref. Part Number Description
1. 710 -0 6133 Screw, M6-1 x .625
2. 712- 0 4 064 Nut, Flange Lock, 1/4-20, Nylon
3. 725-04232 Switch, 3-Pole (Man. PTO)
4. 725-04363 Switch, Interlock
5. 92 5 -0 6119 Key Switch (Man. PTO)
— 725- 0 6102A Key Switch (Elec. PTO)
6. 72 5- 0 6173 Jumper Harness (Elec. PTO)
7. 925- 06170 Hour Meter
— 925- 06221 Hour Meter (GT)
8. 925-1707D Battery
9. 925-06261 Dash Harness (Man. PTO)
— 92 5 -0 612 9 Dash Harness (Elec. PTO)
10. 925-3233 PTO Switch (Elec. PTO)
— 731-10634 Dash Plug (Man. PTO)
11. 7 38 - 042 37A Shoulder Screw, #10-32 x .500
12. 731- 09956 Choke Plug
13. 946-05097 Throt/Choke Cable, 21”
— 946-05098 Throt/Choke Cable, 43.5”
— 746 - 05255 Throt/Choke Cable, 28”
14. 747-0630 8† Cable Guide Rod
15. 925- 05041 Headlight Harness Assembly
16. 625-05000 Key, Assembly
17. 725- 0 6153 Solenoid
— 92 5 - 06130†† Harness Assembly, Main (Man. PTO)
— 92 5 -0 6127†† Harness Assembly, Main (Elec. PTO)
— 925-06167†† Reverse Harness
Electrical
† If Equipped
†† Not Shown
23
Drive System (GT)
10
10
22
9
9
A
7
7
16
23
24
21
13
3
15
17
11
25
5
20
12
6
1
4
11
11
10
A
2
8
8
19
5
26
12
4
14
8
6
1
18
24
Ref. Part Number Description
1. 918 -0 4317 Hub Assembly, Wheel
2. 918 - 06974 Transmission, Tu Torq K58
3. 983-05090 Idler bracket Assembly
4. 710 - 0176 Hex Screw, 5/16-18, 2.75, Gr5, Std
5. 710 - 06133 Screw, M6-1 x .625
6. 710 - 06168 Hex Cap Screw, 3/8-16 x .750
7. 71 0 -1611B Screw, Self-tapping, 5/16-18, 0.750
8. 710 -3 011 Hex Screw, 3/8-16, 2.25, Gr5
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 04217 Flange Lock Nut, 3/8-16
11. 714-04040 Pin, Cotter, Bow-Tie 72
12. 731-105 47 Sleeve, 1.02 ID x 1.75
13. 732- 05108 Spring, Extension, .700 Dia x 8.41
14. 732-05146 Spring, Extension, .90 Dia x 8.14
15. 738- 0 4162C Shoulder Spacer, .884 x .190
16. 747-05608 Deck Spring Rod
17. 747- 0 6193 Idler Link
18. 747- 06251A Rod, Brake, Tu Torq
19. 747- 0 6281A Rod, Control, Tu Torq
20. 747-06447 Rod, Transmission, Bypass
21. 748-05037A Shoulder Spacer
22. 954-05027 Belt, V-Type
23. 756-05024 Idler Pulley, 3.56 OD
24. 756-05032 Idler Pulley, 3.00 OD
25. 783-08342 Belt Keeper Bracket
26. 783-08463 Transmission Bracket
Drive System (GT)
25
Drive System (LT)
8
21
7
7
A
5
5
22
11
14
8
23
19
13
15
9
2
10
18
24
7
A
4
9
9
3
3
5
20
1
3
3
17
4
25
12
6
10
16
26
Ref. Part Number Description
1. 918-06972 Transmission, Tu Torq K46
2. 983-05090 Idler bracket Assembly
3. 710 - 0378 Hex Screw, 5/16-18, 2.50, Gr5, Std
4. 710 -0 6133 Screw, M6-1 x .625
5. 710 -1611B Screw, Self-tapping, 5/16-18, 0.750
6. 71 0 -3 011 Hex Screw, 3/8-16, 2.25, Gr5
7. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
8. 712- 04217 Flange Lock Nut, 3/8-16
9. 714-04040 Pin, Cotter, Bow-Tie 72
10. 731- 08237 Sleeve, .765 Id x 2.11
11. 732- 05108 Spring, Extension, .700 Dia x 8.41
12. 732- 0514 6 Spring, Extension, .90 Dia x 8.14
13. 738- 0 4162C Shoulder Spacer, .884 x .190
14. 747-05608 Deck Spring Rod
15. 747- 0 6193 Idler Link
16. 747- 062 51A Rod, Brake, Tu Torq
17. 747- 0 6281A Rod, Control, Tu Torq
18. 747-06447 Rod, Transmission, Bypass
19. 748-05037A Shoulder Spacer
20. 750-06201 Spacer, .34 x .75 x .63
21. 954-05027 Belt, V-Type
22. 756-05024 Idler Pulley, 3.56 OD
23. 756-05032 Idler Pulley, 3.00 OD
24. 783-08342 Belt Keeper Bracket
25. 783-08463 Transmission Bracket
Drive System (LT)
27
42-inch Deck
36
1
12
50
49
47
17
13
19
48
47
46
5
30
15
11
14
31
5
13
29
1
10
25
20
5
3
22
5
6
29
27
27
24
7
51
28
6
21
14
16
4
18
25
45
9
5
31
1
26
32
34
33
5
38
35
13
28
37
44
39
41
42
40
8
43
2
13
23
12
11
23
12
42-inch Deck
Ref. Part Number Description
1. 918-06976 Spindle Ass’y, Pulley, 6.3 Dia
2. 983-05076 Deck Assembly, 42”
3. 983-05182 Brake Assembly, Deck, RH
4. 983-05183 Brake Assembly, Deck, LH
5. 710 - 06133 Screw, M6-1 x .625
6. 710 - 06178 Hex Cap Screw, 3/8-16 x 2.00
7. 710 -0 6213 Hex Cap Screw, 5/16-18 x 1.25
8. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
9. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
10. 710-3005 Hex Cap Screw, 3/8-16 x 1.25
11. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
12. 712- 0417A Nut, Flange, 5/8-18
13. 712- 04217 Flange Lock Nut, 3/8-16
14. 714-05005 Bow-Tie Cotter Pin
15. 720-05075 Vinyl Cap, .29 x 1.00
16. 728-05016 Rivet Nut, 3/8-16
17. 732-04629 Spring, Extension, .750 x .477
18. 732-05151 Spring, Torsion, LH Brake
19. 783-08435 Bearing Shield
20. 936-0227 Flat Washer, .39 x 1.5 x .134
21. 738-05088 Shoulder Spacer, .75 x .145
22. 738-05099 Shoulder Spacer, .854 x .191
23. 942-04308 Blade, Cut, 21.23” 2-In-1, Cub
24. 747-06452 Rod, Brake, Deck
25. 748-05029A Shoulder Spacer, Idler
Ref. Part Number Description
26. 954-05021 Belt, V-Type, A Sec x 99.75
27. 756-05034 Pulley, Idler, 4.50” Dia.
28. 783-08284 Idler Bracket
29. 783-08389 Pulley Cap
30. 783-08406 Bracket, Cable, PTO
31. 783- 08510 Belt Cover
32. 921-04041 Coupler, Water
33. 731- 07487 Deck Wash Nozzle
34. 738 -04502 Shoulder Screw, 1/4-20 x 0.50
35. 734 -0 4155 Wheel, Deck, 5.0 Dia. Ball
36. 734-0973 Wheel, Deck 5.0 x 1.38
37. 938-0373 Bolt, Shoulder, .496 x 1.525, 3/8-16
38. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
39. 631-04354 Chute Deector Assembly
40. 732-05261 Spring, Torsion, .440 ID x 1.75
41. 747-06290A Hinge Pin
42. 783-08504A Bracket, Chute, 42”
43. 710-0751 Hex Cap Screw, 1/4-20 x .62
44. 712- 04 0 6 4 Nut, Flange Lock, 1/4-20, Nylon
45. 783-08690 Belt Keeper
46. 738-1010A Shaft, Spindle, 5.75
47. 9 41-0919B Bearing, Ball, .787id x 1.85 Od x .551
48. 750-04936 Spacer, .792 x 1.060 x 1.860
49. 750 - 06142 Spacer, .800 x 1.10 x 1.470
50. 756-05031 Pulley, Deck, 5.40 Dia.
29
46-inch Deck (Stamped)
3
34
1
10
37
11
32
29
27
3
35
4
13
3
33
1
30
36
24
26
26
19
17
12
8
20
31
22
25
13
28
35
29
32
16
27
4
5
15
21
18
7
3
34
1
38
40
39
2
44
43
42
50
45
11
47
48
46
14
9
49
6
9
11
23
10
23
10
11
41
30
46-inch Deck (Stamped)
Ref. Part Number Description
1. 918-06977 Spindle Ass’y, Pulley, 6.93 Dia
2. 983-05078 Deck Assembly, 46”
3. 710- 06133 Screw, M6-1 x .625
4. 710 - 0617 8 Hex Cap Screw, 3/8-16 x 2.00
5. 710 - 06213 Hex Cap Screw, 5/16-18 x 1.25
6. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
7. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
8. 710-3005 Hex Cap Screw, 3/8-16 x 1.25
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 0417A Nut, Flange, 5/8-18
11. 712- 04217 Flange Lock Nut, 3/8-16
12. 983-05182 Brake Assembly, Deck, RH
13. 714-05005 Bow-Tie Cotter Pin
14. 720-05075 Vinyl Cap, .29 x 1.00
15. 983-05183 Brake Assembly, Deck, LH
16. 728-05016 Rivet Nut, 3/8-16
17. 732-04629 Spring, Extension, .750 x .477
18. 732-05151 Spring, Torsion, LH Brake
19. 783-08435 Bearing Shield
20. 936-0227 Flat Washer, .39 x 1.5 x .134
21. 738-05088 Shoulder Spacer, .75 x .145
22. 738-05099 Shoulder Spacer, .854 x .191
23. 942-04244A Blade, Cut, 23.25” 2-In-1, Cub
24. 738-1010A Shaft, Spindle, 5.75
25. 747- 06452 Rod, Brake, Deck
Ref. Part Number Description
26. 941- 0919 B Bearing, Ball, .787id x 1.85 Od x .551
27. 748-05029A Shoulder Spacer, Idler
28. 954-05022A Belt, V-Type, A Sec x 108.3
29. 756-05034 Pulley, Idler, 4.50” Dia.
30. 750- 04936 Spacer, .792 x 1.060 x 1.860
31. 783- 08284 Idler Bracket
32. 783-08389 Pulley Cap
33. 783-08406 Bracket, Cable, PTO
34. 783- 08547 Belt Cover
35. 783-08690 Belt Keeper
36. 750- 06142 Spacer, .800 x 1.10 x 1.470
37. 756-05030 Pulley, Deck, 6.74 Dia.
38. 921-04041 Coupler, Water
39. 731- 07487 Deck Wash Nozzle
40. 738- 04502 Shoulder Screw, 1/4-20 x 0.50
41. 734- 04155 Wheel, Deck, 5.0 Dia. Ball
42. 734-0973 Wheel, Deck 5.0 x 1.38
43. 938-0373 Bolt, Shoulder, .496 x 1.525, 3/8-16
44. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
45. 631- 0435 4 Chute Deector Assembly
46. 732-05261 Spring, Torsion, .440 ID x 1.75
47. 747-06290A Hinge Pin
48. 783-08504A Bracket, Chute, 42”
49. 710 - 0751 Hex Cap Screw, 1/4-20 x .62
50. 712-0 4 0 64 Nut, Flange Lock, 1/4-20, Nylon
31
46-inch Deck (Fab)
3
11
27
23
10
26
24
22
46
4
21
1
15
11
4
26
24
22
28
6
1
9
40
45
13
7
43
44
41
42
42
16
17
25
19
3
27
1
29
31
30
2
33
39
34
36
37
35
12
8
18
8
10
8
20
18
9
5
38
10
14
20
9
10
32
32
46-inch Deck (Fab)
Ref. Part Number Description
1. 918-06977 Spindle Ass’y, Pulley, 6.93 Dia
2. 68 3 - 05153 Deck Assembly, 46”
3. 710- 06133 Screw, M6-1 x .625
4. 710 - 0617 8 Hex Cap Screw, 3/8-16 x 2.00
5. 710 - 0376 Hex Cap Screw, 5/16-18 x 1.00
6. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
7. 710-3005 Hex Cap Screw, 3/8-16 x 1.25
8. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
9. 712- 0417A Nut, Flange, 5/8-18
10. 712- 04217 Flange Lock Nut, 3/8-16
11. 714-05005 Bow-Tie Cotter Pin
12. 720-05010 Vinyl Cap, .29 x .50
13. 736-0258 Flat Washer, .385 x 1.00 x .135
14. 731-10 629 Bae, Discharge
15. 732-04960 Extension Spring, .94 Dia. x 7.57
16. 783- 08435 Bearing Shield
17. 936- 0227 Flat Washer, .39 x 1.5 x .134
18. 938-04033 Shoulder Screw, .428 x .160, 5/16-18
19. 738-05099 Shoulder Spacer, .854 x .191
20. 942- 04244A Blade, Cut, 23.25” 2-In-1, Cub
21. 747-05608 Deck Spring Rod
22. 748-05029A Shoulder Spacer, Idler
23. 754-05087 Belt, V-Type, A Sec x 108.3
Ref. Part Number Description
24. 756-05034 Pulley, Idler, 4.50” Dia.
25. 783-08284A Idler Bracket
26. 783-08389 Pulley Cap
27. 783-08547 Belt Cover
28. 783-08690 Belt Keeper
29. 921-04041 Coupler, Water
30. 731- 07487 Deck Wash Nozzle
31. 738-04502 Shoulder Screw, 1/4-20 x 0.50
32. 734- 0 4155 Wheel, Deck, 5.0 Dia. Ball
33. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
34. 631-04354 Chute Deector Assembly
35. 732-05261 Spring, Torsion, .440 ID x 1.75
36. 747-06290A Hinge Pin
37. 783-08504A Bracket, Chute, 42”
38. 710 -0751 Hex Cap Screw, 1/4-20 x .62
39. 712 - 040 6 4 Nut, Flange Lock, 1/4-20, Nylon
40. 756-05030 Pulley, Deck, 6.74 Dia.
41. 738-1010A Shaft, Spindle, 5.75
42. 941- 0919B Bearing, Ball, .787id x 1.85 Od x .551
43. 750-04936 Spacer, .792 x 1.060 x 1.860
44. 750 - 06142 Spacer, .800 x 1.10 x 1.470
45. 783-08619 Idler Keeper
46. 783-08867 Belt Keeper
33
50-inch Deck (LT)
1
10
21
18
21
26
1
17
42
42
43
44
41
21
20
40
1
11
7
29
27
29
25
15
4
12
22
28
15
3
6
25
21
27
30
31
2
33
32
11
8
1
19
24
30
12
31
13
9
34
36
34
35
38
5
39
10
37
23
23
14
23
10
10
16
50-inch Deck (LT)
Ref. Part Number Description
1. 918-06981 Spindle Ass’y, Pulley, 5.37 Dia
2. 983- 05103 Deck Assembly, 50”
3. 710 -0 6178 Hex Cap Screw, 3/8-16 x 2.00
4. 710 -0 6215 Hex Cap Screw, 3/8-16 x 2.25
5. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
6. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
7. 710-3005 Hex Cap Screw, 3/8-16 x 1.25
8. 711 - 06377 Roller Pin, 1/2 x 7.31 Lg
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 0417A Nut, Flange, 5/8-18
11. 712- 04217 Flange Lock Nut, 3/8-16
12. 714-05005 Bow-Tie Cotter Pin
13. 720-05075 Vinyl Cap, .29 x 1.00
14. 726 -0299 Push Cap, 1/2”
15. 728-05016 Rivet Nut, 3/8-16
16. 731- 05679B Front Roller
17. 731- 0 9968 Belt Cover, RH
18. 731-09969A Belt Cover, LH
19. 732- 04927 Spring, Extension, 1.25 OD x 8.5
20. 783-08435 Bearing Shield
21. 738-04502 Shoulder Screw, 1/4-20 x 0.50
22. 738-05082 Shoulder Spacer, .970 x .190
Ref. Part Number Description
23. 942-05052A Blade, Cut, 17.27” 2-In-1, Cub
24. 747-05608 Deck Spring Rod
25. 748-05037A Shoulder Spacer
26. 95 4 -0 4 077A Belt, V-Type, B Sec x 134
27. 756-05034 Pulley, Idler, 4.50” Dia.
28. 783-08309A Pivot Idler bracket
29. 783-08389 Pulley Cap
30. 921-04041 Coupler, Water
31. 731- 07487 Deck Wash Nozzle
32. 734- 0 4155 Wheel, Deck, 5.0 Dia. Ball
33. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
34. 6 31- 0511 6 Chute Deector Assembly
35. 732-05261 Spring, Torsion, .440 ID x 1.75
36. 747-06290A Hinge Pin
37. 783-08504A Bracket, Chute, 42”
38. 710 -0751 Hex Cap Screw, 1/4-20 x .62
39. 712 - 040 6 4 Nut, Flange Lock, 1/4-20, Nylon
40. 756-05036 Pulley, Deck, 5.00 Dia.
41. 938 -04241 Shaft, Spindle, 5.50
42. 941- 0919B Bearing, Ball, .787id x 1.85 Od x .551
43. 750-04936 Spacer, .792 x 1.060 x 1.860
44. 75 0 -06153 Spacer, .792 x 1.060 x 1.191
35
50-inch Deck (GT)
1
10
21
18
21
26
1
17
42
42
43
41
44
30
21
20
45
1
11
3
29
1
19
24
7
31
13
9
12
27
46
29
7
40
25
15
4
12
22
28
46
15
7
3
6
40
25
21
27
30
31
2
33
7
40
11
8
32
36
36
34
35
38
5
39
10
37
23
23
14
23
10
10
16
50-inch Deck (GT)
Ref. Part Number Description
1. 918-06980 Spindle Ass’y, Pulley, 5.37 Dia
2. 983- 05103 Deck Assembly, 50”
3. 710 -0 6178 Hex Cap Screw, 3/8-16 x 2.00
4. 710 -06214 Hex Cap Screw, 3/8-16 x 2.75
5. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
6. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
7. 710 -0 6133 Screw, M6-1 x .625
8. 711 - 06377 Roller Pin, 1/2 x 7.31 Lg
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 0417A Nut, Flange, 5/8-18
11. 712- 04217 Flange Lock Nut, 3/8-16
12. 714-05005 Bow-Tie Cotter Pin
13. 720-05075 Vinyl Cap, .29 x 1.00
14. 726 -0299 Push Cap, 1/2”
15. 728-05016 Rivet Nut, 3/8-16
16. 731- 05679B Front Roller
17. 731- 0 9968 Belt Cover, RH
18. 731-09969A Belt Cover, LH
19. 732- 04927 Spring, Extension, 1.25 OD x 8.5
20. 783-08435 Bearing Shield
21. 738-04502 Shoulder Screw, 1/4-20 x 0.50
22. 738-05082 Shoulder Spacer, .970 x .190
23. 942-05052A Blade, Cut, 17.27” 2-In-1, Cub
Ref. Part Number Description
24. 747-05608 Deck Spring Rod
25. 748-05037A Shoulder Spacer
26. 95 4 -0 4 077A Belt, V-Type, B Sec x 134
27. 756-05034 Pulley, Idler, 4.50” Dia.
28. 783-08309A Pivot Idler bracket
29. 783-08389 Pulley Cap
30. 921-04041 Coupler, Water
31. 731- 07487 Deck Wash Nozzle
32. 734- 0 4155 Wheel, Deck, 5.0 Dia. Ball
33. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
34. 6 31- 0511 6 Chute Deector Assembly
35. 732-05261 Spring, Torsion, .440 ID x 1.75
36. 747-06290A Hinge Pin
37. 783-08504A Bracket, Chute, 42”
38. 710 -0751 Hex Cap Screw, 1/4-20 x .62
39. 712 - 040 6 4 Nut, Flange Lock, 1/4-20, Nylon
40. 783-08404A Bracket, Lift, Stop
41. 7 3 8-1186 A Shaft, Spindle, 6.11
42. 941- 0919B Bearing, Ball, .787id x 1.85 Od x .551
43. 750-04936 Spacer, .792 x 1.060 x 1.860
44. 75 0 -06152 Spacer, .792 x 1.060 x 1.782
45. 756-05036 Pulley, Deck, 5.00 Dia.
46. 750- 0 618 4 Spacer, .385 ID x 1.75 OD x .585
37
54-inch Deck (Stamped)
1
10
21
18
21
26
1
17
42
42
43
41
44
21
20
40
1
11
7
29
27
29
25
15
4
12
22
28
15
3
6
25
21
27
30
31
2
33
32
11
8
1
19
24
30
12
31
13
9
38
36
34
35
38
5
39
10
37
23
23
14
23
10
10
16
54-inch Deck (Stamped)
Ref. Part Number Description
1. 918-06979 Spindle Ass’y, Pulley, 5.37 Dia
2. 983- 05104 Deck Assembly, 54”
3. 710 -0 6178 Hex Cap Screw, 3/8-16 x 2.00
4. 710 -0 6215 Hex Cap Screw, 3/8-16 x 2.25
5. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
6. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
7. 710-3005 Hex Cap Screw, 3/8-16 x 1.25
8. 711 - 06377 Roller Pin, 1/2 x 7.31 Lg
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 0417A Nut, Flange, 5/8-18
11. 712- 04217 Flange Lock Nut, 3/8-16
12. 714-05005 Bow-Tie Cotter Pin
13. 720-05075 Vinyl Cap, .29 x 1.00
14. 726 -0299 Push Cap, 1/2”
15. 728-05016 Rivet Nut, 3/8-16
16. 731- 05679B Front Roller
17. 731- 0 9968 Belt Cover, RH
18. 731-09969A Belt Cover, LH
19. 732- 04927 Spring, Extension, 1.25 OD x 8.5
20. 783-08435 Bearing Shield
21. 738-04502 Shoulder Screw, 1/4-20 x 0.50
22. 738-05082 Shoulder Spacer, .970 x .190
Ref. Part Number Description
23. 942-05056A Blade, Cut, 18.67” 2-In-1, Cub
24. 747-05608 Deck Spring Rod
25. 748-05037A Shoulder Spacer
26. 954-05025 Belt, V-Type, B Sec x 139
27. 756-05034 Pulley, Idler, 4.50” Dia.
28. 783-08309A Pivot Idler bracket
29. 783-08389 Pulley Cap
30. 921-04041 Coupler, Water
31. 731- 07487 Deck Wash Nozzle
32. 734- 0 4155 Wheel, Deck, 5.0 Dia. Ball
33. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
34. 6 31- 0511 6 Chute Deector Assembly
35. 732-05261 Spring, Torsion, .440 ID x 1.75
36. 747-06290A Hinge Pin
37. 783-08504A Bracket, Chute, 42”
38. 710 -0751 Hex Cap Screw, 1/4-20 x .62
39. 712 - 040 6 4 Nut, Flange Lock, 1/4-20, Nylon
40. 756-05038 Pulley, Deck, 4.50 Dia.
41. 938 -04241 Shaft, Spindle, 5.50
42. 941- 0919B Bearing, Ball, .787id x 1.85 Od x .551
43. 750-04936 Spacer, .792 x 1.060 x 1.860
44. 75 0 -06153 Spacer, .792 x 1.060 x 1.191
39
54-inch Deck (LT Fab)
20
30
1
25
19
44
44
43
42
10
20
16
17
1
1
11
1
3
18
5
29
31
23
21
4
27
24
29
27
24
26
28
32
20
33
2
38
36
12
31
14
9
6
40
41
39
37
14
13
3
7
11
8
15
22
10
5
34
40
54-inch Deck (LT Fab)
Ref. Part Number Description
1. 918-06979 Spindle Ass’y, Pulley, 5.37 Dia
2. 683 - 05138 Deck Assembly, 54”
3. 710 -3005 Hex Cap Screw, 3/8-16 x 1.25
4. 710 - 0617 8 Hex Cap Screw, 3/8-16 x 2.00
5. 710- 06215 Hex Cap Screw, 3/8-16 x 2.25
6. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
7. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
8. 711 - 06377 Roller Pin, 1/2 x 7.31 Lg
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 0417A Nut, Flange, 5/8-18
11. 712- 04217 Flange Lock Nut, 3/8-16
12. 720-05075 Vinyl Cap, .29 x 1.00
13. 726-0299 Push Cap, 1/2”
14. 728-05016 Rivet Nut, 3/8-16
15. 731- 05679 B Front Roller
16. 731- 099 68 Belt Cover, RH
17. 731-09969A Belt Cover, LH
18. 732-04927 Spring, Extension, 1.25 OD x 8.5
19. 783-08435 Bearing Shield
20. 738-04502 Shoulder Screw, 1/4-20 x 0.50
21. 738-05082 Shoulder Spacer, .970 x .190
22. 942-05056A Blade, Cut, 18.67” 2-In-1, Cub
Ref. Part Number Description
23. 747-05608 Deck Spring Rod
24. 748-05037A Shoulder Spacer
25. 750- 0 6153 Spacer, .792 x 1.060 x 1.191
26. 954-05025 Belt, V-Type, B Sec x 139
27. 756-05034 Pulley, Idler, 4.50” Dia.
28. 783-08309A Pivot Idler bracket
29. 783-08389 Pulley Cap
30. 756- 05038 Pulley, Deck, 4.50 Dia.
31. 714-05005 Bow-Tie Cotter Pin
32. 921-04041 Coupler, Water
33. 731- 07487 Deck Wash Nozzle
34. 734- 0 4155 Wheel, Deck, 5.0 Dia. Ball
35. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
36. 631- 05168A Chute Deector Assembly
37. 732-05261 Spring, Torsion, .440 ID x 1.75
38. 747-06290A Hinge Pin
39. 783- 08504A Bracket, Chute, 42”
40. 710 -0751 Hex Cap Screw, 1/4-20 x .62
41. 712- 04 0 64 Nut, Flange Lock, 1/4-20, Nylon
42. 750 -04936 Spacer, .792 x 1.060 x 1.860
43. 938- 0 4241 Shaft, Spindle, 5.50
44. 941- 0919B Bearing, Ball, .787id x 1.85 Od x .551
41
54-inch Deck (GT Fab)
20
47
1
46
19
44
44
43
42
10
12
17
27
1
26
28
32
20
33
2
3
5
3
30
11
34
20
16
1
11
1
18
5
29
31
23
3
31
30
3
9
25
14
24
30
4
21
4
27
25
14
29
24
7
42
38
36
37
13
30
8
15
22
10
3
6
40
41
39
54-inch Deck (GT Fab)
Ref. Part Number Description
1. 918-06978 Spindle Ass’y, Pulley, 5.37 Dia
2. 683 - 05138 Deck Assembly, 54”
3. 710- 06133 Screw, M6-1 x .625
4. 710 - 0617 8 Hex Cap Screw, 3/8-16 x 2.00
5. 710 -06214 Hex Cap Screw, 3/8-16 x 2.75
6. 710-0805A Hex Cap Screw, 5/16-18 x 1.50
7. 710 -1260A Screw, Self-tapping, 5/16-18, 0.750,
8. 711 - 06377 Roller Pin, 1/2 x 7.31 Lg
9. 712- 0 4 063 Nut, Flange Lock, 5/16-18, Nylon
10. 712- 0417A Nut, Flange, 5/8-18
11. 712- 04217 Flange Lock Nut, 3/8-16
12. 720-05075 Vinyl Cap, .29 x 1.00
13. 726-0299 Push Cap, 1/2”
14. 728-05016 Rivet Nut, 3/8-16
15. 731- 05679 B Front Roller
16. 731- 099 68 Belt Cover, RH
17. 731-09969A Belt Cover, LH
18. 732-04927 Spring, Extension, 1.25 OD x 8.5
19. 783-08435 Bearing Shield
20. 738-04502 Shoulder Screw, 1/4-20 x 0.50
21. 738-05082 Shoulder Spacer, .970 x .190
22. 942-05056A Blade, Cut, 18.67” 2-In-1, Cub
23. 747-05608 Deck Spring Rod
Ref. Part Number Description
24. 748-05037A Shoulder Spacer
25. 750 -06184 Spacer, .385 ID x 1.75 OD x .585
26. 954-05025 Belt, V-Type, B Sec x 139
27. 756-05034 Pulley, Idler, 4.50” Dia.
28. 783-08309A Pivot Idler bracket
29. 783-08389 Pulley Cap
30. 783-08404A Bracket, Lift, Stop
31. 714-05005 Bow-Tie Cotter Pin
32. 921-04041 Coupler, Water
33. 731- 07487 Deck Wash Nozzle
34. 734- 0 4155 Wheel, Deck, 5.0 Dia. Ball
35. 938-3056 Bolt, Shoulder, .496 x 2.50, 3/8-16
36. 631- 05168A Chute Deector Assembly
37. 732-05261 Spring, Torsion, .440 ID x 1.75
38. 747-06290A Hinge Pin
39. 783- 08504A Bracket, Chute, 42”
40. 710 -0751 Hex Cap Screw, 1/4-20 x .62
41. 712- 04 0 64 Nut, Flange Lock, 1/4-20, Nylon
42. 756-05038 Pulley, Deck, 4.50 Dia.
43. 738 -118 6A Shaft, Spindle, 6.11
44. 941- 0919B Bearing, Ball, .787id x 1.85 Od x .551
45. 750-04936 Spacer, .792 x 1.060 x 1.860
46. 750 - 06152 Spacer, .792 x 1.060 x 1.782
43
Engine Accessories (Kohler Single)
8
5
10
7
4
2
11
3
Ref.
Part Number Description
1. 983 -05142 Shield Ass’y, Muer
2. 710-04683B Screw, Self-tapping, 3/8-16, 1.0
3. 710 - 06133 Screw, M6-1 x .625
4. 710- 06256 Screw, Self-tapping, M8-1.25, .750
5. 710 -1314A Screw, Sokt Head, 5/16-18, .750
6. 726-0205 Clamp, Hose, .490 Dia.
7. 731-1074 6 Push Mount Wire Clip, .750
8. 751-14836 Drain, Oil
9. 751-10349 Hose, Fuel, Low Permeation, 1/4
10. 751-14480 Exhaust Pipe
11. 751-14504A Muer, Kohler
9
6
1
44
Engine Accessories (Kohler Twin)
13
11
10
5
7
3
4
2
8
12
3
Ref.
Part Number Description
1. 983 -05142 Shield Ass’y, Muer
2. 710-04683B Screw, Self-tapping, 3/8-16, 1.0
3. 710 - 06133 Screw, M6-1 x .625
4. 710- 06256 Screw, Self-tapping, M8-1.25, .750
5. 710 -1314A Screw, Sokt Head, 5/16-18, .750
6. 726-0205 Clamp, Hose, .490 Dia.
7. 731-1074 6 Push Mount Wire Clip, .750
8. 783 -0 8717 Muer Shield
9. 751-10349 Hose, Fuel, Low Permeation, 1/4
10. 751-14478 Exhaust Pipe, LH
11. 751-14 479 Exhaust Pipe, RH
12. 751-14503A Muer, Kohler
13. 751-14836 Drain, Oil
9
6
1
45
MTD X90
11
6
8
5
10
7
2
4
2
9
3
Ref. Part Number Description
1 983- 05142 Shield Ass’y, Muer
2 710-04683C Screw, 3/8-16 x 1.0
3 710 - 06133 Screw, M6-1 x .625
4 710 -06256 Screw, Self-tapping, M8-1.25, .750
5 712-3086 Flange Nut, M8-1.25
6 726-0205 Clamp Hose, .490 diameter
7 BS-298090S Fuel Filter
8 751-10349 -13 Fuel Hose
9 751-14504A Muer, Kohler
10 751-14576 Exhaust Pipe
11 751-14 836 Drain, Oil
1
46
This page left intentionally blank.
47
Hydrostatic Transmission (Tuff-Torq 618-06972)
87
85
86
84
83
34
33
96
58
53
52
91
54
51
60
57
55
59
13
72
49
56
74
50
90
95
19
12
10
20
16
34
35
34
15
8
7
80
82
81
78
76
200
201
1
31
K46DM Transmission
K46DM Seal Kit
Kit Includes
#7
#15
(2) #19
#20
#26
#30
K46DM Repair Kit
#24
#31
#200 - Seal Kit
(2) #59
(2) #72
(2) #81
Kit Includes
32
69
#91
#99
#38
11
44
45
46
14
77
30
28
29
8
47
27
73
70
71
62
99
61
3
22
21
82
8
2
79
75
24
25
39
26
71
70
72
74
38
36
43
40
37
64
65
73
41
42
63
65
67
66
68
48
Hydrostatic Transmission (Tuff-Torq 618-06972)
Ref. Part Number Description
1 918- 06972 K46DM Transaxle
2 TT-1A646098030 Kit, Housing
3 T T-1A6 4 6 08 4181 Lower Case
7 T T-168T 2024250 Vent Valve
8 T T-19216324360 Magnet
10 TT-1A646099950 Pump Shaft/Bearing Kit
11 T T-19215427281 Spring 25
12 TT-1A646 029510 Bypass Shaft A
13 TT-1A632029520 Bypass Lever
14 TT-22242000100 Snap Ring 10
15 TT-168T2036300 Sealing Cap 30
16 TT-22252000350 Snap Ring C 35
19 TT-24311240100 O-Ring 1A P10A
20 TT-24421153507 Seal TC 153507
21 TT-26476080552 Tapping Screw 8 x 55
22 TT-26476080302 Tapping Screw 8 x 30
24 T T-1A64609 9 070 Kit, Center Case
25 TT-1921682476 0 Pin 3 x 9.8
26 TT-168T2025220 Filter 105
27 TT-168T2099990 Bolt 10 x 75
28 TT-1A646024800 IDS Valve 1.2
29 TT-1A646024761 IDS Spring
30 TT-1A646024790 IDS Filter 300
31 TT-168T2025 090 Kit, Cylinder Block (Pump)
32 T T-1A646025200 Spring
33 TT-1A646025251 Pump Shaft
34 T T-22272000120 E-Ring 12
35 T T-1A6 4 6034770 Bearing 6202
36 TT-19216824210 Motor Housing
37 T T-1A64603 4750 Thrust Bearing 51106
38 TT-168T2025080 Kit, Cylinder Block
39 T T-19216 825230 Washer 12 x 24 x 1
40 T T-1A646025271 Motor Shaft
41 TT-19215 425310 Snap Ring S15
42 T T-1A646025400 Brake Disc/Motor Gear
43 TT-1A646034760 Bearing 6202
44 T T-187 T00270 6 0 Thrust, Plastic
45 T T-168 T 2084570 Swash Plate Clamp
46 T T-19216399000 Kit, Thrust Bearing (Pump)
Ref. Part Number Description
47 T T-1A646029010 Magnet Holder
49 T T-1A6 4 60 29 911 Control Shaft
50 TT-168T2029920 Fulcrum
51 T T-168 T 2029800 Torsion Spring, Standard
52 T T-1A646029740 Control Lever
53 T T-1A646029400 Control Lever F
54 T T-168 T 20293 60 Jerky Plate
55 TT-22137120000 Washer 12
56 TT-1A646029940 Cotter Pin 1/8" x 3/4"
57 TT-223510 60036 Spring Pin 6 x 36
58 TT-223510600 40 Roll Pin 6 x 40
59 TT-24311000140 O-Ring P14
60 T T-26776120002 Nut 12
61 TT-1A646031570 Di Gear Kit
62 TT-1A646033520 Final Gear (54T)
63 TT-1A646033250 Final Pinion Collar
64 T T-1A646033410 Reduction Shaft
65 TT-19216833420 Washer 12 x 32 x 3.2
66 T T-1A646033450 Reduction Gear (37T)
67 TT-168T2033540 Final Pinion Gear (10T)
68 T T-1A64603 4370 Axle Shaft, Left
69 TT-1A646034380 Axle Shaft, Right
70 T T-1921633 4261 Thrust Washer
71 T T-1921683 4270 Ring 17
72 TT-19216334280 Seal 19 x 32 x 8
73 TT-1921683435 0 Bushing 19 x 25
74 TT-168T2034240 Bushing 19.05
75 T T-1A6 46036121 Brake Shoe
76 TT-1A646036160 Brake Lever
77 TT-1A6 4 6036171 Brake Shaft
78 T T-168T 203618 0 Brake Return Spring
79 T T-1A 6 4 6 036200 Brake Actuator
80 T T-22351050032 Spring Pin 5 x 32
81 TT-24311000120 O-Ring 1A P12
82 TT-22351040016 Spring Pin 4 x 16
83 TT-1A64602 530 0 Spline Collar
84 T T-1A646025760 Pulley B
85 TT-1A646083070 Fan, Black
86 TT-1A646083060 Wave Washer
Continued on next page
49
Hydrostatic Transmission (Tuff-Torq 618-06972)
Ref. Part Number Description
87 T T-1921548909 0 Snap Ring
90 T T-22351030020 Spring Pin 3.0A x 20
91 TT-1A646024440 Oil Seal 16 x 22 x .03
95 TT-22351030016 Spring Pin 3.0A x 16
96 T T-22351035040 Roll Pin 3.5 x 40
99 N/A Sealant
200 T T-1A646099140
201 TT-1A646099600 Repair Kit, Incl. 24, 31, 38 & 200
Kit,Seal Incl. 7, 15, 19, 20, 26, 30,
59, 72, 81, 91 & 99
50
This page left intentionally blank.
51
Hydrostatic Transmission (Tuff-Torq 618-06974)
87
88
85
86
84
90
95
13
58
53
52
91
54
51
49
57
60
55
59
74
50
19
12
96
72
56
88
34
33
20
16
34
35
34
15
8
7
80
81
78
76
52
200
201
1
31
K58G Transmission
K58G Seal Kit
Kit Includes
#7
#15
#19
#20
#26
K58G Repair Kit
Kit Includes
#24
#31
#200 - Seal Kit
32
69
#59
#72
#81
#91
#99
#38
72
74
38
36
43
40
37
64
65
73
41
42
63
65
67
66
83
68
103
26
82
8
2
79
75
24
25
39
83
71
70
11
44
45
46
14
77
30
29
28
8
47
100
73
70
71
99
3
22
27
97
62
61
21
Hydrostatic Transmission (Tuff-Torq 618-06974)
Ref. Part Number Description
1 918 -06974 K58G Transaxle
2 TT-187Q0024100 Kit, Housing
3 TT-187Q0024160 Lower Case
7 T T-168T 2024250 Vent Valve
8 T T-19216324360 Magnet
11 T T-19215427281 Spring 25
12 TT-1A646 029510 Bypass Shaft A
13 TT-1A632029520 Bypass Lever
14 TT-22242000100 Snap Ring 10
15 TT-168T2036300 Sealing Cap 30
16 TT-22252000350 Snap Ring C 35
19 TT-24311240100 O-Ring 1A P10A
20 TT-24421153507 Seal TC 153507
21 TT-26476080552 Tapping Screw 8 x 55
22 TT-26476080302 Tapping Screw 8 x 30
24 T T-1A64609 9220 Kit, Center Case
25 TT-1921682476 0 Pin 3 x 9.8
26 TT-187Q0024950 Filter
27 TT-168T2099990 Bolt 10 x 75
28 TT-1A646024800 IDS Valve 1.2
29 TT-1A646024761 IDS Spring
30 TT-1A646024790 IDS Filter 300
31 TT-168T2025 090 Kit, Cylinder Block (Pump)
32 T T-1A646025200 Spring
33 TT-1A646088840 Pump Shaft
34 T T-22272000120 E-Ring 12
35 T T-24101062020 Bearing 6202C3
36 TT-187Q0024 810 Motor Housing
37 T T-187Q0099760 Thrust Ball Bearing
38 TT-168T2025080 Kit, Cylinder Block
39 T T-19216 825230 Washer 12 x 24 x 1
40 T T-1A646025271 Motor Shaft
41 TT-19215 425310 Snap Ring S15
42 TT-187Q0099400 Motor Gear
43 TT-187Q0089300 Bearing 6202
44 T T-187 T00270 6 0 Thrust, Plastic
45 T T-168 T 2084530 Swash Plate Clamp
46 T T-19216399000 Kit, Thrust Bearing (Pump)
47 T T-1A646029010 Magnet Holder
Ref. Part Number Description
49 T T-1A6 4 60 29 911 Control Shaft
50 TT-168T2029920 Fulcrum
51 T T-168 T 2029800 Torsion Spring, Standard
52 T T-168T202974 0 Control Arm A
53 T T-1A646029400 Control Lever F
54 T T-168 T 20293 60 Jerky Plate
55 TT-22137120000 Washer 12
56 TT-1A646029940 Cotter Pin 1/8" x 3/4"
57 TT-223510 60036 Spring Pin 6 x 36
58 TT-223510600 40 Roll Pin 6 x 40
59 TT-24311000140 O-Ring P14
60 T T-26776120002 Nut 12
61 TT-187Q0031500 Di Gear Kit
62 TT-187Q0033520 Final Gear
63 TT-187Q 0 033250 Final Collar
64 T T-187Q0033410 Reduction Shaft
65 TT-19216833420 Washer 12 x 32 x 3.2
66 T T-187Q0 033451 Reduction Gear
67 TT-187Q0033530 Final Pinion
68 T T-187Q0034170 Axle Shaft, Left
69 TT-187Q0 034180 Axle Shaft, Right
70 TT-1A632034290 Thrust Washer
71 T T-19216734160 Ring 23
72 TT-1A632034370 Seal 25.4 x 42 x 8
73 TT-187Q0034350 Bushing 25.4
74 TT-1921543424 0 Bushing 25.4
75 T T-1A6 46036121 Brake Shoe
76 TT-1A646036160 Brake Arm
77 TT-1A6 4 6036171 Brake Shaft
78 T T-168T 203618 0 Brake Return Spring
79 T T-1A 6 4 6 036200 Brake Actuator
80 T T-22351050032 Spring Pin 5 x 32
81 TT-24311000120 O-Ring 1A P12
82 TT-22351040016 Spring Pin
83 TT-187Q0033100 Support Bushing
84 T T-1A646025760 Pulley B
85 T T-187Q0 08 3110 Fan
86 TT-1A646083060 Wave Washer
87 T T-1921548909 0 Snap Ring
Continued on next page
53
Hydrostatic Transmission (Tuff-Torq 618-06974)
Ref. Part Number Description
88 T T-1A64602530 0 Spline Collar
90 T T-22351030020 Spring Pin 3.0A x 20
91 TT-1A646024440 Oil Seal 16 x 22 x .03
95 TT-22351030016 Spring Pin 3.0A x 16
96 TT-1A646088410 Pin 2.5 x 9.8
97 TT-1A646088450 Charge Spring
99 N/A Sealant
100 TT-187Q0099080 Charge Pump Kit
103 TT-22351030 018 Pin 3.0 x 18
200 TT-187Q0099200
201 TT-187Q0099060 Repair Kit, Incl. 24, 31, 38 & 200
Kit,Seal Incl. 7, 15, 19, 20, 26, 59,
72, 81, 91 & 99
54
This page left intentionally blank.
55
LT Labels
777D16533
777S35416 777I25196
777X47811 (42”) 777X47812 (46” Stamped) 777X47813 (46” Fab)
777D16298
777D19858
777X47146
777S35376 (Fab Deck)
777S35297
S352 97
777D19856
777S35375 (Fab Deck)
56
777X47814 (50”)
777S35296
777X47815 (54” Stamped) 777X47816 (54” Fab)
777D19542
"
"
™
™
S I G N AT U R E C U T
42
LT
SI G N A T U R E C U T
777D19546 777D19547 777D2073
50
LT
S I G N AT U R E C U T
777D20269 777D20270
"
46
LT
SIGN ATUR E CU T
54
LT
"
™
™
"
46
LT
FABRI CATED DE CK
"
54
LT
FABRI CATED D ECK
GT Labels
777D16533
777S35416
777D16298
777D19858
777X47146
777I25196
777S35297
S352 97
777D19856
777I25270
777S35296 777X47816 (54”)
GT
S I G N AT U R E C U T
777S35375 (Fab Deck) 777S35376 (Fab Deck)
777X47814 (50”)
50
"
™
FABRICATED DECK
GT
777D19548777D19548
54
"
57
Electrical Schematic (Man. PTO)
58
Electrical Schematic (Elec. PTO)
59
Kohler KT745-3001 Crankcase
17
13
18
14
1
2
10
8
12
11
16
9
15
3
7
6
60
5
4
Kohler KT745-3001 Crankcase
Ref. Part Number Description
1 KH-24-126-243 -S Lifting Strap
2 KH-24-380-16-S Locating Pin
3 KH-24 -032-19-S Oil Seal, 1.78 x 1.26
4 KH-24 -018- 01-S Piston Pin Retainer
5 KH-25-108- 01-S Piston Ring Set (STD)
— KH-25-108- 02-S Piston Ring Set (.08)
— KH-25-108- 03-S Piston Ring Set (.25)
— KH-25-108-04-S Piston Ring Set (.50)
6 KH-25-874-14-S Piston Kit w/ Ring (STD) (Inc. 4 & 5)
— KH-25- 874-18 -S Piston Kit w/ Ring (.08)
— KH-25-874 -19-S Piston Kit w/ Ring (.25)
— KH-25-874-20 -S Piston Kit w/ Ring (.50)
7 KH-24-067-34-S Connecting Rod (STD)
— KH-24-067-31-S Connecting Rod (U/S .010) (25mm)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, 11/32”
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH -M-931010-S Flat Washer, 9 mm
13 KH-25- 086-398-S Thread Forming Screw
14 KH -12-153- 07 O-Ring
15 KH -25-153 -09 -S O-Ring
16 KH-32-010-07-S Camshaft Assembly
17 KH-32-038-12-S Dipstick Assembly
18 KH-32-123-14 -S Oil Fill Tube Assembly
61
Kohler KT745-3001 Head/Valve/Breather
31
20
23
22
28
29
18
19
25
8
9
6
9
7
5
1
27
30
3
4
21
32
11
17
26
62
24
15
16
12
10
13
2
1
14
18
Kohler KT745-3001 Head/Valve/Breather
Ref.
Part Number Description
1 KH-32-841-02-S
2 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
3 KH-32-017-01-S Intake Valve
4 KH-32-016-01-S Exhaust Valve
5 KH-275067 Spacer (.010”)
6 KH-12-755 - 03 Retainer Kit
7 KH -25-032-14-S Valve Band Seal
8 KH -25-173-28-S Valve Spring Cap
9 KH-32-089-05-S Valve Spring
10 KH -25-59 9 - 01-S Rocker Arm Pivot
11 KH-32-019-02-S Ta ppet
12 KH-32-072-04-S Rocker Stud
13 KH-32-100-05-S Hex Nut Assembly (Inc. #14)
14 KH-25-086-168-S Set Screw
15 KH-32-146-09-S Guide Plate
16 KH-32-186-03-S Rocker Arm
17 KH-32-411-04-S Push Rod
18 KH-25-086-374-S Pan Head Screw
19 KH-25-096-09-S Rocker Cover
20 KH-12-402-02 Breather Reed
21 KH-32-050-06-S Breather Filter
22 KH-32-468-01-S Sealing Washer
23 KH-M-547050-S Lock Nut, M5 x 8
24 KH -2 5 -0 9 6-11-S Rocker Cover
Cylinder Head Gasket Kit (Inc. Head
Mounting Hardware)
25 KH-32-318-21-S
26 KH-32-318-22-S
27 KH-25-326-62-S Breather Hose
28 KH-32-096-16-S Breather Cover
29 KH-32-072-05-S Stud
30 KH-16-096-02-S Breather Media Cover
31 KH-66-018-04-S Reed Retainer
32 KH-25-086-400-S Thread Forming Screw
Cylinder Head Assembly Kit, #1 (Inc.
Exhaust Mounting Hardware)
Cylinder Head Assembly Kit, #2 (Inc.
Exhaust Mounting Hardware)
63
Kohler KT745-3001 Oil Pan/Lubrication
6
8
7
10
9
13
5
4
1
2
Ref. Part Number Description
1 KH-24-086-17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-2 5 -139 -57-S Square Head Pipe Plug, ⁄
4 KH-32-19 9 -17-S Oil Pan Assembly
5 KH-12-14 4- 02 Governor Gear Shaft
6 KH -12-380 - 01 Governor Regulating Pin
7 KH-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 KH-32-393-18-S Oil Pump Assembly
10 KH-25-086-414-S Button Head Screw
11 KH-12-050-01-S Oil Filter
12 KH-32-089-06-S Compression Spring
13 KH-32-162-06-S Oil Screen
14 KH -25 -139- 6 0 -S Pipe Plug, 1/8
12
14
3
11
64
Kohler KT745-3001 Crankshaft
1
2
Ref. Part Number Description
1 KH-52-139-09-S Cup Plug
2 KH-16 - 014-12-S Crankshaft
65
Kohler KT745-3001 Ignition/Electrical
10
4
6
7
8
9
17
11
18
12
13
5
14
11
15
2
3
1
16
66
Kohler KT745-3001 Ignition/Electrical
Ref. Part Number Description
1 KH-12-132-02-S Spark Plug
2 KH-25-086-402-S Thread Forming Screw
3 KH-237878 15 Amp Stator Kit
4 KH-25-086-361-S Hex Flange Screw
5 KH-25-340-04-S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-20-146-05-S Fan Mounting Plate
8 KH-32-018-03-S Flywheel Fan Retainer
9 KH-32-157-04-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-25-086-473-S Thread Forming Screw
12 KH-25-155-41-S Connector
13 KH-25- 454-03 -S Wire Tie
14 KH-32-025-21-S Flywheel Assembly
15 KH-32-584-07-S Ignition Module
16 KH-32-176-34-S Wiring Harness
17 KH-32-518-02-S Jumper Lead
18 KH-41-403-10-S Rectier Regulator
67
Kohler KT745-3001 Blower Housing & Baffles
2
11
2
12
3
3
1
1
3
7
3
10
8
5
7
6
4
3
9
68
7
3
3
12
8
1
Kohler KT745-3001 Blower Housing & Baffles
Ref. Part Number Description
1 KH-25-086-473-S Thread Forming Screw
2 KH-25-086-450-S Hi-Low Screw
3 KH-25-086-397-S Thread Forming Screw
4 KH-32-14 6-15-S Backing Plate
5 KH-32- 063 -19-S Valley Bae, #1 Cylinder
6 KH-32-063-20-S Valley Bae, #2 Cylinder
7 KH-25-086-400-S Thread Forming Screw
8 KH-25-086-406-S Thread Forming Screw
9 KH-32-063-17-S Left Barrel Bae
10 KH-32-063-18-S Right Barrel Bae
11 KH-32-027-16-S Blower Housing
12 KH-32-445-01-S Lift Strap
69

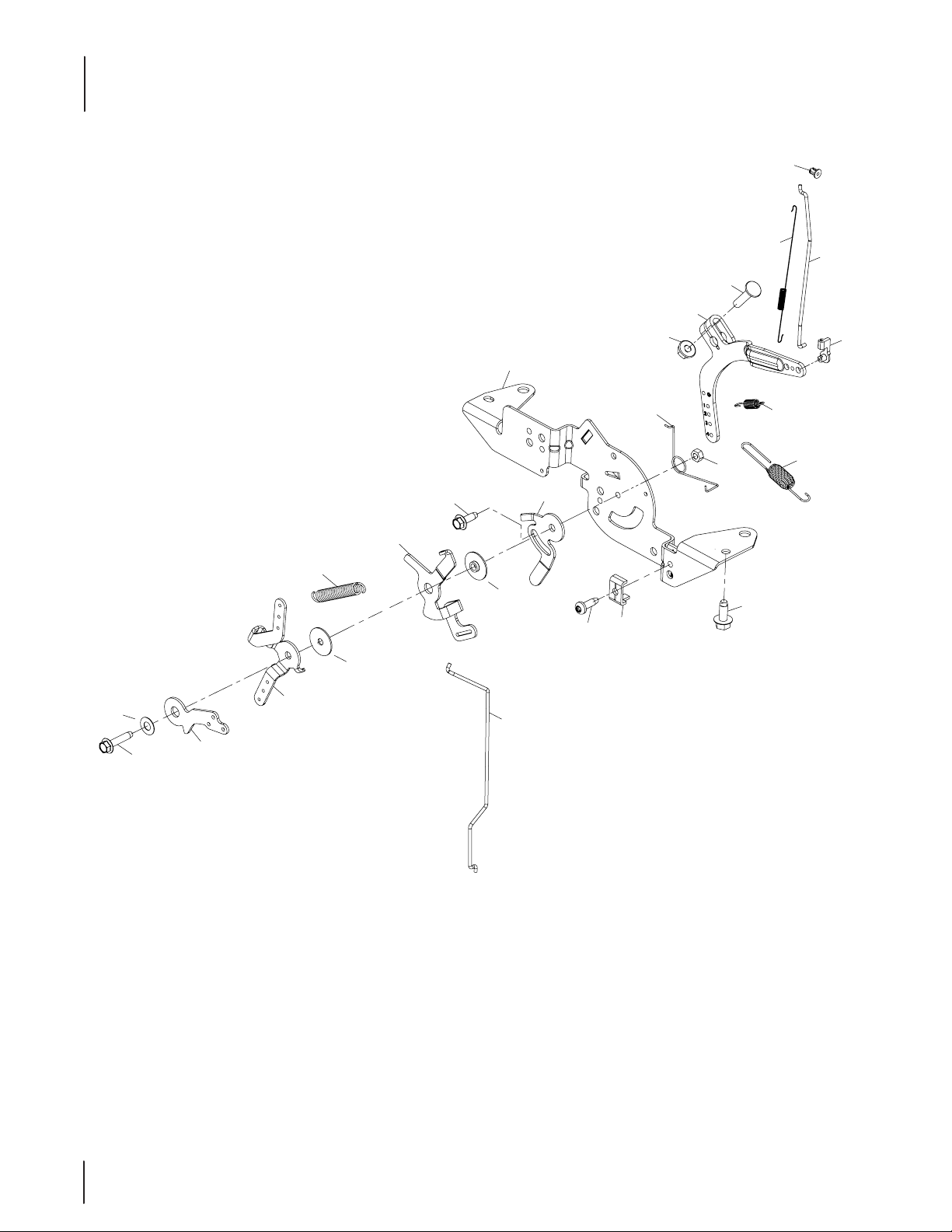

Kohler KT745-3001 Engine Controls
5
18
23
22
24
16
2
19
11
9
20
21
14
7
3
12
4
1
15
6
26
17
13
8
25
10
70
Kohler KT745-3001 Engine Controls
Ref. Part-Number Description
1 KH-25-086-397-S Thread Forming Screw
2 KH-24-089-03 Choke Return Spring
3 KH-32-089-03-S Speed Control Spring
4 KH-24-089 -55-S Governor Spring
5 KH-25 -158 - 08 Linkage Retaining Bushing
6 KH-25-158 -11 Throttle Linkage Bushing
7 KH-32-090-07-S Governor Spring Lever
8 KH-32-090-08-S Speed Control Lever
9 KH-32-090-09 -S Speed Setting Lever
10 KH-32-090-12-S Choke Lever
11 KH-24 -112-27-S Control Assembly Spacer
12 KH -24 -468 - 01 Flat Washer, 5.5mm
13 KH-25-086-429-S Thread Forming Screw
14 KH-25-086 -398-S Thread Forming Screw
15 KH-32-079-01-S Throttle Linkage
16 KH-32-126-04-S Control Bracket
17 KH-41-468-03 Spring Washer, 1/4
18 KH-32-089-07-S Linkage Spring
19 KH-M-547050-S Lock Nut, M5 x .8
20 KH-12-237- 01 Cable Clamp
21 KH-25-086-405-S Thread Forming Screw
22 KH-24-090-69-S Governor Lever
23 KH-24 -211-03-S Bolt, M6 x 1.0 x 25
24 KH-M-641060-S Flange Nut, M6 x 1.0
25 KH-24 - 079-22-S Choke Linkage
26 KH-24-089 -25-S Governor Spring
71
Kohler KT745-3001 Air Intake/Filtration
4
7
3
5
2
1
Ref. Part Number Description
1 KH -25-173 - 09 -S Masking Cap
2 KH-32-094-13-S Air Cleaner Base Assembly
3 KH-32- 883- 09-S1 Air Filter Element
4 KH-25 -153-15-S O-Ring
5 KH-32-083 -10 -S Pre-Cleaner Element
6 KH-32-041-04-S Air Cleaner Base Gasket
7 KH-32-096-20-S Air Cleaner Cover Assembly
6
72

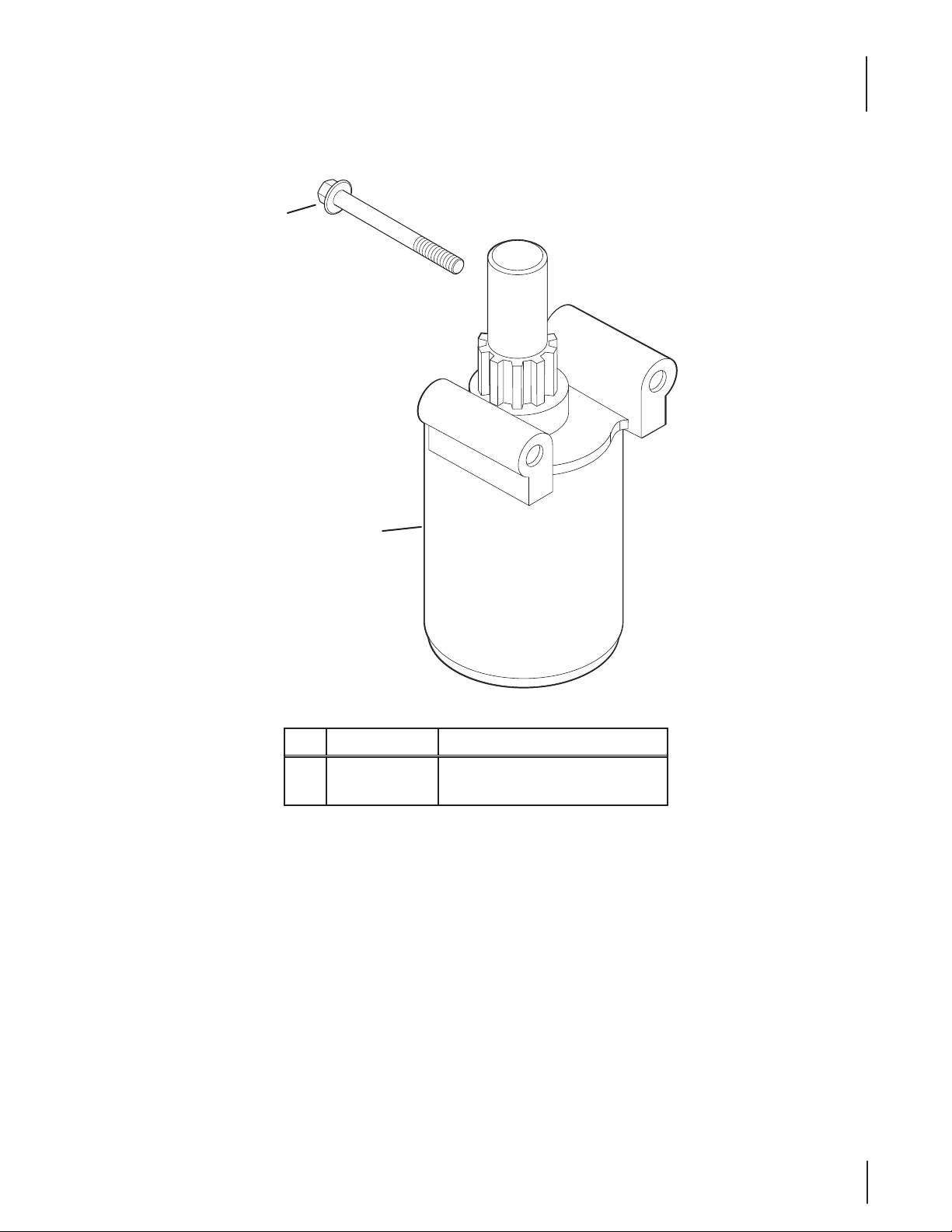

Kohler KT745-3001 Starting System
2
1
Ref. Part Number Description
1 KH-32-098-04-S Starter Assembly
2 KH- M -8510 80-S Flange Screw, M8 x 1.25 x 80
73
Kohler KT745-3001 Fuel System
14
17
5
16
11
15
10
5
4
1
7
13
3
7
2
9
12
8
6
Ref.
1 KH-25 - 072-25 -S Stud
2 KH-25-086-398-S Thread Forming Screw
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-25 - 050-22-S1 Fuel Filter
5 KH-24 -153-27-S Intake Port O-Ring
6 K H- 2 5-111- 81-S Fuel Line, 24"
7 KH-25 -237-37-S Spring Hose Clamp
8 K H - 47-154- 01-S Cable Clip
9 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
Part Number Description
74
Ref.
Part Number Description
10 K H -24 -393-16 Fuel Pump
11 KH-25-086-400-S Thread Forming Screw
12 KH-32-326-08-S Pulse Pump Hose
13 KH-16 - 853-01-S Carburator Kit
14 KH-24-164-91-S Intake Manifold Kit
15 KH- M - 65104 0 -S Flange Screw, M6 x 1.0 x 40
16 K H-24 -041-52-S Carburetor Gasket
17 KH -25 -139- 6 0 -S Pipe Plug, 1/8
Kohler KT745-3001 Labels
2
1
3
Ac
Artwork is representative.
r.
Ref. Part Number Description
1 K H -25 -113 -70 -S Clear Laminate Decal
2 KH-25-454-05-S Tie
3 KH-32-113-104 -S Decal, 26 HP
75
Kohler KT735-3012 Crankcase
17
13
18
14
1
2
10
8
12
11
16
9
15
3
7
6
76
5
4
Kohler KT735-3012 Crankcase
Ref. Part Number Description
1 KH-24-126-243 -S Oil Fill Tube Bracket
2 KH-24-380-16-S Locating Pin
3 KH-24 -032-19-S Oil Seal, 1.78 x 1.26
4 KH-24 -018- 01-S Piston Pin Retainer
5 KH-25-108- 01-S Piston Ring Set (STD)
— KH-25-108- 02-S Piston Ring Set (.08)
— KH-25-108- 03-S Piston Ring Set (.25)
— KH-25-108-04-S Piston Ring Set (.50)
6 KH-2 5 - 874-13-S Piston Kit w/ Ring (STD) (Inc. 4 & 5)
— KH-25-874-15-S Piston Kit w/ Ring (.08)
— KH-25- 874-16 -S Piston Kit w/ Ring (.25)
— KH -25- 874 -17-S Piston Kit w/ Ring (.50)
7 KH-24-067-34-S Connecting Rod (STD)
— KH-24-067-31-S Connecting Rod (U/S .010) (25mm)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, 11/32”
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH -M-931010-S Flat Washer, 9 mm
13 KH-25- 086-398-S Thread Forming Screw
14 KH -12-153- 07 O-Ring
15 KH -25-153 -09 -S O-Ring
16 KH-32-010-07-S Camshaft Assembly
17 KH-32-038-12-S Dipstick Assembly
18 KH-32-123-14 -S Oil Fill Tube Assembly
77
Kohler KT735-3012 Head/Valve/Breather
31
20
23
22
28
29
18
19
25
8
9
6
9
7
5
1
27
30
3
4
21
32
11
17
26
78
24
15
16
12
10
13
2
1
14
18
Kohler KT735-3012 Head/Valve/Breather
Ref.
Part Number Description
1 KH-32-841-02-S
2 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
3 KH-32-017-01-S Intake Valve
4 KH-32-016-01-S Exhaust Valve
5 KH-275067 Spacer (.010”)
6 KH-12-755 - 03 Retainer Kit
7 KH -25-032-14-S Valve Band Seal
8 KH -25-173-28-S Valve Spring Cap
9 KH-32-089-05-S Valve Spring
10 KH -25-59 9 - 01-S Rocker Arm Pivot
11 KH-32-019-02-S Ta ppet
12 KH-32-072-04-S Rocker Stud
13 KH-32-100-05-S Hex Nut Assembly (Inc. #14)
14 KH-25-086-168-S Set Screw
15 KH-32-146-09-S Guide Plate
16 KH-32-186-03-S Rocker Arm
17 KH-32-411-04-S Push Rod
18 KH-25-086-374-S Pan Head Screw
19 KH-25-096-09-S Rocker Cover
20 KH-12-402-02 Breather Reed
21 KH-32-050-06-S Breather Filter
22 KH-32-468-01-S Sealing Washer
23 KH-M-547050-S Lock Nut, M5 x 8
24 KH -2 5 -0 9 6-11-S Rocker Cover
Cylinder Head Gasket Kit (Inc. Head
Mounting Hardware)
25 KH-32-318-21-S
26 KH-32-318-22-S
27 KH-25-326-62-S Breather Hose
28 KH-32-096-16-S Breather Cover
29 KH-32-072-05-S Stud
30 KH-16-096-02-S Breather Media Cover
31 KH-66-018-04-S Reed Retainer
32 KH-25-086-400-S Thread Forming Screw
Cylinder Head Assembly Kit, #1 (Inc.
Exhaust Mounting Hardware)
Cylinder Head Assembly Kit, #2 (Inc.
Exhaust Mounting Hardware)
79
Kohler KT735-3012 Oil Pan/Lubrication
6
8
7
10
9
13
5
4
1
12
2
Ref. Part Number Description
1 KH-24-086-17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-2 5 -139 -57-S Square Head Pipe Plug, ⁄
4 KH-32-19 9 -17-S Oil Pan Assembly
5 KH-12-14 4- 02 Governor Gear Shaft
6 KH -12-380 - 01 Governor Regulating Pin
7 KH-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 KH-32-393-18-S Oil Pump Assembly
10 KH-25-086-414-S Button Head Screw
11 KH-12-050-01-S Oil Filter
12 KH-32-089-06-S Compression Spring
13 KH-32-162-06-S Oil Screen
14 KH -25 -139- 6 0 -S Pipe Plug, 1/8
14
3
11
80
Kohler KT735-3012 Crankshaft
1
2
Ref. Part Number Description
1 KH-52-139-09-S Cup Plug
2 KH-32-014-327-S Crankshaft
81
Kohler KT735-3012 Ignition/Electrical
10
4
6
7
8
9
17
11
18
12
13
5
14
11
15
2
3
1
16
82
Kohler KT735-3012 Ignition/Electrical
Ref. Part Number Description
1 KH-12-132-02-S Spark Plug
2 KH-25-086-402-S Thread Forming Screw
3 KH-237878 15 Amp Stator Kit
4 KH-25-086-361-S Hex Flange Screw
5 KH-25-340-04-S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-20-146-05-S Fan Mounting Plate
8 KH-32-018-03-S Flywheel Fan Retainer
9 KH-32-157-04-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-25-086-473-S Thread Forming Screw
12 KH-25-155-41-S Connector
13 KH-25- 454-03 -S Wire Tie
14 KH-32-025-25-S Flywheel Assembly
15 KH-32-584-06-S Ignition Module
16 KH-32-176-34-S Wiring Harness
17 KH-32-518-02-S Jumper Lead
18 KH-41-403-10-S Rectier Regulator
83
Kohler KT735-3012 Blower Housing & Baffles
2
11
2
3
3
12
1
1
3
7
3
10
8
5
7
6
7
4
3
9
12
1
84
3
3
8
Kohler KT735-3012 Blower Housing & Baffles
Ref. Part Number Description
1 KH-25-086-473-S Thread Forming Screw
2 KH-25-086-450-S Hi-Low Screw
3 KH-25-086-397-S Thread Forming Screw
4 KH-32-14 6-15-S Backing Plate
5 KH-32- 063 -19-S Valley Bae, #1 Cylinder
6 KH-32-063-20-S Valley Bae, #2 Cylinder
7 KH-25-086-400-S Thread Forming Screw
8 KH-25-086-406-S Thread Forming Screw
9 KH-32-063-17-S Left Barrel Bae
10 KH-32-063-18-S Right Barrel Bae
11 KH-32-027-16-S Blower Housing
12 KH-32-445-01-S Lift Strap
85
Kohler KT735-3012 Engine Controls
5
18
23
22
24
16
2
19
11
9
20
21
14
7
3
12
4
1
15
6
26
17
13
8
25
10
86
Kohler KT735-3012 Engine Controls
Ref. Part-Number Description
1 KH-25-086-397-S Thread Forming Screw
2 KH-24-089-03 Choke Return Spring
3 KH-32-089-03-S Speed Control Spring
4 KH-24-089 -55-S Governor Spring
5 KH-25 -158 - 08 Linkage Retaining Bushing
6 KH-25-158 -11 Throttle Linkage Bushing
7 KH-32-090-07-S Governor Spring Lever
8 KH-32-090-08-S Speed Control Lever
9 KH-32-090-09 -S Speed Setting Lever
10 KH-32-090-12-S Choke Lever
11 KH-24 -112-27-S Control Assembly Spacer
12 KH -24 -468 - 01 Flat Washer, 5.5mm
13 KH-25-086-429-S Thread Forming Screw
14 KH-25-086 -398-S Thread Forming Screw
15 KH-32-079-01-S Throttle Linkage
16 KH-32-126-04-S Control Bracket
17 KH-41-468-03 Spring Washer, 1/4
18 KH-32-089-07-S Linkage Spring
19 KH-M-547050-S Lock Nut, M5 x .8
20 KH-12-237- 01 Cable Clamp
21 KH-25-086-405-S Thread Forming Screw
22 KH-24-090-69-S Governor Lever
23 KH-24 -211-03-S Bolt, M6 x 1.0 x 25
24 KH-M-641060-S Flange Nut, M6 x 1.0
25 KH-24 - 079-22-S Choke Linkage
26 KH-24-089 -25-S Governor Spring
87
Kohler KT735-3012 Air Intake/Filtration
4
7
3
5
2
1
Ref. Part Number Description
1 KH -25-173 - 09 -S Masking Cap
2 KH-32-094-13-S Air Cleaner Base Assembly
3 KH-32- 883- 09-S1 Air Filter Element
4 KH-25 -153-15-S O-Ring
5 KH-32-083 -10 -S Pre-Cleaner Element
6 KH-32-041-04-S Air Cleaner Base Gasket
7 KH-32-096-20-S Air Cleaner Cover Assembly
6
88
Kohler KT735-3012 Starting System
2
1
Ref. Part Number Description
1 KH-32-098-04-S Starter Assembly
2 KH- M -8510 80-S Flange Screw, M8 x 1.25 x 80
89
Kohler KT735-3012 Fuel System
14
17
5
16
15
11
10
5
4
1
7
13
3
7
2
9
12
8
6
Ref.
1 KH-25 - 072-25 -S Stud
2 KH-25-086-398-S Thread Forming Screw
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-050-13-S Fuel Filter
5 KH-24 -153-27-S Intake Port O-Ring
6 K H- 2 5-111- 81-S Fuel Line, 24"
7 KH-25 -237-37-S Spring Hose Clamp
8 K H - 47-154- 01-S Cable Clip
9 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
Part Number Description
90
Ref.
Part Number Description
10 K H -24 -393-16 Fuel Pump
11 KH-25-086-400-S Thread Forming Screw
12 KH-32-326-08-S Pulse Pump Hose
13 KH-32-853-34-S Carburator Kit
14 KH-24-164-91-S Intake Manifold Kit
15 KH- M - 65104 0 -S Flange Screw, M6 x 1.0 x 40
16 K H-24 -041-52-S Carburetor Gasket
17 KH -25 -139- 6 0 -S Pipe Plug, 1/8
Kohler KT735-3012 Labels
2
1
3
Ac
Artwork is representative.
r.
Ref. Part Number Description
1 K H -25 -113 -70 -S Clear Laminate Decal
2 KH-25-454-05-S Tie
3 KH-32-113-106 -S Decal, 24 HP
91
Kohler KT725-3013 Crankcase
17
13
18
14
1
2
10
8
12
11
16
9
15
3
7
6
92
5
4
Kohler KT725-3013 Crankcase
Ref. Part Number Description
1 KH-24-126-243 -S Lifting Strap
2 KH-24-380-16-S Locating Pin
3 KH-24 -032-19-S Oil Seal, 1.78 x 1.26
4 KH-24 -018- 01-S Piston Pin Retainer
5 KH-25-108- 01-S Piston Ring Set (STD)
— KH-25-108- 02-S Piston Ring Set (.08)
— KH-25-108- 03-S Piston Ring Set (.25)
— KH-25-108-04-S Piston Ring Set (.50)
6 KH-2 5 - 874-13-S Piston Kit w/ Ring (STD) (Inc. 4 & 5)
— KH-25-874-15-S Piston Kit w/ Ring (.08)
— KH-25- 874-16 -S Piston Kit w/ Ring (.25)
— KH -25- 874 -17-S Piston Kit w/ Ring (.50)
7 KH-24-067-34-S Connecting Rod (STD)
— KH-24-067-31-S Connecting Rod (U/S .010) (25mm)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, 11/32”
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH -M-931010-S Flat Washer, 9 mm
13 KH-25- 086-398-S Thread Forming Screw
14 KH -12-153- 07 O-Ring
15 KH -25-153 -09 -S O-Ring
16 KH-32-010-07-S Camshaft Assembly
17 KH-32-038-12-S Dipstick Assembly
18 KH-32-123-14 -S Oil Fill Tube Assembly
93
Kohler KT725-3013 Head/Valve/Breather
31
20
23
22
28
29
18
19
25
8
9
6
9
7
5
1
27
30
3
4
21
32
11
17
26
94
24
15
16
12
10
13
2
1
14
18
Kohler KT725-3013 Head/Valve/Breather
Ref.
Part Number Description
1 KH-32-841-02-S
2 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
3 KH-32-017-01-S Intake Valve
4 KH-32-016-01-S Exhaust Valve
5 KH-275067 Spacer (.010”)
6 KH-12-755 - 03 Retainer Kit
7 KH -25-032-14-S Valve Band Seal
8 KH -25-173-28-S Valve Spring Cap
9 KH-32-089-05-S Valve Spring
10 KH -25-59 9 - 01-S Rocker Arm Pivot
11 KH-32-019-02-S Ta ppet
12 KH-32-072-04-S Rocker Stud
13 KH-32-100-05-S Hex Nut Assembly (Inc. #14)
14 KH-25-086-168-S Set Screw
15 KH-32-146-09-S Guide Plate
16 KH-32-186-03-S Rocker Arm
17 KH-32-411-04-S Push Rod
18 KH-25-086-374-S Pan Head Screw
19 KH-25-096-09-S Rocker Cover
20 KH-12-402-02 Breather Reed
21 KH-32-050-06-S Breather Filter
22 KH-32-468-01-S Sealing Washer
23 KH-M-547050-S Lock Nut, M5 x 8
24 KH -2 5 -0 9 6-11-S Rocker Cover
Cylinder Head Gasket Kit (Inc. Head
Mounting Hardware)
25 KH-32-318-21-S
26 KH-32-318-22-S
27 KH-25-326-62-S Breather Hose
28 KH-32-096-16-S Breather Cover
29 KH-32-072-05-S Stud
30 KH-16-096-02-S Breather Media Cover
31 KH-66-018-04-S Reed Retainer
32 KH-25-086-400-S Thread Forming Screw
Cylinder Head Assembly Kit, #1 (Inc.
Exhaust Mounting Hardware)
Cylinder Head Assembly Kit, #2 (Inc.
Exhaust Mounting Hardware)
95
Kohler KT725-3013 Oil Pan/Lubrication
6
8
7
10
9
13
5
4
1
12
14
3
2
11
Ref. Part Number Description
1 KH-24-086-17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-2 5 -139 -57-S Square Head Pipe Plug, ⁄
4 KH-32-19 9 -17-S Oil Pan Assembly
5 KH-12-14 4- 02 Governor Gear Shaft
6 KH -12-380 - 01 Governor Regulating Pin
7 KH-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 KH-32-393-18-S Oil Pump Assembly
10 KH-25-086-414-S Button Head Screw
11 KH-12-050-01-S Oil Filter
12 KH-32-089-06-S Compression Spring
13 KH-32-162-06-S Oil Screen
14 KH -25 -139- 6 0 -S Pipe Plug, 1/8
96
Kohler KT725-3013 Crankshaft
1
2
Ref. Part Number Description
1 KH-52-139-09-S Cup Plug
2 KH-32-014-327-S Crankshaft
97
Kohler KT725-3013 Ignition/Electrical
10
4
6
7
8
9
17
11
18
12
13
5
14
11
15
2
3
1
16
98
Kohler KT725-3013 Ignition/Electrical
Ref. Part Number Description
1 KH-12-132-02-S Spark Plug
2 KH-25-086-402-S Thread Forming Screw
3 KH-237878 15 Amp Stator Kit
4 KH-25-086-361-S Hex Flange Screw
5 KH-25-340-04-S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-20-146-05-S Fan Mounting Plate
8 KH-32-018-03-S Flywheel Fan Retainer
9 KH-32-157-04-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-25-086-473-S Thread Forming Screw
12 KH-25-155-41-S Connector
13 KH-25- 454-03 -S Wire Tie
14 KH-32-025-25-S Flywheel Assembly
15 KH-32-584-06-S Ignition Module
16 KH-32-176-34-S Wiring Harness
17 KH-32-518-02-S Jumper Lead
18 KH-41-403-10-S Rectier Regulator
99
Kohler KT725-3013 Blower Housing & Baffles
2
11
2
3
3
12
1
1
3
7
3
10
8
5
7
6
7
4
3
9
12
1
100
3
3
8
Loading...
