Cub Cadet CC5090 User Manual

Operator’s Manual

4-Cycle Gasoline

Trimmer/Brushcutter

CC5090

SAVE THESE INSTRUCTIONS

For service call 1-877-282-8684 to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.cubcadet.com.

DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

THIS PRODUCT IS COVERED BY ONE OR MORE U.S. PATENTS. OTHER PATENTS PENDING.

Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer.

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

WARNING: When using the unit, you must follow

the safety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

SPARK ARRESTOR NOTE NOTE: For users on U.S. Forest Land and in the states of

California, Maine, Oregon and Washington. All U.S. Forest

Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the

Accessory Part #753-05297 Spark Arrestor Kit.

CALIFORNIA PROPOSITION 65 WARNING

P/N 769-02167 (11/05)

TABLE OF CONTENTS

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . .2

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Starting/Stopping Instructions . . . . . . . . . . . . . . . . . . . . . .7

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Maintenance and Repair Instructions . . . . . . . . . . . . . . .10

Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

WARNING

THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO

CAUSE CANCER, BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM.

READ ALL INSTRUCTIONS BEFORE OPERATING

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.

• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.

• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.

• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Be aware of the risk of injury to the head, hands and feet.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m.) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately.

•U

se only 0.105 inch, 2.67 mm diameter original equipment manufacturer replace-ment line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles.

• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit.

SAFETY WARNINGS FOR GAS UNITS

• Store fuel only in containers specifically designed and approved for the storage of such materials.

• Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the fuel tank cap or add fuel when the engine is hot. Never operate the unit without the fuel cap securely in place. Loosen the fuel tank cap slowly to relieve any pressure in the tank.

• Add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Remove the fuel cap slowly, and only after the engine stops. Do not smoke while fueling. Wipe up any spilled fuel from the unit immediately.

• Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

•M

ove the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke. Keep sparks and open flames away from the area while adding fuel or operating the unit.

WHILE OPERATING

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can be fatal. Operate this unit only in a well-ventilated outdoor area.

• Wear safety glasses or goggles that meet ANSI Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty.

• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

• The cutting attachment shield must always be in place while operating the unit as a trimmer. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.

• This unit has a clutch. The cutting attachment remains stationary when the engine is idling. If it does not, have the unit adjusted by an authorized service technician.

• Adjust the handle to your size in order to provide the best grip.

• Be sure the cutting attachment is not in contact with anything before starting the unit.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting/Stopping Instructions.

• Use the right tool. Only use this tool for its intended purpose.

• Do not overreach. Always keep proper footing and balance.

• Always hold the unit with both hands when operating. Keep a firm grip on both handles or grips.

•K

eep hands, face, and feet at a distance from all moving parts.

Do not touch or try to stop the cutting attachment when it rotates.

• Do not touch the engine, gear housing or muffler. These parts get extremely hot from operation, even after the unit is turned off.

• Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when not cutting.

• Always stop the engine when cutting is delayed or when walking from one cutting location to another.

• If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts.

• Stop the unit, switch the engine to off, and disconnect the spark plug for maintenance or repair.

• Use only original equipment manufacturer replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any unauthorized parts or accessories could lead to serious injury to the user, or damage to the unit, and void your warranty.

• Keep unit clean of vegetation and other materials. They may become lodged between the cutting attachment and shield.

• To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

WHILE OPERATING WITH CUTTING BLADE

• Read and understand all safety warnings before operating this unit.

• Always use the shoulder harness when using the brush blade accessory.

• Keep the J-handle between the operator and cutting attachment or blade at all times.

• NEVER cut when the cutting blade is 30 inches (76 cm) or more above the ground level.

• Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to propel the unit and/or operator in any direction, possibly causing a loss of control. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

• For operation with the brush blade, do not cut anything thicker than 1/2 inch or a violent kickback could occur.

• Do not attempt to touch or stop the blade when it is rotating.

• A coasting blade can cause injury while it continues to spin after the engine is stopped or the throttle trigger is released. Maintain proper control until the blade has completely stopped rotating.

RULES FOR SAFE OPERATION

• IMPORTANT SAFETY INSTRUCTIONS •

WARNING: Gasoline is highly flammable, and its

vapors can explode if ignited. Take the following precautions:

RULES FOR SAFE OPERATION

SYMBOL MEANING

• WARNING - READ OPERATOR'S MANUAL

Read the operator’s manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

• ON/OFF STOP CONTROL

OFF or STOP

SYMBOL MEANING

• WEAR EYE AND HEARING PROTECTION WARNING: Thrown objects and loud noise can

cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1 standards and ear protection when operating this unit. Use a full face shield when needed.

• KEEP BYSTANDERS AWAY WARNING: Keep all bystanders, especially

children and pets, at least 50 feet (15 m) from the operating area.

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Do not operate without the cutting

attachment shield in place. Keep away from the rotating cutting attachment.

• HOT SURFACE WARNING

Do not touch a hot muffler, gear housing or cylinder. You may get burned. These parts get extremely hot from operation. They remain hot for a short time after the unit is turned off.

• UNLEADED FUEL

Always use clean, fresh unleaded fuel

• OIL

Refer to operator’s manual for the proper type of oil.

• SHARP BLADE WARNING: Sharp blade on cutting attachment

shield. To prevent serious injury, do not touch the line cutting blade.

• CHOKE CONTROL

1. • FULL choke position

2. • PARTIAL choke position

3. • RUN choke position

• ON/OFF STOP CONTROL

ON / START / RUN

• SAFETY ALERT SYMBOL

Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.

• BRUSHCUTTERS • REPLACE DULL BLADE

Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury.

• TRIMMER/ BRUSHCUTTER SAFETY WARNING: Thrown objects and rotating cutter can

cause severe injury. Keep bystanders, especially children and pets, at least 50 feet (15 m) away from the cutting area. The cutting attachment shield must be used when using the trimmer cutting attachment.

• Do not run the unit at high speed when not cutting.

• If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Have any damage repaired before attempting further operations. Do not operate unit with a bent, cracked or dull blade. Discard blades that are bent, warped, cracked or broken.

• Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury. Replace the blade.

• Do not use the cutting blade for edging or as an edger; severe personal injury to yourself or others may incur. Use the cutting blade only for the purpose described in this manual.

• Stop the engine IMMEDIATELY if you feel excessive vibration. Vibration is a sign of trouble. Inspect thoroughly for loose nuts, bolts or damage before continuing. Repair or replace affected parts as necessary.

After Use

• Clean cutting blades with a household cleaner to remove any gum buildup. Oil the blade with machine oil to prevent rust.

• Lock up and store the cutting blade in an appropriate area to protect the blade from unauthorized use or damage.

OTHER SAFETY WARNINGS

• Never store a fueled unit inside a building where fumes may reach an open flame or spark.

• Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use, see Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

INSTALL THE HARNESS

1. Push the strap through the center of the buckle.

2. Pull the strap over the cross bar and down through the slot

in the buckle (Fig. 3).

3. Put the harness on over head and onto shoulder. Snap it

on to the support fitting (Fig. 4).

4. Adjust length to fit the operator’s size. Pull tab to lengthen,

pull strap to shorten (Fig. 5).

INSTALL AND ADJUST THE D-HANDLE

1. Remove the screws and bottom clamp piece that were installed on the Cub handle for shipping.

2. Place Cub handle over the shaft housing and onto the bottom clamp (Fig. 1). Place it a minimum of 6 inches (15.24 cm) from the end of the shaft grip.

3. Start screws with a large Flat-head or T-25 Torx screwdriver. Do not tighten until you make the handle adjustment.

4. If it was pre-installed, loosen the screws on the Cub handle just enough to move the Cub handle.

5. While holding the unit in the operating position (Fig. 2), move the Cub handle to the location that provides you the best grip.

6. Tighten the clamp screws evenly, until the Cub handle is secure.

ASSEMBLY INSTRUCTIONS

Support Fitting

Fig. 3

Fig. 4

Fig. 5

Fig. 2

WARNING: Always use the shoulder harness when

using the cutting blade to avoid serious personal injury.

REMOVE AND INSTALL THE CUTTING ATTACHMENT SHIELD

Remove the cutting attachment shield when using the unit as a brushcutter

Remove the cutting attachment shield from the shield mount by removing the three (3) screws with a flat blade screwdriver (Fig. 6). Store parts for future use.

Install the cutting attachment shield when using the unit as a grass trimmer

Install the cutting attachment shield on the shield mount by inserting the three (3) screws into the shield mount. Tighten securely with a flat blade screwdriver (Fig. 6).

REMOVE THE CUTTING ATTACHMENT AND INSTALL THE CUTTING BLADE

NOTE: To make cutting blade removal and installation easier, place

the unit on the ground or on a work bench

Remove the Cutting Attachment Shield

See Remove and Install the Cutting Attachment Shield.

WARNING: The cutting attachment shield should NOT be installed when operating the unit with a blade. Remove the cutting attachment shield before removing or installing the blade.

WARNING: To avoid serious personal injury, the cutting attachment shield MUST be in place at all times while operating the unit as a grass trimmer.

(3) Screws

Cutting

Attachment

Shield

Shield Mount

Gear Housing

Fig. 6

Cutting Attachment

Shield

Fuel Cap

Throttle

Control

Cub Handle

Cutting

Attachment

Shaft Grip

Primer

Bulb

Oil Fill Plug

Choke

Lever

Spark

Plug

Shaft

Starter

Rope

Grip

Line

Cutting

Blade

Spark

Plug

Muffler

Brushcutter

Blade

EZ-Link™

On/Off Stop

Control

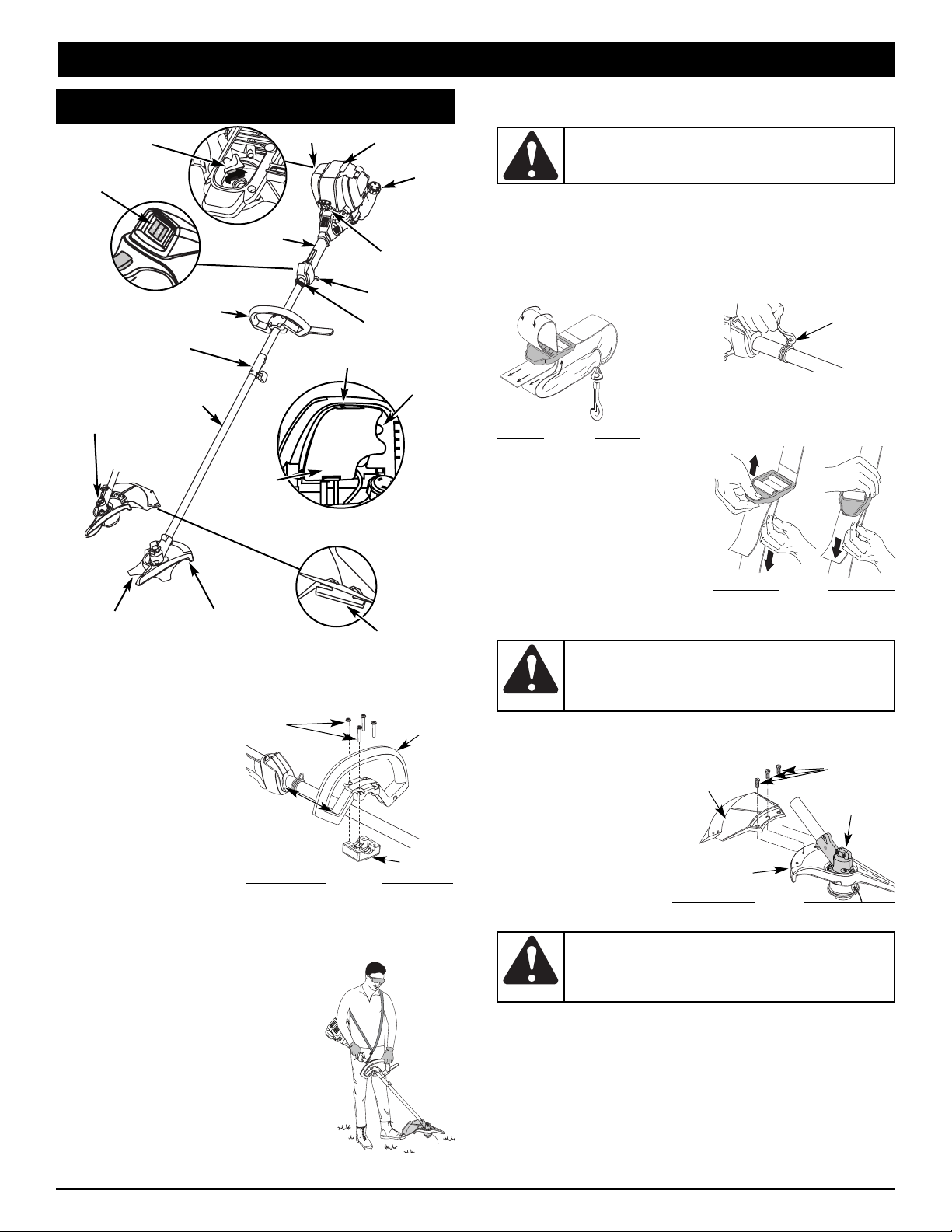

KNOW YOUR UNIT

Air Filter

Cover

Shoulder

Strap Loop

(4) Screws

D-Handle

Bottom

Clamp

Fig. 1

Minimum

6 inches

(15.24 cm)

• If using a torque wrench and a

13 mm socket tighten to: 325 -

335 in•lb, 27 - 28 ft.•lb, 37 - 38 N•m.

• Without a torque wrench, use a 13 mm closed-end or socket wrench, turning the nut until the blade retainer is snug against the shaft bushing. Make sure that the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise (Fig. 12).

9. Remove the locking rod

from the locking rod slot.

Remove the Cutting Attachment

1. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the shaft bushing hole (Fig. 7).

2. Hold the locking rod in place by grasping it next to the boom of the unit (Fig. 8).

3. While holding the locking rod, remove the cutting attachment by turning it clockwise off of the output shaft (Fig. 9). Store the cutting attachment for future use.

NOTE: The blade retainer under the

cutting attachment will be used when installing the cutting blade.

Install the Cutting Blade

4. Place the cutting blade on the output shaft bushing (Fig. 10).

5. Make sure that the cutting blade is centered on the pilot step and sitting flat against the output shaft bushing (Fig. 10).

6. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 7).

7. Put the blade retainer and nut on the output shaft. Make sure that the blade is installed correctly.

8. Tighten nut counterclockwise against the blade while holding the locking rod:

WARNING: The gear housing gets hot with use. It can

result in injury to the operator. The housing remains hot for a short time even after the unit is turned off. Do not touch the gear housing until it has cooled.

WARNING: To avoid serious personal injury, always wear gloves while handling or installing the blade.

WARNING: If the cutting blade is off-center, the unit will vibrate and the blade may fly off, causing possible serious personal injury.

WARNING: To avoid serious personal injury or damage to the unit, do not start or operate this unit with the locking rod in the locking rod slot.

WARNING: Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury. Replace the blade.

Shaft Bushing

Hole

Locking

Rod

Output Shaft

Fig. 7

Output

Shaft

Bushing

Locking

Rod Slot

Fig. 8

Cutting

Attachment

Locking

Rod Slot

Locking

Rod

Fig. 9

Pilot Step

Fig. 11

Shield Mount

Locking

Rod

Cutting

Blade

Retainer

Nut

Pilot Hole

Fig. 10

Output

Shaft

Bushing

ASSEMBLY INSTRUCTIONS

REMOVE THE CUTTING BLADE AND INSTALL THE CUTTING ATTACHMENT

Remove the Cutting Blade

1. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 7).

2. Hold the locking rod in place by grasping it next to the boom of the unit (Fig. 13).

3. While holding the locking rod, loosen the nut on the blade by turning it clockwise with a 13 mm closed-end or socket wrench (Fig. 13).

4. Remove the nut, blade retainer and blade. Store the nut and blade together for future use in a secure place. Store out of children’s reach.

Install the Cutting Attachment

5. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the shaft bushing hole (Fig. 7). Place the blade retainer on the output shaft with the flat surface against the output shaft bushing (Fig. 14). Screw the cutting attachment counterclockwise onto the output shaft. Tighten securely.

NOTE: The blade retainer must be installed on the output shaft

in the position shown for the cutting attachment to work correctly.

6. Remove the locking rod.

7. Install the cutting attachment shield. Refer to Remove and

Install the Cutting Attachment Shield.

Clockwise

Fig. 13

Cutting Attachment

Locking

Rod

Blade

Retainer

Output

Shaft

Bushing

Fig. 14

WARNING: To avoid serious personal injury,

always wear gloves while handling or installing the blade.

Fig. 12

OIL AND FUEL INFORMATION

RECOMMENDED OIL TYPE

Using the proper type and weight of oil in the crankcase is extremely important. Check the oil before each use and change the oil regularly. Failure to use the correct oil, or using dirty oil, can cause premature engine wear and failure.

Use a high-quality SAE 30 weight oil of API (American Petroleum Institute) service class SF, SG, SH.

ADDING OIL TO CRANKCASE: INITIAL USE NOTE: This unit is shipped

without oil. In order to avoid damage to the unit, put oil in the crankcase before you

attempt to start the unit. Your unit is supplied with one 3.04 fluid oz. (90 ml.) bottle of SAE 30 SF, SG, SH oil (Fig. 15).

NOTE: Save the bottle of oil. It can

be used to measure the correct amount during future oil changes. See Changing the Oil.

1. Unscrew the top of the bottle of oil and remove the paper

seal covering the opening. Replace the top. Next, cut the tip off the funnel spout (Fig. 15).

2. Tip unit so that the back of the engine is facing up in a

vertical position.

3. Remove the oil fill plug from the crankcase (Fig. 16).

4. P

our the entire bottle of oil

into the oil fill hole (Fig. 17).

NOTE: Never add oil to the

fuel or fuel tank.

5. Wipe up any oil that may

have spilled and reinstall the oil fill plug.

Check oil before each use and change as needed. Refer to Checking the Oil Level.

WARNING: OVERFILLING OIL CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY. Check and maintain the proper oil level in the crank case; it is important and cannot be overemphasized. Check the oil before each use and change it as needed.

See Changing the Oil.

Fig. 15

Funnel

Spout

RECOMMENDED FUEL TYPE

Old fuel is the primary reason for improper unit performance. Be sure to use fresh, clean, unleaded gasoline.

NOTE: This is a four cycle engine. In order to avoid damage to

the unit, do not mix oil with gasoline.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate or form acids when stored. Use fresh fuel (less than 60 days old), when using alcohol-blended fuel.

Using Blended Fuels

If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use fresh unleaded gasoline

• Use the fuel additive STA-BIL® or an equivalent

• Drain tank and run the engine dry before storing unit

Using Fuel Additives

The use of fuel additives, such as STA-BIL® Gas Stabilizer or an equivalent, will inhibit corrosion and minimize the formation of gum deposits. Using a fuel additive can keep fuel from forming harmful deposits in the carburetor for up to six (6) months. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's gas tank.

FUELING THE UNIT

1. Remove the fuel cap (Fig. 18).

2. Place the gas container’s spout into the fill hole on the fuel tank (Fig. 18) and fill the tank.

NOTE: Do not overfill the tank.

3. Wipe up any gasoline that may have spilled.

4. Reinstall the fuel cap.

5. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine.

NOTE: Dispose of the old gasoline in accordance to Federal,

State and Local regulations.

Oil Fill Plug

Oil Fill Hole

O-Ring

WARNING: Add fuel in a clean, well ventilated

outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilt fuel. Do not start the engine until fuel vapors dissipate.

WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING: Remove fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

Fig. 18

Fuel Cap

Fuel Tank

Gas Can Spout

WARNING: To avoid serious personal injury, the

cutting attachment shield MUST be in place at all times while operating the unit as a trimmer.

Fig. 17

Fig. 16

STARTING/STOPPING INSTRUCTIONS

STARTING INSTRUCTIONS

STOPPING INSTRUCTIONS

1. Release your hand from the throttle control. Allow the engine to cool down by idling.

2. Press the On/Off Stop Control switch in the OFF (O) position.

1. Check the oil level in the crankcase. Refer to Checking the Oil Level.

2. Fill the fuel tank with fresh, clean unleaded gasoline. Refer to Fueling the Unit.

3. Make sure the On/Off Stop Control in the ON ( I ) position (Fig. 19).

4. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb and fuel lines (Fig. 20). If you can’t see fuel in the bulb, press and release the bulb as many times as it takes before you can see fuel in it.

5. Place the choke lever in Position 1 (Fig. 20).

6. Crouch in the starting position (Fig. 21). Press the throttle lockout in and squeeze the throttle control lever. Pull the starter rope briskly 5 times.

7. Place the choke lever in Position 2 (Fig. 20).

8. While pressing the throttle lockout in and squeezing the throttle control , pull the starter rope briskly 1 to 4 times to start the engine.

9. Keep the throttle squeezed and allow the engine to warm up for 15 to 30 seconds.

10. Place the choke lever in Position 3 (Fig. 20). The unit is ready for use.

IF...

The engine does not start, go back to step 4.

IF...

The engine fails to start after a few attempts, place the choke lever in Position 3, press the throttle lockout in and squeeze the throttle control. Pull the starter rope briskly 3 to 8 times. The engine should start. If not, repeat.

WARNING: Avoid accidental starting. Make sure you are in the starting position when pulling the starter rope (Fig. 21). To avoid serious injury, the operator and unit must be in a stable position while starting. To avoid serious personal injury, ensure any AddOn being used is installed correctly and secure before starting the unit.

WARNING: Operate this unit only in a wellventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

Starter Rope

Throttle Control

Fig. 21

Primer Bulb

Fig. 20

Choke Lever

Start/On ( I )

Stop/Off (O)

Throttle

Control

Throttle

Lock-Out

Fig. 19

For edging (when using the line head cutting attachment with EZ-Link™ models), lock the release button of the cutting attachment into the 90° edging hole (Fig. 24).

OPERATING THE EZ-LINK™ SYSTEM

The EZ-Link™ system enables the use of these optional AddOns:

Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBGC

Edger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBLE

Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBAH

Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . TBSS

Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBTB

Pole Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBPS

Brushcutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TBBC*

*Do NOT use this attachment with an electric powered unit.

Removing the Cutting Attachment or Add-On

1. Turn the knob counterclockwise to loosen (Fig. 22).

2. Press and hold the release button (Fig. 22).

3. While firmly holding the upper shaft housing, pull the cutting attachment or add-on straight out of the EZ-Link™ coupler (Fig. 23).

Installing the Cutting Attachment or Add-On NOTE: Place the unit on the ground or on a work bench to

make add-on installation or removal easier.

1. Turn knob counterclockwise to loosen (Fig. 22).

Fig. 22

EZ-Link™ Coupler

Release Button

Guide Recess

Knob

Primary Hole

Upper Shaft Housing

EZ-Link™ Coupler

2. While firmly holding the add-on, push it straight into the EZ-Link™ coupler (Fig. 23).

NOTE: Aligning the release button with the guide recess will

help installation (Fig. 22).

3. Turn the knob clockwise to tighten (Fig. 24).

Fig. 23

Fig. 24

Knob

Lower Shaft Housing

Release Button

90˚ Edging Hole

(Trimmer Only)

WARNING: Before you begin using any

attachment, read and understand the manual that came with the attachment. Follow all safety information contained within.

WARNING: To avoid serious personal injury and

damage to the unit, shut the unit off before removing or installing add-ons.

CAUTION: Lock the release button in the primary

hole and securely tighten the knob before operating this unit.

CAUTION: Add-ons are to be used in the primary

hole only. Using the wrong hole could lead to personal injury or damage to the unit.

OPERATING INSTRUCTIONS

HOLDING THE TRIMMER

Before operating the unit, stand in the operating position (Fig. 25). Check for the following:

• The operator is wearing eye protection and proper clothing

• With a slightly-bent right arm, the operator’s right hand is holding the shaft grip

• The operator’s left arm is straight, the left hand holding the assist handle

• The unit is at waist level

• The cutting attachment is parallel to the ground and easily contacts the grass without the need to bend over

ADJUSTING TRIMMING LINE LENGTH

The Bump Head™ cutting attachment allows you to release trimming line without stopping the engine. To release more line, lightly tap the cutting attachment on the ground (Fig. 26) while operating the trimmer at high speed.

NOTE: Always keep the

trimming line fully extended. Line release becomes more difficult as the cutting line becomes shorter.

Each time the head is bumped, about 1 inch (25.4 mm) of trimming line is released. A blade in the cutting attachment shield will cut the line to the proper length if excess line is released.

For best results, tap the Bump Head™ on bare ground or hard soil. If line release is attempted in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult as the cutting line becomes shorter.

NOTE: Do not rest the Bump Head™ on the ground while the

unit is running.

Some line breakage will occur from:

• Entanglement with foreign matter

• Normal line fatigue

• Attempting to cut thick, stalky weeds

• Forcing the line into objects such as walls or fence posts

TIPS FOR BEST TRIMMING RESULTS

• For best trimming results, operate unit at full throttle.

• Keep the cutting attachment parallel to the ground.

• Do not force the cutting attachment. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine.

• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or engine drag.

• Cutting from left to right improves the unit's cutting efficiency. Clippings are thrown away from the operator.

• Slowly move the trimmer into and out of the cutting area at the desired height. Move either in a forward-backward or side-to-side motion. Cutting shorter lengths produces the best results.

• Trim only when grass and weeds are dry.

• The life of your cutting line is dependent upon proper adherence of explained trimming techniques, what vegetation is cut, and where vegetation is cut.

For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

DECORATIVE TRIMMING

Decorative trimming is accomplished by removing all vegetation around trees, posts, fences and more.

Rotate the whole unit so that the cutting attachment is at a 30° angle to the ground (Fig. 27).

USING THE CUTTING BLADE

Before operating the unit with the cutting blade, stand in the operating position (Fig. 28). Refer to Holding the Trimmer.

Cutting Blade Operating Tips

To establish a rhythmic cutting procedure:

• Plant feet firmly, comfortably apart.

• Bring the engine to full throttle before entering the material to be cut. At full throttle the blade has maximum cutting power and is less likely to bind, stall or cause blade thrust (which can result in serious personal injury to the operator or others).

• Cut while swinging the upper part of your body from left to right.

• Always release the throttle trigger and allow the engine to return to idle speed when not cutting.

• When you are finished, always unsnap the unit from the harness before taking off the harness.

• Swing the unit in the opposite direction as the blade spins, which increases the cutting action.

• After the return swing, move forward to the next area to be cut plant your feet again.

• The cutting blade is designed with a second cutting edge. You can use it by removing the blade, turning it upside down, and reinstalling it.

OPERATING INSTRUCTIONS

WARNING: Do not remove or alter the line cutting

blade assembly. Excessive line length will make the clutch overheat. This may lead to serious personal injury or damage to the unit.

WARNING: Always wear eye, hearing, foot and

body protection to reduce the risk of injury when operating this unit.

Fig. 25

Fig. 27

Fig. 26

WARNING: Always wear eye, hearing, foot, body

protection and the shoulder strap to reduce the risk of injury when operating this unit.

WARNING: Do not use the cutting blade for

edging or as an edger. Severe personal injury to yourself or others can result.

WARNING: Blade thrust may occur when the

spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and possibly lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

WARNING: The blade continues to spin after the

engine is turned off. The coasting blade can seriously cut you if accidentally touched.

To reduce the chance of material wrapping around the blade, follow these steps:

• Cut at full throttle

• Swing the unit into material to be cut from your left to your right (Fig. 29)

• Avoid the material just cut as you make the return swing

WARNING: Do not sharpen the cutting blade.

Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury to yourself or others. Replace the blade.

WARNING: Do not clear away any cut material

with the engine running or blade turning. To avoid serious personal injury, turn off the engine. Allow the blade to stop before removing materials wrapped around the blade shaft.

OPERATING INSTRUCTIONS

WARNING: To prevent serious injury, never

perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start.

FREQUENCY MAINTENANCE REQUIRED SEE

Before starting engine

Fill fuel tank with fresh fuel Check oil

p. 6 p. 12

Every 10 hours Clean and re-oil air filter p. 13

1stchange at 10 hours Change at 25 hours Every 25 hours

Change oil Change oil Clean spark arrestor

p. 12 p. 12 p. 16

10 hours on new

engine

Every 25 hours

Check rocker arm to valve

clearance and adjust

Check rocker arm to valve

clearance and adjust

Check spark plug

condition and gap

p. 14

p. 15

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special

tools or skills. If you are unsure about these procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer.

NOTE: Maintenance, replacement, or repair of the emission

control devices and system may be performed by any non-road engine repair establishment, individual or authorized service dealer.

In order to assure peak performance of your engine, inspection of the engine exhaust port may be necessary after 50 hours of operation. If you notice lost RPM, poor performance or general lack of acceleration, this service may be required. If you feel your engine is in need of this inspection, refer service to any non-road engine repair establishment, individual or authorized service dealer for repair. DO NOT attempt to perform this process yourself as engine damage may result from contaminants involved in the cleaning process for the port.

Fig. 28

Fig. 29

MAINTENANCE AND REPAIR INSTRUCTIONS

Fig. 34

Fig. 33

NOTE: SplitLine™ can only be used with the inner reel with

the slotted holes. Single line can be used on either type of inner reel. Use Figure 33 to identify the inner reel you have.

NOTE: Always use the correct line length when installing

trimming line on the unit. The line may not release properly if the line is too long.

Single Line Installation

Go To Step 8 for SplitLine™ Installation

6. Take approximately 18 feet (6 m) of new trimming line, loop it into two equal lengths. Insert each end of the line through one of the two holes in the inner reel (Fig. 34). Pull the line through the inner reel so that the loop is as small as possible.

7. Wind the lines in tight even layers, onto the reel (Fig. 35). Wind the line in the direction indicated on the inner reel. Place your index finger between the two lines to stop the lines from overlapping. Do not overlap the ends of the line. Proceed to step 11.

SplitLine™ Installation

8. Take approximately 9 feet (3 m) of new trimming line. Insert one end of the line through one of the two holes in the inner reel (Fig. 35). Pull the line through the inner reel until only about 4 inches is left out.

9. Insert the end of the line into the open hole in the inner reel and pull the line tight to make the loop as small as possible (Fig. 35).

Slotted Holes

For Use with SplitLine™ or

Single Line

For Use with Single

Line ONLY

Loop

Indexing

Teeth

Fig. 31

Fig. 32

LINE INSTALLATION

This section covers both SplitLine™ and standard single line installation.

Always use original equipment manufacturer 0.105 in. (2.67 mm) replacement line. Other types of line may make the engine overheat or fail.

There are two methods to replace the trimming line:

• Wind the inner reel with new line

• Install a prewound inner reel

Winding the Existing Inner Reel

1. Hold the outer spool with one hand and unscrew the Bump Knob clockwise (Fig. 30). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged.

2. Remove the inner reel from the outer spool (Fig. 30).

3. Remove spring from the inner reel (Fig. 30).

4. Use a clean cloth to clean the the inner reel, spring, shaft and inner surface of the outer spool (Fig. 31).

5. Check the indexing teeth on the inner reel and outer spool for wear (Fig. 32). If necessary, remove burrs or replace the reel and spool.

Inner Reel

Spring

Outer Spool

Bump Knob

Bolt

Fig. 30

Fig. 35

WARNING: Never use metal-reinforced line, wire,

chain or rope. These can break off and become dangerous projectiles.

MAINTENANCE AND REPAIR INSTRUCTIONS

INSTALLING A PREWOUND REEL

1. Hold the outer spool with one hand and unscrew the bump knob clockwise (Fig. 30). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged.

2. Remove the old inner reel from the outer spool (Fig. 30).

3. Remove the spring from the old inner reel (Fig. 30).

4. Place the spring in the new inner reel.

NOTE: The spring must be assembled on the inner reel before

reassembling the cutting attachment.

5. Insert the ends of the line through the eyelets in the outer spool (Fig. 38).

6. Place the new inner reel inside the outer spool. Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the spool.

7. Hold the inner reel in place and install the bump knob by turning counterclockwise. Tighten securely.

CHECKING THE OIL LEVEL

The importance of checking and maintaining the proper oil level in the crankcase cannot be overemphasized. Check oil before each use:

1. Stop the engine and allow oil to drain into the crankcase.

2. Place the engine on a flat, level surface with the cutting head shield hanging off a work bench or table to get a proper oil level reading (Fig. 39).

3. Keep dirt, grass clippings and other debris out of the engine. Clean the area around the dipstick before removing it.

4. Remove the oil fill plug.

5. Look into the oil fill hole, use a flashlight if needed. The oil should be just touching the inner most thread (Fig. 40).

6. If the oil level is not touching the inner most thread on the oil fill hole, add a small amount of oil to the oil fill hole and recheck (Fig. 40). Repeat this procedure until the oil level reaches the inner most thread on the oil fill hole.

NOTE: Do not overfill the unit. NOTE: Make sure the O-ring is in place on the oil fill plug when

checking and changing the oil (Fig. 41).

CAUTION: To prevent extensive engine wear and

damage to the unit, always maintain the proper oil level in the crankcase. Never operate the unit with the oil level below the bottom of the dipstick.

Fig. 39

Fig. 38

Spring

10. Before winding, split the line back about 6 inches.

11. Wind the line in tight even layers in the direction indicated on the inner reel.

NOTE: Failure to wind the line in the direction indicated will

cause the cutting attachment to operate incorrectly.

12. Insert the ends of the line into the two holding slots (Fig. 37).

13. Insert the ends of the line through the eyelets in the outer spool and place inner reel with spring inside the outer spool (Fig. 38). Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the reel.

NOTE: The spring must be assembled on the inner reel before

reassembling the cutting attachment.

14. Hold the inner reel in place and install the bump knob by turning counterclockwise. Tighten securely.

Loop

Fig. 36

Holding Slots

Fig. 37

Oil Fill Plug

Oil Fill Hole

O-Ring

MaxOil Fill Line

Fig. 41

Fig. 40

MAINTENANCE AND REPAIR INSTRUCTIONS

CHANGING THE OIL

For a new engine, change the oil after the first 10 hours of operation. Change the oil while the engine is still warm. The oil will flow freely and carry away more impurities.

1. Unplug spark plug boot to prevent accidental starting.

2. Remove the oil fill plug.

3. Pour the oil out of the oil fill hole and into a container by tipping the unit to a vertical position (Fig. 42). Allow ample time for complete drainage.

4. Wipe up any oil residue on the unit and clean up any oil that may have spilled. Dispose of the oil according to Federal, State and local regulations.

5. Refill the crankcase with 3.04 fluid ounce (90 ml) of SAE 30 SF, SG, SH oil.

NOTE: Use the bottle and spout saved from initial use to measure

the correct amount of oil. The top of the label on the bottle measures approximately 3.04 ounces (90 ml) (Fig. 43). Check the level, See Checking the Oil Level. If the level is low, add a small amount of oil and recheck. Do not overfill (Fig. 43).

6. Replace the oil fill plug.

7. Reconnect the spark plug boot.

AIR FILTER MAINTENANCE

Cleaning the Air Filter

Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain. Failure to maintain your air filter properly can result in poor performance or can cause permanent damage to your engine.

1. Open the air filter cover. Push the tab on the under side of the cover inward. Then pull the air filter cover out and up. (Fig. 44).

WARNING: Wear gloves to prevent injury when

handling unit.

Fig. 42

Fill Level

Fig. 43

2. Remove the air filter (Fig. 44).

3. Wash the filter in detergent and water (Fig. 45). Rinse the filter thoroughly and allow it to dry.

4. Apply enough clean SAE 30 motor oil to lightly coat the filter (Fig. 46).

5. Squeeze the filter to spread and remove excess oil (Fig. 47).

6. Replace the filter (Fig. 44).

NOTE: If the unit is operated

without the air filter, you will VOID the warranty.

7. Reinstall the air filter cover. Position the slots on the top of the air filter cover onto the tabs at the top of the back plate (Fig. 48).

8. Swing the cover down until the tab on the air filter backplate snaps into place in the slot on the air filter cover (Fig. 49).

WARNING: To avoid serious personal injury,

always turn the unit off and allow it to cool before you clean or service it.

Fig. 45

Air Filter Cover

Air Filter

Tab

Fig. 44

Fig. 46

Fig. 47

Fig. 48

Locking Tab

Tabs

Back Plate

Air Filter

Checking the fuel, cleaning the air filter, and adjusting the idle speed should solve most engine problems. If not and all of the following are true:

• the engine will not idle

• the engine hesitates or stalls on acceleration

• there is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

ROCKER ARM CLEARANCE

This requires disassembly of the engine. If you feel unsure or unqualified to perform this, take the unit to an authorized service center.

NOTE: Inspect the valve to rocker arm clearance with a feeler

gauge after the first 10 hours of operation and every 25 hours of operation.

• The engine must be cold when checking or adjusting the valve clearance.

• This task should be performed inside, in a clean, dust free area.

1. Remove the six (6) screws on the back of the engine cover with a Flat-head or T-25 Torx screwdriver (Fig. 51).

2. Disconnect the spark plug wire.

3. Clean dirt from around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

4. Remove the engine cover (Fig. 51).

5. Clean dirt from around the rocker arm cover. Remove the screw holding the rocker arm cover with a large flat blade screwdriver or Torx T-25 bit (Fig. 52). Remove the rocker arm cover and gasket.

6. Pull the starter rope slowly to bring the piston to the top of its travel, (known as top dead center). Check that:

• The piston is at the top of its travel while looking in the spark plug hole (Fig. 53)

• Both rocker arms move freely, and both valves are closed

CARBURETOR ADJUSTMENT

The idle speed of the engine is adjustable. An idle adjustment screw is between the air filter cover and the engine starter housing (Fig. 50).

NOTE: Careless

adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments.

Check Fuel

Old fuel is usually the reason for improper unit performance. Drain and refill the tank with fresh fuel prior to making any adjustments. Refer to Oil and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the operation of the unit. A dirty air filter will restrict air flow. This is often mistaken for an out of adjustment carburetor. Check the condition of the air filter before adjusting the idle speed screw. Refer to Air Filter Maintenance.

Adjust Idle Speed Screw

If, after checking the fuel and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine and let it run at a high idle for a minute to warm up. Refer to Starting/Stopping Instructions.

2. Release the throttle trigger and let the engine idle. If the engine stops, insert a small phillips in between the Air Filter Cover and the Engine Cover (Fig. 50). Turn the idle speed screw in, clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly.

NOTE: The cutting attachment should not rotate when the

engine idles.

3. If the cutting attachment rotates when the engine idles, turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed.

MAINTENANCE AND REPAIR INSTRUCTIONS

WARNING: The cutting attachment may spin during

idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

WARNING: To prevent serious personal injury,

make sure the cutting attachment has stopped rotating before you turn it off and set it down.

Idle Adjustment Screw

Fig. 50

Remove

Screws

Fig. 51

View Of The Rear Engine Cover

Rocker

Arm

Cover

Fig. 52

Spark

Plug Hole

Air Filter Cover

Air Filter

Tab

Fig. 49

Remove

Screws

If these statements are not true, repeat this step.

7. Slide the feeler gauge between the rocker arm and the valve return spring. Measure the clearance between the valve stem and rocker arm (Fig. 53). Measure both the intake and exhaust valves.

The recommended clearance for both intake and exhaust is .003 – .006 in. (.076 – 0.152 mm). Use a standard automotive .005 in. (0.127 mm) feeler gauge. The feeler gauge should slide between the rocker arm and valve stem with a slight amount of resistance, without binding. See Figures 53 and 54.

8. If the clearance is not within specification:

a. Turn the adjusting nut using a 5/16 inch (8 mm) wrench or

nut driver (Fig. 53).

• To increase clearance, turn the adjusting nut counterclockwise.

• To decrease clearance, turn the adjusting nut clockwise.

b. Recheck both clearances, and adjust as necessary.

9. Reinstall the rocker arm cover using a new gasket. Torque the screw to 20–30 in•lb (2.2–3.4 N•m).

10. Check the spark plug and reinstall. See Replacing the Spark Plug.

11. Replace the spark plug wire.

12. Reinstall the engine cover. Check alignment of the cover before tightening the screws. Tighten screws.

MAINTENANCE AND REPAIR INSTRUCTIONS

Fig. 54

REPLACING THE SPARK PLUG

Use a replacement part number 753-05255 spark plug. The correct air gap is 0.025 in. (0.655 mm.). Remove the plug after every 25 hours of operation and check its condition.

1. Stop the engine and allow it to cool. Remove the six (6) screws on the back of the engine cover with a Flat-head or T-25 Torx screwdriver (Fig. 51).

2. Grasp the plug wire firmly and pull the cap from the spark plug.

3. Clean dirt from around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

4. Replace cracked, fouled or dirty spark plug. Set the air gap at 0.025 in. (0.655 mm.) using a feeler gauge (Fig. 55).

5. Install a correctly-gapped spark plug in the cylinder head. Turn the 5/8 in. socket clockwise until snug.

If using a torque wrench torque to:

110-120 in.•lb. (12.3-13.5 N•m)

Do not over tighten.

Feeler Gauge

Adjusting Nut

Rocker Arm

.003–.006 in.

(.076–.152 mm)

Valve Stem

Adjusting Nuts

Feeler Gauge

Rocker Arms

Fig. 53

INTAKE

EXHAUST

0.025 in.

(0.655 mm.)

Fig. 55

WARNING: Do not sand blast, scrape or clean

electrodes. Grit in the engine could damage the cylinder.

Spark Plug

Hole

SPARK ARRESTOR MAINTENANCE

1. Remove the rear engine cover. See Rocker Arm Clearance.

2. With a flat blade screwdriver or Torx T-20 bit and a T-25 bit, remove the screws attaching the spark arrestor cover to the muffler (Fig. 56).

3. Pull the tab on the spark arrestor cover out of the muffler. Remove the spark arrestor cover.

4. Remove the spark arrestor screen from the spark arrestor cover.

5. Clean the spark arrestor screen with a wire brush or replace it.

6. Reinstall the spark arrestor screen, spark arrestor cover and screws.

CLEANING

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

STORAGE

• Never store the unit with fuel in the tank where fumes may

reach an open flame or spark.

• Allow the engine to cool before storing.

• Lock up the unit to prevent unauthorized use or damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

LONG TERM STORAGE

1. Drain all gasoline from the gas tank into a container. Do not use gas that has been stored for more than 60 days. Dispose of the old gasoline in accordance to Federal, State, and Local regulations.

2. Start the engine and allow it to run until it stalls. This ensures that all gasoline has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and put 1 oz. (30 ml) of high quality motor oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the

cylinder before attempting to start the trimmer after storage.

4. Change the oil, referring to Changing the Oil. Dispose of the old oil in accordance to Federal, State and Local regulations.

5. Thoroughly clean the unit and inspect for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage.

TRANSPORTING

• Allow the engine to cool before transporting.

• Secure the unit while transporting.

• Drain the gas tank before transporting.

• Tighten gas cap before transporting.

MAINTENANCE AND REPAIR INSTRUCTIONS

WARNING: To avoid serious personal injury,

always turn your unit off and allow it to cool before you clean or service it.

Fig. 56

Muffler

Spark Arrestor Screen

Diverter

T-20 Screw

Slot

T-25 Screw

TROUBLESHOOTING

If further assistance is required, contact your authorized service dealer.

CAUSE ACTION

Cutting attachment bound with grass Stop the engine and clean cutting attachment Cutting attachment out of line Refill with new line Inner reel bound up Replace the inner reel Cutting head dirty Clean inner reel and outer spool Line welded Disassemble, remove the welded section and rewind Line twisted when refilled Disassemble and rewind the line Not enough line is exposed Push the bump knob and pull out line until 4 inches (102 mm)

of line is outside of the cutting attachment

CAUSE ACTION

Old fuel Drain gas tank and add fresh fuel Improper carburetor adjustment Take to an authorized service dealer for adjustment Fouled spark plug Replace or clean the spark plug Plugged spark arrestor Clean or replace spark arrestor

CAUSE ACTION

On/Off control in the STOP position Turn On/Off control to ON Empty fuel tank Fill fuel tank with new fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times Old fuel Drain gas tank and add fresh fuel Fouled spark plug Replace or clean the spark plug Plugged spark arrestor Clean or replace spark arrestor

ENGINE WILL NOT START

ENGINE WILL NOT IDLE

ENGINE WILL NOT ACCELERATE

ENGINE LACKS POWER OR STALLS WHEN CUTTING

CAUSE ACTION

Air filter is plugged Replace or clean the air filter Old fuel Drain gas tank and add fresh fuel Improper carburetor adjustment Adjust carburetor

CAUSE ACTION

Old fuel Drain gas tank and add fresh fuel Improper carburetor adjustment Take to an authorized service dealer for adjustment Cutting attachment bound with grass Stop the engine and clean the cutting attachment Dirty air filter Clean or replace the air filter Plugged spark arrestor Clean or replace spark arrestor

CUTTING ATTACHMENT WILL NOT ADVANCE LINE

CAUSE ACTION

Oil, cleaner or lubricant in cutting head Clean and thoroughly dry the cutting head

CUTTING LINE ADVANCES UNCONTROLLABLY

SPECIFICATIONS

ENGINE*

DRIVE SHAFT AND CUTTING ATTACHMENT*

*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

Engine Type.................................................................................................................................................................. Air-Cooled, 4-Cycle

Displacement.................................................................................................................................................................... 1.8 cu. in. (29 cc)

Operating RPM ........................................................................................................................................................................... 6,800+ rpm

Idle Speed RPM .............................................................................................................................................................. 2,800 - 3,600 rpm

Ignition Type.................................................................................................................................................................................. Electronic

Ignition Switch ....................................................................................................................................................................... Rocker Switch

Valve clearance...................................................................................................................................... 0.003–0.006 in. (0.076–0.152 mm)

Spark Plug Gap ........................................................................................................................................................ 0.025 inch (0.655 mm)

Lubrication ................................................................................................................................................................................... SAE 30 Oil

Crankcase Oil Capacity ........................................................................................................................................................ 3.04 oz (90 ml)

Fuel ............................................................................................................................................................................................... Unleaded

Carburetor ............................................................................................................................................................... Diaphragm, All-Position

Starter ....................................................................................................................................................................................... Auto Rewind

Muffler ............................................................................................................................................................................. Baffled with Guard

Throttle ....................................................................................................................................................................... Manual Spring Return

Fuel Tank Capacity ................................................................................................................................................................. 14 oz (414 ml)

Drive Shaft Housing .................................................................................................................................................. Steel Tube (EZ-Link™)

Throttle Control ................................................................................................................................................................ Finger-Tip Trigger

Approximate Unit Weight (No fuel, with handle, cutting attachment and shield) ...................................................... 12-13.5 lbs (5.4-6 kg)

Cutting Mechanism ......................................................................................................... 4-Tooth Cutting Blade, Dual String Cutting Head

Line Spool..................................................................................................................................................................... Bump Line Releaser

Line Spool Diameter .................................................................................................................................................... 4 inches (101.6 mm)

Trimming Line Diameter.......................................................................................................................................... 0.105 inches (2.67 mm)

Cutting Path Diameter, Trimmer Head.......................................................................................................................... 18 inches (45.7 cm)

Cutting Path Diameter, Blade Head ............................................................................................................................... 8 inches (204 mm)

Shoulder Harness............................................................................................................................................................ Single Quick-Snap

+ 42 hidden pages
