Features
Pentium® II processor available from 233 MHz
through 366 MHz.
Intel 440LX chipset, supporting AGP, SDRAM,
Ultra DMA/33 IDE and ACPI
Supports CPU fan failure, overheat alarm and auto
slow down CPU spped
Supports Intel LCDM® Network Manageability
Supports3xDIMMs using 3.3 volt EDO or SDRAM
DIMM modules
Supports 8 MB through 384 MB SDRAM on-board
memory
Supports ECC or non-ECC type DRAM module
Provides 1 ISA slot, 3 PCI slots, 1 shared ISA/PCI
slot and 1 accelerated graphics port (AGP) slot
Supports 2 channels of Ultra DMA/33 IDE ports for
4 IDE devices
Supports 2 COM ports (16550), 1 LPT port (EPP/
ECP), 1 floppy drive port
Supports 2 universal serial bus (USB) ports, 1 PS/2
mouse/keyboard port
MB-PII
iii
Page 4
FCC Standards
The FCC (Federal Communications Commission) restricts
the amount of radiation and radio frequency emissions
coming from computing equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radioor television reception, which
can be determined by turning the equipment off and on, the
use is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
CSS Labs is not responsible for any radio or television
interference caused by unauthorized modifications to this
equipment. Operation with non-certified peripherals is likely
to result in interference to radio and TV reception.
To ensure compliance to FCC non-interference regulations,
iv MB-PII
Page 5
peripherals attached to this device require shielded I/O cables.
NOTICE: The use of a non-shielded I/O cable with this
device is in violation of U.S. Federal law and will not allow
the device to meet the maximum emission limits.
CAUTION: Any changes or modifications not expressly
approved by the grantee of this device could void the users
authority to operate the equipment.
Note: If you have purchased the miniature tower system,
please note the following...
WARNING: The system is to be installed on desk or table
tops only. The unit will become unstable if operated as a floor
standing unit and unintentional force is applied to the top of
the unit.
Turn the unit off and unplug the power cord before you
open the cover to install any cards or peripheral devices.
MB-PII
v
Page 6
WARNING
CAUTION: THERE IS A DANGER OF EXPLOSION IF
THE BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT
TYPE RECOMMENDED BY THE MANUFACTURER.
DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURERS INSTRUCTIONS.
ATTENTION:IL Y A DANGER DEXPLOSION SIL Y A
REMPLACEMENT INCORRECT DE LA BATTERRIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERI DU
MEME TYPE OU DUN TYPE RECOMMENDE PAR LE
CONSTRUCTEUR. ETTERAU REBUT LES
BATTERRIES USAGEES CONFORMEMANT AUX
INSTRUCTIONS DU FABRICATANT.
vi MB-PII
Page 7
NOTICE
The information within this manual is subject to change
without notice.
CSS Laboratories, Incorporated shall not be held liable for
technical or editorial errors or omissions contained in herein;
nor for incidental or consequential damages resulting from the
furnishing, performance or use of this material.
No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means,
mechanical, photocopying, recording or otherwise, without
the prior written permission of CSS Laboratories, Inc.
Product names mentioned herein are for identification
purposes only, and may be trademarks and/or registered
trademarks of their respective companies.
© 1997 CSS Laboratories, Inc. All rights reserved.
P/N MB-PII-DOC Revision 1 December, 1997
MB-PII
vii
Page 8
Table of Contents
Overview ............................................................................... 1
The Microprocessor .............................................................. 2
The Motherboard .................................................................. 2
Cache Memory ............................................................... 2
Accelerated Graphics Port .............................................. 2
Expansion Slots .............................................................. 3
Connectors ............................................................................ 4
Chassis, Processor and Power Supply Cooling Fans .......
CHA_FAN, CPU_FAN, PWR_FAN ........................ 5
Speaker ........................................................................... 5
Reset Switch ................................................................... 5
Power On LED PWR LED ........................................... 6
Hard Drive LED IDELED ............................................ 6
Infrared IR ..................................................................... 6
Jumpers ................................................................................. 7
CPU Bus Frequency FS0, FS1, FS2 .............................. 7
CPU Core Bus Frequency BF0, BF1, BF2, BF3 .......... 7
Clear Real Time Clock CLRTC .................................... 8
System Memory .................................................................... 9
Memory Configuration ......................................................... 9
System Memory Map.......................................................... 10
Timers ................................................................................. 10
System Interrupts ................................................................. 11
Direct Memory Access........................................................ 12
viii MB-PII
Page 9
The I/O Address Map ......................................................... 13
Configuration Utilities ........................................................ 14
Overview ...................................................................... 14
CMOS Setup Utility ..................................................... 16
The Setup Procedure .................................................... 16
BIOS Features Setup .................................................... 19
Chipset Features Setup ................................................. 20
PnP/PCI Configuration Setup ...................................... 24
Integrated Peripherals Configuration Setup .................. 25
MB-PII
ix
Page 10
Page 11
Overview
This document describes the technical features of the
motherboard. The topics include:
The Microprocessor - description of the features of the
Pentium II microprocessor
Motherboard - illustration and brief description of the
motherboard
Connectors - description of connector locations and
functions on the motherboard
Jumpers - detailed description of the jumpers used to
configure the motherboard
System Memory - detailed description of system
memory and how to add memory
System Memory Map - listing of traditional address
assignments for system memory
Configuration Utilities - description and instructions for
using the utility to configure the boards BIOS
MB-PII
1
Page 12
The Microprocessor
The Pentium II microprocessor contains all the features
of the Pentium and 80486 processors, and is 100%
compatible with 8086/88, 80286, and 80386 DX and SX
microprocessors. In addition, the Pentium II features:
64-bit Data Bus
Superscalar Architecture
Capability for executing two instructions in parallel.
Pipelined Floating-Point Unit
Separate 8 KB Code and 8 KB Data Caches (total 16 KB
L1 cache)
256 KB or 512 KB internal L2 cache
Bus Cycle Pipelining
Writeback MESI Protocol in the Data Cache Internal
Parity Checking
IEEE 1149.1 Boundary Scan
It is available in a variety of speeds, from 233 MHz through
366 MHz.
The Motherboard
Cache Memory
The processor comes with 16 KB of L1 cache, and is
available with 256 or 512 KB of internal L2 cache.
Accelerated Graphics Port
The Accelerated Graphics Port (AGP is a port on the Host-
to-PCI bridge that supports and AGP. The AGP provides fast
access to system memory.
2 MB-PII
Page 13
The AGP can be used as a fast PCI port (32 bits at 66 MHz
versus 32 bits at 33 MHz), or as an AGP port supporting 2x
data rate, a read queue and side band addressing.
Expansion Slots
There are a total of seven expansion slots and one accelerated
graphics port (AGP). One slot provides an ISA bus, four
slots are PCI busses and one PCI and one ISA are shared.
KYBD/MSE
USB
COM1
LPT
COM2
Wake on LAN
Connector
Flash EEPROM
Hardware
Monitor
(Programmable
LM78
BIOS)
ISA
ISA
PWR_FAN
ATXPWR CON
CPU SLOT1
Accelerated Graphics Port
PCI1
PCI2
PCI3
PCI5
PCI4
Intel
440LX
AGPset
PIIX4
Bank1
Bank2
Bank3
DIMM
DIMM
DIMM
Bus Freq.
FS0
FS1
FS2
Infrared
IDE LED
Panel Connectors
BAT1
CLRTC
Floppy
Secondary IDE
BF3
BF2
BF1
Bus Freq.
Primary IDE
BF0
CHA_FAN
MB-PII

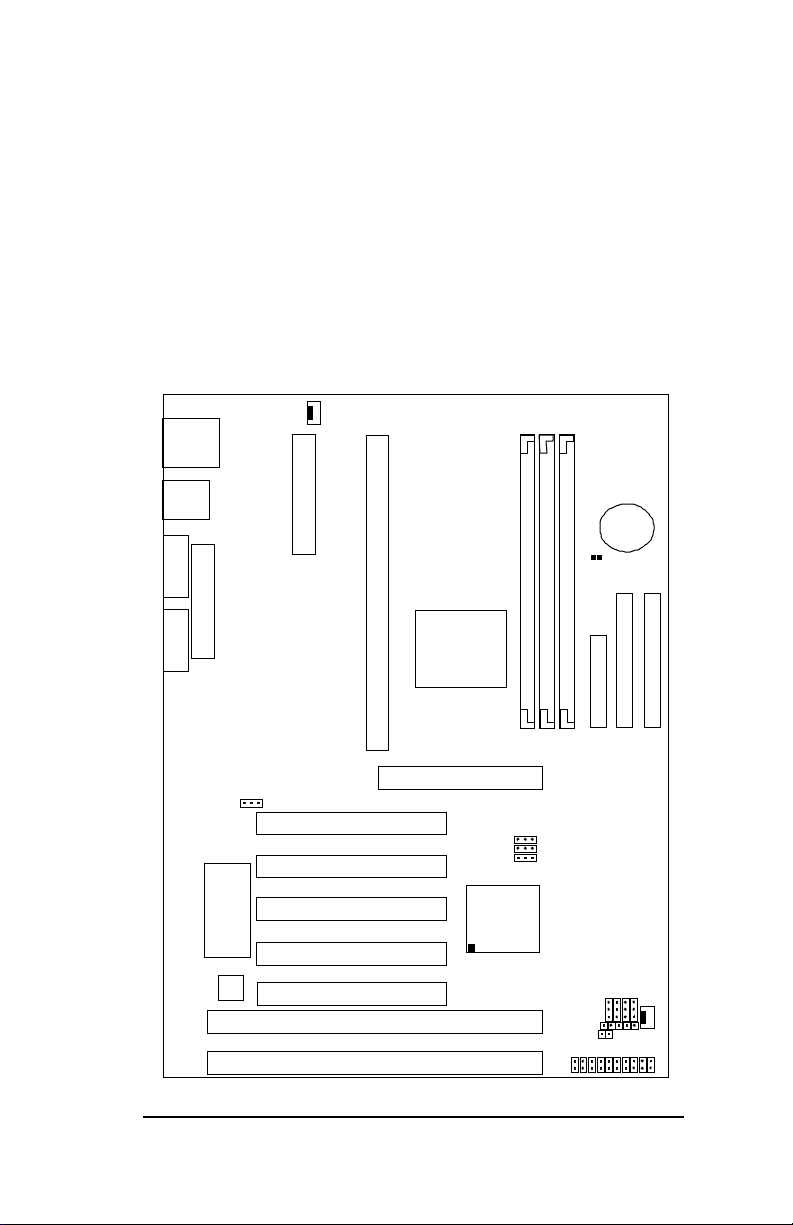

Figure 1: The Motherboard
3
Page 14
Connectors
Connector Description
COM1 Serial port 1
COM2 Serial port 2
LPT Parallel port
USB Universal Serial Bus
PS2KBD PS/2 Keyboard
PS2MOUSE PS/2 mouse port
PRI IDE Primary IDE
SEC IDE Secondary IDE
CHA_FAN Chassis cooling fan
CPU_FAN Processor cooling fan
PWR_FAN Power supply fan
SPEAKER Speaker (front panel)
RESET Reset switch (front panel)
PWR LED Power on LED (front panel)
IDELED Hard drive LED
IR Infrared option LED
PWR SW Power ON/OFF switch (front panel)
MSG LED System message LED (front panel)
SMI SMI switch (front panel)
KEYLOCK Keyboard lock (front panel)
POWER1 ATX power
Some of the boards connectors are described on the
following pages.
4 MB-PII
Page 15
Chassis, Processor and Power Supply Cooling Fans
CHA_FAN, CPU_FAN, PWR_FAN
Pin Assignment
1 Ground
2 +12 volt
3 Sense
Speaker
Pin Assignment
1 VCC
2NC
3NC
4 Output
Reset Switch
The systems reset switch allows you to perform a partial, or
warm boot.
Pin Assignment
1 Ground
2 +12 volt
MB-PII
5
Page 16
Power On LED PWR LED
The power ON LED provides visual confirmation that the
systems power supply is providing power.
Pin Assignment
1 LED power
2NC
3 Ground
Hard Drive LED IDELED
The hard drive LED lights whenever the drive is being
accessed by the system.
Pin Assignment
1 LED power (+)
2 LED power (-)
3NC
4 LED power (+)
Infrared IR
J7 connects to an optional infrared add-in controller.
Infrared controllers can act as ports for a number of
peripheral devices including mouse, printer and keyboard.
Pin Assignment
1 IR data output
2 Ground
3 IR data input
4NC
5 Power (+)
6 MB-PII
Page 17
Jumpers
There are two sets of jumpers that configure the motherboard
with the installed processor, and one jumper that allows you
to clear real time clock (RTC) data from CMOS RAM.These
are the CPU Bus Frequency (FS0, FS1, FS2), the CPU Core
Bus Frequency (BF0, BF1, BF2, BF3) and CLRTC.
CPU Bus Frequency FS0, FS1, FS2
These jumpers tell the clock generator what frequency to send
to the processor. This allows the selection of the processors
external frequency (or Bus Clock). The Bus Clock multiplied
by the Bus Ratio equals the processors internal freqency (the
processors advertised speed).
CPU Core Bus Frequency BF0, BF1, BF2, BF3
These jumpers set the frequency ratio between the internal
frequency of the processor and the processors external
frequency. These must be set in conjunction with the CPU
Bus Frequency jumpers.
Speed Ratio FS2 FS1 FS0 BF3 BF2 BF1 BF0
233 MHz 3.5 1-2 1-2 1-2 2-3 2-3 1-2 1-2
266 MHz 4 1-2 1-2 1-2 2-3 1-2 2-3 2-3
300 MHz 4.5 1-2 1-2 1-2 2-3 1-2 2-3 1-2
333 MHz 5 1-2 1-2 1-2 2-3 1-2 1-2 2-3
MB-PII
7
Page 18
Clear Real Time Clock CLRTC
The CMOS RAM is powered by the onboard battery. To
clear the RTC data, follow these steps:
1) Turn off the computer and unplug the AC power.
2) Short the two points labeled CLRTC by installing onto
the pins and then removing a jumper shunt.
3) Plug in the AC power and turn on the computer.
4) Hold down the <Delete> key during bootup and enter
BIOS setup to re-enter user preferences.
8 MB-PII
Page 19
System Memory
Only dual inline memory ,odules (DIMMs) can be used with
this motherboard. Three sockets are available for 3.3 volt
unbuffered synchronous DRAMs (SDRAM) or EDO DRAM,
of either 8, 16, 32 64 or 128 MB to form a memory size
between 8 MB and 384 MB.
To utilize the chipsets Error Checking and Correction (ECC)
feature, you must use a DIMM module with nine chips per
side (standard eight chips/side plus one parity chip) and make
proper settings in the BIOS Chipset Features Setup.
Important: Memory speed setup is required through Auto
Configuration in BIOS Chipset Features Setup.
Memory Configuration
Socket 128-pin DIMM Modules Total
1 SDRAM/EDO 8, 16, 32, 64, 128 MB
2 SDRAM/EDO 8, 16, 32, 64, 128 MB
3 SDRAM/EDO 8, 16, 32, 64, 128 MB
Total System Memory (Max 384 MB)
MB-PII
9
Page 20
System Memory Map
Address (hex) Name Function
000000 to
9FFFFF
0A0000 to
0BFFFF
0C0000 to
0DFFFF
0E0000 to
0EFFFF
0F0000 to
0FFFFF
100000 to
FDFFFF
FE0000 to
FEFFFF
FF0000 to
FFFFFF
640 KB motherboard system memory
128 KB video display
ROM
128 KB I/O
expansion ROM
64 KB reserved on
motherboard
64 KB ROM on
motherboard
maximum memory is
15 MB
64 KB reserved on
motherboard
64 KB reserved on
motherboard
reserved for graphics
reserved for ROM on
I/O
duplicate code
assignment at FE0000
duplicate code
assignment at FF0000
I/O channel memory
duplicate code
assignment at 0E0000
duplicate code
assignment at 0F0000
Timers
The systems three programmable timers/counters controlled
by timer/counter chips are defined as channels 0
through 2 as indicated below:
Channel 0: System Timer
Channel 1: Refresh Request Generator
Channel 2: Tone Generation for Speaker
10 MB-PII
Page 21
System Interrupts
The processor has two controllers, supplying 16 IRQs.
Below are assignments in decreasing priority.
LEVEL FUNCTION
Microprocessor NMI Parity or I/O Channel Check
Interrupt Controllers
Ctlr 1 Ctlr 2
IRQ0
IRQ1
IRQ2
*Interrupts IRQ8 - IRQ15 redirected to IRQ2*
IRQ8 Real-Time clock interrupt
IRQ9 Software re-directed to INT + AH (IRQ2)
IRQ10 Reserved
IRQ11 Reserved
IRQ12 Reserved
IRQ13 Coprocessor
IRQ14 Fixed disk controller
IRQ15 Reserved
IRQ3 Serial port 2
IRQ4 Serial port 1
IRQ5 Parallel port2
IRQ6 Diskette controller
IRQ7 Parallel port 1
MB-PII
11
Page 22
Note: IRQ9, IRQ10, IRQ11, IRQ12, IRQ15, IRQ3, IRQ4,
IRQ5 and IRQ7 can be redirected to PCI add-in boards.
The PCI standard has a 4-IRQ limitation. Some PCI add-in
boards do not require IRQs. Some can share an IRQ with
another board of the same model and manufacture. Check the
add-in boards documentation for IRQ information.
Direct Memory Access
The system supports seven DMA channels:
Controller 1 Controller 2
Channel 0 - Spare Channel 4 - Cascade
for Controller 1
Channel 1 - SDLC Channel 5 - Spare
Channel 2 - Diskette Channel 6 - Spare
Channel 3 - Spare Channel 7 - Spare
The first DMA controller holds channels 0 through 3. These
channels support 8-bit data transfers between 8-bit I/O
adapters and 8- or 16-bit system memory. Each channel can
transfer data in 4 KB blocks.
The second DMA controller holds channels 4 through 7.
Channel 4 cascades channels 0 through 3 to the
microprocessor. Channel 5, 6 and 7 support 16-bit data
transfers between 16-bit I/O adapters and 16-bit system
memory. These DMA channels can transfer data throughout
the 16 MB system-address space in 128 KB blocks.
Channel 5, 6 and 7 cannot transfer data on odd byte
boundaries.
12 MB-PII
Page 23
The I/O Address Map
Address (hex) Function
000-01F DMA #1
020-03F INTR #1
040-05F Timer
060-06F Keyboard
070-07F NMI mask register
080-09F DMA page register
0A0-OBF INTR #2
0C0-ODF DMA #2
0F0-0F1 Clr/rst math coprocessor
0F8-0FF Math coprocessor
1F0-1F8 Fixed disk
200-207 Joystick
278-27F Secondary parallel port
2F8-2FF Secondary serial port
300-31F Prototype card
378-37F Primary parallel port
380-38F SDLC (secondary bisynchronous)
3A0-3AF Primary bisynchronous
3B0-3BF Monochrome display/printer adapter
3D0-3DF Color/graphics monitor adapter
3F0-3F7 Diskette controller
3F8-3FF Primary serial port
MB-PII
13
Page 24
Configuration Utilities
Overview
BIOS Setup is a utility that defines and stores the
configuration of the machine. When the system boots, the
machines configuration loads into memory. Drives, video
adapter, memory and keyboard are described to the system.
The program is built into the CMOS chip on the
motherboard. To start the program, press the <Delete> key
while the system is booting. The Utilities menu displays:
If you discover after making and saving system changes that
you have made a mistake, the BIOS lets you override the
settings. Simply press <Insert> when you restart the
computer.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP SUPERVISOR PASSWORD
BIOS FEATURES SETUP USER PASSWORD
CHIPSET FEATURES IDE HDD AUTO DETECTION
POWER MANAGEMENT SETUP EXIT WITHOUT SAVING
PnP PCI CONFIGURATION SETUP
LOAD BIOS DEFAULTS
LOAD SETUP DEFAULTS
Esc: Quit : Select Item
F10 : Save & Exit Setup (Shift)F2 : Change Color
Time, Date, Hard Disk Type...
Figure 2: The Main Menu
14 MB-PII
Page 25
The following table gives a brief description of the Main
Menu options.
Selection Description
Standard CMOS SetupStandard options for the
computer.
BIOS Features Setup Enhanced BIOS options.
Chipset FeaturesSetup Options for the motherboards
chipset.
Power Management Setup Advanced Power Management
(APM) options.
PnP/PCIConfiguration Plug and Play standard and PCI
Local Bus configuration options.
Integrated Peripherals I/O subsystems that depend on
integrated peripherals
controller on the motherboard.
IDE HDD Auto Detection Automatically detect and
configure IDE hard disk
parameters.
Load Setup Defaults Setup defaults are factory
settings for optimal-performance
operations.
User Password Change, set of disable password.
It allows you to limit access to
the system and Setup, or just to
Setup.
Save & Exit Setup Save settings in CMOS and exit
the program.
Exit Without Save Abandon all changes and exit
the program.
MB-PII
15
Page 26
CMOS Setup Utility
This utility allows you to record your system setup.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, Inc.
Date (mm/dd/yy) : Friday, March 3, 1997
Time (hh/mm/ss) : 11: 11:00
Pri Master Auto
Pri Slave Auto
Sec Master Auto
Sec Slave Auto
Floppy Drive A : 1.44 MB 3 1/2
Floppy Drive B : Not Installed
Video: EGA/VGA
Halt On : All Errors
Esc: Quit : Select Item PgUp/PgDn : Modify
F10 : Save & Exit Setup <Shift> F2 : Change Color
Type Size Cyls Head Precomp LandZ Sect Mode
Base Memory: 640K
Extended Memory: 48182K
Other Memory: 384K
Total Memory: 49152K
Figure 3: The Standard Setup Menu
The values represented in this table are used as an example,
and may not match your BIOS settings.
The Setup Procedure
To start Setup, highlight STANDARD CMOS SETUP on
the Main Menu, and press <ENTER>. The current system
configuration stored in CMOS is displayed. The screen
image displayed in figure X is an example, and may differ
slightly from your display.
16 MB-PII
Page 27
The current cursor position is highlighted. The following list
shows how to move the cursor around the screen and make
selections:
Key Action
Left and right arrows Moves the cursor left to right and
right to left.
Up and down arrows Moves cursor up and down, and
from field to field.
<Enter> Selects the setting and moves
cursor to next field.
<F10> Saves the settings and exits
Setup.
<Esc> Exit to main screen from
submenu.
<F1> Help.
The values represented in this table are used as an example,
and may not match your BIOS settings.
The current cursor position is highlighted. The following list
shows how to move the cursor around the screen and make
selections:
In order to use the <PgUp> and <PgDn> keys on the
numeric key pad, you must turn the <NumLock> off.
Alter only the items that need to be changed or reset. If a
highlighted option is correct, skip the corresponding step.
1) Start by entering the current date in the following format:
mm/dd/yy. March 3, 1991 would be entered as 03/03/91.
Press <Enter> to continue.
2) Enter the current time using military style, hh:mm:ss.
4:11 p.m. is entered as 16:11:00. Press <Enter> to
continue.
MB-PII
17
Page 28
3) Use the <PgUp> and <PgDn> keys to toggle between the
floppy drive types. The supported drive types are:
5.25" - 360 KB 3.5 - 720 KB
- 1.2 MB - 1.44 MB
- 2.88 MB
After you find your floppy drive type, press the <Enter>
key. Repeat this procedure for Floppy drive B:, or press
<Enter> again to skip to the next step.
4) Use the <PgUp> and <PgDn> keys to toggle between the
different hard drive types.
The lower right hand side of the Setup menu displays
information about your system board:
Base Memory Size The amount of base (conventional)
memory, 0 to 640 KB.
Extended Memory The amount of expansion memory
Size extended beyond base memory.
Other Memory Other type of memory, usually
memory above base and below 1 MB.
When you have made all the necessary changes, verify that
the settings are correct. Press the <Esc> key. The screen
displays the following:
Write data into CMOS and exit (Y/N)? Y
Type Y or N, and press <Enter>. Entering N will
send you back to the Setup menu, where you can make
additional changes. Entering Y causes the system to accept
the changes. The screen clears and the system reboots.
18 MB-PII
Page 29
BIOS Features Setup
The BIOS Features Setup allows you to fine tune some of
the BIOSs special features. It is configured for your system
at the factory.
The values represented in this table are used as an
example, and may not match your BIOS settings.
ROM PCI/ISA BIOS
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
CPU Internal Core Speed: 120 MHz Video BIOS Shadow: Enabled
Virus Warning: Disabled C8000-CBFFF Shadow: Disabled
CPU Level 1 Cache: Enabled CC000-CFFFF Shadow: Disabled
CPU Level 2 Cache: Enabled CC000-CFFFF Shadow: Disabled
BIOS Update: Enabled D0000-D3FFF Shadow: Disabled
CPU Fast String: Enabled D4000-D7FFF Shadow: Disabled
Quick Power On Self Test: Enabled D8000-DBFFF Shadow: Disabled
HDD Sequence SCSI/IDE First: IDE DC000-DFFFF Shadow: Disabled
Boot Sequence: C, A Boot Up Num Lock Status: On
Boot Up Floppy Seek: Disabled Typematic Rate Setting: Disabled
Floppy Disk Access Control: R/W Typematic Rate (Chars/Sec): 6
IDE HDD Block Mode Sector:HDDMAX Typematic Delay (Msec): 250
Security Option: System
PS/2 Mouse Function Control: Auto
PCI/VGA Palette Snoop: Disabled
OS/2 Onboard Memory >64M: Disabled
Esc : Quit : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
MB-PII
Figure 4: BIOS Features Setup
19
Page 30
Chipset Features Setup
This option allows you to alter some of the technical features
associated with the chipset. These values are optimized and
set at the factory. The settings need only be changed if you
are reconfiguring the system.
ROM PCI/ISA BIOS
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
EDO Auto Configuration: 60ns DRAM Onboard FDC Controller: Enabled
EDO Read Burst Timing: x222 Onboard FDC Swap A&B: Enabled
EDO Write Burst Timing: x 222 Onboard Serial Port 1: 3F8h/IRQ4
EDO RAS to CAS Delay: 3T Onboard Serial Port 2: 2F8h/IRQ3
EDO RASto CAS Delay: 3T Onboard Parallel Port: 378h/IRQ7
SDRAM Configuration: 12ns SDRAM Parallel Port Mode: ECP+EPP
SDRAM RAS to CAS Delay: Auto ECP DMA Select: 3
SDRAM Precharde Time: Auto UART2 Use Infrared: Disabled
MA Wait State: AUto IDE Ultra DMA Mode: Auto
16-bit I/O Recovery Time: 1 BUSCLK IDE0 Master PIO/DMA Mode: Auto
8-bit I/O Recovery Time: 1 BUSCLK IDE0 Slave PIO/DMA Mode: Auto
Graphics Aperture Size: 64 MB IDE1 Master PIO/DMA Mode: Auto
Video Memory Cache Mode: UC IDE1 Slave PIO/DMA Mode: Auto
PCI 2.1 Support: Enabled
Memory Hole at 15M-16M: Disabled
DRAM are 64 (not 72) bits wide
Data Integrity Mode: Non-ECC
Esc : Quit : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
Figure 5: BIOS Features Setup
The values represented in this table are used as an
example, and may not match your BIOS settings.
20 MB-PII
Page 31
Power Management
This option lets you select the type or degree of power saving
for Doze, Standby and Suspend modes. See PM Timers for a
brief description of both.
ROM PCI/ISA BIOS
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
Power Management : User Define **Fan Monitor**
Video Off Option : Suspend - Off Chassis Fan Speed : 3300RPM
Video Off Method :DPMS OFF CPU Fan Speed : 3800RPM
Power Fan Speed : Ignore
**PM Timers** **Thermal Monitor**
HDD Power Down : Disable MB Temperature : 25C/77F
Suspend Mode : Disable **Voltage Monitor**
Suspend Mode : 1 minute VCORE Voltage : 3.3V
+3.3V Voltage : 3.3V
+5V Voltage : 5.0V
**Power Up Control** +12V Voltage : 12.0V
PWR Button < 4 Secs : Soft Off -12V Voltage : -12.0V
PWR Up On Modem Act: Enabled -5V Voltage : -5V
AC PWR Loss Restart : Disabled
Automatic Power Up : Diabled
Esc : Quit : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
Figure 6: Power Management Setup
Max Saving: Maximum power savings (SL processors only).
User Defined: Set each mode individually. Select time-out
periods in PM Timers section.
Min Savings: Minimum savings. Inactivity period is 1 hour.
in each mode, except hard drive.
MB-PII
21
Page 32
Video Off Option Determines when to activate the video off
feature for monitor power management.
The settings are All Modes - Off, Always On, Suspend - Off,
and Susp, Stby - Off.
Video Off Method (DPMS Off) Determines the manner in
which the monitor is blanked. The DPMS (display power
managment system) features allow the BIOS to control the
video card display card if it supports the DPMS feature.
Blank Screen only blanks the screen (use this for monitors
without power management or green features). If set up in
your system, your screen saver will not display with Blank
Screen selected. V/H SYNC + Blank blanks the scren and
turns off vertical and horizontal scanning.
The settings are DPMS Off, DPMS Reduce ON, Blank
Screen, V/H SYNC+Blank, DPMS Standby, and DPMS
Suspend.
PM Timers
This section controls the time-out settings for the Power
Managment scheme. The fields included in this section are
HDD Power Down, which places the hard disk into its lowest
powre consumption mode, and Doze, Standby and Suspend
system inactivation modes.
The system automatically wakes up from any power saving
mode when there is system activity such as when a key is
pressed or when there is activity detected from the enabled
IRQ channels.
22 MB-PII
Page 33
Power Up Control
This section determines the ways the system can be controlled
when it is started or restarted, when modem activity is
detected, or when power to the computer is interrupted and
reapplied. The Soft-Off mode refers to powering off the
system through a momentary button switch (ATX switch) or
through the software as oposed to disconnecting the AC
power by way of a rocker switch or other means.
Fan Monitor (xxxxRPM)
The onboard hardware monitor is able to detect the Chassis
Fan Speed, CPU Fan Speed and the Power Supply Fan
Speed..Set to Ignore only if necessary.
Thermal Monitor
The onboard hardware monitor is able to detect the CPU and
motherboard (MB) temperatures. These values refresh upon
keyentries. Set to Ignore only if necessary.
Voltage Monitor
The onboard hardware monitor is ale to detect the voltages
put out by the voltage regulators. These values refresh upon
key entries. Set to Ignore only if necessary.
Note: If any of the monitored items are out of range, an error
message will appear: Hardware Monitor found an error,
enter POWER MANAGMENT SETUP for details. You will
then be prompted to Press F1 to continue, DEL to enter
SETUP.
MB-PII
23
Page 34
PnP/PCI Configuration Setup
These settings are pre-set at the factory and should be altered
with care.
The values represented in this table are used as an example,
and may not match your BIOS settings.
ROM PCI/ISA BIOS (<P2L97>)
PnP/PCI CONFIGURATION SETUP
AWARD SOFTWARE, INC.
PNP OS Installed : No DMA 1 Used By ISA : No/ICU
Slot 1 (RIGHT) IRQ : Auto DMA 3 Used By ISA : No/ICU
Slot 2 IRQ : Auto DMA 5 Used By ISA : No/ICU
Slot 3 IRQ : Auto
Slot 4/5 (LEFT) IRQ : Auto ISA MEM Block BASE : No/ICU
PCI Latency Timer : 32 PCI Clock
SYMBIOS SCSI BIOS : Auto
IRQ 3 Used By ISA : No/ICU
IRQ 4 Used By ISA : No/ICU
IRQ 5 Used By ISA : No/ICU
IRQ 7 Used By ISA : No/ICU
IRQ 9 Used By ISA : No/ICU
IRQ 10 Used By ISA: No/ICU
IRQ 11 Used By ISA: No/ICU
IRQ 12 Used By ISA: No/ICU
IRQ 14 Used By ISA: No/ICU
IRQ 15 Used By ISA: No/ICU
Esc : Quit : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
Figure 7: Plug and Play/PCI Setup
24 MB-PII
Page 35
Integrated Peripherals Configuration Setup
This program lets you setup the components that are
integrated onto the motherboard. These features include the
E-IDE controller and drives, universal serial bus (USB)
controller, floppy controller, serial ports and parallel port.
ROM PCI/ISA BIOS
INTEGRATED PERIPHERALS SETUP
AWARD SOFTWARE, INC.
IDE HDD Block Mode : Enabled
PCI Slot IDE 2
On-Chip Primary PCI IDE : Enabled
On-Chip Secondary PCI IDE : Enabled
IDE Primary Master PIO : Enabled
IDE Primary Slave PIO : Enabled
IDE Secondary Master PIO : Enabled
IDE Secondary Slave PIO : Enabled
USB Controller : Enabled
Onboard FDC Controller : Enabled
Onboard Serial Port 1 : COM1/3F8
Onboard Serial Port 2 : COM2/2F8
Onboard Parallel Port : 378/IRQ7
Parallel Port Mode : Compatible
ECP Mode Use DMA : 0
EPP Version : 1.7
InfraRed Duplex Type : Disabled
nd
Channel : Enabled
Figure 8: Integrated Peripherals Configuration Setup
Esc : Quit : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
The settings are pre-set at the factory and should be altered
with care. The values represented in this table are used as an
example, and may not match your BIOS settings.
MB-PII
25
Loading...
