Page 1

Technical Reference

MB-P202

11-Slot Dual Pentium

Motherboard with Intel 440 FX Chipset

1641 McGaw Avenue

Irvine, California 92614

P/N MB-P202-DOC Revision 1, February 1998

Page 2

Page 3

Features

 10 slots: 5 ISA, 4 PCI slot and 1 shared PCI/ISA slots

 Two processor slots for single and dual Pentium II

capabilities

 Intel Pentium

through 233, 266 MHz, 300 MHz and 333 MHz

II processor, single or dual, upgradeable

 Intel 440FX chipset

 System memory upgradeable from 32 MB to 1 GB using

x 64 or x 72 DIMM

 Processor-facilitated ECC memory with x 72 DIMM

 Processor available with either 256 KB or 512 KB cache

 PCI 2.1 compliant PCI/ISA bus architectures

 BIOS-facilitated timers for Doze, Catnap and Suspend

Modes

 Standard PS/2 keyboard connector

 On-board E-IDE controller separate master/slave IDE

mode support for up to 4 IDE drives and 2 floppy drives

 On-board I/O supporting 2 serial ports and 1 parallel port

 On-board Universal Serial Bus (USB) controller with

2 USB ports

 On-board PS/2 mouse/keyboard port

MB-P202

iii

Page 4

FCC Standards

The FCC (Federal Communications Commission) restricts

the amount of radiation and radio frequency emissions

coming from computing equipment.

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radioor television reception, which

can be determined by turning the equipment off and on, the

use is encouraged to try to correct the interference by one

or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician

for help.

CSS Labs is not responsible for any radio or television

interference caused by unauthorized modifications to this

equipment. Operation with non-certified peripherals is likely

to result in interference to radio and TV reception.

iv MB-P202

Page 5

To ensure compliance to FCC non-interference regulations,

peripherals attached to this device require shielded I/O cables.

NOTICE: The use of a non-shielded I/O cable with this

device is in violation of U.S. Federal law and will not allow

the device to meet the maximum emission limits.

CAUTION: Any changes or modifications not expressly

approved by the grantee of this device could void the users

authority to operate the equipment.

Note: If you have purchased the miniature tower system,

please note the following...

WARNING: The system is to be installed on desk or table

tops only. The unit will become unstable if operated as a floor

standing unit and unintentional force is applied to the top of

the unit.

Turn the unit off and unplug the power cord before you

open the cover to install any cards or peripheral devices.

MB-P202

Page 6

WARNING

CAUTION: THERE IS A DANGER OF EXPLOSION IF

THE BATTERY IS INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT

TYPE RECOMMENDED BY THE MANUFACTURER.

DISCARD USED BATTERIES ACCORDING TO THE

MANUFACTURERS INSTRUCTIONS.

ATTENTION:IL Y A DANGER DEXPLOSION SIL Y A

REMPLACEMENT INCORRECT DE LA BATTERRIE.

REMPLACER UNIQUEMENT AVEC UNE BATTERI DU

MEME TYPE OU DUN TYPE RECOMMENDE PAR LE

CONSTRUCTEUR. ETTERAU REBUT LES

BATTERRIES USAGEES CONFORMEMANT AUX

INSTRUCTIONS DU FABRICATANT.

vi MB-P202

Page 7

NOTICE

The information within this manual is subject to change

without notice.

CSS Laboratories, Incorporated shall not be held liable for

technical or editorial errors or omissions contained in herein;

nor for incidental or consequential damages resulting from the

furnishing, performance or use of this material.

No part of this publication may be reproduced, stored in a

retrieval system, or transmitted, in any form or by any means,

mechanical, photocopying, recording or otherwise, without

the prior written permission of CSS Laboratories, Inc.

Product names mentioned herein are for identification

purposes only, and may be trademarks and/or registered

trademarks of their respective companies.

P/N MB-P2-202-DOC Revision 1 February, 1998

MB-P202

vii

Page 8

Table of Contents

Overview ............................................................................... 1

The Microprocessor .............................................................. 2

The Motherboard .................................................................. 3

Cache Memory ............................................................... 3

Expansion Slots .............................................................. 3

Voltage Regulators .......................................................... 3

Motherboard Connectors ...................................................... 4

Speaker J26 ................................................................... 5

Turbo LED/Reset JP36 ................................................. 5

IDE Hard Drive LED J34; Extra IDE LED JP20 ........ 5

Front Panel Connector JP35 .......................................... 6

Keyboard Connector CN1 ............................................. 6

PS/2 Mouse Connector J3 ............................................. 7

Power LED/Keylock LED Connector JP37 .................. 7

Primary IDE J24 ........................................................... 7

Secondary IDE J25........................................................ 7

Parallel Port J12 ............................................................ 8

Serial Port 1 (COM1) J4 .............................................. 8

Serial Port 2 (COM2) J5 ............................................... 8

Floppy Drive Connector J33 ......................................... 8

5 Volt Power Supply Connector J6; Auxiliary 5 Volt

Power Connector J32 .................................................... 8

3 Volt Power Supply Connector J23 .............................. 9

Universal Serial Bus Connectors J1, J2 ........................ 9

Fan Connectors J38, JP39, J27 ..................................... 9

Infrared Connector JP7 ............................................... 10

Motherboard Jumpers ..........................................................11

Processor Bus Clock Speed JP1, JP3 ........................... 11

Processor Bus Frequency JP10, JP11.......................... 12

Processor Speed Ratio JP15, JP16, JP18, JP19 .......... 12

Flash BIOS Enable JP6, JP7 ....................................... 13

viii MB-P202

Page 9

Super I/O Address Selector JP5 .................................. 13

ISA Bus Speed JP13 ................................................... 13

Manual EXTSMI JP2 ................................................. 14

Clock Voltage Selector J30 .......................................... 14

System Memory .................................................................. 15

Installing and Removing DIMM................................... 15

System Memory Configuration .................................... 16

System Memory Map .......................................................... 19

Timers ................................................................................. 19

System Interrupts ................................................................ 20

Direct Memory Access ........................................................ 21

The I/O Address Map ......................................................... 22

Configuration Utilities ........................................................ 23

Overview ...................................................................... 23

CMOS Setup Utility ..................................................... 25

The Setup Procedure .................................................... 25

BIOS Features Setup .................................................... 28

Chipset Features Setup ................................................. 29

Power Management Setup ............................................ 30

DOS 6.2TM Advanced Power Program .................. 34

Windows 3.1TM Advanced Power Management ..... 34

Windows 95TM Advanced Power Management ...... 35

PnP/PCI Configuration Setup ...................................... 36

Integrated Peripherals Configuration Setup .................. 37

MB-P202

Page 10

Overview

This document describes the technical features of the

motherboard. The topics include:

 The Microprocessor - description of the features of the

Pentium II microprocessor

 Motherboard - illustration and brief description of the

motherboard and the dual purpose expansion slot

 Connectors - description of connector locations

andfunctions on the motherboard

 Jumpers - detailed description of the jumpers used to

configure the motherboard

 System Memory - detailed description of system

memory and how to add memory

 System Memory Map - listing of traditional address

assignments for system memory

 Configuration Utilities - description and instructions for

using the utility to configure the boards BIOS

MB-P202

Page 11

The Microprocessor

The Pentium II microprocessor contains all the features

of the Pentium, Pentium Pro and 80486 processors, and is

100% compatible with 8086/88, 80286, and 80386 DX and

SX microprocessors. In addition, the Pentium II features:

 Dual Independent Bus Architecture allowing access to

data from either bus simultaneously or in parallel

 Dynamic Execution with Multiple Branch Prediction,

Data Flow Analysis and Speculative Execution

 Intel MMX multimedia technology

It is available in a variety of speeds, from 233 MHz through

333 MHz.

For additional information, contact your authorized CSS

Laboratories representative; or visit Intels web site at

intel.com.

2 MB-P202

Page 12

The Motherboard

KEYBOARD

MOUSE

CN1

PS/2

USB

1 1

USB

J6 J23

5V POWER

COM 1

COM 2

J10

J11

J13

J14

J15

J16

J17

J18 J31

3V POWER

J19

DIMM0

J20

DIMM1

J21

DIMM2

J22

PCI5

PCI4

PCI3

PCI2

PCI1

ISA

DIMM3

LPT

J12

PRIMARY IDE

J24

J25

SECONDARY IDE

1 1

JP2 JP4

JP1

J27

FAN

JP6

JP7

JP3

VOLTAGE

REGULATOR

J28

JP8

J29

JP5

CMOS

JP13

JP12

Pentium II Slot

J30

JP10

JP11

111

Pentium II Slot

JP9

SMI

FLOPPY DRIVE

J33

JP14

3 VOLT

LITHIUM

BATTERY

VOLTAGE

REGULATORS

JP17

JP15

JP16

JP18

111

J32

5V POWER

JP20

JP19

J39

FAN

VOLTAGE

REGULATOR

FRONT PANEL

J35

J26

SPEAKER

IDE LED

J34

EXT. HD LED

TURBO LED/RST

J36

KEYLK/PWR LED

J37

J38

FAN

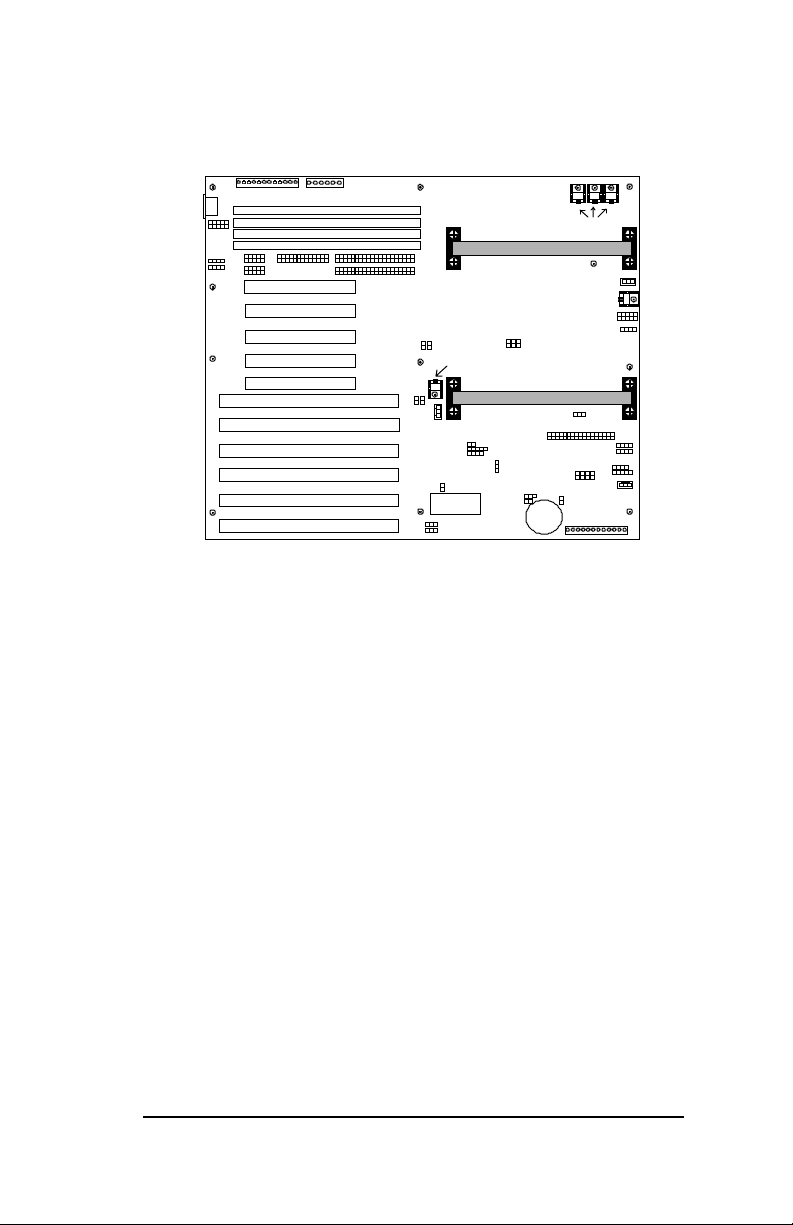

Figure 1: The Motherboard

Cache Memory

The processor comes with 32 KB of L1 cache, and 512 KB

of internal L2 cache.

Expansion Slots

There are a total of eleven expansion slots on the

motherboard: five ISA slots, four PCI slots; 1 ISA and 1PCI

which are shared.

Voltage Regulators

The board comes with a total of 5 voltage regulators, making

the board compatible with the full line of processors.

MB-P202

Page 13

Motherboard Connectors

Description Connector

J26 Speaker connector

J36 Turbo LED/Reset

J34 IDE hard drive LED

JP20 Extra IDE hard drive LED

JP35 CSS Front panel connector

CN1 Keyboard connector

J3 PS/2 mouse connector

JP37 Power LED/keylock

J24 Primary IDE connector

J25 Secondary IDE connector

J12 Parallel port

J4 Serial port 1 (COM1)

J5 Serial port 2 (COM2)

J33 Floppy drive connector

J6, J32 5V power connector, aux.connector

J23 3 volt power supply connector

J1, J2 Universal serial bus connectors

J31 On-board CMOS battery connector

J29 External CMOS battery connector

J38, J39, J27 Processor fan connectors

JP8 Infrared device connector

4 MB-P202

Page 14

Speaker J26

J26 connects the computers speaker to the motherboard.

Pin Assignment Pin Assignment

1 Speaker 3 Gnd

2 Not used 4 VCC

Turbo LED/Reset JP36

The reset button on the front panel lets you perform a

cold boot, without turning the system off.

Pin Assignment Pin Assignment

1 Reset 3 TB LED signal

2 Not used 4 TB LED power

IDE Hard Drive LED J34; Extra IDE LED JP20

J34 or JP20 connects a hard drive access LED to the front

panel. It lights when the drive is accessed.

Pin Assignment

1 VCC

2 HDD Act (-)

3 HDD Act (-)

4 VCC

MB-P202

Page 15

Front Panel Connector JP35

This 10-pin connector interfaces between the system board

and the control panel on the front of the system case.

Pin Assignment Pin Assignment

1 Ground 6 Ground

2 Power LED 7 Green LED

3 IDE Power LED 8 Keylock

4 Not used 9 Power

5 IDE LED 10 Reset

Keyboard Connector CN1

Keyboard plugs are keyed for proper installation.

Pin Assignment Pin Assignment

1 Clock 4 Ground

2 Data 5 +5 Vdc

3 Not used

6 MB-P202

Page 16

PS/2 Mouse Connector J3

This 10-pin connector is use for a PS/2 mouse.

Pin Assignment Pin Assignment

1 Mouse clock 6 VCC

2 Not used 7 Not used

3 Keyboard clock 8 Mouse data

4 Not used 9 Not used

5 Not used 10 Ground

Power LED/Keylock LED Connector JP37

JP37 is a 5-pin connector used to attach the motherboard

to the front panels keylock LED and power indicator LED.

Pin Assignment Pin Assignment

1 Power LED 4 Keylock

2 Not used 5 Ground

3 Ground

Primary IDE J24

J24 connects the primary on-board PCI E-IDE hard drive.

Pin 1 is marked. When connecting your E-IDE, orient pin 1

of the cable ribbon with pin 1 of J24.

Secondary IDE J25

J25 connects the secondary on-board PCI IDE controller.

Pin 1 is marked. When connecting your IDE, orient pin 1

of the cable ribbon with pin 1 of J25.

MB-P202

Page 17

Parallel Port J12

J12 provides the connection for the motherboards parallel

port.

Serial Port 1 (COM1) J4

J4 provides the connection for the motherboards serial port 1

(COM 1).

Serial Port 2 (COM2) J5

J5 provides the connection for the motherboards serial port 2

(COM 2).

Floppy Drive Connector J33

J33 connects the floppy drive to the controller provided on

the motherboard.

5 Volt Power Supply Connector J6; Auxiliary 5 Volt

Power Connector J32

Pin Assignment Pin Assignment

1 Power good 7 Ground

2 +5 Vdc 8 Ground

3 +12 Vdc 9 -5 Vdc

4 -12 Vdc 10 Not used

5 Ground 11 +5 Vdc

6 Ground 12 +5 Vdc

The power connectors attach the motherboard to the main

power supply through the boards 5 volt regulator.

8 MB-P202

Page 18

When connecting the power supply, always orient the plugs

so that the black wires on each sit side-by-side.

3 Volt Power Supply Connector J23

Pin Assignment Pin Assignment

1 Ground 4 +3.3 Vdc

2 Ground 5 +3.3 Vdc

3 Ground 6 +3.3 Vdc

Universal Serial Bus Connectors J1, J2

The motherboard provides two 4-pin universal serial bus

(USB) connectors.

Pin Assignment

1 VCC

2 Data -

3 Data +

4 Ground

Fan Connectors J38, JP39, J27

The processor fan provides extra cooling for the powerful

new Pentium Pro processors.

Pin Assignment

1 12 volt

2 Ground

MB-P202

Page 19

Infrared Connector JP7

JP7 connects to an optional infrared add-in controller.

Infrared controllers can act as ports for a number of

peripheral devices including mouse, printer and keyboard.

Pin Assignment

1 Transmitting

2 Receive 1

3 Receive 2

4 Ground

10 MB-P202

Page 20

Motherboard Jumpers

The motherboards jumpers are pre-configured at the factory.

Read the following section carefully, before configuring your

system. The motherboard has the following jumpers:

Jumper Description

JP1, JP3 Processor bus clock speed

JP10, JP11 Processor bus frequency

JP15, JP16 Processor speed ratio

JP18, JP19

JP6, JP7 Flash BIOS enable

JP5 Super I/O Address Selector

J28 CMOS battery selector

JP13 ISA bus speed

JP2 Manual EXTSMI

JP9 BIOS controlled EXTSMI

J30 Clock voltage selector

JP14 Test jumper (default OUT)

Processor Bus Clock Speed JP1, JP3

Pentium II processors are designed with one of two bus

clock speeds. The bus clock speed is always a fraction of

the processors internal speed. The table on page 13 will

help you determine the correct setting for your system.

Bus Clock Speed JP1 JP3

60 MHz OUT IN

66 MHz IN OUT

MB-P202

Page 21

Processor Bus Frequency JP10, JP11

JP10 and JP11 matches the processor bus frequency with the

processors speed. The table below illustrates the settings.

Bus Frequency JP10 JP11

60 MHz OUT IN

66 MHz IN OUT

Processor Speed Ratio JP15, JP16, JP18, JP19

The Pentium II uses a clock multiplier to run faster than the

processor bus. The jumpers match the installed processors

speed with the motherboards defined processor speed. The

table below will help you determine the correct setting.

Processor JP15 JP16 JP18 JP19

Speed Ratio

2x IN IN IN IN

2.5x OUT IN IN IN

3x IN OUT IN IN

3.5x OUT OUT IN IN

4x IN IN OUT IN

4.5x OUT IN OUT IN

5x IN OUT OUT IN

The following table matches processor speed, processor clock

and the motherboards processor bus speed.

Processor Clock Ratio Processor

Type/Speed Bus Speed

266 MHz 4x 66 MHz

300 MHz 4.5x 66 MHz

333 MHz 5x 66 MHz

12 MB-P202

Page 22

Flash BIOS Enable JP6, JP7

JP6 and JP7 let you use flash BIOS, loading the latest 1 Mbit

or 2 Mbit version of BIOS. Be careful to return the settings to

their default values after you have loaded the flash BIOS.

Flash BIOS Enable JP6 JP7

Non-Flash 1-2 2-3

1 Mbit Flash 1-2 1-2

(default)

2 Mbit Flash 2-3 2-3

Super I/O Address Selector JP5

JP5 lets you select a different address within the BIOS for the

on-board Super I/O. Choosing an address other than the

default allows a technician to perform certain tests on the

motherboard.

BIOS Type JP5

Default Address IN

Test Address OUT

ISA Bus Speed JP13

The ISA bus uses the processors oscillator to set its speed.

This jumper is set at the factory to the correct value.

ISA Bus Speed JP13

Divide by 3 1-2

Divide by 4 (default) 2-3

MB-P202

Page 23

Manual EXTSMI JP2

The manual external system management interrupt (SMI)

jumper allows a technician to force the system into sleep

mode. This procedure is sometimes used in specific system

testing.

Manual EXTSMI JP2

Forced Sleep IN

Normal (default) OUT

BIOS Controlled EXTSMI JP9

The BIOS EXTSMI option system management interrupt

(SMI) jumper allows a technician to select the BIOS SMI

control, or to select the chipset SMI control and to use the

motherboards chipset to control the SMI. Using the chipset

for SMI is sometimes used in specific system testing.

BIOS SMI JP9

Chipset controlled 1-2

BIOS controlled 2-3

(default)

Clock Voltage Selector J30

The Pentium II processor uses a 2.5 volt clock, unlike the

Pentium Pro, which uses a 3 volt clock. This jumper is set at

the factory to the correct value.

Clock Voltage JP30

2.5 volt (default) IN

3 volt OUT

14 MB-P202

Page 24

System Memory

The motherboard uses DIMM memory. DIMM is available

in 64-pin or 72-pin, where the 72-pin DIMM provides error

correcting code (ECC).

There are a total of four banks available for memory

upgrades. The board supports DIMM in the following

combinations:

1M x 64/72 = 8 MB/bank 8M x 64/72 = 64 MB/bank

2M x 64/72 = 16 MB/bank 16M x 64/72 = 128 MB/bank

4M x 64/72 = 32 MB/bank 32M x 64/72 = 256 MB/bank

Installing and Removing DIMM

Read these instructions completely before installing or

removing DIMMs. The DIMM is held by plastic press-clips

on both sides of the slot.

Installing DIMM

1) Hold the DIMM so that the gold tab is pointing toward the

slot. The DIMM is keyed so that it will only snap into the

slot when positioned correctly.

2) Press one end of the DIMM until it inserts and its press-

clip snaps into place.

3) Press the other end of the DIMM until it inserts and its

press-clip snaps into place.

Removing DIMM

1) Pull both press-clips simultaneously, until the DIMM pops

up from its slot.

MB-P202

Page 25

System Memory Configuration

RAM Bank 0 Bank 1 Bank 2 Bank 3

8 MB 1M x 64/72

16 MB 1M x 64/72 1M x 64/72

16 MB 2M x 64/72

24 MB 1M x 64/72 1M x 64/72 1M x 64/72

24 MB 1M x 64/72 2M x 64/72

32 MB 1M x 64/72 1M x 64/72 1M x 64/72 1M x 64/72

32 MB 2M x 64/72 2M x 64/72

32 MB 4M x 64/72

32 MB 2M x 64/72 1M x 64/72 1M x 64/72

32 MB 2M x 64/72 2M x 64/72

40 MB 1M x 64/72 2M x 64/72 2M x 64/72

40 MB 1M x 64/72 4M x 64/72

40 MB 2M x 64/72 1M x 64/72 1M x 64/72 1M x 64/72

48 MB 4M x 64/72 1M x 64/72 1M x 64/72

48 MB 2M x 64/72 2M x 64/72 2M x 64/72

48 MB 2M x 64/72 4M x 64/72

48 MB 4M x 64/72 1M x 64/72 1M x 64/72

48 MB 4M x 64/72 2M x 64/72

56 MB 1M x 64/72 2M x 64/72 2M x 64/72 2M x 64/72

56 MB 4M x 64/72 1M x 64/72 1M x 64/72 1M x 64/72

64 MB 2M x 64/72 2M x 64/72 2M x 64/72 2M x 64/72

64 MB 8M x 64/72

64 MB 4M x 64/72 4M x 64/72

64 MB 4M x 64/72 2M x 64/72 2M x 64/72

64 MB 4M x 64/72 4M x 64/72

72 MB 8M x 64/72 1M x 64/72

72 MB 1M x 64/72 4M x 64/72 4M x 64/72

80 MB 2M x 64/72 8M x 64/72

80 MB 2M x 64/72 4M x 64/72 4M x 64/72

80 MB 4M x 64/72 2M x 64/72 2M x 64/72 2M x 64/72

80 MB 8M x 64/72 1M x 64/72 1M x 64/72

16 MB-P202

Page 26

RAM Bank 0 Bank 1 Bank 2 Bank 3

88 MB 8M x 64/72 1M x 64/72 1M x 64/72 1M x 64/72

96 MB 4M x 64/72 4M x 64/72 4M x 64/72

96 MB 4M x 64/72 8M x 64/72

104 MB 1M x 64/72 4M x 64/72 4M x 64/72 4M x 64/72

112 MB 2M x 64/72 4M x 64/72 4M x 64/72 4M x 64/72

128 MB 4M x 64/72 4M x 64/72 4M x 64/72 4M x 64/72

128 MB 8M x 64/72 8M x 64/72

128 MB 16M x 64/72

136 MB 16M x 64/72 1M x 64/72

136 MB 1M x 64/72 8M x 64/72 8M x 64/72

144 MB 2M x 64/72 16M x 64/72

144 MB 2M x 64/72 8M x 64/72 8M x 64/72

144 MB 16M x 64/72 1M x 64/72 1M x 64/72

152 MB 16M x 64/72 1M x 64/72 1M x 64/72 1M x 64/72

160 MB 16M x 64/72 2M x 64/72 2M x 64/72

160 MB 16M x 64/72 4M x 64/72

160 MB 4M x 64/72 8M x 64/72 8M x 64/72

176 MB 16M x 64/72 2M x 64/72 2M x 64/72 2M x 64/72

192 MB 8M x 64/72 8M x 64/72 8M x 64/72

192 MB 16M x 64/72 4M x 64/72 4M x 64/72

192 MB 16M x 64/72 8M x 64/72

200 MB 1M x 64/72 8M x 64/72 8M x 64/72 8M x 64/72

208 MB 2M x 64/72 8M x 64/72 8M x 64/72 8M x 64/72

224 MB 4M x 64/72 8M x 64/72 8M x 64/72 8M x 64/72

224 MB 16M x 64/7 24M x 64/7 24M x 64/72 4M x 64/72

256 MB 8M x 64/72 8M x 64/72 8M x 64/72 8M x 64/72

256 MB 16M x 64/72 16M x 64/72

256 MB 32M x 64/72

256 MB 16M x 64/72 8M x 64/72 8M x 64/72

256 MB 16M x 64/72 16M x 64/72

264 MB 32M x 64/72 1M x 64/72

264 MB 1M x 64/72 16M x 64/72 16M x 64/72

MB-P202

Page 27

RAM Bank 0 Bank 1 Bank 2 Bank 3

272 MB 32M x 64/72 1M x 64/72 1M x 64/72

272 MB 32M x 64/72 2M x 64/72

272 MB 2M x 64/72 16M x 64/72 16M x 64/72

280 MB 32M x 64/72 1M x 64/72 1M x 64/72 1M x 64/72

288 MB 32M x 64/72 4M x 64/72

288 MB 32M x 64/72 2M x 64/72 2M x 64/72

288 MB 4M x 64/72 16M x 64/72 16M x 64/72

304 MB 32M x 64/72 2M x 64/72 2M x 64/72 2M x 64/72

320 MB 32M x 64/72 4M x 64/72 4M x 64/72

320 MB 16M x 64/72 8M x 64/72 8M x 64/72 8M x 64/72

320 MB 32M x 64/72 8M x 64/72

352 MB 32M x 64/72 4M x 64/72 4M x 64/72 4M x 64/72

384 MB 16M x 64/72 16M x 64/72 16M x 64/72

384 MB 16M x 64/72 32M x 64/72

384 MB 32M x 64/72 8M x 64/72 8M x 64/72

392 MB 1M x 64/72 16M x 64/72 16M x 64/72 16M x 64/72

400 MB 2M x 64/72 16M x 64/72 16M x 64/72 16M x 64/72

416 MB 4M x 64/72 16M x 64/72 16M x 64/72 16M x 64/72

448 MB 32M x 64/72 8M x 64/72 8M x 64/72 8M x 64/72

512 MB 16M x 64/72 16M x 64/72 16M x 64/72 16M x 64/72

512 MB 32M x 64/72 32M x 64/72

512 MB 32M x 64/72 16M x 64/72 16M x 64/72

520 MB 1M x 64/72 32M x 64/72 32M x 64/72

528 MB 2M x 64/72 32M x 64/72 32M x 64/72

544 MB 4M x 64/72 32M x 64/72 32M x 64/72

640 MB 16M x 64/72 32M x 64/72 32M x 64/72

640 MB 32M x 64/72 16M x 64/72 16M x 64/72 16M x 64/72

768 MB 32M x 64/72 32M x 64/72 32M x 64/72

776 MB 1M x 64/72 32M x 64/72 32M x 64/72 32M x 64/72

784 MB 2M x 64/72 32M x 64/72 32M x 64/72 32M x 64/72

800 MB 4M x 64/72 32M x 64/72 32M x 64/72 32M x 64/72

896 MB 16M x 64/72 32M x 64/72 32M x 64/72 32M x 64/72

1 GB 32M x 64/72 32M x 64/72 32M x 64/72 32M x 64/72

18 MB-P202

Page 28

System Memory Map

Address (hex) Size Function

0H to 7FFF 512 KB Base Memory

90000H to 9FBFF 127 KB Extended base memory

enabled in Setup

9FC00 to 9FFFF 1 KB Extended BIOS data

A0000 to AFFFF 64 KB VGA display memory

(not on ISA bus)

B0000 to B7FFF 32 KB VGA display memory

(not on ISA bus)

C0000 to C7FFF 32 KB Optional VGA BIOS

(enabled through setup,

if disabled, available to

ISA bus)

C8000 to DFFFF 96 KB Available high DOS

memory, to ISA bus

E0000 to E7FFF 32 KB Cirrus Logic 5424

video BIOS

ED000 to EDFFF 4 KB User Flash area

(available as high DOS

memory if no user

information here)

EE000 to EFFFF 8 KB Flash boot block

(available as high DOS

memory)

F0000 to FFFFF 64 KB Reserved for Phoenix

BIOS ROM

100000 to FDFFF 15232 KB Extended memory

FE0000 to FFFFFF 128 MN System and video BIOS

copy

1000000 to 2800000 20480 KB Extended memory

MB-P202

Page 29

System Interrupts

The processor has two controllers, supplying 16 IRQs.

Below are assignments in decreasing priority.

IRQ Function

NMI Parity error

IRQ0 Reserved, interval timer

IRQ1 Reserved, keyboard buffer full

IRQ2 Reserve, cascade interrupt from slave PIC

IRQ3 Onboard serial port 2

IRQ4 Onboard sreial port 1

IRQ5 User available

IRQ6 Onboard floppy controller

IRQ7 Onboard parallel port

IRQ8 Real-time clock (RTC)

IRQ9 User available

IRQ10 User available

IRQ11 User available

IRQ12 Onboard mouse port if enabled, else user

available

IRQ13 Reserved, math coprocessor

IRQ14 Onboard IDE hard disk controller

IRQ15 User available

Note: IRQ9, IRQ10, IRQ11, IRQ12, IRQ15, IRQ3, IRQ4,

IRQ5 and IRQ7 can be redirected to PCI add-in boards.

The PCI standard has a 4-IRQ limitation. Some PCI add-in

boards do not require IRQs. Some can share an IRQ with

another board of the same model and manufacture. Check the

add-in boards documentation for IRQ information.

20 MB-P202

Page 30

Direct Memory Access

The system supports seven DMA channels:

Controller 1 Controller 2

Channel 0 - Spare Channel 4 - Cascade

for Controller 1

Channel 1 - SDLC Channel 5 - Spare

Channel 2 - Diskette Channel 6 - Spare

Channel 3 - Spare Channel 7 - Spare

The first DMA controller holds channels 0 through 3. These

channels support 8-bit data transfers between 8-bit I/O

adapters and 8- or 16-bit system memory. Each channel can

transfer data in 4 KB blocks.

The second DMA controller holds channels 4 through 7.

Channel 4 cascades channels 0 through 3 to the

microprocessor. Channel 5, 6 and 7 support 16-bit data

transfers between 16-bit I/O adapters and 16-bit system

memory. These DMA channels can transfer data throughout

the 16 MB system-address space in 128 KB blocks.

Channel 5, 6 and 7 cannot transfer data on odd byte

boundaries.

MB-P202

Page 31

The I/O Address Map

Address (hex) Function

0EC Index for VLSI chipsets 82C480 and

82C113

0ED Data for VLSI chipset 82C480 and

82C113

061 AT-compatible configuraton port

078 System configuration port

079 BIOS independent timer (BIT)

1F0-1F7 IDE (SMC37C651)

278-27F Parallel port 2

2F8-2FF Serial port 2

378-37F Parallel port 1

3B0-3DF Video controller

3F0-3F7 Floppy disk controller

3F8-3FF Serial port 1

46E8 Video controller

22 MB-P202

Page 32

Configuration Utilities

Overview

BIOS Setup is a utility that defines and stores the

configuration of the machine. When the system boots, the

machines configuration loads into memory. Drives, video

adapter, memory and keyboard are described to the system.

The program is built into the CMOS chip on the

motherboard. To start the program, press the <Delete> key

while the system is booting. The Utilities menu displays:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP SUPERVISOR PASSWORD

CHIPSET FEATURES USER PASSWORD

POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION

PnP PCI CONFIGURATION SETUP HDD LOW LEVEL FORMAT

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

Esc: Quit : Select Item

F10 : Save & Exit Setup (Shift)F2 : Change Color

Time, Date, Hard Disk Type...

Figure 2: The Main Menu

If you discover after making and saving system changes that

you have made a mistake, the BIOS lets you override the

settings. Simply press <Insert> when you restart the

computer.

MB-P202

Page 33

The following table gives a brief description of the Main

Menu options.

Selection Description

Standard CMOS SetupStandard options for the

computer.

BIOS Features Setup Enhanced BIOS options.

Chipset FeaturesSetup Options for the motherboards

chipset.

Power Management Setup Advanced Power Management

(APM) options.

PnP/PCIConfiguration Plug and Play standard and PCI

Local Bus configuration options.

Integrated Peripherals I/O subsystems that depend on

integrated peripherals

controller on the motherboard.

Supervisor/User Password Change, set or disable a

password. Only the supervisor

password accesses Setup.

IDE HDD Auto Detection Automatically detect and

configure IDE hard disk

parameters.

HDD Low Level Format CSS strongly recommends you

do not low-level format your

hard drive. This may overwrite

the bad-track table.

Load BIOS Defaults BIOS defaults are factory

settings for the most stable,

minimal-performance.

Load Setup Defaults Setup defaults are factory

settings for optimal-performance

operations.

Save & Exit Setup Save settings in CMOS and exit

the program.

Exit Without Save Abandon all changes and exit

the program.

24 MB-P202

Page 34

CMOS Setup Utility

This utility allows you to record your system setup.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, Inc.

Date (mm/dd/yy) : Friday, March 3, 1997

Time (hh/mm/ss) : 11:11:00

Pri Master Auto

Pri Slave Auto

Sec Master Auto

Sec Slave Auto

Floppy Drive A : 1.44 MB 3 1/2

Floppy Drive B : Not Installed

Video: EGA/VGA

Halt On : All Errors

Esc: Quit : Select Item PgUp/PgDn : Modify

F10 : Save & Exit Setup <Shift> F2 : Change Color

Type Size Cyls Head Precomp LandZ Sect Mode

Base Memory: 640K

Extended Memory: 48182K

Other Memory: 384K

Total Memory: 49152K

Figure 3: The Standard Setup Menu

The values represented in this table are used as an example,

and may not match your BIOS settings.

The Setup Procedure

To start Setup, highlight STANDARD CMOS SETUP on

the Main Menu, and press <ENTER>. The current system

configuration stored in CMOS is displayed. The screen

image displayed in figure X is an example, and may differ

slightly from your display.

MB-P202

Page 35

The current cursor position is highlighted. The following list

shows how to move the cursor around the screen and make

selections:

Key Action

Left and right arrows Moves the cursor left to right and

right to left.

Up and down arrows Moves cursor up and down, and

from field to field.

<Enter> Selects the setting and moves

cursor to next field.

<F10> Saves the settings and exits

Setup.

<Esc> Exit to main screen from

submenu.

<F1> Help.

In order to use the <PgUp> and <PgDn> keys on the

numeric key pad, you must turn the <NumLock> off.

Alter only the items that need to be changed or reset. If a

highlighted option is correct, skip the corresponding step.

1) Start by entering the current date in the following format:

mm/dd/yy. March 3, 1991 would be entered as 03/03/91.

Press <Enter> to continue.

2) Enter the current time using the military style: hh:mm:ss.

4:11 p.m. is entered as 16:11:00. Press <Enter> to

continue.

26 MB-P202

Page 36

3) Use the <PgUp> and <PgDn> keys to toggle between the

floppy drive types. The supported drive types are:

5.25" - 360 KB 3.5 - 720 KB

- 1.2 MB - 1.44 MB

- 2.88 MB

After you find your floppy drive type, press the <Enter>

key. Repeat this procedure for Floppy drive B:, or press

<Enter> again to skip to the next step.

4) Use the <PgUp> and <PgDn> keys to toggle between the

different hard drive types.

The lower right hand side of the Setup menu displays

information about your system board:

Base Memory Size The amount of base (conventional)

memory, 0 to 640 KB.

Extended Memory The amount of expansion memory

Size extended beyond base memory.

Other Memory Any other type of memory, usually

the memory above base and below

1 MB.

When you have made all the necessary changes, verify that

the settings are correct. Press the <Esc> key. The screen

displays the following:

Write data into CMOS and exit (Y/N)? Y

Type Y or N, and press <Enter>. Entering N will

send you back to the Setup menu, where you can make

additional changes. Entering Y causes the system to accept

the changes. The screen clears and the system reboots.

MB-P202

Page 37

BIOS Features Setup

The BIOS Features Setup allows you to fine tune some of

the BIOSs special features. It is configured for your system

at the factory.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning: Disabled Video BIOS Shadow: Enabled

CPU Internal Cache: Enabled C8000-CBFFF Shadow: Disabled

External Cache: Enabled CC000-CFFFF Shadow: Disabled

Quick POST: Disabled D0000-D3FFF Shadow: Disabled

Boot Sequence: A, C D4000-D7FFF Shadow: Disabled

Swap Floppy Drive: Disabled D8000-DBFFF Shadow: Disabled

Boot Up Floppy Seek : Enabled DC000-DFFFF Shadow: Disabled

Boot Up NumLock Status : On

Boot Up System Speed : High

Gate A20 Option: Fast

Memory Parity Check: Disabled

Typematic Rate Setting: Disabled

Typematic Rate (Chars/Sec): 6

Typematic Delay: 250

Security Option: Setup

Esc : Quit : Select Item

PCI/VGA Palette Snoop: Disabled

MPS Version Control for OS: 1.4

OS Select-DRAM>64MB: Non-

OS/2

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift)F2 : Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

Figure 4: BIOS Features Setup

The values represented in this table are used as an

example, and may not match your BIOS settings.

28 MB-P202

Page 38

Chipset Features Setup

This option allows you to alter some of the technical features

associated with the chipset. These values are optimized and

set at the factory. The settings need only be changed if you

are reconfiguring the system.

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled

DRAM Speed Selection : 60 ns

DRAM RAS# Precharge Time : 3

MA Additional Wait State: Disabled

Fast RAS# to CAS# Delay : 3

DRAM Read Burst B/E/F: x2/2/3

DRAM Write Burst B/E/F : x2/2/3

ISA Bus Clock : PCICLK4

DRAM Refresh Queue: Enabled

DRAM RAS Only Refresh: Enabled

Single Bit Error Report: Enabled

Fast DRAM Refresh: Disabled

Read-Around Write: Enabled

PCI Burst Write Combine: Enabled

PCI-To-DRAM Pipeline: Enabled

CPU-To_PCI Write Post: Enabled

CPI-To-PCI IDE Posting: Enabled

System BIOS Cacheable: Enabled

Video RAM Cacheable: Enabled

Memory Parity/ECC Check : Auto

Single Bit Error Report : Enable

L2 Cache Cacheable Size : 64MB

Chipset NA# Asserted : Enabled

Pipeline Cache Timing : Faster

8-Bit I/O Recovery Time: 1

16-Bit I/O Recovery Time: 1

Memory Hole At 15M-16M: Disabled

DRAM Fast Lead-Off: Disabled

Esc : Quit : Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift)F2 : Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

Figure 5: BIOS Features Setup

The values represented in this table are used as an

example, and may not match your BIOS settings.

MB-P202

Page 39

Power Management Setup

This program lets you set the values for the components of

your Green PC. The default values are set at the factory.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Power Management : Max Savings IRQ3 (COM2) : OFF

PM Control by APM : Yes IRQ4 (COM1) : ON

Video Off Method :V/H Sync&Blank IRQ5 (LPT2) : OFF

Modem Use IRQ : 3 IRQ6 (Floppy Disk) : ON

IRQ7 (LPT1) : OFF

Doze Mode : 1 minute IRQ8 (RTC Alarm) : ON

Standby Mode : 1 minute IRQ9 (IRQ8 Redir) : OFF

Suspend Mode : 1 minute IRQ10 (Reserved) : OFF

HDD Power Down Mode: 1 minute IRQ11 (Reserved) : OFF

IRQ12 (PS/2 Mouse) : OFF

*Wake Up Events In Doze&Standby* IRQ13 (Coprocessor) : OFF

IRQ3 Wakeup Event: OFF IRQ14 (Hard Disk) : ON

IRQ4 Wakeup Event: ON IRQ15 (Reserved) : OFF

IRQ8 Wakeup Event: OFF

IRQ12 Wakeup Event: OFF

Esc : Quit : Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift)F2 : Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

Figure 6: Power Management Setup

The following pages provide descriptive overviews of each

option in the Power Management Setup.

30 MB-P202

Page 40

Power Management

This option lets you select the type or degree of power saving

for Doze, Standby and Suspend modes. See PM Timers for a

brief description of both.

Max Saving: Maximum power savings (SL processors only).

User Defined: Set each mode individually. Select time-out

periods in PM Timers section.

Min Savings: Minimum savings. Inactivity period is 1 hour.

in each mode, except hard drive.

PM Controlby APM

If Advanced Power Management APM) isinstalled, selecting

Yes gives better power savings.

Video Off Method Determines the manner in which the

monitor is blanked.

V/H SYNC+Blank: System turns off vertical and horizontal

synchronization ports and writes blanks to the video buffer.

DPMS Support: Select this option if your monitor supports

the Display Power Management Signaling (DPMS) standard.

Use the software supplied with the video subsystem to select

video power management values.

Blank Screen: System only writes blanks to the video buffer.

MODEM Use IRQs

Names the interrupt request (IRQ) line assigned to the

modem, if any, on your system. Activity on the selected IRQ

always awakens the system.

MB-P202

Page 41

PM Timers

The following are Green PC power saving functions. They

are user-configurable only during User Defined Power

Management mode.

Doze Mode: After the selected period of inactivity, 1 minute

to 1 hour, the processor clock runs at slower speed while all

other devices continue to operate at full speed.

Standby Mode: After the selected period of inactivity, 1

minute to 1 hour, the fixed disk and video shut off while all

other devices continue to operate at full speed.

Suspend Mode: After the selected period of system inactivity,

1 minute to 1 hour, all devices except the processor shut off.

HDD Power Down: After the selected period of drive

inactivity, 1 to 15 minutes, the hard disk drive powers down

while all other devices remain active.

Wake Up Events

You can turn on or off monitoring of four commonly used

interrupt requests so they do not awaken the system from, or

reset activity timers for Doze and Standby modes.

For example, if you have a modem on IRQ3, you can turn on

IRQ3 as a wake-up event, so that an interrupt from the

modem can wake up the system.

Or you may want to turn off IRQ12, the PS/2 mouse, as a

wake-up event, so accidently brushing the mouse does not

awaken the system. The default wake-up event is keyboard

activity.

32 MB-P202

Page 42

Power Down and Resume Events

You can disable monitoring of common IRQs so they do not

awaken the system from, or reset activity timers for Suspend

mode.

IRQ3 - COM2 IRQ10 - Reserved

IRQ4 - COM1 IRQ11 - Reserved

IRQ5 - LPT2 IRQ12 - PS2/Mouse

IRQ6 - Floppy IRQ13 - Coprocessor

IRQ7 - LPT1 IRQ14 - Hard disk

IRQ8 - RTC IRQ15 - Reserved

IRQ9 - IRQ2 redir.

Power Management Setup allows you to take advantage of

Microsofts DOS 6.2

Advanced Power Management

(APM) program.

The values represented in this table are used as an example,

and may not match your BIOS settings. To take advantage of

this feature,

 Make sure DOS 6.2 is installed on your system

 Select YES for PM Control by APM in the menu above

 Enable the DOS Power program

 Enable the Power program in Windows 3.1

, if installed

MB-P202

Page 43

DOS 6.2TM Advanced Power Program

To use the program, follow these simple steps.

1) Open your CONFIG.SYS file by using a text editor, such

as MS-DOS Editor. To open your CONFIG.SYS file

using MS-DOS Editor, type the following at the

command prompt: edit c:\config.sys

2) At the end of the CONFIG.SYS file, add a device

command specifying the location of the POWER.EXE

file. This example specifies the POWER.EXE file is

located in the C: drive DOS directory, and that the default

setting should be used: device=c:\dos\power.exe

3) Save the changes to your CONFIG.SYS file, and quit the

text editor.

4) Restart the computer. Press <CTRL> <ALT> <DEL>.

MS-DOS 6.2 Users Guide also provides instructions. For

more information, type help power, at the DOS prompt.

Windows 3.1

Advanced Power Management

Use the Windows Setup program to select the MS-DOS

with APM option.

1) Start the Windows Setup program by changing to the

Windows root directory and typing Setup: cd windows

setup.

2) At the Windows Setup menu, edit the Computer field.

Use the arrow key to highlight the field, and press

<Enter>.

34 MB-P202

Page 44

3) From the Computer screen, select MS-DOS with APM

and press <Enter>. Use the arrow key to scroll through

the selection menu.

4) Accept the change and exit the Setup program. Restart

your computer by pressing <CTRL> <ALT> <DEL>.

Windows 95

Advanced Power Management

1) Enable the APM option in BIOS Setup before installing

Windows 95.

2) The APM is automatically installed during Windows 95

setup.

3) An APM icon appears in the Control Panel window,

indicating a successful installation.

MB-P202

Page 45

PnP/PCI Configuration Setup

These settings are pre-set at the factory and should be altered

with care.

The values represented in this table are used as an example,

and may not match your BIOS settings.

ROM PCI/ISA BIOS

PnP/PCI CONFIGURATION SETUP

AWARD SOFTWARE, INC.

Resources Controlled By: Manual PCI IRQ Activated By : Level

Reset Configuration Data: Disabled PCI IDE IRQ Map To : PCI-AUTO

IRQ-3 Assigned to : Legacy ISA Primary IDE INT# : A

IRQ-4 Assigned to : Legacy ISA

IRQ-5 Assigned to : PCI/ISA PnP

IRQ-7 Assigned to : PCI/ISA PnP

IRQ-9 Assigned to : PCI/ISA PnP

IRQ-10 Assigned to : PCI/ISA PnP

IRQ-12 Assigned to : PCI/ISA PnP

IRQ-14 Assigned to : PCI/ISA PnP

IRQ-15 Assigned to : PCI/ISA PnP

DMA-0 Assigned to : PCI/ISA PnP

DMA-1 Assigned to : PCI/ISA PnP

DMA-3 Assigned to : PCI/ISA PnP

DMA-5 Assigned to : PCI/ISA PnP

DMA-6 Assigned to : PCI/ISA PnP

DMA-7 Assigned to : PCI/ISA PnP

Secondary IDE INT# : B

Esc : Quit : Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift)F2 : Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

Figure 7: Plug and Play/PCI Setup

36 MB-P202

Page 46

Integrated Peripherals Configuration Setup

This program lets you setup the components that are

integrated onto the motherboard. These features include the

E-IDE controller and drives, universal serial bus (USB)

controller, floppy controller, serial ports and parallel port.

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS SETUP

AWARD SOFTWARE, INC.

IDE HDD Block Mode : Enabled

IDE Primary Master PIO : Enabled

IDE Primary Slave PIO : Enabled

IDE Secondary Master PIO : Enabled

IDE Secondary Slave PIO : Enabled

PCI Slot IDE 2

On-Chip Primary PCI IDE : Enabled

On-Chip Secondary PCI IDE: Enabled

CSB Input Clock : 8 MHz

Onboard FDC Controller : Enabled

Onboard Serial Port 1 :

Onboard Serial Port 2 : COM2/2F8

UR2 Mode : Standard

Onboard Parallel Port : 378/IRQ7

Parallel Port Mode :

USB Controller : Enabled

USB Keyboard Support : Disabled

Channel : Enabled

COM1/3F8

Compatible

Esc : Quit : Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift)F2 : Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

Figure 8: Integrated Peripherals Configuration Setup

The settings are pre-set at the factory and should be altered

with care. The values represented in this table are used as an

example, and may not match your BIOS settings.

MB-P202

Page 47

38 MB-P202
