Flanges (B)

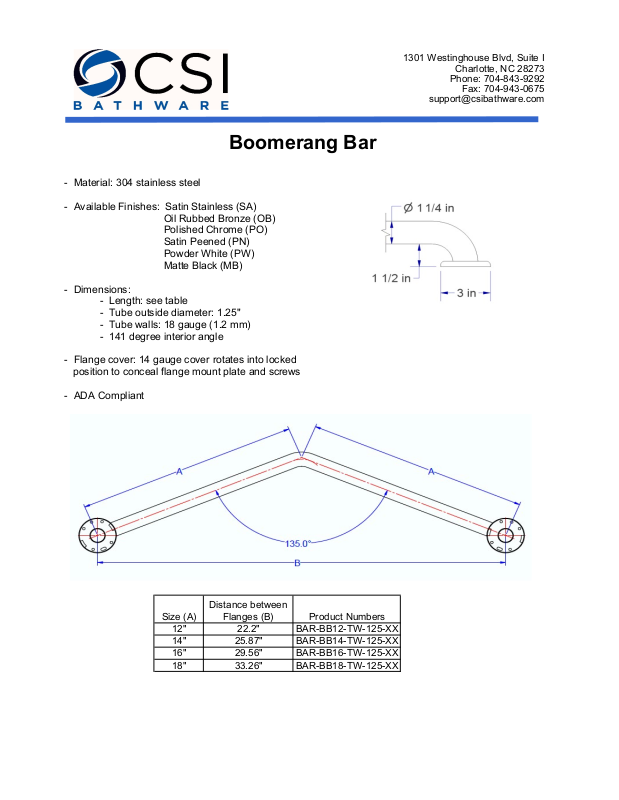

Boomerang Bar
- Material: 304 stainless steel
1301 Westinghouse Blvd, Suite I
- Available Finishes: Satin Stainless (SA)
Oil Rubbed Bronze (OB)
Polished Chrome (PO)
Satin Peened (PN)
Powder White (PW)
Matte Black (MB)
- Dimensions:
- Length: see table
- Tube outside diameter: 1.25"
- Tube walls: 18 gauge (1.2 mm)
- 141 degree interior angle
- Flange cover: 14 gauge cover rotates into locked
position to conceal flange mount plate and screws
Charlotte, NC 28273
Phone: 704-843-9292
Fax: 704-943-0675
support@csibathware.com
- ADA Compliant
Distance between
Size (A)
12" 22.2" BAR-BB12-TW-125-XX
14" 25.87" BAR-BB14-TW-125-XX
16" 29.56" BAR-BB16-TW-125-XX
18" 33.26" BAR-BB18-TW-125-XX
Product Numbers
IMPORTANT INSTRUCTIONS
SAFETY NOTE: Concealed In-Wall support backing is ALWAYS REQUIRED for this product (not
included) – and must be supplied and selected by a licensed installer/contractor to meet both
weight bearing and local code requirements.
PRODUCT INSTALLATION SHOULD BE DONE BY A LICENSED INSTALLER/CONTRACTOR.
CAUTION: Personal injury and/or property damage may result from improper wall support or
mounting, which is not covered under warranty.
WARNING: Do NOT use this instruction sheet for straight grab bars or grab bars with welded stud
or internal threads
IT IS ESSENTIAL TO MARK THE CENTERLINE DISTANCE BETWEEN THE TWO MOUNTING FLANGE
PLATES AS WELL AS THE DISTANCE FROM CENTER OF EACH MOUNTING PLATE TO THE FINISH
FLOOR TO ASSURE PROPER ALIGNMENT.
INSTALLATION STEPS:
1. Confirm contents of box: Grab bar and 6 screws, which are stainless steel with Phillips head.
2. Tools & supplies needed: Phillips screw driver or 3" drill bit extender, pencil, drill, and silicone
caulk.
3. Carefully consider the mounting location before installation:Install only where proper structure
is provided behind the wall. Measure area of the grab bar and avoid pipes, wires, grout, etc.
4. Use the mounting flanges as a template, mark the center of screw hole locations.
5. Drill mounting holes.
6. IMPORTANT: MUST HAVE PROPER, CONCEALED, IN-WALL BACKING INSTALLED BY A LICENSED
INSTALLATION PROFESSIONAL.
7. On the backside of each flange, where it will touch the wall, apply a bead of silicone caulk
around each screw hole.
8. Install the bar with the manufacturer’s provided screws. After installing the bar, inspect each
screw to ensure it is tight, straight and flush with the flange.
WARNING: Avoid damage to wall, tile, or fasteners by not over-tightening screws.
9. Twist the flange cover onto mounting flange plates.
