CSI Bathware CSIB1082 Installation & Assembly

Size (length)

14"

Product Number

BAR-WAVE14-XX

18"

24"

28"

BAR-WAVE18-XX

BAR-WAVE24-XX

BAR-WAVE28-XX

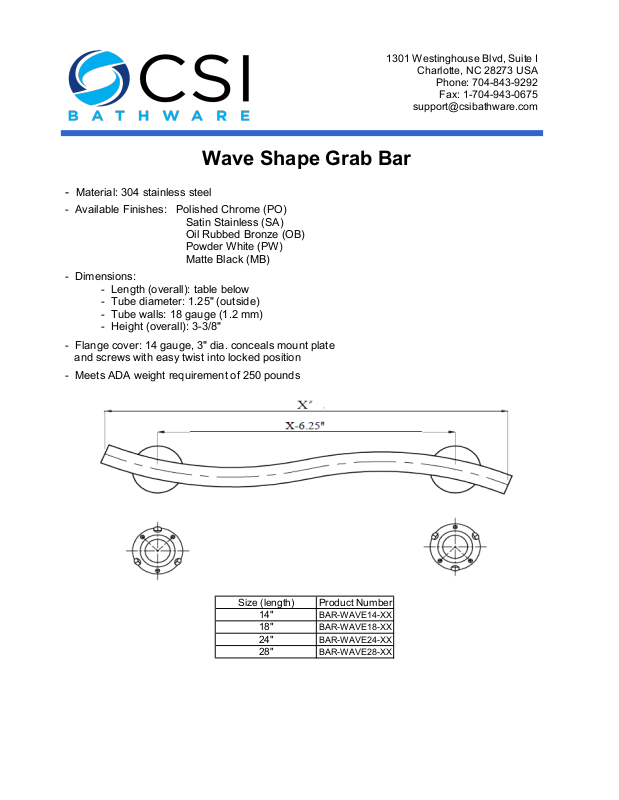

Wave Shape Grab Bar

- Material: 304 stainless steel

- Available Finishes: Polished Chrome (PO)
Satin Stainless (SA)
Oil Rubbed Bronze (OB)
Powder White (PW)
Matte Black (MB)

- Dimensions:

- Length (overall): table below

- Tube diameter: 1.25" (outside)

- Tube walls: 18 gauge (1.2 mm)

- Height (overall): 3-3/8"

- Flange cover: 14 gauge, 3" dia. conceals mount plate

and screws with easy twist into locked position

1301 Westinghouse Blvd, Suite I

Charlotte, NC 28273 USA

Phone: [phone]

Fax: [phone]

[e-mail]

- Meets ADA weight requirement of 250 pounds

IMPORTANT INSTRUCTIONS

SAFETY NOTE: Concealed In-Wall support backing is ALWAYS REQUIRED for this product (not

included) – and must be supplied and selected by a licensed installer/contractor to meet both
weight bearing and local code requirements.

PRODUCT INSTALLATION SHOULD BE DONE BY A LICENSED INSTALLER/CONTRACTOR.

CAUTION: Personal injury and/or property damage may result from improper wall support or

mounting, which is not covered under warranty.

Installation Notes:

1. Bar as Selected

2. Flange Cover Plate

3. Flange

4. Wood Stud

5. Drywall

6. Tile (if applicable)

7. 1/4” (6mm) Diameter Hole – TILE ONLY

8. 1/8” (3mm) Diameter Pilot Hole into Wood Stud

9. 10/24” x 2” Threaded Stainless Steel Hanger Bolt

10. Threaded Stainless Steel Bolt Nut

Installation Steps

1. Read ALL safety warnings before installing the grab bar.

2. Locate wall stud or previously installed backer board.

3. Use the flange plates to mark the mounting hole locations. (We recommend using a level to achieve
perfect horizontal or vertical mounting.)

4. Drill 1/8” (3mm) diameter pil ot hole inot wood stud.

a. If wall is tiled, drill through the tile with a 1/4” (6mm) diameter masonry drill bit.

5. Drive hanger bolt directly into wood stud using hanger bolt driver leaving 1/4” of thread exposed.

6. Place Flange over exposed hanger bolt.

7. Screw bolt nut onto hanger bolt.

8. After flange is secured, apply bead of clear sealant around bottom rim of flange cover plate and
carefully align the cover plate locking tabs with the slots in the flange.

:

9. Turn the flange cover plate 15 degrees clockwise to secure.
