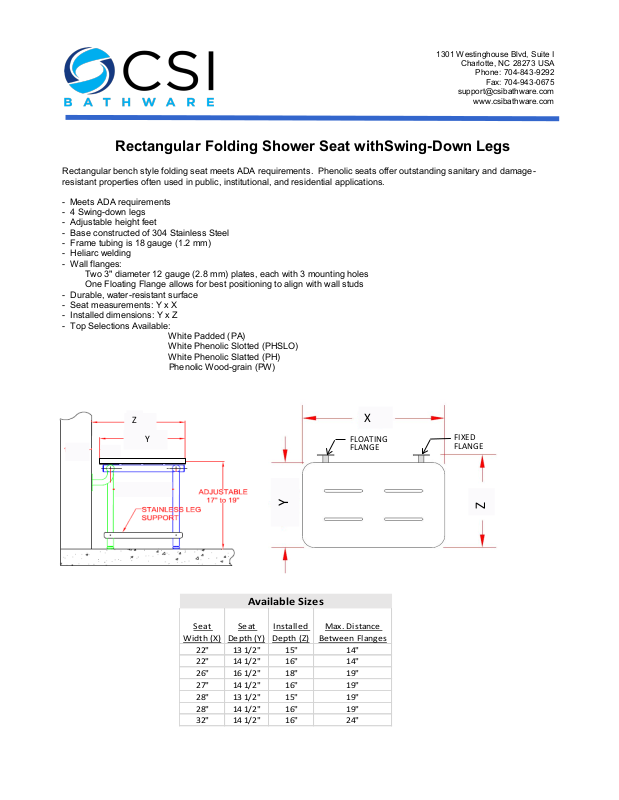

Rectangular bench style folding seat meets ADA requirements. Phenolic seats offer outstanding sanitary and damage-
resistant properties often used in public, institutional, and residential applications.
Phenolic Wood-grain (PW)
Rectangular Folding Shower Seat withSwing-Down Legs
FIXED
Seat
Width (X)
Seat
Depth (Y)
Installed
Depth (Z)
Max. Distance
Between Flanges
22" 13 1/2" 15" 14"
22" 14 1/2" 16" 14"
26" 16 1/2" 18" 19"
27" 14 1/2" 16" 19"
28" 13 1/2" 15" 19"
28" 14 1/2" 16" 19"
32" 14 1/2" 16" 24"
Available Sizes
- Meets ADA requirements
- 4 Swing-down legs
- Adjustable height feet
- Base constructed of 304 Stainless Steel
- Frame tubing is 18 gauge (1.2 mm)
- Heliarc welding
- Wall flanges:
Two 3" diameter 12 gauge (2.8 mm) plates, each with 3 mounting holes
One Floating Flange allows for best positioning to align with wall studs
- Durable, water-resistant surface
- Seat measurements: Y x X
- Installed dimensions: Y x Z
- Top Selections Available:
White Padded (PA)
White Phenolic Slotted (PHSLO)
White Phenolic Slatted (PH)
1301 Westinghouse Blvd, Suite I
Charlotte, NC 28273 USA
Phone: 704-843-9292
Fax: 704-943-0675
support@csibathware.com
www.csibathware.com
16"
Z
Y
X
FLOATING
FLANGE
FLANGE
Y
Z
