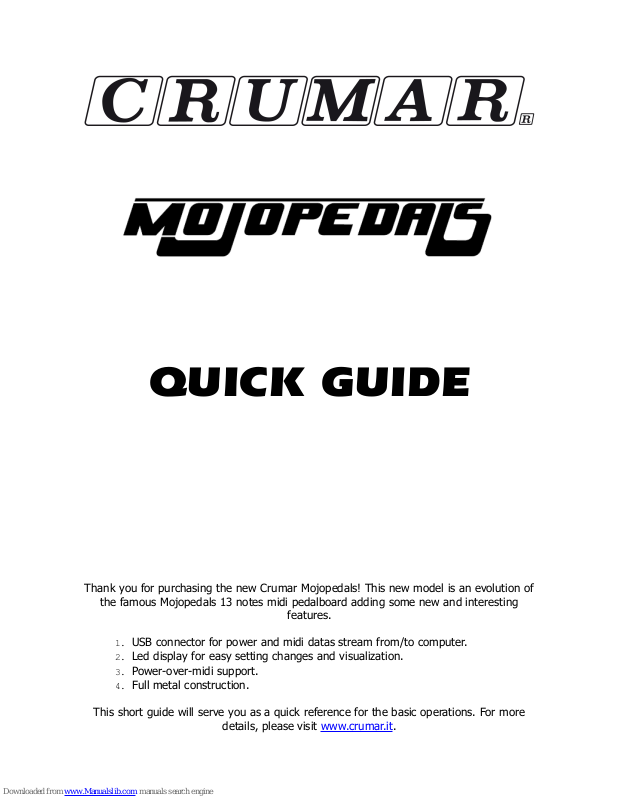

QUICK GUIDE
Thank you for purchasing the new Crumar Mojopedals! This new model is an evolution of
the famous Mojopedals 13 notes midi pedalboard adding some new and interesting
features.
1. USB connector for power and midi datas stream from/to computer.
2. Led display for easy setting changes and visualization.
3. Power-over-midi support.
4. Full metal construction.
This short guide will serve you as a quick reference for the basic operations. For more
details, please visit www.crumar.it.
WHAT'S IN THE BOX.
Mojopedals 13 notes midi pedalboard.
USB type A/B cable.
This quick guide.
EXPLANATION OF CONNECTIONS AND CONTROLS.
1: Expression pedal input: you can plug here an expression pedal from 10kohm to
20kohm.
2: Midi out: plug here your midi cable that goes to your midi sound module.
3: Plug here the USB cable that goes to your computer or to your power supply.
4: Footswitch for “down” selection.
5: Footswitch for “up” selection.
6: Footswitch for “function” selection.
7: Functions and values display.
HOW TO POWER YOUR INSTRUMENT ON.
Make all necessary MIDI or USB connections: Mojopedals can be supplied in 3 different
ways:
1) USB port connected to a computer with A/B USB cable: computer will provide
power to the instrument and allows USB/MIDI datas streaming. Mojopedals is USB
class compliant.
2) USB port connected to a 5v power supply/charger: modern and very common wallwart USB phones/smartphones chargers are perfect for supply mojopedals, simply
connect it and Mojopedals is ready! In this case you need to plug your devices
using the midi out port of the instrument only. Please note: wall-wart power supply
is not included.
3) Power-over-midi: if you are planning to connect mojopedals to a Crumar instrument
that support power-over-midi, the organ/keyboard/module can also supply
mojopedals without needing of an external power supply. Please note: you need a
special MIDI cable for this with 5 wires.
PLEASE NOTE: if you are supplying your instrument with USB, is not safe to use
a power-over-midi cable, you only need one power source!
HOW TO USE YOUR INSTRUMENT.
Mojopedals is the perfect companion for your keyboard rig but also to control your synth
module. You can use the 13 notes to send midi datas to your sound modules, to your
keyboards or to your computer, in this way, you will be able to play sounds generated by
these devices. The 13 notes sends midi datas in the form of “note-on” and “note-off”.
Other midi messages that can be sent out with your Mojopedals are “program change”
messages and “control change” messages with the optional expression pedal.
All starts from the “function” footswitch: with every pression of it, the display will cicle 6
different settings that can be changed with the “down” or “up” footswitches, after the
selection is done, display will show the value of that setting.
SAFETY INFORMATIONS.
• Do not open the instrument. The instrument can be opened and repaired only by
qualified personnel. Unauthorized opening voids the warranty.
• Do not expose the instrument to rain or moisture.
• Do not expose the instrument to direct sunlight.
• Be careful not to infiltrate powders or liquids inside the instrument, nor on the
outside.
• If liquids get inside the unit, remove the power immediately to prevent the risk of
electric shock and contact a Crumar service center as soon as possible.
• Do not clean using abrasive cleaners as they may damage the surface.
• Please keep all packaging in case you need to transport the instrument to a service
center.
• The instrument doesn't come with a power supply.
WARRANTY NOTICE.
• Crumar Mojopedals is covered under 12 months manufacturer's warranty.
• Warranty extensions are at the discretion of the retailer.
• Damages caused by misuse, improper maintenance or transportation are not
covered by this warranty.
• During the warranty period, the customer is entitled to repair or replacement of any
parts considered defective at no charge.
• The possible replacement of the entire product is at the manufacturer's discretion.
SPECIFICATIONS.
• Power rating: 5V DC – power from USB.
• Dimensions: 58 x 44 x 12,5 cm – 23 x 17,3 x 50 inches.
• Weight: 8 Kg – 18 lbs.
COPYRIGHT NOTICE.
All trademarks used herein are the property of their respective owners.
Crumar MOJOPEDALS is a digital Musical Instrument designed and built in Italy. All rights
reserved.
Crumar is a trademark owned by:
V.M. Connection - Via Lucio Vero, 2 – Musestre di Roncade (TV) – Italy - www.crumar.it
Crumar Mojopedals version 2018: this quick guide is not applicable
to old versions of this instrument.
