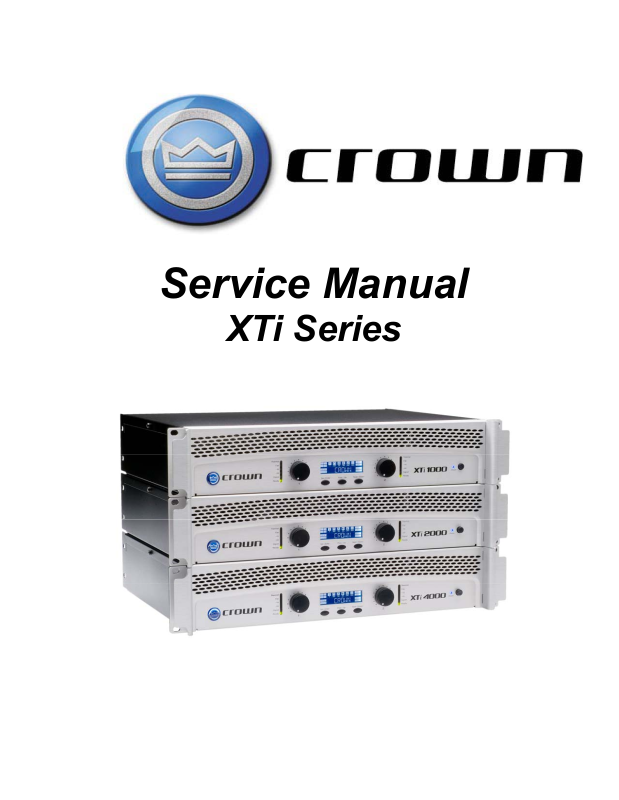

Crown XTI-1000, XTI-2000, XTI-4000 Service manual

Service Manual

XTi Series

Table of Contents

Section 1…………………….Digital systems Overview

1.1…………………..Amplifier Operation

1.2…………………..Power Supply Operation

1.3…………………..Tracker Supply Operation

Section 2…………………….Assembly Drawings

2.1…………………..XTi1000 PWA BOM 139087-14

2.2………………......XTi1000 Schematic 139087-14

2.3…………………..XTi2000 PWA BOM 139086-14

2.4………………......XTi2000 Schematic 139086-14

2.5…………………..XTi4000 PWA BOM 138349-14

2.6…..……………....XTi4000 Schematic 138349-14

Section 3…………………….Firmware Notes

Section 4…………………….Tech Notes

CEquel

Digital Systems Overview

CEquel Digital Systems Overview

Page 2 of 16

CEquel Digital Systems Overview

Modes of Operation

The CEquel microprocessor, LPC2142 can function in several different modes of operation. This
document will describe what those modes are, how to get to them and how to use them. The
Modes are listed below along with a brief description.

Mode Name Description

Normal

Board Level Test

Chassis Level Test (Self Test)

Chassis Diagnostic Test (Amp
Indo –Diagnostics)

Bootloader Mode

Front Panel Lockout

Normal Mode:

This is the default mode of operation. The heartbeat LED (E1) should be beating at about
1Hz (500ms on, 500ms off).

Board Level Test Mode:

Entered by pulling TP1 low at power up.
Exit by pulling TP1 high.

Operation
Turn all front panel LED’s ON
Turn all LCD segments ON
Set the fan PWM to maximum
Set the Soft_start relay OFF (assumes no line voltage is present).
Only used by MFT

Chassis Level Test Mode (Self Test):

Entered by powering up the unit with the PREV button pressed.
Exit by successfully pressing all three buttons

Operation
Turn all front panel LED’s ON
Turn all LCD icons ON and display “PRESS ME”
Set the fan PWM to maximum
Button Check Display which menu button is pressed.

After exiting this mode, the main program should go get valid LM75 temperature readings
and update the fan speed. If the amp is cool, it should turn the fan off

Normal Operating Mode, default

Factory Only, part of functional test, (No line voltage present)

Quick factory test (part of light zap)

More detailed information about the current amp operation

Used to reprogram the microcontroller flash memory

Disables the front panel push buttons for security. Can be
entered from front panel buttons or software.

Page 3 of 16

CEquel Digital Systems Overview

Chassis Diagnostic Test Mode (Amp Info – Diagnostics):

NOTE: This mode is available to all users.
Entered by pressing all three front panel buttons for > 3 seconds.
Exit by successfully pressing SEL at any time.

IMPORTANT!!!!: When you are in the “AMP INFO” screens, the firmware is NOT running
thru all of the normal routines. Clip check is called, but not as fast as normally, you will
see more clipping. The thermal limiter and fan should work just fine. The heartbeat LED
and front panel LEDs will not update. The clip limiter and governor are also not running.

Operation
Display the present Power Supply measured temperature in degrees C
Display the present Ch1 measured temperature in degrees C
Display the present Ch2 measured temperature in degrees C
Display the present Firmware rev level (read from serial flash)

Bootloader Mode:

Entered by pulling TP17 low during power up.
Exit by cycling the power.

Operation

Used to download new firmware to the LPC2142. It copies an internal boot-loader
from flash to RAM, where it executes. It erases the on-chip flash, and reprograms
it. See the Programming document for more details. It is impossible to corrupt this
boot-loader. It resides at a special location in internal Flash that is not accessible to
anything. This should ALWAYS work!

Front Panel Lockout:

Entered by holding UP and DOWN buttons down simultaneously.
Exit by holding UP and DOWN buttons down simultaneously.

Operation

After holding down the up and down
buttons for about 3 seconds, the LCD
will display “LOCKED”, this indicates the
amp is now in lockout mode. If any
button is pressed, no action will be
taken, except to display the “LOCKED”
message. IF you continue to hold the

Special Note: The front panel lockout
buttons down they will simply toggle the

mode can also be entered from the
lockout mode on and off.

software. In this case, the software will
supersede the front panel. So, holding
down the up and down buttons will NOT

Page 4 of 16

disable front panel lockout mode. When
enabled from software, it can ONLY be
disabled from software. This operation

is consistent with the ITech.

CEquel Digital Systems Overview

Page 5 of 16

rmware

CEquel Digital Systems Overview

Page 6 of 16

CEquel Digital Systems Overview

Updating Firmware

RS-232 Method

Part 1. If the microcontroller (U1, LPC2142) has NEVER been programmed before

Connect the Serial 4-pin header to J2.

IMPORTANT!! The header MUST be connected with the correct polarity or fatal damage
can result. Pin 1 on the header should be connected to pin 1 of the connector. See figure
below:

Xti Amp (back)

(front) J2 ::

Serial
Interface
board

FRONT

To program a new device connect the header to J2 and apply power. TP17 does NOT have to be
pulled low because the micro does not have a valid program to run and will therefore

automatically enter bootloader mode.

Open up the Philips Flash Utility Program (version 2.2.2)
Under Flash Programming, make sure the correct file is selected to download.

Select the Device (LPC2142),
Select the XTAL Freq. (kHz): 16000
Select the Erase Entire Device button

Select the correct file to load: (currently XTI_LPC_01_00_08b.hex)

Press the Read Device ID button. The Part ID and Bootloader ID will show up. If they do
not and this operation times out, then most likely, the device is not in bootloader mode, there is
something wrong in the configuration or setup or the cable is not correctly connected. If the
device is not in bootloader mode proceed to Part 2.

Select Upload to Flash and the programming will start.

After it is finished you may select Compare Flash. This will read back the flash memory
and compare it to what was just programmed (Pass/Fail)

Cycle the Power to the amp and close the Flash Utility Program.

PC

RS-232

Page 7 of 16

CEquel Digital Systems Overview

Part 2. If the microcontroller (U1, LPC2142) has been previously programmed.

To reprogram a device, it is first necessary to put it in bootloader mode. This is done by
shorting TP17 to ground during a power up. After the unit powers up, the ground can be removed
or left connected, doesn’t matter. (Hint: Use a test lead connected to TP5(GND) on one end and
TP17 on the other). The LCD should be blank.

Again follow the steps in Part 1 to connect the Serial interface board to J2 and open the Philips
Flash Utility.

Press the Read Device ID button. The Part ID and Boot Loader ID should be displayed. Again
follow the steps in Part 1 to send new firmware. If this does not work, there is most likely a
hardware problem, check for shorts, correct power, bridges, other hardware problem.

To verify serial flash and check the current firmware version number

At any time hold down all three front panel buttons for at least 3 seconds. This puts the amplifier
into a diagnostic mode. NOTE: While in this mode the front panel LED’s will NOT be updated.
Also, the governor is disabled. Use the Next and Prev buttons to scroll thru the displays. They
are outlined below:

Screen 1: Power Supply Temperature Sensor Read out in degrees C
Screen 2: Ch1 Temperature Sensor Read out in degrees C
Screen 3: Ch2 Temperature Sensor Read out in degrees C
Screen 4: Firmware version number read back from Serial Flash (eg. 1. 1. 0.15)

NOTE: The temperatures displayed are the raw unprocessed readings. They are updated

approximately every 600ms and should be accurate.

LCD display looks to be corrupted.

If the text on the LCD looks to be bogus, it most likely is because the serial flash is blank
or corrupt or is out of sync with the microcontroller program.

This problem can be resolved by updating the firmware via USB. This method ensures
that both the serial flash and microcontroller are reprogrammed.

Page 8 of 16

CEquel Digital Systems Overview

Programming the microcontroller (U1) and serial flash (U15) via USB

 Connect the amplifier to a PC via USB.

 Open up the CLoader Utility 2.10 or newer

 If fw is older than 1.0.22.0 send .hex file. Otherwise, send .s file

How to Use the CLoader Utility

Instructions:
Simply run this utility with an amplifier connected to USB, it should show up in the dialog window.
If it does not, unplug the USB cable, cycle power on the amp, plug in the USB cable again and try
again.
If amplifier still does not show up, verify that the D+ USB data line is pulled high thru R19. With
the USB cable unplugged, use a meter to measure R19, it should be pulled up to +3.3V thru Q23.
Pulling this line high tells the USB host that the device is ready for communications.

After the amp shows up in the window, select "Load File" and select the firmware file to be
downloaded. Wait for amp to reboot and download successful display.

****** To run from a command line ******************************************

Simply type the name of the utility space and the name of the file to be loaded.
When run from a command line, it creates a file named "LdrError.txt". There is a number inside
this file as follows:

0 - Success
1 - Amplifier not found
2 - File invalid or not found
3 - USB communications error
4 - Abort Button pressed

The loader terminates upon encountering an error, or when successfully programming the
amplifier. The error file is blown away if found when the loader starts, and is written just before it
terminates.

It helps to have the utility and firmware file in the same directory and with no spaces in the folder
names. If there are spaces, use " " around the path name.

Page 9 of 16

CEquel Digital Systems Overview

****************** Revision History *****************************************
Version 1.03
Supports command line calls. Writes error log. displays message when finished

Version 1.04
Added the word "Delay" in the title bar, so there is no confusion about the version to use.
The text also indicates that it's finalizing before it puts up that programming has completed
successfully after the 5 second delay. The Amplifier is almost through its rebooting process at
this point, but it's probably safe to shut down.

Version 1.06
When it is done uploading firmware, if the amplifier does not already have a serial number it
generates one using the Windows API function and sends it to the amplifier. If the Amplifier
already has a serial number, it reports that back as well.

Version 1.07
Fixes bug with USB version number if > 1.000. Supports both .bin and .hex file downloads.
NOTE: This loader only works with .hex files. DO NOT try to load .bnd or bin files with this utility.

Version 2.10
Supports both .hex and binary .s file downloads. The hex file is required for updating amps with
older firmware 1.0.22.0 and older. The serial number check and programming is done much
quicker in this version as well. This version will not allow you to download a hex file to an amp
with program version number 1.0.22 or later.

Where do I find all this stuff??

-The place to look for production released firmware is the ProductionProgrammingFiles folder.
This is where we store the released version of firmware for all products. It can also usually be
found in the forums section of the Crown web site (www.crownaudio.com)

-The next place to look would be my share drive. I usually keep beta firmware and different
versions of the CLoader Utility there.

//butler/ShareNew/CEquel_Files

- If you wish to run the System Architect Software application to monitor/control the devices, that
can be found either on my share drive or the HiQnet web site. The web site will only provide
“Released” versions of the software while my share most likely will have a beta version (read as
“buggy, use Beta at your own risk!!, operation NOT guaranteed”).

Page 10 of 16

CEquel Digital Systems Overview

Quick explanation of firmware update operation (Bootloaders)

There are two sources of non-volatile flash on the CEquel amps.

1. 64kBytes of on-chip flash on U1 the microcontroller. (Program)

2. 2M-bits (256 kBytes) of serial flash U15. (Program and Data Memory)

When firmware is loaded via RS-232, it uses a very low level bootloader on the microcontroller and only
the on-chip flash is reprogrammed. The serial flash is not changed.

When firmware is loaded via USB, it uses a high level bootloader written by me and it runs in RAM. It
follows this sequence of events.

1. Start receiving the firmware download packets via USB

2. After 256-bytes (1-page) have been received, program that page in serial flash.

3. After the serial flash has been completely reprogrammed, the download is finished

4. Set the reboot flag in serial flash.

5. Load the bootloader from on-chip flash to RAM and jump to it.

6. Erase the entire on-chip flash

7. Program the on-chip flash with the data stored in Sector 3 of serial flash

8. When finished clear the reboot flag and go to an infinite loop and wait for the watchdog to time out
and reboot.

You can see the the most critical steps are 5 and 6. This is the only place you can really screw things up.
If something goes wrong in steps 5 or 6 and they can not complete, you will have to reprogram the micro
using the RS-232 method.

Notice in step 4 a reboot flag is set, this was implemented because the current firmware update utility in
System Architect can NOT guarantee a reboot command will be sent and thus a complete firmware
update. The reboot flag is only cleared after the micro on-chip flash has been successfully reprogrammed.
This flag is checked at every power up. If it is set, the bootloader will be called.

If a USB download is interrupted, it should not cause any fatal problems. I will simply leave the serial flash
in some undefined state. The micro should boot-up normally. However, the DSP program and parameter
can be corrupted causing serious problems (although most likely it will not pass audio). Also the LCD will
most likely appear to look corrupted, because any LCD segment can be on or off given bogus data in
serial flash. Most importantly, the micro should run and another USB firmware download can be
attempted.

Page 11 of 16

CEquel Digital Systems Overview

Serial Flash Memory Map (M45PE20)

Page 12 of 16

Protection Features

 Thermal Limiter

The thermal limiter should have the following profile. The limiter threshold should be
ramped down very smooth and slow to -24dB (0.25 dB/sec). The release from -24dB to 0
should also be very smooth and slow (0.125 dB/sec). The jump to -36dB and -42dB will be
quick and fast, however, the output should be squashed down so much at this point, I
don’t think it will be a problem.

Heat Up

= 80C Turn the front panel red thermal LED ON
= 81C Slowly ramp down -3dB
= 82C Slowly ramp down -6dB
= 83C Slowly ramp down -9dB
= 84C Slowly ramp down -12dB
= 85C Slowly ramp down -15dB
= 86C Slowly ramp down -18dB
= 87C Slowly ramp down -21dB
= 88C Slowly ramp down -24dB
> 90C Flash the LCD message “OVR TMP”
= 92C Set limiter to -36dB
= 98C Set limiter to -42dB
= 99C Flash the LCD message “TMP MUTE” and mute that amp ch
= 110C Fire the Crowbar and shut the amp down (last chance protect)

Cool Down

= 96C Unmute amp channel, Limiter set to -42dB – Flash “OVR TMP”
= 92C Set limiter back to -36dB
= 90C Set limiter back to -24dB
< 90C Stop Flashing “OVR TMP”
= 86C Very Slowly ramp up to -21dB
= 85C Very Slowly ramp up to -18dB
= 84C Very Slowly ramp up to -151dB
= 83C Very Slowly ramp up to -12dB
= 82C Very Slowly ramp up to -9dB
= 81C Very Slowly ramp up to -6dB
= 80C Very Slowly ramp up to -3dB
= 79C Very Slowly ramp up to 0dB Turn the front panel red Thermal LED OFF

CEquel Digital Systems Overview

Page 13 of 16

CEquel Digital Systems Overview

 Clip Eliminator

The clip eliminator is based completely on the clip signal from the amplifier. The DSP/uP has
no other information about output signal of the amplifier. Given the latency of the amplifier
and conversion stages, the fastest the output signals can be limited is about 15ms. So if a
heavily clipped signal comes out of the amplifier, gain reduction will not start until about 15ms
later. So….. the clip limiter is not perfect, in fact it is quite crude. Here is how the clip limiter
algorithm will adjust the limiter threshold based on clip events. The clip signal is detected by
an ISR(Interrupt Service Routine), which simply counts clip events (VERY FAST), almost
never misses. The clip limiter routine is called every 100us and adjusts the limiter threshold;
so the limiter threshold can be adjusted quite quickly. Also, the amplifier generates the clip
signal at every zero crossing. For example, a clipped 20k sine waveform(Period=50us), will
generate 4 clip events every 100us, one for each zero crossing. The clip eliminator routine
will adjust the limiter based on this number of clip events.

1st clip event Set limiter threshold to 0.0dB
2nd clip event Set limiter threshold to -0.2dB
3rd clip event Set limiter threshold to -0.3dB
4th clip event Set limiter threshold to -0.4dB
5th clip event Set limiter threshold to -0.2dB
6th clip event Set limiter threshold to -0.3dB
7th clip event Set limiter threshold to -0.4dB
8th clip event Set limiter threshold to -0.5dB
9th clip event Set limiter threshold to -0.6dB
10th clip event Set limiter threshold to -0.7dB

13th clip event Set limiter threshold to -1.0dB

:
:

23rd clip event Set limiter threshold to -2.0dB

rd

clip event Set limiter threshold to -3.0dB

43

rd

83

clip event Set limiter threshold to -4.0dB
:
:

rd

243

clip event Set limiter threshold to -24.0dB

Actually, the maximum gain reduction provide by the clip limiter is based on the amp model
The 1000 amplifiers will only provide -9.0dB, while the 2000 and 4000 will go all the way down
to -24dB.

The clip LED has also been somewhat desensitized. A single clip event will not fire the LED.
To turn the clip LED on, there must be more than 2 clip events occur in a 100us period.

If the amp is in bridge mode, only the ch1 clip eliminator routine is used. A clip event on either
ch1 or ch2 is used.

.

Page 14 of 16

CEquel Digital Systems Overview

 Shorted Output Protection (2000/4000 models only)

This is really an extension of the clip limiter. It is based on the number of clip events. If the clip
eliminator routine has counted 243 clip events and run the limiter all the way down to -24dB, it
continues to count clip events. If the clip count gets up to 5243 (approximately 500ms after full
attenuation), then a “SHORT” routine is entered. The channel is muted, the ready LED turned off
and a message is displayed on the LCD “SHORT 1”; 1 for ch1 or a 2 for ch2. If the amp is in
bridge mode, both channels should mute and the display message will be for ch1.

The amp channels are held in mute for one second. After that, they are unmuted, if the short
condition persists, they are muted again. The amp should be capable of enduring this condition
indefinitely. Because during a short condition, there is no output voltage, the tracker will keep the
rails at the minimum 30V, so amplifier is not in a highly stressful state.

 Crowbar

The microcontroller has 3 different conditions that can cause it to fire the crowbar and shut down
the amplifier. Firing the crowbar is considered a fatal event and the amp must be power cycled to
recover from it.

1. Overtemp: If any temp sensor reads ≥ 110˚C.

2. DCLF: If the DCLF signal goes low for ≥ 90ms.

3. If the AC sense line (RAIL signal) is ≥ 3.0V (approx. 300VAC on AC line)

Page 15 of 16

CEquel Digital Systems Overview

Page 16 of 16

Section 1.1

Amplifier Operation

Cequal Amplifier Operation Details Rev A 8-28-2006 AA

1.0 OVERVIEW

Note: Sketches and waveform tifs have been added to this section to clarify the various concepts
related to the amplifier and its system level behavior.

For XTI 1000 and DSI 1000 amplifier schematics with voltage and currents references, use
channel 1 of 139087-6ref.tif which is sheet 4.

Amplifier heat sinks are tied to +/- Vbulk.
For XTI2000, DSI2000, CDI1000, CDI2000 amplifier schematics with voltage and currents

references, use channel 1 of 139086-6ref.tif which is sheet 4.
Amplifier heat sinks are tied to moving tracker voltages.Below is using 138086-6ref.tif channel 1

of XTI2000 (Also, see REPAIRnotes.txt) and (Notes below) for root cause and repair.

Functional Blocks Description

1) Amplifier stages
a) Biasing and Mute_1not

Bias is developed with the general components D117, D118, Q100, R104, D134, R182, C102,
R107, and Q102. Bias is on when D117 and D118 are allow to conduct, so the base of Q100 will
sit at about +2.4Vdc (4 diode drops.). This is a 3 state node, it gets control from the DSP via
Mute1_not, normally +3V (ON) , 0V (OFF) , the LM75 sensor under HS1 (+Vbulk) sink at +3V
(ON) when not over temp, about 100 deg C, and the DCLF / Low Vbulk comparator U103A,B
also in a high output (pulled up thru R325 to +15V) state. All four controls must be good in
order for bias to come up. If all four controls are good, than Q100 base will be about +2.4Vdc.
If the Mute1_not is good from the DSP, and the comparator Q103 goes low due to either low
Vbulk ( < 60% of nominal rail +/- voltage) or too much DC for too long a time on the amplifier
output terminals then Q100 base (10Hz@vmax) will go to about +1.0Vdc from the +2.4V. At
that moment when Q100 base went down to the 2
is now discharging. If the DC on the output of the amplifier is there long enough and/or high
enough level then C102 will discharge enough to cut the bias to off and mute the amplifier and
let its output return back to zero volts. Thus C102 lets some DC for a level and time before a
protect via mute is activiated. If the DSP or the LM75 sensor tells the amplifier to mute ,3
state, but not the local comparator DCLF path then when they go low the base of Q100 will be
about 0-0.6Vdc negative, being clamped there by D126 . Time estimates for C102 from a mute
command to actual mute is about 30ms. If a large LF output is there but not long enough you
might see a DCLF at U103 but C102 will still hold up the bias. Mute1_not could be a write or a
read state line.

b) Input differential stage

The differential input stage consists of Q103, Q104, and Q116 and Q134, getting its b ias from
Q102. Q102s current source is divided evenly to Q103 and Q104 . The bases of Q116 and Q134
are set to about -13.5v with R78 and R79. This locks the collectors of both Q103 an d Q104 to
about -13V no matter what. This removes high and unequal voltages from them. So Q116 and
Q134 just pass current and take the heat. See note 1 below for Q116 and Q134.

c) Error gain amplifier and bias servo

The error gain amplifier and bias servo are set up with Q105, Q107, with the measurable
amplified error signal of the total amplifier at the opposite end of R133 from Q105 (see note 3).
Qperating currents of this stage is scaled for higher voltage product over the XTI1000. It is gated
and controlled the bases of Q107 and Q108 (A and B on the schematic, with approximate
voltages with respect to C the –Vbulk.). Q141 (in high voltage units) is for distributing the

nd

state, Q100 is off but C102, the hold-up cap

rd

voltage stresses on Q105 and Q107. The temperature compensated servo transistor Q109 is
located under the same heat sink ( + ) and near the LM75. The bias set string with D174, R180,
R144 and R179 run about 400ua and are not under that heat sink. With the pot R144 centered an
bias on the collector to emitter voltage of Q109 measured across C109 should land about 1.9 to 2
volts. C109 provides filtering and holdup charge. Q108, Q106, R135 and R142 set the servo and
pre-driver (Q112 and Q113) currents (see note 2) . C108 is slew rate limiting. Bias can be
measured across the two TO-220 heat sinks and may be set ( at room temp) to about 0.8v +/­.05V. See note 4.

d) Pre-driver, driver Stage and TO-3 outputs.

Pre-dirvers Q112 and Q113 , when bias is on are biased on with R147 and R148 (see note 5) to
about 1.8ma via drivers Q114 and Q115 whose currents are about 6 to 7ma. Their collectors are
tied to the TO-220 sinks (see note 6). In any product these sinks at idle should not produce much
heat to the touch. About 0.5 watts each at idle. The TO-3 devices are normally off, class B mode.
Diodes D180, D181, D182 and D191 across R150 reduce common mode currents of the output
devices (see note 6).

e) Output filter and feedback paths and Output loading information

The Output de-coupling inductor L100 and Rs and Cs around it form the filter. The amplifer
feedback lines are in pcb foil and with 1 ohm connecting resistors for remote sense location
depending on the product and output connector location. On a product with both speakons and
binding posts , the feedback connections are referenced off the binding posts (SPECS). High side
low frequency feedback is R84. High side high frequency feedback is C65. Low side low passed
remote sense feedback is thru R87 (note 7).
On the larger Tracker based units (note 8) the use of a load of at least 24 ohm (suggested for
THD1 test) , maybe 32 ohm (not higher) is needed due to a tracker based gate drive charge pump
in order to get proper tracker voltage drive to the amplifier rails otherwise positive rail clipping
might occur causing DSP compression off of the clip_not function.
Suggested amplifier loading for initial system verification is 24 ohms and starting with the
THD1 test specified at MFT. Units that start and crowbar immediately for an unknown reason
should be without a load and then re-started.
Non tracker based units (1000s) have a full VI limiter and can drive inductive loads at low
levels. Loads down to 1 ohm can be driven as well but due to the VI term the allowed output
voltage peak collapses to less than 25v and thus for the non-tr acker based units use of a 1 ohm
load will not give the a peak current limit you might expect off a data sheet 2 ohm power
number.
Tracker based units have no V term in the limiter so a 1 or a 2 ohm (better) load may be used to
witness the true peak current limit. Tracker based can drive 45 degree inductive loads but a pure
inductor or torture load is not really recommended at this time.
On any products , driving into less than 8 ohms at high voltage levels and at and above 15khz
long enough ( longer than a music based signal) is very likely to invoke the clip based
compression off the DSP.
Driving into a short of thru a cable to a short with a non-tracker unit will result in a full collapse
of its current limit and the display may say “SHORT” until either the drive or output shor t is
removed.
Forcing a tracker based unit into a short with a continous sinewave is not recommended at this
time. Driving a tracker based unit thru a long cable into a short may result in a display of
“SHORT” until it is removed or invoke the DSP compression.

2) Filter Stage

a) Input cheb differential filter from codec to amplifier.

U10 forms a differential to single ended chebychev 22khz low pass filter for the CODEC
to the amplifier differential front end thru R138 and C124. Under normal signal
conditions the absolute expected peak output of U10 pin 1 should be less than +/-5v.

b) Amplifier high pass filters

C124 is a dc block and thus provides some high pass. R130, R132 (main feedback) and
C104 form the voltage feedback and high pass function for the power stage. D3 is a
clamp function. Using standard long stepped bursts of waveforms will result a normal
high pass step recovery of the at the amplifier output, which may initially look abnormal
to other high passed amplifiers. It is not , only these units are high passed around 10hz,
not the typical 2hz or 5hz like others.

3) Protection blocks

a) DCLF detect Clip_not and Low Vbulk detect

Comparator U103 is used for DCLF and a low +/-Vcc detection. A DCLF = low for a
constant 100ms or more is interpreted as a amplifier fault and the DSP invokes the
crowbar to the power supply. A “not” DCLF with a clip_not = low for 100ms or more
may invoke the “SHORT” command from the DSP and compress the output until the
offending short is removed. Lessor than 100ms clip_not = low may invoke the DSP
compression.

b) Time dependant current limit.with and without Tracker

Current limiting is set up with Q110, C115, R151, R798 (2ks,4Ks) R194 and more for
the V term in the 1000s. Q111, R152, C116, R799 (2ks,4ks) R194 and more for the
Vterm in the 1000s.

c) Temperature compression and shut down

Temperature compression is driven by any one of the 3 LM75s . Simultaneously
pressing all 3 front panel buttons ques the product into an info mode. The temperatures
of the 3 LM75s and other important information may be obtained by scrolling thru the
menu, including the effective loaded “RAIL” voltage from U17 pin 7.

d) VI limiter without Tracker..XTI000,DSI1000
e) Power Governor

4) Signal I/O blocks

a) Bias
b) Clip_not
c) Mon1
d) DCLF
e) CH1PDRV, CH1NDRV

Miscellaneous notes for root cause and diagnosis ideas for repairs

1) DCLF, crowbar related; (fully discharge supply before ohmic measurements)
A crowbar event can fall generally into three catagories.

Nondestructive_Normal means nothing wrong, just an unwanted signal or load.
Nondestructive means something is open like a solder connection or resistor but not
In a place where transistors will likely blow up when parts of the protection are defeated.
Destructive means either a device has blown or will if standard root cause methods are
used to defeat a protection (like DCLF reporting) to force the unit on to be able to root cause.

For the latter two, the unit is likely to briefly power up, flash the display on then. Shut down
with no clues, other than the power supply is trying to start and something on its secondary is
loading it down. First, for this case, make sure your loads are removed to see if any unresolved
DC on the output does not flow thru the load and thus pull power supply current uncontrolled thru
a device and load. Remove any loading externally.
a) Nondestructive_normal.One generated by a DCLF > 100ms and then clears if there is no
abnormal load to the power supply, hence the unit will be able to restart normally.
b) Nondestructive. Here, bias is not likely to come on. Remove any load. The following tags
may accompany this; XTI_LED_CHECK_NORM, XTI_Meas_pV1_VBP. Try an ohm reading,
even at neighboring pads the parts are supposed to connect to, at the following that had stopped
bias to enable but did not destroy any other items;
REF CH1; R137, R136, R142, R133, R135, R134.

Other suspects; Q116,Q134 leakey? Try REPAIRnotes.txt 1st page with “power off”.

c) Destructive. Discharge power caps. TP26 to TP27. Remove any load. Measure the
following;

1) TO-220 to TO-220 sink…should be >90 ohms. If not,
D180, D181, D182, D191 are shorted.

2) Q114 (TO-220 sink) to HS1 amp + sink…should be >>1K….suspect Q114 device

3) Q115 (TO-220 sink) to HS2 amp – sink…should be >>1K…..suspect Q115 device
( refer to REPAIRnotes.txt for heat sink replacement)

4) For a pulled Q114, or Q115 measure R147 and R148 if open.

5) Measure Q112, Q113 collector to emitter while TO-220 part is out…>1K

6) Measure HS1 to CH1 red post….>>1K…suspect HS1

7) Measure HS2 to CH1 red post….>>1K…suspect HS2

8) Turn over PWA and check the soldered base pins of each TO-3 device. Check for
missing pin or not soldered well.

2) Voltage gain related, CH1 REF
Check R132 value.
Check disc caps C228 and C240 (15pf) vs C290 and C299 (220pf) for not swapped.
Check for soldered end of C124, C13, C38, C20 well or not.

3) Power supply / amplifier related.
THD1 is the heat sink to foil connection

4) Tracker / amplifier related
THD1 is the heat sink to foil connection

5) MFT tags

One tag XTI_nVcc_cur_Draw was a bent openTO-3 PNP base pin, lightly hitting the
Amplifier heat sink.

NOTES;

1) Q116 or Q134, if leaky the bases may read -17v or so.

2) Q108, Q106, R135, R142, R137. a possible open 0603, no bias.

3) R133. One end is the error amp output. Check for non-intermittent solder at pad.

4) Bias is not sensitive, set wiper to center should be 0.8 about.

5) R147,R148. If a TO-220 driver was shorted chances are that one of these resistors were also
opened on the process and an opposite polarity device like a TO-92 pre-driver or TO-3 went too.
A shorted To-220 can mask the 340 resistor or TO-92 transistor measurement as good or not.

6) If the TO220 sink to sink is not about <<100ohms then the diodes are shorted across R150.

7) the amplifier will still work if the low side low passed feedback resistor R87 wasn’t there, only
damping factor, crosstalk and an indicator of > +/-100mv of DC offset will result.

8) Amp sinks HS1,2,5,6 are tied to the Vbulk for the 1000s, and +/-30v at idle for the tracker
based units. In an amplifier “mute=bias off” mode the + amplifier sinks (CH1P,CH2P) in a tracker
based unit may float up to +90vdc. This is normal. When bias is on they come back down to the
30v.

Section 1.2

Power Supply Operation

XTi Power Supply Operation Rev 1 8/9/06 EMB

Note: Any component references will be to the –8 revision level but should be backward
compatible except where additions have been made.

139087, 2K: 139086, 4K: 138349

1K:

Brief summary of operation

The power supplies within all of the XTi models are very similar. The topology
employed is a half-bridge series resonant converter. The use of this topology allows for
soft switching of the main semiconductors Q28 and Q31 reducing heat both at idle and
throughout a good portion of the operating power range.

Initial start up

Upon closing the switch S7, current is drawn from the AC source through the PTC RT6,
rectified by D24, and stored in the bulk storage capacitors C57-C60. The control
circuitry is powered directly from this stored charge through a series of resistors R370­R373. The resistors immediately begin charging capacitor C196 which will provide a
kick-start to the power supply control circuitry.

Comparator U16 plays two rolls in the power up sequence. Firstly the voltage on C196
must be greater then 26-volts or so before the output of U16A is allowed to enter a high
impedance state. Secondly, the AC voltage must be at least 95-100Vrms before the
output of U16B is allowed to enter a high impedance state. Both of these comparator
circuits have hysteresis around the trigger points such that chatter does not result. U16A
allows a high state from about 26V all the way down to 12V. U16B allows a high state
of a few volts from the 95-100V trigger point.

Once in a high stage, the resistors R374 and R378 will pull the voltage across D31 up to
16V allowing the regulator made up of Q39-Q41 to power the controller, U14, and the
gate driver, U18.

Kick start

Once voltage is present on U14, switching begins. The clock frequency is determined by
C69 and R367 and oscillates at approximately 250-260kHz. 180-degree phased clock
signals are provided to U18 for generation of the low and high side gate drive waveforms
on pin 7 and 5, respectively. The transistors Q26-Q30 serve to increase the current drive
to the IGBTs Q28 and Q31.

Switching commences for the time allotted by the discharge of C196, or approximately
100mS. During this time period the IGBTs transfer energy from the primary bulk storage
(C57-C60) and the AC line through the resonant tank (C68 & L3) to the transformer, T1.

The energy is magnetically coupled to the secondary of the transformer and hence C43­C48.

Energy is also transferred back to C196 through D26. If the voltage at C196 is
maintained at a point greater then the lower bound for the Vkstart sense comparator,
U16B, then the controller circuitry becomes sustained by the converter itself and the kick
start cycle is terminated. If for any reason the converter does not sustain the voltage on
C196, the kick start cycle will repeat indefinitely approximately every 500-800mS.

Power up

Now that the converter is sustaining the control circuitry, the amplifier has rails of either
half of the nominal or nearly the full amount depending on the input source. If the input
voltage is 120V, the rails are nearly half of the nominal value. If the input is 240V the
rails are now sitting nearly at the full operating voltage.

The microprocessor, U1, samples the across capacitor C182, on the RAIL node. The
voltage on this node is reflective of voltage present on the secondary side of the
transformer, T1. It should be noted that the voltage here not only accounts for converter
sag due to the converter throughput impedance, but also AC line sag due to significant
AC line impedance.

The relay K1 is now commanded to close by U1 at which time the voltage at RAIL is
measured. If it is below 1.4V, the microprocessor commands K1 to open followed by the
closing of K2. The closing of K2 creates a half-wave doubler out of D24 and the bulk
capacitors C57-C60. By doubling the voltage on the primary side, the secondaries are
also doubled and the relay K1 is re-closed finishing the power up sequence.

If the voltage at RAIL is above 1.4V, no more processing is required and the power up
sequence is finished.

Normal Operation

The IGBTs, Q28 and Q31, switch at approximately 42% duty cycle each at a frequency
of 125-130kHz. At idle, circulation current is provided through the magnetization of the
core within T1. This current provides a soft switching action to the IGBTs by
charging/discharging the parasitic capacitance of the devices during dead time, thereby
reducing low power losses. At the HB_OUT node the voltage will have a trapezoidal
appearance.

At higher power levels, another form of soft switching is achieved due to the resonant
tank, C68 and L3. The resonant frequency of the tank circuit is greater than that of the
switching frequency thus the current through the switches is commutated to the opposing
anti-parallel diode thus allowing resonant turn-off of the devices.

The current through the converter is passively limited two main variables. The current
through the converter is directly proportional to the input voltage. The current is also
limited by the tank design itself, C68 and L3.

Section 1.3

Tracker Supply Operation

Tracker Theory of Operations

Ben Carroll
8/4/2006
Rev 1 – initial version

The tracker operation in the XTi products and its derivatives is an extension of the
classic class H supply (used in the XS amplifier) and is also similar to the VZ supply
used in the MA3600 and MA5000. The main power supply provides two distinct rail
voltages that supply power to the tracker’s power stage, which in turn provides the rails
to the amplifier’s output stage. The higher rail voltage is model dependant (approx 120­140V), and the lower rail, which is about 30 V independent of model. This lower rail
also supplies the +/-15V, and 3.3V regulators. The trackers are comprised of four power
stages that individually feed: channel #1 positive, channel #1 negative, channel #2
positive, and channel #2 negative. Each of these power stages is a buck regulator
connected in series with a 30V supply. This concept is called partial power processing,
as the buck regulator does not process 100% of the power flowing through the power
stage.

With no or only low-level signals present, the buck regulators are not active and
the lower rails feed the amplifier output stage (thru diodes D35, D36, D42, and D43).
This rail voltage is about the same as a D75. This makes the system very low loss at idle.
The heating due to the bias current in the pre-drivers and drivers is reduced dramatically
compared to what it would be if fed off of the higher voltage rails. Second the switching
MOSFETS (Q47, Q48, Q60, and Q61) are not active, thus dissipate no power.

As the signal level increases the buck power stages become active. When a
positive signal is demanded of channel #1, that respective trackers control loop responds
keeping the instantaneous voltage on the output’s collector terminal approximately 20V
above its base terminal. The control loop works to keep this voltage constant, until the
buck regulator reaches its maximum duty cycle or the amplifiers rail voltage reaches a
preset maximum level. This maximum level limits the voltage across the output stage
during high line conditions. Then as the voltage begins to reduce, the buck regulator
reduces its duty cycle to maintain a constant 20V across the collector to base junction
until the rail voltage drops back down to 30V. Then the channel #1 negative side tracker
becomes active in a similar manor. Channel #2 works similar to channel #1, both
channels are completely independent of each other. Because of this four completely
independent power stages, and control loops are needed.

The following paragraphs will walk through the detailed operation of a trackers
control loop. Each paragraph will explain the operator of an individual block. During the
design process each block was carefully scrutinized to ensure that the maximum
performance was attained from a minimum component count. Therefore some blocks
contain several functions.

Absolute value detector

U23B is an inverting precision absolute value function block that also contains
phase lead compensation (C277 & R392), voltage offset generation (R397), maximum
voltage clamp (D50), and a peak hold function (C174).

Error Amplifier

U23A is an error amplifier is of the inverting type. The demands and feedback
signal both feed a virtual ground at the inverting input. Both local feedback around the
error amplifier and global feedback from the amplifier rail are employed. A single diode
(D73) provides an asymmetric voltage clamp that properly bounds the error amplifier.
Error signal translator
U23D is a matching stage that translates the error amplifier output voltage to the
proper range for the TL494 control IC.
TL494 control IC
U22 is an old and inexpensive switch mode power supply (SMPS) control IC, that
is also used in the main power supply and 3.3V supply. It contains two internal error
amplifier op amps that are to slow to be of use, so they are disabled. The error signal is
driven directly into the feedback pin (#3). An internal sawtooth oscillator runs at
approximately 500 kHz. This frequency is set by C71 and R76. R75 creates a small
positive offset in the sawtooth to extend the maximum duty cycle beyond the published
capability of the IC, while schottky D33 shunts R75 to keep the falling edge of the
sawtooth steep. The internal comparator compares the error signal and the sawtooth
creating the pulse width modulated output (PWM). Note that the signal at pin #3 is
backwards of most of most control ICs. 0V is 100% duty cycle, and 4V is 0% duty cycle.
This makes the modulation method leading edge. Therefore the switching transistors will
always turn off during the falling edge portion of the sawtooth waveform.
PWM level translator
This circuit translates the PWM output of the TL494 control IC at ground level, to the
gate drive IC which is referenced to the negative rail. This circuit is very similar to the
circuit used to translate the BCA modulated output down to the -VCX rail on the CTS
BCA and Itech designs. Q55 is a PNP grounded base stage (cascode), which accepts
current from the emitters of the output stage transistors in the TL494 control IC. The
combination of resistors R77 and R734 sets the translator current. R734 serves a special
purpose to help turn off Q55, by removing stored charge from its emitter to base junction.
Q46 is another grounded base stage (cascode) that is referenced to the negative rails gate
drive supply. It receives the current signal from Q55, and then the current signal is
changed into a voltage signal across R99. Q46 is never turned on. It serves to cancel out
the parasitic capacitance present in Q55.
Gate driver
The purpose of the gate driver is to receive and buffer the logic level signal from
the PWM level translator to a higher level signal that is suitable to drive a power
MOSFET. Each channel has its own gate driver IC (U26). The gate driver has a low and
a high side that operate completely independently. The high side is connected to the
trackers for the positive rail, and the low side for the negative rail. The gatedrive IC and
the negative gate drive buffer (Q43, Q44) are powered from an auxiliary winding off of
the main power transformer that is regulated by linear pass regulator (R1, D1, Q1, Q2).
The high side gate drive supply via a bootstrap supply (D32) and a current source (Q140).
Zener diodes D77 and D79 protect the gate drive IC from over voltage.
Power Stage
Q47, D35, L4, C84/C49 form a buck switching cell. This is area of the circuit
that processes the power. The gate drive signal turns the MOSFET on and off at

commanded by the TL494 control IC at about 500kHz. The power stage connects to the
high (+V1) and low (+LR1) voltage rails. L4 in combination with C84 and C49 form a
2nd order lowpass filter that filters the high frequency switching energy to form the output
voltage that feeds the amplifier power stage predrivers, drivers, and outputs.

Section 2

XTi Assembly Drawings

Section 2.1

XTi1000 BOM PWA 139087-14

139087-14 REV. A PWA, XTI1000 600029

D

REVISION HISTORY

E.C.N REV DATE DWN PE CM

DESCRIPTION

INITIAL RELEASE DERIVED FROM 139087-14 REV 1 WITH THE

A

FOLLOWING CHANGE: HS13B, HS13C, HS13D, HS14E, AND

12/05/07 KLW

TJS DSV

HS14F WERE 139310-1.

UNLESS OTHERWISE SPECIFIED, THIS PRINTED WIRING ASSEMBLY SHALL MEET
THE SPECIFICATION DESCRIBED IN IPC-A-610_ CLASS 2 STANDARDS.
ROHS COMPLIANCE: THIS PART MUST COMPLY WITH CROWN AUDIO SPECIFICATION 138935
AND ROHS DIRECTIVE 2002/95/EC OR BE DEFINED AS A ROHS APPROVED EXCEPTION.
NOTES:

1. PRINTED WIRING BOARD PART NUMBER 138348-9.

2. SEE 139087-14_A.TIF FOR SCHEMATIC AND BOARD MAP

3. THE MAXIMUM LEAD LENGTH ON THE BOTTOM SIDE OF THE BOARD SHALL NOT EXCEED 0.145".

4. POSITION COMPONENTS AS SHOWN ON COMPONENT MAP.

5. THE PRINTED WIRING ASSEMBLY PART NUMBER FOR THIS ASSEMBLY SHALL
BE MARKED ON THE PRINTED WIRING BOARD AND SHALL BE PERMANENT.

6. DO NOT PICK-UP THE PWA ASSEMBLY BY THE HEATSINK ASSEMBLIES

7. INSURE RETAINERS 139421-3 ARE FULLY INSERTED INTO THE POWER SUPPLY
HEATSINKS.

8. INSURE RETAINERS ON THE POWER SUPPLY HEATSINK ASSEMBLIES
ARE FULLY INSERTED INTO THE PWB WHEN INSTALLING
NOTE: IF RETAINER CLIP 139421-3 BREAKS AFTER SOLDERING REPAIR AS FOLLOWS:

- REMOVE BROKEN CLIP FROM THE HEATSINK AND PWB

- APPLY SILICONE S 5700-0 INTO THE PWB SLOT AND GROOVE OF THE HEATSINK

- DO NOT ATTEMPT TO REMOVE THE HEATSINK ASSEMBLY FROM THE BOAR

9. OUTPUT TRANSISTOR SCREWS ARE TORQUED TO 20-22 IN LBS.

10. 139360-1 IS CONSUMED IN HEATSINK ASSEMBLIES HS1, HS5 AND HS13.

11. USE SIDE CUTTERS TO SEVER THE BOARD TABS OF THE BREAKOUT BOARD,
SEE COMPONENT MAP.

12. ADD 139901-1 SPACER HW3 AND HW4, BETWEEN HEATSINKS HS14 AND HS5, AND HS13 AND
HS6 RESPECTIVELY

UNLESS OTHERWISE MARKED IN RED INK BY CM AS A CONTROLLED COP Y, COPIES OF THESE DOCUMENTS
INCLUDING ASSOCIATED ELECTRONIC REPRODUCTIONS ARE FOR REFERENCE ONLY

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF CROWN INTERNATIONAL, INC. AND SHALL NOT BE
REPRODUCED, COPIED, OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES
WITHOUT PERMISSION.

UNCONTROLLED

DWN KLW 12/05/07 PE TJS 12/05/07 CM DSV 12/10/07 DIST. K

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 1 OF 30

139087-14 REV. A PWA, XTI1000 600029

REF. DES. CPN DESCRIPTION MAP LOC.

C1 102438-220J2 22PF 200V 5% NPO 0805 T/R H 1
C2 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C3 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A O 9
C4 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 11
C5 A11369-821K2 820PF 50V 10% NPO MLC 0805 B 11
C6 A11369-821K2 820PF 50V 10% NPO MLC 0805 C 11
C7 A11369-820K1 82PF 50V 10% NPO MLC 0603 D 2
C8 A11369-820K1 82PF 50V 10% NPO MLC 0603 C 2
C9 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 1
C10 135505-1 CAP, 0.1UF 25V 10% X7R 0603 C 2
C11 135505-1 CAP, 0.1UF 25V 10% X7R 0603 C 1
C12 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 2
C13 C 9157-6 100UF 16V 20% NP ELEC RAD T/R C 1
C14 126623-1 47UF 16V 6.3X5.5MM 20% SMT C 1
C15 A11369-330J1 CAP, 33PF 50V NPO 5% 0603 C 1
C16 102438-101J2 100PF 200V 5% NPO 0805 T/R C 2
C17 OPEN P 4
C18 102438-101J2 100PF 200V 5% NPO 0805 T/R C 1
C19 126623-1 47UF 16V 6.3X5.5MM 20% SMT C 2
C20 126623-1 47UF 16V 6.3X5.5MM 20% SMT B 1
C21 OPEN M 9
C22 A11369-821K2 820PF 50V 10% NPO MLC 0805 D 11
C23 A11369-821K2 820PF 50V 10% NPO MLC 0805 D 11
C24 A11369-820K1 82PF 50V 10% NPO MLC 0603 E 2
C25 A11369-820K1 82PF 50V 10% NPO MLC 0603 E 2
C26 C 9157-6 100UF 16V 20% NP ELEC RAD T/R D 1
C27 126623-1 47UF 16V 6.3X5.5MM 20% SMT E 1
C28 A11369-330J1 CAP, 33PF 50V NPO 5% 0603 E 1
C29 102438-101J2 100PF 200V 5% NPO 0805 T/R D 2
C30 102438-470J2 47PF 200V 5% NPO 0805 K 1
C31 102438-101J2 100PF 200V 5% NPO 0805 T/R D 1
C32 126623-1 47UF 16V 6.3X5.5MM 20% SMT D 2
C33 126623-1 47UF 16V 6.3X5.5MM 20% SMT D 1
C34 135505-1 CAP, 0.1UF 25V 10% X7R 0603 E 1
C35 135505-1 CAP, 0.1UF 25V 10% X7R 0603 E 2
C36 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 1
C37 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 2
C38 A11369-182J2 CAP, 1800P NPO 5% 50V 0805 B 1
C39 A11369-182J2 CAP, 1800P NPO 5% 50V 0805 D 1
C40 OPEN M 8
C41 OPEN F 12
C42 OPEN M 8
C43 OPEN N 8
C44 OPEN N 11
C45 C 4477-3 470 UF 35V VERT O 8
C46 C 4477-3 470 UF 35V VERT N 10
C47 133323-1 CAP, 3800UF 125V ALUM ELECT N 9
C48 133323-1 CAP, 3800UF 125V ALUM ELECT M 10
C49 140309-1 CAP, .47UF 275VAC X2 P 11
C50 140309-1 CAP, .47UF 275VAC X2 Q 11
C51 137030-1 CAP, 1UF X2 REDUCED SIZE P 9
C52 137030-1 CAP, 1UF X2 REDUCED SIZE Q 9
C53 137455-1 CAP, 4700 PF 10% FILM Y2 Q 8
C54 137455-1 CAP, 4700 PF 10% FILM Y2 O 8
C55 OPEN Q 8
C56 OPEN O 8

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 2 OF 30

139087-14 REV. A PWA, XTI1000 600029

C57 134163-1 CAP, 2700UF 20% 200V ELECT N 3
C58 134163-1 CAP, 2700UF 20% 200V ELECT N 4
C59 OPEN P 2
C60 OPEN P 4
C61 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R P 1
C62 102438-220J2 22PF 200V 5% NPO 0805 T/R G 1
C63 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C64 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C65 139705-1 CAP, 0.33UF 50V 5% X7R 1206 B 8
C66 OPEN B 10
C67 139705-1 CAP, 0.33UF 50V 5% X7R 1206 A 1
C68 138523-1 CAP, 0.15UF 5% 630V POLYPROP Q 5
C69 A11369-102F2 1000PF 50V 1% CHIP CAP N 1
C70 OPEN B 10
C71 OPEN B 10
C72 A11369-102F2 1000PF 50V 1% CHIP CAP I 2
C73 133187-1 CAP,220PF 500V 10% CER DISK TR N 7
C74 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 C 1
C75 126539-1 10UF 16V 5.5MM HIGH SMD K 1
C76 C 4477-3 470 UF 35V VERT I 11
C77 139705-1 CAP, 0.33UF 50V 5% X7R 1206 B 3
C78 135505-1 CAP, 0.1UF 25V 10% X7R 0603 A 1
C79 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 3
C80 OPEN C 9
C81 OPEN C 9
C82 OPEN C 9
C83 OPEN E 10
C84 OPEN E 9
C85 139705-1 CAP, 0.33UF 50V 5% X7R 1206 K 8
C86 OPEN E 9
C87 OPEN E 10
C88 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R D 1
C89 OPEN E 8
C90 102438-220J2 22PF 200V 5% NPO 0805 T/R A 11
C91 102438-220J2 22PF 200V 5% NPO 0805 T/R A 11
C92 OPEN E 8
C93 OPEN B 10
C94 OPEN K 10
C95 OPEN K 10
C96 A11369-102F2 1000PF 50V 1% CHIP CAP I 2
C97 OPEN K 10
C98 A11369-102F2 1000PF 50V 1% CHIP CAP F 3
C99 OPEN K 10
C100 OPEN J 9
C101 OPEN J 9
C102 126539-1 10UF 16V 5.5MM HIGH SMD E 2
C103 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 G 3
C104 C 9157-6 100UF 16V 20% NP ELEC RAD T/R C 2
C105 103429-472K5 .0047UF 250V 10% X7R 1206 T/R D 3
C106 102438-470J2 47PF 200V 5% NPO 0805 G 3
C107 102438-100J2 10PF 200V 5% NPO 0805 C 3
C108 102438-101J2 100PF 200V 5% NPO 0805 T/R C 3
C109 139719-1 CAP, 1.0UF 25V X7R 10% 0805 D 3
C110 OPEN D 3
C111 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A C 3
C112 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A E 3
C113 139705-1 CAP, 0.33UF 50V 5% X7R 1206 G 3
C114 103429-472K5 .0047UF 250V 10% X7R 1206 T/R D 5
C115 126623-1 47UF 16V 6.3X5.5MM 20% SMT A 6

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 3 OF 30

139087-14 REV. A PWA, XTI1000 600029

C116 126623-1 47UF 16V 6.3X5.5MM 20% SMT A 5
C117 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 B 6
C118 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 C 5
C119 126539-1 10UF 16V 5.5MM HIGH SMD C 2
C120 126539-1 10UF 16V 5.5MM HIGH SMD C 3
C121 126539-1 10UF 16V 5.5MM HIGH SMD B 2
C122 A10434-473JD .047UF 250VDC 5% MET POLY T/A B 9
C123 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 3
C124 C 9157-6 100UF 16V 20% NP ELEC RAD T/R G 3
C125 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 D 8
C126 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 B 8
C127 A11369-472J2 CAP, 4700PF 5% 50V SMT 0805 C 8
C128 A11369-472J2 CAP, 4700PF 5% 50V SMT 0805 A 8
C129 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C130 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 B 2
C131 A11369-152J2 1500PF 50V 5% NPO MLC 0805 T/R B 2
C132 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C133 102438-470J2 47PF 200V 5% NPO 0805 C 3
C134 A10434-472JD .0047UF 250VDC 5% MET POLY T/A M 11
C135 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 6
C136 135505-1 CAP, 0.1UF 25V 10% X7R 0603 J 6
C137 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 3
C138 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 3
C139 126539-1 10UF 16V 5.5MM HIGH SMD L 2
C140 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 I 2
C141 C 9157-6 100UF 16V 20% NP ELEC RAD T/R J 2
C142 A11369-102F2 1000PF 50V 1% CHIP CAP F 3
C143 102438-470J2 47PF 200V 5% NPO 0805 F 3
C144 103429-472K5 .0047UF 250V 10% X7R 1206 T/R J 3
C145 102438-470J2 47PF 200V 5% NPO 0805 I 2
C146 102438-100J2 10PF 200V 5% NPO 0805 I 3
C147 102438-101J2 100PF 200V 5% NPO 0805 T/R I 3
C148 139719-1 CAP, 1.0UF 25V X7R 10% 0805 J 3
C149 OPEN K 3
C150 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A K 3
C151 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A I 3
C152 139705-1 CAP, 0.33UF 50V 5% X7R 1206 G 3
C153 103429-472K5 .0047UF 250V 10% X7R 1206 T/R J 5
C154 126623-1 47UF 16V 6.3X5.5MM 20% SMT G 6
C155 126623-1 47UF 16V 6.3X5.5MM 20% SMT G 5
C156 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 I 6
C157 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 I 5
C158 126539-1 10UF 16V 5.5MM HIGH SMD L 3
C159 126539-1 10UF 16V 5.5MM HIGH SMD L 3
C160 126539-1 10UF 16V 5.5MM HIGH SMD L 2
C161 A10434-473JD .047UF 250VDC 5% MET POLY T/A K 8
C162 135505-1 CAP, 0.1UF 25V 10% X7R 0603 M 2
C163 C 9157-6 100UF 16V 20% NP ELEC RAD T/R J 2
C164 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 M 8
C165 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 J 8
C166 A11369-472J2 CAP, 4700PF 5% 50V SMT 0805 L 8
C167 A11369-472J2 CAP, 4700PF 5% 50V SMT 0805 J 8
C168 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C169 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 L 2
C170 A11369-152J2 1500PF 50V 5% NPO MLC 0805 T/R L 2
C171 102438-470J2 47PF 200V 5% NPO 0805 I 3
C172 A10434-472JD .0047UF 250VDC 5% MET POLY T/A N 11
C173 OPEN B 10
C174 OPEN B 10

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 4 OF 30

139087-14 REV. A PWA, XTI1000 600029

C175 102438-470J2 47PF 200V 5% NPO 0805 I 2
C176 135505-1 CAP, 0.1UF 25V 10% X7R 0603 M 5
C177 OPEN J 9
C178 OPEN I 10
C179 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 7
C180 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C181 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C182 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 2
C183 OPEN L 9
C184 OPEN I 8
C185 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C186 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C187 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 1
C188 135505-1 CAP, 0.1UF 25V 10% X7R 0603 O 2
C189 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C190 OPEN G 9
C191 OPEN C 9
C192 OPEN G 10
C193 OPEN I 9
C194 135505-1 CAP, 0.1UF 25V 10% X7R 0603 P 1
C195 135505-1 CAP, 0.1UF 25V 10% X7R 0603 O 1
C196 131015-1 220UF 35V 20% RAD ELECT T/A P 1
C197 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C198 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 2
C199 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 2
C200 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 2
C201 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 1
C202 OPEN I 10
C203 135505-1 CAP, 0.1UF 25V 10% X7R 0603 E 3
C204 OPEN I 9
C205 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 3
C206 135505-1 CAP, 0.1UF 25V 10% X7R 0603 P 1
C207 OPEN I 8
C208 OPEN J 9
C209 OPEN C 9
C210 OPEN G 9
C211 OPEN C 9
C212 OPEN G 10
C213 OPEN L 10
C214 OPEN C 10
C215 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R Q 2
C216 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R Q 2
C217 OPEN M 8
C218 135505-1 CAP, 0.1UF 25V 10% X7R 0603 P 1
C219 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A N 8
C220 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A O 10
C221 135505-1 CAP, 0.1UF 25V 10% X7R 0603 L 3
C222 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 3
C223 OPEN C 10
C224 137455-1 CAP, 4700 PF 10% FILM Y2 O 3
C225 OPEN D 9
C226 137455-1 CAP, 4700 PF 10% FILM Y2 O 4
C227 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 11
C228 102438-150J2 CAP, 15PF 5% 200V NPO 0805 D 2
C229 OPEN D 9
C230 OPEN D 9
C231 OPEN L 10
C232 OPEN M 11
C233 OPEN K 9

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 5 OF 30

139087-14 REV. A PWA, XTI1000 600029

C234 OPEN K 9
C235 OPEN C 10
C236 OPEN C 9
C237 OPEN K 9
C238 OPEN M 11
C239 OPEN M 11
C240 102438-150J2 CAP, 15PF 5% 200V NPO 0805 D 3
C241 OPEN L 10
C242 OPEN L 10
C243 OPEN L 10
C244 OPEN C 10
C245 OPEN L 10
C246 OPEN D 8
C247 OPEN K 9
C248 OPEN K 9
C249 OPEN J 9
C250 OPEN L 10
C251 OPEN A 8
C252 OPEN C 10
C253 OPEN M 8
C254 OPEN J 8
C255 OPEN B 10
C256 OPEN C 9
C257 OPEN K 10
C258 OPEN K 9
C259 OPEN G 11
C260 OPEN G 11
C261 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R H 1
C262 131015-1 220UF 35V 20% RAD ELECT T/A A 2
C263 131015-1 220UF 35V 20% RAD ELECT T/A A 2
C264 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R P 1
C265 OPEN F 8
C266 OPEN F 9
C267 OPEN H 8
C268 OPEN H 9
C269 OPEN G 8
C270 OPEN G 8
C271 OPEN M 8
C272 OPEN G 8
C273 OPEN L 8
C274 OPEN G 8
C275 OPEN F 8
C276 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C277 OPEN C 10
C278 OPEN D 9
C279 OPEN L 10
C280 OPEN K 9
C281 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C282 OPEN B 6
C283 OPEN B 5
C284 OPEN H 6
C285 OPEN H 5
C286 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A N 11
C287 134791-1 CAP, 470 PF 500V N1500 DISC Q 5
C288 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A O 2
C289 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A N 5
C291 102438-150J2 CAP, 15PF 5% 200V NPO 0805 J 2
C292 102438-150J2 CAP, 15PF 5% 200V NPO 0805 J 3
C293 OPEN K 12

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 6 OF 30

139087-14 REV. A PWA, XTI1000 600029

C294 OPEN N 11
C295 OPEN N 11
C296 OPEN N 11
C297 135505-1 CAP, 0.1UF 25V 10% X7R 0603 M 3
C298 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 1
C300 OPEN A 6
C301 OPEN A 5
C302 OPEN G 6
C303 OPEN G 5
C304 135505-1 CAP, 0.1UF 25V 10% X7R 0603 A 11
C305 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 H 2
C306 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 H 2
C307 OPEN J 12
C308 OPEN J 11
C309 OPEN J 11
C310 OPEN L 11
C311 OPEN K 12
C312 OPEN K 12
C313 OPEN L 11
C314 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 G 1
C315 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 G 1
C317 OPEN F 12
C318 OPEN G 12
C319 OPEN F 12
C320 OPEN F 12
C321 OPEN H 11
C322 OPEN H 11
C323 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 1
C810 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R J 1
C811 131015-1 220UF 35V 20% RAD ELECT T/A J 1
C812 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R J 1
C814 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
C815 C 4477-3 470 UF 35V VERT I 1
C816 135505-1 CAP, 0.1UF 25V 10% X7R 0603 J 2
C817 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R J 2
C818 A11369-102F2 1000PF 50V 1% CHIP CAP J 1
C819 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 2
C900 125434-1 CAP,.068UF 400V FILM POLYESTER M 2
C901 125434-1 CAP,.068UF 400V FILM POLYESTER M 1
C920 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 1
C921 102438-221F2 220PF 200V 1% NPO 0805 F 1
C922 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 1
C923 A11369-102F2 1000PF 50V 1% CHIP CAP F 1
C924 A11369-102F2 1000PF 50V 1% CHIP CAP F 1
C925 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 F 1
C926 102438-220J2 22PF 200V 5% NPO 0805 T/R F 1
C938 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 2
C950 102438-221F2 220PF 200V 1% NPO 0805 G 2
C958 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C959 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C960 126539-1 10UF 16V 5.5MM HIGH SMD H 2
C961 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C962 126539-1 10UF 16V 5.5MM HIGH SMD F 2
C963 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 1
C964 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 1
C965 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C966 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C967 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C968 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 7 OF 30

139087-14 REV. A PWA, XTI1000 600029

C969 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C970 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C975 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 2
C976 139719-1 CAP, 1.0UF 25V X7R 10% 0805 F 2
C977 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 2
C978 139719-1 CAP, 1.0UF 25V X7R 10% 0805 F 2
C983 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 2
C984 126623-1 47UF 16V 6.3X5.5MM 20% SMT F 2
C987 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 1
C992 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
C993 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 2
C994 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 2
C995 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
C996 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
D1 OPEN M 9
D2 OPEN M 8
D3 135343-1 DIODE, DUAL MMBD4148SE SOT-23 C 2
D4 135343-1 DIODE, DUAL MMBD4148SE SOT-23 I 2
D5 OPEN M 8
D6 OPEN G 8
D7 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT Q 2
D8 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT Q 4
D9 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT Q 1
D10 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT Q 4
D11 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT N 7
D12 OPEN N 7
D13 132040-1 DIODE, 100V 3A SMC N 7
D14 OPEN N 8
D15 132040-1 DIODE, 100V 3A SMC N 8
D16 OPEN N 8
D17 132040-1 DIODE, 100V 3A SMC N 8
D18 OPEN N 9
D19 132040-1 DIODE, 100V 3A SMC N 9
D20 136292-1 DIODE, EMCON 600V 30A TO220 N 5
D21 136292-1 DIODE, EMCON 600V 30A TO220 N 6
D22 136292-1 DIODE, EMCON 600V 30A TO220 N 6
D23 136292-1 DIODE, EMCON 600V 30A TO220 N 7
D24 139544-1 PRP, 125427-1 (RBV5006) .420 N 3
D25 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT P 1
D26 132040-1 DIODE, 100V 3A SMC P 3
D27 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT P 1
D28 131648-1 DIODE, ZENER 500MW 16V SOD 123 P 1
D29 131648-1 DIODE, ZENER 500MW 16V SOD 123 P 1
D30 138997-1 DIODE, 600V 1A SMA N 2
D31 131648-1 DIODE, ZENER 500MW 16V SOD 123 P 1
D32 OPEN G 8
D33 OPEN B 10
D34 OPEN C 9
D35 OPEN F 9
D36 OPEN F 9
D37 OPEN K 10
D38 OPEN J 9
D39 OPEN G 8
D40 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 N 1
D41 OPEN M 8
D42 OPEN H 9
D43 OPEN H 9
D44 OPEN M 8
D45 OPEN G 8

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 8 OF 30

139087-14 REV. A PWA, XTI1000 600029

D46 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 Q 3
D47 C10370-2 DIODE, ZENER 10V MMBZ5240BL Q 2
D48 C10370-2 DIODE, ZENER 10V MMBZ5240BL Q 2
D49 OPEN M 9
D50 OPEN C 10
D52 OPEN D 9
D54 132040-1 DIODE, 100V 3A SMC A 2
D55 132040-1 DIODE, 100V 3A SMC B 3
D56 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 3
D57 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 3
D58 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 2
D59 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 2
D60 OPEN C 10
D62 OPEN D 9
D64 OPEN L 10
D66 OPEN K 9
D68 135343-1 DIODE, DUAL MMBD4148SE SOT-23 P 1
D69 OPEN L 10
D71 OPEN K 9
D73 OPEN B 10
D74 OPEN C 9
D75 OPEN L 10
D76 OPEN K 9
D77 OPEN G 9
D78 OPEN G 9
D79 OPEN G 9
D80 OPEN G 9
D100 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT F 3
D101 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 3
D102 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D103 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D108 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT C 8
D109 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT B 8
D110 125620-1 DIODE, FAST RECOVERY 400V 1A C 8
D111 125620-1 DIODE, FAST RECOVERY 400V 1A B 8
D112 125620-1 DIODE, FAST RECOVERY 400V 1A D 8
D113 125620-1 DIODE, FAST RECOVERY 400V 1A A 8
D114 137615-1 DIODE, 8A 400V SMC C 8
D115 137615-1 DIODE, 8A 400V SMC B 8
D116 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT H 3
D117 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D118 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D119 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 1
D120 131648-1 DIODE, ZENER 500MW 16V SOD 123 E 8
D121 131648-1 DIODE, ZENER 500MW 16V SOD 123 E 3
D122 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D123 131648-1 DIODE, ZENER 500MW 16V SOD 123 C 8
D124 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D125 131648-1 DIODE, ZENER 500MW 16V SOD 123 B 8
D126 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT D 2
D127 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT E 3
D128 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 1
D129 135343-1 DIODE, DUAL MMBD4148SE SOT-23 B 2
D130 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT L 3
D131 135343-1 DIODE, DUAL MMBD4148SE SOT-23 L 3
D134 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 2
D135 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D136 135343-1 DIODE, DUAL MMBD4148SE SOT-23 C 2
D137 135343-1 DIODE, DUAL MMBD4148SE SOT-23 C 2

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 9 OF 30

139087-14 REV. A PWA, XTI1000 600029

D138 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT L 8
D139 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT K 8
D140 125620-1 DIODE, FAST RECOVERY 400V 1A L 8
D141 125620-1 DIODE, FAST RECOVERY 400V 1A K 8
D142 125620-1 DIODE, FAST RECOVERY 400V 1A M 8
D143 125620-1 DIODE, FAST RECOVERY 400V 1A J 8
D144 137615-1 DIODE, 8A 400V SMC L 8
D145 137615-1 DIODE, 8A 400V SMC K 8
D146 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT H 3
D147 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D148 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D149 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 3
D150 131648-1 DIODE, ZENER 500MW 16V SOD 123 L 8
D151 131648-1 DIODE, ZENER 500MW 16V SOD 123 L 3
D153 131648-1 DIODE, ZENER 500MW 16V SOD 123 L 8
D155 131648-1 DIODE, ZENER 500MW 16V SOD 123 K 8
D156 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT K 2
D157 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT L 3
D158 131648-1 DIODE, ZENER 500MW 16V SOD 123 L 8
D159 135343-1 DIODE, DUAL MMBD4148SE SOT-23 L 2
D160 131648-1 DIODE, ZENER 500MW 16V SOD 123 K 3
D161 131648-1 DIODE, ZENER 500MW 16V SOD 123 E 8
D162 131648-1 DIODE, ZENER 500MW 16V SOD 123 E 3
D163 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT D 8
D164 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT A 8
D165 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT M 8
D166 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT J 8
D167 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 3
D168 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 3
D169 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 2
D170 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 3
D171 135343-1 DIODE, DUAL MMBD4148SE SOT-23 I 2
D172 135343-1 DIODE, DUAL MMBD4148SE SOT-23 I 2
D173 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 3
D174 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT D 3
D175 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT J 3
D176 OPEN F 8
D177 OPEN F 10
D178 OPEN H 8
D179 OPEN H 10
D180 C10067-4 DIODE, 1A 100V SILICON SMT T/R D 5
D181 C10067-4 DIODE, 1A 100V SILICON SMT T/R D 5
D182 C10067-4 DIODE, 1A 100V SILICON SMT T/R D 5
D183 OPEN D 8
D184 OPEN A 8
D185 OPEN L 8
D186 OPEN J 8
D187 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D188 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D189 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D190 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D191 C10067-4 DIODE, 1A 100V SILICON SMT T/R C 5
D801 125593-1 DIODE, SCHOTTKY 40V 1A SMA J 1
E1 126473-1 LED, GRN SMT 1206 H 1
F1 A10285-28 FUSE, 20A 3AB LITLFUSE #314020 Q 10
F1X C 8908-3 CLIP, DUAL FUSE PC MOUNT Q 10
F1XX C 8908-3 CLIP, DUAL FUSE PC MOUNT Q 10
FB1 125846-1 FERRITE BEAD, 600 OHM .5A 0805 F 1
FB2 125846-1 FERRITE BEAD, 600 OHM .5A 0805 F 1

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 10 OF 30

139087-14 REV. A PWA, XTI1000 600029

FB3 125846-1 FERRITE BEAD, 600 OHM .5A 0805 G 2
FB4 125846-1 FERRITE BEAD, 600 OHM .5A 0805 G 2
FB6 125846-1 FERRITE BEAD, 600 OHM .5A 0805 H 1
FB7 125846-1 FERRITE BEAD, 600 OHM .5A 0805 I 1
HS1 139135-3 HEATSINK, CEQUEL BASE D 7
HS1B 139134-1 FINS, CEQUEL E 7
HS1C 139738-1 XSISTOR, NPN MJ15024G F 7
HS1D 102719-1 6-32X.312 TORX PAN HD TFS F 6
HS1E 102719-1 6-32X.312 TORX PAN HD TFS F 7
HS1F 139738-1 XSISTOR, NPN MJ15024G E 7
HS1G 102719-1 6-32X.312 TORX PAN HD TFS D 6
HS1H 102719-1 6-32X.312 TORX PAN HD TFS E 7
HS1I 139738-1 XSISTOR, NPN MJ15024G C 7
HS1J 102719-1 6-32X.312 TORX PAN HD TFS B 6
HS1K 102719-1 6-32X.312 TORX PAN HD TFS C 7
HS1L OPEN B 7
HS1M OPEN A 6
HS1N OPEN B 7
HS1O 139134-1 FINS, CEQUEL B 7
HS2 139299-3 HEATSINK, CEQUEL BASE FRONT D 4
HS2B 139134-1 FINS, CEQUEL E 4
HS2C 139737-1 XSISTOR, PNP MJ15025G F 4
HS2D 102719-1 6-32X.312 TORX PAN HD TFS F 4
HS2E 102719-1 6-32X.312 TORX PAN HD TFS F 5
HS2F 139737-1 XSISTOR, PNP MJ15025G E 4
HS2G 102719-1 6-32X.312 TORX PAN HD TFS E 4
HS2H 102719-1 6-32X.312 TORX PAN HD TFS D 5
HS2I 139737-1 XSISTOR, PNP MJ15025G C 4
HS2J 102719-1 6-32X.312 TORX PAN HD TFS C 4
HS2K 102719-1 6-32X.312 TORX PAN HD TFS C 5
HS2L OPEN B 4
HS2M OPEN B 4
HS2N OPEN A 5
HS2O 139134-1 FINS, CEQUEL B 4
HS3 OPEN D 3
HS4 OPEN D 6
HS5 139135-3 HEATSINK, CEQUEL BASE J 7
HS5B 139134-1 FINS, CEQUEL K 7
HS5C 139738-1 XSISTOR, NPN MJ15024G L 7
HS5D 102719-1 6-32X.312 TORX PAN HD TFS L 6
HS5E 102719-1 6-32X.312 TORX PAN HD TFS L 7
HS5F 139738-1 XSISTOR, NPN MJ15024G K 7
HS5G 102719-1 6-32X.312 TORX PAN HD TFS K 6
HS5H 102719-1 6-32X.312 TORX PAN HD TFS K 7
HS5I 139738-1 XSISTOR, NPN MJ15024G I 7
HS5J 102719-1 6-32X.312 TORX PAN HD TFS I 6
HS5K 102719-1 6-32X.312 TORX PAN HD TFS I 7
HS5L OPEN H 7
HS5M OPEN G 6
HS5N OPEN H 7
HS5O 139134-1 FINS, CEQUEL I 7
HS6 139299-3 HEATSINK, CEQUEL BASE FRONT J 4
HS6B 139134-1 FINS, CEQUEL K 4
HS6C 139737-1 XSISTOR, PNP MJ15025G L 4
HS6D 102719-1 6-32X.312 TORX PAN HD TFS L 4
HS6E 102719-1 6-32X.312 TORX PAN HD TFS L 5
HS6F 139737-1 XSISTOR, PNP MJ15025G K 4
HS6G 102719-1 6-32X.312 TORX PAN HD TFS K 4
HS6H 102719-1 6-32X.312 TORX PAN HD TFS K 5

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 11 OF 30

139087-14 REV. A PWA, XTI1000 600029

HS6I 139737-1 XSISTOR, PNP MJ15025G I 4
HS6J 102719-1 6-32X.312 TORX PAN HD TFS I 4
HS6K 102719-1 6-32X.312 TORX PAN HD TFS I 5
HS6L OPEN H 4
HS6M OPEN H 4
HS6N OPEN G 5
HS6O 139134-1 FINS, CEQUEL H 4
HS7 OPEN J 3
HS8 OPEN J 6
HS9 OPEN F 9
HS9A OPEN H 9
HS9B OPEN H 10
HS9C OPEN H 9
HS9D OPEN H 9
HS9E OPEN H 8
HS9F OPEN F 8
HS9G OPEN F 9
HS9H OPEN F 9
HS9I OPEN F 10
HS13 139276-2 HEATSINK, CEQUEL POWER SUPPLY M 3
HS13B 140180-1 CLIP, 2 FINGER TO-220 M 1
HS13C 140180-1 CLIP, 2 FINGER TO-220 M 2
HS13D 140180-1 CLIP, 2 FINGER TO-220 N 3
HS13E 139312-1 INSULATOR, CERAMIC 3.95X.85 M 3
HS13F 139421-3 RETAINER, XTI HEATSINK M 1
HS13G 139421-3 RETAINER, XTI HEATSINK M 5
HS14 139948-1 HEATSINK, W/PAD PS ASSY M 7
HS14B OPEN M 7
HS14C 139421-3 RETAINER, XTI HEATSINK M 5
HS14D 139421-3 RETAINER, XTI HEATSINK M 9
HS14E 140180-1 CLIP, 2 FINGER TO-220 M 6
HS14F 140180-1 CLIP, 2 FINGER TO-220 M 7
HS14G OPEN M 8
HS14H OPEN M 9
HW1 140089-1 SPRING, NEGATIVE CONTACT A 11
HW3 139901-1 CLIP, XTI HEATSINK M 7
HW4 139901-1 CLIP, XTI HEATSINK M 4
HW5 101016-1 LBL, BARCODE A 10
HW6 139757-1 PRP, 133589-1 CUT IN HALF M 5
HW7 139360-1 GAPFILLER,THERMALLY CONDUCTIVE D 6
HW8 139360-1 GAPFILLER,THERMALLY CONDUCTIVE J 6
HW9 139360-1 GAPFILLER,THERMALLY CONDUCTIVE M 5
HW10 139360-1 GAPFILLER,THERMALLY CONDUCTIVE D 7
HW11 139360-1 GAPFILLER,THERMALLY CONDUCTIVE J 7
HW12 139360-1 GAPFILLER,THERMALLY CONDUCTIVE D 4
HW13 139360-1 GAPFILLER,THERMALLY CONDUCTIVE J 4
J1 138976-1 CONN, USB B RA TH A 12
J2 OPEN I 1
J3 138323-2 BDG POST, QUAD RA NO-TOUCH M 12
J4 138319-1 XLR, FEM HORZ PC PLASTIC C 12
J5 138319-1 XLR, FEM HORZ PC PLASTIC D 12
J7 OPEN G 12
J8 102473-1 SPEAKON, 4 POLE PCB HORZ J 12
J9 102473-1 SPEAKON, 4 POLE PCB HORZ K 12
J10 139530-1 CONN, 20PIN HEADER 0.1" CTR SHROUDED TH E 1
J11 OPEN F 11
J12 OPEN H 12
J15 101571-1 HDR, 2 POS .1 CTR MTA SHRD J 11
J20 OPEN N 8

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 12 OF 30

139087-14 REV. A PWA, XTI1000 600029

J21 127064-1 TEST POINT, SMT 1206 N 9
J22 127064-1 TEST POINT, SMT 1206 N 11
J23 OPEN N 9
J24 127064-1 TEST POINT, SMT 1206 G 1
J25 127064-1 TEST POINT, SMT 1206 F 8
J26 127064-1 TEST POINT, SMT 1206 F 10
J27 127064-1 TEST POINT, SMT 1206 H 8
J28 127064-1 TEST POINT, SMT 1206 H 10
J29 OPEN N 8
J30 OPEN N 8
J31 OPEN M 9
J32 OPEN M 9
J33 127064-1 TEST POINT, SMT 1206 N 9
J34 127064-1 TEST POINT, SMT 1206 N 11
J35 127064-1 TEST POINT, SMT 1206 N 9
J36 127064-1 TEST POINT, SMT 1206 N 11
J37 127064-1 TEST POINT, SMT 1206 F 8
J38 127064-1 TEST POINT, SMT 1206 F 10
J39 127064-1 TEST POINT, SMT 1206 H 8
J40 127064-1 TEST POINT, SMT 1206 H 10
K1 C10335-5 RELAY 30A 24V T90 SEALED CE Q 4
K2 C10335-5 RELAY 30A 24V T90 SEALED CE Q 5
L1 139523-1 CHOKE, CM 20T 5000 PERM P 10
L2 139523-1 CHOKE, CM 20T 5000 PERM P 8
L3 133866-1 INDUCTOR, 4.3UH 16AWG VERT Q 7
L4 OPEN E 9
L5 OPEN D 10
L6 OPEN I 9
L7 OPEN J 10
L100 102470-1 INDUCTOR, 2.75UH 11A RADIAL B 9
L101 102470-1 INDUCTOR, 2.75UH 11A RADIAL L 9
L801 138946-1 IND, 470UH 0.5A SMT J 1
P1 138443-1 XLR, MALE HORZ PC PLASTIC B 12
P2 138443-1 XLR, MALE HORZ PC PLASTIC E 12
P3 OPEN B 11
P4 138320-1 IEC, ISA RA PC MNT Q 12
PWB1 138348-9 PWB, CEQUEL MAIN Q 12
Q1 OPEN M 9
Q2 OPEN M 9
Q5 102483-1 PNP 300V 500MA SOT-23 L 1
Q6 137218-1 SCR, 12A MCR12DSN DPAK 369A L 1
Q7 C 7448-1 MMBT3904 CHIP NPN N 1
Q8 132242-1 XSISTOR, NPN SOT 23 MMBTA42LT1 Q 2
Q9 OPEN F 3
Q10 OPEN F 3
Q13 OPEN I 2
Q14 OPEN I 2
Q15 125798-1 XSTR,MMBT3906 LT3 10K REEL N 1
Q16 139686-1 XSISTOR, MPSW45 50V 1W TO92 Q 3
Q17 125798-1 XSTR,MMBT3906 LT3 10K REEL Q 2
Q18 C 8103-1 MPSW42 300V 1 WATT NPN T/R Q 2
Q21 125798-1 XSTR,MMBT3906 LT3 10K REEL Q 1
Q22 C 8103-1 MPSW42 300V 1 WATT NPN T/R Q 1
Q23 127169-1 MOSFET, P-CH 50V 150MA SOT-23 I 1
Q24 C 7448-1 MMBT3904 CHIP NPN J 11
Q25 125798-1 XSTR,MMBT3906 LT3 10K REEL M 3
Q26 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 N 1
Q27 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 N 1
Q28 139706-1 PRP, 137992-1 (40NC60VD) .420 N 1

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 13 OF 30

139087-14 REV. A PWA, XTI1000 600029

Q29 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 N 2
Q30 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 N 2
Q31 139706-1 PRP, 137992-1 (40NC60VD) .420 N 2
Q32 125798-1 XSTR,MMBT3906 LT3 10K REEL I 11
Q33 OPEN G 9
Q34 C 8103-1 MPSW42 300V 1 WATT NPN T/R G 11
Q35 C 8103-1 MPSW42 300V 1 WATT NPN T/R G 11
Q36 C 8103-1 MPSW42 300V 1 WATT NPN T/R H 11
Q37 C 8103-1 MPSW42 300V 1 WATT NPN T/R H 11
Q38 OPEN G 8
Q39 C 8103-1 MPSW42 300V 1 WATT NPN T/R O 1
Q40 C 8103-1 MPSW42 300V 1 WATT NPN T/R O 1
Q41 C 8103-1 MPSW42 300V 1 WATT NPN T/R O 1
Q42 OPEN G 8
Q43 OPEN G 10
Q44 OPEN G 10
Q45 OPEN G 9
Q46 OPEN G 9
Q47 OPEN F 8
Q48 OPEN F 10
Q49 OPEN G 9
Q50 OPEN G 9
Q51 OPEN G 9
Q52 OPEN J 9
Q53 OPEN K 10
Q54 OPEN C 9
Q55 OPEN B 10
Q56 OPEN G 8
Q57 OPEN G 10
Q58 OPEN G 10
Q59 OPEN G 9
Q60 OPEN H 8
Q61 OPEN H 10
Q62 OPEN G 9
Q63 OPEN G 8
Q64 OPEN G 9
Q65 OPEN G 9
Q69 C 8103-1 MPSW42 300V 1 WATT NPN T/R F 11
Q70 C 8103-1 MPSW42 300V 1 WATT NPN T/R F 11
Q79 C 8103-1 MPSW42 300V 1 WATT NPN T/R F 11
Q80 C 8103-1 MPSW42 300V 1 WATT NPN T/R H 11
Q100 C 3810-6 MPSA42 300V NPN T/R E 2
Q102 501972-1 MPSA92 300V PNP T/A E 3
Q103 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 E 2
Q104 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 E 3
Q105 501972-1 MPSA92 300V PNP T/A C 3
Q106 501972-1 MPSA92 300V PNP T/A C 3
Q107 C 3810-6 MPSA42 300V NPN T/R D 3
Q108 C 3810-6 MPSA42 300V NPN T/R D 3
Q109 C 7448-1 MMBT3904 CHIP NPN D 7
Q110 C 7448-1 MMBT3904 CHIP NPN D 8
Q111 125798-1 XSTR,MMBT3906 LT3 10K REEL B 8
Q112 C 8103-1 MPSW42 300V 1 WATT NPN T/R C 6
Q113 C 8104-9 MPSW92 300V 1 WATT PNP T/R C 3
Q114 139426-1 PRP, 136168/137779 GRN (15033) D 6
Q115 139425-1 PRP, 136167/137779 BLU (15032) D 3
Q116 501972-1 MPSA92 300V PNP T/A E 3
Q117 C 3810-6 MPSA42 300V NPN T/R K 2
Q119 501972-1 MPSA92 300V PNP T/A L 3

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 14 OF 30

139087-14 REV. A PWA, XTI1000 600029

Q120 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 K 2
Q121 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 K 3
Q122 501972-1 MPSA92 300V PNP T/A J 3
Q123 501972-1 MPSA92 300V PNP T/A J 3
Q124 C 3810-6 MPSA42 300V NPN T/R K 3
Q125 C 3810-6 MPSA42 300V NPN T/R K 3
Q126 C 7448-1 MMBT3904 CHIP NPN J 7
Q127 C 7448-1 MMBT3904 CHIP NPN L 8
Q128 125798-1 XSTR,MMBT3906 LT3 10K REEL J 8
Q129 C 8103-1 MPSW42 300V 1 WATT NPN T/R I 6
Q130 C 7448-1 MMBT3904 CHIP NPN C 2
Q131 C 8104-9 MPSW92 300V 1 WATT PNP T/R J 3
Q132 139426-1 PRP, 136168/137779 GRN (15033) J 6
Q133 139425-1 PRP, 136167/137779 BLU (15032) J 3
Q134 501972-1 MPSA92 300V PNP T/A E 2
Q135 C 7448-1 MMBT3904 CHIP NPN L 2
Q136 501972-1 MPSA92 300V PNP T/A K 3
Q137 501972-1 MPSA92 300V PNP T/A K 2
Q138 OPEN G 8
Q140 OPEN G 8
Q141 OPEN D 2
Q142 OPEN J 2
Q802 C 7448-1 MMBT3904 CHIP NPN K 1
Q803 132065-1 MOSFET, P-CH 60V 0.8 OHM 1.17A J 1
R1 OPEN M 8
R2 OPEN M 9
R3 OPEN M 8
R5 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R6 OPEN G 8
R7 OPEN G 8
R8 OPEN G 8
R9 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 I 1
R10 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 1
R11 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 K 1
R12 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 1
R13 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 F 2
R14 OPEN G 3
R15 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 H 1
R16 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R17 A11368-63411 6.34K 0.10W 1% CHIP 0805 I 2
R18 A11368-63411 6.34K 0.10W 1% CHIP 0805 F 3
R19 A11368-15010 RES, 1.5 K OHM 1/16W 1% 0603 A 11
R20 A11368-63411 6.34K 0.10W 1% CHIP 0805 I 2
R21 OPEN G 3
R22 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 I 1
R23 A11371-8205 82 OHM 1W 5% SMD 2512 D 11
R24 A11368-75R03 75 OHM .25W 1% 1210 T/R C 11
R25 A11368-75R03 75 OHM .25W 1% 1210 T/R C 11
R26 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R27 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 C 2
R28 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 C 2
R29 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R30 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 1
R31 A11368-54911 5.49K 0.1W 1% 0805 T/R C 1
R32 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 F 2
R33 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 B 2
R34 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 2
R35 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 I 1
R36 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 2

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 15 OF 30

139087-14 REV. A PWA, XTI1000 600029

R37 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 1
R38 A11368-82500 RES, 825 OHM 1/16W 1% 0603 C 2
R39 A11368-82500 RES, 825 OHM 1/16W 1% 0603 B 1
R40 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R41 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R42 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R43 A11368-47001 470 OHM, 0.10W 1% MF 0805 I 11
R44 A11368-75R03 75 OHM .25W 1% 1210 T/R D 11
R45 A11368-75R03 75 OHM .25W 1% 1210 T/R D 11
R46 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R47 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R48 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R49 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R50 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 E 1
R51 A11368-29421 29.4 KOHM .1W 1% 0805 T/R F 3
R52 A11368-63411 6.34K 0.10W 1% CHIP 0805 F 3
R53 A11368-29421 29.4 KOHM .1W 1% 0805 T/R F 3
R54 A11368-29421 29.4 KOHM .1W 1% 0805 T/R I 2
R55 A11368-29421 29.4 KOHM .1W 1% 0805 T/R I 2
R56 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 F 3
R57 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 I 2
R58 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 F 3
R59 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 I 2
R60 A11368-54911 5.49K 0.1W 1% 0805 T/R E 1
R61 A11371-8205 82 OHM 1W 5% SMD 2512 B 11
R62 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 2
R63 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 2
R64 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R65 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 2
R66 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 1
R67 A11368-82500 RES, 825 OHM 1/16W 1% 0603 E 2
R68 A11368-82500 RES, 825 OHM 1/16W 1% 0603 D 1
R69 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R70 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R71 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R72 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 A 11
R73 A11368-36511 3.65KOHM .1W 1% 0805 T/R H 3
R74 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 1
R75 OPEN B 10
R76 OPEN B 10
R77 OPEN B 10
R78 A11368-11820 RES, 11.8K 1% 1/16W 0603 E 3
R79 A11368-15031 150K 1/10W 1% SMD 0805 T/R E 3
R80 A11368-11820 RES, 11.8K 1% 1/16W 0603 K 3
R81 A11368-15031 150K 1/10W 1% SMD 0805 T/R K 3
R82 OPEN B 8
R83 A11368-1R001 1 OHM .1W 1% 0805 T/R A 9
R84 A11368-30101 301 OHM .1W 1% 0805 T/R M 12
R85 OPEN C 9
R86 OPEN C 9
R87 A11368-1R001 1 OHM .1W 1% 0805 T/R L 12
R88 A11368-24921 24.9K 1/10W 1% SMD 0805 T/R G 3
R89 OPEN K 8
R90 A11368-1R001 1 OHM .1W 1% 0805 T/R L 9
R91 A11368-30101 301 OHM .1W 1% 0805 T/R N 12
R92 A11368-1R001 1 OHM .1W 1% 0805 T/R N 12
R93 OPEN C 9
R94 OPEN B 10
R95 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 I 1

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 16 OF 30

139087-14 REV. A PWA, XTI1000 600029

R96 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 I 1
R97 A11368-20021 20.KOHM .1W 1% CHIP 0805 I 11
R98 OPEN F 11
R99 OPEN G 9
R100 A11368-47001 470 OHM, 0.10W 1% MF 0805 D 2
R101 A11368-47001 470 OHM, 0.10W 1% MF 0805 K 2
R102 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 A 11
R103 A11371-8205 82 OHM 1W 5% SMD 2512 A 2
R104 A11368-47001 470 OHM, 0.10W 1% MF 0805 E 2
R105 A11371-8205 82 OHM 1W 5% SMD 2512 A 3
R106 A11368-30120 RES, 30.1 KOHM 1/16W 1% 0603 G 3
R107 A11368-22101 221OHM 0.1W 1% 0805 T/R F 3
R108 A11368-20021 20.KOHM .1W 1% CHIP 0805 E 3
R109 A11368-22101 221OHM 0.1W 1% 0805 T/R E 2
R110 A11368-22101 221OHM 0.1W 1% 0805 T/R E 3
R111 OPEN F 3
R112 OPEN J 11
R113 A11368-10031 100.KOHM .1W 1% CHIP 0805 G 3
R114 A11368-47001 470 OHM, 0.10W 1% MF 0805 E 2
R115 A11368-20021 20.KOHM .1W 1% CHIP 0805 E 3
R116 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 F 3
R117 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 N 1
R118 A11368-37411 3.74K OHM 1% 0.1W 0805 T/R D 2
R119 OPEN F 3
R120 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 2
R121 A11368-18211 1.82KOHM .1W 1% 0805 T/R B 2
R122 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 2
R123 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 3
R124 A11368-18211 1.82KOHM .1W 1% 0805 T/R B 3
R125 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 3
R126 OPEN F 3
R127 OPEN F 3
R128 OPEN F 3
R129 A11368-47001 470 OHM, 0.10W 1% MF 0805 D 2
R130 OPEN C 2
R131 A11368-10011 1.KOHM .1W 1% CHIP 0805 C 3
R132 A11368-10023 10.0KOHM .25W 1% 1210 T/R C 3
R133 A11368-10023 10.0KOHM .25W 1% 1210 T/R D 3
R134 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 C 3
R135 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 C 3
R136 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 E 3
R137 A11368-10000 RES, 100 OHM 1/16W 1% 0603 E 3
R138 A11368-14311 1.43 KOHM 0.1W 1% 0805 SMT G 3
R139 A11368-27430 RES, 274 KOHM 1/16W 1% 0603 P 1
R140 A11368-30120 RES, 30.1 KOHM 1/16W 1% 0603 I 3
R141 A11368-47001 470 OHM, 0.10W 1% MF 0805 K 2
R142 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 E 3
R143 A11368-51111 5.11KOHM .1W 1% 0805 T/R D 3
R144 133871-1 TRIMPOT, 500 OHM TOP ADJ T/R D 3
R145 OPEN K 10
R146 OPEN K 10
R147 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 C 6
R148 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 C 3
R149 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R D 5
R150 A11368-10003 100 OHM 0.25W 1% 1210 T/R D 5
R151 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 A 6
R152 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 A 5
R153 OPEN B 6
R154 OPEN B 5

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 17 OF 30

139087-14 REV. A PWA, XTI1000 600029

R155 A11368-30101 301 OHM .1W 1% 0805 T/R C 6
R156 A11368-30101 301 OHM .1W 1% 0805 T/R C 5
R157 A11368-30101 301 OHM .1W 1% 0805 T/R E 6
R158 A11368-30101 301 OHM .1W 1% 0805 T/R F 6
R159 A11368-30101 301 OHM .1W 1% 0805 T/R E 5
R160 A11368-30101 301 OHM .1W 1% 0805 T/R F 5
R161 A11368-14311 1.43 KOHM 0.1W 1% 0805 SMT C 2
R162 A11368-10023 10.0KOHM .25W 1% 1210 T/R D 2
R163 A11368-10023 10.0KOHM .25W 1% 1210 T/R C 2
R165 A11371-0R02 0. OHM .125W 5% CHIP RES T/R D 8
R166 A11371-0R02 0. OHM .125W 5% CHIP RES T/R A 8
R167 A11371-0R02 0. OHM .125W 5% CHIP RES T/R M 8
R168 A11371-0R02 0. OHM .125W 5% CHIP RES T/R J 8
R169 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 C 2
R170 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 C 3
R171 A11368-64900 649 OHM 1/16W 1% 0603 T/R B 3
R172 A11368-20031 200K 0.1W 1% SMD CHIP 0805 B 3
R173 A11368-20031 200K 0.1W 1% SMD CHIP 0805 B 3
R174 A11368-49900 RES, 499 OHM 1/16W 1% 0603 B 3
R175 A11368-18211 1.82KOHM .1W 1% 0805 T/R C 3
R176 A11368-19120 RES, 19.1 K OHM 1/16W 1% 0603 I 3
R177 A11368-20520 RES, 20.5 KOHM 1/16W 1% 0603 I 3
R178 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 2
R179 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 D 3
R180 A11368-18211 1.82KOHM .1W 1% 0805 T/R D 3
R181 A11368-24921 24.9K 1/10W 1% SMD 0805 T/R I 3
R182 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 E 3
R183 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 C 2
R184 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R D 3
R185 A11368-28003 280 OHM .25W 1% 1210 T/R C 8
R186 A11368-28003 280 OHM .25W 1% 1210 T/R B 8
R187 A11368-10023 10.0KOHM .25W 1% 1210 T/R F 8
R188 A11368-10011 1.KOHM .1W 1% CHIP 0805 E 8
R189 A11368-18211 1.82KOHM .1W 1% 0805 T/R D 8
R190 A11368-14721 14.7 KOHM .1W 1% 0805 F 8
R191 A11368-10011 1.KOHM .1W 1% CHIP 0805 E 3
R192 A11368-18211 1.82KOHM .1W 1% 0805 T/R A 8
R193 A11368-10023 10.0KOHM .25W 1% 1210 T/R E 3
R194 A11368-20001 200. OHM .1W 1% CHIP 0805 A 6
R195 A11368-20001 200. OHM .1W 1% CHIP 0805 A 5
R196 A11371-8205 82 OHM 1W 5% SMD 2512 C 8
R197 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R B 9
R198 OPEN J 11
R199 OPEN G 3
R200 A11368-10023 10.0KOHM .25W 1% 1210 T/R J 2
R201 139428-1 RES, 1.3K OHM 1% 1W RAD T/R C 8
R202 A11368-10R03 10 OHM 0.25W 1% 1210 T/R D 9
R203 A11368-28711 2.87K .1W 1% 0805 T/R C 8
R204 A11368-10023 10.0KOHM .25W 1% 1210 T/R J 2
R205 139428-1 RES, 1.3K OHM 1% 1W RAD T/R B 8
R206 A11368-10R03 10 OHM 0.25W 1% 1210 T/R A 9
R207 A11368-28711 2.87K .1W 1% 0805 T/R B 8
R208 A11368-22101 221OHM 0.1W 1% 0805 T/R L 3
R209 A11371-1052 1. MOHM .125W 5% CHIP RES T/R G 3
R210 A11368-10041 1M OHM .1W 1% CHIP 0805 H 3
R211 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 3
R212 A11368-36511 3.65KOHM .1W 1% 0805 T/R H 3
R213 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 3
R214 A11368-20021 20.KOHM .1W 1% CHIP 0805 K 3

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 18 OF 30

139087-14 REV. A PWA, XTI1000 600029

R215 A11368-22101 221OHM 0.1W 1% 0805 T/R K 2
R216 A11368-22101 221OHM 0.1W 1% 0805 T/R K 3
R217 OPEN I 2
R218 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R219 A11368-10031 100.KOHM .1W 1% CHIP 0805 I 2
R220 A11368-37401 374 OHM .1W 1% CHIP 0805 C 1
R221 A11368-14721 14.7 KOHM .1W 1% 0805 E 3
R222 OPEN G 9
R223 A11368-20021 20.KOHM .1W 1% CHIP 0805 C 3
R224 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R A 9
R225 A11368-47001 470 OHM, 0.10W 1% MF 0805 K 2
R226 A11368-20021 20.KOHM .1W 1% CHIP 0805 K 3
R227 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 3
R228 A11368-37401 374 OHM .1W 1% CHIP 0805 E 1
R229 A11368-37411 3.74K OHM 1% 0.1W 0805 T/R K 2
R230 OPEN I 2
R231 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 M 2
R232 A11368-18211 1.82KOHM .1W 1% 0805 T/R M 2
R233 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 2
R234 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 3
R235 A11368-18211 1.82KOHM .1W 1% 0805 T/R L 3
R236 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 3
R237 OPEN I 2
R238 OPEN I 2
R239 OPEN I 2
R240 A11368-47001 470 OHM, 0.10W 1% MF 0805 J 2
R241 OPEN J 2
R242 A11368-10011 1.KOHM .1W 1% CHIP 0805 I 3
R243 A11368-10023 10.0KOHM .25W 1% 1210 T/R J 3
R244 A11368-10023 10.0KOHM .25W 1% 1210 T/R J 3
R245 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 J 3
R246 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 J 3
R247 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 K 3
R248 A11368-10000 RES, 100 OHM 1/16W 1% 0603 K 3
R249 A11368-14311 1.43 KOHM 0.1W 1% 0805 SMT I 2
R250 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 K 3
R251 A11368-51111 5.11KOHM .1W 1% 0805 T/R J 3
R252 133871-1 TRIMPOT, 500 OHM TOP ADJ T/R J 3
R253 OPEN K 10
R254 OPEN J 9
R255 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 J 6
R256 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 J 3
R257 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R J 5
R258 A11368-10003 100 OHM 0.25W 1% 1210 T/R J 5
R259 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 G 6
R260 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 G 5
R261 OPEN H 6
R262 OPEN H 5
R263 A11368-30101 301 OHM .1W 1% 0805 T/R I 6
R264 A11368-30101 301 OHM .1W 1% 0805 T/R I 5
R265 A11368-30101 301 OHM .1W 1% 0805 T/R K 6
R266 A11368-30101 301 OHM .1W 1% 0805 T/R L 5
R267 A11368-30101 301 OHM .1W 1% 0805 T/R K 5
R268 A11368-30101 301 OHM .1W 1% 0805 T/R L 5
R269 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX D 8
R270 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX A 8
R271 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX L 8
R272 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX J 8
R273 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX D 3

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 19 OF 30

139087-14 REV. A PWA, XTI1000 600029

R274 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX J 2
R275 OPEN C 1
R276 A11368-14311 1.43 KOHM 0.1W 1% 0805 SMT J 2
R277 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 3
R278 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 3
R279 A11368-64900 649 OHM 1/16W 1% 0603 T/R L 3
R280 A11368-20031 200K 0.1W 1% SMD CHIP 0805 L 3
R281 A11368-20031 200K 0.1W 1% SMD CHIP 0805 M 3
R282 A11368-49900 RES, 499 OHM 1/16W 1% 0603 M 3
R283 A11368-18211 1.82KOHM .1W 1% 0805 T/R M 3
R284 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 M 2
R285 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 J 3
R286 A11368-18211 1.82KOHM .1W 1% 0805 T/R J 3
R287 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 3
R288 OPEN H 1
R289 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 2
R290 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R J 3
R291 A11368-28003 280 OHM .25W 1% 1210 T/R L 8
R292 A11368-28003 280 OHM .25W 1% 1210 T/R K 8
R293 A11368-10023 10.0KOHM .25W 1% 1210 T/R L 8
R294 A11368-10011 1.KOHM .1W 1% CHIP 0805 L 8
R295 A11368-18211 1.82KOHM .1W 1% 0805 T/R M 8
R296 A11368-14721 14.7 KOHM .1W 1% 0805 L 8
R297 A11368-10011 1.KOHM .1W 1% CHIP 0805 L 3
R298 A11368-18211 1.82KOHM .1W 1% 0805 T/R J 8
R299 A11368-10023 10.0KOHM .25W 1% 1210 T/R L 3
R300 A11368-20001 200. OHM .1W 1% CHIP 0805 G 6
R301 A11368-20001 200. OHM .1W 1% CHIP 0805 G 5
R302 A11371-8205 82 OHM 1W 5% SMD 2512 L 8
R303 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R K 9
R304 A11368-37401 374 OHM .1W 1% CHIP 0805 C 1
R305 OPEN G 3
R307 139428-1 RES, 1.3K OHM 1% 1W RAD T/R L 9
R308 A11368-10R03 10 OHM 0.25W 1% 1210 T/R M 9
R309 A11368-28711 2.87K .1W 1% 0805 T/R L 8
R311 139428-1 RES, 1.3K OHM 1% 1W RAD T/R K 8
R312 A11368-10R03 10 OHM 0.25W 1% 1210 T/R J 9
R313 A11368-28711 2.87K .1W 1% 0805 T/R K 8
R314 A11371-1052 1. MOHM .125W 5% CHIP RES T/R G 3
R315 A11368-10041 1M OHM .1W 1% CHIP 0805 H 3
R316 OPEN J 9
R317 OPEN L 11
R318 A11368-37401 374 OHM .1W 1% CHIP 0805 E 1
R319 OPEN B 6
R320 A11368-14721 14.7 KOHM .1W 1% 0805 L 3
R321 OPEN G 9
R322 A11368-20021 20.KOHM .1W 1% CHIP 0805 I 3
R323 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R A 9
R324 A11368-64911 6.49KOHM .1W 1% 0805 T/R H 3
R325 A11368-64911 6.49KOHM .1W 1% 0805 T/R I 3
R326 A11368-12103 121OHM 0.25W 1% 1210 T/R Q 2
R327 OPEN B 6
R328 OPEN B 6
R329 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 Q 2
R330 A11368-12103 121OHM 0.25W 1% 1210 T/R Q 1
R331 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 Q 2
R332 A11368-35720 RES, 35.7K OHM 1% 1/16W 0603 Q 3
R333 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 Q 1
R334 A11368-47510 RES, 4.75 KOHM 1/16W 1% 0603 M 3

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 20 OF 30

139087-14 REV. A PWA, XTI1000 600029

R335 A11368-35700 RES, 357 OHM 1/16W 1% 0603 M 3
R336 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 M 3
R337 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 N 7
R338 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 K 1
R339 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 K 1
R340 A11368-22120 RES, 22.1 KOHM 1% 1/16W 0603 K 1
R341 A11368-22120 RES, 22.1 KOHM 1% 1/16W 0603 K 1
R342 A11368-10000 RES, 100 OHM 1/16W 1% 0603 K 2
R343 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R344 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R345 A11368-49923 49.9KOHM .25W 1% CHIP 1210 Q 8
R346 A11368-49923 49.9KOHM .25W 1% CHIP 1210 P 8
R347 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 N 1
R348 A11368-10R01 10 OHM .1W 1% 0805 T/R N 1
R349 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 N 2
R350 A11368-10R01 10 OHM .1W 1% 0805 T/R N 2
R351 A11371-8205 82 OHM 1W 5% SMD 2512 C 8
R352 A11371-8205 82 OHM 1W 5% SMD 2512 L 8
R353 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R354 OPEN G 8
R355 A11371-5R65 5.6 OHM 1W 5% 2512 T/R A 11
R356 OPEN G 10
R357 OPEN K 10
R358 OPEN J 9
R359 OPEN G 8
R360 OPEN G 8
R361 OPEN C 9
R362 OPEN G 9
R363 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 Q 2
R364 OPEN B 7
R365 OPEN B 7
R366 OPEN B 7
R367 A11368-36511 3.65KOHM .1W 1% 0805 T/R N 1
R368 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 N 1
R369 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 N 1
R370 133483-1 48.7 KOHM 1W 1% RAD T/A O 1
R371 133483-1 48.7 KOHM 1W 1% RAD T/A O 2
R372 133483-1 48.7 KOHM 1W 1% RAD T/A O 2
R373 133483-1 48.7 KOHM 1W 1% RAD T/A O 1
R374 133483-1 48.7 KOHM 1W 1% RAD T/A O 2
R375 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 O 1
R376 133483-1 48.7 KOHM 1W 1% RAD T/A P 3
R377 A11368-20030 RES, 200 KOHM 1/16W 1% 0603 P 1
R378 133483-1 48.7 KOHM 1W 1% RAD T/A O 1
R379 A11368-20030 RES, 200 KOHM 1/16W 1% 0603 P 1
R380 A11368-68120 RES, 68.1 KOHM 1/16W 1% 0603 O 1
R381 A11368-15031 150K 1/10W 1% SMD 0805 T/R O 1
R382 OPEN J 9
R383 OPEN J 9
R384 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R385 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R386 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R387 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R388 OPEN K 10
R389 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 K 2
R390 A11368-42200 RES, 422 OHM 1/16W 1% 0603 I 11
R391 OPEN C 9
R392 OPEN C 10
R393 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 11

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 21 OF 30

139087-14 REV. A PWA, XTI1000 600029

R394 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 11
R395 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 H 11
R396 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 H 11
R397 OPEN C 10
R398 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 O 1
R399 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R400 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R401 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 O 1
R402 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 O 1
R403 OPEN B 10
R404 OPEN C 10
R405 OPEN C 10
R406 A11371-2250 RES, 2.2 MOHM 1/16W 5% 0603 P 1
R407 A11371-2250 RES, 2.2 MOHM 1/16W 5% 0603 P 1
R408 OPEN C 10
R409 OPEN C 9
R410 OPEN C 8
R411 OPEN G 8
R412 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX D 8
R413 OPEN G 10
R414 OPEN C 10
R415 OPEN D 9
R416 OPEN D 9
R417 OPEN D 9
R418 OPEN D 9
R419 OPEN L 10
R420 OPEN L 10
R421 OPEN C 10
R422 OPEN L 10
R423 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R424 OPEN H 1
R425 133483-1 48.7 KOHM 1W 1% RAD T/A O 5
R426 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 11
R427 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 F 11
R428 OPEN B 7
R429 OPEN B 8
R430 OPEN B 8
R431 OPEN B 7
R432 OPEN B 7
R433 OPEN B 7
R434 OPEN B 7
R435 OPEN B 6
R436 OPEN B 6
R437 OPEN B 6
R438 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 6
R439 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 6
R440 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 6
R441 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R442 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R443 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R444 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R445 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 8
R446 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 8
R447 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R448 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R449 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R450 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R451 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R452 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 22 OF 30

139087-14 REV. A PWA, XTI1000 600029

R453 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R454 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R455 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R456 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R457 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R458 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R459 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R460 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R461 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 8
R462 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 8
R463 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R464 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R465 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R466 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R467 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R468 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R469 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R470 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R471 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R472 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R473 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R474 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R475 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R476 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R477 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R478 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R479 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R480 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R481 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R482 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R483 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R484 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R485 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R486 OPEN B 4
R487 OPEN B 4
R488 OPEN B 4
R489 OPEN B 4
R490 OPEN B 5
R491 OPEN B 5
R492 OPEN B 5
R493 OPEN B 5
R494 OPEN B 5
R495 OPEN B 5
R496 OPEN B 5
R497 OPEN B 5
R498 OPEN B 4
R499 OPEN B 4
R500 OPEN B 4
R501 OPEN B 4
R502 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R503 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R504 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R505 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R506 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R507 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R508 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R509 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R510 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R511 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 23 OF 30

139087-14 REV. A PWA, XTI1000 600029

R512 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R513 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R514 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R515 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R516 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R517 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R518 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R519 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R520 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R521 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R522 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R523 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R524 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R525 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R526 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R527 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R528 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R529 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 5
R530 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R531 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R532 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R533 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 4
R534 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R535 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R536 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R537 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R538 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R539 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R540 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R541 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R542 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R543 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R544 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R545 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 5
R546 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R547 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R548 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R549 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 4
R550 OPEN H 6
R551 OPEN H 6
R552 OPEN H 6
R553 OPEN H 7
R554 OPEN H 7
R555 OPEN H 7
R556 OPEN H 7
R557 OPEN H 8
R558 OPEN H 7
R559 OPEN H 7
R560 OPEN H 7
R561 OPEN H 7
R562 OPEN H 7
R563 OPEN H 6
R564 OPEN H 6
R565 OPEN H 6
R566 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 6
R567 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 6
R568 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 6
R569 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R570 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 24 OF 30

139087-14 REV. A PWA, XTI1000 600029

R571 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R572 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R573 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 8
R574 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 8
R575 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R576 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R577 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R578 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 7
R579 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 6
R580 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 6
R581 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 6
R582 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 6
R583 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 6
R584 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 6
R585 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R586 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R587 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R588 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R589 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 8
R590 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 8
R591 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R592 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R593 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R594 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 7
R595 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 6
R596 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 6
R597 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 6
R598 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 6
R599 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 6
R600 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 6
R601 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 6
R602 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 7
R603 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 7
R604 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 7
R605 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 7
R606 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 7
R607 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 7
R608 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 7
R609 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 6
R610 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 7
R611 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 6
R612 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 6
R613 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 6
R614 OPEN H 4
R615 OPEN H 4
R616 OPEN H 4
R617 OPEN H 4
R618 OPEN H 5
R619 OPEN H 5
R620 OPEN H 5
R621 OPEN H 5
R622 OPEN H 5
R623 OPEN H 5
R624 OPEN H 5
R625 OPEN H 5
R626 OPEN H 4
R627 OPEN H 4
R628 OPEN H 4
R629 OPEN H 4

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 25 OF 30

139087-14 REV. A PWA, XTI1000 600029

R630 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R631 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R632 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R633 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R634 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R635 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R636 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R637 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R638 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R639 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R640 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R641 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 5
R642 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R643 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R644 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R645 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R I 4
R646 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R647 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R648 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R649 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R650 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R651 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R652 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R653 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R654 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R655 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R656 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R657 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 4
R658 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R659 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R660 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R661 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R K 5
R662 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 5
R663 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 5
R664 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 5
R665 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 5
R666 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 4
R667 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 4
R668 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 4
R669 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R M 4
R670 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 4
R671 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 4
R672 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 4
R673 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 4
R674 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 5
R675 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 5
R676 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 5
R677 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R L 5
R678 A11368-10043 1.MOHM .25W 1% CHIP 1210 P 1
R679 A11368-10043 1.MOHM .25W 1% CHIP 1210 P 1
R680 A11368-10041 1M OHM .1W 1% CHIP 0805 P 1
R681 A11368-10003 100 OHM 0.25W 1% 1210 T/R Q 5
R684 OPEN C 9
R685 A11368-15000 RES, 150 OHM 1% 1/16W 0603 N 1
R686 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 3
R687 A11368-13331 133.KOHM .1W 1% CHIP 0805 G 3
R688 A11368-13331 133.KOHM .1W 1% CHIP 0805 I 3
R689 A11368-51111 5.11KOHM .1W 1% 0805 T/R I 3
R690 A11368-30120 RES, 30.1 KOHM 1/16W 1% 0603 I 3

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 26 OF 30

139087-14 REV. A PWA, XTI1000 600029

R691 A11368-30120 RES, 30.1 KOHM 1/16W 1% 0603 H 3
R692 A11368-19120 RES, 19.1 K OHM 1/16W 1% 0603 I 3
R693 A11368-20520 RES, 20.5 KOHM 1/16W 1% 0603 I 3
R694 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 3
R695 A11368-13331 133.KOHM .1W 1% CHIP 0805 I 3
R696 A11368-13331 133.KOHM .1W 1% CHIP 0805 G 2
R697 A11368-51111 5.11KOHM .1W 1% 0805 T/R I 3
R698 OPEN B 10
R699 OPEN B 10
R700 OPEN G 8
R701 OPEN B 10
R702 OPEN K 10
R703 OPEN K 10
R704 OPEN B 10
R705 OPEN J 9
R706 OPEN J 9
R707 OPEN C 9
R708 OPEN C 9
R709 OPEN L 10
R710 OPEN C 10
R711 OPEN C 9
R712 OPEN D 9
R713 OPEN K 9
R714 OPEN C 10
R715 OPEN L 10
R716 OPEN D 9
R717 OPEN K 9
R718 OPEN K 9
R719 OPEN G 9
R720 OPEN K 9
R721 OPEN K 9
R722 OPEN L 10
R723 OPEN K 9
R724 OPEN L 10
R726 OPEN K 9
R728 OPEN L 10
R729 OPEN G 10
R730 OPEN K 9
R731 OPEN G 9
R732 OPEN G 10
R733 OPEN K 11
R734 OPEN B 10
R735 OPEN C 9
R736 OPEN K 10
R737 OPEN J 9
R738 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 H 3
R739 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 H 3
R740 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 H 3
R741 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 H 3
R742 OPEN B 10
R743 OPEN C 9
R744 OPEN A 6
R745 OPEN B 5
R746 OPEN H 6
R747 OPEN I 5
R748 OPEN K 10
R749 OPEN J 9
R750 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX A 8
R751 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 F 11

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 27 OF 30

139087-14 REV. A PWA, XTI1000 600029

R752 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 I 11
R753 OPEN D 9
R754 OPEN D 9
R755 A11368-21510 RES, 2.15 KOHM 1/16W 1% 0603 M 3
R756 OPEN L 10
R757 OPEN L 10
R759 OPEN K 9
R760 OPEN K 9
R762 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R K 9
R763 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R K 8
R764 A11368-28701 287 OHM .1W 1% CHIP 0805 H 3
R765 A11368-28701 287 OHM .1W 1% CHIP 0805 H 3
R766 OPEN B 6
R767 A11368-12721 12.7K 0.1W 1% 0805 T/R C 5
R768 OPEN B 5
R769 A11368-12721 12.7K 0.1W 1% 0805 T/R C 3
R770 OPEN H 6
R771 A11368-12721 12.7K 0.1W 1% 0805 T/R I 5
R772 OPEN H 5
R773 A11368-12721 12.7K 0.1W 1% 0805 T/R I 3
R774 A11368-60420 RES, 60.4K OHM 1/16W 1% 0603 D 2
R775 A11368-60420 RES, 60.4K OHM 1/16W 1% 0603 K 2
R776 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX C 2
R777 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX E 3
R778 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX I 2
R779 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX K 3
R782 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R C 5
R783 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R C 3
R784 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R I 5
R785 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R I 3
R786 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 2
R787 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 L 2
R788 A11368-28003 280 OHM .25W 1% 1210 T/R C 8
R789 A11368-28003 280 OHM .25W 1% 1210 T/R B 8
R790 A11368-28003 280 OHM .25W 1% 1210 T/R L 8
R791 A11368-28003 280 OHM .25W 1% 1210 T/R K 8
R796 OPEN L 10
R797 OPEN K 9
R798 OPEN D 8
R799 OPEN B 8
R800 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX L 8
R801 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX J 8
R802 OPEN M 8
R803 OPEN J 8
R804 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX B 6
R805 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX C 5
R806 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX I 6
R807 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX I 5
R808 OPEN L 8
R809 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 J 2
R810 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 J 2
R811 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 K 1
R812 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 J 2
R813 A11368-24920 RES, 24.9 KOHM 1/16W 1% 0603 J 2
R814 A11368-40220 RES,40.2KOHM .0625W 1% 0603T/R J 2
R815 A11368-29421 29.4 KOHM .1W 1% 0805 T/R J 1
R816 A11368-20003 RES, 200 OHM 1% 0.25W 1210 T/R J 1
R817 A11368-20003 RES, 200 OHM 1% 0.25W 1210 T/R J 1
R818 OPEN C 9

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 28 OF 30

139087-14 REV. A PWA, XTI1000 600029

R819 OPEN M 9
R820 OPEN B 10
R821 OPEN L 9
R822 OPEN A 10
R823 OPEN L 9
R824 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 N 1
R825 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R900 OPEN A 3
R901 A11368-10041 1M OHM .1W 1% CHIP 0805 F 1
R902 A11368-10000 RES, 100 OHM 1/16W 1% 0603 F 1
R903 A11368-10000 RES, 100 OHM 1/16W 1% 0603 F 2
R904 A11368-49923 49.9KOHM .25W 1% CHIP 1210 P 8
R905 A11368-49923 49.9KOHM .25W 1% CHIP 1210 P 8
R906 A11371-8205 82 OHM 1W 5% SMD 2512 A 2
R907 OPEN A 2
R908 OPEN A 2
R918 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 G 1
R919 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 G 1
R920 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 G 2
R925 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 G 2
R926 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 G 1
R927 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 G 2
R928 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 I 1
R929 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 I 2
R931 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 F 2
R938 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 G 1
R939 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 G 1
R990 A11368-47001 470 OHM, 0.10W 1% MF 0805 F 1
R993 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 F 2
R999 A11368-10011 1.KOHM .1W 1% CHIP 0805 I 12
RT1 139113-1 THERMISTOR, 22K 0805 SMT D 7
RT2 139113-1 THERMISTOR, 22K 0805 SMT D 4
RT3 138357-1 PRP, 101103-1 PTC .155 L 2
RT3X C 8982-8 TO-220 XSISTOR HOLDER, PLASTIC L 2
RT4 139113-1 THERMISTOR, 22K 0805 SMT J 7
RT5 139113-1 THERMISTOR, 22K 0805 SMT J 4
RT6 138357-1 PRP, 101103-1 PTC .155 P 3
RT6X C 8982-8 TO-220 XSISTOR HOLDER, PLASTIC P 3
S7 132498-1 SWITCH, DPST PUSHBUTTON VDECSA P 1
T1 138538-1 XFMR, E55 11:5:2 125kHz O 6
TB1 OPEN F 12
TP1 OPEN H 1
TP2 127064-1 TEST POINT, SMT 1206 L 11
TP3 OPEN I 1
TP4 OPEN I 1
TP5 OPEN H 1
TP11 OPEN I 1
TP12 OPEN H 1
TP13 OPEN H 1
TP14 OPEN H 1
TP15 OPEN I 1
TP16 OPEN H 1
TP17 OPEN H 2
TP18 OPEN H 2
TP19 OPEN H 1
TP20 OPEN A 11
TP21 127064-1 TEST POINT, SMT 1206 P 5
TP22 127064-1 TEST POINT, SMT 1206 M 3
TP26 127064-1 TEST POINT, SMT 1206 M 9

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 29 OF 30

139087-14 REV. A PWA, XTI1000 600029

TP27 127064-1 TEST POINT, SMT 1206 L 11
TP28 127064-1 TEST POINT, SMT 1206 O 2
TP29 127064-1 TEST POINT, SMT 1206 P 1
TP30 127064-1 TEST POINT, SMT 1206 M 1
TP31 127064-1 TEST POINT, SMT 1206 P 1
U1 139301-3 IC, MCU LPC2142 (PROGRAMMED) H 1
U2 138251-1 IC, CS4272 24 BIT 192KHZ CODEC F 2
U3 138411-1 XSISTOR, STT818B LV PWR PNP G 2
U4 OPEN L 1
U4X 139969-1 OPTO, SMD IEC60065 COMPLIANT L 1
U5 C 8262-5 MC33078D LOW NOISE DUAL OP AMP D 1
U6 126561-1 REG, +5V LOW POWER SO-8 F 1
U7 139522-1 IC, INVERTER DUAL UNBUFF NL27WZU04 F 1
U8 C 8262-5 MC33078D LOW NOISE DUAL OP AMP C 1
U10 C 8262-5 MC33078D LOW NOISE DUAL OP AMP F 3
U11 C 8262-5 MC33078D LOW NOISE DUAL OP AMP E 1
U12 C 8262-5 MC33078D LOW NOISE DUAL OP AMP D 1
U13 102484-1 REG +15V D2PAK 2.25W A 1
U14 138341-1 IC, TL494 PWM CTRL SO-16 N 1
U15 139908-1 IC, M45PE20 256KX8 FLASH XTI(PROGRAMMED) G 1
U16 126559-1 COMPARATOR, LM393 SO-8 DUAL P 1
U17 133552-1 OP AMP, LM358 LOW PWR DUAL S08 K 1
U18 138908-1 DRVR, 600V HB FAN7380MX N 2
U19 C 8262-5 MC33078D LOW NOISE DUAL OP AMP I 2
U20 102485-1 REG -15V D2PAK 2.25W A 3
U22 OPEN B 10
U23 OPEN C 10
U24 OPEN C 9
U25 OPEN K 10
U26 OPEN G 9
U27 OPEN L 10
U28 OPEN J 9
U29 OPEN G 9
U32 OPEN D 9
U33 OPEN K 9
U101 133552-1 OP AMP, LM358 LOW PWR DUAL S08 B 3
U102 138475-1 IC, LM75 DIGITAL THERM SENSOR D 6
U103 C 9038-8 COMPARATOR, QUAD LM339D SO-14 H 3
U104 133552-1 OP AMP, LM358 LOW PWR DUAL S08 M 3
U105 138475-1 IC, LM75 DIGITAL THERM SENSOR J 6
U106 138475-1 IC, LM75 DIGITAL THERM SENSOR M 5
U801 138341-1 IC, TL494 PWM CTRL SO-16 J 1
U911 137548-1 IC, 28-BIT PROCESSOR AD1940 G 2
W1 OPEN J 11
W2 OPEN K 11
W3 OPEN K 11
W4 OPEN L 11
Y1 132014-1 XTAL, 16MHZ 20PF LOAD SMT H 1
Y901 137778-1 OSC, 12.288MHZ G 1

XTi1000 BOM 139087-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 30 OF 30

Section 2.2

XTi1000 Schematic 139087-14

Section 2.3

XTi2000 BOM PWA 139086-14

139086-14 REV. A PWA, XTI2000 600029

D

REVISION HISTORY

E.C.N REV DATE DWN PE CM

DESCRIPTION

INITIAL RELEASE DERIVED FROM 139086-14 REV 1 WITH THE

A

FOLLOWING CHANGE: HS13B, HS13C, HS13D, HS14E, HS14F,

12/05/07 KLW

TJS DSV

HS14G, AND HS14H WERE 139310-1.

UNLESS OTHERWISE SPECIFIED, THIS PRINTED WIRING ASSEMBLY SHALL MEET
THE SPECIFICATION DESCRIBED IN IPC-A-610_ CLASS 2 STANDARDS.

ROHS COMPLIANCE: THIS PART MUST COMPLY WITH CROWN AUDIO SPECIFICATION 138935
AND ROHS DIRECTIVE 2002/95/EC OR BE DEFINED AS A ROHS APPROVED EXCEPTION.

NOTES:

1. PRINTED WIRING BOARD PART NUMBER 138348-9.

2. SEE 139086-14_A.TIF FOR SCHEMATIC AND BOARD MAP

3. ALL LEADS SHALL BE TRIMMED TO 0.093" OR LESS.

4. POSITION COMPONENTS AS SHOWN ON COMPONENT MAP.

5. THE PRINTED WIRING ASSEMBLY PART NUMBER FOR THIS ASSEMBLY SHALL
BE MARKED ON THE PRINTED WIRING BOARD AND SHALL BE PERMANENT.

6. DO NOT PICK-UP THE PWA ASSEMBLY BY THE HEATSINK ASSEMBLIES

7. INSURE RETAINERS 139421-3 ARE FULLY INSERTED INTO THE POWER SUPPLY HEATSINKS.

8. INSURE RETAINERS ON THE POWER SUPPLY HEATSINK ASSEMBLIES
ARE FULLY INSERTED INTO THE PWB WHEN INSTALLING
NOTE: IF RETAINER CLIP 139421-3 BREAKS AFTER SOLDERING REPAIR AS FOLLOWS:

- REMOVE BROKEN CLIP FROM THE HEATSINK AND PWB

- APPLY SILICONE S 5700-0 INTO THE PWB SLOT AND GROOVE OF THE HEATSINK

- DO NOT ATTEMPT TO REMOVE THE HEATSINK ASSEMBLY FROM THE BOAR

9. OUTPUT TRANSISTOR SCREWS ARE TORQUED TO 20-22 IN LBS.

10. 139360-1 IS CONSUMED IN HEATSINK ASSEMBLIES HS1, HS5 AND HS13.

11. USE SIDE CUTTERS TO SEVER THE BOARD TABS OF THE BREAKOUT BOARD,
SEE COMPONENT MAP.

12. ADD 139901-1 SPACER HW3 AND HW4, BETWEEN HEATSINKS HS14 AND HS5, AND HS13 AND
HS6 RESPECTIVELY

UNLESS OTHERWISE MARKED IN RED INK BY CM AS A CONTROLLED COP Y, COPIES OF THESE DOCUMENTS
INCLUDING ASSOCIATED ELECTRONIC REPRODUCTIONS ARE FOR REFERENCE ONLY

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF CROWN INTERNATIONAL, INC. AND SHALL NOT BE
REPRODUCED, COPIED, OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES
WITHOUT PERMISSION.

UNCONTROLLED

DWN KLW 12/05/07 PE TJS 12/05/07 CM DSV 12/10/07 DIST. K

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 1 OF 30

139086-14 REV. A PWA, XTI2000 600029

REF. DES. CPN DESCRIPTION MAP LOC.

C1 102438-220J2 22PF 200V 5% NPO 0805 T/R H 1
C2 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C3 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A O 9
C4 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 11
C5 A11369-821K2 820PF 50V 10% NPO MLC 0805 B 11
C6 A11369-821K2 820PF 50V 10% NPO MLC 0805 C 11
C7 A11369-820K1 82PF 50V 10% NPO MLC 0603 D 2
C8 A11369-820K1 82PF 50V 10% NPO MLC 0603 C 2
C9 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 1
C10 135505-1 CAP, 0.1UF 25V 10% X7R 0603 C 2
C11 135505-1 CAP, 0.1UF 25V 10% X7R 0603 C 1
C12 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 2
C13 C 9157-6 100UF 16V 20% NP ELEC RAD T/R C 1
C14 126623-1 47UF 16V 6.3X5.5MM 20% SMT C 1
C15 A11369-330J1 CAP, 33PF 50V NPO 5% 0603 C 1
C16 102438-101J2 100PF 200V 5% NPO 0805 T/R C 2
C17 OPEN P 4
C18 102438-101J2 100PF 200V 5% NPO 0805 T/R C 1
C19 126623-1 47UF 16V 6.3X5.5MM 20% SMT C 2
C20 126623-1 47UF 16V 6.3X5.5MM 20% SMT B 1
C21 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R M 9
C22 A11369-821K2 820PF 50V 10% NPO MLC 0805 D 11
C23 A11369-821K2 820PF 50V 10% NPO MLC 0805 D 11
C24 A11369-820K1 82PF 50V 10% NPO MLC 0603 E 2
C25 A11369-820K1 82PF 50V 10% NPO MLC 0603 E 2
C26 C 9157-6 100UF 16V 20% NP ELEC RAD T/R D 1
C27 126623-1 47UF 16V 6.3X5.5MM 20% SMT E 1
C28 A11369-330J1 CAP, 33PF 50V NPO 5% 0603 E 1
C29 102438-101J2 100PF 200V 5% NPO 0805 T/R D 2
C30 102438-470J2 47PF 200V 5% NPO 0805 K 1
C31 102438-101J2 100PF 200V 5% NPO 0805 T/R D 1
C32 126623-1 47UF 16V 6.3X5.5MM 20% SMT D 2
C33 126623-1 47UF 16V 6.3X5.5MM 20% SMT D 1
C34 135505-1 CAP, 0.1UF 25V 10% X7R 0603 E 1
C35 135505-1 CAP, 0.1UF 25V 10% X7R 0603 E 2
C36 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 1
C37 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 2
C38 A11369-182J2 CAP, 1800P NPO 5% 50V 0805 B 1
C39 A11369-182J2 CAP, 1800P NPO 5% 50V 0805 D 1
C40 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R M 8
C41 OPEN F 12
C42 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R M 8
C43 133569-1 CAP,10,000UF 35VDC PC MNT ELECT N 8
C44 133569-1 CAP,10,000UF 35VDC PC MNT ELECT N 11
C45 OPEN O 8
C46 OPEN N 10
C47 133323-1 CAP, 3800UF 125V ALUM ELECT N 9
C48 133323-1 CAP, 3800UF 125V ALUM ELECT M 10
C49 137030-1 CAP, 1UF X2 REDUCED SIZE P 11
C50 137030-1 CAP, 1UF X2 REDUCED SIZE Q 11
C51 137030-1 CAP, 1UF X2 REDUCED SIZE P 9
C52 137030-1 CAP, 1UF X2 REDUCED SIZE Q 9
C53 137455-1 CAP, 4700 PF 10% FILM Y2 Q 8
C54 137455-1 CAP, 4700 PF 10% FILM Y2 O 8
C55 OPEN Q 8
C56 OPEN O 8

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 2 OF 30

139086-14 REV. A PWA, XTI2000 600029

C57 134163-1 CAP, 2700UF 20% 200V ELECT N 3
C58 134163-1 CAP, 2700UF 20% 200V ELECT N 4
C59 131310-2 CAP,1200UF 200VDC PC MNT ELECT P 2
C60 131310-2 CAP,1200UF 200VDC PC MNT ELECT P 4
C61 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R P 1
C62 102438-220J2 22PF 200V 5% NPO 0805 T/R G 1
C63 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C64 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C65 139705-1 CAP, 0.33UF 50V 5% X7R 1206 B 8
C66 139719-1 CAP, 1.0UF 25V X7R 10% 0805 B 10
C67 139705-1 CAP, 0.33UF 50V 5% X7R 1206 A 1
C68 139004-1 CAP, 0.33UF 630V POLYPROP Q 5
C69 A11369-102F2 1000PF 50V 1% CHIP CAP N 1
C70 139719-1 CAP, 1.0UF 25V X7R 10% 0805 B 10
C71 A11369-471F2 470.PF 50V 1% NPO MLC 0805 B 10
C72 A11369-102F2 1000PF 50V 1% CHIP CAP I 2
C73 133187-1 CAP,220PF 500V 10% CER DISK TR N 7
C74 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 C 1
C75 126539-1 10UF 16V 5.5MM HIGH SMD K 1
C76 C 4477-3 470 UF 35V VERT I 11
C77 139705-1 CAP, 0.33UF 50V 5% X7R 1206 B 3
C78 135505-1 CAP, 0.1UF 25V 10% X7R 0603 A 1
C79 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 3
C80 139719-1 CAP, 1.0UF 25V X7R 10% 0805 C 9
C81 139719-1 CAP, 1.0UF 25V X7R 10% 0805 C 9
C82 A11369-471F2 470.PF 50V 1% NPO MLC 0805 C 9
C83 138882-1 CAP, 160VDC 1.0UF POLYPROP E 10
C84 138882-1 CAP, 160VDC 1.0UF POLYPROP E 9
C85 139705-1 CAP, 0.33UF 50V 5% X7R 1206 K 8
C86 138882-1 CAP, 160VDC 1.0UF POLYPROP E 9
C87 138882-1 CAP, 160VDC 1.0UF POLYPROP E 10
C88 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R D 1
C89 138882-1 CAP, 160VDC 1.0UF POLYPROP E 8
C90 102438-220J2 22PF 200V 5% NPO 0805 T/R A 11
C91 102438-220J2 22PF 200V 5% NPO 0805 T/R A 11
C92 138882-1 CAP, 160VDC 1.0UF POLYPROP E 8
C93 102438-101J2 100PF 200V 5% NPO 0805 T/R B 10
C94 102438-101J2 100PF 200V 5% NPO 0805 T/R K 10
C95 139719-1 CAP, 1.0UF 25V X7R 10% 0805 K 10
C96 A11369-102F2 1000PF 50V 1% CHIP CAP I 2
C97 139719-1 CAP, 1.0UF 25V X7R 10% 0805 K 10
C98 A11369-102F2 1000PF 50V 1% CHIP CAP F 3
C99 A11369-471F2 470.PF 50V 1% NPO MLC 0805 K 10
C100 139719-1 CAP, 1.0UF 25V X7R 10% 0805 J 9
C101 139719-1 CAP, 1.0UF 25V X7R 10% 0805 J 9
C102 126539-1 10UF 16V 5.5MM HIGH SMD E 2
C103 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 G 3
C104 C 9157-6 100UF 16V 20% NP ELEC RAD T/R C 2
C105 103429-472K5 .0047UF 250V 10% X7R 1206 T/R D 3
C106 102438-470J2 47PF 200V 5% NPO 0805 G 3
C107 102438-100J2 10PF 200V 5% NPO 0805 C 3
C108 102438-101J2 100PF 200V 5% NPO 0805 T/R C 3
C109 139719-1 CAP, 1.0UF 25V X7R 10% 0805 D 3
C110 OPEN D 3
C111 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A C 3
C112 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A E 3
C113 139705-1 CAP, 0.33UF 50V 5% X7R 1206 G 3
C114 103429-472K5 .0047UF 250V 10% X7R 1206 T/R D 5
C115 126623-1 47UF 16V 6.3X5.5MM 20% SMT A 6

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 3 OF 30

139086-14 REV. A PWA, XTI2000 600029

C116 126623-1 47UF 16V 6.3X5.5MM 20% SMT A 5
C117 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 B 6
C118 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 C 5
C119 126539-1 10UF 16V 5.5MM HIGH SMD C 2
C120 126539-1 10UF 16V 5.5MM HIGH SMD C 3
C121 126539-1 10UF 16V 5.5MM HIGH SMD B 2
C122 A10434-473JD .047UF 250VDC 5% MET POLY T/A B 9
C123 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 3
C124 C 9157-6 100UF 16V 20% NP ELEC RAD T/R G 3
C125 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 D 8
C126 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 B 8
C127 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 C 8
C128 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 A 8
C129 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C130 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 B 2
C131 A11369-152J2 1500PF 50V 5% NPO MLC 0805 T/R B 2
C132 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C133 102438-470J2 47PF 200V 5% NPO 0805 C 3
C134 A10434-472JD .0047UF 250VDC 5% MET POLY T/A M 11
C135 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 6
C136 135505-1 CAP, 0.1UF 25V 10% X7R 0603 J 6
C137 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 3
C138 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 3
C139 126539-1 10UF 16V 5.5MM HIGH SMD L 2
C140 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 I 2
C141 C 9157-6 100UF 16V 20% NP ELEC RAD T/R J 2
C142 A11369-102F2 1000PF 50V 1% CHIP CAP F 3
C143 102438-470J2 47PF 200V 5% NPO 0805 F 3
C144 103429-472K5 .0047UF 250V 10% X7R 1206 T/R J 3
C145 102438-470J2 47PF 200V 5% NPO 0805 I 2
C146 102438-100J2 10PF 200V 5% NPO 0805 I 3
C147 102438-101J2 100PF 200V 5% NPO 0805 T/R I 3
C148 139719-1 CAP, 1.0UF 25V X7R 10% 0805 J 3
C149 OPEN K 3
C150 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A K 3
C151 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A I 3
C152 139705-1 CAP, 0.33UF 50V 5% X7R 1206 G 3
C153 103429-472K5 .0047UF 250V 10% X7R 1206 T/R J 5
C154 126623-1 47UF 16V 6.3X5.5MM 20% SMT G 6
C155 126623-1 47UF 16V 6.3X5.5MM 20% SMT G 5
C156 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 I 6
C157 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 I 5
C158 126539-1 10UF 16V 5.5MM HIGH SMD L 3
C159 126539-1 10UF 16V 5.5MM HIGH SMD L 3
C160 126539-1 10UF 16V 5.5MM HIGH SMD L 2
C161 A10434-473JD .047UF 250VDC 5% MET POLY T/A K 8
C162 135505-1 CAP, 0.1UF 25V 10% X7R 0603 M 2
C163 C 9157-6 100UF 16V 20% NP ELEC RAD T/R J 2
C164 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 M 8
C165 A11369-680J2 CAP, 68PF 5% 50V SMT 0805 J 8
C166 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 L 8
C167 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 J 8
C168 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C169 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 L 2
C170 A11369-152J2 1500PF 50V 5% NPO MLC 0805 T/R L 2
C171 102438-470J2 47PF 200V 5% NPO 0805 I 3
C172 A10434-472JD .0047UF 250VDC 5% MET POLY T/A N 11
C173 A11369-471F2 470.PF 50V 1% NPO MLC 0805 B 10
C174 A11369-102F2 1000PF 50V 1% CHIP CAP B 10

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 4 OF 30

139086-14 REV. A PWA, XTI2000 600029

C175 102438-470J2 47PF 200V 5% NPO 0805 I 2
C176 135505-1 CAP, 0.1UF 25V 10% X7R 0603 M 5
C177 A11369-471F2 470.PF 50V 1% NPO MLC 0805 J 9
C178 138882-1 CAP, 160VDC 1.0UF POLYPROP I 10
C179 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 7
C180 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C181 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C182 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 2
C183 131015-1 220UF 35V 20% RAD ELECT T/A L 9
C184 138882-1 CAP, 160VDC 1.0UF POLYPROP I 8
C185 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C186 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C187 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 1
C188 135505-1 CAP, 0.1UF 25V 10% X7R 0603 O 2
C189 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 2
C190 139719-1 CAP, 1.0UF 25V X7R 10% 0805 G 9
C191 A11369-471F2 470.PF 50V 1% NPO MLC 0805 C 9
C192 139719-1 CAP, 1.0UF 25V X7R 10% 0805 G 10
C193 138882-1 CAP, 160VDC 1.0UF POLYPROP I 9
C194 135505-1 CAP, 0.1UF 25V 10% X7R 0603 P 1
C195 135505-1 CAP, 0.1UF 25V 10% X7R 0603 O 1
C196 131015-1 220UF 35V 20% RAD ELECT T/A P 1
C197 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 1
C198 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 2
C199 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 2
C200 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 2
C201 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 1
C202 138882-1 CAP, 160VDC 1.0UF POLYPROP I 10
C203 135505-1 CAP, 0.1UF 25V 10% X7R 0603 E 3
C204 138882-1 CAP, 160VDC 1.0UF POLYPROP I 9
C205 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 3
C206 135505-1 CAP, 0.1UF 25V 10% X7R 0603 P 1
C207 138882-1 CAP, 160VDC 1.0UF POLYPROP I 8
C208 102438-101J2 100PF 200V 5% NPO 0805 T/R J 9
C209 102438-101J2 100PF 200V 5% NPO 0805 T/R C 9
C210 139719-1 CAP, 1.0UF 25V X7R 10% 0805 G 9
C211 A11369-102F2 1000PF 50V 1% CHIP CAP C 9
C212 139719-1 CAP, 1.0UF 25V X7R 10% 0805 G 10
C213 139719-1 CAP, 1.0UF 25V X7R 10% 0805 L 10
C214 139719-1 CAP, 1.0UF 25V X7R 10% 0805 C 10
C215 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R Q 2
C216 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R Q 2
C217 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R M 8
C218 135505-1 CAP, 0.1UF 25V 10% X7R 0603 P 1
C219 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A N 8
C220 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A O 10
C221 135505-1 CAP, 0.1UF 25V 10% X7R 0603 L 3
C222 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 3
C223 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 C 10
C224 137455-1 CAP, 4700 PF 10% FILM Y2 O 3
C225 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 D 9
C226 137455-1 CAP, 4700 PF 10% FILM Y2 O 4
C227 135505-1 CAP, 0.1UF 25V 10% X7R 0603 B 11
C228 102438-150J2 CAP, 15PF 5% 200V NPO 0805 D 2
C229 139719-1 CAP, 1.0UF 25V X7R 10% 0805 D 9
C230 139719-1 CAP, 1.0UF 25V X7R 10% 0805 D 9
C231 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 L 10
C232 A10434-472JD .0047UF 250VDC 5% MET POLY T/A M 11
C233 139719-1 CAP, 1.0UF 25V X7R 10% 0805 K 9

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 5 OF 30

139086-14 REV. A PWA, XTI2000 600029

C234 139719-1 CAP, 1.0UF 25V X7R 10% 0805 K 9
C235 OPEN C 10
C236 OPEN C 9
C237 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 K 9
C238 A10434-472JD .0047UF 250VDC 5% MET POLY T/A M 11
C239 A10434-472JD .0047UF 250VDC 5% MET POLY T/A M 11
C240 102438-150J2 CAP, 15PF 5% 200V NPO 0805 D 3
C241 A11369-471F2 470.PF 50V 1% NPO MLC 0805 L 10
C242 OPEN L 10
C243 139719-1 CAP, 1.0UF 25V X7R 10% 0805 L 10
C244 139719-1 CAP, 1.0UF 25V X7R 10% 0805 C 10
C245 A11369-102F2 1000PF 50V 1% CHIP CAP L 10
C246 OPEN D 8
C247 A11369-471F2 470.PF 50V 1% NPO MLC 0805 K 9
C248 OPEN K 9
C249 A11369-102F2 1000PF 50V 1% CHIP CAP J 9
C250 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 L 10
C251 OPEN A 8
C252 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 C 10
C253 OPEN M 8
C254 OPEN J 8
C255 102438-221F2 220PF 200V 1% NPO 0805 B 10
C256 102438-221F2 220PF 200V 1% NPO 0805 C 9
C257 102438-221F2 220PF 200V 1% NPO 0805 K 10
C258 102438-221F2 220PF 200V 1% NPO 0805 K 9
C259 OPEN G 11
C260 OPEN G 11
C261 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R H 1
C262 131015-1 220UF 35V 20% RAD ELECT T/A A 2
C263 131015-1 220UF 35V 20% RAD ELECT T/A A 2
C264 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R P 1
C265 A10434-473JD .047UF 250VDC 5% MET POLY T/A F 8
C266 A10434-473JD .047UF 250VDC 5% MET POLY T/A F 9
C267 A10434-473JD .047UF 250VDC 5% MET POLY T/A H 8
C268 A10434-473JD .047UF 250VDC 5% MET POLY T/A H 9
C269 138196-1 CAP, 10UF X7R 10% 25V 1210 T/R G 8
C270 138196-1 CAP, 10UF X7R 10% 25V 1210 T/R G 8
C271 A10434-473JD .047UF 250VDC 5% MET POLY T/A M 8
C272 138196-1 CAP, 10UF X7R 10% 25V 1210 T/R G 8
C273 A10434-473JD .047UF 250VDC 5% MET POLY T/A L 8
C274 138196-1 CAP, 10UF X7R 10% 25V 1210 T/R G 8
C275 131015-1 220UF 35V 20% RAD ELECT T/A F 8
C276 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C277 102438-470J2 47PF 200V 5% NPO 0805 C 10
C278 102438-470J2 47PF 200V 5% NPO 0805 D 9
C279 102438-470J2 47PF 200V 5% NPO 0805 L 10
C280 102438-470J2 47PF 200V 5% NPO 0805 K 9
C281 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 3
C282 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 B 6
C283 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 B 5
C284 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 H 6
C285 A11369-122J2 0.0012UF 50V 5% NPO MLC 0805 H 5
C286 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A N 11
C287 134791-1 CAP, 470 PF 500V N1500 DISC Q 5
C288 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A O 2
C289 A10434-104JD .1UF 250V 5% MTL POLY FILM T/A N 5
C291 102438-150J2 CAP, 15PF 5% 200V NPO 0805 J 2
C292 102438-150J2 CAP, 15PF 5% 200V NPO 0805 J 3
C293 OPEN K 12

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 6 OF 30

139086-14 REV. A PWA, XTI2000 600029

C294 A10434-472JD .0047UF 250VDC 5% MET POLY T/A N 11
C295 A10434-472JD .0047UF 250VDC 5% MET POLY T/A N 11
C296 A10434-472JD .0047UF 250VDC 5% MET POLY T/A N 11
C297 135505-1 CAP, 0.1UF 25V 10% X7R 0603 M 3
C298 135505-1 CAP, 0.1UF 25V 10% X7R 0603 N 1
C300 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 A 6
C301 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 A 5
C302 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 G 6
C303 A11427-103K2 .01 UF 50V 10% X7R MLC 0805 G 5
C304 135505-1 CAP, 0.1UF 25V 10% X7R 0603 A 11
C305 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 H 2
C306 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 H 2
C307 OPEN J 12
C308 OPEN J 11
C309 OPEN J 11
C310 OPEN L 11
C311 OPEN K 12
C312 OPEN K 12
C313 OPEN L 11
C314 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 G 1
C315 A11369-471J2 CAP, 470PF 5% 50V SMT 0805 G 1
C317 OPEN F 12
C318 OPEN G 12
C319 OPEN F 12
C320 OPEN F 12
C321 OPEN H 11
C322 OPEN H 11
C323 135505-1 CAP, 0.1UF 25V 10% X7R 0603 D 1
C810 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R J 1
C811 131015-1 220UF 35V 20% RAD ELECT T/A J 1
C812 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R J 1
C814 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
C815 C 4477-3 470 UF 35V VERT I 1
C816 135505-1 CAP, 0.1UF 25V 10% X7R 0603 J 2
C817 A11427-104K2 .1UF 50V CHIP CAP 10% 0805 X7R J 2
C818 A11369-102F2 1000PF 50V 1% CHIP CAP J 1
C819 135505-1 CAP, 0.1UF 25V 10% X7R 0603 K 2
C900 125434-1 CAP,.068UF 400V FILM POLYESTER M 2
C901 125434-1 CAP,.068UF 400V FILM POLYESTER M 1
C920 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 1
C921 102438-221F2 220PF 200V 1% NPO 0805 F 1
C922 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 1
C923 A11369-102F2 1000PF 50V 1% CHIP CAP F 1
C924 A11369-102F2 1000PF 50V 1% CHIP CAP F 1
C925 A11369-100J1 CAP, 10PF 5% 50V NPO 0603 F 1
C926 102438-220J2 22PF 200V 5% NPO 0805 T/R F 1
C938 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 2
C950 102438-221F2 220PF 200V 1% NPO 0805 G 2
C958 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C959 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C960 126539-1 10UF 16V 5.5MM HIGH SMD H 2
C961 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C962 126539-1 10UF 16V 5.5MM HIGH SMD F 2
C963 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 1
C964 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 1
C965 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C966 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C967 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C968 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 7 OF 30

139086-14 REV. A PWA, XTI2000 600029

C969 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C970 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 2
C975 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 2
C976 139719-1 CAP, 1.0UF 25V X7R 10% 0805 F 2
C977 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 2
C978 139719-1 CAP, 1.0UF 25V X7R 10% 0805 F 2
C983 135505-1 CAP, 0.1UF 25V 10% X7R 0603 F 2
C984 126623-1 47UF 16V 6.3X5.5MM 20% SMT F 2
C987 135505-1 CAP, 0.1UF 25V 10% X7R 0603 G 1
C992 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
C993 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 2
C994 135505-1 CAP, 0.1UF 25V 10% X7R 0603 H 2
C995 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
C996 135505-1 CAP, 0.1UF 25V 10% X7R 0603 I 1
D1 139727-1 DIODE, ZENER 500MW 13V SOD123 M 9
D2 125255-1 DIODE, ULTRAFAST 200V 1A SMA M 8
D3 135343-1 DIODE, DUAL MMBD4148SE SOT-23 C 2
D4 135343-1 DIODE, DUAL MMBD4148SE SOT-23 I 2
D5 125255-1 DIODE, ULTRAFAST 200V 1A SMA M 8
D6 131648-1 DIODE, ZENER 500MW 16V SOD 123 G 8
D7 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT Q 2
D8 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT Q 4
D9 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT Q 1
D10 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT Q 4
D11 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT N 7
D12 136292-1 DIODE, EMCON 600V 30A TO220 N 7
D13 OPEN N 7
D14 136292-1 DIODE, EMCON 600V 30A TO220 N 8
D15 OPEN N 8
D16 136292-1 DIODE, EMCON 600V 30A TO220 N 8
D17 OPEN N 8
D18 136292-1 DIODE, EMCON 600V 30A TO220 N 9
D19 OPEN N 9
D20 136292-1 DIODE, EMCON 600V 30A TO220 N 5
D21 136292-1 DIODE, EMCON 600V 30A TO220 N 6
D22 136292-1 DIODE, EMCON 600V 30A TO220 N 6
D23 136292-1 DIODE, EMCON 600V 30A TO220 N 7
D24 139544-1 PRP, 125427-1 (RBV5006) .420 N 3
D25 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT P 1
D26 132040-1 DIODE, 100V 3A SMC P 3
D27 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT P 1
D28 131648-1 DIODE, ZENER 500MW 16V SOD 123 P 1
D29 131648-1 DIODE, ZENER 500MW 16V SOD 123 P 1
D30 138997-1 DIODE, 600V 1A SMA N 2
D31 131648-1 DIODE, ZENER 500MW 16V SOD 123 P 1
D32 125255-1 DIODE, ULTRAFAST 200V 1A SMA G 8
D33 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 B 10
D34 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 C 9
D35 140328-1 PRP; 133708-1 (R3060P2) .360 F 9
D36 140328-1 PRP; 133708-1 (R3060P2) .360 F 9
D37 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 K 10
D38 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 J 9
D39 125255-1 DIODE, ULTRAFAST 200V 1A SMA G 8
D40 OPEN N 1
D41 125255-1 DIODE, ULTRAFAST 200V 1A SMA M 8
D42 140328-1 PRP; 133708-1 (R3060P2) .360 H 9
D43 140328-1 PRP; 133708-1 (R3060P2) .360 H 9
D44 125255-1 DIODE, ULTRAFAST 200V 1A SMA M 8
D45 131648-1 DIODE, ZENER 500MW 16V SOD 123 G 8

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 8 OF 30

139086-14 REV. A PWA, XTI2000 600029

D46 126549-1 DIODE,30V 200MA SCHOTTKY SOT23 Q 3
D47 C10370-2 DIODE, ZENER 10V MMBZ5240BL Q 2
D48 C10370-2 DIODE, ZENER 10V MMBZ5240BL Q 2
D49 125255-1 DIODE, ULTRAFAST 200V 1A SMA M 9
D50 136010-1 DIODE, ZENER 500MW 12V SOD 123 C 10
D52 136010-1 DIODE, ZENER 500MW 12V SOD 123 D 9
D54 132040-1 DIODE, 100V 3A SMC A 2
D55 132040-1 DIODE, 100V 3A SMC B 3
D56 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 3
D57 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 3
D58 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 2
D59 C 9773-0 DIODE, ZENER 5.1V 1N5231 SMT H 2
D60 125341-1 DIODE, DUAL SERIES MMBD7000L C 10
D62 125341-1 DIODE, DUAL SERIES MMBD7000L D 9
D64 125341-1 DIODE, DUAL SERIES MMBD7000L L 10
D66 125341-1 DIODE, DUAL SERIES MMBD7000L K 9
D68 135343-1 DIODE, DUAL MMBD4148SE SOT-23 P 1
D69 136010-1 DIODE, ZENER 500MW 12V SOD 123 L 10
D71 136010-1 DIODE, ZENER 500MW 12V SOD 123 K 9
D73 136010-1 DIODE, ZENER 500MW 12V SOD 123 B 10
D74 136010-1 DIODE, ZENER 500MW 12V SOD 123 C 9
D75 136010-1 DIODE, ZENER 500MW 12V SOD 123 L 10
D76 136010-1 DIODE, ZENER 500MW 12V SOD 123 K 9
D77 131648-1 DIODE, ZENER 500MW 16V SOD 123 G 9
D78 131648-1 DIODE, ZENER 500MW 16V SOD 123 G 9
D79 131648-1 DIODE, ZENER 500MW 16V SOD 123 G 9
D80 131648-1 DIODE, ZENER 500MW 16V SOD 123 G 9
D100 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT F 3
D101 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 3
D102 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D103 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D108 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT C 8
D109 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT B 8
D110 125620-1 DIODE, FAST RECOVERY 400V 1A C 8
D111 125620-1 DIODE, FAST RECOVERY 400V 1A B 8
D112 OPEN D 8
D113 OPEN A 8
D114 137615-1 DIODE, 8A 400V SMC C 8
D115 137615-1 DIODE, 8A 400V SMC B 8
D116 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT H 3
D117 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D118 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 2
D119 135343-1 DIODE, DUAL MMBD4148SE SOT-23 D 1
D120 OPEN E 8
D121 OPEN E 3
D122 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D123 OPEN C 8
D124 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D125 OPEN B 8
D126 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT D 2
D127 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT E 3
D128 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 1
D129 135343-1 DIODE, DUAL MMBD4148SE SOT-23 B 2
D130 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT L 3
D131 135343-1 DIODE, DUAL MMBD4148SE SOT-23 L 3
D134 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 2
D135 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D136 135343-1 DIODE, DUAL MMBD4148SE SOT-23 C 2
D137 135343-1 DIODE, DUAL MMBD4148SE SOT-23 C 2

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 9 OF 30

139086-14 REV. A PWA, XTI2000 600029

D138 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT L 8
D139 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT K 8
D140 125620-1 DIODE, FAST RECOVERY 400V 1A L 8
D141 125620-1 DIODE, FAST RECOVERY 400V 1A K 8
D142 OPEN M 8
D143 OPEN J 8
D144 137615-1 DIODE, 8A 400V SMC L 8
D145 137615-1 DIODE, 8A 400V SMC K 8
D146 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT H 3
D147 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D148 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 2
D149 135343-1 DIODE, DUAL MMBD4148SE SOT-23 E 3
D150 OPEN L 8
D151 OPEN L 3
D153 OPEN L 8
D155 OPEN K 8
D156 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT K 2
D157 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT L 3
D158 OPEN L 8
D159 135343-1 DIODE, DUAL MMBD4148SE SOT-23 L 2
D160 OPEN K 3
D161 OPEN E 8
D162 OPEN E 3
D163 OPEN D 8
D164 OPEN A 8
D165 OPEN M 8
D166 OPEN J 8
D167 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 3
D168 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 3
D169 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 2
D170 135343-1 DIODE, DUAL MMBD4148SE SOT-23 H 3
D171 135343-1 DIODE, DUAL MMBD4148SE SOT-23 I 2
D172 135343-1 DIODE, DUAL MMBD4148SE SOT-23 I 2
D173 135343-1 DIODE, DUAL MMBD4148SE SOT-23 K 3
D174 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT D 3
D175 C 9283-0 DIODE, MMBD4148/914 SOT-23 SMT J 3
D176 137615-1 DIODE, 8A 400V SMC F 8
D177 137615-1 DIODE, 8A 400V SMC F 10
D178 137615-1 DIODE, 8A 400V SMC H 8
D179 137615-1 DIODE, 8A 400V SMC H 10
D180 C10067-4 DIODE, 1A 100V SILICON SMT T/R D 5
D181 C10067-4 DIODE, 1A 100V SILICON SMT T/R D 5
D182 C10067-4 DIODE, 1A 100V SILICON SMT T/R D 5
D183 126621-1 DIODE, 180V 3W SMB ZENER D 8
D184 126621-1 DIODE, 180V 3W SMB ZENER A 8
D185 126621-1 DIODE, 180V 3W SMB ZENER L 8
D186 126621-1 DIODE, 180V 3W SMB ZENER J 8
D187 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D188 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D189 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D190 C10067-4 DIODE, 1A 100V SILICON SMT T/R J 5
D191 C10067-4 DIODE, 1A 100V SILICON SMT T/R C 5
D801 125593-1 DIODE, SCHOTTKY 40V 1A SMA J 1
E1 126473-1 LED, GRN SMT 1206 H 1
F1 A10285-28 FUSE, 20A 3AB LITLFUSE #314020 Q 10
F1X C 8908-3 CLIP, DUAL FUSE PC MOUNT Q 10
F1XX C 8908-3 CLIP, DUAL FUSE PC MOUNT Q 10
FB1 125846-1 FERRITE BEAD, 600 OHM .5A 0805 F 1
FB2 125846-1 FERRITE BEAD, 600 OHM .5A 0805 F 1

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 10 OF 30

139086-14 REV. A PWA, XTI2000 600029

FB3 125846-1 FERRITE BEAD, 600 OHM .5A 0805 G 2
FB4 125846-1 FERRITE BEAD, 600 OHM .5A 0805 G 2
FB6 125846-1 FERRITE BEAD, 600 OHM .5A 0805 H 1
FB7 125846-1 FERRITE BEAD, 600 OHM .5A 0805 I 1
HS1 139135-3 HEATSINK, CEQUEL BASE D 7
HS1B 139134-1 FINS, CEQUEL E 7
HS1C 102659-1 NPN, TO-3 MJ21194 PWR F 7
HS1D 102719-1 6-32X.312 TORX PAN HD TFS F 6
HS1E 102719-1 6-32X.312 TORX PAN HD TFS F 7
HS1F 102659-1 NPN, TO-3 MJ21194 PWR E 7
HS1G 102719-1 6-32X.312 TORX PAN HD TFS D 6
HS1H 102719-1 6-32X.312 TORX PAN HD TFS E 7
HS1I 102659-1 NPN, TO-3 MJ21194 PWR C 7
HS1J 102719-1 6-32X.312 TORX PAN HD TFS B 6
HS1K 102719-1 6-32X.312 TORX PAN HD TFS C 7
HS1L 102659-1 NPN, TO-3 MJ21194 PWR B 7
HS1M 102719-1 6-32X.312 TORX PAN HD TFS A 6
HS1N 102719-1 6-32X.312 TORX PAN HD TFS B 7
HS1O 139134-1 FINS, CEQUEL B 7
HS2 139299-3 HEATSINK, CEQUEL BASE FRONT D 4
HS2B 139134-1 FINS, CEQUEL E 4
HS2C 139739-1 XSISTOR, PNP MJ21193G F 4
HS2D 102719-1 6-32X.312 TORX PAN HD TFS F 4
HS2E 102719-1 6-32X.312 TORX PAN HD TFS F 5
HS2F 139739-1 XSISTOR, PNP MJ21193G E 4
HS2G 102719-1 6-32X.312 TORX PAN HD TFS E 4
HS2H 102719-1 6-32X.312 TORX PAN HD TFS D 5
HS2I 139739-1 XSISTOR, PNP MJ21193G C 4
HS2J 102719-1 6-32X.312 TORX PAN HD TFS C 4
HS2K 102719-1 6-32X.312 TORX PAN HD TFS C 5
HS2L 139739-1 XSISTOR, PNP MJ21193G B 4
HS2M 102719-1 6-32X.312 TORX PAN HD TFS B 4
HS2N 102719-1 6-32X.312 TORX PAN HD TFS A 5
HS2O 139134-1 FINS, CEQUEL B 4
HS3 OPEN D 3
HS4 OPEN D 6
HS5 139135-3 HEATSINK, CEQUEL BASE J 7
HS5B 139134-1 FINS, CEQUEL K 7
HS5C 102659-1 NPN, TO-3 MJ21194 PWR L 7
HS5D 102719-1 6-32X.312 TORX PAN HD TFS L 6
HS5E 102719-1 6-32X.312 TORX PAN HD TFS L 7
HS5F 102659-1 NPN, TO-3 MJ21194 PWR K 7
HS5G 102719-1 6-32X.312 TORX PAN HD TFS K 6
HS5H 102719-1 6-32X.312 TORX PAN HD TFS K 7
HS5I 102659-1 NPN, TO-3 MJ21194 PWR I 7
HS5J 102719-1 6-32X.312 TORX PAN HD TFS I 6
HS5K 102719-1 6-32X.312 TORX PAN HD TFS I 7
HS5L 102659-1 NPN, TO-3 MJ21194 PWR H 7
HS5M 102719-1 6-32X.312 TORX PAN HD TFS G 6
HS5N 102719-1 6-32X.312 TORX PAN HD TFS H 7
HS5O 139134-1 FINS, CEQUEL I 7
HS6 139299-3 HEATSINK, CEQUEL BASE FRONT J 4
HS6B 139134-1 FINS, CEQUEL K 4
HS6C 139739-1 XSISTOR, PNP MJ21193G L 4
HS6D 102719-1 6-32X.312 TORX PAN HD TFS L 4
HS6E 102719-1 6-32X.312 TORX PAN HD TFS L 5
HS6F 139739-1 XSISTOR, PNP MJ21193G K 4
HS6G 102719-1 6-32X.312 TORX PAN HD TFS K 4
HS6H 102719-1 6-32X.312 TORX PAN HD TFS K 5

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 11 OF 30

139086-14 REV. A PWA, XTI2000 600029

HS6I 139739-1 XSISTOR, PNP MJ21193G I 4
HS6J 102719-1 6-32X.312 TORX PAN HD TFS I 4
HS6K 102719-1 6-32X.312 TORX PAN HD TFS I 5
HS6L 139739-1 XSISTOR, PNP MJ21193G H 4
HS6M 102719-1 6-32X.312 TORX PAN HD TFS H 4
HS6N 102719-1 6-32X.312 TORX PAN HD TFS G 5
HS6O 139134-1 FINS, CEQUEL H 4
HS7 OPEN J 3
HS8 OPEN J 6
HS9 139981-1 HEATSINK, TRACKER W/PAD F 9
HS9A 139981-1 HEATSINK, TRACKER W/PAD H 9
HS9B 136330-1 CLIP, TO-220 H 10
HS9C 136330-1 CLIP, TO-220 H 9
HS9D 136330-1 CLIP, TO-220 H 9
HS9E 136330-1 CLIP, TO-220 H 8
HS9F 136330-1 CLIP, TO-220 F 8
HS9G 136330-1 CLIP, TO-220 F 9
HS9H 136330-1 CLIP, TO-220 F 9
HS9I 136330-1 CLIP, TO-220 F 10
HS13 139276-2 HEATSINK, CEQUEL POWER SUPPLY M 3
HS13B 140180-1 CLIP, 2 FINGER TO-220 M 1
HS13C 140180-1 CLIP, 2 FINGER TO-220 M 2
HS13D 140180-1 CLIP, 2 FINGER TO-220 N 3
HS13E 139312-1 INSULATOR, CERAMIC 3.95X.85 M 3
HS13F 139421-3 RETAINER, XTI HEATSINK M 1
HS13G 139421-3 RETAINER, XTI HEATSINK M 5
HS14 139948-1 HEATSINK, W/PAD PS ASSY M 7
HS14B OPEN M 7
HS14C 139421-3 RETAINER, XTI HEATSINK M 5
HS14D 139421-3 RETAINER, XTI HEATSINK M 9
HS14E 140180-1 CLIP, 2 FINGER TO-220 M 6
HS14F 140180-1 CLIP, 2 FINGER TO-220 M 7
HS14G 140180-1 CLIP, 2 FINGER TO-220 M 8
HS14H 140180-1 CLIP, 2 FINGER TO-220 M 9
HW1 140089-1 SPRING, NEGATIVE CONTACT A 11
HW3 139901-1 CLIP, XTI HEATSINK M 7
HW4 139901-1 CLIP, XTI HEATSINK M 4
HW5 101016-1 LBL, BARCODE A 10
HW6 139757-1 PRP, 133589-1 CUT IN HALF M 5
HW7 139360-1 GAPFILLER,THERMALLY CONDUCTIVE D 6
HW8 139360-1 GAPFILLER,THERMALLY CONDUCTIVE J 6
HW9 139360-1 GAPFILLER,THERMALLY CONDUCTIVE M 5
HW10 139360-1 GAPFILLER,THERMALLY CONDUCTIVE D 7
HW11 139360-1 GAPFILLER,THERMALLY CONDUCTIVE J 7
HW12 OPEN D 4
HW13 OPEN J 4
J1 138976-1 CONN, USB B RA TH A 12
J2 OPEN I 1
J3 138323-2 BDG POST, QUAD RA NO-TOUCH M 12
J4 138319-1 XLR, FEM HORZ PC PLASTIC C 12
J5 138319-1 XLR, FEM HORZ PC PLASTIC D 12
J7 OPEN G 12
J8 102473-1 SPEAKON, 4 POLE PCB HORZ J 12
J9 102473-1 SPEAKON, 4 POLE PCB HORZ K 12
J10 139530-1 CONN, 20PIN HEADER 0.1" CTR SHROUDED TH E 1
J11 OPEN F 11
J12 OPEN H 12
J15 101571-1 HDR, 2 POS .1 CTR MTA SHRD J 11
J20 127064-1 TEST POINT, SMT 1206 N 8

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 12 OF 30

139086-14 REV. A PWA, XTI2000 600029

J21 OPEN N 9
J22 OPEN N 11
J23 127064-1 TEST POINT, SMT 1206 N 9
J24 127064-1 TEST POINT, SMT 1206 G 1
J25 OPEN F 8
J26 OPEN F 10
J27 OPEN H 8
J28 OPEN H 10
J29 127064-1 TEST POINT, SMT 1206 N 8
J30 127064-1 TEST POINT, SMT 1206 N 8
J31 127064-1 TEST POINT, SMT 1206 M 9
J32 127064-1 TEST POINT, SMT 1206 M 9
J33 OPEN N 9
J34 OPEN N 11
J35 OPEN N 9
J36 OPEN N 11
J37 OPEN F 8
J38 OPEN F 10
J39 OPEN H 8
J40 OPEN H 10
K1 C10335-5 RELAY 30A 24V T90 SEALED CE Q 4
K2 C10335-5 RELAY 30A 24V T90 SEALED CE Q 5
L1 139523-1 CHOKE, CM 20T 5000 PERM P 10
L2 139523-1 CHOKE, CM 20T 5000 PERM P 8
L3 138103-1 INDUCTOR, 1.65UH 16AWG VERT Q 7
L4 139613-1 IND, T157-2 10UH 2X18AWG E 9
L5 139613-1 IND, T157-2 10UH 2X18AWG D 10
L6 139613-1 IND, T157-2 10UH 2X18AWG I 9
L7 139613-1 IND, T157-2 10UH 2X18AWG J 10
L100 102470-1 INDUCTOR, 2.75UH 11A RADIAL B 9
L101 102470-1 INDUCTOR, 2.75UH 11A RADIAL L 9
L801 138946-1 IND, 470UH 0.5A SMT J 1
P1 138443-1 XLR, MALE HORZ PC PLASTIC B 12
P2 138443-1 XLR, MALE HORZ PC PLASTIC E 12
P3 OPEN B 11
P4 138320-1 IEC, ISA RA PC MNT Q 12
PWB1 138348-9 PWB, CEQUEL MAIN Q 12
Q1 139686-1 XSISTOR, MPSW45 50V 1W TO92 M 9
Q2 139686-1 XSISTOR, MPSW45 50V 1W TO92 M 9
Q5 102483-1 PNP 300V 500MA SOT-23 L 1
Q6 137218-1 SCR, 12A MCR12DSN DPAK 369A L 1
Q7 C 7448-1 MMBT3904 CHIP NPN N 1
Q8 132242-1 XSISTOR, NPN SOT 23 MMBTA42LT1 Q 2
Q9 OPEN F 3
Q10 OPEN F 3
Q13 OPEN I 2
Q14 OPEN I 2
Q15 125798-1 XSTR,MMBT3906 LT3 10K REEL N 1
Q16 139686-1 XSISTOR, MPSW45 50V 1W TO92 Q 3
Q17 125798-1 XSTR,MMBT3906 LT3 10K REEL Q 2
Q18 C 8103-1 MPSW42 300V 1 WATT NPN T/R Q 2
Q21 125798-1 XSTR,MMBT3906 LT3 10K REEL Q 1
Q22 C 8103-1 MPSW42 300V 1 WATT NPN T/R Q 1
Q23 127169-1 MOSFET, P-CH 50V 150MA SOT-23 I 1
Q24 C 7448-1 MMBT3904 CHIP NPN J 11
Q25 125798-1 XSTR,MMBT3906 LT3 10K REEL M 3
Q26 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 N 1
Q27 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 N 1
Q28 139543-1 PRP, 134423-1 (30N60A4D) .420 N 1

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 13 OF 30

139086-14 REV. A PWA, XTI2000 600029

Q29 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 N 2
Q30 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 N 2
Q31 139543-1 PRP, 134423-1 (30N60A4D) .420 N 2
Q32 125798-1 XSTR,MMBT3906 LT3 10K REEL I 11
Q33 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 G 9
Q34 C 8103-1 MPSW42 300V 1 WATT NPN T/R G 11
Q35 C 8103-1 MPSW42 300V 1 WATT NPN T/R G 11
Q36 C 8103-1 MPSW42 300V 1 WATT NPN T/R H 11
Q37 C 8103-1 MPSW42 300V 1 WATT NPN T/R H 11
Q38 139686-1 XSISTOR, MPSW45 50V 1W TO92 G 8
Q39 C 8103-1 MPSW42 300V 1 WATT NPN T/R O 1
Q40 C 8103-1 MPSW42 300V 1 WATT NPN T/R O 1
Q41 C 8103-1 MPSW42 300V 1 WATT NPN T/R O 1
Q42 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 G 8
Q43 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 G 10
Q44 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 G 10
Q45 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 G 9
Q46 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q47 140329-1 PRP; 138995-1 (260N) .360 F 8
Q48 140329-1 PRP; 138995-1 (260N) .360 F 10
Q49 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q50 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q51 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q52 102483-1 PNP 300V 500MA SOT-23 J 9
Q53 102483-1 PNP 300V 500MA SOT-23 K 10
Q54 102483-1 PNP 300V 500MA SOT-23 C 9
Q55 102483-1 PNP 300V 500MA SOT-23 B 10
Q56 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 G 8
Q57 131046-1 TRANSISTOR, KSC3265 NPN SOT-23 G 10
Q58 131047-1 TRANSISTOR, KSA1298 PNP SOT-23 G 10
Q59 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q60 140329-1 PRP; 138995-1 (260N) .360 H 8
Q61 140329-1 PRP; 138995-1 (260N) .360 H 10
Q62 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q63 139686-1 XSISTOR, MPSW45 50V 1W TO92 G 8
Q64 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q65 125798-1 XSTR,MMBT3906 LT3 10K REEL G 9
Q69 C 8103-1 MPSW42 300V 1 WATT NPN T/R F 11
Q70 C 8103-1 MPSW42 300V 1 WATT NPN T/R F 11
Q79 C 8103-1 MPSW42 300V 1 WATT NPN T/R F 11
Q80 C 8103-1 MPSW42 300V 1 WATT NPN T/R H 11
Q100 C 8103-1 MPSW42 300V 1 WATT NPN T/R E 2
Q102 C 8104-9 MPSW92 300V 1 WATT PNP T/R E 3
Q103 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 E 2
Q104 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 E 3
Q105 C 8104-9 MPSW92 300V 1 WATT PNP T/R C 3
Q106 C 8104-9 MPSW92 300V 1 WATT PNP T/R C 3
Q107 C 8103-1 MPSW42 300V 1 WATT NPN T/R D 3
Q108 C 8103-1 MPSW42 300V 1 WATT NPN T/R D 3
Q109 C 7448-1 MMBT3904 CHIP NPN D 7
Q110 C 7448-1 MMBT3904 CHIP NPN D 8
Q111 125798-1 XSTR,MMBT3906 LT3 10K REEL B 8
Q112 C 8103-1 MPSW42 300V 1 WATT NPN T/R C 6
Q113 C 8104-9 MPSW92 300V 1 WATT PNP T/R C 3
Q114 139426-1 PRP, 136168/137779 GRN (15033) D 6
Q115 139425-1 PRP, 136167/137779 BLU (15032) D 3
Q116 C 8104-9 MPSW92 300V 1 WATT PNP T/R E 3
Q117 C 8103-1 MPSW42 300V 1 WATT NPN T/R K 2
Q119 C 8104-9 MPSW92 300V 1 WATT PNP T/R L 3

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 14 OF 30

139086-14 REV. A PWA, XTI2000 600029

Q120 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 K 2
Q121 C 9931-4 MMBT5087LT1 PNP XSISTOR SOT-23 K 3
Q122 C 8104-9 MPSW92 300V 1 WATT PNP T/R J 3
Q123 C 8104-9 MPSW92 300V 1 WATT PNP T/R J 3
Q124 C 8103-1 MPSW42 300V 1 WATT NPN T/R K 3
Q125 C 8103-1 MPSW42 300V 1 WATT NPN T/R K 3
Q126 C 7448-1 MMBT3904 CHIP NPN J 7
Q127 C 7448-1 MMBT3904 CHIP NPN L 8
Q128 125798-1 XSTR,MMBT3906 LT3 10K REEL J 8
Q129 C 8103-1 MPSW42 300V 1 WATT NPN T/R I 6
Q130 C 7448-1 MMBT3904 CHIP NPN C 2
Q131 C 8104-9 MPSW92 300V 1 WATT PNP T/R J 3
Q132 139426-1 PRP, 136168/137779 GRN (15033) J 6
Q133 139425-1 PRP, 136167/137779 BLU (15032) J 3
Q134 C 8104-9 MPSW92 300V 1 WATT PNP T/R E 2
Q135 C 7448-1 MMBT3904 CHIP NPN L 2
Q136 C 8104-9 MPSW92 300V 1 WATT PNP T/R K 3
Q137 C 8104-9 MPSW92 300V 1 WATT PNP T/R K 2
Q138 C 8104-9 MPSW92 300V 1 WATT PNP T/R G 8
Q140 C 8104-9 MPSW92 300V 1 WATT PNP T/R G 8
Q141 C 8103-1 MPSW42 300V 1 WATT NPN T/R D 2
Q142 C 8103-1 MPSW42 300V 1 WATT NPN T/R J 2
Q802 C 7448-1 MMBT3904 CHIP NPN K 1
Q803 132065-1 MOSFET, P-CH 60V 0.8 OHM 1.17A J 1
R1 A11368-10021 10K 1/10W 1% SMD 0805 T/R M 8
R2 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 M 9
R3 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 M 8
R5 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R6 A11368-10021 10K 1/10W 1% SMD 0805 T/R G 8
R7 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 8
R8 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 8
R9 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 I 1
R10 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 1
R11 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 K 1
R12 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 1
R13 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 F 2
R14 OPEN G 3
R15 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 H 1
R16 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R17 A11368-63411 6.34K 0.10W 1% CHIP 0805 I 2
R18 A11368-63411 6.34K 0.10W 1% CHIP 0805 F 3
R19 A11368-15010 RES, 1.5 K OHM 1/16W 1% 0603 A 11
R20 A11368-63411 6.34K 0.10W 1% CHIP 0805 I 2
R21 OPEN G 3
R22 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 I 1
R23 A11371-8205 82 OHM 1W 5% SMD 2512 D 11
R24 A11368-75R03 75 OHM .25W 1% 1210 T/R C 11
R25 A11368-75R03 75 OHM .25W 1% 1210 T/R C 11
R26 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R27 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 C 2
R28 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 C 2
R29 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R30 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 1
R31 A11368-54911 5.49K 0.1W 1% 0805 T/R C 1
R32 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 F 2
R33 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 B 2
R34 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 2
R35 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 I 1
R36 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 2

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 15 OF 30

139086-14 REV. A PWA, XTI2000 600029

R37 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 C 1
R38 A11368-82500 RES, 825 OHM 1/16W 1% 0603 C 2
R39 A11368-82500 RES, 825 OHM 1/16W 1% 0603 B 1
R40 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R41 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R42 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R43 A11368-47001 470 OHM, 0.10W 1% MF 0805 I 11
R44 A11368-75R03 75 OHM .25W 1% 1210 T/R D 11
R45 A11368-75R03 75 OHM .25W 1% 1210 T/R D 11
R46 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R47 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R48 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R49 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 E 2
R50 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 E 1
R51 A11368-29421 29.4 KOHM .1W 1% 0805 T/R F 3
R52 A11368-63411 6.34K 0.10W 1% CHIP 0805 F 3
R53 A11368-29421 29.4 KOHM .1W 1% 0805 T/R F 3
R54 A11368-29421 29.4 KOHM .1W 1% 0805 T/R I 2
R55 A11368-29421 29.4 KOHM .1W 1% 0805 T/R I 2
R56 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 F 3
R57 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 I 2
R58 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 F 3
R59 A11368-17820 RES, 17.8 KOHM 1/16W 1% 0603 I 2
R60 A11368-54911 5.49K 0.1W 1% 0805 T/R E 1
R61 A11371-8205 82 OHM 1W 5% SMD 2512 B 11
R62 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 2
R63 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 2
R64 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R65 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 2
R66 A11368-24910 RES, 2.49 KOHM 1/16W 1% 0603 D 1
R67 A11368-82500 RES, 825 OHM 1/16W 1% 0603 E 2
R68 A11368-82500 RES, 825 OHM 1/16W 1% 0603 D 1
R69 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R70 A11368-25500 RES, 255 OHM 1/16W 1% 0603 D 2
R71 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 D 2
R72 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 A 11
R73 A11368-36511 3.65KOHM .1W 1% 0805 T/R H 3
R74 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 1
R75 A11368-32400 324 OHM 1/16W 1% 0603 T/R B 10
R76 A11368-30910 RES, 3.09K OHM 1% 1/16W 0603 B 10
R77 A11368-75000 RES, 750 OHM 1/16W 1% 0603 B 10
R78 A11368-11820 RES, 11.8K 1% 1/16W 0603 E 3
R79 A11368-15031 150K 1/10W 1% SMD 0805 T/R E 3
R80 A11368-11820 RES, 11.8K 1% 1/16W 0603 K 3
R81 A11368-15031 150K 1/10W 1% SMD 0805 T/R K 3
R82 OPEN B 8
R83 A11368-1R001 1 OHM .1W 1% 0805 T/R A 9
R84 A11368-30101 301 OHM .1W 1% 0805 T/R M 12
R85 A11368-32400 324 OHM 1/16W 1% 0603 T/R C 9
R86 A11368-30910 RES, 3.09K OHM 1% 1/16W 0603 C 9
R87 A11368-1R001 1 OHM .1W 1% 0805 T/R L 12
R88 A11368-24921 24.9K 1/10W 1% SMD 0805 T/R G 3
R89 OPEN K 8
R90 A11368-1R001 1 OHM .1W 1% 0805 T/R L 9
R91 A11368-30101 301 OHM .1W 1% 0805 T/R N 12
R92 A11368-1R001 1 OHM .1W 1% 0805 T/R N 12
R93 A11368-75000 RES, 750 OHM 1/16W 1% 0603 C 9
R94 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 10
R95 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 I 1

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 16 OF 30

139086-14 REV. A PWA, XTI2000 600029

R96 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 I 1
R97 A11368-20021 20.KOHM .1W 1% CHIP 0805 I 11
R98 OPEN F 11
R99 A11368-15010 RES, 1.5 K OHM 1/16W 1% 0603 G 9
R100 A11368-47001 470 OHM, 0.10W 1% MF 0805 D 2
R101 A11368-47001 470 OHM, 0.10W 1% MF 0805 K 2
R102 A11368-33R20 RES, 33.2 OHM 1/16W 1% 0603 A 11
R103 A11371-8205 82 OHM 1W 5% SMD 2512 A 2
R104 A11368-47001 470 OHM, 0.10W 1% MF 0805 E 2
R105 A11371-8205 82 OHM 1W 5% SMD 2512 A 3
R106 A11368-24920 RES, 24.9 KOHM 1/16W 1% 0603 G 3
R107 A11368-22101 221OHM 0.1W 1% 0805 T/R F 3
R108 A11368-35721 35.7 KOHM 0.1W 1% 0805 T/R E 3
R109 A11368-22101 221OHM 0.1W 1% 0805 T/R E 2
R110 A11368-22101 221OHM 0.1W 1% 0805 T/R E 3
R111 OPEN F 3
R112 OPEN J 11
R113 A11368-10031 100.KOHM .1W 1% CHIP 0805 G 3
R114 A11368-47001 470 OHM, 0.10W 1% MF 0805 E 2
R115 A11368-35721 35.7 KOHM 0.1W 1% 0805 T/R E 3
R116 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 F 3
R117 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 N 1
R118 A11368-37411 3.74K OHM 1% 0.1W 0805 T/R D 2
R119 OPEN F 3
R120 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 2
R121 A11368-18211 1.82KOHM .1W 1% 0805 T/R B 2
R122 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 2
R123 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 3
R124 A11368-18211 1.82KOHM .1W 1% 0805 T/R B 3
R125 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 3
R126 OPEN F 3
R127 OPEN F 3
R128 OPEN F 3
R129 A11368-47001 470 OHM, 0.10W 1% MF 0805 D 2
R130 OPEN C 2
R131 A11368-10011 1.KOHM .1W 1% CHIP 0805 C 3
R132 A11368-10023 10.0KOHM .25W 1% 1210 T/R C 3
R133 A11368-17823 RES, 17.8K OHM 1% 0.25W 1210 D 3
R134 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 C 3
R135 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 C 3
R136 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 E 3
R137 A11368-15000 RES, 150 OHM 1% 1/16W 0603 E 3
R138 A11368-11011 RES, 1.1KOHM .1W 1% 0805 G 3
R139 A11368-27430 RES, 274 KOHM 1/16W 1% 0603 P 1
R140 A11368-24920 RES, 24.9 KOHM 1/16W 1% 0603 I 3
R141 A11368-47001 470 OHM, 0.10W 1% MF 0805 K 2
R142 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 E 3
R143 A11368-51111 5.11KOHM .1W 1% 0805 T/R D 3
R144 133871-1 TRIMPOT, 500 OHM TOP ADJ T/R D 3
R145 A11368-32400 324 OHM 1/16W 1% 0603 T/R K 10
R146 A11368-30910 RES, 3.09K OHM 1% 1/16W 0603 K 10
R147 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 C 6
R148 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 C 3
R149 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R D 5
R150 A11368-10003 100 OHM 0.25W 1% 1210 T/R D 5
R151 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 A 6
R152 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 A 5
R153 A11368-13011 1.3KOHM .1W 1% 0805 T/R B 6
R154 A11368-13011 1.3KOHM .1W 1% 0805 T/R B 5

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 17 OF 30

139086-14 REV. A PWA, XTI2000 600029

R155 A11368-13011 1.3KOHM .1W 1% 0805 T/R C 6
R156 A11368-13011 1.3KOHM .1W 1% 0805 T/R C 5
R157 A11368-13011 1.3KOHM .1W 1% 0805 T/R E 6
R158 A11368-13011 1.3KOHM .1W 1% 0805 T/R F 6
R159 A11368-13011 1.3KOHM .1W 1% 0805 T/R E 5
R160 A11368-13011 1.3KOHM .1W 1% 0805 T/R F 5
R161 A11368-11011 RES, 1.1KOHM .1W 1% 0805 C 2
R162 A11368-17823 RES, 17.8K OHM 1% 0.25W 1210 D 2
R163 A11368-10023 10.0KOHM .25W 1% 1210 T/R C 2
R165 OPEN D 8
R166 OPEN A 8
R167 OPEN M 8
R168 OPEN J 8
R169 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 C 2
R170 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 C 3
R171 A11368-64900 649 OHM 1/16W 1% 0603 T/R B 3
R172 A11368-20031 200K 0.1W 1% SMD CHIP 0805 B 3
R173 A11368-20031 200K 0.1W 1% SMD CHIP 0805 B 3
R174 A11368-49900 RES, 499 OHM 1/16W 1% 0603 B 3
R175 A11368-18211 1.82KOHM .1W 1% 0805 T/R C 3
R176 A11368-19120 RES, 19.1 K OHM 1/16W 1% 0603 I 3
R177 A11368-20520 RES, 20.5 KOHM 1/16W 1% 0603 I 3
R178 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 B 2
R179 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 D 3
R180 A11368-18211 1.82KOHM .1W 1% 0805 T/R D 3
R181 A11368-24921 24.9K 1/10W 1% SMD 0805 T/R I 3
R182 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 E 3
R183 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 C 2
R184 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R D 3
R185 OPEN C 8
R186 OPEN B 8
R187 OPEN F 8
R188 OPEN E 8
R189 OPEN D 8
R190 OPEN F 8
R191 OPEN E 3
R192 OPEN A 8
R193 OPEN E 3
R194 OPEN A 6
R195 OPEN A 5
R196 A11371-8205 82 OHM 1W 5% SMD 2512 C 8
R197 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R B 9
R198 OPEN J 11
R199 OPEN G 3
R200 A11368-10023 10.0KOHM .25W 1% 1210 T/R J 2
R201 139351-1 RES, 35.7K OHM 1% 1W RAD T/R C 8
R202 OPEN D 9
R203 OPEN C 8
R204 A11368-17823 RES, 17.8K OHM 1% 0.25W 1210 J 2
R205 OPEN B 8
R206 OPEN A 9
R207 OPEN B 8
R208 A11368-22101 221OHM 0.1W 1% 0805 T/R L 3
R209 A11371-1052 1. MOHM .125W 5% CHIP RES T/R G 3
R210 A11368-10041 1M OHM .1W 1% CHIP 0805 H 3
R211 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 3
R212 A11368-36511 3.65KOHM .1W 1% 0805 T/R H 3
R213 A11368-47520 RES, 47.5 K OHM 1/16W 1% 0603 H 3
R214 A11368-35721 35.7 KOHM 0.1W 1% 0805 T/R K 3

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 18 OF 30

139086-14 REV. A PWA, XTI2000 600029

R215 A11368-22101 221OHM 0.1W 1% 0805 T/R K 2
R216 A11368-22101 221OHM 0.1W 1% 0805 T/R K 3
R217 OPEN I 2
R218 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R219 A11368-10031 100.KOHM .1W 1% CHIP 0805 I 2
R220 A11368-37401 374 OHM .1W 1% CHIP 0805 C 1
R221 OPEN E 3
R222 A11368-15010 RES, 1.5 K OHM 1/16W 1% 0603 G 9
R223 A11368-20021 20.KOHM .1W 1% CHIP 0805 C 3
R224 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R A 9
R225 A11368-47001 470 OHM, 0.10W 1% MF 0805 K 2
R226 A11368-35721 35.7 KOHM 0.1W 1% 0805 T/R K 3
R227 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 3
R228 A11368-37401 374 OHM .1W 1% CHIP 0805 E 1
R229 A11368-37411 3.74K OHM 1% 0.1W 0805 T/R K 2
R230 OPEN I 2
R231 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 M 2
R232 A11368-18211 1.82KOHM .1W 1% 0805 T/R M 2
R233 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 2
R234 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 3
R235 A11368-18211 1.82KOHM .1W 1% 0805 T/R L 3
R236 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 L 3
R237 OPEN I 2
R238 OPEN I 2
R239 OPEN I 2
R240 A11368-47001 470 OHM, 0.10W 1% MF 0805 J 2
R241 OPEN J 2
R242 A11368-10011 1.KOHM .1W 1% CHIP 0805 I 3
R243 A11368-10023 10.0KOHM .25W 1% 1210 T/R J 3
R244 A11368-17823 RES, 17.8K OHM 1% 0.25W 1210 J 3
R245 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 J 3
R246 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 J 3
R247 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 K 3
R248 A11368-15000 RES, 150 OHM 1% 1/16W 0603 K 3
R249 A11368-11011 RES, 1.1KOHM .1W 1% 0805 I 2
R250 A11368-75R00 RES, 75 OHM 1/16W 1% 0603 K 3
R251 A11368-51111 5.11KOHM .1W 1% 0805 T/R J 3
R252 133871-1 TRIMPOT, 500 OHM TOP ADJ T/R J 3
R253 A11368-75000 RES, 750 OHM 1/16W 1% 0603 K 10
R254 A11368-32400 324 OHM 1/16W 1% 0603 T/R J 9
R255 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 J 6
R256 A11368-34001 RES, 340 OHM 1% 0.1W SMT 0805 J 3
R257 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R J 5
R258 A11368-10003 100 OHM 0.25W 1% 1210 T/R J 5
R259 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 G 6
R260 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 G 5
R261 A11368-13011 1.3KOHM .1W 1% 0805 T/R H 6
R262 A11368-13011 1.3KOHM .1W 1% 0805 T/R H 5
R263 A11368-13011 1.3KOHM .1W 1% 0805 T/R I 6
R264 A11368-13011 1.3KOHM .1W 1% 0805 T/R I 5
R265 A11368-13011 1.3KOHM .1W 1% 0805 T/R K 6
R266 A11368-13011 1.3KOHM .1W 1% 0805 T/R L 5
R267 A11368-13011 1.3KOHM .1W 1% 0805 T/R K 5
R268 A11368-13011 1.3KOHM .1W 1% 0805 T/R L 5
R269 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 D 8
R270 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 A 8
R271 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 L 8
R272 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 J 8
R273 OPEN D 3

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 19 OF 30

139086-14 REV. A PWA, XTI2000 600029

R274 OPEN J 2
R275 OPEN C 1
R276 A11368-11011 RES, 1.1KOHM .1W 1% 0805 J 2
R277 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 3
R278 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 3
R279 A11368-64900 649 OHM 1/16W 1% 0603 T/R L 3
R280 A11368-20031 200K 0.1W 1% SMD CHIP 0805 L 3
R281 A11368-20031 200K 0.1W 1% SMD CHIP 0805 M 3
R282 A11368-49900 RES, 499 OHM 1/16W 1% 0603 M 3
R283 A11368-18211 1.82KOHM .1W 1% 0805 T/R M 3
R284 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 M 2
R285 A11368-12111 RES, 1.21K 1% 0.1W SMT 0805 J 3
R286 A11368-18211 1.82KOHM .1W 1% 0805 T/R J 3
R287 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 3
R288 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R289 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 L 2
R290 A11368-22R11 22.1 OHM 0.1W 1% 0805 T/R J 3
R291 OPEN L 8
R292 OPEN K 8
R293 OPEN L 8
R294 OPEN L 8
R295 OPEN M 8
R296 OPEN L 8
R297 OPEN L 3
R298 OPEN J 8
R299 OPEN L 3
R300 OPEN G 6
R301 OPEN G 5
R302 A11371-8205 82 OHM 1W 5% SMD 2512 L 8
R303 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R K 9
R304 A11368-37401 374 OHM .1W 1% CHIP 0805 C 1
R305 OPEN G 3
R307 139351-1 RES, 35.7K OHM 1% 1W RAD T/R L 9
R308 OPEN M 9
R309 OPEN L 8
R311 OPEN K 8
R312 OPEN J 9
R313 OPEN K 8
R314 A11371-1052 1. MOHM .125W 5% CHIP RES T/R G 3
R315 A11368-10041 1M OHM .1W 1% CHIP 0805 H 3
R316 A11368-30910 RES, 3.09K OHM 1% 1/16W 0603 J 9
R317 OPEN L 11
R318 A11368-37401 374 OHM .1W 1% CHIP 0805 E 1
R319 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R320 OPEN L 3
R321 A11368-15010 RES, 1.5 K OHM 1/16W 1% 0603 G 9
R322 A11368-20021 20.KOHM .1W 1% CHIP 0805 I 3
R323 A11371-15R3 RES, 15 OHM .25W 5% 1210 T/R A 9
R324 A11368-64911 6.49KOHM .1W 1% 0805 T/R H 3
R325 A11368-64911 6.49KOHM .1W 1% 0805 T/R I 3
R326 A11368-12103 121OHM 0.25W 1% 1210 T/R Q 2
R327 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R328 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R329 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 Q 2
R330 A11368-12103 121OHM 0.25W 1% 1210 T/R Q 1
R331 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 Q 2
R332 A11368-35720 RES, 35.7K OHM 1% 1/16W 0603 Q 3
R333 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 Q 1
R334 A11368-47510 RES, 4.75 KOHM 1/16W 1% 0603 M 3

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 20 OF 30

139086-14 REV. A PWA, XTI2000 600029

R335 A11368-35700 RES, 357 OHM 1/16W 1% 0603 M 3
R336 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 M 3
R337 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 N 7
R338 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 K 1
R339 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 K 1
R340 A11368-22120 RES, 22.1 KOHM 1% 1/16W 0603 K 1
R341 A11368-22120 RES, 22.1 KOHM 1% 1/16W 0603 K 1
R342 A11368-10000 RES, 100 OHM 1/16W 1% 0603 K 2
R343 OPEN H 1
R344 OPEN H 1
R345 A11368-49923 49.9KOHM .25W 1% CHIP 1210 Q 8
R346 A11368-49923 49.9KOHM .25W 1% CHIP 1210 P 8
R347 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 N 1
R348 A11368-10R01 10 OHM .1W 1% 0805 T/R N 1
R349 A11368-51R10 RES, 51.1 OHM 1/16W 1% 0603 N 2
R350 A11368-10R01 10 OHM .1W 1% 0805 T/R N 2
R351 A11371-8205 82 OHM 1W 5% SMD 2512 C 8
R352 A11371-8205 82 OHM 1W 5% SMD 2512 L 8
R353 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R354 A11368-24R91 RES, 24.9 OHM 1% 0.1W 0805 G 8
R355 A11371-5R65 5.6 OHM 1W 5% 2512 T/R A 11
R356 A11368-24R91 RES, 24.9 OHM 1% 0.1W 0805 G 10
R357 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 K 10
R358 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 J 9
R359 A11368-60410 RES, 6.04 KOHM 1/16W 1% 0603 G 8
R360 A11368-60410 RES, 6.04 KOHM 1/16W 1% 0603 G 8
R361 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 C 9
R362 A11368-15010 RES, 1.5 K OHM 1/16W 1% 0603 G 9
R363 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 Q 2
R364 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R365 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R366 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R367 A11368-37411 3.74K OHM 1% 0.1W 0805 T/R N 1
R368 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 N 1
R369 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 N 1
R370 133483-1 48.7 KOHM 1W 1% RAD T/A O 1
R371 133483-1 48.7 KOHM 1W 1% RAD T/A O 2
R372 133483-1 48.7 KOHM 1W 1% RAD T/A O 2
R373 133483-1 48.7 KOHM 1W 1% RAD T/A O 1
R374 133483-1 48.7 KOHM 1W 1% RAD T/A O 2
R375 A11368-10010 RES, 1.0 KOHM 1/16W 1% 0603 O 1
R376 133483-1 48.7 KOHM 1W 1% RAD T/A P 3
R377 A11368-20030 RES, 200 KOHM 1/16W 1% 0603 P 1
R378 133483-1 48.7 KOHM 1W 1% RAD T/A O 1
R379 A11368-20030 RES, 200 KOHM 1/16W 1% 0603 P 1
R380 A11368-68120 RES, 68.1 KOHM 1/16W 1% 0603 O 1
R381 A11368-15031 150K 1/10W 1% SMD 0805 T/R O 1
R382 A11368-75000 RES, 750 OHM 1/16W 1% 0603 J 9
R383 A11368-10000 RES, 100 OHM 1/16W 1% 0603 J 9
R384 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R385 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R386 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R387 A11368-10003 100 OHM 0.25W 1% 1210 T/R N 6
R388 A11368-10000 RES, 100 OHM 1/16W 1% 0603 K 10
R389 A11368-10030 RES, 100.0 KOHM 1/16W 1% 0603 K 2
R390 A11368-42200 RES, 422 OHM 1/16W 1% 0603 I 11
R391 A11368-10000 RES, 100 OHM 1/16W 1% 0603 C 9
R392 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 C 10
R393 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 11

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 21 OF 30

139086-14 REV. A PWA, XTI2000 600029

R394 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 11
R395 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 H 11
R396 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 H 11
R397 A11368-71520 RES, 71.5 KOHM 1/16W 1% 0603 C 10
R398 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 O 1
R399 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R400 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R401 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 O 1
R402 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 O 1
R403 A11368-10000 RES, 100 OHM 1/16W 1% 0603 B 10
R404 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 C 10
R405 A11368-35720 RES, 35.7K OHM 1% 1/16W 0603 C 10
R406 A11371-2250 RES, 2.2 MOHM 1/16W 5% 0603 P 1
R407 A11371-2250 RES, 2.2 MOHM 1/16W 5% 0603 P 1
R408 A11368-20010 RES, 2.0 KOHM 1/16W 1% 0603 C 10
R409 A11368-11020 RES, 11.0 KOHM 1/16W 1% 0603 C 9
R410 A11371-0R01 RES, 0 OHM 0805 50 MILOHM MAX C 8
R411 A11368-24R91 RES, 24.9 OHM 1% 0.1W 0805 G 8
R412 A11368-10011 1.KOHM .1W 1% CHIP 0805 D 8
R413 A11368-24R91 RES, 24.9 OHM 1% 0.1W 0805 G 10
R414 A11368-32410 RES, 3.24 K OHM 1/16W 1% 0603 C 10
R415 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 D 9
R416 A11368-17411 1.74KOHM .1W 1% CHIP 0805 D 9
R417 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 D 9
R418 A11368-35720 RES, 35.7K OHM 1% 1/16W 0603 D 9
R419 A11368-49910 RES, 4.99 KOHM 1/16W 1% 0603 L 10
R420 A11368-35720 RES, 35.7K OHM 1% 1/16W 0603 L 10
R421 A11368-14010 RES, 1.40 KOHM 1/16W 1% 0603 C 10
R422 A11368-14010 RES, 1.40 KOHM 1/16W 1% 0603 L 10
R423 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 2
R424 A11368-10020 RES, 10.0 KOHM 1/16W 1% 0603 H 1
R425 133483-1 48.7 KOHM 1W 1% RAD T/A O 5
R426 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 G 11
R427 A11368-10R00 RES, 10 OHM 1/16W 1% 0603 F 11
R428 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R429 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 8
R430 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 8
R431 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R432 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R433 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R434 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R435 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R436 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R437 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R438 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 6
R439 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 6
R440 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 6
R441 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R442 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R443 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R444 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R445 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 8
R446 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 8
R447 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R448 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R449 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 7
R450 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 7
R451 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R452 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 22 OF 30

139086-14 REV. A PWA, XTI2000 600029

R453 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 6
R454 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R455 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R456 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R457 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R458 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R459 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R460 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R461 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 8
R462 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 8
R463 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R464 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R465 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R466 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 7
R467 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R468 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R469 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R E 6
R470 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R471 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R472 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R473 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R474 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R475 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R476 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R477 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R478 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R479 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R480 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R481 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 7
R482 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R483 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R484 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R485 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R F 6
R486 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R487 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R488 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R489 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R490 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R491 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R492 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R493 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R494 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R495 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R496 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R497 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5
R498 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R499 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R500 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R501 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 4
R502 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R503 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R504 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R505 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 4
R506 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R507 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R508 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R509 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R510 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R C 5
R511 A11368-7R503 RES, 7.5 OHM 1% 0.25W 1210 T/R B 5

XTi2000 BOM 139086-14_A.xls

R04.1CDE-004_(Fm) JAW 10/6/01

CROWN AUDIO, INC. ELKHART, IN. 23 OF 30
