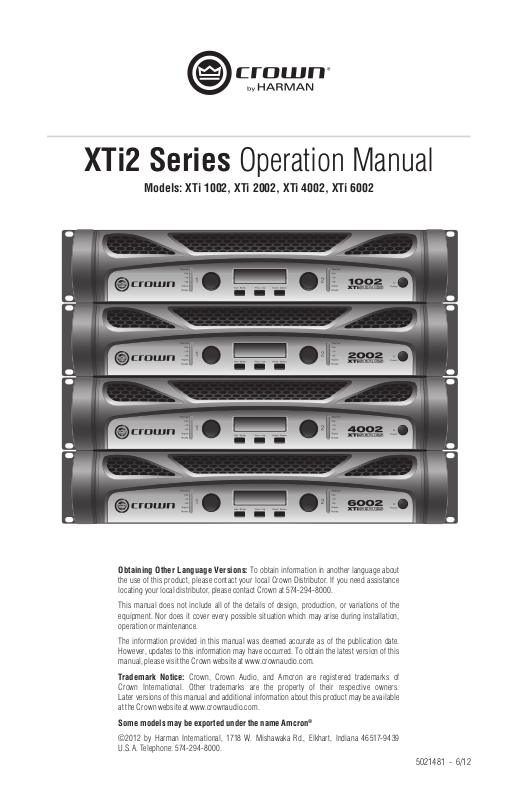

XTi2 Series Operation Manual

Models: XTi 1002, XTi 2002, XTi 4002, XTi 6002

Obtaining Other Language Versions: To obtain information in anot her la nguage abo ut

the us e of this product, ple ase c ontact your loca l Crown Distributor. If you need assista nce
loca ting your loc al distribu tor, please c ontact Cr own at 574-29 4-800 0.

This manual d oes no t include all of the det ails of d esign , production, or variatio ns of th e
equipment . Nor does it cover every possible situation w hich may aris e during installation,
operation or maintenance.

The information provided in this m anual was d eemed acc urat e as of the publication date.
However, upd ates t o this information may have occurred. To obtain t he lat est version of this
manu al, please v isit the Crow n website at ww w.crownau dio.com.

Trademark Notice: Crown, Crown Audio, an d Amcron are r egistered trademar ks of
Crown Internatio nal. Other trade marks are the prop ert y of their res pective ow ners.
Later versions of t his manual and additional informatio n abou t this pr oduc t may be available
at the Crown websit e at www.crownaudio.com.

Some models may be ex ported under the name Amcro n

©2012 by Harman International, 1718 W. Mishawak a Rd., Elkhar t, Indiana 4 6517-94 39
U.S.A. Telephone: [phone].

®

5021481 - 6/12

Important Safety Instructions

1. Read t hese instructions.

2. Keep t hese instructions.

3. Heed all warnings.

4. Follow all instr uctions.

5. Do not us e this appar atus near w ater.

6. Clea n only with a dr y cloth.

7. Do not block any v entilation openings. Ins tall in accordance
with the manufacturer’s instructions.

8. Do not install near any heat sourc es such as radiators, he at
registers, stoves, or other apparatus (including amplifiers)
that produce heat.

9. Do not defe at the safe ty purpose of the polarized or ground­ing-t ype plug . A polarize d plug has t wo blade s with one wid er
than the other. A grounding-typ e plug has two blade s and
a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug do es not fit
into your outlet, consult an electrician for replacement of the
obsolete outlet.

10. Protect the power cord from b eing walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11. Only use a ttachments /accessories specified by the ma nu­facture r.

12. Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a c art is used, use caution
when moving the cart/apparatus combination to
avoid injury fr om tip-over.

13. Unplug this apparatus during lightning storms or w hen un­used for long periods of time.

14. R efer all ser vicing to qu alified se rvice pe rsonnel. S ervicin g is
required when the a pparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects hav e fallen into the apparatus, the
apparatus has been ex posed to rain or moisture, does not
oper ate normall y, or has been dro pped.

15. U se the main s plug to disco nnect th e appara tus from th e mains.

16. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK , DO NOT E XPOSE THIS APPA RATUS TO RA IN OR
MOISTURE.

17. DO NOT E XPOSE THIS EQUIPMENT TO DRIPPING
OR SPL ASHING AND ENSURE THAT NO OB JECTS
FILLED WITH LIQUIDS, SUCH AS VAS ES, ARE
PLACED ON THE EQUIPMEN T.

18. T HE MA INS PLUG OF TH E POWER SUPPLY CORD SH ALL
REMAIN RE ADILY OPERABLE.

TO PRE VENT ELECTRIC S HOCK DO NOT REMOVE
TOP OR BOTTOM COVERS. NO USER SE RVICE­ABL E PART S INSIDE. RE FER SERV ICING TO QUA L­IFIED SERVICE PERSONNEL.

SUPPLY CORD SHALL REMAIN REA DILY OPERABLE.

WATCH FOR THESE SYMBOLS:

XTi S eries ampli fiers requir e Class 2 outp ut wiring.

CAUTION! Do not locate sensitive high-gain equipment such as
preamplifiers or tape decks directly above or below the unit. Be­caus e this amplifie r has a high power density, it has a strong mag­netic field which can induc e hum into unshielded d evices that are
loca ted near by. The field is s tronges t just above a nd below th e unit.

If an equipment rack is used, we recomm end locating the
amplifier(s) in the bottom of the rack and the preamplifier or
other sensitive equipment at the top.

This device complies with part 15 of the FCC rules. Operation is sub­ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.

NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equip­ment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to ra­dio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

XTi2 Series Power Amplifiers

TO COMPLETELY DISCONNECT THIS EQUIP­MENT FROM THE AC MAINS, DISCONNECT THE
POWE R SUPPLY CORD PLUG FROM THE AC RE­CEPTACLE. THE MAINS PLUG OF THE POWER

The lig htning bolt t riangle is us ed to aler t the user to
the ris k of electric shock .

The exclamation point triangle is used to alert the
user to impor tant oper ating or maintenance in­structions.

IMPORTANT

MAGNETIC FIELD

FCC COMPLIANCE NOTICE

page 2

Operation Manual

XTi2 Series Power Amplifiers

DECLARATION OF CONFORMITY

Issued By: Harman International.

1718 W. Mishawaka Rd.

FOR COMPLIANCE
QUESTIONS ONLY:

Sue Whitfield
Sue.Whitfi[e-mail]

Elkhart, IN 46517 U.S.A.

European Representative’s Name and Address:

David Budge
10 Harvest Close
Yateley, GU46 6YS
United Kingdom

Equipment Type: Commercial Audio Power Amplifiers
Family Name: XTi2 Series
Model Names: XTi 1002, XTi 2002, XTi 4002, XTi 6002

EMC Standards:

EN 55103-1:2009 EMC Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting

Control Apparatus for Professional Use, Part 1: Emissions

EN 55103-1:2009 Magnetic Field Emissions – Annex A @ 10cm and 1M

EN 61000-3-2:2006 Limits for Harmonic Current Emissions (equipment input current less than or equal to 16A)

EN 61000-3-3:2008 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply systems Rated Current less than or

equal to 16A

EN 55022:2010 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated & Conducted,

Class B Limits

EN 55103-2:2009 EMC Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting

Control Apparatus for Professional Use, Part 2: Immunity

EN 61000-4-2:2008 Ed 2.0 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge)

EN 61000-4-3:2010 Ed 3.2 Radiated, Radio-Frequency, EMC Immunity (Environment E2, Criteria A)

EN 61000-4-4:2007 Electrical Fast Transient/Burst Immunity (Criteria B)

EN 61000-4-5:2006 Surge Immunity (Criteria B)

EN 61000-4-6:2006 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A)

EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation

Safety Standard:

IEC 60065: 2001Ed 7 +A1:2005 Safety Requirements – Audio, Video, and Similar Electronic Apparatus

CAN/CSA 60065-03 incl. A1 Safety Requirements – Audio, Video, and Similar Electronic Apparatus

UL Std No. 60065-2007 Safety Requirements – Audio, Video, and Similar Electronic Apparatus

I certify that the product identified above conforms to the requirements of the EMC Council directive 2004/108/EC and the Low
Voltage Directive 2006/95/EC.

Signed _____________________________

Terry Davenport
Senior Director of Operations

Due to line current harmonics, we recommend that you contact your supply authority before connection.

Operation Manual

Date of Issue: February 1, 2012

page 3

Stereo ByPass Mode

Get Started

Stereo DSP Off

This is the default mode the amplifier
is set to from the factory. The amplifier
is configured for stereo mode with all
processing disabled.

1. Connect Left/Right signal source to
Channel 1 and Channel 2 using the
XLR connectors.

2. Connect a speaker to each channel
output using Speakon®, Banana
Plugs, or bare wire.

Factory Preset #2: BRIDGE

Putting the amplifier in BRIDGE
(bridge-mono) mode delivers the power
of both amp channels into a single 8 or
4 ohm load. The XTi2 Series amplifiers
come pre-loaded with a preset that
makes it easy to configure the amplifier
for this operation.

Before you get started ensure that you:

1. Connect signal source to Channel
1 and Channel 2 using XLR connectors (the amplifier inputs will
automatically be summed together when selecting this preset).

2. Connector the speaker as shown.

a. If using the binding post outputs, connect the positive terminal of the

speaker to the positive terminal of Channel 1 and the negative terminal
of the speaker to the positive terminal of Channel 2.

b. If using a Speakon® connector, connect the positive terminal of the

speaker to 1+ and the negative terminal to 2+. Plug the connector into
the Channel 1 output only.

Follow these quick steps to configure the amplifier for BRIDGE operation:

1. Push the “Set/Enter” button and you will see the word “Preset” flashing.

2. Push the “Set/Enter” button again to enter the list of presets in the
amplifier.

3. Push the “Next/Down” or “PREV/UP” button until the screen displays
“Bridge”.

4. Push the “Set/Enter” button to confirm your selection.

5. The display will now read “Bridge” with the Y icon and Bridge
icon highlighted.

XTi 6002 back panel shown.

See page 9 for XTi 1002, 2002
and 4002 back panel.

XTi2 Series Power Amplifiers

NOTE: Cus tom wiring s hould
only be perf ormed by qualified
personnel.

page 4

Operation Manual

XTi2 Series Power Amplifiers

Get Started

Factory Preset #3: XOVER

Putting the amplifier in XOVER mode
enables a 1.2kHz 4th order (24dB/
octave) filter that sends frequencies of

1.2kHz and below to Channel 1 output
and frequencies of 1.2kHz and above
to Channel 2 output. The XTi2 Series
amplifiers come pre-loaded with a
preset that makes it easy to configure the
amplifier for this operation.

Before you get started ensure that you:

1. Connect signal source to Channel
1 ONLY using an XLR connector (the amplifier inputs will automatically be put into Y
mode when selecting this preset).

2. Connector the speaker as shown.

a. Connect the speaker you wish to receive the low and mid frequencies (1.2kHz and below) to Channel 1

output using Speakon®, Banana Plugs, or bare wire.

b. Connect the speaker you wish to receive the high frequencies (1.2kHz and above) to Channel 2 output

using Speakon®, Banana Plugs, or bare wire.

Follow these quick steps to configure the amplifier for “Crossover Mode”:

1. Push the “Set/Enter” button and you will see the word “Preset” flashing.

2. Push the “Set/Enter” button again to enter the list of presets in the amplifier.

3. Push the “Next/Down” or “PREV/UP” button until the screen displays “BIAMP”.

4. Push the “Set/Enter” button to confirm your selection.

5. The display will now read “BIAMP” with the Y icon and XOV icon highlighted.

HIGH 2+/–

LOW 1+/–

Operation Manual

page 5

XTi2 Series Power Amplifiers

Low Pass Mode

Get Started

Factory Preset #4: BRG SUBS

Putting the amplifier in BRG SUBS
(bridged subs) mode allows you to
bridge the amplifier for use with a single
8 or 4 ohm subwoofer. The inputs are
automatically summed, a 90Hz 4th order
(24dB/octave) LowPass filter is enabled,
and the output mode is put into bridge­mono mode. The XTi2 Series amplifiers
come pre-loaded with a preset that makes
it easy to configure the amplifier for this
operation.

Before you get started ensure that you:

1. Connect signal source to Channel 1 and Channel 2 using XLR connectors (the amplifier inputs will
automatically be summed together when selecting this preset).

2. Connector the speaker as shown.

a. If using the binding post outputs, connect the positive terminal of the speaker to the positive

terminal of Channel 1 and the negative terminal of the speaker to the positive terminal of Channel

2.

b. If using a Speakon® connector, connect the positive terminal of the speaker to 1+ and the

negative terminal to 2+. Plug the connector into the Channel 1 output only.

Follow these quick steps to configure the amplifier for XOVER operation:

1. Push the “Set/Enter” button and you will see the word “Preset” flashing.

2. Push the “Set/Enter” button again to enter the list of presets in the amplifier.

3. Push the “Next/Down” or “PREV/UP” button until the screen displays “XOVER”.

4. Push the “Set/Enter” button to confirm your selection.

5. The display will now read “XOVER” with the Y icon and XOV icon highlighted.

page 6

Operation Manual

XTi2 Series Power Amplifiers

Get Started

Factory Preset #5: SUBSYNTH

Putting the amplifier in SUBSYNTH
mode allows you to turn on the
SubHarmonic Synth feature for use with a
subwoofer on both channels. The inputs
are automatically summed, a 90Hz 4th
order (24dB/octave) filter is enabled on
both Channel 1 and Channel 2, and the
SubHarmonic Synth feature is turned on
at +12dB level. The XTi2 Series amplifiers
come pre-loaded with a preset that makes
it easy to configure the amplifier for this
operation.

Before you get started ensure that you:

1. Connect signal source to Channel 1 and Channel 2 using XLR connectors (the amplifier inputs will
automatically be summed together when selecting this preset).

2. Connector the speaker as shown.

a. Connect a speaker to each channel output using Speakon©, Banana Plugs, or bare wire

Follow these quick steps to configure the amplifier for SUBSYNTH operation:

1. Push the “Set/Enter” button and you will see the word “Preset” flashing.

2. Push the “Set/Enter” button again to enter the list of presets in the amplifier.

3. Push the “Next/Down” or “PREV/UP” button until the screen displays “SUBSYNTH”.

4. Push the “Set/Enter” button to confirm your selection.

5. The display will now read “SUBSYNTH” with the Y icon and XOV icon highlighted.

Ensure Proper Cooling

When using an equipment rack, mount units directly on top of each other. Close any
open spaces in rack with blank panels. DO NOT block front or rear air vents. The side
walls of the rack should be a minimum of two inches (5.1 cm) away from the amplifier
sides, and the back of the rack should be open.

CAUTION: Before you begin installing your amplifier, make sure
it is disconnected from the power source, with the power switch
in the “off” position and all level controls turned completely
down (counterclock wise).

Operation Manual

page 7

Front Panel Features

XTi2 Series Power Amplifiers

Power Button & Indicator:

Turns amplifier power on and off.

Blue LED will illuminate when

power is turned on.

LCD Screen:

Backlit liquid crystal display

shows enabled presets and

speaker processing.

page 8

Sel/Prev/Next Buttons:

Three buttons located

underneath the LCD screen

used to access menu items

and front panel lockout.

Gain (Level) Controls:

Two black rotary level controls,

one for each channel.

Cooling Vents:

Indicators:

Ready Indicator: Two green LEDs, one for each channel, illuminate when the amplifier is ready to produce audio.

Signal Presence Indicator: Two green LE Ds, one for each channel, illuminate when the channel input exceeds -40dBu. Useful for troubleshooting cable runs.

-20 Indicator: Two green LEDs, one for each channel, illuminate when the output signal exceeds -20dB below clip.

-10 Indicator: Two green LEDs, one for each channel, illuminate when the output signal exceeds -10dB below clip.

Clip Indicator: Two red LEDs, one for each channel, illuminate at the threshold of audible distor tion.

Thermal Indicator: Two red LEDs, one for each channel, illuminate when thermal compression begins due to excessive temperature conditions.

Front to rear forced air flow.

WARNI NG: Never co nnect the o utput to a po wer supply,

batt ery or powe r main. Elect rical sho ck may resu lt.

Operation Manual

XTi2 Series Power Amplifiers

you to connect the amplifier to

Fans:

Provide front to back

forced airflow for cooling.

Input Connector:

Two 3-pin XLR input

connectors are provided

(one per channel).

Binding Post Output Jacks:

One pair per channel, accepts banana plugs or

bare wire. Note: Binding Post outputs on European

models come with safety plugs installed to prevent

European power plugs from being inserted. The

side entry positions for these connectors should

be used with European models.

AC Power

Connector

Power Cord Clip:

Mounting points for securing,

included power cord clip.

Back Panel Features

XTi 1002, 2002, 4002

™ and Band

™ software.

Input Connector:

Two 3-pin XLR input

connectors are provided

(one per channel).

Fans:

Provide front to back

forced airflow for cooling.

Binding Post Output Jacks:

One pair per channel, accepts banana plugs or

bare wire. Note: Binding Post outputs on European

models come with safety plugs installed to prevent

European power plugs from being inserted. The

side entry positions for these connectors should

be used with European models.

HiQnet USB Connector:

Link/Out Connector:

Output Connectors:

®

4-Pole Speakon

Type B USB connector allows

Two 3-pin XLR output

These two connectors accept 2-pole and 4-pole

Manager

a computer for use with

System Architect

connectors are provided

(one per channel) to

loop-thru signal from one

amplifier to another.

Speakon© connectors. The channel 1 connector is

wired for both channels so it can be used for

bridge-mono wiring or stereo wiring of two

speakers to a single Speakon.

Operation Manual

Power Cord Clip:

Mounting points for

securing, included

power cord clip.

AC Power

Connector

page 9

Back Panel Features

XTi 6002

XTi2 Series Power Amplifiers

™ and Band

™ software.

Input Connector:

Two 3-pin XLR input

connectors are provided

(one per channel).

Fans:

Provide front to back

forced airflow for cooling.

Binding Post Output Jacks:

One pair per channel, accepts banana plugs or

bare wire. Note: Binding Post outputs on European

models come with safety plugs installed to prevent

European power plugs from being inserted. The

side entry positions for these connectors should

be used with European models.

HiQnet USB Connector:

Type B USB connector allows

Link/Out Connector:

Two 3-pin XLR output

Output Connectors:

®

4-Pole Speakon

These two connectors accept 2-pole and 4-pole

Manager

you to connect the amplifier to

a computer for use with

System Architect

connectors are provided

(one per channel) to

loop-thru signal from one

amplifier to another.

Speakon© connectors. The channel 1 connector is

wired for both channels so it can be used for

bridge-mono wiring or stereo wiring of two

speakers to a single Speakon.

page 10

AC Power

Power Cord Clip:

Mounting points for securing,

included power cord clip.

Connector

Circuit Breaker:

Provides overload protection

Operation Manual

XTi2 Series Power Amplifiers

Front Panel Navigation

From the front panel, you can change settings for several of the amplifier’s integrated signal processing
features: Input Y, Crossover Frequency, EQ, Delay, Limiting, and Stereo/Bridge-Mono. The Icons in the display
illuminate to show which features are currently applied and turned on.

When you power-on the amplifier for the first time, the LCD screen displays “DSP OFF” (no DSP is applied).
Subsequent power-ons display the preset that was active when you last shut off the amplifier.

The figure below shows the Menu Tree, which is the navigation path of options in the Menu. It shows how
you navigate through the front panel and which settings are available from the front panel. For full access to
all features, it is required that you hook up the amplifier via USB to a computer and run either HiQnet System
Architect™ or Band Manager™ software. Both are available free via download from the following address:
http://hiqnet.harmanpro.com.

Menu Tree

Power-up

CURRENT PRESET

Sel

FLASHING “PRESET” TEXT

Sel

FLASHING “PRESET” ICON

Sel

PRESETS
(TEXT on screen)

DSP OFF

Next

BRIDGE

Next

XOVER

Next

BRG SUBS

Next

SUB SYNTH

Next

USER PRESETS
6-50

Next

Sel

Doing nothing returns you to the
CURRENT PRESET after a timeout delay.

Starting from the CURRENT PRESET,

Sel > Sel > Next goes to presets.

Sel > Next > Sel lets you

configure the DSP processes.

MENU TREE

Next or Prev

Next

DSP PROCESSES

(ICONS on screen)

FLASHING “CONFIG” TEXT

Sel

Next

Next

Y

Sel

Next

XOV

Sel

EQ Ch. 1

Sel

EQ Ch. 2

Sel

Next

DELAY Ch. 1

Sel

Next

DELAY Ch. 2

Sel

Next

LIM Ch. 1

Sel

Next

LIM Ch. 2

Sel

STEREO/BRIDGE MONO

Sel

Press Next to see

CH1+CH2

each processor’s

INPUT Y

options, then press

STEREO

Sel to select an option.

OFF, 90 Hz, 100 Hz, 1200 Hz,
1500 Hz, 2000 Hz, 2-CH SUB,
CUSTOM

Next

EQ OUT
EQ IN

Prev
Next

EQ OUT

EQ IN

Prev

CURRENT, OFF, 50, 40, 30,
20,10, 9, 8, 7, 6, 5, 4, 3, 2, 1

CURRENT, OFF, 50, 40, 30,
20,10, 9, 8, 7, 6, 5, 4, 3, 2, 1

CURRENT, OFF, –0.5 dB,
–1.0 dB, –1.5 dB... –40 dB

CURRENT, OFF, –0.5 dB,
–1.0 dB, –1.5 dB... –40 dB

Next

BRIDGE

STEREO

Prev

Navigating the LCD Screen Menu: Basics

To step through the Menu options, press the Sel, Next or Prev buttons as described in the menu tree above.
Icons illuminated at the top of the screen show which DSP functions are active with the current preset.

When you are modifying a preset, its icon flashes. You can scroll through its settings with the Prev and Next
buttons. When you see the desired setting, select it by pressing Sel. Doing nothing returns you to the current
preset after ten seconds.

In the LCD screen, if the Preset Icon is lit, the current preset is unchanged from its stored settings. If the
Custom Icon is lit, the current preset has been changed from its stored settings.

Operation Manual

page 11

XTi2 Series Power Amplifiers

Integrated Processing Features

The XTi2 Series amplifiers include a number of integrated processing features which appear as icons on the
front panel LCD screen. They are described below:

NOTE: System Architect Software is required to have full control over all Integrated Processing
Features which can be downloaded from the following URL – ht tp://hiqnet.harmanpro.com/.
When controlling more than one X Ti2 at a time you will need USB Hub. We recommend using a
Powered USB Hub.

Input Mode

• Stereo - In this mode, Channel 1 input goes to Channel 1 output and Channel 2 input goes to Channel 2

output. This is the mode the amplifier is configured for from the factory.

• SUM (CH1 + CH2) – In this mode, the Channel 1 input signal and Channel 2 input signal are summed and

fed to both output channels. This provides a 6 dB level boost.

• Input Y – In this mode, the Channel 1 input signal is sent to the Channel 1 and Channel 2 output. The channel

2 input signal is ignored.

Output Mode

• Stereo – In this mode, the amplier sends Channel 1 input signal to the Channel 1 output and the Channel 2

input signal to the Channel 2 output.

• Bridge-Mono – In this mode, the power of both amplier channels are delivered into a single 8 or 4 ohm load.

Subharmonic Synth

The Subharmonic Synth feature takes the low frequencies and “synthesizes” or creates new frequencies that are
one octave lower. The t wo signals are then summed together. Also new, are two user adjustable parametric EQ
filters and crossover frequency filter. These can be used to “shape” the sound and enhance the desired effect.

Equalization

The XTi2 Series provides two blocks of equaliz ation in the signal processing. The input EQ block is before the
crossover and is usually used for the room EQ. The output EQ block is after the crossover and is usually used
for speaking tuning.

Input EQ: This input EQ block provides 6 filters per channel each with frequency, gain, and Q that is user
controllable. This block also has a High and Low Shelf Filter per channel which has gain and frequency
control.

Output EQ: This output EQ block provides 8 filters per channel each with frequency, gain, and Q control that is
user controllable.

Crossover:

The crossover section provides users with the ability to enable a HighPass and LowPass filter per channel
along with BandPass gain and the ability to change the polarity. This allows the Crossover section to be
customized to most system configurations.

For the HighPass and LowPass Filters, you have the choice of the following filters: Butterworth 6dB/oct,
Butterworth 12dB/oct, Butterworth 18dB/oct, Butterworth 24dB/oct, Butterworth 48dB/oct, Linkwitz-Riley 24dB/
oct, and Linkwitz-Riley 48dB/oct.

The BandPass gain provides you with -15dB to +15dB of gain.

page 12

Operation Manual

XTi2 Series Power Amplifiers

Integrated Processing Features

Delay

There is up to 50msec of delay available in the signal processing for time aligning your speakers. The software
allows you to enter the amount of delay needed in the form of seconds, feet, or meters and does the calculation
for you.

PeakX Plus Limiter:

Feed-forward output limiter with user-adjustable attack, release and threshold (0.1 dB resolution), plus
integrated feedback limiter to minimize amplifier clipping.

Advanced Thermal Control

In this section, you can tailor the fan speed to specific applications. You have the choice of the following modes:

• Normal

• Early

• Full-Speed

The fan mode can be changed using the front panel buttons at start-up or in the sof tware. The default mode is
normal and should work fine for most applications. Early mode turns the fan on sooner at a “lower” temperature,
and Full-speed mode turns the fan on full-speed full-time. Full-speed mode is not recommended for “dirty”
environments.

Advanced Monitoring

This feature allows you to have software visibility of both the Power Supply Temperature and AC Line voltage.
AC Line voltage is “derived” from the amplifier rail voltage and is an approximation of the AC line voltage. This
allows you to monitor the health of your amplifiers and provides for troubleshooting.

Front Panel Lock-Out

To disable or lock the buttons from the front panel, hold the Prev and Nex t at the same time until the screen says
“locked”. The rotary knobs (attenuators) will still operate. To unlock, hold Prev and Nex t until the screen says
“u nlo cke d”.

The front panel can also be locked out from the software as well from the main panel. However once it is locked
in the software, it can only be unlocked from the software. You cannot unlock from the front panel. The rotary

knobs (attenuators) will still operate.

Operation Manual

page 13

XTi2 Series Power Amplifiers

XTi Specications

Minimum Guaranteed Power, 1 kHz XTi 1002 XTi 2002 XTi 4002 XTi 6002

Per channel, both channels driven

Stereo, 2 ohms (per channel)

Stereo, 4 ohms (per channel)

Stereo, 8 ohms (per channel)

Bridge-Mono, 4 ohms

Bridge-Mono, 8 ohms

Performance

Sensitivity (volts RMS) for full rated power at 4 ohms: 1.4 V.

Frequency Response (at 1 watt into 4 ohms, 20 Hz to 20 kHz): +0 dB, –1 dB.

Signal to Noise Ratio (below rated 1 kHz power at 8 ohms), A-weighted: 100 dB (103 dB in XTi 6000).

Damping Factor (8 ohm) 10 Hz to 400 Hz: > 500.

Crosstalk (below rated power) 20 Hz to 1 kHz: > 70 dB.

Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced.

Input Stage: Input is electronically balanced and employs pre cision 1% resistors.

AC Line Current (120VAC amplifier playing 1/8 power pink noise into 4 ohms per ch):

XTi 1002: 6.8A, XTi 2002: 8.3A, XTi 4002: 10.5A; at idle draws no more than 30 watts.
XTi 6002: 15.3A; at idle draws no more than 180 watts.

Voltage Gain (at 1 kHz, 8 ohm rated output): XTi 1002: 30.5 dB. XTi 2002: 32.9 dB. XTi 4002: 34.2 dB.

XTi 6002: 37.1 dB.

Maximum Imput Signal: +22 dBu typical.

700W

500W

275W

1,400W

1,000W

1,000W

2,000W

1,600W

With 0.5% THD. *With 1% THD.

800W

475W

1,600W

1,200W

650W

3,200W

2,400W

†

Not rated for 100V versions.

3,000W

2,100W

1,200W

6,000W

4,200W

page 14

Operation Manual

XTi2 Series Power Amplifiers

XTi Specications

Load impedance (note: safe with all types of loads)

Stereo: 2-8 ohms (4-8 ohms in XTi 1000 A1 100V versions).
Bridge-Mono: 4-16 ohms (8-16 ohms in XTi 1000 A1 100V versions).

AC Line Voltage and Frequency Configura tions Available (± 10%): 100V, 120V, 220-240V 50/60 Hz.

Operating Temperature: 0° C to 40° C at 95% relative humidity (non-condensing).

Construction

Ventilation: Flow-through ventilation from front to back.

Cooling: Heat sinks and proportional-speed fan.

Dimensions. Width, Height, Depth (behind mounting surface):

EIA Standard 19 in. W (EIA RS-310-B) x 3.5 in. (8.9 cm) H x 12.25 in. (31.1cm) D. XTi 6000 is 16.2 in.
(41.15 cm) D.

Weight

Net Weight, Shipping Weight: 18.5 lb (8.4 kg), 21.5 lb (9.8 kg). XTi 6002 is 24.0 lb (10.9 kg),

30.0 lb (13.6 kg).

Operation Manual

page 15

XTi2 Series Power Amplifiers

Warranty

SUMMARY OF WARRANTY
Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S. A. warrants to you, the ORIGINAL
PURCHASER and ANY SUBSEQUENT OWNER of e ach NEW Crown product, for a period of three (3) years from the date
of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials
and workmanship. We further warrant the new Crown product regardless of the reason for failure, except as excluded in
this Warranty.

*Warranty is only valid within the United States of America. For information on Warranty outside of the U.S.A, please
contact your local distributor.

ITEMS EXCLUDED FROM THIS CROWN WARRANTY
This Crown Warrant y is in effect only for failure of a new Crown product which occurred within the Warranty Period. It
does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss
which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the new Crown
product if the serial number has been defaced, altered, or removed.

WHAT THE WARRANTOR WILL DO
We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund.
We may not elect refund unless you agree, or unless we are unable to provide replacement, and repair is not practical or
cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product available to
us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase pric e, not including
interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date
of original purchase. Warranty work can only be performed at our authorized service centers or at the factory. Warranty
work for some products can only be performed at our factor y. We will remedy the defect and ship the product from the
service center or our factory within a reasonable time after receipt of the defective product at our authorized service
center or our factory. All expenses in remedying the defect, including surface shipping costs in the United States,
will be borne by us. (You must bear the expense of shipping the product bet ween any foreign country and the port of
entry in the United States including the return shipment, and all taxes, duties, and other customs fees for such foreign
shipments.)

HOW TO OBTAIN WARR ANTY SERVICE
You must notify us of your need for warranty service within the warranty period. All components must be shipped
in a factory pack, which, if needed, may be obtained from us free of charge. Corrective action will be taken within a
reasonable time of the date of receipt of the defective product by us or our authorized service center. If the repairs made
by us or our authorized service center are not satisfactory, notify us or our authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES
YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN
THE NE W CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO ANOT HER PRODUCT OR PRODUCTS RESULTING
FROM SUCH A DEFECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WARRANTY ALTERATIONS
No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by
the length of time which you are deprived of the use of the new Crown product. Repairs and replacement parts provided
under the terms of this Crown Warranty shall carry only the unexpired por tion of this Crown Warranty.

DESIGN CHANGES
We reserve the right to change the design of any product from time to time without notice and with no obligation to make
corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER
THIS CROWN WARRA NTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE. No action to enforce this Crown Warranty shall be commenced after expiration of the
warranty period.

THIS STATEMENT OF WARRANTY SUPERSEDES ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN
PRODUCTS. 07/12

page 16

Operation Manual

XTi2 Series Power Amplifiers

Operation Manual

page 17
