T-Series
Operation Manual
• T3
• T5
• T7
• T10
Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown Distributor. If you need
assistance locating your local distributor, please visit Crown at www.crownaudio.com.
This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during
installation, operation or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. To obtain the latest
version of this manual, please visit the Crown website at www.crownaudio.com.
Later versions of this manual and additional information about this product may be available at the Crown website at www.crownaudio.com.
Trademark Notice: Crown and Crown Audio are registered trademarks of HARMAN International.
© 2020 by HARMAN International®, Inc. 8500 Balboa Blvd. Northridge, CA 91329
5054133-A – 07/20
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Use the mains plug to disconnect the apparatus from the mains.
16. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
17. WARNING: THIS APPLIANCE SHALL BE CONNECTED TO A MAINS
SOCKET OUTLET WITH A PROTECTIVE EARTHING CONNECTION.
18. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND
ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
ARE PLACED ON THE EQUIPMENT.
19. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN
READILY OPERABLE.
TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM
COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC
MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC
RECEPTACLE. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL
REMAIN READILY OPERABLE.
WARNING: PAY ATTENTION TO A PROCEDURE, PRACTICE, CONDITION
OR THE LIKE, IF NOT CORRECTLY PERFORMED OR ADHERED TO, COULD
RESULT IN PERSONAL INJURY OR DEATH.
CAUTION: PAY ATTENTION TO PROCEDURE, PRACTICE, CONDITION OR
THE LIKE, IF NOT CORRECTLY PERFORMED OR ADHERED TO, COULD
RESULT IN DAMAGE OR DESTRUCTION TO PART OR ALL OF THE
COMPONENT .
WATCH FOR THESE SYMBOLS:
The lightning bolt triangle is used to alert the user to the risk of
electric shock.
The exclamation point triangle is used to alert the user to important
operating or maintenance instructions.
IMPORTANT
T-Series amplifiers require Class 2 output wiring.
MAGNETIC FIELD
CAUTION! Do not locate sensitive high-gain equipment such as preamplifiers
or tape decks directly above or below the unit. Because this amplifier has a
high power density, it has a strong magnetic field which can induce hum into
unshielded devices that are located nearby. The field is strongest just above
and below the unit.
If an equipment rack is used, we recommend locating the amplifier(s) in the
bottom of the rack and the preamplifier or other sensitive equipment at the top.
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity
Due to line current harmonics, we recommend that you contact your supply authority before connection.
DECLARATION OF CONFORMITY
Issued By: Harman International.
1718 W. Mishawaka Rd.
Elkhart, IN 46517 U.S.A.
European Representative’s Name and Address:
David J. Budge
10 Harvest Close
Yateley
GU46 6YS
United Kingdom
Equipment Type: Commercial Audio Power Amplifiers
Family Name: T-Series
Model Names: T3, T5, T7, T10
EMC Standards:
EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and
Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions
EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 20 cm
EN 61000-3-2:2001 Limits for Harmonic Current Emissions (equipment input current less than or equal to 16 A per phase)
EN 61000-3-3:2002 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current less than
or equal to16A
EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits;
Conducted, Class A
EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and
Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity
EN 61000-4-2:2001 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge)
EN 61000-4-3:2001 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, criteria A)
EN 61000-4-4:2001 Electrical Fast Transient/Burst Immunity (Criteria B)
EN 61000-4-5:2001 Surge Immunity (Criteria B)
EN 61000-4-6:2003 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A)
EN 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage Variation
Safety Standard:
IEC 60065: 2001 7th Ed. Safety Requirements - Audio Video and Similar Electronic Apparatus
I certify that the product identified above conforms to the requirements of the EMC Council Directive
by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC.92/31/EEC, and the Low Voltage Directive
73/23/EES as amended by 93/68/EEC.
Signed _____________________________
Terry Davenport
Director of Manufacturing
89/336/EEC as amended
Date of Issue: March 1, 2012
Table of Contents
Front Panel Features ������������������������������������������������������������ 1
Back Panel Features ������������������������������������������������������������� 1
Installation Instructions ��������������������������������������������������������� 2
Unboxing the Amplifier .......................................................................................................... 2
Installing the Amplifier ........................................................................................................... 2
Proper Cooling ...................................................................................................................... 2
Wiring ����������������������������������������������������������������������������� 3
Stereo (Dual) Wiring Using Both Speakon® Connectors ......................................................... 3
Stereo (Dual) Wiring Using One Speakon® Connector ............................................................ 3
Stereo (Dual) Wiring Using Binding Post Connectors ............................................................. 4
Bridge-Mono Wiring Using Speakon® Connectors ................................................................. 4
Bridge-Mono Wiring Using Binding Post Connectors ............................................................ 5
Parallel Wiring Using Speakon® Connectors .......................................................................... 5
Parallel Wiring Using Binding Post Connectors ..................................................................... 6
Specifications �������������������������������������������������������������������� 7
Warranty �������������������������������������������������������������������������� 8
T-Series Operation Manual
Power amplifiers
audibly distorting.
Front Panel Features
Mode Switch
Rack-Mount Hole
(one of four)
Gain Control
Sets ouptut level of
channel 1.
Signal Presence LED
Green LED, one per
channel, flashes when input
signal exceeds -40 dBu.
Power LED
LED illuminates blue
when amplifier is on.
Power Switch
Push to power the
amp on or off.
Fault LED
Red LED, one per
channel, indicates
channel shutdown.
Clip LED
Yellow LED, one per
channel, flashes
when signal is
Gain Control
Sets ouptut level of
channel 2.
Grill
Allows air ventilation
to flow from front to
back.
Back Panel Features
Circuit Breaker
Provides overload protection.
AC Power
Connector
Output Connectors
One Speakon® and one Binding Post
connector pair per channel for
connecting loudspeakers.
Fans
Provide front-to-back
forced airflow for cooling.
Stereo (dual),
Parallel or Bridge.
Input Connectors
One balanced XLR and one
unbalanced RCA per channel.
Sensitivity Switch
1.4V or 0.775V input
sensitivity.
T-Series Operation Manual
page 1
Installation Instructions
Unboxing the Amplifier
Please open the packing box and check whether the equipment has been damaged during transportation. If damage is found, please notify the transportation company
immediately. Only you can make a claim for shipping damage. Crown is happy to help as needed. Keep the shipping carton and use it as evidence of damage to the
equipment when the shipper checks it.
In addition, we recommend that you save all packaging materials for future transportation of the device. Do not transport equipment without factory packaging. You will need
the following items to install the amplifier (not provided):
• Input cable
• Output cable
• Bracket used to support the amplifier when mounted in the rack or a stable table to place the amplifier on (the amplifier should always be supported from the bottom)
WARNING: Before you start installing the amplier, make sure you have read and followed the important safety
instructions listed at the beginning of this manual.
WARNING: Before starting the installation, make sure you have disconnected the amplier from the power supply, set
the power switch of the amplier to the "off" position, and adjusted all volumes to the lowest (fully counterclockwise)
position.
Installing the Amplifier
CAUTION: Before you begin, make sure the amplifier is disconnected from the
power source.
Use a standard 19-inch (48.3 cm) equipment rack (EIA RS-310B). Please refer to the
specifications (see “Specifications") for the specific power amplifier size.
NOTE: During transportation, support must be provided on the front and back of the
amplifier.
Proper Cooling
Air flow is front to back as illustrated in Figure 2. If using equipment racks, we recommend placing
sensitive equipment at least 20 cm away from the amplifier. When using an equipment rack,be sure to
use empty panels to close all open spaces. Do not block the front and rear vents. Leave at least 5.1 cm of
space between the brackets on both sides and the amplifier, and at least 10.2 cm between the brackets on
the back and the amplifier space.
19 in.
48.2 cm
12.45 in.
31.64 cm
Figure 1: Dimensions
3.46 in.
8.8 cm
page 2
Figure 2: Proper rack venting
WARNING!!! Do not place equipment that can be damaged by strong magnetic elds near the amplier, as it may
generate unwanted noise if too close to other equipment.
T-Series Operation Manual
Wiring
Stereo (Dual) Wiring Using Both Speakon® Connectors
1� On the back panel, set the Output Mode Switch to STEREO.
2� Wire the speakers to the Speakon® connectors as shown.
CH1 Speakon®
CH2 Speakon®
T3
Stereo (Dual) Wiring Using One Speakon® Connector
1� On the back panel, set the Output Mode Switch to STEREO.
2� Wire the speakers to the Speakon® connectors as shown.
1+ & 1-：CH1
2+ & 2-：CH2
T3
T-Series Operation Manual
page 3
Wiring (continued)

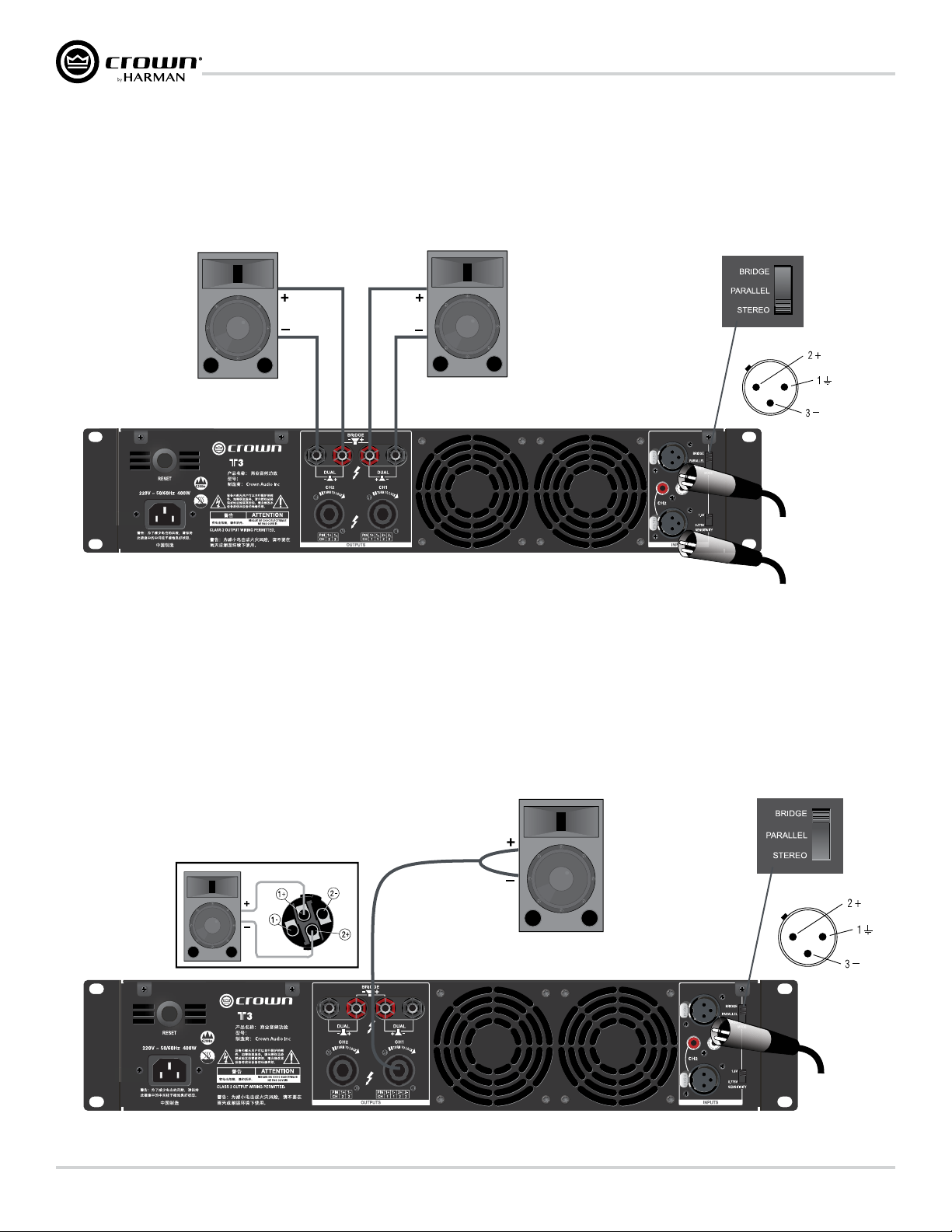

Stereo (Dual) Wiring Using Binding Post Connectors
1� On the back panel, set the Output Mode Switch to STEREO.
2� Wire the speakers to the binding post connectors as shown.
T3
Bridge-Mono Wiring Using Speakon® Connectors
Bridge-mono mode doubles the output power of the amplifier.
1� On the back panel, set the Output Mode Switch to BRIDGE.
2� Wire the speaker to the Speakon® connector as shown.
3� Only the Channel 1 Gain Control works in Bridge-mono mode.
T3
page 4
T-Series Operation Manual
Wiring (continued)
Bridge-Mono Wiring Using Binding Post Connectors
Bridge-mono mode doubles the output power of the amplifier.
1� On the back panel, set the Output Mode Switch to BRIDGE.
2� Wire the speaker to the binding post connections as shown.
3� Only the Channel 1 Gain Control works in Bridge-mono mode.
T3
Parallel Wiring Using Speakon® Connectors
With this wiring, a signal sent to one of the input connectors is paralleled to both channels so that it is reproduced by both speakers.
1� On the back panel, set the Output Mode Switch to PARALLEL.
2� Wire the speakers to the Speakon® connectors as shown.
T3
T-Series Operation Manual
page 5
Wiring (continued)
Parallel Wiring Using Binding Post Connectors
With this wiring, a signal sent to one of the input connectors is paralleled to both channels so that it is reproduced by both speakers.
1� On the back panel, set the Output Mode Switch to PARALLEL.
2� Wire the speakers to the binding post connectors as shown.
T3
page 6
T-Series Operation Manual
Specications
Guaranteed Minimum Power T3 T5 T7 T10
4 ohms stereo (per channel)
8 ohms stereo (per channel)
8 ohms bridge mono
(1 kHz (EIA) with 0.5% THD)
Performance
Frequency Response (at 1 watt) 20 Hz – 20 kHz, +0/-1 dB
Total Harmonic Distortion (THD) <0.5%, 20 Hz – 20 kHz
Intermodulation Distortion (IMD)
(60 Hz and 7 kHz at 4:1, from full rated output to -30 dB)
Slew Rate >10V/us
Voltage Gain 31 dB 33 dB 34.4 dB 36 dB
Damping Factor (8 ohms, 10 Hz – 400 Hz) >200
Signal-to-Noise Ratio
(below rated power, 20 Hz to 20 kHz, A-weighted)
Crosstalk (below rated power)
Input Sensitivity (for full rated power at 8 ohms) 0.775V or 1.4V
Nominal Input Impedance
Connectors, Controls and Indicators
450W
330W
900W
750W
500W
1500W
= / <0.35%
At 1 kHz: -75 dB
At 20 kHz: -59 dB
Balanced: 20k ohms
Unbalanced: 10k ohms
>100 dB
950W
675W
2000W
1350W
1000W
2700W
Input Connectors One balanced XLR and one unbalanced RCA per channel
Output (speaker) Connectors 4-pole Speakon® and one pair binding post per channel
Front Panel Controls Power on/off switch, one gain control per channel
Rear Panel Controls
Power Indicator One blue LED
Signal Indicator One green LED per channel
Clip (peak) Indicator One yellow LED per channel
Fault Indicator One red LED per channel
Power Cord Specifications
Output mode switch: stereo (dual), parallel or bridge
Input sensitivity switch: 0.775V or 1.4V
Plug: 10A, 250V
Cord: CCC 3 x 1.5 mm
2
Construction
Protection
Ventilation Flow-through ventilation from front to back
Cooling Internal heat sinks with forced air. Fan cooled, speed regulated, thermal protection
Dimensions (W x H x D)
Net Weight
Shipping Weight
Protection against short circuits, no-load, on/off muting, and RF interference;
19 x 3.46 x 12.45 in
(482 x 88 x 316.4 mm)
28.0 lb
(12.7 kg)
32.4 lb
(14.7 kg)
stable into reactive or mismatched loads
29.7 lb
(13.5 kg)
34.2 lb
(15.5 kg)
39.9 lb
(18.1 kg)
44.4 lb
(20.1 kg)
19 x 3.46 x 14.5 in
(482 x 88 x 369 mm)
19.5 kg)
(21.5 kg)
43.0 lb
47.4 lb
T-Series Operation Manual
page 7
Warranty
SUMMARY OF WARRANTY
Crown International, 8500 Balboa Blvd. Northridge, CA 91329 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown
product, for a period of one (1) year from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and
workmanship. We further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty.
*Your Crown product has been purchased in China and/or other Asian countries. (This Warranty does not apply to Crown products purchased elsewhere except for
purchases by military outlets. Other purchasers should contact the local Crown distributor for warranty information.)
ITEMS EXCLUDED FROM THIS CROWN WARRANTY
This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged
because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the
new Crown product if the serial number has been defaced, altered, or removed.
WHAT THE WARRANTOR WILL DO
We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund. We may not elect refund unless you agree, or unless
we are unable to provide replacement, and repair is not practical or cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product
available to us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase price, not including interest, insurance, closing costs, and
other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service
centers or at the factory. Warranty work for some products can only be performed at our factory. We will remedy the defect and ship the product from the service center or our
factory within a reasonable time after receipt of the defective product at our authorized service center or our factory. All expenses in remedying the defect, including surface
shipping costs in the United States, will be borne by us. (You must bear the expense of shipping the product between any foreign country and the port of entry in the United
States including the return shipment, and all taxes, duties, and other customs fees for such foreign shipments.)
HOW TO OBTAIN WARRANTY SERVICE
You must notify us of your need for warranty service within the warranty period. All components must be shipped in a factory pack, which, if needed, may be obtained from
us free of charge. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by us or our authorized service center. If the repairs
made by us or our authorized service center are not satisfactory, notify us or our authorized service center immediately.
DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES
YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES
ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WARRANTY ALTERATIONS
No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by the length of time which you are deprived of the use
of the new Crown product. Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only the unexpired portion of this Crown Warranty.
DESIGN CHANGES
We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously
manufactured.
LEGAL REMEDIES OF PURCHASER
THIS CROWN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No action to enforce this
Crown Warranty shall be commenced after expiration of the warranty period.
THIS STATEMENT OF WARRANTY SUPERSEDES ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS.
page 8
T-Series Operation Manual
Loading...
