Crown CV VIEW, CV-4 VIEW User Manual
GUANGDONG LVTONG NEW ENERGY
ELECTRIC VEHICLE TECHNOLOGY CO.,LTD
Address: He Xi Industry Park(In The Back Of Zheng Teng Industry Park)
mei Sha,hong Mei, Dong Guan, China.
Tel: 0769-22704308
Fax: 0769-22785133
Website: http://en.lvtong.com.cn
Preface
Dear Users,
Great thanks for purchasing our company 's electric cars.While
adopting advanced technology of Europe and USA and main
imported compenents, the cars are also with the innovative
design , luxury professional painting and high strength steel
welding material ,all of which makes our cars look fashionable,
reliable, beautiful and excellent in performance.With light
weight ,strong climbing ability , free pollution, low noise, convenient charging ,good braking performance and reasonable
price,our cars are the most advanced in the electric car field at
present.
In order to help users operate and maintain the car correctly,make the car play the best performance and prolong its working time,hereby we make the operation manual.Please read it
carefully.
The product is always in improving.If the manual doesn’t match
with the real product, the real product is the standard.
Note: This bus is mainly designed for relaxation, sightseeing,
tourism, thus suitable for using in special area like tourism
scenic area, community, pedestrian mall etc.
Warning manual and marking
Safety operation cautions
Vehicle structure and parameter

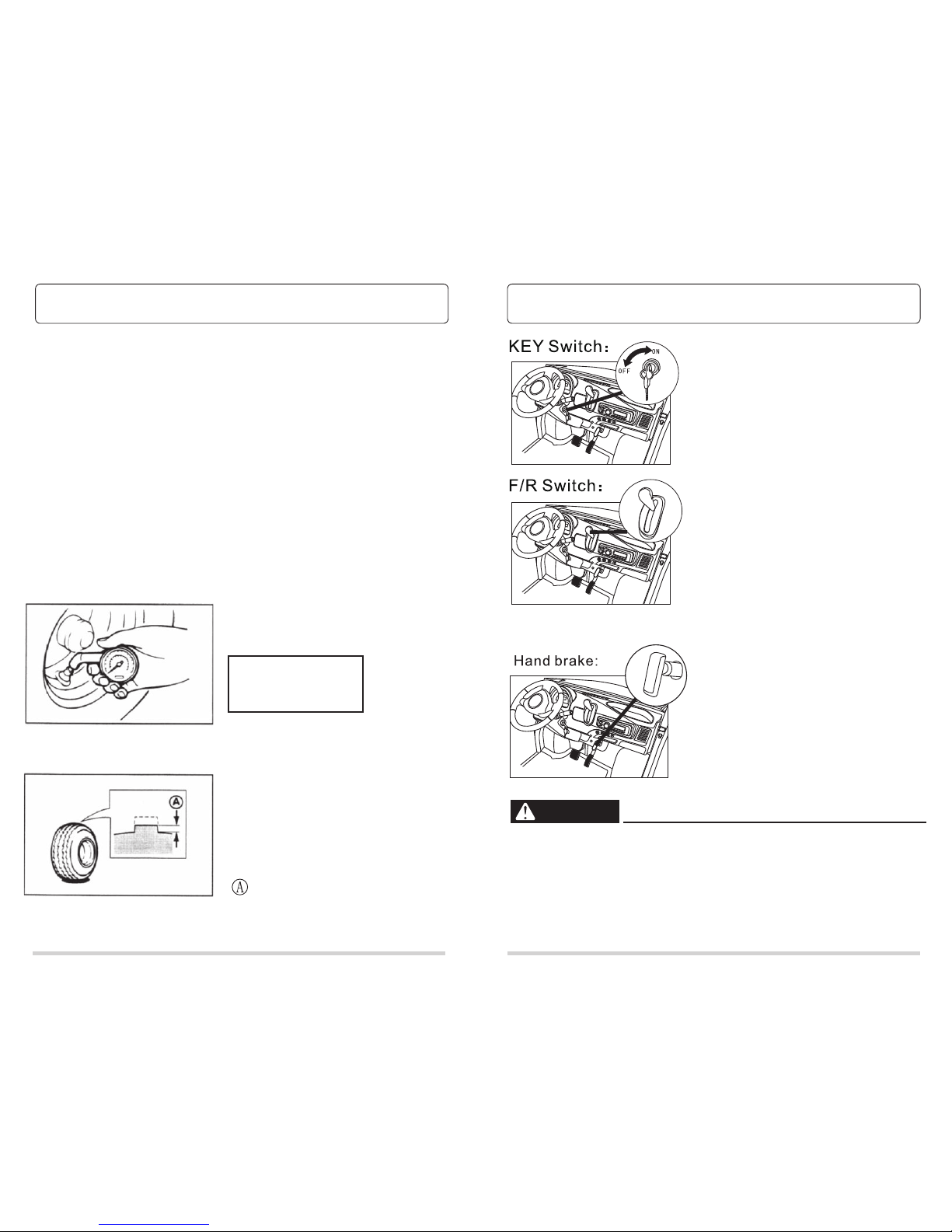

Preparations before operation
Operation and controll
A/C instructions
Maintenance
Transportation storage
After-sales service
1-2
3-5
6-9
10-13
14-15
16
17-25
26
27-28
Contents
IMPORTANT MANUAL INFORMATION IMPORTANT LABELS
Important information will be marked
by below warning label
SAFETY WARNING:BE CAREFUL!BE
CAREFULL OF YOUR SAFETY
SAFETY AND
INSTRUCTION LABELS
Pls follow this warning or it will resulf in
seriously injury or even death
WARNING
Pls read the manual carefully before
operating.
Pls read the label carefully before
operating, if you find the label is damaged or fall off, pls replace it immediately.
WARNING
Read and understand the manual completely before operating your golf car .
WARNING
This label shows the info that how to
keep the car avoid needlessly injury.
CAUTION
Lvtong company will update and
improve the cart or parts irregularly if
there is something changed, no farther
notice. pls kingly understanding!
NOTE:
Lvtong continually seeks improvement
in product quality. Even though this
manual contains the latest product
information available at the time of
printing , there may be minor discrepancies between your golf car and this
manual . If you have any question
concerning this manual , please
contact your Lvtong dealer and we will
work it out .
This manual should be considered as a
permanent part of your golf car and
should stay with the car when the car is
resold .
NOTE:
●Read the manual and safety instruction labels on the car before operating :
●Be sure that passengers are seated down .
●Select "forward " or “ reverse “ model .
●Step down accelerator to start ; and step down parking pedal to stop .
●Pls drive the car refer to the Terrain ,visibility and driving experience ,NEVER
drive too fast. Must be careful at crowd and wet place and also back up
during driving.
●Must make sure the car is stop, then shift direction (forward and reverse)
●It’s forbidden to down the accelerator and brake pedal at the same time
during driving car.
● Please read the safety and instruction labels on the steering wheel
before operating.
● No extra passengers can be allowed.
● Start the car until all passengers are seated well.
● Drive slowly when turning.
● Pull upwards the parking pedal before leawing the car.
● Turn off the main switch and the key.when not using the car.
● The passengers should be seated stably and fasten the seatbelt .
● Keep hands and feet inside the car.
Windshields do not provide
protection from other flying
objects.
OPERATION SAFETYSAFETY OPERATION
Before operating：
1. Read this manual and all the other operations or labels marked on the car
body before operating
2. Only authorized people should drive the car only in the designated area
3. Do not OVERLOAD
4. Do not drive the car if drinking any alcohol or having any drugs which could
distract the driver's vision and judgment
Before operating：
1.Pls read the safety mark and label on
the car before operating.
2.Only authorized people can drive the
car only in the designated area
3.Don't overload.
4.Do not drink any alcohol or have any
durgs which could distract the driver’s
vision and judgement.Drunk driving is
illegal.
5.Don't drive on the road,it may cause
collision with other car.
During Operating
1.Make sure your body not stick out of
the car,and keeping seated during
driving.
2.Do not start the car until all passengers are seated.
Lvtong golf cart be designed very easy
to operate,but you should notice as
below:
When operating:
1.Drive the cart only under qualification to drive.
2.Keep your body in the car do not start the car until all passengers are well
seated
3.Keep your hands on the steering wheel and your eyes on the path ahead
4.Do not drive the cart on the unapproved roads.
5.Avoid sudden start and brake
6.Do not overload driving in order to awoid braking performance damage to
vehicle elecrical parts and other security risks.
7.Do not turn the steering wheel too sharply at high speed
8.Keep driving slowly straight up or straight down,not at one same angle when
on slopes
34
Do not overload or make any modification towards spare parts
without prohibition.
Whole Vehicle Structure and Parameter
1.Keep your hands on the steering
wheel and your eyes on the path
ahead.
2.Be especially careful when backing
the car in crowded places.Pls keep
watching back and roll back slowly.
3.Avoid sudden and strong shock of
the car and change to the proper
speed according to the ground
condition.
4.Do not turn the steering wheel too
sharply when at high speed.
5.Keep driving slowly straight up or
straight down,not at one same angle.
6.Do not make any modification or
addition about the operation safty
and loading capacity,and this is the
whole manual.
WHOLE CAR STRUCTURE AND SPECIFICATIONS (2 PASSENGERS)
OPERATION SAFETY
56
1.Glass roof.
2.Front Windshield
3.Front cover
4.Front Head light
5.Front tire
6.Front bumper
7.Rear windshield
8.Trunk
9.Rear bumper
10.Vent decoration
11.Rear tires
12.Seat bucket
13.Front mud corer
14.Rear Taillight
15.Steering wheel
16.combination instrument
17.Combo switch
18.Gear position selector
19.DVD
20.Storage box
21.Air outlet
22.electric switch lock
23.Brake pedal
24.Accelerator
25.Hand brake
26.Model switch
27.Double flash switch
28.Cold wind switch
29.Warm wind switch
Whole Vehicle Structure and Parameter

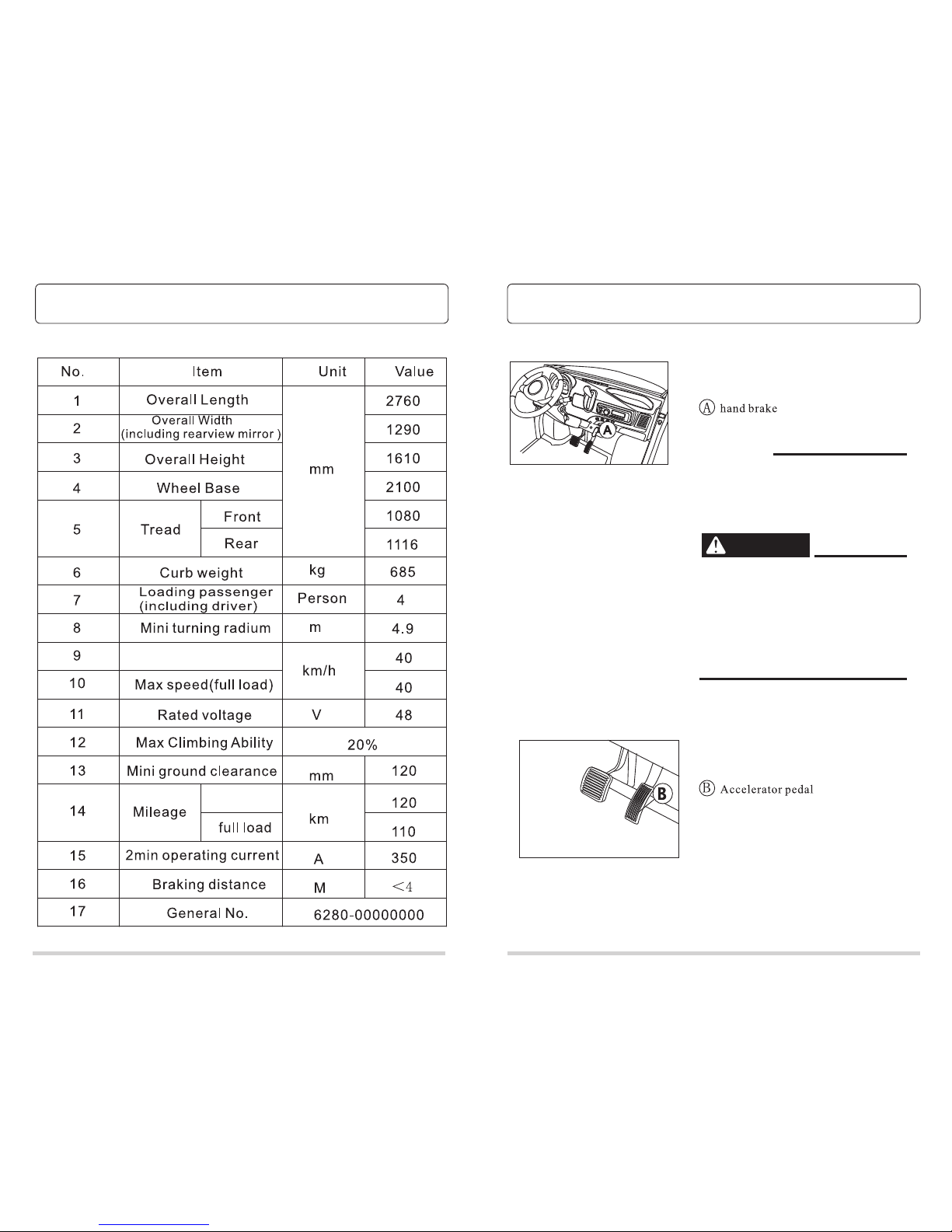

Whole car specifications (Standard) and parameter table
WHOLE CAR STRUCTURE AND SPECIFICATIONS 4 PASSENGERS)
WHOLE CAR STRUCTURE AND SPECIFICATIONS (2 PASSENGERS)
78
1.Roof glass
2.Front windshield
3.Front cover
4.Front headlight
5.Front tires
6.Front bumper
7.Rear glass
8.Trunk
9.Rear bumper
10.Vent decoration
11.Rear tire
12.Seat bucket
13.Front mud cover
14.Rear tail light
15.Steering wheel
16.Combination instrument
17.Combo Switch
18.Gear position selectvr
19.DVD
20.Storage box
21.Air outlet
22.Electric switch lock
23.Brake padel
24.Accelerator pedal
25.Hand brake
26.Mode switch
27.Double flash switch
28.Cold wind switch
29.Hot wind switch
