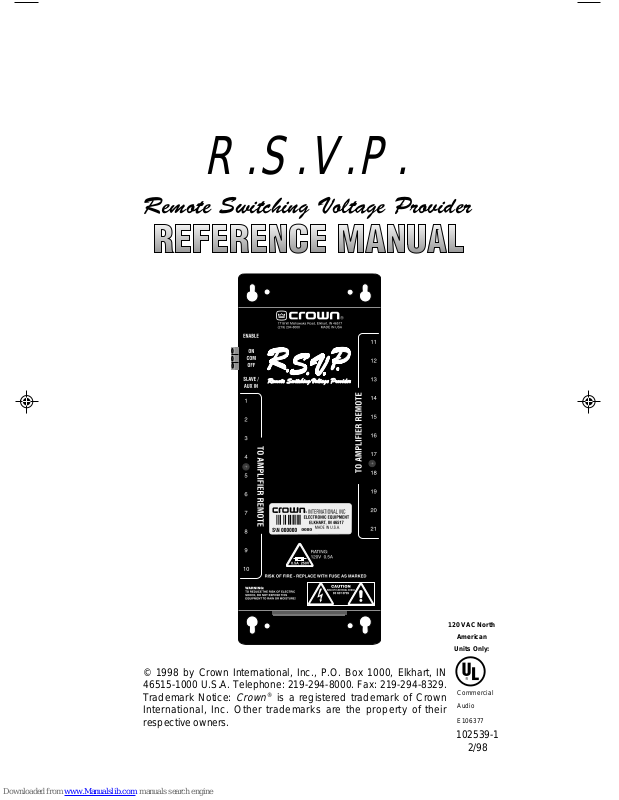

Crown Com-Tech CT-1610, Com-Tech CT-210, Com-Tech CT-410, Com-Tech CT-810, R.S.V.P. Reference Manual

R.S.V.P.

Remote Switching Voltage Provider

© 1998 by Crown International, Inc., P.O. Box 1000, Elkhart, IN
46515-1000 U.S.A. Telephone: [phone]. Fax: [phone].
Trademark Notice:
International, Inc. Other trademarks are the property of their
respective owners.

Crown

®

is a registered trademark of Crown

120 VAC North

American

Units Only:

®

Commercial
Audio

E106377

102539-1

2/98

R.S.V.P. Remote Switching Voltage Provider

The information furnished in this manual does not include all of the
details of design, production, or variations of the equipment. Nor
does it cover every possible situation which may arise during instal­lation, operation or maintenance. If you need special assistance be­yond the scope of this manual, please contact our T echnical Support

Group.

Crown Audio Division Technical Support Group

Plant 2 SW, 1718 W. Mishawaka Rd., Elkhart, Indiana 46515 U.S.A.

Phone: [phone] (North America, Puerto Rico and Virgin Islands) or 219-294-8200

Fax: [phone]

Fax Back (North America only): 800-294-4094 or 219-293-9200

Fax Back (International): 219-294-8100

Internet: http://www.crownaudio.com

C A U T I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO PREVENT ELECTRIC SHOCK DO

NOT REMOVE TOP OR BOTTOM

COVERS. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE

PERSONNEL.

WARNING

TO REDUCE THE RISK OF

ELECTRIC

SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR

MOISTURE!

Printed on

recycled paper.

A V I S

RISQUE DE CHOC ÉLECTRIQUE

N’OUVREZ PAS

À PRÉVENIR LE CHOC ÉLECTRIQUE

N’ENLEVEZ PAS LES COUVERCLES. IL

N’Y A PAS DES PARTIES

SERVICEABLE À L’INTÉRIEUR. TOUS

REPARATIONS DOIT ETRE FAIRE PAR

PERSONNEL QUALIFIÉ SEULMENT.

Watch for these symbols:

Lightning Bolt Symbol:

This symbol is used to alert
the user to the presence of
dangerous voltages and the
possible risk of electric
shock.

Exclamation Mark Sym­bol:

This symbol is used to alert
the user to make special note
of important operating or
maintenance instructions
found in the reference
manual.

Page 2

R.S.V.P. Remote Switching Voltage Provider

Figure 1.1

Figure 1.2

R.S.V.P.

1 Welcome

Thank you for purchasing the Crown

R.S.V.P.

Provider) accessory module, de­signed for use with Crown’s CT-10
series amplifiers. The
advantage of Crown’s CT-10 series’
soft-start feature, eliminating the
need for expensive sequencing
equipment or complicated startup
routines.

Using Crown’s
can control the power-up/power­down function of your CT-10 series
amplifier from across the room—or
across the stadium. Each
unit controls 21 amplifier remote
jacks. That’s enough to control a 6­foot (1.83 meter) rack of amplifiers
and still have one jack left over to

(Remote Switching Voltage

R.S.V.P.

R.S.V.P.

module, you

takes

R.S.V.P.

R.S.V.P.

top view

left side view

chain to another
dividually powered, allowing you to
daisy-chain any number of
for remote control of an unlimited
number of amplifiers.

Power-up/power-down can be con­trolled using an auxiliary device
(such as an
port, or through the use of a pair of
momentary switches. Remote mo­mentary switches can be connected
in parallel, so your amps can be con­trolled from various locations: front of
house, backstage, lighting booth,
and so on. With a maximum switch­ing distance of up to 2000 feet (609.6
meters) per unit, the
provide on/off capabilities any­where—or everywhere—you need it.

R.S.V.P.

IQ System

) via the aux

R.S.V.P.

Units are in-

R.S.V.P.

can

s

Page 3

R.S.V.P. Remote Switching Voltage Provider

Feature Summary

❏ Takes advantage of CT-10 series’ soft-start feature, eliminat-

ing the need for expensive sequencing equipment.

❏ Provides remote power-up/power-down of systems via a

simple momentary switch closure.

❏ Optional

IQ System

control for added security.

❏ Units are individually powered and can be daisy-chained to

control a limitless number of amplifiers.

❏ Each unit directly controls up to 21 amplifiers.

❏ Convenient connection system uses RJ-11 connectors for

quick and easy, cost-effective installation.

Page 4

R.S.V.P. Remote Switching Voltage Provider

Figure 2.1 Left Panel Facilities

2 Facilities

A. Enable Light

Green LED located on the left side
panel that indicates low voltage sup­ply operation.

B. On/Com/Off

On, common, and off barrier block
input located on the left front panel
for connection of remote momentary
switches.

C. Slave/Aux In Port

RJ-11 connector located on the left
side panel that allows control from an
IQ System aux port. Also used for
daisy-chaining
gether.

R.S.V.P.

units to-

D. To Amplifier Remote

RJ-11 connectors located on the left
and right side panels for connecting

to CT-10 series amplifiers or daisy­chained

3.2 and 3.3) Each
trol 21 separate CT-10 series amplifi­ers, or the
daisy-chained to other
to provide control over an unlimited
number of amplifiers. RJ-11 connec­tors are available from the Crown
Parts Department (219-294-8200).

R.S.V.P.

units. (See Figures

R.S.V.P.

R.S.V.P.

can con-

can be

R.S.V.P.

units

E. AC Power Inlet

Standard IEC “three prong” AC con­nector located on the back panel.

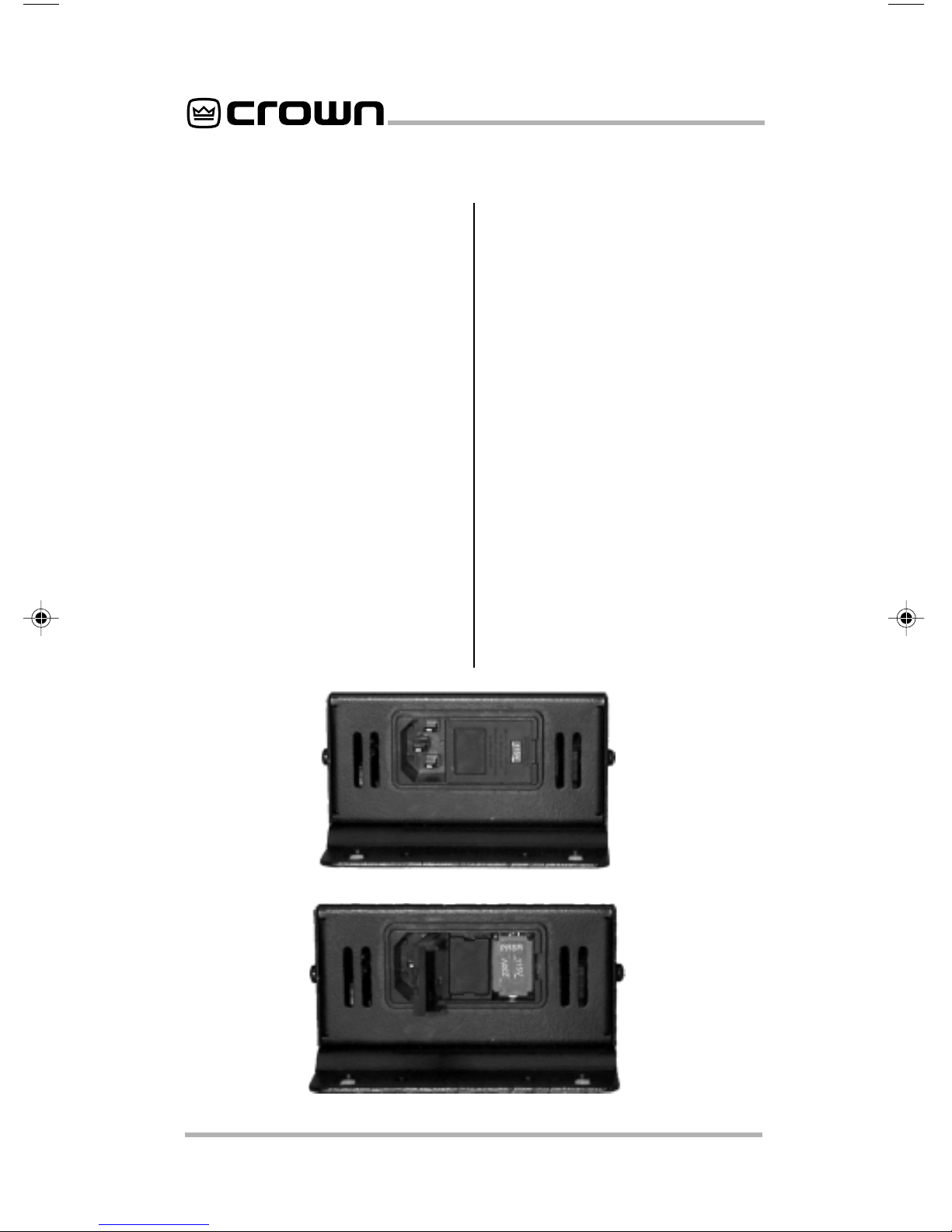

F. Fuse Access Door

Located on the back panel, this al­lows access to the fuse in the event
that it needs to be changed. Please
refer to section 7.1 on changing the
fuse before trying to access this
area.

Figure 2.2 Rear Panel Facilities

Page 5

R.S.V.P. Remote Switching Voltage Provider

3 Installation

This section will give the necessary
information for installing the
into your equipment rack. It will also
provide ways to incorporate the

R.S.V.P.

read this section thoroughly, as the

R.S.V.P.

mounting requirements.

into your system. Please
has special cooling and

3.1 Cooling

Make sure that the vent holes of
the

R.S.V.P.

When mounting the unit in the back
of your rack, avoid blocking air flow
to all of your rack-mounted equip­ment

.

are NOT obstructed.

3.2 Mounting

The

R.S.V.P.

mounted in the REAR of a standard
19-inch (48.3-cm) equipment rack.
Placing it in the back of the rack pro­vides a more tamper-resistant loca­tion and allows for easier access to
equipment. Four keyholes on the unit
can accomodate up to a #10 screw.
For a more secure installation, four

0.2- inch (0.5-cm) holes are also
available.

is designed to be

R.S.V.P.

3.3 Wiring for Amplifiers

Convenient RJ-11 connectors link
the

R.S.V.P.

ries amplifiers. Please note that the
RJ-11 jacks are polarity sensitive. Pin
4 must be grounded, and Pin 3 must
be supplied with a positive voltage
pull up (positive with respect to
ground). Refer to Figure 3.1 for RJ
jack pin assignments.* The maxi­mum signal that can be exposed to
the RJ-11 jacks is 35 VDC or 25 VAC.
(RJ-11 connectors are available from
the Crown Parts Department.)

Figure 3.2 shows one possible sys­tem configuration using the
and a rack of CT-10 series amplifiers.
Runs of less than 30 feet (9.15
meters) between the
the amplifiers are required for the

R.S.V.P.

21 CT-10 series amplifiers can be
controlled from a single
However, daisy- chaining together
units, as shown in Figure 3.3, can
provide for an unlimited number of
amplifiers in a system.

to the remote CT-10 se-

R.S.V.P.

R.S.V.P.

to function properly. Up to

and

R.S.V.P.

.

Figure 3.1 RJ-11 connector pin assignments

* The mating connector for the
case, as shown. For additional information please contact your local dealer or
Crown Technical Support.

Page 6

R.S.V.P.

RJ-11 jack contains 4 contact pins in a 6-slot

R.S.V.P. Remote Switching Voltage Provider

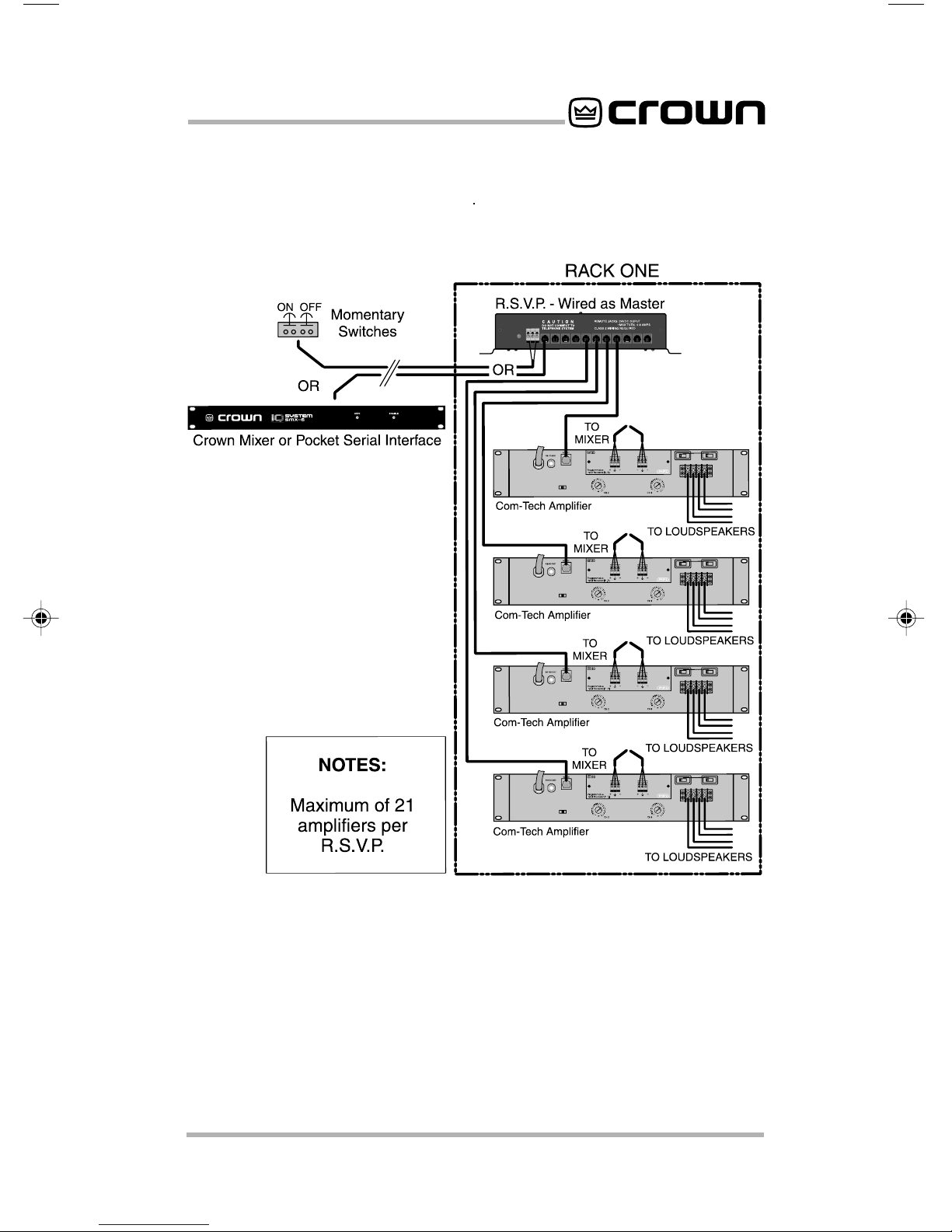

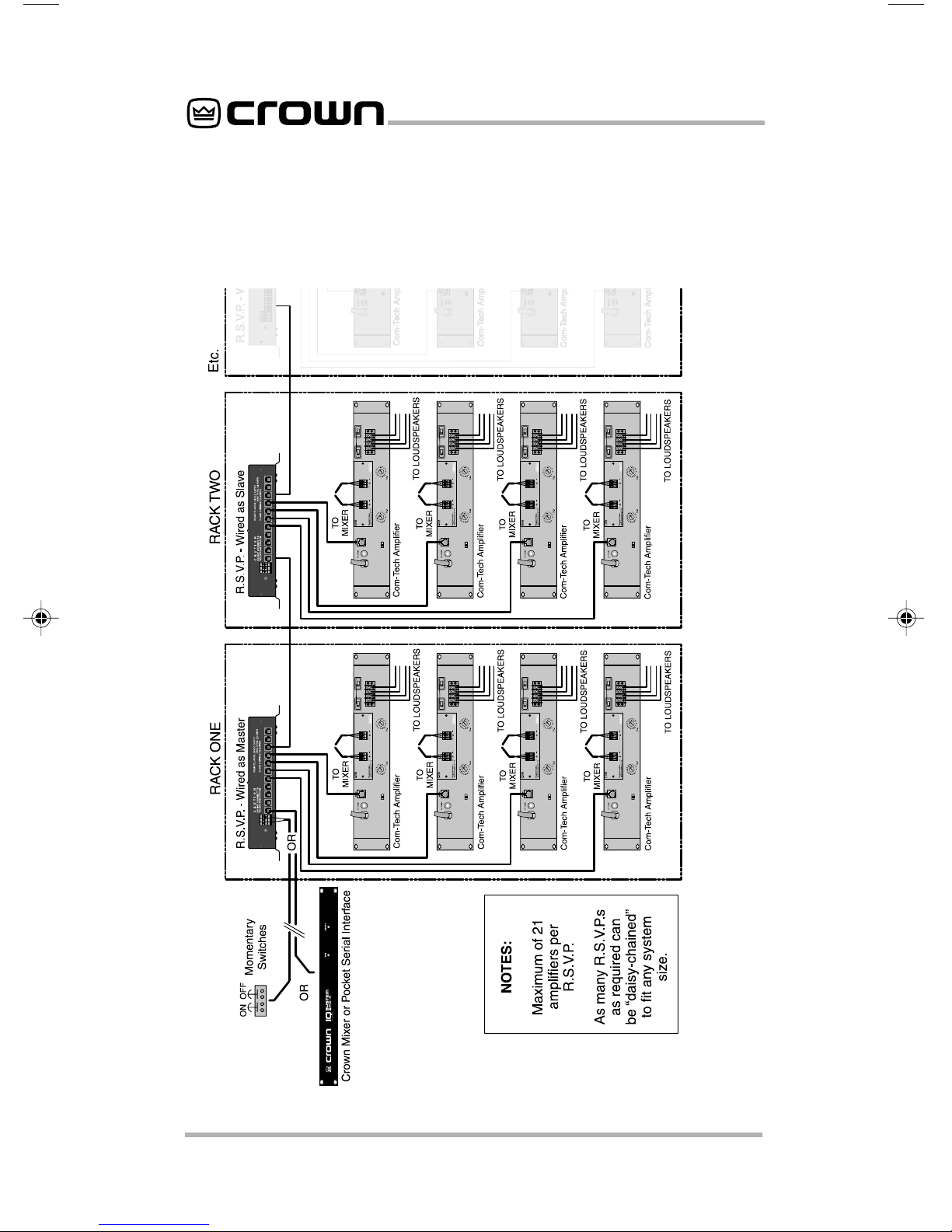

Figure 3.2 System Configuration—

R.S.V.P.

to CT-10 Series

Page 7

R.S.V.P. Remote Switching Voltage Provider

R.S.V.P.s wired in a bus configuration

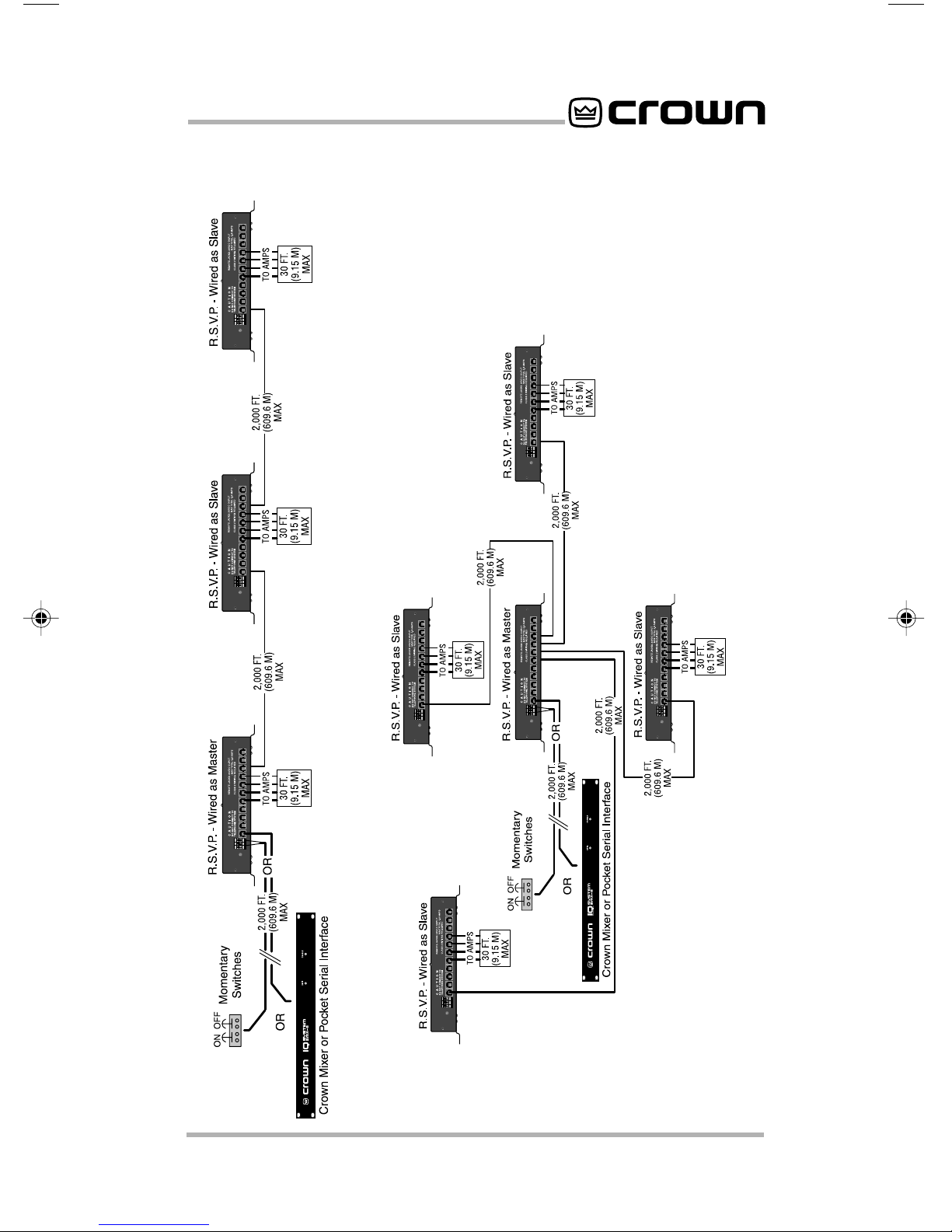

Figure 3.3 System Configuration—multiple

Page 8

R.S.V.P. Remote Switching Voltage Provider

s wired in a bus configuration

R.S.V.P.

Figure 3.4 System configuration with several

.s in a “star” configuration

R.S.V.P

Figure 3.5 System configuration with several

Page 9

R.S.V.P. Remote Switching Voltage Provider

3.4 Daisy-Chaining Multiple

R.S.V.P.

You’ll need standard cable with RJ­11 connectors to daisy-chain mul­tiple

R.S.V.P.

Section 3.3 for information on the RJ­11 connectors.) To slave
units, connect one end of the cable
from one of the “To Amplifier Re­mote” ports on the
which will be configured as the mas­ter unit.* Connect the other end of the
cable to the “Slave/Aux In” port on
the remote unit. This run can be as
long as 2000 feet (609.6 meters), al­lowing control of several systems
from one location.

See Figure 3.3 for a sample system
configuration when daisy-chaining
multiple
several units in a bus configuration,
while Figure 3.5 shows how to set up
a star configuration using several

R.S.V.P.

Units Together

units together. (Refer to

R.S.V.P.

R.S.V.P.

s.

s. Figure 3.4 shows

R.S.V.P.

unit

3.5 Wiring for Remote
Control via the “Slave/Aux
In” Port

In addition to providing for daisy­chaining of
Aux In” port also allows for control of
your system to be provided using an

IQ System

Figures 3.6 and 3.7). In fact, the sys­tem can be controlled by a variety of
auxiliary units as long as they provide
10-35 VDC or 10-25 VAC output.
Simply connect one end of the cable
to an IQ Aux Out port (or other auxil­iary equipment of your choice). Be
sure to refer to your equipment’s ref­erence manual for proper wiring in­structions. Then connect the other
end of the cable to the “Slave/Aux In”
port on the
than 2000 feet (609.6 meters) are
recommended to ensure proper
functioning of the

R.S.V.P.

via the IQ Aux port (see

R.S.V.P.

units, the “Slave/

unit. Runs of less

R.S.V.P.

unit.

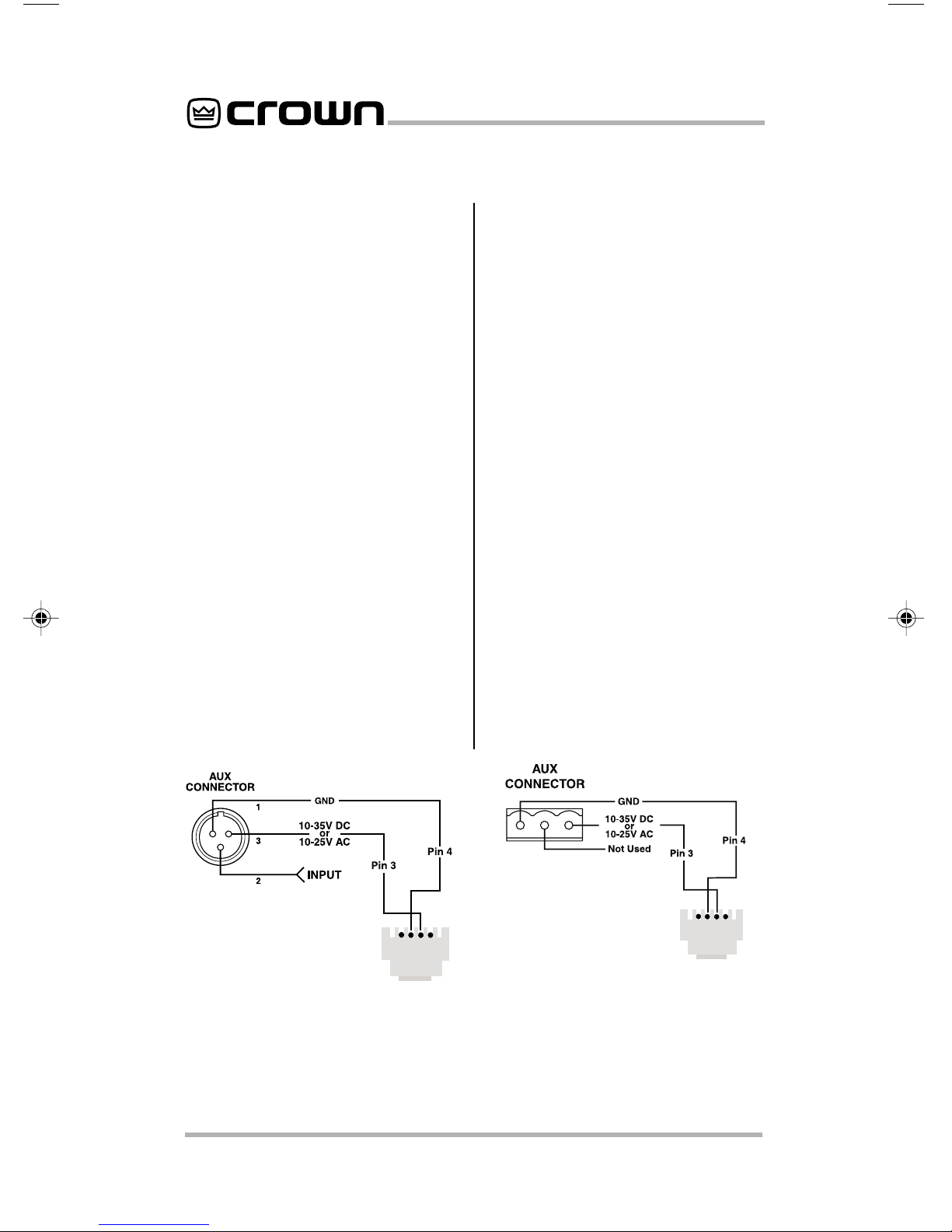

Figure 3.6 Wiring for control from
XLR Aux Connector

* Note: The unit selected to be master will be wired to receive the power-up/power­down signal from momentary switches via the On/Com/Off connectors, or from an
attached IQ System via the Slave/Aux In port.

Page 10

Figure 3.7 Wiring for control from
Removable Barrier Block Aux Con­nector

R.S.V.P. Remote Switching Voltage Provider

3.6 Wiring for Remote Con­trol using Manual Switching

The

R.S.V.P.

ured to accommodate manual
switching. In order to do this, you
will need two normally-open mo­mentary switches (available at
your local electrical supply store).*
One switch will provide the signal
to turn the unit on, while the other
will provide the signal to turn the
unit off. The momentary switches

*Optionally, you may also choose to use a standard “paddle” switch to
control your R.S.V.P. unit.

can also be config-

can be connected in parallel, al­lowing your amps to be controlled
from various locations: front of
house, backstage, lighting booth,
etc. The momentary switch con­nects to the
Com/Off” barrier block input on the
left panel (See Figure 3.8). Runs of
up to 2,000 feet (609.6 meters) can
be handled for connecting to
manual switches. This gives you
control over your system from just
about anywhere in a typical facility.

R.S.V.P.

via the “On/

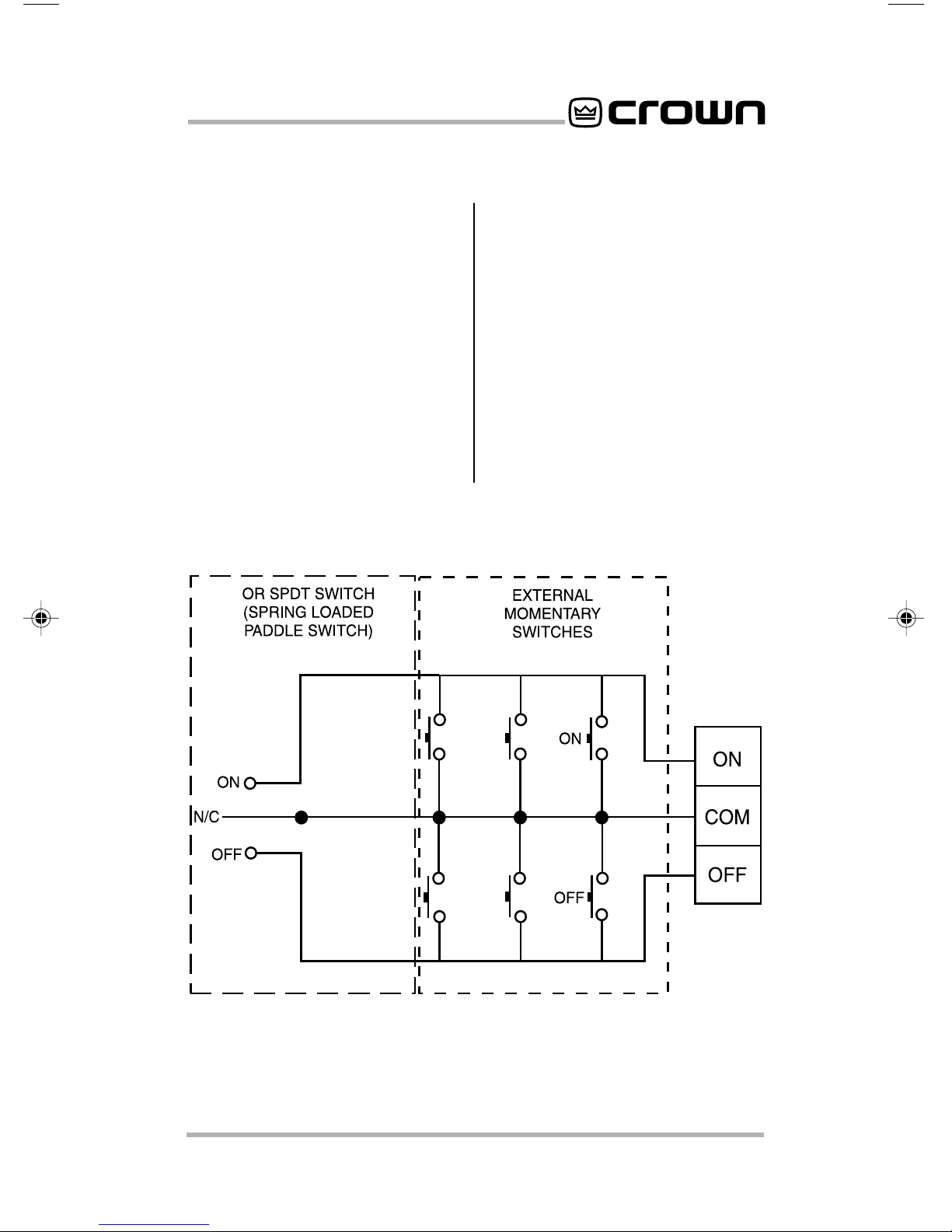

Figure 3.8 Wiring for On/Com/Off port switching using momentary or
paddle switches

Page 11

R.S.V.P. Remote Switching Voltage Provider

4 Operation

The

R.S.V.P.

power-up/power-down function of
your CT-10 series amplifier from
across the room—or across the sta­dium. Units are individually pow­ered, allowing you to daisy-chain
any number of
control of an unlimited number of
amplifiers. Each
trols 21 amplifier remote jacks.
That’s enough to control a 6-foot
(1.83 meter) rack of amplifiers and
still have a jack left over to daisy­chain to another

Make sure that the vent holes of
the

R.S.V.P

When mounting the unit in the
back of your rack, avoid blocking
air flow to any of your rack­mounted equipment

The

R.S.V.P.

jacks are protected against
shorted conditions. If a short does
occur, the
output to the off state. To reset the

unit, simply turn it off, wait a few
seconds, and then turn the unit
back on. The
ate correctly if the short is still
present.

lets you control the

R.S.V.P.

s for remote

R.S.V.P.

unit con-

R.S.V.P.

. are NOT obstructed.

.

’s 21 remote amplifier

R.S.V.P.

R.S.V.P.

will switch its

will not oper-

The power on/off function is con­trolled by the “Slave/Aux In” port,
or from pairs of normally-open
switches attached to the “On/Com/
Off” barrier block input. To use the
momentary switches, simply press
the on or off switch for the desired
system state.

When using the “Slave/Aux In” port
(such as when using an IQ sys­tem), the system will automatically
turn on when the specified voltage
is present at the port. When this
happens, the previous system
state is saved and any momentary
switches that are attached be­come disabled. This will provide
priority access to the Crown IQ
user, preventing accidental shut­down. If you want off-control via
the IQ System, you will need to
start the IQ System first. If you want
to control the off function via the
momentary switches, you need to
have them turned on prior to turn­ing on the IQ System. When the
voltage at the “Slave/Aux In” port is
removed, the
whatever state it was in prior to
voltage being applied at the
“Slave/Aux In” port.

R.S.V.P.

resets to

Page 12

R.S.V.P. Remote Switching Voltage Provider

5 Technical Information

Since the
Crown’s CT-10 series of amplifiers,
it is important to note the safety
features present at turn-on with the
CT-10 amplifiers.

All CT-10 series amplifiers have a
four-second turn-on delay. This
prevents dangerous turn-on tran­sients. The CT-10 series also has
“soft-start” circuitry, which pro­vides low inrush, and eliminates
the need for power sequencers.

R.S.V.P.

is used with

6 Specifications

Line Voltage Requirements: Dual

range power supply operates at
100-120/200-240 V, 50/60 Hz.

Indicator: Enable LED (indicates
low-voltage supply operation).

Connectors:
RJ-11 (telephone connector); Re­mote Switch Closure: barrier block;
Slave/Aux In Port: RJ-11 (tele­phone connector); Power Inlet: IEC
connector.

Recommended Maximum Wire
Lengths:

feet (9.15 meters);
mote Switch: 2000 feet (609.6
meters);
2000 feet (609.6 meters); IQ Aux
Port to Slave/Aux In: 2000 feet
(609.6 meters).

R.S.V.P.

R.S.V.P.

R.S.V.P.

to Amplifier:

to Amplifier: 30

R.S.V.P.

to Slave/Aux In:

to Re-

Slave/Aux Control: DC: Minimum
Turn-On Voltage: 10VDC; Maxi­mum Rated Input Voltage: 35VDC.

AC: Minimum Turn-On Voltage:
10V AC; Maximum Rated Input Volt-

age: 25V AC.
Amplifier Remote Signal: 24VDC (is

protected against short circuits).
Weight: 5 lb. 3 oz. (2.4 kg) shipping

weight.
Dimensions: 4

7

/8 in. (22.55 cm) x 2.0 in. (5.17

cm).

3

/16 in. (10.6 cm) x 8

Page 13

R.S.V.P. Remote Switching Voltage Provider

7 Service

This unit has very sophisticated cir­cuitry which should only be ser­viced by a fully trained technician.
This is one reason why each unit
bears the following label:

CAUTION: To prevent electric
shock, do not remove covers. No
user serviceable parts inside. Re­fer servicing to a qualified tech-

nician.

7.1 Changing the Fuse

1) Disconnect the IEC power cord
from the wall.

2) Insert a small, flat blade screw­driver into the pry slot. (The pry
slot is located opposite the IEC
power inlet on the power module
(See Figure 7.1). Pry the fuse ac­cess door open.

3) Note how the red fuseholder is ori­ented (See Figure 7.2). For models
operating in the 100-120V range,
the 115V lettering will be on the right
and the letters PRSR will read
across the top. In all other models,
the 230V lettering will appear on the
right. After observing the orientation
of the fuse holder, use your small
screwdriver to pry it out. Be careful,

the fuse may pop out immedi­ately when removing the holder.

4) Remove the fuse from the holder.

5) Replace the fuse with one of the
same rating.

6) Re-insert the red fuseholder, taking
care to properly put it back in the
same orientation it was in step 3.

7) Snap fuse access door closed.

8) Connect IEC power cord.

Figure 7.1 Back Panel - Location of Fuse Panel

Figure 7.2 Back panel with fuse door open

Page 14

R.S.V.P. Remote Switching Voltage Provider

7.2 Worldwide Service

Service may be obtained from an
authorized service center . (Contact
your local Crown/Amcron repre­sentative or our office for a list of
authorized service centers.) To ob­tain service, simply present the bill
of sale as proof of purchase along
with the defective unit to an autho­rized service center. They will
handle the necessary paperwork
and repair.

Remember to transport your unit in
the original factory pack.

7.3 North American Ser­vice

Service may be obtained in one of
two ways: from an authorized ser­vice center or from the factory. You
may choose either. It is important
that you have your copy of the bill

of sale as your proof of purchase.

7.3.1 Service at a North American

Service Center

7.3.2 Factory Service

To obtain factory service, fill out the
service information page that fol­lows and send it along with your
proof of purchase and the defec­tive unit to the Crown factory. For
warranty service, we will pay for
ground shipping both ways in the
United States after receiving cop­ies of the shipping receipts. Ship­ments should be sent “UPS
ground.” (If the unit is under war­ranty, you may send it C.O.D. for
the cost of freight via UPS ground.)
The factory will return it via UPS
ground. Please contact us if other
arrangements are required.

Factory Service Shipping In­structions:

1. When sending a Crown prod­uct to the factory for service,
be sure to fill out the service
information form that follows
and enclose it inside your
unit’s shipping pack. Do
send the service information
form separately .

not

This method usually saves the most
time and effort. Simply present your
bill of sale along with the defective
unit to an authorized service center
to obtain service. They will handle
the necessary paperwork and re-

unit in the original factory pack. A

pair. Remember to transport the
list of authorized service centers in

your area can be obtained from our
Technical Support Group.

2. To ensure the safe transpor­tation of your unit to the fac­tory, ship it in an original
factory packing container. If
you don’t have one, call or
write Crown’s Parts Depart­ment. With the exception of
polyurethane or wooden
crates, any other packing
material will not be sufficient
to withstand the stress of
shipping. Do not use loose,

small size packing materi­als.

Page 15

R.S.V.P. Remote Switching Voltage Provider

3. Do not ship the unit in any
kind of cabinet (wood or
metal). Ignoring this warn­ing may result in extensive

If you have any questions, please call or write the

Crown Technical Support Group.

Crown Audio Division

Technical Support / Factory Service

Plant 2 SW , 1718 W. Mishawaka Rd., Elkhart, Indiana 46517

damage to the unit and the
cabinet. Accessories are
not needed—do not send
the instruction manual,
cables and other hardware.

U.S.A.

Telephone:

800-342-6939 (North America, Puerto Rico, and Virgin Islands only)

Facsimile:

219-294-8124 (Factory Service)

Fax Back:

800-294-4094 (North America only)

Internet:

219-294-8301 (T echnical Support)

219-293-9200 (North America only)

219-294-8100 (International)

http://www.cr ownaudio.com

219-294-8200

Page 16

R.S.V.P. Remote Switching Voltage Provider

NORTH AMERICA

3

EAR

Y

The Crown Audio Division of Crown International, Inc., 1718 West Mishawaka Road, Elkhart,
Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT
OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by
the original purchaser (the “warranty period”) that the new Crown product is free of defects in
materials and workmanship. We further warrant the new Crown product regardless of the reason
for failure, except as excluded in this Warranty.

ITEMS EXCLUDED FROM THIS CROWN WARRANTY

This Crown Warranty is in ef fect only for failure of a new Crown product which occurr ed within the
Warranty Period. It does not cover any product which has been damaged because of any
intentional misuse, accident, negligence, or loss which is covered under any of your insurance
contracts. This Crown Warranty also does not extend to the new Cr own product if the serial number
has been defaced, altered, or removed.

We will remedy any defect, regardless of the reason for failure (except as excluded), by repair,
replacement, or refund. We may not elect refund unless you agree, or unless we are unable to
provide replacement, and repair is not practical or cannot be timely made. If a r efund is elected,
then you must make the defective or malfunctioning product available to us free and clear of all liens
or other encumbrances. The refund will be equal to the actual purchase price, not including
interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the
product from the date of original purchase. Warranty work can only be performed at our authorized
service centers or at the factory . We will r emedy the defect and ship the product fr om the service
center or our factory within a reasonable time after receipt of the defective product at our authorized
service center or our factory. All expenses in remedying the defect, including surface shipping
costs in the United States, will be borne by us. (Y ou must bear the expense of shipping the product
between any foreign country and the port of entry in the United States and all taxes, duties, and
other customs fees for such foreign shipments.)

Y ou must notify us of your need for warranty service not later than ninety (90) days after expiration
of the warranty period. All components must be shipped in a factory pack, which, if needed, may
be obtained from us free of charge. Corrective action will be taken within a reasonable time of the
date of receipt of the defective product by us or our authorized service center . If the repairs made
by us or our authorized service center are not satisfactory , notify us or our authorized service center
immediately.

DISCLAIMER OF CONSEQUENTIAL & INCIDENT AL DAMAGES

YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING
FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO
ANOTHER PRODUCT OR PRODUCTS RESUL TING FROM SUCH A DEFECT. SOME STATES DO

NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL

THREE YEAR

DAMAGES, SO THE ABOVE LIMITA TION OR EXCLUSION MAY NOT APPLY TO YOU.

FULL WARRANTY

No person has the authority to enlarge, amend, or modify this Crown Warranty . This Crown W arranty
is not extended by the length of time which you are deprived of the use of the new Crown product.
Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only
the unexpired portion of this Crown Warranty.

We reserve the right to change the design of any product from time to time without notice and with
no obligation to make corresponding changes in products previously manufactured.

THIS CROWN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MA Y ALSO HAVE OTHER
RIGHTS WHICH V ARY FROM ST ATE TO STA TE. No action to enforce this Cr own Warranty shall be
commenced later than ninety (90) days after expiration of the warranty period.

THIS ST ATEMENT OF WARRANTY SUPERSEDES ANY OTHERS

9/90

CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS.

SUMMARY OF WARRANTY

WHAT THE WARRANTOR WILL DO

HOW TO OBT AIN WARRANTY SER VICE

WARRANTY A L TERA TIONS

DESIGN CHANGES

LEGAL REMEDIES OF PURCHASER

Telephone: [phone]. Facsimile: 219-294-8301

Page 17

R.S.V.P. Remote Switching Voltage Provider

YEAR

3

WORLDWIDE

SUMMARY OF WARRANTY

The Crown Audio Division of Crown International, Inc., 1718 West Mishawaka Road, Elkhart,
Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT
OWNER of each NEW Crown
the original purchaser (the “warranty period”) that the new Crown product is free of defects in
materials and workmanship, and we further warrant the new Crown product regardless of the
reason for failure, except as excluded in this Crown Warranty.

1

Note: If your unit bears the name “Amcron,” please substitute it for the name “Crown” in this

warranty.

ITEMS EXCLUDED FROM THIS CROWN WARRANTY

This Crown Warranty is in effect only for failur e of a new Crown pr oduct which occurred within the
Warranty Period. It does not cover any product which has been damaged because of any
intentional misuse, accident, negligence, or loss which is covered under any of your insurance
contracts. This Crown Warranty also does not extend to the new Crown pr oduct if the serial number
has been defaced, altered, or removed.

We will remedy any defect, regardless of the reason for failure (except as excluded), by repair,
replacement, or refund. We may not elect refund unless you agree, or unless we are unable to
provide replacement, and repair is not practical or cannot be timely made. If a refund is elected,
then you must make the defective or malfunctioning product available to us free and clear of all liens
or other encumbrances. The refund will be equal to the actual purchase price, not including interest,
insurance, closing costs, and other finance charges less a reasonable depreciation on the product
from the date of original purchase. Warranty work can only be performed at our authorized service
centers. We will remedy the defect and ship the product from the service center within a reasonable
time after receipt of the defective product at our authorized service center.

Y ou must notify us of your need for warranty service not later than ninety (90) days after expiration
of the warranty period. All components must be shipped in a factory pack. Corrective action will
be taken within a reasonable time of the date of receipt of the defective product by our authorized
service center . If the repairs made by our authorized service center are not satisfactory, notify our
authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL & INCIDENT AL DAMAGES

YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING
FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO
ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT.

No person has the authority to enlarge, amend, or modify this Crown Warranty . This Crown War ranty
is not extended by the length of time which you are deprived of the use of the new Crown product.
Repairs and replacement parts provided under the terms of this Crown Warranty shall car ry only
the unexpired portion of this Crown Warranty.

We reserve the right to change the design of any product from time to time without notice and with
no obligation to make corresponding changes in products previously manufactured.

No action to enforce this Crown Warranty shall be commenced later than ninety (90) days after
expiration of the warranty period.

THIS ST ATEMENT OF WARRANTY SUPERSEDES ANY OTHERS

CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS.

1

product, for a period of three (3) years from the date of purchase by

WHAT THE WARRANTOR WILL DO

HOW TO OBTAIN WARRANTY SERVICE

WARRANTY A L TERA TIONS

DESIGN CHANGES

LEGAL REMEDIES OF PURCHASER

9/90

FULL WARRANTY

THREE YEAR

Page 18

Telephone: [phone]. Facsimile: 219-294-8301

R.S.V.P. Remote Switching Voltage Provider

Crown Factory Service Information

Shipping Address: Crown International, Inc., Factory Service,

Plant 2 SW, 1718 W. Mishawaka Rd., Elkhart, IN U.S.A. 46517

Phone: [phone] or 1-219-294-8200 Fax: [phone]

Owner’s Name:__________________________________________________________
Shipping Address:_______________________________________________________
Phone Number: _______________________ Fax Number: ___________________
Model: _______________________________ Serial Number: _________________

Purchase Date:__________________________________________________________

NATURE OF PROBLEM

(Be sure to describe the conditions that existed when the

problem occurred and what attempts were made to correct it.)

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

Other equipment in your system: __________________________________________

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

If warranty has expired, payment will be:

❏❏

❏ Cash/Check

❏❏

❏❏

❏ VISA

❏❏

❏❏

❏ MasterCard

❏❏

❏❏

❏ C.O.D.

❏❏

Card Number:___________________________
Exp. Date: __________ Signature:____________________________

ENCLOSE THIS PORTION WITH THE UNIT.

DO NOT MAIL SEPARATELY.

Page 19
