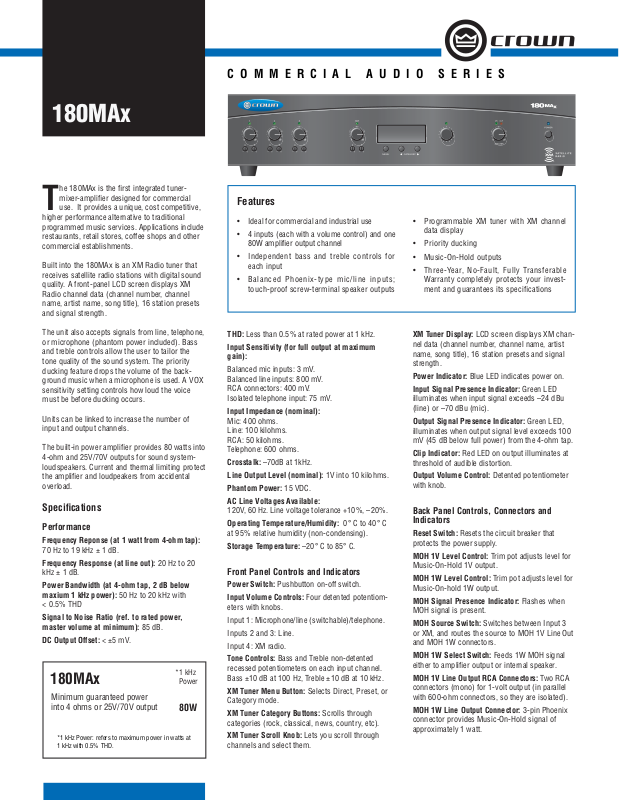

Crown 180-MAX Brochure
180MAx
he 180MAx is the fi rst integrated tunermixer-amplifi er designed for commercial
T
use. It provides a unique, cost competitive,
higher performance alternative to traditional
programmed music services. Applications include
restaurants, retail stores, coffee shops and other
commercial establishments.
Built into the 180MAx is an XM Radio tuner that
receives satellite radio stations with digital sound
quality. A front-panel LCD screen displays XM
Radio channel data (channel number, channel
name, artist name, song title), 16 station presets
and signal strength.
COMMERCIAL AUDIO SERIES
Features
• Ideal for commercial and industrial use
• 4 inputs (each with a volume control) and one
80W amplifi er output channel
• Independent bass and treble controls for
each input
• Balanced Phoenix-type mic/line inputs;
touch-proof screw-terminal speaker outputs
• Programmable XM tuner with XM channel
data display
• Priority ducking
• Music-On-Hold outputs
• Three-Year, No-Fault, Fully Transferable
Warranty completely protects your investment and guarantees its specifi cations
The unit also accepts signals from line, telephone,
or microphone (phantom power included). Bass
and treble controls allow the user to tailor the
tone quality of the sound system. The priority
ducking feature drops the volume of the background music when a microphone is used. A VOX
sensitivity setting controls how loud the voice
must be before ducking occurs.
Units can be linked to increase the number of
input and output channels.
The built-in power amplifi er provides 80 watts into
4-ohm and 25V/70V outputs for sound systemloudspeakers. Current and thermal limiting protect
the amplifi er and loudpeakers from accidental
overload.
Specifi cations
Performance
Frequency Reponse (at 1 watt from 4-ohm tap):
70 Hz to 19 kHz ± 1 dB.
Frequency Response (at line out): 20 Hz to 20
kHz ± 1 dB.
Power Bandwidth (at 4-ohm tap, 2 dB below
maxium 1 kHz power): 50 Hz to 20 kHz with
< 0.5% THD
Signal to Noise Ratio (ref. to rated power,
master volume at minimum): 85 dB.
DC Output Offset: < ±5 mV.
*
1 kHz
180MAx
Minimum guaranteed power
into 4 ohms or 25V/70V output
*1 kHz Power: refers to maximum power in watts at
1 kHz with 0.5% THD.
Power
80W
THD: Less than 0.5% at rated power at 1 kHz.
Input Sensitivity (for full output at maximum
gain):
Balanced mic inputs: 3 mV.
Balanced line inputs: 800 mV.
RCA connectors: 400 mV.
Isolated telephone input: 75 mV.
Input Impedance (nominal):
Mic: 400 ohms.
Line: 100 kilohms.
RCA: 50 kilohms.
Telephone: 600 ohms.
Crosstalk: –70dB at 1kHz.
Line Output Level (nominal): 1V into 10 kilohms.
Phantom Power: 15 VDC.
AC Line Voltages Available:
120V, 60 Hz. Line voltage tolerance +10%, –20%.
Operating Temperature/Humidity: 0° C to 40° C
at 95% relative humidity (non-condensing).
Storage Temperature: –20° C to 85° C.
Front Panel Controls and Indicators
Power Switch: Pushbutton on-off switch.
Input Volume Controls: Four detented potentiom-
eters with knobs.
Input 1: Microphone/line (switchable)/telephone.
Inputs 2 and 3: Line.
Input 4: XM radio.
Tone Controls: Bass and Treble non-detented
recessed potentiometers on each input channel.
Bass ±10 dB at 100 Hz, Treble ±10 dB at 10 kHz.
XM Tuner Menu Button: Selects Direct, Preset, or
Category mode.
XM Tuner Category Buttons: Scrolls through
categories (rock, classical, news, country, etc).
XM Tuner Scroll Knob: Lets you scroll through
channels and select them.
XM Tuner Display: LCD screen displays XM channel data (channel number, channel name, artist
name, song title), 16 station presets and signal
strength.
Power Indicator: Blue LED indicates power on.
Input Signal Presence Indicator: Green LED
illuminates when input signal exceeds –24 dBu
(line) or –70 dBu (mic).
Output Signal Presence Indicator: Green LED,
illuminates when output signal level exceeds 100
mV (45 dB below full power) from the 4-ohm tap.
Clip Indicator: Red LED on output illuminates at
threshold of audible distortion.
Output Volume Control: Detented potentiometer
with knob.
Back Panel Controls, Connectors and
Indicators
Reset Switch: Resets the circuit breaker that
protects the power supply.
MOH 1V Level Control: Trim pot adjusts level for
Music-On-Hold 1V output.
MOH 1W Level Control: Trim pot adjusts level for
Music-On-hold 1W output.
MOH Signal Presence Indicator: Flashes when
MOH signal is present.
MOH Source Switch: Switches between Input 3
or XM, and routes the source to MOH 1V Line Out
and MOH 1W connectors.
MOH 1W Select Switch: Feeds 1W MOH signal
either to amplifi er output or internal speaker.
MOH 1V Line Output RCA Connectors: Two RCA
connectors (mono) for 1-volt output (in parallel
with 600-ohm connectors, so they are isolated).
MOH 1W Line Output Connector: 3-pin Phoenix
connector provides Music-On-Hold signal of
approximately 1 watt.
180MAx back panel
180MAx
MOH 1V Line Output Phoenix Connector: 3-pin
Phoenix connector, 600-ohm transformer-isolated
output, provides Music-On-Hold signal of approximately 1 volt.
Phantom Power Switch: Turns phantom power on
or off for Input 1.
Mic/line Switch: Selects mic-level or line-level
signal for Input 1.
Link In/Out Switch: Slide switch. When set to IN,
any signal applied to the Amp Input connector
will be mixed with the input signal(s); when set to
OUT, only the signal from the Amp Input Connector will appear at the amplifi er output.
Amplifi er Output Connectors: 4-position terminal
strip with COM (Common), 4 ohms, 25V and 70V
terminals. Accepts up to 10 AWG crimp-on terminal forks. Non-touch cover included.
XM Radio Stereo Line Out Connector: Dual RCA
jacks for stereo music out from XM Radio tuner.
Preamp Line Out Connector: 3-pin balanced
Phoenix-type connector. Post master, pre-VCA.
Level controlled by master volume control.
Output VCA Connector: 3-pin Phoenix-type connector for two VCA control lines of +10 VDC and
ground. Compatible with Crown 1-VCAP module.
Priority Connector: 3-pin Phoenix-type connector
for push-to-talk mic switch. Contact closure activatges ducking. Ducking does not affect MusicOn-Hold outputs or XM stereo line out.
Active Indicator: LED illuminates when VOX ducking is active.
VOX Threshold: Trim pot adjusts how loud the
voice must be before ducking occurs. Can be set
for no ducking.
Priority Release Control: Trim pot adjusts release
time of VOX ducking.
Mic/Line Input Connector (Input 1 only): 3-pin
Phoenix-type, balanced.
Line Input Connectors (Inputs 2 and 3 only):
3-pin Phoenix-type, balanced.
Dual RCA Input Connector: For stereo music
signals, unbalanced, summed together, two connectors per input for inputs 1, 2 and 3.
TEL Input Connector: Transformer-isolated 600ohm input, summed into Input 1 for paging from
a telephone system.
Amp Input Connector: 3-pin Phoenix-type, highimpedance balanced. Used to link an additional
mixer to the mixer-amplifi er. Can be used to connect an external processor.
AC Power Inlet: Detachable IEC.
XM Radio Antenna Input: Connects to the XM
antenna cable.
Cooling
Convection cooled.
Protection
Current Limit Protection: Included.
Thermal Limit Protection: Over-temperature
thermal cutout.
DC-Fault Load Protection: Included.
Included Accessories
Power cord
Detachable rack ears
Screws for rack ears
Non-touch cover for output connectors
Phoenix-type connectors
Spade lugs
XM antenna
Remote control
Optional Accessories
1-VCAP remote volume control.
Dimensions
Width (without rack ears): 17.3 in. (43.8 cm).
Width (with rack ears): EIA Standard 19 in. W (EIA
RS-310-B).
Height (front panel): 3.5 in. (8.9 cm).
Height (including feet): 4.1 in. (10.5 cm).
Depth (front panel to back panel): 12.2 in. (31.0
cm).
Depth (front of knobs to back of non-touch
cover): 13.9 in. (35.2 cm).
Weight
Net Weight:
20 lb (9.07 kg).
Shipping Weight:
25 lb (11.34 kg)
Crown’s Three-Year, No-Fault, Fully Transferable Warranty
Crown offers a Three-Year, No-Fault, Fully Transferable Warranty for every new Crown tuner-mixeramplifi er—an unsurpassed industry standard. With this unprecedented No-Fault protection, your new
Crown mixer-amplifi er is warranted to meet or exceed original specifi cations for the fi rst three years of
ownership. During this time, if your mixer-amplifi er fails, or does not perform to original specifi cations, it
will be repaired or replaced at our expense. About the only things not covered by this warranty are those
losses normally covered by insurance and those caused by intentional abuse. And the coverage is transferable, should you sell your tuner-mixer-amplifi er.
See your authorized Crown dealer for full warranty disclosure and details. For customers outside of the
USA, please contact your authorized Crown distributor for warranty information or call 574-294-8200.
Crown International
1718 W. Mishawaka Rd.
Elkhart, IN 46517-9439
TEL: 574-294-8200
FAX: 574-294-8FAX
www.crownaudio.com
Specifi cations subject to change without prior notice. Latest
information available at www.crownaudio.com.
Crown and Crown Audio are registered trademarks of Crown
International. Other trademarks are the property of their
respective owners. Printed in U.S.A.
© 2006 Crown Audio
1/06 139495-1
®
