14CX-44
Schematic
5 pgs
462.89 Kb
0
Table of contents
Loading...

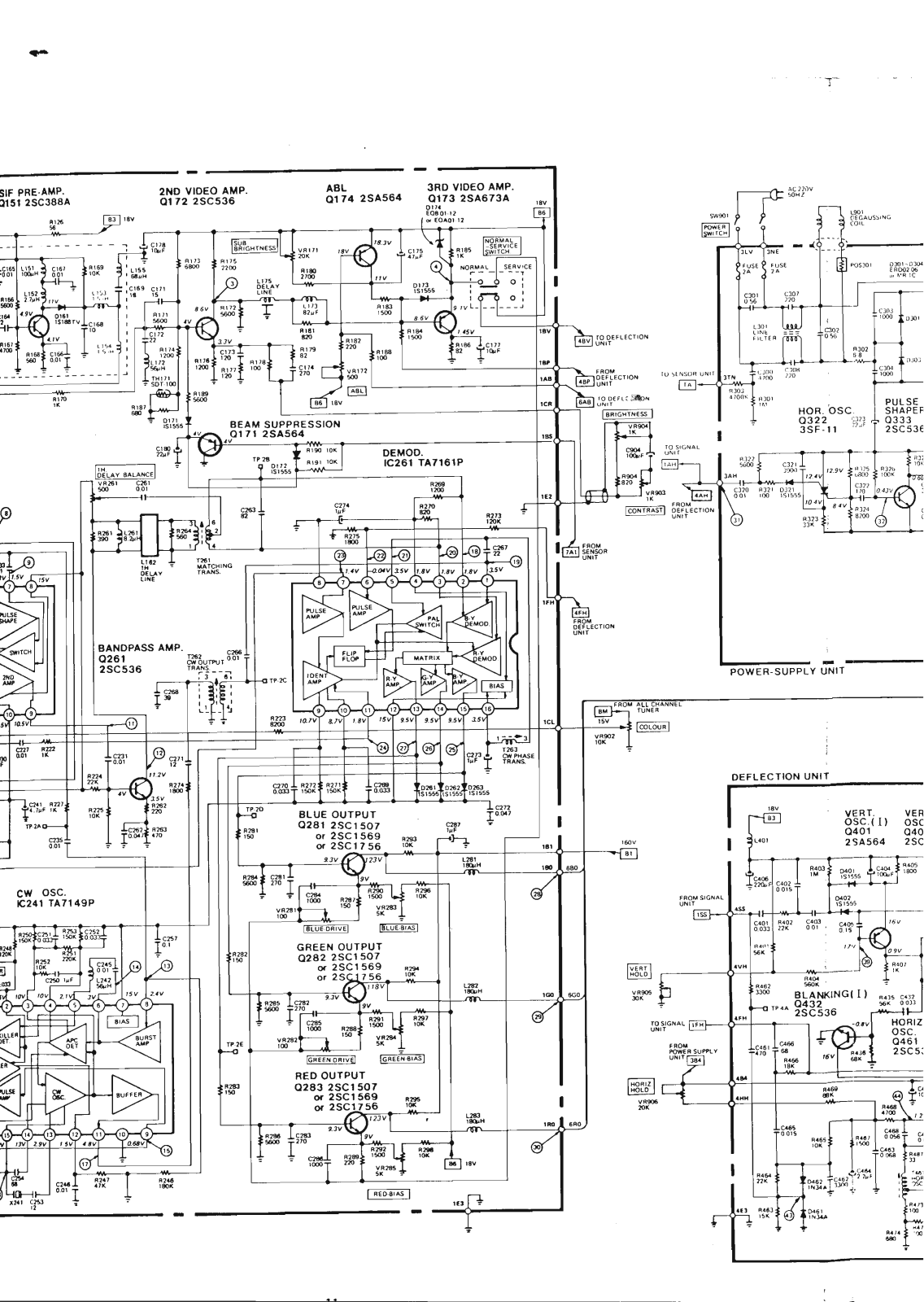

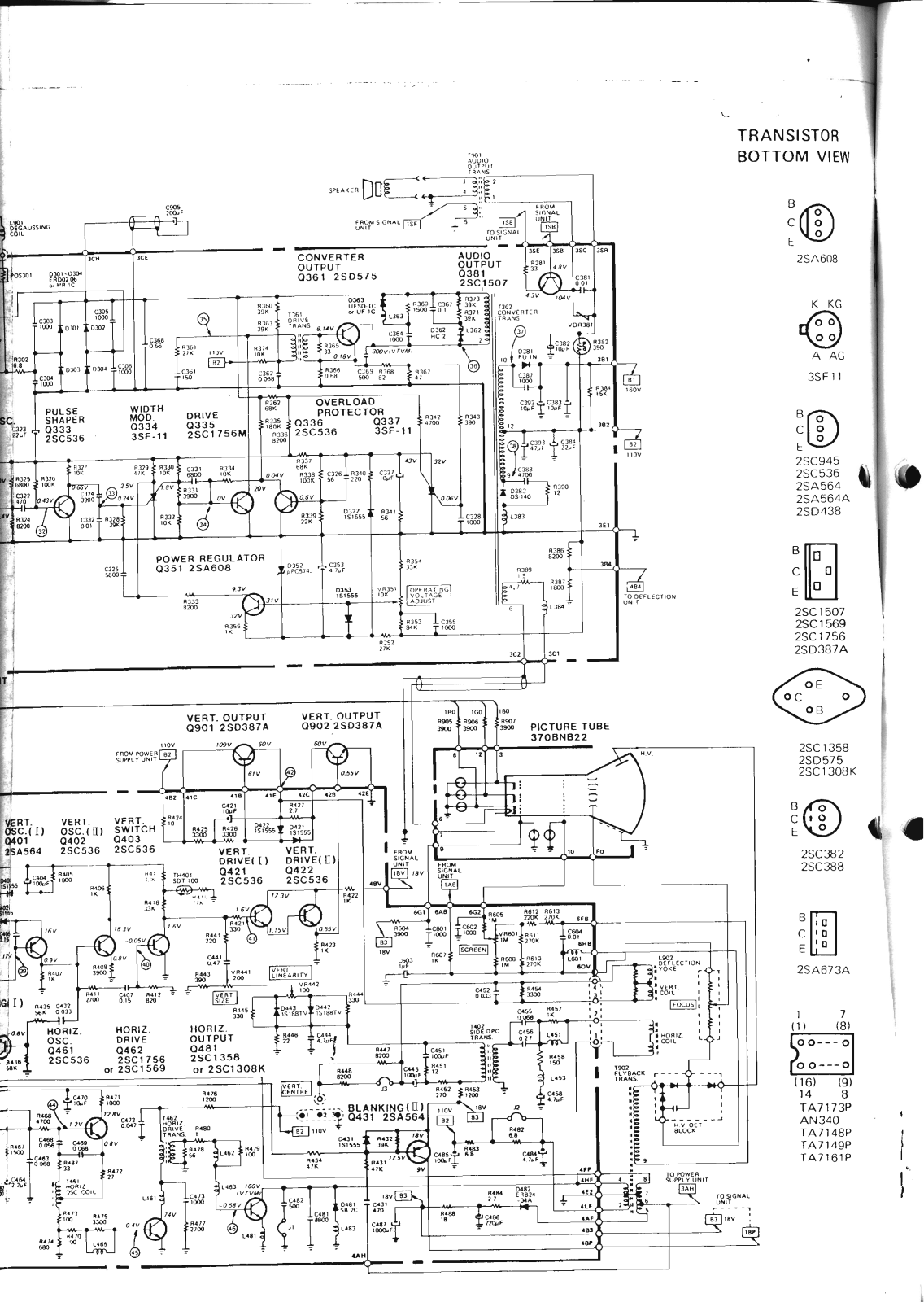

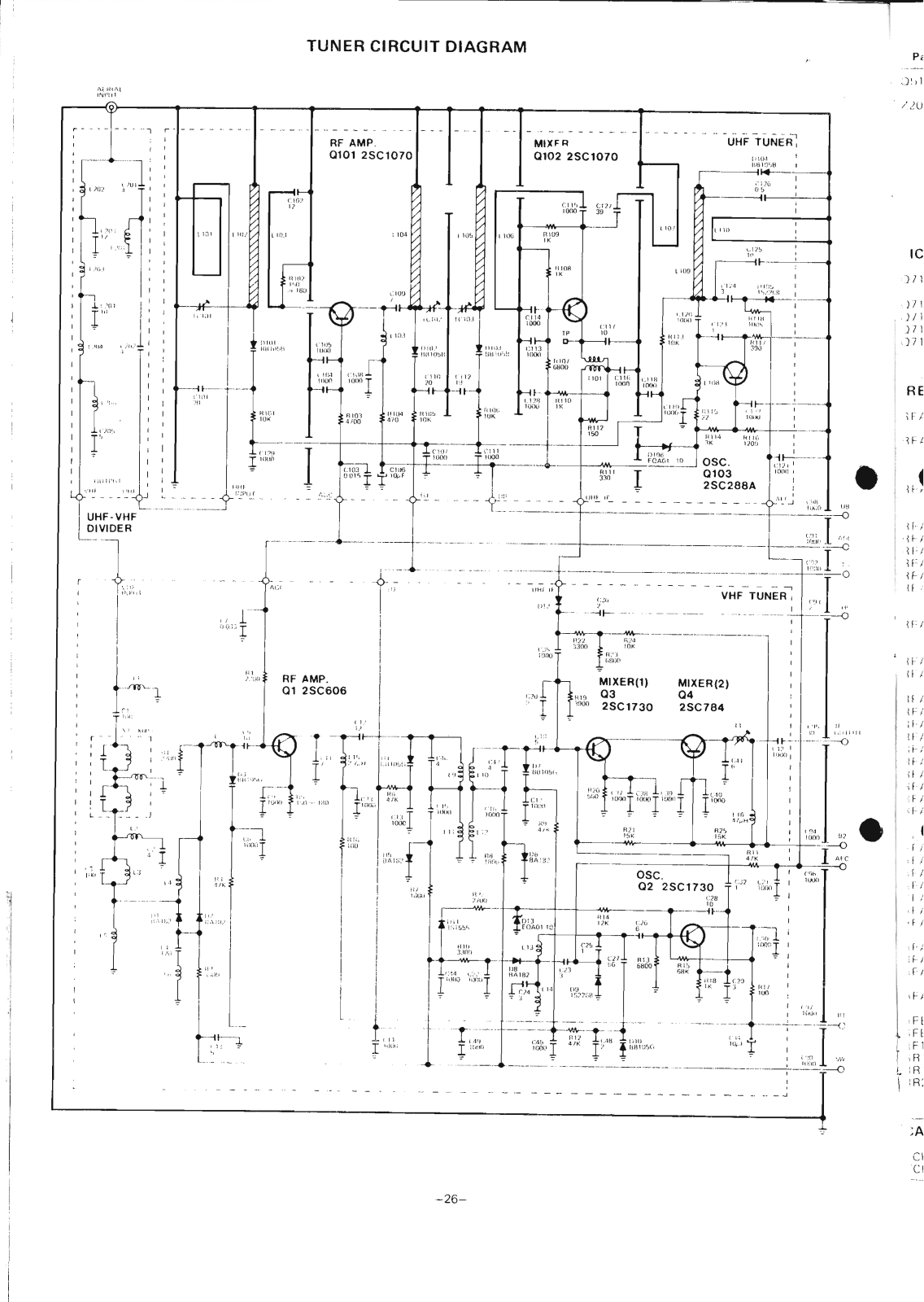

Crown 14CX-44 Schematic
...
Crown Schematic
Download
Text View
Picture View
Page 1
Page 2
Page 3
Page 4
Page 5
