Crosley CR42D User manual

CR42D

Lancaster Turntable

Instruction Manual

Questions, problems, missing parts ?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

English

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.

2. This product should be operated only by the type of power source indicated on the marking label or in this i nstru cti on manu al.

3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.

4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.

5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fir e or electric shock .

6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.

10. A product and cart combination should be moved with care. Q uick sto ps, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.

12. Unplug the product during lightning storm or when unused for long periods of time.

English

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable

• 45 RPM adapter

• 3.5mm aux in cable

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power 120V, 60Hz Power consumption 18W Speaker 3.5”, 8Ω, 5W x 2 Turntable speed 33 Replacement needle Crosley NP6

Note:

• Design and specifications are subject to change without notice.

•

To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

/3, 45, 78 RPM

English

Product Description

1. Speakers

2. Program Button

3. Forward Skip Button

4. Backward Skip Button

5. Function Switch

6. Program Indicator

7. Dial Scale

8. Play Indicator

9. Play/Pause Button

10. Stop Button

11. CD Door Open/Close Button

12. AM/FM Switch

13. Volume Knob

14. LED Display

15. CD Tray

16. Tuning Knob

17. Headphone Jack

18. Turntable Platter

19. Turntable Spindle

20. 45 RPM Adapter

21. Tonearm Lever

22. Tonearm

23. Auto-stop Switch

24. Speed Switch

25. Hold Down Clip

English

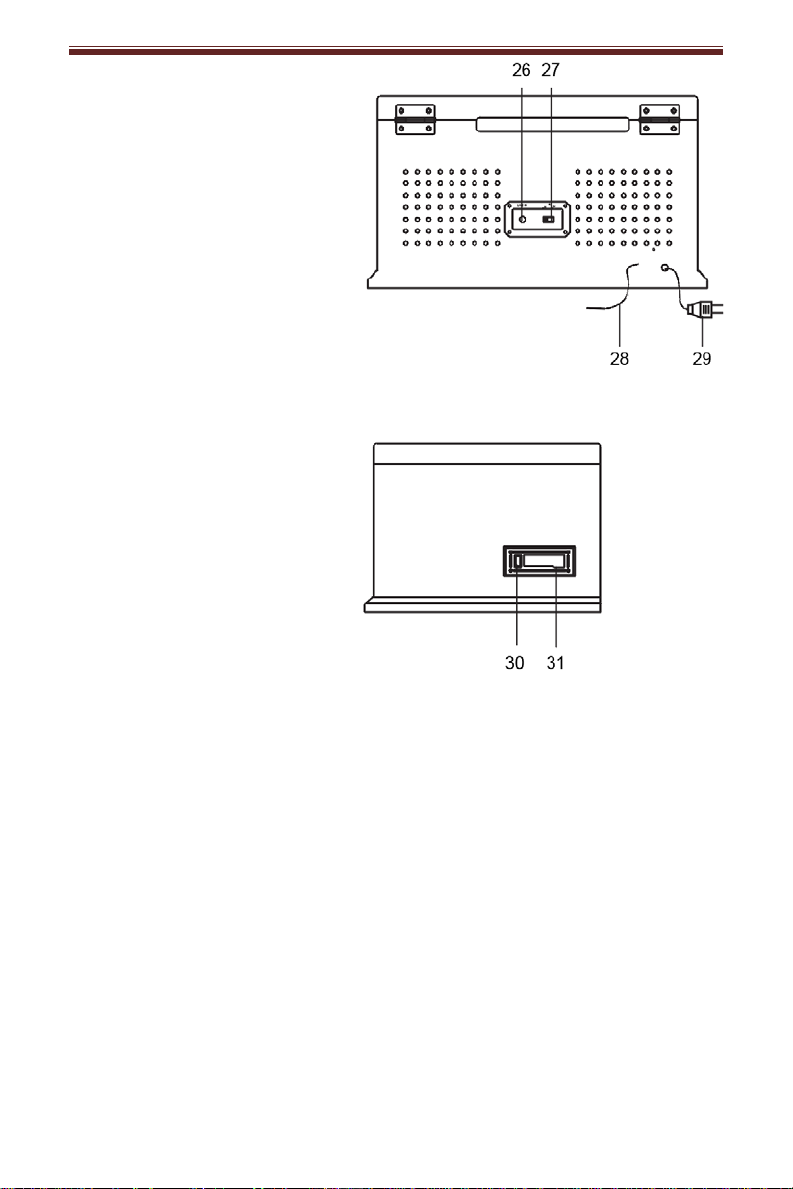

26. Line In Jack

27. Bluetooth Switch

28. External Antenna

29. Power Cord Plug

30. Cassette Eject/Fast Forward

Button

31. Cassette Door

English

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be

stable and free from vibration.

2. Remove the tie-wrap that is holding the tonearm.

3. Plug the power cord to the power outlet.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack of this unit and start playing the music.

Note: The aux in connection has the highest priority of all the functions. When there is an auxiliary cable plugged in, the aux in connection will automatically override the Bluetooth, turntable, CD, radio or cassette mode. To resume using the other features of the unit, unplug the auxiliary cable from the aux in jack.

Bluetooth Operation

1. Slide the Bluetooth Switch to the ON position, you will hear an activation

sound from the unit.

2. Turn on the Bluetooth feature of your audio device, search for “Crosley CR42”

and pair.

3. Once your device is successfully paired with the unit, you will hear a short

confirmation sound from the unit.

4. Play and stream music from your device to the unit.

Note:

• Bluetooth version - 4.1

• Bluetooth mode has a lower priority than the aux in connection, but higher priority than

the rest of the other modes. When it is under the Bluetooth mode, the Bluetooth connection will override turntable, CD, radio or cassette mode. To resume using those features, turn the Bluetooth Switch back to the OFF position.

English

Turntable Operation

1. Rotate the On/Off Volume Knob to turn on the power.

2. Set the Function Switch to PH position.

3. Set the Speed Switch accordingly.

4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.

5. Remove the stylus protector from the stylus assembly.

Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.

6. Release the tonearm Hold Down Clip.

Note: when the turntable is not in use, remember to lock back hold down clip.

7. Use the Tonearm Lever to lift up the tonearm.

8. Gently move the tonearm over the record where play is desired to begin. Set

the Tonearm Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.

9. When the record is finished playing, use the Tonearm Lever again to raise

the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.

10. Lock the Hold Down Clip to secure the tonearm.

Platter Auto-stop

If the Auto-stop Switch is set to ON position, th e platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue.

English

Needle Replacement

Removing Needle

1. Gently pull down the front edge of the needle.

2. Pull needle forward.

3. Pull out and remove.

Installing Needle

1. Position the needle with its tip facing down.

2. Line up the back of the needle with the cartridge.

3. Insert the needle with its front end at a downward angle and gently lift the

front of the needle upward until it snaps into place.

Radio Operation

1. Set the Function Switch to RA position, set the AM/FM switch to the desired

radio band.

2. Rotate the Tuning Knob for desired radio station.

Note:

• The unit is equipped with a FM wire antenna. To FM improve reception, move the wire around until the reception is clear without interferences. Do not connect the wire to any additional antenna.

• The AM antenna is built inside the unit. If AM reception is poor, try to rotate the unit for better reception.

English

CD Playback Operation

1. Set the Function Switch to CD position.

2. Press the Open/Close button to open the CD tray and put the CD in the tray with the labeled side facing up.

3. Press the Open/Close button again to close the tray. The LED display will show “--“ for a few seconds, then the total number of tracks on the CD. If it is a blank CD or an unrecognizable CD, it will show “00”.

Note: MP3 or similar types of digital audio files can not be read by the CD player.

4. Press the Play/Pause button to start the playback. The Play Indicator will light up.

5. During the playback, press the Play/Pause button to pause and the Play Indicator will starting flashing. Press it again to resume playback.

6. To skip to the next or previous track, press the Forward Skip or Backward Skip button correspondingly.

7. To search fast forward or backward a track, press and hold the Forward Skip or Backward Skip button correspondingly until you reach the desired time. Release the button and the playback will resume.

8. Press the Stop button if you want to completely stop playback.

Programmed Playback

1. Before starting the playback, press the Program button once to enter

program mode. Program Indicator will start flashing. The LED display will flash “01” as the track sequence which is to be edited.

2. Press the Forward Skip or Backward Skip buttons to select the desired

track that you would like to play. The LED’s number will turn steady instead of flashing, showing the sound track number at selection.

3. Press the Program button to confirm the selected track. The LED’s

number will start flashing again showing the next track sequence which is to be edited.

4. Repeat steps 2 & 3 for additional sound tracks that you would like to play.

The tracks can be in any number and repeated. A maximum of 20 tracks can be programmed at one time.

5. Press Play/Pause button to start the programmed playback. The tracks

will play in the same sequence that you programmed earlier.

6. To exit the program mode, press the Stop button twice and the Program

Indicator will be off.

English

Cassette Operation

1. Set the Function Switch to TA position.

2. Insert the prerecorded cassette through the cassette door and it will start playing automatically.

3. To fast forward, press the cassette Eject/F.F button half way in. To stop fast forwarding and return to the playback mode, press the button again.

Note: To rewind the cassette, you would need to reject the tape and flip it over for the other side and fast forward.

4. To stop the playback and eject the cassette, press the Eject/F.F. button all the way in.

5. When one side of the cassette finishes play ing, it will stop automatically.

Note: Remove the cassette from the cassette holder when it is not in use.

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record’s edge.

2. Clean the stylus frequently with a soft brush with a back-to-front motion only.

3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.

4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.

Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com more cleaning product information.

for

English

Troubleshooting

There is no power

• No power at the power outlet.

• To help save power consumption, this model complies with ERP energy

saving standard. When there is no audio input for 20 minutes, its powers will automatically cut-off. To turn power back on and resume playing, turn off the main power switch and turn it on again.

Power is on, but the platter does not turn

• Turntable mode is not selected.

• Turntable’s drive belt has slipped off.

• An aux in cable is plugged into the aux in jack, unplug it.

Turntable is spinning, but there is no sound, or sound not loud enough

• Stylus protector is still on.

• Tone arm is lift up by the lever.

• Headphone is plugged in.

• The input gain of the amplified speaker or similar device may be too low.

CD does not play

• Function mode is not set to CD.

• The CD is blank.

• The CD is placed on the tray incorrectly with the label side facing down.

• The CD has unsupported digital audio files like MP3 and similar types of

format.

• The CD has too many scratches or dirty.

Can not pause the cassette

• The feature is not available and you have to stop the cassette completely.
