Crosley Conservator CEDC392JQ Use & Care Manual

iiiiiiiiiiiiiiiiiiiiiiiiiii

...........iiiiiiiiii

iiiiiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiii iiiiiiiiii iiiiii

iiiii

iiiiiiiiii

ICONSERVATOR

By CROSLEY ®1

120-VOLTCOMPACT

ELECTRICDRYER

Use&CareGuide

For questions about features, operation/performance,

parts, accessories or service call: 1-800-253-1301

or visit our website at

w_w.orosley.com

Table of Contents ....................................................... 2

8521904

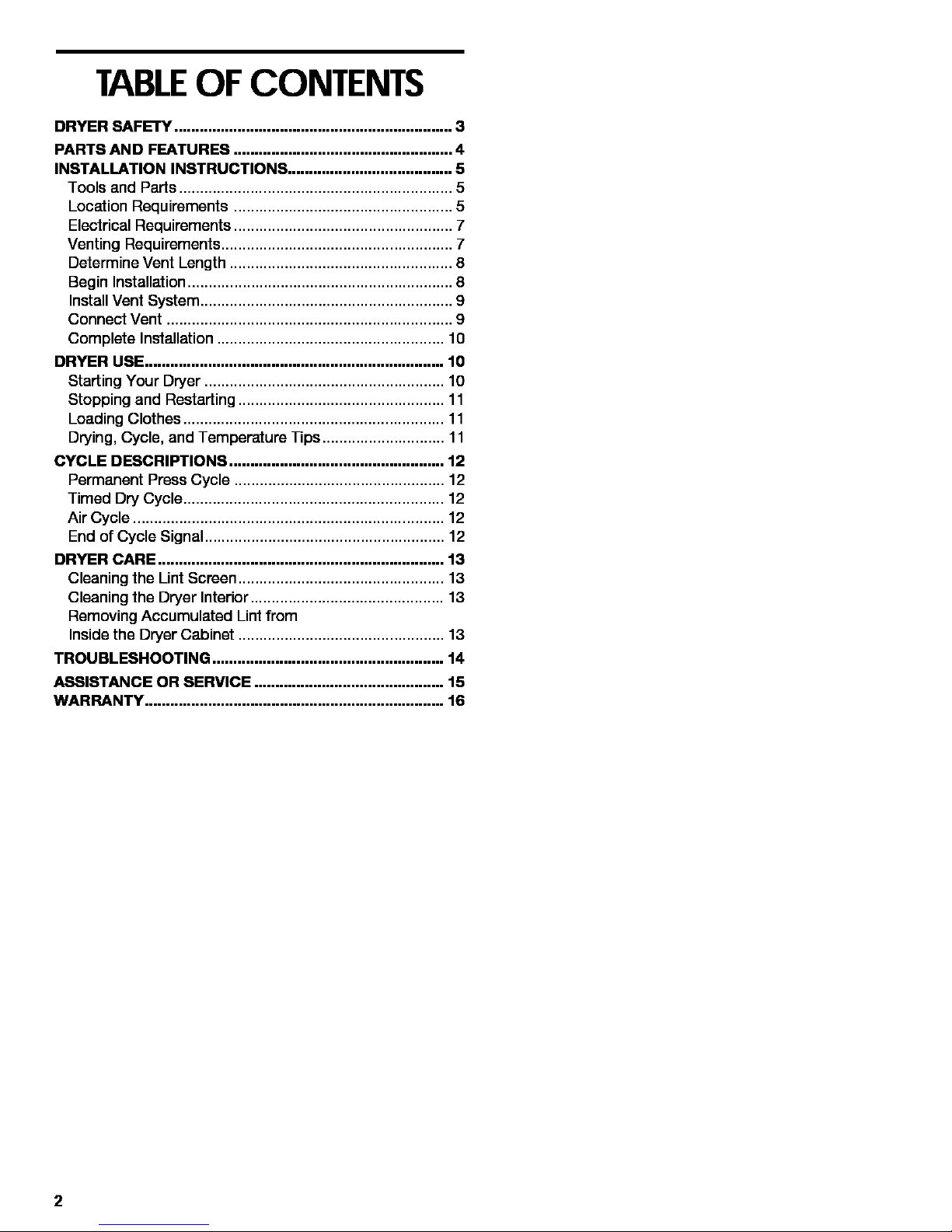

TABLEOF CONTENTS

DRYER SAFETY .................................................................. 3

PARTS AND FEATURES .................................................... 4

INSTALLATION INSTRUCTIONS ....................................... 5

Tools and Parts ................................................................. 5

Location Requirements .................................................... 5

Electrical Requirements .................................................... 7

Venting Requirements ....................................................... 7

Determine Vent Length ..................................................... 8

Begin Installation ............................................................... 8

Install Vent System ............................................................ 9

Connect Vent .................................................................... 9

Complete Installation ...................................................... 10

DRYER USE ....................................................................... 10

Starting Your Dryer ......................................................... 10

Stopping and Restarting ................................................. 11

Loading Clothes .............................................................. 11

Drying, Cycle, and Temperature Tips............................. 11

CYCLE DESCRIPTIONS ................................................... 12

Permanent Press Cycle .................................................. 12

Timed Dry Cycle .............................................................. 12

AirCycle .......................................................................... 12

End of Cycle Signal......................................................... 12

DRYER CARE .................................................................... 13

Cleaning the Lint Screen ................................................. 13

Cleaning the Dryer Interior.............................................. 13

Removing Accumulated Lint from

Inside the Dryer Cabinet ................................................. 13

TROUBLESHOOTING ....................................................... 14

ASSISTANCE OR SERVICE ............................................. 15

WARRANTY ....................................................................... 16

2

DRYERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can killor hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

'_NARNING." These words mean:

You can be killed or seriously injured if you don't

immediately follow instructions,

You can be killed or seriously injured if you don't
follow instructions,

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen ifthe instructionsare not followed.

IM PORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injuryto persons when using the dryer, follow basic

precautions, including the following:

Read all instructions before using the dryer.
Do not place items exposed to cooking oils in

your dryer. Items contaminated with cooking oils

may contribute to a chemical reaction that could
cause a load to catch fire.

Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable,
or explosive substances as they give off vapors

that could ignite or explode.

Do not allow children to play on or in the dryer.
Close supervision of children is necessary when

the dryer is used near children.

Before the dryer is removed from service or dis-
carded, remove the door to the drying compart-

ment.

Do not reach into the dryer ifthe drum is moving.
Do not install or storethe dryer where it will be

exposed to the weather.

Do not tamper with controls.

• Do not repair or replace any part of the dryer or

attempt any servicing unless specifically recom-

mended in this Use and Care Guide or in published
user-repair instructions that you understand and have

the skills to carry out.

• Do not use fabric softeners or products to eliminate

static unless recommended by the manufacturer of
the fabric softener or product.

• Do not use heat to dry articles containing foam rubber

or similarly textured rubber-like materials.

• Clean lint screen before or after each load.

• Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,

dust, and dirt.

• The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.

• See Installation Instructionsfor grounding require-

ments.

SAVETHESE INSTRUCTIONS

PARTSAND FEATURES

1. Control panel

2. Model and serial number label

3. Dryer drum

4. Lint screen

5. Moisture sensor

Control Panel

4

INSTAU.ATION

INSTRUCTIONS

lools and Parts

Tool• needed
Check that you have everythingnecessaryfor correctinstallation.

Proper installationisyour responalbility.

• fiat bladed screwdriver • safety glasses (optional)

• level • duct tape

• adjustable wrench • caulking gun and

• gloves (optional) compound (for installing

new exhaust vent)

• tin snips (new vent

installations)

1. Remove the tape that holds the drum to the cabinet. Move

the drum by hand in a counter-clockwise direction to make
certain all tape has been removed.

2. Wipe the interior of the drum thoroughly with a damp cloth

before usingthe dryer.

Parts supplied
Remove parts package from the dryer drum. Check that all parts

listed were included.

• 1 - cycle control (timer) knob

• 1 - Push to Start button

• 4 - casters

• 2 - cord brackets

• 2 - screws

Parts needed
Check local codes, check existing electrical supply and venting,

and see "Venting Requirements" and "Electrical Requirements"
before purchasing parts.

Location Requirements

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer.

Place dryer at least t8 inches (46 cm) above the

floor for a garage installation.

Failure to do so can result in death, explosion,

or fire.

Check location where dryer will be installed. Proper installation is
your responsibility.

You will need

• A location that allows for proper exhaust installation. See

"Venting Requirements."

• A grounded electrical supply is required. See "Electrical

Requirements."

• 4-inch metal exhaust vent is required. See "Venting

Requirements."

• A sturdy floor to support the total dryer weight of 110 Ib

(50 kg).

• Location must be large enough to fully open dryer doon

• A level floor with a maximum slope of 1 in. (2.5 cm) under

entire dryer. Clothes may nottumble properly and automatic
sensor cycles may not operate correctly if dryer is not level.

Do not operate your dryer at temperatures below 45°F (7°(3). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. Drying times can be extended. Do not store
your dryer in a location with year round temperatures below
45°F (7°C).

Install the dryer where it is protected from water and/or weather.
Check code requirements. Some codes limit, or do not permit,

installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.

WARNING: To reduce the risk of fire, this appliance MUST

BE EXHAUSTED OUTDOORS,

Recommended/MinimumClearances
Mostinstallationsrequire• minimum 5 in. (12.7 ore) clearance

behind the dryer for the exhaust vent with elbows. See "Venting
Requirements."

NOTE: Observe all governing codas and ordinances.

f

cm)

?Height with casters is 32½" (82.6 cm).

Recessed Area and Closet Installation

Your dryer needs • certain •mount of space around it for proper
ventilation and for easier inst•llstion and servicing. The following
minimum installation spacings •re required when the unit is to be
operated with, or without, the Stack Stand Kit. To pumhase •
Stack Stand Kit, see "Asaist•nce or Service."

Minimum installation spacing

38.6 Cl

18"( .

IDRYEF

1 2

(30.5 cm)

DRYER

12 = _

WASHER

*'*' "_-I1<- _=114_'*'1 =

(2.5cm) 4 (2,5m) 5

1. Side 4. Front--stack stand

2. Front 5. Side--stack stand

3. Closet door

* Additional space may be needed for exhaust elbow
** Opening is minimum for closet doo_ Louvered

door with air opening is acceptable.

*** May be O" (0 cm) clearance

Additional spacing should be considered for ease of

installation and servicing.
Additional cl••rancas might be required for wail, door, and

floor moldings.
Additional spacing of 1 in. (2.5 ore) on all sides ofthe dryer is

recommended to reduce noise transfer.

For classt installation with • door, minimum ventilation

openings in the top and bottom of the door •re required.

Louvered doors with equivalent ventilation openings are

•coept•ble.

• Companion appliance spacing should •leo be considered.

NOTE: No fuel-burning appliances may be installed in the same
closet as • dryer.

Mobile Home-Additional Location Requirements
This dryer is suitable for mobile home inst•llstione. Follow the

information in "Location Requirements."
The installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 245, HUD Part 280).

6

ElectricalRequirements VentingRequirements

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.
Failure to follow these instructions can result in

death, fire, or electrical shock.

= A 12g-volt, 60-Hz., AC-only, 15- or 20- ampere fused

electrical supply is required.

= A time-delay fuse or circuit breaker is recommended. Be sure

fuse or circuit breaker matches the rating of your line.

= Use a separate circuit serving only your dryer.
= Do not use an extension cord

GROUNDING INSTRUCTIONS

II For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
dryer is equipped with a cord having an equipment-grounding
conductor and a grounding plug.The plug must be plugged
into an appropriate outlet that is properly installed and ground-

ed in accordance with all local cedes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative or
personnel if you are in doubt as to whether the dryer is proper-
ly grounded. Do not modify the plug provided with the dryer: if
itwill not fit the outlet, have a proper outlet installed by a
qualified electrician.

SAVE THESE INSTRUCTIONS

Fire Hazard

Use a heavy metal vent.
Do not use a plastic vent.

Do not use a metal foil vent.
Failure to follow these instructions can result in

death or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS,
= Do not exhaust the dryer into any gas vent, chimney, wall,

ceiling, or a concealed space of a building,

= The diameter of the heavy metal exhaust vent must be 4 in,

(10.2 ca).

= Do not use an exhaust hood with a magnetic latch.
= Do not install flexible metal vent in enclosed walls, ceilings or

floors.

= Do not use screws or other fastening devices that extend into

the interior of the vent to secure vent.

IMPORTANT: Observe all governing codes and ordinances.

Improper venting can cause moisture and lint to collect
indoors, which may result in:

• Moisture damage to woodwork, furniture, paint, wall-

paper, carpets, etc.

• Housecleaning problems and health problems.

Use a heavy metal vent. Do not use plastic or metal foil vent.
Rigid metal vent is recommended to prevent crushing end

kinking.
Flexible metal vent must be fully extended and supported when

the dryer is in its final position. Remove excess flexible metal vent
to avoid sagging end kinking that may result in reduced airflow.

An exhaust hood should cap the vent to prevent rodents and
insects from entering the home.

Exhaust hood must be at least 12 in. (30.5 cm) from the ground or
any object that may be inthe path ofthe exhaust (such as
flowers, rocks or bushes, etc.).

If using an existing vent system, clean lint from the entire length
of the system and make sure exhaust hood is not plugged with
lint. Lint should be removed again every 2 years, or more often,
depending on dryer usage. Replace any plastic or metal foil vent
with rigid metal or flexible metal vent.

Use duct tape to seal all joints.

DetermineVent Length

NOTE: Check periodically to ensure that the outside exhaust
hood is not blocked.

The maximum length ofthe exhaust system depends upon:

= The type of vent (rigid metal or flexible metal).
= The number of elbows (90 ° turns) used.

Recommended hood styles are shown here.

110_ cm)

I. Box hoodstyle

2. Louvered hood style

The angled hood style (shown following) is acceptable.

See the exhaust vent length chart that matches your hood type
for the maximum vent lengths you can use.

Do not use vent runs longer than specified in exhaust vent
length charts.

Exhaust systems longer than specified will:
= Shorten the life of the dryer.

a Reduce performance, resulting in longer drying times and

increased energy usage.

Determine the number of elbows you will need. In the column
listing the type of metal vent you are using (rigid metal or flexible
metal); find the maximum length of metal vent onthe same lineas

the number of elbows

Vent Length Chart

Number of Type of Box or Angled

90" turns vent Iouvered hoods

or elbows hoods

O Rigid metal 36 ft (11 m) 26 ft (7.9 m)

Flexible metal 28 ft (8,5 m) 22 ft (6,7 m)

1 Rigid metal 26 ft (7,9 m) 16 ft (4,9 m)

Flexible metal 18 ft (5,5 m) 12 ft (3,7 m)

2 Rigid metal 16 ft (4,9 m) 6 ft (1,8 m)

Flexible metal 8 ft (2,8 m) 2 ft (,6 m)

Special Venting Information for Mobile Homes
The exhaust vent must be securely fastened to a noncombustible

portion of the mobile home structure,

.----2

_3

1/

1. Floor

2. Outside wall

3. Enclosure

Terminate the exhaust vent outside. The exhaust vent must not
terminate beneath the mobile home and must nat be connected

to any other duct, vent, or chimney.

Begin Installa0on

Do not move dryer into its final position untilthe following steps
have been performed.

1. Exhaust hood

2, Flexible metal vent or dgid metal vent
3, Elbow

Install cord bracket

3. Removetape fromthe powercordandthe rearpanel,

8

4,

Insert cord brackets into slotted holes in rear panel and
secure with screws provided.

/

NOTE: Power supply cord may be wrapped around the brackets
for storage convenience when dryer is not in use.

Install casters

1. Lay the dryer on its side.

2. Use the carton to prevent damage to the dryer.

3. Screw casters into dryer base at four corners and tighten

securely.

4. Set the dryer upright. In doing so, be careful that the dryer

does not roll away from you.

a As stated in "Location Requirements", it is important that the

dryer be located on a level surface.

= Leveling feet (Part No. 51594200) for use in permanent

installations may be purchssed. See "Assistance or Service."

InstallVent System

1. (Optional) Put on safety glasses and gloves.

2. Before installing the vent system, be sure to remove the wire

exhaust guard that is located at the exhaust outlet.

3. Install exhaust hood. Use caulking compound to seal exterior

wall opening around exhaust hood.

4. Connect vent to exhaust hood. Vent must fit inside exhaust

hood. Secure vent to exhaust hood with 4 in. (10.2 cm)
clamp.

5. Run vent to dryer location. Use the straightest path possible.

See "Determine Vent Length". Avoid 9(7' turns. Use duct tape
to seal all joints.

Connect Vent

1. Using a 4 in. (10.2 cm) clamp, connect vent to exhaust outlet

in dryer. If connecting to existing vent, make sure the vent is
clean. The dryer vent must fit over the dryer exhaust outlet

and inside the exhaust hood. Make sure the vent is secured
to exhaust hood with a 4 in. (10.2 cm) clamp.

2. Move dryer into final position. Do not crush or kink vent.

Make sure dryer is level.

Complete Installation

1. Check to be sure all parts are now installed. Ifthere is an
extra part, go back through the steps to see which step was
skipped.

2. Check to be sure you have all of your tools.

3. Dispose of all packaging materials.

4. Check the dryer's final location. Be sure the vent is not

crushed or kinked.

5. Check to be sure the dryer is level.

6. Plug into a grounded 3 prong outlet.

7. Remove the blue protective film on the console and any tape

remaining on the dryer.

8. Read "Dryer Use."

9. Wipe the dryer drum interior thoroughly with a damp cloth to
remove any dust.

10. Set the dryer on a full heat cycle (not the Air cycle) for 20

minutes. Open the dryer door after five minutes and feel for
heat. If you do not feel heat, turn the dryer off and wait five

minutes.

Then check the following:

= Controls are set in a running or "On" position,
= Start button has been pushed firmly,

Repeat 5-minute test as outlined above, If dryer still does not
operate properly, check the following:

= Dryer is plugged into a grounded outlet,
= Eleotdcal supply is connected,
= House fuse is intact and tight; or circuit breaker has not

tripped,

= Dryer door is closed,
= If dryer makes an unusual noise, check that dryer is level,

NOTE: You may notice a burning odor, This odor is common
when the heating element is first used, The odor will go away,

DRYERUSE

StartingYour Dryer

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer.

Do not dry anything that has ever had anything

flammable on it (even at_er washing).

Failure to follow these instructions can result in

death, explosion, or fire.

Fire Hazard

No washer can completely remove oil.
Do not dry anything that has ever had any type of

oil on it (including cooking oils).

Items containing foam, rubber, or plastic must be

dried on a clothesline or by using an Air Cycle.

Failure to follow these instructions can result in

death or fire.

t0

Before using your dryer, wipe the dryer drum with a damp cloth to
remove dust from storing and shipping.

1. Load clothes loosely into the dryer and clcae the door. Do not

pack the dryer. Allow space for clothes to tumble freely.

2. Turn the Cycle Control knob to the recommended cycle for

the type of load being dried. Use the Energy Preferred
Automatic Setting (*) to dry most heavyweight and medium
weight loads. See "Drying, Cycle, and Tempersture Tips."

Loading Clothes

Load clothes loosely into the dryer. Do not pack the dryer. Allow
space for clothes to tumble freely. The following chart shows the
maximum load you can place in your compact dryer. Expect
longer drying times.

Heavy work
clothes

2 pair of pants, 3 work shirts

Delicates 1 camisole, 2 slips, 4 undergarments,

1 set of sleepwear, 1 half slip

Towels g bath towels; or 6 bath towels, 3 hand

towels, 6 wash cloths

Mixed Load 2 pillowcases, 1 T-shirt, 2 shirts, 1 pair

slacks

Knits 2 slacks, 2 shirts; or 3 dresses

Perm. Press 6 shirts; or 2 double sheets & 2 pillowcases;

or 2 singles sheets & 2 pillowcases

3. Push the START button.

Stoppingand Restarting

You can stop your dryer any time during e cycle.
To stop your dryer
Open the dryer door or turn the Cycle Control knob to OFR
NOTE: The Cycle Control knob should point to an Off area when

the dryer is not in use.
To restart your dryer

1. Close the door.

2. Select a new cycle (if desired).

3. Push START

Drying,Cycle, and lemperature lips

Select the correct cycle and temperature for your load.
Your dryer tumbles the load without heat during the last few

minutes of all cycles to make the load easier to handle.
Drying tips

= Follow care label directions when they are available.

• Ifyou use fabric softener sheets, use only those labeled

"dryer safe." Follow package instructions.

= Remove the load from the dryer es soon es tumbling stops to

reduce wrinkling. This is especially important for permanent

press, knits, and synthetic fabrica.

Cycle and temperature tips
a Dry most loads usingthe Energy Preferred Automatic

Setting (*).

• Use a no heat (air) setting for rubber, plastic, or heat sensitive
fabrics.

= Line dry bonded or laminated fabrics.
NOTE: Ifyou have questions about drying temperatures for

various loads, refer to the care label directions.

11

CYCLE DESCRIPTIONS

OFF 105

PERMANENT TIMED

PRESS 90 DRY

LESS DRY

6O

|5

MORE DRY

k30

*ener__.fen'ed OFF

Automatic Settins

AIR 5

Cycle Control knob

Permanent PressCycle

This automatic cycle shuts off the dryer when the selected
dryness is reached. The Cycle Control knob does not move
until the load is almost dry. After the cool down, the knob
automatically turns to an Off area and tumbling stops.

Dry most loads using the Energy Preferred Automatic Setting (*).
= If the load is drier than you like, select e setting closer to

Less Dry the next time you dry a similar load.

a If the load is not as dry as you like, complete drying using the

Timed Dry cycle. The next time you dry a similar load, select a
setting closer to More Dry.

NOTE: Dryingtime with an automatic cycle varies according to
the type of fabric, size of load, and temperature setting.

Timed Dry Cycle

Use this cycle to complete drying if items are still damp after the
automatic cycle.

Timed Drying is also useful for:
a Heavyweight items and work clothes that require e long

drying time.

a Lightweight items, such as lingerie, blouses, and knits that

require a short drying time.

For damp dry, turn the Cycle Control knob to 30 minutes or less.

AirCycle

Use this cycle for items that require drying without heat, such as
rubber, plastic, and heat-ssnsitive fabrics. See the chert for
examples of items that can be dried using an air cycle.

Type of Load Time*

Foam rubber--pillows, padded bras,
stuffed toys 20 - 30

PIsstic--shower curtains, tablecloths 20 - 30
Rubber-backed rugs 40 - 50

Olefin, polypropylene, sheer nylon 10- 20

*(Minutes). Reset cycle to complete drying, if needed.
When using an air cycle

a Check to see that coverings are securely stitched.
a Shake and fluff pillows by hand periodically during cycle.
a Dry item completely. Foam rubber pillows are slow to dry.

Endof Cycle Signal

The dryer sounds a signal to let you know when the cycle is
finished. The signal is not adjustable and cannot be turned off.

The signal is helpful when you are drying permanent press,
synthetics, end other items that should be taken out as soon as

the dryer stops.

t2

DRYERCARE

Cleaning the LintScreen

Cleaning the Dryer Interior

Every load cleaning
The lintscreen is located inside the dryer drum, on the back wall.
Clean it before each load. A screen blocked by lint can increase

drying time.
To clean

1. Open the door and pull the lint screen straight out.

Explosion Hazard

Use nonflammable cleaner.
Failure to do so can result in death, explosion,

or fire.

2. Squeeze body of lint screen lightly while pulling off the cover.

3. Roll lint off the screan with your fingers. Do not dnas or wash
screen to remove lint. Wet lint is hard to remove.

4. Replace cover on lint screen body. Push the lint screen firmly
back into place and close the door.

IMPORTANT:
= Do not run the dryer with the lint screen loose, damaged,

blocked, or missing. Doing so can cause overheating and
damage to bath the dryer and fabrics.

= Some towels made of synthetic fibers and natural fibers

(polyester and cotton blends) may shed more lint than other
towels, causing your dryer's lint screen to fill up faster. Be

sure to remove lintfrom the lintscreen before and after drying
new towels.

As needed cleaning
Laundry detergent and fabric softener residue can build up on the

lint screen. This buildup can cause longer drying times for your
clothes, or cause the dryer to stop before your load is completely

dry. The screen is probably clogged if lint falls oft the screen.
Clean the lint screen with a nylon brush every six months, or

more frequently if it becomes clogged due to a residue buildup.
To wash

1. Wet both the lint screen cover and body with hotwater.

2. Wet e nylon brush with hot water and liquid detergent. Scrub
lint screen cover and body with the brush to remove residue

buildup.

To

1.

2,

clean dryer drum

Make a paste with powdered laundry detergent and very

warm watsE

Apply paste to a soft cloth.
OR

Apply a liquid, non-flammable household cleaner to the
stained area and rub with a soft cloth until all excess dye is

removed.

3. Wipe drum thoroughly with a damp cloth.

4. Tumble a load of clasn cloths or towels to dry drum.
NOTE: Garments which contain unstable dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the
dryer interior. These stains are not harmful to your dryer and will
not stain future loads of clothes. Dry unstable dye items inside-
out to prevent dye transfer.

Removing Accumulated Lintfrom

Insidethe Dryer Cabinet

Lint should be removed every two years, or more often,
depending on dryer usage. Cleaning should be done by a
qualified person.

3. Rinse with hat water.

4. Thoroughly dry lintscreen body and covar with a clean towel.
Replace in dryer.

13

TROUBLESHOOTING

First try the solutions suggested hem and possibly avoid
the cost of a service call...

Clothes are not drying satisfactorily

m The compact dryer operates at a lower wattage. Expect

longer drying times,

a Checkthe following:

Is the wire exhaust guard removed from the back of the
dryer?

Is the lint screen clogged with lint?
Is the exhaust vent or outside exhaust hood clogged with lint,

restricting air movement? Run the dryer for 5-10 minutes.
Hold your hand under the outside exhaust hood to check air
movement. If you do not feel air movement, clean exhaust
system of lint or replace exhaust vent with heavy metal or

flexible metal vent. See "Installation Instructions."
Is the exhaust vent crushed or kinked? Replace with heavy

metal or flexible metal vent. See "Installation Instructions."
Has an air dry cycle been selected? Select the right cycle for

the types of garments being dried. See "Drying, Cycle, and
Temperature Tips."

Are fabric softener sheets blocking the grill? Use only one
fabric softener sheet and only use it once.

Is the automatic cycle ending early? This cycle will and early
if dryer load is not contacting the sensor strips. Level the
dryer. See "Installation Instructions."

a

Is the dryer located in a room with temperature below

4S°F (70C)?

Proper operation ofdryer cycles requires temperatures above

45°F (7°C).

= Was a cold rinse water used? Was the load very wet?.

Expect longer drying times with items rinsed in cold water
and with items that hold moisture (cottons).

= Is the load too large and heavy to dry quickly?.

Separate the load to tumble freely.

Dryer will not run

a Checkthe following:

Is the power cord plugged into a grounded 3 prong outlet?
Has a fuse blown, or has a circuit breaker tripped?
Was a regular fuse used? Use a time-delay fuse.
Is the dryer door firmly closed?
Was the START button firmly pressed?
Is a cycle selected?

Unusual sounds

a Has the dryer had a pedod of non-use?

If the dryer hasn't been used for a while, there may be a
thumping sound during the first few minutes of operation.

Linton load

a

a

a

a

a

a

Is the lint screen clogged?

Clean lint screen. Check for air movement.

Is the load properly sorted?

Sort lint givers (towels, chenille) from lint takers (corduroy,
synthetics). Also sort by color.

Is the load too big or too heavy?.
Dry smaller loads so lint can be carried to the lintscreen.

Was the load overdded?

Use correct dryer settings for load type. Overdrying can

cause lint-attracting static electricity. See "Drying, Cycle, and
Temperature Tips."

Was paper or tissue left in pockets?

Is pilling being mistaken for lint?
Pilling (surface fuzz) is caused by normal wear and

laundering.

Stains on load or color change

a Was dryer fabric softener properly used?

Add dryer fabric softener sheets at the beginning ofthe cycle.

Fabric softener sheets added to a partially-dried load can

stain your garments.

a Were items soiled when placed in the dryer?.

Items should be clean before being dried.

a Were items properly sorted?

Sort light colors from dark colors. Sort colorfast items from
noncolorfast items.

Items shrinking

a Was the dryer overloaded?

Dry smaller loads that can tumble freely.

a Did the load overdry?

Check the manufacturer's care label. Match dryer setting to
load type. See "Drying, Cycle, and Temperature _ps."

Loads are wrinkled

a Was the load removed from dryer at the end of the cycle?
a Was the dryer overloaded?

Dry smaller loads that can tumble freely.

a Did the load overdry?

Check the manufacturer's care label. Match dryer setting to
load type. See "Drying, Cycle, and Temperature _ps."

Odors

a

a

Have you recently been painting, staining, or varnishing in

the area where your dryer is located?

If so, ventilate the area. When the odors or fumes are gone

from the area, re-wash and dry the clothing.

Is the dryer being used for the first time?

The new electric heating element may have an odon The odor
will be gone after the first cycle.

Garment damage

m Check the following:

Were zippers, snaps, and hooks left open?
Were strings and sashes tied to prevent tangling?

Were care label instructions followed?
Were items damaged before drying?

14

ASSISTANCEOR SERVICE

Before calling for assistance or service, please check
"Troubleshooting." It may save you the cast of a service call. If

you still need help, follow the instructions below.
When calling, please know the purchase date and the complete

model and serial number of your appliance. This information will
help us to better respond to your request.

If you need replacement parts
If you need to order replacement parts, we recommend that you

only use Factory Specified Parts. These parts will fit right and
work right because they are made with the same precision used

to build every new CROSLEY ®appliance. To locate replacement
parts in your area, call our Customer Interaction Center or your

nearest designated service center.

For assistance or service
Call the Customer Interaction Center at 1-800-253-1301.

Our consultants provide assistance with:
a Features and specifications on our full line of appliances
= Installation information

= Use and maintenance procedures
= Accessory and repair parts sales
a Specialized customer assistance (Spanish speaking, hearing

impaired, limited vision, stc.)

a Referrals to local dealers, repair parts distributors, and

service companies

Whirlpool designated service technicians are trained to fulfill the
product warranty and provide after-warranty service, anywhere in

the United States.
To locate the Whirlpool designated service company in your area,

you can also look in your telephone directory Yellow Pages.

For further assistance
If you need further assistance, you can write to us with any

questions or concerns at:

Crosley Distribution Center
c/o Correspondence Dept.

675 North Main Street
Winston-Salem, NC 27102-2111

Please include a daytime phone number in your correspondence.

15

CROSLEY®DRYERWARRANTY

ONE-YEAR FULL WARRANTY

For one year from the date of purchase, when this dryer is operated and maintained according to instructions attached to or furnished
with the product, Whirlpool Corporation will pay for Factory Specified Parts and repair labor to correct defects in materials or
workmanship. Service must be provided by a Whirlpool designated service company.

Whirlpool Corporation will not pay for:

1. Service calls to correct the installation of your dryer, including venting. Heavy 4 in. (10.2 cm) metal exhaust vent must be used. Refer
to the venting section of this manual and your Installation Instructions.

2. Service calls to instruct you how to use your dryer, to replace house fuses or correct house wiring or reset circuit breakers, or to
replace owner accessible light bulbs.

3. Repairs when your dryer is used in other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, floods, acts of God, improper installation (including, but not limited
to, venting with plastic or flexible foil), installation not in accordance with local electrical and plumbing codes, or use of products not
approved by Whirlpool Corporation.

5. Replacement parts or repair labor costs for units operated outside the United States.

6. Pickup and delivery. This product is designed to be repaired in the home.

7. Repaire to parts or syetems resulting from unauthorized modiflcetions made to the appliance.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental
or consequential damages, so this exclusion or limitation may not

apply to you. This warranty gives you specific legal rights, and
you may also have other rights which may vary from state to

state.

Outside the 50 United States, this warranty does not apply.
Contact your authorized Crosley dealer to determine if

another warranty applies.
If you need service, first see "Troubleshooting." Additional help

can be found by checking "Assistance or Service," or by calling
our Customer Interaction Center at 1-800-253-1301, from
anywhere in the U.S.A., or write: Crosley Distribution Center,
c/o Correspondence Dept., 675 N. Main St., Winston-Salem, NC

27102-2111.

5/00

Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.

Write down the following information about your dryer to better
help you obtain assistance or service if you ever need it. You will
need to know your complete model number and serial number.

You can find this information on the model end serial number
label/plate, located on your appliance as shown in "Parts and

Features."

Dealer name

Address
Phone number

Model number
Serial number

Pumhase date

8521904 9100

© 2000. All dghts reserved. ® Registered Trademark of Crosley Pdnted in U.SJ_,.
