Crosley CLCG900FW3, CLCG900FW2, CLCE900FW2 Owner’s Manual

!iMi@i,JiiiiMiii//iiiiYii)iYiil____________

OW G IE E

A AL EL UA I0

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_l __________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________[____________1____________!li[i)iiiiiiiliiiiiiiiiiliiiiiiiiiiiiii_

P/N 134888800A (0712) www.crosley.com

Contents

Product Registration .......................................................... 1

Important Safety Instructions ......................................... 2-4

Washing Procedures ...................................................... 4-6

Stain Removal ............................................................ 6-7

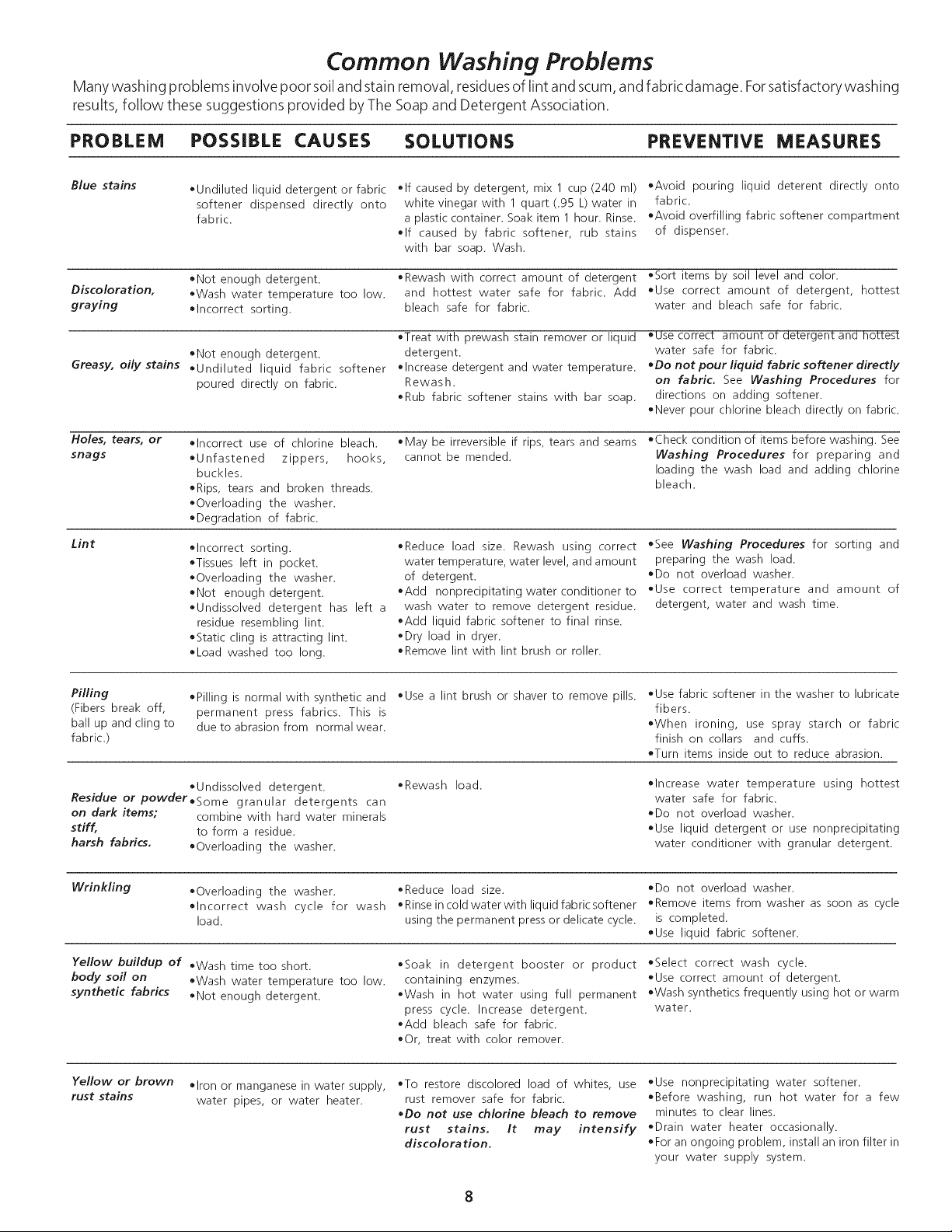

Common Washing Problems ............................................... 8

Drying Procedures ............................................................. 9

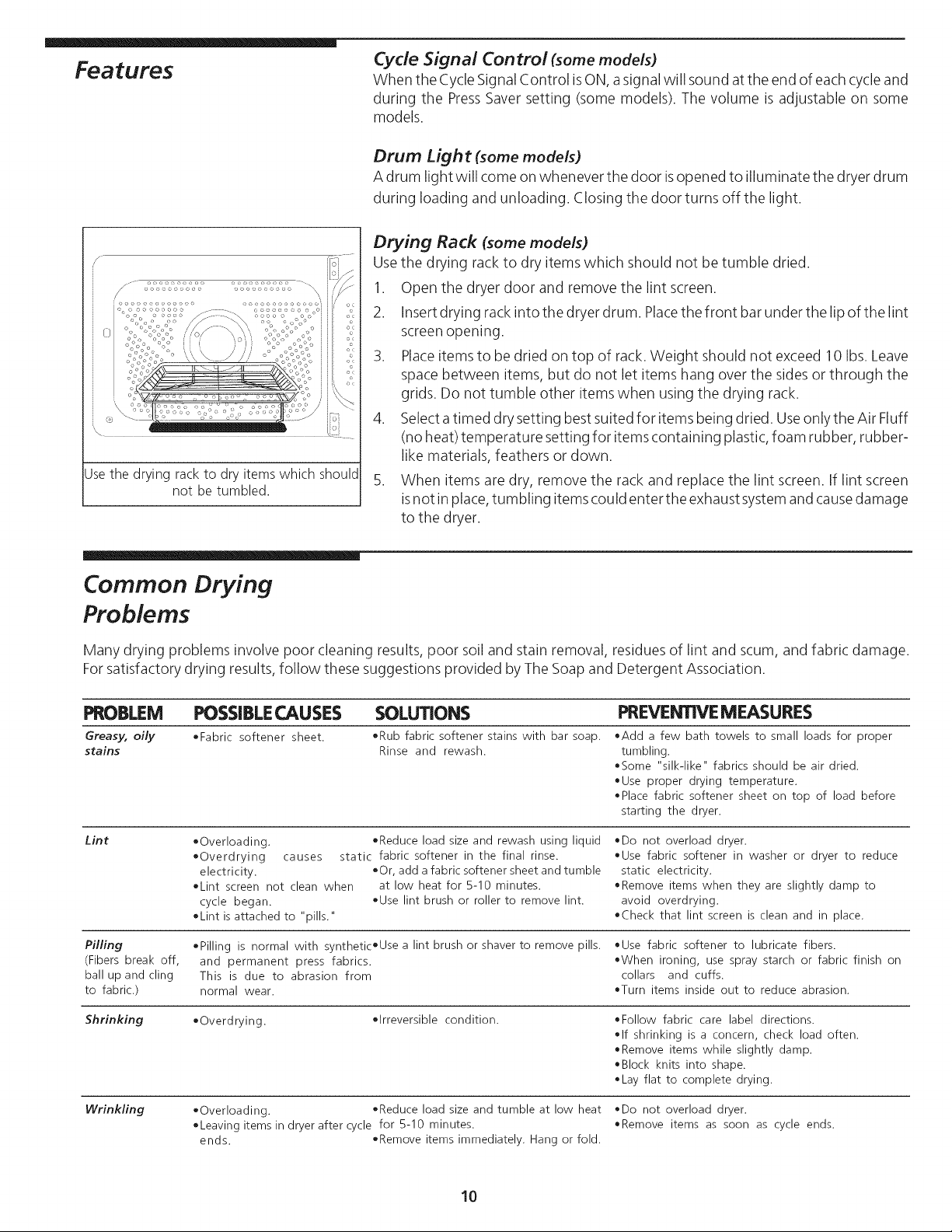

Features ......................................................................... 10

Common Drying Problems ............................................ 10

Care and Cleaning .................................................. 11-13

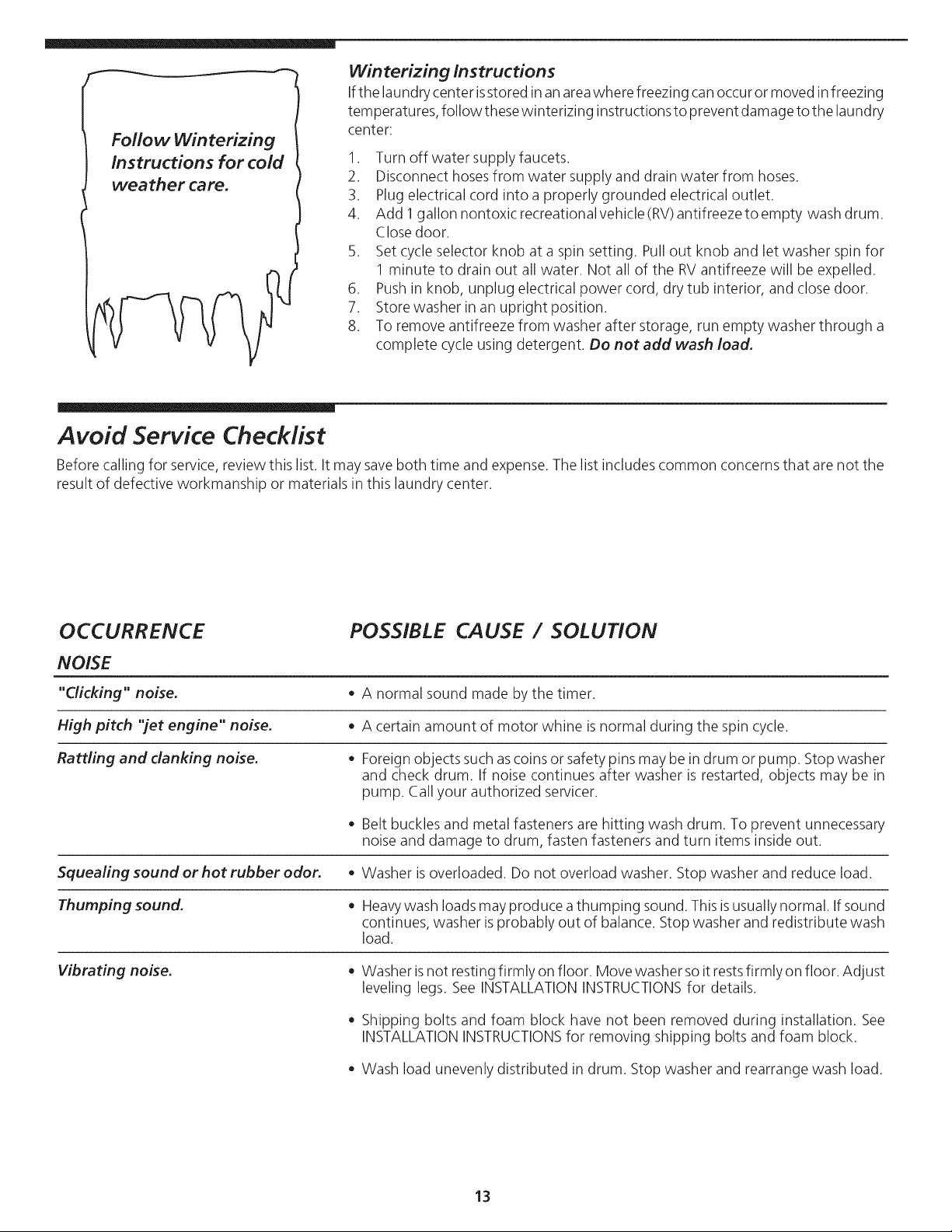

Avoid Service Checklist ............................................ 13-15

Warranty ................................................................ 16

Espa_ol ................................................................. 17-31

Back Cover ..................................................................... 32

The symbol /_, on the product or on its packaging indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your

local city office, your household waste disposal service or the

shop where you purchased the product.

If you need assistance or service, first see the "Avoid Service

Checklist" section. Additional help is available by calling 1-800- 944-9044 from anywhere in the U.S.A., or write:

Crosley Corporation 111 Cloverleaf Dr.

Suite 200

Winston Salem, NC 27103

Information may also be obtained by vising our website at

www. crosley, com. In Canada, for assistance, installation or service call:

1-800-668-4606, or write: Crosley Corporation

111 Cloverleaf Dr.

Suite 200

Winston Salem, NC 27103

WASHER

Your safety and the safety of others is very important.

We have provided many important safety messages in the Use and Care Guide, Operating Instructions, Installation Instructions and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you or others. All safety messages will be

preceded by the safety alert symbol and the word "DANGER" or "WARNING". These words mean:

_ You can be killed or seriously injured if you don't immediatel_z follow instructions.

Thank you for choosing this laundry center. This owner's guide will explain proper operation and care.

Record Your Model and Serial Numbers

Record below the model and serial numbers found on the laundry

center serial plate located on the inside of the dryer door. Keep these numbers for future reference.

Model Number

Serial Number

Date of Purchase

The self-addressed PRODUCT REGISTRATION CARD should be filled in completely, signed and returned.

SAFETY

Product Registration

_ You can be killed or seriously injured if you don't follow instructions. All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent

property damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

* Do not try to light any appliance. * Do not touch any electrical switch; do not use any phone in your building.

* Clear the room, building or area of all occupants. * Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

* If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

r_ r r i; r ........................................................

Important Safety Instructions SAVETHESEINSTRUCTIONS

You can be killed or seriously injured if you don't follow these important Safety instructions:

oTo reduce the risk of fire, electrical shock, or injury to persons when using this laundry center, comply with the basic warnings

listed below.

oFailure to comply with these warnings could result in serious personal injuries.

Prevent Fire

•Do not wash or dry items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes, etc. Do not store these items on or near the dryer. These substances give off vapors that could ignite or explode.

•Do not put oily or greasy rags or clothing on top of the laundry center. These substances give off vapors that could ignite the materials. 2 Printed in U.S.A.

This Owner's Guide provides general operating instructions for your laundry

center. It also contains information about features for several other models. Your

laundry center may not have everyfeature included. Use the laundry center only as

instructed in this Owner's Guide.

Avoid fire hazard or

electrical shock. Donot usean adaptor plug or extension cord or remove grounding prong from electrical power cord. Failureto followthiswarning can causeserious injury,

fire or death.

G,45 LA UNDRY CENTERS:

Grounding

type r Do Not under any

wall circumstancescut, receptade | remove, or bypass

the grounding prong from this plug

3-prong grounding plu_j

CORRECT Use this way ONL Y

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

Note: The instructions appearing inthis Owner's Guide are not meant to cover

every possible condition and situation that may occur. Common sense and caution must bepracticed when installing, operating and maintaining anyappliance.

Do not use or mix liquid chlorine bleach with other household chemicals such astoilet cleaners, rust

removers, add orproducts containing ammonia. These mixtures canproduce dangerous fumes which can cause

serious injury or death.

Important Safety Instructions (Con 't)

•Do not add gasoline, cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

•Under certain conditions, hydrogen gas may be produced in a hot water systemthat

has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. if the hot water system has not been used for such a period, before using the washer, turn

on all hot water faucets and let the water flow from eachfor several minutes. Thiswill release any accumulated hydrogen gas. Hydrogen gas is flammable; do not smoke

or use an open flame during this time.

•To prevent fire, do not use heat to dry items containing plastic, foam rubber or

similarly textured rubber-like materials, or items containing feathers or down. Use

Air Fluff (No Heat) only.

•Clean the dryer lint screen before or after each load. The interior of the dryer, lint

screen housing and exhaust duct should be cleaned approximately every 18 months by qualified service personnel. An excessive amount of lint build-up in these areas could result in inefficient drying and possible fire. See Care and Cleaning.

•Do not operate the dryer if the lint screen is blocked, damaged or missing. Fire

hazard, overheating and damage to fabrics can occur. Ifyour dryer has a drying rack, always replace the lint screen when finished using the drying rack.

•Keep area around the exhaust opening and surrounding areas free from the

accumulation of lint, dust and dirt.

•Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs

against the front or back of the laundry center.

•Do not spray any type of aerosol into, on or near laundry center at any time.

•Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

•Do not place items exposed to cooking oils in your dryer, items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch

fire.

•Failure to comply with these warnings could result in fire, explosion, serious bodily

injury and/or damage to the rubber or plastic parts of the laundry center.

Protect Children

•Do not allow children to play on or in the laundry center. Close supervision of children

is necessarywhen the laundry center isused near children. As children grow, teach

them the proper, safe use of all appliances.

•Destroy the carton, plastic bag and other packing materials after the laundry center

is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers.

•Keep laundry products out of children's reach. To prevent personal injury, observe

all warnings on product labels.

•Before the laundry center is removed from service or discarded, remove the washer

lid and dryer door to prevent accidental entrapment.

•Failure to comply with these warnings could result in serious personal injuries.

Prevent Injury

•To prevent shock hazard and assure stability during operation, the laundry center

must be installed and electrically grounded by a qualified service person in accordance with local codes, installation instructions are packed in the laundry

center for the installer's reference. Refer to INSTALLATION INSTRUCTIONSfor detailed grounding procedures, if the laundry center ismoved to anew location, have

it checked and reinstalled by a qualified service person.

•To prevent personal injury or damage to the laundry center, the electrical power cord

of a gas laundry center must be plugged into a properly grounded system. Never

ground the laundry center to a gas pipe. Do not use an extension cord or an adaptor plug.

•Follow package directions when using laundry products. Incorrect usage can

produce poisonous gas--resulting in serious injury or death.

-Do not combine laundry products for use in 1 load unless specified on the label.

-Do not mix chlorine bleach with ammonia or acids such asvinegar.

•To prevent serious personal injury and damage to the laundry center:

-All repairs and servicing must be performed by an authorized servicer

unless specifically recommended in this Owner's Guide. Use only authorized factory parts.

-Do nottamper with controls.

-Do not install or store the laundry center where it will be exposed to the weather.

•ALWA YSdisconnectthe laundry center from the electrical supply before attempting

any service or cleajning. Failure to do so can result in electrical shock or injury.

Important Safety Instructions (Con 't)

•Do not use any type of spray cleanser when cleaning dryer interior. Hazardous fumes or electrical shock could occur. oToprevent injury, do not reach into the washer while parts are moving. Before loading, unloading or adding items, push in the

cycle selector knob and allow the tub to coast to a complete stop before reaching inside.

oToprevent injury, do not reach into the dryer if the drum is moving. Wait until the dryer has stopped completely before reaching

into the drum.

•A thermal limiter switch automatically turns off the dryer motor in the unlikely event of an overheated situation (electric dryers only). A service technician must replace the thermal limiter switch after correcting the fault.

•The washer is equipped with an electrical overload protector. The motor will stop if it becomes overheated. The washer will automatically restart after acool down period of up to 30 minutes, if the washer has not been manually turned off during this

time.

•Failure to comply with these warnings could result in serious personal injuries.

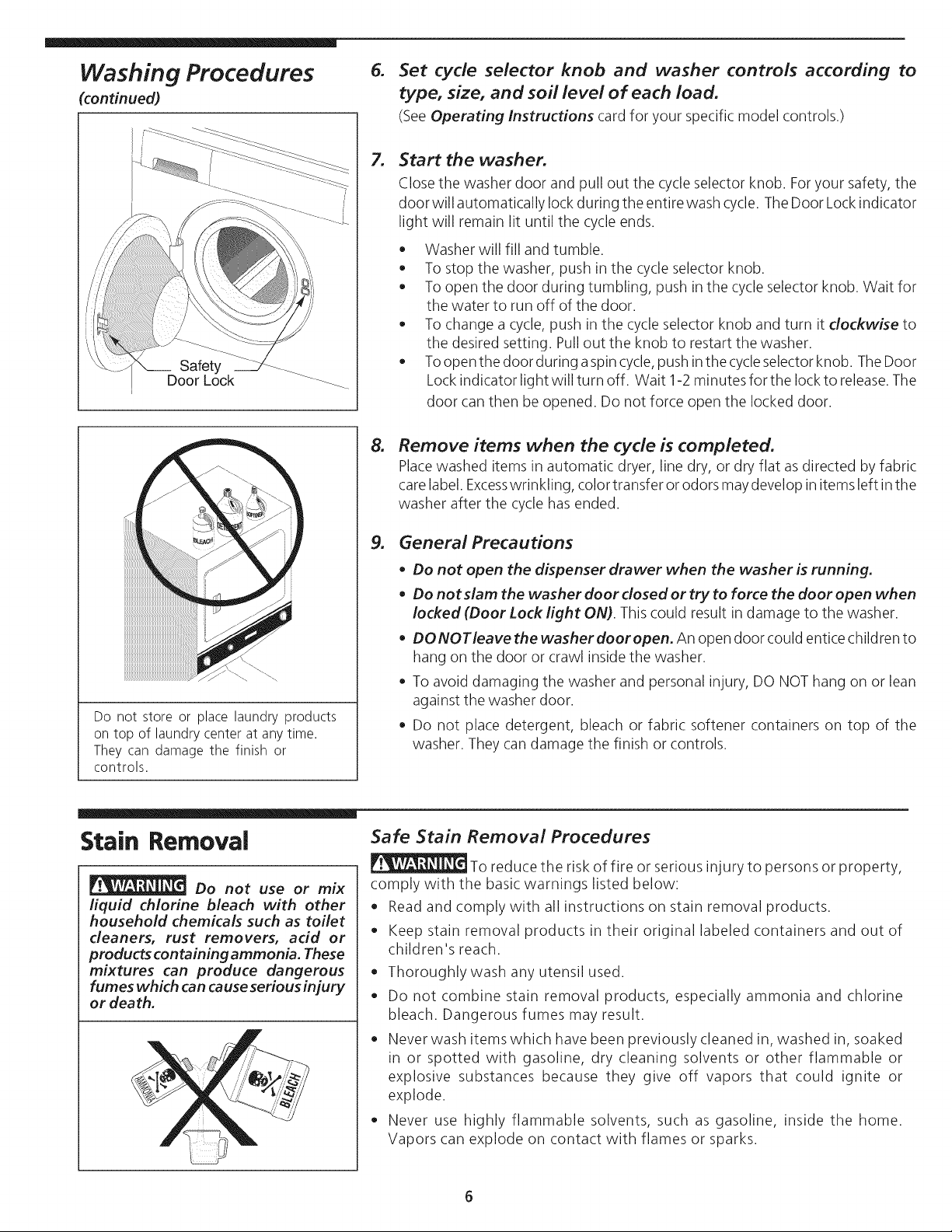

Washing Procedures

• Follow the guidelines below for preparing the wash load. Readthe Washer Operating Instructions for operating your specific model.

Always read and follow fabric care and laundry product labels.

To reduce the risk of fire, electrical shock, or injury to persons, read

Important Safety Instructions before operating th iswasher.

1. Sort laundry into loads that can be washed together.

Sort items by recommended water temperatures, wash time, and agitate/spin

speeds.

Separate white, light, and colorfast items from dark and noncolorfast items. Separate items which shed lint from items which attract lint. Permanent

Sort laundry into loads that can be

washed together.

press, synthetic, knit and corduroy items will pick up lint from towels, rugs and chenille bedspreads. Separate heavily soiled items from lightly soiled items. Separate lacy, sheer and loosely knit items from sturdy items.

Empty pockets.

£ +:,i:

_ )_£,84:¢S,S:_95iS< S

5!_?KP'/

Place delicate items in a mesh bag.

Add laundry load to washer.

Prepare items for washing.

Empty pockets. Brush off lint and dirt. Shake out rugs and beach towels. Closezippers, fasten hooks, tie strings and sashes,and remove nonwashable

trims and ornaments. Remove pins, decorative buttons, belt buckles, and other objects which

could be damaged. This also helps protect other items in the wash load. Mend rips and tears to prevent further damage during washing. Place delicate items such as bras and hosiery in a mesh bag to prevent tangling during the wash cycle. Turn knit items inside out to prevent pilling.

3. Pretreat stains and heavy soil.

See Stain Removal for details.

Add laundry load to washer.

Combine large and small items in a load. Load large items first. Large items

should not be more than half the total wash load.

• Washing a single item, such as a sweater, bath towel or jeans, is not recommended. As the machine tumbles the load prior to final spin, it may

sensean out-of-balance load. If an out-of-balance load issensed,the washer will stop briefly and tumble for a short time to try to balance the load. This

stop-tumble action may occur several times before the end of the cycle. If the load can not be evenly balanced, items may feel wet at the end of the cycle. Adding 1 or 2 similar items will help balance the load.

• If a load becomes tangled and out-of-balance, it may be necessary to rearrange the load by hand. Stop the washer by pushing in the cycle selector knob and open the door. Remove the load, untangle the items and return the

load to the tub. Close the door and restart washer.

• A single bulkyitem, such asa bedspread, comforter or sleeping bag, can be laundered without adding extra items to the load.

The washer can be fully loaded, but the items should not be tightly packed.

The door should close easily.

5. Add detergent, bleach and fabric softener to automatic dispenser following these steps:

A. OPENINGAND CLOSING THEDISPENSERDRAWER B.

• Slowly open the dispenser drawer by first sliding the safety latch to the right, then pulling the drawer out

until it stops.

After adding laundryproducts, slowlydose thedispenser

drawer. Closing the drawer too quickly could result in early dispensing of the bleach and fabric softener. Dispenser drawer should be completely closed for

powdered detergent, bleach and fabric softener to

despense.

• Laundryproducts usedwith powder or liquid detergent, suchascolor-safe bleach, water conditioner, detergent booster, and enzyme products should beadded to the empty tub before loading.

Note: From ti me to time you may seewater in the bleach

and fabric softener compartments. This isa result of the siphoning action and ispartof the normal operation of the

washer.

DETERGENT

• Add measureddetergenttothe detergent compartment of the dispenser drawer. Detergent isflushed from thedispenseratthe beginning of the cycle. Either powdered or liquid detergent can be used. Note: Liquid detergent will drain into the

washer drum asit is added. Low sudsingdetergent isrecommended for thiswasher.

Usethe manufacturer's recommended amount. If low sudsing detergent is not available, a reduced

amount of regular detergent may be used. Because reducing the amount of detergent mayreduce cleaning, it isimportant to pretreat stains, sort carefully bycolor and soil level, and avoid overloading. Detergent usage may need to be adjusted for water temperature, water hardness, sizeand softlevelof the

load. For best results, avoid oversudsing.

LIQUID BLEACH

• Ifdesired, measure out the recommended amount of liquid chlorine bleach (not to exceed 1/3 cup (80 mL)) and pour it into the center compartment labeled

"Liquid Bleach" and marked with this symbolS. Do not exceed the maximum fill line. Overfilling can causeearlydispensing of the bleach which could result in damaged clothes. Do not pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can

OCCUr.

• Do not use powdered bleach in the dispenser.

D. FABRICSOFTENER

• If desired, pour the recommended amount of fabric softener intothecompartment lab_eled"FabricSoftener"

and marked with this symbol I_. Dilute concentrated softeners with warm water to the

Fill Line. Do not exceed the maximum fill line. Overfilling can

cause early dispensing of the fabric softener which could result in stained clothes.

• Do notpour fabricsoftener directly on the wash

load.

Use of a fabric softener dispensing bail is not recommended in tumble action washers.

Washing Procedures

(continued)

Safety

Door Lock

Set cycle selector knob and washer controls according

type, size, and soil level of each load. (See Operating Instructions card for your specific model controls.)

Start the washer.

Close the washer door and pull out the cycle selector knob. Foryour safety, the door will automatically lock during the entire wash cycle. The Door Lock indicator

light will remain lit until the cycle ends.

• Washer will fill and tumble.

• To stop the washer, push in the cycle selector knob.

• To open the door during tumbling, push in the cycle selector knob. Wait for the water to run off of the door.

• To change a cycle, push in the cycle selector knob and turn it clockwise to the desired setting. Pull out the knob to restart the washer.

• Toopenthedoorduringaspincycle, pushin the cycle selector knob. TheDoor Lock indicator light will turn off. Wait 1-2 minutes for the lock to release.The

door can then be opened. Do not force open the locked door.

Remove items when the cycle is completed.

Placewashed items in automatic dryer, line dry, or dry flat as directed by fabric care label. Excesswrinkling, color transfer or odors may develop in items left in the washer after the cycle has ended.

Do not store or place laundry products on top of laundry center at any time. They can damage the finish or

controls.

Stain Removal

Do not use or mix

liquid chlorine bleach with other household chemicals such as toilet

cleaners, rust removers, acid or products containing ammonia. These

mixtures can produce dangerous

fumes which can cause serious injury

or death.

General Precautions

• Do not open the dispenser drawer when the washer is running.

• Do notslam the washer door closed or try to force the door open when

locked (Door Lock light ON). This could result in damage to the washer.

• DONOTleave the washer door open. An open door could entice children to

hang on the door or crawl inside the washer.

• To avoid damaging the washer and personal injury, DO NOT hang on or lean

against the washer door.

• Do not place detergent, bleach or fabric softener containers on top of the

washer. They can damage the finish or controls.

Safe Stain Removal Procedures

To reduce the risk of fire or serious injury to persons or property,

comply with the basic warnings listed below:

• Read and comply with all instructions on stain removal products.

• Keep stain removal products in their original labeled containers and out of children's reach.

• Thoroughly wash any utensil used.

• Do not combine stain removal products, especially ammonia and chlorine

bleach. Dangerous fumes may result.

• Never wash itemswhich have been previously cleaned in, washed in, soaked

in or spotted with gasoline, dry cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.

• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

For successful stain removak

• Remove stains promptly. Determine the kind of stain, then follow the recommended treatment in the

stain removal chart below. To pretreat stains, use a prewash product, liquid detergent, or a paste made

from granular detergent and water. Use cold water on unknown stains because hot water can set stains.

Check care label instructions for treatments to avoid on specific fabrics. Check for colorfastness by testing stain remover on an inside seam.

Rinse and wash items after stain removal.

StainRemoval

STAIN TREATIVlENT

Adhesive tape, chewing gum, Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or rubber cement nonflammable dry cleaning fluid.

Baby formula, dairy products, Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash. egg

Beverages(coffee,tea,soda,juice, Pretreat stain. Wash using cold water and bleach safe for fabric. alcoholic beverages)

Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash using bleach

Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed.

Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.

Collar or cuff soil, cosmetics Pretreat with prewash stain remover or rub with bar soap.

Dye transfer on white fabric Use packaged color remover. Wash using bleach safe for fabric.

Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.

Grease,oil,tar(butter,fats,salad Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply dressing, cooking oils, nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thoroughly. Wash

car grease, motor oils) using hottest water safe for fabric.

Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol

Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly

Mud Brush off dry mud. Pretreat or soak with product containing enzymes.

Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.

Nail polish Repeat, replacing paper towels frequently. Do not use on acetate fabrics.

safe for fabric.

Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.

or nonflammable dry cleaning fluid.

mildewed fabrics may be permanently damaged.

May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.

WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed. OIL

Paint, varnish BASED AND VARNISH: Use solvent recommended on can label. Rinse thoroughly before washing.

Perspiration fabric.

Rust, brown or yellow Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify discoloration, discoloration

Shoe polish LIQUID: Pretreat with a paste of granular detergent and water. PASTE: Scrape residue from fabric. Pretreat with

Urine, vomit, mucus, feces Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.

Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach in hottest water safe for

prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.

Common Washing Problems

Many washing problems involve poor soiland stain removal, residuesof lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association.

PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES

Blue stains

• Undiluted liquid detergent or fabric softener dispensed directly onto fabric.

Discoloration, graying

• Not enough detergent. ,Rewash with correct amount of detergent ,Sort items by soil level and color.

• Wash water temperature too low. and hottest water safe for fabric. Add ,Use correct amount of detergent, hottest

• Incorrect sorting, bleach safe for fabric, water and bleach safe for fabric.

• Not enough detergent.

Greasy, oily stains ,Undiluted liquid fabric softener

poured directly on fabric.

Holes, tears, or snags

Lint

• Incorrect use of chlorine bleach.

• Unfastened zippers, hooks, buckles.

• Rips, tears and broken threads.

• Overloading the washer.

• Degradation of fabric.

• Incorrect sorting.

• Tissues left in pocket.

• Overloading the washer.

• Not enough detergent.

• Undissolved detergent has left a residue resembling lint.

• Static cling is attracting lint.

• Load washed too long.

• If caused by detergent, mix 1 cup (240 ml) white vinegar with 1 quart (.95 L) water in

a plastic container. Soak item 1 hour. Rinse.

• If caused by fabric softener, rub stains with bar soap. Wash.

• Treat with prewash stain remover or liquid

detergent.

• Increase detergent and water temperature.

Rewash.

• Rub fabric softener stains with bar soap.

• May be irreversible if rips, tears and seams

cannot be mended.

• Reduce load size. Rewash using correct water temperature, water level,and amount

of detergent.

• Add nonprecipitating water conditioner to wash water to remove detergent residue.

• Add liquid fabric softener to final rinse.

• Dry load in dryer.

• Remove lint with lint brush or roller.

• Avoid pouring liquid deterent directly onto fabric.

• Avoid overfilling fabric softener compartment of dispenser.

• use correct amount of detergent and hottest

water safe for fabric.

• Do not pour liquid fabric softener directly on fabric. See Washing Procedures for directions on adding softener.

• Never pour chlorine bleach directly on fabric.

• Check condition of items before washing. See Washing Procedures for preparing and loading the wash load and adding chlorine

bleach.

• See Washing Procedures for sorting and preparing the wash load.

• Do not overload washer.

• Use correct temperature and amount of detergent, water and wash time.

Pilling

(Fibers break off,

ball up and cling to

• Pilling is normal with synthetic and permanent press fabrics. This is

due to abrasion from normal wear.

fabric.)

Residue or powder,Some granular detergents can on dark items; combine with hard water minerals

stiff, to form a residue. harsh fabrics. ,Overloading the washer.

Wrinkling

• Undissolved detergent.

• Overloading the washer.

• Incorrect wash cycle for wash load.

Yellow buildup of

body soH on synthetic _brics

Yellow or brown

rust stains

• Wash time too short.

• Wash water temperature too low.

• Not enough detergent.

• Iron or manganese in water supply, water pipes, or water heater.

• Use a lint brush or shaver to remove pills.

• Use fabric softener in the washer to lubricate fibers.

• When ironing, use spray starch or fabric finish on collars and cuffs.

• Turn items inside out to reduce abrasion.

• Rewash load. • Increase water temperature using hottest

water safe for fabric.

• Do not overload washer.

• Use liquid detergent or use nonprecipitating

water conditioner with granular detergent.

• Reduce load size.

• Rinse in cold water with liquid fabric softener using the permanent press or delicate cycle.

• Do not overload washer.

• Remove items from washer as soon as cycle is completed.

• Use liquid fabric softener.

• Soak in detergent booster or product containing enzymes.

• Wash in hot water using full permanent press cycle. Increase detergent.

• Select correct wash cycle.

• Use correct amount of detergent.

• Wash synthetics frequently using hot or warm water.

• Add bleach safe for fabric.

• Or, treat with color remover.

• To restore discolored load of whites, use rust remover safe for fabric.

• Do not use chlorine bleach to remove rust stains. It may intensify

discoloration.

• Use nonprecipitating water softener.

• Before washing, run hot water for a few minutes to clear lines.

• Drain water heater occasionally.

• For an ongoing problem, install an iron filter in

your water supply system.

Drying Procedures

• Follow the guidelines below for preparing the load for drying. Readthe Dryer Operating Instructions for operating your specific model.

Always read and follow fabric care labels and laundry product labels.

To reduce the risk of fire, electrical shock, or injury to persons, read

Important Safety Instructions before operating this dryer.

Prepare items for drying.

Dry items of similar fabric, weight and construction in the same load.

Separate dark items from light-colored items. Separate items that shed lint from those that attract lint. If an item sheds lint, turn it inside out.

Besurebuckles, buttonsand trim are heatproof and won't damagethe drum finish. Closezippers, fasten hooksand Velcro®-Iike fasteners. Tie strings and sashesto prevent tangling.

If possible, turn pockets inside out for even drying.

Follow fabric care label instructions.

Place small items in a mesh bag.

Chock for stainswhich may not have been removed in washing. Dryer heat

may permanently set some stains. Repeat stain removal process before drying.

Placesmall items in a mesh bag to prevent tangling and for easy removal.

2. Check that lint screen is dean and in place.

Load the dryer.

Theaverage load will fill the drum 1/3 to 1/2 full. Items need room totumble freely for even drying and lesswrinkling. Do not overload dryer.

• When drying large items, dry only 2 or 3at a time. Fillout the load with small and medium sized items.

Fordelicate or very small loads, add 2 lint-free towels for better drying, less

wrinkling, and to prevent grease stains caused by fabric softener sheets.

Donot overdry items. Overdrying cancausewrinkling, shrinkage, harshness,

and a build-up of static electricity, which can produce more lint.

If desired, add a dryer fabric softener sheet.

4. Close the dryer door and set dryer controls (some models). See Dryer Operating Instructions for your specific model controls.

5. Turn cyde selector clockwise to the desired setting.

Fill dryer drum 1/3 to 1/2 full.

Start the dryer.

PushStartButton for 2 secondsorturn the STARTknob clockwise to ON, hold

for 1-2 seconds and release. Toadd or remove itemswhen the dryer isrun ning, open the door. Thedryer

will always stop when the door is opened. Allow the drum to come to a complete stop before reaching inside.

To restart dryer, close the door then push the Start Button for 2 seconds or turn the STARTknob clockwise to ON, hold for 1-2 seconds and release.

The dryer will not start if the cycle selector is in the OFFposition.

7. When the cycle ends, remove items immediately and hang

or fold. If load is removed before the cycle ends, turn cycle selector to OFF.

Features

Use the drying rack to dry items which should

not be tumbled.

Cycle Signal Control (some models)

When the Cycle Signal Control is ON, asignal will sound at the end of each cycleand during the PressSaver setting (some models). The volume is adjustable on some

models.

Drum Light (some models)

A drum light will come on whenever the door isopened to illuminate the dryer drum during loading and unloading. Closing the door turns off the light.

Drying Rack (some models)

Usethe drying rack to dry items which should not be tumble dried.

1. Open the dryer door and remove the lint screen.

2. Insertdrying rack into the dryer drum. Placethe front barunder the lip of the lint screen opening.

3. Placeitems to be dried on top of rack. Weight should not exceed 10 Ibs.Leave space between items, but do not let items hang over the sides or through the grids. Do not tumble other items when using the drying rack.

4. Selecta timed dry setting best suited for items being dried. Useonly the Air Fluff (no heat) temperature setting for items containing plastic, foam rubber, rubber- like materials, feathers or down.

5. When items are dry, remove the rack and replace the lint screen. If lint screen isnot in place, tumbling items could enter the exhaust system and cause damage to the dryer.

Common Drying

Problems

Many drying problems involve poor cleaning results, poor soil and stain removal, residuesof lint and scum, and fabric damage.

Forsatisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.

PROBLEM

Greasy, oily stains

Lint

Pilling

(Fibers break off, ball up and cling

to fabric.)

Shrinking

POSSIBLECAUSES SOLUTIONS PREVE_VE MEASURES

oFabric softener sheet, oRub fabric softener stains with bar soap. oAdd a few bath towels to small loads for proper

Rinse and rewash, tumbling.

oOverloading, oReduce load size and rewash using liquid oOverdrying causes static fabric softener in the final rinse.

electricity, oOr, add afabric softener sheet and tumble

oLint screen not clean when at low heat for 5-10 minutes.

cycle began, oUse lint brush or roller to remove lint.

oLint isattached to "pills."

oPilling is normal with synthetic°Use a lint brush or shaver to remove pills.

and permanent press fabrics. This is due to abrasion from

normal wear.

oOverdrying.

olrreversible condition. oFollow fabric care label directions.

oSome "silk-like" fabrics should be air dried. oUse proper drying temperature.

oPlace fabric softener sheet on top of load before

starting the dryer.

oDo not overload dryer. oUse fabric softener in washer or dryer to reduce

static electricity.

oRemove items when they are slightly damp to

avoid overdrying.

oCheck that lint screen is clean and in place.

• Use fabric softener to lubricate fibers. oWhen ironing, use spray starch or fabric finish on

collars and cuffs.

oTurn items inside out to reduce abrasion.

olf shrinking is a concern, check load often. oRemove items while slightly damp.

oBIock knits into shape. oLay flat to complete drying.

Wrinkling

oOverloading, oReduce load size and tumble at low heat oDo not overload dryer. oLeaving items in dryer after cycle for 5-10 minutes, oRemove items as soon as cycle ends.

ends. oRemove items immediately. Hang or fold.

Care and Cleaning

Figure

(Locktab is visible only after drawer has been pulled out)

TOREFRESH OR CLEAN INSIDE OF THE WASHER:

IMPORTANT: Do not load garments or other items in the washer when cleaning

the inside of the washer.

• Add a1/2 cup of liquid bleach tothe detergent compartment ofthe dispenser drawer and fill the bleach dispenser compartment to the Max Fill level and

run WITHOUT a clothes load using the Normal Cycle setting.

To reduce risk of fire or serious injury to persons or property, comply

with the basicwarnings listed in ImportantSafetylnstructions and those listed

below.

Before cleaning the washer or dryer interior, unplug the electricalpower

cord to avoid electrical shock hazards.

Do not use any type of spray cleanser when cleaning the dryer interior. Hazardous fumes or electrical shock could occur.

Inside

Remove items from the washer assoon as the cycle ends. Excesswrinkling,

color transfer, and odors may develop in items left in the washer.

Before cleaning the washer interior, unplug the electricalpower cord to

avoid electrical shock hazards.

Dry around the washer door opening, flexible gasket, and door glass. These

areas should always be clean to ensure a water tight seal.

When extremely soiled items have been washed, a dirty residue may remain on the drum. Remove this bywiping the drum with a nonabrasive household

Figure 2

cleanser. Rinsethoroughly with water.

The plastic drum vanes may become stained from fabric dye. Clean these

parts with a nonabrasive household cleanser. This prevents dye transfer to

future loads.

Cleaning the Dispenser Drawer Area

Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

Removethe drawer by first sliding the safety latch to the right, then pulling

the drawer out until it stops. (Figure 1)

Reachback intothe left rear corner of the drawer cavity and pressdown firmly

Figure 3

on the lock tab (left rear portion of the drawer). Pull out the drawer. (Figure 2)

Removethe insertsfrom the bleach and fabric softener compartments. (Figure

Figure 4

Rinse the drawer and inserts with hot tap water to remove traces of

accumulated powders and liquids. Large amounts of fabric softener residue

may indicate improper dilution or more frequent cleaning is required.

To clean the drawer opening, usea small brush to clean the recess. Remove all residue from the upper and lower parts of the recess. (Figure 4)

Return the bleach and fabric softener inserts to their proper compartments. Replacethe dispenser drawer and run the short wash cyclewithout anywash

load in the drum.

Care and Cleaning

Inside the Dryer

• Clean the dryer lint screen after every load. Lint build-up in the screen restricts air flow, which causes longer drying times. The screen is located at the bottom of the door opening. Removebypulling straight up. Removethe lint and replace

the screen. Occasionally awaxy build-up mayform on the lint screenfrom using dryer-added

fabric softener sheets. To remove this build-up, wash the lint screen in warm, soapy water. Dry thoroughly and replace. Do not operate the dryer without the lint screen in place.

If the dryerdrum becomes stained from noncolorfast fabrics, cleanthe drum with a damp cloth and a mild liquid household cleanser. Remove cleanser residue before drying the next load.

Every 18 months an authorized servicer should clean the dryer cabinet interior and exhaust duct. These areascan collect lint and dust over time. An excessive

amount of lint build-up could result in inefficient drying and possible fire hazard.

Clean lint screen after every load.

Wash lint screen occasionally.

Outside

• When laundering is completed, wipe cabinet with a damp cloth. Turn water faucets off to prevent pressure build-up in the hoses.

Clean the cabinet with mild soap and water. Never use harsh, gritty or

abrasive cleansers. If the cabinet becomes stained, clean with diluted chlorine bleach [1/2 cup (120 ml)in 1quart (.95 L)water]. Rinseseveral times with clear

water.

Removeglue residuefrom tape or labelswith amixture of warm water and mild

detergent. Or, touch residue with the sticky side of the tape or label.

Before moving the laundry center, placeastrip of cardboard or thin fiberboard

under the front leveling legs to prevent floor damage.

Winterizing Instructions

Ifthe laundry center isstored in an areawhere freezing can occur or moved in freezing

temperatures, follow thesewinterizing instructions to prevent damage to the laundry center:

Follow Winterizing

Instructions for cold

weather care.

1. Turn off water supply faucets.

2. Disconnect hosesfrom water supply and drain water from hoses.

3. Plug electrical cord into a properly grounded electrical outlet.

4. Add 1gallon nontoxic recreational vehicle (RV)antifreeze to empty wash drum. Close door.

5. Set cycle selector knob at a spin setting. Pull out knob and let washer spin for 1 minute to drain out all water. Not all of the RVantifreeze will be expelled.

6. Pushin knob, unplug electrical power cord, dry tub interior, and close door.

7. Store washer inan upright position.

8. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent. De not add wash lead,

Avoid Service Checklist

Before calling for service, review this list. It may save both time and expense. The list includes common concerns that are not the result of defective workmanship or materials in this laundry center.

OCCURRENCE

POSSIBLE CAUSE / SOLUTION

NOISE

"Clicking" noise.

High pitch '_et engine" noise.

Rattling and clanking noise.

Squealing sound or hot rubber odor. • Washer is overloaded. Do not overload washer. Stop washer and reduce load.

Thumping sound, • Heavywash loads may produce athumping sound. This is usually normal. Ifsound

Vibrating noise, • Washer isnot resting firmly on floor. Move washer so it restsfirmly on floor. Adjust

• A normal sound made by the timer. A certain amount of motor whine isnormal during the spin cycle.

Foreign objects such as coins or safety pins may be indrum or pump. Stop washer and check drum. if noise continues after washer is restarted, objects may be in

pump. Call your authorized servicer. Belt buckles and metal fasteners are hitting wash drum. To prevent unnecessary

noise and damage to drum, fasten fasteners and turn items inside out.

continues, washer isprobably out of balance. Stop washer and redistribute wash load.

leveling legs. See INSTALLATIONINSTRUCTIONSfor details. Shipping bolts and foam block have not been removed during installation. See

INSTALLATIONINSTRUCTIONSfor removing shipping bolts and foam block.

Wash load unevenly distributed in drum. Stop washer and rearrange wash load.

OCCURRENCE POSSIBLE CAUSE / SOLUTION

• Electrical power cord may not be plugged in or connection may be loose. Make

OPERA TING

Washer does not start.

Washer won'tspin. • Load is too small. Add 1 or 2 similar items to help balance the load.

Residue left in drum. • Heavilysoiled items. Wipe drum with a nonabrasive household cleanser, then rinse.

Laundry additives didn't dispense. • Dispenser drawer open. Drawer should be completely closed for laundry additives

WATER

Water collects in bleach and fabric • Thisis a result of the siphoning action and is part of the normal operation of the

softenercompartments, washer. Water may be removed byremoving the dispenser drawer (see Page 11,

sure plug fits tightly in wall outlet.

Housefuse blown, circuit breaker tripped, or a power outage has occurred. Reset

circuit breaker or replace fuse. Do not increasefuse capacity. Ifproblem isa circuit overload, have it corrected by a qualified electrician. If problem isa power outage,

call local electric company. Water supply faucets are not turned on. Turn on water supply faucets.

Cycle selector isnot in correct position. Move indicator clockwise slightly. Pull out knob.

Motor is overheated. Washer motor will stop if it becomes overheated. It will

automatically restart after a cool down period of up to 30 minutes (if washer has not been manually turned off).

Washer door is not completely closed. Close door completely.

Shake or brush excessdirt and sand from items before washing.

to dispense.

Figures 1 and 2) and draining water into the empty drum or sink.

Wash load too wet after spin. • Washer isoverloaded. Do not overload washer. See Washing Procedures.

Load is too small. Add 1 or 2 similar items to help balance the load. Load isout of balance. Rearrange load to allow proper spinning.

Drain hose is kinked. Straighten drain hose.

Water does not enter washer or it enters slowly.

Warm or hot water is not hot

enough.

Water in washer does not drain or

drains slowly.

Waterleaks. •Fiil hose connection is loose at faucet or washer. Check and tighten hose

Water supply isnot adequate in area.Chock another faucet inthe house. Wait until water supply and pressure increase.

Water supply faucets are not completely open. Fully open hot and cold faucets. Water isbeing used elsewhere in the house. Water pressure must be at least 30

psi (260 kPa).Avoid running water elsewhere while washer is filling. Water inlet hoses are kinked. Straighten hoses.

Hot water heater is set too low or is a distance from washer. Measure hot water

temperature at nearbyfaucet with candy or meat thermometer. Water temperature should be at least 120% (49°C). Adjust water heater as necessary.

Hot water isbeing used elsewhere in the house. Avoid using hot water elsewhere

before or during washer use. There may not be enough hot water available for proper cleaning. If problem persists, your hot water system may be unable to

support more than 1 use at a time. Drain hose is kinked or clogged. Clean and straighten the drain hose.

Housedrain pipes are clogged. Unclog drain pipes. Contact plumber if necessary.

connections. Install rubber sealing washers provided.

• Oversudsing. Uselessdetergent.

• Dispenser drawer isopen. Close dispenser drawer when washer is operating.

incorrect wash and rinse temperatures.

Water is entering washer but tub

does not fill.

Hot and cold water hoses are connected to wrong supply faucets. Connect hot

water hose to hot water faucet and cold water hose to cold water faucet.

Drain hose standpipe isincorrect height. Standpipe must be a minimum of 23.6" (60 cm) high to prevent siphoning. SeeINSTALLATIONINSTRUCTIONS.

OCCURRENCE

DRYER

POSSIBLE CAUSE SOLUTION

Dryer does not start.

Dryer runs but won't There are 2 house fuses in the dryer Replace fuse.

heat. circuit. If 1 of the 2 fuses is blown, the

Drying cycle takes too Lint screen is clogged with lint. Make sure all lint has been removed from the dryer lint

Iong, outside of the dryer screen before starting each cycle.

feels too hot or smells

hot. Exhaust duct requirements have not been Exhaust duct must be at least 4 inches in diameter and

Electrical power cord is not securely Make sure the plug fits tightly in wall outlet. plugged in or plug may be loose.

House fuse blown or circuit breaker tripped.

Thermal limiter tripped. Call authorized service person for replacement.

drum may turn but the heater will not operate.

Gas supply valve is not open (gas models). Check to make sure supply valve is open. See

Dryer does not have enough air supply to See INSTALLATION INSTRUCTIONS. support the burner flame (gas models).

LP gas supply tank is empty or there has Refill or replace tank. been a utility interruption of natural gas

(gas models). Dryer should heat when utility service is restored.

met. made of rigid or flexible metal.

Reset circuit breaker or replace fuse.

Make sure electrical line is not overloaded and the dryer is on a separate circuit.

INSTALLATION INSTRUCTIONS for procedure.

When in place, the duct must have no more than two

90 ° bends and must not exceed length listed in INSTALLATION INSTRUCTIONS.

Electric dryer is connected to a 208 volt Drying time will be 20% longer than drying on a 240 volt circuit, circuit.

Drying procedures have not been See Drying Procedures. fol lowed.

Outside exhaust hood or exhaust duct Clean out any obstruction. may be clogged or restricted.

High humidity. Use a dehumidifier near the dryer.

Excessive wrinkling. Dryer is overloaded. Do not overload. See Drying Procedures.

Items left in dryer too long. Remove items as soon as cycle ends.

Insufficient sorting of items. See Drying Procedures.

Drying temperature too high. Follow fabric care label instructions.

CROSLEY WARRANTY

Your appliance is covered by aone year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replaci ngany parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained inaccordance with the provided instructions.

Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, orfor appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc.,which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, airfilters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to

floors,cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other

than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE

PRODUCTREPAIR OR REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FORA PARTICULAR

PURPOSE, ARELIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL

DAMAGES SUCH ASPROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTENLIMITED WARRANTY ORANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOTALLOWTH EEXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, OR LIMITATIONS ON TH EDURATION OF IMPLIED WARRANTIES, SOTHESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

if You Need Service

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, adivision of Electrolux Home Products, Inc. InCanada, your appliance iswarranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

Replacement parts

Ifyou need to order replacement parts, we recommend that you only use the factory specified parts. These parts will fit right and work right because they are made with the same precision used to build every new Crosley _,Pappliance.

To locate factory specified replacement parts in you area call: USA, 1-800-944-9044, or your nearest designated service center. In Canada call 1-800-668-4606.

For information on how to contact Crosley Corporation, please see page 2 of this document.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty periodshould service be required. If service is performed, it is in your best interest to obtain and keep all receipts.Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

Crosley CLCG900FW3, CLCG900FW2, CLCE900FW2 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
