REFRIGERATOR

USER INSTRUCTIONS

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

You will need your model and serial number located on the inside wall of the refrigerator compartment.

Table of Contents / Índice / Table des matières

REFRIGERATOR SAFETY......................1

INSTALLATION INSTRUCTIONS...........2

REFRIGERATOR USE...........................11

REFRIGERATOR CARE........................13

TROUBLESHOOTING...........................14

WATER FILTER CERTIFICATIONS .....16

PRODUCT DATA SHEETS ...................17

WARRANTY...........................................18

SEGURIDAD DEL REFRIGERADOR... 19 INSTRUCCIONES DE INSTALACIÓN. 20

USO DE SU REFRIGERADOR............. 30

CUIDADO DE SU REFRIGERADOR ... 32

SOLUCIÓN DE PROBLEMAS ............. 34

HOJA DE DATOS DEL PRODUCTO... 37

GARANTÍA ............................................ 38

SÉCURITÉ DU RÉFRIGÉRATEUR ......39

INSTRUCTIONS D’INSTALLATION ....40

UTILISATION DU RÉFRIGÉRATEUR.. 50

ENTRETIEN DU RÉFRIGÉRATEUR.... 52

DÉPANNAGE ........................................54

FEUILLES DE DONNÉES SUR LE

PRODUIT............................................... 57

GARANTIE............................................. 58

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

W10175492A

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions,

WARNING:

including the following:

■

Plug into a grounded 3 prong outlet.

■

Do not remove ground prong.

■

Do not use an adapter.

■

Do not use an extension cord.

■

Disconnect power before servicing.

■

Replace all parts and panels before operating.

■

Remove doors from your old refrigerator.

Use nonflammable cleaner.

■

Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■

Use two or more people to move and install refrigerator.

■

Disconnect power before installing ice maker (on ice maker

kit ready models only).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning

on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

■ Dispose of/recycle all packaging materials.

Clean Before Using

After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. For your protection, tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when removing them to avoid impact from dropping.

Location Requirements

Electrical Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (1.25 cm) space at the top and behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave 2¹⁄₂" (6.3 cm) minimum on the hinge side (some models require more) to allow for the door to swing open.

NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install the refrigerator in a location where the temperature will fall below 55°F (13°C).

¹⁄₂" (1.25 cm)

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the refrigerator to OFF. Depending on your model, turn the freezer control to the word OFF, or press the Freezer down arrow touch pad until a dash (–) appears in both the Freezer and Refrigerator displays as shown. Disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the temperature controls to the desired setting. See “Using the Controls.”

2¹⁄₂" (6.3 cm)

Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED:

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" Open-end or two

adjustable wrenches

IMPORTANT:

■ All installations must meet local plumbing code requirements.

■ Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve

which reduces water flow and clogs more easily.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain above freezing.

■ ¹⁄₄" Nut driver

■ ¹⁄₄" Drill bit

■ Cordless drill

Water Pressure

A cold water supply with water pressure of between 35 and 120 psi (241 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

Connect the Water Supply

Read all directions before you begin.

IMPORTANT: If you turn the refrigerator on before the water line is connected, turn the ice maker OFF.

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Find a ¹⁄₂" to 1¹⁄₄" (12.7 mm to 31.8 mm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but the following procedure

must be followed: Drill on the top side of the pipe, not the bottom. This will help keep water away from the drill. This also keeps normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the rear of the refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" hole in the cold water pipe

you have selected.

A B

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”

If you have questions about your water pressure, call a licensed, qualified plumber.

8. Place the free end of the tubing in a container or sink, and

turn ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe.

Connect to Refrigerator

Depending on your model, the water line may come down from the top or up from the bottom. Follow the connection instructions for your model.

Style 1

1. Remove plastic cap from water valve inlet port. Attach the

copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten. Confirm copper tubing is secure by pulling on copper tubing.

2. Create a service loop with the copper tubing. Avoid kinks

when coiling the copper tubing. Secure copper tubing to refrigerator cabinet with a “P” clamp.

D E

F G

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

E. Compression sleeve F. Shutoff valve

G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so the washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

C D E

A. Copper tubing B. “P” clamp

C. Compression nut

D. Compression sleeve

E. Water valve inlet port

3. Turn on water supply to refrigerator and check for leaks.

Correct any leaks.

Style 2

1. Create a service loop (minimum diameter of 2 ft [61 cm]) with

the copper tubing. Avoid kinks when coiling the copper tubing.

2. Remove the plastic cap from water valve inlet port. Place a

compression nut and sleeve on the copper tubing.

3. Insert the end of the copper tubing into the water valve inlet

port. Shape tubing slightly so that the tubing feeds straight into the port to avoid kinks.

4. Slide the compression nut over the sleeve and screw into the

water valve inlet port.

B C

A. Plastic water tubing B. Sleeve

C. Compression nut D. Copper tubing

5. Using an adjustable wrench, hold the nut on the plastic water

line to keep it from moving. Then, with a second wrench turn the compression nut on the copper tubing counterclockwise to completely tighten. Do not overtighten.

B C

D E

A. Plastic water line B. Water valve inlet port C. Compression nut

D. Copper tubing

E. “P” clamp

6. Check connection by pulling on copper tubing. Attach copper

tubing to refrigerator cabinet with a “P” clamp. Turn on water supply to refrigerator and check for leaks. Correct any leaks.

Complete the Installation

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

NOTE: Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Allow 3 days to completely fill the ice container.

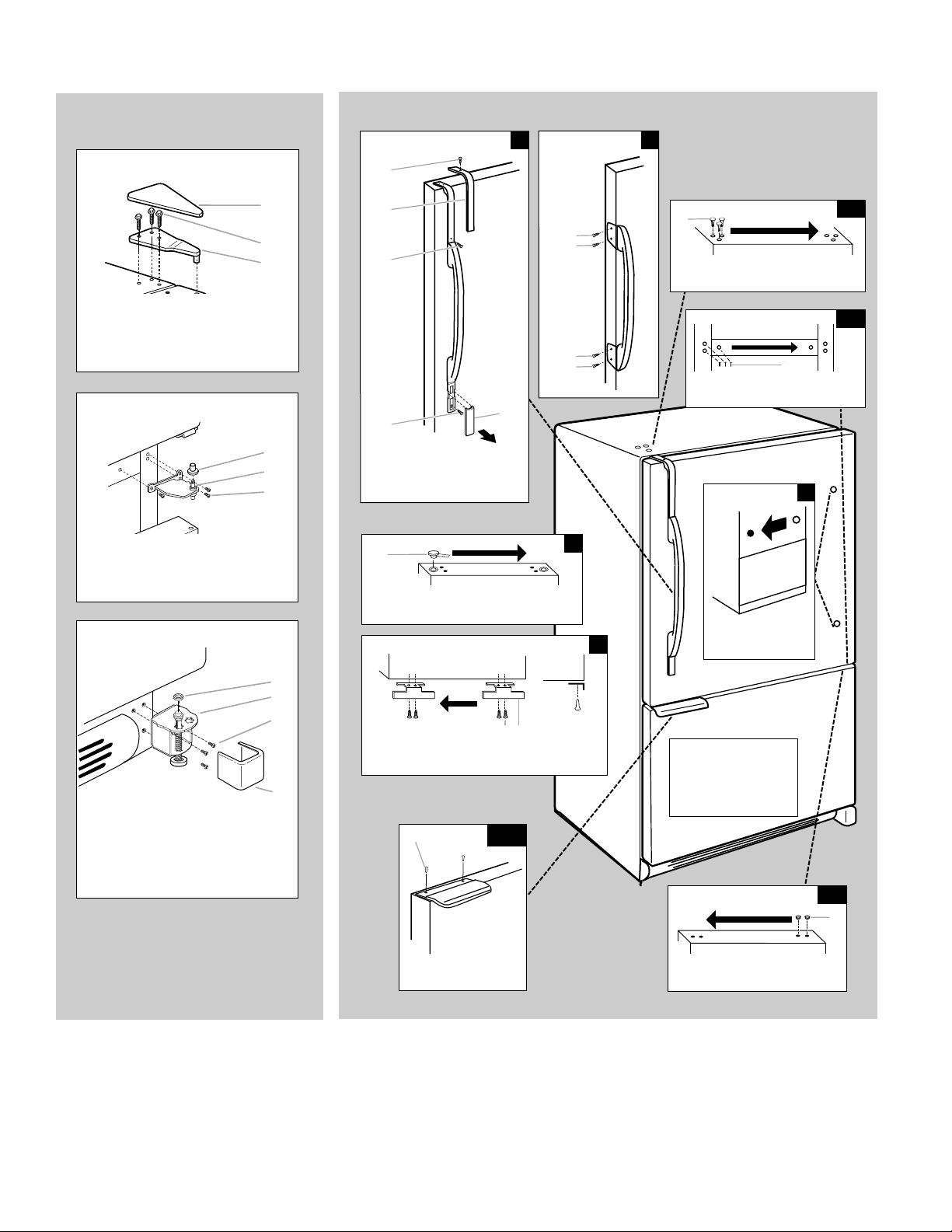

Refrigerator Door(s) and Drawer

TOOLS NEEDED: ⁵⁄₁₆", ³⁄₈", ¹⁄₄" hex-head socket wrench, a #2 Phillips screwdriver, and a flat-blade screwdriver.

IMPORTANT:

■ Your refrigerator may have a standard reversible refrigerator

door (Style 1) with either a freezer door or freezer drawer, or French doors (Style 2). Follow the instructions specific to the door style of your model.

■ All graphics referenced in the following instructions are

included later in this section after “Final Steps.” The graphics shown for the standard door (Style 1) are for a right-hand swing refrigerator (hinges factory installed on the right).

■ If you only want to remove and replace the doors, see

“Remove Doors and Hinges” and “Replace Doors and Hinges.”

■ Before you begin, turn the refrigerator control OFF, and

remove food and adjustable door or utility bins from the doors.

Remove and Replace Refrigerator Door Handles

Style 1–Standard Door

Front Mount Handle

■ To remove the handle, remove the screw attaching the trim to

the upper end of the handle. Using a flat-blade screw driver wrapped in masking tape, pry the trim piece from the lower end of the handle. Then, remove the screws attaching the handle to the door. See Front Mount graphic 2.

■ To replace handle, reverse directions.

Side Mount Handle

■ To remove the handle, remove the four screws attaching the

handle to the side of the door. See Side Mount graphic 2.

■ To replace the handle, align the holes in the handle with the

holes in the door. Then, insert a screw in the upper hole at each end of the handle. Next, insert a screw in the lower holes. Tighten the screws. See Side Mount graphic 2.

Style 2–French Doors

Metal Handles

■ Using a ³⁄₃₂" Allen wrench, loosen the two set screws located

on the side of each handle. Pull the handle straight out from the door. Make sure you keep the screws for reattaching the handles. See Metal Handle graphic 1.

■ To replace the handles, reverse the directions.

Plastic Handles

■ To remove the handle, grasp the lower part of the handle

firmly, slide the handle up and pull the handle straight out from the door. See Plastic Handle graphic 1.

■ To replace the handle, position the handle so that the large

holes in the mounting clips are down and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the door and slide the handle down to engage. See Plastic Handle graphic 1.

1. Plug into a grounded 3 prong outlet.

Remove Door and Hinges

Style 1–Standard Door

⁵⁄₁₆

" Hex-Head Top Hinge Screw

Freezer drawer models

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator door closed until you are ready to lift it

free from the cabinet. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the refrigerator door free from the cabinet.

4. Remove the parts for the bottom hinge as shown in Bottom

Hinge graphic.

Freezer door models

1. Unplug refrigerator or disconnect power.

2. Keep the freezer door closed until you are ready to lift it free

from the cabinet. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the refrigerator door free from the cabinet.

4. Remove the center hinge pin and remove the hinge screws as

shown in the Center Hinge graphic. Lift the freezer door free from the cabinet.

5. Remove the parts for the bottom hinge as shown in Bottom

Hinge graphic.

Style 2–French Doors

WARNING

Electrical Shock Hazard Disconnect power before removing doors. Failure to do so can result in death or electrical shock.

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator doors closed until you are ready to lift

them free from the cabinet. NOTE: Provide additional support for the refrigerator door

while the hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Starting with the right-hand side door, remove the parts for

the top hinge as shown in Top Hinge graphic. Lift the refrigerator door from the bottom hinge pin.

4. Remove the shim (on some models) from the bottom hinge

pin and keep it for later use. See Bottom Hinge graphic.

5. Before removing the left-hand side door, disconnect the

wiring plug located on top of the top hinge by wedging a flatblade screwdriver or your fingernail between the two sections. See Wiring Plug graphic.

NOTE: The green, ground wire remains attached to the hinge.

6. Remove the parts for the left-hand side door top hinge as

shown in the Top Hinge graphic. Lift the door from the bottom hinge pin.

NOTE: On some models, remove the shim from the bottom hinge pin and keep it for later use. See Bottom Hinge graphic.

Reverse Door - Standard Door (optional)

IMPORTANT: If you want to reverse your door so it opens from

the opposite side, follow these steps. If you are not reversing the door, see “Replace Door and Hinges.”

Door Stop Screw

Cabinet

1. Remove hinge screws from handle side and move them to

opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from cabinet top and move

them to opposite side hinge holes as shown in Graphic 1-2.

Refrigerator door

1. Remove the refrigerator handle assembly as shown in

Graphic 2. Keep all parts together.

2. Remove door handle seal screw front. Move to opposite side

of refrigerator door as shown in Graphic 6.

3. Remove the door stop. Move it to the opposite side of the

refrigerator door as shown in Graphic 4.

4. Attach the refrigerator handle to the opposite side of the

refrigerator door. NOTE: For models with Front mount handles, replace the

handle trim as shown in Graphic 2.

5. Tighten all screws. Set aside the door until hinges and freezer

compartment door or drawer are in place.

Freezer door

1. Remove freezer handle assembly as shown. Keep all parts

together. See Graphic 5-1.

2. Remove freezer door handle seal screw. Move to opposite

side of freezer door.

3. Remove door stop. Move to opposite side of freezer door as

shown. See Graphic 4.

4. Attach handle to opposite side of freezer door.

5. Tighten all screws. Set aside door until bottom hinge is

installed on product.

Door Handle Seal Screw Fron

Cabinet Hinge Hole PlugFlat-Head Handle Screw

Replace Door and Hinges

Style 1–Standard Door

NOTE: Graphics may be reversed if door swing is reversed. Freezer drawer models

1. Replace the parts for the bottom hinge as shown. Tighten

screws. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

2. Assemble the parts for the top hinge as shown in Top Hinge

graphic. Do not tighten screws completely.

3. Adjust the door so that the bottom of the refrigerator door is

aligned with the top of the freezer drawer. Tighten all screws.

Freezer door models

1. Replace the parts for the bottom hinge as shown. Tighten

screws. Replace the freezer door. NOTE: Provide additional support for the door while the

hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

2. Assemble the parts for the center hinge as shown in the

Center Hinge graphic, and tighten all the screws. Replace the refrigerator door.

3. Assemble the parts for the top hinge as shown in the Top

Hinge graphic. Do not tighten the screws completely.

4. Adjust the doors so that the bottom of the refrigerator door is

aligned with the top of the freezer door. Tighten all screws.

Plastic Handles

■ To remove the handle, grasp the handle firmly, slide the

handle to the left and pull the handle straight out from the drawer. See Plastic Handle graphic 2.

■ To replace the handle, position the handle so that the large

holes in the mounting clips are to the right and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the drawer and slide the handle to the right to engage. See Plastic Handle graphic 2.

Remove Drawer Front

1. Open the freezer drawer to full extension.

2. Loosen the four screws attaching the drawer glides to the

drawer front. See Drawer Front Removal graphic. NOTE: Loosen screws three to four turns. Keep the screws in

the drawer front.

3. Lift drawer front upward and off the screws. See Drawer Front

Removal graphic.

Replace Drawer Front

1. Slide the drawer glides out of the freezer compartment. Insert

the screws in the top of the drawer front into the slots in the drawer brackets. See Drawer Front Replacement graphic.

2. Pull the drawer brackets toward you to insert the two screws

in the bottom of the drawer front into the brackets. See Drawer Front Replacement graphic.

3. Completely tighten the four screws.

Final Steps

Style 2–French Doors

1. Assemble the parts for the top hinges as shown in Top Hinge

graphic. Do not tighten the screws completely.

2. Replace the parts for the bottom hinges as shown in Bottom

Hinge graphic. Tighten screws. Replace the refrigerator doors.

NOTE: Provide additional support for the refrigerator doors while the hinges are being moved. Do not depend on the door gasket magnets to hold the doors in place while you are working.

3. Align each door so that the bottom of the refrigerator door

aligns evenly with the top of the freezer drawer. Tighten all screws.

4. Reconnect the wiring plug on top of the left-hand side

refrigerator door.

5. Replace the top hinge covers.

Remove and Replace Freezer Drawer

IMPORTANT:

■ Two people may be required to remove and replace the

freezer drawer.

■ All graphics are included later in this section after “Final

Steps.”

Remove and Replace Drawer Handle

Metal Handles

■ Using a ³⁄₃₂" Allen wrench, loosen the two set screws located

on the side of each handle. Pull the handle straight out from the drawer. Make sure you keep the screws for reattaching the handles. See Metal Handle graphic 2.

■ To replace the handle, reverse the directions.

1. Check all holes to make sure that hole plugs and screws are

in place. Reinstall top hinge cover as shown in Top Hinge graphic.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

2. Plug into a grounded 3 prong outlet.

3. Return all removable door parts to door and food to

refrigerator.

Style 1–Standard Door

Door Removal &

Replacement

Top Hinge

A. Top Hinge Cover

⁵⁄₁₆

Hex-Head Hinge Screws

B C. Top Hinge

Center Hinge

A. Hinge Pin Cover B. Center Hinge C

Hinge Screws

Bottom Hinge

A B

A. Hinge Pin Shim (on some models) B. Bottom Hinge C.

³⁄₈

" Hex-Head Hinge Screws

D. Bottom Hinge Cover

Front Mount

A. Trim Screw

B. Handle Screws C. Top Trim D. Bottom Trim

A. Door Hinge Hole Plug

Front View

A. Door Stop Screws B. Door Stop

Door Swing Reversal (optional)

5-1

Side Mount

1st 3rd

2nd 4th

Side View

A. Cabinet Hinge Hole Plugs

⁵⁄₁₆

" Hex-Head Hinge Screws

Door Handle

Seal Screw

Front

Some Standard Door

models have plastic

handles. See French

Doors graphic.

1-2

1-1

5-2

A. Flat-Head Handle

Screws

A. Door Hinge Hole Plugs

Style 2–French Doors

WARNING

Electrical Shock Hazard

Disconnect power before removing doors. Failure to do so can result in death or electrical shock.

Door Removal & Replacement

Top Hinges

A. Hinge Cover Screw B. Top Hinge Cover

/16" Hex-Head Hinge Screws

C. D. Top Hinge

Bottom Hinges

A. Shim (on some models) B. Bottom Hinge C. Hinge Screws

Wiring Plug

B C

Metal Handle

/32" Set Screw

Metal Handle

Plastic Handle

Drawer Front Removal

A. Loosen 4 Door Bracket Screws

A. 3/32" Set Screw

Drawer Front Replacement

Adjust the Door

Depending on your model, your refrigerator may have two front adjustable rollers (Style 1),or four adjustable rollers (Style 2), or a leveling screw (Style 3) located at the base of the refrigerator. If your refrigerator seems unsteady or you want the door to close more easily, follow the instructions for your model.

Style1–Two Adjustable Rollers

1. Remove the base grille. Grasp the grille firmly and pull it

toward you.

2. Remove the bracket cover. Insert the eraser end of a pencil in

the cover notch. Apply slight downward pressure to the notched side of the cover while swinging it off.

3. Using a screwdriver or ³⁄₈" hex driver, turn the roller

adjustment screw on each side to raise or lower that side of the refrigerator.

NOTE: It may take several turns of the roller adjustment screw to adjust the tilt of the refrigerator.

■ To raise, turn the roller adjustment screw to the right.

■ To lower, turn the roller adjustment screw to the left.

NOTE: Having someone push against the top of the refrigerator takes some weight off the adjustment screws and rollers. This makes it easier to turn the screws.

5. Lower the brake foot on each side, by turning it clockwise

until it is firmly against floor.

6. Replace the bracket cover. Place the bracket cover into the

outer edge, swing the cover toward the cabinet and snap it into place.

7. Replace the base grille.

Style 2–Four Adjustable Rollers

1. Remove the base grille. Grasp the grille firmly and pull it

toward you.

2. Raise or lower the cabinet. Using a ³⁄₈" hex driver, turn the

roller adjustment screw(s) on each side to raise or lower that side of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the adjustment screws and rollers. This makes it easier to turn the screws. It may take several turns of the roller adjustment screw to adjust the tilt of the refrigerator.

■ To raise, turn the roller adjustment screw to the right.

■ To lower, turn the roller adjustment screw to the left.

3. Turn the brake foot clockwise until it is firmly against the floor

to keep the refrigerator from rolling forward when the freezer drawer is pulled open.

A. Roller adjustment screw B. Brake foot

4. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both roller adjustment screws to the right. It may take several more turns, and you should turn both adjustment screws the same amount.

A. Rear roller adjustment screw B. Front roller adjustment screw C. Brake foot

NOTE: Your refrigerator may have a rear roller adjustment screw on each side. To raise or lower the rear of the refrigerator, use a ³⁄₈" hex driver to turn the screws.

4. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both screws the same amount.

5. Replace the base grille.

Style 3–Leveling screw

■ To lower, turn the leveling screw counterclockwise.

1. Remove the base grille. Grasp the grille firmly and pull it

toward you.

2. Using a ¹⁄₄" hex driver, turn the leveling screw on each side to

raise or lower that side of the refrigerator. NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws. This makes it easier to turn the screws. It may take several turns of the leveling screw to adjust the tilt of the refrigerator.

■ To raise, turn the leveling screw clockwise.

REFRIGERATOR USE

A. Rear roller adjustment screw B. Leveling screw

NOTE: Your refrigerator may have a rear roller adjustment screw on each side. To raise or lower the rear of the refrigerator, use a ³⁄₈" hex driver to turn the screws.

3. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both screws the same amount.

4. Replace the base grille.

Using the Controls

The temperature controls are located at the top front of the refrigerator or freezer compartments.

Temperature Controls

For your convenience, the temperature controls are preset at the factory. When you first install your refrigerator, make sure the controls are still set to the recommended setting as shown.

Style 1

Recommended Setting “4”

Style 2

Recommended Setting “4”

IMPORTANT:

■ The recommended setting should be correct for normal

household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

■ Wait 24 hours for your refrigerator to cool completely before

adding food. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster.

■ If the temperature is too warm or too cold in the refrigerator or

freezer, first check the air vents to be sure they are not blocked before adjusting the controls.

To Tu rn O ff/ On:

Style 1 Press the freezer down arrow touch pad until a

dash (-) appears in both the refrigerator and freezer displays. Neither compartment will cool.

Style 2 Turn the freezer control to the word OFF. Neither compartment will cool when the freezer is set to OFF.

Humidity Control (on some models)

The humidity control turns on a heater to help reduce moisture on the door hinge seal. Use in humid environments or when you notice moisture on the door hinge seal. The refrigerator uses more energy when Humidity Control is on.

■ Press the control to ON when the environment is warm and

more humid, or if you notice moisture on the door hinge seal.

■ Press the control to OFF to save energy when the

environment is less humid.

Adjusting Controls

If you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the chart below as a guide.

For (Style 1) controls press the up or down arrow touch pads, or for (Style 2) controls turn the dial to adjust the temperature. Except when starting the refrigerator, do not adjust either control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR

Control one setting higher

FREEZER too warm/too little ice FREEZER Control one

setting higher

REFRIGERATOR too cold REFRIGERATOR

Control one setting lower

FREEZER too cold FREEZER Control one

setting lower

Remember

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The quality of your ice will be only as good as the quality of

the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

■ Do not store anything on top of the ice maker or in the ice

storage bin.

Crisper Humidity Control

You can control the amount of humidity in the moisture-sealed crisper. Depending on your model, adjust the control to any setting between FRUIT and VEGETABLES or LOW and HIGH.

FRUIT / LOW (open) for best storage of fruits and vegetables with skins.

VEGETABLES / HIGH (closed) for best storage of fresh, leafy vegetables.

Ice Maker

(on some models)

Turning the Ice Maker On/Off

To turn the ice maker ON, simply lower the wire shutoff arm. To manually turn the ice maker OFF, lift the wire shutoff arm to the

OFF (arm up) position and listen for the click. NOTE: Your ice maker has an automatic shutoff. As ice is made,

the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down.

Water Dispenser

(on some models)

IMPORTANT:

■ After connecting the refrigerator to a water source, flush the

water system. Press the button on the dispenser for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser button (5 seconds on, 5 seconds off) for an additional 2 minutes. This will flush air from the filter and water dispensing system. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.

NOTE: After 5 minutes of continuous dispensing, the dispenser will stop dispensing water to avoid flooding. To continue dispensing, press the dispenser button again.

■ Allow 24 hours for the refrigerator to cool down and chill

water. Dispense enough water every week to maintain a fresh supply.

Dispensing Water

1. Hold a container under the dispenser while pressing the

button.

2. Release the button to stop dispensing.

Ice Production Rate

■ The ice maker should produce a complete batch of ice

approximately every 3 hours.

■ To increase ice production, lower the freezer and refrigerator

temperature. See “Using the Controls.” Wait 24 hours between adjustments.

Water Filtration System

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

The water filter is located in the upper right-hand corner of the refrigerator compartment. You should change the water filter at least every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often.

Replacing the Water Filter

To purchase a replacement water filter, model UFK8001AXX-750, contact your dealer or call 1-877-232-6771 U.S.A. or

1-800-807-6777 Canada. IMPORTANT: Air trapped in the water system may cause water

and filter to eject. Always dispense water for at least 2 minutes before removing the filter or blue bypass cap.

1. Turn filter counterclockwise to remove.

2. Remove sealing label from replacement filter and insert the

filter end into the filter head.

3. Turn the filter clockwise until it stops. Snap the filter cover

closed.

NOTE: The dispenser feature may be used without a water filter installed. Your water will not be filtered. If this option is chosen, replace the filter with the blue bypass cap.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

3. Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

■ To keep your stainless steel refrigerator looking like new

and to remove minor scuffs or marks, it is suggested that you use the manufacturer’s approved Stainless Steel Cleaner and Polish, Part Number 20000008. To order the cleaner, call 1-877-232-6771 U.S.A. or 1-800-807-6777 Canada.

IMPORTANT: This cleaner is for stainless steel parts only! Do not allow the Stainless Steel Cleaner and Polish to come

into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

4. There is no need for routine condenser cleaning in normal

home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.

If you need to clean the condenser:

■ Remove the base grille.

■ Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area of the condenser.

■ Replace the base grille when finished.

5. Plug in refrigerator or reconnect power.

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

Changing the Light Bulb

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape, and wattage (no greater than 40 watts).

1. Unplug the refrigerator or disconnect power.

2. Remove the light shield, if necessary. Freezer drawer models

■ Top of the refrigerator compartment - Slide the light shield

toward the back of the compartment to release it from the light assembly.

■ Top of freezer compartment - The light shield opens from

the back. Firmly press forward on the notches in the back of the shield and pull the shield down.

NOTE: You may need to remove the upper freezer shelf or basket to access the light assembly.

Freezer door models

■ Top of the refrigerator compartment - Slide the shield

toward the back to release it from the light assembly.

■ Top of freezer compartment - Squeeze and pull rear of

light shield toward you to release the tabs, then pull down.

3. Replace the burned-out bulb(s) with an appliance bulb(s) no

greater than 40 watts.

4. Replace the light shield. Freezer drawer models

■ Top of the refrigerator compartment - Insert the tabs on

the shield into the liner holes on each side of light assembly. Slide the shield toward the front until it locks into place.

TROUBLESHOOTING

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)

to possibly avoid the cost of a service call.

In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca

Refrigerator Operation

NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.

■ Top of the freezer compartment - Insert the front tabs of

the shield into the liner and snap the back portion of the shield over the light assembly.

Freezer door models

■ Top of the refrigerator compartment - Insert the tabs on

the shield into the liner holes on each side of the light assembly. Slide the shield toward the front until it locks.

NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.

■ Top of freezer compartment - Insert front tabs of light

shield into liner and snap the back of the shield over light assembly.

5. Plug in refrigerator or reconnect power.

The refrigerator will not operate

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

■ Power cord unplugged? Plug into a grounded 3 prong

outlet.

■ Is outlet working? Plug in a lamp to see if the outlet is

working.

■ Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■ Are controls on? Make sure the refrigerator controls are on.

See “Using the Controls.”

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.

The refrigerator seems noisy

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations.

■ Buzzing - heard when the water valve opens to fill the ice

maker

■ Pulsating - fans/compressor adjusting to optimize

performance

■ Hissing/Rattling - flow of refrigerant, movement of water

lines, or from items placed on top of the refrigerator

■ Sizzling/Gurgling - water dripping on the heater during

defrost cycle

■ Popping - contraction/expansion of inside walls, especially

during initial cool-down

■ Water running - may be heard when water melts during the

defrost cycle and runs into the drain pan

■ Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold.

The doors will not close completely

■ Door blocked open? Move food packages away from door.

■ Bin or shelf in the way? Push bin or shelf back in the correct

position.

The doors are difficult to open

WARNING

■ Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

■ Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice volume improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

■ Gaskets dirty or sticky? Clean gaskets and contact surfaces

with mild soap and warm water. Rinse and dry with soft cloth.

Temperature and Moisture

Temperature is too warm

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

■ Door(s) opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep doors fully closed.

■ Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

■ Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Controls.”

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

■ Humid room? Contributes to moisture buildup.

■ Door(s) opened often or left open? Allows humid air to

enter refrigerator. Minimize door openings and keep doors fully closed.

Ice and Water

The ice maker is not producing ice or not enough ice

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position.

■ New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice production.

■ Freezer door closed completely? Firmly close the freezer

compartment door. If the freezer compartment door will not close all the way, see “The doors will not close completely.”

■ Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

■ Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice quality improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

■ Questions remain regarding water pressure? Call a

licensed, qualified plumber.

Off-taste, odor or gray color in the ice

■ New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

■ Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

■ Odor transfer from food? Use airtight, moisture proof

packaging to store food.

■ Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

■ Water filter installed on the refrigerator? Gray or dark

discoloration in ice indicates that the water filtration system needs additional flushing. Flush the water system before using a new water filter. Replace water filter when indicated. See “Water Filtration System.”

The water dispenser will not operate properly

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? Straighten the water source

line.

■ New installation? Flush and fill the water system. See “Water

Dispenser.”

■ Is the water pressure at least 35 psi (241 kPa)? The water

pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.”

■ Water filter installed on the refrigerator? Remove filter and

operate dispenser. If water flow increases, the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Refrigerator door closed completely? Close the door

firmly. If it does not close completely, see “The doors will not close completely.”

■ Recently removed the doors? Make sure the water

dispenser wire/tube assembly has been properly reconnected at the bottom of the refrigerator door. See “Refrigerator Doors.”

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Water is leaking from the dispenser system

NOTE: One or two drops of water after dispensing is normal.

■ Glass not being held under the dispenser long enough?

Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.

■ New installation? Flush the water system. See “Water

Dispenser.”

■ Recently changed water filter? Flush the water system. See

“Water Dispenser.”

■ Water on the floor near the base grille? Make sure the

water dispenser tube connections are fully tightened. See “Refrigerator Doors.”

Water from the dispenser is warm

NOTE: Water from the dispenser is only chilled to 50°F (10°C).

■ New installation? Allow 24 hours after installation for the

water supply to cool completely.

■ Recently dispensed large amount of water? Allow

24 hours for water supply to cool completely.

■ Water not been recently dispensed? The first glass of water

may not be cool. Discard the first glass of water.

■ Refrigerator connected to a cold water pipe? Make sure

the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.”

WATER FILTER CERTIFICATIONS

PRODUCT DATA SHEETS

Interior Water Filtration System

Model UFK8001AXX-750 Capacity 750 Gallons (2839 Liters)

System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, p-Dichlorobenzene, Carbofuran, Toxaphene, Cysts, Turbidity, Asbestos and Lindane.

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI

Standards 42 and 53.

Substance Reduction Aesthetic Effects

Chlorine Taste/Odor Particulate Class I

Contaminant Reduction

Lead: @ pH 6.5 Lead: @ pH 8.5

Mercury: @ pH 6.5 Mercury: @ pH 8.5

Benzene 0.005 mg/L 0.014 mg/L 0.015 mg/L ± 10% 0.0011 mg/L 0.0006 mg/L 92.14% 95.71% p-Dichlorobenzene 0.075 mg/L 0.208 mg/L 0.225 mg/L ± 10% < 0.0005 mg/L < 0.0005 mg/L 99.74% 99.76% Carbofuran 0.04 mg/L 0.081 mg/L 0.08 mg/L ± 10% < 0.001mg/L < 0.001mg/L 98.46% 98.74% Toxaphene 0.003 mg/L 0.015 mg/L 0.015 ± 10% < 0.001mg/L < 0.001mg/L 91.67% 92.97% Atrazine 0.003 mg/L 0.009mg/L 0.009 mg/L ± 10% < 0.002 mg/L < 0.002 mg/L 75.31% 76.99% Asbestos 99% 155 MF/L 10 Live Cysts

Turbidity Lindane 0.0002 mg/L 0.002 mg/L 0.002 ± 10% < 0.0001mg/L 0.000 mg/L 96.50% 98.72%

‡

NSF Reduction Requirements

50% reduction 85% reduction

NSF Reduction Requirements

0.010 mg/L

0.002 mg/L

>99.95%

0.5 NTU

Average Influent

1.88 mg/L 5,700,000 #/mL

Average Influent

0.153 mg/L

0.150 mg/L

0.006 mg/L

166,500 #/L

10.7 NTU

†

Influent Challenge Concentration

2.0 mg/L ± 10% At least 10,000 particles/mL

Influent Challenge Concentration

0.15 mg/L ± 10%

0.006 mg/L ± 10%

to 108 fibers/L††< 1 MF/L < 1 MF/L >99.99% >99.99%

50,000/L min. 11 ± 1 NTU

Maximum Effluent

0.06 mg/L 69,000 #/mL**

Maximum Effluent

< 0.001mg/L < 0.001mg/L

0.0005 mg/L

0.0015 mg/L

‡

< 1 #/L

0.49 NTU

Average Effluent

0.05 mg/L 30,583 #/mL

Average Effluent

< 0.001mg/L < 0.001mg/L

0.0003 mg/L

0.0008 mg/L

‡

< 1 #/L

0.31 NTU

Minimum% Reduction

96.84

98.94

Minimum% Reduction

>99.29% >99.29%

90.91

75.93

>99.99

95.2

Average% Reduction

>97.26

99.52

Average% Reduction

>99.35% >99.33%

95.70

86.22

>99.99

97.09

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.78 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to

71.6°F (20°C to 22°C).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

perform as advertised.

■ The filter monitor system measures the amount of water that

passes through the filter and alerts you to replace the filter. When 90% of the filter’s rated life is used, the yellow (Order) light comes on. When 100% of the filter’s rated life is used, the red (Replace) light comes on, and it is recommended that you replace the filter. For models without filter status lights,

Application Guidelines/Water Supply Parameters

Water Supply Water Pressure Water Temperature Service Flow Rate

City or Well 35 - 120 psi (241 - 827 kPa) 33° - 100°F (1° - 38°C)

0.78 gpm (2.9 L/min.) @ 60 psi

replace the filter every 6 months. Use replacement filter model UFK8001AXX-750. 2007 suggested retail price of $49.99 U.S.A./$65.95 Canada. Prices are subject to change without notice.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

■ Refer to the “Water Filtration System” section for the

Manufacturer’s name and telephone number.

Class I particle size: >0.5 to <1 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

†

These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

††

Fibers greater than 10 um in length

‡

Based on the use of Cryptosporidium parvum oocysts

® NSF is a registered trademark of NSF International.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or

repair house fuses, or to correct house wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty

coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is

contrary to published user or operator instructions and/or installation instructions.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in

accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool.

5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage

results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food loss due to refrigerator or freezer product failures.

7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be

repaired in the home and only in-home service is covered by this warranty.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an

authorized Whirlpool servicer is not available.

10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance

with published installation instructions.

11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty

is void if the factory applied serial number has been altered or removed from your major appliance.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. 9/07

For additional product information, in the U.S.A., visit www.whirlpool.com In Canada, visit www.whirlpool.ca

If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may contact Whirlpool at the number below.

Have your complete model number ready. You can find your model number and serial number on the label, located on the inside wall of the refrigerator compartment.

For assistance or service in the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below: In the U.S.A.:

Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road

Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. Please keep this User Instructions and model number information for future reference.

In Canada:

Whirlpool Brand Home Appliances Customer Interaction Centre 1901 Minnesota Court Mississauga, Ontario L5N 3A7

+ 41 hidden pages
