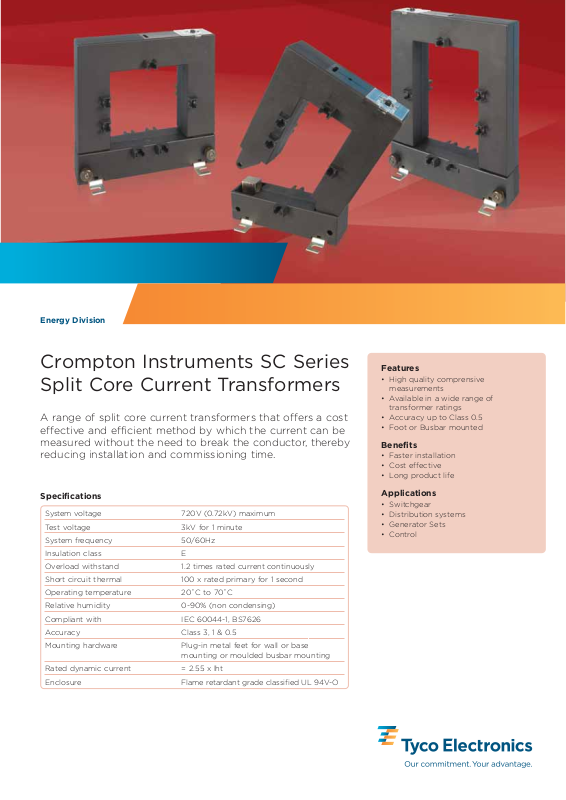

Specifications
System voltage 720V (0.72kV) maximum
Test voltage 3kV for 1 minute
System frequency 50/60Hz
Insulation class E
Overload withstand 1.2 times rated current continuously
Short circuit thermal 100 x rated primary for 1 second
Operating temperature 20˚C to 70˚C
Relative humidity 0-90% (non condensing)
Compliant with IEC 60044-1, BS7626
Accuracy Class 3, 1 & 0.5
Mounting hardware Plug-in metal feet for wall or base
mounting or moulded busbar mounting
Rated dynamic current = 2.55 x lht
Enclosure Flame retardant grade classified UL 94V-O
A range of split core current transformers that offers a cost
effective and efficient method by which the current can be
measured without the need to break the conductor, thereby
reducing installation and commissioning time.
Crompton Instruments SC Series
Split Core Current Transformers
Features
• High quality comprensive
measurements
• Available in a wide range of
transformer ratings
• Accuracy up to Class 0.5
• Foot or Busbar mounted
Benefits
• Faster installation
• Cost effective
• Long product life
Applications
• Switchgear
• Distribution systems
• Generator Sets
• Control
Energy Division
Accuracy Class
Part Number Ratio Burden VA against class index Aperature (mm)
0.5 1 3
SC1-100/5A 100/5A - - 1.5 20 x 30
SC1-150/5A 150/5A - - 2 20 x 30
SC1-200/5A 200/5A - 1.5 2.5 20 x 30
SC1-250/5A 250/5A - 2 4 20 x 30
SC1-300/5A 300/5A 1.5 4 6 20 x 30
SC1-400/5A 400/5A 2.5 6 10 20 x 30
SC2-250/5A 250/5A 1 2 4 50 x 80
SC2-300/5A 300/5A 1.5 3 6 50 x 80
SC2-400/5A 400/5A 1.5 3 10 50 x 80
SC2-500/5A 500/5A 2.5 5 15 50 x 80
SC2-600/5A 600/5A 2.5 5 15 50 x 80
SC2-750/5A 750/5A 3 6 20 50 x 80
SC2-800/5A 800/5A 3 7.5 20 50 x 80
SC2-1000/5A 1000/5A 5 10 20 50 x 80
SC3-250/5A 250/5A 1 2 4 80 x 80
SC3-300/5A 300/5A 1.5 3 6 80 x 80
SC3-400/5A 400/5A 1.5 3 10 80 x 80
SC3-500/5A 500/5A 2.5 5 15 80 x 80
SC3-600/5A 600/5A 2.5 5 15 80 x 80
SC3-750/5A 750/5A 3 6 20 80 x 80
SC3-800/5A 800/5A 3 7.5 20 80 x 80
SC3-1000/5A 1000/5A 5 10 20 80 x 80
SC4-500/5A 500/5A - 4 12.5 80 x 120
SC4-600/5A 600/5A - 5 15 80 x 120
SC4-750/5A 750/5A 2.5 6 17.5 80 x 120
SC4-800/5A 800/5A 3 7.5 20 80 x 120
SC4-1000/5A 1000/5A 5 10 20 80 x 120
SC4-1200/5A 1200/5A 6 12.5 25 80 x 120
SC4-1250/5A 1250/5A 7.5 15 30 80 x 120
SC4-1500/5A 1500/5A 8 17 30 80 x 120
SC4-1600/5A 1600/5A 8 17 30 80 x 120
SC5-1000/5A 1000/5A 10 15 20 80 x 160
SC5-1250/5A 1250/5A 10 15 20 80 x 160
SC5-1500/5A 1500/5A 15 20 25 80 x 160
SC5-2000/5A 2000/5A 15 20 25 80 x 160
SC5-2500/5A 2500/5A 15 20 25 80 x 160
SC5-3000/5A 3000/5A 20 25 30 80 x 160
SC5-4000/5A 4000/5A 20 25 30 80 x 160
SC5-5000/5A 5000/5A 20 25 30 80 x 160
SC5-6000/5A 6000/5A 20 25 30 80 x 160
Case 1Case 2Case 3Case 4Case 5
Crompton Instruments SC Series
Split Core Current Transformers
Dimensions
Model Case 1 Case 2 Case 3 Case 4 Case 5
A 20 50 80 80 80
B 30 80 80 120 160
C 51 78 108 108 120
D 89 114 144 144 184
E 111 145 145 185 245
F 34 32 32 32 52
G 47 32 32 32 52
H 40 32 32 32 52
I 32 33 33 33 38
Weight (kg) 0.75 0.90 1.05 1.25 4.30
