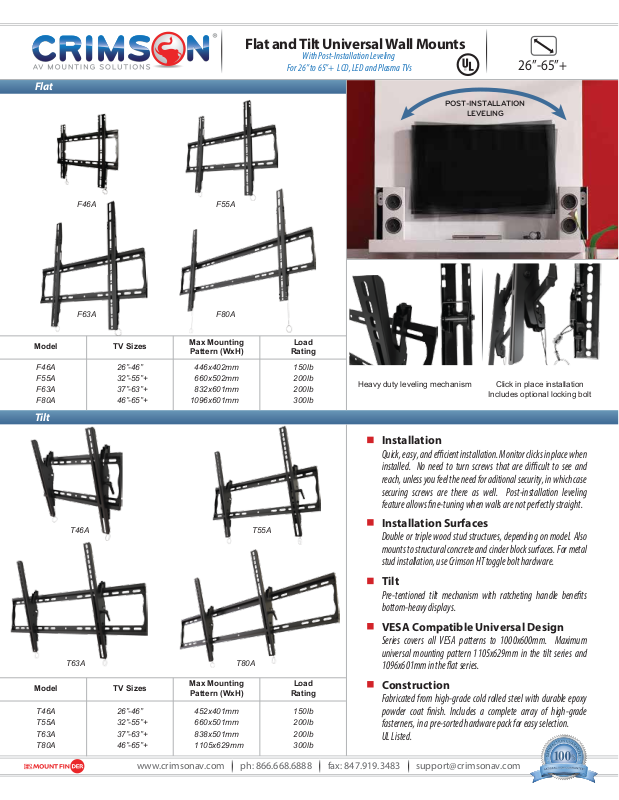

Crimson T80A, T46A, T55A, T63A Specsheet

Flat

®

Flat and Tilt Universal Wall Mounts

With Post-Installation Leveling

For 26” to 65”+ LCD, LED and Plasma TVs

POST-INSTALLATION

LEVELING

26”-65”+

F46A

F63A F80A

Model TV Sizes

F46A
F55A
F63A
F80A 46”-65”+ 1096x601mm 300lb

26”-46”
32”-55”+
37”-63”+

F55A

Max Mounting
Pattern (WxH)

446x402mm
660x502mm
832x601mm

Load

Rating

150lb
200lb
200lb

Tilt

Heavy duty leveling mechanism

Click in place installation

Includes optional locking bolt

Installation

Quick, easy, and ecient installation. Monitor clicks in place when
installed. No need to turn screws that are dicult to see and
reach, unless you feel the need for aditional security, in which case
securing screws are there as well. Post-installation leveling
feature allows ne-tuning when walls are not perfectly straight.

T46A

T63A

Model

T46A
T55A

T63A
T80A 46”-65”+ 1105x629mm 300lb

TV Sizes

26”-46”
32”-55”+

37”-63”+

Max Mounting
Pattern (WxH)

452x401mm
660x501mm

838x501mm

T55A

T80A

Load

Rating

150lb
200lb

200lb

www.crimsonav.com ph: 866.668.6888 fax: [phone] [e-mail]

Installation Surfaces

Double or triple wood stud structures, depending on model. Also
mounts to structural concrete and cinder block surfaces. For metal
stud installation, use Crimson HT toggle bolt hardware.

Tilt

Pre-tentioned tilt mechanism with ratcheting handle benets
bottom-heavy displays.

VESA Compatible Universal Design

Series covers all VESA patterns to 1000x600mm. Maximum
universal mounting pattern 1105x629mm in the tilt series and
1096x601mm in the at series.

Construction

Fabricated from high-grade cold rolled steel with durable epoxy
powder coat nish. Includes a complete array of high-grade
fasterners, in a pre-sorted hardware pack for easy selection.
UL Listed.
