Crimson T55 Specsheet

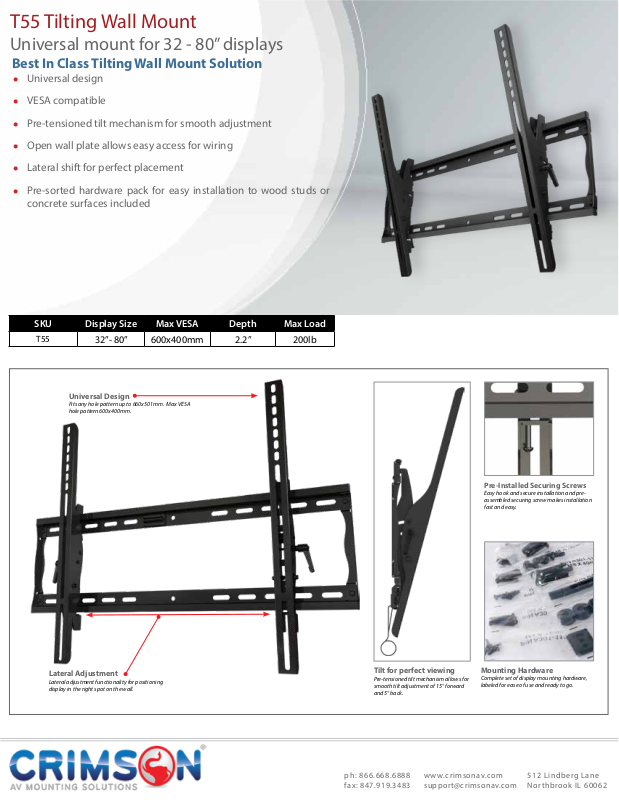

T55 Tilting Wall Mount
Universal mount for 32 - 80” displays
Best In Class Tilting Wall Mount Solution
l Universal design
l VESA compatible
l Pre-tensioned tilt mechanism for smooth adjustment
l Open wall plate allows easy access for wiring
l Lateral shift for perfect placement
l Pre-sorted hardware pack for easy installation to wood studs or
concrete surfaces included
SKU Display Size Max VESA Depth Max Load
T55
32”- 80” 600x400mm 2.2” 200lb
Universal Design
Fits any hole pattern up to 660x501mm. Max VESA
hole pattern 600x400mm.
Pre-Installed Securing Screws
Easy hook and secure installation and preassembled securing screw makes installation
fast and easy.
Lateral Adjustment
Lateral adjustment functionality for positioning
display in the right spot on the wall.
Tilt for perfect viewing
Pre-tensioned tilt mechanism allows for
smooth tilt adjustment of 15° forward
and 5° back.
ph: 866.668.6888
fax: 847.919.3483
Mounting Hardware
Complete set of display mounting hardware,
labeled for ease of use and ready to go.
www.crimsonav.com
support@crimsonav.com
512 Lindberg Lane
Northbrook IL 60062
T55 Tilting Wall Mount
Maximum load rating: 200 lbs
Universal mount for 32-80” displays
Universal tilting mount for 32” to 80” displays. Adjustable tilt wall mount with Universal
hole pattern to t a wide selection displays. Smooth tilt adjustments of 15° forward
and 5° back with a locking knob for a variety of viewing angles. Makes a secure
installation quick and easy, simply hang the display and turn the pre-assembled
securing screw to lock in place. Open wall plate design provides easy access to wiring.
Attribute Value
Display size
Lateral adjustment
Weight capacity
Max mounting pattern
Depth
Tilt
Construction
Color
Warranty
Product Weight
32” - 80”
Varies with Display
200lb (91kg)
660x501mm
2.2” (55.8mm)
+15°/-5°
High-grade cold rolled steel
Black
Limitied lifetime
6.8lb (3.1kg)
1-866-MOUNT-TV
