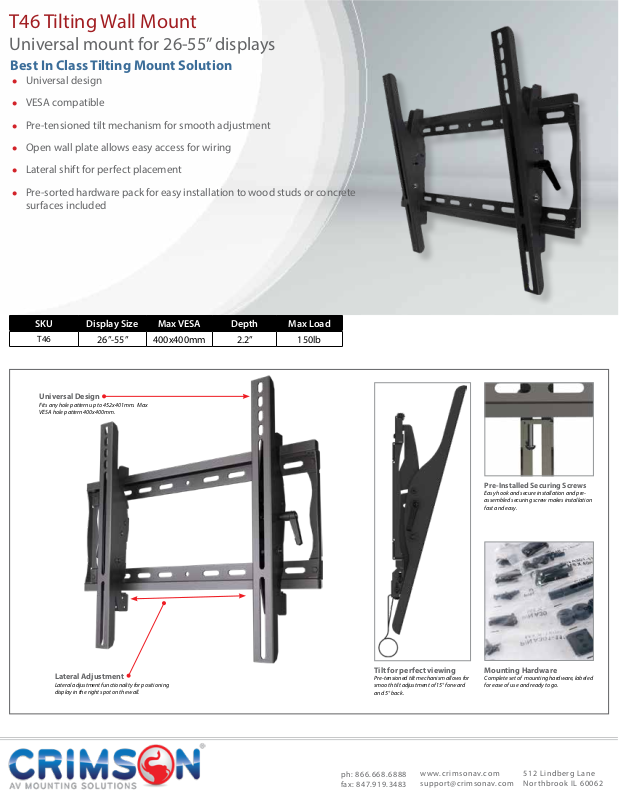

Crimson T46 Specsheet
T46 Tilting Wall Mount
Universal mount for 26-55” displays
Best In Class Tilting Mount Solution
l Universal design
l VESA compatible
l Pre-tensioned tilt mechanism for smooth adjustment
l Open wall plate allows easy access for wiring
l Lateral shift for perfect placement
l Pre-sorted hardware pack for easy installation to wood studs or concrete
surfaces included
SKU Display Size Max VESA Depth Max Load
T46
Universal Design
Fits any hole pattern up to 452x401mm. Max
VESA hole pattern 400x400mm.
26”-55” 400x400mm 2.2” 150lb
Pre-Installed Securing Screws
Easy hook and secure installation and preassembled securing screw makes installation
fast and easy.
Lateral Adjustment
Lateral adjustment functionality for positioning
display in the right spot on the wall.
Tilt for perfect viewing
Pre-tensioned tilt mechanism allows for
smooth tilt adjustment of 15° forward
and 5° back.
ph: 866.668.6888
fax: 847.919.3483
Mounting Hardware
Complete set of mounting hardware, labeled
for ease of use and ready to go.
www.crimsonav.com
support@crimsonav.com
512 Lindberg Lane
Northbrook IL 60062
T46 Tilting Wall Mount
Maximum load rating: 150 lbs
Universal mount for 26-55” displays
Universal tilting mount for 26” to 55” displays. Adjustable tilt wall mount with Universal
hole pattern to t a wide selection of dislpays. Smooth tilt adjustments of 15° forward
and 5° back with a locking knob for a variety of viewing angles. Makes a secure
installation quick and easy, simply hang the display and turn the pre-assembled
securing screw to lock in place. Open wall plate design provides easy access to wiring.
Attribute Value
Display size
Lateral adjustment
Weight capacity
Max mounting pattern
Lateral adjustment
Depth
Tilt
Construction
Color
Warranty
Product Weight
26” - 55”
Varies with display
150lb (68kg)
452x401mm
Varies with display
2.2” (55.8mm)
+15°/-5°
High-grade cold rolled steel
Black
Limited lifetime
5.7lb (2.6kg)
1-866-MOUNT-TV
www.crimsonav.com
19.3"[490.2mm]
Max: 17.8"[452.1mm]
Min: 1.25"[31.8mm]
4.8" [122.2mm]
+15° /-5°
2.2" [55.8mm]
8.6" [218.0mm]
15.8"[401.3mm]
16.5" [419.2mm]
ph: 866.668.6888
fax: 847.919.3483
www.crimsonav.com
support@crimsonav.com
512 Lindberg Lane
Northbrook IL 60062
