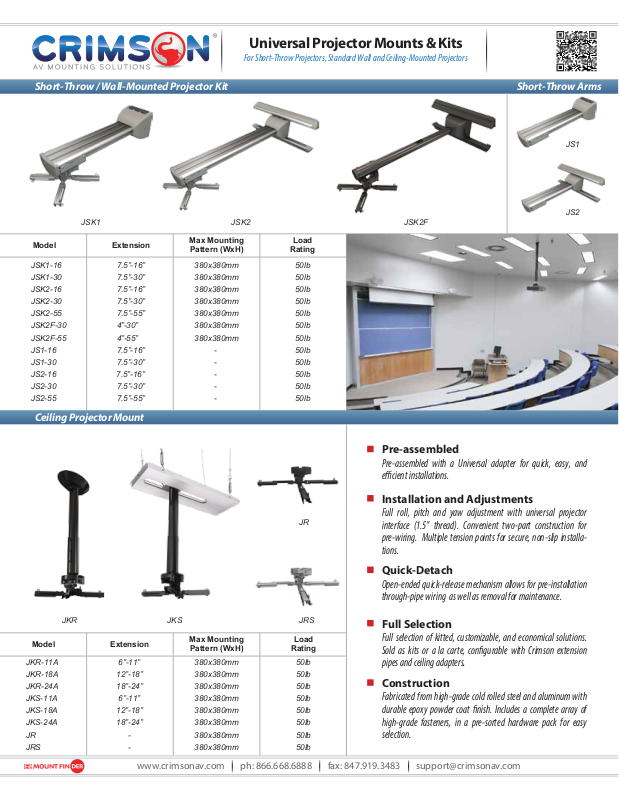

Crimson JS2-55S, JS2-30S, JS2-16S, JS1-30S, JS1-16S Specsheet

®

Universal Projector Mounts & Kits

For Short-Throw Projectors, Standard Wall and Ceiling-Mounted Projectors

Short-Throw / Wall-Mounted Projector Kit

JSK1

Model Extension

JSK1-16 7.5”-16” 380x380mm 50lb

JSK1-30 7.5”-30” 380x380mm 50lb

JSK2-16 7.5”-16” 380x380mm 50lb

JSK2-30 7.5”-30” 380x380mm 50lb

JSK2-55 7.5”-55” 380x380mm 50lb

JSK2F-30 4”-30” 380x380mm 50lb

JSK2F-55 4”-55” 380x380mm 50lb

JS1-16 7.5”-16” 50lb

JS1-30 7.5”-30” 50lb

JS2-16 7.5”-16” 50lb

JS2-30 7.5”-30” 50lb

JS2-55 7.5”-55”

Max Mounting
Pattern (WxH)

-

-

-

-

- 50lb

Load

Rating

Short-Throw Arms

JS1

JS2

JSK2FJSK2

Ceiling Projector Mount

JR

JKSJKR

Model Extension

JKR-11A 6”-11” 380x380mm 50lb

JKR-18A 12”-18” 380x380mm 50lb

JKR-24A 18”-24” 380x380mm 50lb

JKS-11A 6”-11” 380x380mm 50lb

JKS-18A 12”-18” 380x380mm 50lb

JKS-24A 18”-24” 380x380mm 50lb

JR - 380x380mm 50lb

JRS - 380x380mm 50lb

Max Mounting
Pattern (WxH)

JRS

Load

Rating

Pre-assembled

Pre-assembled with a Universal adapter for quick, easy, and
ecient installations.

Installation and Adjustments

Full roll, pitch and yaw adjustment with universal projector
interface (1.5” thread). Convenient two-part construction for
pre-wiring. Multiple tension points for secure, non-slip installa­tions.

Quick-Detach

Open-ended quick-release mechanism allows for pre-installation
through-pipe wiring as well as removal for maintenance.

Full Selection

Full selection of kitted, customizable, and economical solutions.
Sold as kits or a la carte, congurable with Crimson extension
pipes and ceiling adapters.

Construction

Fabricated from high-grade cold rolled steel and aluminum with
durable epoxy powder coat nish. Includes a complete array of
high-grade fasteners, in a pre-sorted hardware pack for easy
selection.

www.crimsonav.com ph: 866.668.6888 fax: [phone] [e-mail]
