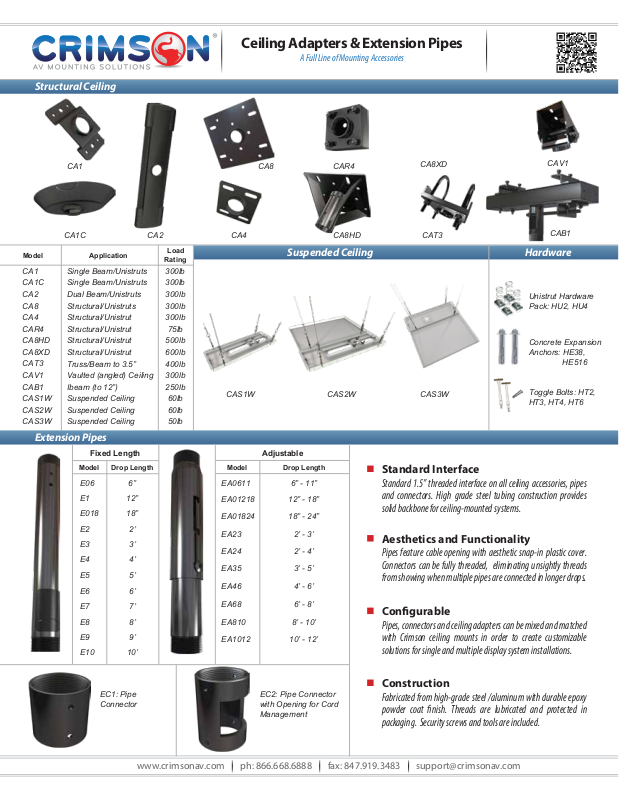

Crimson CA1C Specsheet
Structural Ceiling
®
Ceiling Adapters & Extension Pipes
A Full Line of Mounting Accessories
CA1
CA2 CA4 CA8HDCA1C
Model Application
CA1 300lb
CA1C 300lb
CA2 300lb
CA8 300lb
CA4 300lb
CAR4 75lb
CA8HD 500lbStructural/Unistrut
CA8XD 600lbStructural/Unistrut
CAT3
CAV1 300lb
CAB1 250lbIbeam (to 12”)
CAS1W 60lb
CAS2W 60lb
CAS3W
Single Beam/Unistruts
Single Beam/Unistruts
Dual Beam/Unistruts
Structural/Unistruts
Structural/Unistrut
Structural/Unistrut
Truss/Beam to 3.5”
Vaulted (angled) Ceiling
Suspended Ceiling
Suspended Ceiling
Suspended Ceiling 50lb
Load
Rating
400lb
Extension Pipes
Fixed Length
Model
E06
E1
E018
E2
E3
E4
E5
E6
E7
E8
E9
E10
6”
12”
18”
2’
3’
4’
5’
6’
7’
8’
9’
10’
CA8
CAR4
CA8XD
CAT3
Suspended Ceiling Hardware
CAS1W CAS2W CAS3W
Adjustable
Model
EA0611
EA01218
EA01824
EA23
EA24
EA35
EA46
EA68
EA810
EA1012
Drop LengthDrop Length
6” - 11”
12” - 18”
18” - 24”
2’ - 3’
2’ - 4’
3’ - 5’
4’ - 6’
6’ - 8’
8’ - 10’
10’ - 12’
Standard Interface
Standard 1.5” threaded interface on all ceiling accessories, pipes
and connectors. High grade steel tubing construction provides
solid backbone for ceiling-mounted systems.
Aesthetics and Functionality
Pipes feature cable opening with aesthetic snap-in plastic cover.
Connectors can be fully threaded, eliminating unsightly threads
from showing when multiple pipes are connected in longer drops.
Congurable
Pipes, connectors and ceiling adapters can be mixed and matched
with Crimson ceiling mounts in order to create customizable
solutions for single and multiple display system installations.
CAV1
CAB1
Unistrut Hardware
Pack: HU2, HU4
Concrete Expansion
Anchors: HE38,
HE516
Toggle Bolts: HT2,
HT3, HT4, HT6
EC1: Pipe
Connector
Construction
EC2: Pipe Connector
with Opening for Cord
Management
Fabricated from high-grade steel /aluminum with durable epoxy
powder coat nish. Threads are lubricated and protected in
packaging. Security screws and tools are included.
www.crimsonav.com ph: 866.668.6888 fax: 847.919.3483 support@crimsonav.com
