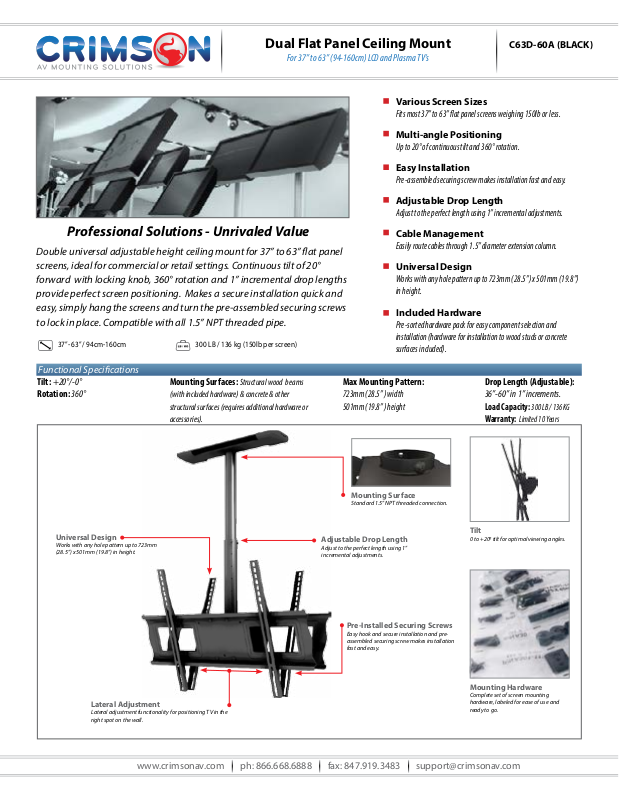

Crimson C63D-60A Specsheet
Dual Flat Panel Ceiling Mount
For 37” to 63” (94-160cm) LCD and Plasma TV’s
Various Screen Sizes
Fits most 37” to 63” at panel screens weighing 150lb or less.
Multi-angle Positioning
Up to 20° of continuous tilt and 360° rotation.
Easy Installation
Pre-assembled securing screw makes installation fast and easy.
Adjustable Drop Length
Adjust to the perfect length using 1” incremental adjustments.
C63D-60A (BLACK)
Professional Solutions - Unrivaled Value
Double universal adjustable height ceiling mount for 37” to 63” at panel
screens, ideal for commercial or retail settings. Continuous tilt of 20°
forward with locking knob, 360° rotation and 1” incremental drop lengths
provide perfect screen positioning. Makes a secure installation quick and
easy, simply hang the screens and turn the pre-assembled securing screws
to lock in place. Compatible with all 1.5” NPT threaded pipe.
37”- 63” / 94cm-160cm
Functional Specications
Tilt: +20°/-0°
Rotation: 360°
300 LB / 136 kg (150lb per screen)
Mounting Surfaces: Structural wood beams
(with included hardware) & concrete & other
structural surfaces (requires additional hardware or
accessories).
Cable Management
Easily route cables through 1.5” diameter extension column.
Universal Design
Works with any hole pattern up to 723mm (28.5”) x 501mm (19.8”)
in height.
Included Hardware
Pre-sorted hardware pack for easy component selection and
installation (hardware for installation to wood studs or concrete
surfaces included).
Max Mounting Pattern:
723mm (28.5” ) width
501mm (19.8” ) height
Mounting Surface
Standard 1.5” NPT threaded connection.
Drop Length (Adjustable):
36”-60” in 1” increments.
Load Capacity:
300 LB / 136 KG
Warranty: Limited 10 Years
Universal Design
Works with any hole pattern up to 723mm
(28.5”) x 501mm (19.8”) in height.
Lateral Adjustment
Lateral adjustment functionality for positioning TV in the
right spot on the wall.
www.crimsonav.com ph: 866.668.6888 fax: 847.919.3483 support@crimsonav.com
Adjustable Drop Length
Adjust to the perfect length using 1”
incremental adjustments.
Pre-Installed Securing Screws
Easy hook and secure installation and preassembled securing screw makes installation
fast and easy.
Tilt
0 to +20 tilt for optimal viewing angles.
Mounting Hardware
Complete set of screen mounting
hardware, labeled for ease of use and
ready to go.
Dual Flat Panel Ceiling Mount
For 37” to 63” (94-160cm) LCD and Plasma TV’s
C63D-60A (BLACK)
Product Specications
PRODUCT WEIGHT
40.8 lb (18.5 Kg) 41” x 12” x 9”
LOAD CAPACITY SHIP WEIGHTFINISHCOLORS PACKAGE CONTENTS
300lb (136kg) total
150 (68kg) each
Black
Scratch resistant
powder coating
Mounting Interface
31mm
W
31mm
H
Universal
Min Max
723mm
501mm
VESA
W
H
75mm
X
75mm
Accessories
Suspended Ceiling Adapters Structural Ceiling Adapters
CAS1W CAS2W CA1 CA2 CA4 CA8
For mounting above a false ceiling
tile. 13” of lateral shift for fast
project adjustment. Compatible
with all 1.5” NPT threaded pipe.
Replaces a standard 2’ x 2’
grid. 13” of lateral shift for fast
project adjustment. Compatible
with all 1.5” NPT threaded pipe.
Vaulted Ceiling AdapterTruss Ceiling Adapter
Wood Single Joist /
Concrete
Unistrut Ceiling Adapters
Package Specications
PACKAGE SIZE
(WxHxD)
(1016 x 295 x 242 mm)
100mm
100mm
200mm
X
100mm
Wood 16” Double Joist /
X
200mm
X
200mm
Concrete
46.4 lb (21 Kg)
300mm
X
200mm
UPC CODE
C63D-60A
(Black)
0815885010675
300mm
300mm
400mm
X
X
200mm
General Purpose 4x4” General Purpose 8x8”
Mount, screen mounting hardware,
product manual.
400mm
300mm
400mm
X
X
400mm
600mm
200mm
Unistrut Bolts
600mm
X
X
400mm
CAT 3
Mounts to round, square and
rectangular trusses from .75” up to
3” in diameter and is compatible
with all 1.5” NPT threaded pipe.
For installation on cathedral
or vaulted ceilings. Adjusts up
to 94° and is compatible with
all 1.5” NPT threaded pipe.
Bracket and hardware
for mounting to single
1-5/8”x1-5/8” Unitstrut.
Bracket and hardware (4x4)
for mounting to standard
1-5/8”x1-5/8” dual channels
spaced on 2.25” centers.
Fixed Columns Adjustable Columns
Static ceiling columns
for use with all ceiling
adapters using
standard 1.5” NPT
interfaces. Connectors
(sold separately) give
ability to extend drop
lengths by connecting
two or more columns.
Cable management
with a completely open
interior.
Visit crimsonav.com to see the full line of vidamounts LCD/plasma, projector and TV/monitor mounts. © 2010 Crimson AV LLC. All rights reserved.
BLACK DROP
E06 6”
E1 12”
E018 18”
E2 2’
E3 3’
E4 4’
E5 5’
E6 6’
E7 7’
E8 8’
E9 9’
E10 10’
Adjustable extension
columns designed for
use with all ceiling
adapters using standard
1.5” NPT interfaces.
Column allows for
exibility with quick
1” incremental drop
length adjustments
and cable management
with a completely open
interior. Connectors
(sold separately) give
ability to extend drop
lengths by connecting
two or more columns.
