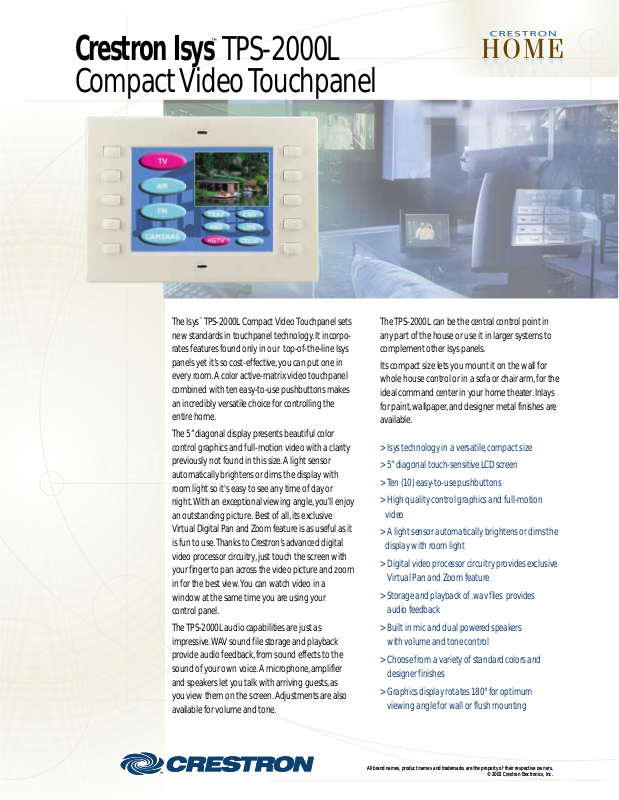

Crestron Isys

™

TPS-2000L

Compact Video Touchpanel

The Isys™TPS-2000L Compact Video Touchpanel sets
new standards in touchpanel technology.It incorpo­rates features found only in our top-of-the-line Isys
panels yet it’s so cost-effective,you can put one in
every room.A color active-matrix video touchpanel
combined with ten easy-to-use pushbuttons makes
an incredibly versatile choice for controlling the
entire home.

The 5”diagonal display presents beautiful color
control graphics and full-motion video with a clarity
previously not found in this size.A light sensor
automatically brightens or dims the display with
room light so it's easy to see any time of day or
night.With an exceptional viewing angle,you’ll enjoy
an outstanding picture. Best of all,its exclusive
Virtual Digital Pan and Zoom feature is as useful as it
is fun to use.Thanks to Crestron’s advanced digital
video processor circuitry,just touch the screen with
your finger to pan across the video picture and zoom
in for the best view.You can watch video in a
window at the same time you are using your
control panel.

The TPS-2000L audio capabilities are just as
impressive.WAV sound file storage and playback
provide audio feedback,from sound effects to the
sound of your own voice. A microphone,amplifier
and speakers let you talk with arriving guests,as
you view them on the screen.Adjustments are also
available for volume and tone.

The TPS-2000L can be the central control point in
any part of the house or use it in larger systems to
complement other Isys panels.

Its compact size lets you mount it on the wall for
whole house control or in a sofa or chair arm,for the
ideal command center in your home theater.Inlays
for paint,wallpaper,and designer metal finishes are
available.

> Isys technology in a versatile,compact size
> 5”diagonal touch-sensitive LCD screen
> Ten (10) easy-to-use pushbuttons
> High quality control graphics and full-motion

video

> A light sensor automatically brightens or dims the

display with room light

> Digital video processor circuitry provides exclusive

Virtual Pan and Zoom feature

> Storage and playback of .wav files provides

audio feedback

> Built in mic and dual powered speakers

with volume and tone control

> Choose from a variety of standard colors and

designer finishes

> Graphics display rotates 180°for optimum

viewing angle for wall or flush mounting

All brand names, product names and trademarks are the property of their respective owners.

©2002 Crestron Electronics, Inc.

NEW YORK
LOS ANGELES
ATLANTA
DALLAS

CHICAGO
TORONTO
MEXICO CITY
BRUSSELS

MUNICH
LONDON
PARIS
HONG KONG

BEIJING
SINGAPORE
TAIWAN
MELBOURNE

Crestron Electronics, Inc. 15 Volvo Drive • Rockleigh, NJ 07647

Tel: [phone] • Fax: [phone] • www.crestron.com

Cover photo montage: Installations by AVWashington, Inc.(www.avwashington.com) and Midwest
Visual Communications (www.midwestvisual.com)

Specifications subject to change without notice. Printed in USA Doc.6027 2/02

NEW YORK
LOS ANGELES
ATLANTA
DALLAS

CHICAGO
TORONTO
MEXICO CITY
BRUSSELS

MUNICH
LONDON
PARIS
HONG KONG

BEIJING
SINGAPORE
TAIWAN
MELBOURNE

Crestron Electronics, Inc. 15 Volvo Drive • Rockleigh, NJ 07647

Tel: [phone] • Fax: [phone] • www.crestron.com

Cover photo montage: Installations by AVWashington, Inc.(www.avwashington.com) and Midwest
Visual Communications (www.midwestvisual.com)

5”Wall Model
Touchscreen

Display Type:Touch-sensitive active matrix color LCD
Screen Dimensions: 5"/12.7 cm diagonal
Screen Resolution: 320x234 pixels
Color:16 Bit non-palette graphics
Enclosure: Injec tion-molded plastic enclosure faceplate

and keys in white;Auto-Light Sensor,Built-in 10 “Quick”
pushbuttons

Graphics Display:Rotates 180° via software for optimum
viewing angle in flush mount

Connectors

• 4-position mini-phoenix for Cresnet

• 8-position mini-phoenix for audio and video.

Audio

• Balanced & unbalanced line level mono input,balanced
line level microphone output,and built-in WAV file
capability (8KHz)

• Half duplex intercom capable

• Dual amplified speakers (2W per spkr) w/volume &
tone control

Video

• Balanced(CAT5) /unbalanced composite video
input supporting NTSC/PAL formats and built-in time
base correction. V ideo can be displayed either full
screen or in a window.

• 2x digital zoom w/pan feature built-in

Memory

2MB internal flash memory, 8MB of DR AM

CPU

63MIPs Coldfire processor running Isys generation
firmware

Power Requirements

13W,24VDC,0.54A

Additional Options

BB-2000:Back box for wall mounting
PMK-2000L:Pre-Construction Mount
MMK-2000L:Mud mount kit for use w/ BB-2000

or PMK-2000L
TMK-2000L:Trim mount kit for use w/ BB-2000

or PMK 2000L

WMKM-2000L:Wall mount kit - with Mud Ring
WMKT-2000L:Wall mount kit - with Trim Ring
TPS-FP:Designer Series faceplates
TPS-WPK:Water Resistant Cover Kit

Dimensions

4.77”(12.10 cm) H x 6.73” (17.10 cm) W x 3.43”(8.71 cm) D

Weight

1.41.lb (0.64 kg)

4.765 in

(12.103 cm)

6.731 in

(17.097 cm)

3.066 in

(7.788 cm)

3.43 in

(8.714 cm)

Rear View

Front View

Bottom View

Crestron Isys™TPS-2000L Compact Video T ouchpanel
