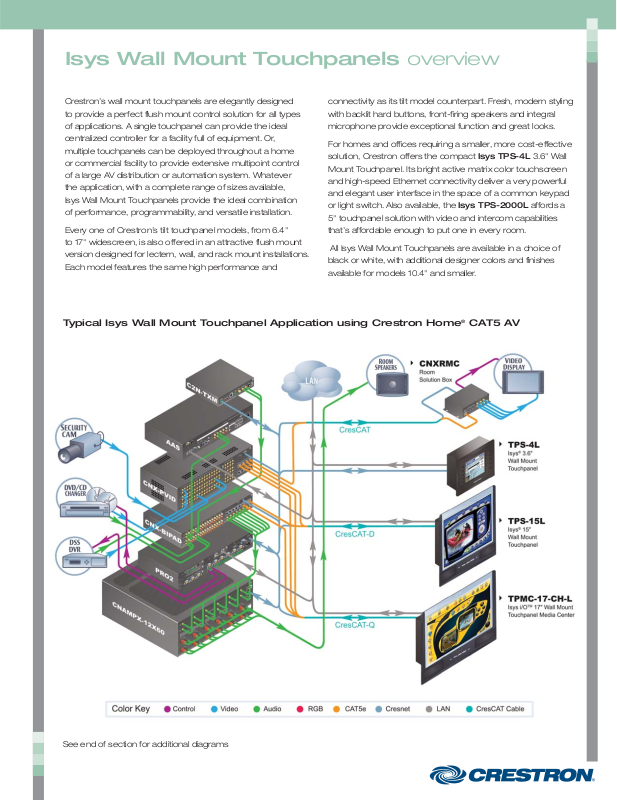

Isys Wall Mount Touchpanels overview

Crestron’s wall mount touchpanels are elegantly designed

to provide a perfect flush mount control solution for all types

of applications. A single touchpanel can provide the ideal

centralized controller for a facility full of equipment. Or,

multiple touchpanels can be deployed throughout a home

or commercial facility to provide extensive multipoint control

of a large AV distribution or automation system. Whatever

the application, with a complete range of sizes available,

Isys Wall Mount Touchpanels provide the ideal combination

of performance, programmability, and versatile installation.

Every one of Crestron’s tilt touchpanel models, from 6.4"

to 17" widescreen, is also offered in an attractive flush mount

version designed for lectern, wall, and rack mount installations.

Each model features the same high performance and

connectivity as its tilt model counterpart. Fresh, modern styling

with backlit hard buttons, front-firing speakers and integral

microphone provide exceptional function and great looks.

For homes and offices requiring a smaller, more cost-effective

solution, Crestron offers the compact Isys TPS-4L 3.6" Wall

Mount Touchpanel. Its bright active matrix color touchscreen

and high-speed Ethernet connectivity deliver a very powerful

and elegant user interface in the space of a common keypad

or light switch. Also available, the Isys TPS-2000L affords a

5" touchpanel solution with video and intercom capabilities

that’s affordable enough to put one in every room.

All Isys Wall Mount Touchpanels are available in a choice of

black or white, with additional designer colors and finishes

available for models 10.4" and smaller.

Typical Isys Wall Mount Touchpanel Application using Crestron Home

®

CAT5 AV

See end of section for additional diagrams

Isys Wall Mount Touchpanels cross reference

Isys Wall Mount Touchpanels

TPS-17L TPS-15L TPS-12L TPS-4000L TPS-3100L

Touchscreen Display

Display Size 17" 15" 12" 10.4" 6.4"

Aspect Ratio

Resolution

Color Depth

Touchpanel Graphics

Color Depth 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M 16-bit 64K 16-bit 64K

8-bit Alpha Channel Transparency

Synapse Image Rendering and Multimode Objects

Dynamic Text and Animation

Dynamic Graphics and PNG Translucency

Dynamic Menu Objects

Memory

RAM 128MB 128MB 128MB 8MB 8MB

Flash

Memory Card Slot

Maximum Project Size 160MB 160MB 160MB 7MB 7MB

Annotation & PC

Windows XP Embedded OS

Web Browser and Media Player, Remote Desktop, VoIP, NetMeeting, Yahoo! Widgets, MS Office and Adobe Document Viewers

6

Annotation

Keyboard/Mouse Input

Touch-the-PC

15:9 WXGA 4:3 XGA 4:3 SVGA 4:3 VGA 4:3 VGA

1280 x 768 1024 x 768 800 x 600 640 x 480 640 x 480

24-bit 16.7M 24-bit 16.7M 18-bit 256k 18-bit 256k 18-bit 256k

  

    

  

64MB 64MB 64MB 8MB 8MB

up to 4GB up to 4GB up to 4GB

Video/RGB

Scalable Windows 1 1 1 1 1

Hardware Connections

Composite

S-Video

Component

1

QM, CH, BNC

    

  

QM, CH, BNC

1

QM, CH, BNC

1

CH, BNC CH, BNC

HDTV up to 1080i

RGB up to 1600 x 1200

Streaming Motion-JPEG

Media Player (Multiple Formats)

Display Output

Audio

Amplified Speakers and Microphone

WAV Sound File Audio Feedback

    

Network

Cresnet

Ethernet

Wi-Fi

3

    

  

Buttons

Backlit Softkeys 4 4 4

Programmable, Engravable Hard Buttons 5 5

Mounting

Wall or Lectern Mount

Rack Mount

4

    

9U 9U 8U 6U 5U

Finishes

White or Black

Almond

Additional Colors & Finishes

1

Connections via outboard IMC interface module (included)

2

Also supports coaxial connection

3

Wireless NIC required

4

Appropriate mounting accessory(ies) required

5

Rack mount provided by others

6

See product spec for a complete list of embedded applications

    

 

This chart intended for summary comparison only; see each product specification for complete information.

Isys Wall Mount Touchpanels Isys G-Series Wall Mount TPs Isys i/O Wall Mount Touchpanel Media Centers

TPS-2000L TPS-4L TPS-15G-QM-L TPS-12G-QM-L TPMC-17-QM-L TPMC-15-QM-L TPMC-17-CH-L TPMC-15-CH-L

5" 3.6" 15" 12" 17" 15" 17" 15"

~4:3 4:3 QVGA 4:3 XGA 4:3 SVGA 15:9 WXGA 4:3 XGA 15:9 WXGA 4:3 XGA

320 x 234 320 x 240 1024 x 768 800 x 600 1280 x 768 1024 x 768 1280 x 768 1024 x 768

16-bit 64k 16-bit 64k 24-bit 16.7M 18-bit 256k 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M

16-bit 64K 16-bit 64K 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M 24-bit 16.7M

       

      

     

   

8MB 16MB 128MB 128MB 512MB 512MB 512MB 512MB

2MB 8MB 64MB 64MB 512MB 512MB 512MB 512MB

up to 4GB up to 4GB up to 4GB up to 4GB up to 4GB up to 4GB

1.5MB 7MB 160MB 160MB 190MB 190MB 190MB 190MB

   

Live Only Live Only MediaMarker MediaMarker MediaMarker MediaMarker

USB USB USB USB

   

1 2 2 2 2 2 2

2

CH

      

QM QM QM QM

     

   

CH, BNC

1

CH, BNC

1

      

       

      

4 4 4 4 4 4

10 10

       

5



       

 

® 2007 Crestron Electronics, Inc. Specifications subject to change. All copyrights and trademarks property of their respective owners.

5



9U 8U 9U 9U 9U 9U

   

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-17L Isys

Crestron’s new Isys touchpanels deliver a higher level of

performance to meet the demands of today's sophisticated

control and automation applications. Incorporating modern

styling in a versatile flush mount design, the Isys TPS-17L

features a spectacular 17" WXGA widescreen display offering

an extra wide viewing angle with exceptional brightness and

contrast for stunning control graphics, high-resolution

images, and full-motion video.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, home

automation, and much more, providing a wide-open

canvas for the creation of custom control screens

tailored to the needs of the end-user. Touchpanels

do away with piles of remote controls, cryptic control

wall mount touchpanels

panels and cluttered wall switches, simultaneously

expanding and simplifying control over a broad range

of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron's entire touchpanel lineup. Under the hood,

the TPS-17L offers vibrant 24-bit color depth with 8-bit

alpha channel transparency to produce incredible 3D

graphics and high-res images. The Isys engine supports

dynamic graphics and text, full-motion animations,

multimode objects, and PNG translucency – all with

astonishing speed.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

®

17" Widescreen Wall Mount Touchpanel

High-Performance Video—The TPS-17L can display full-

motion video from an external AV source, either full screen

or in a scalable window. Motion adaptive deinterlacing

brings out the highest detail, minimizing visible scan lines

and motion artifacts for a truly remarkable picture. Advanced

gamma correction and built-in time base correction ensure

accurate color reproduction and a jitter-free image.

High-Quality Audio—The high-powered biamplified

speaker system provides amplification for external AV

sources, and supports intercom functionality in combination

with the integrated microphone. Customized WAV files

can be loaded on the touchpanel to add dimension to the

touchscreen graphics with personalized sounds, button

feedback, and voice prompts.

Crestron Home®CAT5 AV—Connecting audio and video

sources to the TPS-17L is facilitated using inexpensive CAT5

wire, enabling direct connection to Crestron's popular CAT5

balanced audio and video distribution switchers. A single

video input port accepts signals from composite, S-Video,

and standard-definition component sources over wiring

distances of up to 750 feet. A bidirectional audio port

receives stereo program audio and intercom signals, and

outputs audio from the internal microphone. To facilitate

the connection of conventional video and audio devices,

an external interface module is included.

QuickMedia™—The TPS-17L is also equipped with a

single QuickMedia input port. Through QuickMedia (QM),

the TPS-17L interfaces directly with Crestron’s QM-based

MediaManager products using a single CAT5e type cable.

Over wiring distances of up to 300 feet, the QM Input port

accepts video signals from composite, S-Video, and

standard-definition component sources along with

discrete audio signals from one (1) stereo program

source and up to two (2) microphones.

High-Speed Connectivity—Both Cresnet and high-speed

Ethernet are standard on the TPS-17L, providing for easy

network integration and seamless communications with

Crestron control systems.

Versatile Flush Mount Design—The TPS-17L is designed

for flush-mount installation in a wall, lectern or similar flat

surface. A variety of mounting accessories is offered

including optional back box and 19" rack mount kit. Five

backlit pushbuttons are also provided, allowing for quick

access to commonly used functions.

62

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

17" Widescreen Wall Mount Touchpanel TPS-17L



17" widescreen active matrix touchscreen display |1280 x 768 resolution



24-Bit Isys graphics |Synapse image rendering algorithm



Full-motion video with gamma correction and motion adaptive deinterlacing



Built-in biamplified speaker system and microphone



Backlit “Softkey” pushbuttons



QuickMedia and Crestron Home CAT5 AV connectivity



High-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

AVAILABLE MODELS

TPS-17LB

Isys 17" Widescreen Wall Mount Touchpanel, Black

TPS-17LW

Isys 17" Widescreen Wall Mount Touchpanel, White

TPS-17L using CAT5 AV Interface Module

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 17 inch (43.2 cm) diagonal widescreen Aspect Ratio: 15:9 WXGA Resolution: 1280 x 768 pixels Brightness: 450 nits (cd/m Contrast: 400:1 Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±88° horizontal, ±88° vertical Touchscreen: Resistive membrane

Processor

CPU: 32-bit Freescale ColdFire

Memory

DDR RAM: 128 MB Flash: 64 MB Compact Flash: Accepts up to 4GB Type II CF (not included) Maximum Project Size: 160 MB

Graphic Engine

Isys engine, 24-bit non-palette graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Ethernet

10BaseT/100BaseTX, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, IEEE 802.3U compliant

Video

Signal Types: Auto-detecting composite, S-Video, or component Formats: NTSC 480i or PAL 576i Color Depth: 24-bit, 16.7M colors Features: Single-window scalable to full-screen, input switching

between QM and VIDEO inputs, time base correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate D-A Conversion (QM only): 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel

2

)

®

Microprocessor

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

63

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-17L Isys

Connectors

QM IN: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Auto-detecting component (YP composite video with stereo program audio and (2) mic channels; Video Formats: NTSC 480i or PAL 576i; Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 300 ft (aggregate distance from QM origination)

VIDEO IN: (1) 8-wire RJ45 female, CAT5 balanced video input port Signal Types: Auto-detecting component (YP or composite; Formats: NTSC 480i or PAL 576i Input Impedance: 100 ohms balanced Connects to any Crestron CAT5 balanced video source, or TPMC-CH-IMC interface module (included), via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 500 feet for component, 750 feet for composite/S-Video

AUDIO I/O: (1) 8-wire RJ45 female Bidirectional CAT5 balanced audio port Signal Types: Receives (1) balanced stereo audio signal, and transmits (1) balanced stereo audio signal from internal microphone; Maximum Input Level: 4 V Maximum Output Level: 2 V Input/Output Impedance: 600 ohms Connects to any other Crestron CAT5 balanced audio port, or TPMC-CH-IMC interface module (included), via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 1000 feet

TPS-17L using QuickMedia

®

17" Widescreen Wall Mount Touchpanel (continued)

BPR

), S-Video (Y/C), or

BPR

), S-Video (Y/C),

RMS

wall mount touchpanels

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 12mW per channel Minimum Impedance: 32 ohms

USB: (1) USB Type B female (reserved for future applications)

NET: (1) 4-pin 3.5mm detachable terminal block; Cresnet Slave port

Connects to Cresnet control network or TPMC-CH-IMC interface module (included) via CresCAT, Cresnet, or TPS/TPMC-CBL-T “triamese” cable (sold separately)

LAN: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates link status Yellow LED indicates Ethernet activity

RS-232: (1) 6-pin RJ11 female Computer console, touch output or mouse input port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

G: (1) 6-32 screw, chassis ground lug

MEMORY EXPANSION: (1) Type II Compact Flash card slot for

memory expansion

Power Requirements

Cresnet Power Usage: 74 Watts (3.1 Amps @ 24 Volts DC)

Environmental

Temperature: 41° to 113°F (5° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 9U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 13.81 in (35.06 cm) Width: 16.98 in (43.11 cm) Depth: 3.84 in (9.74 cm)

Weight

12.7 lbs (5.76 kg)

64

INCLUDED ACCESSORIES

TPMC-CH-IMC

CAT5 Balanced AV Interface Module (See TPMC-CH-IMC specifications for complete information)

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

17" Widescreen Wall Mount Touchpanel TPS-17L

TPS-17L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-17L

Pre-Construction Wall Mount Back Box



PMK-17L

Pre-Construction Wall Mount Kit



TMK-17L

Trim Ring



MMK-17L

Mud Ring

www.crestron.com | 800.237.2041 | 201.767.3400



WMKT-17L

Lectern Mount Kit with Trim Ring



RMK-17L

Rack Mount Kit



TPMC-CH-IMW

CAT5 Balanced AV Interface Wall Plate



TPS/TPMC-CBL-T

Triamese Interface Cables



QM-TX

QuickMedia Transmitter



ST-PK

Programming Cable Kit



CresCAT®D

Crestron Home®CAT5 Balanced AV Cable



CresCAT®QM

QuickMedia™ Cable



CresCAT®IM

iMedia Cable

65

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-15L Isys

Crestron’s new Isys touchpanels deliver a higher level of

performance to meet the demands of today's sophisticated

control and automation applications. Incorporating modern

styling in a versatile flush mount design, the Isys TPS-15L

features a spectacular 15" XGA true-color display offering

an extra wide viewing angle with exceptional brightness

and contrast for stunning control graphics, high-resolution

images, and full-motion video.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, home

automation, and much more, providing a wide-open

canvas for the creation of custom control screens

tailored to the needs of the end-user. Touchpanels

do away with piles of remote controls, cryptic control

wall mount touchpanels

panels and cluttered wall switches, simultaneously

expanding and simplifying control over a broad range

of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron’s entire touchpanel lineup. Under the hood, the

TPS-15L offers vibrant 24-bit color depth with 8-bit alpha

channel transparency to produce incredible 3D graphics and

high-res images. The Isys engine supports dynamic graphics

and text, full-motion animations, multimode objects, and

PNG translucency – all with astonishing speed.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

®

15" Wall Mount Touchpanel

High-Performance Video—The TPS-15L can display

full-motion video from an external AV source, either

full screen or in a scalable window. Motion adaptive

deinterlacing brings out the highest detail, minimizing

visible scan lines and motion artifacts for a truly remarkable

picture. Advanced gamma correction and built-in time

base correction ensure accurate color reproduction and

a jitter-free image.

High-Quality Audio—The high-powered biamplified

speaker system provides amplification for external AV

sources, and supports intercom functionality in combination

with the integrated microphone. Customized WAV files can

be loaded on the touchpanel to add dimension to the

touchscreen graphics with personalized sounds, button

feedback, and voice prompts.

Crestron Home®— CAT5 AVConnecting audio and video

sources to the TPS-15L is facilitated using inexpensive CAT5

wire, enabling direct connection to Crestron’s popular CAT5

balanced audio and video distribution switchers. A single

video input port accepts signals from composite, S-Video,

and standard-definition component sources over wiring

distances of up to 750 feet. A bidirectional audio port

receives stereo program audio and intercom signals, and

outputs audio from the internal microphone. To facilitate

the connection of conventional video and audio devices,

an external interface module is included.

QuickMedia™—The TPS-15L is also equipped with a

single QuickMedia input port. Through QuickMedia (QM),

the TPS-15L interfaces directly with Crestron’s QM-based

MediaManager products using a single CAT5e type cable.

Over wiring distances of up to 300 feet, the QM Input

port accepts video signals from composite, S-Video, and

standard-definition component sources along with discrete

audio signals from one (1) stereo program source and up

to two (2) microphones.

High-Speed Connectivity—Both Cresnet and high-speed

Ethernet are standard on the TPS-15L, providing for easy

network integration and seamless communications with

Crestron control systems.

Versatile Flush Mount Design—The TPS-15L is designed

for easy flush-mount installation in a wall, lectern or similar

flat surface. A variety of mounting accessories is offered

including optional back box and 19" rack mount kit. Five

backlit pushbuttons are also provided, allowing for quick

access to commonly used functions.

66

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

15" Wall Mount Touchpanel TPS-15L



15" active matrix touchscreen display |1024 x 768 resolution



24-Bit Isys graphics |Synapse image rendering algorithm



Full-motion video with gamma correction and motion adaptive deinterlacing



Built-in biamplified speaker system and microphone



Backlit “Softkey” pushbuttons



QuickMedia and Crestron Home CAT5 AV connectivity



High-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

AVAILABLE MODELS

TPS-15LB

Isys 15" Wall Mount Touchpanel, Black

TPS-15LW

Isys 15" Wall Mount Touchpanel, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 15 inch (38.1 cm) diagonal Aspect Ratio: 4:3 XGA Resolution: 1024 x 768 pixels

TPS-15L using CAT5 AV Interface Module

Brightness: 350 nits (cd/m2) Contrast: 700:1 Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±85° horizontal, ±85° vertical Touchscreen: Resistive membrane

Processor

CPU: 32-bit Freescale ColdFire

Memory

DDR RAM: 128 MB Flash: 64 MB Compact Flash: Accepts up to 4GB Type II CF (not included) Maximum Project Size: 160 MB

Graphic Engine

Isys engine, 24-bit non-palette graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Embedded Software Applications

Microsoft Internet Explorer w/Macromedia®Flash®plug-in, Windows Media Crestron MediaMarker™, Remote Desktop, NetMeeting Java™ Runtime, DirectX Reader, and viewers for MS Word, Excel, and PowerPoint

Ethernet

10BaseT/100BaseTX, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, IEEE 802.3U compliant

Video

Signal Types: Auto-detecting composite, S-Video, or component Formats: NTSC 480i or PAL 576i Color Depth: 24-bit, 16.7M colors Features: Single-window scalable to full-screen, input switching

between QM and VIDEO inputs, time base correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate D-A Conversion (QM only): 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel

®

Player, RealPlayer®, Axis®Media Control,

®

Microprocessor

1

®

, Yahoo! Widgets®, Adobe®Acrobat

, Skype™,

®

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

67

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-15L Isys

Connectors

QM IN: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Auto-detecting component (YP composite video with stereo program audio and (2) mic channels; Video Formats: NTSC 480i or PAL 576i Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 300 ft (aggregate distance from QM origination)

VIDEO IN: (1) 8-wire RJ45 female, CAT5 balanced video input port Signal Types: Auto-detecting component (YP or composite; Formats: NTSC 480i or PAL 576i Input Impedance: 100 ohms balanced Connects to any Crestron CAT5 balanced video source, or TPMC-CH-IMC interface module (included), via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 500 feet for component, 750 feet for composite/S-Video

AUDIO I/O: (1) 8-wire RJ45 female Bidirectional CAT5 balanced audio port Signal Types: Receives (1) balanced stereo audio signal, and transmits (1) balanced stereo audio signal from internal microphone; Maximum Input Level: 4 V Maximum Output Level: 2 V Input/Output Impedance: 600 ohms Connects to any other Crestron CAT5 balanced audio port, or TPMC-CH-IMC interface module (included), via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 1000 feet

TPS-15L using QuickMedia

®

15" Wall Mount Touchpanel (continued)

BPR

), S-Video (Y/C), or

BPR

), S-Video (Y/C),

RMS

wall mount touchpanels

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 12mW per channel Minimum Impedance: 32 ohms

USB: (1) USB Type B female (reserved for future applications)

NET: (1) 4-pin 3.5mm detachable terminal block; Cresnet Slave port

Connects to Cresnet control network, or TPMC-CH-IMC interface module (included) via CresCAT, Cresnet, or TPS/TPMC-CBL-T "triamese" cable (sold separately)

LAN: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates link status Yellow LED indicates Ethernet activity

RS-232: (1) 6-pin RJ11 female Computer console, touch output or mouse input port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

G: (1) 6-32 screw, chassis ground lug

MEMORY EXPANSION: (1) Type II Compact Flash card slot for

memory expansion

Power Requirements

Cresnet Power Usage: 65 Watts (2.7 Amps @ 24 Volts DC)

Environmental

Temperature: 41° to 113°F (5° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 9U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 13.59 in (34.52 cm) Width: 14.17 in (35.99 cm) Depth: 3.80 in (9.66 cm)

Weight

9.4 lbs (4.26 kg)

68

INCLUDED ACCESSORIES

TPMC-CH-IMC

CAT5 Balanced AV Interface Module (See TPMC-CH-IMC specifications for complete information)

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

15" Wall Mount Touchpanel TPS-15L

TPS-15L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-15L

Pre-Construction Wall Mount Back Box



PMK-15L

Pre-Construction Wall Mount Kit



TMK-15L

Trim Ring



MMK-15L

Mud Ring

www.crestron.com | 800.237.2041 | 201.767.3400



WMKT-15L

Lectern Mount Kit with Trim Ring



WMKM-15L

Post-Construction Wall Mount Kit with Mud Ring



RMK-15L

Rack Mount Kit



TPMC-CH-IMW

CAT5 Balanced AV Interface Wall Plate



TPS/TPMC-CBL-T

Triamese Interface Cables



QM-TX

QuickMedia Transmitter



ST-PK

Programming Cable Kit



CresCAT®D

Crestron Home®CAT5 Balanced AV Cable



CresCAT®QM

QuickMedia™ Cable



CresCAT®IM

iMedia Cable

69

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-12L Isys

Crestron’s new Isys touchpanels deliver a higher level of

performance to meet the demands of today’s sophisticated

control and automation applications. Incorporating modern

styling in a versatile flush mount design, the Isys TPS-12L

features a spectacular 12" SVGA display offering a wide

viewing angle with exceptional brightness and contrast

for stunning control graphics, high-resolution images,

and full-motion video.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, home

automation, and much more, providing a wide-open

canvas for the creation of custom control screens

tailored to the needs of the end-user. Touchpanels

do away with piles of remote controls, cryptic control

wall mount touchpanels

panels and cluttered wall switches, simultaneously

expanding and simplifying control over a broad range

of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron’s entire touchpanel lineup. Under the hood, the

TPS-12L offers vibrant 24-bit color depth with 8-bit alpha

channel transparency to produce incredible 3D graphics and

high-res images. The Isys engine supports dynamic graphics

and text, full-motion animations, multimode objects, and

PNG translucency – all with astonishing speed.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

®

12" Wall Mount Touchpanel

High-Performance Video—The TPS-12L can display full-

motion video from an external AV source, either full screen

or in a scalable window. Motion adaptive deinterlacing

brings out the highest detail, minimizing visible scan lines

and motion artifacts for a truly remarkable picture. Advanced

gamma correction and built-in time base correction ensure

accurate color reproduction and a jitter-free image.

High-Quality Audio—The high-powered biamplified

speaker system provides amplification for external AV

sources, and supports intercom functionality in combination

with the integrated microphone. Customized WAV files

can be loaded on the touchpanel to add dimension to the

touchscreen graphics with personalized sounds, button

feedback, and voice prompts.

Crestron Home®CAT5 AV—Connecting audio and video

sources to the TPS-12L is facilitated using inexpensive CAT5

wire, enabling direct connection to Crestron’s popular CAT5

balanced audio and video distribution switchers. A single

video input port accepts signals from composite, S-Video,

and standard-definition component sources over wiring

distances of up to 750 feet. A bidirectional audio port

receives stereo program audio and intercom signals, and

outputs audio from the internal microphone. To facilitate

the connection of conventional video and audio devices,

an external interface module is included.

QuickMediaTM—The TPS-12L is also equipped with

a single QuickMedia input port. Through QuickMedia

(QM), the TPS-12L interfaces directly with Crestron’s

QM-based MediaManager products using a single CAT5e

type cable. Over wiring distances of up to 300 feet, the

QM Input port accepts video signals from composite,

S-Video, and standard-definition component sources

along with discrete audio signals from one (1) stereo

program source and up to two (2) microphones.

High-Speed Connectivity—Both Cresnet and high-speed

Ethernet are standard on the TPS-12L, providing for easy

network integration and seamless communications with

Crestron control systems.

Versatile Flush Mount Design—The TPS-12L is designed

for easy flush-mount installation in a wall, lectern or similar

flat surface. A variety of mounting accessories is offered

including optional back box and 19" rack mount kit. Five

backlit pushbuttons are also provided, allowing for quick

access to commonly used functions.

70

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

12" Wall Mount Touchpanel TPS-12L



12" active matrix touchscreen display |800 x 600 resolution



24-Bit Isys graphics |Synapse image rendering algorithm



Full-motion video with gamma correction and motion adaptive deinterlacing



Built-in biamplified speaker system and microphone



Backlit “Softkey” pushbuttons



QuickMedia and Crestron Home CAT5 AV connectivity



High-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

AVAILABLE MODELS

TPS-12LB

Isys 12" Wall Mount Touchpanel, Black

TPS-12LW

Isys 12" Wall Mount Touchpanel, White

TPS-12L using CAT5 AV Interface Module

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 12 inch (30.5 cm) diagonal Aspect Ratio: 4:3 SVGA Resolution: 800 x 600 pixels Brightness: 400 nits (cd/m Contrast: 300:1 Color Depth: 18-bit, 256k colors Illumination: Backlit fluorescent Viewing Angle: ±70° horizontal, +45/-55° vertical Touchscreen: Resistive membrane

Processor

CPU: 32-bit Freescale ColdFire

Memory

DDR RAM: 128 MB Flash: 64 MB Compact Flash: Accepts up to 4GB Type II CF (not included) Maximum Project Size: 160 MB

Graphic Engine

Isys engine, 24-bit non-palette graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Ethernet

10BaseT/100BaseTX, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, IEEE 802.3U compliant

Video

Signal Types: Auto-detecting composite, S-Video, or component Formats: NTSC 480i or PAL 576i Color Depth: 24-bit, 16.7M colors Features: Single-window scalable to full-screen, input switching

between QM and VIDEO inputs, time base correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate D-A Conversion (QM only): 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel

2

)

®

Microprocessor

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

71

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-12L Isys

Connectors

QM IN: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Auto-detecting component (YP composite video with stereo program audio and (2) mic channels; Video Formats: NTSC 480i or PAL 576i Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 300 ft (aggregate distance from QM origination)

VIDEO IN: (1) 8-wire RJ45 female, CAT5 balanced video input port Signal Types: Auto-detecting component (YP or composite; Formats: NTSC 480i or PAL 576i Input Impedance: 100 ohms balanced Connects to any Crestron CAT5 balanced video source, or TPMC-CH-IMC interface module (included), via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 500 feet for component, 750 feet for composite/S-Video

AUDIO I/O: (1) 8-wire RJ45 female Bidirectional CAT5 balanced audio port Signal Type: Receives (1) balanced stereo audio signal, and transmits (1) balanced stereo audio signal from internal microphone; Maximum Input Level: 4 V Maximum Output Level: 2 V Input/Output Impedance: 600 ohms Connects to any other Crestron CAT5 balanced audio port, or TPMC-CH-IMC interface module (included), via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 1000 feet

TPS-12L using QuickMedia

®

12" Wall Mount Touchpanel (continued)

BPR

), S-Video (Y/C), or

BPR

), S-Video (Y/C),

RMS

wall mount touchpanels

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 12mW per channel Minimum Impedance: 32 ohms

USB: (1) USB Type B female (reserved for future applications)

NET: (1) 4-pin 3.5mm detachable terminal block, Cresnet Slave port

Connects to Cresnet control network, or TPMC-CH-IMC interface module (included) via CresCAT, Cresnet, or TPS/TPMC-CBL-T “triamese” cable (sold separately)

LAN: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates link status Yellow LED indicates Ethernet activity

RS-232: (1) 6-pin RJ11 female Computer console, touch output or mouse input port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

G: (1) 6-32 screw, chassis ground lug

MEMORY EXPANSION: (1) Type II Compact Flash card slot for

memory expansion

Power Requirements

Cresnet Power Usage: 43 Watts (1.8 Amps @ 24 Volts DC)

Environmental

Temperature: 41° to 113°F (5° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 8U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 11.80 in (29.98 cm) Width: 13.61 in (34.57 cm) Depth: 3.80 in (9.66 cm)

Weight

8.5 lbs (3.86 kg)

72

INCLUDED ACCESSORIES

TPMC-CH-IMC

CAT5 Balanced AV Interface Module (See TPMC-CH-IMC specifications for complete information)

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

12" Wall Mount Touchpanel TPS-12L

TPS-12L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-12L

Pre-Construction Wall Mount Back Box



PMK-12L

Pre-Construction Wall Mount Kit



TMK-12L

Trim Ring



MMK-12L

Mud Ring

www.crestron.com | 800.237.2041 | 201.767.3400



WMKT-12L

Lectern Mount Kit with Trim Ring



WMKM-12L

Post-Construction Wall Mount Kit with Mud Ring



RMK-12L

Rack Mount Kit



TPMC-CH-IMW

CAT5 Balanced AV Interface Wall Plate



TPS/TPMC-CBL-T

Triamese Interface Cables



QM-TX

QuickMedia Transmitter



ST-PK

Programming Cable Kit



CresCAT®D

Crestron Home®CAT5 Balanced AV Cable



CresCAT®QM

QuickMedia™ Cable



CresCAT®IM

iMedia Cable

73

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-4000L Isys

The Isys TPS-4000L presents a state-of-the-art flush

mount touchpanel solution complete with integrated

video and audio. A vibrant 640 x 480 10.4" touchscreen

display delivers astounding graphical performance to

support a host of control applications. The addition of 5

programmable hardbuttons provides quick pushbutton

access to commonly used functions.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, lighting,

climate control, and much more, providing a wide-open

canvas for the creation of custom control screens perfectly

tailored to the needs of the end-user. Touchpanels do away

with piles of remote controls, cryptic front panels, and

wall mount touchpanels

cluttered wall switches, affording true “one-touch” control

over a broad range of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron’s entire touchpanel lineup. Under the hood, the

Isys engine produces astonishing full-color graphics with

lightning-fast performance and incredible versatility. A 32-

bit Freescale ColdFire®Microprocessor combines with an

ingenious and ultra efficient operating system to support

high-resolution graphics and images, dynamic text, full-

motion video, animations, multimode objects (buttons,

frames, gauges, and sliders), popup/drop down subpages,

and more.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

®

10.4" Wall Mount Touchpanel

Video with Advanced Gamma Correction—Video

capability is standard in the TPS-4000L, accepting any

NTSC/PAL composite or S-Video source, scalable for

display in any sized window or full screen. Advanced

gamma correction and built-in time base correction ensure

accurate color reproduction and a jitter-free image.

Tactile Pushbuttons—Five programmable “hard” buttons

are included to provide quick pushbutton access to

commonly used functions. Individual button caps are

custom engravable for easy operation at a glance.

Built-in Audio—Audio features include built-in amplified

speakers, volume control, line-level stereo input, and a

microphone with automatic gain control and line-level

output. The speakers may be used to amplify signals

from TV and video sources, or to support programmable

intercom functionality in combination with the microphone.

Customized WAV files can be loaded on the touchpanel

to add dimension to the touchscreen graphics and

pushbuttons with personalized sounds, button feedback,

and voice prompts.

Cresnet®—Cresnet communication ensures compatibility

with Crestron's complete product line.

Versatile Flush-Mount Design—The TPS-4000L is

designed for easy flush-mount installation in a wall, lectern

or similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

A light sensor is built in to automatically adjust the display

brightness for optimal visibility under varying light conditions.



10.4" active matrix touchscreen display



Isys graphics engine |640 x 480 resolution



Synapse Image Rendering Algorithm



High-performance video with gamma correction



Built-in amplified speakers and microphone



5 engravable hardbuttons |Built-in light sensor



Stylish flush mount design |Optional rack mount



Cresnet communications

AVAILABLE MODELS

TPS-4000LA

Isys 10.4" Wall Mount Touchpanel, Almond

TPS-4000LB

Isys 10.4" Wall Mount Touchpanel, Black

TPS-4000LW

Isys 10.4" Wall Mount Touchpanel, White

74

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

10.4" Wall Mount Touchpanel TPS-4000L

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 10.4 inch (26.4 cm) diagonal Aspect Ratio: 4:3 VGA Resolution: 640 x 480 pixels Brightness: 450 nits (cd/m Contrast: 600:1 Color Depth: 18-bit, 256k colors Illumination: Edgelit fluorescent Viewing Angle: ±70° horizontal, +45°/-55° vertical Touchscreen: Resistive membrane

Buttons

(5) Replaceable engravable buttons with red feedback LEDs, programmable

Light Sensor

Programmable photosensor for automatic backlight dimming

Processor

CPU: 32-bit Freescale ColdFire

TPS-4000L using conventional AV sources

2

)

®

Microprocessor

Memory

DRAM: 8 MB Flash: 8 MB Maximum Project Size: 7 MB

Graphic Engine

Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse image rendering algorithm; multi-mode objects, color key video windowing

Video

Signal Types: Auto-detecting composite/S-Video Formats: NTSC 480i or PAL 576i Color Depth: 18-bit; 262,144 colors Features: Single-window scalable to full-screen, time base

correction, gamma correction

Audio

Hardware Features: Built-in microphone with defeatable AGC, built-in amplified speakers, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate Amplification: 5 Watts X2 channels for built-in speakers (mono)

Connectors

RS-232: (1) 6-pin RJ11 female Serial connection to PC for loading screen files Touchscreen output to PC or Telestrator Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

NET: (1) 4-pin 3.5mm detachable terminal block Connects to Cresnet control network

MIC OUT: (1) 3-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level output Output Impedance: 600 ohms balanced, 300 ohms unbalanced Maximum Output Level: 2 V

AUDIO INPUT: (1) 6-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level input Input Impedance: 20k ohms balanced, 10k ohms unbalanced Maximum Input Level: 4 V

NTSC/PAL INPUT (Balanced): (1) 6-pin 3.5mm detachable terminal block, composite or S-Video input, balanced Input Impedance: 100 ohms Connects to any Crestron CAT5 balanced video source

NTSC/PAL INPUT (Coaxial): (2) 2-pin 3.5mm detachable terminal blocks, composite or S-Video input Input Impedance: 75 ohms

Power Requirements

Cresnet Power Usage: 22 Watts (0.92 Amp @ 24 Volts DC)

RMS

balanced, 1 V

RMS

balanced, 2 V

RMS

unbalanced

RMS

unbalanced

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

75

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-4000L Isys

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Black metal, flush mountable, 6U 19” rack-mountable (rack kit sold separately) Faceplate: Injection-molded plastic; white, black, or almond

Dimensions

Height: 8.56 in (21.74 cm) Width: 11.97 in (30.40 cm) Depth: 2.99 in (7.60 cm)

Weight

4.6 lbs (2.1 kg)

®

10.4" Wall Mount Touchpanel (continued)

TPS-4000L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



3100L/4000L-BTN

Engravable Button Cap



TPS-FPAR4000L

Architectural Faceplates



BB-4000L

Wall Mount Back Box

76



PMK-4000L

Pre-construction Wall Mount Kit



TMK-4000L

Trim Ring



MMK-4000L

Mud Ring

www.crestron.com | 800.237.2041 | 201.767.3400



WMKT-4000L

Lectern or Post-construction Wall Mount Kit w/Trim Ring



WMKM-4000L

Post-construction Wall Mount Kit w/Mud Ring



RMK-4000L

Rack Mount Kit



ST-PK

Programming Cable Kit



CresCAT®D

Crestron Home®CAT5 Balanced AV Cable

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

6.4" Wall Mount Touchpanel TPS-3100L

The Isys TPS-3100L presents a state-of-the-art flush mount

touchpanel solution complete with integrated video and

audio. A vibrant 640 x 480 6.4" touchscreen display delivers

astounding graphical performance to support a host of

control applications. The addition of 5 programmable

hardbuttons provides quick pushbutton access to

commonly used functions.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, lighting, climate

control, and much more, providing a wide-open canvas for

the creation of custom control screens perfectly tailored to

the needs of the end-user. Touchpanels do away with piles

of remote controls, cryptic front panels, and cluttered wall

switches, affording true "one-touch" control over a broad

range of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron's entire touchpanel lineup. Under the hood, the

Isys engine produces astonishing full-color graphics with

lightning-fast performance and incredible versatility. A

32-bit Freescale ColdFire®Microprocessor combines with

an ingenious and ultra efficient operating system to support

high-resolution graphics and images, dynamic text, full-

motion video, animations, multimode objects (buttons,

frames, gauges, and sliders), popup/dropdown subpages,

and more.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

Video with Advanced Gamma Correction—Video

capability is standard in the TPS-3100L, accepting any

NTSC/PAL composite or S-Video source, scalable for

display in any sized window or full screen. Advanced

gamma correction and built-in time base correction ensure

accurate color reproduction and a jitter-free image.

Tactile Pushbuttons—Five programmable “hard”

buttons are included to provide quick pushbutton access

to commonly used functions. Individual button caps are

custom engravable for easy operation at a glance.

Built-in Audio—Audio features include built-in amplified

speakers, volume control, line-level stereo input, and a

microphone with automatic gain control and line-level

output. The speakers may be used to amplify signals

from TV and video sources, or to support programmable

intercom functionality in combination with the microphone.

Customized WAV files can be loaded on the touchpanel

to add dimension to the touchscreen graphics and

pushbuttons with personalized sounds, button feedback,

and voice prompts.

®

Cresnet

with Crestron's complete product line.

Versatile Flush-Mount Design—The TPS-3100L is

designed for easy flush-mount installation in a wall, lectern

or similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

A light sensor is built in to automatically adjust the display

brightness for optimal visibility under varying light conditions.



—Cresnet communication ensures compatibility

6.4" active matrix touchscreen display

Isys graphics engine |640 x 480 resolution

Synapse Image Rendering Algorithm

High-performance video with gamma correction

Built-in amplified speakers and microphone

5 engravable hardbuttons |Built-in light sensor

Stylish flush mount design |Optional rack mount

Cresnet communications

AVAILABLE MODELS

TPS-3100LA

Isys 6.4" Wall Mount Touchpanel, Almond

TPS-3100LB

Isys 6.4" Wall Mount Touchpanel, Black

TPS-3100LW

Isys 6.4" Wall Mount Touchpanel, White

wall mount touchpanels

> continued

www.crestron.com | 800.237.2041 | 201.767.3400

77

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-3100L Isys

®

6.4" Wall Mount Touchpanel (continued)

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 6.4 inch (16.3 cm) diagonal Aspect Ratio: 4:3 VGA Resolution: 640 x 480 pixels Brightness: 400 nits (cd/m Contrast: 250:1 Color Depth: 18-bit, 256k colors Illumination: Edgelit fluorescent Viewing Angle: ±60° horizontal, +40°/-55° vertical Touchscreen: Resistive membrane

Buttons

(5) Replaceable engravable buttons with red feedback LEDs, programmable

Light Sensor

Programmable photosensor for automatic backlight dimming

Processor

CPU: 32-bit Freescale ColdFire

TPS-3100L using conventional AV sources

2

)

®

Microprocessor

wall mount touchpanels

Memory

DRAM: 8 MB Flash: 8 MB Maximum Project Size: 7 MB

Graphic Engine

Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse image rendering algorithm; multi-mode objects, color key video windowing

Video

Signal Types: Auto-detecting composite/S-Video Formats: NTSC 480i or PAL 576i Color Depth: 18-bit; 262,144 colors Features: Single-window scalable to full-screen,

time base correction, gamma correction

Audio

Hardware Features: Built-in microphone with defeatable AGC, built-in amplified speakers, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate Amplification: 5 Watts X2 channels for built-in speakers (mono)

Connectors

RS-232: (1) 6-pin RJ11 female Serial connection to PC for loading screen files Touchscreen output to PC or Telestrator Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

NET: (1) 4-pin 3.5mm detachable terminal block Connects to Cresnet control network

MIC OUT: (1) 3-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level output Output Impedance: 600 ohms balanced, 300 ohms unbalanced Maximum Output Level: 2 V

AUDIO INPUT: (1) 6-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level input Input Impedance: 20k ohms balanced, 10k ohms unbalanced Maximum Input Level: 4 V

NTSC/PAL INPUT (Balanced): (1) 6-pin 3.5mm detachable terminal block, composite or S-Video input, balanced; Input Impedance: 100 ohms Connects to any Crestron CAT5 balanced video source

NTSC/PAL INPUT (Coaxial): (2) 2-pin 3.5mm detachable terminal blocks, composite or S-Video input; Input Impedance: 75 ohms

RMS

balanced, 1 V

RMS

balanced, 2 V

RMS

unbalanced

RMS

unbalanced

78

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

6.4" Wall Mount Touchpanel TPS-3100L

Power Requirements

Cresnet Power Usage: 20 Watts (0.84 Amp @ 24 Volts DC)

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Black metal, flush mountable, 5U 19” rack-mountable (rack kit sold separately) Faceplate: Injection-molded plastic; white, black, or almond

Dimensions

Height: 6.06 in (15.39 cm) Width: 8.57 in (21.77 cm) Depth: 2.99 in (7.60 cm)

Weight

2.8 lbs (1.3 kg )

TPS-3100L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



3100L/4000L-BTN

Engravable Button Cap



TPS-FPAR3100L

Architectural Faceplates



BB-3100L

Wall Mount Back Box

www.crestron.com | 800.237.2041 | 201.767.3400



PMK-3100L

Pre-construction Wall Mount Kit



TMK-3100L

Trim Ring



MMK-3100L

Mud Ring



WMKT-3100L

Lectern or Post-construction Wall Mount Kit w/Trim Ring



WMKM-3100L

Post-construction Wall Mount Kit w/Mud Ring



RMK-3100L

Rack Mount Kit



ST-PK

Programming Cable Kit



CresCAT®D

Crestron Home®CAT5 Balanced AV Cable

79

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-2000L Isys

The TPS-2000L provides Isys style and performance in a

compact wall mount design. Featuring a vivid 5" active

matrix color touchscreen plus 10 engravable pushbuttons

and integrated video and audio, the TPS-2000L puts a world

of control capability in the space of a common light switch.

Crestron touchpanels offer an ideal user-interface for

controlling everything from audio distribution to complete

home automation, providing a wide-open canvas for the

creation of custom control screens perfectly tailored to the

needs of the end-user. Touchpanels do away with piles of

remote controls, cryptic front panels, and cluttered wall

switches, affording true “one-touch” control over a broad

range of complex devices and systems.

wall mount touchpanels

Isys®—Isys power and beauty are infused throughout

Crestron’s entire touchpanel lineup. Under the hood, the

Isys engine produces astonishing full-color graphics with

lightning-fast performance and incredible versatility. A

32-bit Freescale ColdFire®Microprocessor combines with

an ingenious and ultra efficient operating system to support

high-resolution graphics and images, dynamic text, full-

motion video, animations, multimode objects (buttons,

frames, gauges, and sliders), popup/dropdown subpages,

and more.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

®

5"Wall Mount Touchpanel

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

Video with 2:1 Virtual Pan/Zoom—A full motion video

input provides an exceptional utility for viewing security

cameras and other video sources on the touchscreen

display. The ingenious virtual pan/tilt function with 2:1

digital zoom achieves "motorized pan/tilt" behavior, even

from fixed-position cameras. Simply dragging a fingertip

across the screen lets the user zero in on any subject for

the best view. The video image is also scalable for display

in any sized window or full screen. Advanced gamma

correction and built-in time base correction ensure

accurate color reproduction and a jitter-free image.

Tactile Pushbuttons—Ten programmable “hard”

buttons are included to provide quick pushbutton access

to commonly used functions. Individual button caps are

custom engravable for easy operation at a glance.

Built-in Audio—Audio features include built-in amplified

speakers, volume control, line-level input, and a microphone

with automatic gain control and line-level output. The

speakers and microphone are ideal to supportprogrammable

intercom or baby-monitor capability. Customized WAV files

can be loaded on the touchpanel to add dimension to the

touchscreen graphics and pushbuttons with personalized

sounds, button feedback, and voice prompts.

Cresnet®—Cresnet communication ensures compatibility

with Crestron's complete product line.

Versatile Flush-Mount Design—The TPS-2000L features an

eye-pleasing flush-mount design furnished standard with white

faceplate and buttons. Optional Designer faceplates are offered

in a variety of elegant metallic finishes with engravable buttons

to complement any decor. Numerous versatile mounting

options are available to facilitate a clean installation in any wall

or similar flat surface. To accommodate a range of mounting

heights, the display image may be inverted to attain an optimum

viewing angle. A light sensor is also built in to automatically

adjust the display brightness for optimal visibility under varying

light conditions.

80

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels



5" active matrix touchscreen display



Isys graphics engine |320 x 234 resolution



Synapse Image Rendering Algorithm



Integrated video with 2:1 virtual pan/zoom



Built-in amplified speakers and microphone



10 engravable hardbuttons |Built-in light sensor



Cresnet communications



Stylish flush mount design

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 5 inch (12.7 cm) diagonal Resolution: 320 x 234 pixels Color Depth: 16-bit, 64k colors Illumination: Edgelit fluorescent Viewing Angle: ±65° horizontal, +40°/-65° vertical (invertible) Touchscreen: Resistive membrane

TPS-2000L using conventional AV sources

Isys®5

"

Wall Mount Touchpanel TPS-2000L

Buttons

(10) Replaceable engravable buttons, programmable

Light Sensor

Programmable photosensor for automatic backlight dimming

Processor

CPU: 32-bit Freescale ColdFire

Memory

DRAM: 8 MB Flash: 2 MB Maximum Project Size: 1.5 MB

Graphic Engine

Isys engine, 16-bit non-palette graphics; 65,536 colors; Synapse image rendering algorithm; multi-mode objects, color key video windowing

Video

Signal Types: Composite Formats: NTSC 480i or PAL 576i Color Depth: 16-bit; 65,536 colors Features: Single-window scalable to full-screen, time base

correction, gamma correction, 2:1 virtual pan/zoom

Audio

Hardware Features: Built-in microphone with defeatable AGC, built-in amplified speakers, internal volume control and audio mixer Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate, ~3 minutes capacity Amplification: 2 Watts for built-in speakers (mono)

Connectors

NET: (1) 4-pin 3.5mm detachable terminal block Connects to Cresnet control network

AUDIO/VIDEO: (1) 8-pin 3.5mm detachable terminal block; Comprises:

MIC OUT: (1) Balanced/unbalanced mono line-level output Output Impedance: 600 ohms balanced, 300 ohms unbalanced Maximum Output Level: 2 V

AUDIO IN: (1) Balanced/unbalanced mono line-level input Input Impedance: 20k ohms balanced, 10k ohms unbalanced Maximum Input Level: 4 V

VIDEO IN: (1) Composite video input, balanced Input Impedance: 100 ohms (compatible with 75 ohm coaxial) Input Level: 1 V Connects to any Crestron CAT5 balanced or coaxial video source

P-P

®

Microprocessor

RMS

balanced, 1 V

RMS

balanced, 2 V

RMS

unbalanced

RMS

unbalanced

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

81

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-2000L Isys

Power Requirements

Cresnet Power Usage: 16 Watts (0.67 Amp @ 24 Volts DC)

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Injection-molded plastic, white, flush mountable (wall/lectern mounting kits sold separately) Faceplate: Injection-molded plastic, white (optional colors and finishes available)

Dimensions

Height: 4.77 in (12.10 cm) Width: 6.73 in (17.10 cm) Depth: 3.43 in (8.71 cm)

Weight

1.41 lbs (0.64 kg)

®

5"Wall Mount Touchpanel (continued)

TPS-2000L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



1000/2000-BTN

Engravable Button Cap



TPS-FP

Designer and Standard Faceplates



TPS-FPAR2000L

Architectural Faceplates

82



BB-2000L

Wall Mount Back Box



PMK-2000L

Pre-construction Wall Mount Kit



TMK-2000L

Trim Ring

www.crestron.com | 800.237.2041 | 201.767.3400



MMK-2000L

Mud Ring



WMKT-2000L

Lectern or Post-construction Wall Mount Kit w/Trim Ring



WMKM-2000L

Post-construction Wall Mount Kit w/Mud Ring



TPS-WPK

Water Resistant Cover Kit



CresCAT®D

Crestron Home®CAT5 Balanced AV Cable

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

®

Isys

3.6" Wall Mount Touchpanel TPS-4L

The TPS-4L compact wall mount touchpanel delivers

amazing touchpanel performance at an incredibly low cost.

In the space of a common light switch, the TPS-4L packs a

bright, high-contrast 3.6" active matrix color touchscreen

with astonishing 16-bit Isys color graphics and 10 backlit

pushbuttons.

Crestron touchpanels offer an ideal user-interface for

controlling everything from audio distribution to complete

home automation, providing a wide-open canvas for the

creation of custom control screens perfectly tailored to the

needs of the end-user. Touchpanels do away with piles of

remote controls, cryptic front panels, and cluttered wall

switches, affording true “one-touch” control over a broad

range of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron’s entire touchpanel lineup. Under the hood,

the TPS-4L offers vibrant 16-bit color depth to produce

eye-catching graphics and high-res images. The Isys

engine supports dynamic graphics and text, full-motion

animations, multimode objects, and PNG translucency –

all with astonishing speed.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

Tactile Pushbuttons—Ten programmable “hard” buttons

are included for quick pushbutton access to commonly used

functions. Translucent white backlit buttons and a custom

engravable faceplate simplify operation while providing an

alluring appearance.

Audio Feedback—Customized WAV files can be loaded

on the touchpanel to add dimension to the touchscreen

graphics and pushbuttons with personalized sounds, button

feedback, and voice prompts.

High-Speed Connectivity—Both Cresnet and high-speed

Ethernet are standard on the TPS-4L, providing for easy

network integration and seamless communications with

Crestron control systems.

Versatile Flush-Mount Design—The TPS-4L is designed

for easy flush-mount installation in a wall, lectern or similar

flat surface. Mounting clips furnished with the TPS-4L

facilitate a clean installation in post-construction drywall

and many furniture applications. Additional mounting options

are available.

10 Designer Colors—Optional faceplates are available in a

choice of 10 designer colors to match any décor. Faceplates

may be ordered with or without custom engraving.



3.6" active matrix color touchscreen display



16-bit Isys graphics |320 x 240 resolution



Synapse Image Rendering Algorithm



10 white backlit pushbuttons and engravable faceplate



WAV file audio feedback



Ethernet and Cresnet communications



Stylish flush wall mount design |10 designer colors

AVAILABLE MODELS

TPS-4LA

Isys 3.6” Wall Mount Touchpanel, Almond

TPS-4LB

Isys 3.6” Wall Mount Touchpanel, Black

TPS-4LW

Isys 3.6” Wall Mount Touchpanel, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 3.6 inch (9.1 cm) diagonal Aspect Ratio: 4:3 QVGA Resolution: 320 x 240 pixels Brightness: 300 nits (cd/m Contrast: 300:1 Color Depth: 16-bit, 64k colors Illumination: Edgelit LED Viewing Angle: ±80° horizontal, +80°/-50° vertical Touchscreen: Resistive membrane

Buttons

Functions: (10) Translucent white backlit pushbuttons, programmable Reset: (1) Miniature pushbutton behind faceplate, used to reset the touchpanel

2

)

wall mount touchpanels

> continued

www.crestron.com | 800.237.2041 | 201.767.3400

83

ISYS®WALL MOUNT TOUCHPANELS

Isys®Wall Mount Touchpanels

TPS-4L Isys

Processor

CPU: 32-bit Freescale ColdFire

Memory

DRAM: 16 MB Flash: 8 MB Maximum Project Size: 7 MB

Graphic Engine

Isys engine; 16-bit non-palette graphics; 65,536 colors; Synapse image rendering algorithm; multi-mode objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects

TPS-4L in a Typical Application

®

3.6" Wall Mount Touchpanel (continued)

®

Microprocessor

wall mount touchpanels

Ethernet

10BaseT/100BaseTX, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, IEEE 802.3U compliant

Audio

Hardware Features: Built-in amplified speaker (rear), internal volume control

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate Amplification: 1 Watt for built-in speaker

Connectors

NET: (1) 4-pin 3.5mm detachable terminal block, Cresnet slave port Connects to Cresnet control network

LAN: (1) 8-wire RJ45 with 2 LED indicators 10/100BaseT Ethernet port Green LED indicates link status Yellow LED indicates Ethernet activity

Power Requirements

Cresnet Power Usage: 5 Watts (0.21 Amp @ 24 Volts DC)

Environmental

Temperature: 41° to 104°F (5° to 40°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Injection-molded plastic, flush-mountable using clips provided (additional mounting kits available) Faceplate: Injection-molded plastic

Dimensions

Height: 4.54 in (11.52 cm) Width: 6.19 in (15.73 cm) Depth: 2.13 in (5.40 cm)

Weight

15.0 oz (0.43 kg)

84

AVAILABLE ACCESSORIES



TPS/TPMC-4L-FP

Engravable Faceplate – 10 designer colors



BB-4L

Pre-Construction Wall Mount Back Box



PMK-4L

Pre-Construction Wall Mount Kit



TMK-4L

Trim Ring



MMK-4L

Mud Ring

www.crestron.com | 800.237.2041 | 201.767.3400



WMKT-4L

Lectern or Post-Construction Wall Mount Kit with Trim Ring



WMKM-4L

Post-Construction Wall Mount Kit with Mud Ring



WMKB-4L

Replacement Wall Mount Clips



Cresnet

Control Cable

®

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

Isys®G-Series 15" Wall Mount Touchpanel w/QuickMedia

Crestron’s Isys G-Series touchpanels deliver a higher

level of performance with dual-window video, RGB, and

HDTV display to meet the demands of today's sophisticated

control and automation applications. Incorporating modern

styling in a versatile flush mount design, the Isys

TPS-15G-QM-L features a spectacular 15" XGA display

offering a wide viewing angle with exceptional brightness

and contrast for stunning control graphics, high-resolution

images, and full-motion HD video.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, home

automation, and much more, providing a wide-open

canvas for the creation of custom control screens

tailored to the needs of the end-user. Touchpanels

do away with piles of remote controls, cryptic control

panels and cluttered wall switches, simultaneously

expanding and simplifying control over a broad range

of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron's entire touchpanel lineup. Under the hood, the

TPS-15G-QM-L offers vibrant 24-bit color depth with 8-bit

alpha channel transparency to produce incredible 3D

graphics and high-res images. The Isys engine supports

dynamic graphics and text, full-motion animations,

multimode objects, and PNG translucency – all with

astonishing speed.

Synapse™—Crestron’s exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

Dual-Window HD Video and RGB2—The TPS-15G-QM-L

can simultaneously display two fully-scalable, full-motion

video windows, each supporting standard video, HDTV, and

high-resolution RGB signals from external AV and computer

sources. Discrete video scalers with motion adaptive

deinterlacing bring out the highest detail, minimizing visible

scan lines and motion artifacts for a truly remarkable

picture. Advanced gamma correction and built-in time

base correction ensure accurate color reproduction

and a jitter-free image.

TM

TPS-15G-QM-L

Touch-the-PC—Crestron’s exclusive “Touch-the-PC”

technology allows real-time touchpanel navigation of any

Windows PC through a direct high-speed serial connection.

Built-in Annotation—Built-in annotation capability

allows presenters to write or draw over computer and

video images on the touchscreen using a finger or stylus,

and output the image live for audience display.

High-Quality Audio2—The high-powered biamplified

speaker system provides amplification for external AV

sources, and supports intercom functionality in combination

with the integrated microphone. Customized WAV files

can be loaded on the touchpanel to add dimension to the

touchscreen graphics with personalized sounds, button

feedback, and voice prompts.

QuickMedia™—All audio and video connections are

facilitated using Crestron's revolutionary QuickMedia

transport, providing a flexible yet remarkably simple wiring

solution. Through QuickMedia (QM), the TPS-15G-QM-L

interfaces directly with other QM-based products using

inexpensive CAT5e type cable.

The two QM Input ports each support non-interlaced RGB

up to 1600 X 1200 pixels, as well as composite, S-Video, and

component video signals. QM Input #1 includes software-

adjustable compensation for cable runs up to 450 feet; Input

#2 allows up to 300 feet for video and HDTV, and shorter

distances for RGB computer signals. Both QM Inputs receive

audio signals from external microphone and stereo line

level sources.

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

85

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

TPS-15G-QM-L Isys

The QM Output port allows RGB output of the touchpanel

screen image to feed a display device for audience

presentation. A 24-bit digital audio signal is also present

for distribution of the internal microphone signal.

High-Speed Connectivity—Both Cresnet and high-speed

Ethernet are standard on the TPS-15G-QM-L, providing for

easy network integration and seamless communications with

Crestron control systems. USB connectivity is also included

for connection of an external mouse, touchscreen, or similar

pointing device1.

Versatile Flush Mount Design—The TPS-15G-QM-L is

designed for easy flush-mount installation in a wall, lectern

or similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

Five backlit pushbuttons are also provided, allowing for

quick access to commonly used functions.

TPS-15G-QM-L using a single

QuickMedia Transmitter

®

G-Series 15" Wall Mount Touchpanel w/QuickMediaTM(continued)

wall mount touchpanels



15" active matrix touchscreen display |1024 x 768 resolution



24-Bit Isys graphics |Synapse image rendering algorithm



Dual-window full-motion video, HDTV and RGB display



Built-in biamplified speaker system and microphone



QuickMedia AV connectivity |audience presentation output



High-speed Ethernet and Cresnet communications



Built-in real-time annotation



Backlit “Softkey” pushbuttons



Wall, lectern, and rack mounting options



Available in black or white

2

AVAILABLE MODELS

TPS-15G-QM-LB

Isys G-Series 15" Wall Mount Touchpanel, Black

TPS-15G-QM-LW

Isys G-Series 15" Wall Mount Touchpanel, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 15 inch (38.1 cm) diagonal Aspect Ratio: 4:3 XGA Resolution: 1024 x 768 pixels Brightness: 350 nits (cd/m Contrast: 700:1 Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±85° horizontal, ±85° vertical Touchscreen: Resistive membrane

Processor

CPU: 32-bit Freescale ColdFire® Microprocessor

Memory

DDR RAM: 128 MB Flash: 64 MB Compact Flash: Accepts up to 4GB Type II CF (not included) Maximum Project Size: 160 MB

Graphic Engine

Isys engine, 24-bit non-palette graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Ethernet

10BaseT/100BaseTX, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, IEEE 802.3U compliant

2

)

86

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

Isys®G-Series 15" Wall Mount Touchpanel w/QuickMedia

Video/RGB

Signal Types: RGB and auto-detecting composite, S-Video, or component video Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p, HDTV 720p & 1080i; RGB(VGA) up to UXGA 1600 x 1200

Color Depth: 24-bit, 16.7M colors Features: Dual-window each scalable to full-screen, time base

correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate D-A Conversion (QM): 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel

Connectors

QM IN 1: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or (1) Auto-detecting component (YP or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200); Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: 0 - 22 nS Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 450 ft (aggregate distance from QM origination)

QM IN 2: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or

(1) Auto-detecting component (YP

or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200); Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz

2

BPR

), S-Video (Y/C),

BPR

), S-Video (Y/C),

TM

TPS-15G-QM-L

Delay Skew Compensation: none Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length (Video/HDTV): 300 ft (aggregate distance from QM origination); Maximum Cable Length (RGB @ 60Hz): 216 ft for 640x480, 140 ft for 800x600, 84 ft for 1024x768, 70 ft for 1280x768, 30 ft for 1600x1200 (using CresCAT-QM or CresCAT-IM cable)

QM OUT 1: (1) 8-wire RJ45 female, QuickMedia output port containing RGB (same as touchscreen), WAV file audio, and internal microphone signals; RGB Format: RGBHV RGB Output Resolution, Non-interlaced: 1024 x 768 pixels @ 60Hz Connects to QM input port of any QuickMedia device via CresCAT-QM or CresCAT-IM cable

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 12mW per channel Minimum Impedance: 32 ohms

RS-232: (1) 6-pin RJ11 female Computer console, touch output, or mouse/touch input port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

LAN: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates link status Yellow LED indicates Ethernet activity

24VDC: (1) 2.1mm barrel DC power jack Do not use

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet Slave Port, connects to Cresnet control network

USB: (2) USB Type A female USB 1.1 ports for mouse or touchscreen input

GND: (1) 6-32 screw, chassis ground lug

MEMORY EXP.: (1) Type II Compact Flash card slot for

memory expansion

PC CARD A – B: (2) Type II PC Card slots (reserved for future applications)

Power Requirements

Cresnet Power Usage: 75 Watts (3.13 Amps @ 24 Volts DC)

Note: 24VDC jack should not be used.

Environmental

Temperature: 41° to 113°F (5° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 9U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

1

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

87

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

TPS-15G-QM-L Isys

Dimensions

Height: 13.59 in (34.52 cm) Width: 14.17 in (35.99 cm) Depth: 3.80 in (9.66 cm)

Weight

9.8 lbs (4.4 kg)

1

See Web site or contact Crestron for a current list of

compatible devices.

2

One or more QuickMedia devices are required to facilitate the input and output of audio, video, and RGB signals. See the “MediaManager” section of this catalog or visit the Crestron Website for more information about QuickMedia.

®

G-Series 15" Wall Mount Touchpanel w/QuickMediaTM(continued)

TPS-15G-QM-L in a QuickMedia System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-15L

Pre-Construction Wall Mount Back Box



PMK-15L

Pre-Construction Wall Mount Kit



TMK-15L

Trim Ring

88



MMK-15L

Mud Ring



WMKT-15L

Lectern or Post-Construction Wall Mount Kit with Trim Ring



WMKM-15L

Post-Construction Wall Mount Kit with Mud Ring

www.crestron.com | 800.237.2041 | 201.767.3400



RMK-15L

Rack Mount Kit



QM-TX

QuickMedia Transmitter



TPS/TPMC-CBL-T

Triamese Interface Cables



ST-PK

Programming Cable Kit



CresCAT®QM

QuickMedia™ Cable



CresCAT®IM

iMedia Cable

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

Isys®G-Series 12" Wall Mount Touchpanel w/QuickMedia

Crestron’s Isys G-Series touchpanels deliver a higher level

of performance with dual-window video, RGB, and HDTV

display to meet the demands of today's sophisticated

control and automation applications. Incorporating

modern styling in a versatile flush mount design, the Isys

TPS-12G-QM-L features a spectacular 12" SVGA display

offering a wide viewing angle with exceptional brightness

and contrast for stunning control graphics, high-resolution

images, and full-motion HD video.

Crestron touchpanels offer an ideal user-interface for

multimedia presentation, videoconferencing, home

automation, and much more, providing a wide-open canvas

for the creation of custom control screens tailored to the

needs of the end-user. Touchpanels do away with piles of

remote controls, cryptic control panels and cluttered wall

switches, simultaneously expanding and simplifying control

over a broad range of complex devices and systems.

Isys®—Isys power and beauty are infused throughout

Crestron’s entire touchpanel lineup. Under the hood,

the TPS-12G-QM-L offers vibrant 24-bit color depth with

8-bit alpha channel transparency to produce incredible 3D

graphics and high-res images. The Isys engine supports

dynamic graphics and text, full-motion animations,

multimode objects, and PNG translucency – all with

astonishing speed.

Synapse™—Crestron's exclusive Synapse Image Rendering

Algorithm enables system programmers to produce amazing

graphics - faster and easier. Advanced antialiasing delivers

crisper, sharper objects and text. Enhanced 3D effects add

new depth and style. And because Synapse is native to the

touchpanel, memory requirements and upload time are

substantially reduced.

Dual-Window HD Video and RGB2—The TPS-12G-QM-L

can simultaneously display two fully-scalable, full-motion

video windows, each supporting standard video, HDTV,

and high-resolution RGB signals from external AV and

computer sources. Discrete video scalers with motion

adaptive deinterlacing bring out the highest detail,

minimizing visible scan lines and motion artifacts for a

truly remarkable picture. Advanced gamma correction

and built-in time base correction ensure accurate color

reproduction and a jitter-free image.

TM

TPS-12G-QM-L

Touch-the-PC—Crestron’s exclusive “Touch-the-PC”

technology allows real-time touchpanel navigation of any

Windows PC through a direct high-speed serial connection.

Built-in Annotation—Built-in annotation capability allows

presenters to write or draw over computer and video images

on the touchscreen using a finger or stylus, and output the

image live for audience display.

High-Quality Audio2—The high-powered biamplified

speaker system provides amplification for external AV

sources, and supports intercom functionality in combination

with the integrated microphone. Customized WAV files can

be loaded on the touchpanel to add dimension to the

touchscreen graphics with personalized sounds, button

feedback, and voice prompts.

QuickMedia™—All audio and video connections are

facilitated using Crestron's revolutionary QuickMedia

transport, providing a flexible yet remarkably simple wiring

solution. Through QuickMedia (QM), the TPS-12G-QM-L

interfaces directly with other QM-based products using

inexpensive CAT5e type cable.

The two QM Input ports each support non-interlaced RGB

up to 1600 X 1200 pixels, as well as composite, S-Video, and

component video signals. QM Input #1 includes software

adjustable compensation for cable runs up to 450 feet; Input #2

allows up to 300 feet for video and HDTV, and shorter distances

for RGB computer signals. Both QM Inputs receive audio signals

from external microphone and stereo line level sources.

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

89

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

TPS-12G-QM-L Isys

The QM Output port allows RGB output of the touchpanel

screen image to feed a display device for audience

presentation. A 24-bit digital audio signal is also present

for distribution of the internal microphone signal.

High-Speed Connectivity—Both Cresnet and high-speed

Ethernet are standard on the TPS-12G-QM-L, providing for

easy network integration and seamless communications with

Crestron control systems. USB connectivity is also included

for connection of an external mouse, touchscreen, or similar

pointing device1.

Versatile Flush Mount Design—The TPS-12G-QM-L is

designed for easy flush-mount installation in a wall, lectern

or similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

Five backlit pushbuttons are also provided, allowing for quick

access to commonly used functions.

TPS-12G-QM-L using a single QuickMedia Transmitter

®

G-Series 12" Wall Mount Touchpanel w/QuickMediaTM(continued)

wall mount touchpanels



12" active matrix touchscreen display |800 x 600 resolution



24-Bit Isys graphics |Synapse image rendering algorithm



Dual-window full-motion video, HDTV and RGB display



Built-in biamplified speaker system and microphone



QuickMedia AV connectivity |audience presentation output



High-speed Ethernet and Cresnet communications



Built-in real-time annotation



Backlit “Softkey” pushbuttons



Wall, lectern, and rack mounting options



Available in black or white

2

AVAILABLE MODELS

TPS-12G-QM-LB

Isys G-Series 12" Wall Mount Touchpanel, Black

TPS-12G-QM-LW

Isys G-Series 12" Wall Mount Touchpanel, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 12 inch (30.5 cm) diagonal Aspect Ratio: 4:3 SVGA Resolution: 800 x 600 pixels Brightness: 400 nits (cd/m Contrast: 300:1 Color Depth: 18-bit, 256k colors Illumination: Backlit fluorescent Viewing Angle: ±70° horizontal, +45/-55° vertical Touchscreen: Resistive membrane

Processor

CPU: 32-bit Freescale ColdFire Processing Speed: 410 MIPS (Dhrystone 2.1 benchmark)

Memory

DDR RAM: 128 MB Flash: 64 MB Compact Flash: Accepts up to 4GB Type II CF (not included) Maximum Project Size: 160 MB

Graphic Engine

Isys engine, 24-bit non-palette graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

2

)

®

Microprocessor

90

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

Isys®G-Series 12" Wall Mount Touchpanel w/QuickMedia

Ethernet

10BaseT/100BaseTX, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, IEEE 802.3U compliant

Video/RGB

Signal Types: RGB and auto-detecting composite, S-Video, or component video Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p, HDTV 720p & 1080i; RGB(VGA) up to UXGA 1600 x 1200

Color Depth: 24-bit, 16.7M colors Features: Dual-window each scalable to full-screen, time base

correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer

Audio Feedback (WAV): 8-bit PCM, mono, 8 kHz sampling rate D-A Conversion (QM): 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel

Connectors

QM IN 1: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or (1) Auto-detecting component (YP or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200); Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: 0 - 22 nS Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 450 ft (aggregate distance from QM origination)

QM IN 2: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or

(1) Auto-detecting component (YP

or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200);

2

BPR

), S-Video (Y/C),

BPR

), S-Video (Y/C),

TM

TPS-12G-QM-L

Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: none Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length (Video/HDTV): 300 ft (aggregate distance from QM origination); Maximum Cable Length (RGB @ 60Hz): 216 ft for 640x480, 140 ft for 800x600, 84 ft for 1024x768, 70 ft for 1280x768, 30 ft for 1600x1200 (using CresCAT-QM or CresCAT-IM cable)

QM OUT 1: (1) 8-wire RJ45 female, QuickMedia output port containing RGB (same as touchscreen), WAV file audio, and internal microphone signals; RGB Format: RGBHV RGB Output Resolution, Non-interlaced: 800 x 600 pixels @ 60Hz Connects to QM input port of any QuickMedia device via CresCAT-QM or CresCAT-IM cable

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 12mW per channel Minimum Impedance: 32 ohms

RS-232: (1) 6-pin RJ11 female Computer console, touch output, or mouse/touch input port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

LAN: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates link status Yellow LED indicates Ethernet activity

24VDC: (1) 2.1mm barrel DC power jack 24V DC power input (power supply sold separately)

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet Slave Port, connects to Cresnet control network

USB: (2) USB Type A female USB 1.1 ports for mouse or touchscreen input

GND: (1) 6-32 screw, chassis ground lug

MEMORY EXP.: (1) Type II Compact Flash card slot

For memory expansion

PC CARD A – B: (2) Type II PC Card slots (reserved for future applications)

Power Requirements

24VDC: 50 Watts (2.08 Amps) @ 24 Volts DC (PW-2420RU power supply sold separately) Cresnet Power Usage: 50 Watts (2.08 Amps @ 24 Volts DC)

Note: Power should only be applied to the 24VDC power jack OR the NET port, not both.

1

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

91

ISYS®WALL MOUNT TOUCHPANELS

Isys®G-Series Wall Mount Touchpanels

TPS-12G-QM-L Isys

Environmental

Temperature: 41° to 113°F (5° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 8U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 11.80 in (29.98 cm) Width: 13.61 in (34.57 cm) Depth: 3.80 in (9.66 cm)

Weight

8.2 lbs (3.8 kg)

1

See Web site or contact Crestron for a current list of compatible devices.

2

One or more QuickMedia devices are required to facilitate the input and output of audio, video, and RGB signals. See the “MediaManager” section of this catalog or visit the Crestron Website for more information about QuickMedia.

®

G-Series 12" Wall Mount Touchpanel w/QuickMediaTM(continued)

TPS-12G-QM-L in a QuickMedia System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-12L

Pre-Construction Wall Mount Back Box



PMK-12L

Pre-Construction Wall Mount Kit



TMK-12L

Trim Ring



MMK-12L

Mud Ring

92



WMKT-12L

Lectern or Post-Construction Wall Mount Kit with Trim Ring



WMKM-12L

Post-Construction Wall Mount Kit with Mud Ring



RMK-12L

Rack Mount Kit

www.crestron.com | 800.237.2041 | 201.767.3400



QM-TX

QuickMedia Transmitter



TPS/TPMC-CBL-T

Triamese Interface Cables



ST-PK

Programming Cable Kit



PW-2420RU

Power Supply



CresCAT®QM

QuickMediaTMCable



CresCAT®IM

iMedia Cable

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/OTM17

Isys i/O ingeniously integrates touchpanel control with

embedded PC functionality, delivering a unified multimedia

presentation solution. Incorporating modern styling in a

versatile flush mount design, the TPMC-17-QM-L Touchpanel

Media Center features a spectacular 17" WXGA widescreen

display offering an extra wide viewing angle with exceptional

brightness and contrast for stunning control graphics,

high-res images, embedded PC applications, and full-

motion HD video.

Touchpanel Control and Presentation—In every

sense, the TPMC-17-QM-L is a true Crestron touchpanel,

offering vibrant 24-bit color depth with 8-bit alpha channel

transparency to produce incredible 3D graphics using new

dynamic menu objects, dynamic graphics, full-motion

animations, multimode objects, PNG translucency, and

exclusive Synapse™ image rendering – all with astonishing

speed. But more than a touchpanel, the TPMC-17-QM-L

is also a dynamic presentation source, outputting high-

resolution graphics and audio to any sized audience

via integrated QuickMedia transport technology.

Embedded PC—The power of Isys i/O is in its embedded

PC engine, combining rock solid touchpanel performance

with enhanced capabilities for surfing the Internet, streaming

digital media, and viewing online documents. Running the

Microsoft®Windows®XP Embedded operating system, Isys

i/O delivers a powerful and secure platform for touchpanel

control with integrated PC functionality. Programmatic control

erases the lines between control system and PC, allowing

programmers to customize each application's behavior

within the touchpanel environment to create a truly powerful

and user-friendly interface.

With built-in Windows Media®Player, RealPlayer®, and

Internet Explorer, plus viewers for Word, Excel, PowerPoint®,

and Adobe®Acrobat®, the TPMC-17-QM-L serves as a

complete multimedia presentation source without

necessitating a separate computer. You can also access

data and run applications on other computers via Remote

Desktop, and use NetMeeting®and SkypeTMfor interactive

conferencing and voice-over-IP (VoIP) communications –

right on the touchpanel. Plus, support for Yahoo! Widgets

affords an easy solution for integrating everything from

calendars and clocks to stock tickers, weather forecasts,

news feeds, and thousands of other fun and useful utilities.

"

Wall Mount Touchpanel Media Center w/QuickMedia™ TPMC-17-QM-L

wall mount touchpanels

MediaMarker™ Annotation—Built-in annotation

allows presenters to write or draw electronically on the

touchscreen using a finger or stylus. Whether drawing

freehand on a whiteboard screen, highlighting points on

a spreadsheet, or making notes over motion video or still

images, MediaMarker facilitates crystal clear visual

communications.

Dual-Window HD Video and RGB2—In addition to

its internal PC and streaming video applications, the

TPMC-17-QM-L can also simultaneously display two fully-

scalable, full-motion video windows. Each window supports

standard video, HDTV, and high-resolution RGB signals from

external AV and computer sources. Discrete video scalers

with motion adaptive deinterlacing bring out the highest

detail, minimizing visible scan lines and motion artifacts for

a truly remarkable picture. Advanced gamma correction

and built-in time base correction ensure accurate color

reproduction and a jitter-free image.

High-Quality Audio2—An integrated microphone, biamplified

speakers, stereo headphone output, and PC audio output

are all built into the touchpanel to support full AV, intercom,

desktop conferencing, and multimedia computer capabilities.

Customized WAV files can be loaded on the touchpanel

to add dimension to the touchscreen graphics with

personalized sounds, button feedback, and voice prompts.

QuickMedia™—All audio and video connections are

facilitated using Crestron's revolutionary QuickMedia

transport, providing a flexible yet remarkably simple wiring

solution. Through QuickMedia (QM), the TPMC-17-QM-L

interfaces directly with other QM-based products using

inexpensive CAT5e type cable.

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

93

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-17-QM-L Isys i/O

TM

The two QM Input ports each support non-interlaced RGB

up to 1600 X 1200 pixels, as well as composite, S-Video, and

component video signals. QM Input #1 includes software-

adjustable compensation for cable runs up to 450 feet; Input

#2 allows up to 300 feet for video and HDTV, and shorter

distances for RGB computer signals. Both QM Inputs receive

audio signals from external microphone and stereo line

level sources.

High-resolution RGB graphics and 24-bit digital audio

are output from the internal PC and microphone via the

QM Output port for audience presentation and

intercom purposes.

Connectivity and Expansion—Both Cresnet and high-

speed Ethernet are standard on the TPMC-17-QM-L,

providing for seamless communications with Crestron

control systems, computers, digital media servers, and

other IP-based devices. Wi-Fi wireless networking and

memory expansion are easily added through two PC

card slots, and two USB ports enable the connection of

an external mouse and keyboard (not included), as well

as USB cameras, CD ROM drives, and memory devices.

Versatile Flush Mount Design—The TPMC-17-QM-L is

designed for flush-mount installation in a wall, lectern or

similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

Five backlit pushbuttons are also provided, allowing for

quick access to commonly used functions.



wall mount touchpanels

17" widescreen active matrix touchscreen display |1280 x 768 resolution



24-Bit Isys i/O graphics |Synapse image rendering algorithm



Windows XP Embedded operating system



Onboard PC applications for Web browsing, streaming media, conferencing, VoIP, remote desktop, and digital media presentation - no computer required!



Built-in real-time annotation using Crestron MediaMarker



Dual-window HD video and RGB display



Built-in 10 watt biamplified speaker system and microphone



QuickMedia AV connectivity |audience presentation output



Secure high-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

2

17"Wall Mount Touchpanel Media Center w/QuickMedia™

AVAILABLE MODELS

TPMC-17-QM-LB

Isys i/O 17" Wall Mount Touchpanel Media Center, Black

TPMC-17-QM-LW

Isys i/O 17" Wall Mount Touchpanel Media Center, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 17 inch (43.2 cm) diagonal widescreen Aspect Ratio: 15:9 WXGA Resolution: 1280 x 768 pixels Brightness: 450 nits (cd/m Contrast: 400:1 Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±88° horizontal, ±88° vertical Touchscreen: Resistive membrane

Processor

VIA Eden

Memory

1

SDRAM: 512 MB Flash: 512 MB PC Card: Accepts up to (2) 4GB Type II PC Cards (not included) Maximum Project Size: 190 MB

Operating System

Microsoft

Graphic Engine

Isys i/O engine, VIA Unichrome graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic menu objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Embedded Software Applications

Microsoft Internet Explorer w/Macromedia®Flash®plug-in, Windows Media Crestron MediaMarker™, Remote Desktop, NetMeeting Java™ Runtime, DirectX Reader, and viewers for MS Word, Excel, and PowerPoint

Ethernet

10BaseT/100BaseTX, auto-negotiating, full/half duplex TCP/IP, UDP/IP, CIP, DHCP, IEEE 802.3U compliant

Wireless

Wireless Ethernet capable using third-party 802.11 PC card (Wired connections required for power, audio, video and RGB)

Video/RGB

Signal Types: RGB and auto-detecting composite, S-Video, or component video Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p, HDTV 720p & 1080i; RGB(VGA) up to UXGA 1600 x 1200

TM

667 MHz CPU

®

Windows®XP Embedded

®

Player, RealPlayer®, Axis®Media Control,

2

)

TM

CLE266 chipset, 24-bit non-palette

1

®

, Yahoo! Widgets®, Adobe®Acrobat

, Skype™,

®

1

94

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/OTM17

Color Depth: 24-bit, 16.7M colors Features: Dual-window each scalable to full-screen, time base

correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown Streaming/File Formats: MPEG4 and MJPEG via Axis Media Control plus all formats supported by the embedded media player applications

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer Streaming/File Formats: All formats supported by the embedded media player applications

TPMC-17-QM-L using a single QuickMedia Transmitter

"

Wall Mount Touchpanel Media Center w/QuickMedia™ TPMC-17-QM-L

1

2

1

Audio Feedback (WAV): 8 & 16 bit PCM, mono & stereo, 8 – 44 kHz sampling rates

D-A / A-D Conversion (QM): Burr Brown 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel system

Connectors

QM IN 1: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or (1) Auto-detecting component (YP or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200); Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: 0 – 22 nS Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 450 ft (aggregate distance from QM origination)

QM IN 2: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or

(1) Auto-detecting component (YP

or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200); Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: none Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length (Video/HDTV): 300 ft (aggregate distance from QM origination); Maximum Cable Length (RGB @ 60Hz): 216 ft for 640x480, 140 ft for 800x600, 84 ft for 1024x768, 70 ft for 1280x768, 30 ft for 1600x1200 (using CresCAT-QM or CresCAT-IM cable)

BPR

), S-Video (Y/C),

BPR

), S-Video (Y/C),

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

95

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-17-QM-L Isys i/O

QM OUT 1: (1) 8-wire RJ45 female, QuickMedia output port containing RGB output with stereo audio from internal PC and (2) discrete channels from internal mic; RGB Format: RGBHV RGB Output Resolution, Non-interlaced: 1280 x 768 pixels @ 60 Hz Connects to QM input port of any QuickMedia device via CresCAT-QM or CresCAT-IM cable

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 105 mW per channel Minimum Impedance: 8 ohms

USB: (2) USB Type A female, USB 1.1 ports for mouse, keyboard, and storage devices

RS-232: (1) 6-pin RJ11 female, computer console port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

PC CARD A – B: (2) Type II PC Card slots for memory expansion, project upload, and wireless NIC

ETHERNET: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates network speed Yellow LED indicates Ethernet activity

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet Slave Port (data only; 24V terminal not used) Connects to Cresnet control network

PWR: (1) 4-pin DC power jack, 12.5V DC power input (external power supply included)

PWR OUT: (1) 4-pin DC power jack Connects to PWR jack using 9-inch 4-pin DC power patch cable (included) when locating power supply remotely; passes 12.5V DC power from PWR IN terminal blocks

PWR IN: (2) 2-pin detachable terminal blocks, paralleled Used to extend power cabling up to 60 feet using 4 conductor, 14 AWG wire connected to a TPMC-L-IMC power interface module

wall mount touchpanels

(included) at remote power supply location

G: (1) 6-32 screw, chassis ground lug

Power Requirements

TPMC-17-QM-L: 8.4 Amps @ 12.5 Volts DC External Power Supply (included): 2.2 Amps @ 100–250 Volts

AC, 50/60 Hz Cresnet Power Usage: 0 Watt @ 24 Volts DC

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 9U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

1

TM

17"Wall Mount Touchpanel Media Center w/QuickMedia™

Dimensions

Height: 13.81 in (35.06 cm) Width: 16.98 in (43.11 cm) Depth: 3.84 in (9.74 cm)

Weight

13.4 lbs (6.10 kg)

INCLUDED ACCESSORIES

(See individual product specifications for complete information.)

TPMC-L-IMC

Power Interface Module

PW-1280RU

Power Supply

1

See Web site or contact Crestron for a current list of compatible devices and embedded applications. To ensure reliable performance, new device drivers and applications are available only from Crestron through firmware updates.

2

One or more QuickMedia devices are required to facilitate the input and output of audio, video, and RGB signals. See the “MediaManager” section of this catalog or visit the Crestron Website for more information about QuickMedia.

96

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/OTM17

TPMC-17-QM-L in a QuickMedia System

"

Wall Mount Touchpanel Media Center w/QuickMedia™ TPMC-17-QM-L

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-17L

Pre-Construction Wall Mount Back Box



PMK-17L

Pre-Construction Wall Mount Kit



TMK-17L

Trim Ring

www.crestron.com | 800.237.2041 | 201.767.3400



MMK-17L

Mud Ring



WMKT-17L

Lectern Mount Kit with Trim Ring



RMK-17L

Rack Mount Kit



QM-TX

QuickMedia Transmitter



TPS/TPMC-CBL-T

Triamese Interface Cables



CresCAT®QM

QuickMediaTMCable



CresCAT®IM

iMedia Cable

97

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-15-QM-L Isys i/O

Isys i/O ingeniously integrates touchpanel control with

embedded PC functionality, delivering a unified multimedia

presentation solution. Incorporating modern styling in a

versatile flush mount design, the TPMC-15-QM-L Touchpanel

Media Center features a spectacular 15" XGA display offering

an extra wide viewing angle with exceptional brightness and

contrast for stunning control graphics, high-res images,

embedded PC applications, and full-motion HD video.

Touchpanel Control and Presentation—In every sense,

the TPMC-15-QM-L is a true Crestron touchpanel, offering

vibrant 24-bit color depth with 8-bit alpha channel

transparency to produce incredible 3D graphics using new

dynamic menu objects, dynamic graphics, full-motion

animations, multimode objects, PNG translucency, and

wall mount touchpanels

exclusive Synapse™ image rendering – all with astonishing

speed. But more than a touchpanel, the TPMC-15-QM-L

is also a dynamic presentation source, outputting high-

resolution graphics and audio to any sized audience via

integrated QuickMedia transport technology.

Embedded PC—The power of Isys i/O is in its embedded

PC engine, combining rock solid touchpanel performance

with enhanced capabilities for surfing the Internet, streaming

digital media, and viewing online documents. Running the

Microsoft®Windows®XP Embedded operating system, Isys

i/O delivers a powerful and secure platform for touchpanel

control with integrated PC functionality. Programmatic control

erases the lines between control system and PC, allowing

programmers to customize each application's behavior

within the touchpanel environment to create a truly powerful

and user-friendly interface.

With built-in Windows Media®Player, RealPlayer®, and

Internet Explorer, plus viewers for Word, Excel, PowerPoint®,

and Adobe®Acrobat®, the TPMC-15-QM-L serves as a

TM

15"Wall Mount Touchpanel Media Center w/QuickMedia™

complete multimedia presentation source without

necessitating a separate computer. You can also access

data and run applications on other computers via Remote

Desktop, and use NetMeeting®and SkypeTMfor interactive

conferencing and voice-over-IP (VoIP) communications –

right on the touchpanel. Plus, support for Yahoo! Widgets

affords an easy solution for integrating everything from

calendars and clocks to stock tickers, weather forecasts,

news feeds, and thousands of other fun and useful utilities.

MediaMarker™ Annotation—Built-in annotation allows

presenters to write or draw electronically on the touchscreen

using a finger or stylus. Whether drawing freehand on a

whiteboard screen, highlighting points on a spreadsheet,

or making notes over motion video or still images,

MediaMarker facilitates crystal clear visual communications.

Dual-Window HD Video and RGB2—In addition to

its internal PC and streaming video applications, the

TPMC-15-QM-L can also simultaneously display two fully-

scalable, full-motion video windows. Each window supports

standard video, HDTV, and high-resolution RGB signals from

external AV and computer sources. Discrete video scalers

with motion adaptive deinterlacing bring out the highest

detail, minimizing visible scan lines and motion artifacts for

a truly remarkable picture. Advanced gamma correction and

built-in time base correction ensure accurate color

reproduction and a jitter-free image.

High-Quality Audio2—An integrated microphone, biamplified

speakers, stereo headphone output, and PC audio output

are all built into the touchpanel to support full AV, intercom,

desktop conferencing, and multimedia computer capabilities.

Customized WAV files can be loaded on the touchpanel to

add dimension to the touchscreen graphics with

personalized sounds, button feedback, and voice prompts.

QuickMedia™—All audio and video connections are

facilitated using Crestron’s revolutionary QuickMedia

transport, providing a flexible yet remarkably simple wiring

solution. Through QuickMedia (QM), the TPMC-15-QM-L

interfaces directly with other QM-based products using

inexpensive CAT5e type cable.

The two QM Input ports each support non-interlaced RGB

up to 1600 X 1200 pixels, as well as composite, S-Video,

and component video signals. QM Input #1 includes software-

adjustable compensation for cable runs up to 450 feet; Input #2

allows up to 300 feet for video and HDTV, and shorter distances

for RGB computer signals. Both QM Inputs receive audio signals

from external microphone and stereo line level sources.

98

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/OTM15

"

Wall Mount Touchpanel Media Center w/QuickMedia™ TPMC-15-QM-L

High-resolution RGB graphics and 24-bit digital audio

are output from the internal PC and microphone via

the QM Output port for audience presentation and

intercom purposes.

Connectivity and Expansion—Both Cresnet and

high-speed Ethernet are standard on the TPMC-15-QM-L,

providing for seamless communications with Crestron

control systems, computers, digital media servers, and

other IP-based devices. Wi-Fi wireless networking and

memory expansion are easily added through two PC

card slots, and two USB ports enable the connection of

an external mouse and keyboard (not included), as well

as USB cameras, CD ROM drives, and memory devices.

1

Versatile Flush Mount Design—The TPMC-15-QM-L is

designed for easy flush-mount installation in a wall, lectern

or similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

Five backlit pushbuttons are also provided, allowing for quick

access to commonly used functions.



15" active matrix touchscreen display |1024 x 768 resolution



24-Bit Isys i/O graphics |Synapse image rendering algorithm



Windows XP Embedded operating system



Onboard PC applications for Web browsing, streaming media, conferencing, VoIP, remote desktop, and digital media presentation - no computer required!



Built-in real-time annotation using Crestron MediaMarker



Dual-window HD video and RGB display



Built-in 10 watt biamplified speaker system and microphone



QuickMedia AV connectivity |audience presentation output



Secure high-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

2

AVAILABLE MODELS

TPMC-15-QM-LB

Isys i/O 15" Wall Mount Touchpanel Media Center, Black

TPMC-15-QM-LW

Isys i/O 15" Wall Mount Touchpanel Media Center, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 15 inch (38.1 cm) diagonal Aspect Ratio: 4:3 XGA Resolution: 1024 x 768 pixels Brightness: 350 nits (cd/m Contrast: 700:1

2

)

Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±85° horizontal, ±85° vertical Touchscreen: Resistive membrane

Processor

VIA Eden™ 667 MHz CPU

Memory

SDRAM: 512 MB Flash: 512 MB PC Card: Accepts up to (2) 4GB Type II PC Cards (not included) Maximum Project Size: 190 MB

Operating System

Microsoft

Graphic Engine

Isys i/O engine, VIA Unichrome graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic menu objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Embedded Software Applications

Microsoft Internet Explorer w/Macromedia®Flash®plug-in, Windows Media Crestron MediaMarker™, Remote Desktop, NetMeeting Java™ Runtime, DirectX Reader, and viewers for MS Word, Excel, and PowerPoint

Ethernet

10BaseT/100BaseTX, auto-negotiating, full/half duplex TCP/IP, UDP/IP, CIP, DHCP, IEEE 802.3U compliant

Wireless

Wireless Ethernet capable using third-party 802.11 PC card (Wired connections required for power, audio, video and RGB)

Video/RGB

Signal Types: RGB and auto-detecting composite, S-Video, or component video Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p, HDTV 720p & 1080i; RGB(VGA) up to UXGA 1600 x 1200

Color Depth: 24-bit, 16.7M colors Features: Dual-window each scalable to full-screen, time base

correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown Streaming/File Formats: MPEG4 and MJPEG via Axis Media Control plus all formats supported by the embedded media player applications

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer Streaming/File Formats: All formats supported by the embedded media player applications Audio Feedback (WAV): 8 & 16 bit PCM, mono & stereo, 8 – 44 kHz sampling rates

®

Windows®XP Embedded

®

Player, RealPlayer®, Axis®Media Control,

®

, Yahoo! Widgets®, Adobe®Acrobat

2

1

2

1

TM

CLE266 chipset, 24-bit non-palette

1

®

, Skype™,

®

1

> continued

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

99

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-15-QM-L Isys i/O

D-A / A-D Conversion (QM): Burr Brown 24-bit, 48 kHz Amplification: Biamplified, mono, 5 Watts for high-frequency,

5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel system

Connectors

QM IN 1: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or (1) Auto-detecting component (YP or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200); Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: 0 – 22 nS Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length: 450 ft (aggregate distance from QM origination)

QM IN 2: (1) 8-wire RJ45 female, QuickMedia input port Signal Types: Dynamically configurable under system control as:

(1) RGB input with stereo program audio and (2) mic channels, or

(1) Auto-detecting component (YP

or composite video input with stereo program audio

and (2) mic channels; RGB Format: RGBHV RGB Input Resolution, Non-interlaced: 640 x 480 minimum to 1600 x 1200 maximum (60 Hz limit at 1600 x 1200);

wall mount touchpanels

Video/HDTV Formats: 480i (NTSC), 576i (PAL), 480p, 576p, 720p and 1080i; Horizontal Frequency: 15 to 100 kHz Vertical Frequency: 50 to 85 Hz Delay Skew Compensation: none Connects to QM output port of a QM-TX or other QuickMedia device via CresCAT-QM or CresCAT-IM cable; Maximum Cable Length (Video/HDTV): 300 ft (aggregate distance from QM origination); Maximum Cable Length (RGB @ 60Hz): 216 ft for 640x480, 140 ft for 800x600, 84 ft for 1024x768, 70 ft for 1280x768, 30 ft for 1600x1200 (using CresCAT-QM or CresCAT-IM cable)

QM OUT 1: (1) 8-wire RJ45 female, QuickMedia output port containing RGB output with stereo audio from internal PC and (2) discrete channels from internal mic; RGB Format: RGBHV RGB Output Resolution, Non-interlaced: 1024 x 768 pixels @ 60 Hz Connects to QM input port of any QuickMedia device via CresCAT-QM or CresCAT-IM cable

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 105 mW per channel Minimum Impedance: 8 ohms

BPR

), S-Video (Y/C),

BPR

), S-Video (Y/C),

TM

15"Wall Mount Touchpanel Media Center w/QuickMedia™

TPMC-15-QM-L using a single QuickMedia Transmitter

USB: (2) USB Type A female, USB 1.1 ports for mouse, keyboard,

and storage devices

RS-232: (1) 6-pin RJ11 female, computer console port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

PC CARD A – B: (2) Type II PC Card slots for memory expansion, project upload, and wireless NIC

ETHERNET: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates network speed Yellow LED indicates Ethernet activity

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet Slave Port (data only; 24V terminal not used) Connects to Cresnet control network

PWR: (1) 4-pin DC power jack, 12.5V DC power input (external power supply included)

PWR OUT: (1) 4-pin DC power jack Connects to PWR jack using 9-inch 4-pin DC power patch cable (included) when locating power supply remotely; passes 12.5V DC power from PWR IN terminal blocks

PWR IN: (2) 2-pin detachable terminal blocks, paralleled Used to extend power cabling up to 60 feet using 4 conductor, 14 AWG wire connected to a TPMC-L-IMC power interface module (included) at remote power supply location

G: (1) 6-32 screw, chassis ground lug

1

100

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/OTM15

Power Requirements

TPMC-15-QM-L: 8.4 Amps @ 12.5 Volts DC External Power Supply (included):

2.2 Amps @ 100–250 Volts AC, 50/60 Hz Cresnet Power Usage: 0 Watt @ 24 Volts DC

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 8U 19” rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 13.59 in (34.52 cm) Width: 14.17 in (35.99 cm) Depth: 3.80 in (9.66 cm)

Weight

10.0 lbs (4.50 kg)

"

Wall Mount Touchpanel Media Center w/QuickMedia™ TPMC-15-QM-L

INCLUDED ACCESSORIES

(See individual product specifications for complete information.)

TPMC-L-IMC

Power Interface Module

PW-1280RU

Power Supply

TPMC-15-QM-L in a QuickMedia System

wall mount touchpanels

1

See Web site or contact Crestron for a current list of compatible devices and embedded applications. To ensure reliable performance, new device drivers and applications are available only from Crestron through firmware updates.

2

One or more QuickMedia devices are required to facilitate the input and output of audio, video, and RGB signals. See the “MediaManager” section of this catalog or visit the Crestron Website for more information about QuickMedia.

AVAILABLE ACCESSORIES



BB-15L

Pre-Construction Wall Mount Back Box



PMK-15L

Pre-Construction Wall Mount Kit



TMK-15L

Trim Ring



MMK-15L

Mud Ring



WMKT-15L

Lectern or Post-Construction Wall Mount Kit with Trim Ring



WMKM-15L

Post-Construction Wall Mount Kit with Mud Ring



RMK-15L

Rack Mount Kit



QM-TX

QuickMedia Transmitter



TPS/TPMC-CBL-T

Triamese Interface Cables



CresCAT®QM

QuickMediaTMCable



CresCAT®IM

iMedia Cable

www.crestron.com | 800.237.2041 | 201.767.3400

101

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-17-CH-L Isys i/O™ 17" Wall Mount Touchpanel Media Center w/CH CAT5 AV

With built-in Windows Media®Player, RealPlayer®, and

Internet Explorer, plus viewers for Word, Excel, PowerPoint®,

and Adobe®Acrobat®, the TPMC-17-CH-L provides

everything needed for viewing Web pages, enjoying online

music and movies, and downloading documents without

necessitating a separate computer. You can also access

data and run applications on other computers via Remote

Desktop, and use NetMeeting®and SkypeTMfor interactive

conferencing and voice-over-IP (VoIP) communications –

right on the touchpanel. Plus, support for Yahoo! Widgets

affords an easy solution for integrating everything from

calendars and clocks to stock tickers, weather forecasts,

news feeds, and thousands of other fun and useful utilities.

Dual-Window HD Video2—In addition to its internal

PC and streaming video applications, the TPMC-17-CH-L

Isys i/O ingeniously integrates touchpanel control with

embedded PC functionality, delivering a unified solution

for controlling AV and home automation, browsing the

Internet, and streaming digital media. Incorporating modern

styling in a versatile flush mount design, the TPMC-17-CH-L

Touchpanel Media Center features a spectacular 17" WXGA

widescreen display offering an extra wide viewing angle with

exceptional brightness and contrast for stunning control

graphics, high-res images, embedded PC applications, and

full-motion HD video.

Enhanced Touchpanel Control—In every sense, the

TPMC-17-CH-L is a true Crestron touchpanel, offering vibrant

24-bit color depth with 8-bit alpha channel transparency to

produce incredible 3D graphics using new dynamic menu

wall mount touchpanels

objects, dynamic graphics, full-motion animations, multimode

objects, PNG translucency, and exclusive SynapseTMimage

rendering – all with astonishing speed. But more than a

touchpanel, the TPMC-17-CH-L is also a dynamic resource

for managing routine online tasks and enjoying streaming

music and video, and a high-resolution video monitor with

performance rivaling the best LCD flat-panel displays

available.

Embedded PC—The power of Isys i/O is in its embedded

PC engine, combining rock solid touchpanel performance

with enhanced capabilities for surfing the Internet, streaming

digital media, and viewing online documents. Running the

Microsoft®Windows®XP Embedded operating system, Isys

i/O delivers a powerful and secure platform for touchpanel

control with integrated PC functionality. Programmatic control

erases the lines between control system and PC, allowing

programmers to customize each application's behavior

within the touchpanel environment to create a truly powerful

and user-friendly interface.

can also simultaneously display two fully-scalable, full-motion

video windows. Each window supports standard video and

HDTV formats from external sources. Discrete video scalers

with motion adaptive deinterlacing bring out the highest

detail, minimizing visible scan lines and motion artifacts

for an incredible picture. Advanced gamma correction and

built-in time base correction ensure accurate color

reproduction and a jitter-free image.

High-Quality Audio—An integrated microphone, biamplified

speakers, stereo headphone output, and PC audio output

are all built into the touchpanel to support full AV, intercom,

desktop conferencing, and multimedia computer capabilities.

Customized WAV files can be loaded on the touchpanel to

add dimension to the touchscreen graphics with

personalized sounds, button feedback, and voice prompts.

Crestron Home®CAT5 AV—All audio and video

connections are facilitated using inexpensive CAT5 wire,

enabling direct connection to Crestron's popular CAT5

balanced audio and video distribution switchers. Two

video input ports are provided, each supporting composite,

S-Video, and HDTV/component formats over wiring

distances of up to 500 feet. A bidirectional audio port

receives stereo program audio and intercom signals, and

outputs audio from the internal microphone and PC for

intercom and whole-house audio distribution. To facilitate

the connection of conventional video and audio devices, an

external interface module is included.

Connectivity and Expansion—Both Cresnet and high-

speed Ethernet are standard on the TPMC-17-CH-L,

providing for seamless communications with Crestron control

systems, computers, digital media servers, and other IP-

based devices. Wi-Fi wireless networking and memory

expansion are easily added through two PC card slots, and

102

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/O™ 17" Wall Mount Touchpanel Media Center w/CH CAT5 AV TPMC-17-CH-L

two USB ports enable the connection of an external mouse

and keyboard (not included), as well as USB cameras, CD

ROM drives, and memory devices.

1

Versatile Flush Mount Design—The TPMC-17-CH-L is

designed for flush-mount installation in a wall, lectern or

similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount

kit. Five backlit pushbuttons are also provided, allowing

for quick access to commonly used functions.



17" widescreen active matrix touchscreen display |1280 x 768 resolution



24-Bit Isys i/O graphics |Synapse image rendering algorithm



Windows XP Embedded operating system



Onboard PC applications for Web browsing, streaming media, conferencing, VoIP, and remote desktop – no computer required!



High-performance dual-window HD video display



Built-in 10 watt biamplified speaker system and microphone



Crestron Home CAT5 AV connectivity



Secure high-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

TPMC-17-CH-L using CAT5 AV Interface Module

2

AVAILABLE MODELS

TPMC-17-CH-LB

Isys i/O 17" Wall Mount Touchpanel Media Center, Black

TPMC-17-CH-LW

Isys i/O 17" Wall Mount Touchpanel Media Center, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 17 inch (43.2 cm) diagonal widescreen Aspect Ratio: 15:9 WXGA Resolution: 1280 x 768 pixels Brightness: 450 nits (cd/m Contrast: 400:1 Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±88° horizontal, ±88° vertical Touchscreen: Resistive membrane

Processor

VIA Eden™ 667 MHz CPU

Memory

SDRAM: 512 MB Flash: 512 MB PC Card: Accepts up to (2) 4GB Type II PC Cards (not included) Maximum Project Size: 190 MB

Operating System

Microsoft

Graphic Engine

Isys i/O engine, VIA Unichrome graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic menu objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Embedded Software Applications

Microsoft Internet Explorer w/Macromedia®Flash® plug-in, Windows Media Crestron MediaMarker™, Remote Desktop, NetMeeting Java™ Runtime, DirectX Reader, and viewers for MS Word, Excel, and PowerPoint

Ethernet

10BaseT/100BaseTX, auto-negotiating, full/half duplex TCP/IP, UDP/IP, CIP, DHCP, IEEE 802.3U compliant

Wireless

Wireless Ethernet capable using third-party 802.11 PC card (Wired connections required for power, audio, and video)

®

Windows®XP Embedded

®

Player, RealPlayer®, Axis®Media Control,

2

)

TM

CLE266 chipset, 24-bit non-palette

1

®

, Yahoo! Widgets®, Adobe®Acrobat

, Skype™,

®

1

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

> continued

103

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-17-CH-L Isys i/O™ 17" Wall Mount Touchpanel Media Center w/CH CAT5 AV

Video

Signal Types: Auto-detecting composite, S-Video, or component Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p,

HDTV 720p & 1080i

Color Depth: 24-bit, 16.7M colors Features: Dual-window

correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown Streaming/File Formats: MPEG4 and MJPEG via Axis Media control plus all formats supported by the embedded media player applications

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer Streaming/File Formats: All formats supported by the embedded media player applications Audio Feedback (WAV): 8 & 16 bit PCM, mono & stereo, 8 – 44 kHz sampling rates Amplification: Biamplified, mono, 5 Watts for high-frequency, 5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel system

Connectors

CH VIDEO IN 1 – 2: (2) 8-wire RJ45 female CAT5 balanced video input ports Signal Types: Auto-detecting component (YP composite video; Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p, HDTV 720p & 1080i; Input Impedance: 100 ohms balanced Connect to any Crestron CAT5 balanced video source(s) or TPMC-CH-IMC interface module (included) via CresCAT cable or

wall mount touchpanels

TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 500 feet for component/HDTV, 750 feet for composite/S-Video

CH AUDIO I/O: (1) 8-wire RJ45 female Bidirectional CAT5 balanced audio port Signal Types: Receives (1) balanced stereo audio signal, and transmits (1) balanced stereo audio signal from internal PC or microphone (dynamically selectable); Maximum Input Level: 4 V Maximum Output Level: 2 V Input/Output Impedance: 600 ohms Connects to any other Crestron CAT5 balanced audio port or TPMC-CH-IMC interface module (included) via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 1000 feet

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 105 mW per channel Minimum Impedance: 8 ohms

USB: (2) USB Type A female, USB 1.1 ports for mouse, keyboard, and storage devices

2

each scalable to full-screen, time base

1

BPR

), S-Video (Y/C), or

RMS

1

RS-232: (1) 6-pin RJ11 female, computer console port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

PC CARD A – B: (2) Type II PC Card slots for memory expansion, project upload, and wireless NIC

ETHERNET: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates network speed Yellow LED indicates Ethernet activity

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet Slave Port (data only, 24V terminal not used) Connects to Cresnet control network, or TPMC-CH-IMC interface module (included) via CresCAT, Cresnet, or TPS/TPMC-CBL-T “triamese” cable (sold separately)

PWR: (1) 4-pin DC power jack, 12.5V DC power input (external power supply included)

PWR OUT: (1) 4-pin DC power jack Connects to PWR jack using 9-inch 4-pin DC power patch cable (included) when locating power supply remotely, passes 12.5V DC power from PWR IN terminal blocks

PWR IN: (2) 2-pin detachable terminal blocks, paralleled Used to extend power cabling up to 60 feet using 4 conductor, 14 AWG wire connected to a TPMC-L-IMC power interface module (included) at remote power supply location

G: (1) 6-32 screw, chassis ground lug

Power Requirements

TPMC-17-CH-L: 8.4 Amps @ 12.5 Volts DC External Power Supply (included):

2.2 Amps @ 100-250 Volts AC, 50/60 Hz Cresnet Power Usage: 0 Watt @ 24 Volts DC

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 9U 19" rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 13.81 in (35.06 cm) Width: 16.98 in (43.11 cm) Depth: 3.84 in (9.74 cm)

Weight

13.4 lbs (6.10 kg)

1

104

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/O™ 17" Wall Mount Touchpanel Media Center w/CH CAT5 AV TPMC-17-CH-L

INCLUDED ACCESSORIES

(See individual product specifications for complete information.)

TPMC-CH-IMC

CAT5 Balanced AV Interface Module

TPMC-L-IMC

Power Interface Module

PW-1280RU

Power Supply

1

See Web site or contact Crestron for a current list of compatible devices and embedded applications. To ensure reliable performance, new device drivers and applications are available only from Crestron through firmware updates.

2

Additional CAT5 Balanced AV equipment is required to facilitate the input of more than one external video signal. See the “Audio Video Distribution and Surround Sound” section of this catalog or visit the Crestron Website for more information about Crestron Home CAT5 Balanced AV.

TPMC-17-CH-L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-17L

Pre-Construction Wall Mount Back Box



PMK-17L

Pre-Construction Wall Mount Kit



TMK-17L

Trim Ring

www.crestron.com | 800.237.2041 | 201.767.3400



MMK-17L

Mud Ring



WMKT-17L

Lectern Mount Kit with Trim Ring



RMK-17L

Rack Mount Kit



TPMC-CH-IMW

CAT5 Balanced AV Interface Wall Plate



TPS/TPMC-CBL-T

Triamese Interface Cables



CresCAT®Q

Crestron Home®CAT5 AV Cable

105

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-15-CH-L Isys i/O™ 15" Wall Mount Touchpanel Media Center w/CH CAT5 AV

With built-in Windows Media®Player, RealPlayer®, and

Internet Explorer, plus viewers for Word, Excel, PowerPoint®,

and Adobe®Acrobat®, the TPMC-15-CH-L provides

everything needed for viewing Web pages, enjoying online

music and movies, and downloading documents without

necessitating a separate computer. You can also access

data and run applications on other computers via Remote

Desktop, and use NetMeeting®and SkypeTMfor interactive

conferencing and voice-over-IP (VoIP) communications –

right on the touchpanel. Plus, support for Yahoo! Widgets

affords an easy solution for integrating everything from

calendars and clocks to stock tickers, weather forecasts,

news feeds, and thousands of other fun and useful utilities.

Dual-Window HD Video2—In addition to its internal PC and

streaming video applications, the TPMC-15-CH-L can also

Isys i/O ingeniously integrates touchpanel control with

embedded PC functionality, delivering a unified solution for

controlling AV and home automation, browsing the Internet,

and streaming digital media. Incorporating modern styling

in a versatile flush mount design, the TPMC-15-CH-L

Touchpanel Media Center features a spectacular 15" XGA

display offering an extra wide viewing angle with exceptional

brightness and contrast for stunning control graphics,

high-res images, embedded PC applications, and full-

motion HD video.

Enhanced Touchpanel Control—In every sense, the

TPMC-15-CH-L is a true Crestron touchpanel, offering vibrant

24-bit color depth with 8-bit alpha channel transparency to

produce incredible 3D graphics using new dynamic menu

wall mount touchpanels

objects, dynamic graphics, full-motion animations, multimode

objects, PNG translucency, and exclusive SynapseTMimage

rendering – all with astonishing speed. But more than a

touchpanel, the TPMC-15-CH-L is also a dynamic resource

for managing routine online tasks and enjoying streaming

music and video, and a high-resolution video monitor with

performance rivaling the best LCD flat-panel displays

available.

Embedded PC—The power of Isys i/O is in its embedded

PC engine, combining rock solid touchpanel performance

with enhanced capabilities for surfing the Internet, streaming

digital media, and viewing online documents. Running the

Microsoft®Windows®XP Embedded operating system, Isys

i/O delivers a powerful and secure platform for touchpanel

control with integrated PC functionality. Programmatic control

erases the lines between control system and PC, allowing

programmers to customize each application’s behavior

within the touchpanel environment to create a truly powerful

and user-friendly interface.

simultaneously display two fully-scalable, full-motion video

windows. Each window supports standard video and HDTV

formats from external sources. Discrete video scalers with

motion adaptive deinterlacing bring out the highest detail,

minimizing visible scan lines and motion artifacts for an

incredible picture. Advanced gamma correction and

built-in time base correction ensure accurate color

reproduction and a jitter-free image.

High-Quality Audio—An integrated microphone, biamplified

speakers, stereo headphone output, and PC audio output

are all built into the touchpanel to support full AV, intercom,

desktop conferencing, and multimedia computer capabilities.

Customized WAV files can be loaded on the touchpanel

to add dimension to the touchscreen graphics with

personalized sounds, button feedback, and voice prompts.

Crestron Home®CAT5 AV—All audio and video

connections are facilitated using inexpensive CAT5

wire, enabling direct connection to Crestron’s popular

CAT5 balanced audio and video distribution switchers.

Two video input ports are provided, each supporting

composite, S-Video, and HDTV/component formats over

wiring distances of up to 500 feet. A bidirectional audio

port receives stereo program audio and intercom signals,

and outputs audio from the internal microphone and PC

for intercom and whole-house audio distribution. To facilitate

the connection of conventional video and audio devices, an

external interface module is included.

Connectivity and Expansion—Both Cresnet and

high-speed Ethernet are standard on the TPMC-15-CH-L,

providing for seamless communications with Crestron

control systems, computers, digital media servers, and other

IP-based devices. Wi-Fi wireless networking and memory

106

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/O™ 15" Wall Mount Touchpanel Media Center w/CH CAT5 AV TPMC-15-CH-L

expansion are easily added through two PC card slots, and

two USB ports enable the connection of an external mouse

and keyboard (not included), as well as USB cameras, CD

ROM drives, and memory devices.

1

Versatile Flush Mount Design—The TPMC-15-CH-L

is designed for easy flush-mount installation in a wall, lectern

or similar flat surface. A variety of mounting accessories is

offered including optional back box and 19" rack mount kit.

Five backlit pushbuttons are also provided, allowing for

quick access to commonly used functions.



15" active matrix touchscreen display |1024 x 768 resolution



24-Bit Isys i/O graphics |Synapse image rendering algorithm



Windows XP Embedded operating system



Onboard PC applications for Web browsing, streaming media, conferencing, VoIP, and remote desktop – no computer required!



High-performance dual-window HD video display



Built-in 10 watt biamplified speaker system and microphone



Crestron Home CAT5 AV connectivity



Secure high-speed Ethernet and Cresnet communications



Wall, lectern, and rack mounting options



Available in black or white

2

Operating System

Microsoft

Graphic Engine

Isys i/O engine, VIA Unichrome graphics + 8-bit alpha channel transparency, 16.7 million colors, Synapse image rendering algorithm, multi-mode objects, dynamic menu objects, dynamic graphics, PNG translucency, full-motion (60 fps) animation, transition effects, color key video windowing

Embedded Software Applications

Microsoft Internet Explorer w/Macromedia®Flash®plug-in, Windows Media Crestron MediaMarker™, Remote Desktop, NetMeeting Java™ Runtime, DirectX Reader, and viewers for MS Word, Excel, and PowerPoint

Ethernet

10BaseT/100BaseTX, auto-negotiating, full/half duplex TCP/IP, UDP/IP, CIP, DHCP, IEEE 802.3U compliant

Wireless

Wireless Ethernet capable using third-party 802.11 PC card (Wired connections required for power, audio, and video)

®

Windows®XP Embedded

TM

CLE266 chipset, 24-bit non-palette

1

®

Player, RealPlayer®, Axis® Media Control,

®

, Yahoo! Widgets®, Adobe®Acrobat

TPMC-17-CH-L using CAT5 AV Interface Module

®

, Skype™,

®

1

wall mount touchpanels

AVAILABLE MODELS

TPMC-15-CH-LB

Isys i/O 15" Wall Mount Touchpanel Media Center, Black

TPMC-15-CH-LW

Isys i/O 15" Wall Mount Touchpanel Media Center, White

SPECIFICATIONS

Touchscreen Display

Display Type: TFT Active matrix color LCD Size: 15 inch (38.1 cm) diagonal Aspect Ratio: 4:3 XGA Resolution: 1024 x 768 pixels Brightness: 350 nits (cd/m Contrast: 700:1 Color Depth: 24-bit, 16.7M colors Illumination: Backlit fluorescent Viewing Angle: ±85° horizontal, ±85° vertical Touchscreen: Resistive membrane

Processor

VIA Eden™ 667 MHz CPU

Memory

SDRAM: 512 MB Flash: 512 MB PC Card: Accepts up to (2) 4GB Type II PC Cards (not included) Maximum Project Size: 190 MB

2

)

> continued

www.crestron.com | 800.237.2041 | 201.767.3400

107

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

TPMC-15-CH-L Isys i/O™ 15" Wall Mount Touchpanel Media Center w/CH CAT5 AV

Video

Signal Types: Auto-detecting composite, S-Video, or component Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p,

HDTV 720p & 1080i

Color Depth: 24-bit, 16.7M colors Features: Dual-window

correction, gamma correction, line doubling, motion adaptive deinterlacing, reverse 3:2/2:2 pulldown Streaming/File Formats: MPEG4 and MJPEG via Axis Media control plus all formats supported by the embedded media player applications

Audio

Hardware Features: Built-in microphone and biamplified speakers, stereo headphone output, internal volume control and audio mixer Streaming/File Formats: All formats supported by the embedded media player applications Audio Feedback (WAV): 8 & 16 bit PCM, mono & stereo, 8 – 44 kHz sampling rates Amplification: Biamplified, mono, 5 Watts for high-frequency, 5 Watts for low-frequency

Buttons

(4) Backlit “softkey” buttons, programmable (1) Backlit hard reset button, reboots the touchpanel system

Connectors

CH VIDEO IN 1 – 2: (2) 8-wire RJ45 female CAT5 balanced video input ports Signal Types: Auto-detecting component (YP composite video; Formats: SDTV 480i (NTSC) & 576i (PAL), EDTV 480p & 576p, HDTV 720p & 1080i; Input Impedance: 100 ohms balanced Connect to any Crestron CAT5 balanced video source(s) or TPMC-CH-IMC interface module (included) via CresCAT cable or

wall mount touchpanels

TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 500 feet for component/HDTV, 750 feet for composite/S-Video

CH AUDIO I/O: (1) 8-wire RJ45 female Bidirectional CAT5 balanced audio port Signal Types: Receives (1) balanced stereo audio signal, and transmits (1) balanced stereo audio signal from internal PC or microphone (dynamically selectable); Maximum Input Level: 4 V Maximum Output Level: 2 V Input/Output Impedance: 600 ohms Connects to any other Crestron CAT5 balanced audio port or TPMC-CH-IMC interface module (included) via CresCAT cable or TPS/TPMC-CBL-T “triamese” cable (sold separately); Maximum Cable Length: 1000 feet

HEADPHONES: (1) 3.5 mm TRS mini phone jack Output Power: 105 mW per channel Minimum Impedance: 8 ohms

USB: (2) USB Type A female, USB 1.1 ports for mouse, keyboard, and storage devices

2

each scalable to full-screen, time base

1

BPR

), S-Video (Y/C), or

RMS

1

RS-232: (1) 6-pin RJ11 female, computer console port Bidirectional RS-232 up to 115.2k baud Hardware and software handshaking support

PC CARD A – B: (2) Type II PC Card slots for memory expansion, project upload, and wireless NIC

ETHERNET: (1) 8-wire RJ45 with 2 LED indicators 10BaseT/100BaseTX Ethernet port Green LED indicates network speed Yellow LED indicates Ethernet activity

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet Slave Port (data only; 24V terminal not used) Connects to Cresnet control network, or TPMC-CH-IMC interface module (included) via CresCAT, Cresnet, or TPS/TPMC-CBL-T “triamese” cable (sold separately)

PWR: (1) 4-pin DC power jack, 12.5V DC power input (external power supply included)

PWR OUT: (1) 4-pin DC power jack Connects to PWR jack using 9-inch 4-pin DC power patch cable (included) when locating power supply remotely; passes 12.5V DC power from PWR IN terminal blocks

PWR IN: (2) 2-pin detachable terminal blocks, paralleled Used to extend power cabling up to 60 feet using 4 conductor, 14 AWG wire connected to a TPMC-L-IMC power interface module (included) at remote power supply location

G: (1) 6-32 screw, chassis ground lug

Power Requirements

TPMC-15-CH-L: 8.4 Amps @ 12.5 Volts DC External Power Supply (included):

2.2 Amps @ 100-250 Volts AC, 50/60 Hz Cresnet Power Usage: 0 Watt @ 24 Volts DC

Environmental

Temperature: 50° to 113°F (10° to 45°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Construction: Metal, flush mountable, 8U 19” rack-mountable (all mounting kits sold separately) Front Bezel: Injection-molded plastic; black w/silver or white w/gray accent

Dimensions

Height: 13.59 in (34.52 cm) Width: 14.17 in (35.99 cm) Depth: 3.80 in (9.66 cm)

Weight

10.0 lbs (4.50 kg)

1

108

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Isys i/OTMWall Mount Touchpanel Media Centers

Isys i/O™ 15" Wall Mount Touchpanel Media Center w/CH CAT5 AV TPMC-15-CH-L

INCLUDED ACCESSORIES

(See individual product specifications for complete information.)

TPMC-CH-IMC

CAT5 Balanced AV Interface Module

TPMC-L-IMC

Power Interface Module

PW-1280RU

Power Supply

1

See Web site or contact Crestron for a current list of compatible devices and embedded applications. To ensure reliable performance, new device drivers and applications are available only from Crestron through firmware updates.

2

Additional CAT5 Balanced AV equipment is required to facilitate the input of more than one external video signal. See the “Audio Video Distribution and Surround Sound” section of this catalog or visit the Crestron Website for more information about Crestron Home CAT5 Balanced AV.

TPMC-15-CH-L in a CAT5 AV Distribution System

wall mount touchpanels

AVAILABLE ACCESSORIES



BB-15L

Pre-Construction Wall Mount Back Box



PMK-15L

Pre-Construction Wall Mount Kit



TMK-15L

Trim Ring

www.crestron.com | 800.237.2041 | 201.767.3400



MMK-15L

Mud Ring



WMKT-15L

Lectern or Post-Construction Wall Mount Kit with Trim Ring



WMKM-15L

Post-Construction Wall Mount Kit with Mud Ring



RMK-15L

Rack Mount Kit



TPMC-CH-IMW

CAT5 Balanced AV Interface Wall Plate



TPS/TPMC-CBL-T

Triamese Interface Cables



CresCAT®Q

Crestron Home®CAT5 AV Cable

109

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

POWER SUPPLIES

PW-1280RU Regulated Universal Power Pack 12.5V DC, 8A

The PW-1280RU is the universal regulated power pack

that is included as standard with every Isys i/O 15"

and 17" Touchpanel Media Center. Designed for

US/International use.

SPECIFICATIONS

Connections

AC Input: (1) IEC320 male socket Mates with removable 120V AC power cord, included

DC Output: (1) Attached 8 ft. (2.44 m) cable with 4-pin DC power plug, male; Output: 7.92 Amps minimum @ 12.5 Volts DC, regulated Connects to PWR jack of touchpanel, or PWR IN jack of TPMC-L-IMC if used

Power Requirements

2.2 Amps @ 100-250 Volts AC, 50/60 Hz

Enclosure

Black plastic, desktop

PW-2420RU Regulated Universal Power Pack 24VDC, 2A (50 Watts)

The PW-2420RU is a 2 Amp regulated power supply

wall mount touchpanels

designed to provide 24 Volts DC to power some

models of Crestron control systems and touchpanels.

Generally, the PW-2420RU may be used to power

nearly any Cresnet device(s) provided the total

combined power factor does not exceed 50 Watts.

For US/International use.

SPECIFICATIONS

Connectors

AC Input: (1) IEC320 male socket Mates with removable 120V AC power cord, included

DC Output: (1) Attached cable with 2.1mm barrel-type DC connector, male; center pin +; Output: 50 Watts (2 Amp @ 24 Volts DC) regulated

Power Requirements

100-250 Volts AC, 50/60 Hz

Enclosure

Black plastic, desktop

110

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

INTERFACE MODULES AND CABLES

QM-TX QuickMedia™ Transmitter

The QM-TX provides a low-cost multimedia interface

solution for QuickMedia-based Touchpanels and

MediaManager systems. Portable or rack-mounted,

the QM-TX can be used to send audio, video, and

computer signals to any QM-equipped touchpanel via

Crestron's exclusive single-wire QuickMedia transport.

Five BNC’s are provided on the QM-TX to accept

composite, S-Video, component, HDTV, or RGB

signals (up to 1600 x 1200 at 60 Hz). Balanced stereo

line-level audio signals are transmitted simultaneously

with 24-bit digital resolution. Video formats can be

switched dynamically and automatically under system

control. The QM-TX is 1/2-space rack-mountable

using the optional ST-RMK kit.

SPECIFICATIONS

Video

Gain: 0dB (75 ohm termination) Bandwidth: 100MHz (-3dB) at unity gain Formats: Supports standard definition and

HDTV up to 720p and 1080i

RGB

Gain: 0dB (75 ohm termination) Maximum Resolution: 1600x1200 @ 60Hz (at unity gain)

with cable length of 100 meters and maximum compensation at receiver (touchpanel)

Audio

A-D Conversion: Burr Brown 24-bit, 48 kHz Frequency Response: 20Hz to 20kHz

Connectors

R

R/C/P

, G/Y/Y, B/COMP/PB, H, V: (5) BNC female

RGB/Video input Formats: RGBHV, RGBS, RG composite; Input Impedance: 75 ohms (R/C/P Sync Impedance: 620 ohms (H and V) Maximum Input Voltage: 0.7 V

P-P

1 V

for composite and Y of S-Video; 5 V

Video signal sensing on Y, COMP, and H

AUDIO: (1) 5-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level audio input Maximum Input Level: 4 V Input Impedance: 10k ohms balanced, 5k ohms unbalanced

QM OUT: (1) 8-wire RJ45 female, QuickMedia output port Connects to QM input port of touchpanel of other QuickMedia device via CresCAT-QM or CresCAT-IM cable*

S

B, YPBPR, S-Video (Y/C),

R

, G/Y/Y, & B/COMP/PB)

P-P

for RGB and C of S-Video;

RMS

balanced, 2 V

P-P

for H and V Sync;

RMS

unbalanced;

NET: (2) 4-pin 3.5mm detachable terminal blocks Cresnet slave ports, paralleled Connect to Cresnet control network

G: (1) 6-32 screw, chassis ground lug

LED Indicators

PWR: (green) Indicates DC power supplied from Cresnet network

NET: (yellow) Indicates communication with Cresnet system VIDEO ACT: (red) Indicates presence of a valid video

input signal SETUP (rear): (red) Used for touch-settable ID (TSID)

Controls

SETUP: (1) Button for touch-settable ID (TSID)

Power Requirements

Cresnet Power Usage: 5 Watts (0.21 Amp @ 24 Volts DC)

Environmental

Temperature: 41° to 104°F (5° to 40°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Black metal, 0.5U 19" rack-mountable using optional ST-RMK (sold separately )

Dimensions

Height: 1.80 in (4.57 cm) Width: 7.07 in (17.96 cm) Depth: 7.02 in (17.83 cm)

Weight

2.05 lbs (0.93 kg)

AVAILABLE ACCESSORIES

ST-RMK

Rack Mount Kit

* For QuickMedia wiring use CresCAT-QM or -IM cable; the maximum aggregate cable length and delay skew between any QM transmitter (origination point) and QM receiver (endpoint) is 450 ft (137 m) and 22 nS.

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

111

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

INTERFACE MODULES AND CABLES

TPMC-CH-IMC CAT5 Balanced AV Interface Module

The TPMC-CH-IMC is an audio/video interface

module that is included as standard with many Isys

touchpanels that utilize Crestron Home (CH) CAT5

AV connectivity*. The interface module can connect

to the touchpanel using a “triamese” interface cable

(included with tilt model touchpanels) or using

CresCAT-D cable (sold separately). Installed neatly

out of view near the touchpanel, or mounted remotely

in the central equipment cabinet, the TPMC-CH-IMC

provides connections for Cresnet, bidirectional audio,

and (1) video input signal. The balanced CAT5 AV

outputs support cable runs up to 300 feet (observe

distance limitations based upon power consumption

for the touchpanel in use).

Additional interface modules may be purchased and

installed to facilitate connectivity for a single movable

touchpanel at multiple locations. The TPMC-CH-IMC

can also be used as a CAT5 balanced AV interface

for use with other Crestron CAT5 AV products.

SPECIFICATIONS

Connectors

NET: (1) 4-pin 3.5mm detachable terminal block Cresnet slave port, connects to Cresnet control network

VIDEO COMP/Y/Y, C/P

Provides (1) composite, S-Video, or component video input

wall mount touchpanels

Input Impedance: 75 ohms Input Level: 1 V Maximum DC Offset: 1.5 Volts

AUDIO IN: (1) 5-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level input Input Impedance: 20k ohm balanced, 10k ohm unbalanced Maximum Input Level: 4 V

AUDIO OUT: (1) 5-pin 3.5mm detachable terminal block Balanced stereo line-level output (unbuffered pass-thru from AUDIO TO PANEL)

AUDIO TO PANEL: (1) 8-pin RJ45 female Bidirectional CAT5 balanced stereo audio port Output Impedance: 100 ohms balanced Maximum Output Level: 2 V Input Impedance: Infinite (unbuffered pass-thru to AUDIO OUT)

B

P-P

nominal, 1.5 V

, PR: (3) BNC female

P-P

maximum

RMS

balanced, 2 V

RMS

unbalanced

VIDEO TO PANEL: (1) 8-pin RJ45 female CAT5 balanced video output port Output Impedance: 100 ohms balanced

NET TO PANEL: (1) 4-pin 3.5mm detachable terminal block Pass-thru from NET port

LED Indicators

PWR: (green) Indicates power supplied from Cresnet network

Power Requirements

Cresnet Power Usage: 2 Watts (0.08 Amps @ 24 Volts DC)

Environmental

Temperature: 41° to 122°F (5° to 50°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Black metal, surface mount box with (2) integral mounting flanges

Dimensions

Height: 1.29 in (3.28 cm) Width: 7.30 in (18.54 cm) Depth: 3.95 in (10.03 cm)

Weight

9.7 oz (0.28 kg)

*The TPMC-CH-IMC is not compatible with QuickMedia or 10-pin RJ45 based systems.

112

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

INTERFACE MODULES AND CABLES

TPMC-L-IMC Power Interface Module

The TPMC-L-IMC is a power interface module that

is included with the TPMC-15-CH-L, TPMC-15-QM-L,

TPMC-17-CH-L, and TPMC-17-QM-L Wall Mount

Touchpanel Media Centers. The TPMC-L-IMC is

a passive device designed to facilitate the remote

placement of the touchpanel's power supply up

to 60 feet from the touchpanel using any 14 AWG,

4-conductor wire including ordinary speaker wire.

SPECIFICATIONS

Connectors

PWR IN: (1) 4-pin DC power jack Connects to 12.5 Volt DC output of PW-1280RU power supply (included with touchpanel)

PWR OUT: (2) 2-pin 7.62mm detachable terminal blocks, paralleled; Used to extend power cabling to a TPMC-15-(CH or QM)-L or TPMC-17-(CH or QM)-L wall mount touchpanel up to 60 feet using 4 conductor, 14 AWG wire

LED Indicators

PWR: (1) green LED, indicates 12.5 Volts DC power supplied from PW-1280RU power supply (included with touchpanel)

Environmental

Temperature: 41° to 122°F (5° to 50°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

Black metal, surface mount box with (2) integral mounting flanges

Dimensions

Height: 1.05 in (2.67 cm) Width: 3.43 in (8.70 cm) Depth: 2.23 in (5.66 cm)

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

113

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

INTERFACE MODULES AND CABLES

TPMC-CH-IMW CAT5 Balanced AV Interface Wall Plate

The TPMC-CH-IMW is a wall plate version of the

TPMC-CH-IMC interface module, providing a wall

plate connection for new Isys®TPS and TPMC-CH

series touchpanels that utilize Crestron Home®(CH)

CAT5 Balanced AV connectivity*. It mounts into a

2-gang electrical box and includes front panel

connections for a single “triamese” cable (provided

with the touchpanel or sold separately). Several

TPMC-CH-IMW wall plates may be installed to

facilitate connectivity for a single movable

touchpanel at multiple locations.

Wired as part of a complete Crestron Home

CAT5 AV distribution system, the TPMC-CH-IMW

requires just a single CresCAT-D cable, carrying

Cresnet, bidirectional audio, and (1) video signal

up to 500 feet within a single bundled cable (observe

distance limitations based upon power consumption

for the touchpanel in use). The TPMC-CH-IMW can

also be connected to conventional audio and coaxial

video sources.

SPECIFICATIONS

Connectors – Front Panel

NET: (1) 4-pin 3.5mm detachable terminal block, pass-thru from rear NET port

AUDIO: (1) 8-pin RJ45 female

wall mount touchpanels

Bidirectional CAT5 balanced stereo audio port Output Impedance: 100 ohms balanced Maximum Output Level: 2 V Input Impedance: Infinite (unbuffered pass-thru to rear AUDIO OUT port)

VIDEO: (1) 8-pin RJ45 female CAT5 balanced video output port Output Impedance: 100 ohms balanced

Connectors – Rear Panel

NET: (1) 4-pin 5mm detachable terminal block; Cresnet slave port, connects to Cresnet control network

VIDEO COMP/Y/Y, C/Pb, Pr: (1) 9-pin 3.5mm detachable terminal block; Provides (1) composite, S-Video, or component video input Input Impedance: 100 ohms balanced (also accepts 75 ohm unbalance); Input Level: 1 V Maximum DC Offset: 1.5 Volts Connects to any Crestron CAT5 Video Out port via CresCAT cable, or a conventional coax video source

AUDIO IN: (1) 5-pin 3.5mm detachable terminal block Balanced/unbalanced stereo line-level input Input Impedance: 20k ohm balanced, 10k ohm unbalanced

P-P

nominal, 1.5 V

RMS

P-P

maximum

Maximum Input Level: 4 V Connects to any Crestron CAT5 Audio port via CresCAT cable, or a conventional audio source

AUDIO OUT: (1) 5-pin 3.5mm detachable terminal block Balanced stereo line-level output (unbuffered pass-thru from front AUDIO port); Connects to any Crestron CAT5 Audio port via CresCAT cable, or a conventional balanced audio input

LED Indicators

PWR: (green) Indicates 24 Volts DC power supplied from Cresnet control network

Power Requirements

Cresnet Power Usage: 2 Watts (0.08 Amps @ 24 Volts DC)

Environmental

Temperature: 41° to 122°F (5° to 50°C) Humidity: 10% to 90% RH (non-condensing)

Enclosure

2-gang mountable in a standard electrical box (2.5 inch deep minimum); includes black metal front panel Decora inserts; requires Decora faceplate (provided by others)

Dimensions

Height: 4.11 in (10.44 cm) Width: 3.50 in (8.89 cm) Depth: 1.66 in (4.22 cm)

Weight

7.5 oz (0.21 kg)

*The TPMC-CH-IMW is not compatible with QuickMedia or 10-pin RJ45 based systems.

RMS

balanced, 2 V

RMS

unbalanced

®

114

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

INTERFACE MODULES AND CABLES

TPS/TPMC-CBL-T Triamese Cables for New Isys Touchpanels

The TPS/TPMC-CBL-T series of “triamese” cables

provides a clean, flexible cable solution for Crestron’s

new series of Isys 12", 15" and 17" touchpanels.

Available in 3, 6 and 9 foot lengths, these cables

are designed primarily for use in combination with

the TPMC-CH-IMC interface module. A single

TPS/TPMC-CBT-T cable may be used in place of

the 15 ft cable furnished with certain tilt model

touchpanels, and is also compatible with comparable

wall mount models wherever a short pre-made cable

solution is called for.

Each triamese cable is composed of a single Cresnet

cable terminated on each end with a 3.5mm terminal

block connector, and two (2) CAT5e cables each

terminated with 8-pin RJ45 connectors, providing

connections for Cresnet data and power, plus

bidirectional audio and (1) video signal between the

module and the touchpanel.

wall mount touchpanels

TPS/TPMC-CBL-T cables may also be used with

QuickMedia-based touchpanels to provide a clean

cable solution between the touchpanel and any

compatible QuickMedia interface device. These

cables are not compatible with older 10-pin RJ45

based touchpanels or interface modules.

AVAILABLE MODELS

TPS/TPMC-CBL-T3-B

3 foot (0.9 meters) Triamese Cable, Black

TPS/TPMC-CBL-T3-W

3 foot (0.9 meters) Triamese Cable, White

TPS/TPMC-CBL-T6-B

6 foot (1.8 meters) Triamese Cable, Black

TPS/TPMC-CBL-T6-W

6 foot (1.8 meters) Triamese Cable, White

TPS/TPMC-CBL-T9-B

9 foot (2.7 meters) Triamese Cable, Black

TPS/TPMC-CBL-T9-W

9 foot (2.7 meters) Triamese Cable, White

www.crestron.com | 800.237.2041 | 201.767.3400

115

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

INTERFACE MODULES AND CABLES

ST-PK Programming Cable Kit

The ST-PK is a programming cable kit for SmarTouch

wireless touchpanels and most Isys®touchpanels.

It is used only for loading touchpanel files, updating

firmware, and configuring the touchpanel prior to

operation. The ST-PK may also be used to update

firmware and adjust the digital audio signal processing

in Crestron's 7.1 surround sound processors and

room solution boxes.

TM

SPECIFICATIONS

Cables

3.5mm to RJ11 Cable Assembly (CNSP-585)

Provides connection between a SmarTouch wireless touchpanel and the control processor via a RJ11 Cresnet port; may require an additional CNRJ11 , ST-CNB, or C2N-HBLOCK accessory.

RJ11-to-RJ11 Cable plus RJ11-to-DB9F Adapter (STCP-502)

Provides connection between an Isys touchpanel, surround processor, or room solution box RS-232 port and PC COM port.

wall mount touchpanels

116

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

MOUNTING KITS

BB Back Boxes

BB-Series back boxes provide a recess-mounted

steel enclosure for Isys wall mount touchpanels.

Designed for pre-construction applications, these

back boxes permit fastening to the studs of a framed

wall prior to installation of sheet rock. An assortment

of knockouts is provided to accommodate conduit

fittings, and a blank cover plate is included with

each model.

AVAILABLE MODELS

BB-17L

Back Box for New Isys 17” Wall Mount Touchpanels

Touchpanel Models: TPS-17L, TPMC-17-QM-L, TPMC-17-CH-L Dimensions (HWD):

14.34 x 17.00 x 3.31 in (36.42 x 43.17 x 8.41 cm)

BB-15L

Back Box for New Isys 15" Wall Mount Touchpanels

Touchpanel Models: TPS-15L, TPS-15G-QM-L, TPMC-15-QM-L, TPMC-15-CH-L Dimensions (HWD):

13.97 x 14.31 x 3.31 in (35.49 x 36.36 x 8.41 cm)

BB-12L

Back Box for New Isys 12" Wall Mount Touchpanels

Touchpanel Models: TPS-12L, TPS-12G-QM-L Dimensions (HWD):

12.17 x 13.75 x 3.31 in (30.92 x 34.92 x 8.41 cm)

BB-4000L

Back Box for Isys 10.4" Wall Mount Touchpanels

Touchpanel Models: TPS-4000L Dimensions (HWD):

9.18 x 12.75 x 3.31 in (23.32 x 32.37 x 8.41 cm)

BB-3100L

Back Box for Isys 6.4" Wall Mount Touchpanels

Touchpanel Models: TPS-3100L Dimensions (HWD):

6.69 x 9.34 x 3.31 in (16.97 x 23.73 x 8.41 cm)

BB-2000L

Back Box for Isys 5" Wall Mount Touchpanels

Touchpanel Models: TPS-2000L Dimensions (HWD):

6.69 x 7.62 x 3.31 in (16.97 x 16.51 x 8.41 cm)

BB-4L

Back Box for Isys 3.6" Wall Mount Touchpanels

Touchpanel Models: TPS-4L Dimensions (HWD):

5.79 x 6.93 x 3.31 in (14.71 x 17.60 x 8.41 cm)

AVAILABLE ACCESSORIES

TMK

Trim Rings

MMK

Mud Rings

Note: Dimensions shown do not include mounting brackets; consult the installation manual for actual cutout dimensions, clearances, and complete mounting instructions.

wall mount touchpanels

www.crestron.com | 800.237.2041 | 201.767.3400

117

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

MOUNTING KITS

PMK Pre-Construction Mounting Kits

PMK-Series mounting kits provide a nail-in solution

for installing Isys wall mount touchpanels. Designed

for pre-construction applications, these mounting

kits permit fastening to the studs of a framed wall

prior to installation of sheet rock. A blank cover

plate is included with each model.

AVAILABLE MODELS

PMK-17L

Pre-construction Mounting Kit for New Isys 17" Wall Mount Touchpanels

Touchpanel Models: TPS-17L, TPMC-17-QM-L, TPMC-17-CH-L

PMK-15L

Pre-construction Mounting Kit for New Isys 15" Wall Mount Touchpanels

Touchpanel Models: TPS-15L, TPS-15G-QM-L, TPMC-15-QM-L, TPMC-15-CH-L

PMK-12L

Pre-construction Mounting Kit for New Isys 12" Wall Mount Touchpanels

Touchpanel Models: TPS-12L, TPS-12G-QM-L

PMK-4000L

Pre-construction Mounting Kit for Isys 10.4" Wall Mount Touchpanels

Touchpanel Models: TPS-4000L

PMK-3100L

wall mount touchpanels

Pre-construction Mounting Kit for Isys 6.4" Wall Mount Touchpanels

Touchpanel Models: TPS-3100L

PMK-2000L

Pre-construction Mounting Kit for Isys 5" Wall Mount Touchpanels

Touchpanel Models: TPS-2000L

PMK-4L

Pre-construction Mounting Kit for Isys 3.6" Wall Mount Touchpanels

Touchpanel Models: TPS-4L

118

AVAILABLE ACCESSORIES

TMK

Trim Rings

MMK

Mud Rings

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

MOUNTING KITS

TMK Trim Rings

TMK-Series trim rings are optional accessories

designed for use with BB-Series back boxes and

PMK-Series mounting kits to provide a smooth

edge around the opening and compensate for

minor drywall cutout imperfections.

AVAILABLE MODELS

TMK-17L

Trim Ring for BB-17L or PMK-17L

TMK-15L

Trim Ring for BB-15L or PMK-15L

TMK-12L

Trim Ring for BB-12L or PMK-12L

TMK-4000L

Trim Ring for BB-4000L or PMK-4000L

TMK-3100L

Trim Ring for BB-3100L or PMK-3100L

TMK-2000L

Trim Ring for BB-2000L or PMK-2000L

TMK-4L

Trim Ring for BB-4L or PMK-4L

wall mount touchpanels

MMK Mud Rings

MMK-Series mud rings are optional accessories

designed for use with BB-Series back boxes

and PMK-Series mounting kits to compensate

for significant drywall cutout imperfections. The

addition of a mud ring provides an appropriate

surface for the application of plaster for a finished

appearance.

AVAILABLE MODELS

MMK-17L

Mud Ring for BB-17L or PMK-17L

MMK-15L

Mud Ring for BB-15L or PMK-15L

MMK-12L

Mud Ring for BB-12L or PMK-12L

MMK-4000L

Mud Ring for BB-4000L or PMK-4000L

MMK-3100L

Mud Ring for BB-3100L or PMK-3100L

MMK-2000L

Mud Ring for BB-2000L or PMK-2000L

MMK-4L

Mud Ring for BB-4L or PMK-4L

www.crestron.com | 800.237.2041 | 201.767.3400

119

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

MOUNTING KITS

WMKT Post-Construction Mounting Kits w/Trim Ring

WMKT-Series mounting kits provide a quick solution

for installing Isys wall mount touchpanels in an

existing wall or similar flat surface. Designed for

post-construction applications, these mounting kits

each include a TMK-Series trim ring to provide a

smooth edge around the opening and compensate

for minor drywall cutout imperfections.

WMKT-Series Mounting kits are also advised

for lectern mount installations.

AVAILABLE MODELS

WMKT-17L*

Lectern Mounting Kit for New Isys 17" Wall Mount Touchpanels

Touchpanel Models: TPS-17L, TPMC-17-QM-L, TPMC-17-CH-L

WMKT-15L

Post-construction Mounting Kit w/Trim Ring for New Isys 15" Wall Mount Touchpanels

Touchpanel Models: TPS-15L, TPS-15G-QM-L, TPMC-15-QM-L, TPMC-15-CH-L

WMKT-12L

Post-construction Mounting Kit w/Trim Ring for New Isys 12" Wall Mount Touchpanels

Touchpanel Models: TPS-12L, TPS-12G-QM-L

WMKT-4000L

Post-construction Mounting Kit w/Trim Ring

wall mount touchpanels

for Isys 10.4" Wall Mount Touchpanels

Touchpanel Models: TPS-4000L

WMKT-3100L

Post-construction Mounting Kit w/Trim Ring for Isys 6.4" Wall Mount Touchpanels

Touchpanel Models: TPS-3100L

WMKT-2000L

Post-construction Mounting Kit w/Trim Ring for Isys 5" Wall Mount Touchpanels

Touchpanel Models: TPS-2000L

WMKT-4L

Post-construction Mounting Kit w/Trim Ring for Isys 3.6" Wall Mount Touchpanels

Touchpanel Models: TPS-4L

120

* Due to weight considerations, the WMKT-17L is not intended for wall mount applications.

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

MOUNTING KITS

WMKM Post-Construction Mounting Kits w/Mud Ring

WMKM-Series mounting kits provide a quick solution

for installing Isys wall mount touchpanels in an

existing wall or similar flat surface. Designed for

post-construction applications, these mounting kits

each include a MMK-Series mud ring to compensate

for significant drywall cutout imperfections.

AVAILABLE MODELS

WMKM-15L

Post-construction Mounting Kit w/Mud Ring for New Isys 15" Wall Mount Touchpanels

Touchpanel Models: TPS-15L, TPS-15G-QM-L, TPMC-15-QM-L, TPMC-15-CH-L

WMKM-12L

Post-construction Mounting Kit w/Mud Ring for New Isys 12" Wall Mount Touchpanels

Touchpanel Models: TPS-12L, TPS-12G-QM-L

WMKM-4000L

Post-construction Mounting Kit w/Mud Ring for Isys 10.4" Wall Mount Touchpanels

Touchpanel Models: TPS-4000L

WMKM-3100L

Post-construction Mounting Kit w/Mud Ring for Isys 6.4" Wall Mount Touchpanels

Touchpanel Models: TPS-3100L

WMKM-2000L

Post-construction Mounting Kit w/Mud Ring for Isys 5" Wall Mount Touchpanels

Touchpanel Models: TPS-2000L

WMKM-4L

Post-construction Mounting Kit w/Mud Ring for Isys 3.6" Wall Mount Touchpanels

Touchpanel Models: TPS-4L

wall mount touchpanels

WMKB-4L Wall Mount Clips for TPS-4L (10 Sets)

The WMKB-4L is a package containing 10 sets of 4 wall mount clips identical to those included with each TPS-4L touchpanel. Designed specifically for the TPS-4L, these clips provide a quick and costeffective alternative to other mounting kits.

www.crestron.com | 800.237.2041 | 201.767.3400

121

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

MOUNTING KITS

RMK Rack Mount Kits

RMK-Series rack mount kits are optional accessories for Isys wall mount touchpanels designed to allow for installation of the touchpanel in a 19" EIA equipment rack.

AVAILABLE MODELS

RMK-17L

Rack Mount Kit for New Isys 17" Wall Mount Touchpanels

Touchpanel Models: TPS-17L, TPMC-17-QM-L, TPMC-17-CH-L Rack Spaces: Nine (9)

RMK-15L

Rack Mount Kit for New Isys 15" Wall Mount Touchpanels

Touchpanel Models: TPS-15L, TPS-15G-QM-L, TPMC-15-QM-L, TPMC-15-CH-L Rack Spaces: Nine (9)

RMK-12L

Rack Mount Kit for New Isys 12" Wall Mount Touchpanels

Touchpanel Models: TPS-12L, TPS-12G-QM-L Rack Spaces: Eight (8)

RMK-4000L

Rack Mount Kit for Isys 10.4" Wall Mount Touchpanels

Touchpanel Models: TPS-4000L Rack Spaces: Six (6)

RMK-3100L

Rack Mount Kit for Isys 6.4" Wall Mount Touchpanels

wall mount touchpanels

Touchpanel Models: TPS-3100L Rack Spaces: Five (5)

122

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

FACEPLATES AND BUTTONS

TPS-FPAR Architectural Series Faceplates

Architectural series faceplates enhance the

appearance of Isys wall mount touchpanels

with a distinctive style ideally suited to today’s

contemporary interiors. Elegantly crafted of a

luminum, Architectural series faceplates are

offered in a variety of luxurious finishes.

Button caps are not included, and a “no button”

option can be ordered for select touchpanel

models to effectively eliminate the pushbuttons,

exposing only the touchscreen display.

AVAILABLE MODELS

For TPS-4000L 10.4" Isys Wall Mount Touchpanel

TPS-FPAR4000L-A* Almond TPS-FPAR4000L-W* White TPS-FPAR4000L-A/BLK* Black Anodized TPS-FPAR4000L-S/STEEL* Stainless Steel**

For TPS-3100L 6.4" Isys Wall Mount Touchpanel

TPS-FPAR3100L-A* Almond TPS-FPAR3100L-W* White TPS-FPAR3100L-A/BLK* Black Anodized TPS-FPAR3100L-S/STEEL* Stainless Steel**

For TPS-2000L 5" Isys Wall Mount Touchpanel

TPS-FPAR2000L-A Almond TPS-FPAR2000L-W White TPS-FPAR2000L-A/BLK Black Anodized TPS-FPAR2000L-S/STEEL Stainless Steel** TPS-FPAR2000L-A-NB* Almond, no button holes TPS-FPAR2000L-W-NB* White, no button holes TPS-FPAR2000L-A/BLK-NB* Black Anodized, no button holes TPS-FPAR2000L-S/STEEL-NB* Stainless Steel**, no button holes

wall mount touchpanels

* Available by special order - allow 60 days for delivery.

** Aluminum composition; may not be suitable for sterile environments.

Architectural Finishes

Almond Anodized

www.crestron.com | 800.237.2041 | 201.767.3400

Black

White Stainless

Steel

123

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

FACEPLATES AND BUTTONS

TPS-FP Designer Series and Standard Faceplates

Designer faceplates are available for the Isys

TPS-2000L 5" wall mount touchpanel to enable

a customized appearance to match any décor.

Designer faceplates are offered in a variety of

elegant metallic finishes inset within plastic trim.

A primed metal surface option is available to

accommodate paint or wallpaper.

Standard plastic faceplates are also available

in white, black, or almond.

All faceplates include a set of 10 button caps

with custom laser engraving.

AVAILABLE MODELS

Designer Series – Engraving Available On Buttons Only

TPS-FP-BLK/CHR Black Chrome with black trim and buttons TPS-FP-BR/GLD Brushed Gold with black trim and buttons TPS-FP-P/BLK Polished Black with black trim and buttons TPS-FP-P/BRAS Polished Brass with black trim and buttons TPS-FP-P/GLD Polished Gold with black trim and buttons TPS-FP-S/STEEL Stainless Steel* with black trim and buttons TPS-FPINA Primed metal faceplate with almond trim and buttons TPS-FPINB Primed metal faceplate with black trim and buttons TPS-FPINW Primed metal faceplate with white trim and buttons

Standard – Engraving Available On Buttons and Faceplate

TPS-FPA Almond faceplate and buttons TPS-FPB Black faceplate and buttons

wall mount touchpanels

TPS-FPW White faceplate and buttons

124

* Aluminum and plastic composition; may not be suitable for sterile environments.

Designer Metallic Finishes Standard Finishes

Black Chrome Brushed Gold Polished Gold Almond Black White

Polished Brass Polished Black Stainless Steel

www.crestron.com | 800.237.2041 | 201.767.3400

ISYS®WALL MOUNT TOUCHPANELS

Wall Mount Touchpanel Accessories

FACEPLATES AND BUTTONS

TPS-WPK Water Resistant Cover Kit (4 Pack)

TPS-WPK covers are great for protecting the Isys

TPS-2000L 5" wall mount touchpanel wherever it

is likely to be exposed to moisture or dampness

such as basements, pools, boathouses, bathrooms,

laundries and garages. Each TPS-WPK kit contains

four urethane covers, which install easily over the

faceplate of the touchpanel. Without hindering normal

use, they effectively prevent liquids and other airborne

materials from settling onto the face of the panel.

Please note that Crestron touchpanels are not

intended to be exposed to the elements or used

under conditions exceeding the environmental limits

of 50° to 113°F (10° to 45°C), 10% to 90% RH (non-

condensing). The TPS-WPK is designed only for use

with standard plastic faceplates with buttons.

wall mount touchpanels

Kit Contents: (4) flexible urethane covers

TPS/TPMC-4L-FP Faceplates for TPS-4L

These optional plastic faceplates are available for the

TPS-4L touchpanel in a choice of 10 designer colors

designed to harmonize with any décor and match the

popular Cameo®series keypads. Each faceplate may

be ordered with or without custom engraving.

AVAILABLE MODELS

TPS/TPMC-4L-FPA

Almond

TPS/TPMC-4L-FPB

Black

TPS/TPMC-4L-FPBT

Butter

TPS/TPMC-4L-FPCR

Cream

TPS/TPMC-4L-FPEC

Ecru

TPS/TPMC-4L-FPMS

Mustard

TPS/TPMC-4L-FPSM

Smoke

TPS/TPMC-4L-FPST

Stone

TPS/TPMC-4L-FPW

White

TPS/TPMC-4L-FPWH

Wheat

Wheat Butter Smoke Cream Mustard

Stone Ecru Black White Almond

www.crestron.com | 800.237.2041 | 201.767.3400

125

Isys Wall Mount Touchpanels diagrams

Typical Isys Wall Mount Touchpanel Application using QuickMedia

Crestron electronic TPS-12L, TPS-15L, TPS-17L, TPS-4000L, TPS-3100L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
